Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTR6049J1000AA
New — installed 2026
Real Installation · Deer Valley / Anthem
Horizontal Gas Split System Installation in Deer Valley / Anthem — February 2023
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of two split gas systems.
Deer Valley / Anthem · installed February 3, 2023
— At a Glance
Location
Deer Valley / Anthem
Completed
February 3, 2023
System Type
AC + Furnace Split System
Brand
Trane
Total Investment
$20,334
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCC009DS3HCBB
New — installed 2026
Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTR5060N1000AA
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- S8X1C100M5PSCAA
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- S8X1C080M5PSCAA
New — installed 2026
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCC007DS3HCAA
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the Heating work AZ Perfect Comfort performs across Anthem, AZ. You can browse more real Horizontal Gas Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Fred, Javier & Andrew from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 101 PSIG
- Liquid pressure
- 308 PSIG
- Evaporator saturation
- 25.5°F
- Condensing saturation
- 105°F
- Subcooling
- 27°F

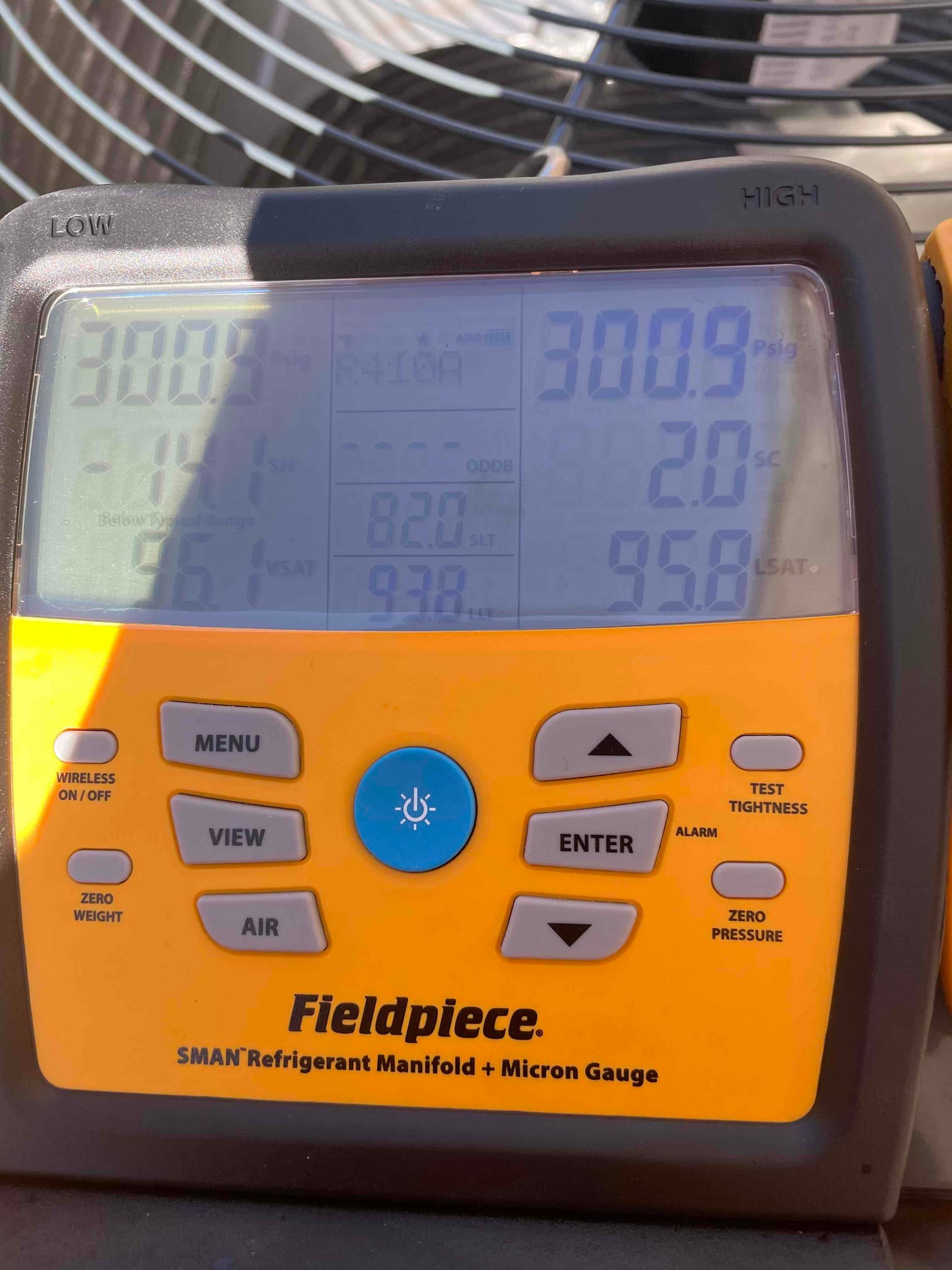

Nitrogen Pressure Test
- Test pressure held
- 300 PSIG

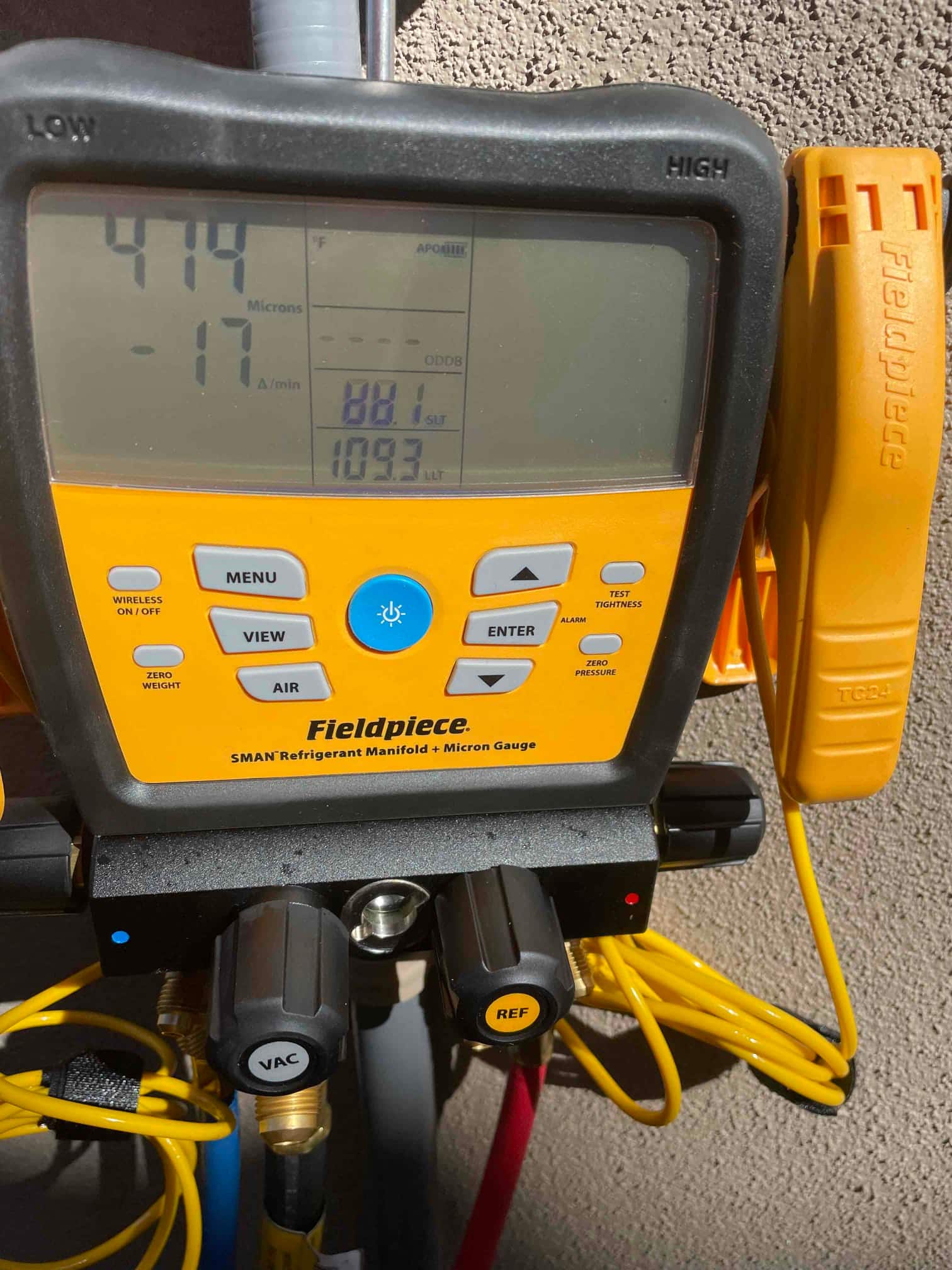

Vacuum / Evacuation
- Final vacuum reading
- 474 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 5.0-16-Ho-G | Better Efficiency, Competitive Price16 SeriesAHRI: 207148189Single Stage CompressorStandard single stage furnace with ECM motor 10yr manufacturer parts and 2 year labor warranty• New Disconnect | 1 |
| 4.0-16-Ho-G | Better Efficiency, Competitive Price16 SeriesAHRI: 207146683Single Stage CompressorStandard single stage furnace with ECM motor 10yr manufacturer parts and 2 year labor warranty• New Disconnect• E | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
20 photos from this installation
Every step of this installation was documented on-site by Fred, Javier & Andrew.

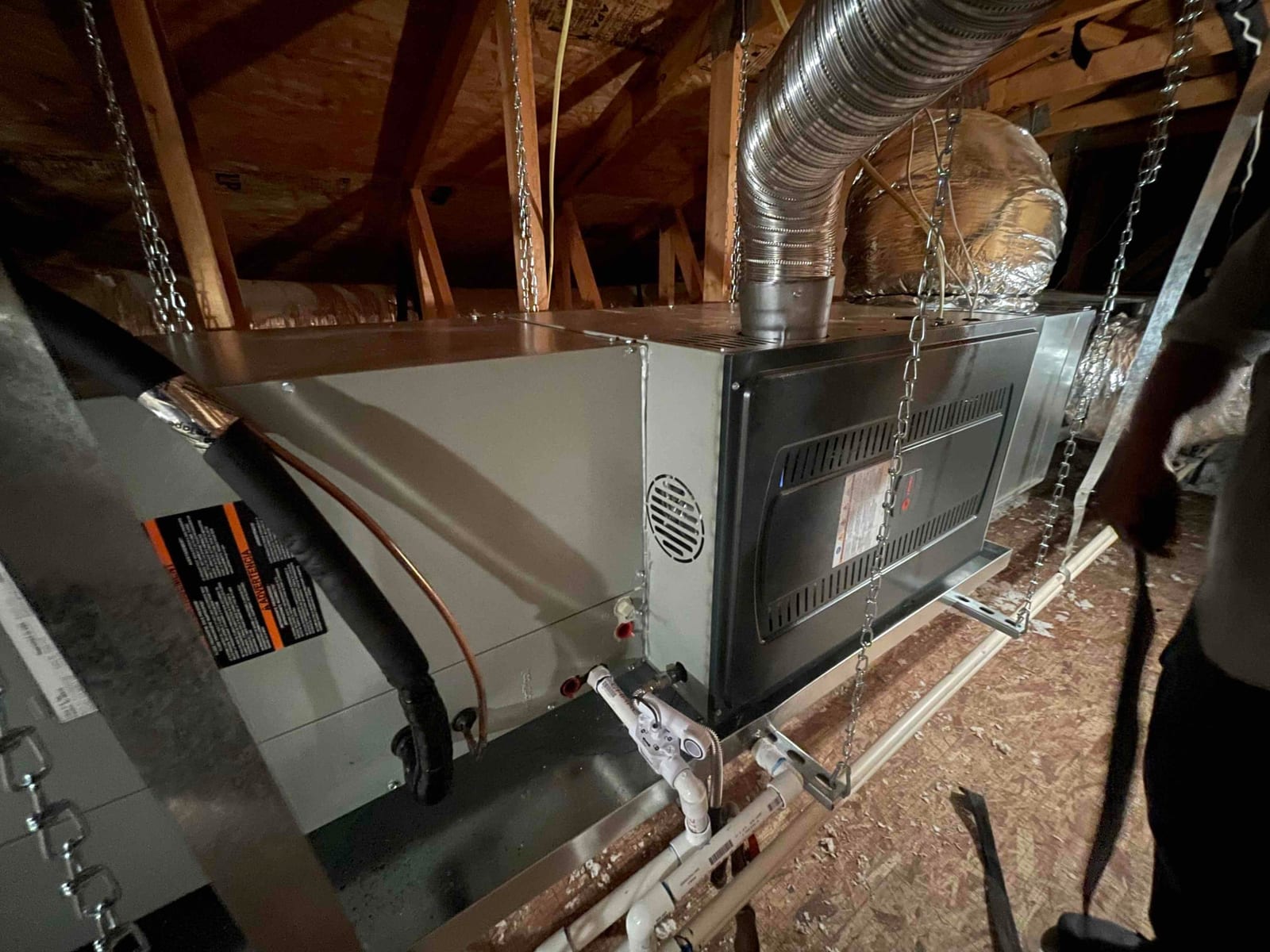

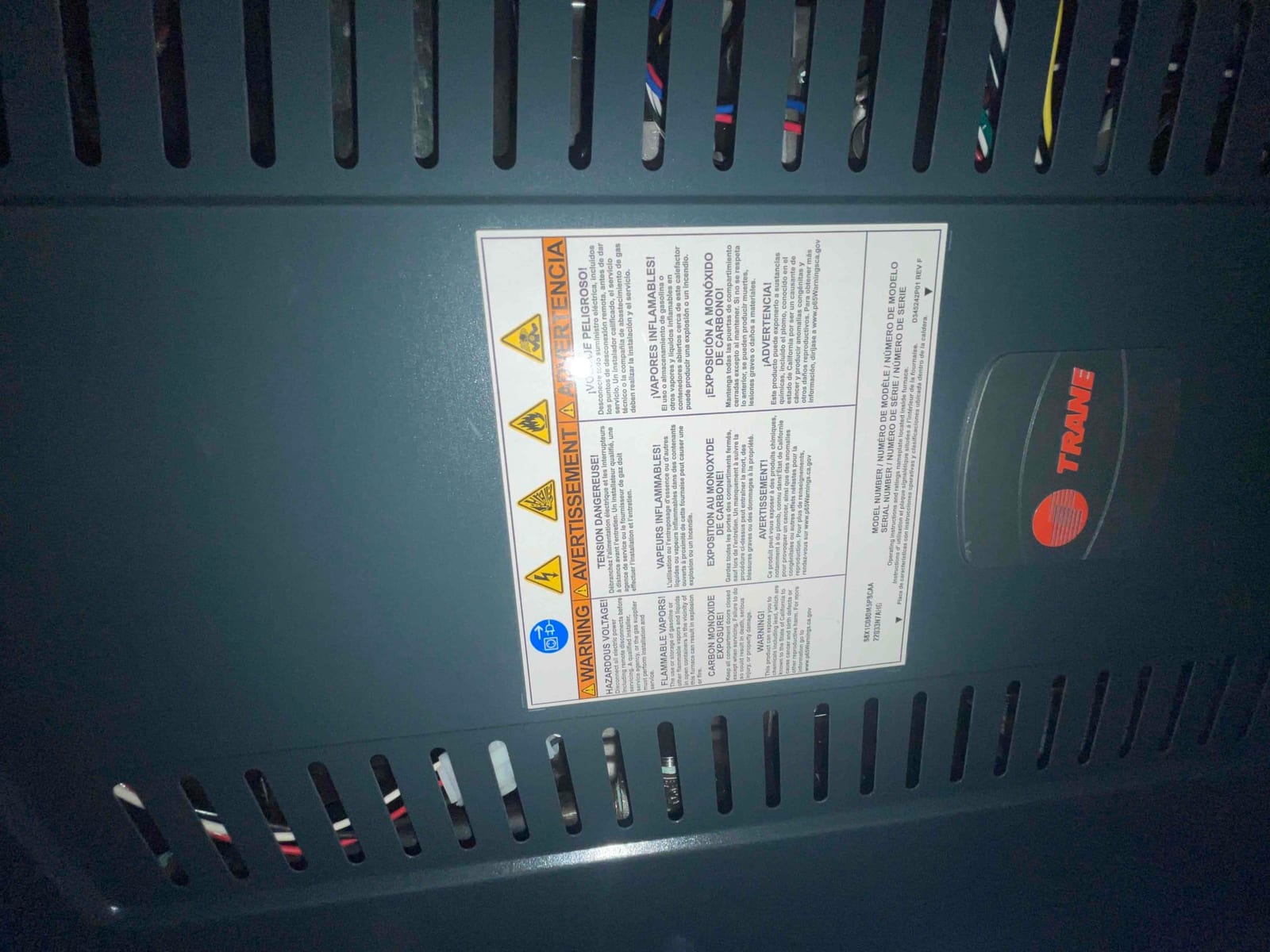

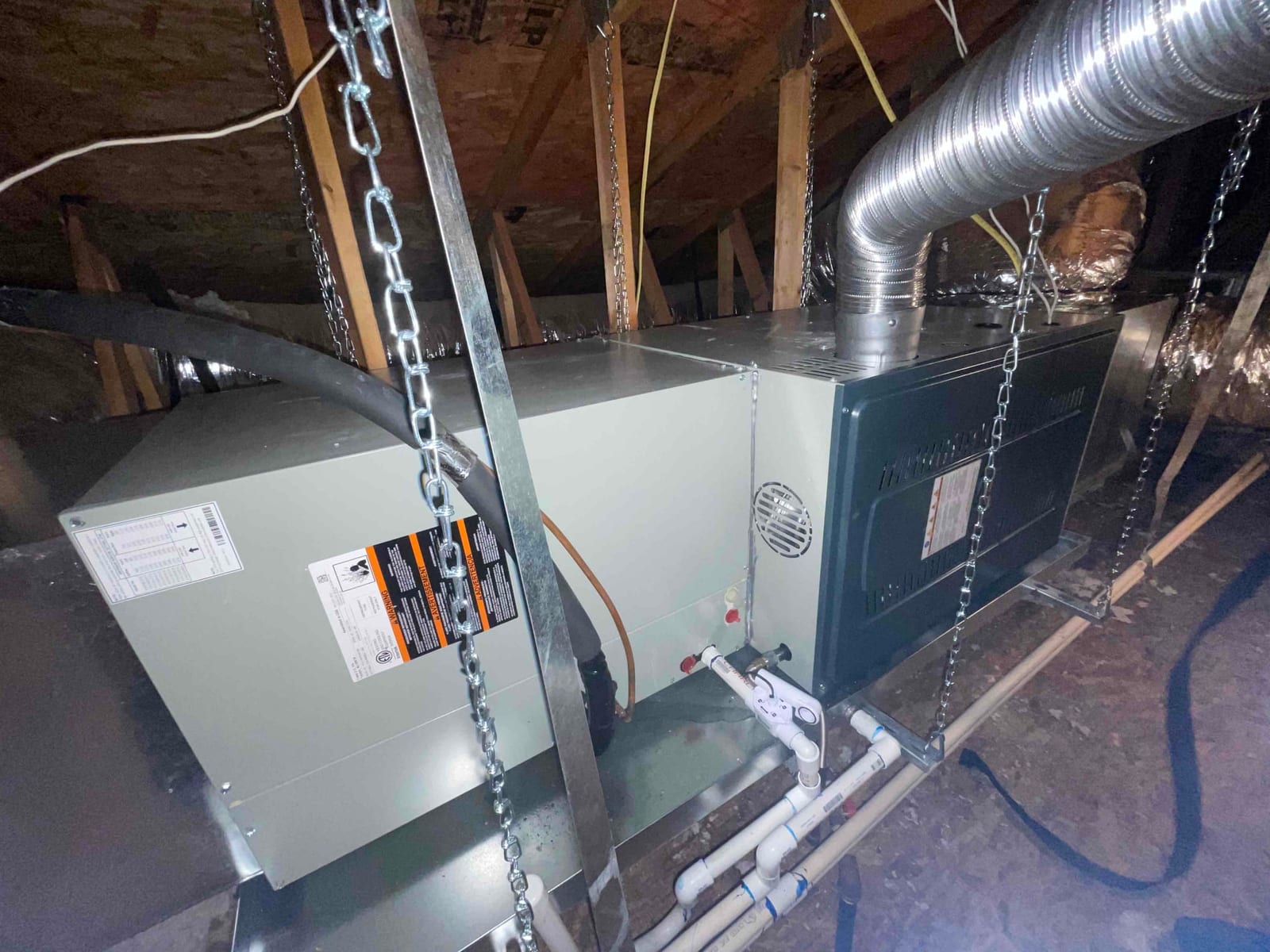

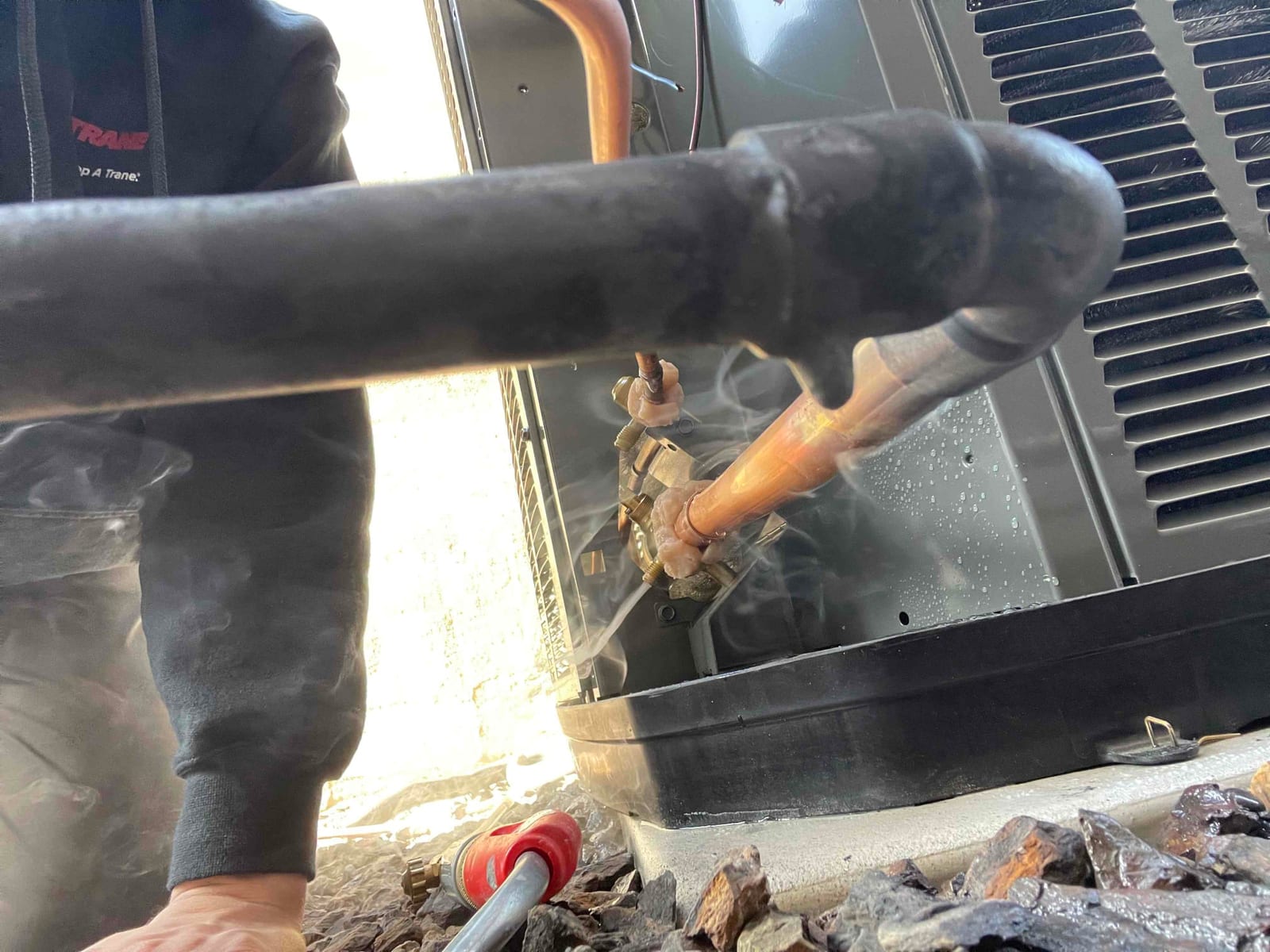

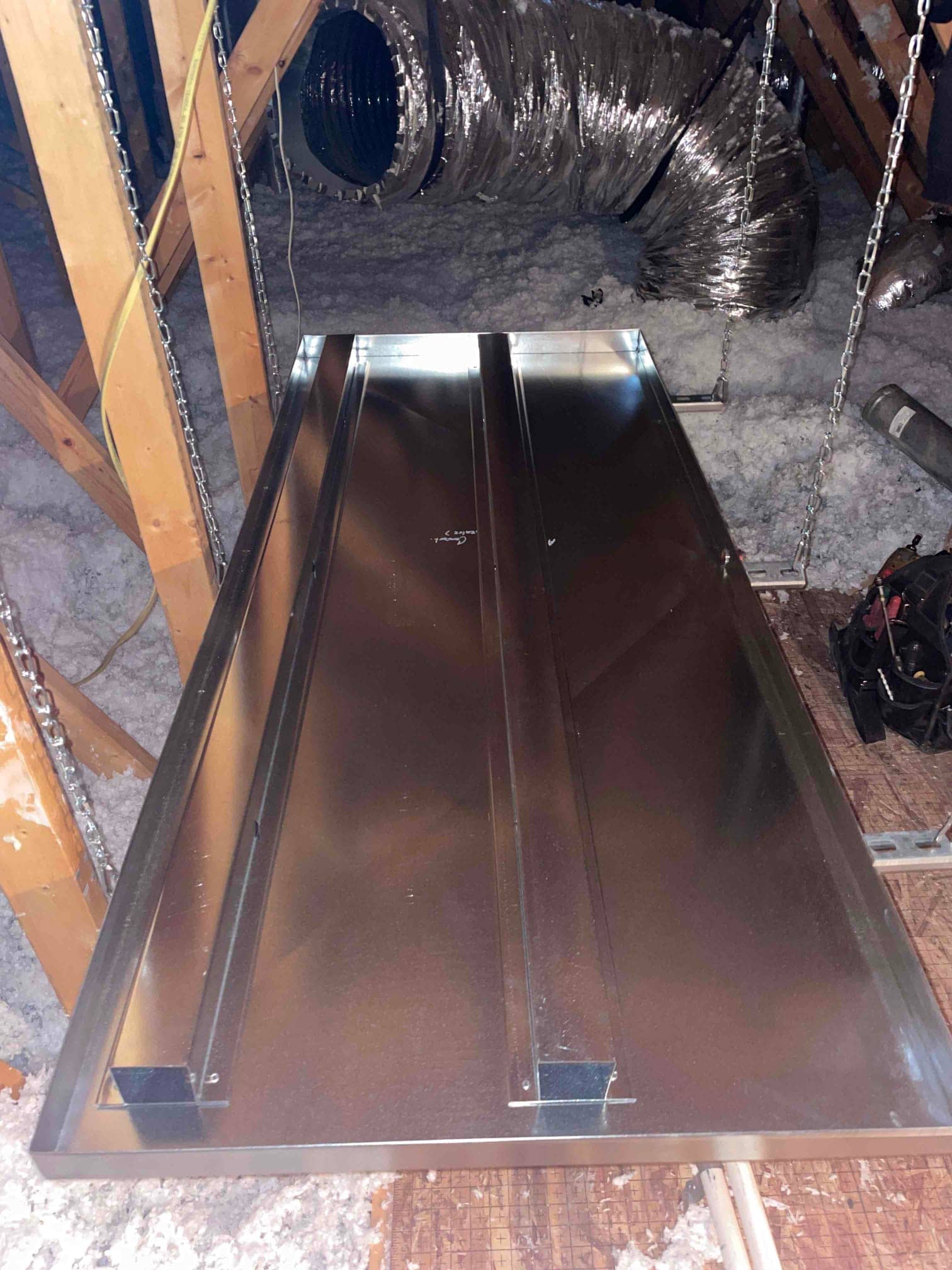

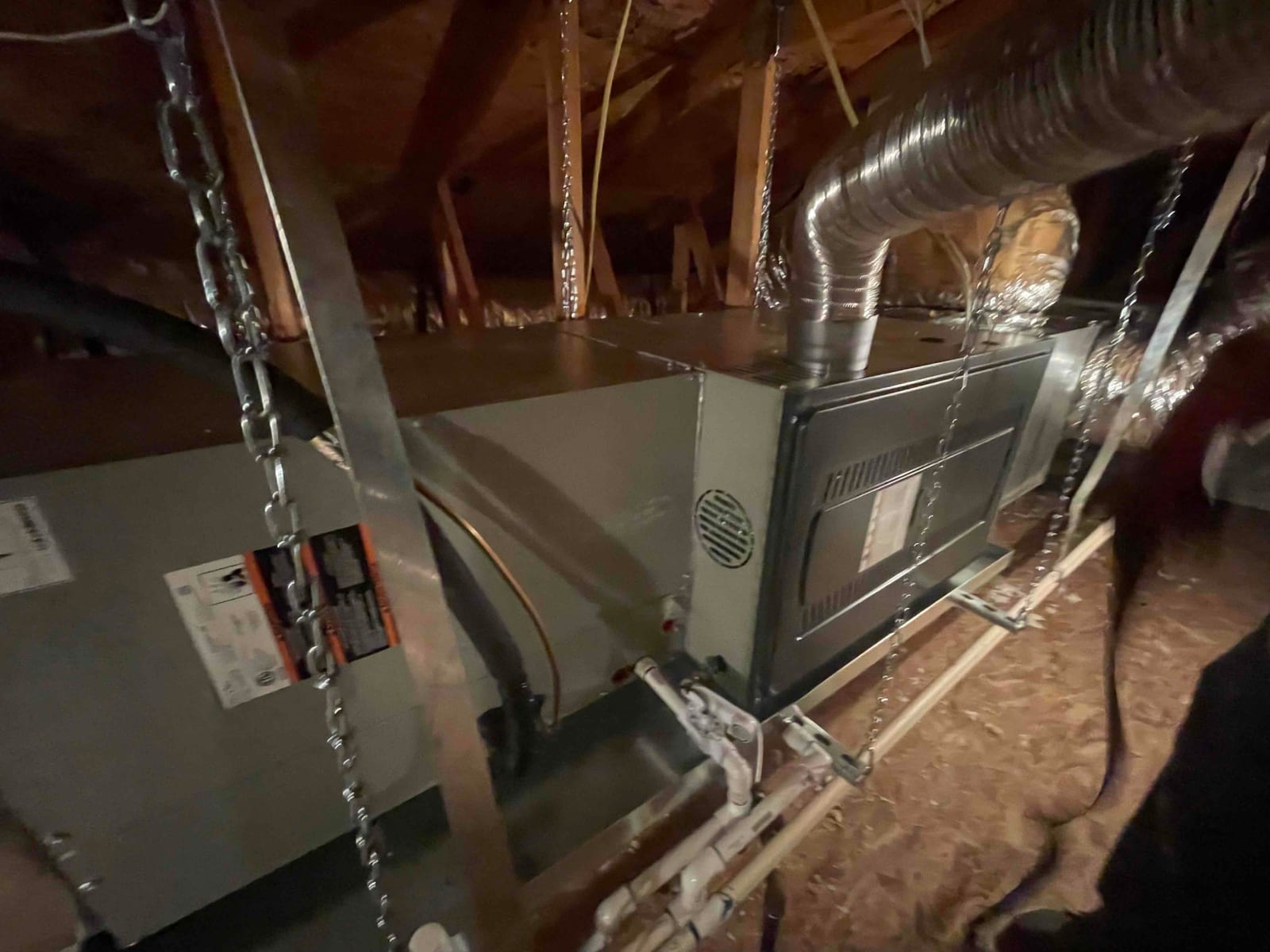

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

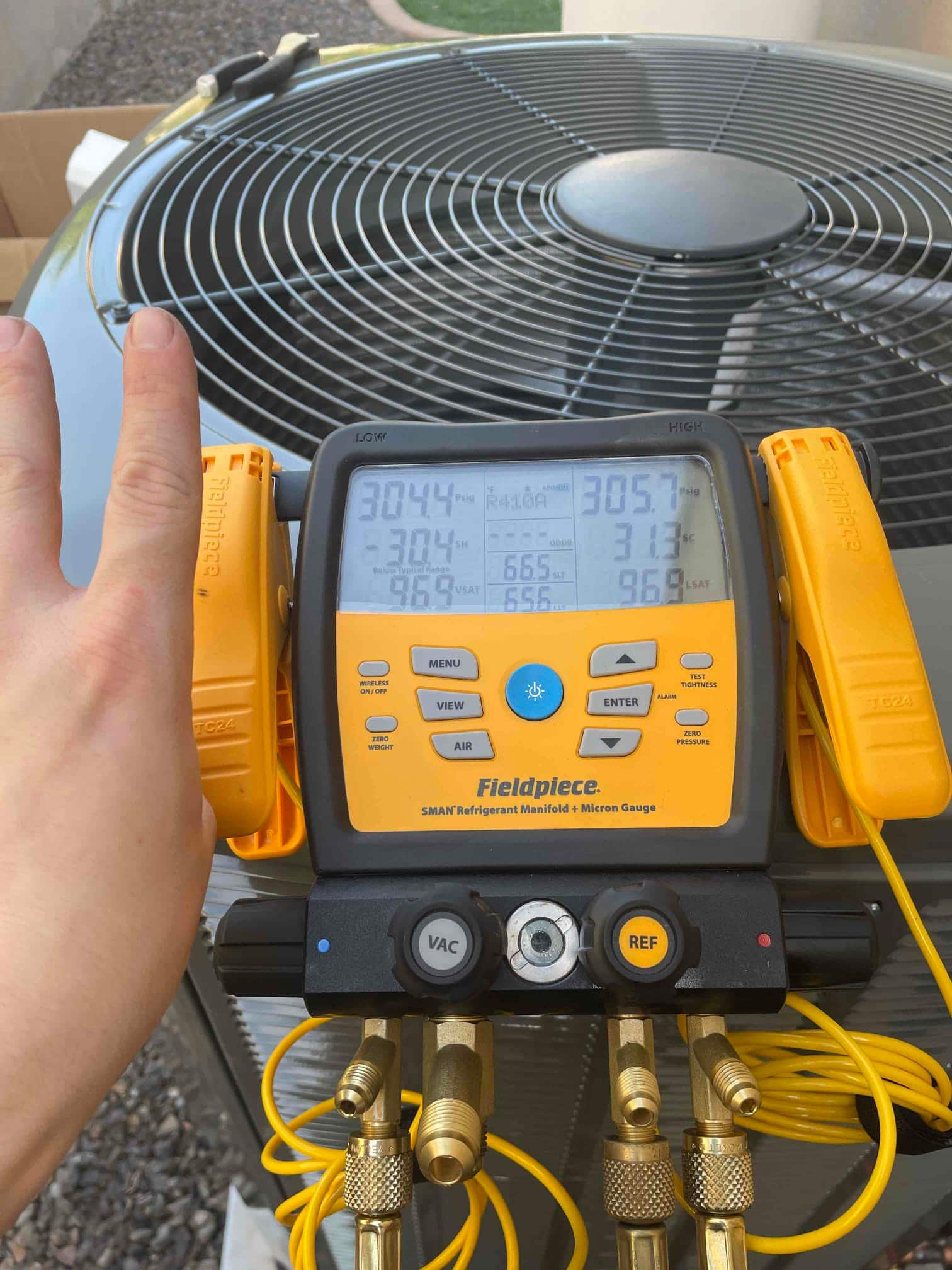

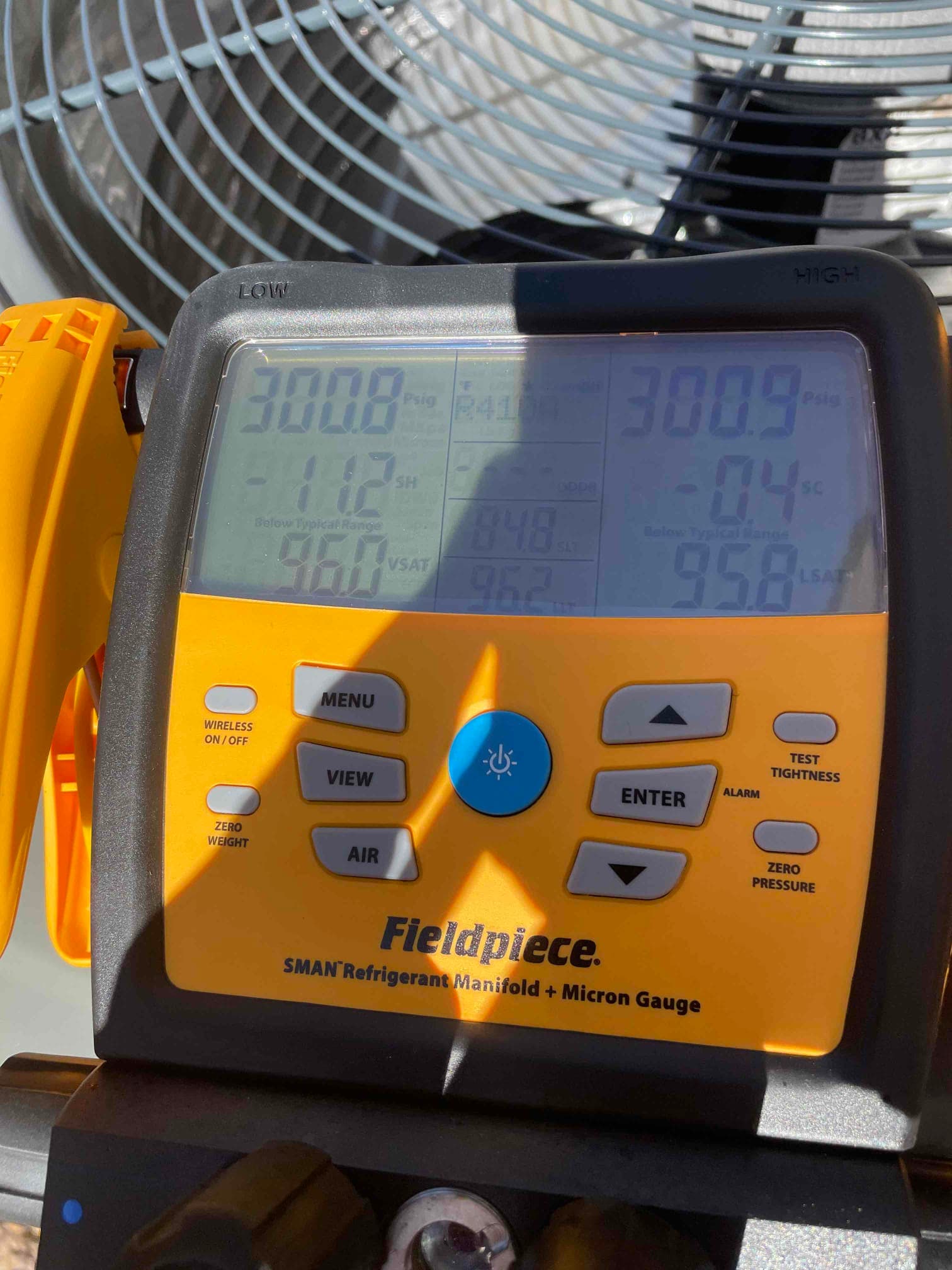

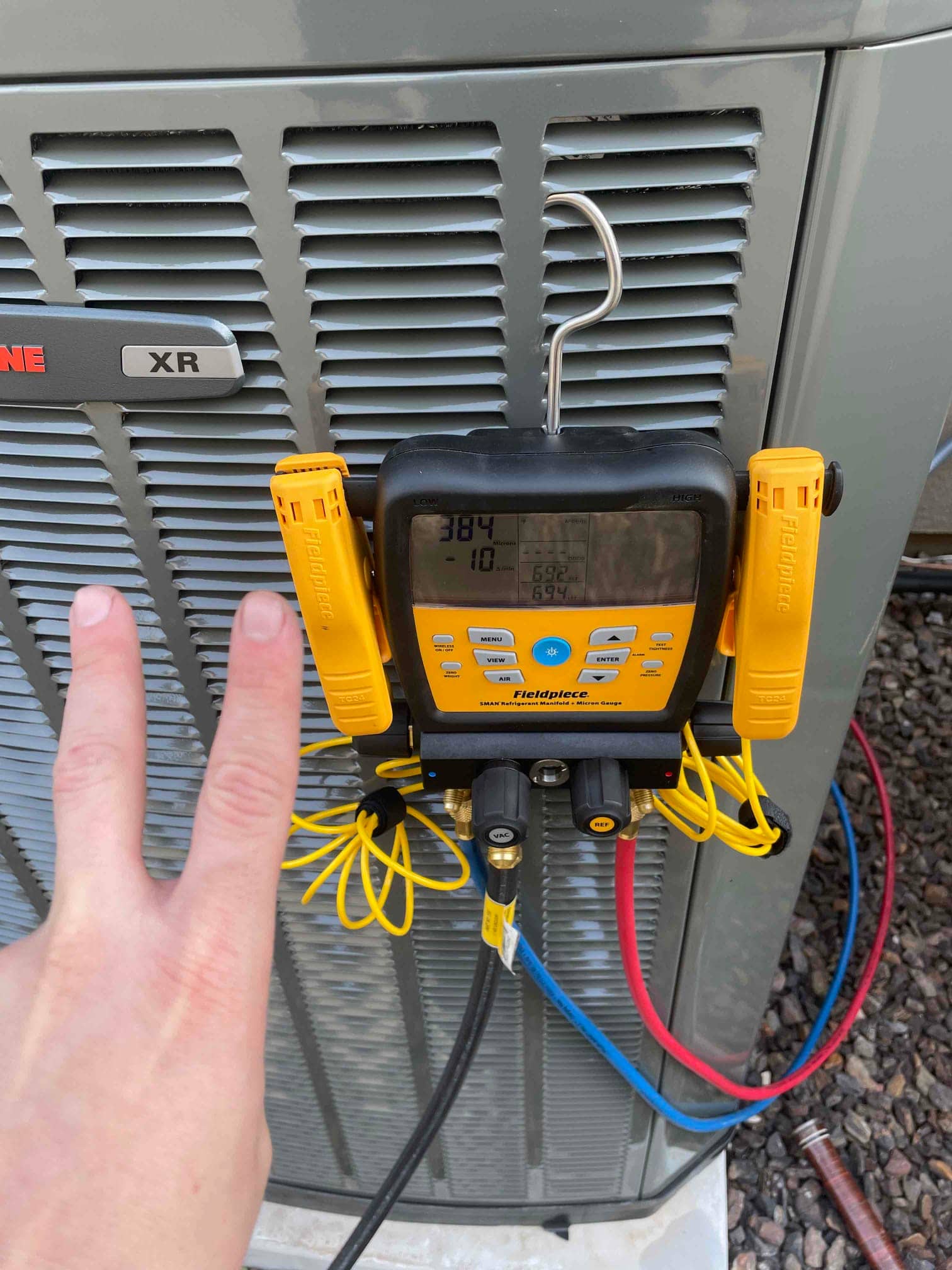

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

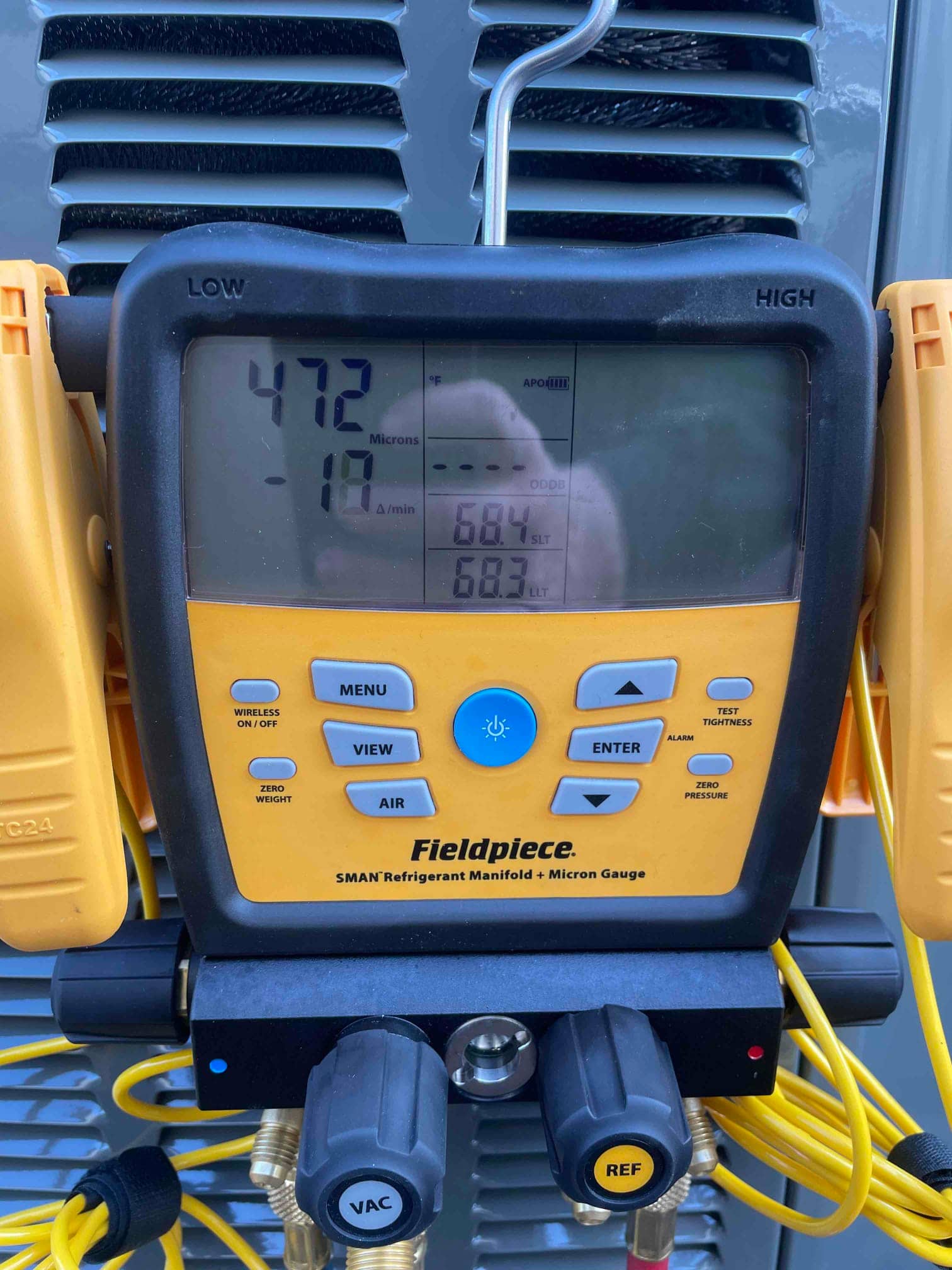

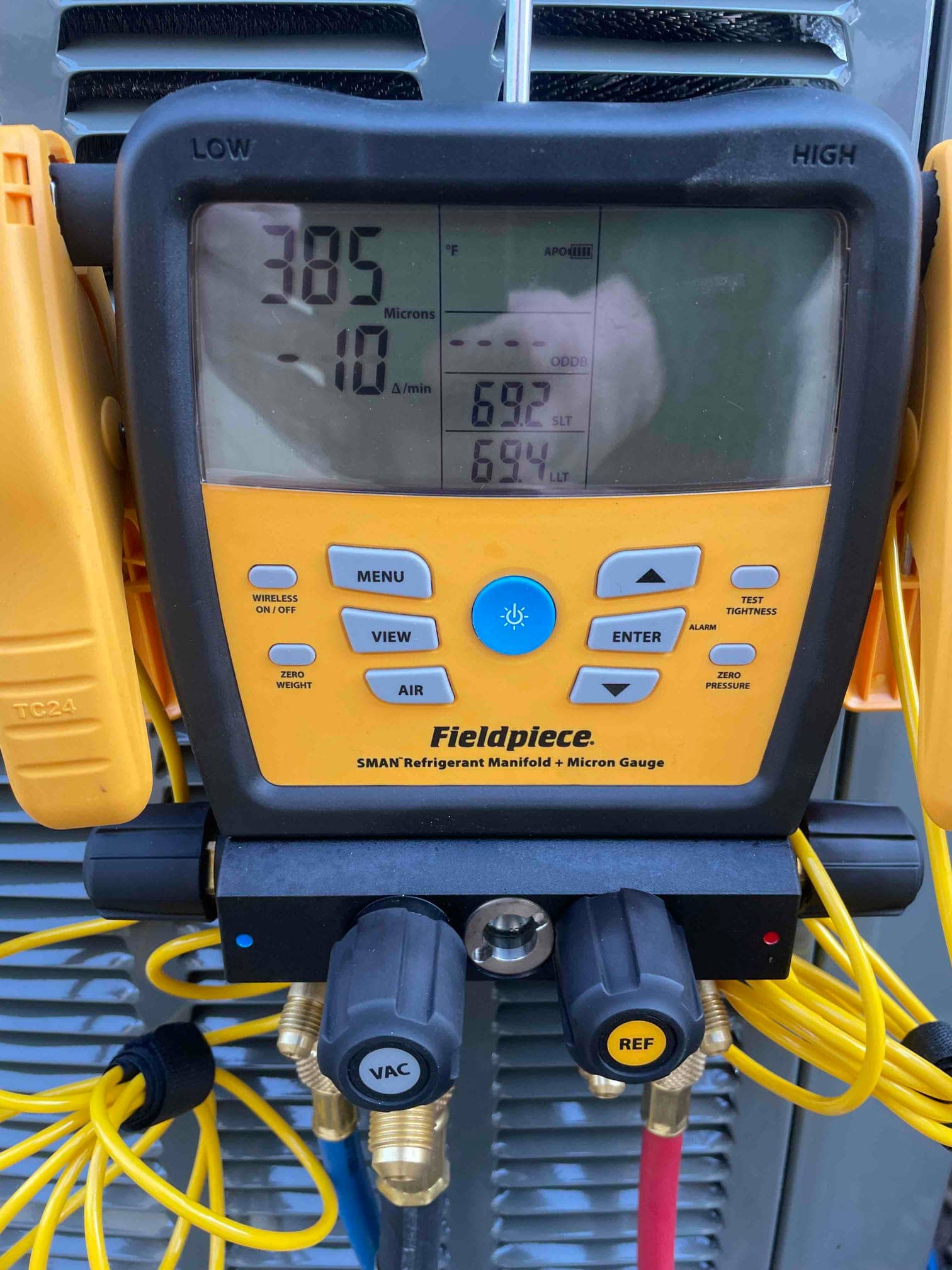

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

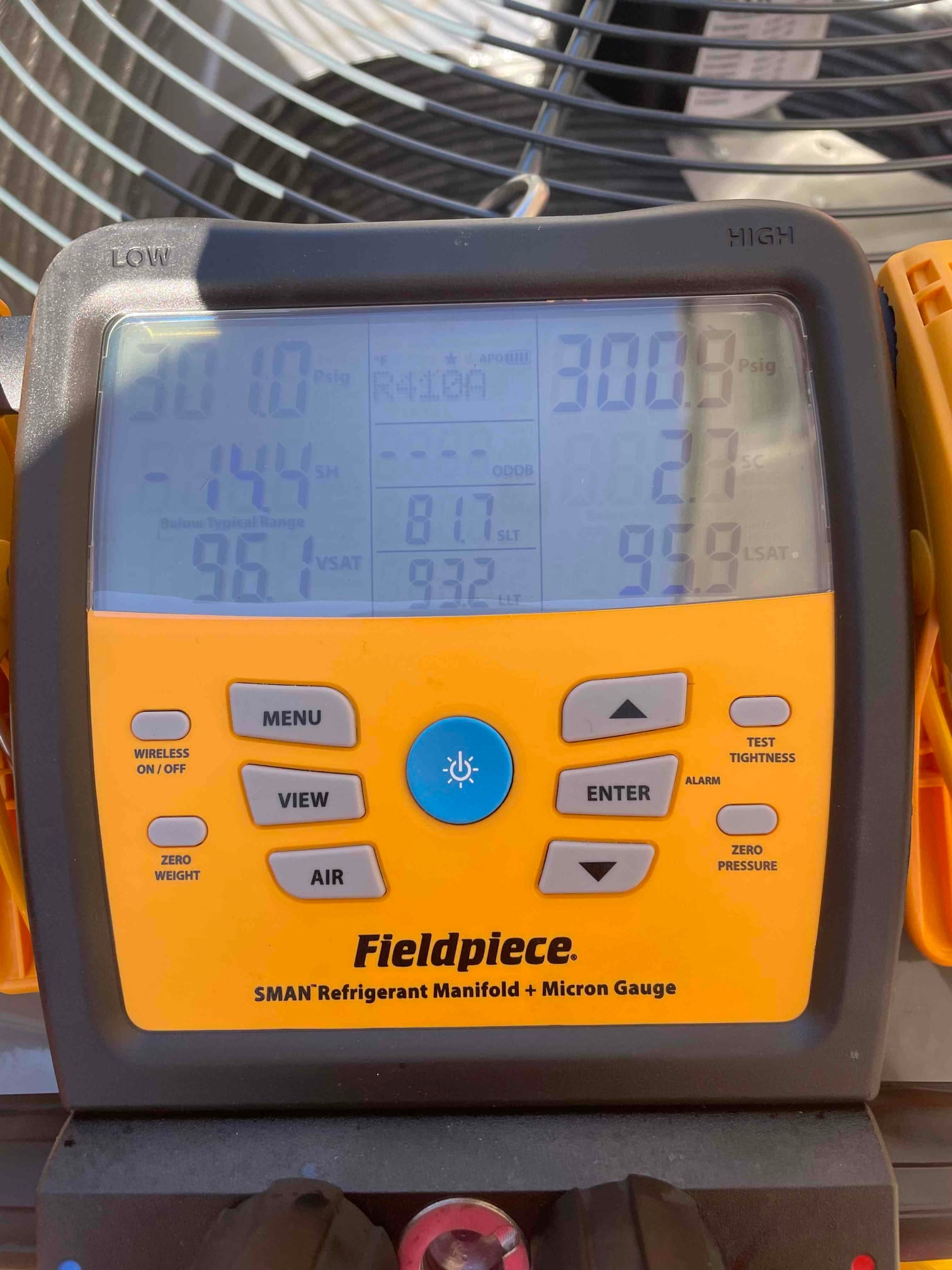

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Deer Valley / Anthem job?
The installer completed a horizontal gas split system installation to provide efficient heating and cooling for the homeowner's space. This system was chosen for its ability to fit in the designated area while delivering optimal performance.
How much does a new ac + furnace split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Deer Valley / Anthem?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Deer Valley / Anthem and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
