5-Ton Horizontal Attic Split System Installation in Deer Valley / Anthem — October 2023
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
The existing HVAC system was outdated and inefficient, prompting the need for a modern replacement to improve energy efficiency and comfort levels in the space.
Deer Valley / Anthem · installed October 27, 2023
— At a Glance
Location
Deer Valley / Anthem
Completed
October 27, 2023
System Type
AC + Furnace Split System
Capacity
5-Ton
Brand
Trane
Efficiency
16 SEER2
Total Investment
$11,649
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCC009DS3HCBB
- Matched
- 5-Ton airflow
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- S8X1C080M5PSCAA
- Matched
- 5-Ton airflow
New — installed 2026
Newly Installed

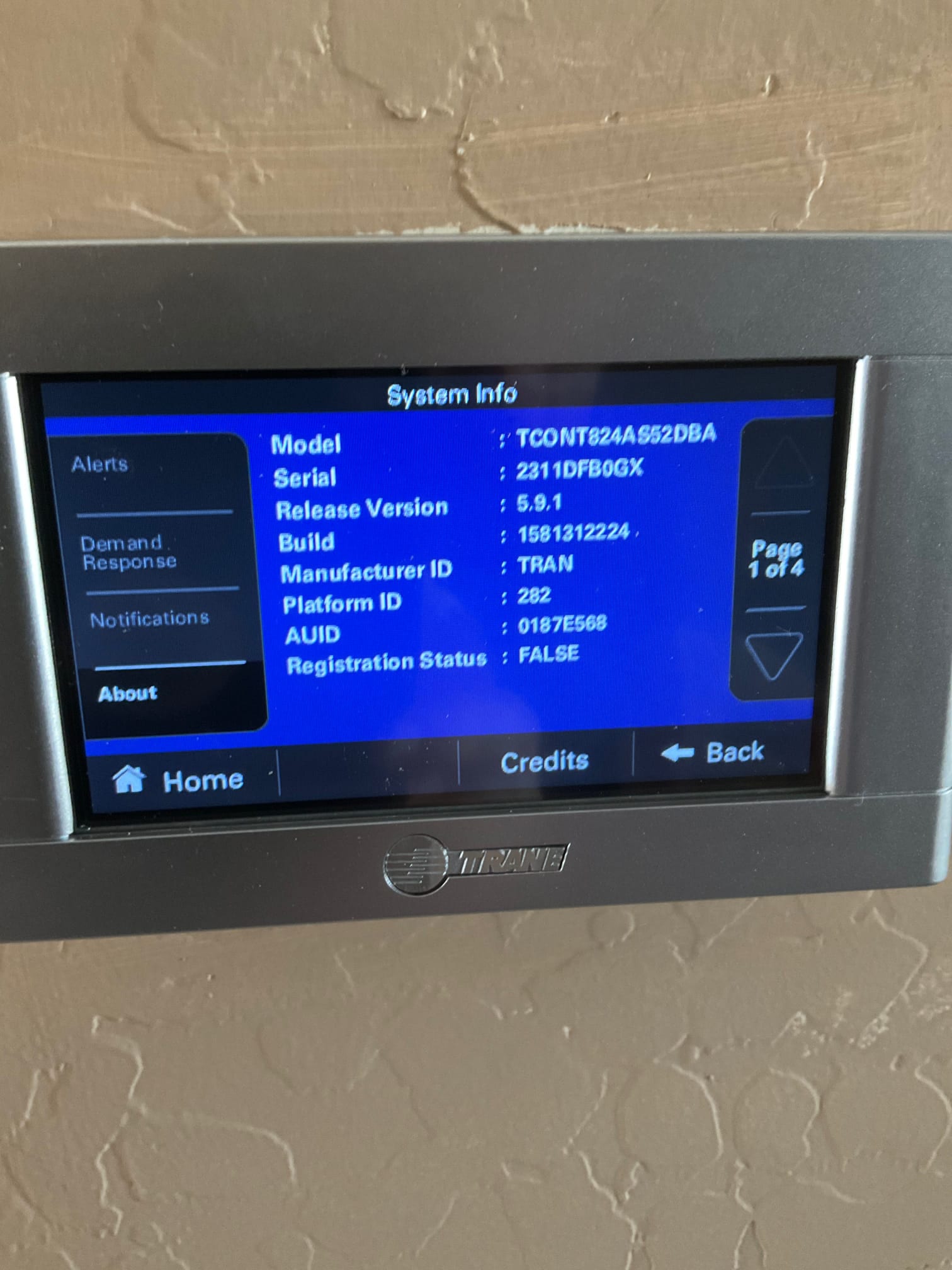

Thermostat
- Brand
- Trane
- Model
- TCONT824AS52DB
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Anthem, AZ. You can browse more real 5-Ton Horizontal Attic Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Dan, Angel & Fred from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 124 PSIG
- Liquid pressure
- 325 PSIG
- Evaporator saturation
- 38.7°F
- Condensing saturation
- 107.5°F
- Superheat
- 7°F
- Subcooling
- 5°F
Air-Side Performance
- Return-air temperature
- 73°F
- Supply-air temperature
- 60°F
- Temperature split
- 13°F
Nitrogen Pressure Test
- Test pressure held
- 391 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 201 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 516H-4TTR6060-S8X1 | 5 Ton- Horizontal 16 SEER2 Two Stage XR16 AC with Furnace. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimate/invoice. Any | 1 |
| PAD-115 | Install new condenser pad. | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
23 photos from this installation
Every step of this installation was documented on-site by Dan, Angel & Fred.
Installation Progress

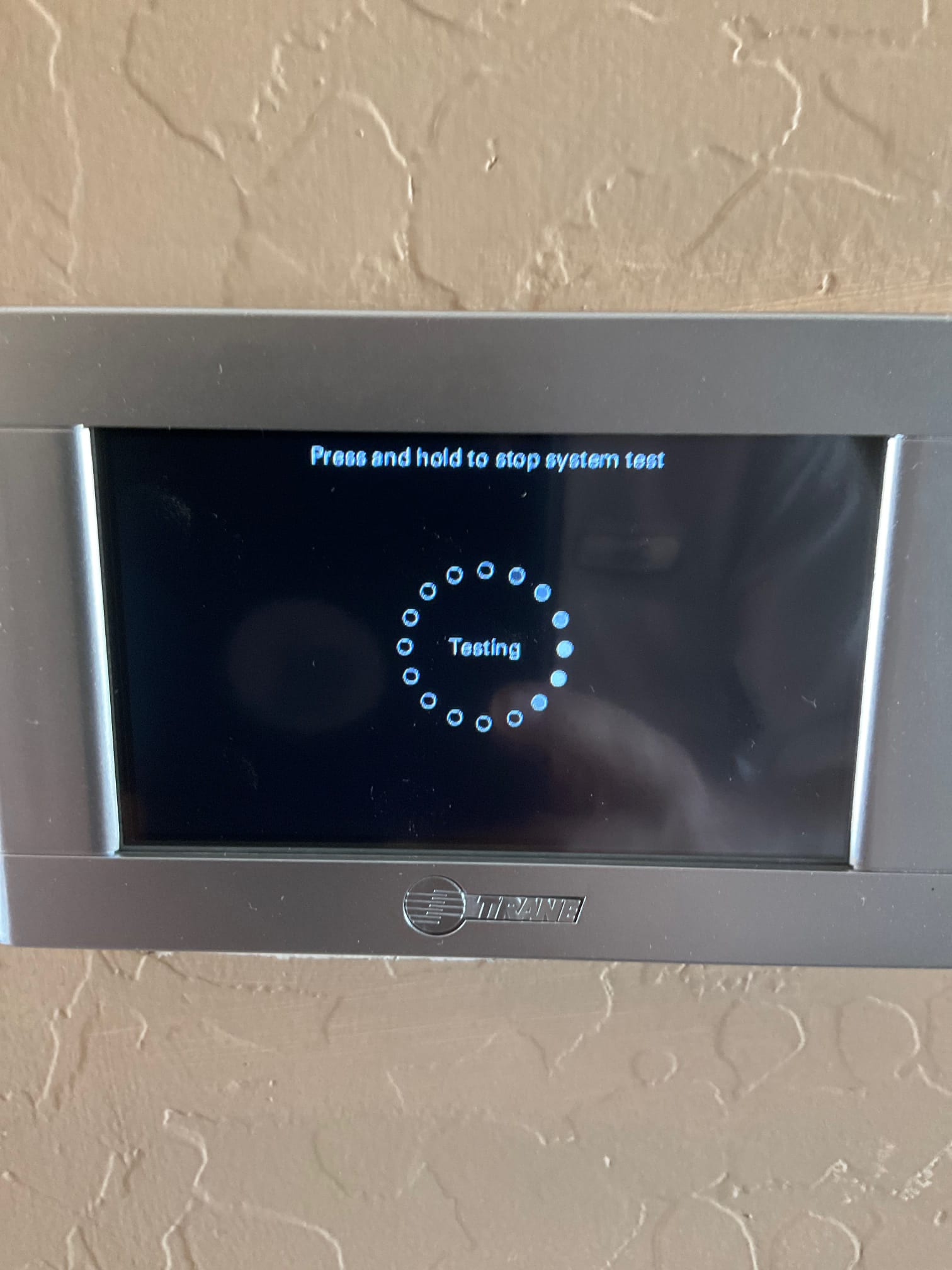

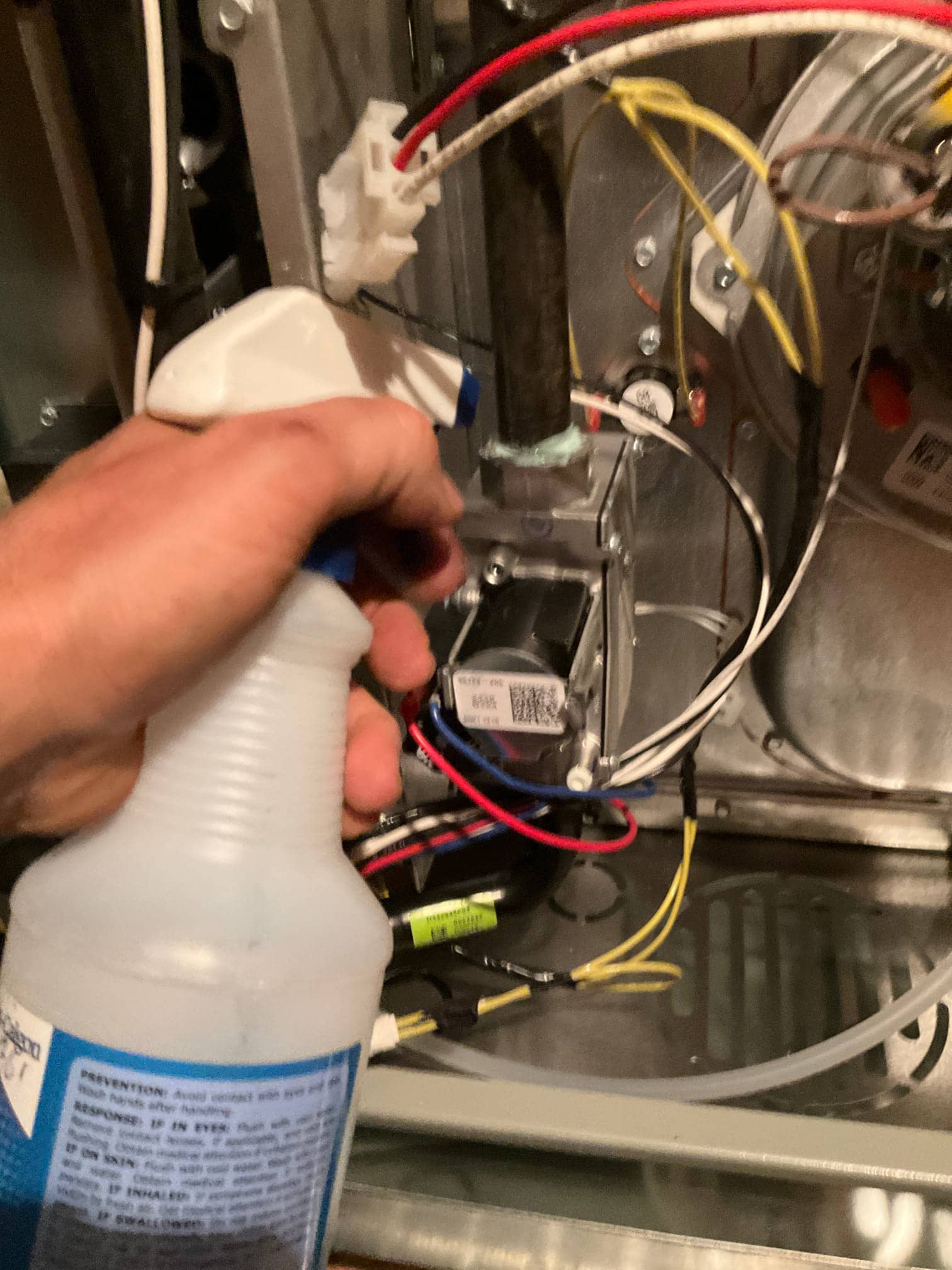

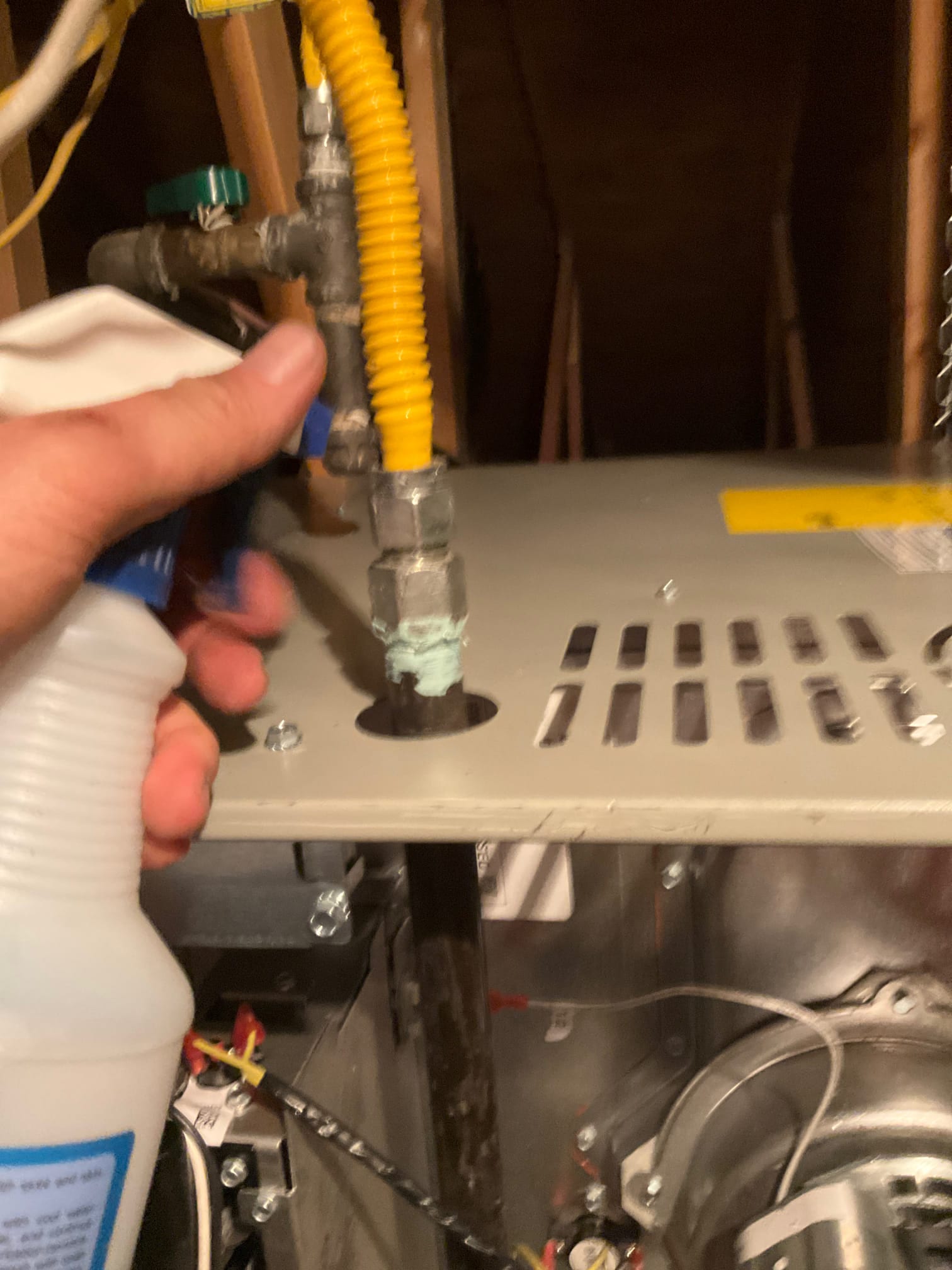

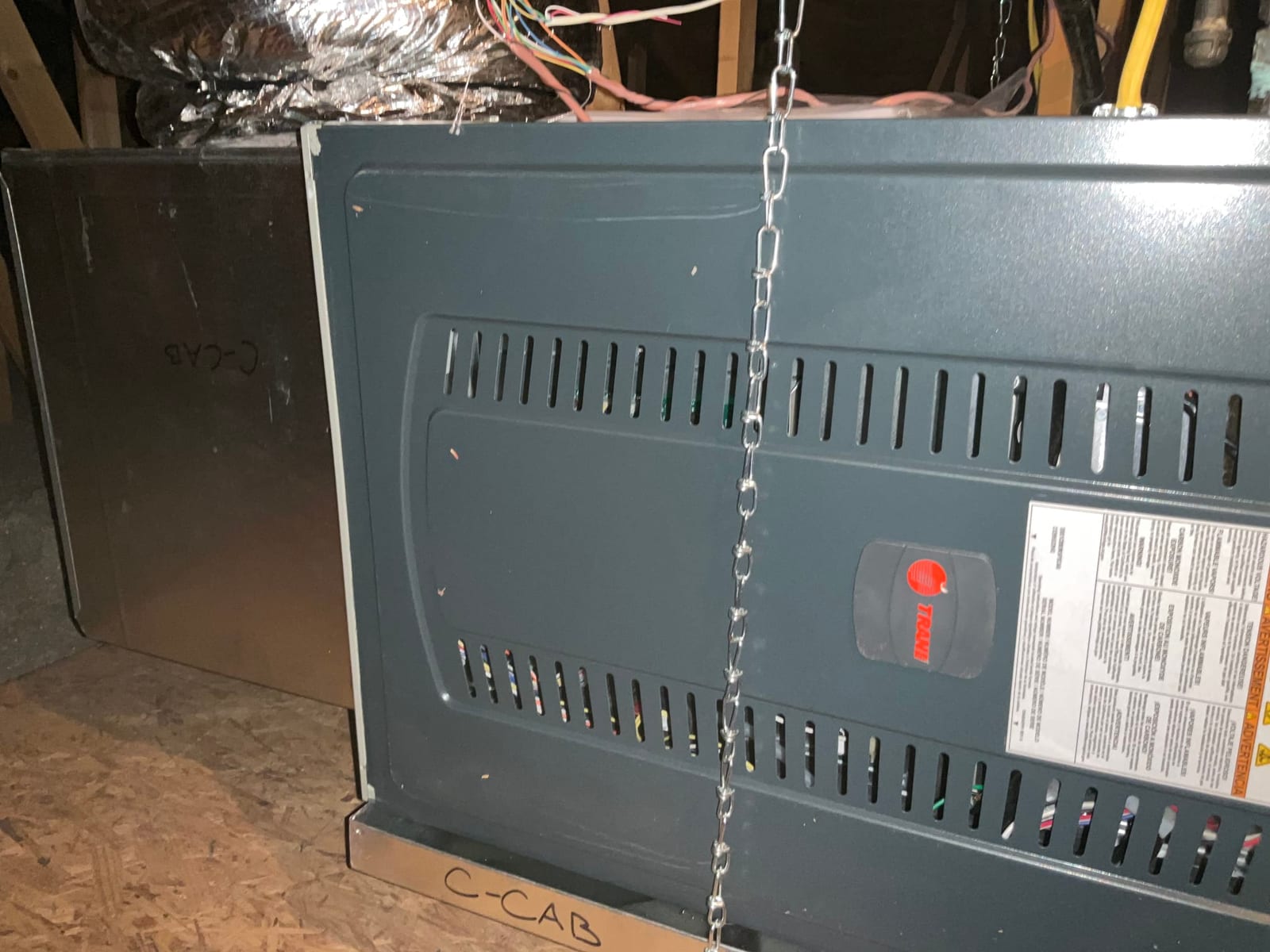

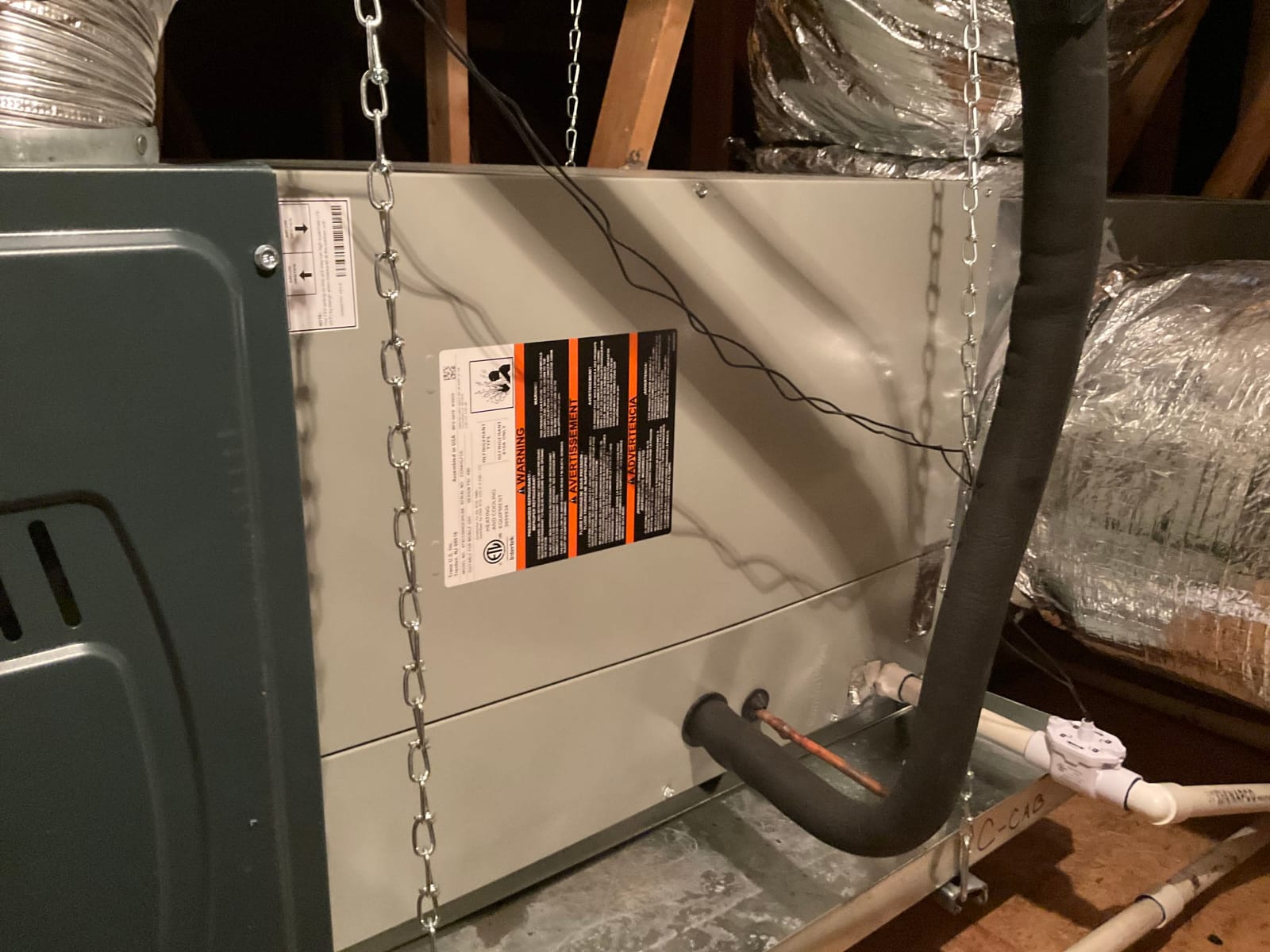

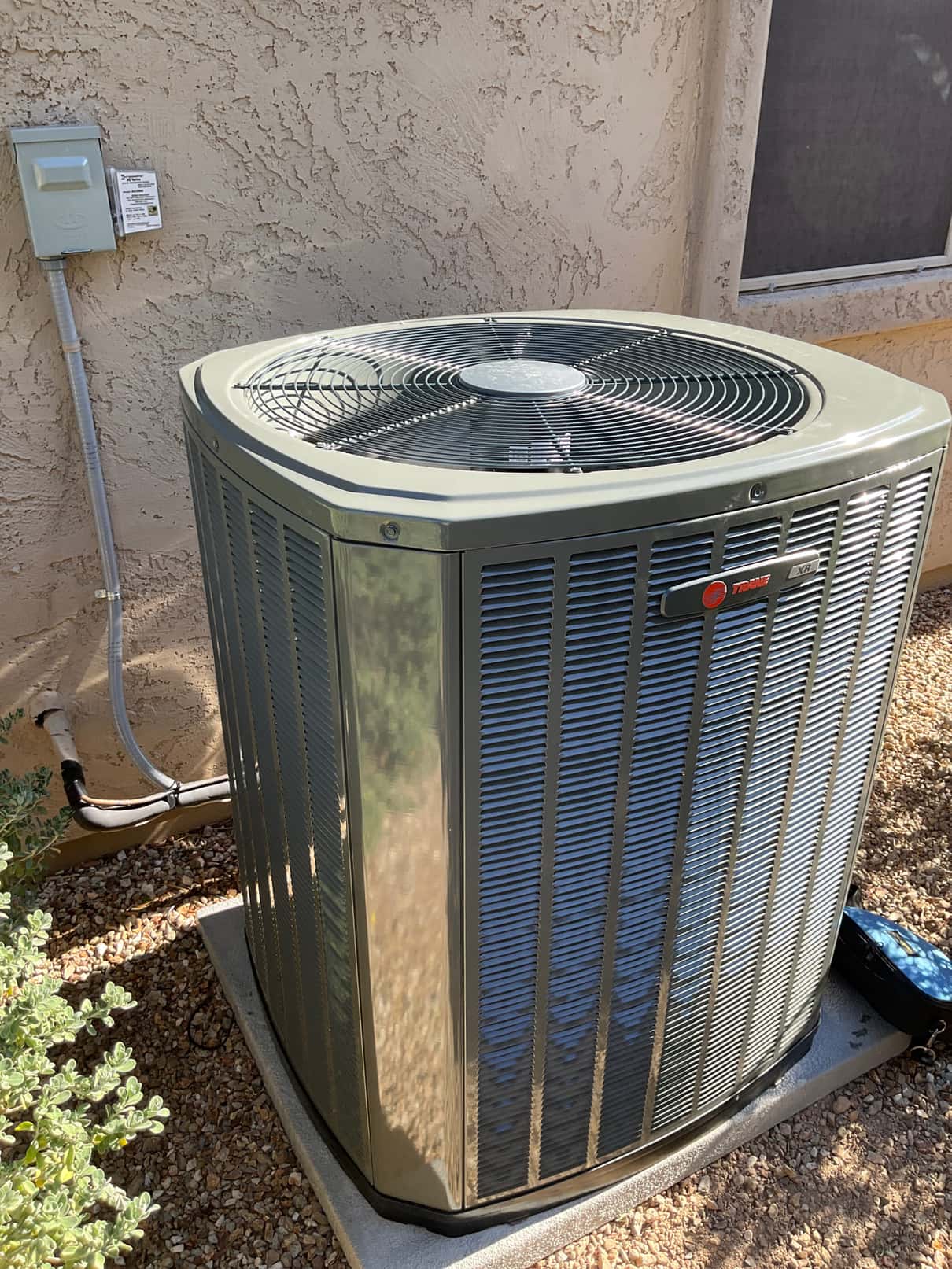

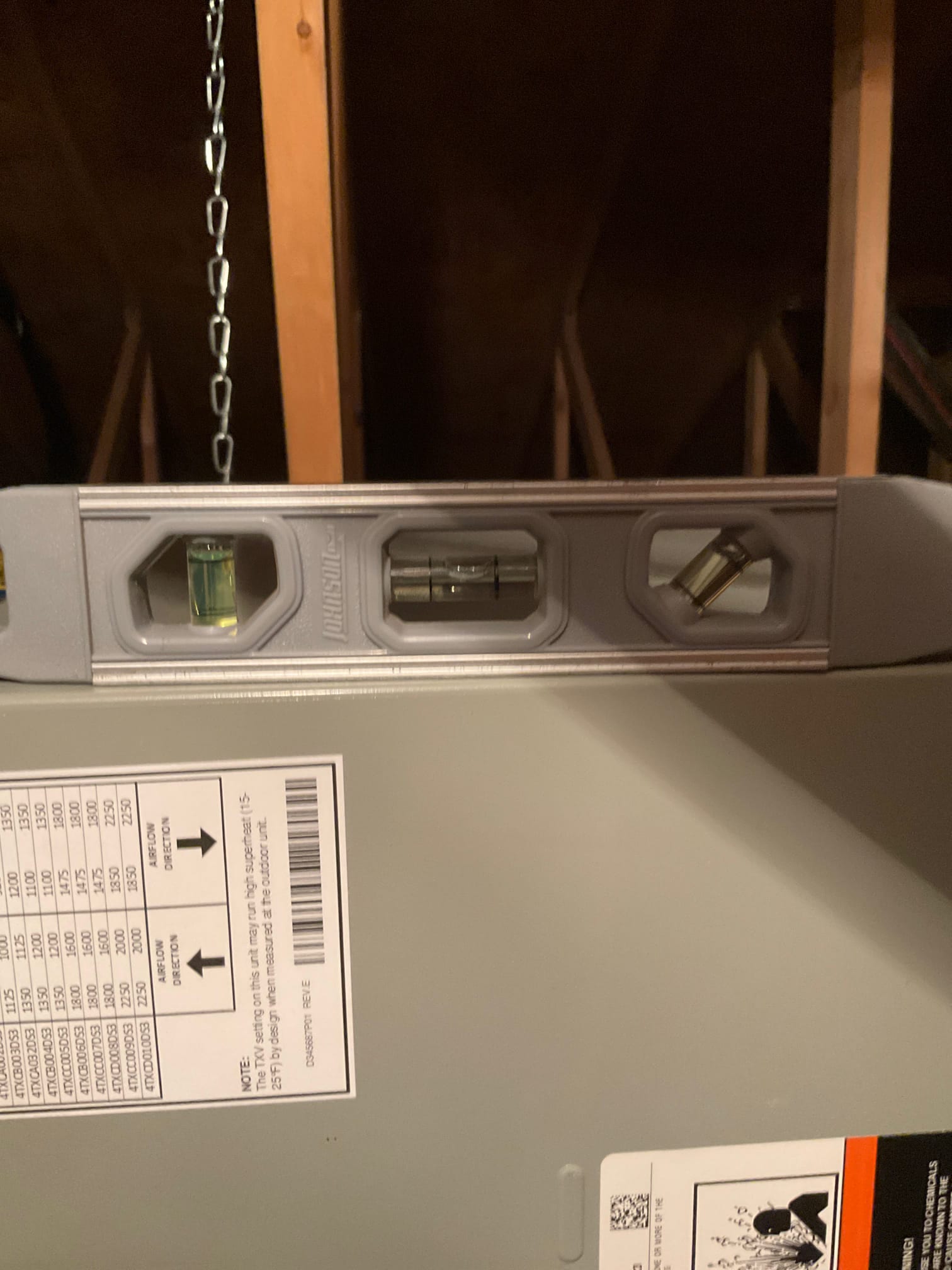

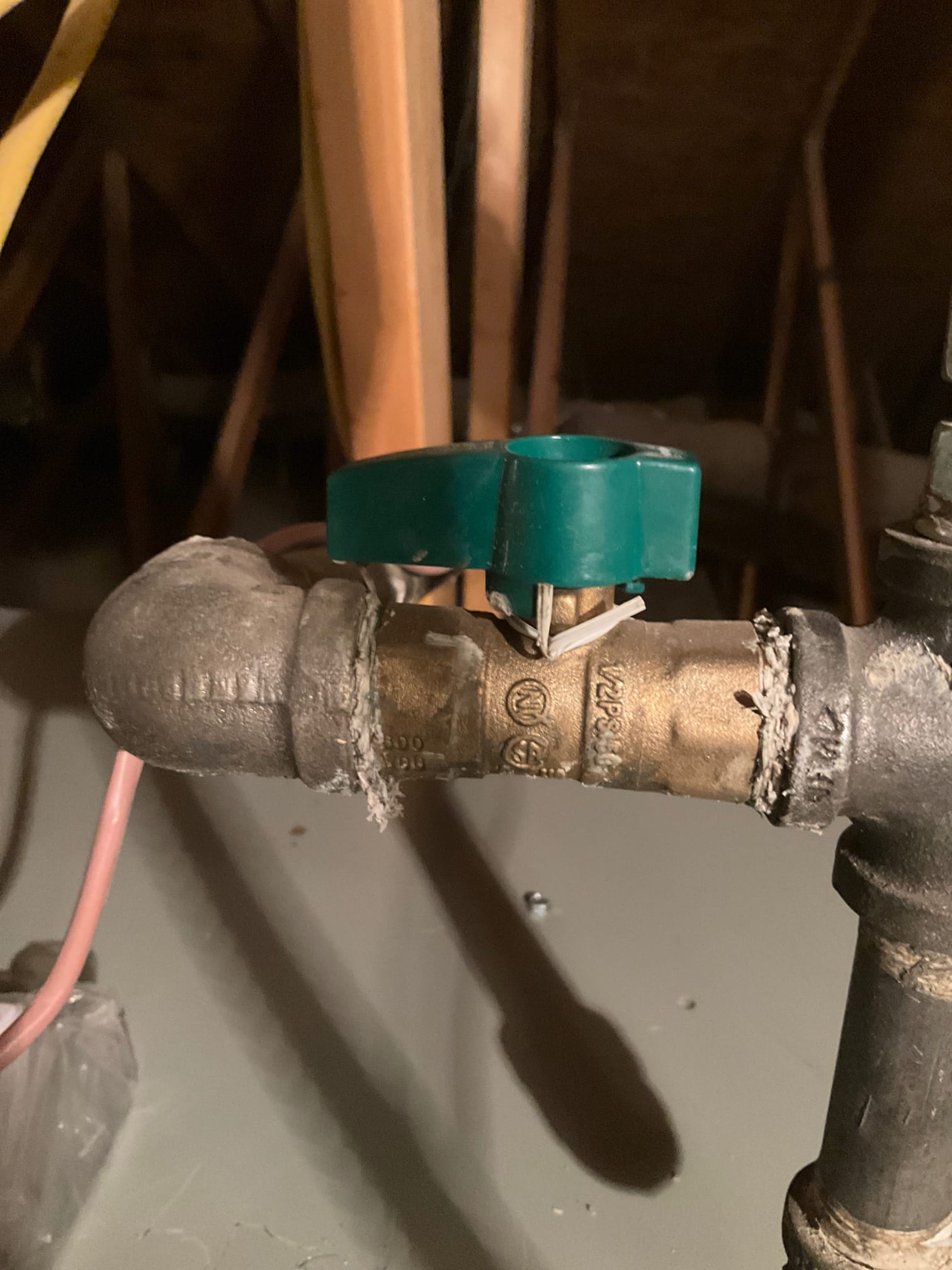

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.
Nitrogen Pressure Test

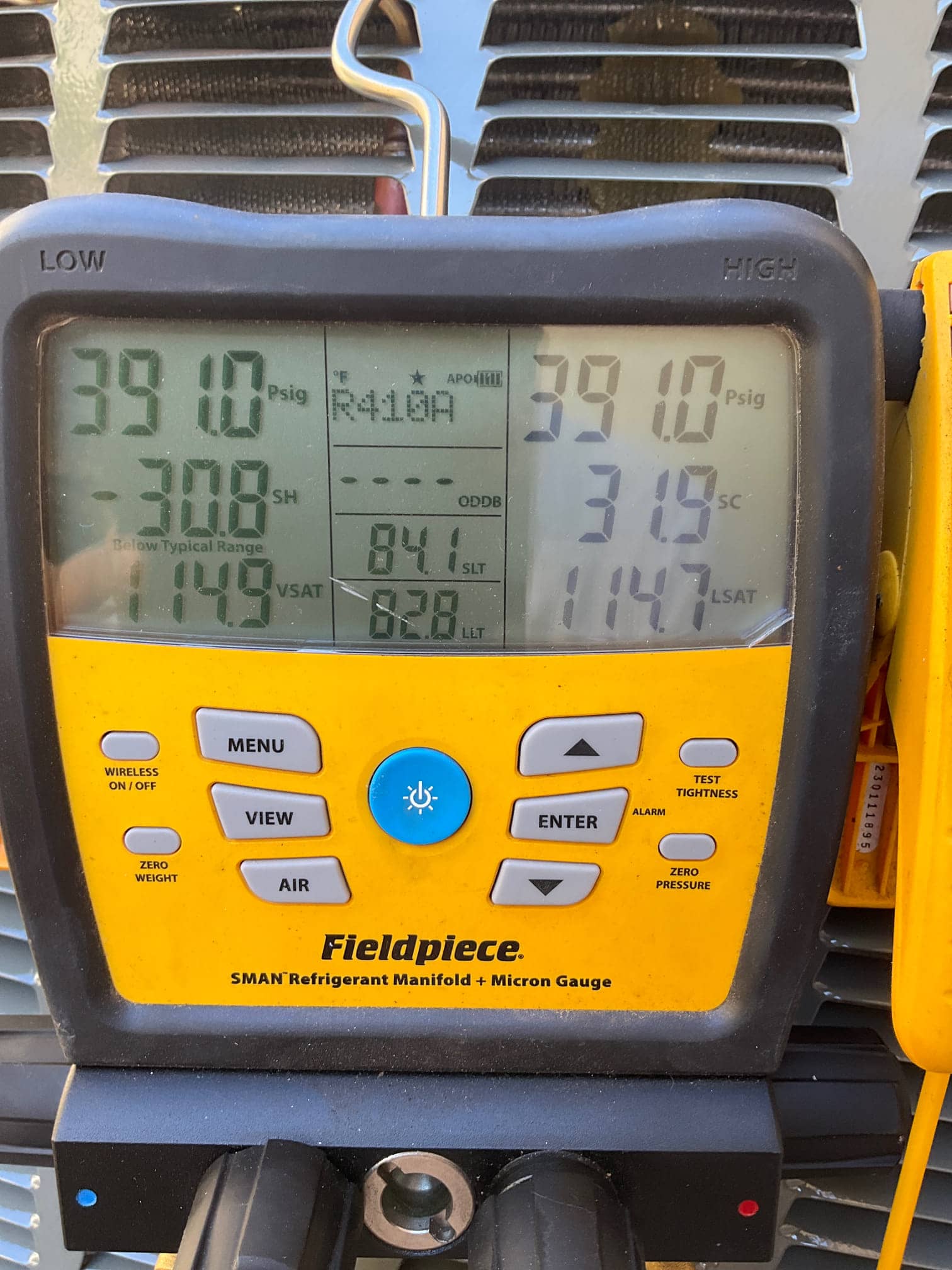

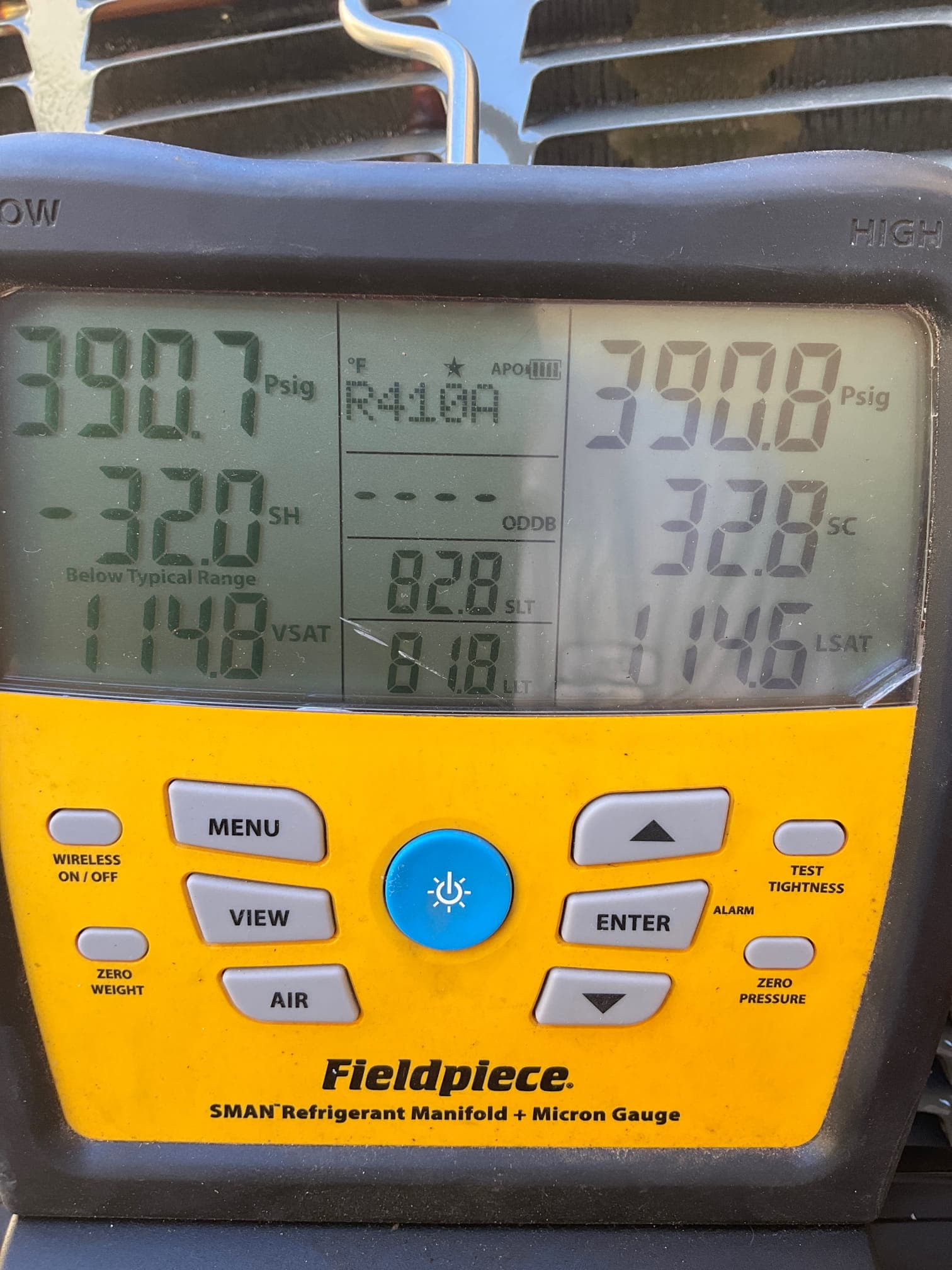

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.
Vacuum / Evacuation

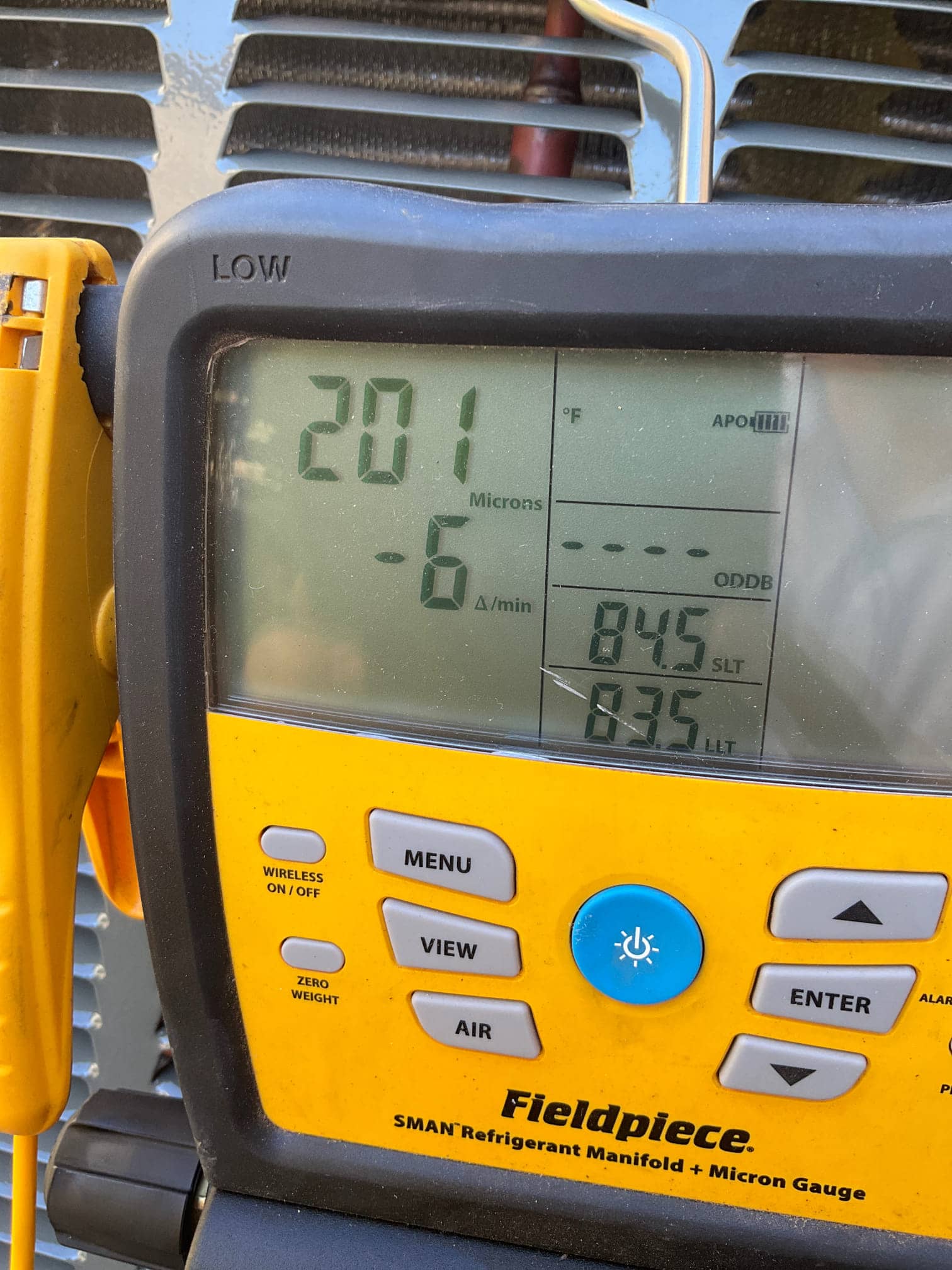

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.
Refrigerant Commissioning

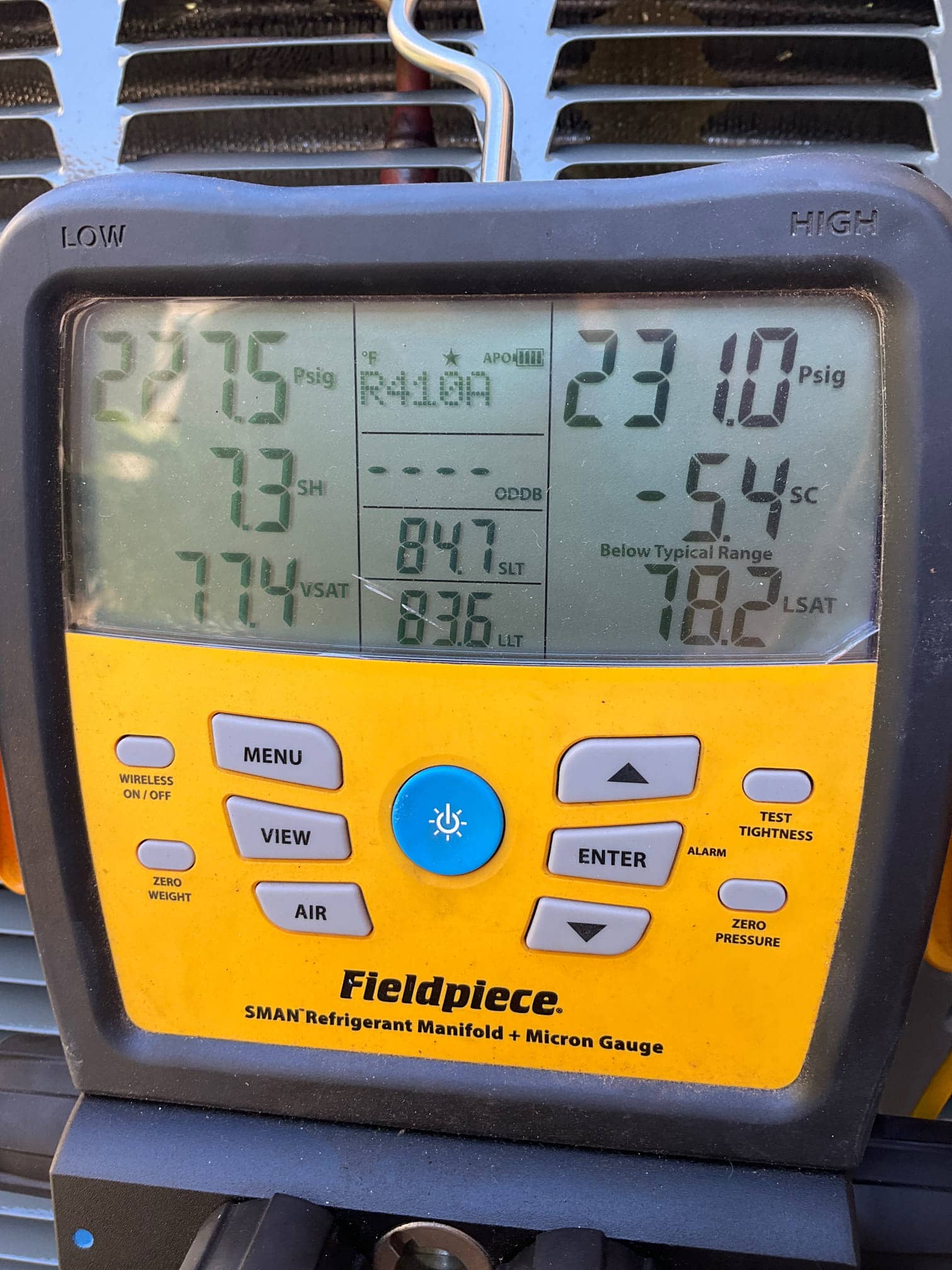

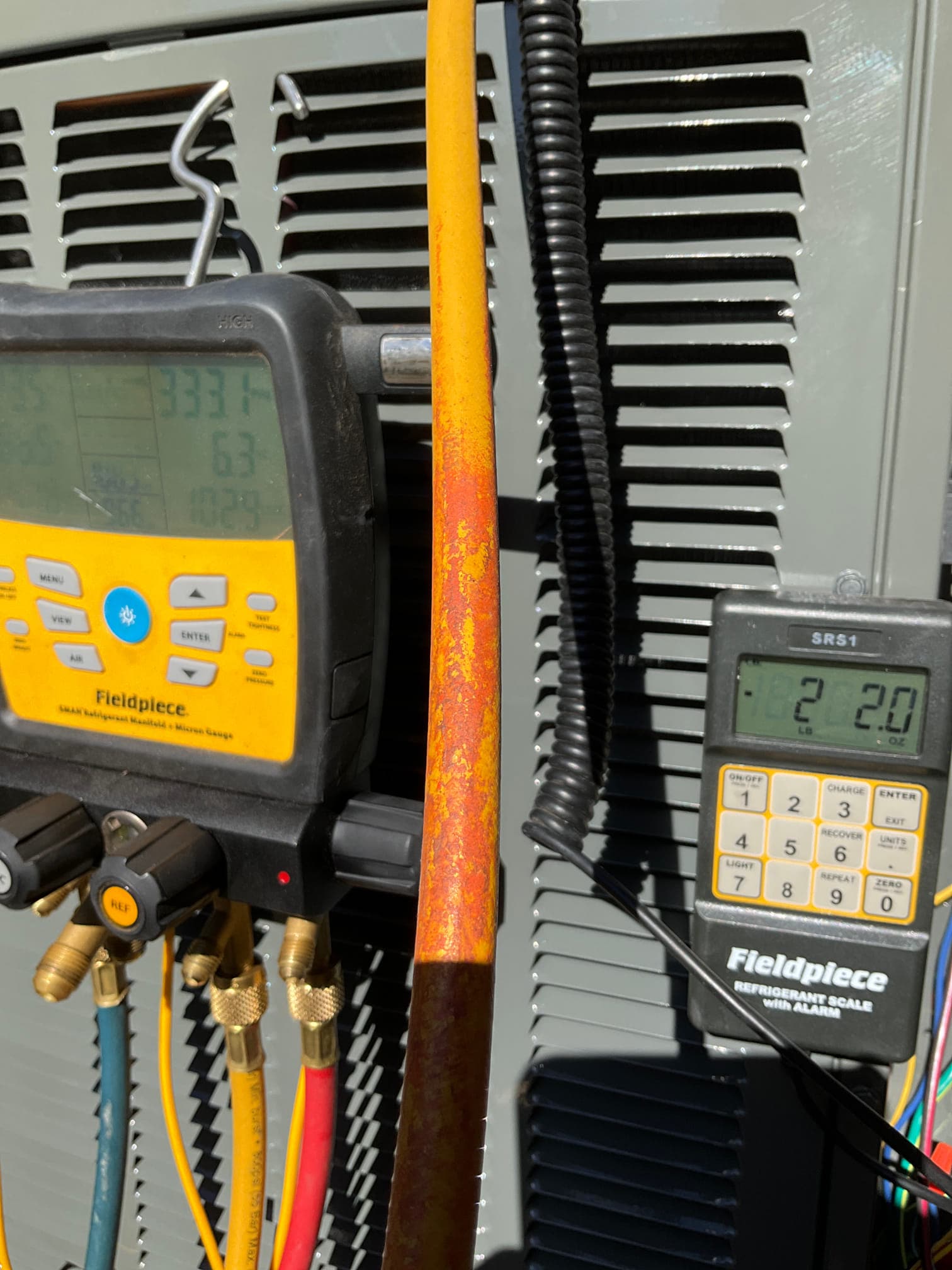

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.
Air-Side Commissioning

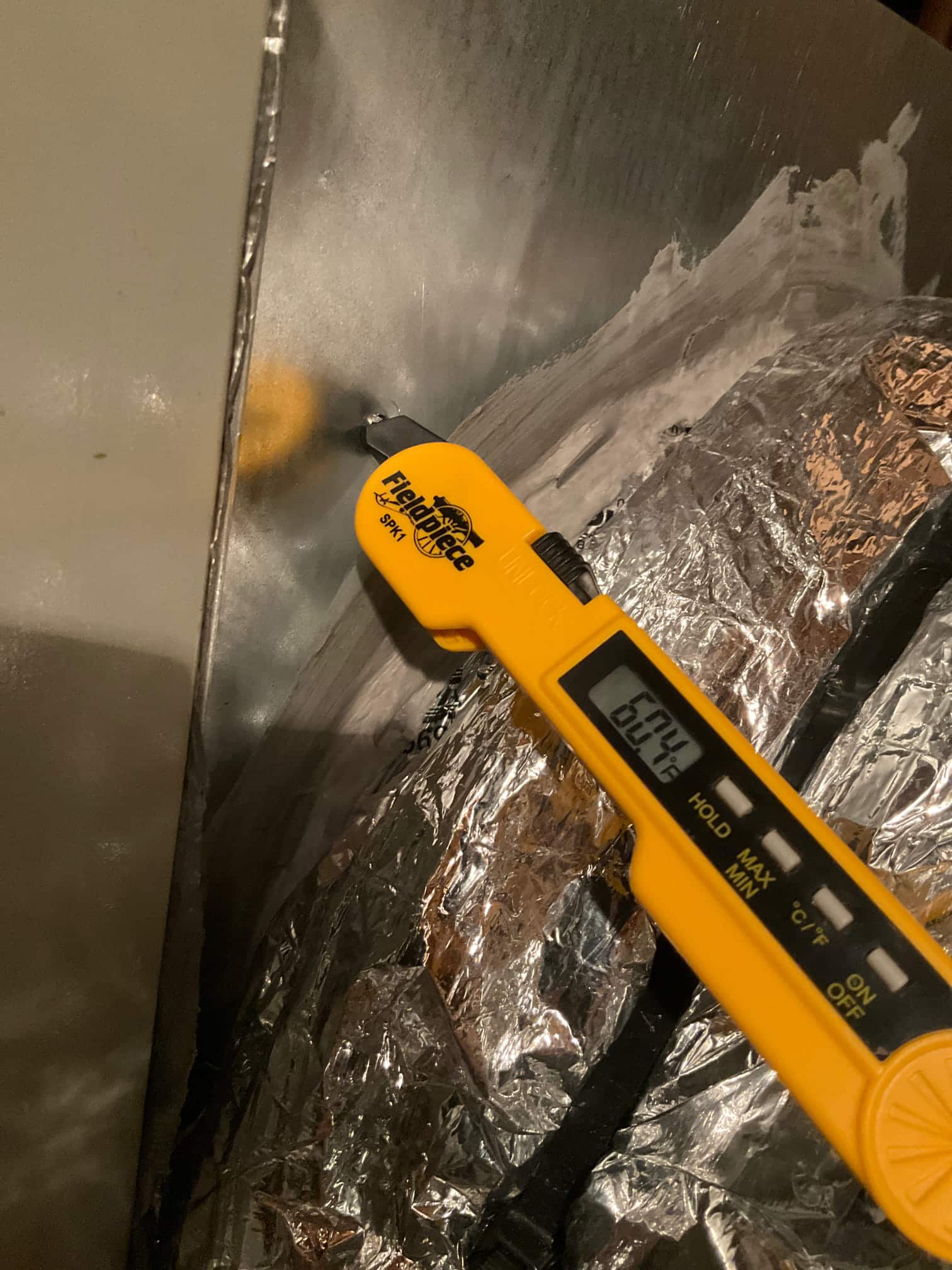

Return and supply air temperatures measured to verify the temperature split falls in the target window.
Electrical Verification

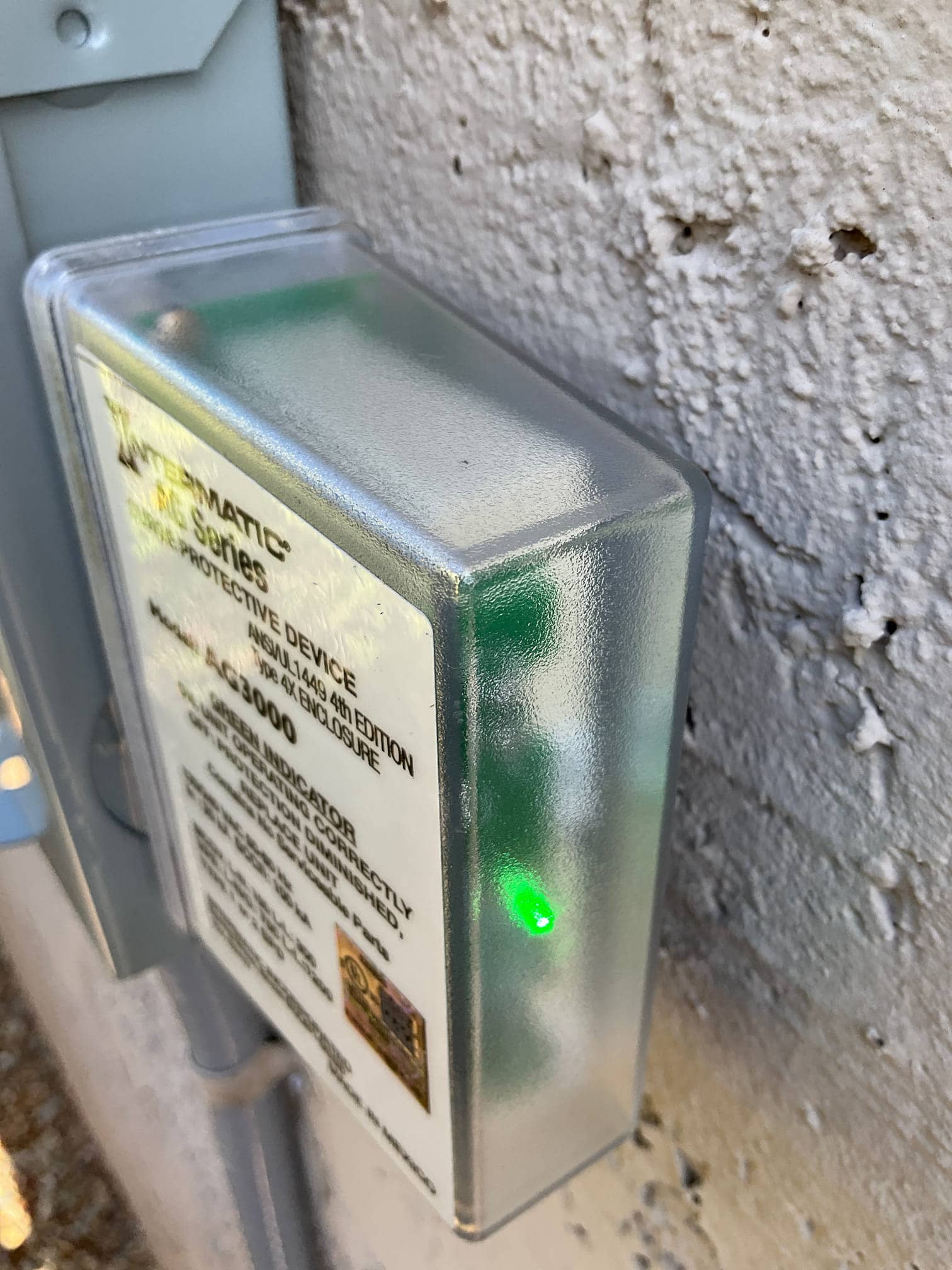

Voltage and amperage checked at the disconnect to confirm the equipment is drawing within nameplate spec.
Equipment Detail Shots

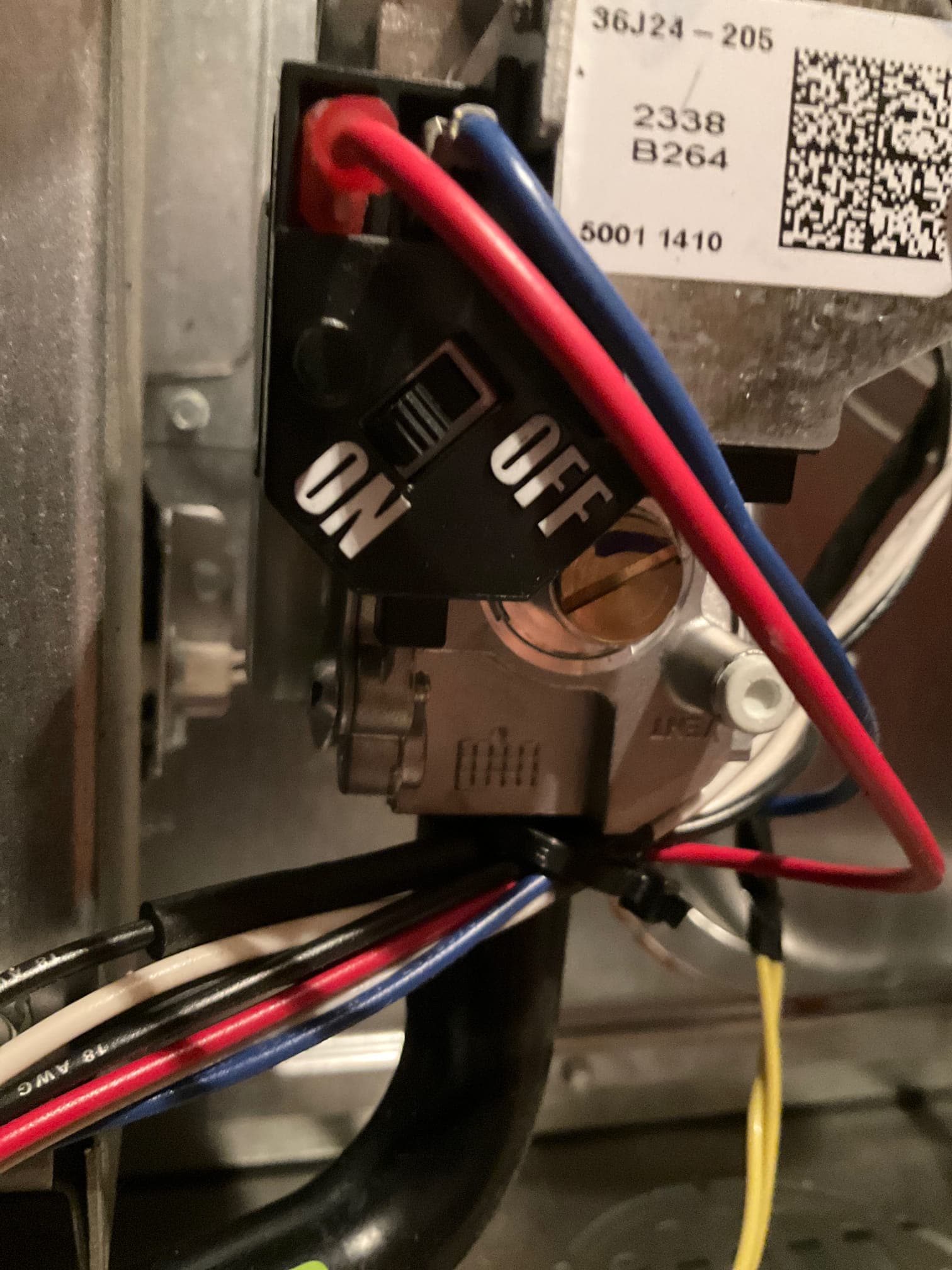

Close-ups of the components that make up the system.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Deer Valley / Anthem job?
The installer completed a 5-Ton horizontal attic split system installation, which included a two-stage split gas system, surge protectors, and a new condenser pad to enhance system efficiency and protect against electrical surges.
How much does a new ac + furnace split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Deer Valley / Anthem?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Deer Valley / Anthem and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
