5-Ton Trane AC and Furnace Installation in Deer Valley / Anthem — November 2023

CompletedNovember 14, 2023
Install CrewAndrew, Fred & Ben
Service AreaDeer Valley / Anthem
System5-Ton AC + Furnace Split System
BrandTrane
WarrantyMfg + Workmanship
Instant Price Estimate Call (602) 613-3489
4.9806 Google Reviews
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
AZ Perfect Comfort — Our Work
Scope of Work
The installation was necessary due to the inefficiency of the existing heating system, which was unable to meet the home's comfort needs.
Deer Valley / Anthem · installed November 14, 2023
— At a Glance
Location
Deer Valley / Anthem
Completed
November 14, 2023
System Type
AC + Furnace Split System
Capacity
5-Ton
Brand
Trane
Efficiency
16 SEER2
Total Investment
$10,891
— What We Installed

Every component in this system

Each piece of equipment set at this home, its condition, and its place in the system.

Newly Installed

Furnace

Brand
Trane
Model
S8X1C080M5PSCAA
Matched
5-Ton airflow
New — installed 2026
Newly Installed

Evaporator Coil

Brand
Trane
Model
4TXCC009DS3HCBB
Matched
5-Ton airflow
New — installed 2026
Newly Installed

AC condenser

Brand
Trane
Model
4TTR6060N1000AA
Capacity
5-Ton
Efficiency
16 SEER2
New — installed 2026
— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the Heating work AZ Perfect Comfort performs across Anthem, AZ. You can browse more real 5-Ton Trane AC and Furnace Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Andrew, Fred & Ben from the manifold gauges, micron gauge, and digital thermometers.

Air-Side Performance

Return-air temperature
66.9°F
Supply-air temperature
60.5°F
Temperature split
6.4°F

Nitrogen Pressure Test

Test pressure held
325 PSIG

Vacuum / Evacuation

Final vacuum reading
379 microns

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

ItemDescriptionQty
516H-4TTR6060-S8X1 5 Ton- Horizontal 16 SEER2 Two Stage XR16 AC with Furnace. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimate/invoice. Any 1

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

34 photos from this installation

Every step of this installation was documented on-site by Andrew, Fred & Ben.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

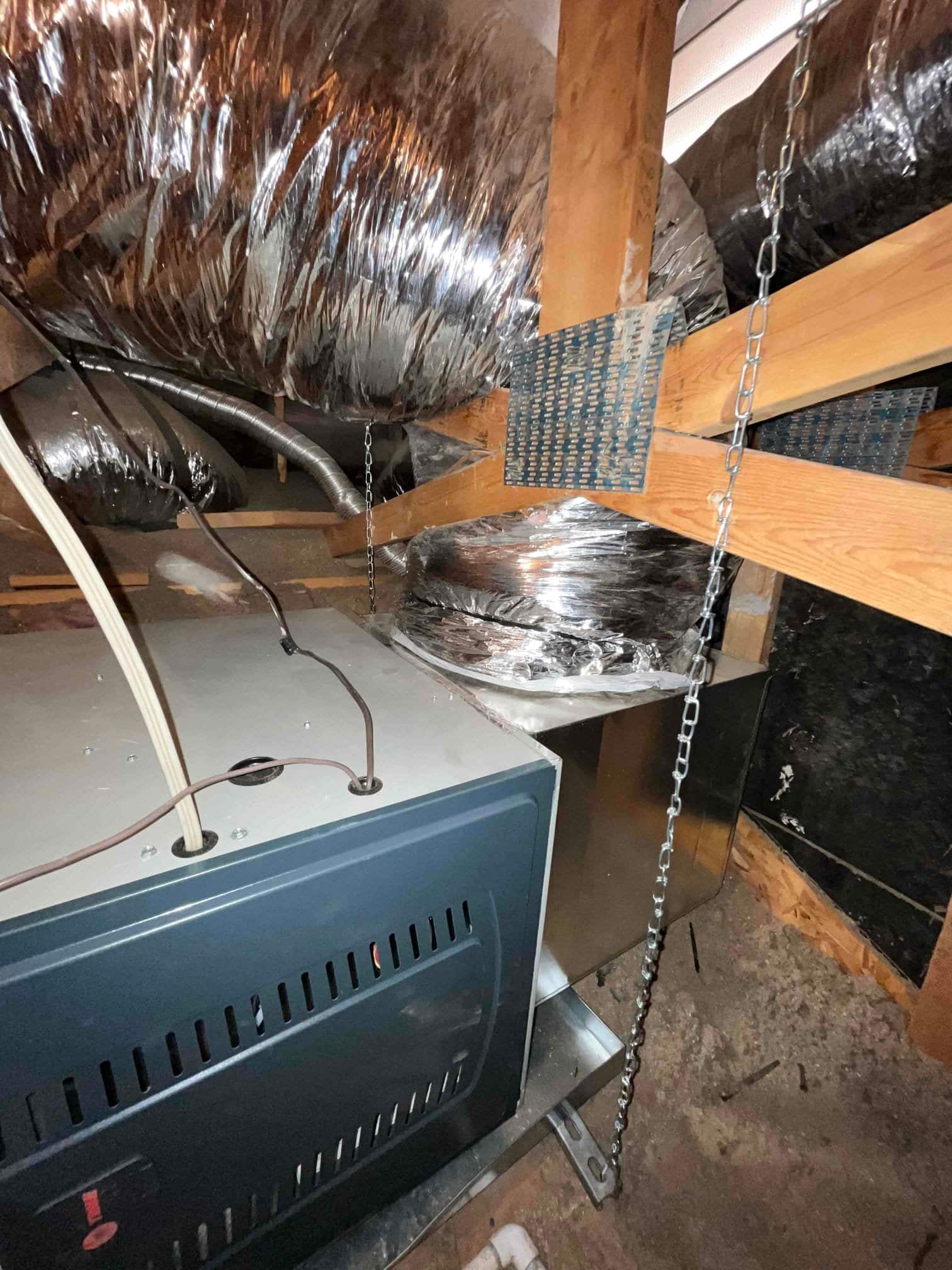

New furnace and coil set on a suspended platform in the attic with insulated flexible ducts connected and supported by chains.
New furnace and coil set on a suspended platform in the attic with insulated flexible ducts connected and supported by chains.
New outdoor condenser set on a level pad with electrical disconnect mounted on the wall and line set routed cleanly.
New outdoor condenser set on a level pad with electrical disconnect mounted on the wall and line set routed cleanly.

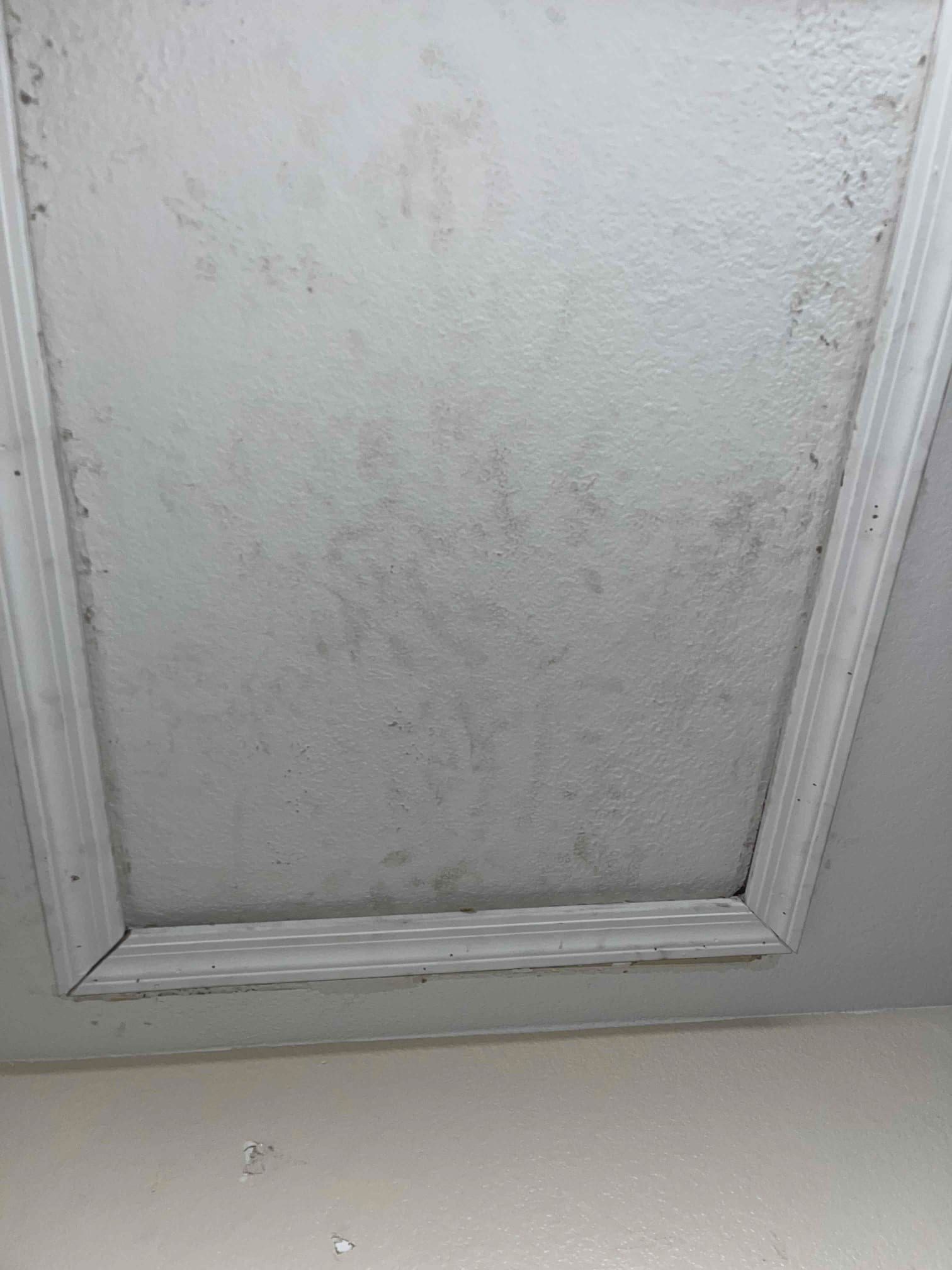

Attic access panel with trim showing dirt and scuffs at the installation site near the indoor equipment area.
Attic access panel with trim showing dirt and scuffs at the installation site near the indoor equipment area.
Furnace suspended with hanging straps, showing new PVC condensate drain piping and gas flex connector routed along the platform.
Furnace suspended with hanging straps, showing new PVC condensate drain piping and gas flex connector routed along the platform.

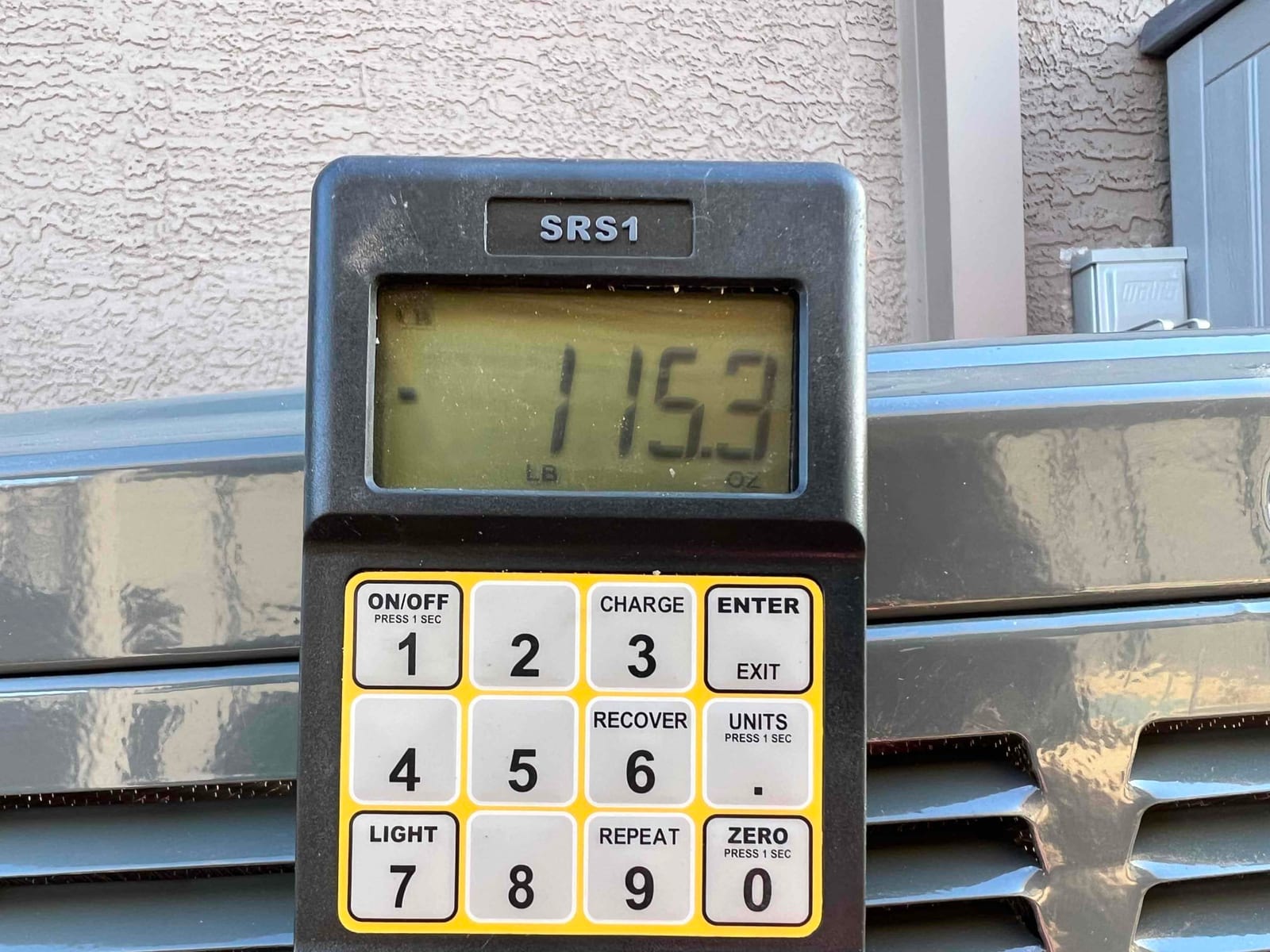

Digital refrigerant scale displays 115.3, documenting charge weight during installation beside the outdoor condenser unit.
Digital refrigerant scale displays 115.3, documenting charge weight during installation beside the outdoor condenser unit.
New furnace and evaporator coil installed on a secondary drain pan with insulated refrigerant lines, condensate drain, and flexible gas connector.
New furnace and evaporator coil installed on a secondary drain pan with insulated refrigerant lines, condensate drain, and flexible gas connector.

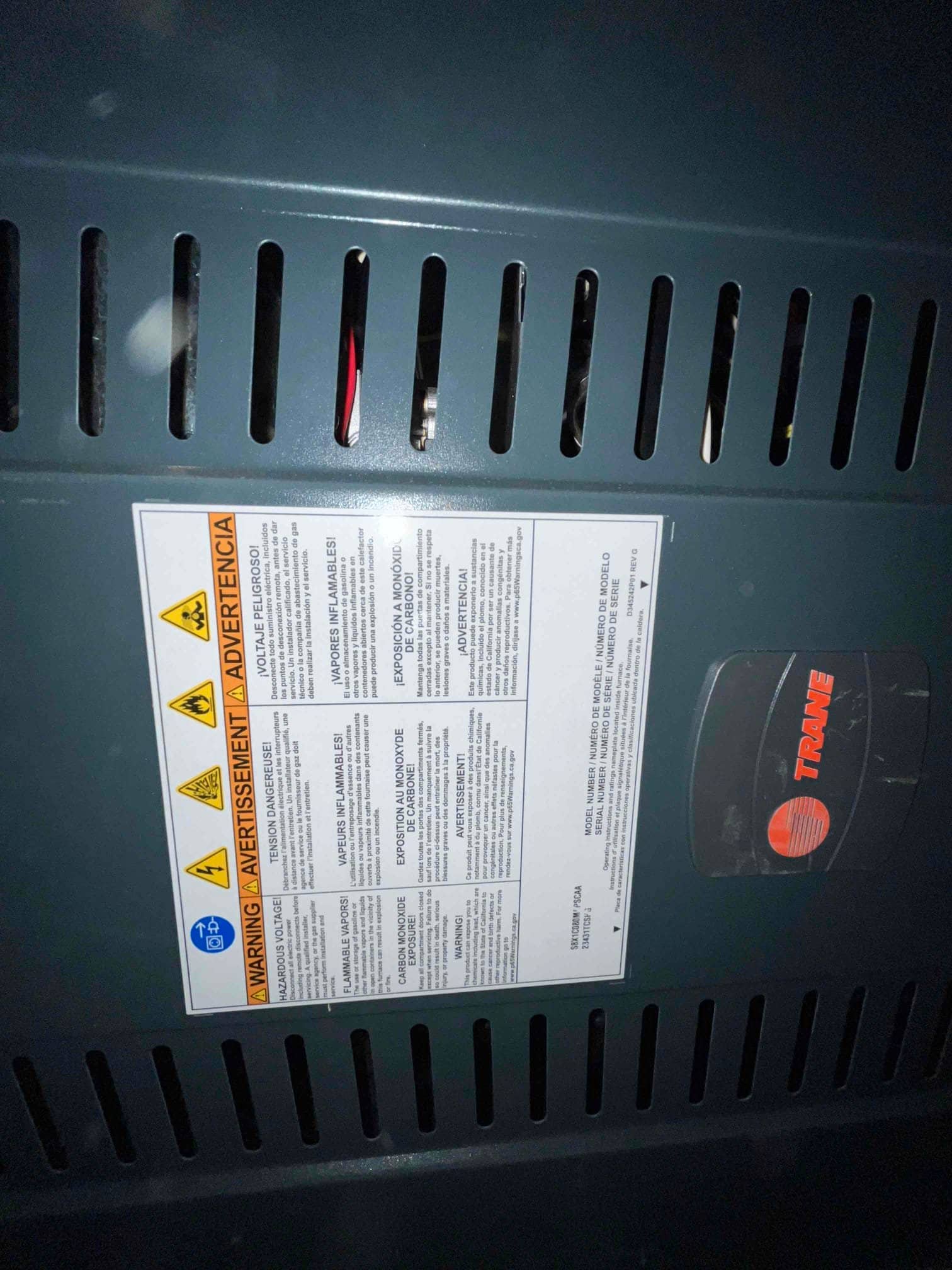

New furnace front panel with ventilation slots and safety label installed, showing clean finish and secure cabinet alignment.
New furnace front panel with ventilation slots and safety label installed, showing clean finish and secure cabinet alignment.

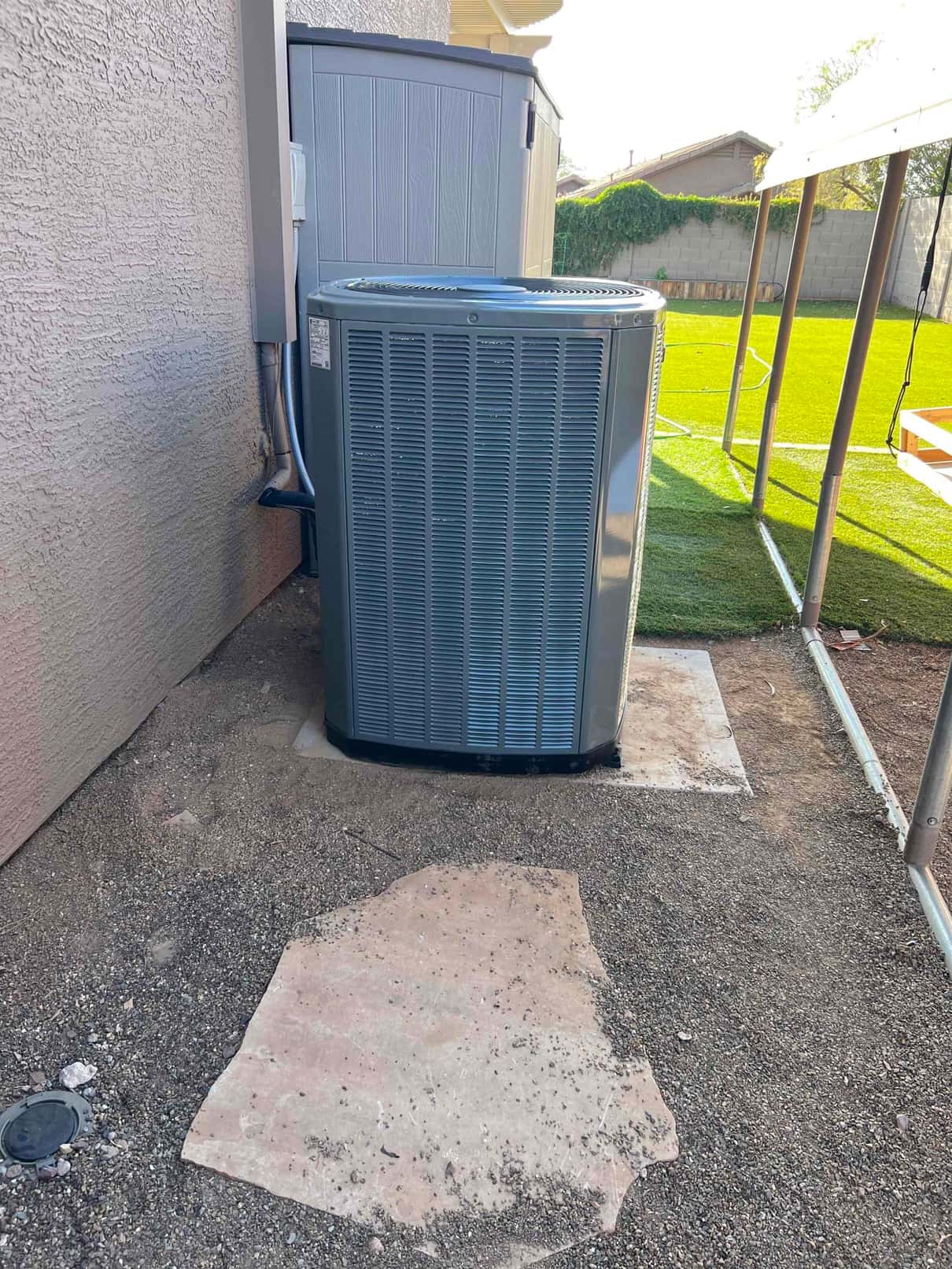

New outdoor condenser set on a concrete pad with insulated line set and electrical disconnect mounted on the wall.
New outdoor condenser set on a concrete pad with insulated line set and electrical disconnect mounted on the wall.

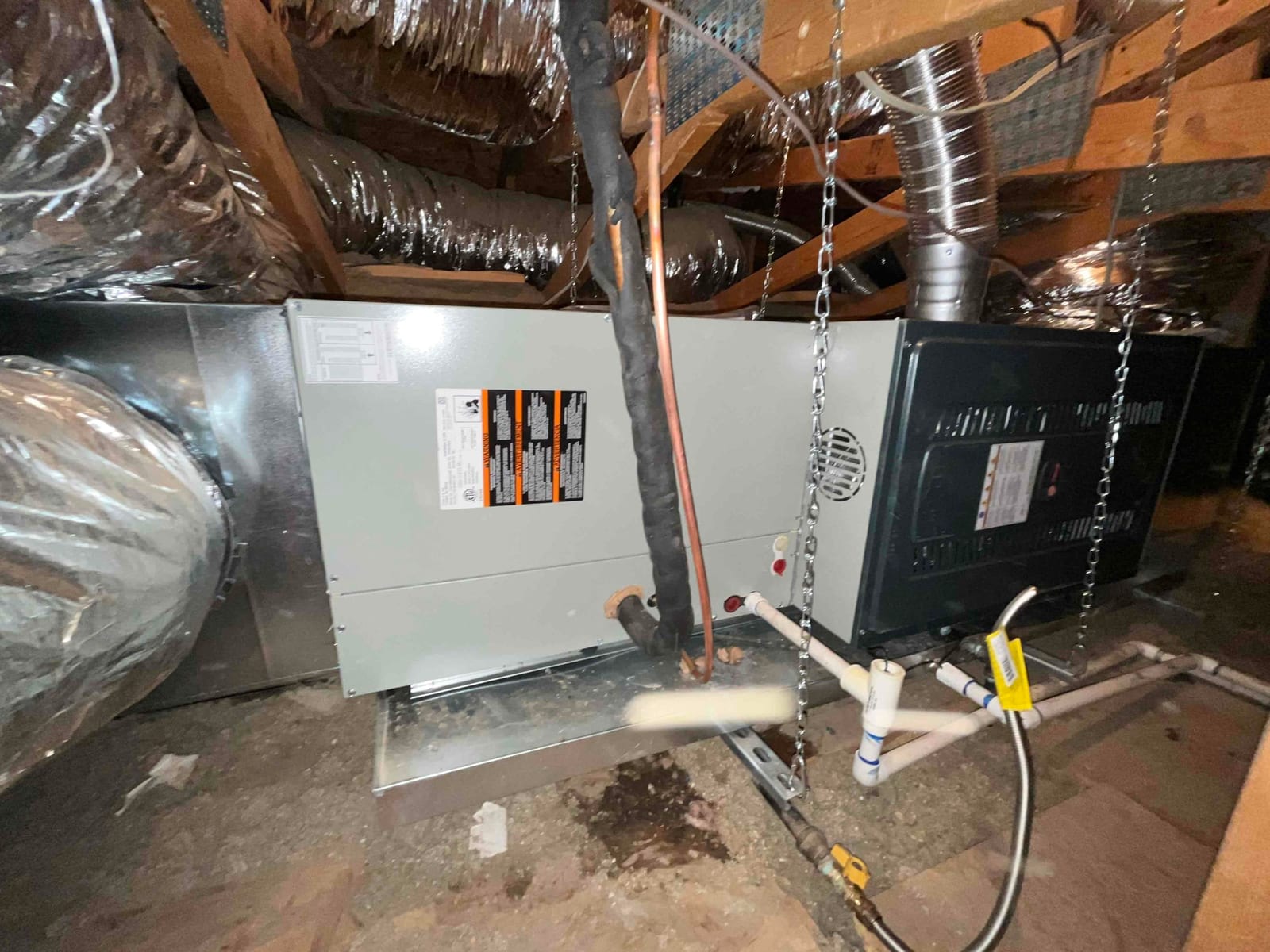

New air handler and furnace assembly suspended in attic with insulated duct connections, condensate drain piping, and gas shutoff valve installed.
New air handler and furnace assembly suspended in attic with insulated duct connections, condensate drain piping, and gas shutoff valve installed.

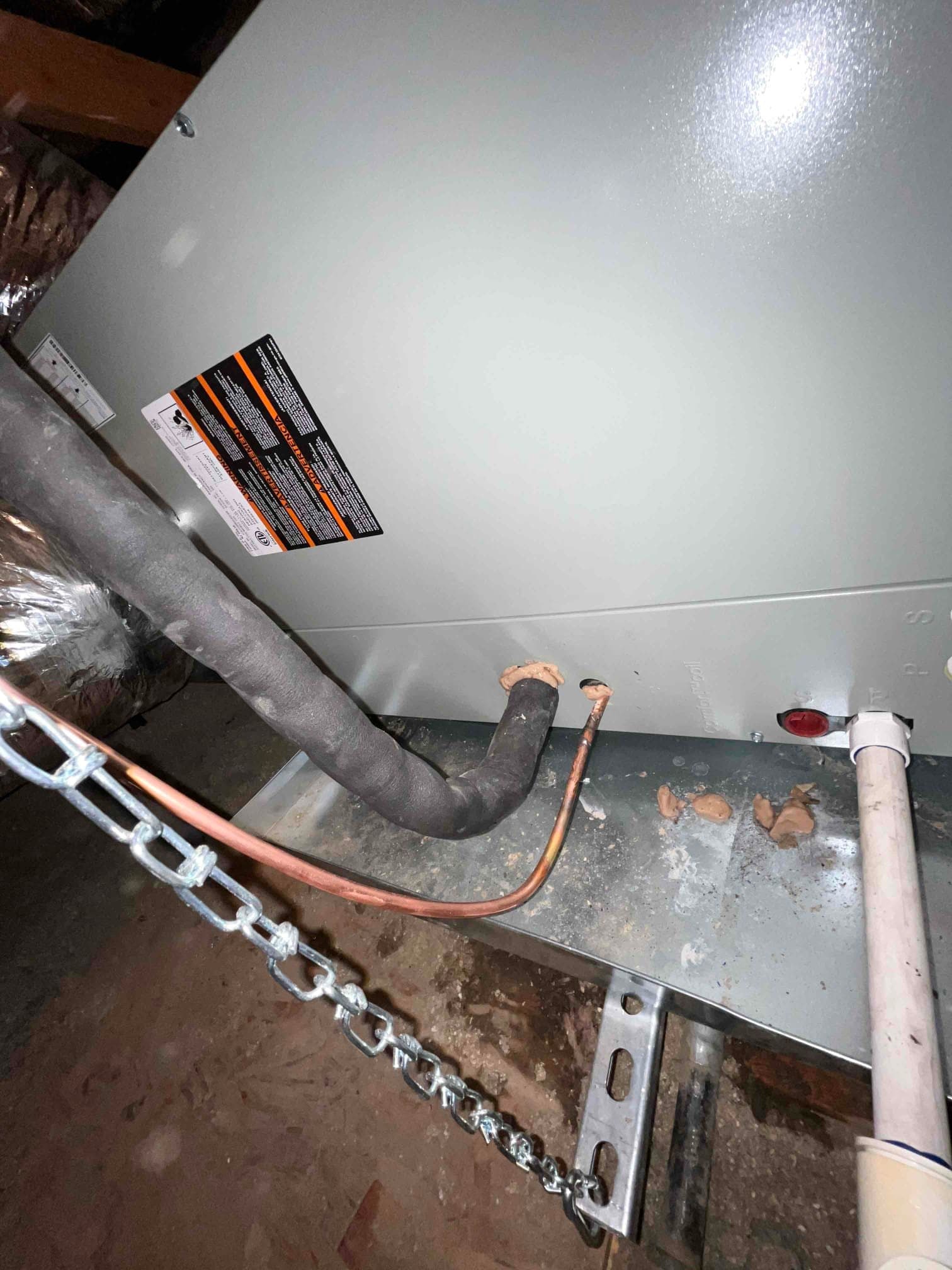

Refrigerant lines, condensate drain, and sealed penetrations connect to the new air handler on a suspended platform.
Refrigerant lines, condensate drain, and sealed penetrations connect to the new air handler on a suspended platform.

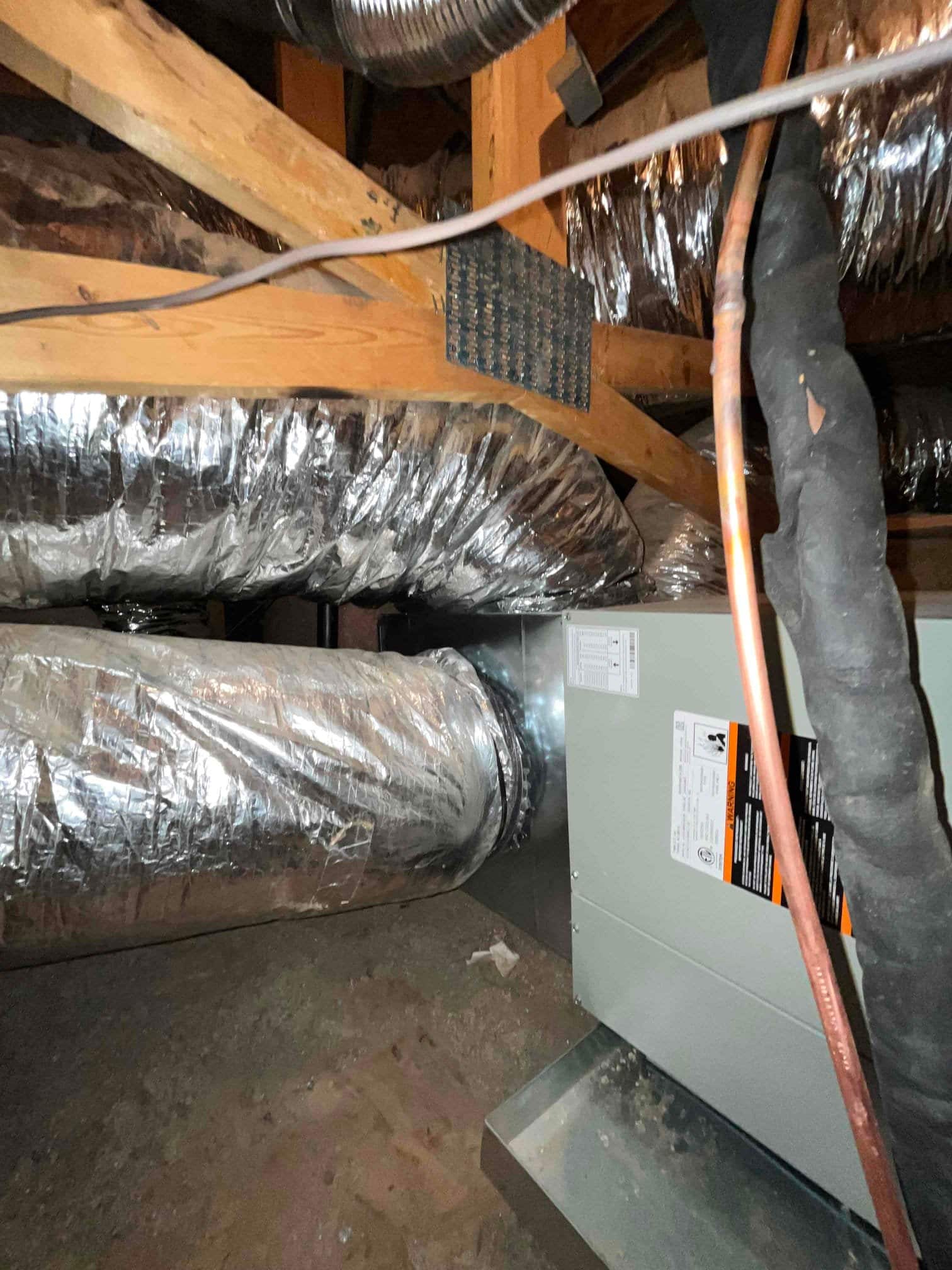

New air handler connected to insulated flex duct in attic, with sealed metal plenum and refrigerant lines routed alongside.
New air handler connected to insulated flex duct in attic, with sealed metal plenum and refrigerant lines routed alongside.

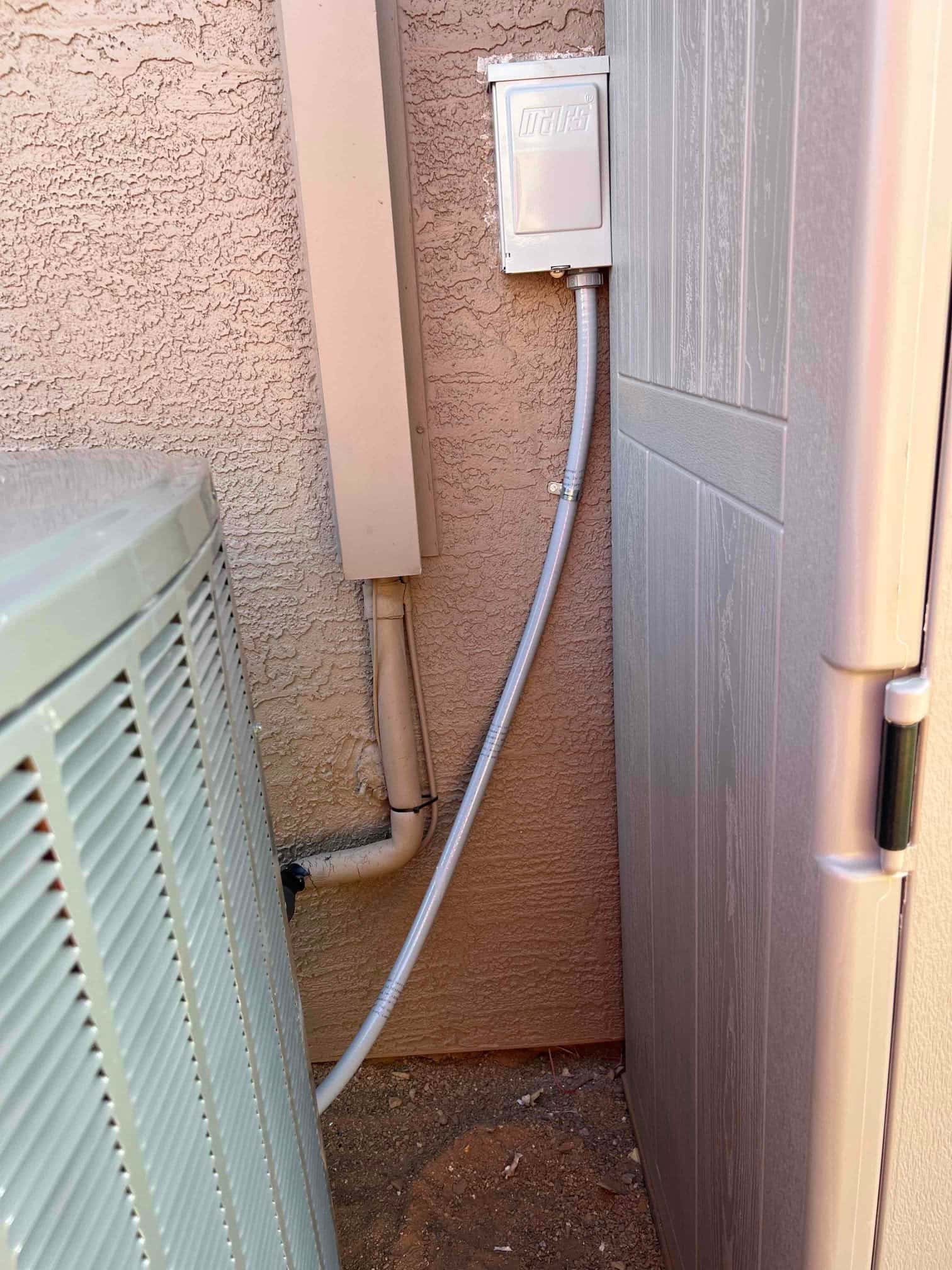

Outdoor condenser next to wall with sealed line set cover, new electrical disconnect, and flexible conduit neatly routed.
Outdoor condenser next to wall with sealed line set cover, new electrical disconnect, and flexible conduit neatly routed.
Air handler suspended in attic with insulated duct connections and newly plumbed condensate drain line routed to the trap and exit.
Air handler suspended in attic with insulated duct connections and newly plumbed condensate drain line routed to the trap and exit.

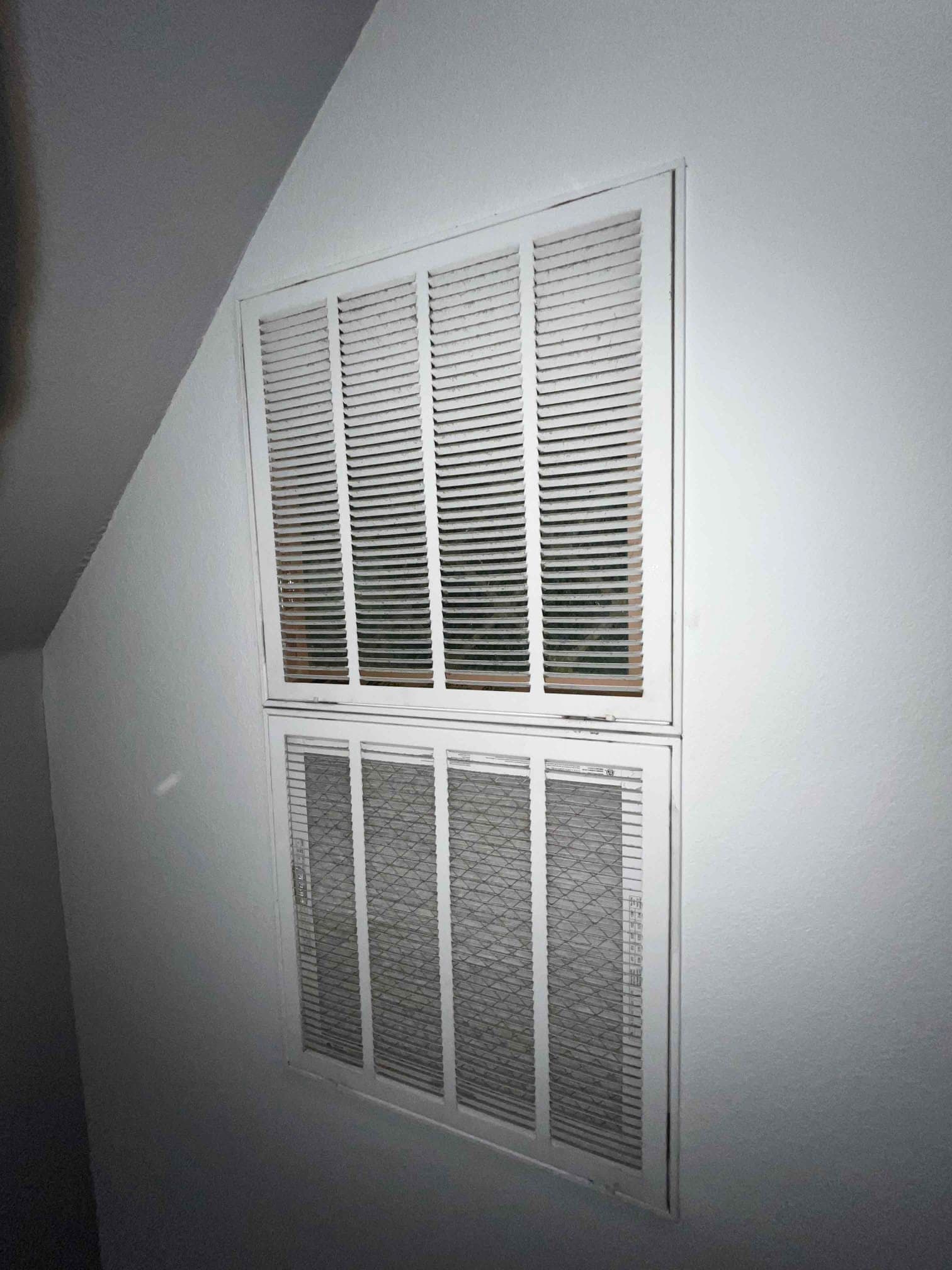

Wall-mounted return air grille assembly with double sections installed flush to the drywall during HVAC installation.
Wall-mounted return air grille assembly with double sections installed flush to the drywall during HVAC installation.

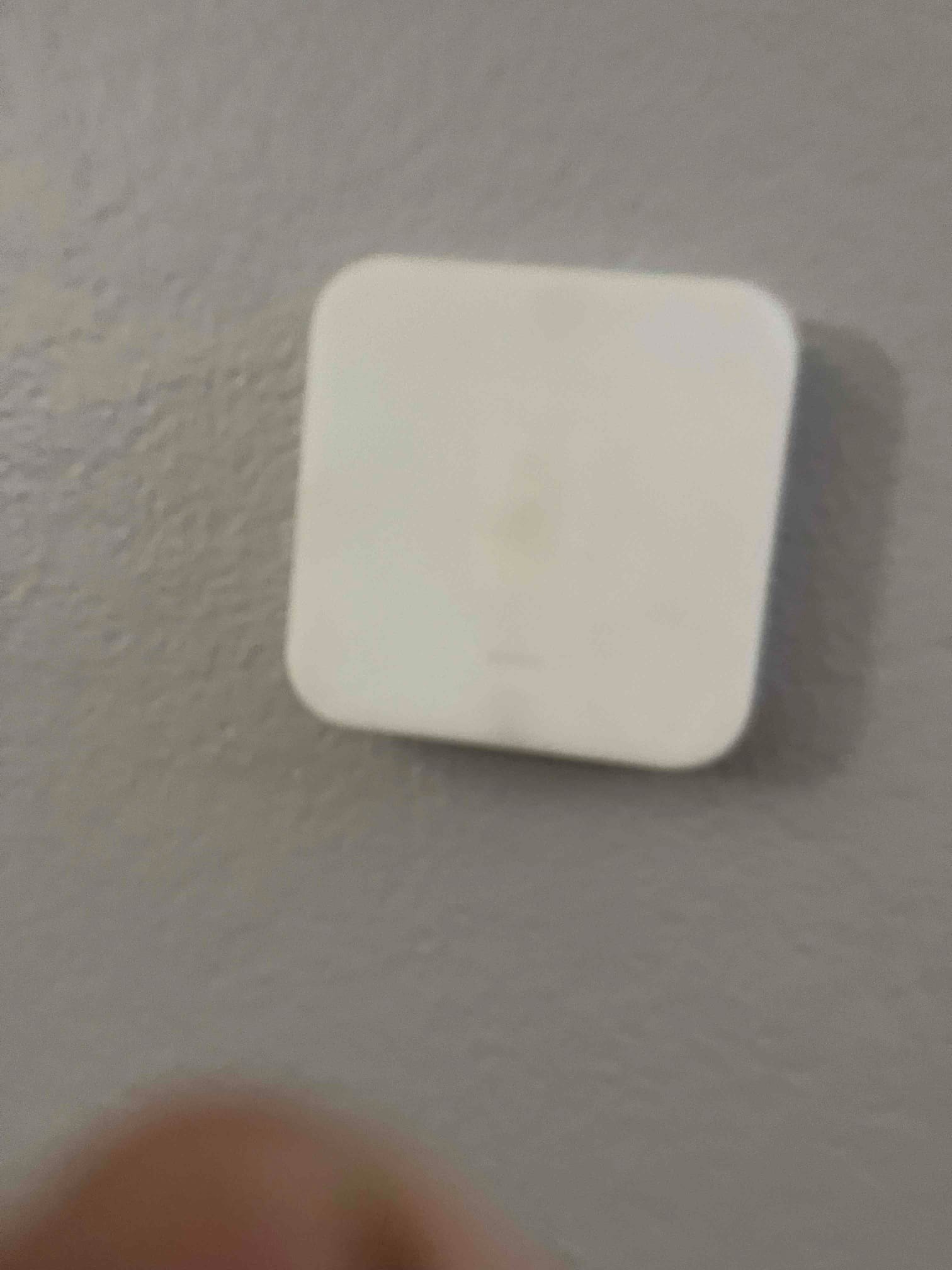

Wall-mounted wireless thermostat sensor installed on an interior wall as part of the new HVAC system.
Wall-mounted wireless thermostat sensor installed on an interior wall as part of the new HVAC system.
New furnace and coil set with connected condensate trap, gas flex line with shutoff, and insulated refrigerant lines.
New furnace and coil set with connected condensate trap, gas flex line with shutoff, and insulated refrigerant lines.
New attic furnace and evaporator set on a drain pan with connected insulated ductwork, gas vent, and condensate drain.
New attic furnace and evaporator set on a drain pan with connected insulated ductwork, gas vent, and condensate drain.

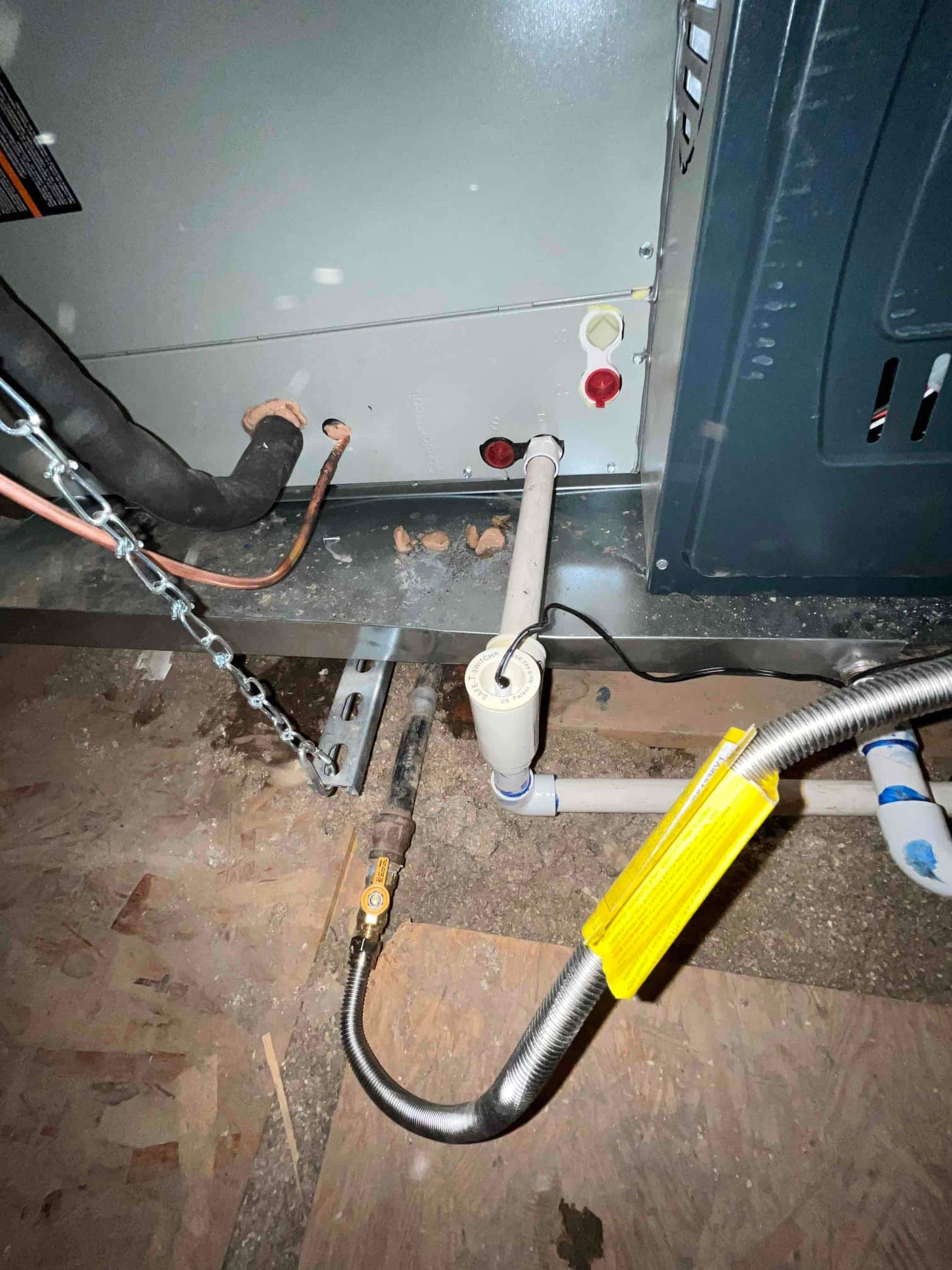

Furnace bottom connections showing condensate trap and drain, gas flex connector with shutoff valve, and insulated refrigerant lines.
Furnace bottom connections showing condensate trap and drain, gas flex connector with shutoff valve, and insulated refrigerant lines.
New furnace and coil assembly installed in attic with connected insulated ducts, drain line, and sealed refrigerant line penetrations.
New furnace and coil assembly installed in attic with connected insulated ducts, drain line, and sealed refrigerant line penetrations.

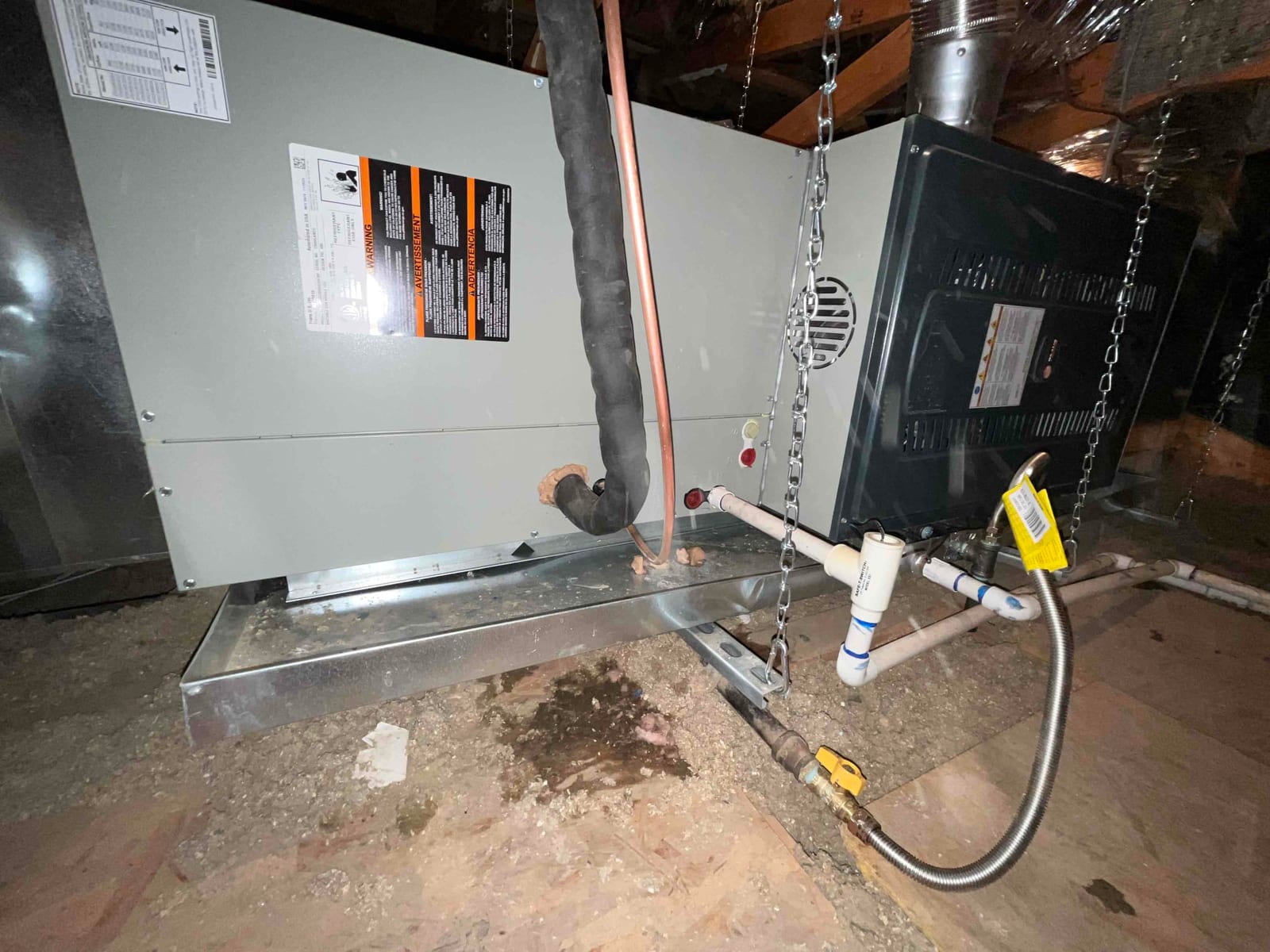

New furnace and coil set on a drain pan with insulated refrigerant lines, condensate piping, gas flex connector, and hanging support chains.
New furnace and coil set on a drain pan with insulated refrigerant lines, condensate piping, gas flex connector, and hanging support chains.

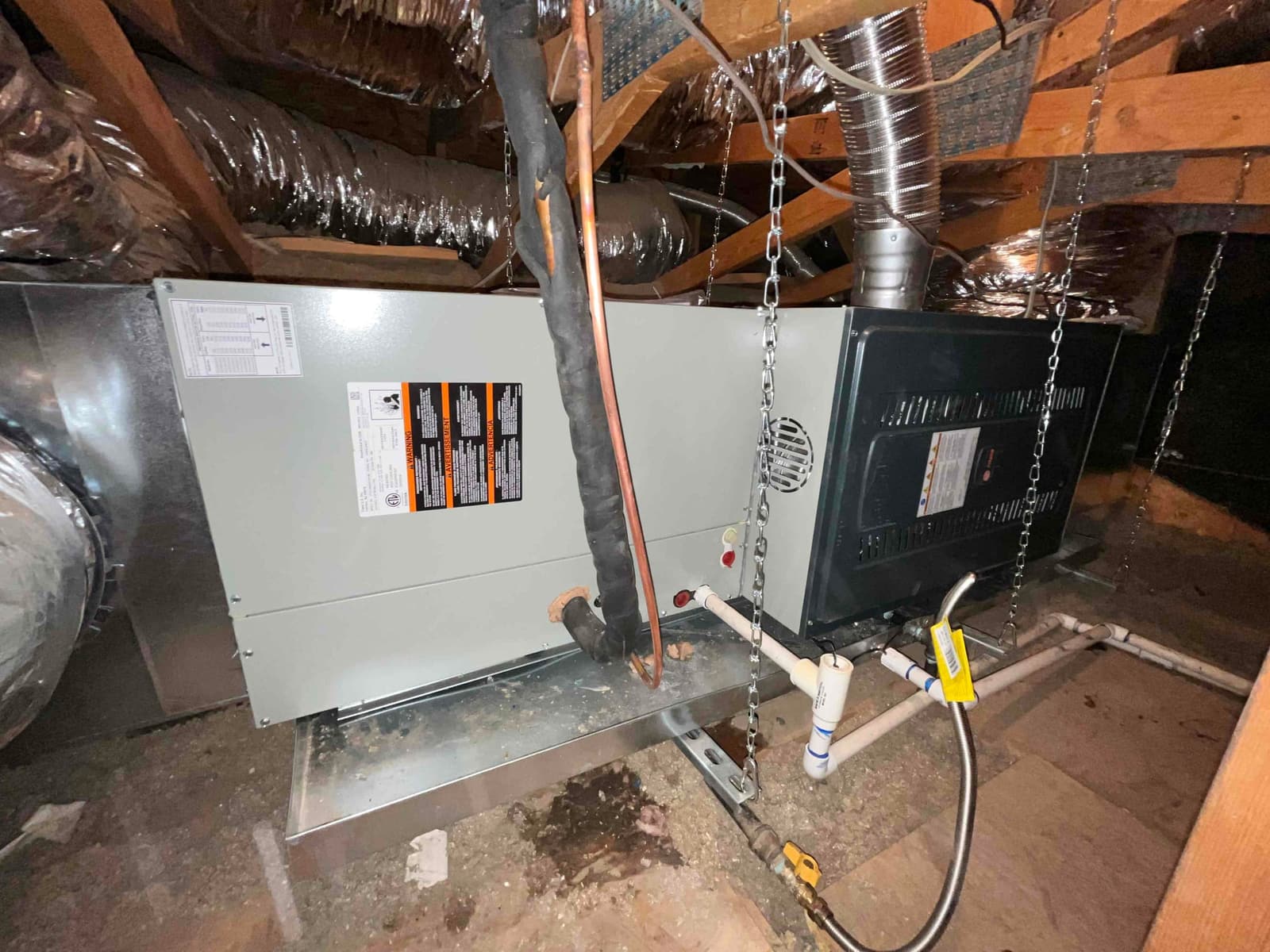

Horizontal furnace and coil assembly hung in attic with gas connection, condensate drain, insulated refrigerant lines, and duct connections completed.
Horizontal furnace and coil assembly hung in attic with gas connection, condensate drain, insulated refrigerant lines, and duct connections completed.

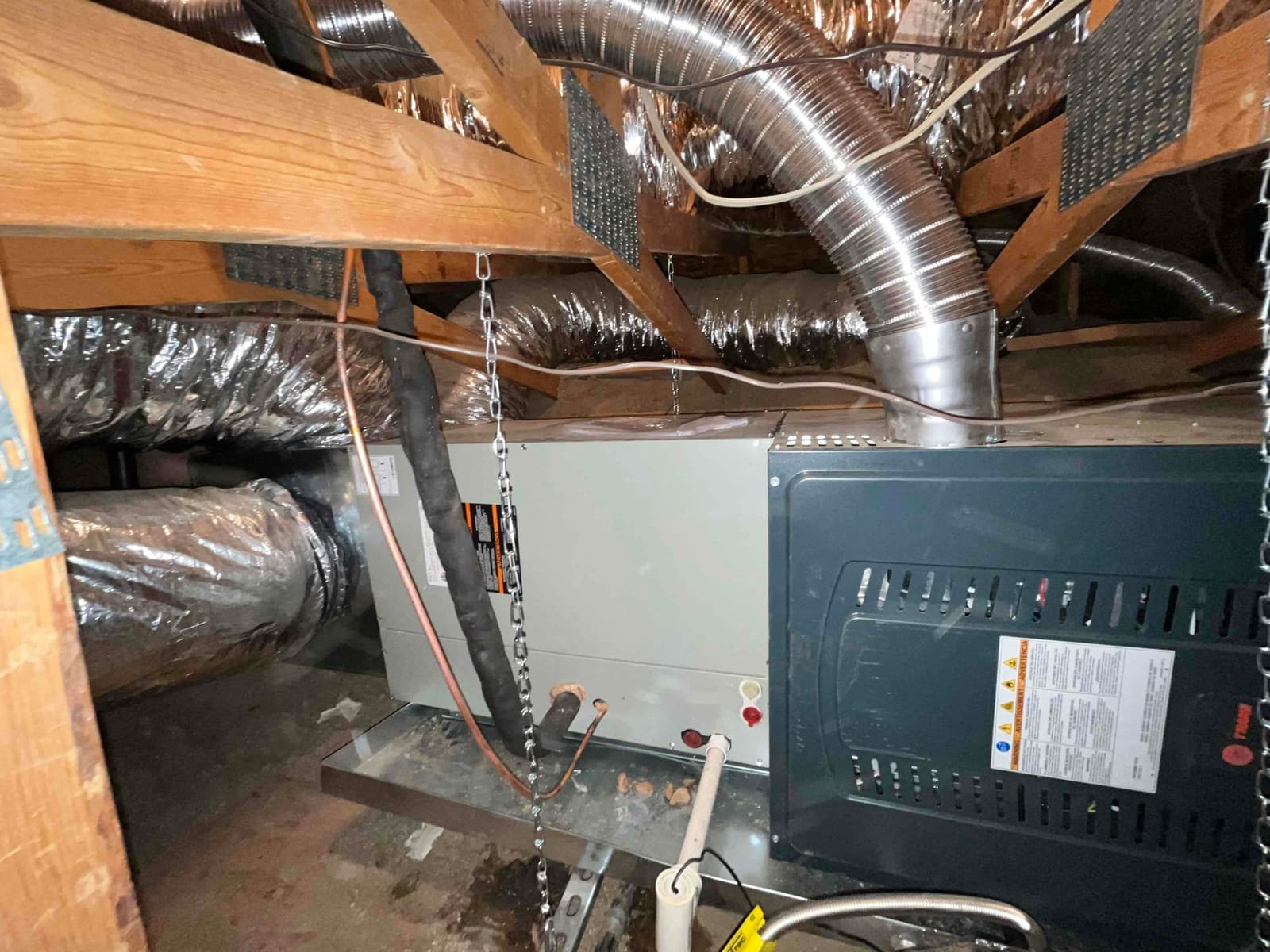

New attic air handler and furnace set on a drain pan with insulated duct connections and refrigerant lines routed to the unit.
New attic air handler and furnace set on a drain pan with insulated duct connections and refrigerant lines routed to the unit.

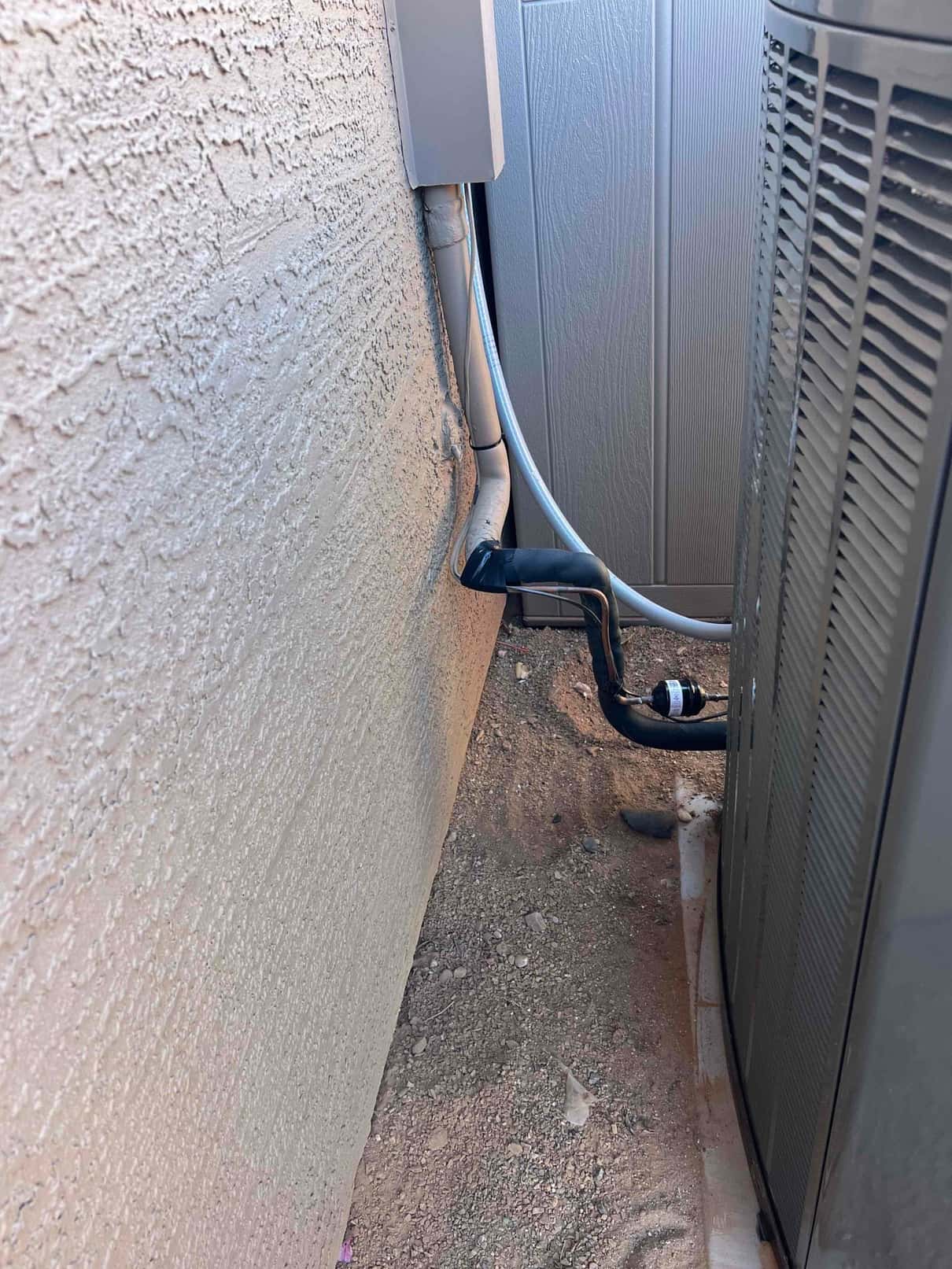

Outdoor condenser set beside the wall with insulated refrigerant lines, suction line filter-drier, and electrical whip to the disconnect.
Outdoor condenser set beside the wall with insulated refrigerant lines, suction line filter-drier, and electrical whip to the disconnect.

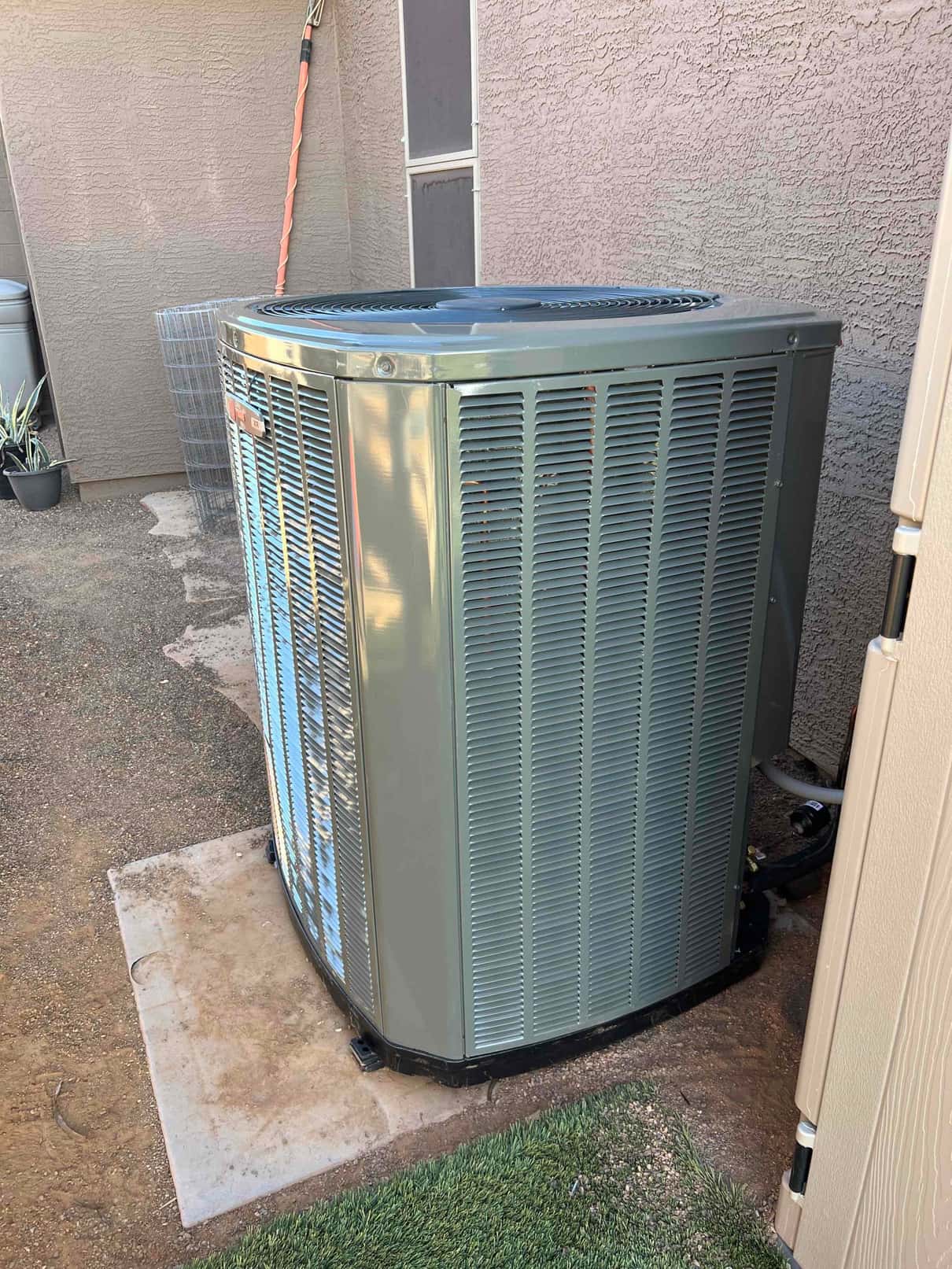

New outdoor condenser set on a level pad with insulated refrigerant lines routed to the wall penetration and service valves accessible.
New outdoor condenser set on a level pad with insulated refrigerant lines routed to the wall penetration and service valves accessible.

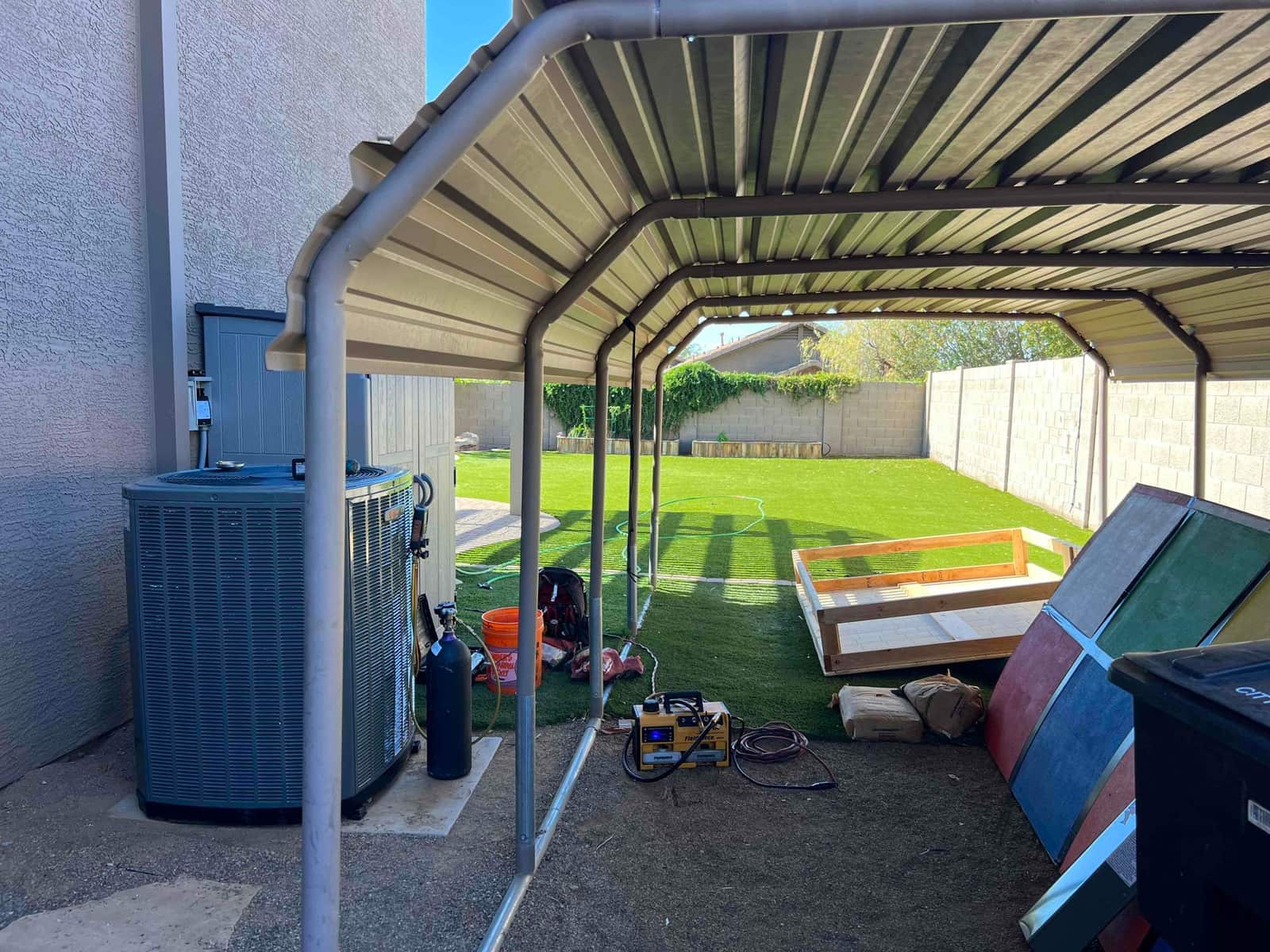

Outdoor condenser set on a pad beside the house with nearby service disconnect and tools staged under a shade structure.
Outdoor condenser set on a pad beside the house with nearby service disconnect and tools staged under a shade structure.
Wall-mounted thermostat or temperature sensor installed on a finished interior wall, completing the control setup for the new HVAC system.
Wall-mounted thermostat or temperature sensor installed on a finished interior wall, completing the control setup for the new HVAC system.
Furnace front panel with safety warning label and vent slots installed in place during HVAC system installation.
Furnace front panel with safety warning label and vent slots installed in place during HVAC system installation.

Nitrogen Pressure Test

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

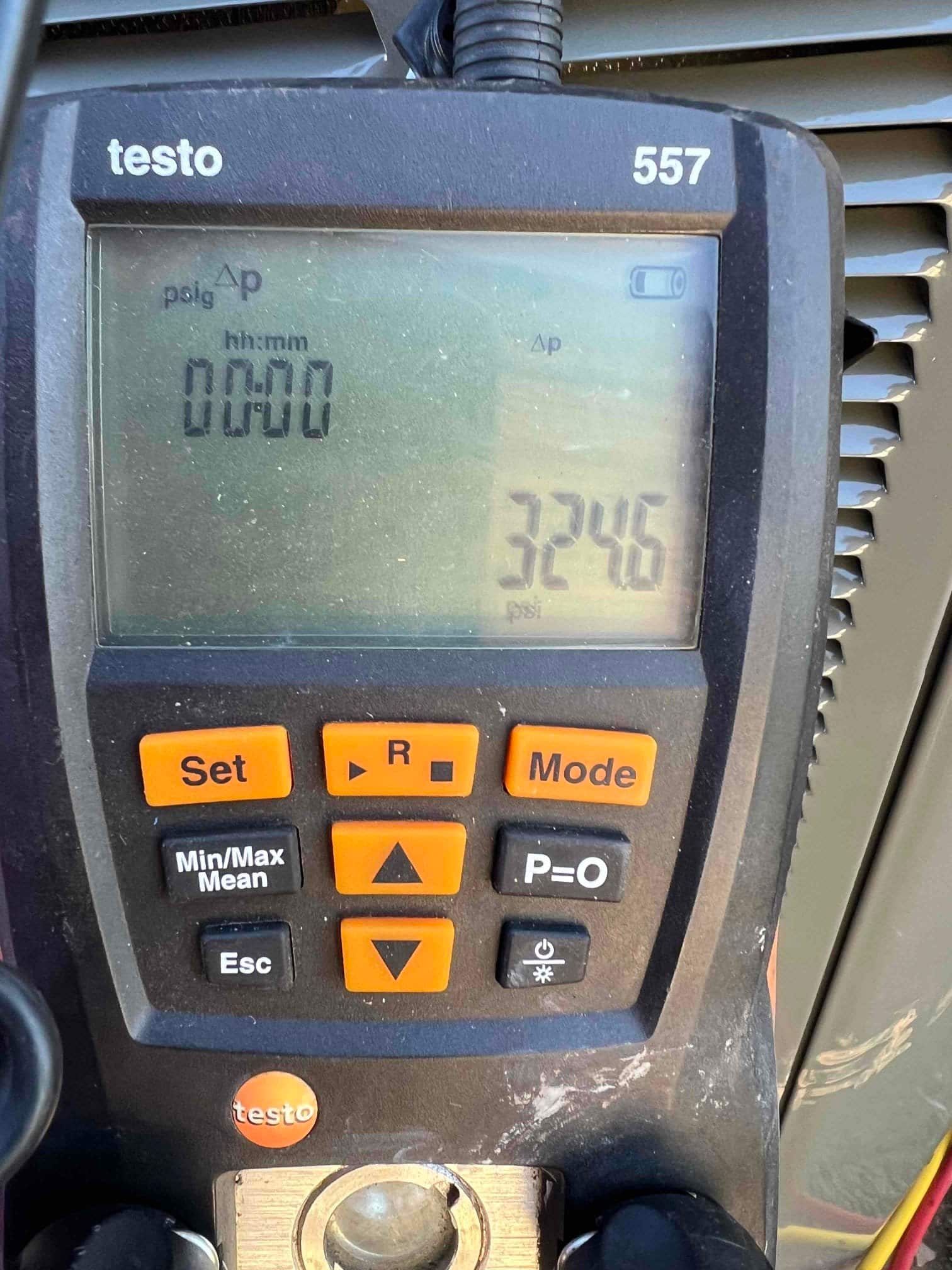

Digital manifold gauge shows equalized pressure at 324.6 psi during a nitrogen pressure test on the new system.
Digital manifold gauge shows equalized pressure at 324.6 psi during a nitrogen pressure test on the new system.

Vacuum / Evacuation

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

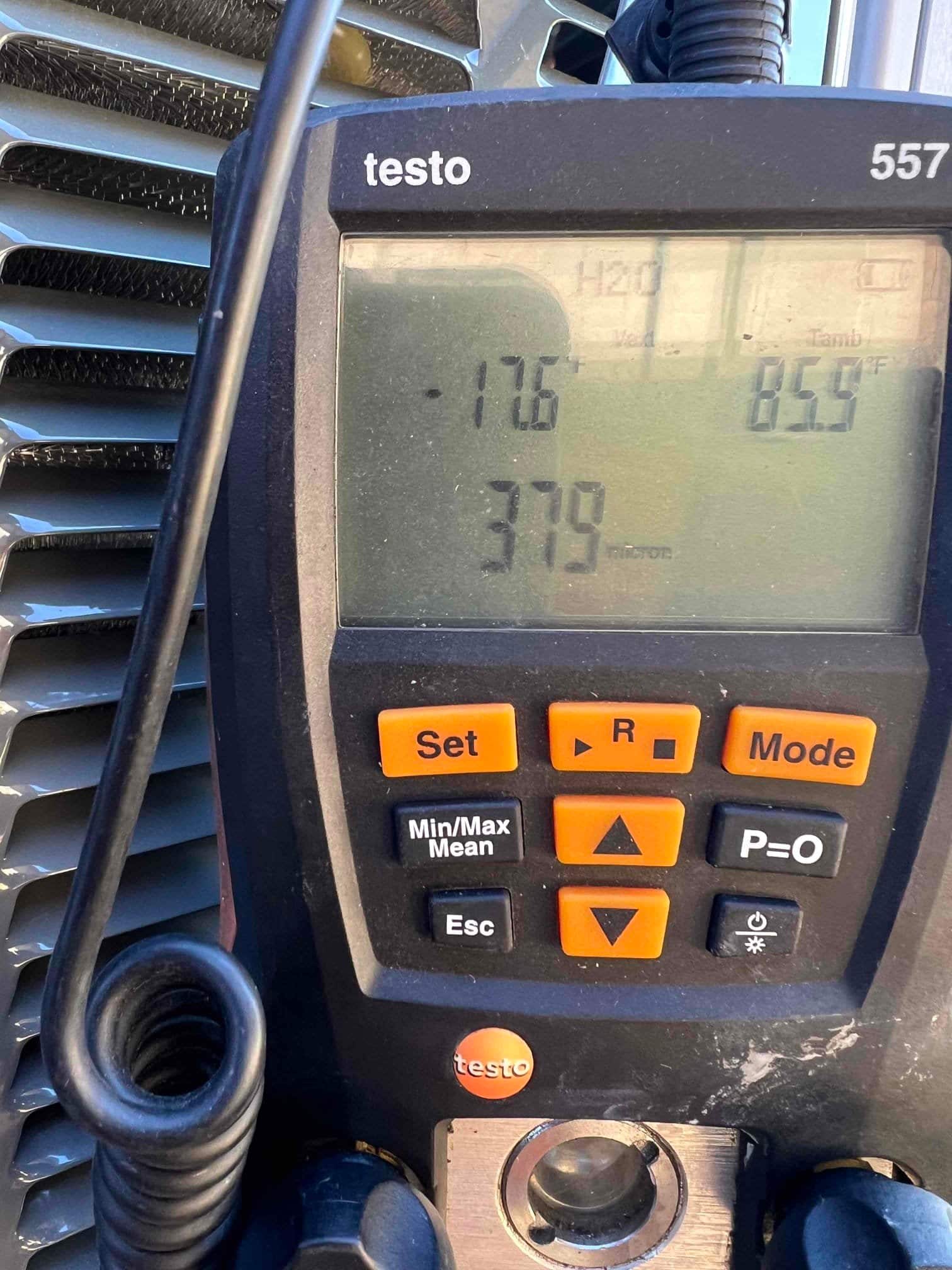

Digital micron gauge displays 379 microns during system evacuation, confirming a deep vacuum before refrigerant charging.
Digital micron gauge displays 379 microns during system evacuation, confirming a deep vacuum before refrigerant charging.

Air-Side Commissioning

Return and supply air temperatures measured to verify the temperature split falls in the target window.

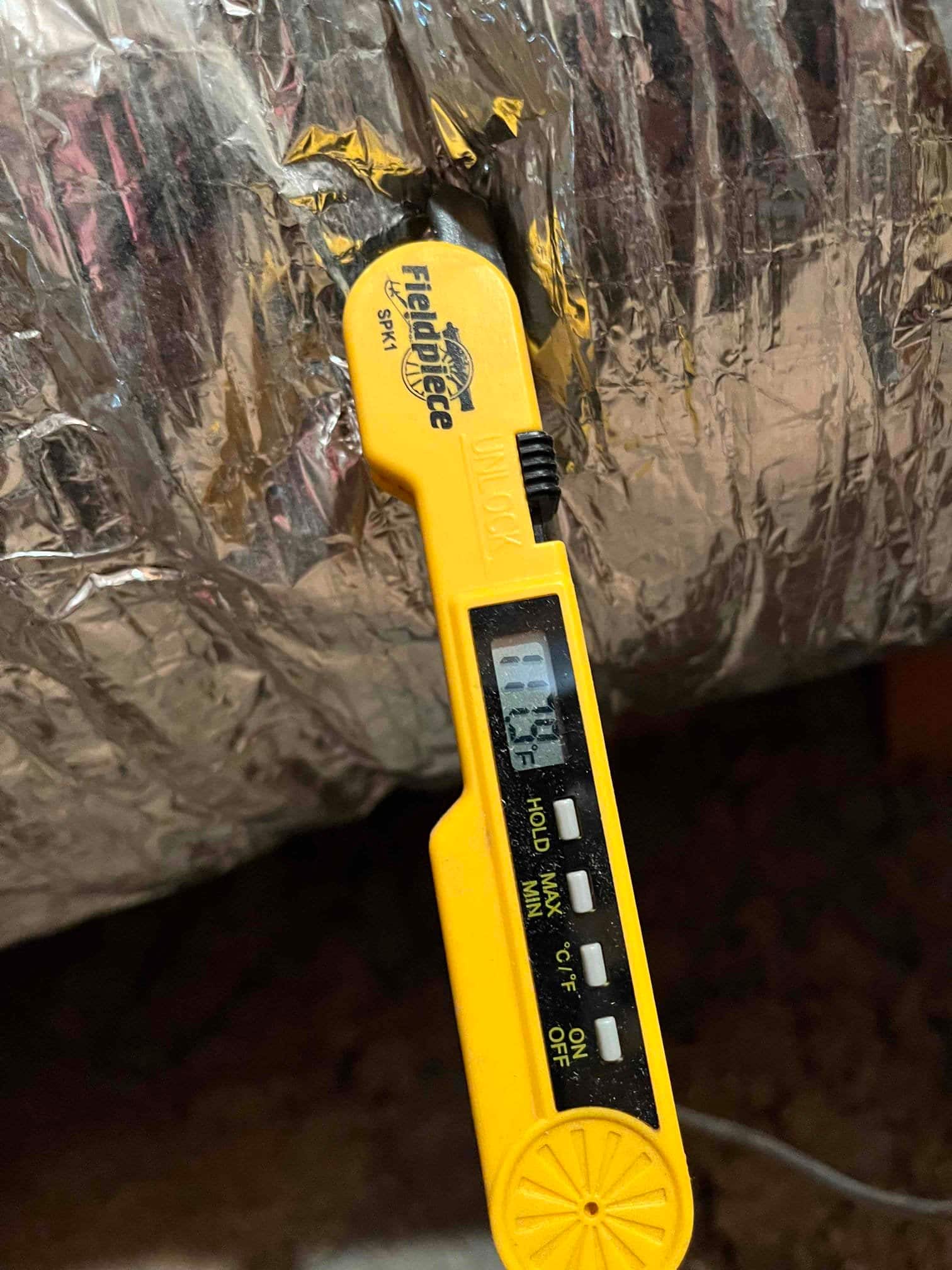

Digital thermometer probe inserted into insulated duct shows 55.7°F, documenting supply air temperature after cooling.
Digital thermometer probe inserted into insulated duct shows 55.7°F, documenting supply air temperature after cooling.
Digital thermometer probe measures 60°F at insulated duct, documenting supply air temperature after the evaporator.
Digital thermometer probe measures 60°F at insulated duct, documenting supply air temperature after the evaporator.
Digital thermometer inserted into insulated duct reads 66.9 degrees Fahrenheit during air temperature check.
Digital thermometer inserted into insulated duct reads 66.9 degrees Fahrenheit during air temperature check.
Digital thermometer probe measures air temperature at duct insulation, displaying 60.6°F during system airflow checks.
Digital thermometer probe measures air temperature at duct insulation, displaying 60.6°F during system airflow checks.

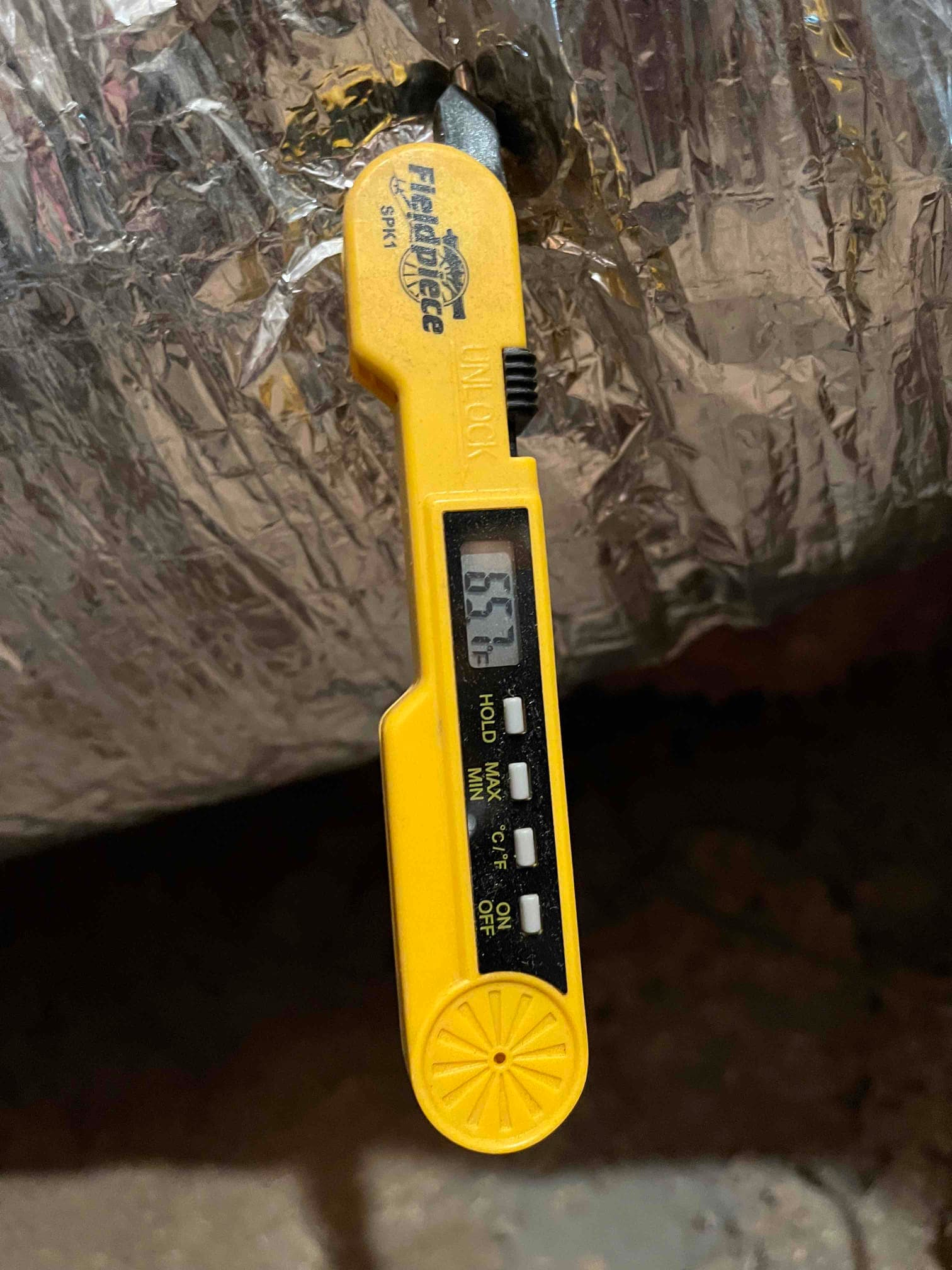

Digital thermometer probe inserted into insulated duct reads 65.7°F, documenting air-side temperature during system commissioning.
Digital thermometer probe inserted into insulated duct reads 65.7°F, documenting air-side temperature during system commissioning.
