Scope of Work
Installation of a 5-ton multi-stage inverter vertical furnace and coil with AC condenser.
Arcadia · installed July 21, 2026
— At a Glance
Location
Arcadia
Completed
July 21, 2026
System Type
AC + Furnace Split System
Capacity
5-Ton
Brand
Trane
Efficiency
16.5 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$15,388
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Evaporator Coil
- Brand
- American Standard
- Model
- 5TXCC009AS3HCAA
- Matched
- 5-Ton airflow
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Service Areas. You can browse more real 5-Ton Trane AC and Furnace Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Edwin from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 117 PSIG
- Liquid pressure
- 330 PSIG
- Evaporator saturation
- 44°F
- Condensing saturation
- 109.2°F
- Superheat
- 23°F
- Subcooling
- 29°F
Air-Side Performance
- Return-air temperature
- 86°F
- Supply-air temperature
- 52.4°F
- Temperature split
- 33.6°F
Nitrogen Pressure Test
- Test pressure held
- 356 PSIG
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 516.5V-5A7A7060-S8X1 | Vertical 5 Ton- Premium Variable Speed -16.5 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the b | 1 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. One Maintenance Visit Per Year.26 Point A- | 1 |
| Custom-Misc | Miscellaneous HVAC ServicesUpgrade to Condensing furnace | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
25 photos from this installation
Every step of this installation was documented on-site by Kyle & Edwin.

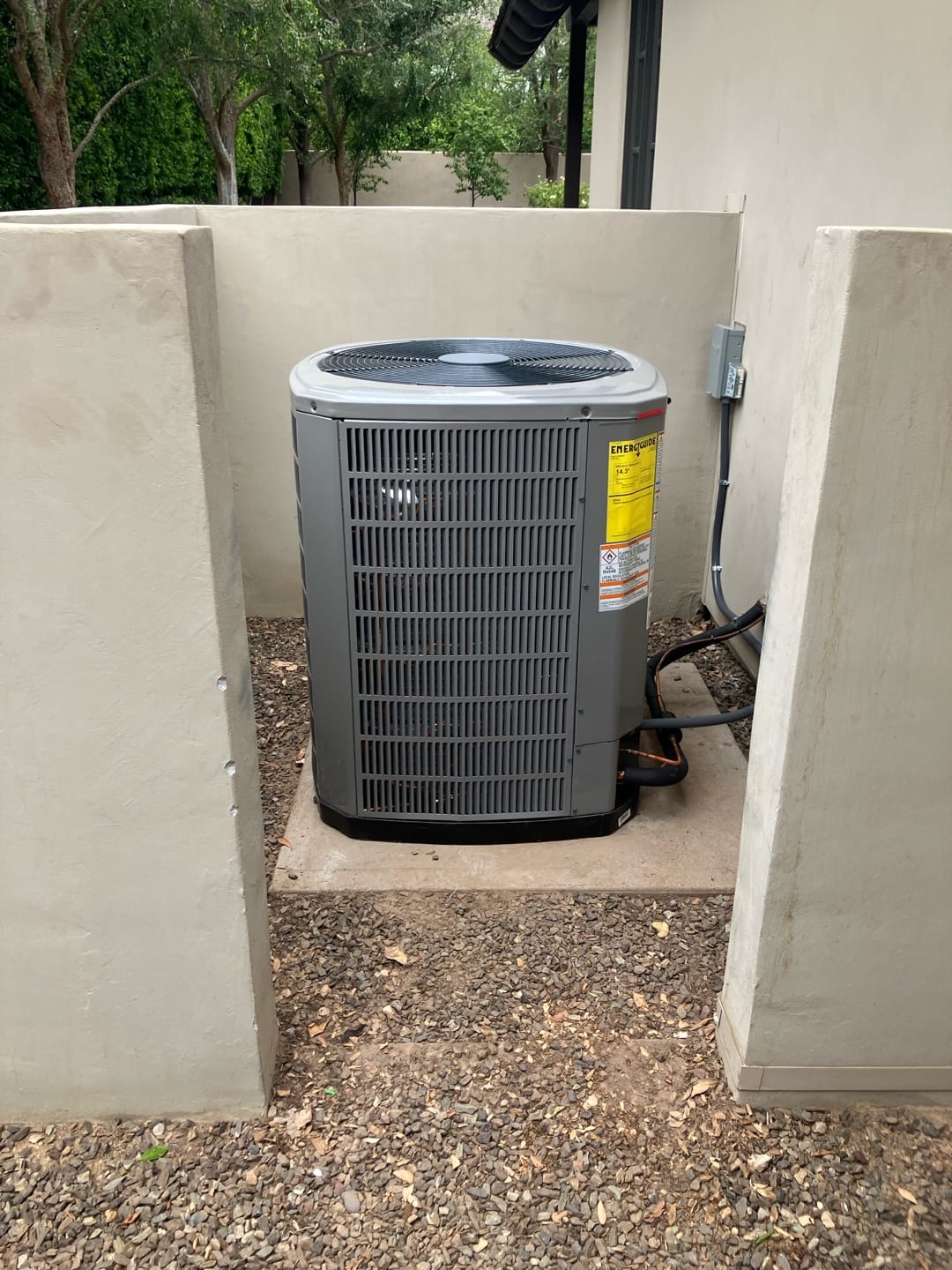

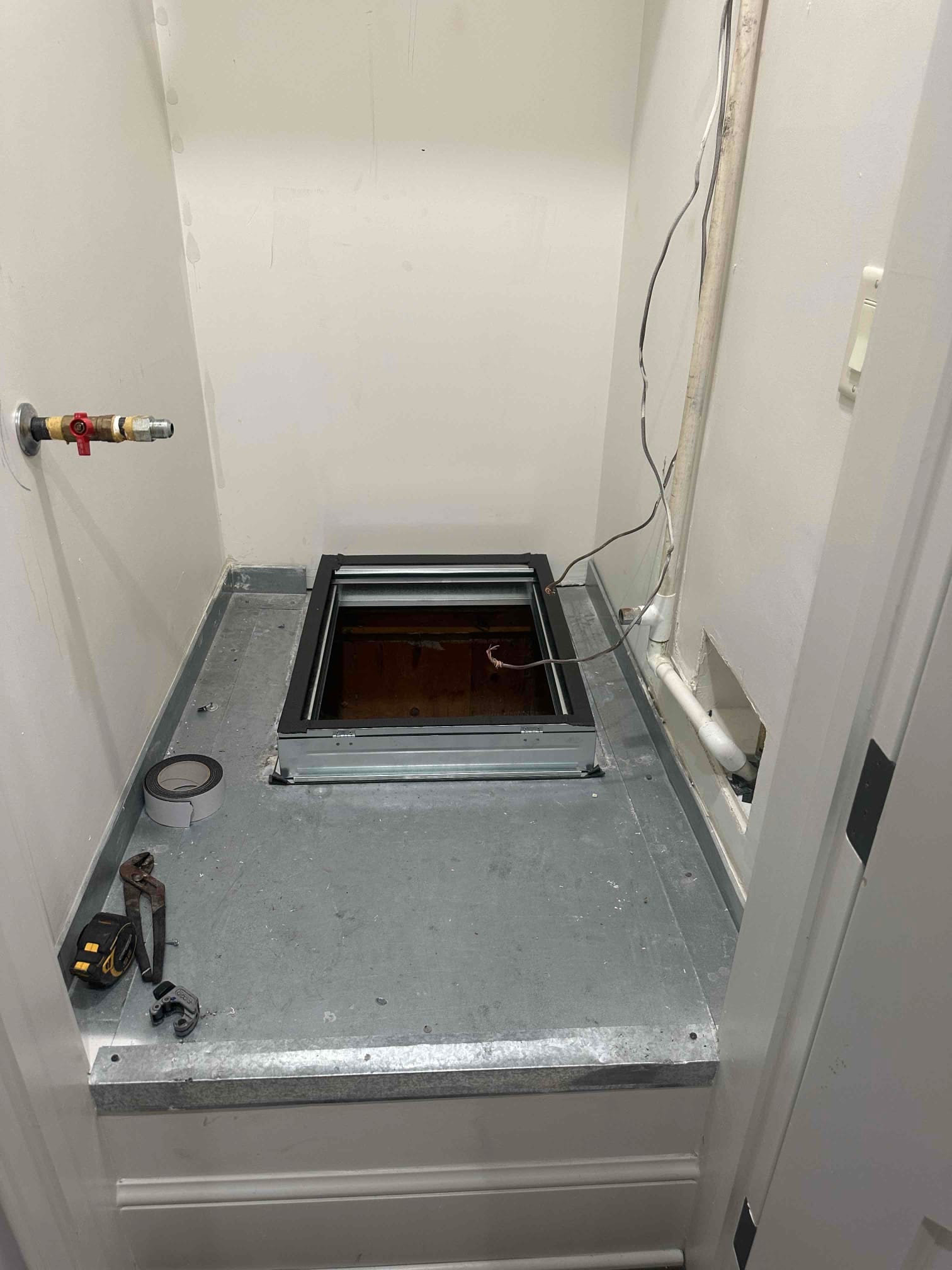

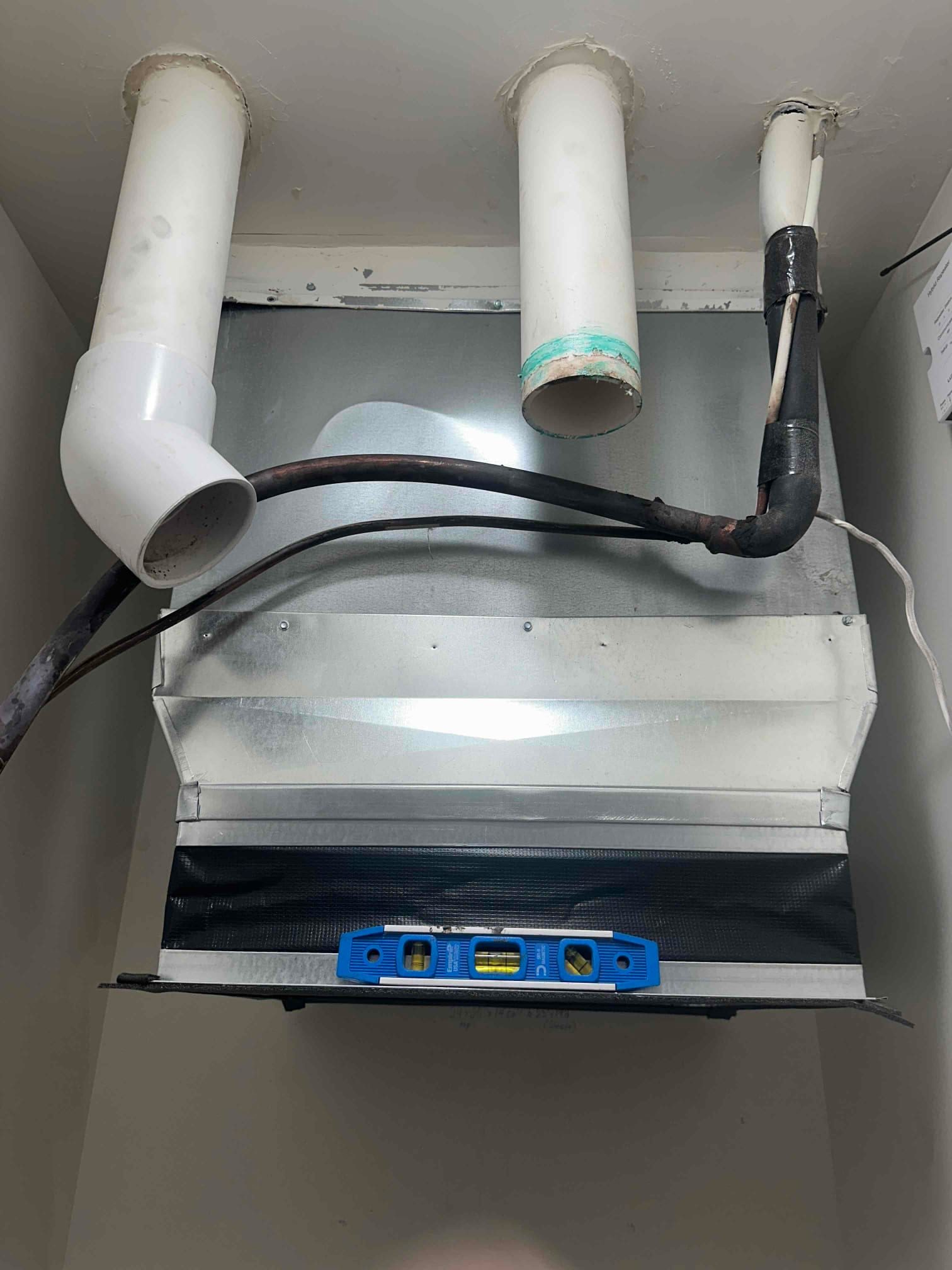

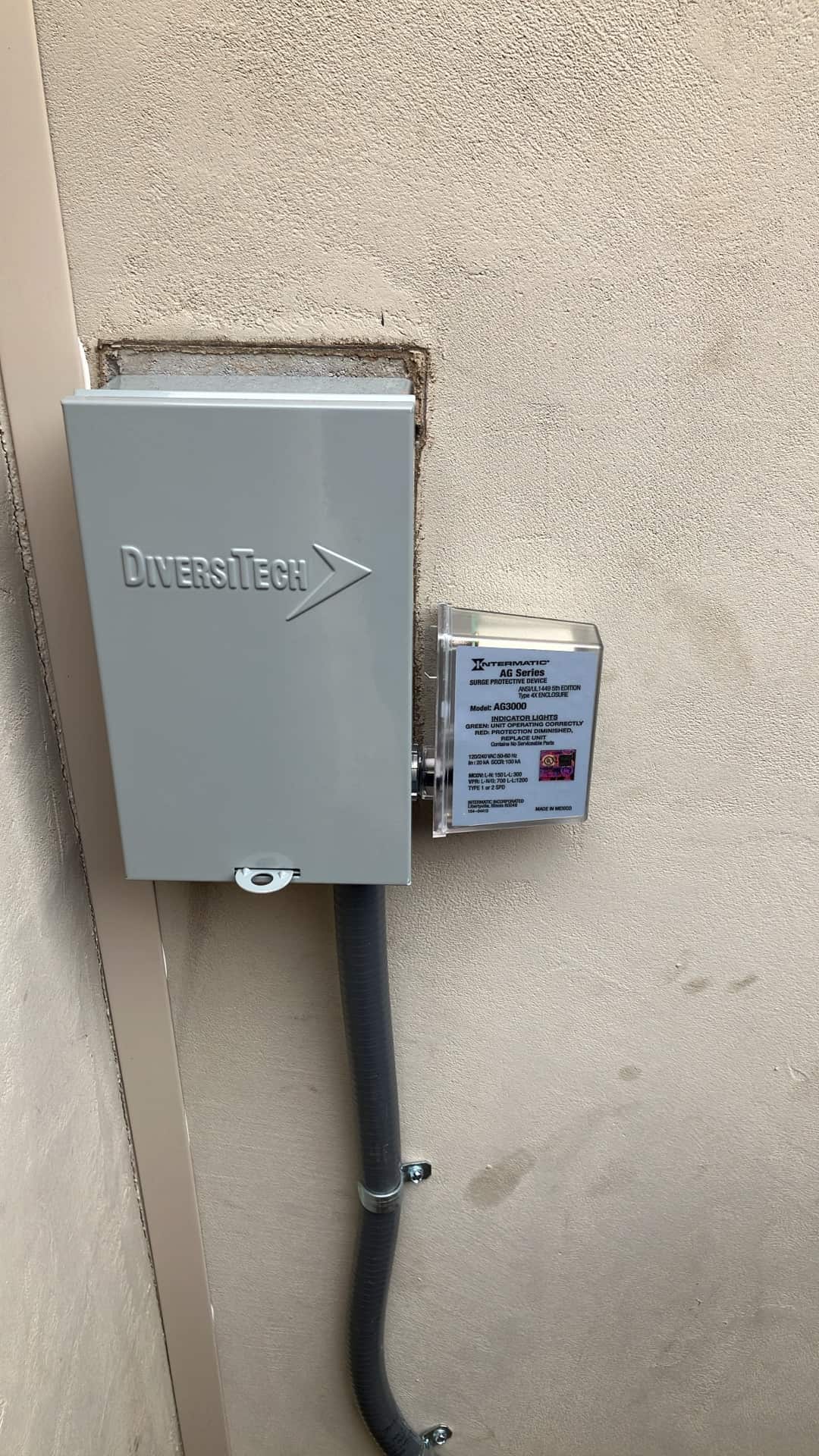

Installation Progress

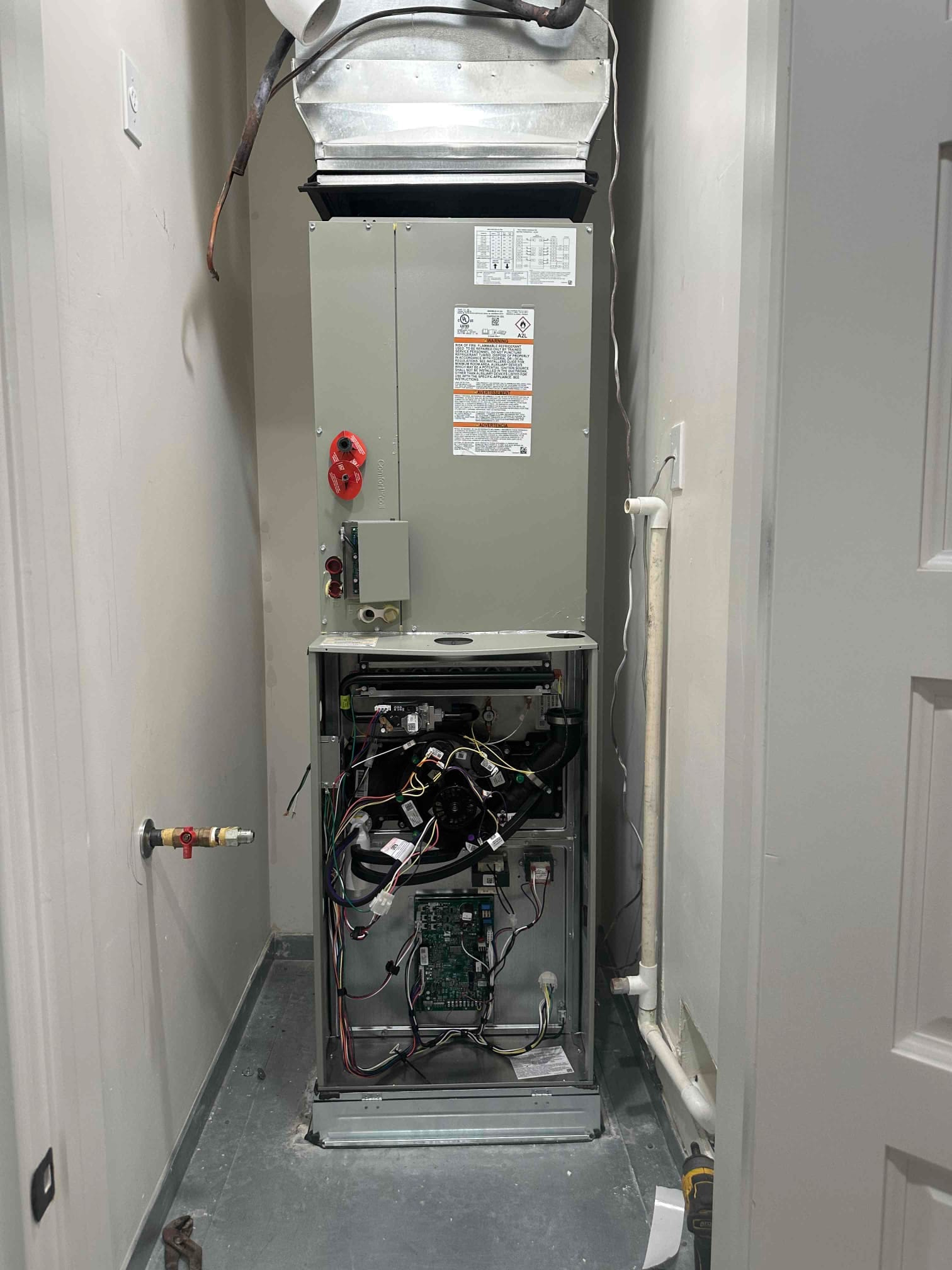

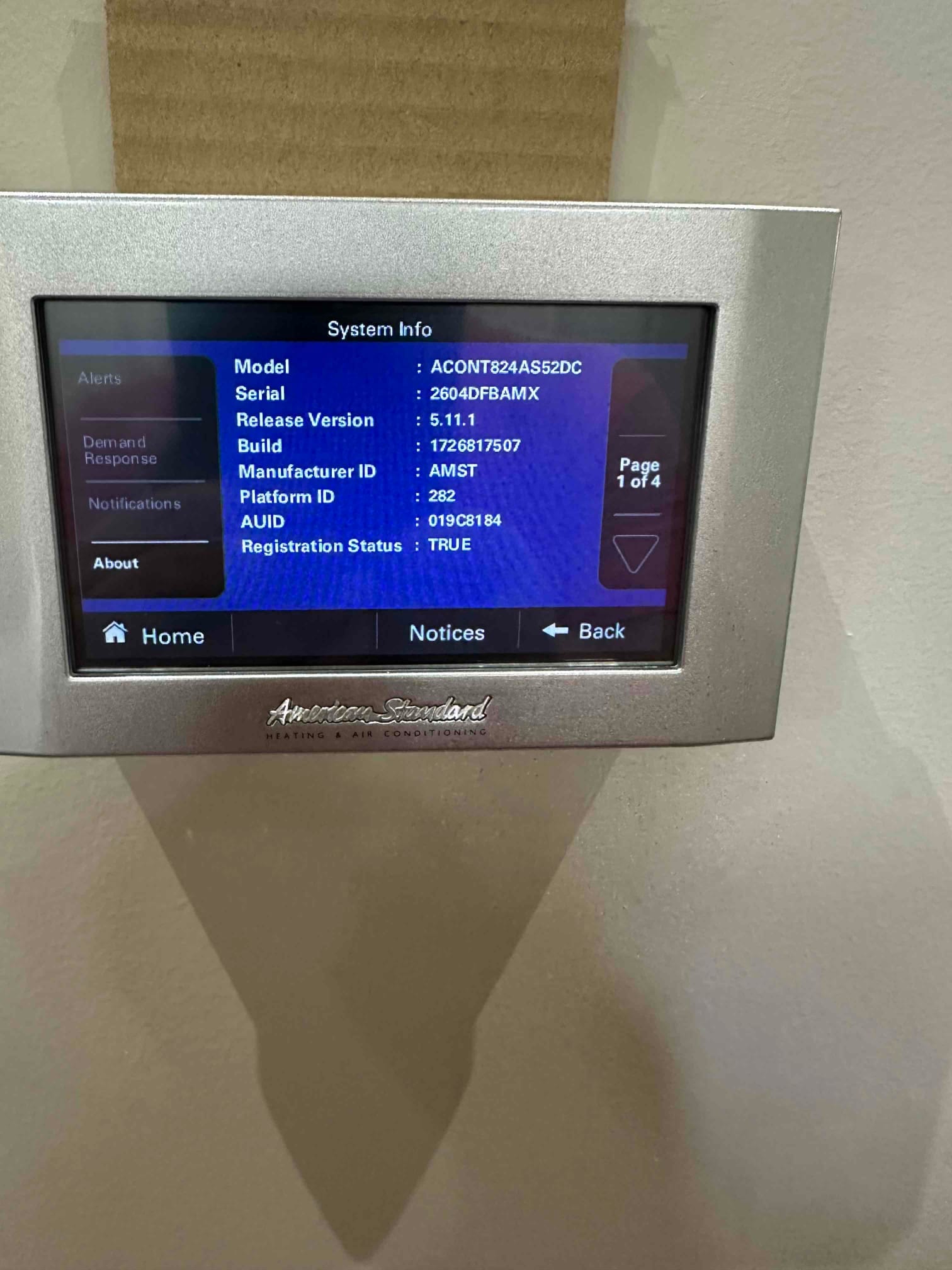

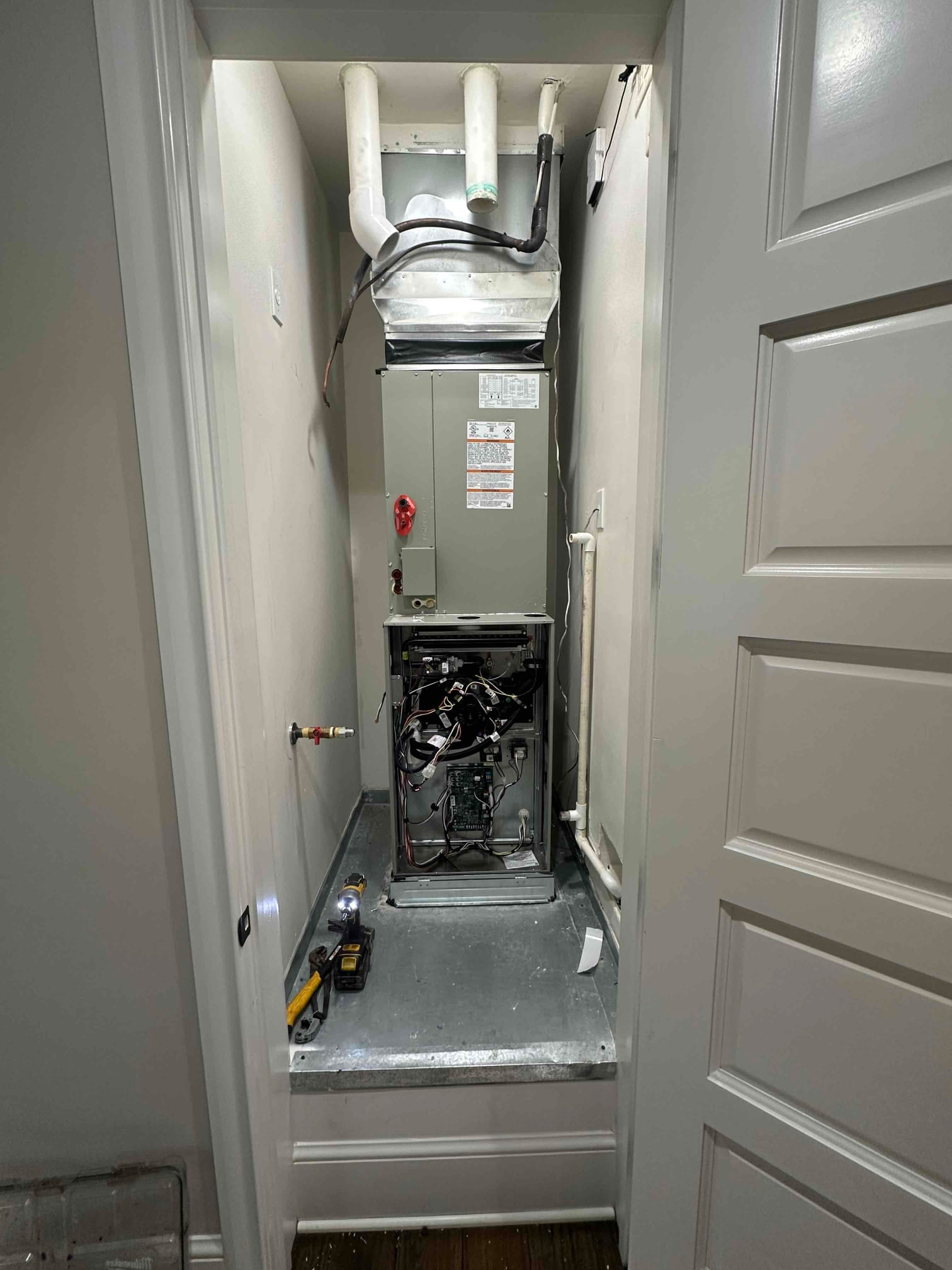

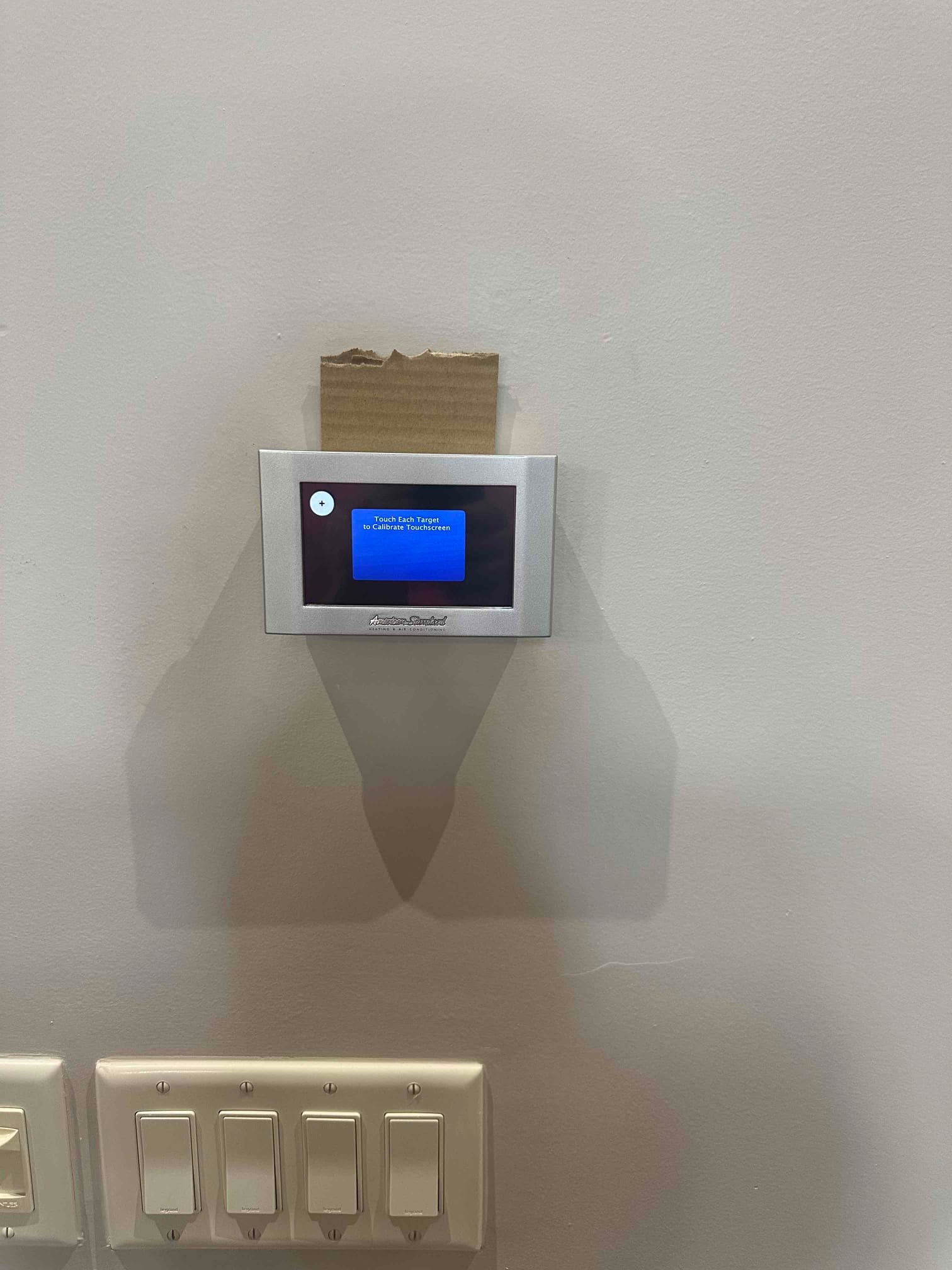

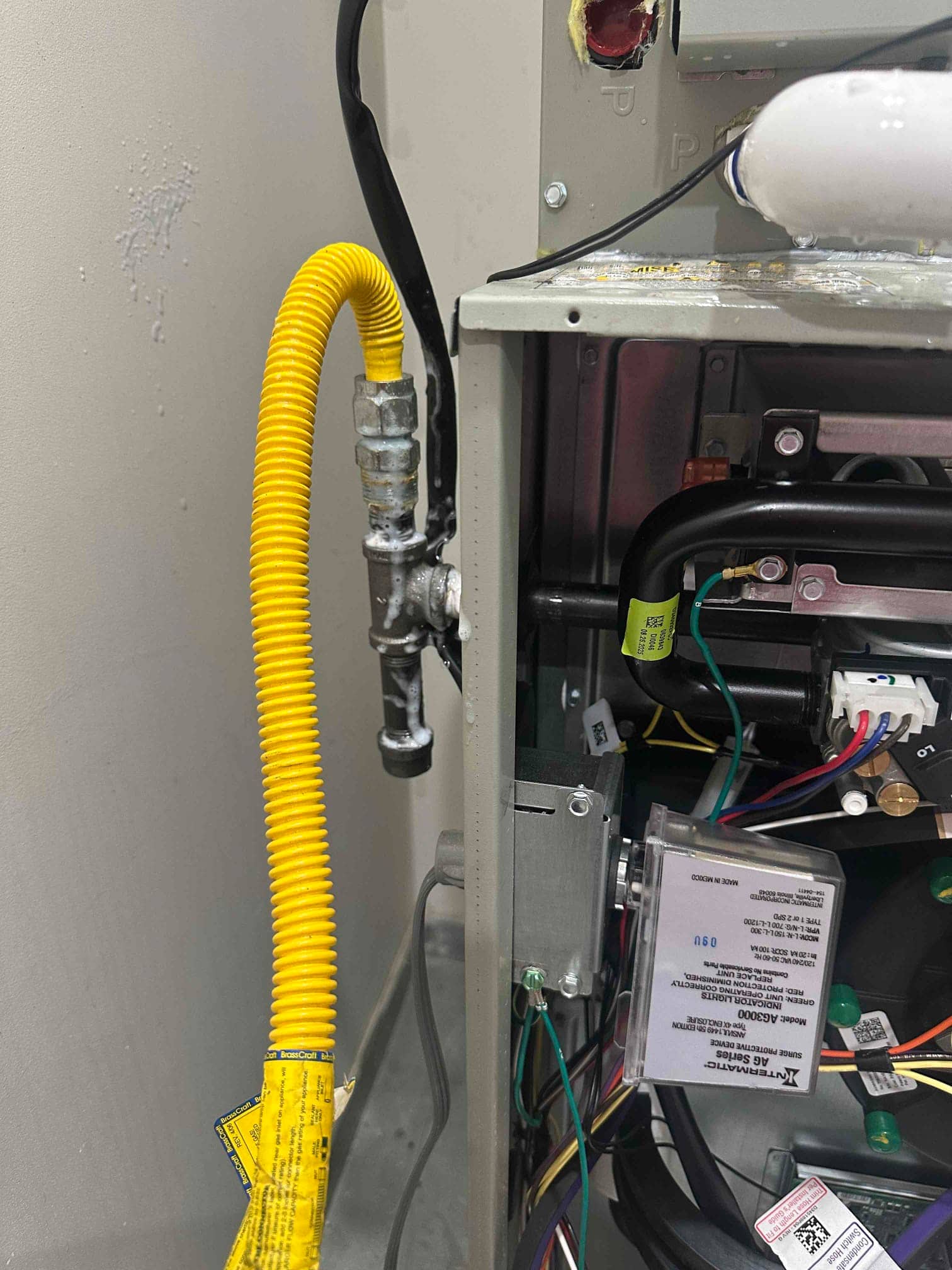

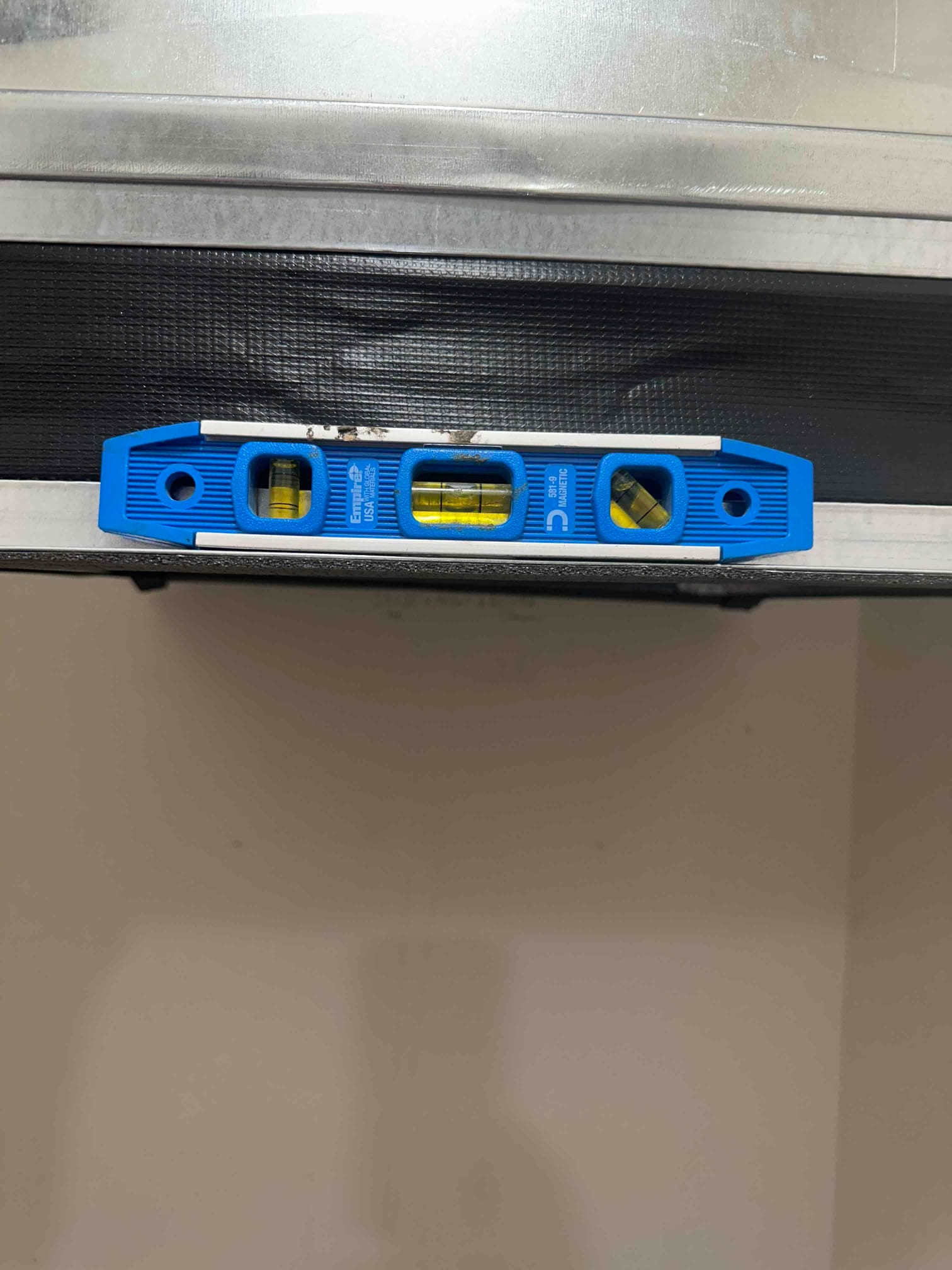

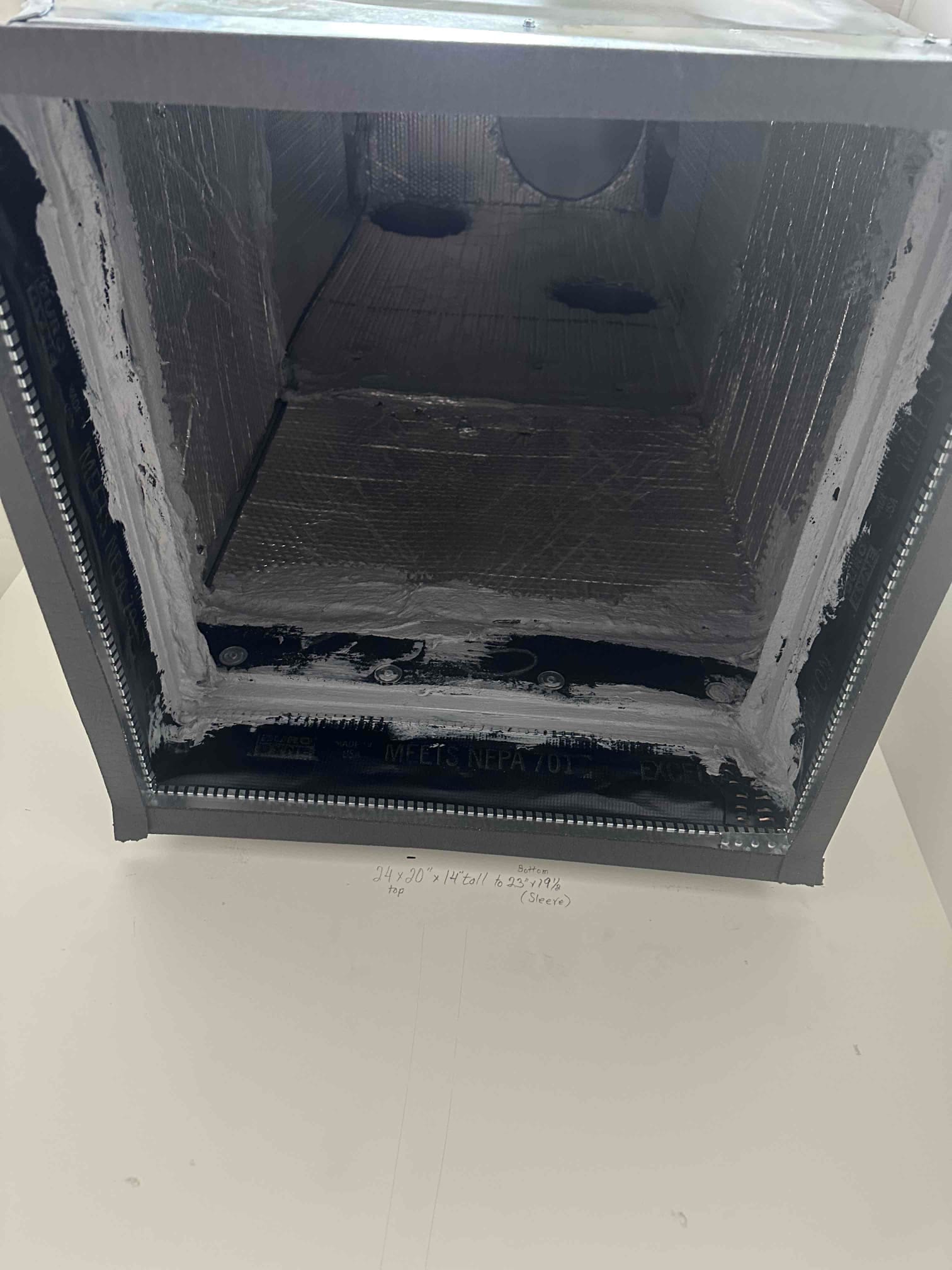

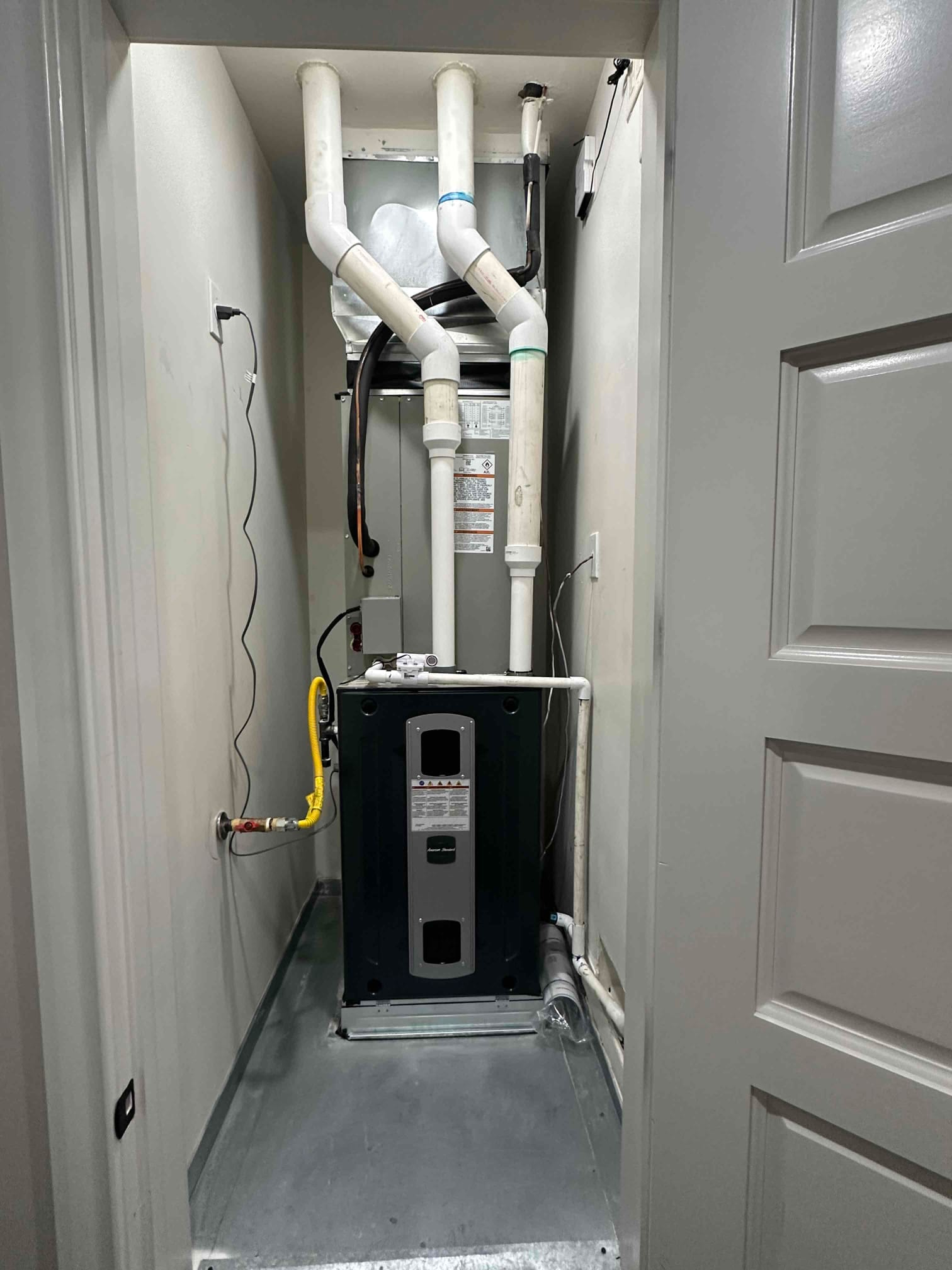

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

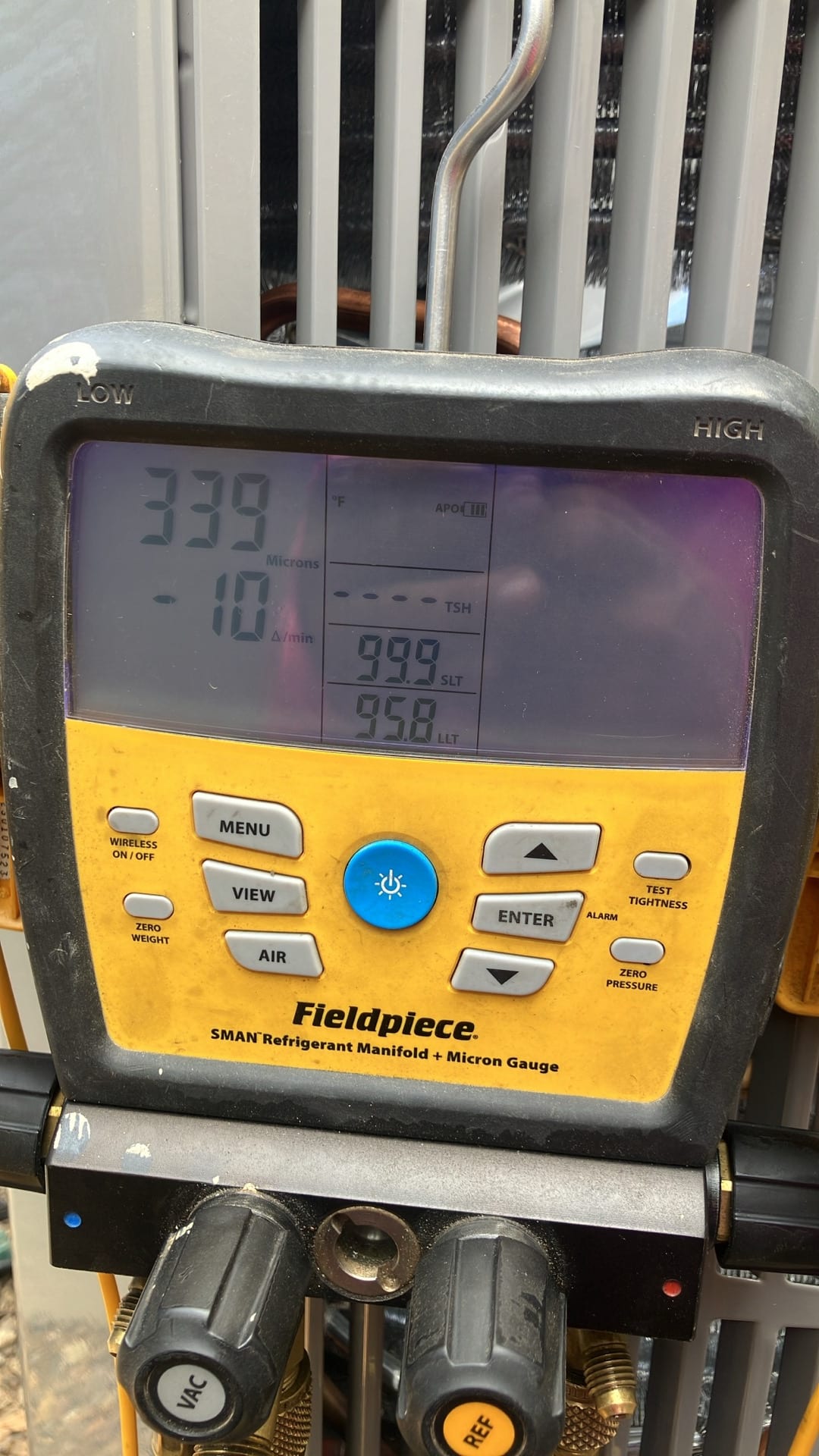

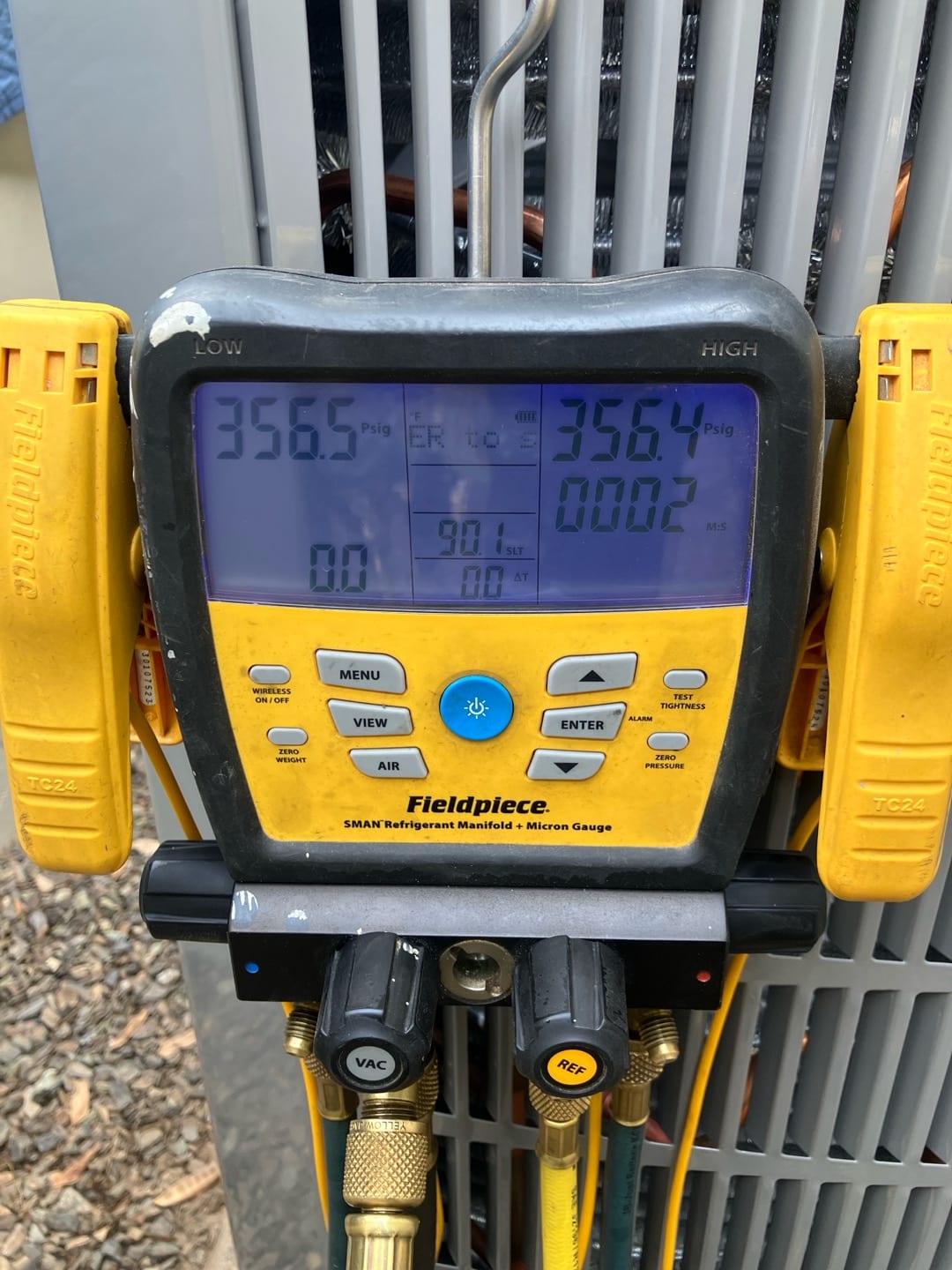

Nitrogen Pressure Test

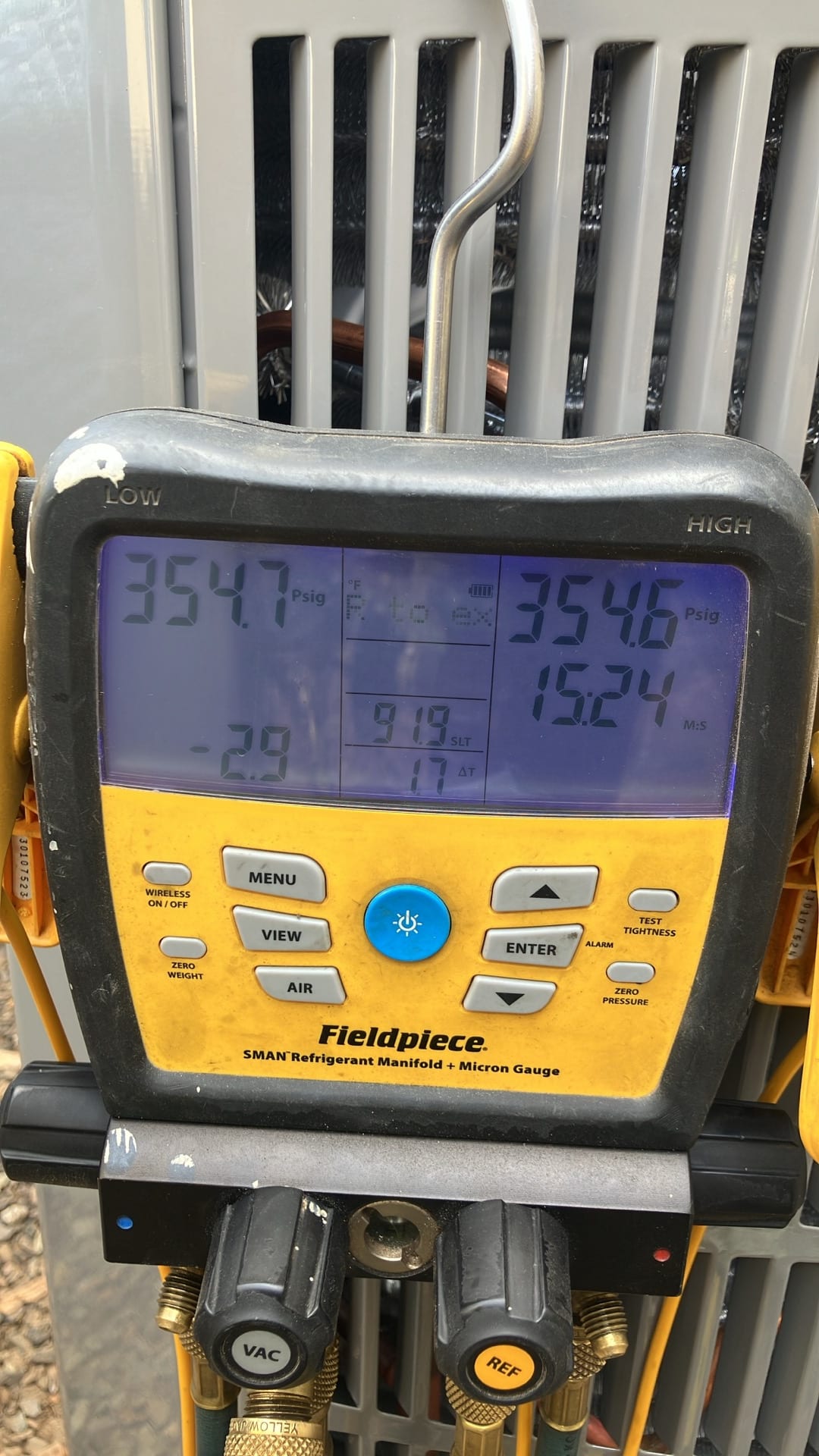

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

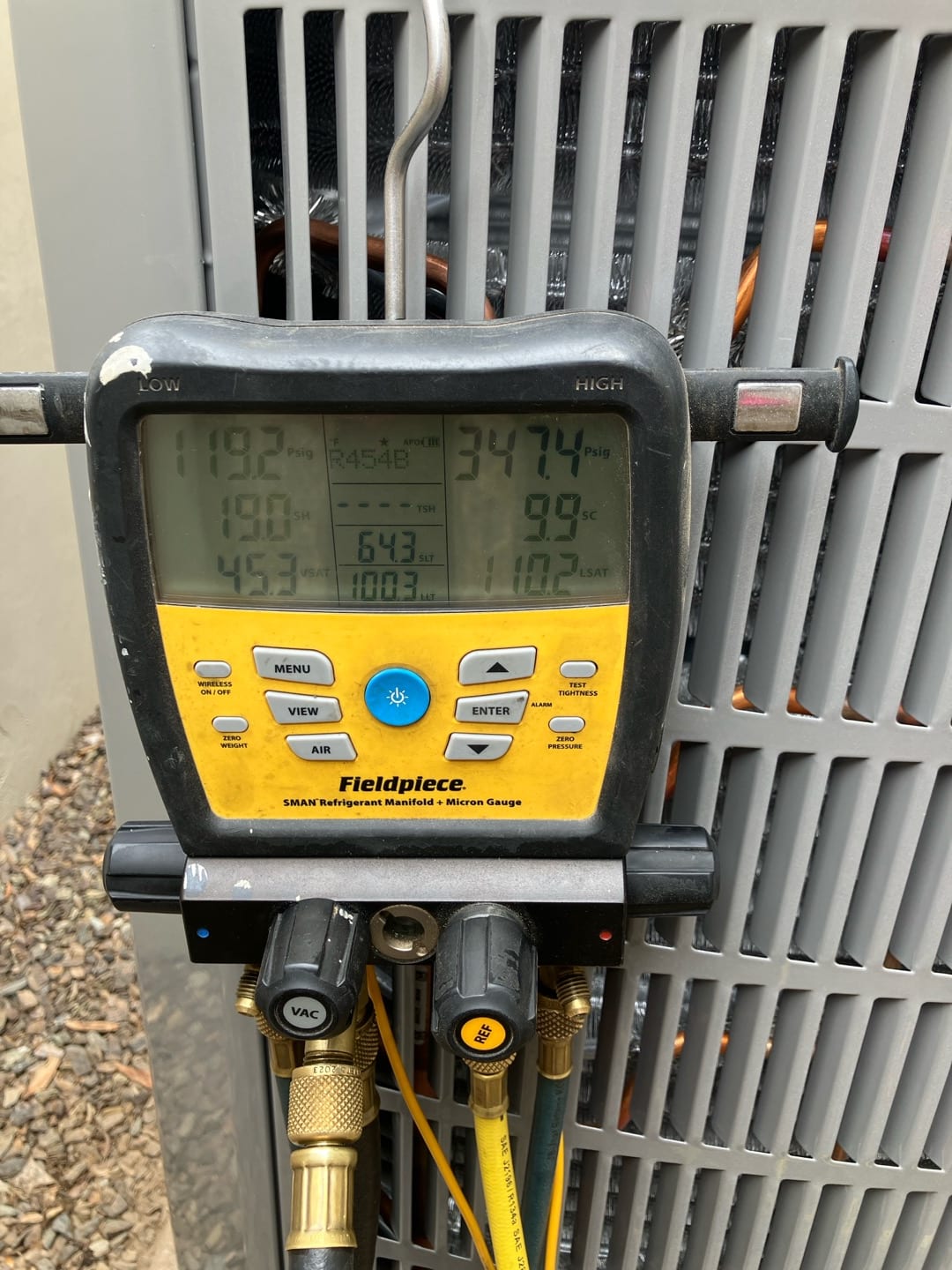

Refrigerant Commissioning

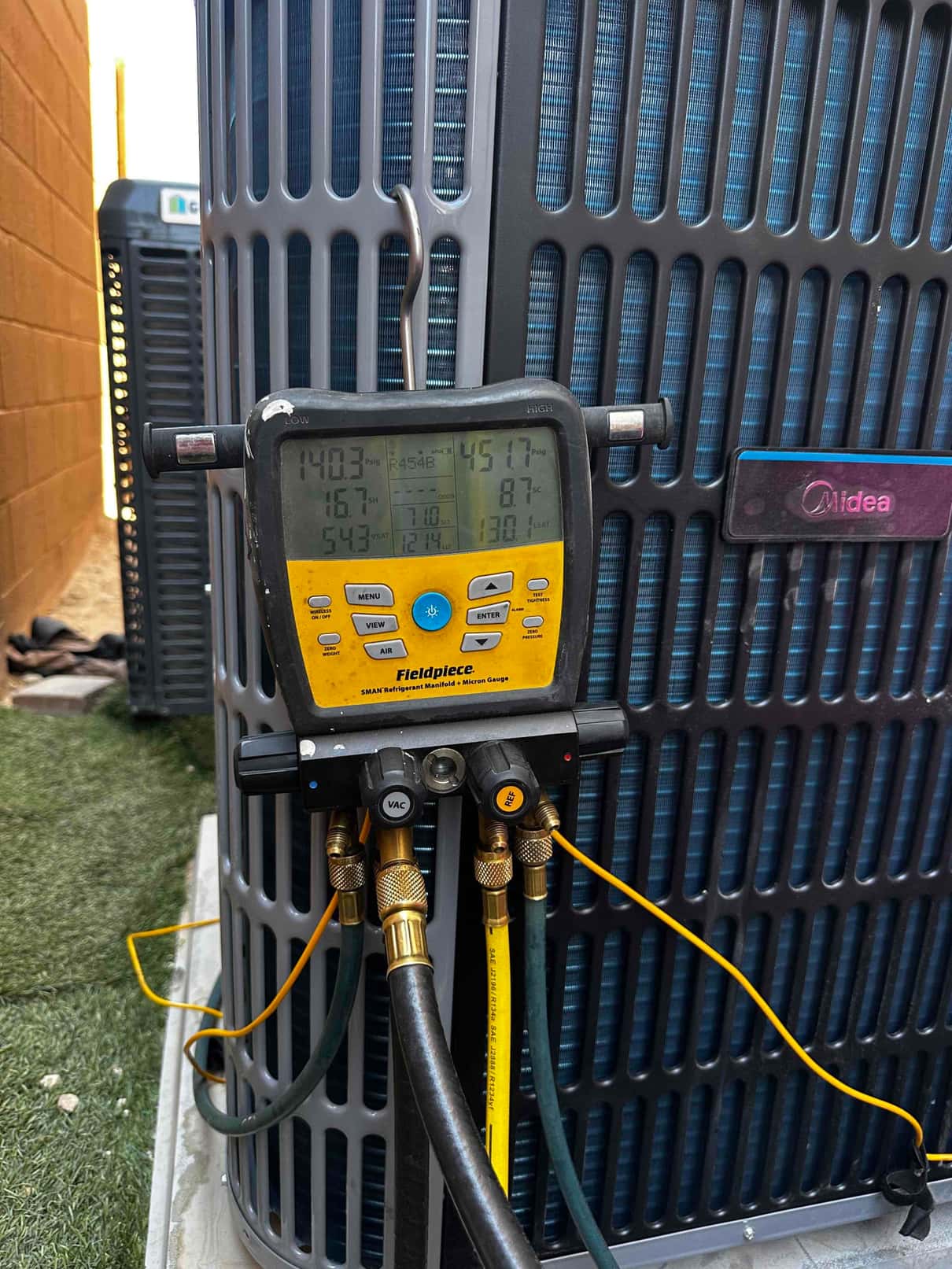

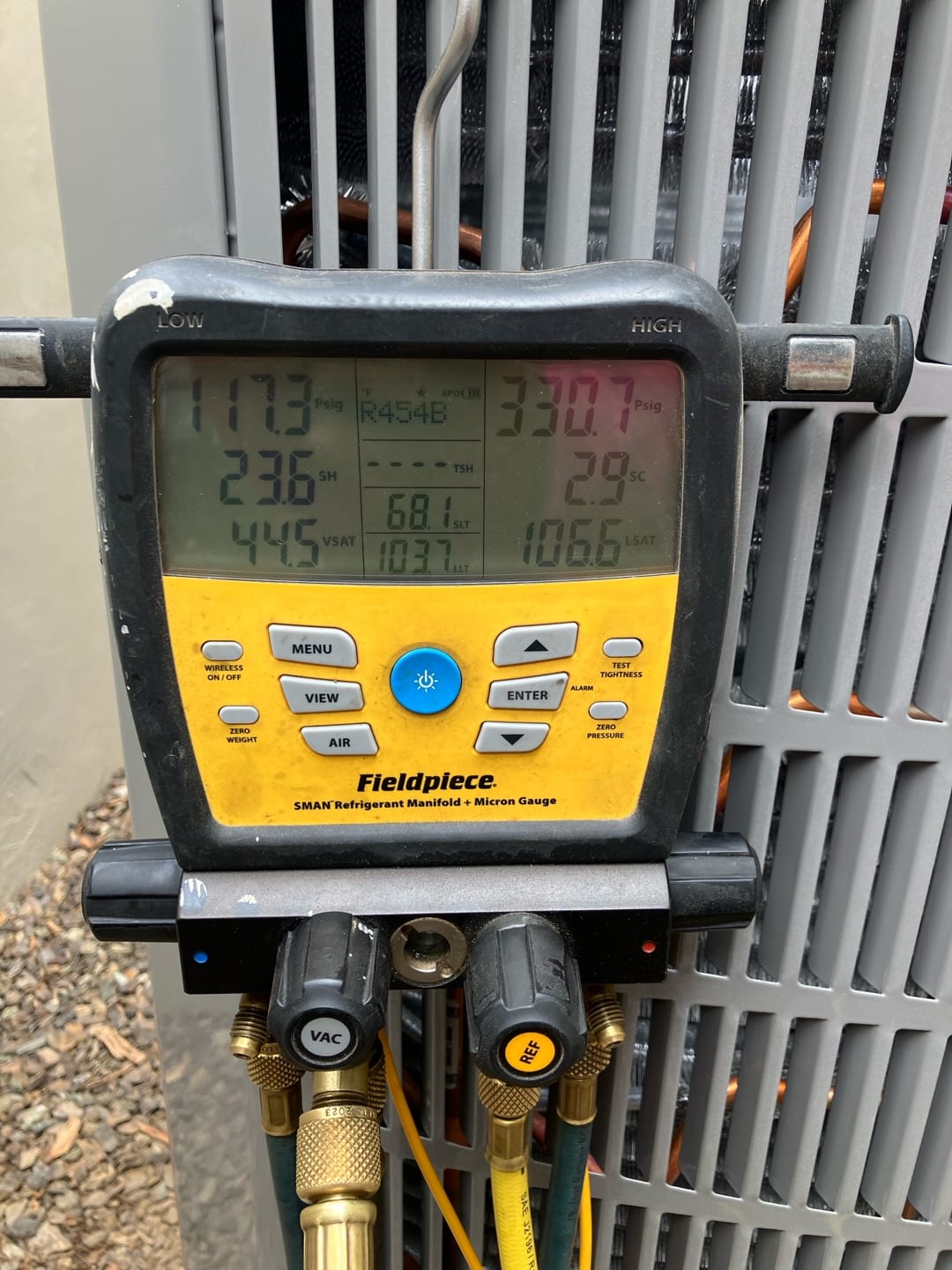

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

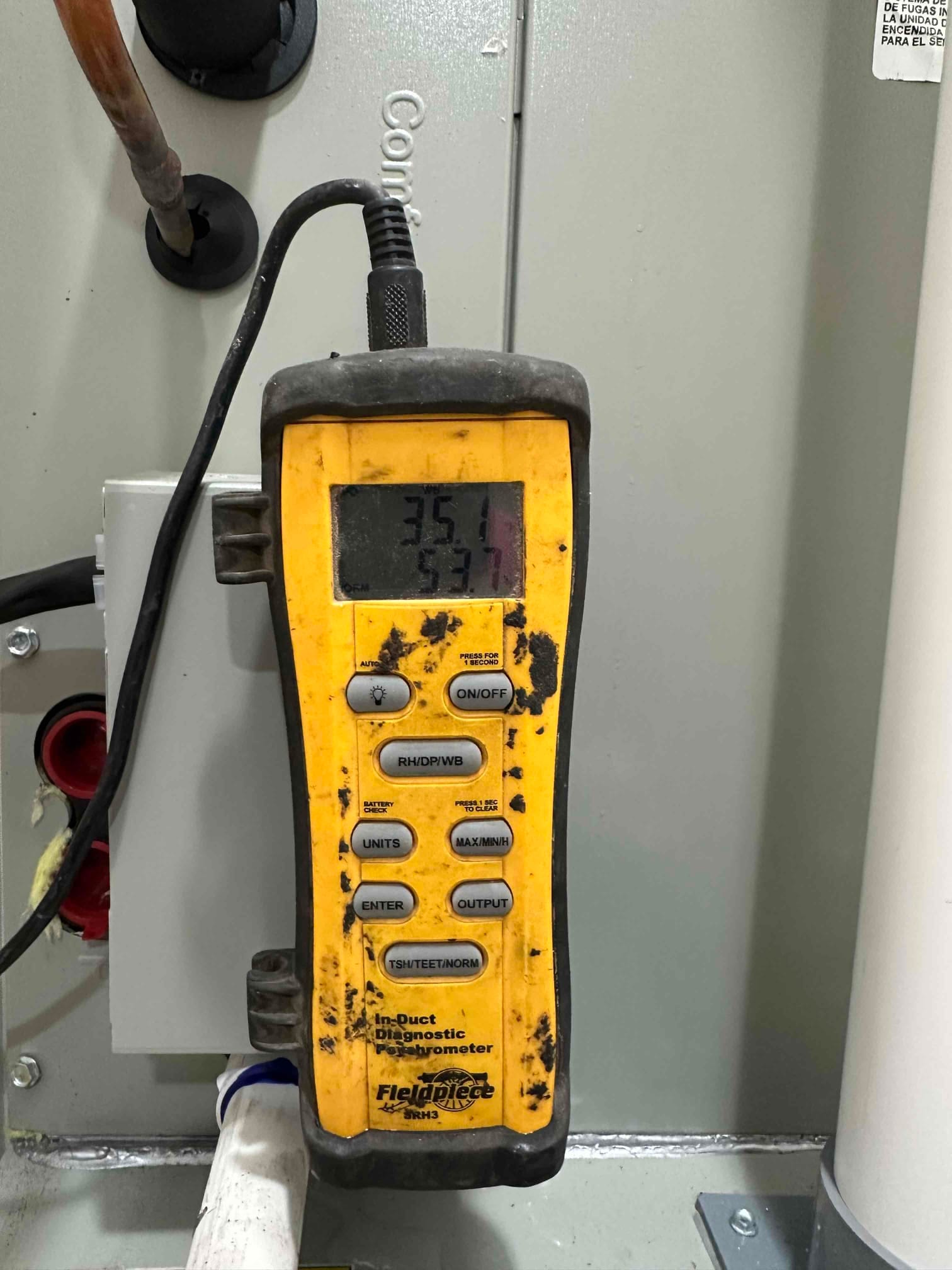

Air-Side Commissioning

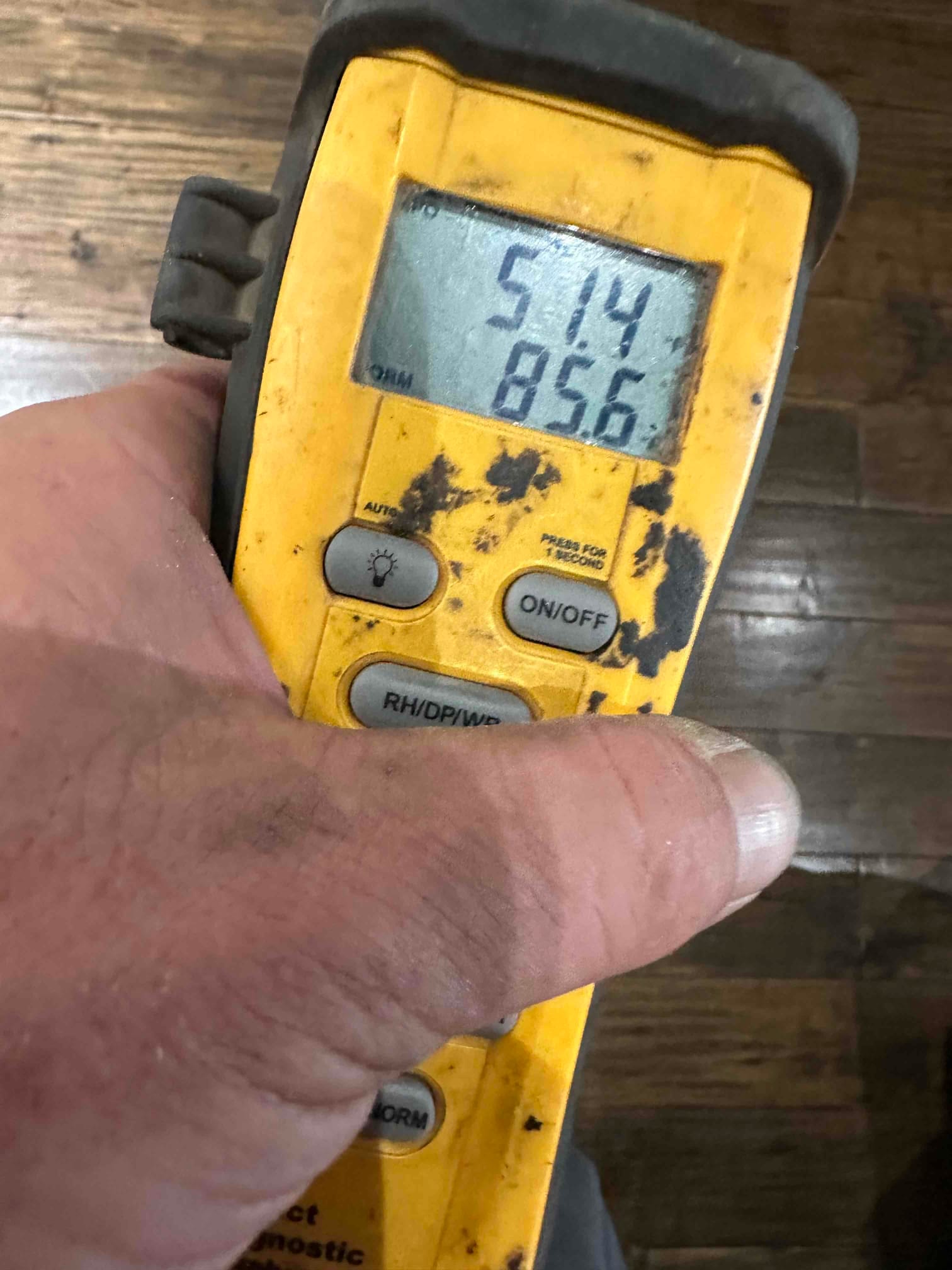

Return and supply air temperatures measured to verify the temperature split falls in the target window.

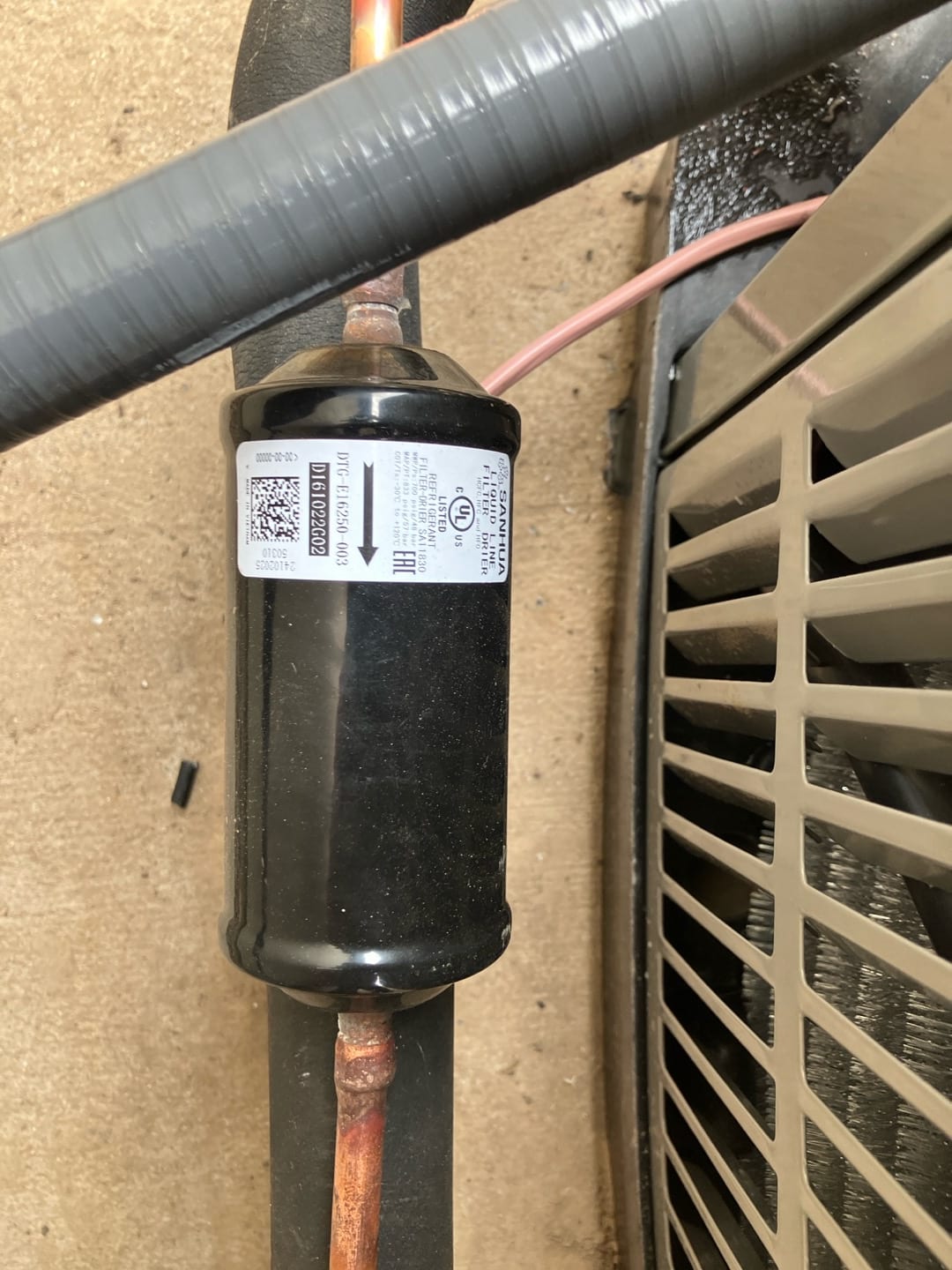

Equipment Detail Shots
