Newly Installed
Heat pump
- Brand
- Trane
- Model
- 4TWR4048N1000*
- Capacity
- 4-Ton
- Efficiency
- 14 SEER2
New — installed 2026
Real Installation · Surprise
4-Ton Heat Pump System Installation in Surprise — October 2023
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of XR 14 attic heat pump.
Surprise · installed October 18, 2023
— At a Glance
Location
Surprise
Completed
October 18, 2023
System Type
Heat Pump System
Capacity
4-Ton
Brand
Trane
Efficiency
14 SEER2
Total Investment
$9,448
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.

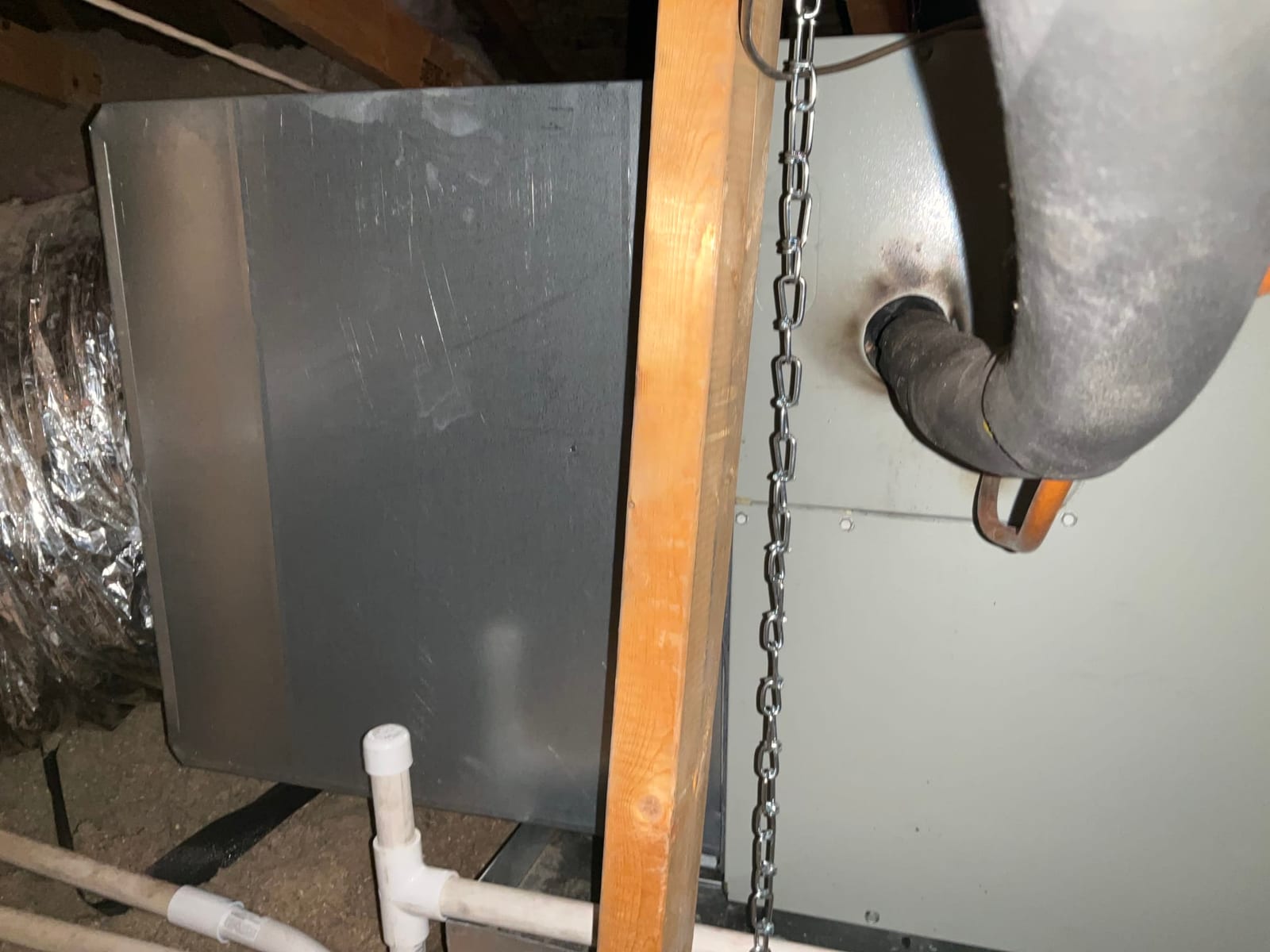

Newly Installed
Air handler
- Brand
- Trane
- Model
- TEM4A0C49M41S*
- Matched
- 4-Ton airflow
New — installed 2026

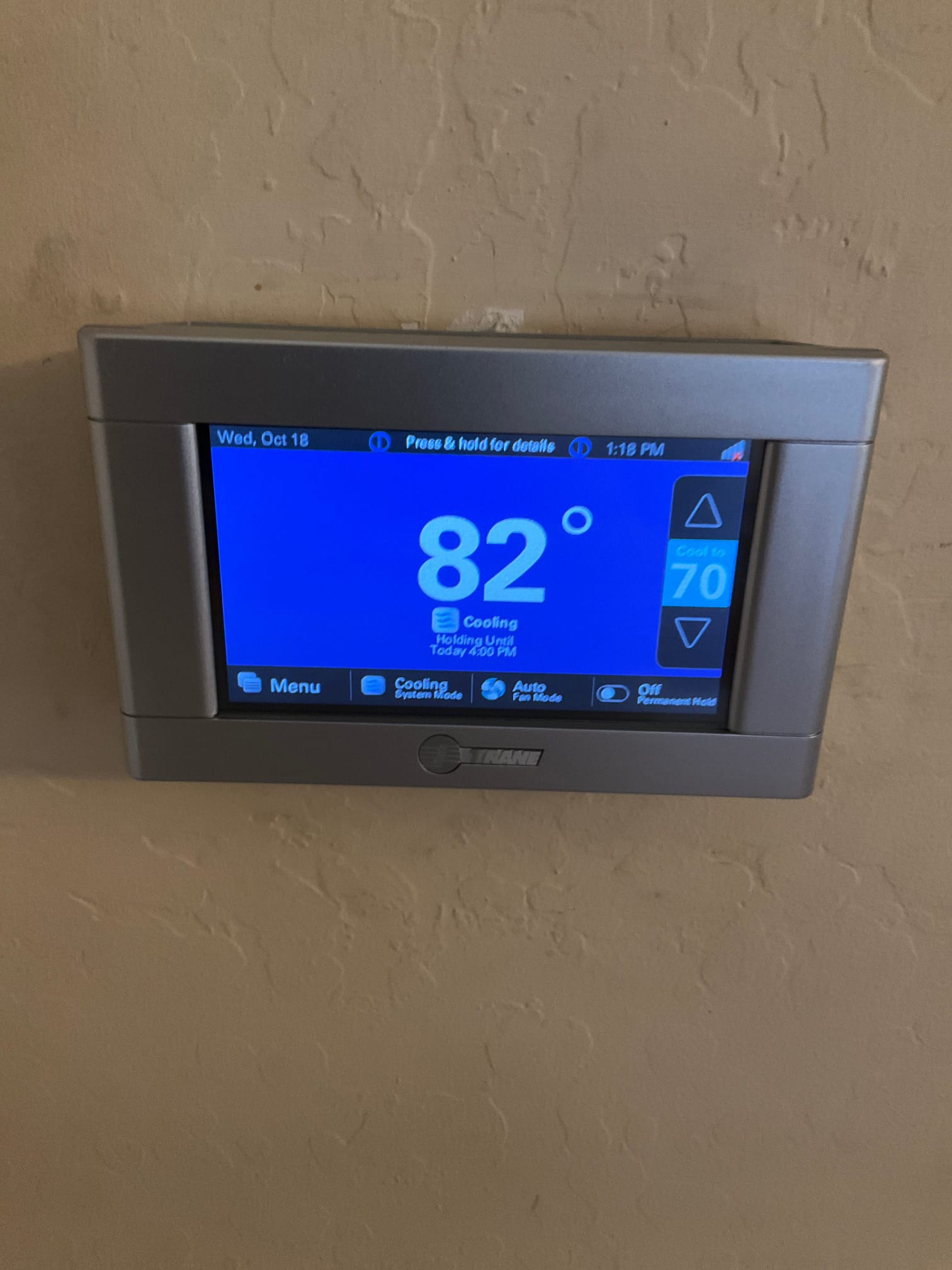

Newly Installed
Thermostat
- Brand
- Trane
- Model
- TCONT824AS52DB
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Surprise, AZ. You can browse more real 4-Ton Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Dan, Angel, Ben & Andrew from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 134 PSIG
- Liquid pressure
- 347 PSIG
- Evaporator saturation
- 44.4°F
- Condensing saturation
- 110.9°F
- Superheat
- 59°F
- Subcooling
- 25°F
Air-Side Performance
- Return-air temperature
- 83°F
- Supply-air temperature
- 59°F
- Temperature split
- 24°F
Nitrogen Pressure Test
- Test pressure held
- 2,500 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 316 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 414H-4TWR4048-TEM4A0C49M | 4 Ton- Horizontal 14 SEER2 Single Stage XR14 Heat Pump with AirHandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimate/ | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
14 photos from this installation
Every step of this installation was documented on-site by Dan, Angel, Ben & Andrew.

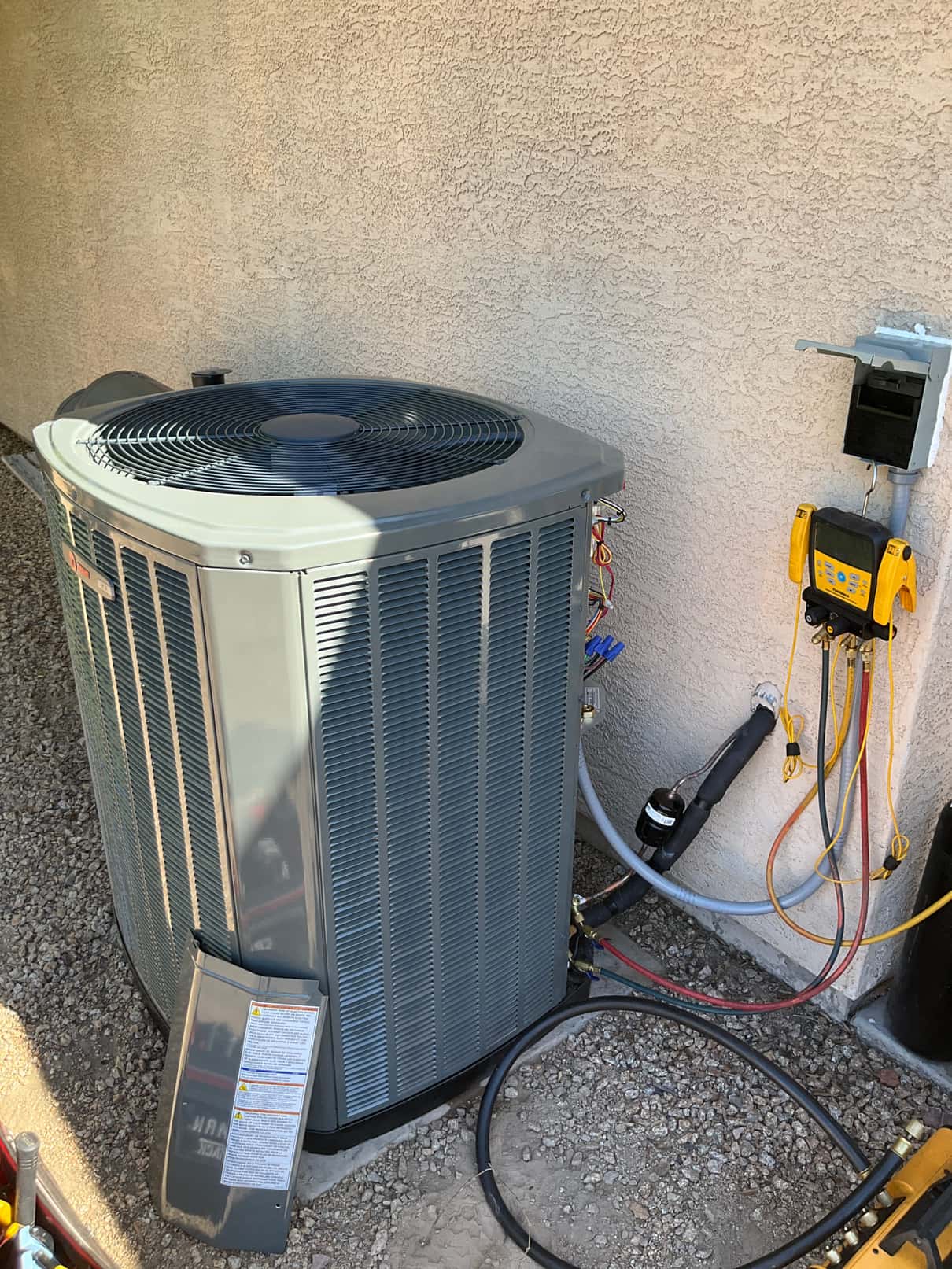

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

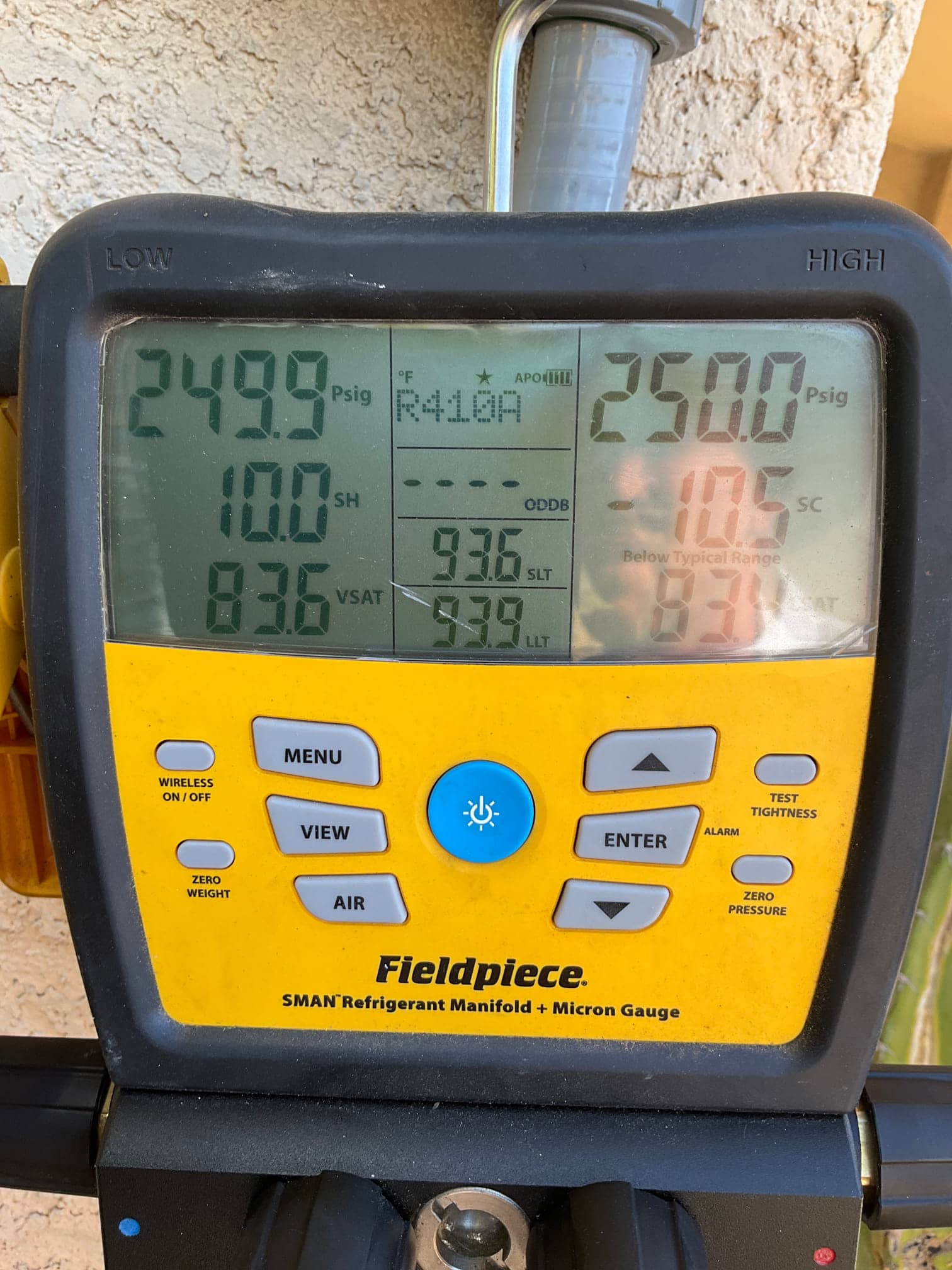

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

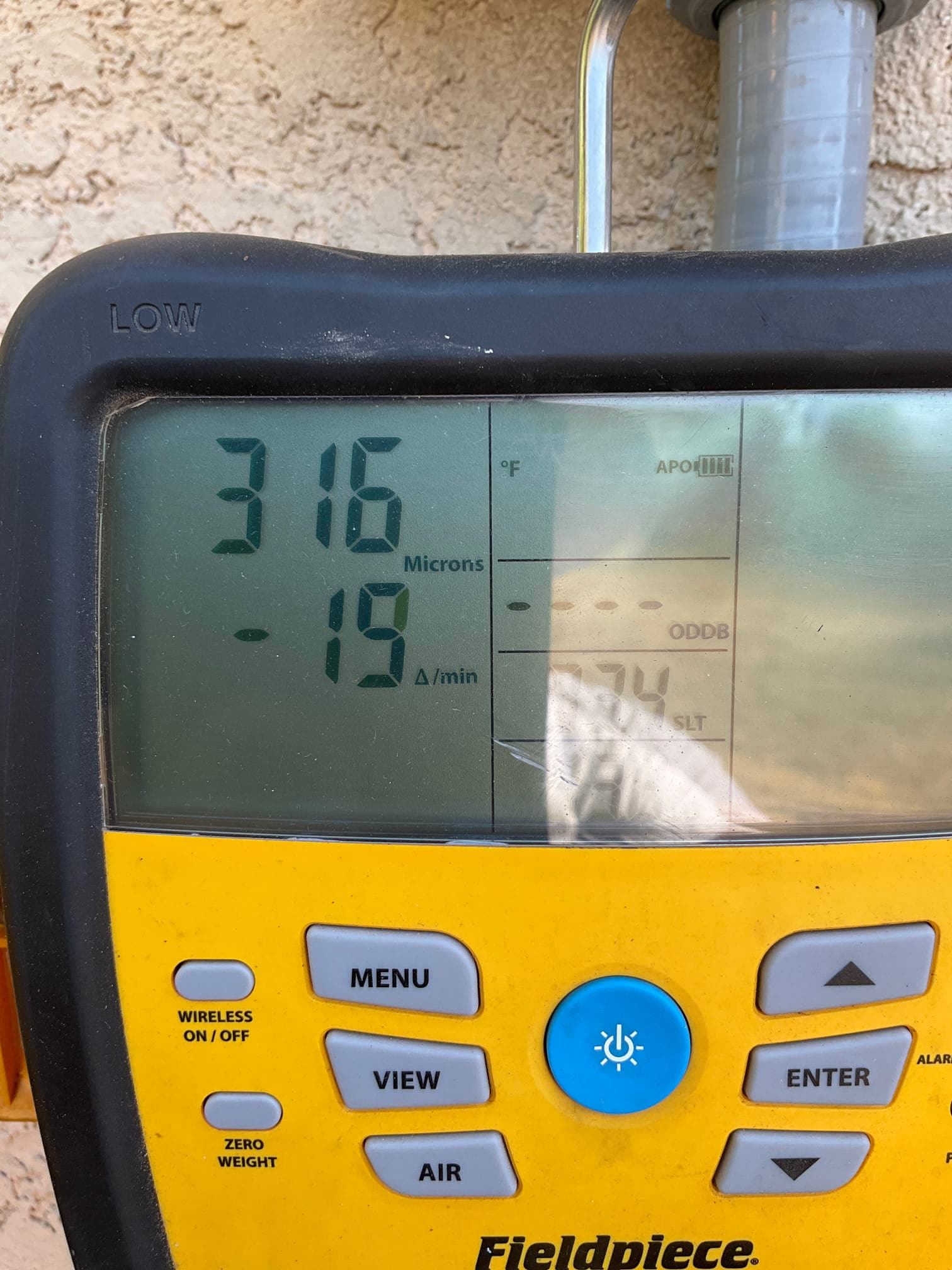

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

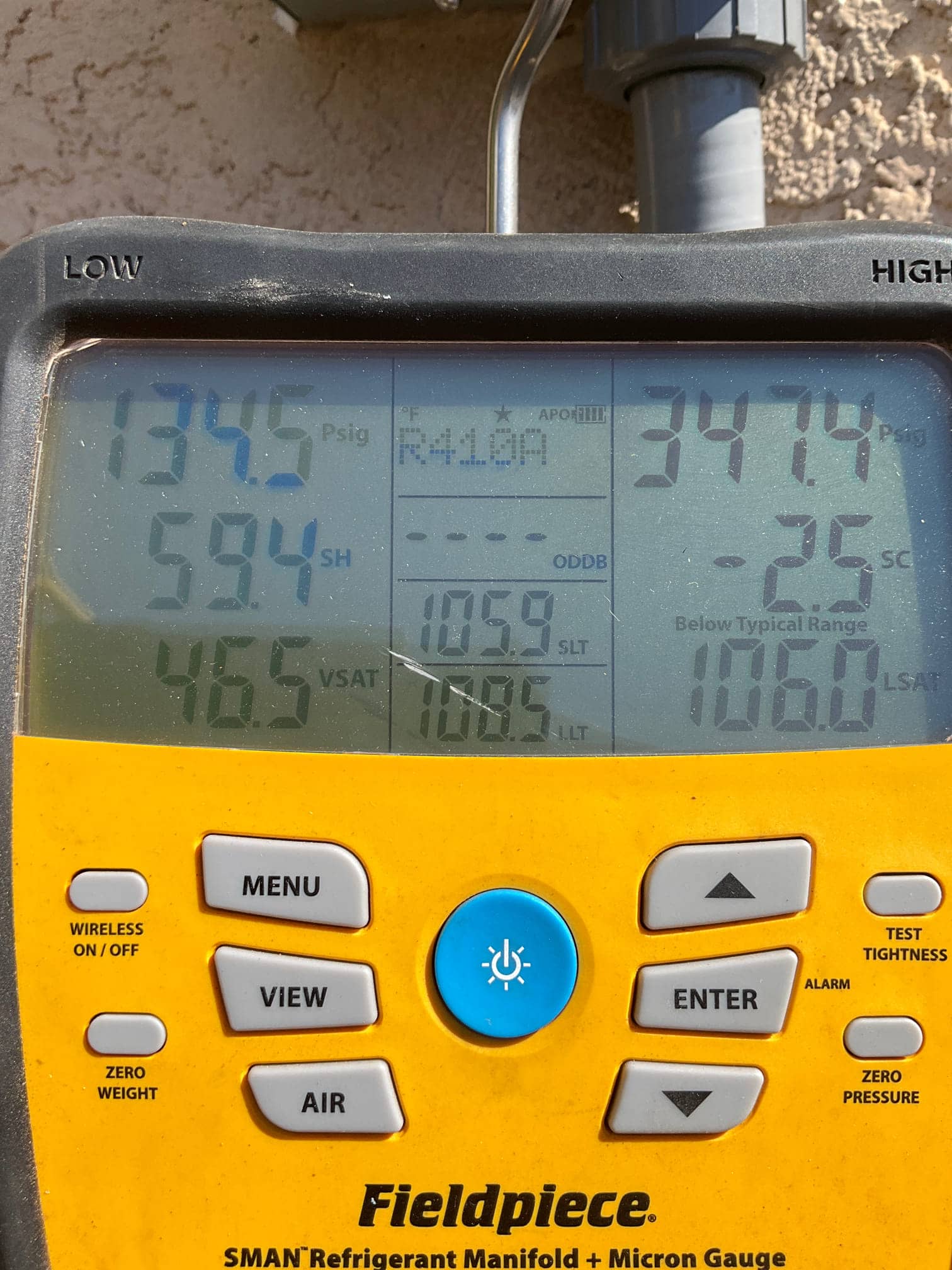

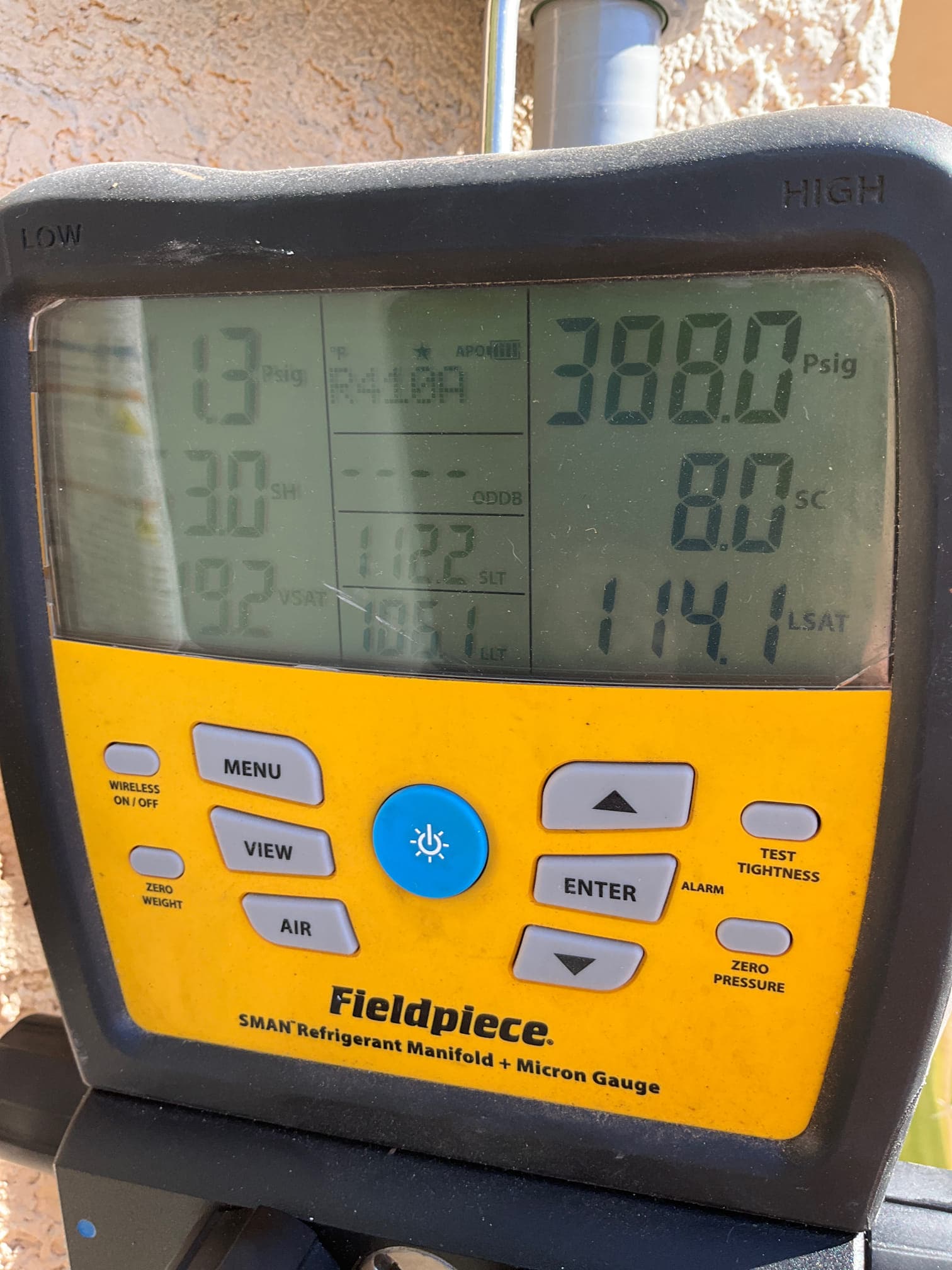

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

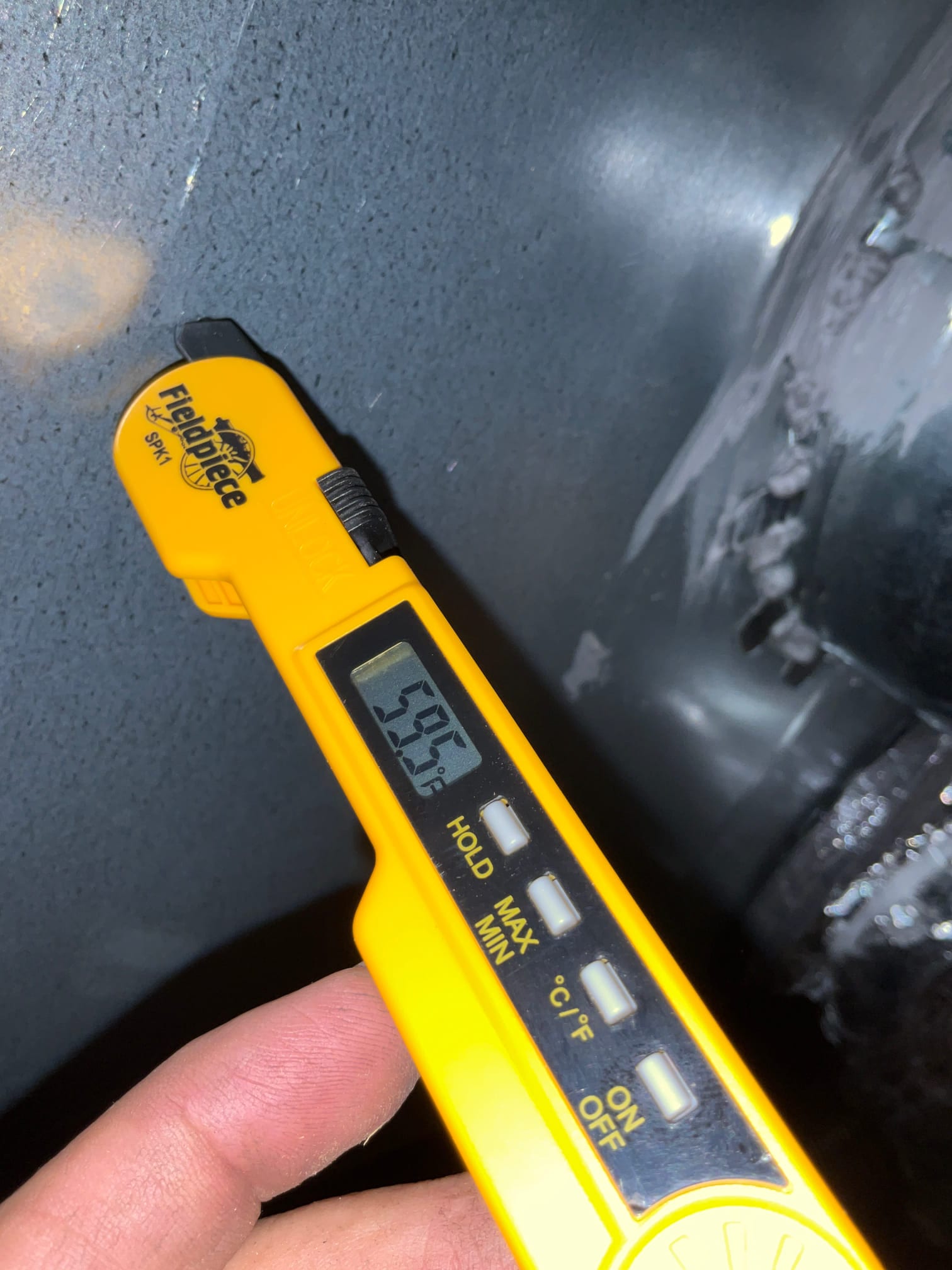

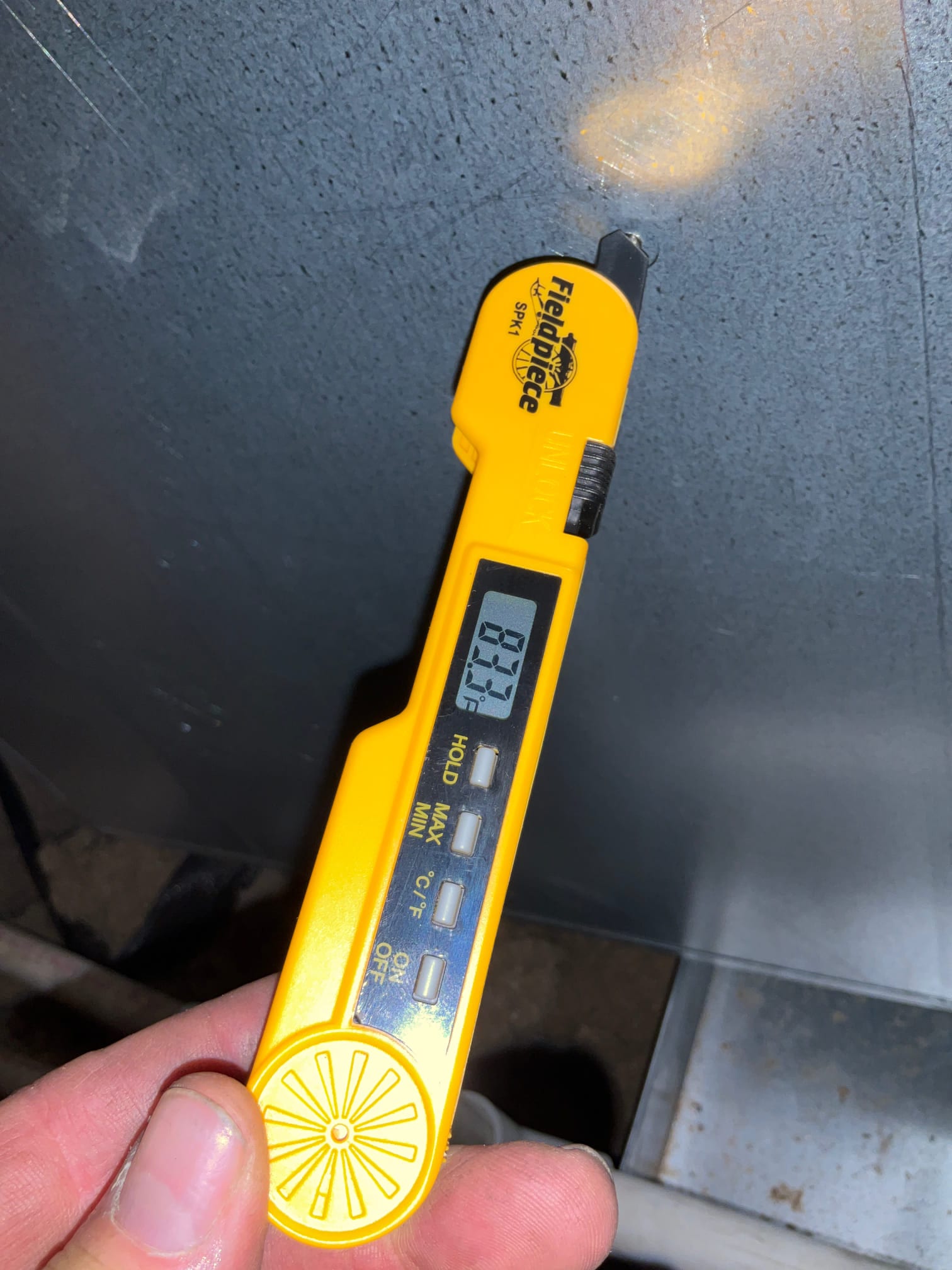

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
