Newly Installed

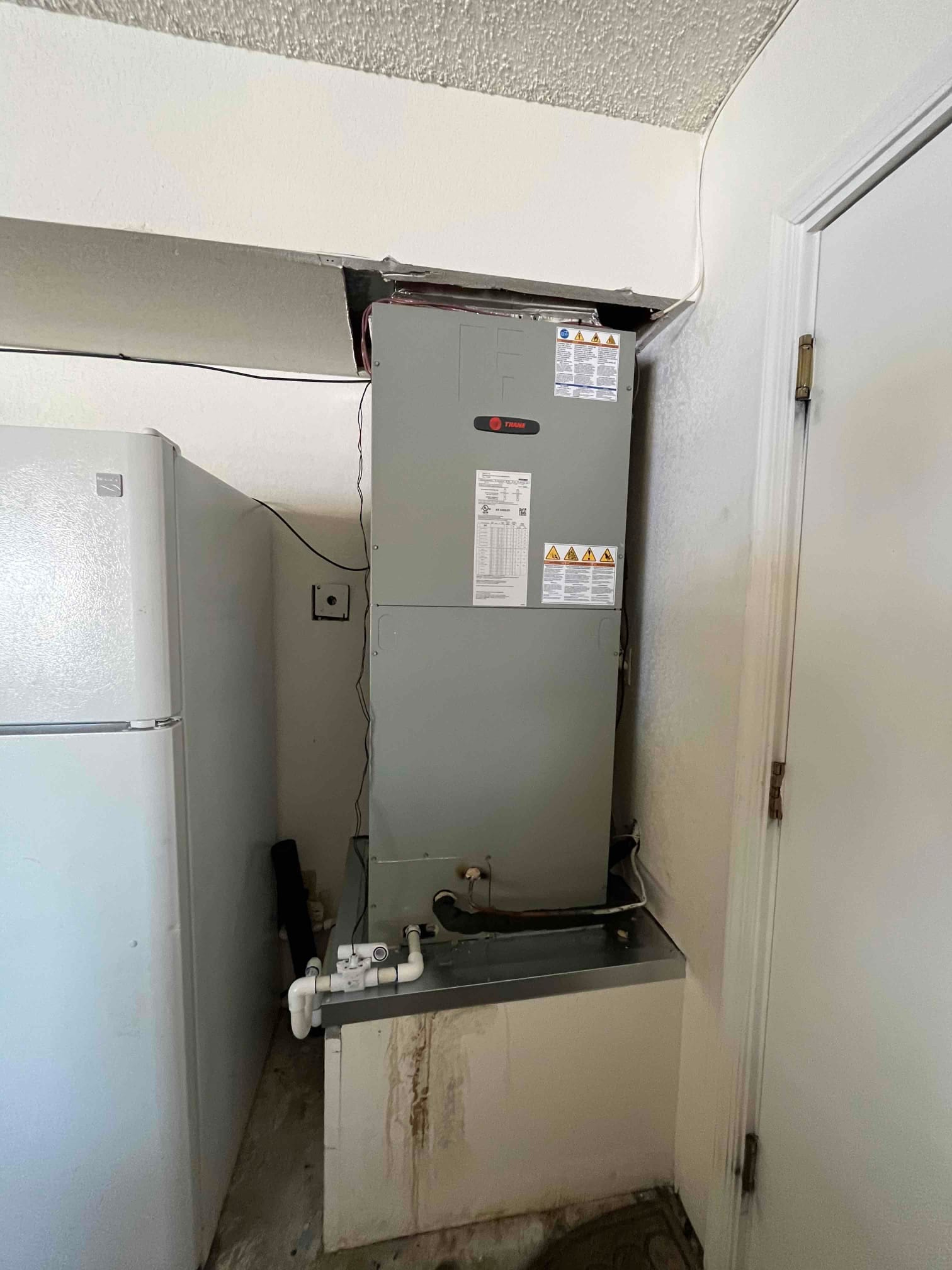

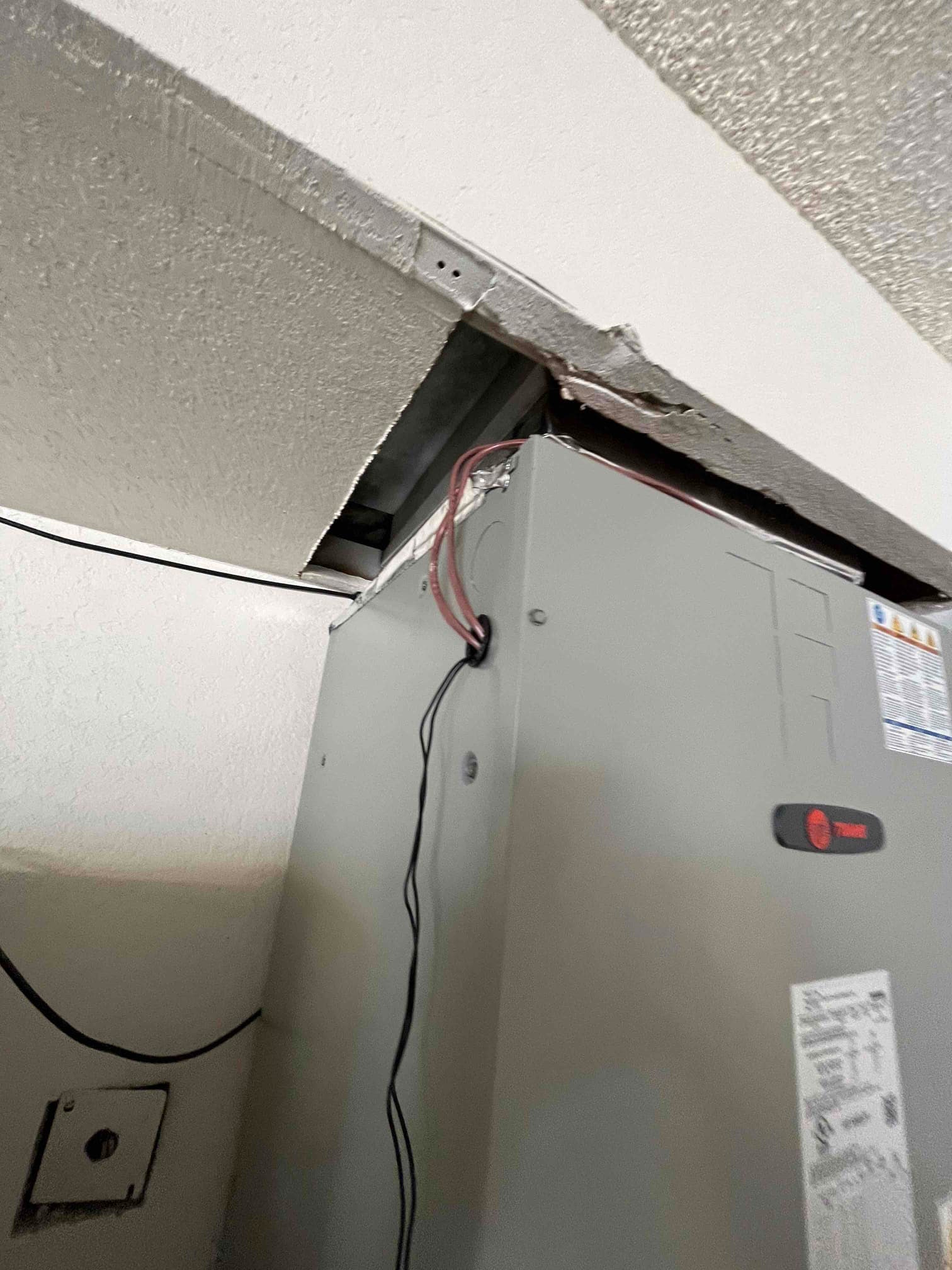

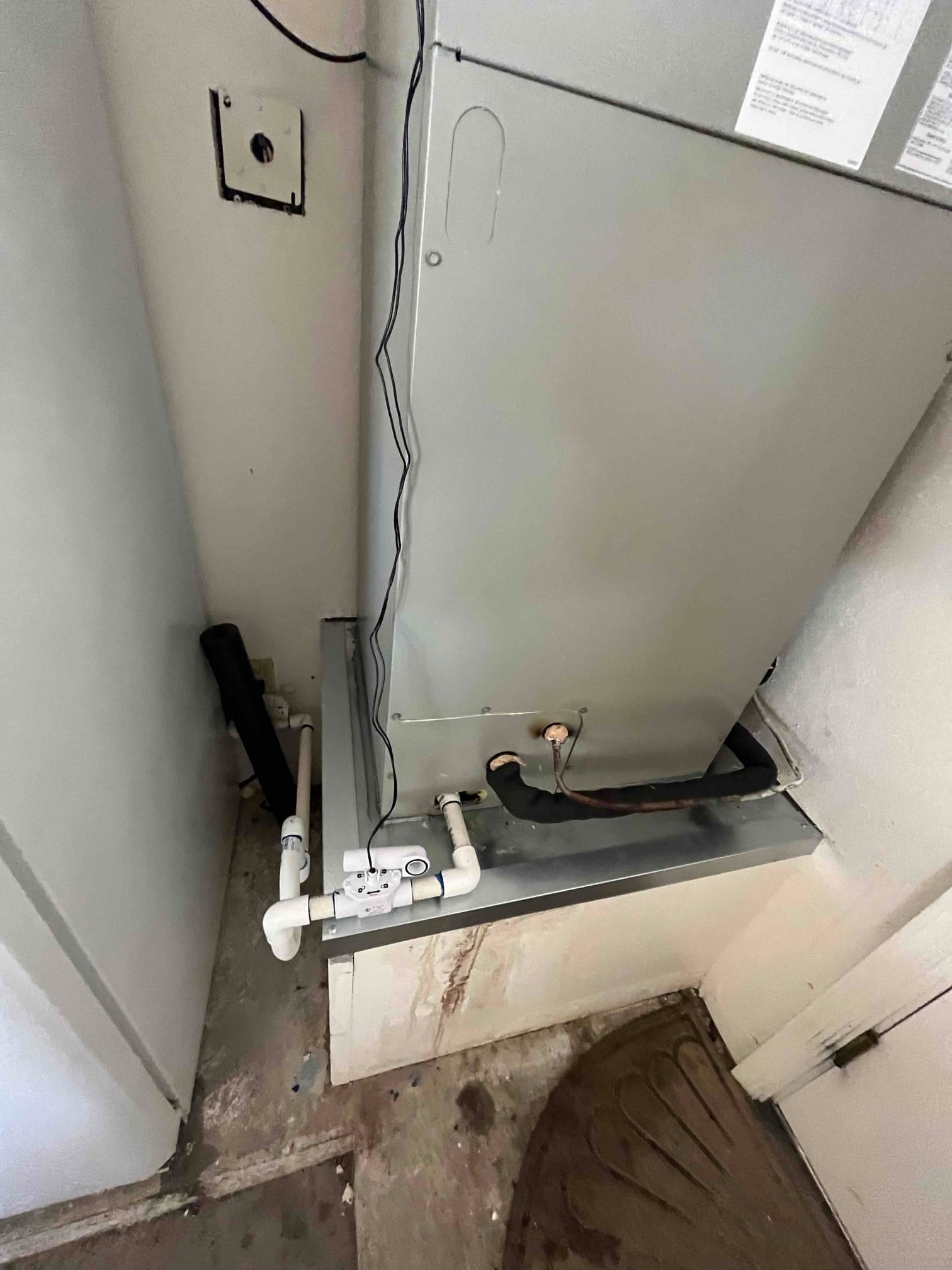

Air handler
- Brand
- Trane
- Model
- TEM6A0C48H41S*
- Matched
- 4-Ton airflow
New — installed 2026
Real Installation · Paradise Valley Area
4-Ton Heat Pump System Installation in Paradise Valley Area — October 2023
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Customer needed HVAC equipment installed or replaced.
Paradise Valley Area · installed October 10, 2023
— At a Glance
Location
Paradise Valley Area
Completed
October 10, 2023
System Type
Heat Pump System
Capacity
4-Ton
Brand
Trane
Efficiency
16 SEER2
Total Investment
$13,390
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed

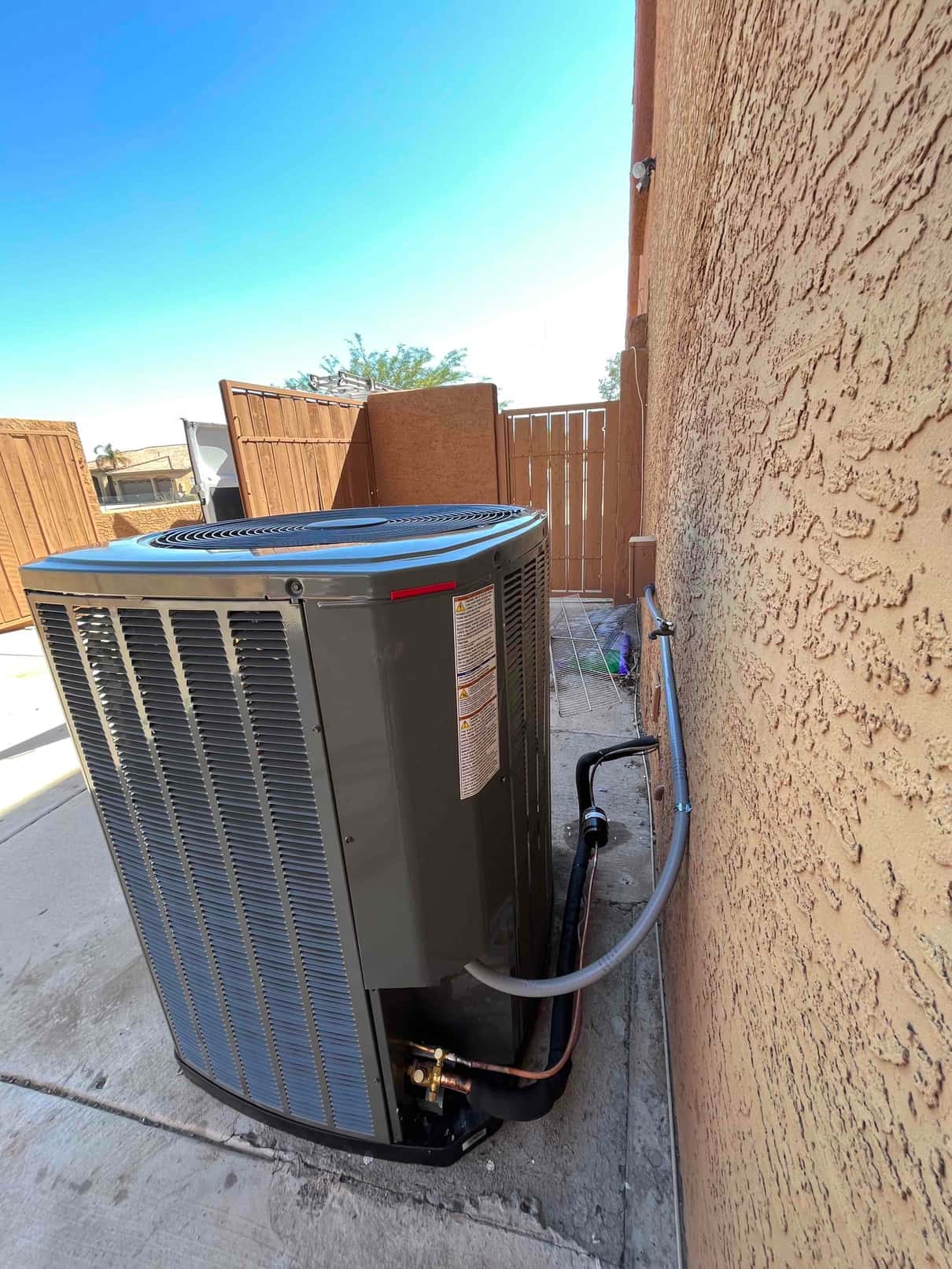

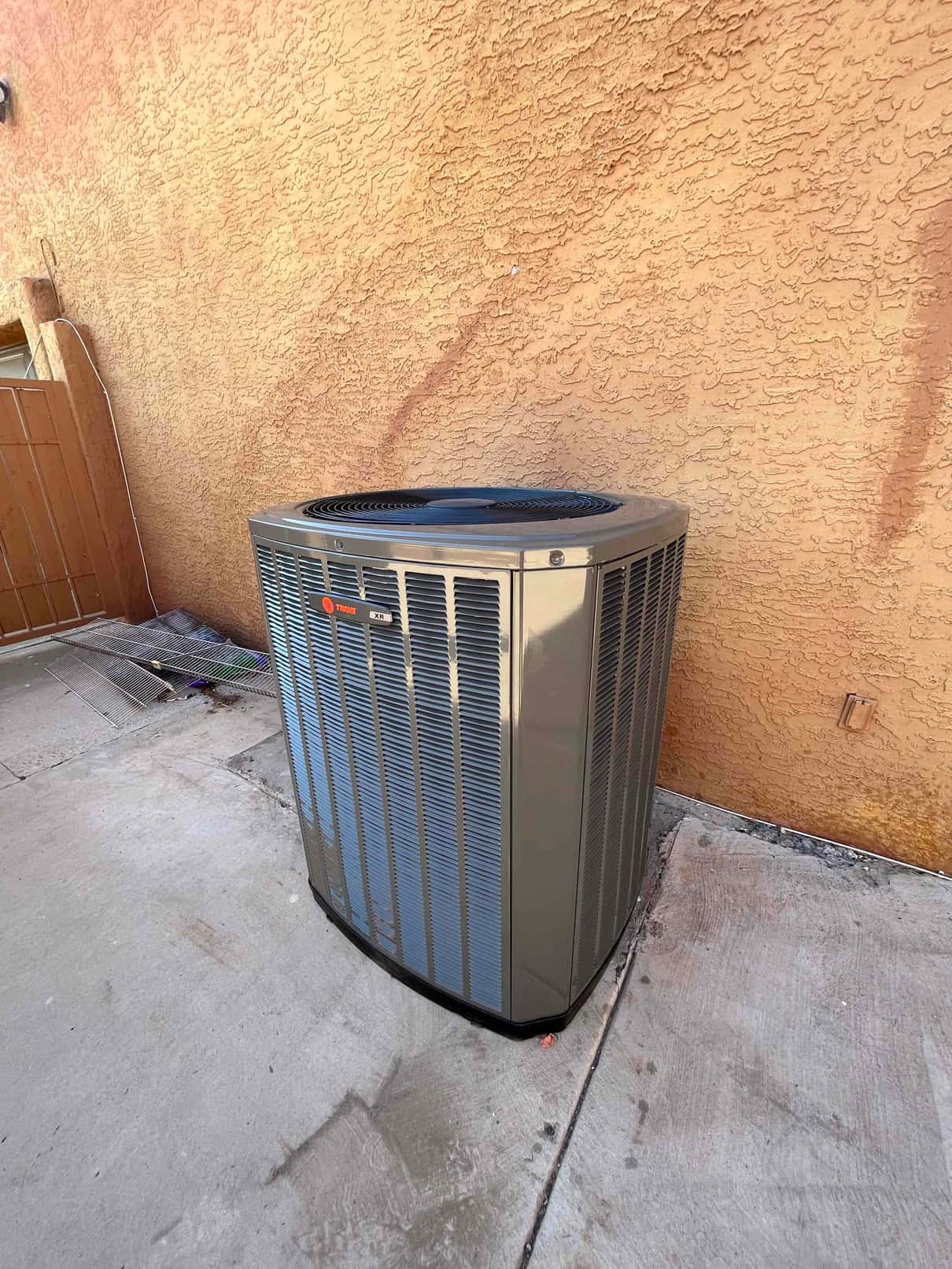

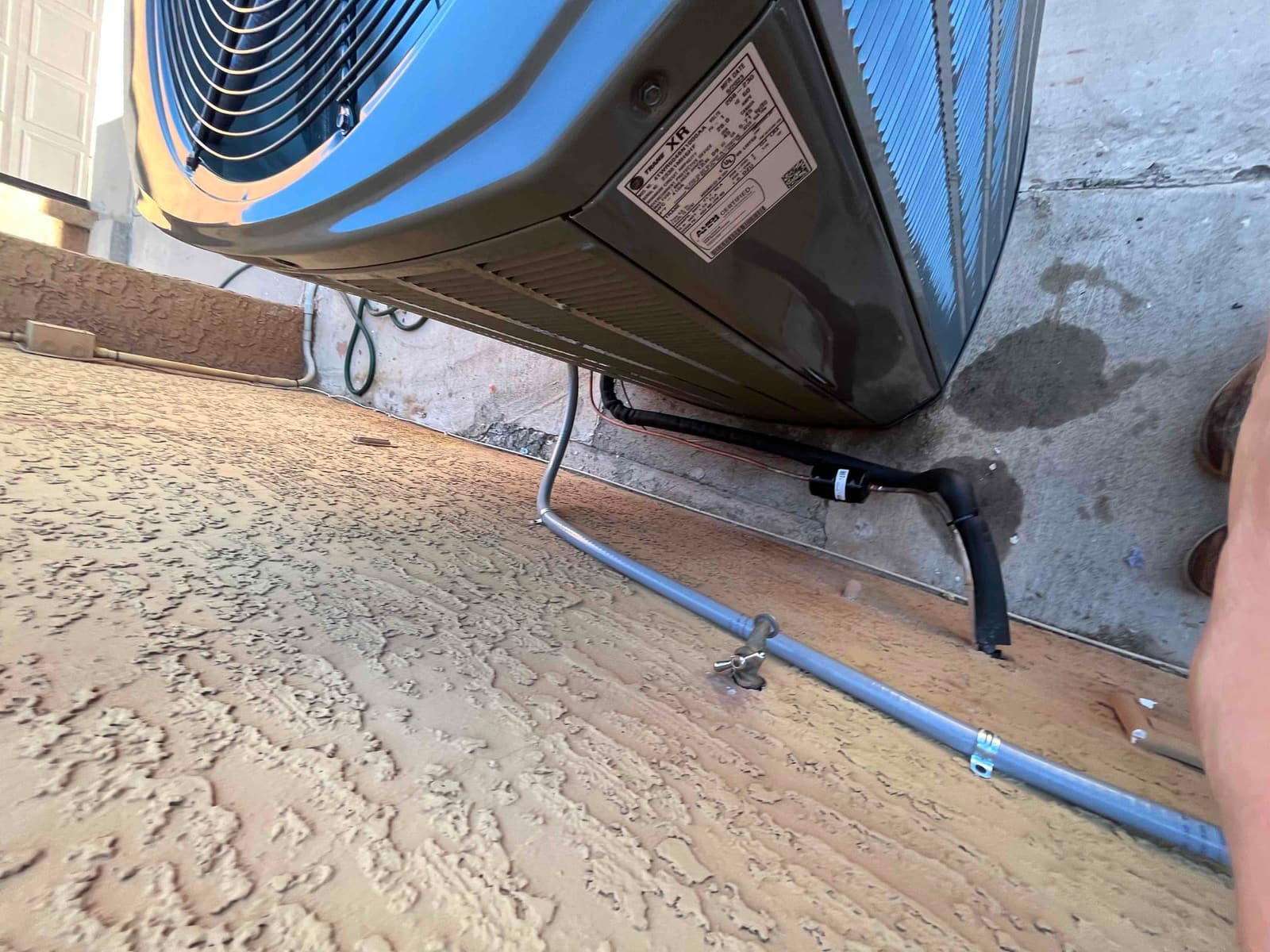

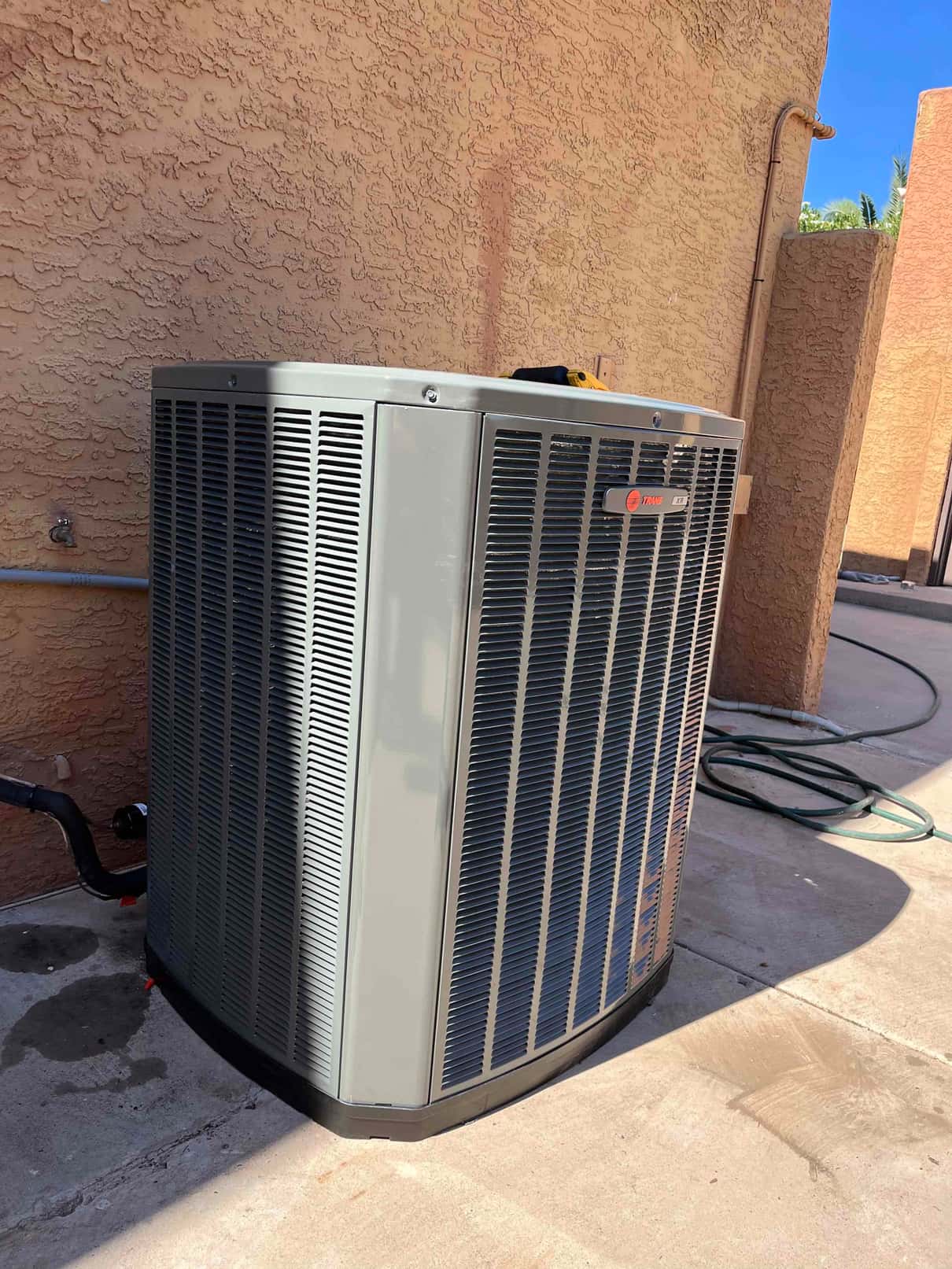

Heat pump
- Brand
- Trane
- Model
- 4TWR6048N1000*
- Capacity
- 4-Ton
- Efficiency
- 16 SEER2
New — installed 2026
Newly Installed

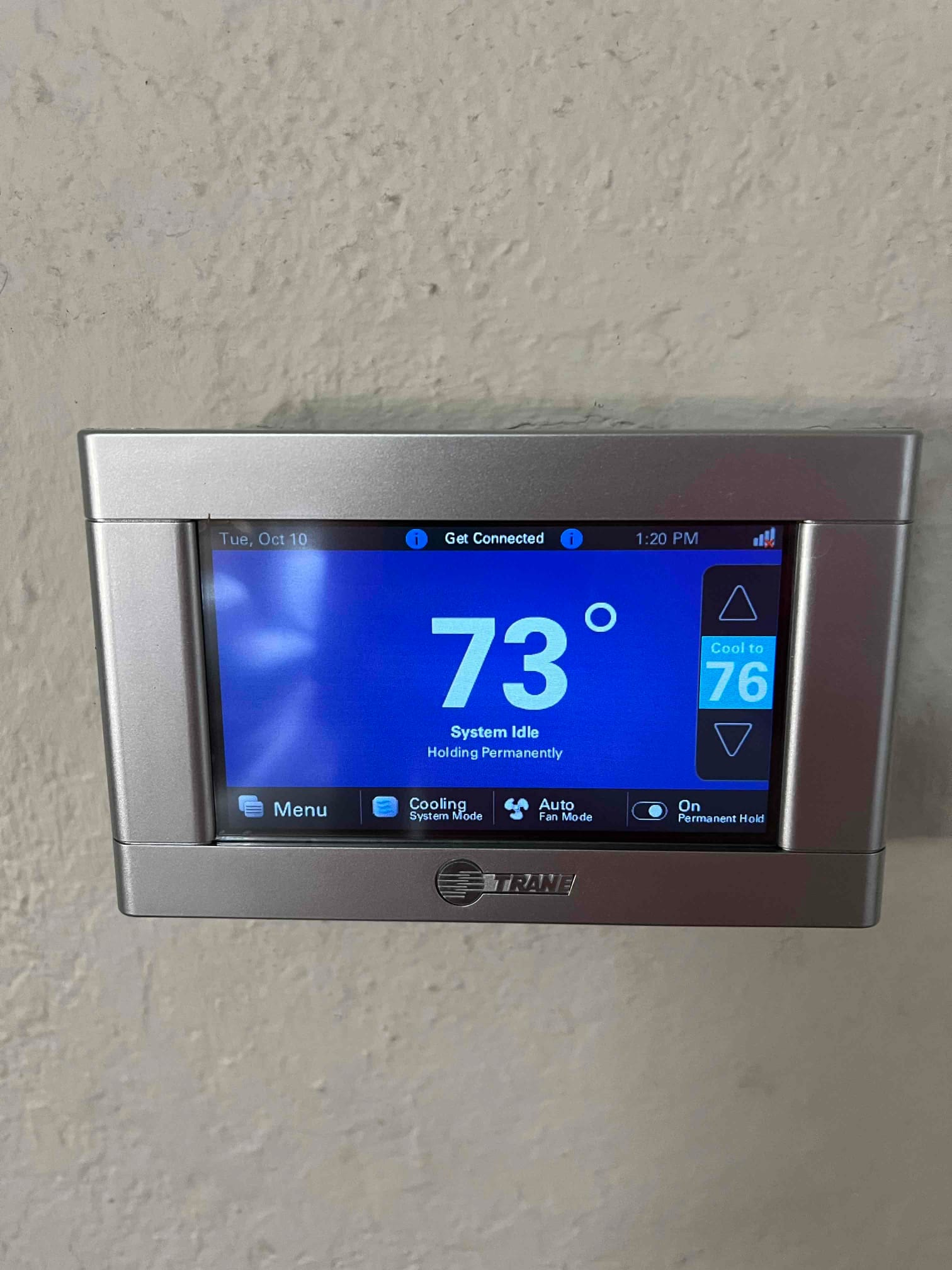

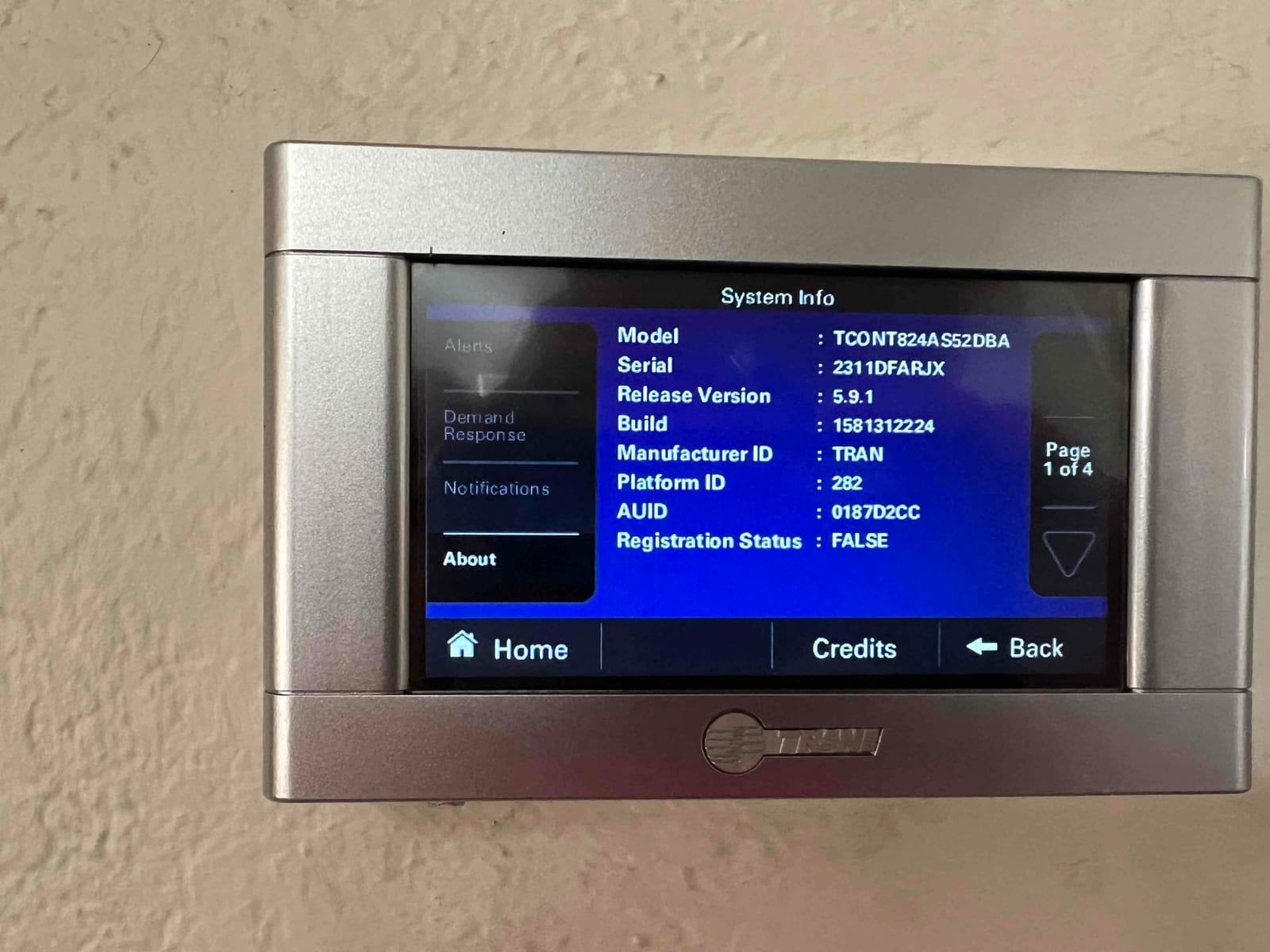

Thermostat
- Brand
- Trane
- Model
- TCONT824AS52DB
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Paradise Valley, AZ. You can browse more real 4-Ton Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Fred, Angel & Andrew from the manifold gauges, micron gauge, and digital thermometers.

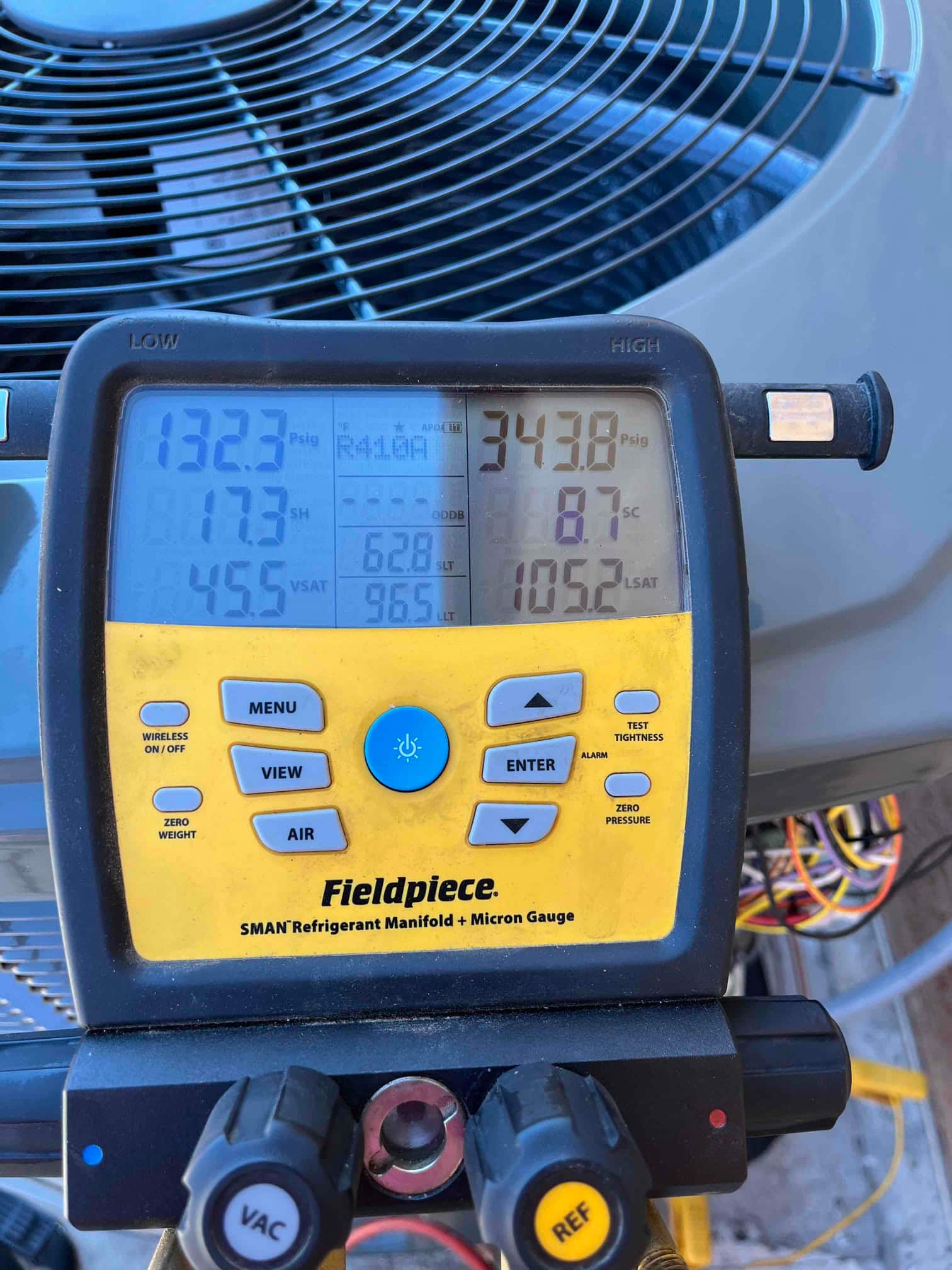

Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 132 PSIG
- Liquid pressure
- 343 PSIG
- Evaporator saturation
- 43.2°F
- Condensing saturation
- 110.3°F
- Superheat
- 17°F
- Subcooling
- 8°F
Air-Side Performance
- Return-air temperature
- 77°F
- Supply-air temperature
- 56°F
- Temperature split
- 21°F

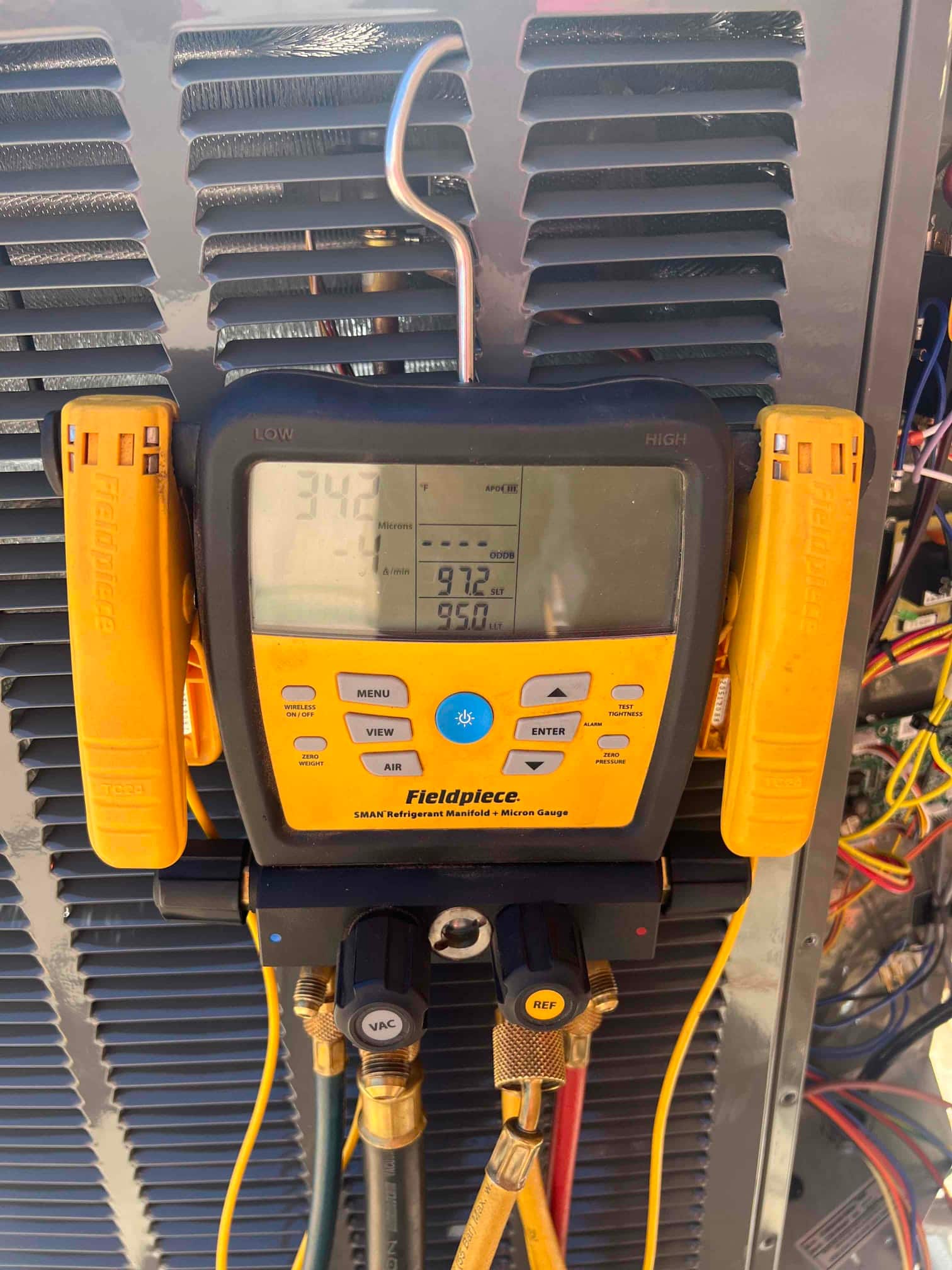

Vacuum / Evacuation
- Final vacuum reading
- 342 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 416V-4TWR6048-TEM6A0C48H | 4 Ton- Vertical 16 SEER2 Two Stage XR16 Heat Pump with AirHandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimate/invoi | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
29 photos from this installation
Every step of this installation was documented on-site by Fred, Angel & Andrew.
Installation Progress

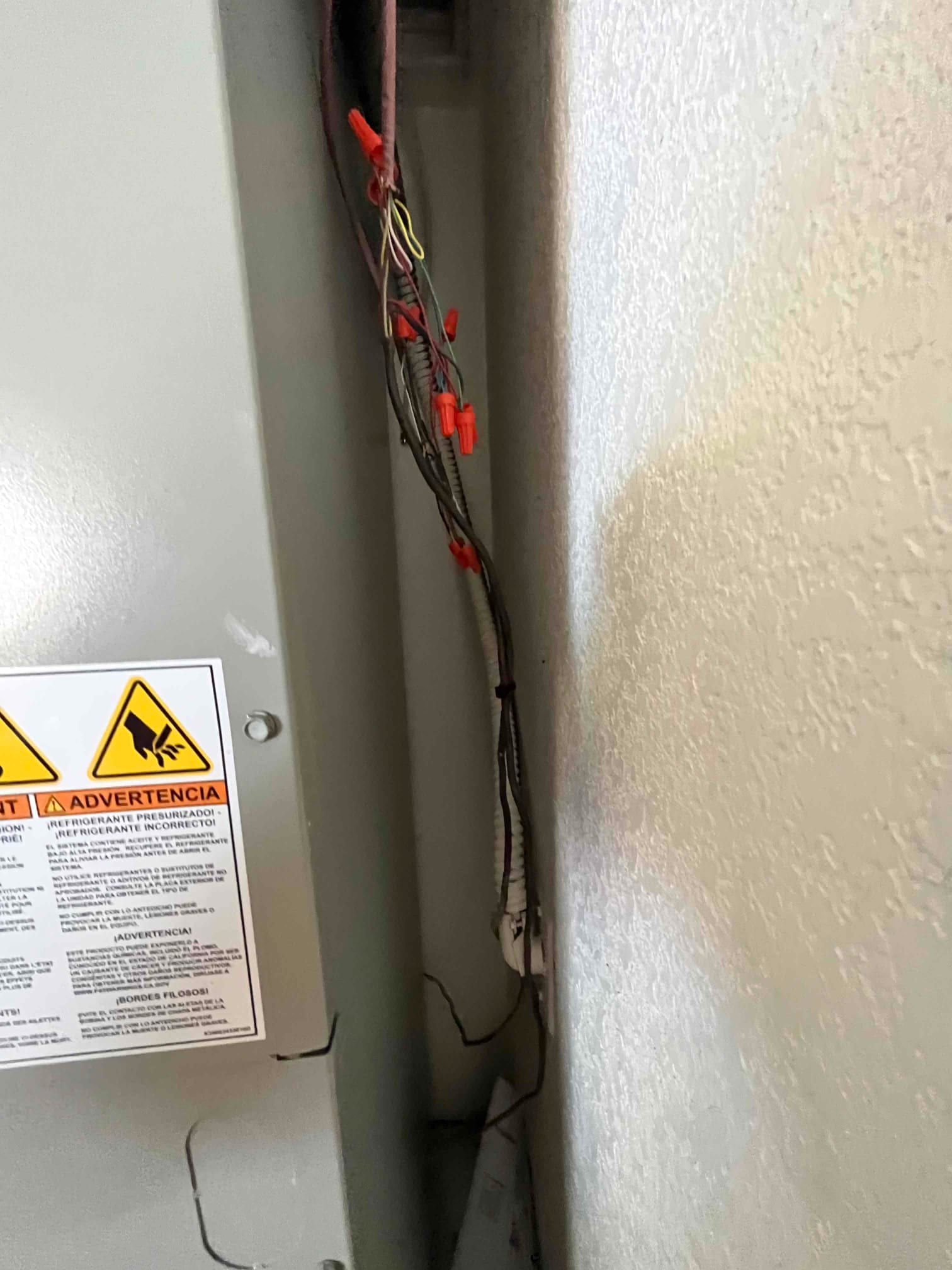

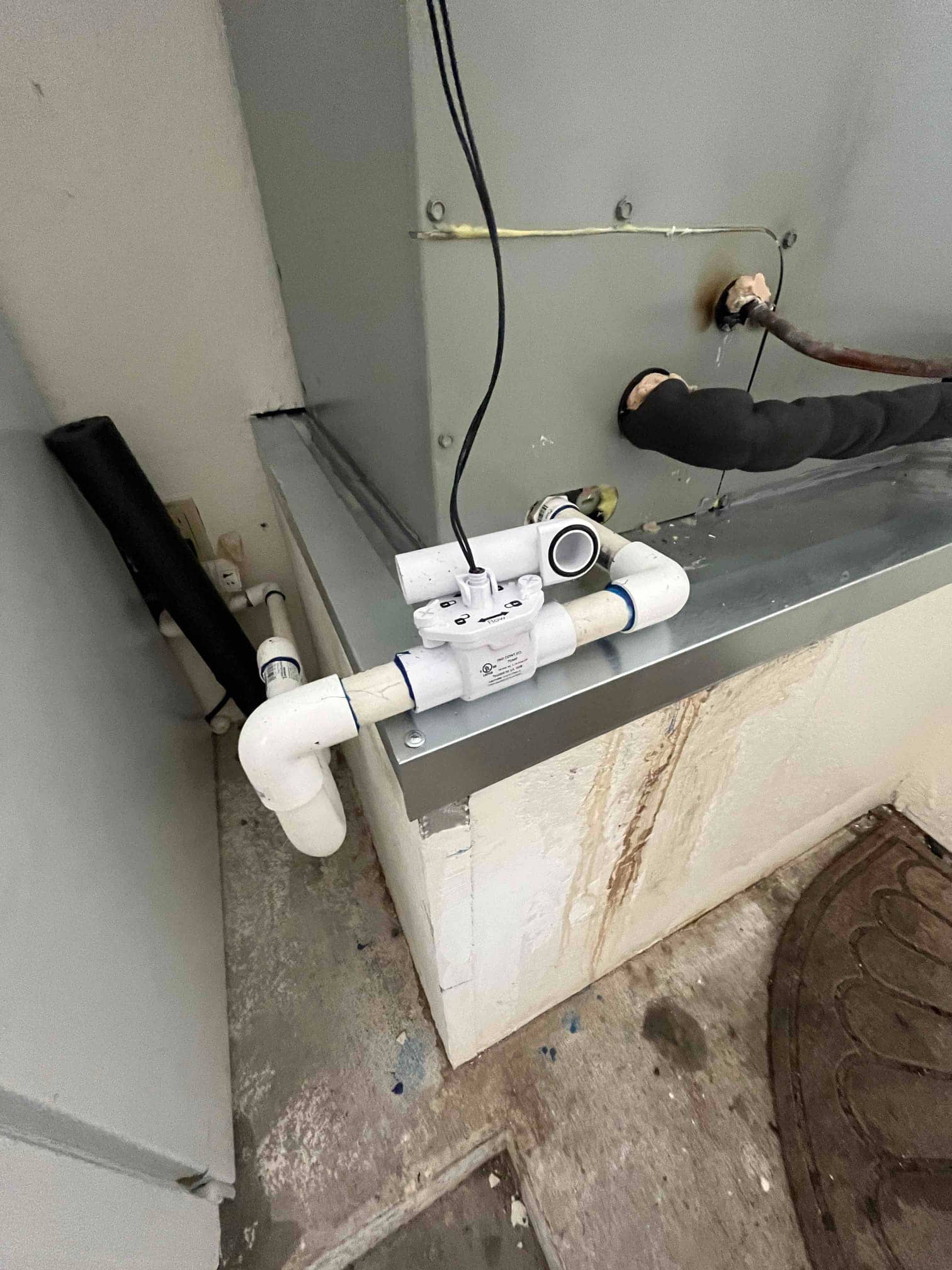

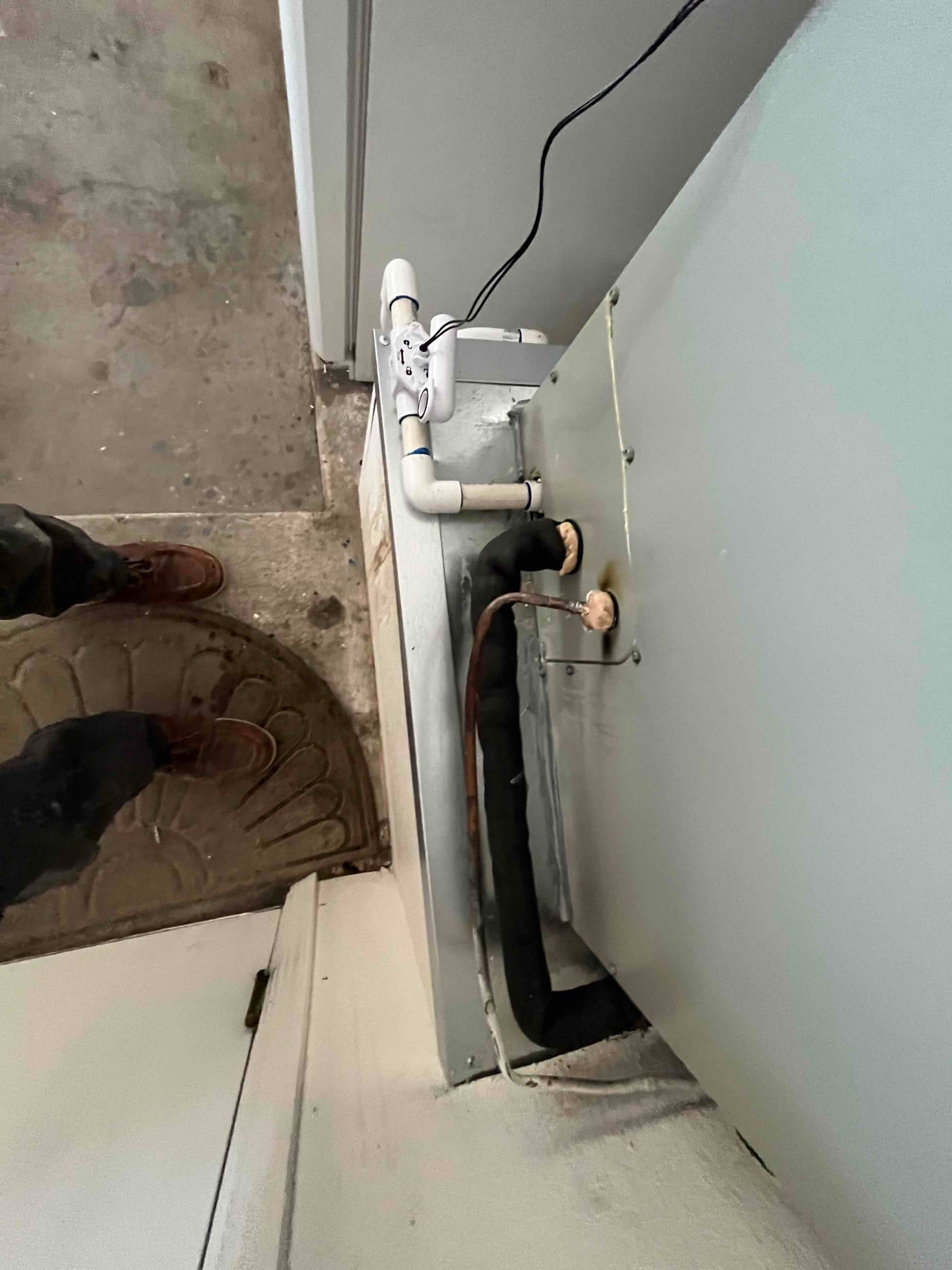

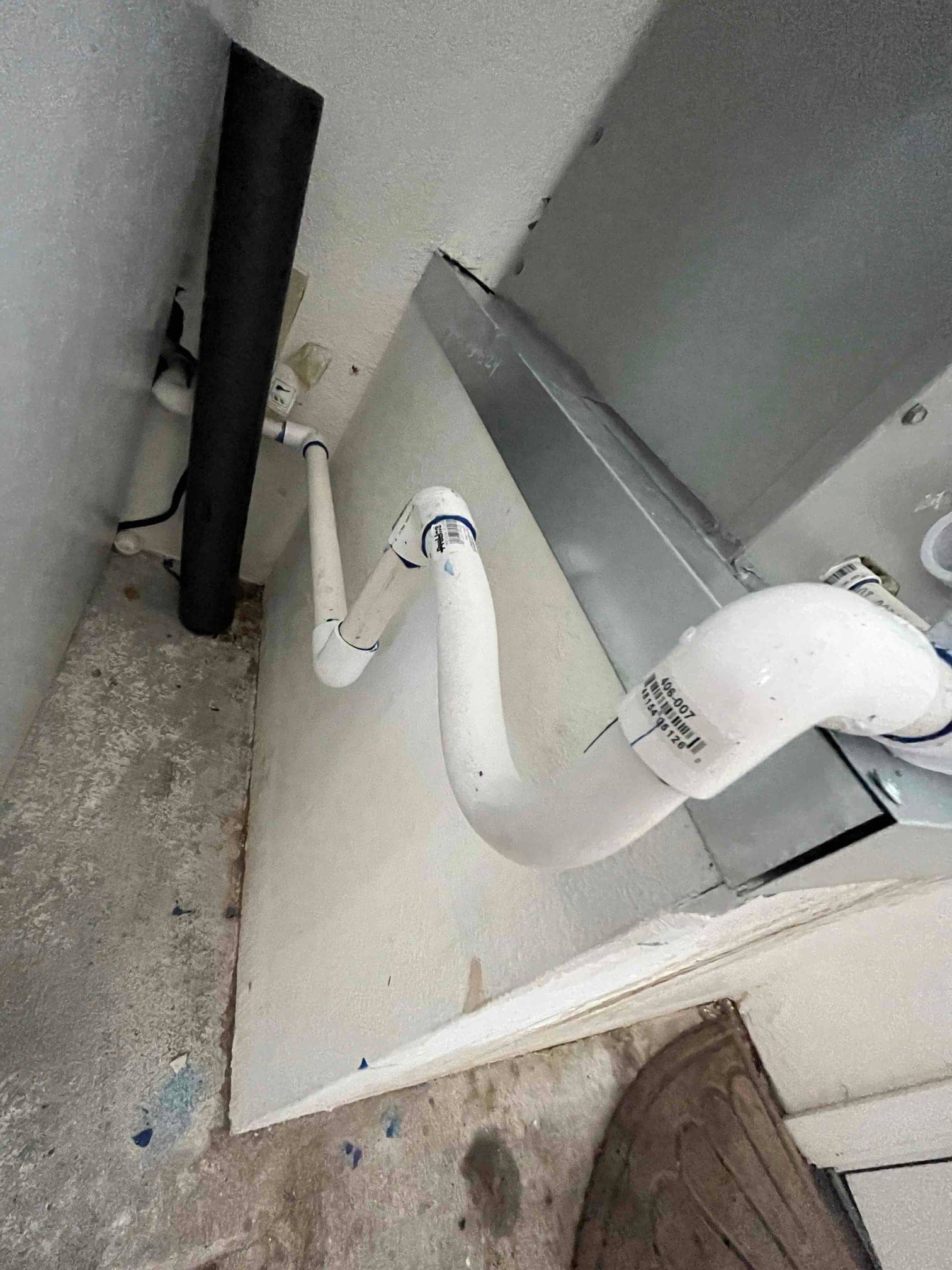

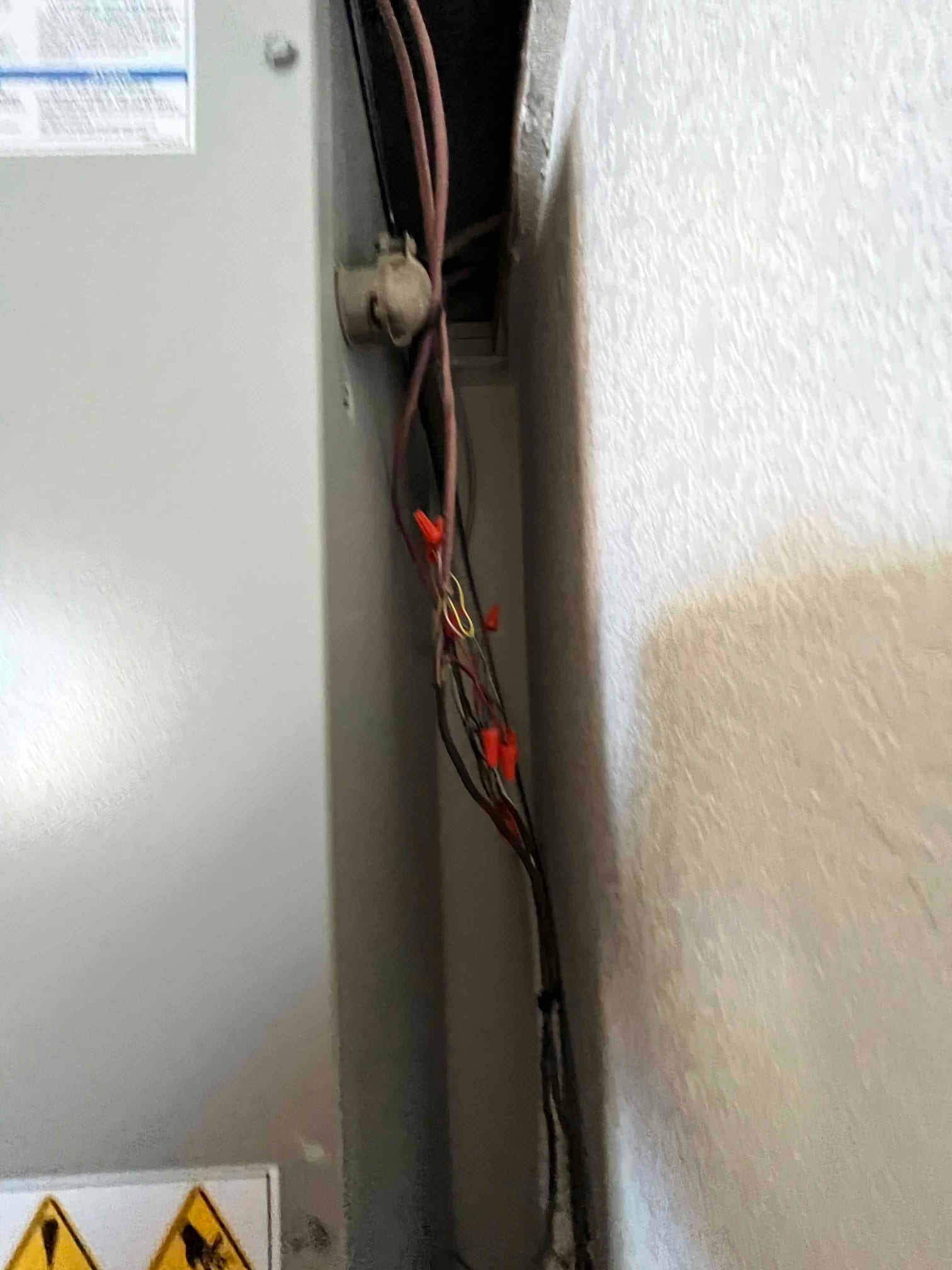

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

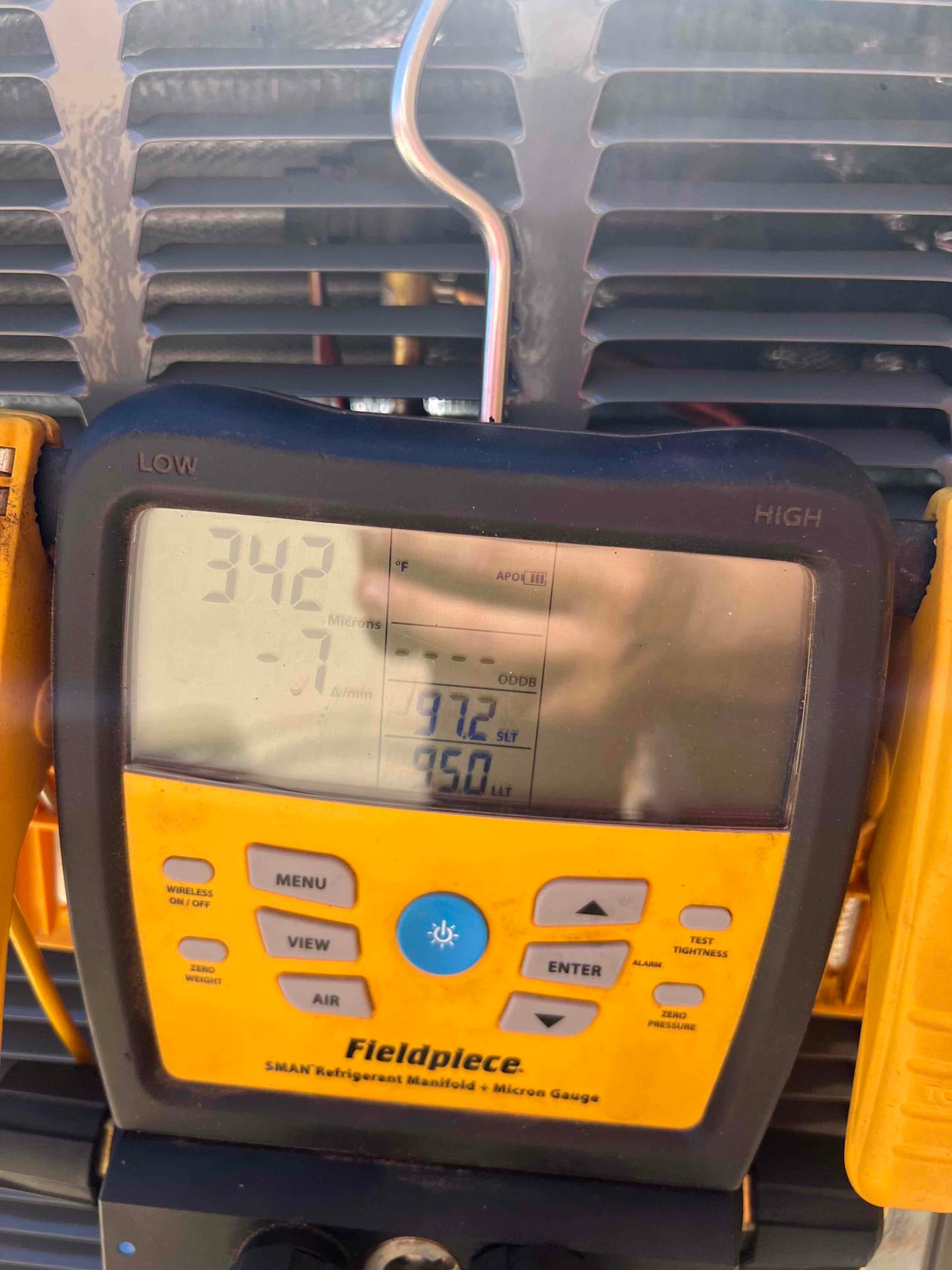

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.
Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.
Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
Electrical Verification
Voltage and amperage checked at the disconnect to confirm the equipment is drawing within nameplate spec.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Paradise Valley Area job?
AZ Perfect Comfort installed a 4-Ton Heat Pump System at this Paradise Valley Area property. The install was completed by Fred, Angel & Andrew and includes AZ Perfect Comfort's workmanship warranty.
How much does a new heat pump system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Paradise Valley Area?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Paradise Valley Area and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
