Newly Installed
Evaporator Coil
- Model
- 4TXCC007DS3HC
- Matched
- 4-Ton airflow
New — installed 2026
Real Installation · Surprise
4-Ton AC and Furnace Split System Installation in Surprise — June 2024
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a 4-ton split gas system.
Surprise · installed June 25, 2024
— At a Glance
Location
Surprise
Completed
June 25, 2024
System Type
AC + Furnace Split System
Capacity
4-Ton
Efficiency
14.3 SEER2
Labor Warranty
1-Year Labor Warranty
Total Investment
$8,620
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
AC condenser
- Model
- A4AC4048D1000
- Capacity
- 4-Ton
- Efficiency
- 14.3 SEER2
New — installed 2026
Newly Installed
Furnace
- Model
- A801X080CM5SC
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed

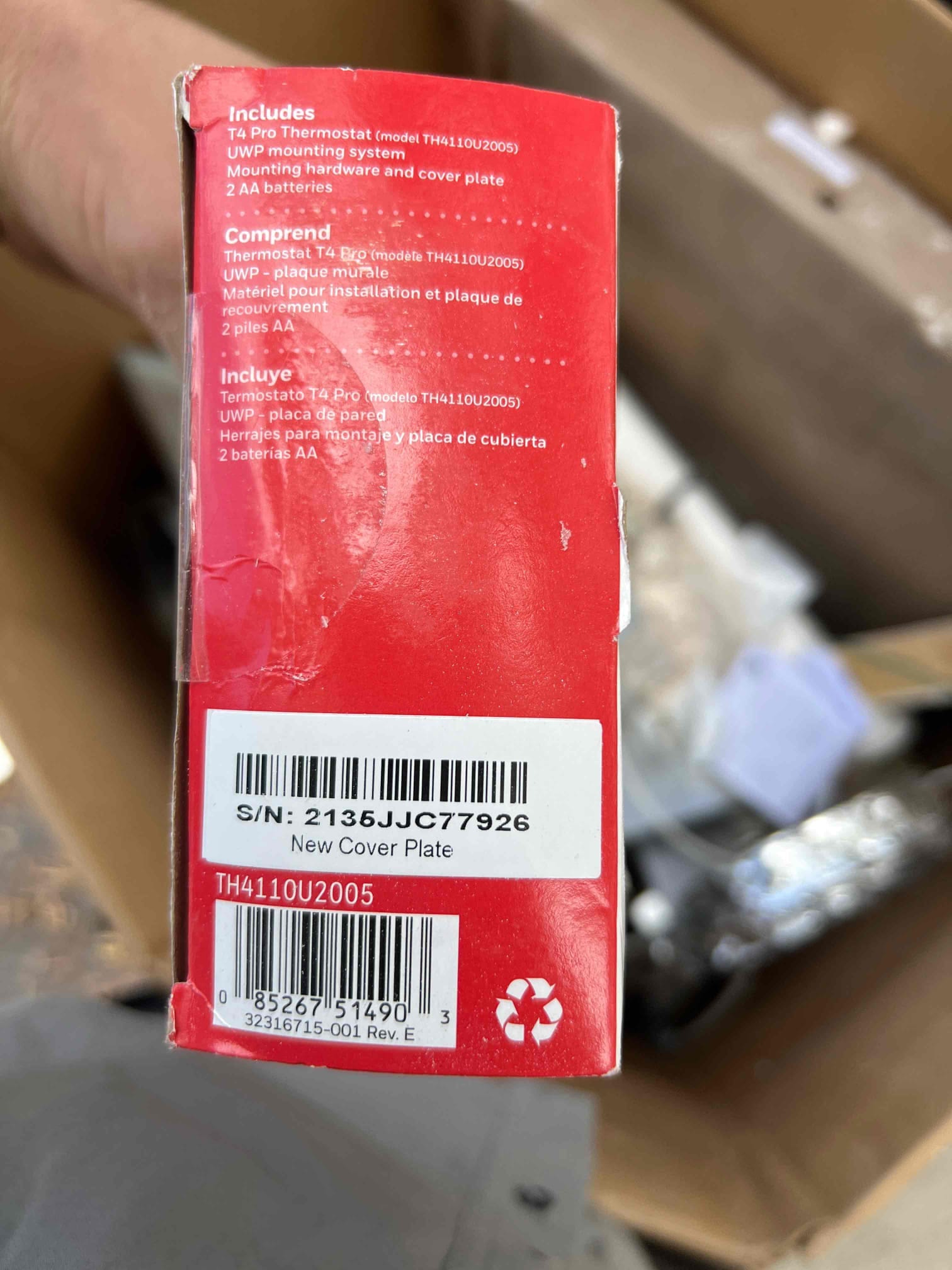

Thermostat
- Model
- TSTAT-HW-T4
New — installed 2026
Your Coverage on This Install
Labor Warranty
1-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Surprise, AZ. You can browse more real 4-Ton AC and Furnace Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Ben & Travis from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 137 PSIG
- Liquid pressure
- 367 PSIG
- Evaporator saturation
- 46.1°F
- Condensing saturation
- 113.9°F
- Superheat
- 48°F
- Subcooling
- 8°F
Air-Side Performance
- Return-air temperature
- 77°F
- Supply-air temperature
- 57°F
- Temperature split
- 20°F
Nitrogen Pressure Test
- Test pressure held
- 326 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 483 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 414.3H-A4AC4048-A801 | 4 Ton- Horizontal 14.3 SEER2 Single Stage A4AC4-D Air Conditioner with Furnace. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this e | 1 |
| AZPC-1YR | 1 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort.AZ Perfect Comfort remains the contractor to perform all work.The Warr | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
12 photos from this installation
Every step of this installation was documented on-site by Ben & Travis.

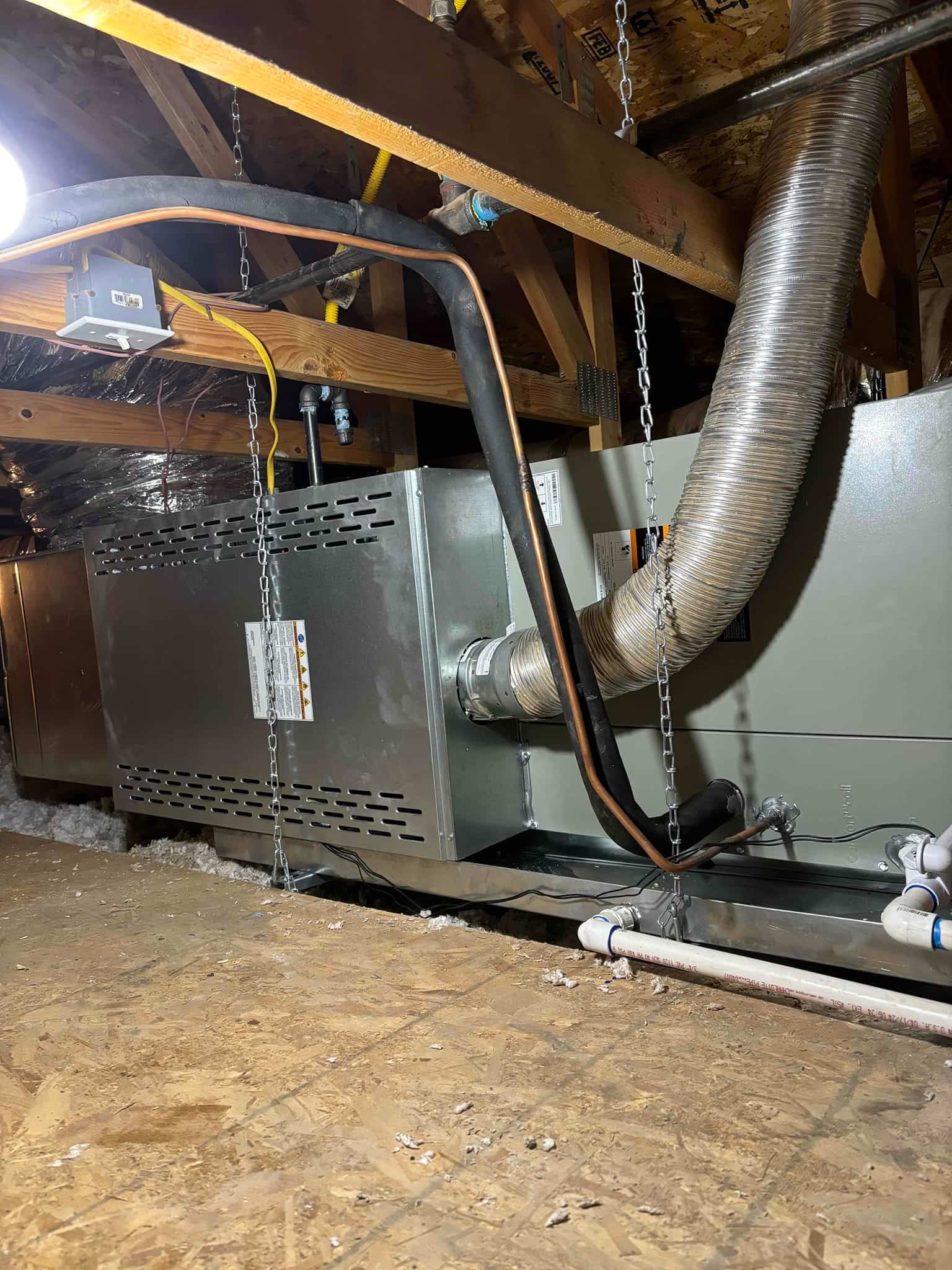

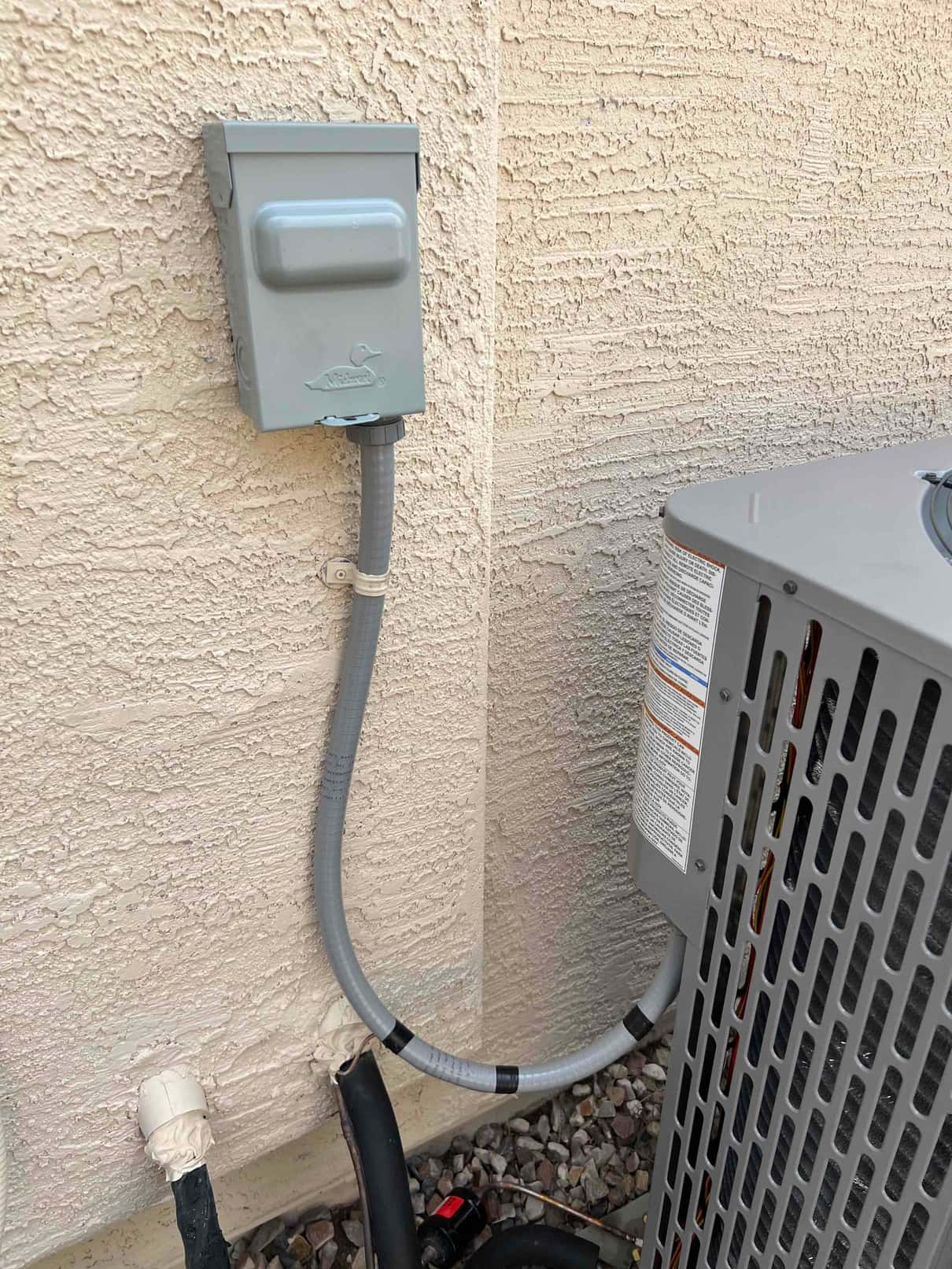

Installation Progress

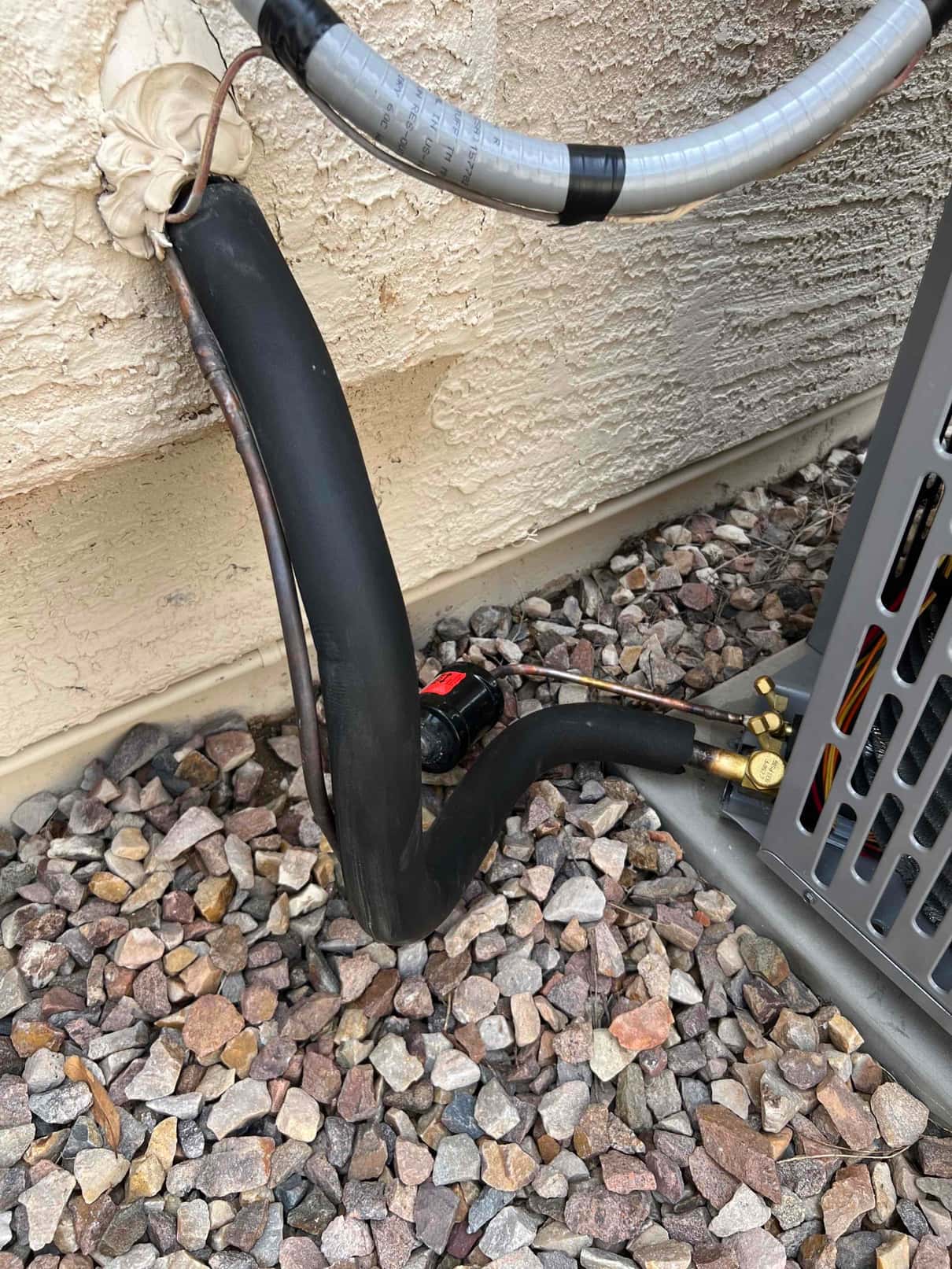

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

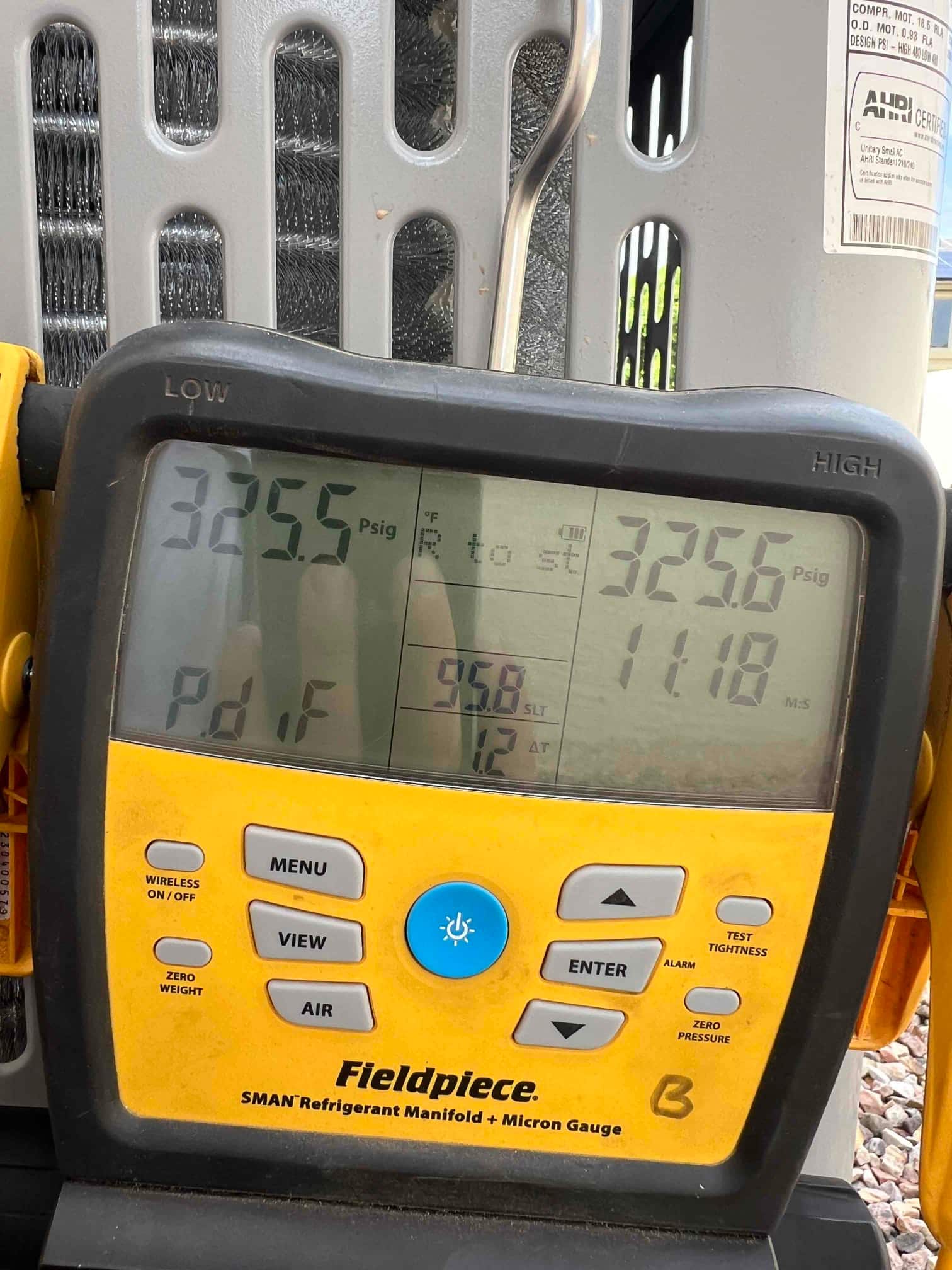

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.
Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

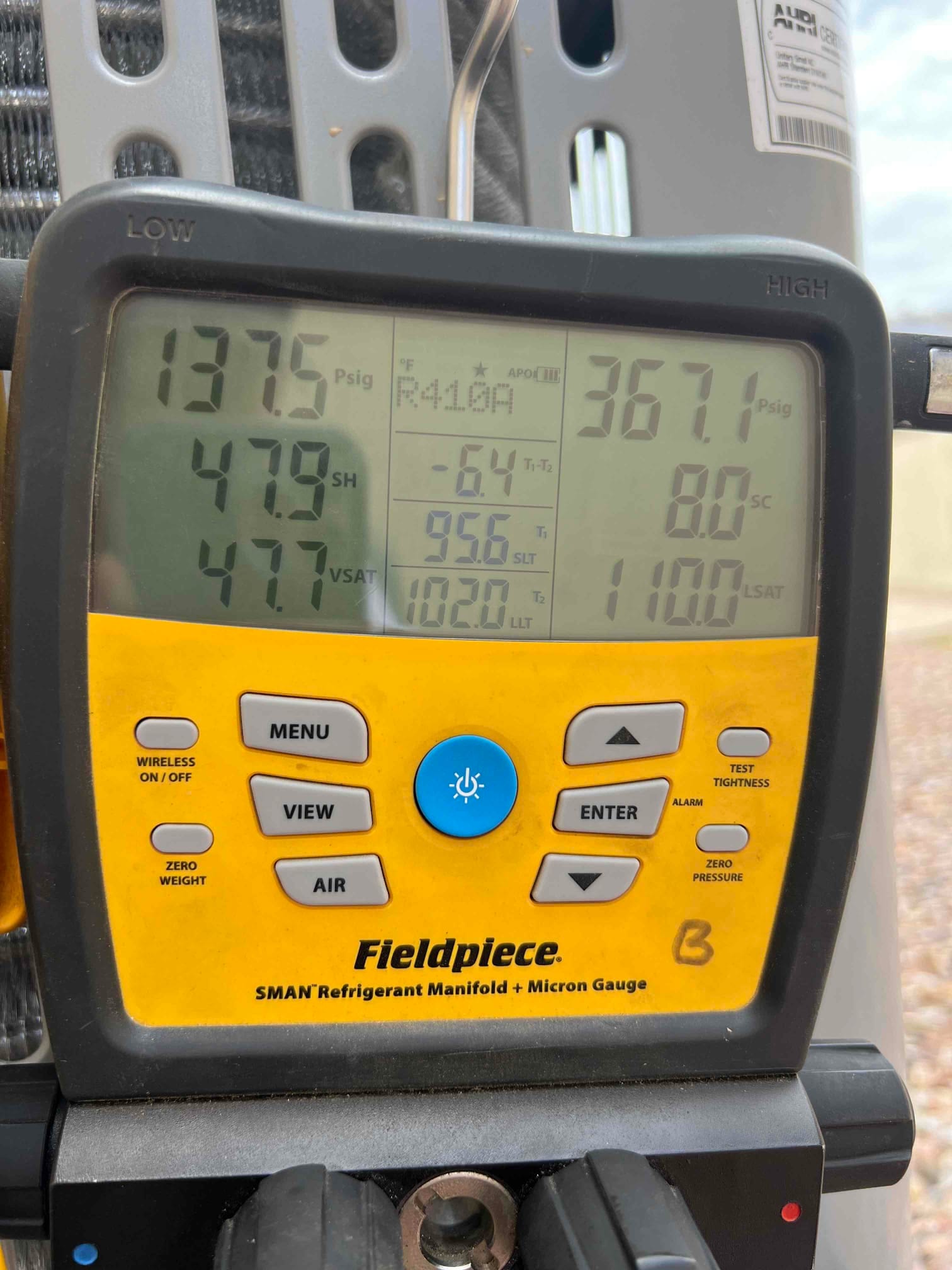

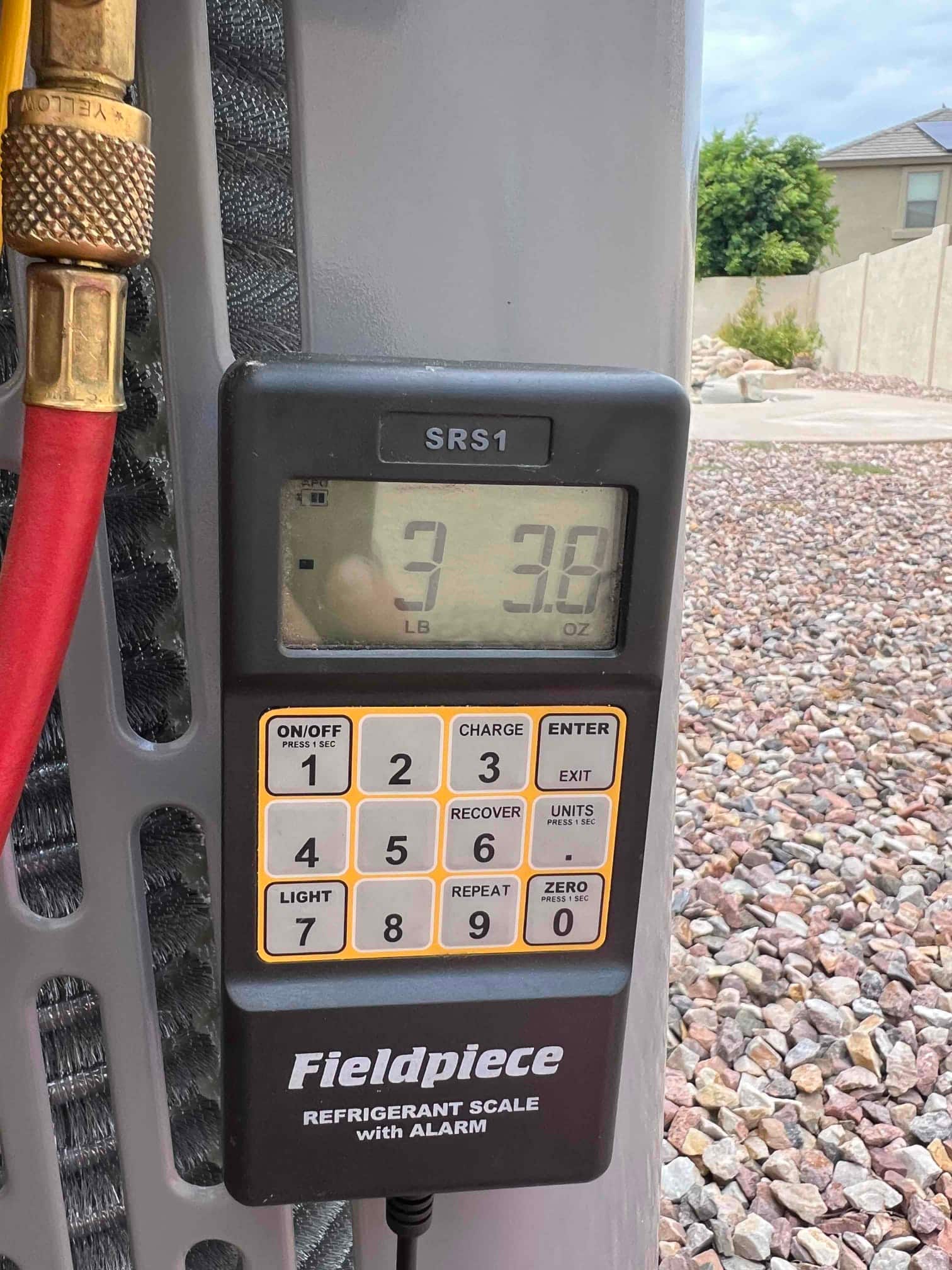

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

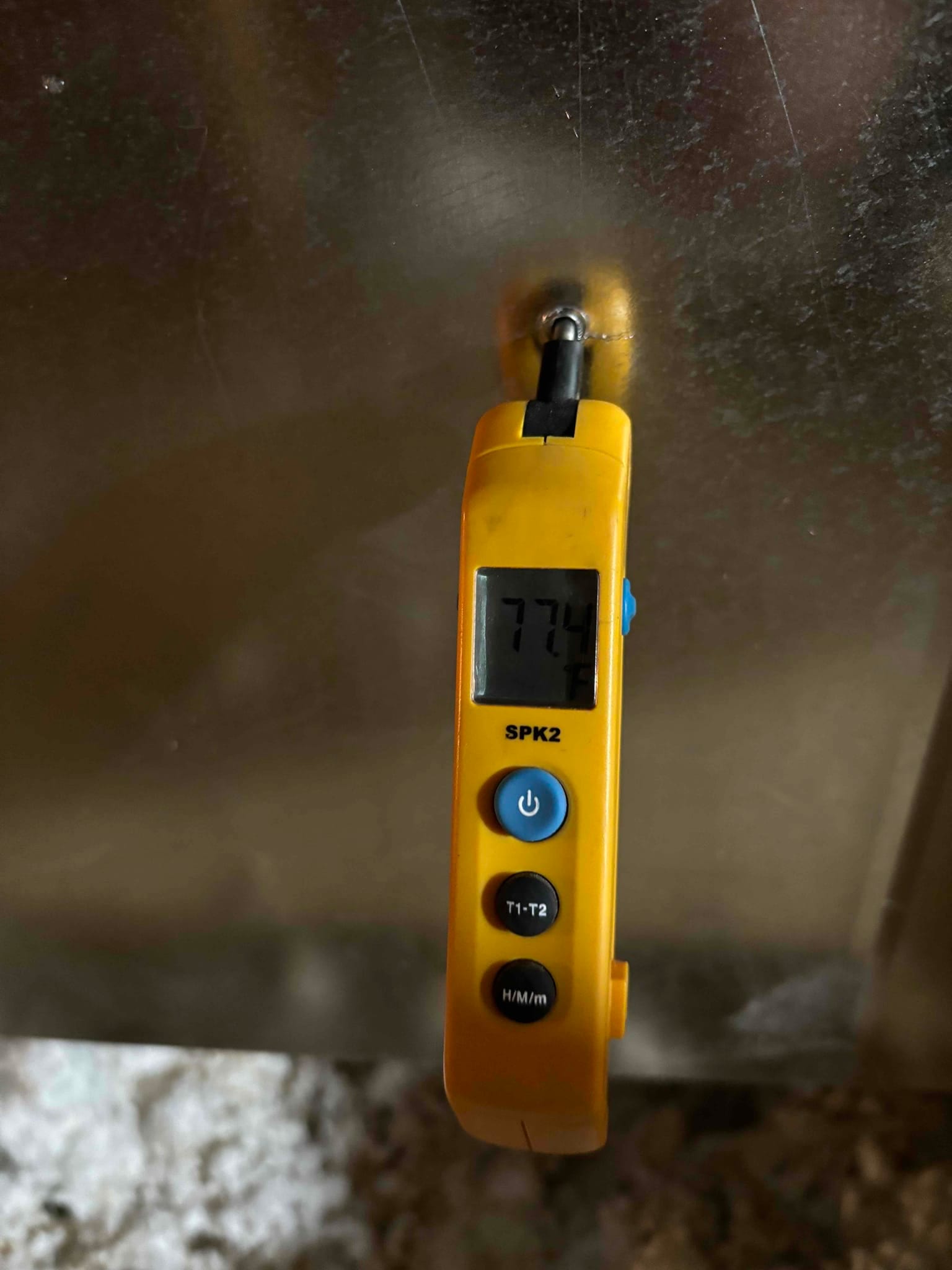

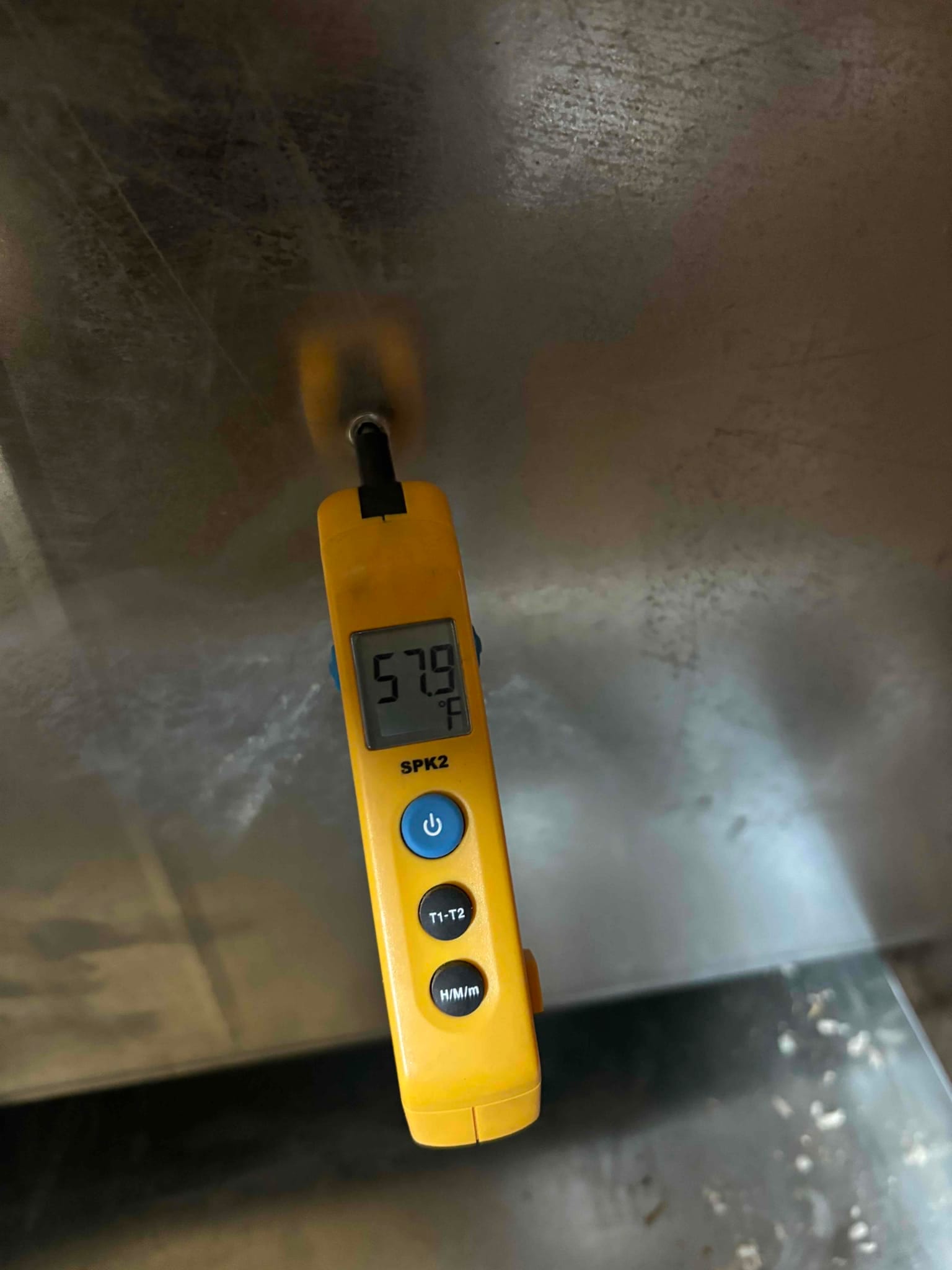

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Surprise job?
AZ Perfect Comfort installed a 4-Ton AC + Furnace Split System at this Surprise property. The install was completed by Ben & Travis and includes AZ Perfect Comfort's workmanship warranty.
How much does a new ac + furnace split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Surprise?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Surprise and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
