Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTR4048N1000*
- Capacity
- 4-Ton
New — installed 2026
Real Installation · Scottsdale
4-Ton AC and Furnace Split System Installation in Scottsdale — May 2023
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a 4-ton AC unit and a 5-ton furnace with coil.
Scottsdale · installed May 16, 2023
— At a Glance
Location
Scottsdale
Completed
May 16, 2023
System Type
AC + Furnace Split System
Capacity
4-Ton
Brand
Trane
Total Investment
$12,130
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCC009DS3HC*
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed

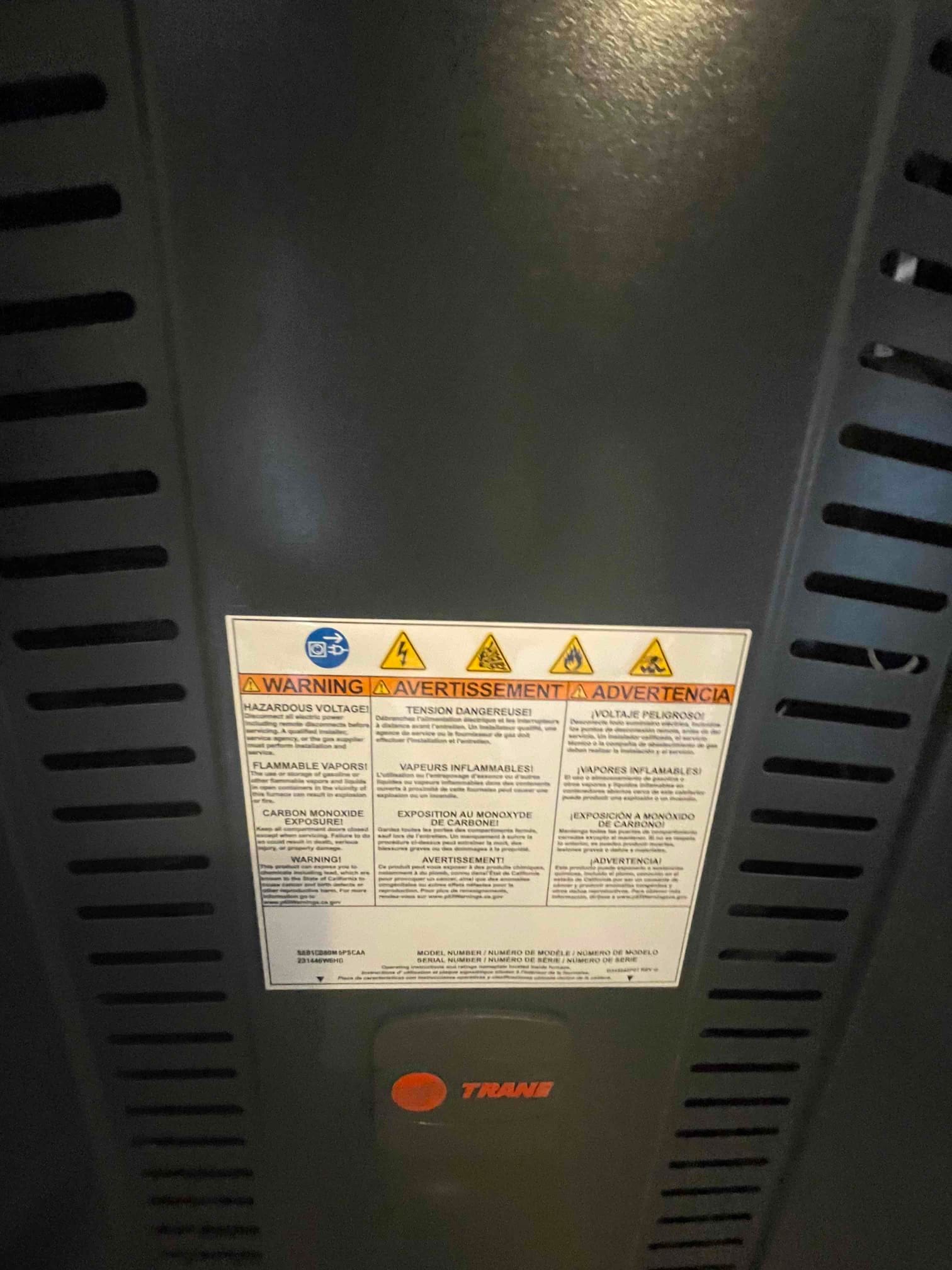

Furnace
- Brand
- Trane
- Model
- S8B1C080M5PS**
- Matched
- 4-Ton airflow
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 4-Ton AC and Furnace Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Andrew, Fred, Tim & Angel from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Suction pressure
- 128 PSIG
- Liquid pressure
- 316 PSIG
Vacuum / Evacuation

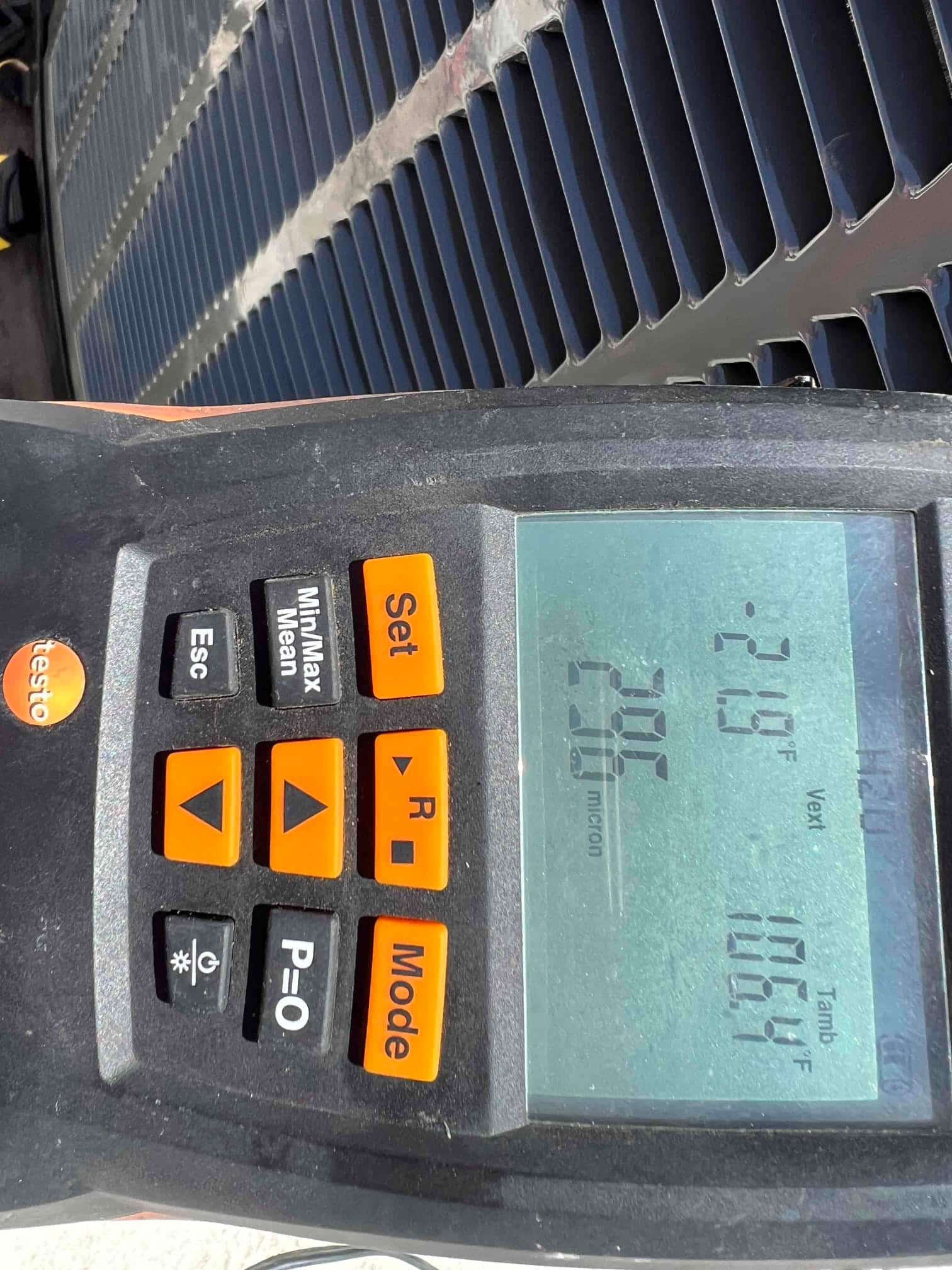

- Final vacuum reading
- 206 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 414V-4TTR4048N1-S8B1C080M5PS* | 4 Ton - 14 Series - Standard Efficiency - Single Stage Residential HVAC System. Installed in a Verticle configuration. Installation of the equipment includes all of the following:Use 5 ton furnace/coi | 1 |

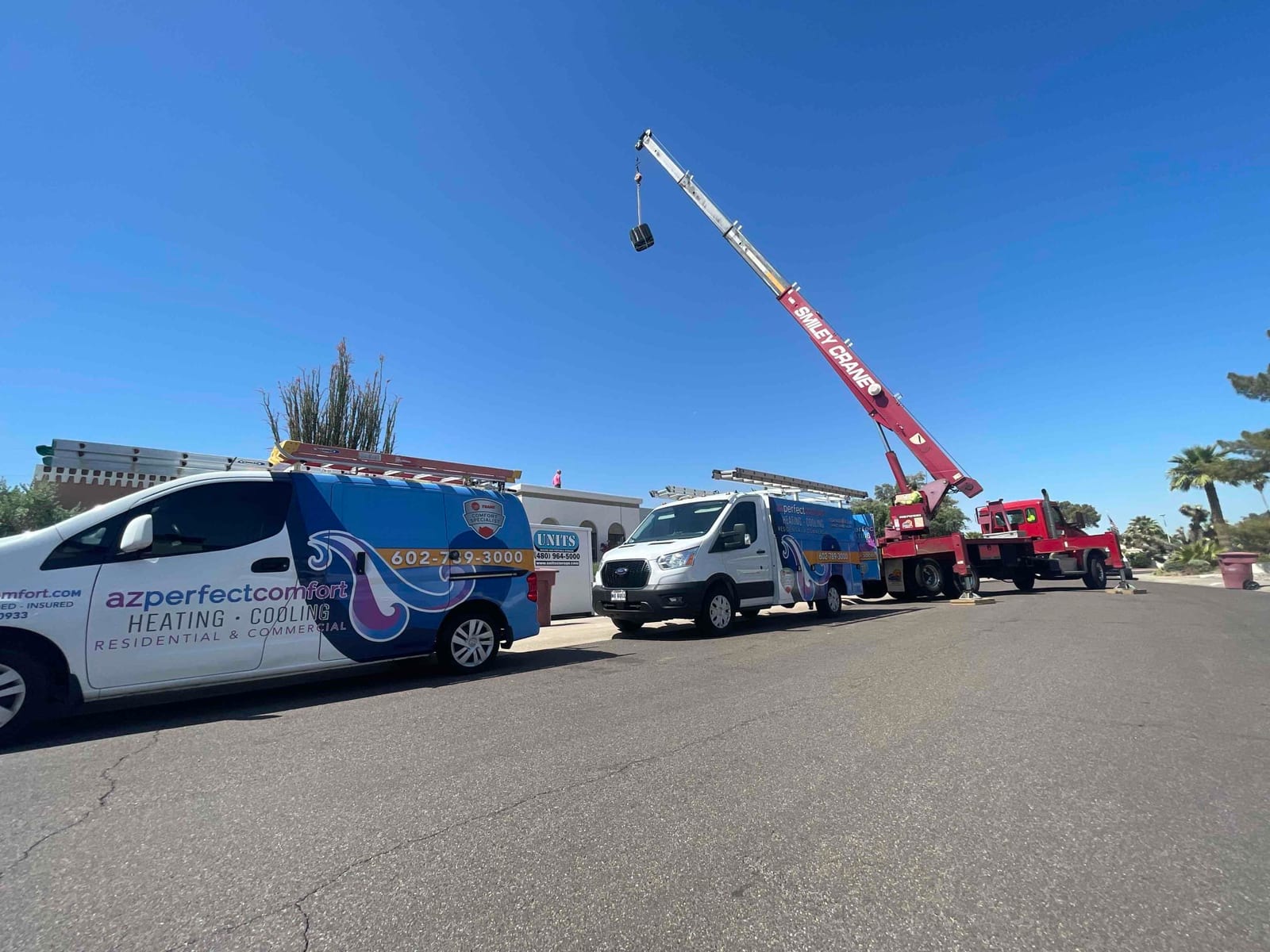

| CRANE | Crane Service needed for work to be performed. AZ Perfect Comfort will be responsible for scheduling. Customers cannot schedule their own crane service. | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
16 photos from this installation
Every step of this installation was documented on-site by Andrew, Fred, Tim & Angel.
Installation Progress

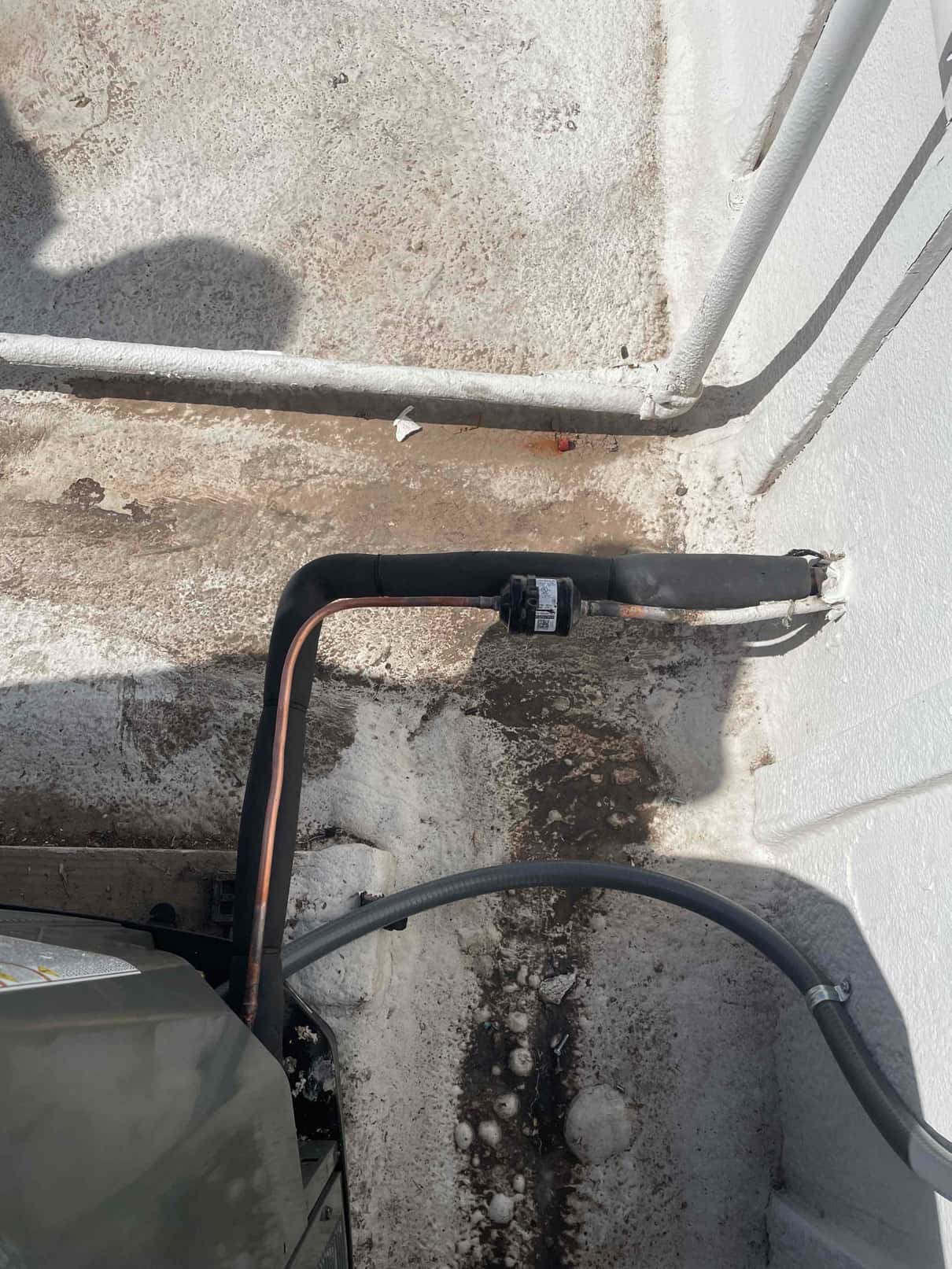

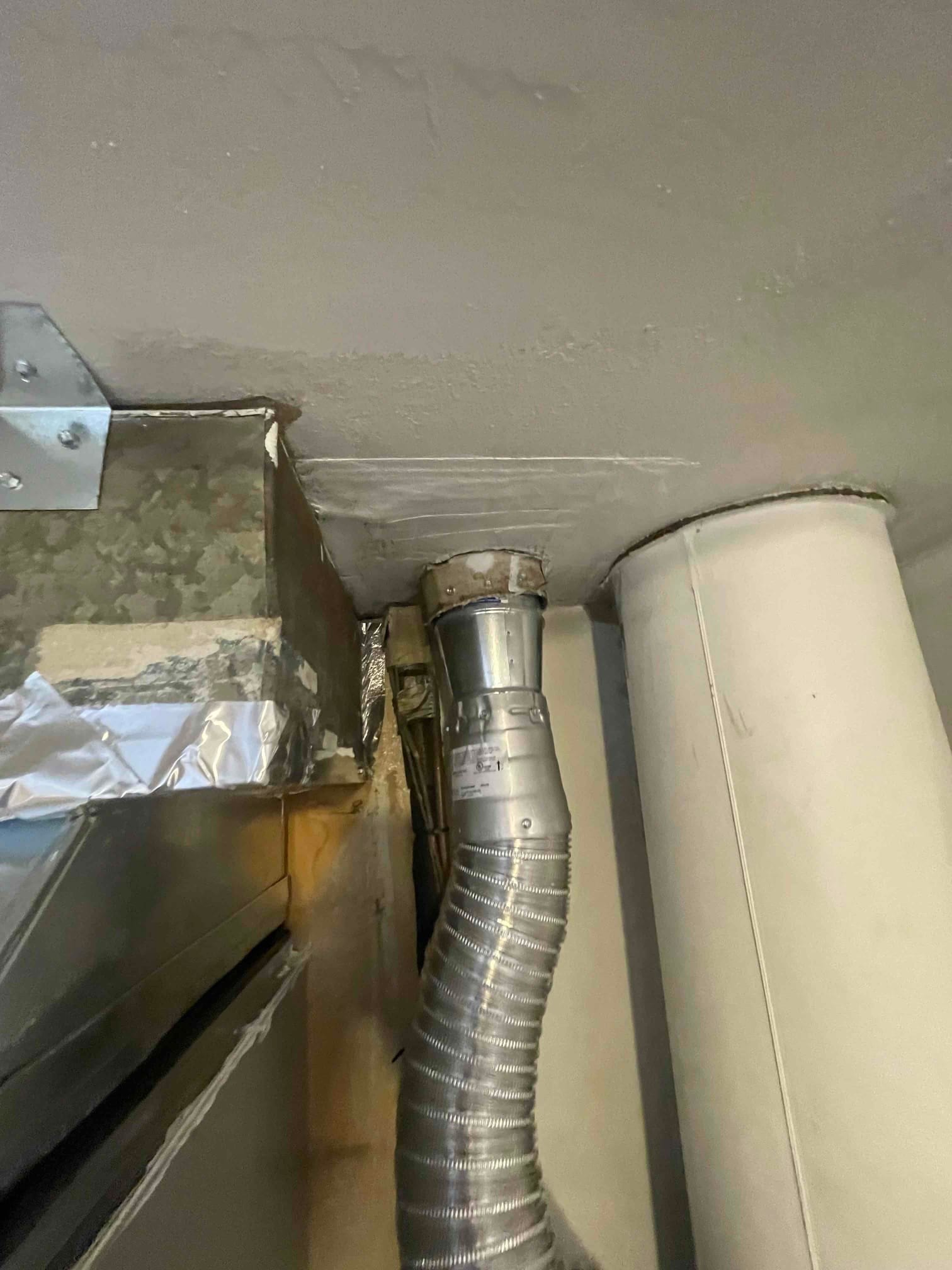

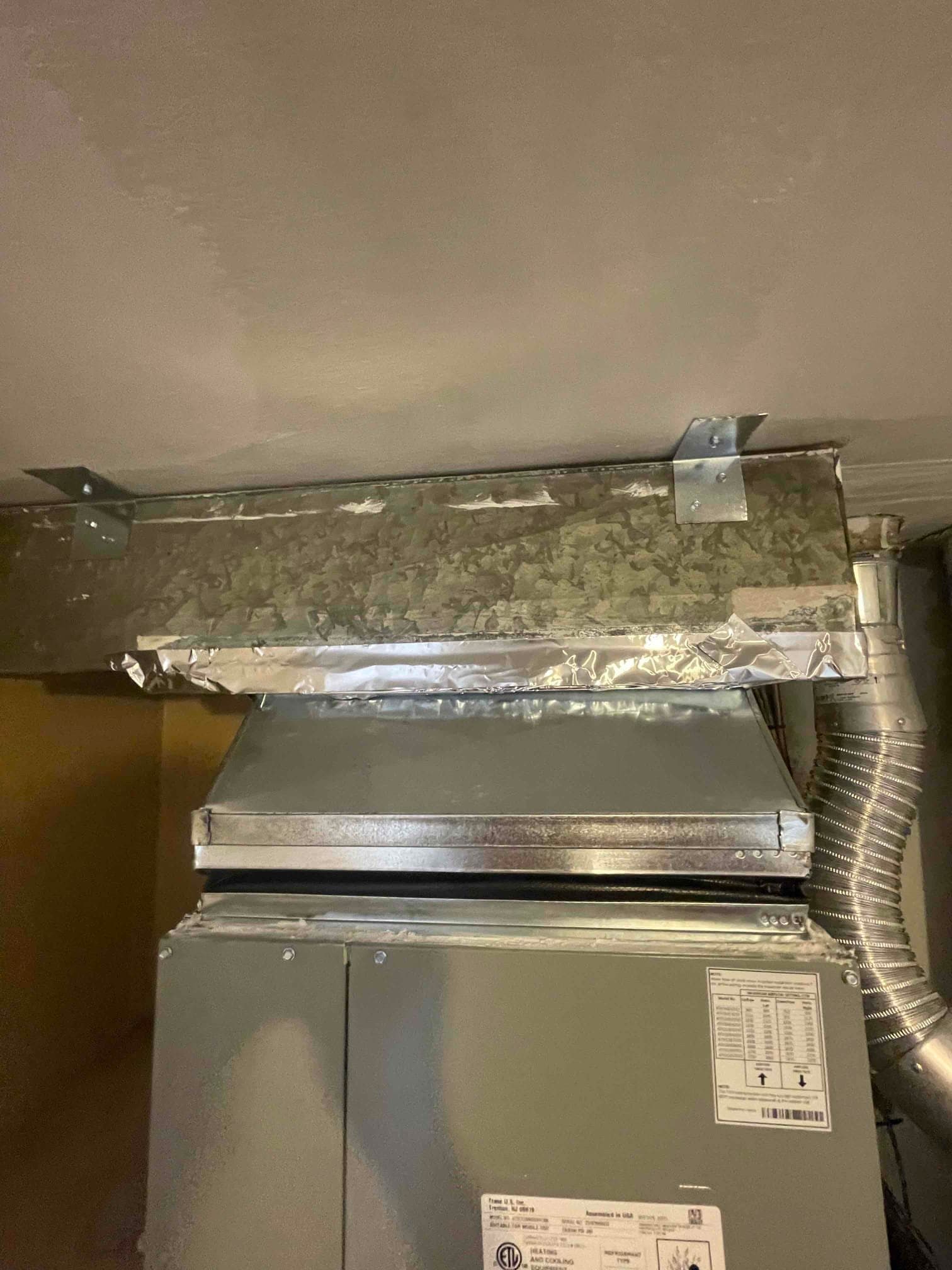

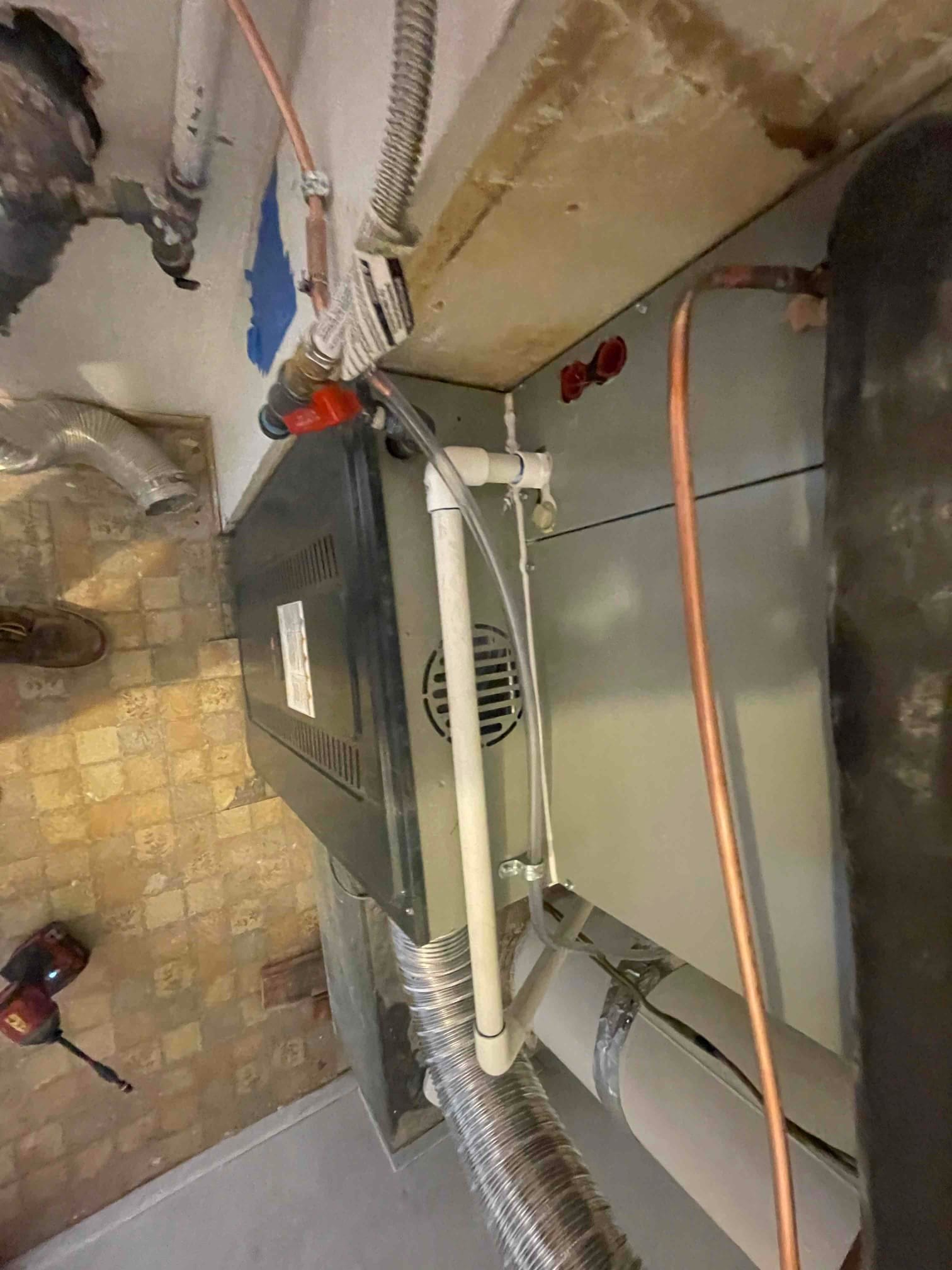

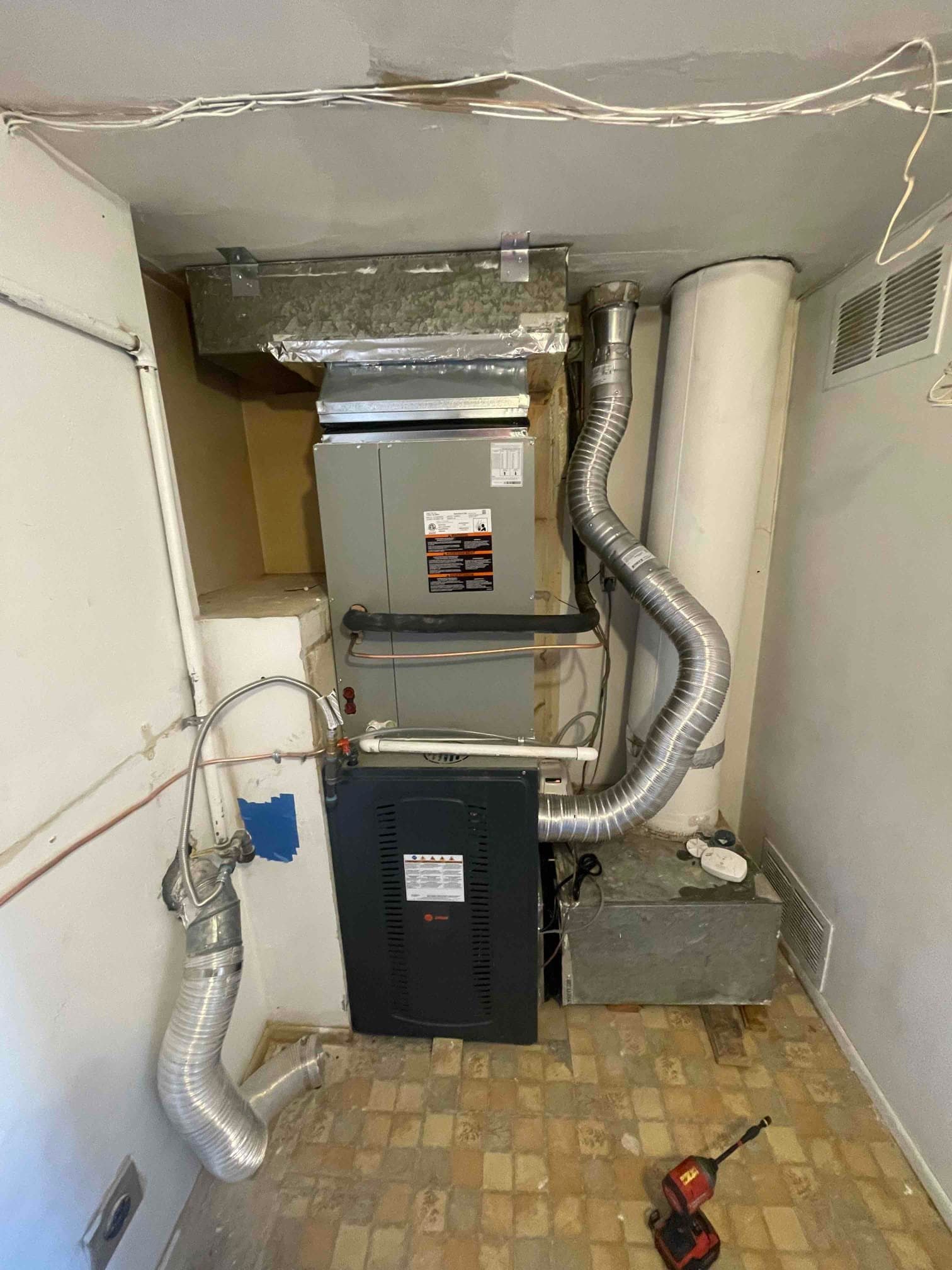

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.
Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

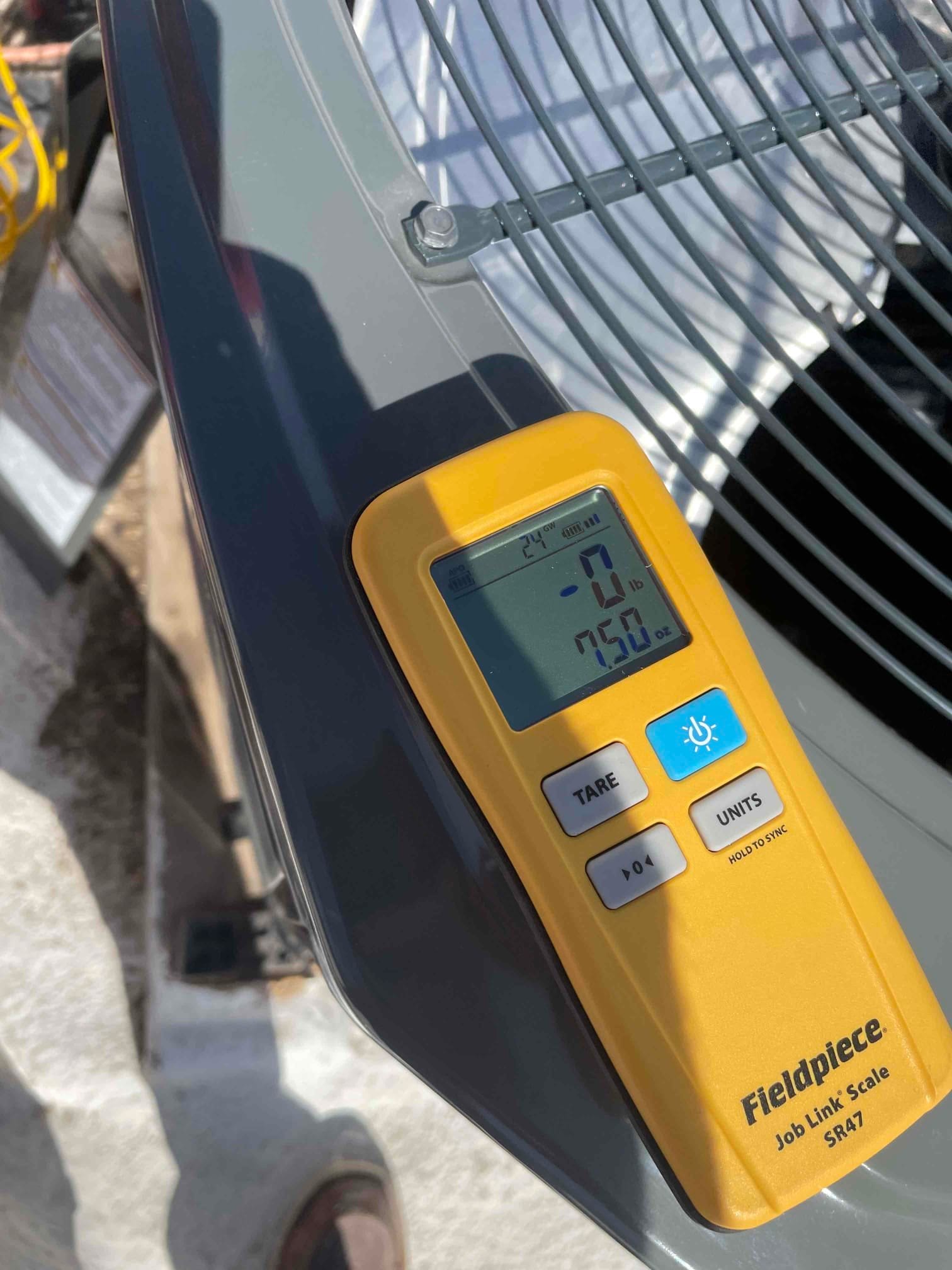

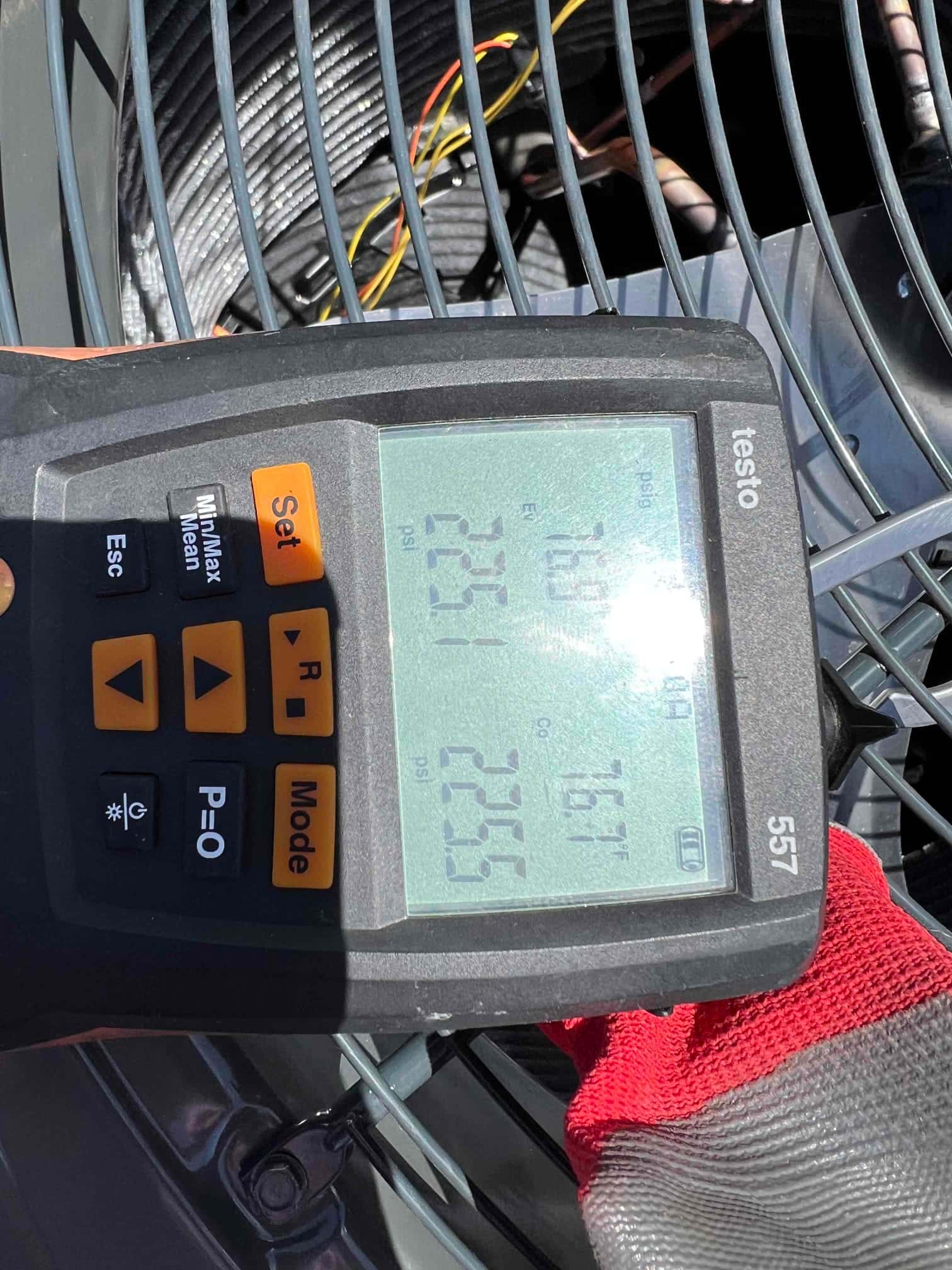

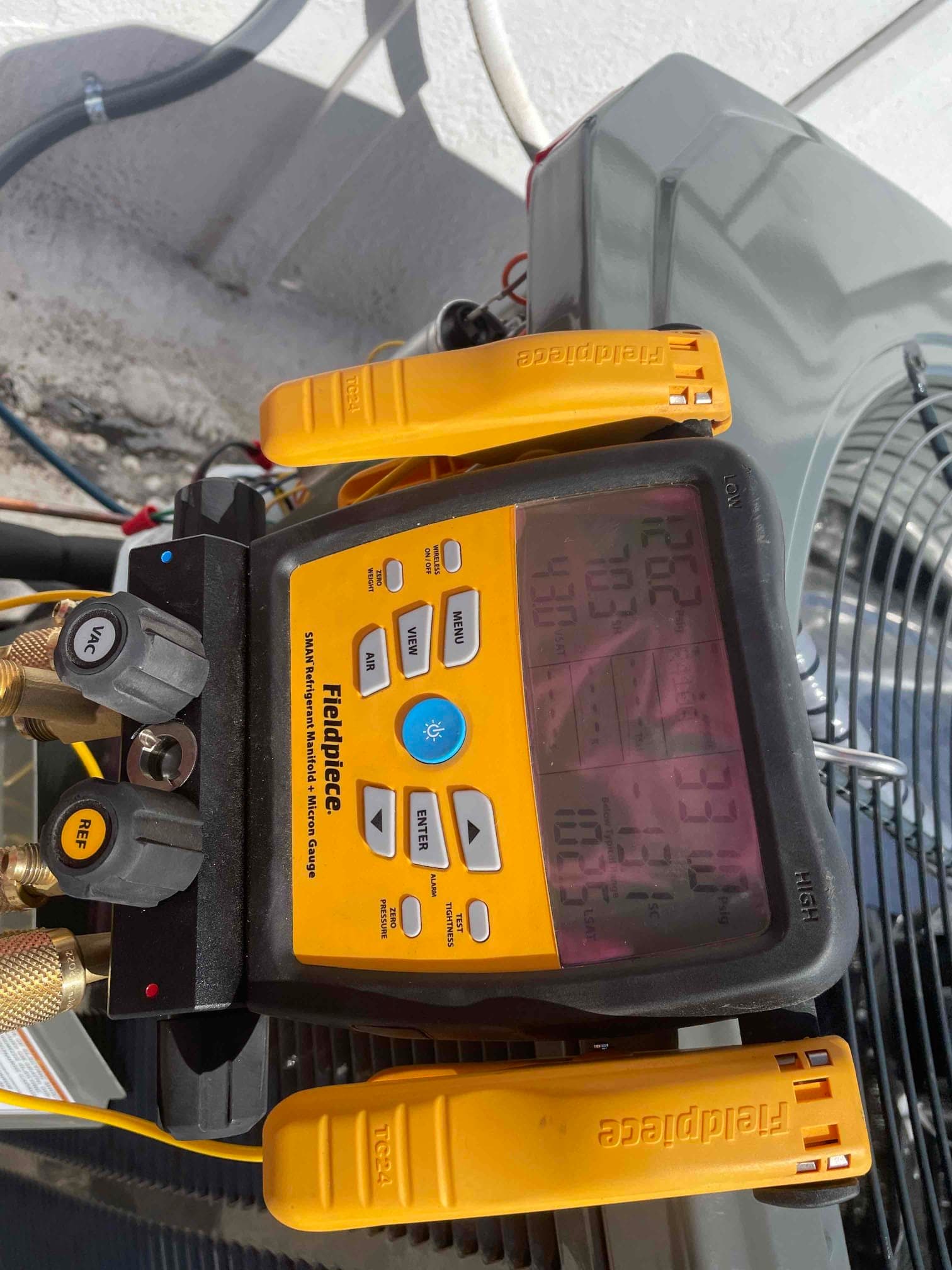

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Scottsdale job?
The installer completed a 4-ton air conditioning unit along with a 5-ton gas furnace and coil as part of a split system installation. This setup was chosen to ensure efficient heating and cooling for the homeowner's needs.
How much does a new ac + furnace split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Scottsdale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
