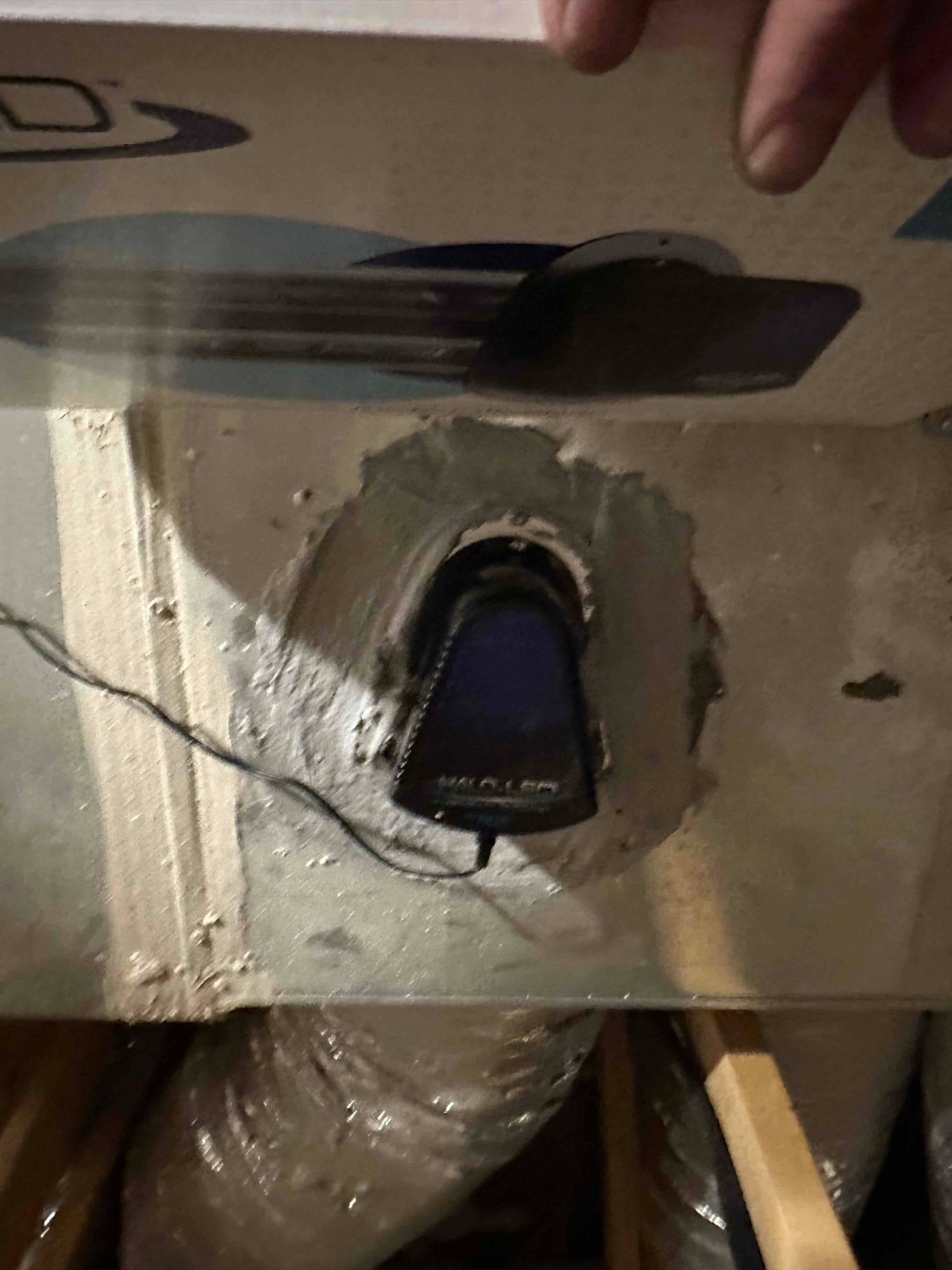

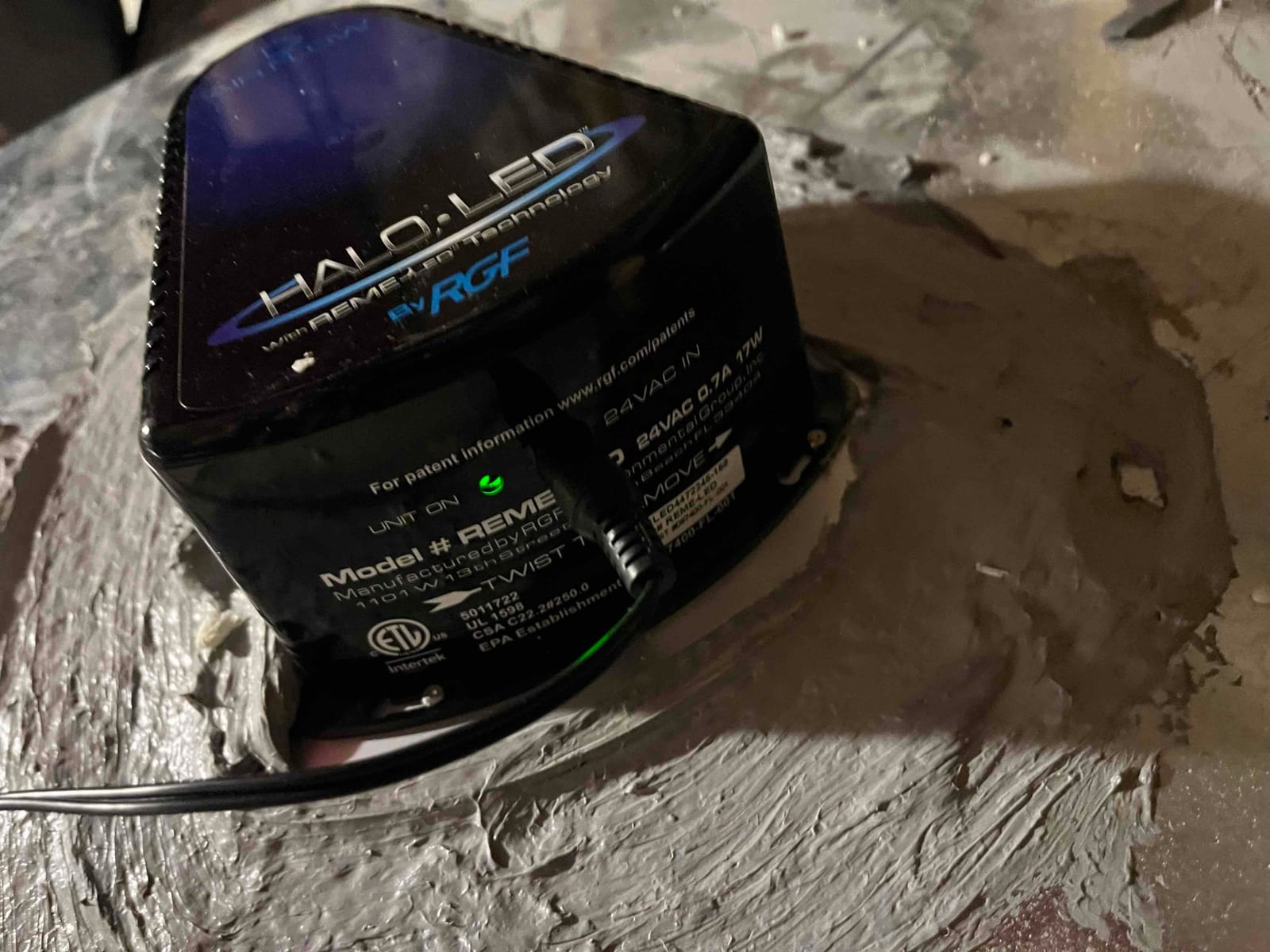

Newly Installed
Air Purifier
- Model
- REME-LED
New — installed 2026
Real Installation · North Scottsdale
Furnace Replacement and Humidifier Installation in North Scottsdale — January 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
The existing furnaces were outdated and inefficient, prompting the need for replacement with modern condensing units to improve energy efficiency and performance.
North Scottsdale · installed January 10, 2025
— At a Glance
Location
North Scottsdale
Completed
January 10, 2025
System Type
AC + Furnace Split System
Capacity
5-Ton
Total Investment
$18,245
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Furnace
- Brand
- Trane
- Model
- S9V2C080U5PSCAA
- Matched
- 5-Ton airflow
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- S9V2C080U5PSCAA
- Matched
- 5-Ton airflow
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the Heating work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real Furnace Replacement and Humidifier Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle, Jesse, Andrew & Fred from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 96 PSIG
- Liquid pressure
- 233 PSIG
- Evaporator saturation
- 22.7°F
- Condensing saturation
- 93.6°F
- Superheat
- 40°F
- Subcooling
- 16°F
Nitrogen Pressure Test
- Test pressure held
- 446 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 219 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| CUI-Furnace-HOR-Only | Replace the Furnace unit of a split system HVAC system• Follow all necessary regulations to meet code requirements• Use Existing Drain pan or listed as separate line item• New Gas Pipe Connectio | 1 |
| CUI-Furnace-HOR-Only | Replace the Furnace unit of a split system HVAC system• Follow all necessary regulations to meet code requirements• Use Existing Drain pan or listed as separate line item• New Gas Pipe Connectio | 1 |
| Custom-HUM | Install a new electrode steam humidifier. Install humidifier on furnace or air handler and connect wiring to equipment. Includes installation of a new 1/4" copper water supply line to humidifier up to | 2 |
| CON-330 | Install or replace an automated safety switch that will turn off the system if water overflows into the secondary emergency drain pan. | 2 |
| Custom-Misc | Miscellaneous HVAC Services- Relocate 4 and 5 ton condensers. | 1 |
| Custom-Misc | Miscellaneous HVAC Services- Install outside makeup air including damper. | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
14 photos from this installation
Every step of this installation was documented on-site by Kyle, Jesse, Andrew & Fred.

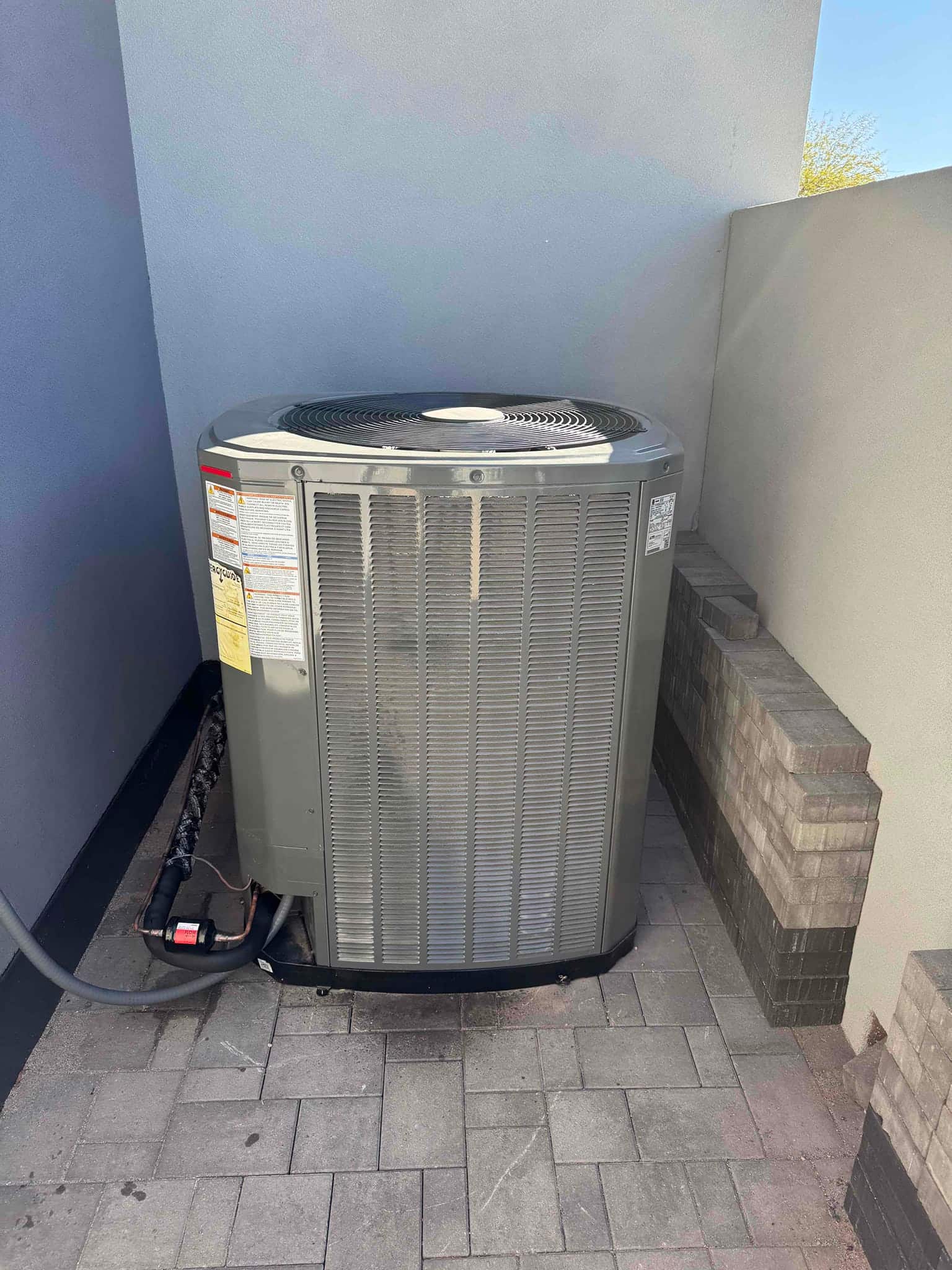

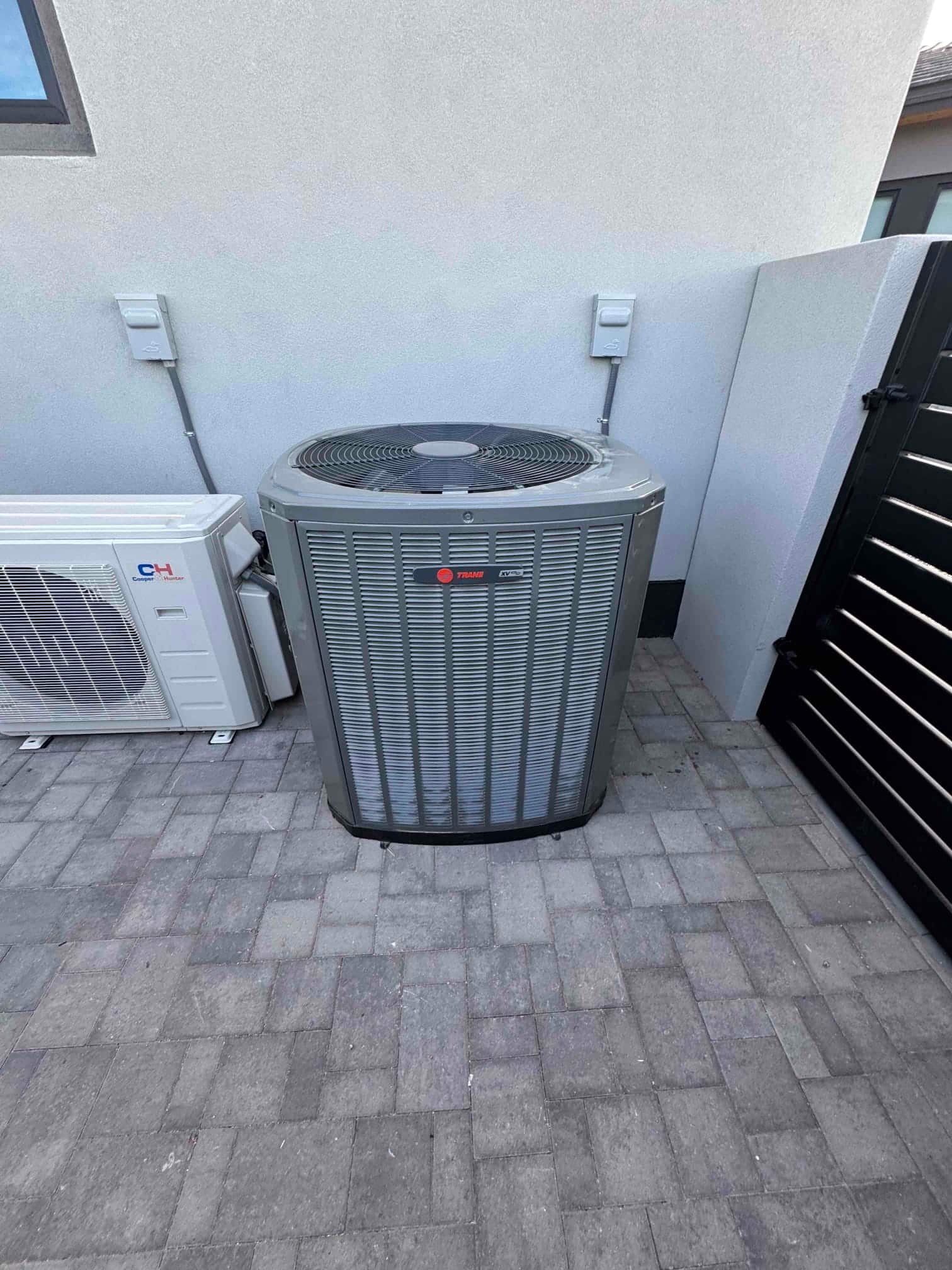

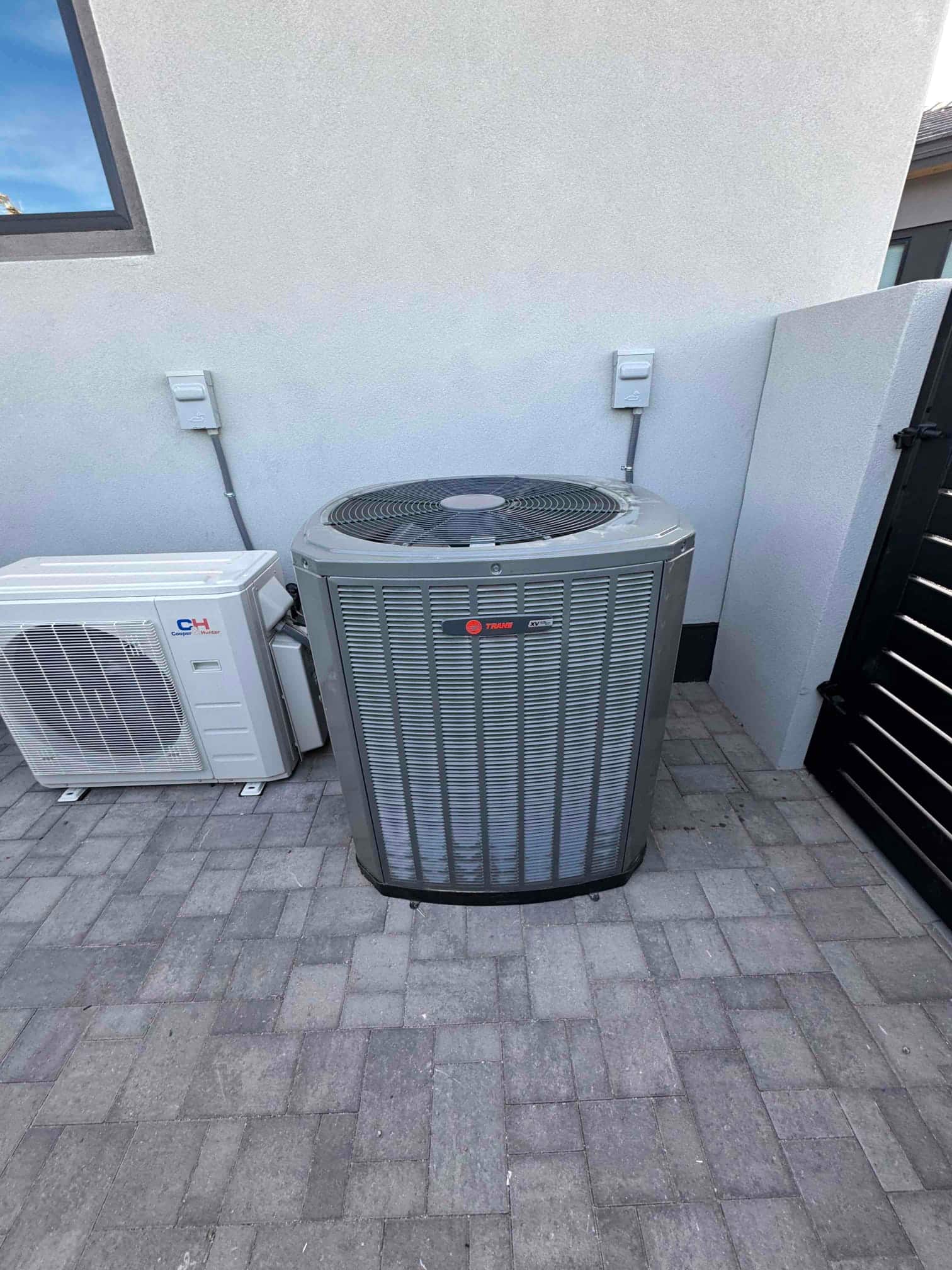

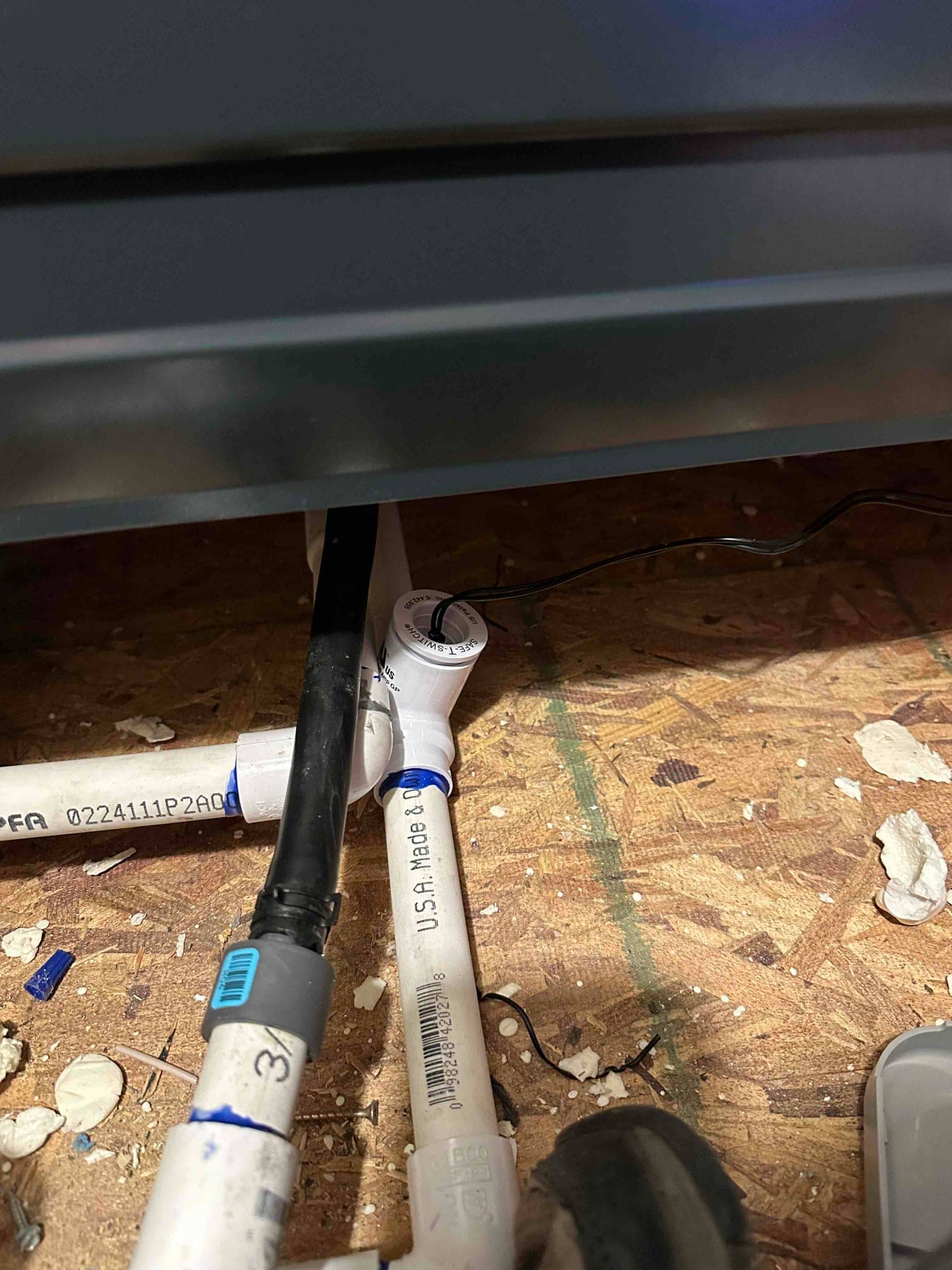

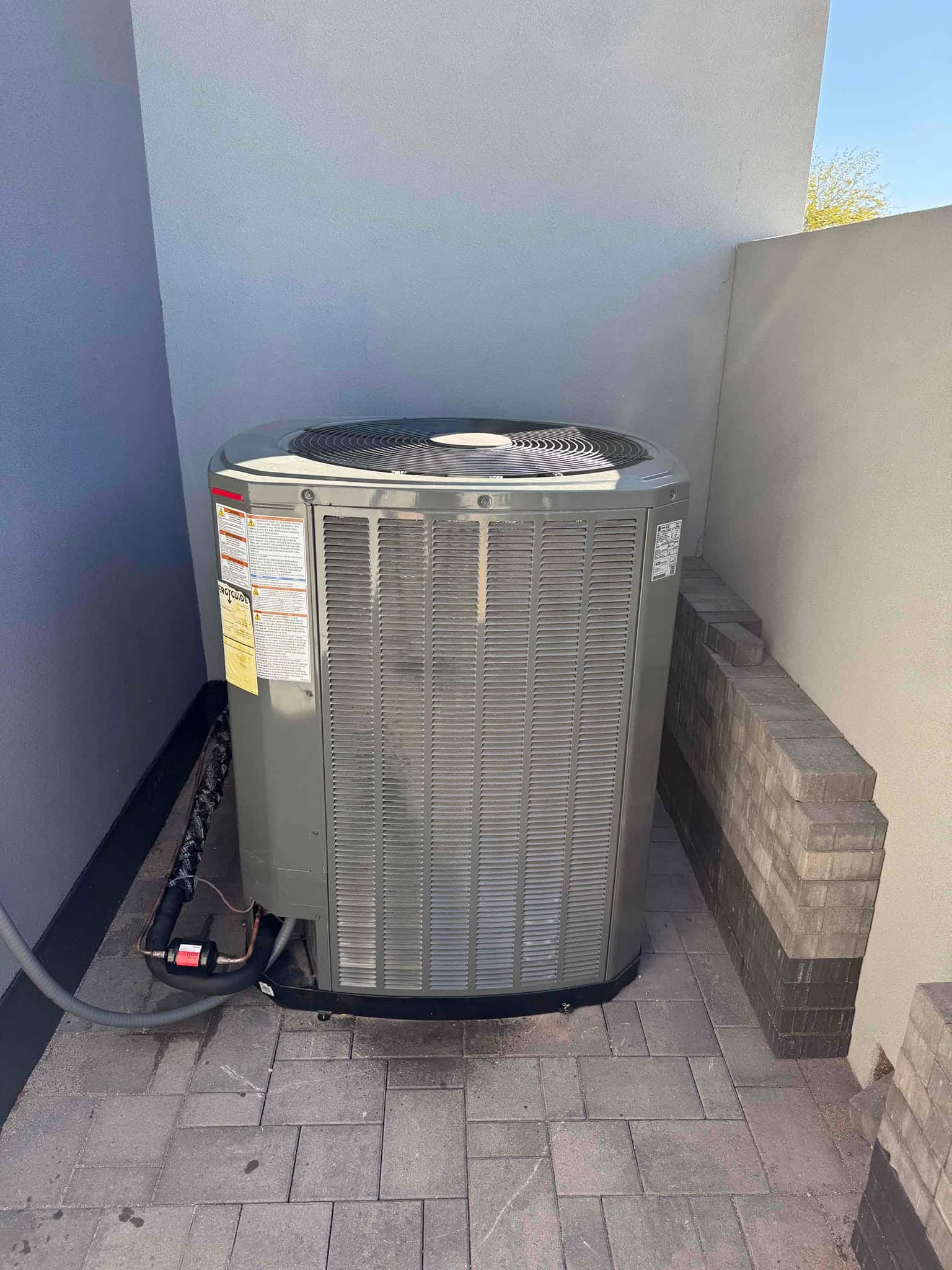

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

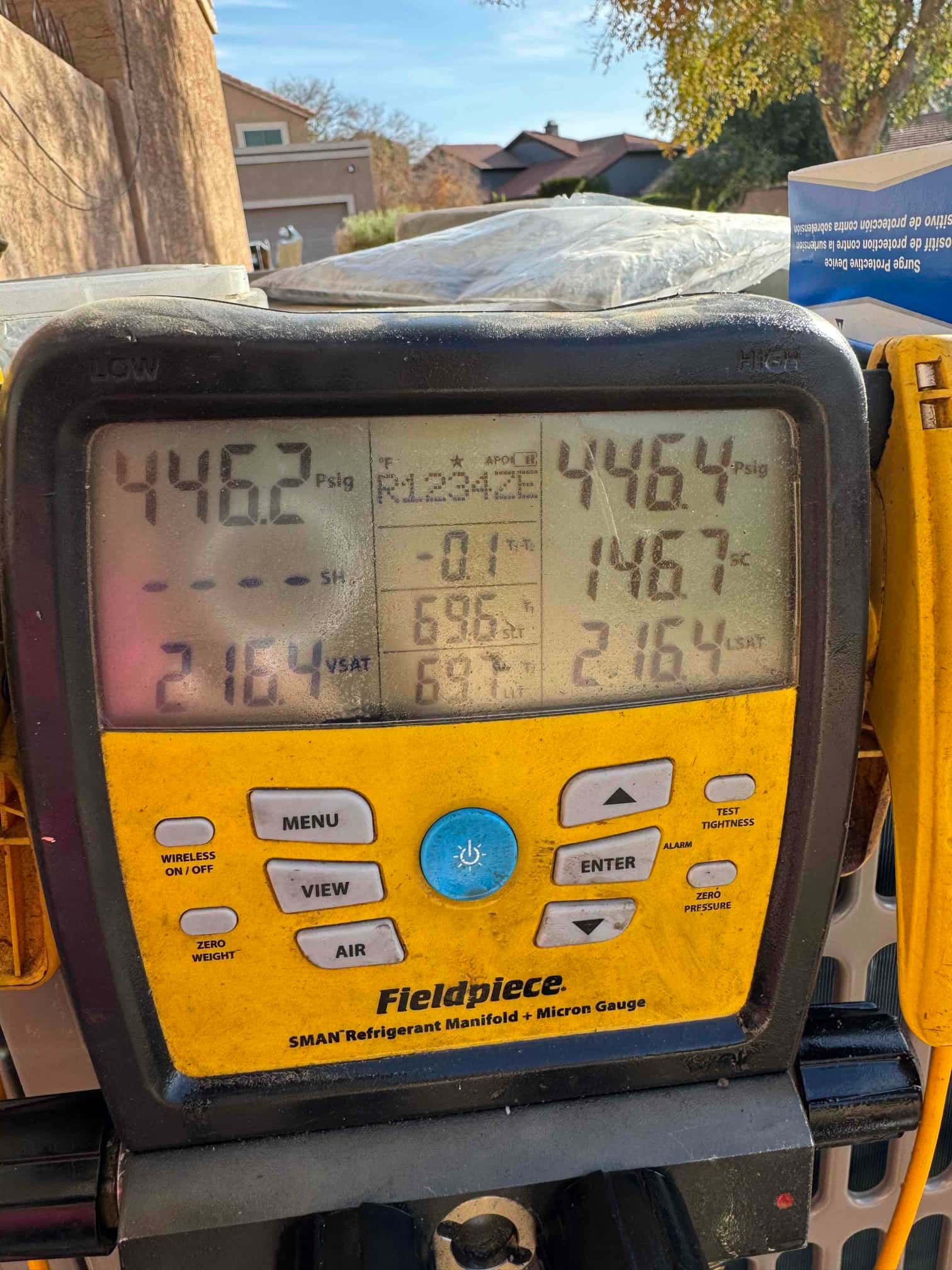

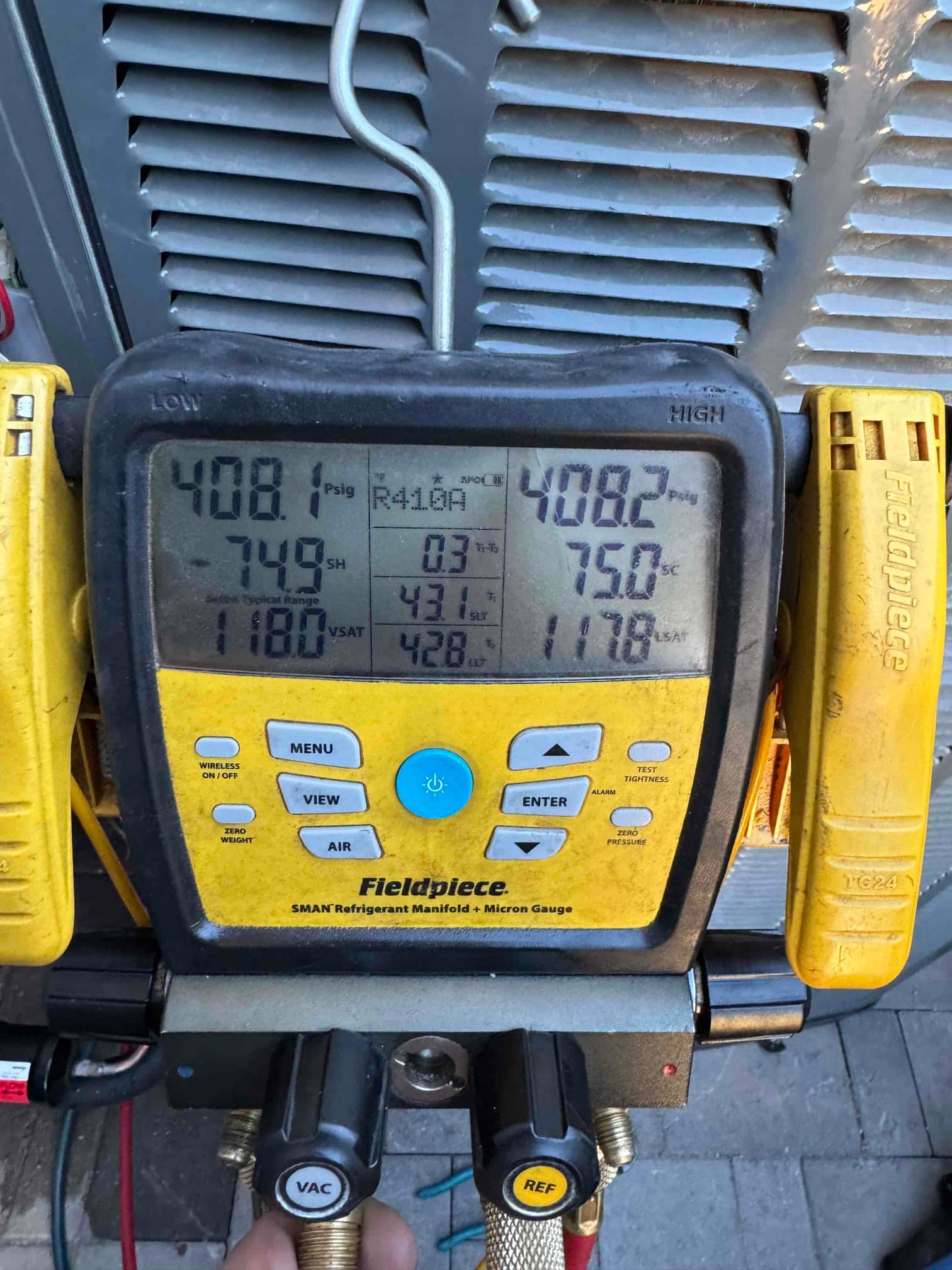

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

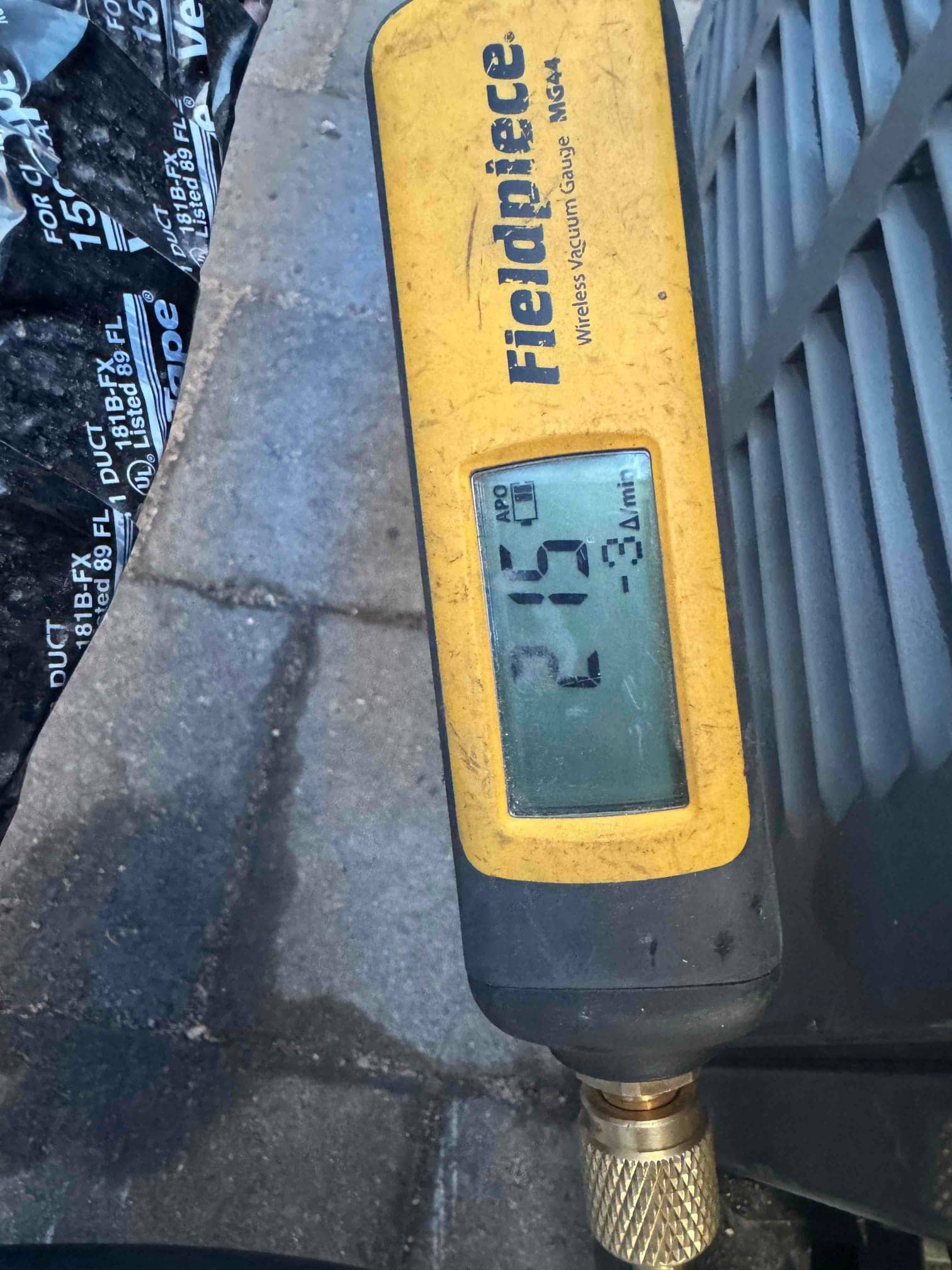

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

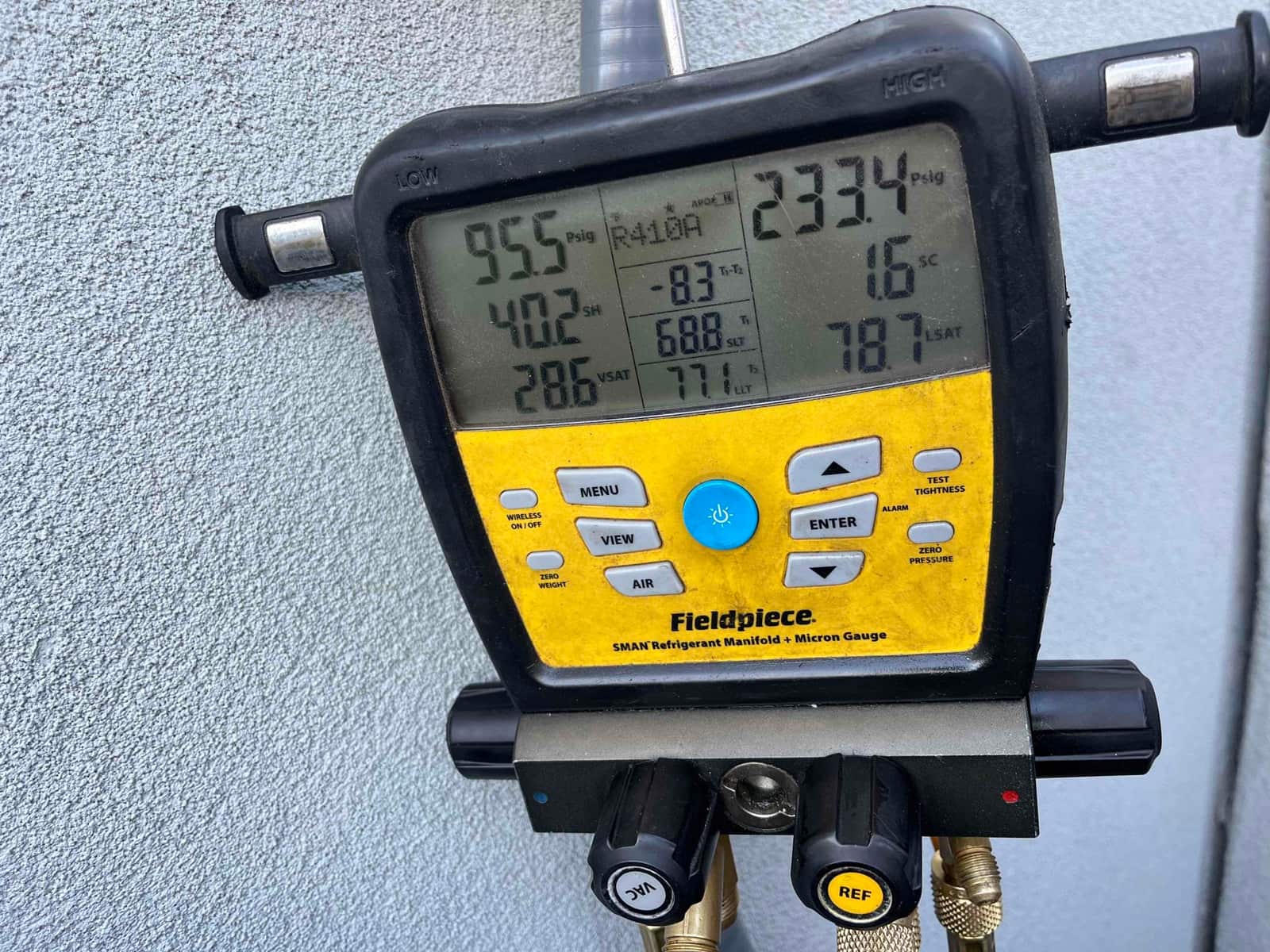

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.
— Frequently Asked
Questions about this installation
What kind of system was installed in this North Scottsdale job?
The installer replaced an 80% efficiency furnace with a new condensing furnace and installed humidifiers on both systems to enhance indoor air quality. Additionally, they upgraded the thermostat controls to Trane 850 Comfort Link thermostats for improved communication with the new equipment and installed a relay panel and fresh air intake for proper ventilation.
How much does a new ac + furnace split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in North Scottsdale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout North Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
