Newly Installed
AC condenser
- Brand
- American Standard
- Model
- 4TTX7048E1000AB
- Capacity
- 5-Ton
New — installed 2026
Real Installation · North Scottsdale
5-Ton and 4-Ton Condensing Unit Replacement in North Scottsdale — December 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of two-stage condensers.
North Scottsdale · installed December 2, 2025
— At a Glance
Location
North Scottsdale
Completed
December 2, 2025
System Type
Air Conditioning System
Capacity
5-Ton
Brand
American Standard
Total Investment
$12,453
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
AC condenser
- Brand
- American Standard
- Model
- 4TTR6060N1000AA
- Capacity
- 5-Ton
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the Heating work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 5-Ton and 4-Ton Condensing Unit Replacement case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Ben & Kyle from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 94 PSIG
- Liquid pressure
- 236 PSIG
- Evaporator saturation
- 21.5°F
- Condensing saturation
- 94.1°F
- Superheat
- 21°F
- Subcooling
- 12°F
Nitrogen Pressure Test
- Test pressure held
- 382 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 433 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| CUI-CONDENSER-ONLY | Replace the condensing unit of a split system air conditioner.5ton North Side Remove and dispose of old unit.New Disconnect and electrical fittings. New Armaflex line set insulation.Braze i | 1 |
| CUI-CONDENSER-ONLY | Replace the condensing unit of a split system air conditioner.4ton South Side Remove and dispose of old unit.New Disconnect and electrical fittings. New Armaflex line set insulation.Braze i | 1 |
| ZSR-3 Zone Board | Remove existing zone control board and replace with a new zone control board. Connect to existing wiring and test all zone operations. | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
17 photos from this installation
Every step of this installation was documented on-site by Ben & Kyle.

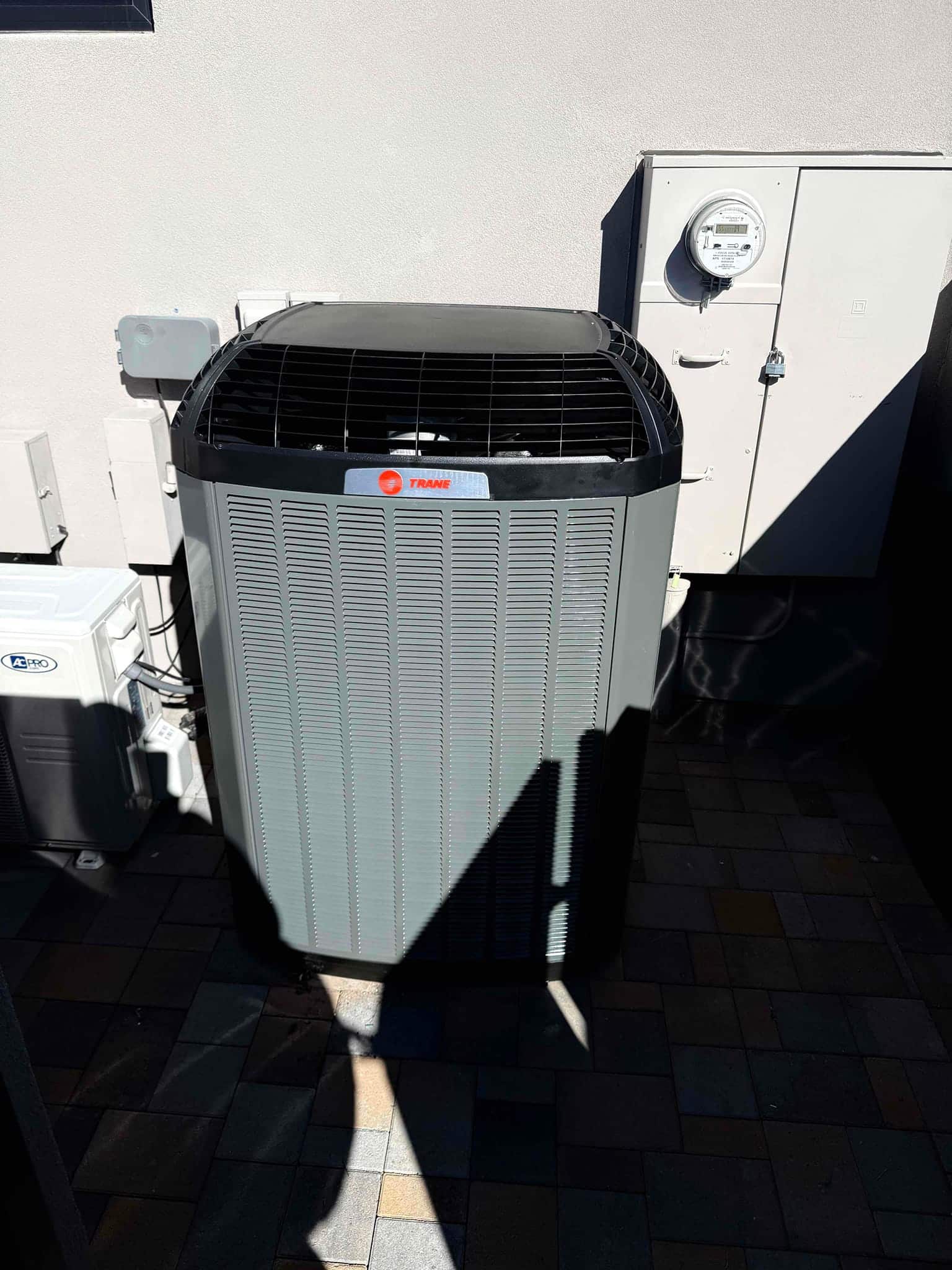

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

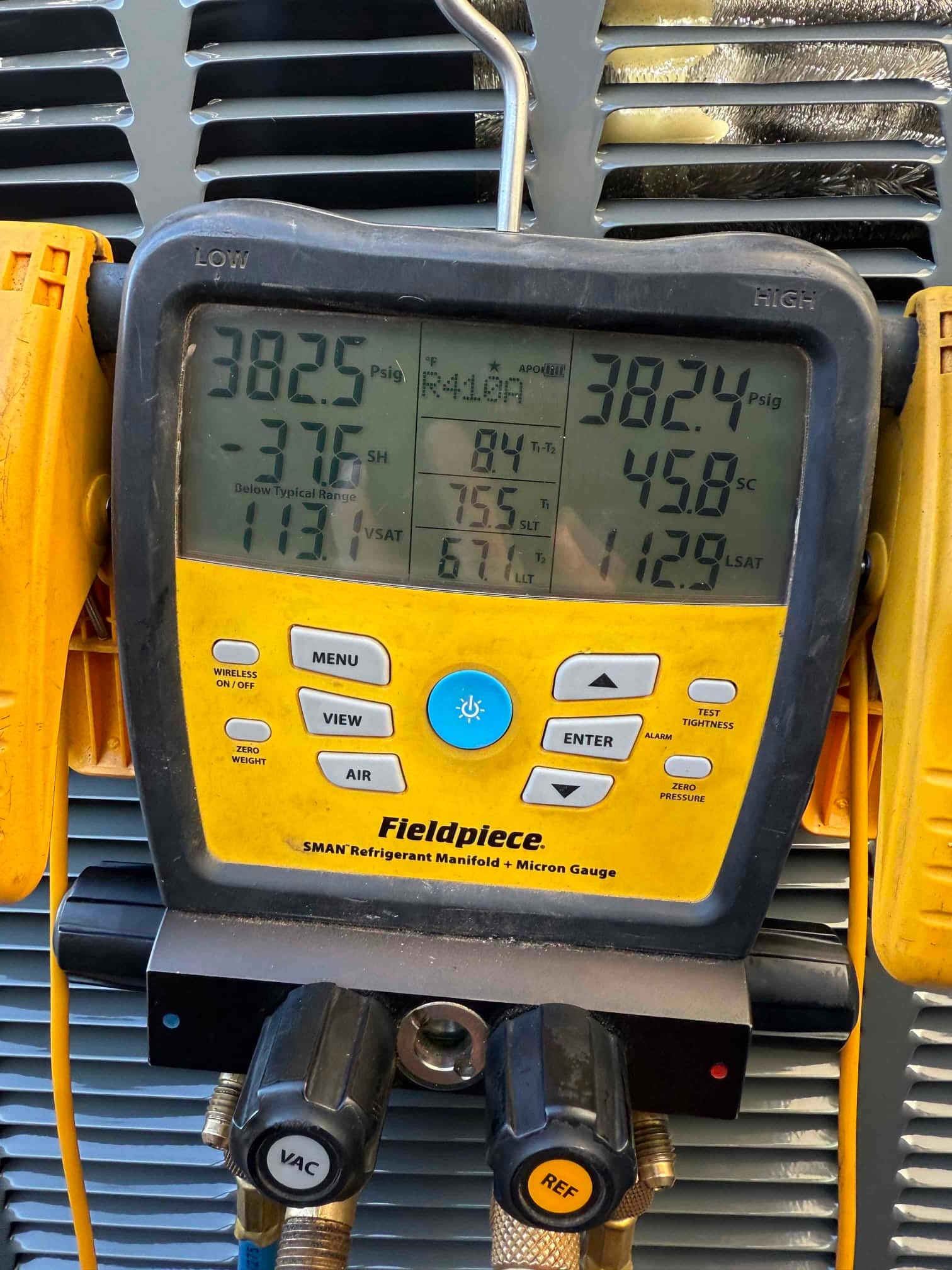

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

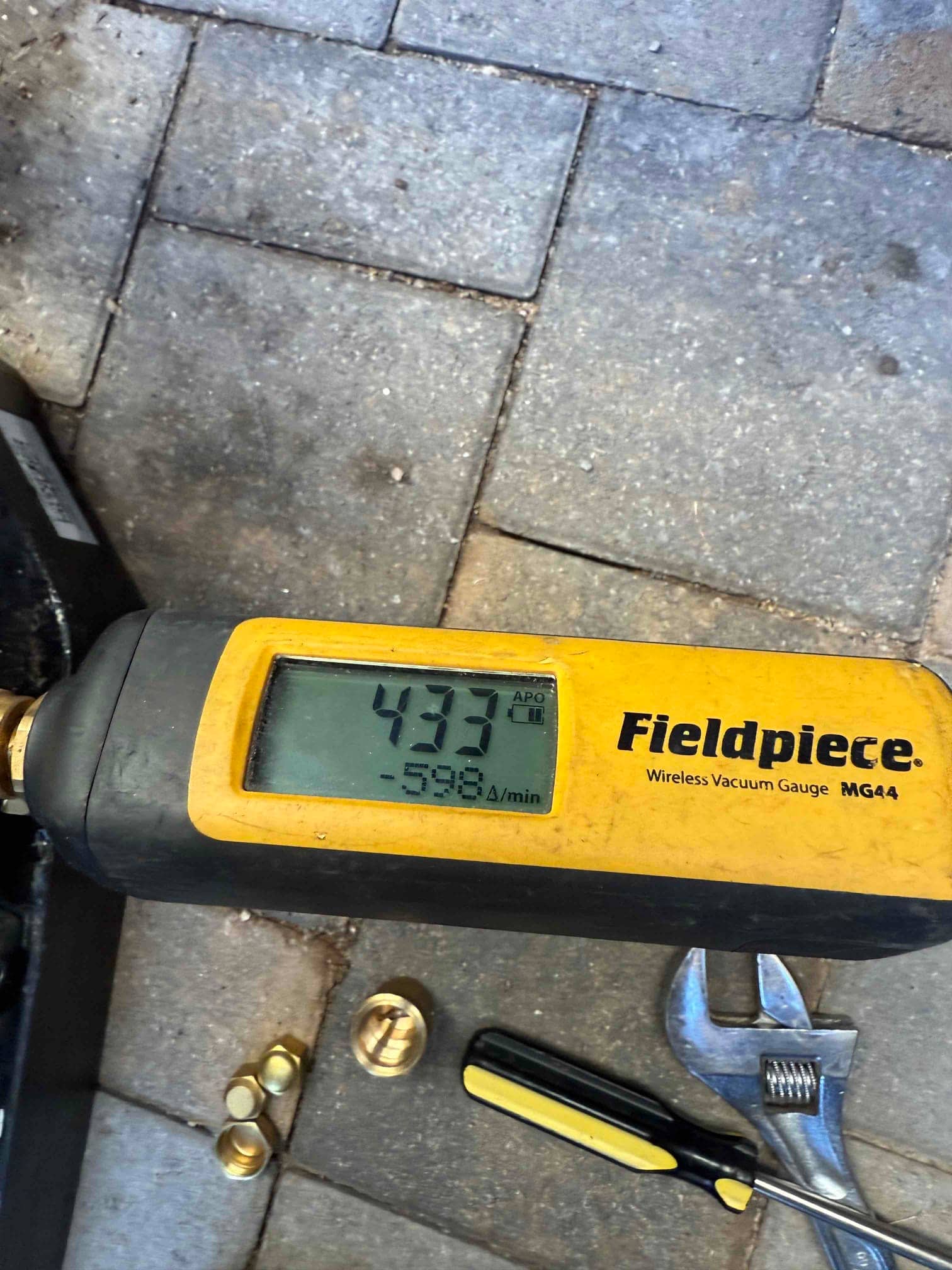

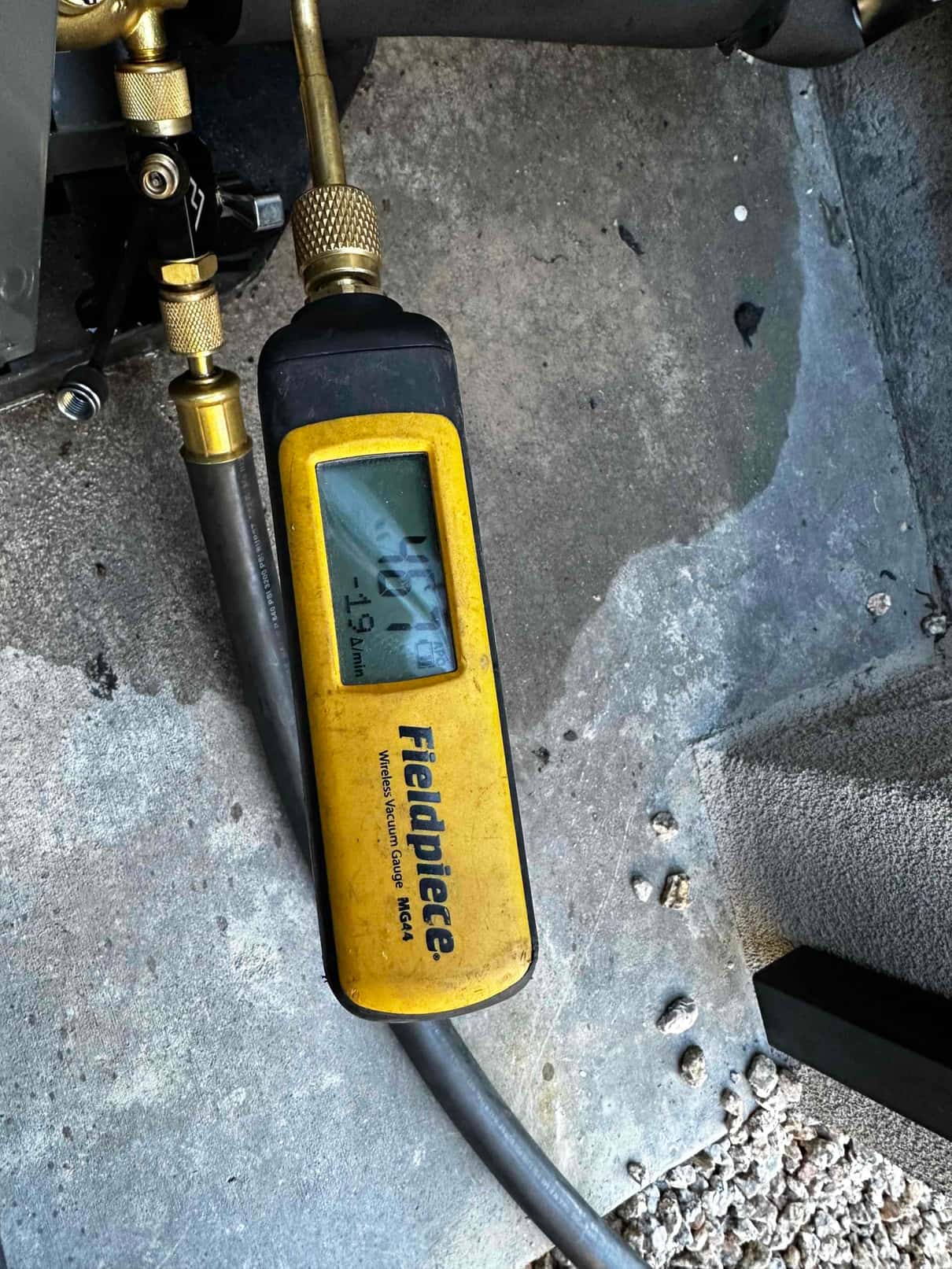

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

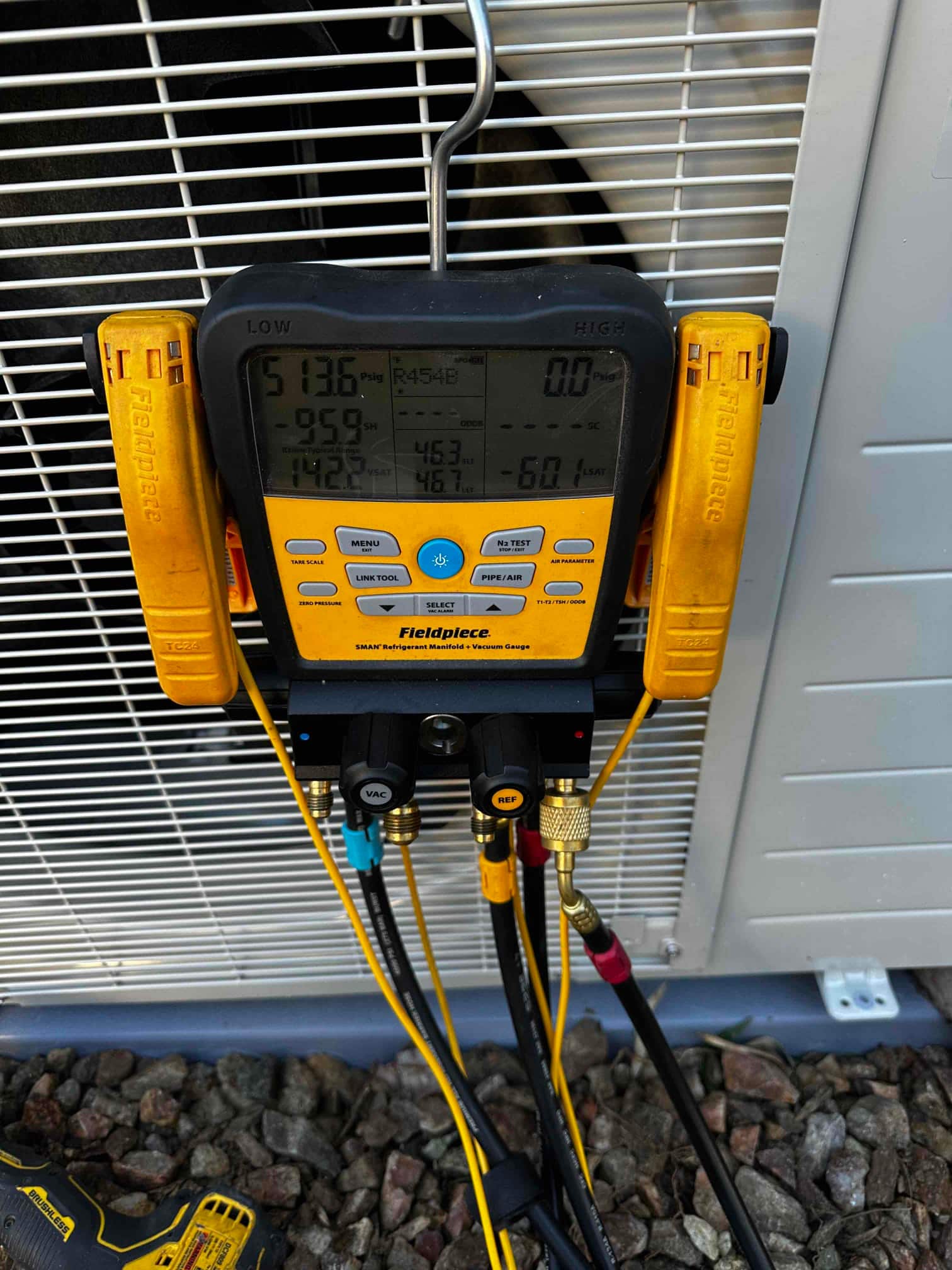

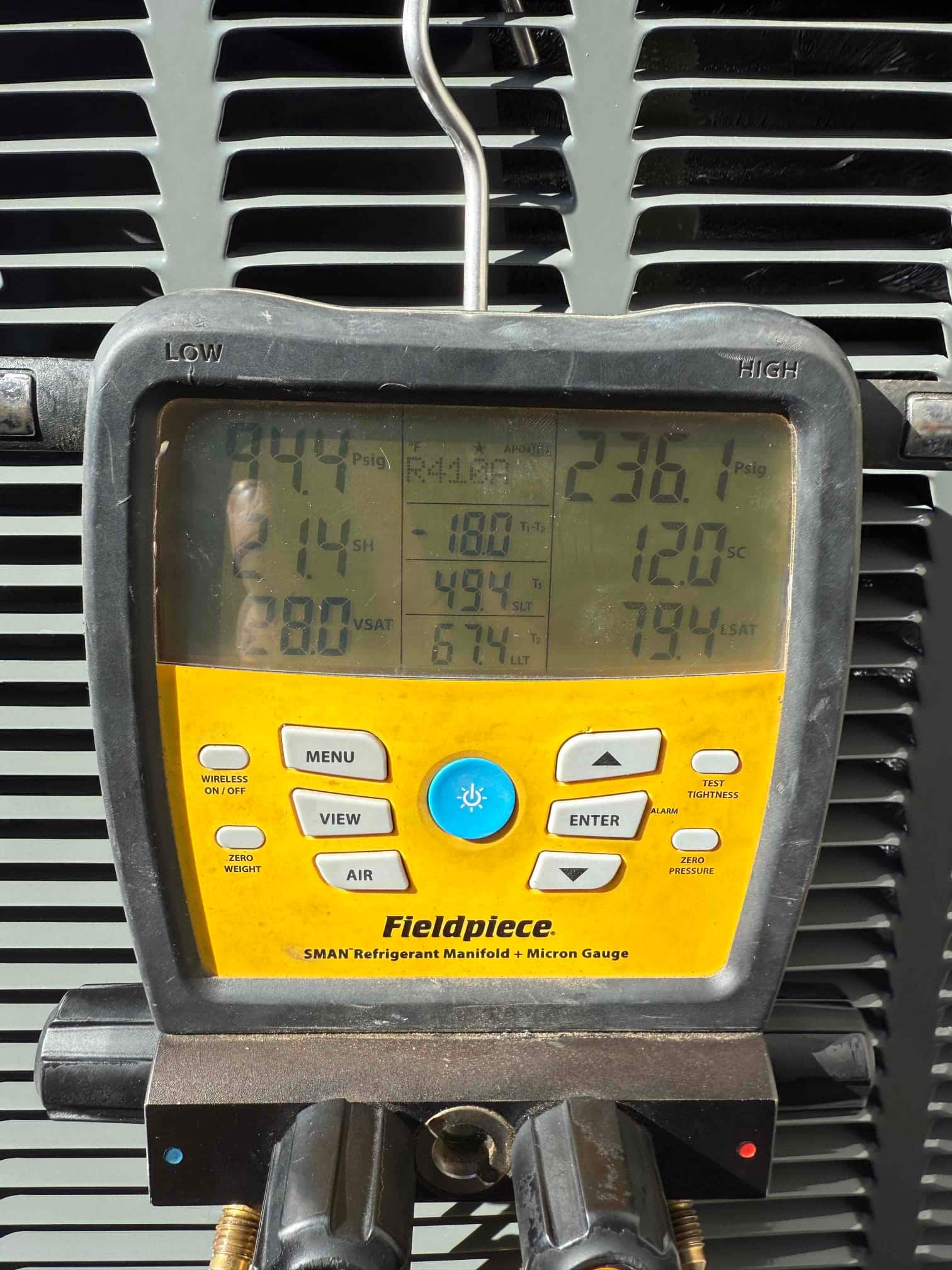

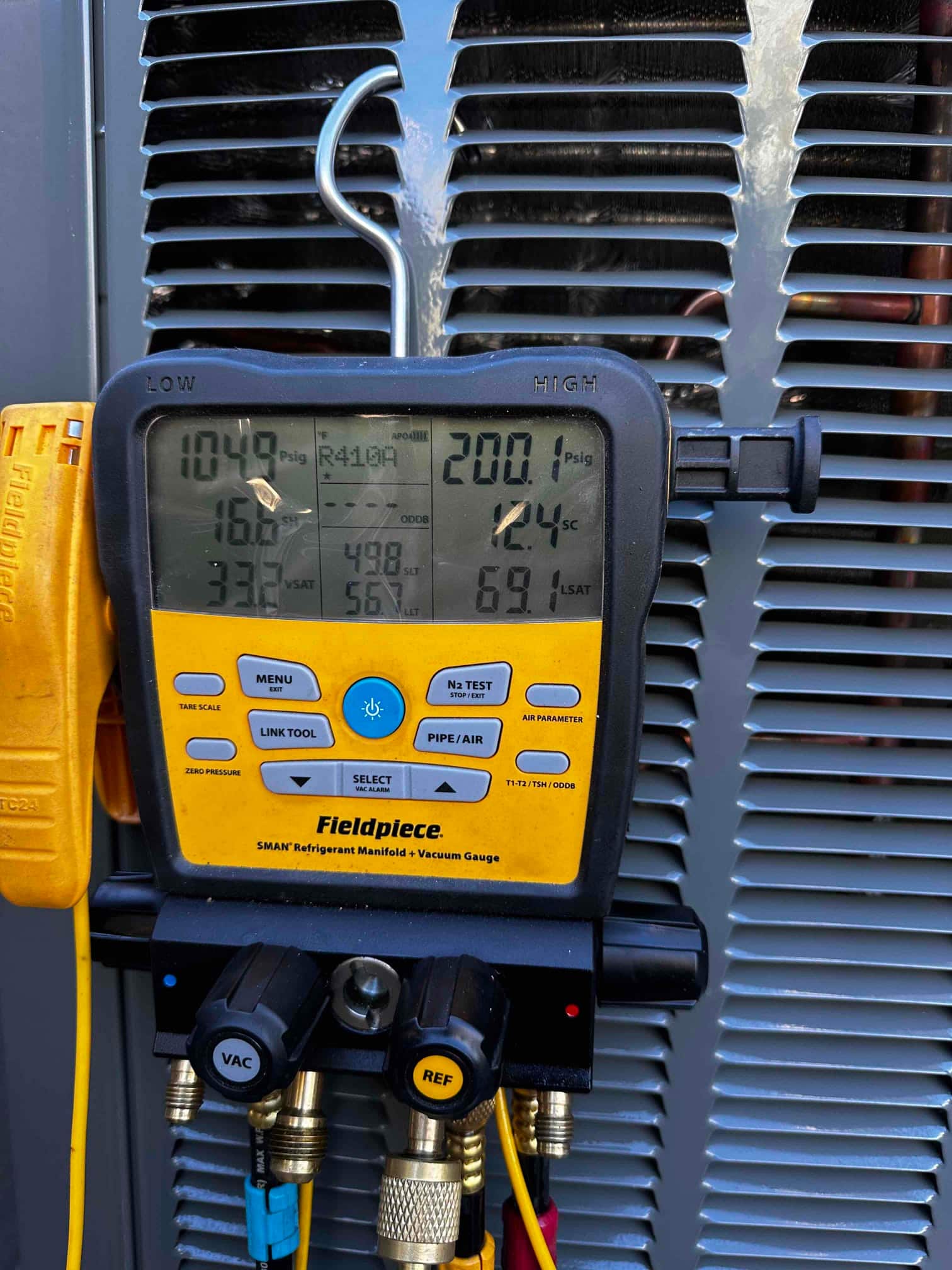

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

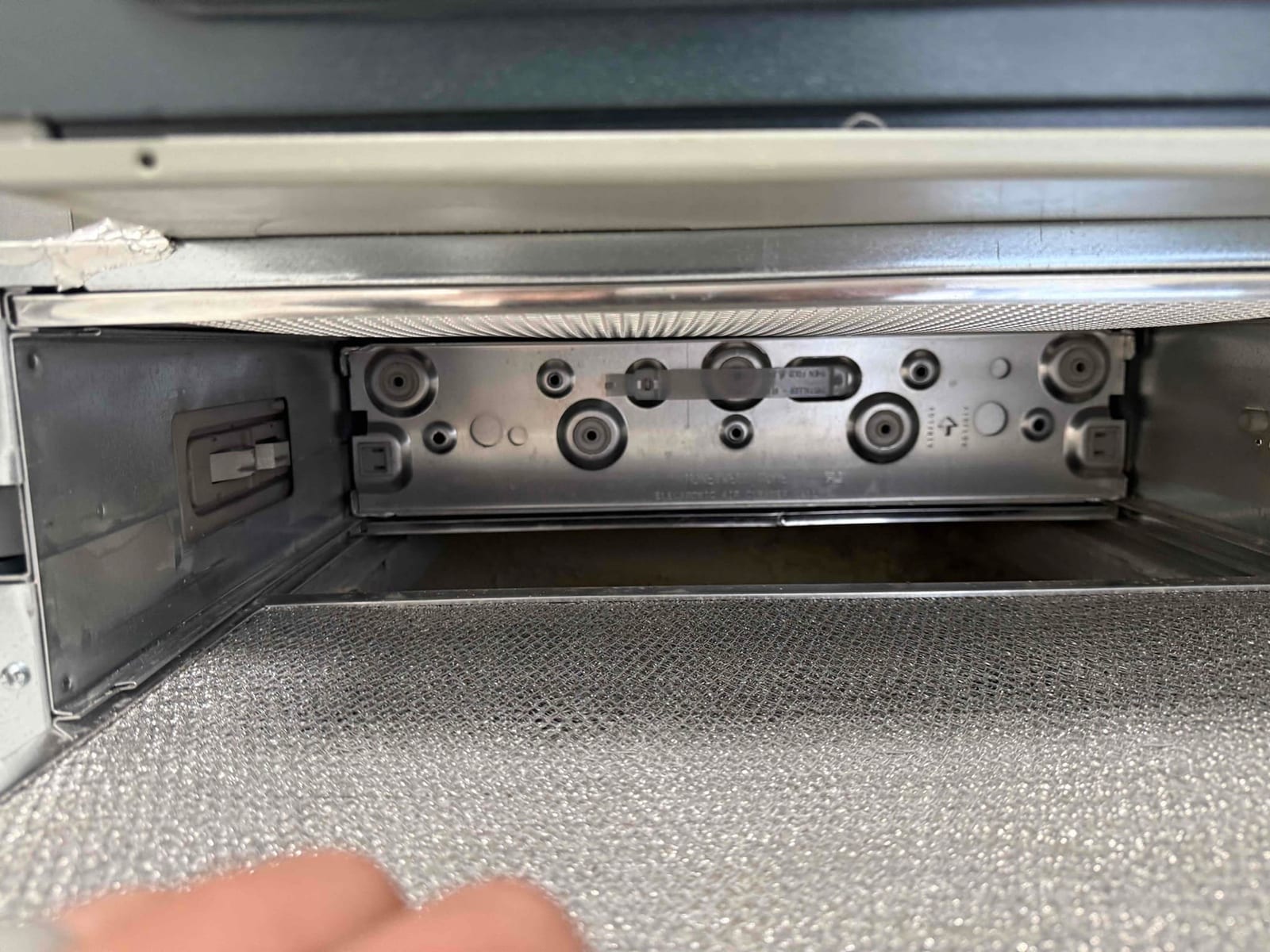

Equipment Detail Shots
Close-ups of the components that make up the system.
— Frequently Asked
Questions about this installation
What kind of system was installed in this North Scottsdale job?
The installer replaced the existing single-stage condensing units with new two-stage condensing units to enhance energy efficiency and improve temperature control. This project included a 5-ton unit for the north system and a 4-ton unit for the south system.
How much does a new air conditioning system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in North Scottsdale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout North Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
