4-Ton AC and Furnace Split System Installation in North Scottsdale — May 2025
4-Ton AC and Furnace Split System Installation
Read this install →Real Installation · North Scottsdale
2300 BTU Wine Unit Installation in North Scottsdale — May 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a wine unit.
North Scottsdale · installed May 21, 2025
— At a Glance
Location
North Scottsdale
Completed
May 21, 2025
System Type
AC + Air Handler Split System
Total Investment
$6,771
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 2300 BTU Wine Unit Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Michael from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 0 PSIG
- Liquid pressure
- 340 PSIG
- Evaporator saturation
- -30.4°F
- Condensing saturation
- 110.9°F
- Superheat
- 143°F
- Subcooling
- 27°F
Vacuum / Evacuation
- Final vacuum reading
- 243 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| CUI-Wine Unit | BOHN CK23AG HI PROFILE REACH-IN UNIT COOLER 2300 BTU 115V AIR DEFROST COATEDSingle Zone wine unit installation. 2300 BTU single port condenser with air handler. Includes connections to existing line s | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
6 photos from this installation
Every step of this installation was documented on-site by Kyle & Michael.
Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

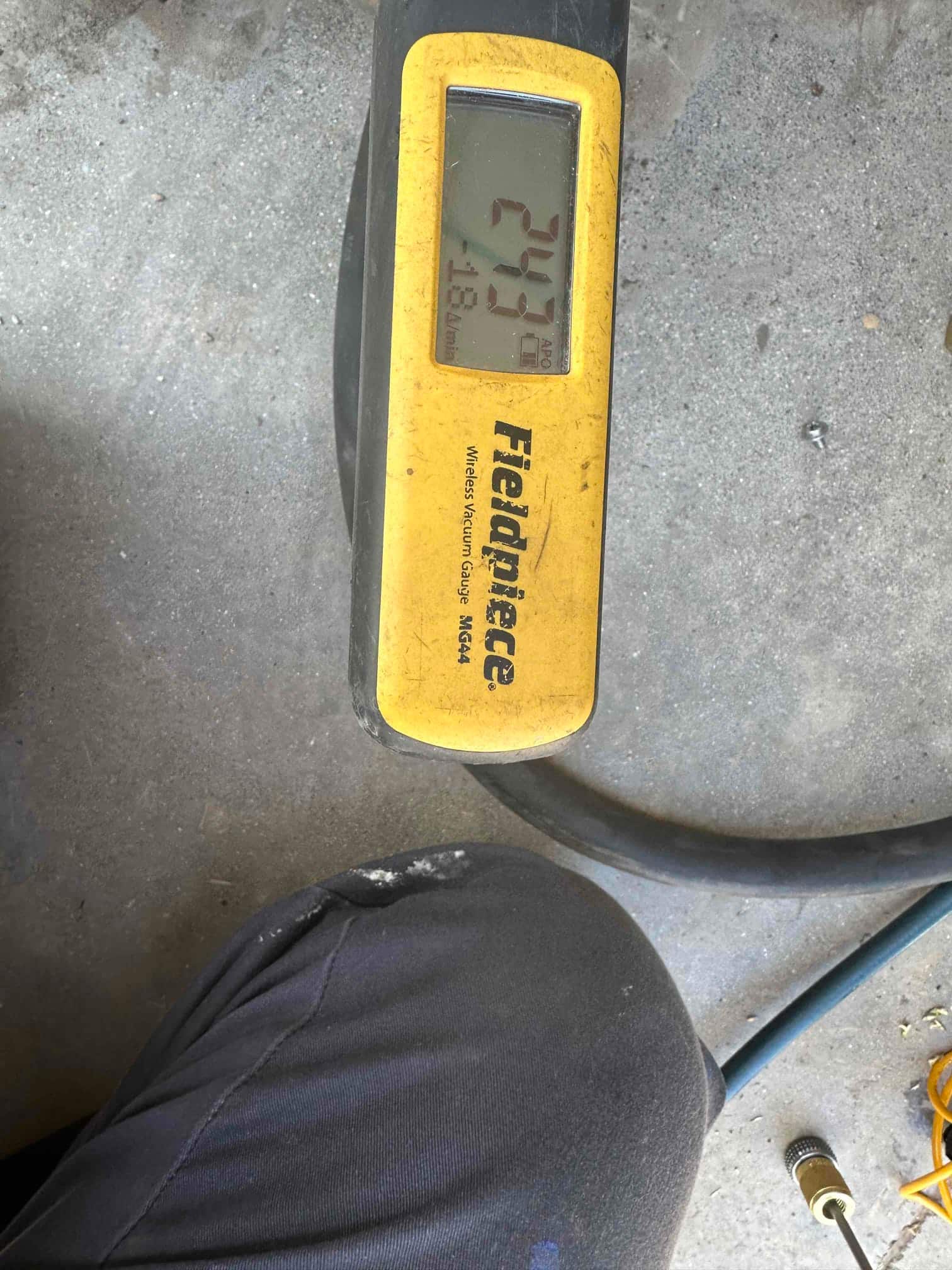

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

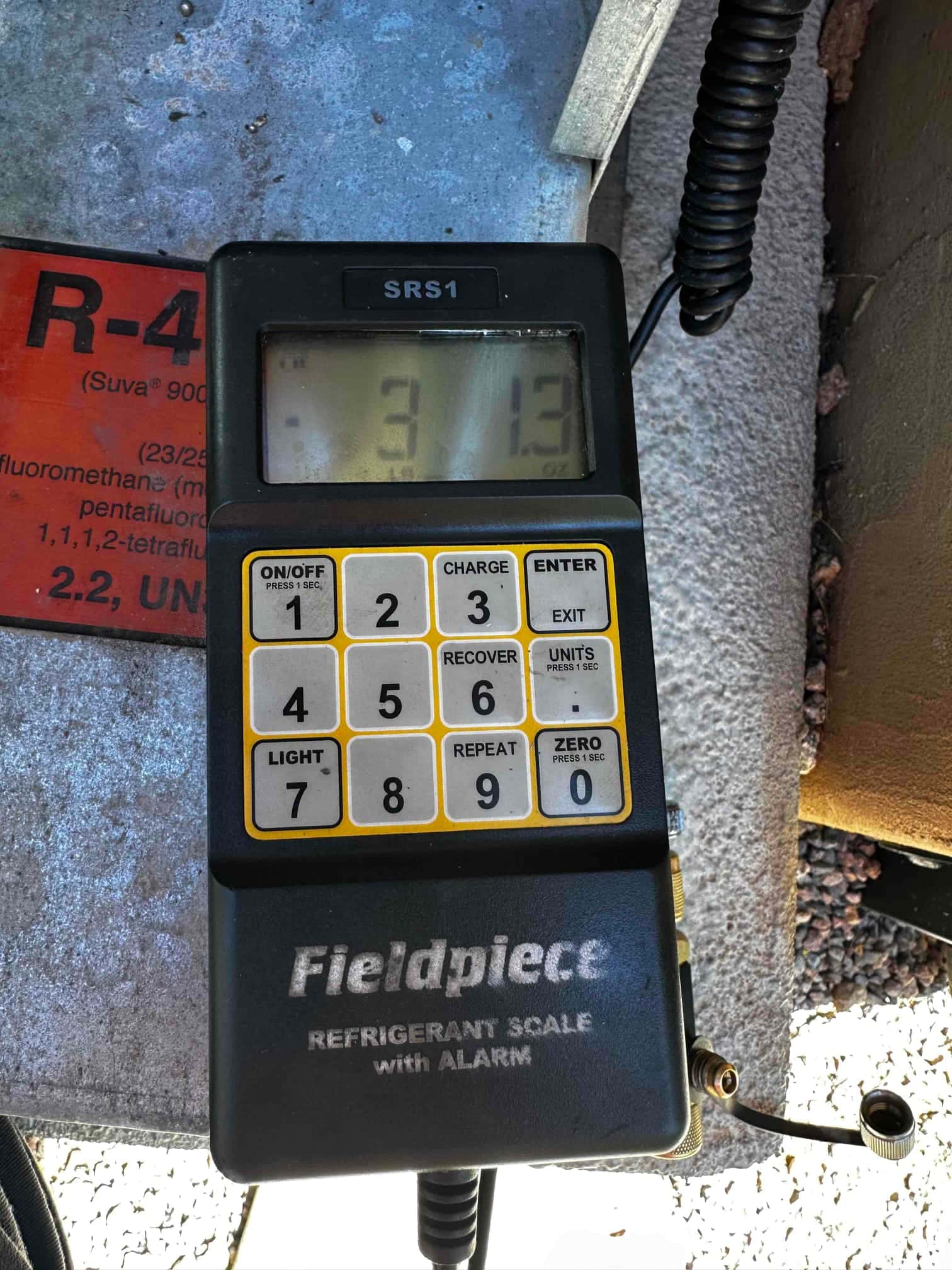

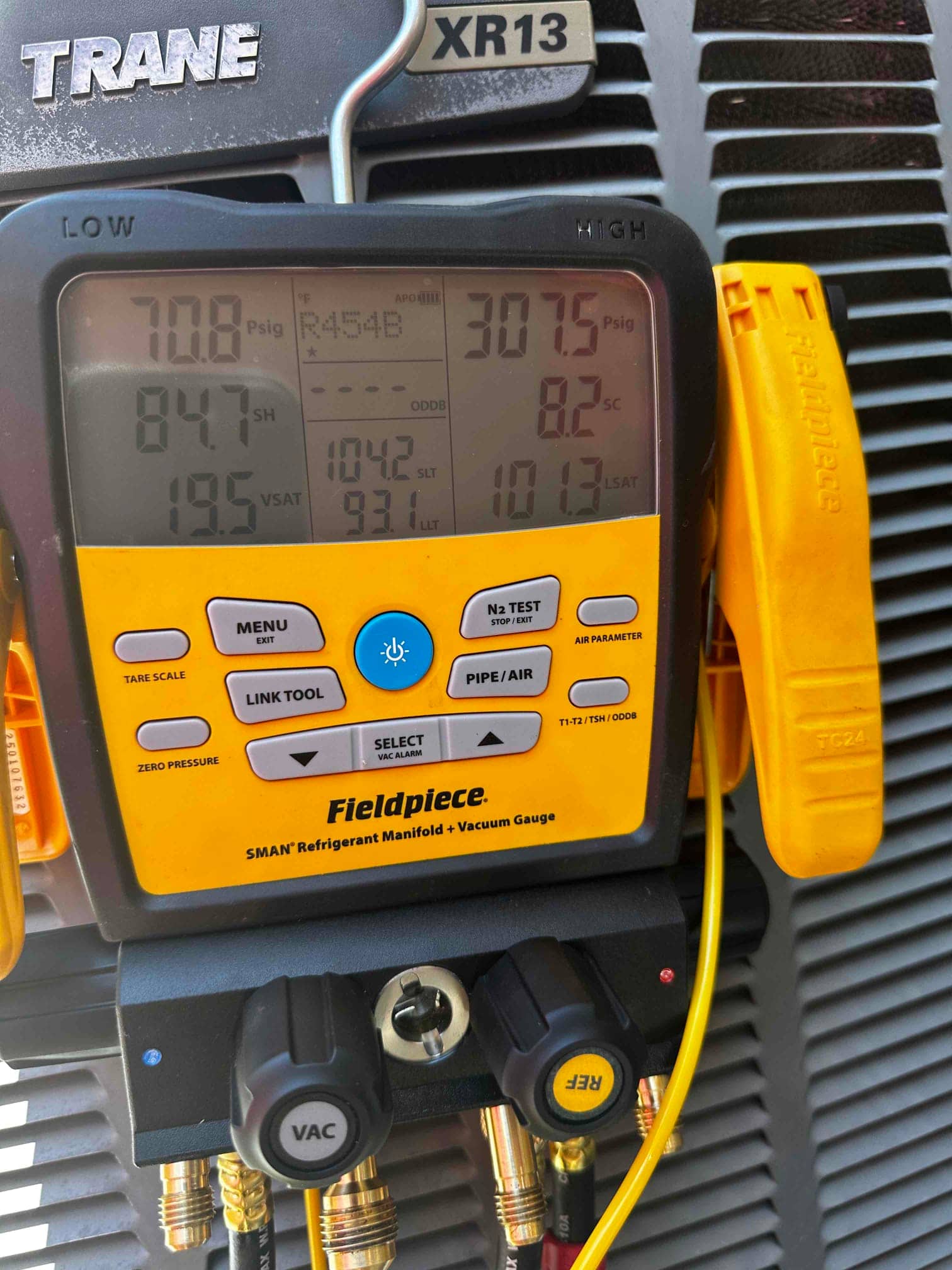

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

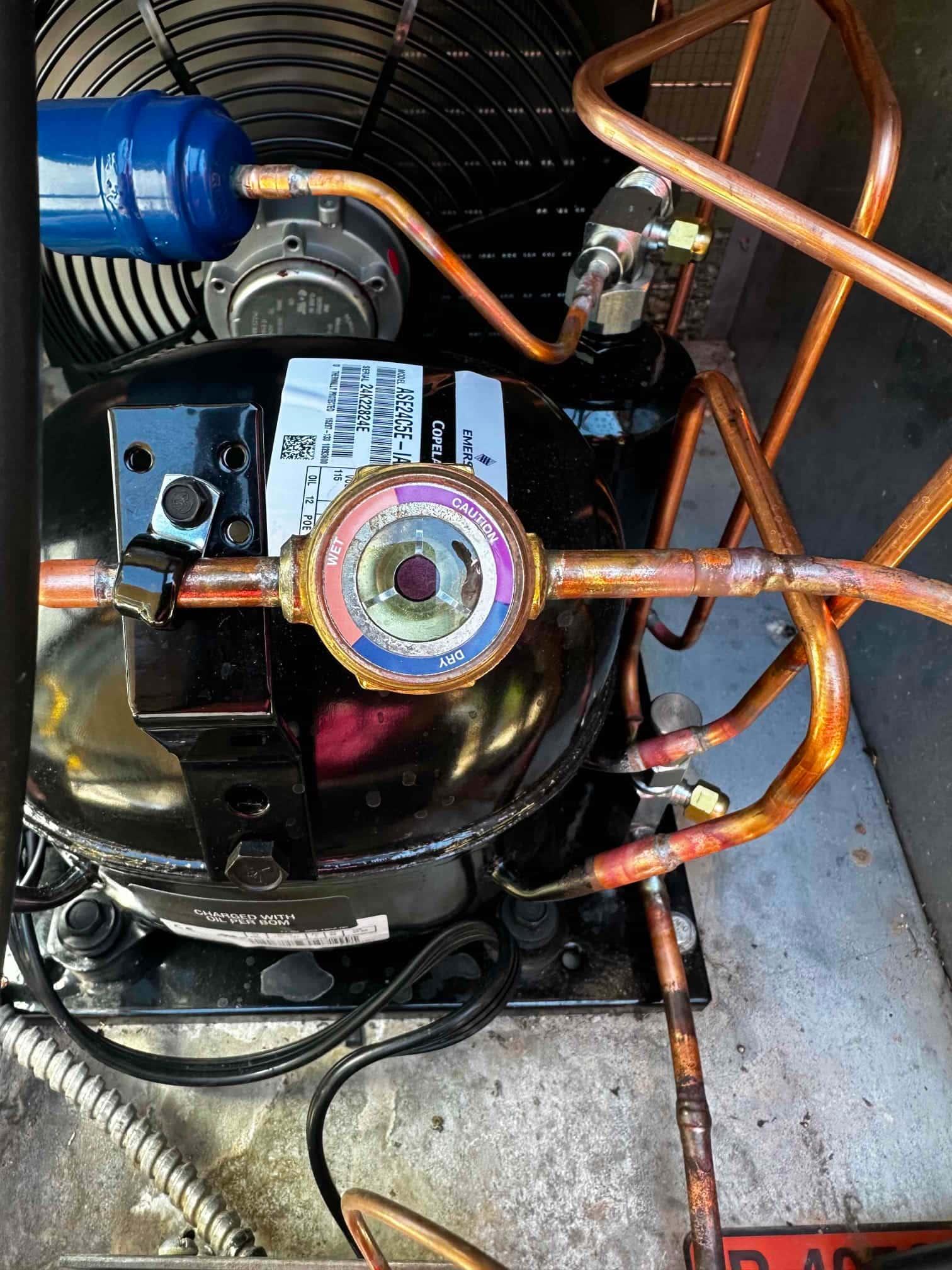

Equipment Detail Shots
Close-ups of the components that make up the system.
— Frequently Asked
Questions about this installation
What kind of system was installed in this North Scottsdale job?
The installer installed a 2300 BTU wine cooling unit to provide optimal temperature control for the homeowner's wine collection. This installation ensures that the wine is stored at the ideal conditions for preservation and flavor.
How much does a new ac + air handler split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in North Scottsdale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout North Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
