Newly Installed
Furnace
- Brand
- American Standard
- Model
- A801X080CM5SDBA
- Matched
- 4-Ton airflow
New — installed 2026
Real Installation · North Phoenix
4-Ton AC and Furnace Split System Installation in North Phoenix — May 2026
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
The installation was necessary due to the age and inefficiency of the existing HVAC system, which was no longer meeting the heating and cooling demands of the space.
North Phoenix · installed May 21, 2026
— At a Glance
Location
North Phoenix
Completed
May 21, 2026
System Type
AC + Furnace Split System
Capacity
4-Ton
Brand
American Standard
Efficiency
14 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$11,627
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Evaporator Coil
- Brand
- American Standard
- Model
- 4MXCC007AC6HCAA
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
AC condenser
- Brand
- Ameristar
- Model
- A4AC4048D1000AA
- Capacity
- 4-Ton
- Efficiency
- 14 SEER2
New — installed 2026
Newly Installed

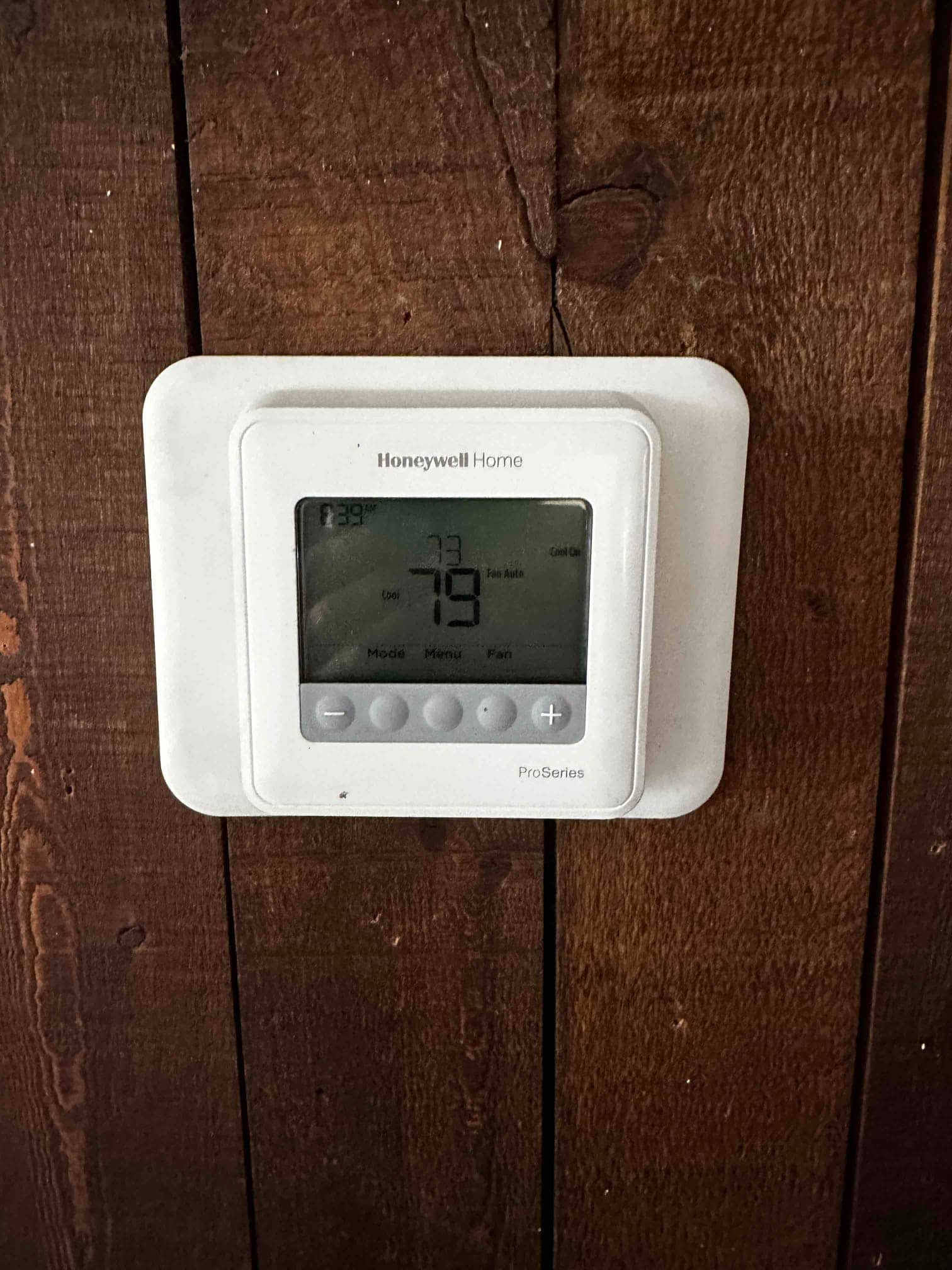

Thermostat
- Brand
- Honeywell
- Model
- TH4110U2005
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Phoenix, AZ. You can browse more real 4-Ton AC and Furnace Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Edwin from the manifold gauges, micron gauge, and digital thermometers.

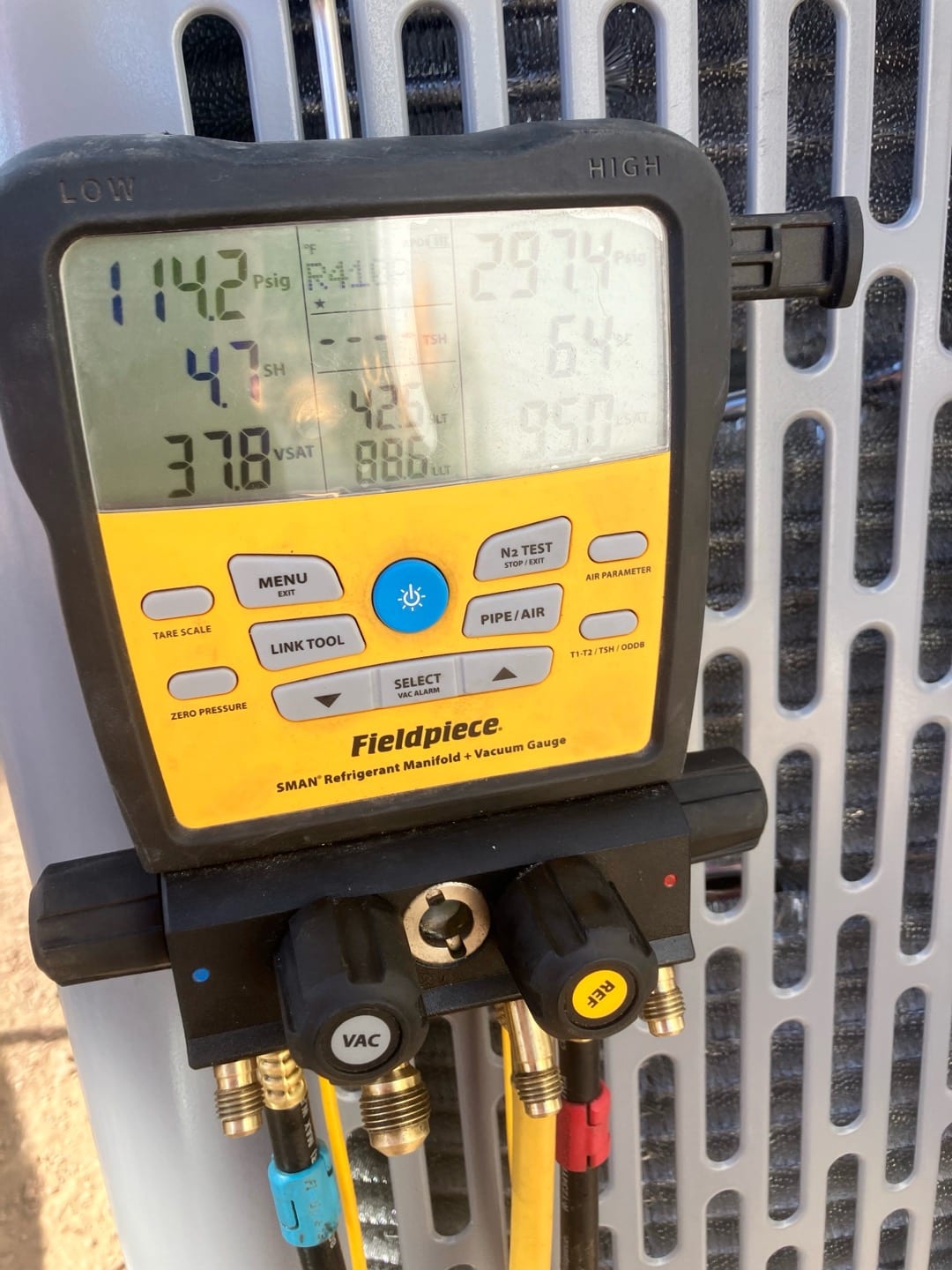

Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 114 PSIG
- Liquid pressure
- 297 PSIG
- Evaporator saturation
- 32.9°F
- Condensing saturation
- 103.3°F
- Superheat
- 5°F
- Subcooling
- 6°F
Air-Side Performance
- Supply-air temperature
- 51.3°F

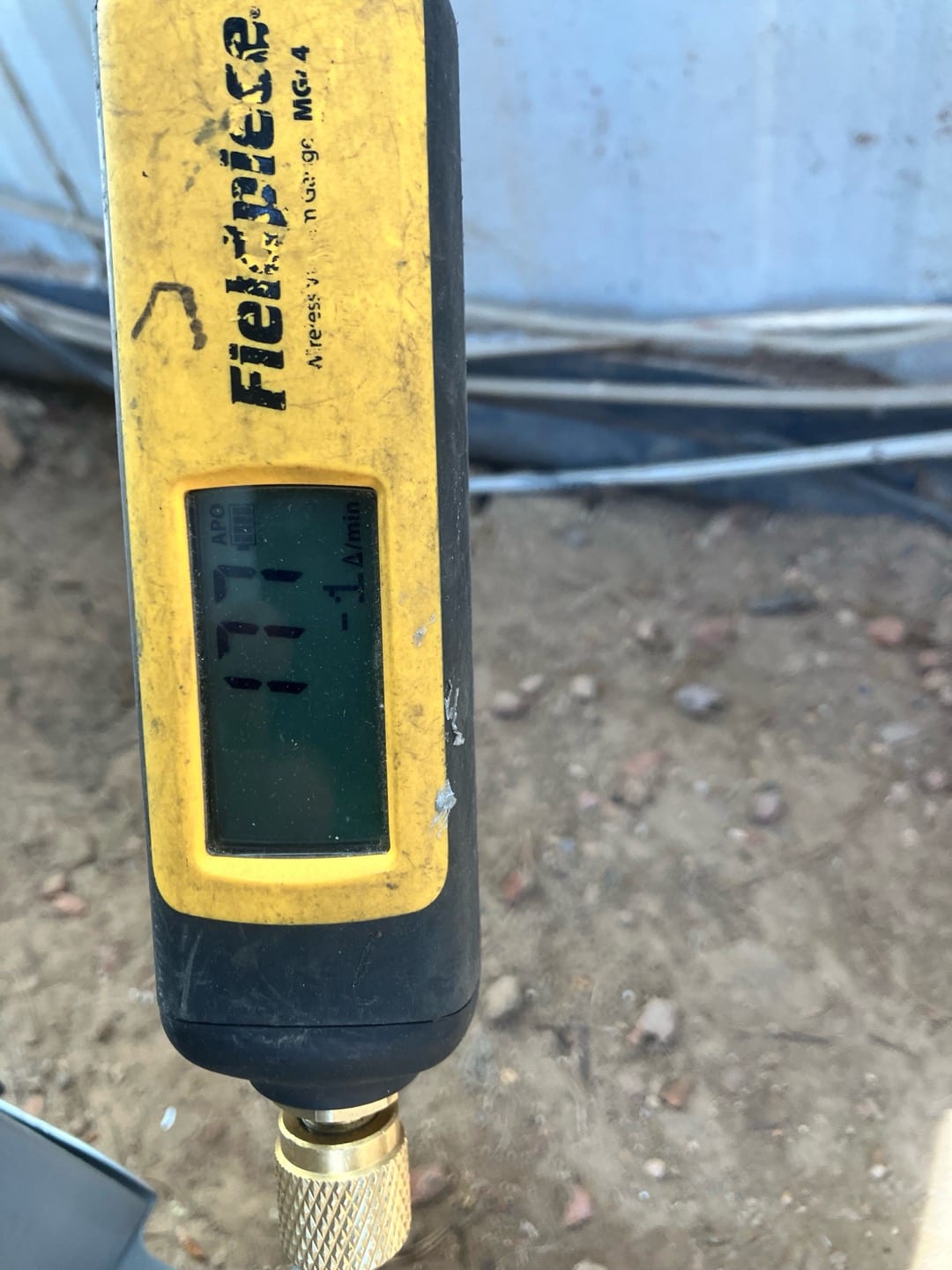

Vacuum / Evacuation
- Final vacuum reading
- 177 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 414V-A5AC4048-A801 | Vertical 4 Ton- Basic Single Stage -14 SEER2 Ameristar-RunTru AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimate/invoi | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A | 1 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
29 photos from this installation
Every step of this installation was documented on-site by Kyle & Edwin.

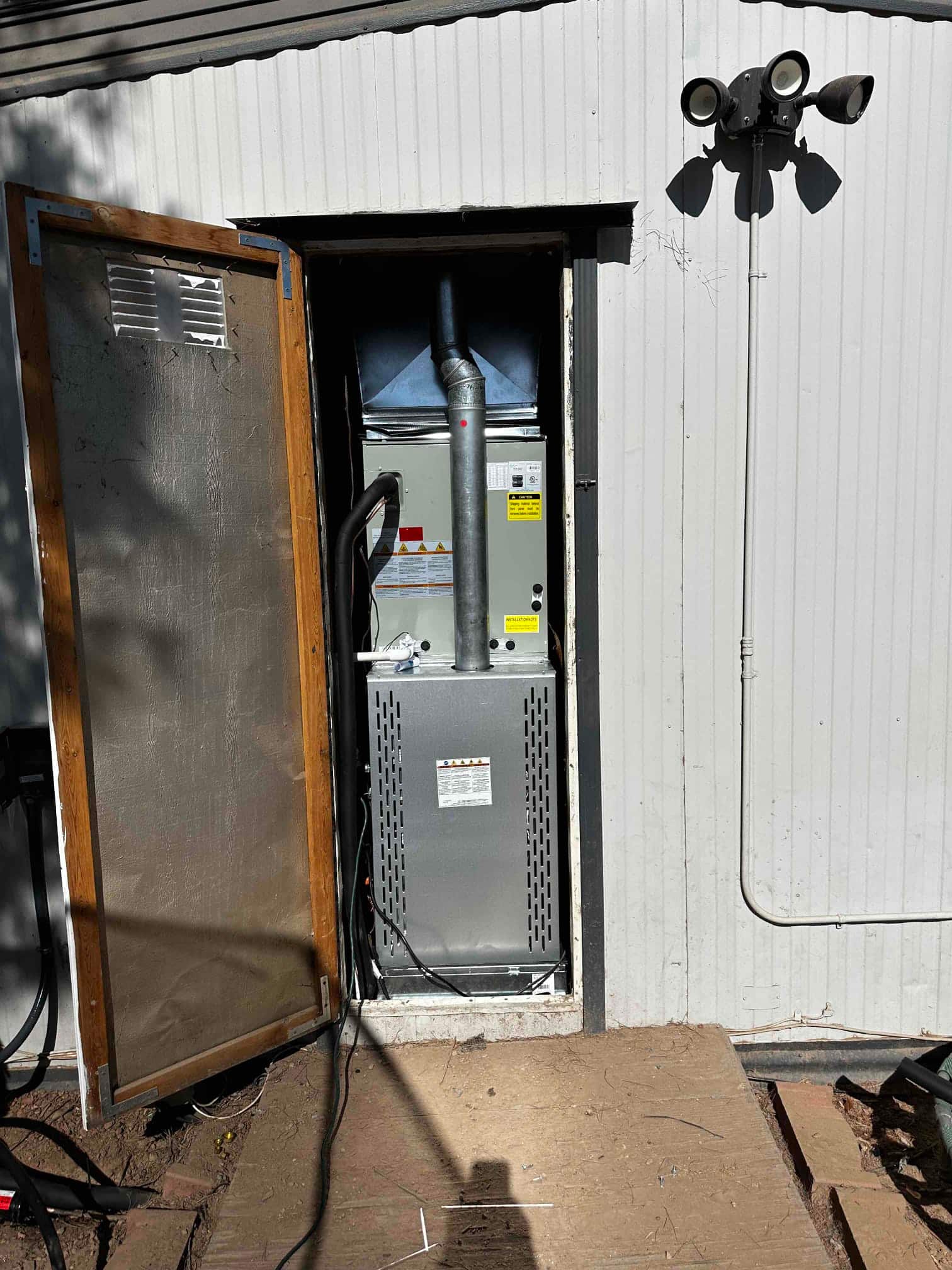

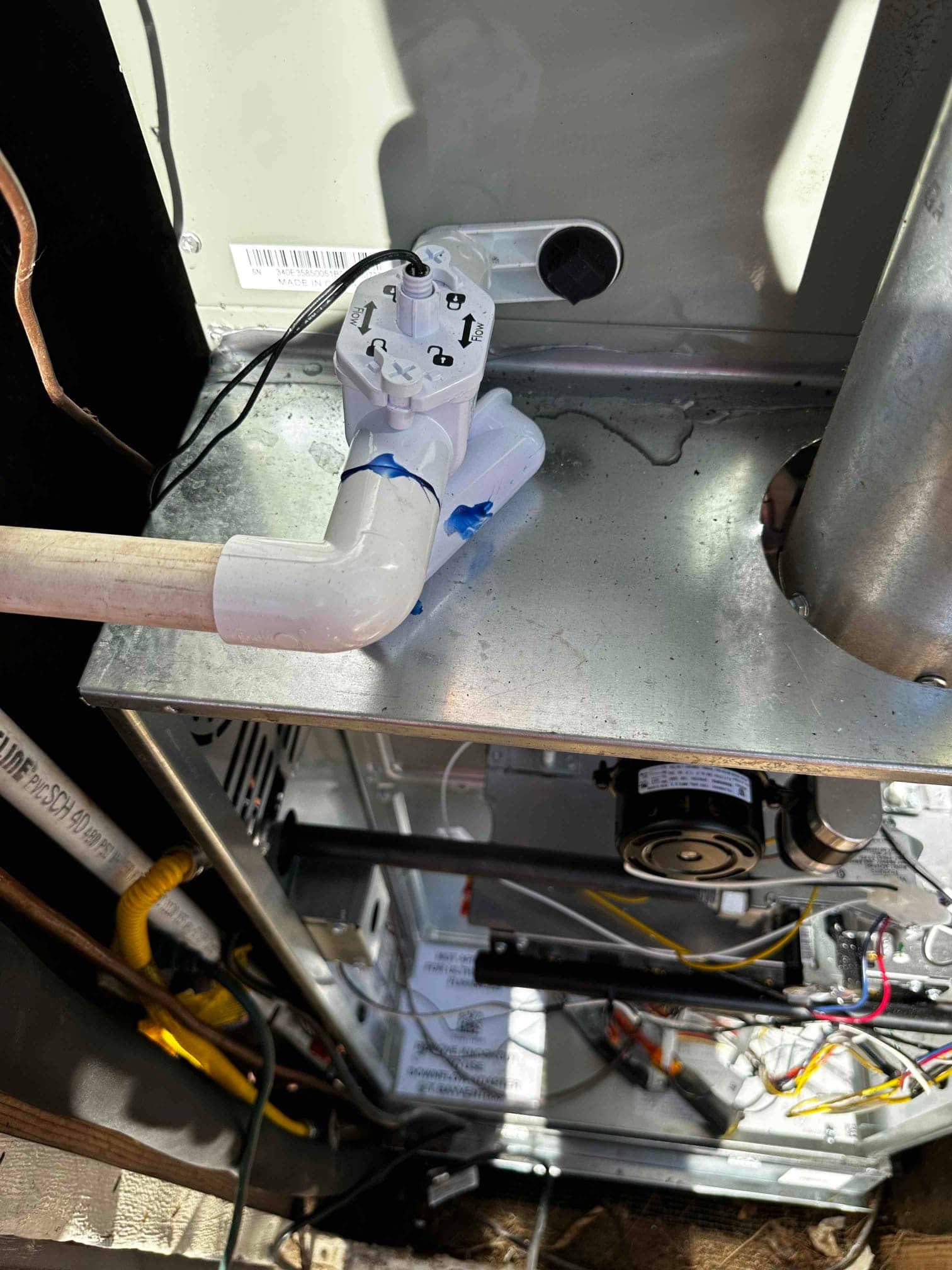

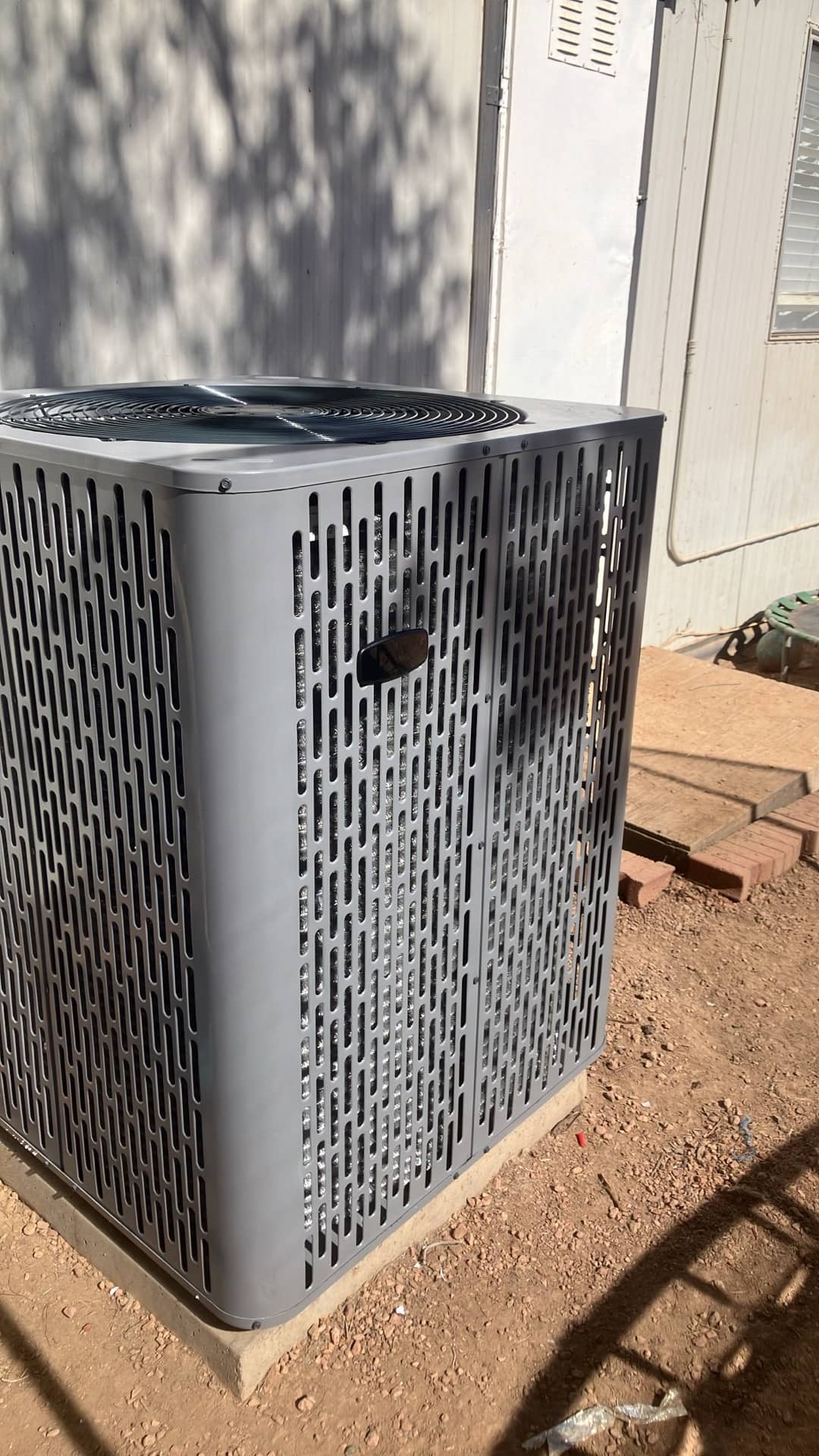

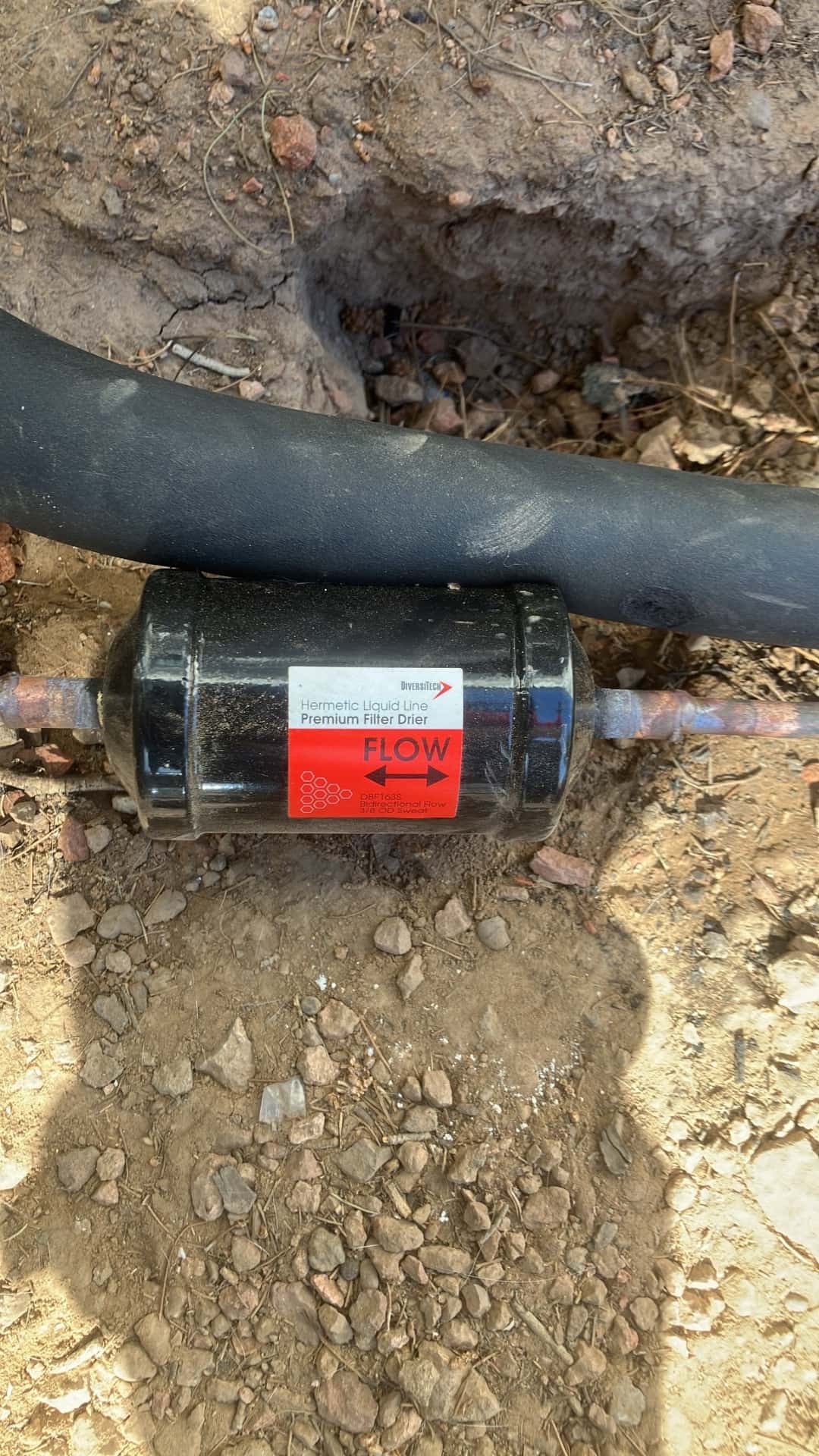

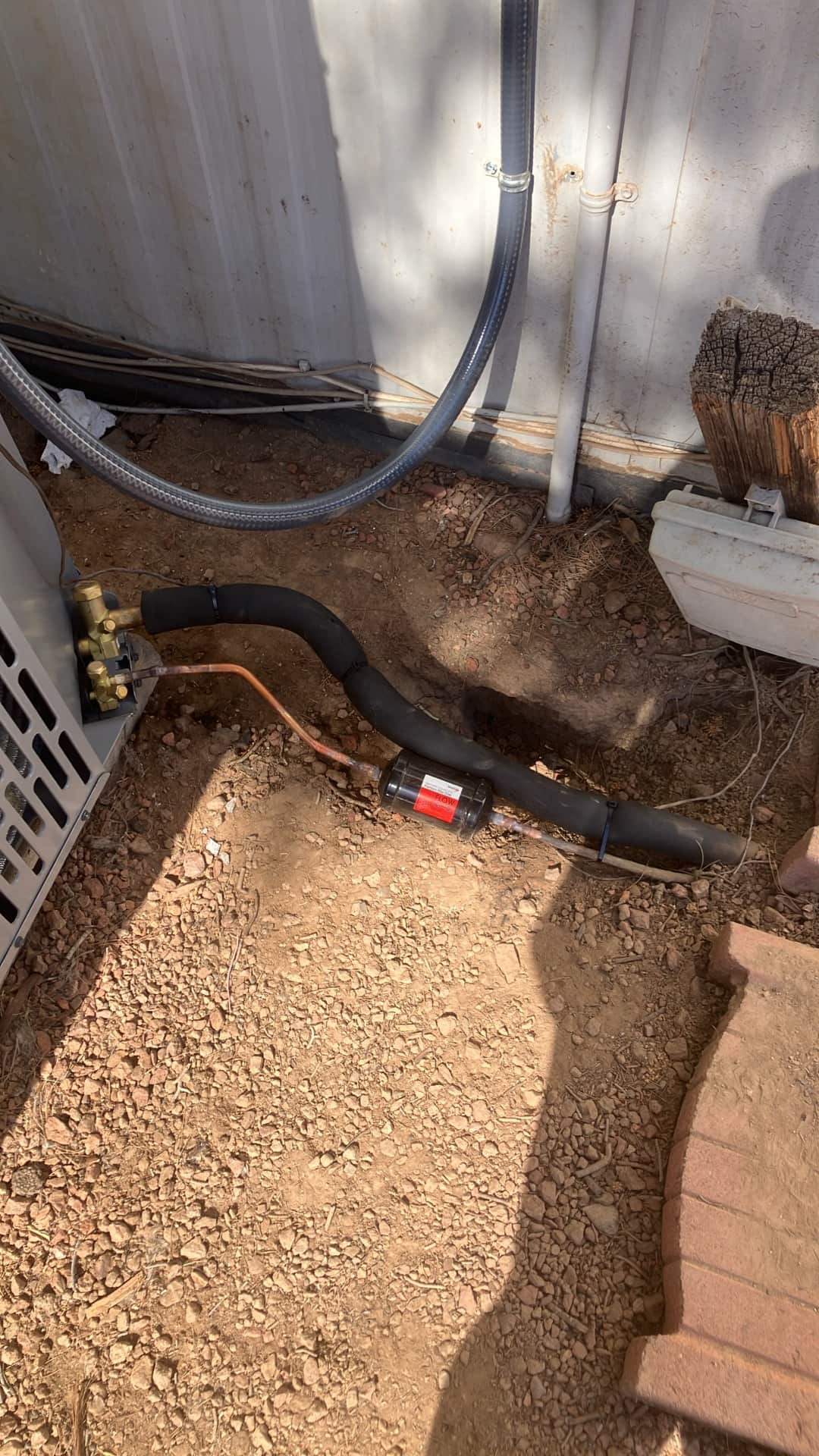

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.
Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

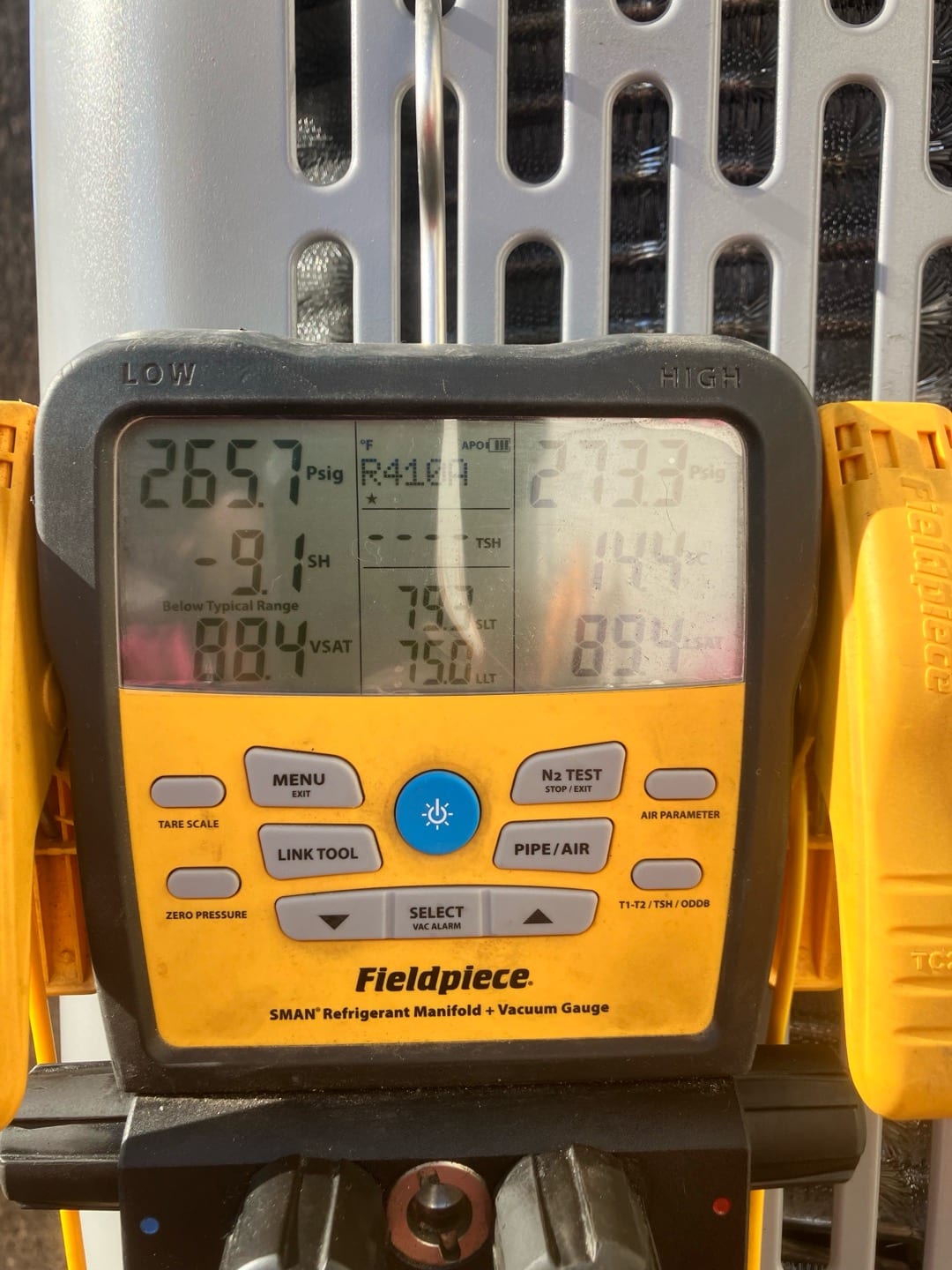

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

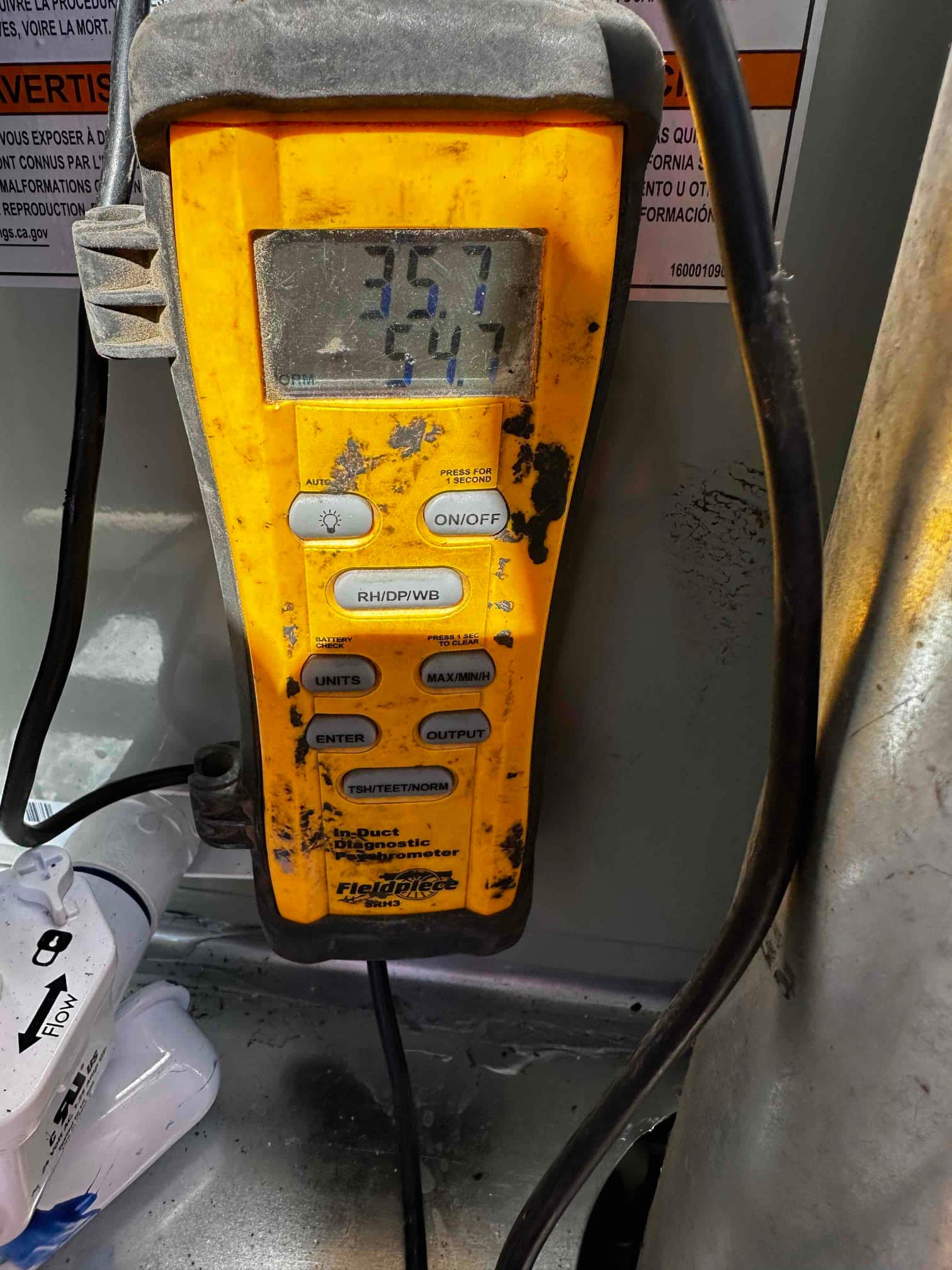

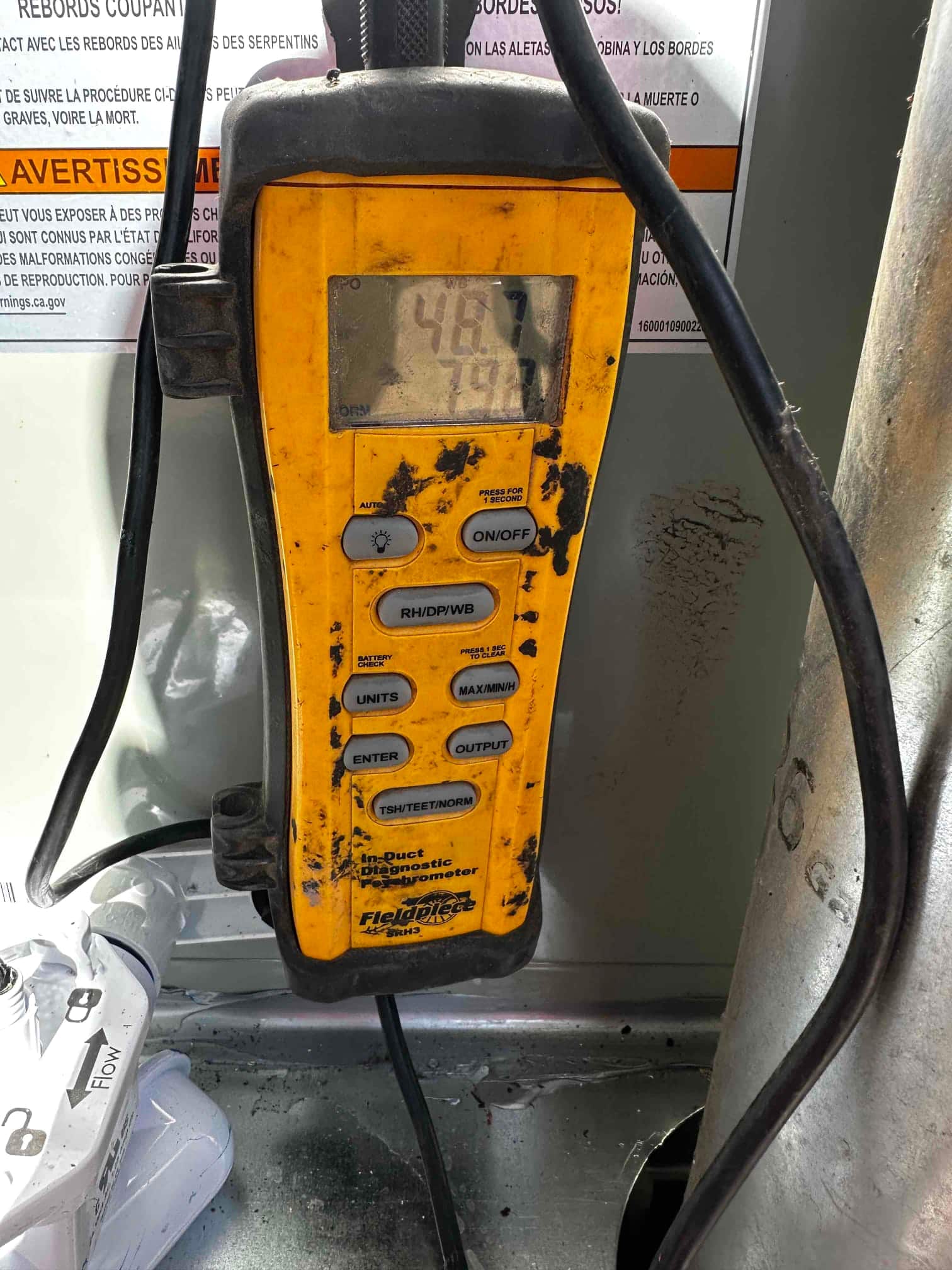

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this North Phoenix job?
The installer completed the installation of a 4-ton air conditioning unit and furnace split system to enhance the home's heating and cooling efficiency. This system was selected to provide reliable climate control for the homeowner in North Phoenix.
How much does a new ac + furnace split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in North Phoenix?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout North Phoenix and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
