Newly Installed
Furnace
- Brand
- American Standard
- Model
- S8V2C080M5PCBAA
- Matched
- 5-Ton airflow
New — installed 2026
Real Installation · Downtown Phoenix
5-Ton American Standard AC and Furnace Installation in Downtown Phoenix — November 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Demo of furnace, coil, and condenser. Measurements for ductwork were taken. A new system was installed.
Downtown Phoenix · installed November 18, 2025
— At a Glance
Location
Downtown Phoenix
Completed
November 18, 2025
System Type
AC + Furnace Split System
Capacity
5-Ton
Brand
American Standard
Efficiency
18 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$15,713
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
ALINK360A2VVUE
- Brand
- American Standard
- Model
- ALINK360A2VVUG
New — installed 2026
Newly Installed
5A7V8X60A1000A
- Brand
- American Standard
- Model
- 5A7V8X60A1000AA
New — installed 2026
Newly Installed
5TXCC009AS3HCA
- Brand
- American Standard
- Model
- 5TXCC009AS3HCAA
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the Heating work AZ Perfect Comfort performs across Phoenix, AZ. You can browse more real 5-Ton American Standard AC and Furnace Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Jesse from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 113 PSIG
- Liquid pressure
- 243 PSIG
- Evaporator saturation
- 41.5°F
- Condensing saturation
- 95°F
- Superheat
- 17°F
- Subcooling
- 11°F
Air-Side Performance
- Return-air temperature
- 78.5°F
Nitrogen Pressure Test
- Test pressure held
- 352 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 496 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 518V-5A7V8X60-S8V2 | Vertical 5 Ton- Premium Variable Speed -18 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bot | 1 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
16 photos from this installation
Every step of this installation was documented on-site by Kyle & Jesse.
Installation Progress

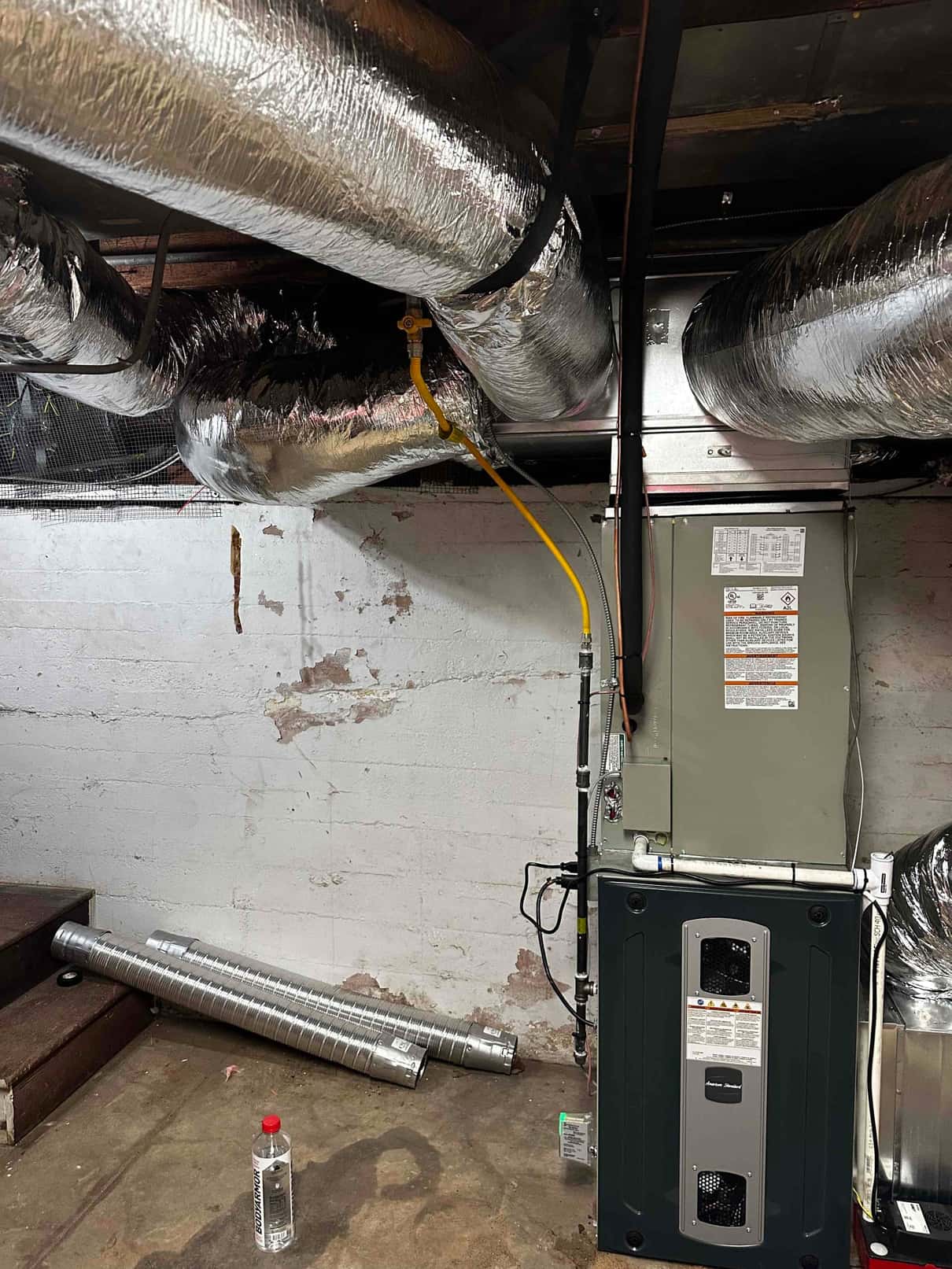

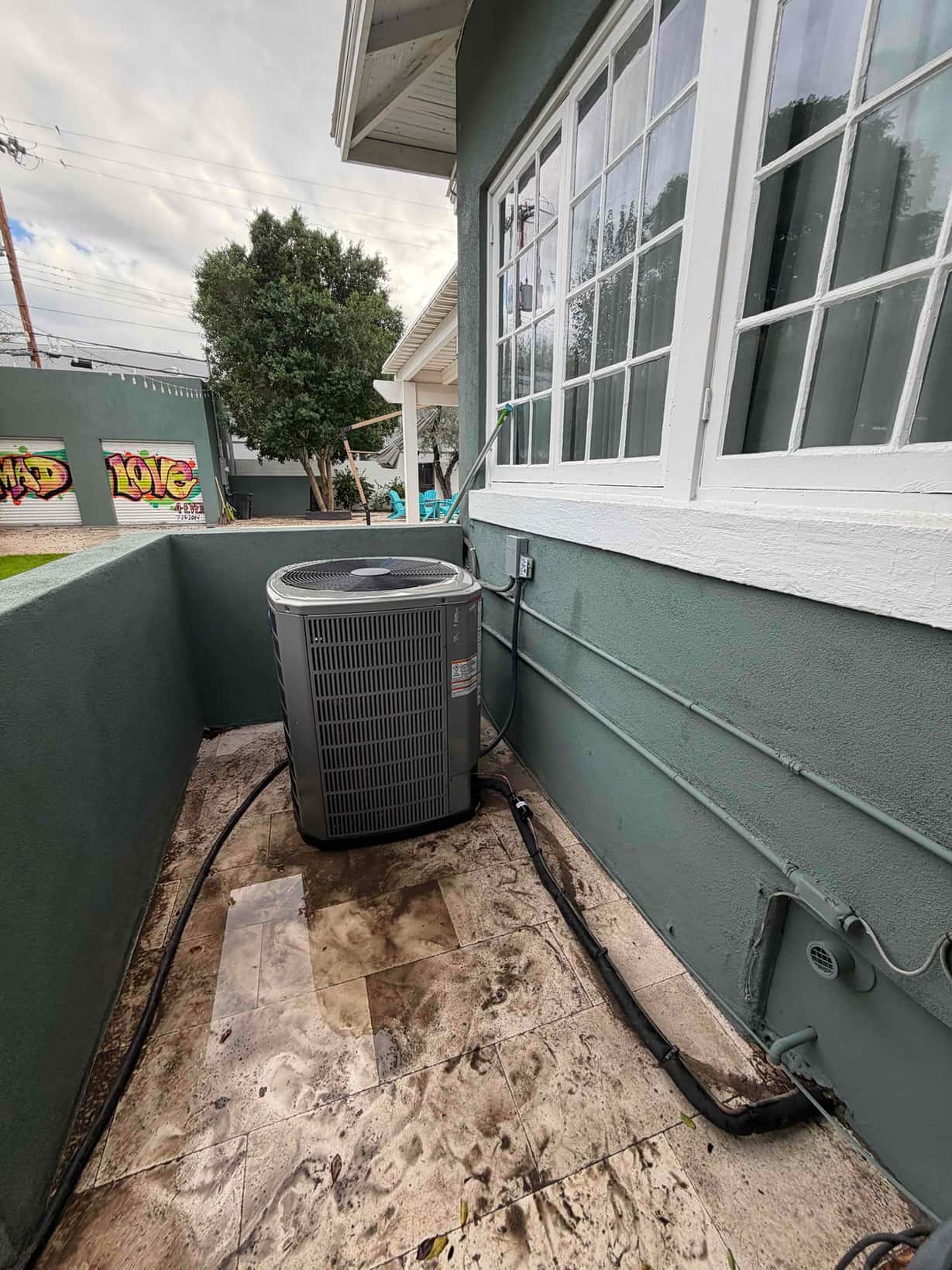

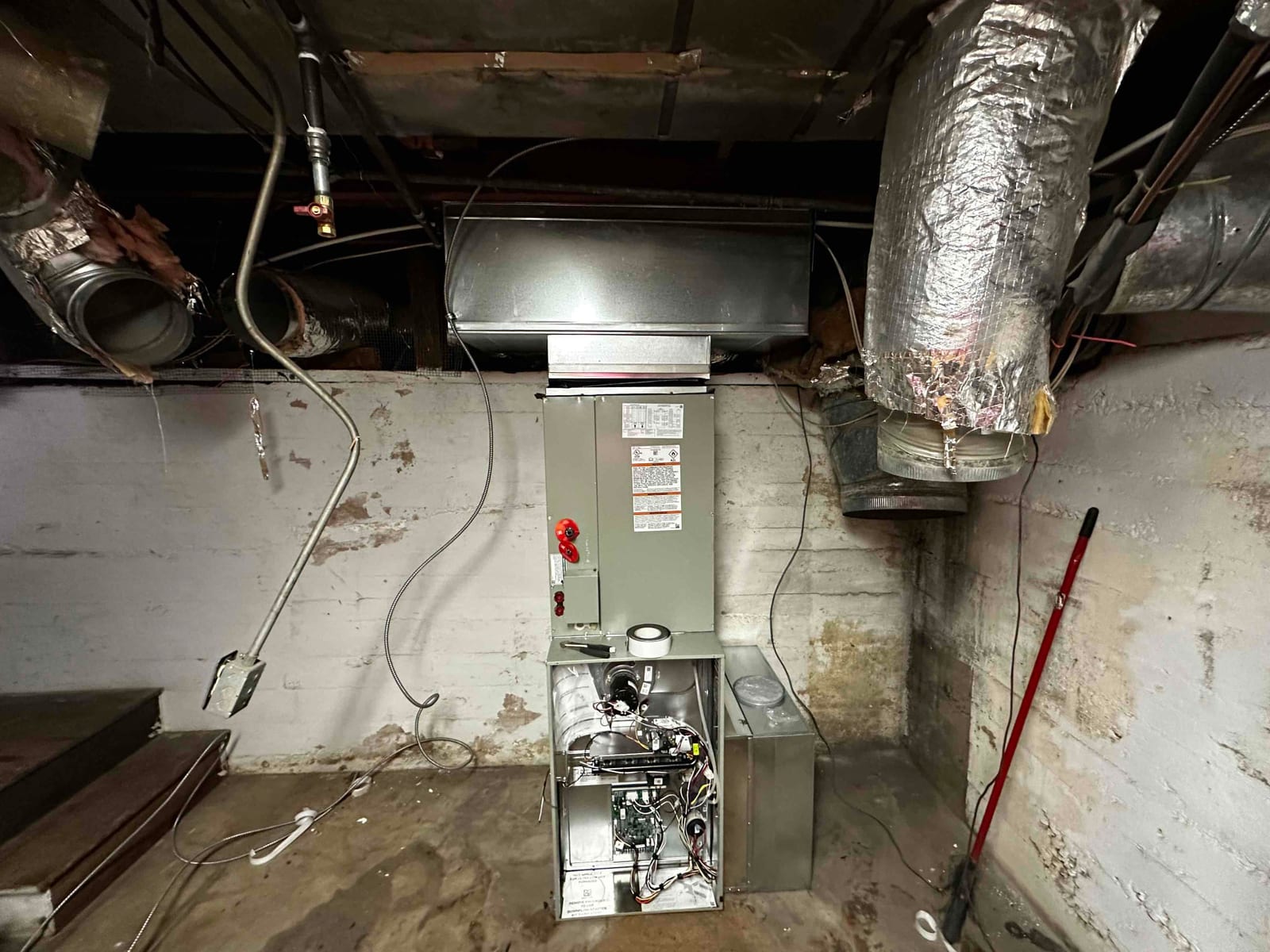

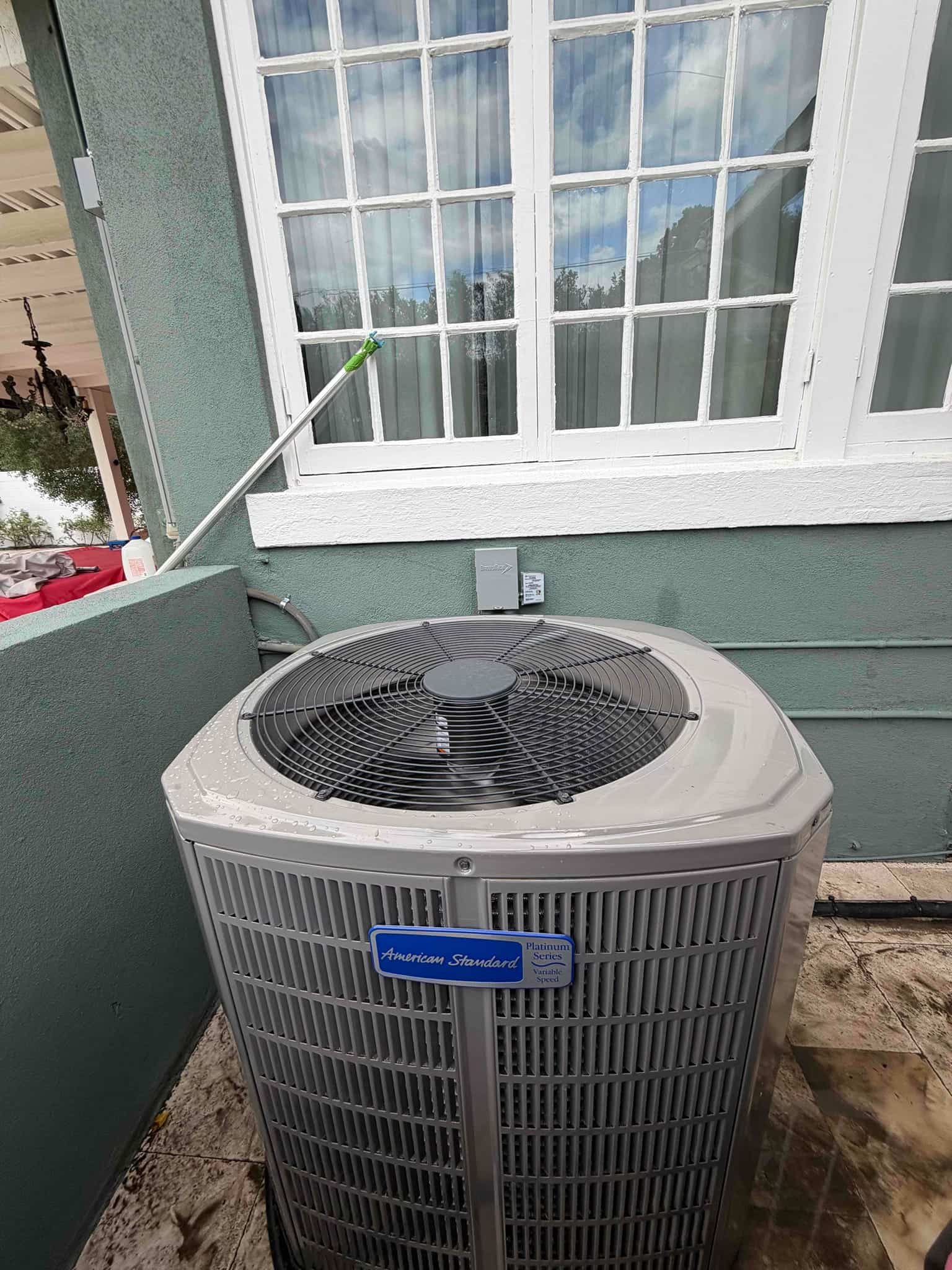

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

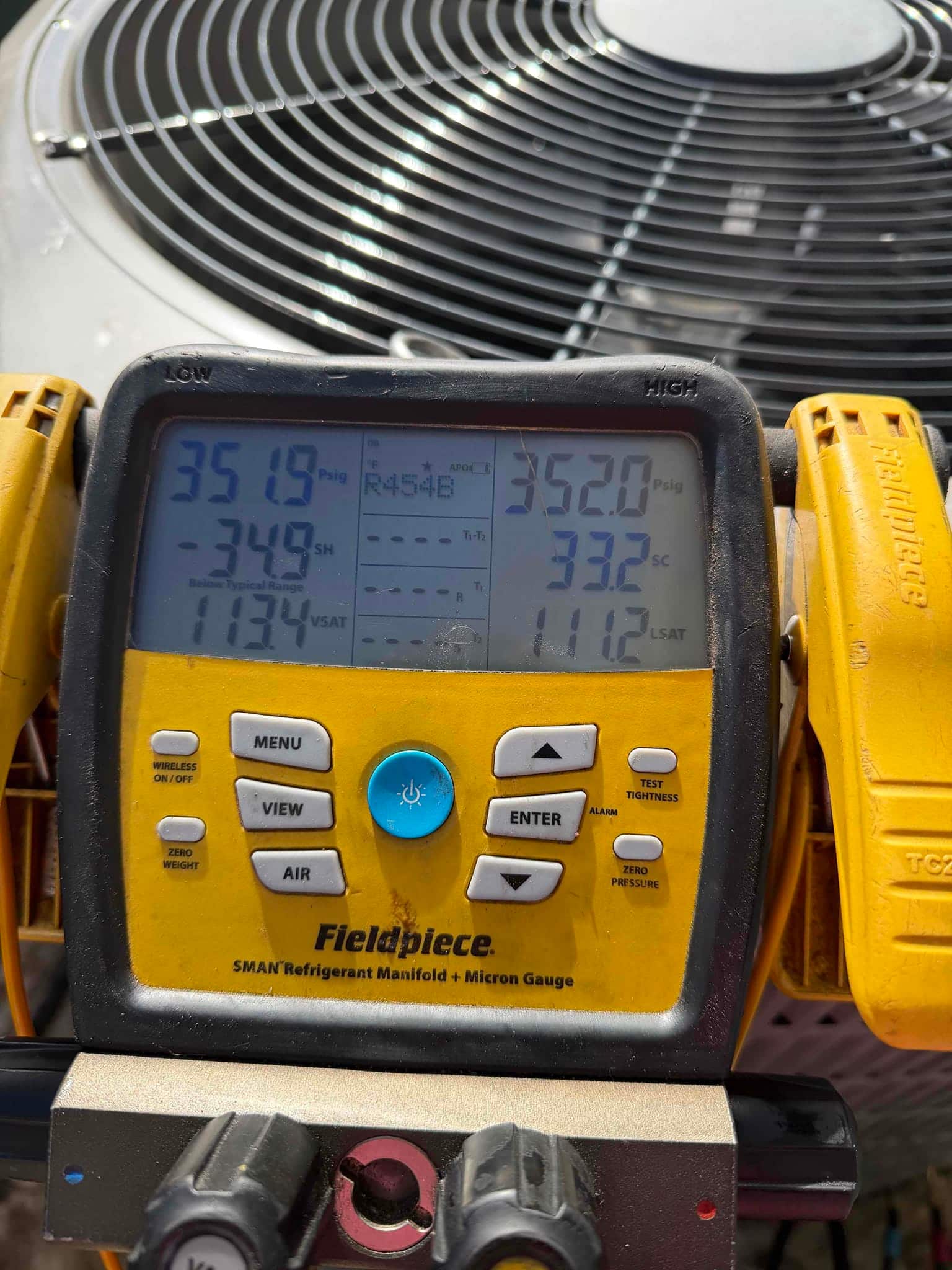

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

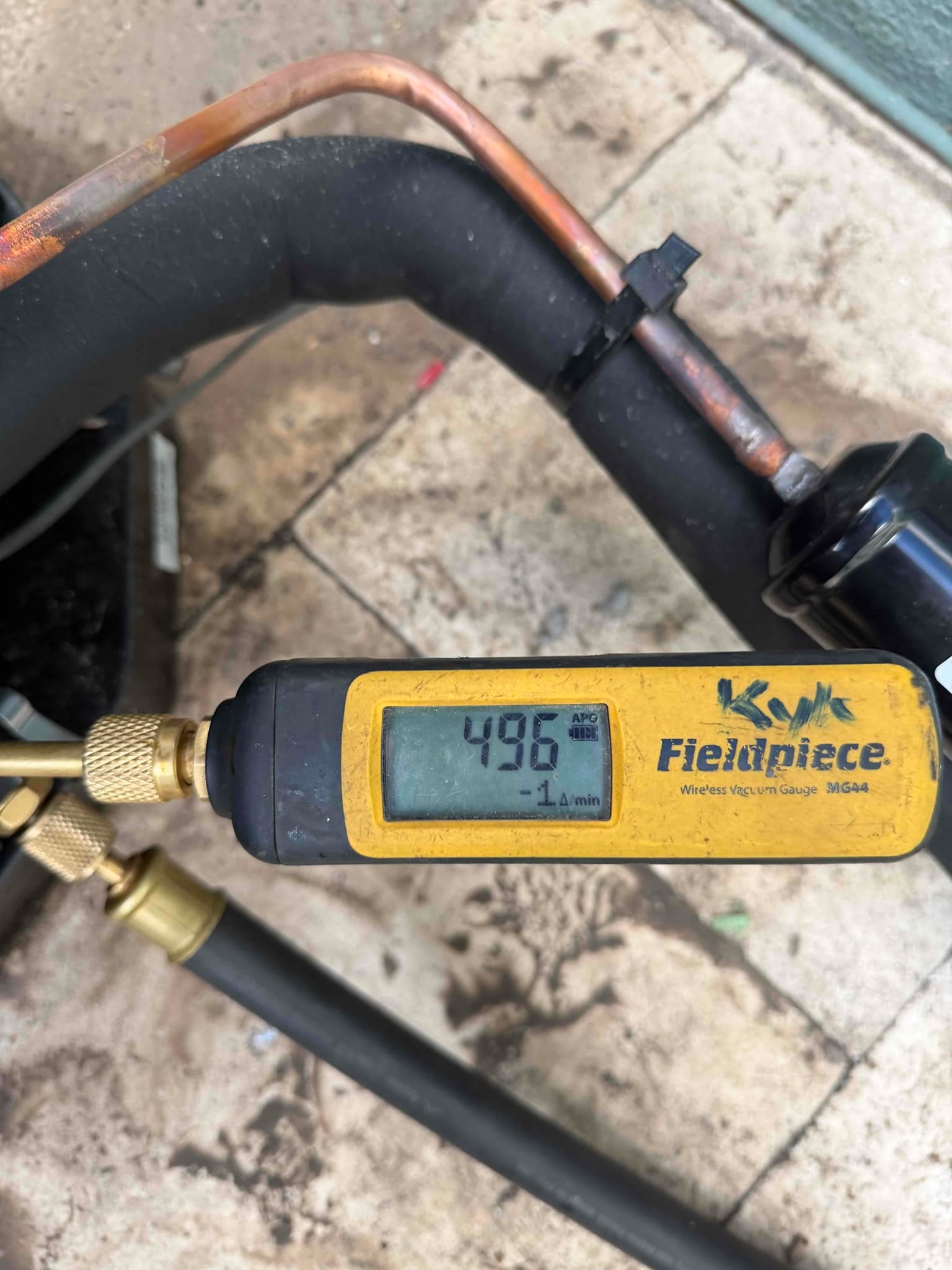

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.
Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

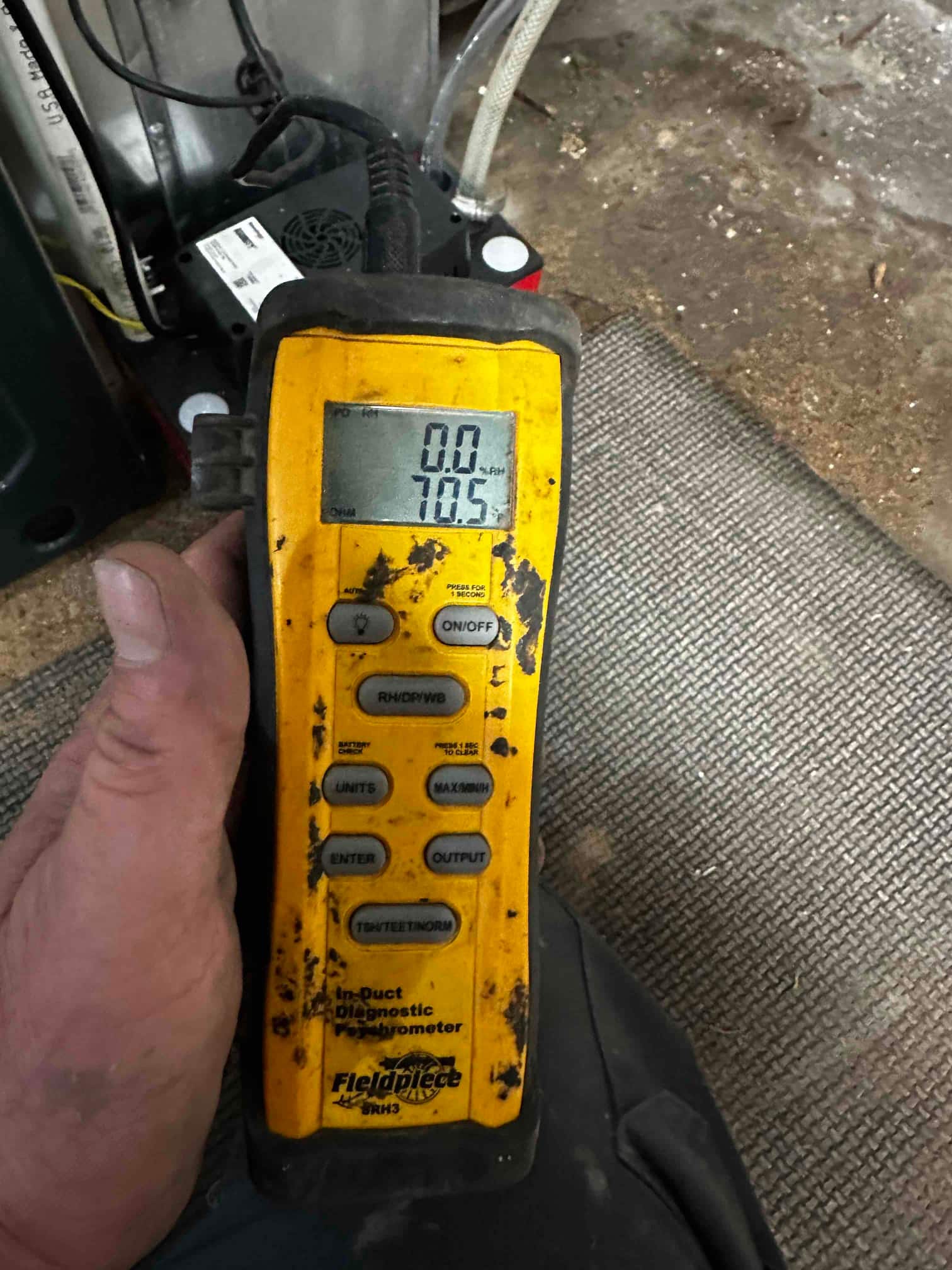

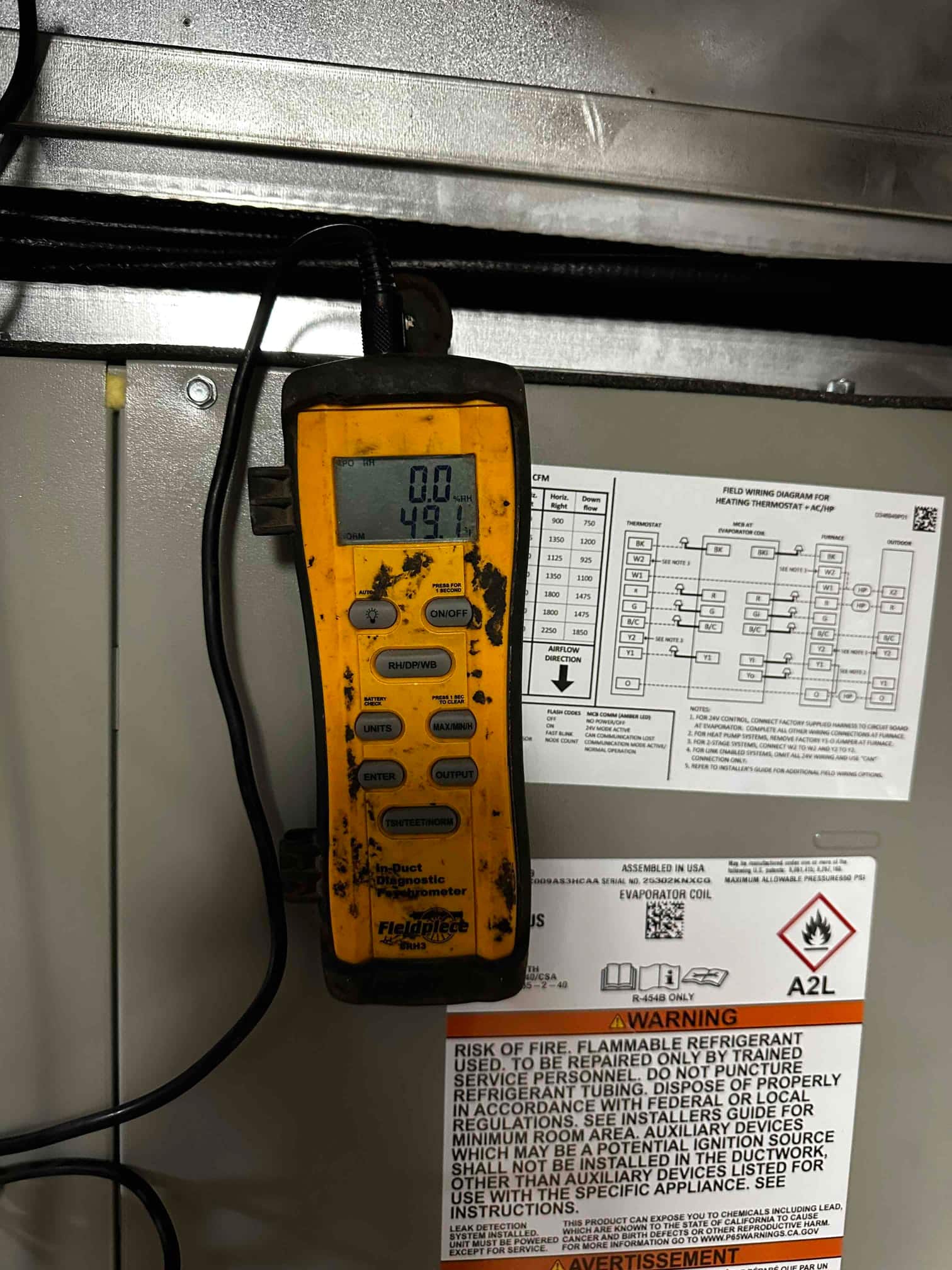

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.

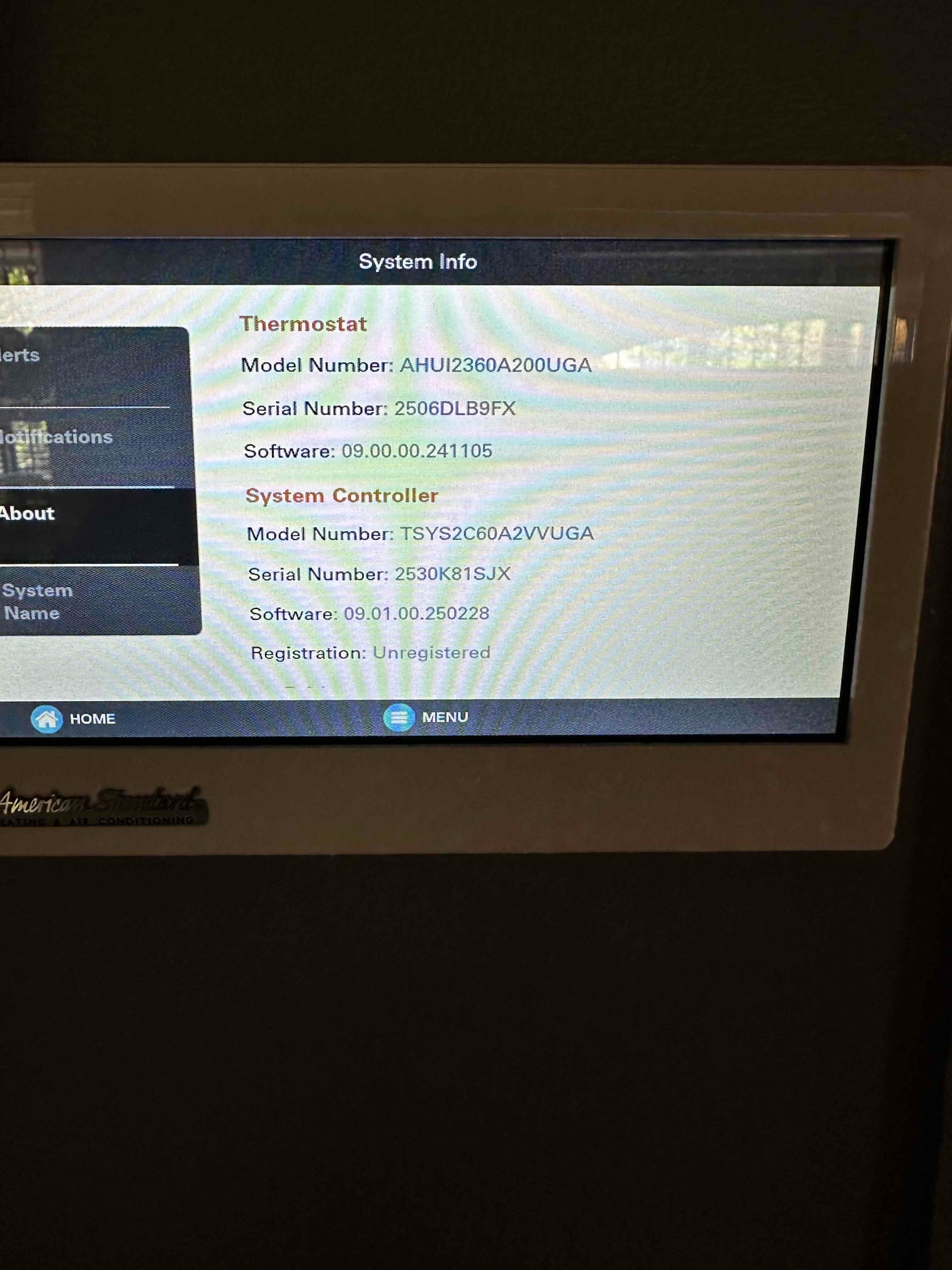

Equipment Detail Shots
Close-ups of the components that make up the system.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Downtown Phoenix job?
The installer removed a wye branch on the left front side of the plenum and routed each run individually to the plenum box above to maximize airflow to the dining nook area during the installation of a 5-Ton American Standard AC and furnace system. This adjustment ensured improved comfort and efficiency in the home.
How much does a new ac + furnace split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Downtown Phoenix?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Downtown Phoenix and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
