Air Conditioning System Installation in Moon Valley — January 2023

CompletedJanuary 23, 2023

Install CrewFred, Andrew & Javier

Service AreaMoon Valley

SystemAir Conditioning System

WarrantyMfg + Workmanship

Instant Price Estimate Call (602) 613-3489

4.9806 Google Reviews

✓

Licensed & Bonded InstallersCertified HVAC installation crew

💳

Financing AvailableFit a new system to your budget

🛡️

Manufacturer + Workmanship WarrantyEvery install backed in writing

Scope of Work

Customer needed HVAC equipment installed or replaced.

Moon Valley · installed January 23, 2023

— At a Glance

Location

Moon Valley

Completed

January 23, 2023

System Type

Air Conditioning System

Total Investment

$15,191

— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the Heating work AZ Perfect Comfort performs across Phoenix, AZ. You can browse more real Air Conditioning System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Fred, Andrew & Javier from the manifold gauges, micron gauge, and digital thermometers.

Refrigerant Circuit

Refrigerant type: R-410A
Suction pressure: 286 PSIG
Liquid pressure: 640 PSIG
Evaporator saturation: 131.2°F
Condensing saturation: 155.2°F
Superheat: 9°F
Subcooling: 11°F

Air-Side Performance

Supply-air temperature: 54°F

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

Item	Description	Qty
4.0-18-Ve-H	Superior Efficiency, Perfect Comfort 18 Series Variable Speed CompressorVariable Speed ECM blower motor 10yr Parts/ 12yr compressor manufacturer warranty, 2yr Labor Warranty • New Disconnect&bull	1
PAD-115	Install new condenser pad.	1

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

28 photos from this installation

Every step of this installation was documented on-site by Fred, Andrew & Javier.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

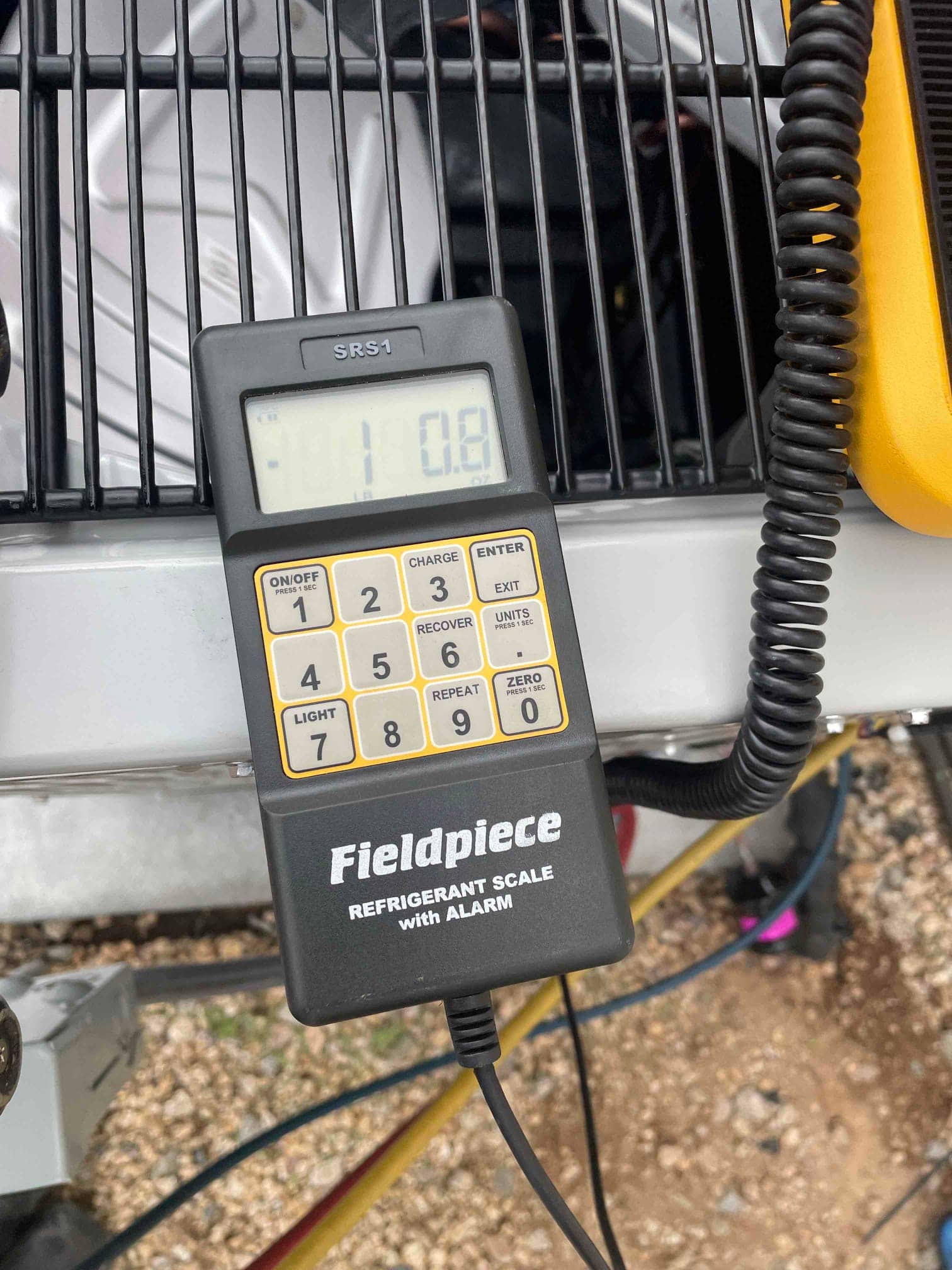

Digital refrigerant charging scale controller rests on the condenser top while connected, displaying a partial numeric reading.

New outdoor condenser set on a composite pad with insulated refrigerant lines and electrical whip routed to the disconnect.

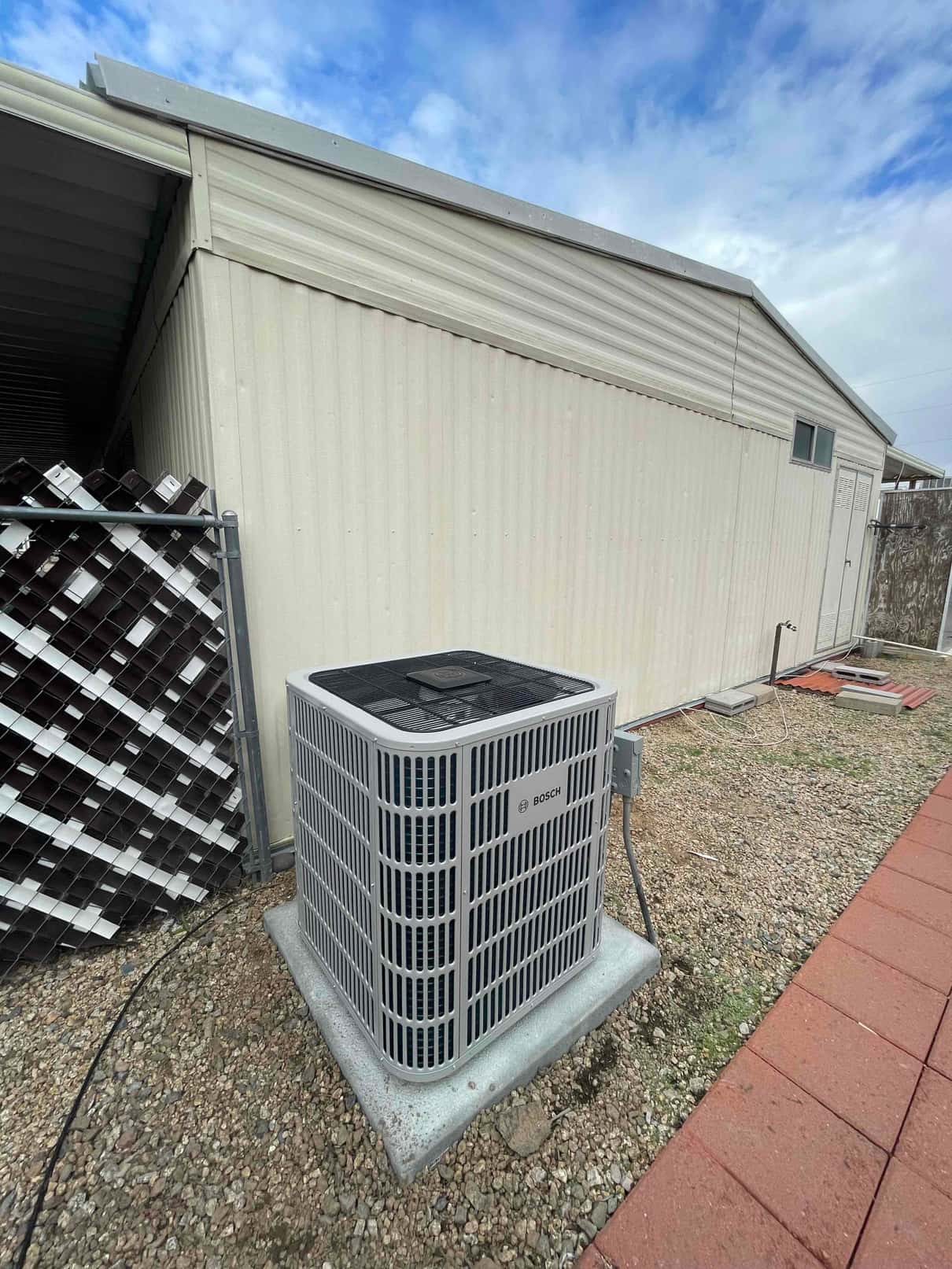

New outdoor condenser set on a level pad with electrical disconnect mounted nearby and line set routed along the wall.

Refrigerant hoses connected to service valves on a newly installed outdoor unit with filter-drier and insulated line set visible.

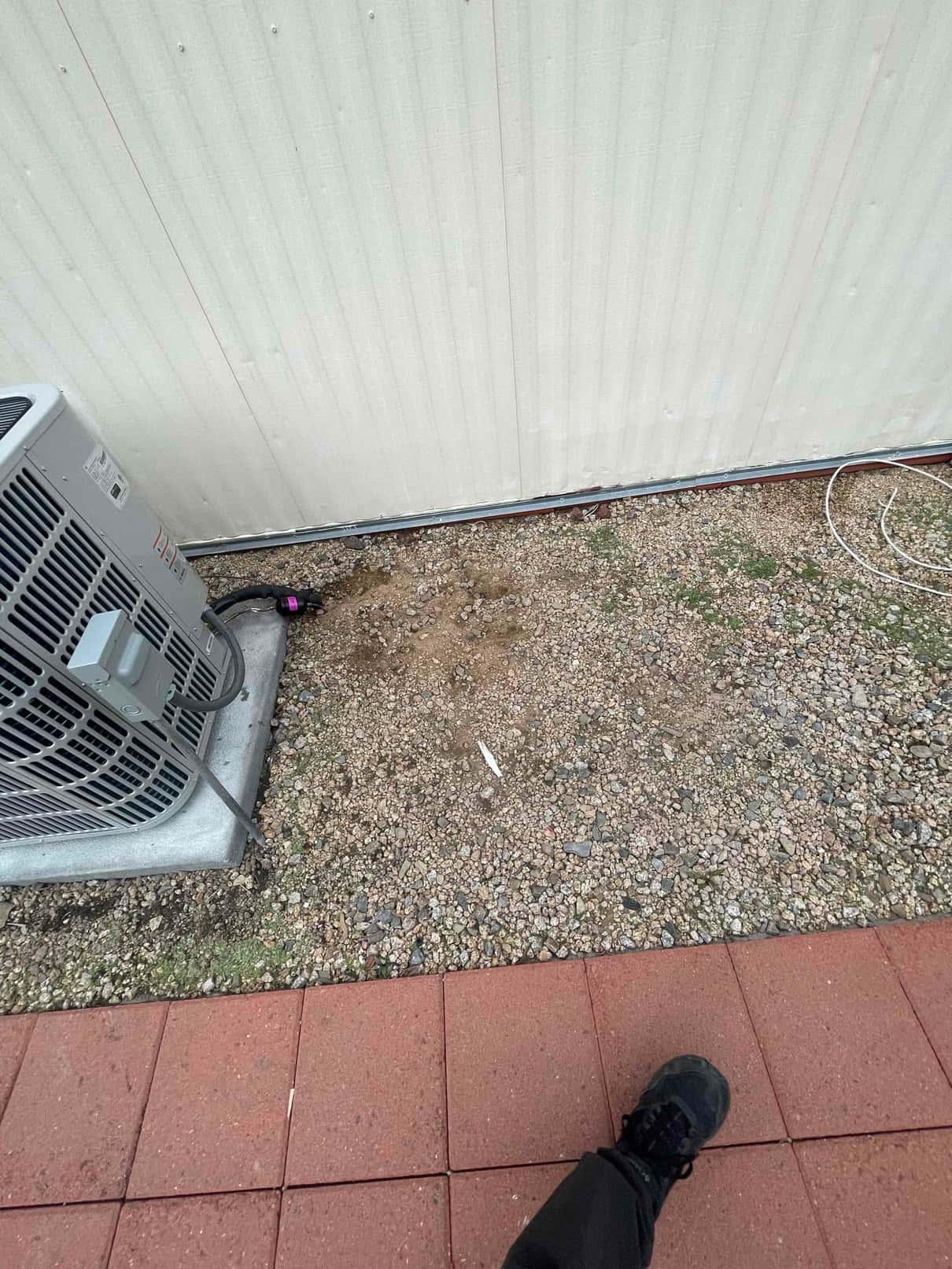

New outdoor condenser set on a level pad with insulated refrigerant lines routed along the exterior wall.

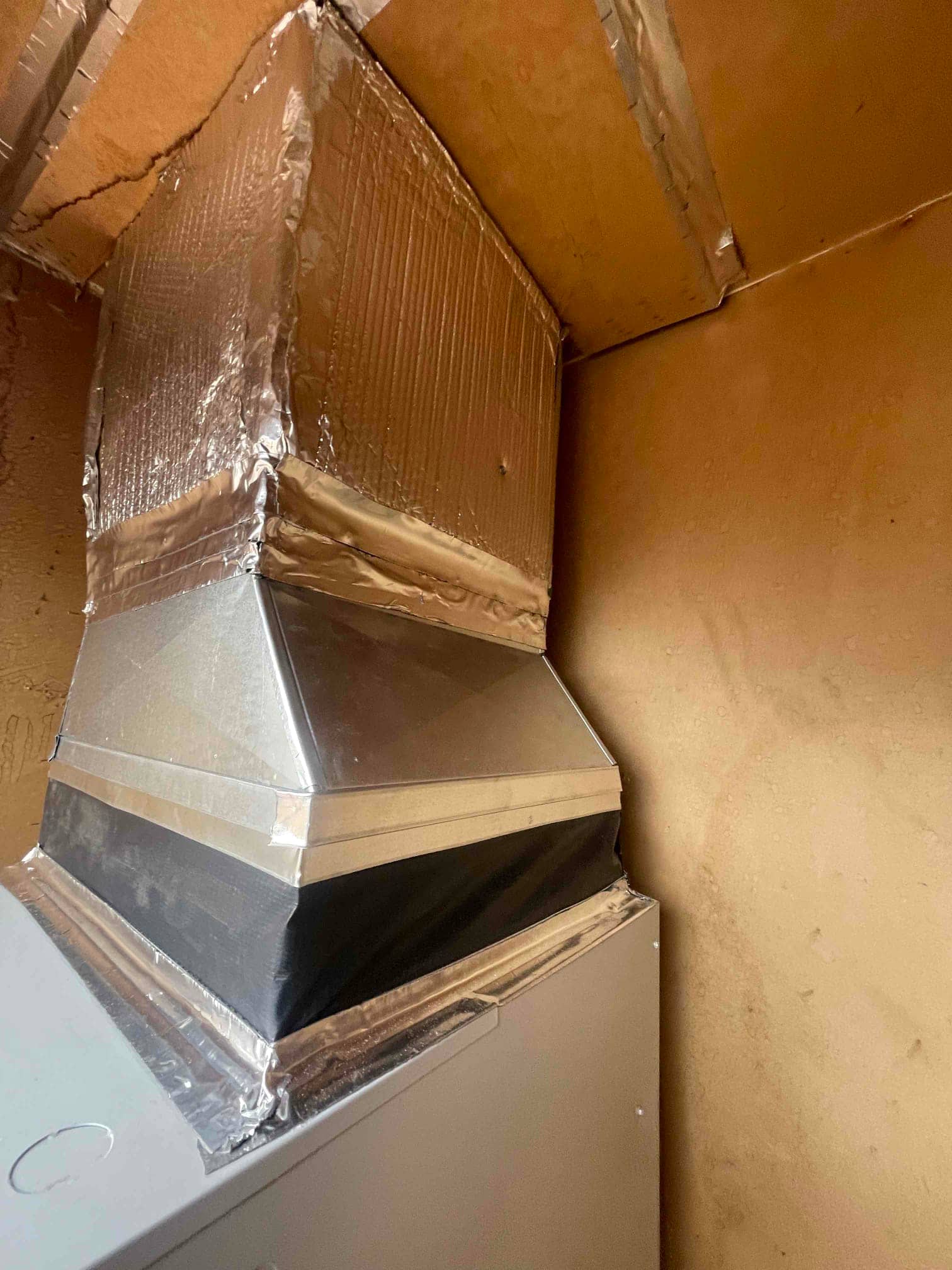

New supply plenum and transition sealed with foil tape on the air handler, showing insulated duct connection and clean fabrication.

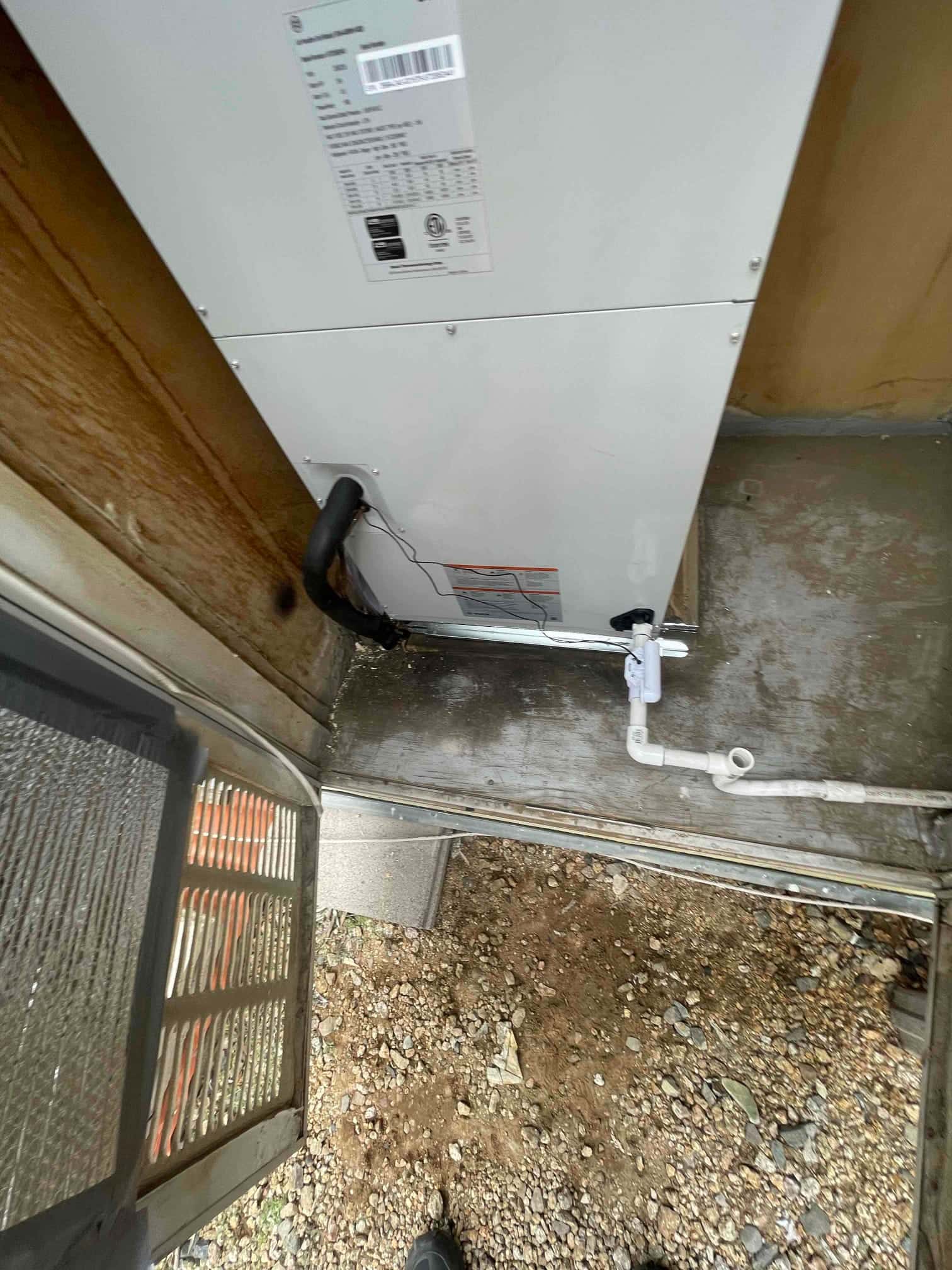

Air handler set in place with insulated refrigerant line and new condensate drain assembly routed to the side.

New air handler set in closet with installed PVC condensate drain and clean work area around the base.

New air handler installed in closet with insulated drain line routing and clean access area prepared for commissioning.

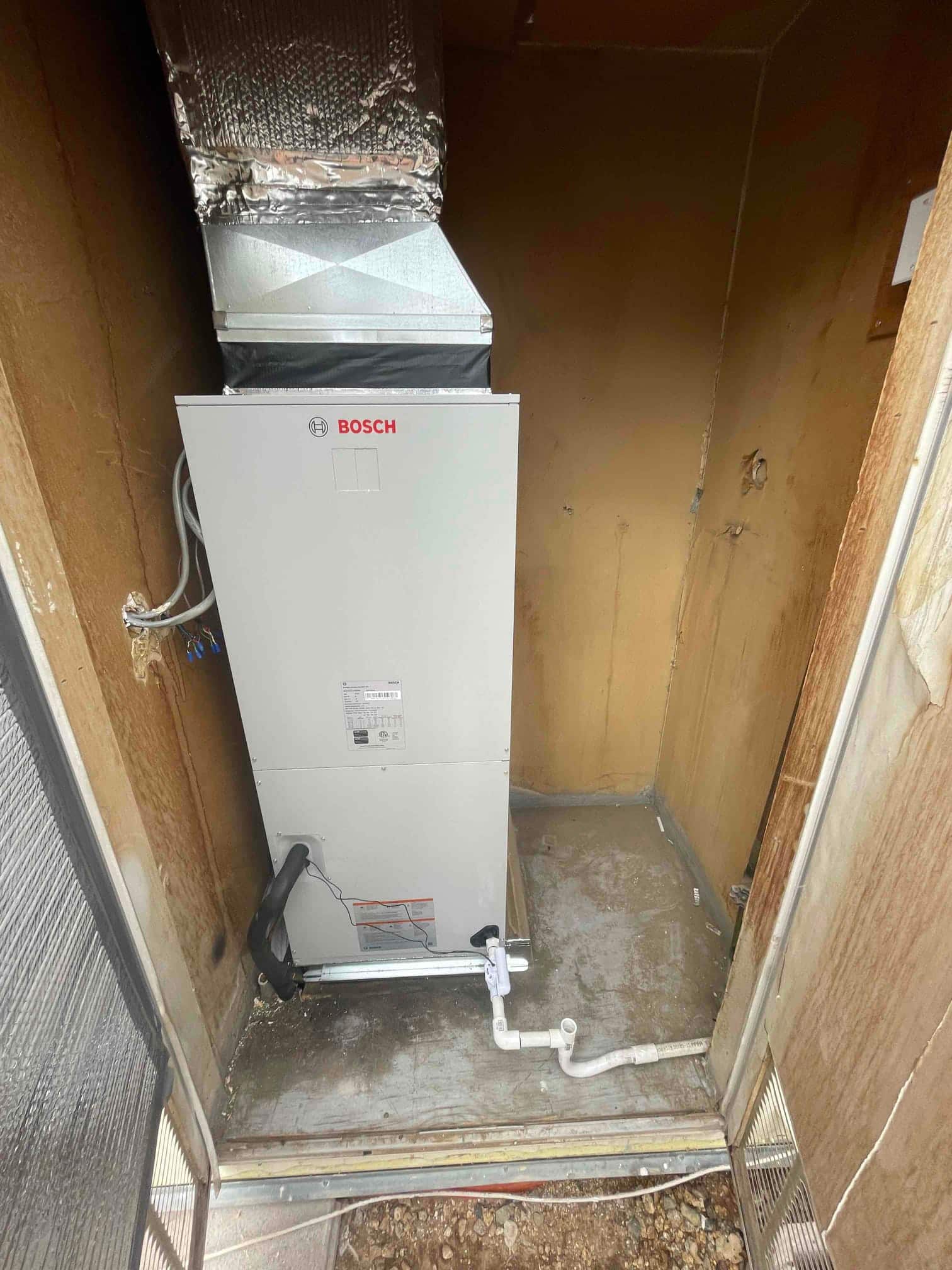

New air handler installed in closet with connected duct transition, insulated refrigerant line, and condensate drain piping.

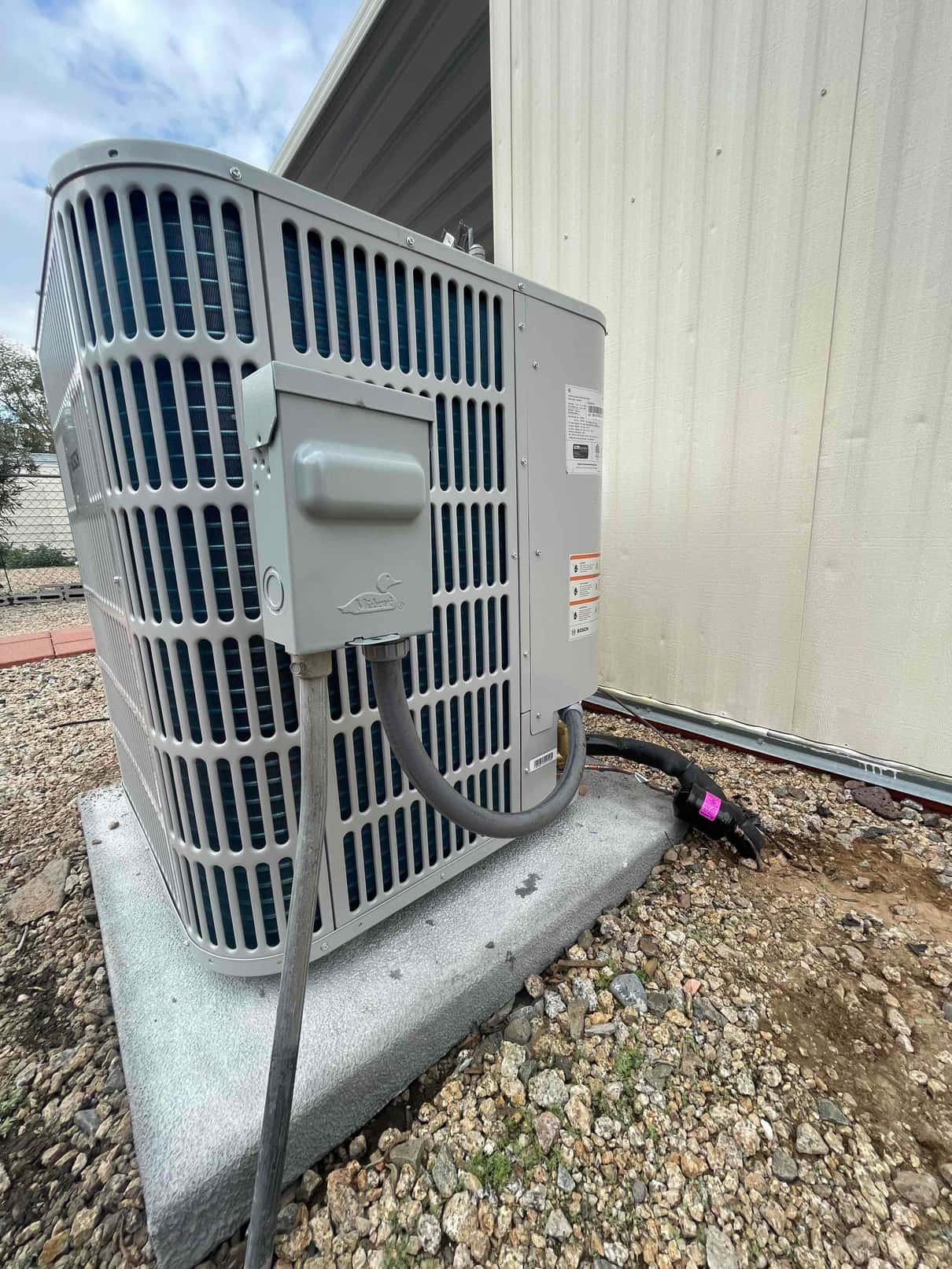

New outdoor condenser set on a level pad with electrical whip and insulated refrigerant lines routed to the wall penetration.

New outdoor condenser set on a level pad with electrical disconnect mounted and line set routed along the exterior wall.

Outdoor condenser set on a level pad with electrical disconnect mounted nearby and insulated line set routed to the wall.

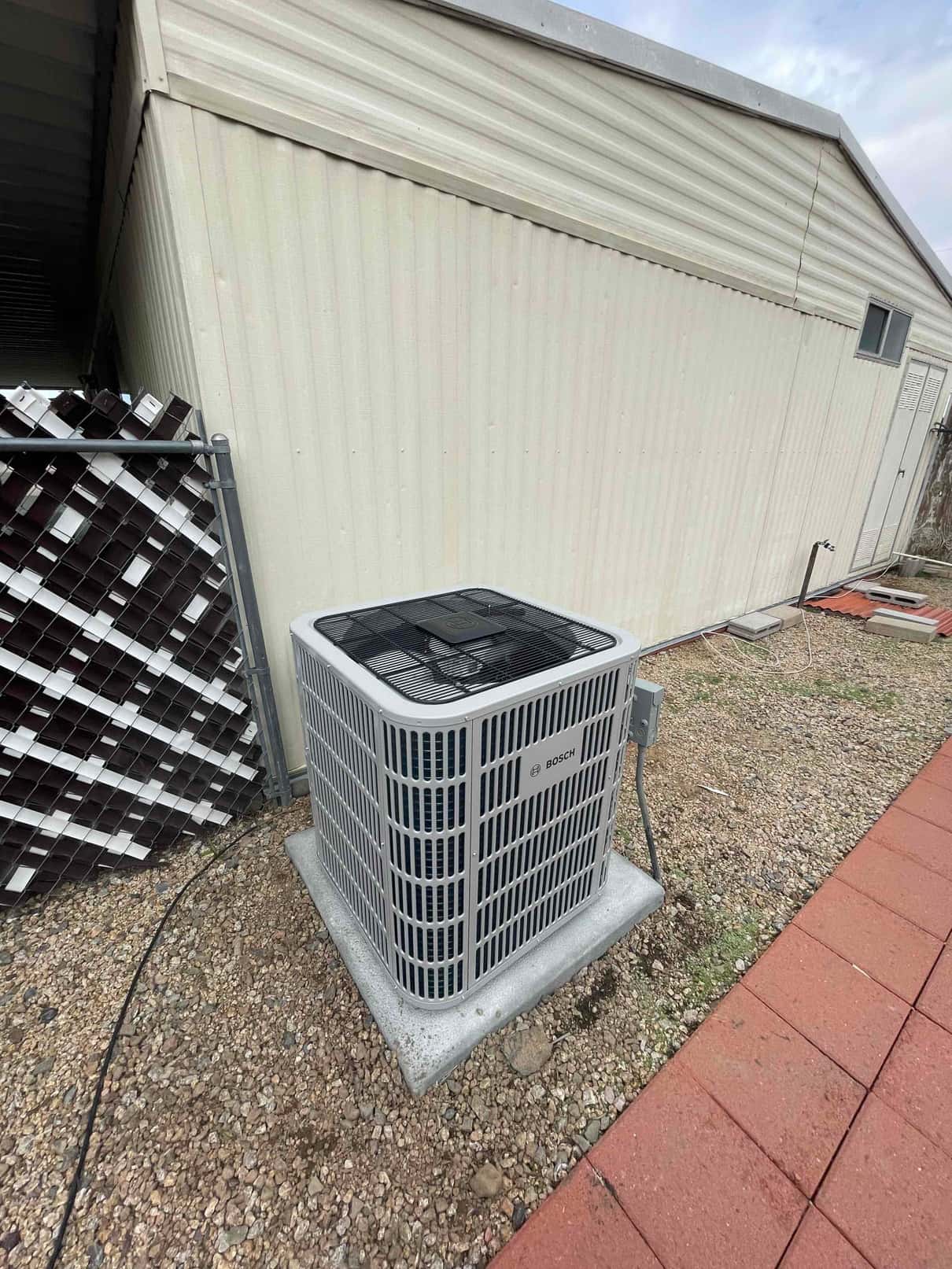

New outdoor condenser set on a level pad with connected disconnect box and insulated refrigerant line at the installation site.

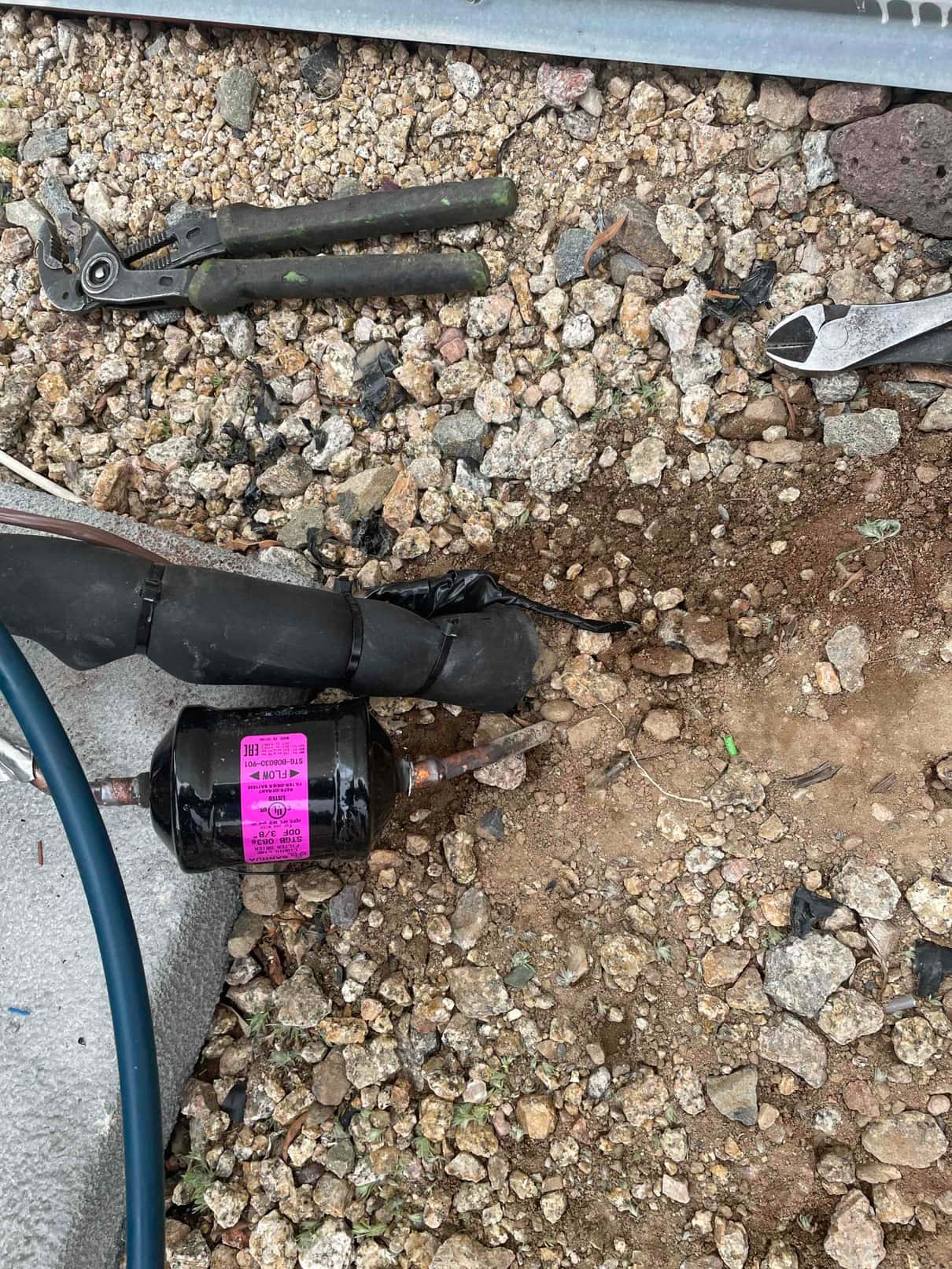

Liquid-line filter drier with copper stubs and insulated refrigerant line set on the ground during installation, with hand tools nearby.

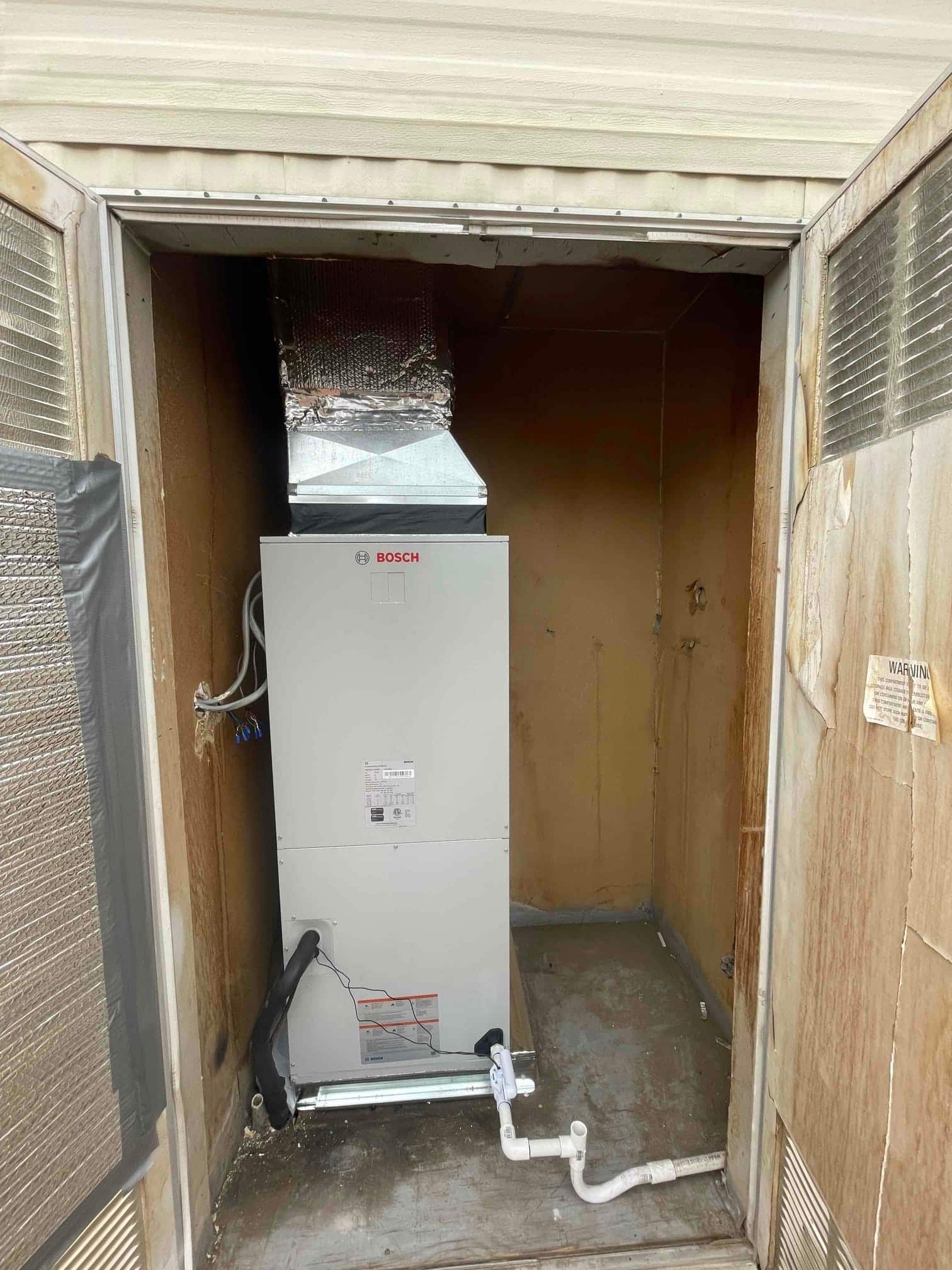

New air handler installed with lined supply plenum, insulated refrigerant line, electrical whip, and condensate drain with cleanout and trap.

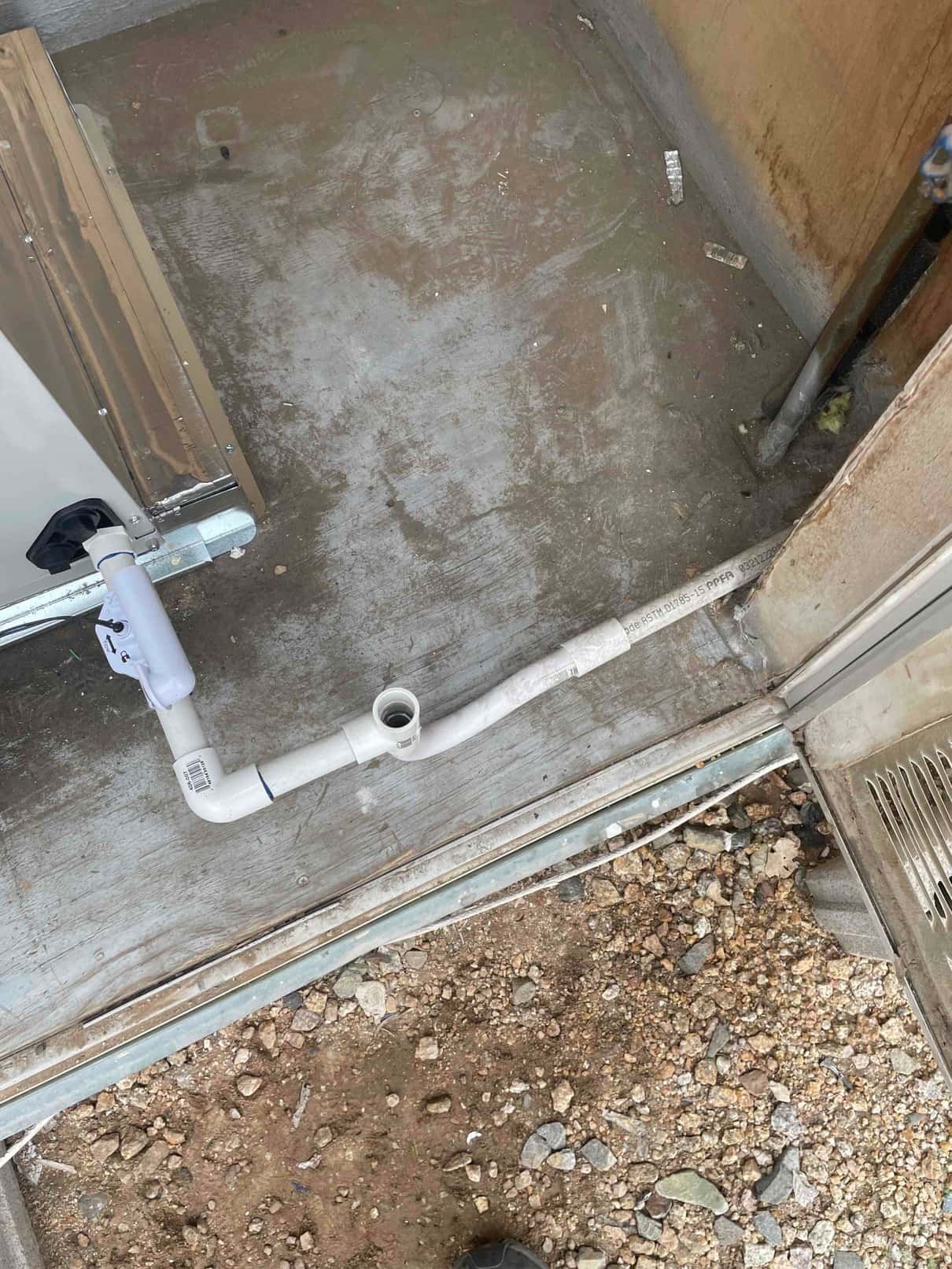

Condensate drain line with cleanout tee and trap routed from the air handler to the exterior penetration.

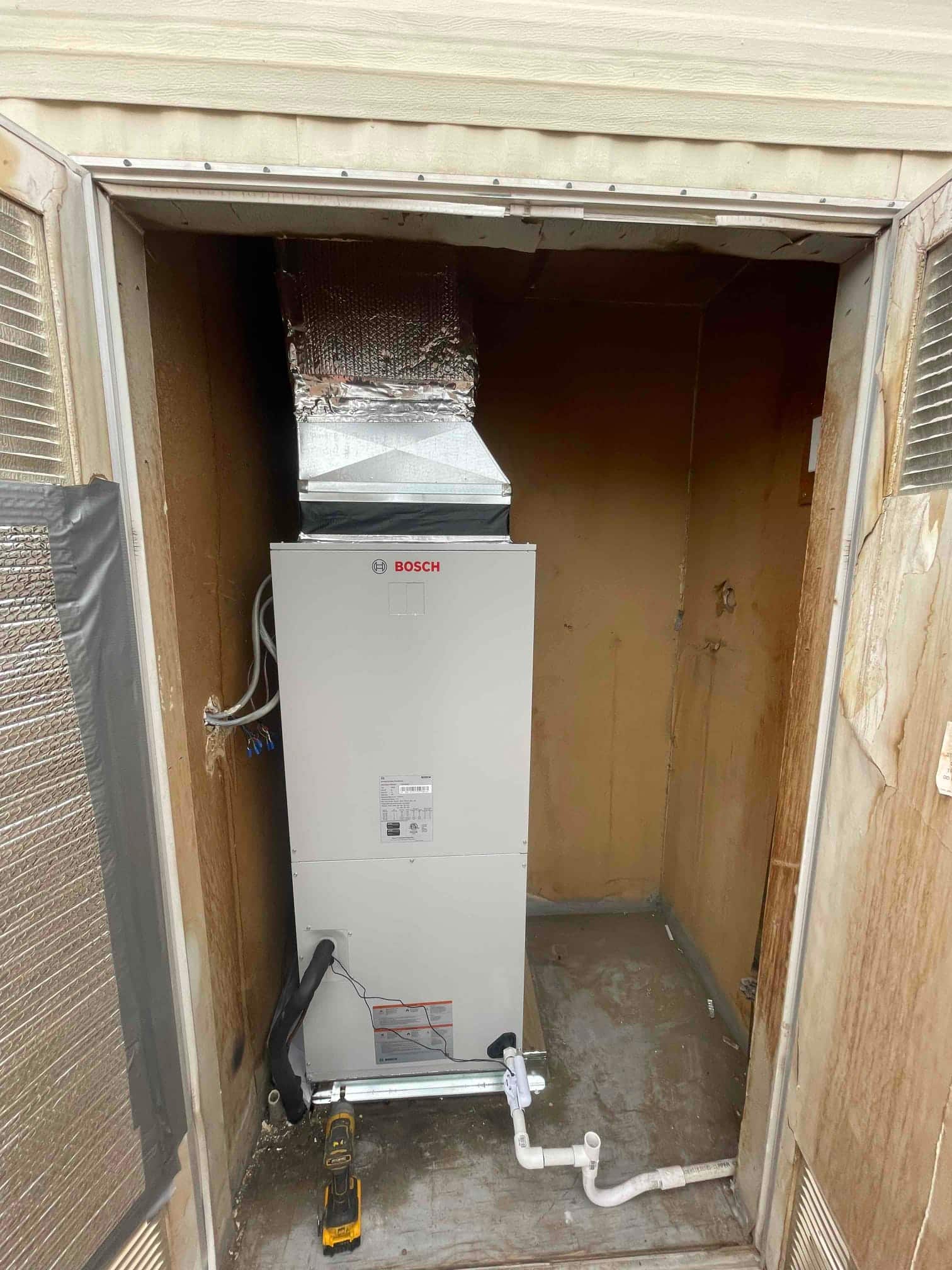

New air handler installed in closet with insulated supply plenum and newly plumbed PVC condensate drain with cleanout.

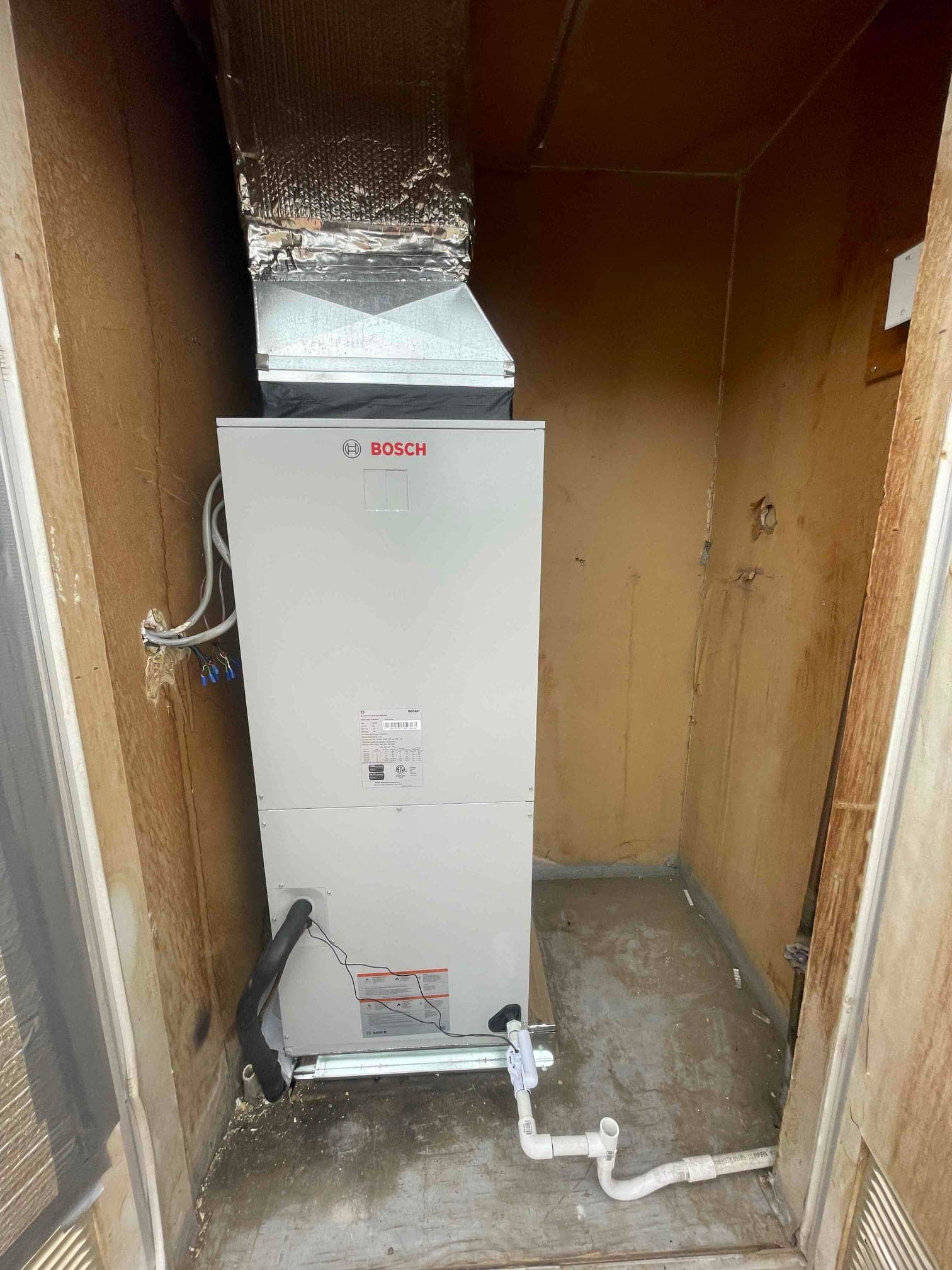

New air handler installed with insulated supply plenum, condensate drain with cleanout, and sealed line set penetration.

New air handler with sealed sheet metal transition and insulated supply plenum, joints taped for an airtight installation.

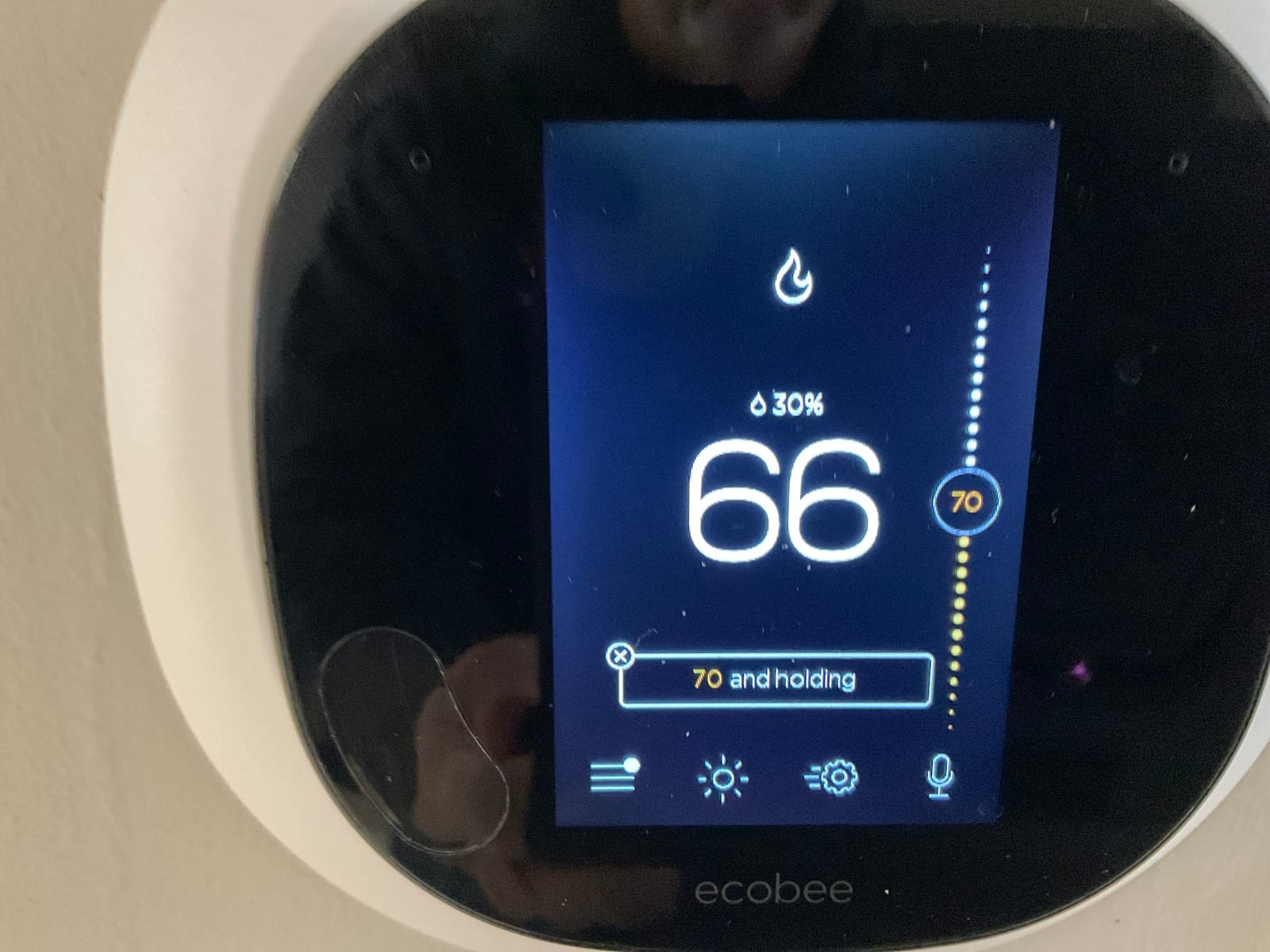

Wall-mounted smart thermostat displays indoor temperature of 66 degrees with a setpoint of 70 and system status icons.

Refrigerant Commissioning

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

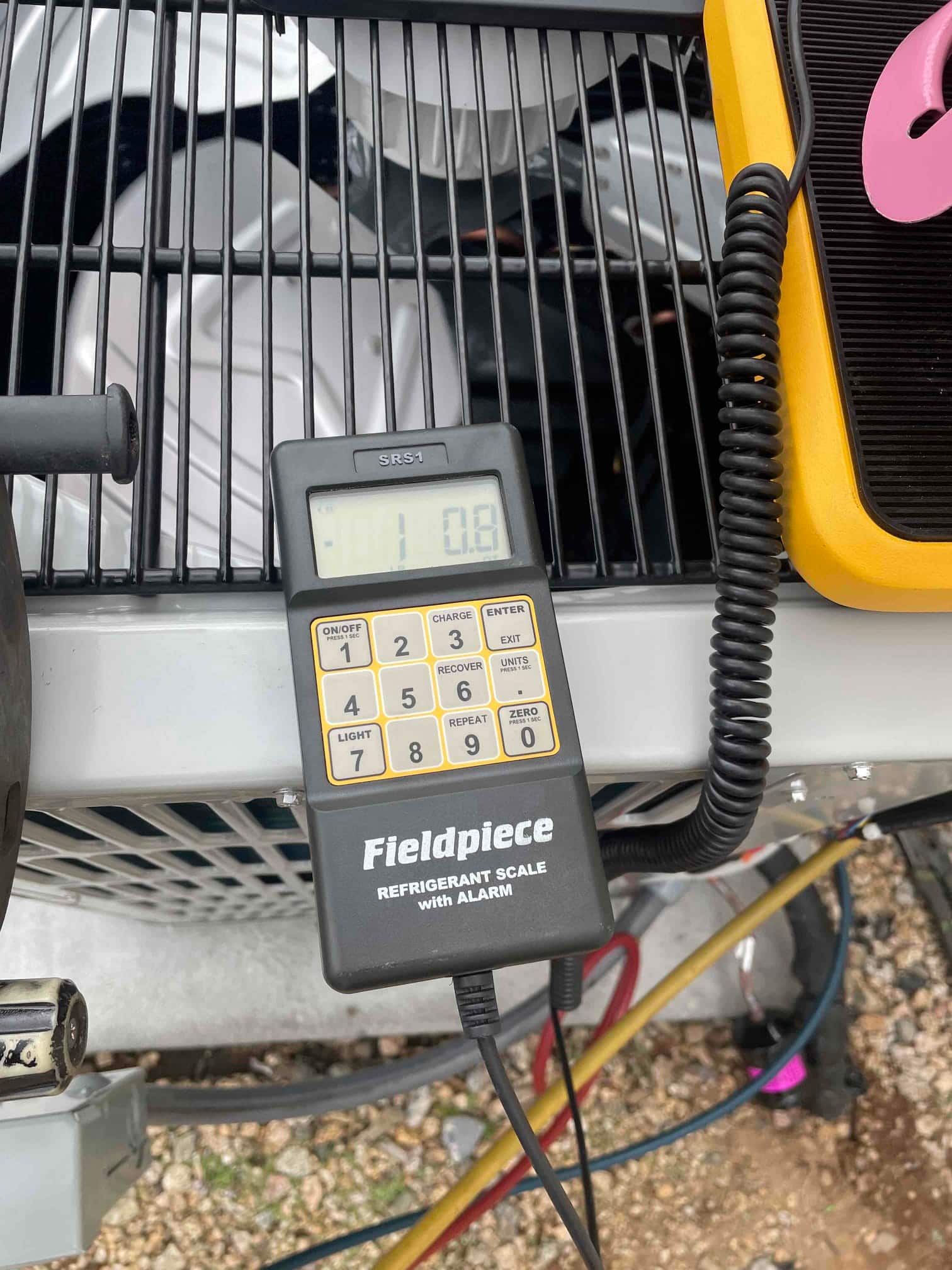

Digital refrigerant scale connected during charging beside the outdoor condenser, with hoses routed to the system.

Digital manifold connected to the condenser shows operating pressures with refrigerant flowing during system commissioning.

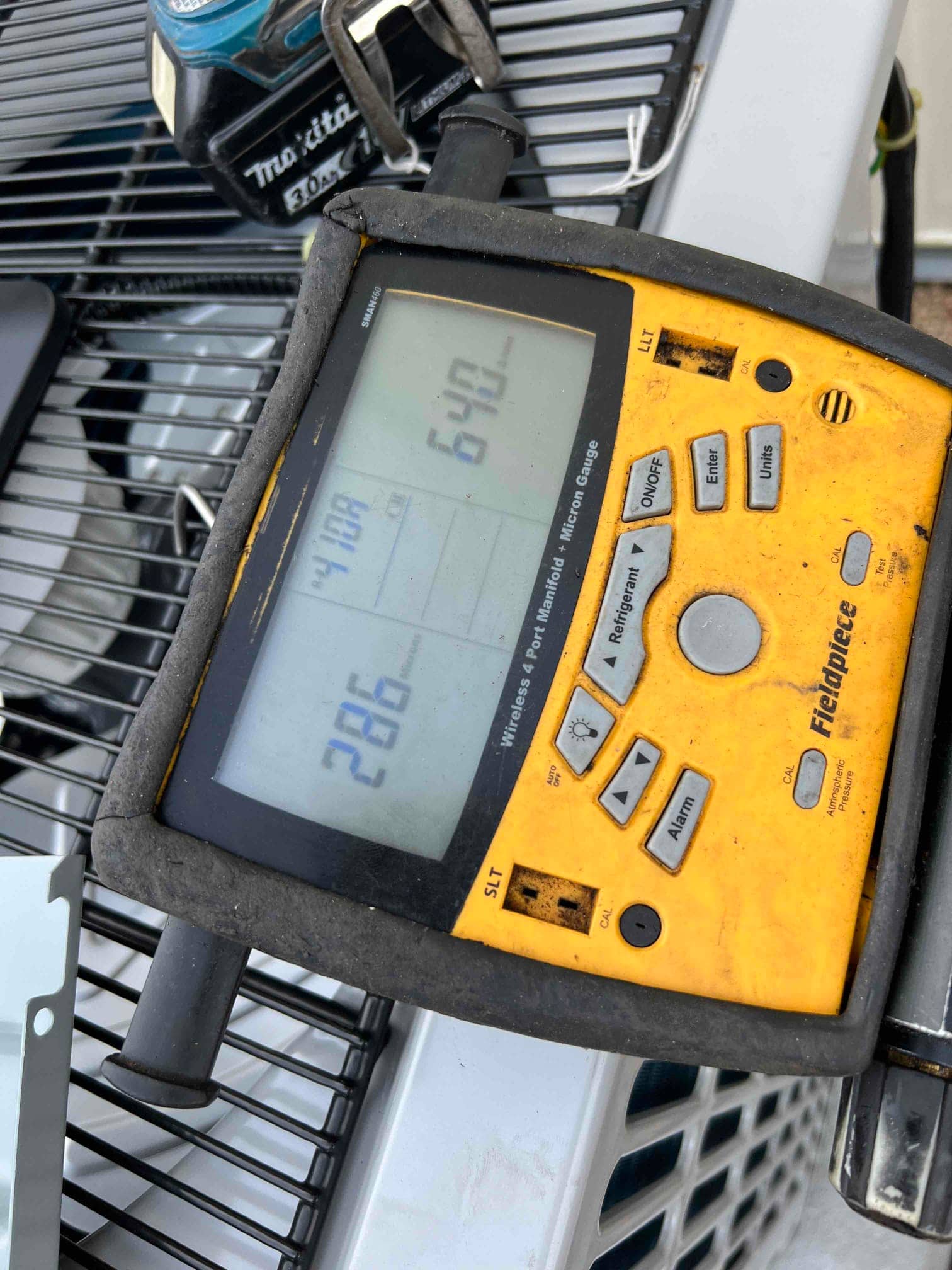

Digital manifold on the outdoor unit displays operating refrigerant pressures with distinct high and low side readings during commissioning.

Air-Side Commissioning

Return and supply air temperatures measured to verify the temperature split falls in the target window.

Digital pocket thermometer shows 54.1°F while checking supply air temperature at the metal duct during cooling operation.

Digital thermometer reads 54.1°F against galvanized duct, documenting cold supply air temperature during commissioning.

Electrical Verification

Voltage and amperage checked at the disconnect to confirm the equipment is drawing within nameplate spec.

Outdoor condenser control compartment open, exposing the circuit board, wiring connections, and components during installation checks.
