4-Ton Air Conditioning System Installation in Cave Creek — March 2023
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work

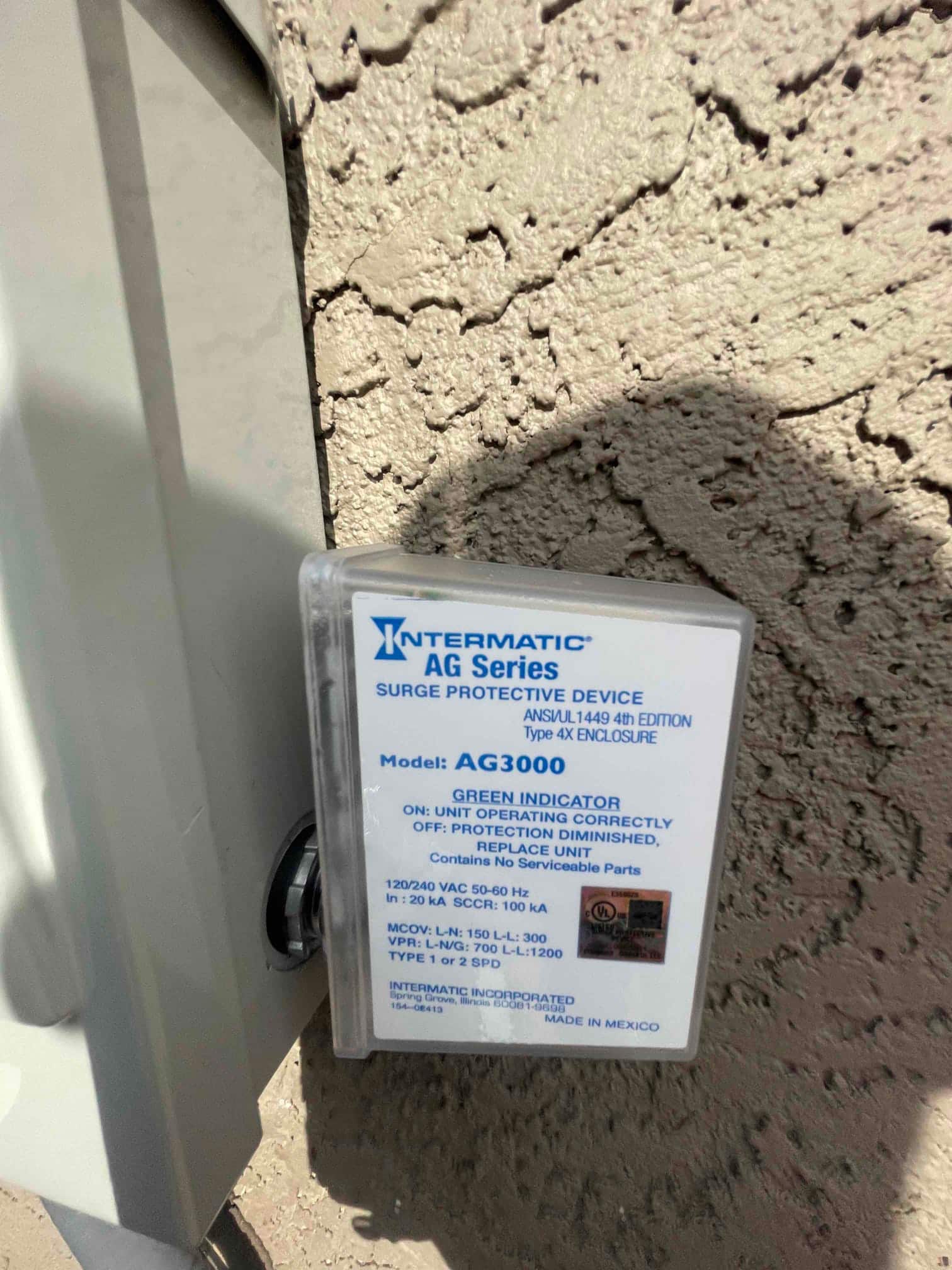

Installation of Trane 3 and 4 ton attic split gas 15 Series systems, new scuttle access on two scuttles, Honeywell Wi-Fi thermostats, and two new condenser pads with surge protectors on indoor and outdoor units.
Cave Creek · installed March 8, 2023
— At a Glance
Location
Cave Creek
Completed
March 8, 2023
System Type
Air Conditioning System
Capacity
4-Ton
Brand
Trane
Total Investment
$21,519
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCB006DS3HC*
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- S8X1B060M4PSC*
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTR5048N1000*
- Capacity
- 4-Ton
New — installed 2026
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCC009DS3HC*
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- S8X1C080M5PSC*
- Matched
- 4-Ton airflow
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Cave Creek, AZ. You can browse more real 4-Ton Air Conditioning System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Andrew, Javier, Ari & Jamal from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 152 PSIG
- Liquid pressure
- 393 PSIG
- Evaporator saturation
- 54.7°F
- Condensing saturation
- 117.8°F
- Superheat
- 86.9°F
- Subcooling
- 83.9°F
Nitrogen Pressure Test
- Test pressure held
- 303 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 553 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 315H-4TTR5036N1-S8X1B060M4PSC | 3 Ton - 15 Series - Standard Efficiency - Single Stage Residential HVAC System. Installed in a Horizonal configuration. Installation of the equipment includes all of the following:• Manual J heat lo | 1 |
| 415H-4TTR5048N1-S8X1C080M5PSC | 4 Ton - 15 Series - Standard Efficiency - Single Stage Residential HVAC System. Installed in a Horizonal configuration. Installation of the equipment includes all of the following:• Manual J heat lo | 1 |

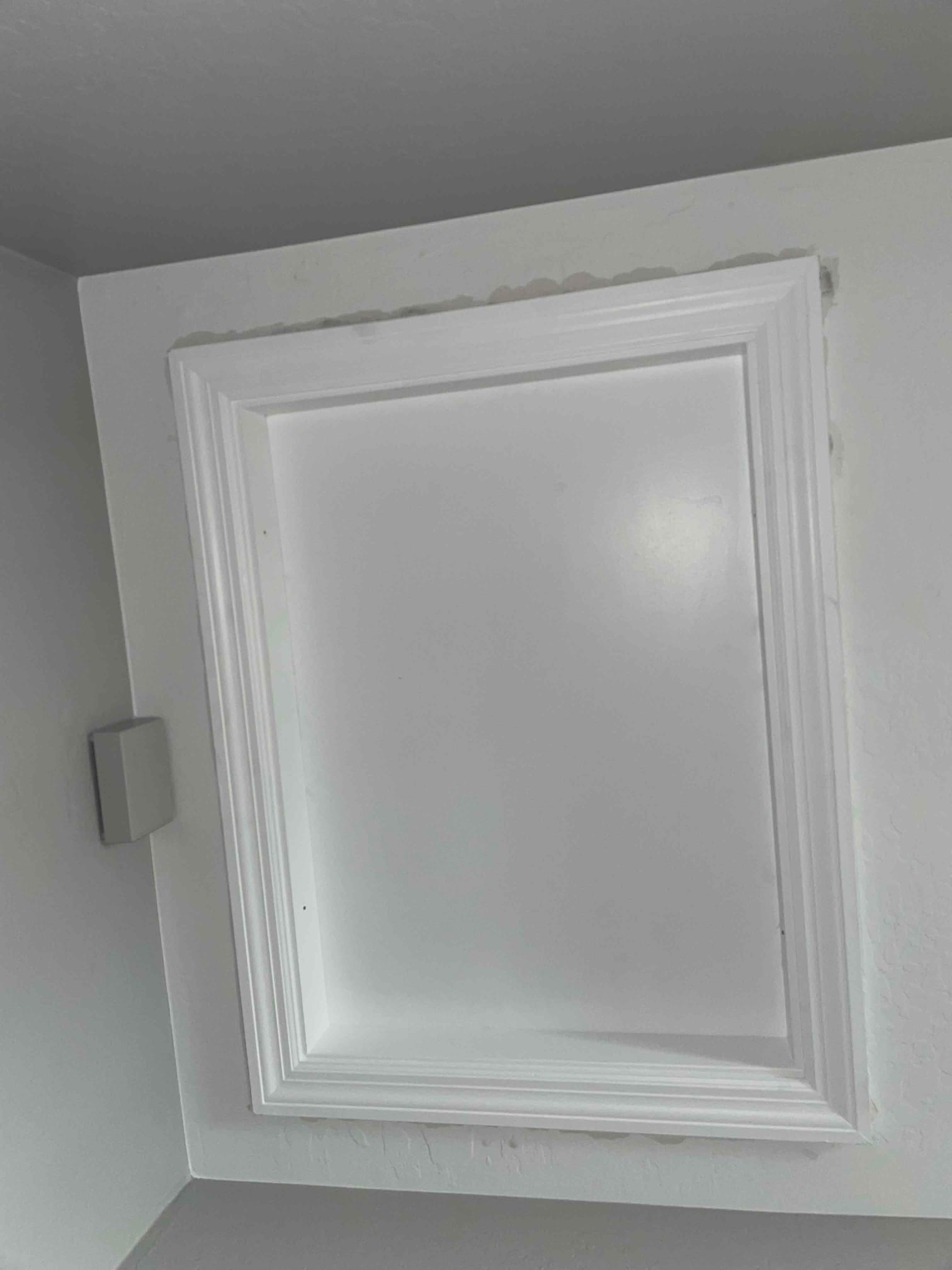

| M-SCUTTLE | INSTALL NEW SCUTTLE ACCESS AND TRIM WITH COVER | 2 |
| PAD-115 | Install new condenser pad. | 2 |
| AFB-165 | At time of install remove existing return air filter frame and replace with new. Properly seal new frame and check for air leaks. | 3 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
20 photos from this installation
Every step of this installation was documented on-site by Andrew, Javier, Ari & Jamal.
Installation Progress

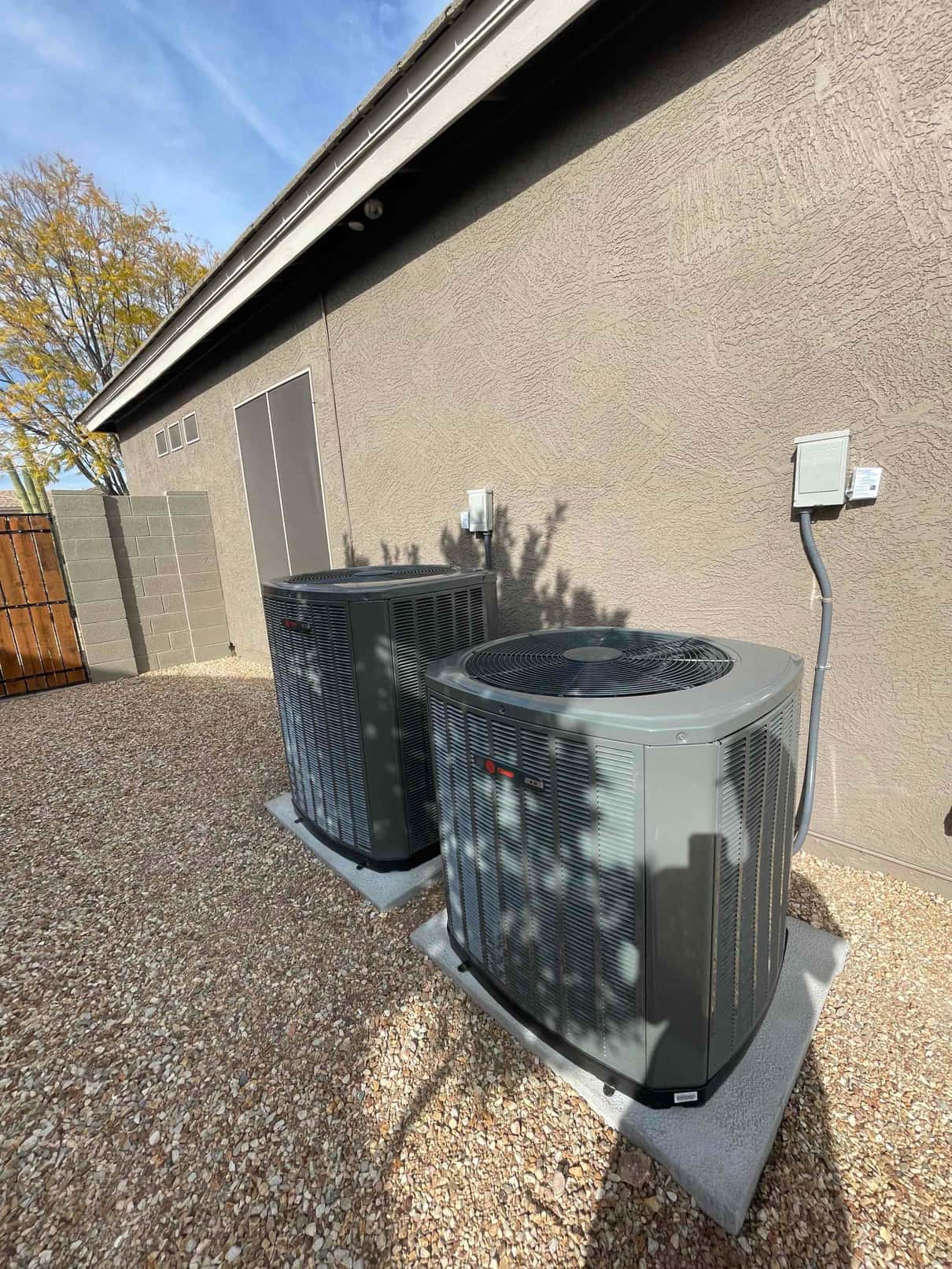

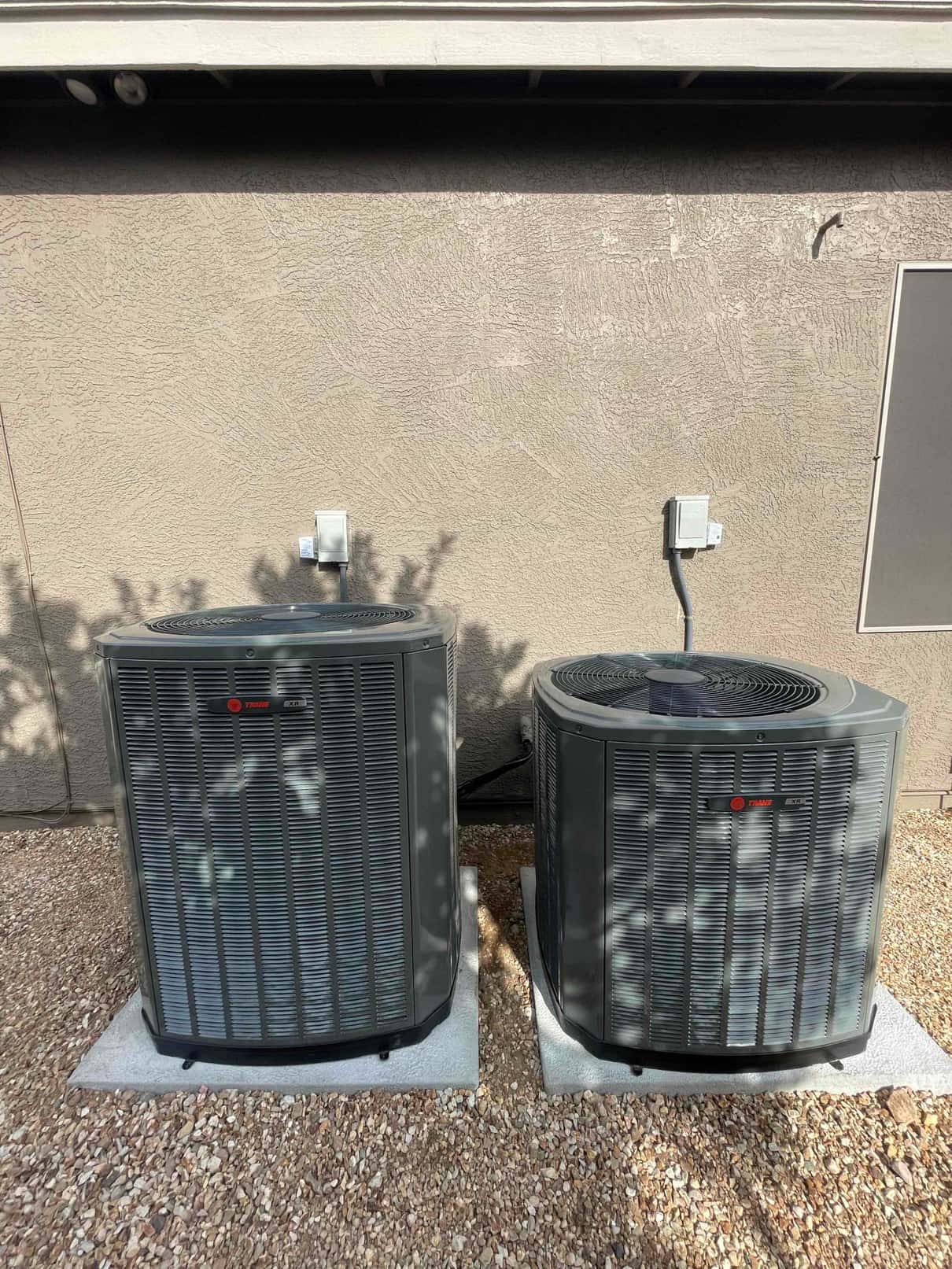

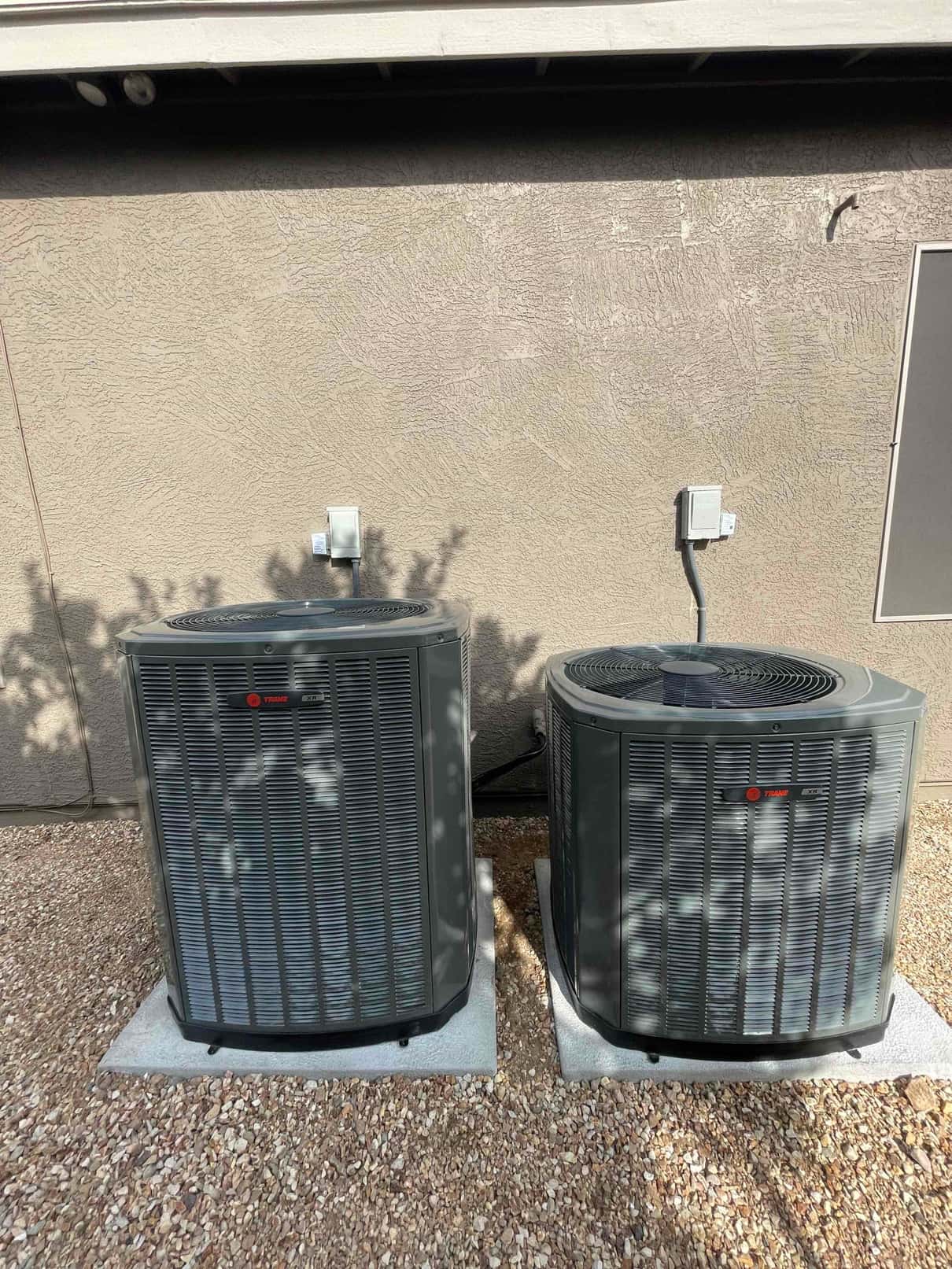

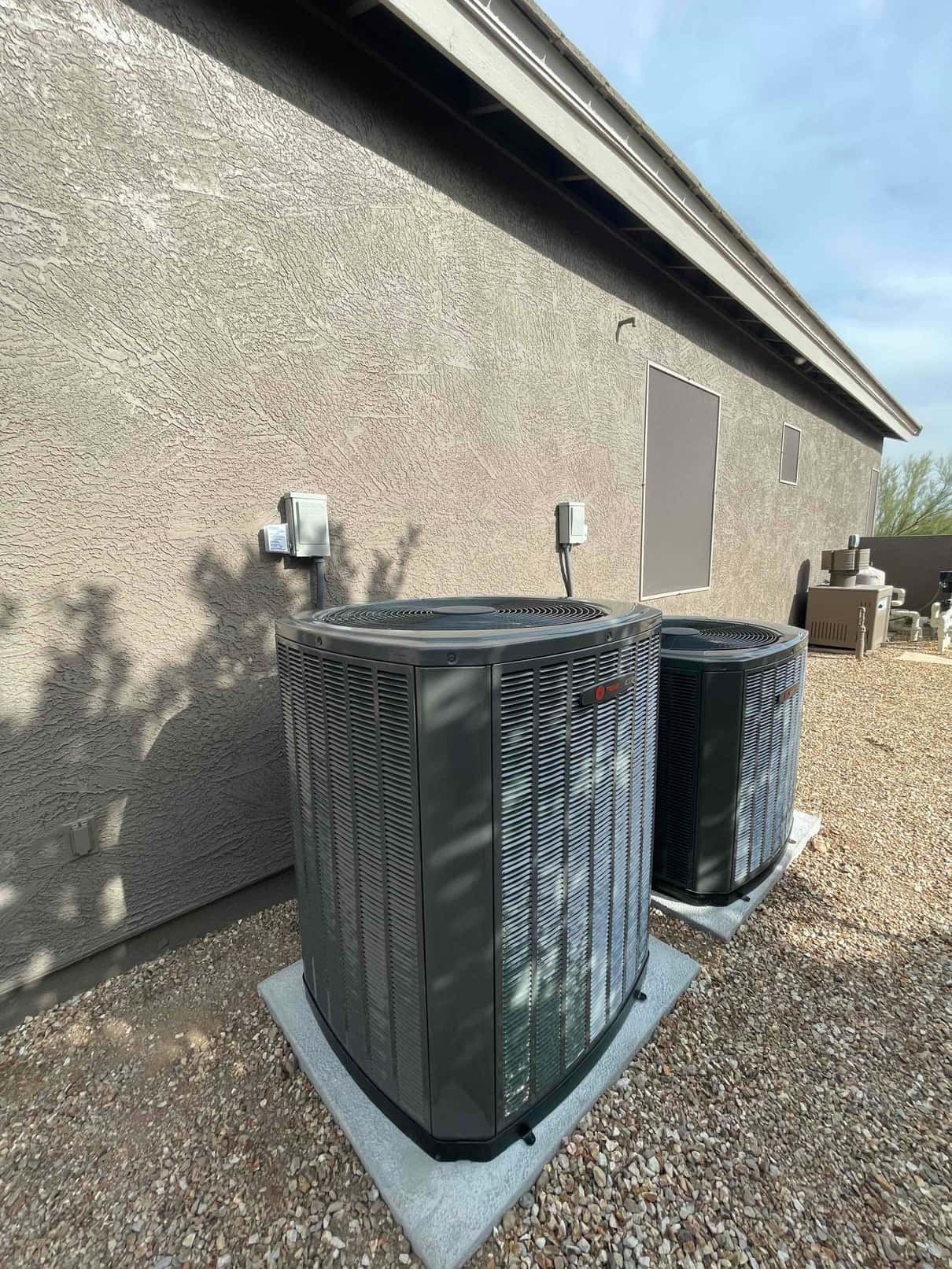

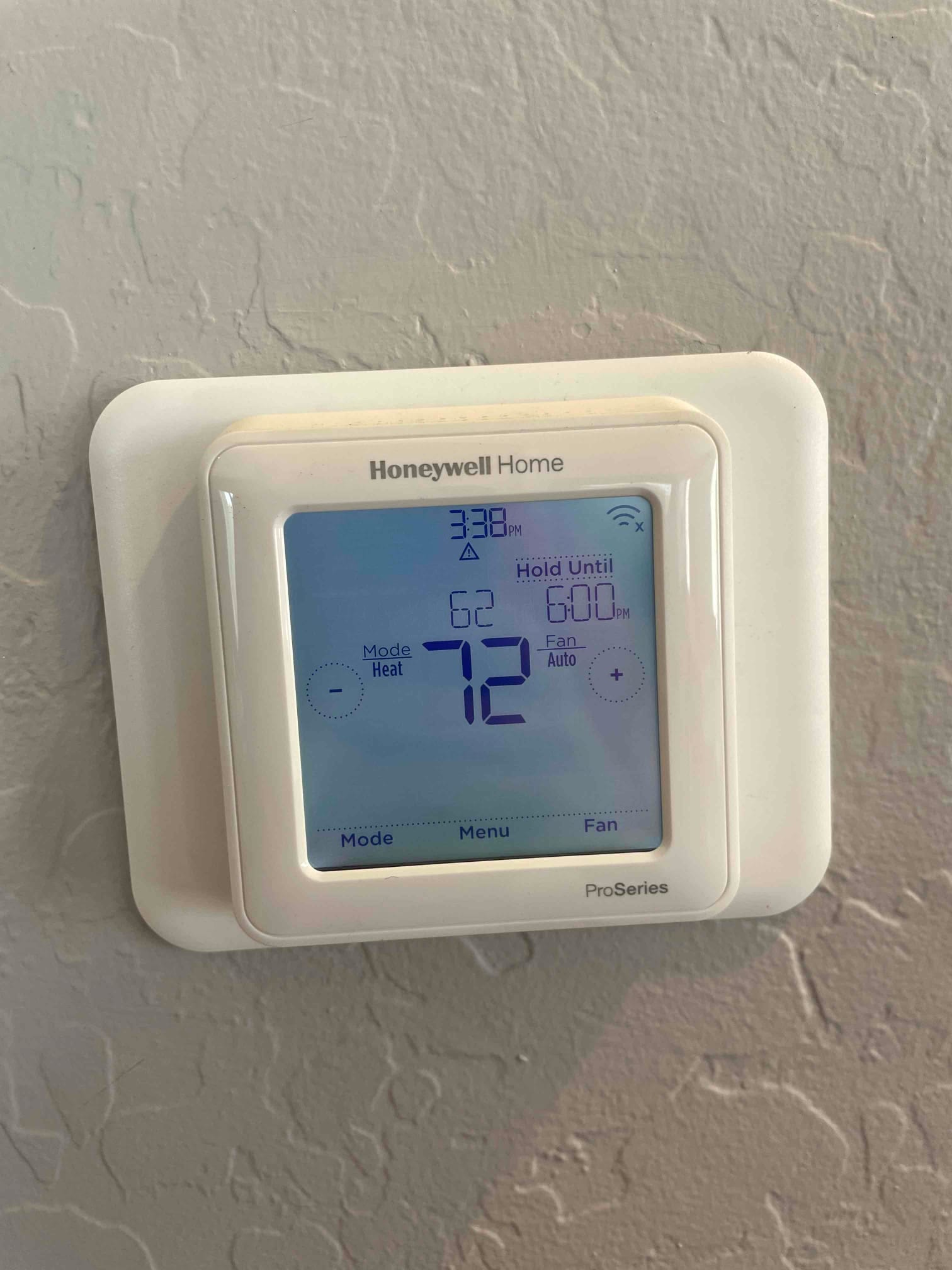

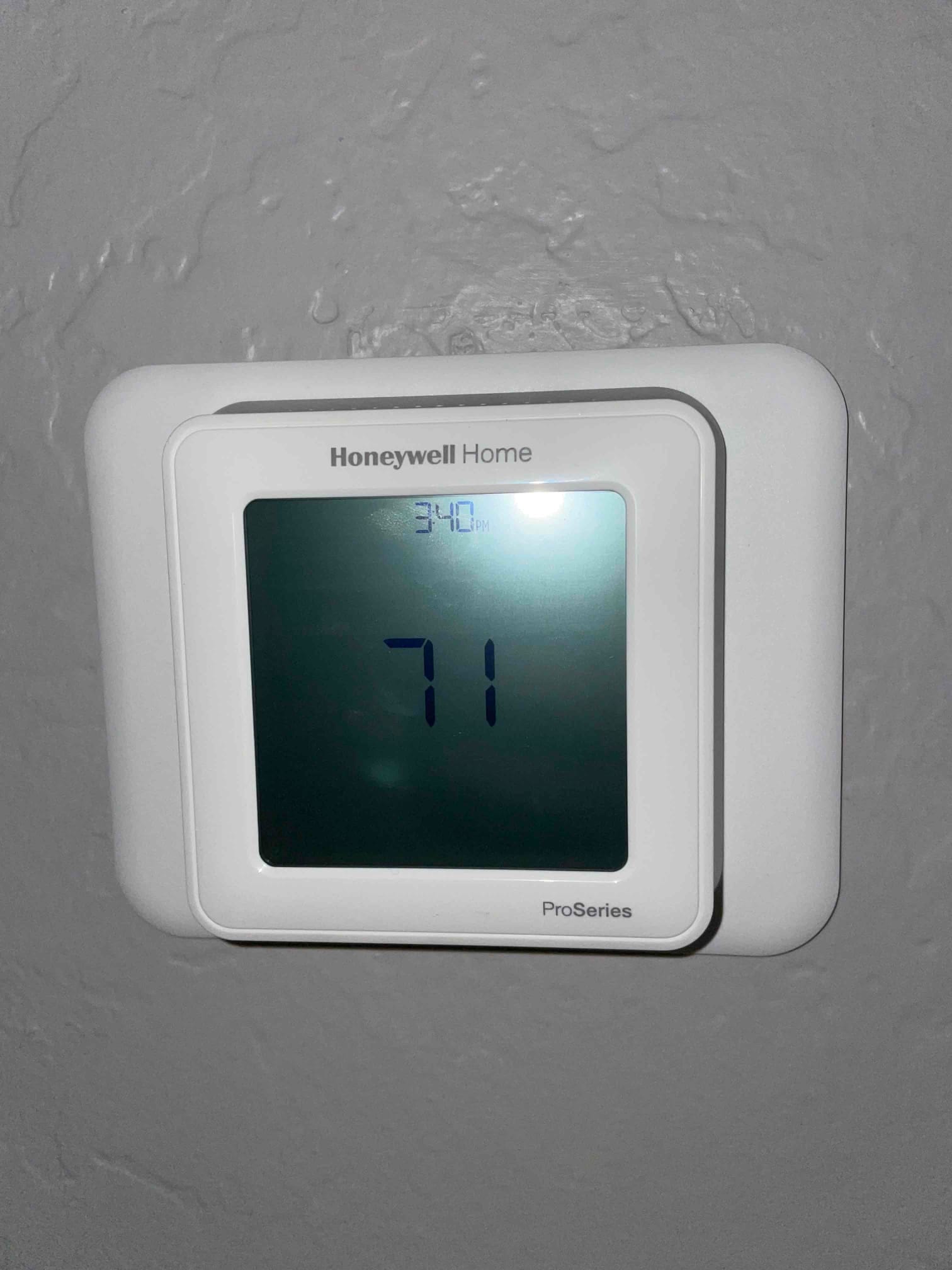

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.
Nitrogen Pressure Test

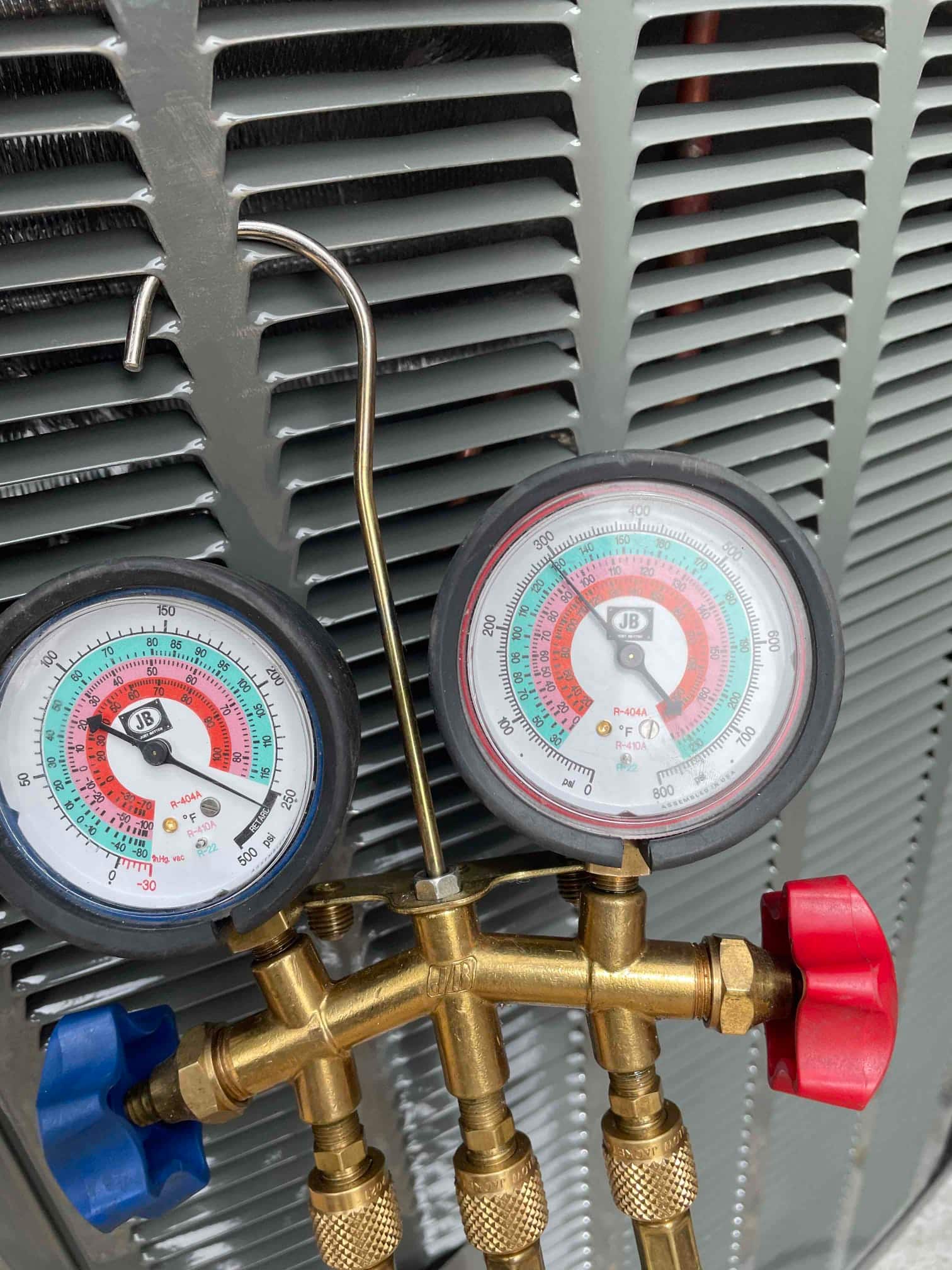

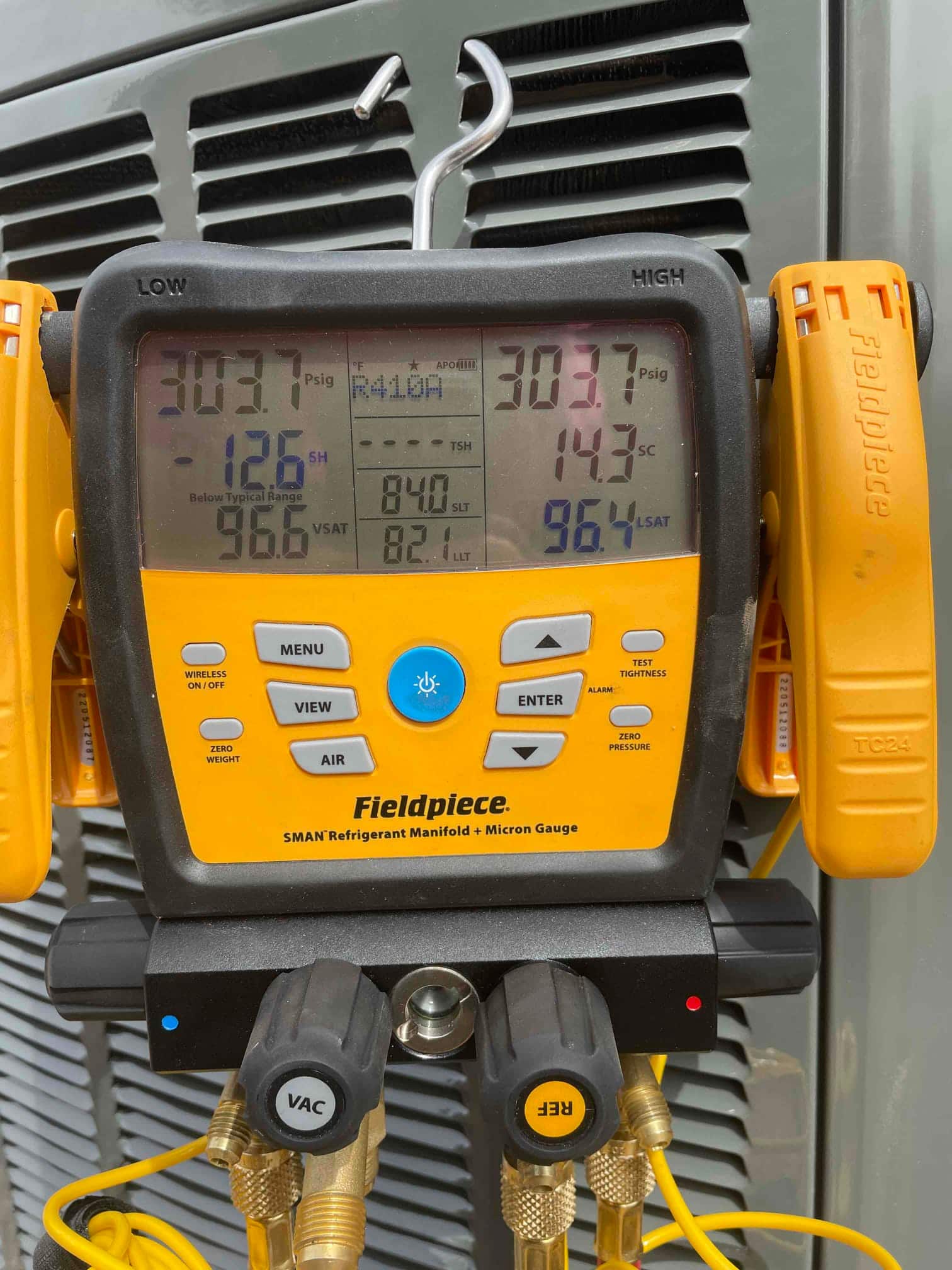

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.
Vacuum / Evacuation

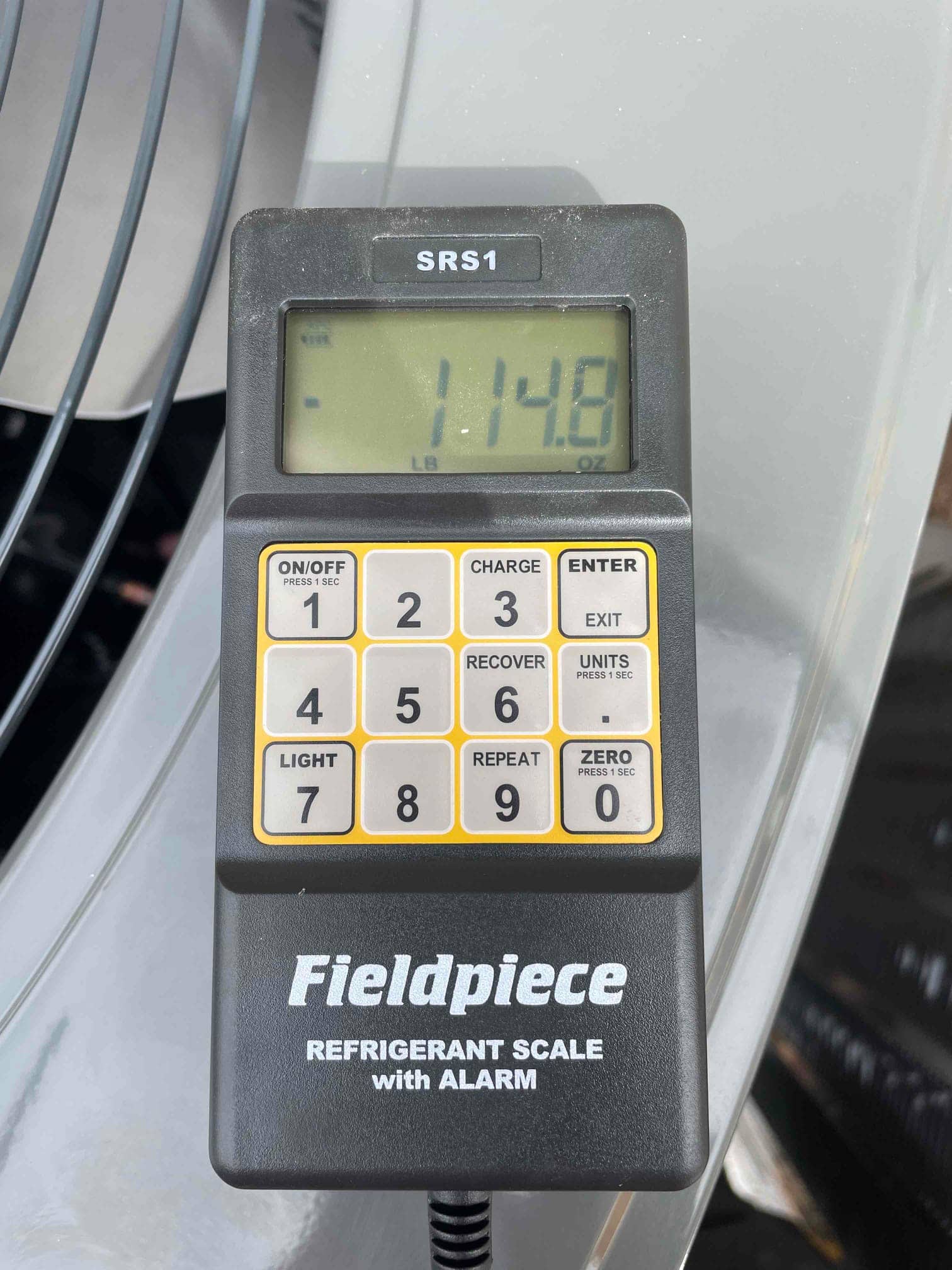

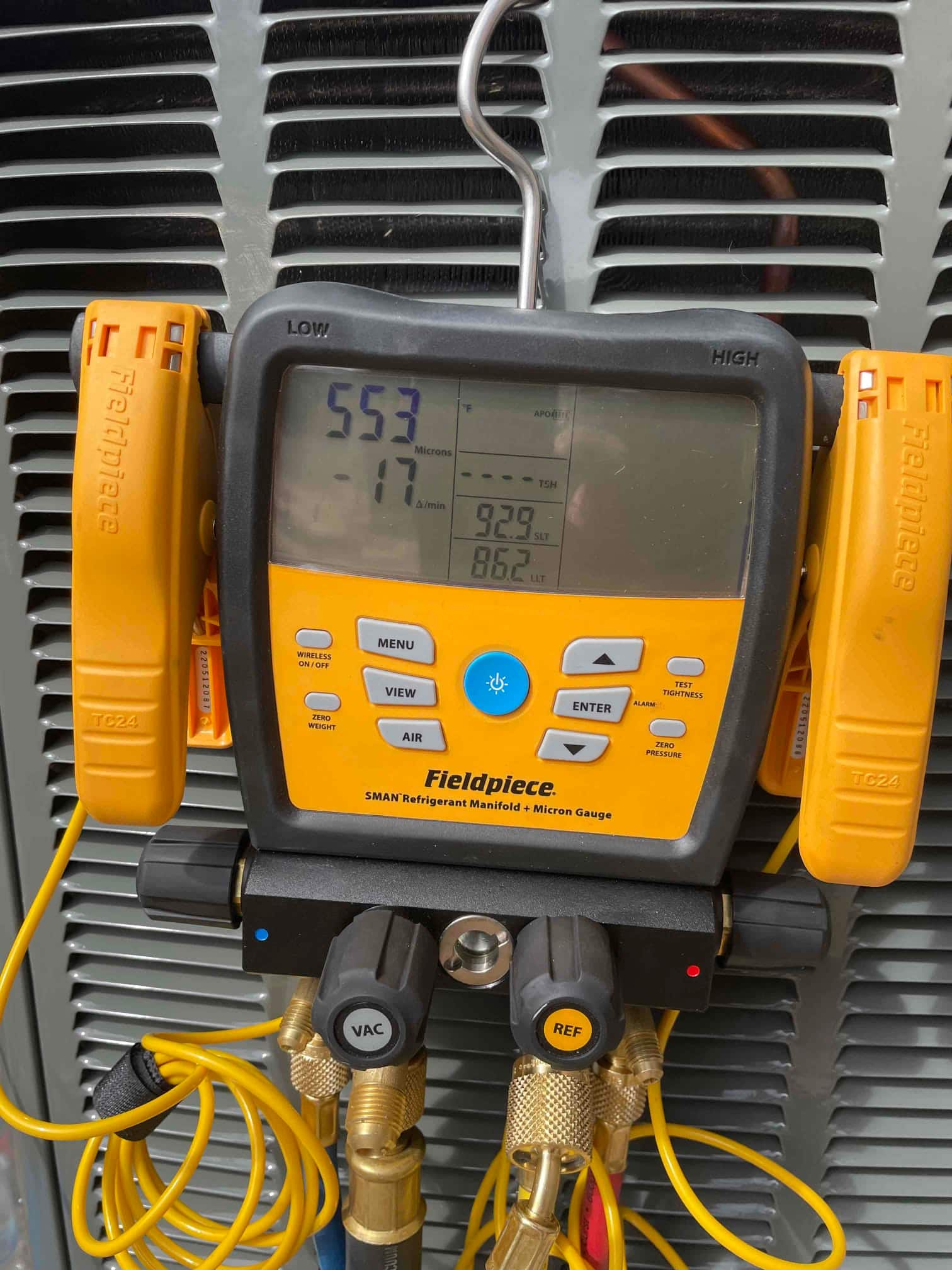

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

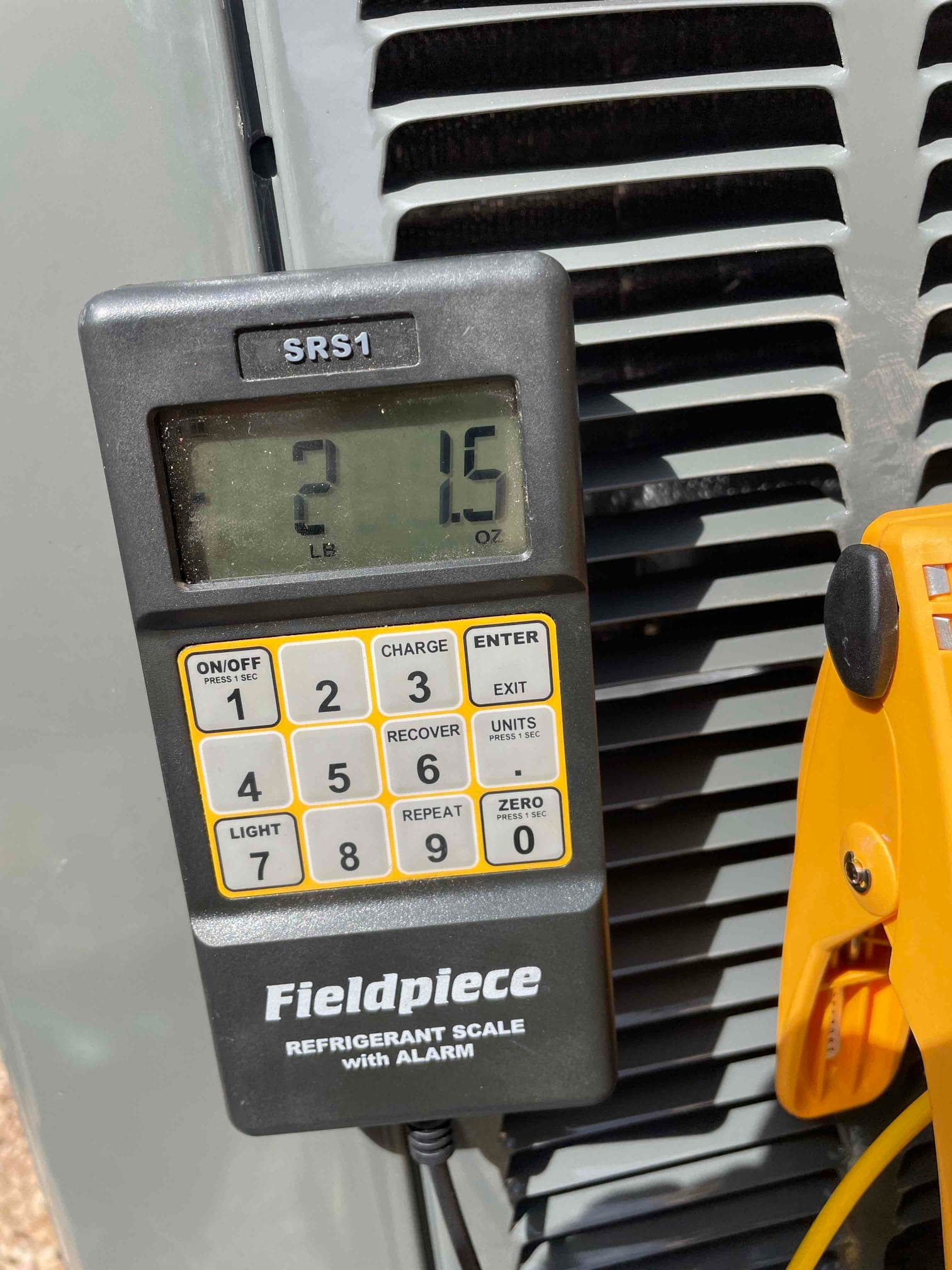

Refrigerant Commissioning

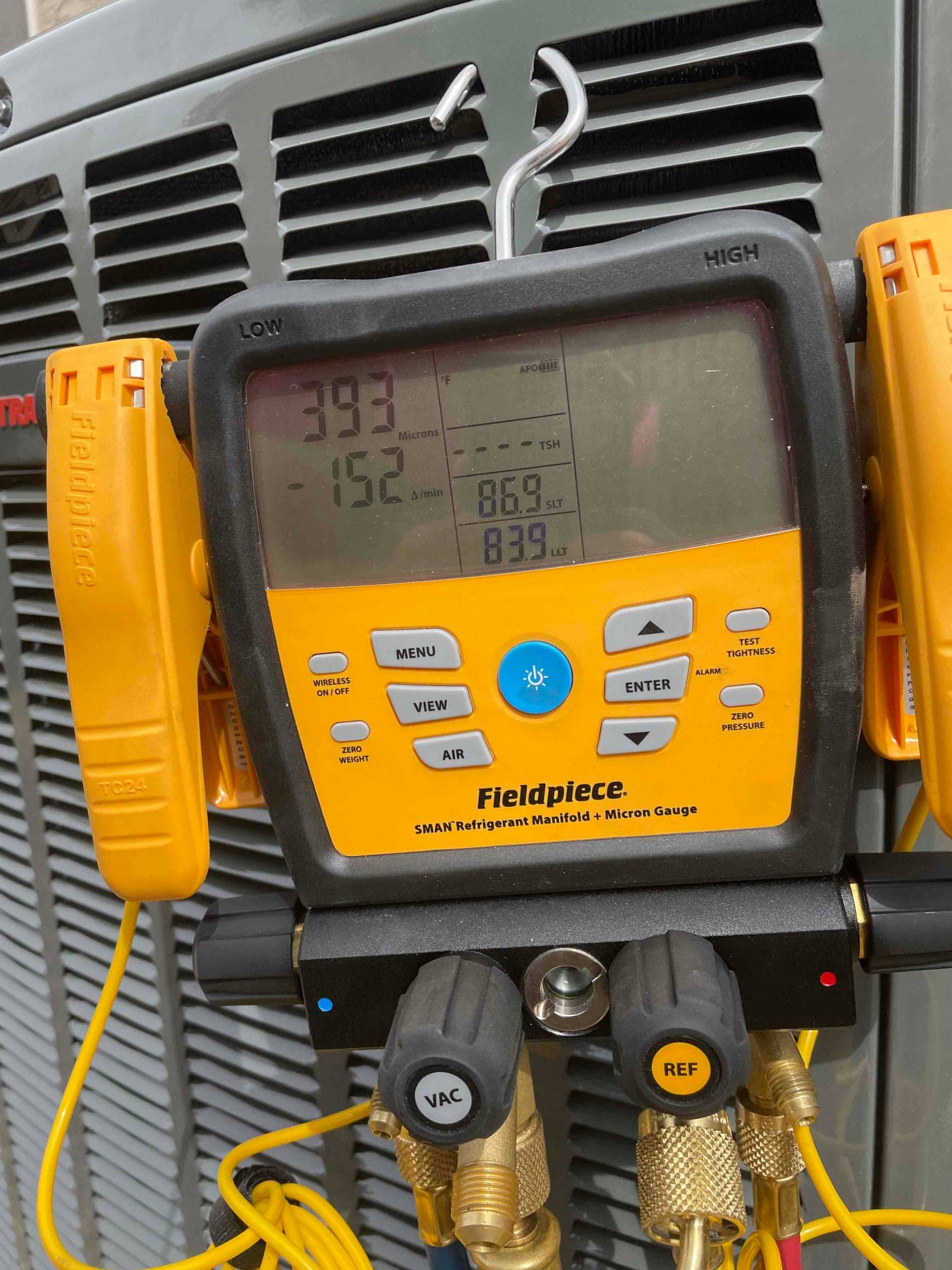

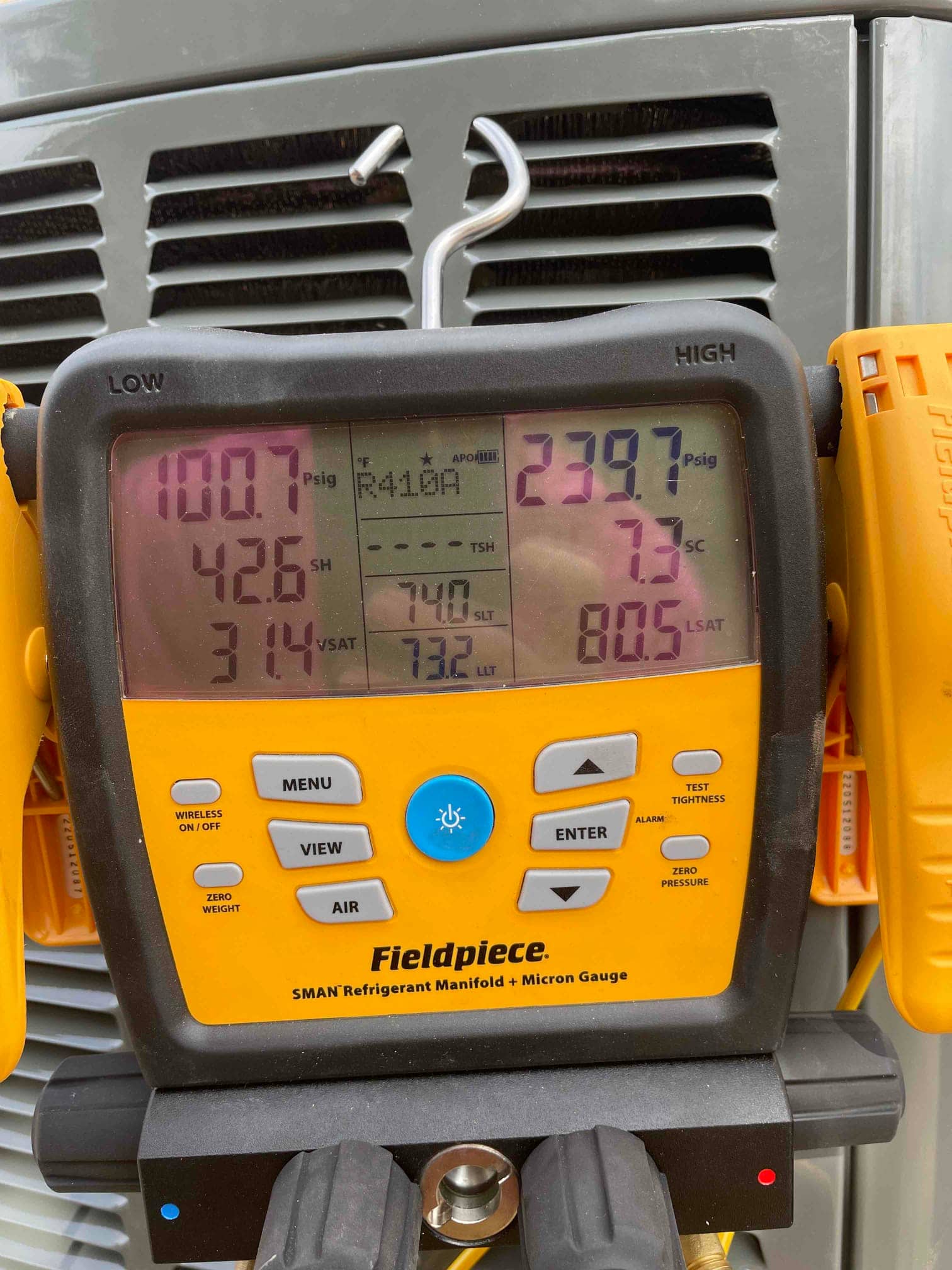

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.
