4-Ton Air Conditioning System Installation in Peoria — June 2023

CompletedJune 27, 2023
Install CrewDan, Andrew & Angel
Service AreaPeoria
System4-Ton Air Conditioning System
BrandTrane
WarrantyMfg + Workmanship
Instant Price Estimate Call (602) 613-3489
4.9806 Google Reviews
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
AZ Perfect Comfort — Our Work
Scope of Work
Installation of a split horizontal system.
Peoria · installed June 27, 2023
— At a Glance
Location
Peoria
Completed
June 27, 2023
System Type
Air Conditioning System
Capacity
4-Ton
Brand
Trane
Total Investment
$11,068
— What We Installed

Every component in this system

Each piece of equipment set at this home, its condition, and its place in the system.

Newly Installed

4TTR4048N1000*

Brand
Trane
Model
4TTR4048N1000*
New — installed 2026
Newly Installed

4TXCC009DS3HC*

Brand
Trane
Model
4TXCC009DS3HC*
New — installed 2026
Newly Installed

Furnace

Brand
Trane
Model
S8B1C080M5PS**
Matched
4-Ton airflow
New — installed 2026
— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the Heating work AZ Perfect Comfort performs across Peoria, AZ. You can browse more real 4-Ton Air Conditioning System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Dan, Andrew & Angel from the manifold gauges, micron gauge, and digital thermometers.

Refrigerant Circuit

Suction pressure
114 PSIG
Liquid pressure
416 PSIG
Superheat
10°F
Subcooling
49°F

Air-Side Performance

Return-air temperature
77°F
Supply-air temperature
55°F
Temperature split
22°F

Vacuum / Evacuation

Final vacuum reading
471 microns

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

ItemDescriptionQty
414H-4TTR4048N1-S8B1C080M5PS* 4 Ton - 14 Series - Standard Efficiency - Single Stage Residential HVAC System. Installed in a Horizonal configuration. Installation of the equipment includes all of the following:• Manual J heat 1

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

20 photos from this installation

Every step of this installation was documented on-site by Dan, Andrew & Angel.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

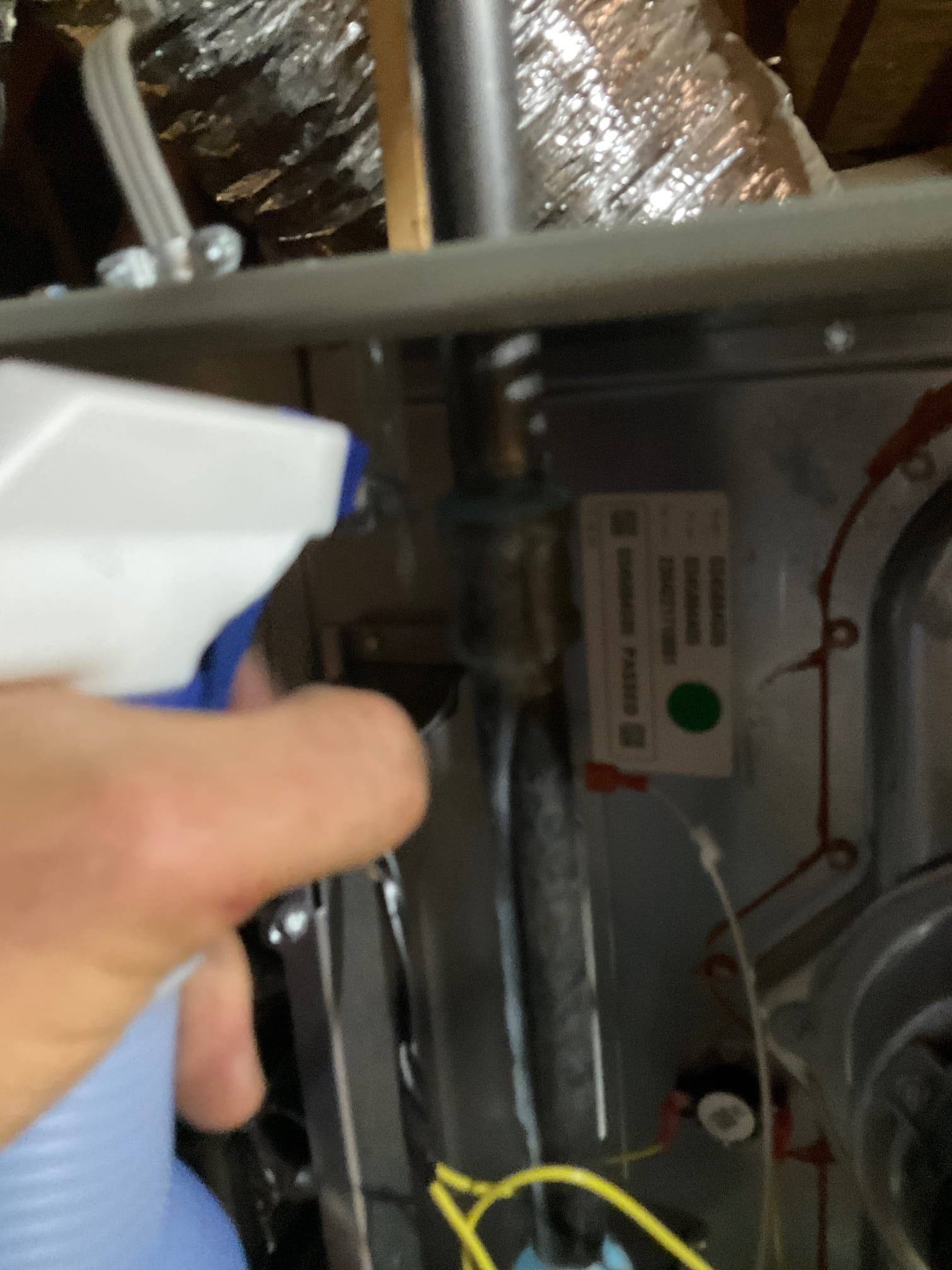

Technician sprays solution on an interior gas line connection inside the furnace cabinet to check for leaks during installation.
Technician sprays solution on an interior gas line connection inside the furnace cabinet to check for leaks during installation.
Gas piping connections on the furnace top are checked with leak-detection solution, showing bubbles at threaded joints and shutoff valve.
Gas piping connections on the furnace top are checked with leak-detection solution, showing bubbles at threaded joints and shutoff valve.

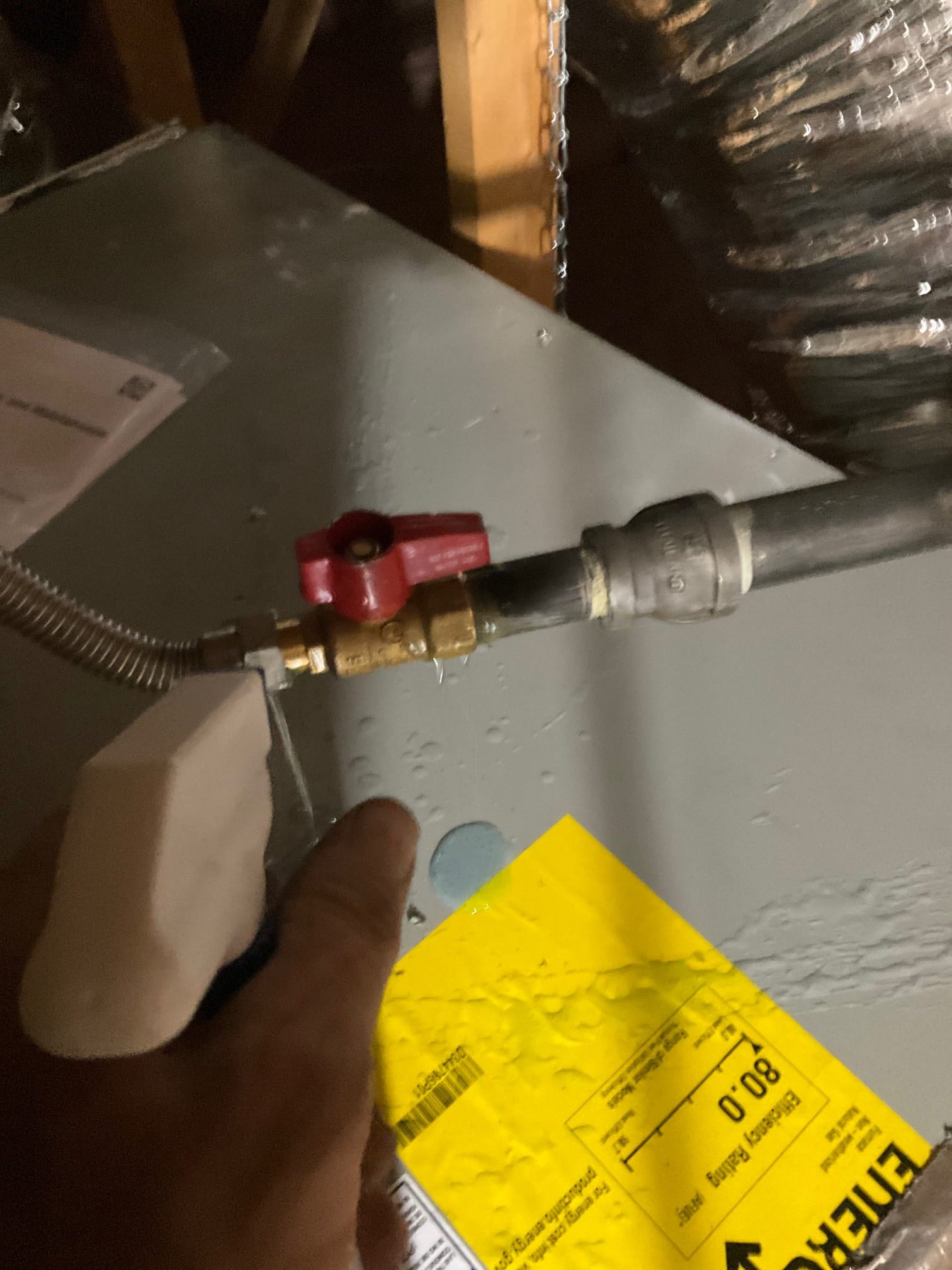

Leak detection solution is applied to a gas shutoff valve connection on a newly installed HVAC air handler.
Leak detection solution is applied to a gas shutoff valve connection on a newly installed HVAC air handler.

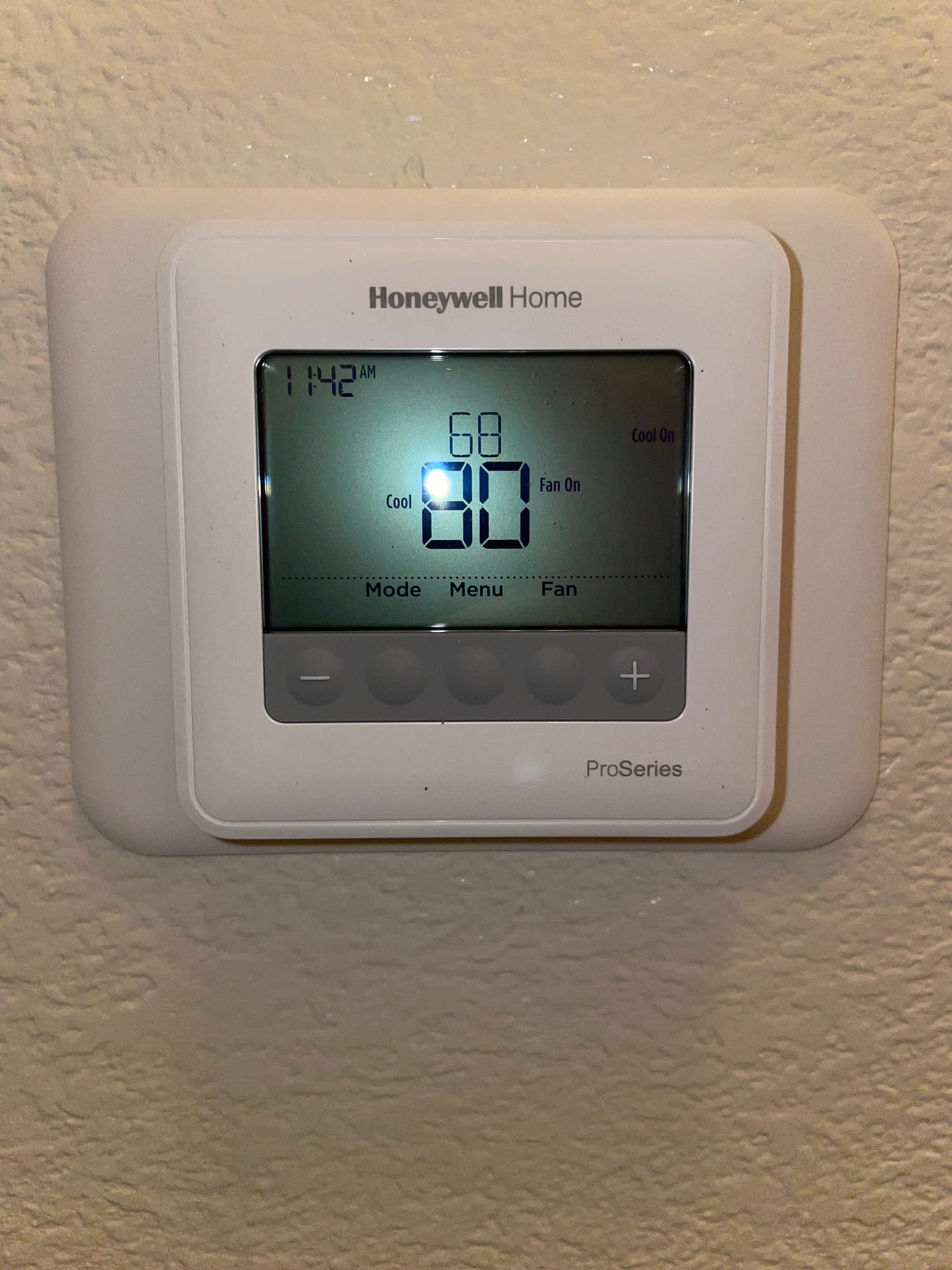

Digital thermostat mounted on interior wall displaying cooling mode with setpoint and fan status during system checkout.
Digital thermostat mounted on interior wall displaying cooling mode with setpoint and fan status during system checkout.

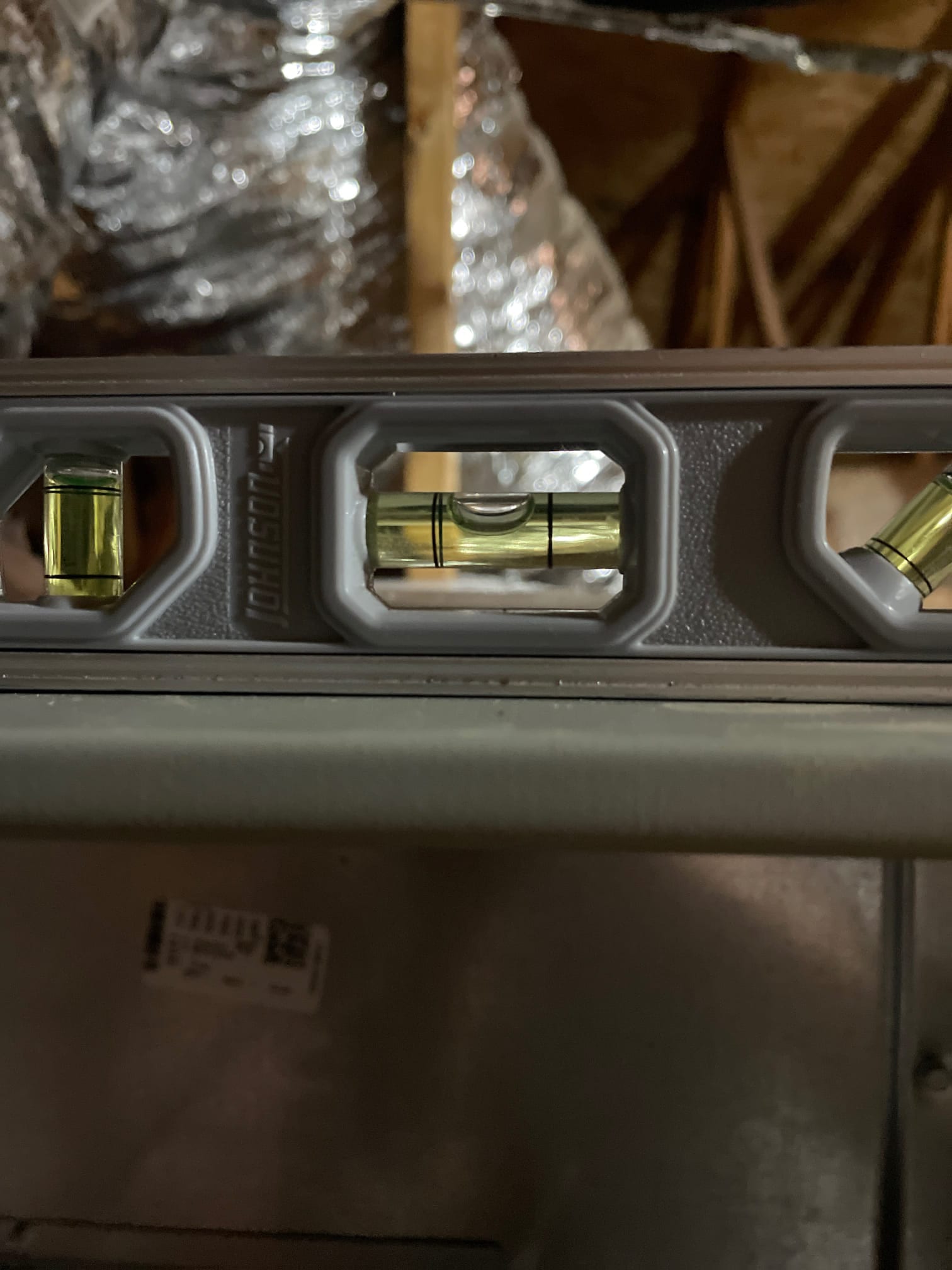

Bubble level placed on the air handler cabinet shows the unit set level during installation in the attic.
Bubble level placed on the air handler cabinet shows the unit set level during installation in the attic.

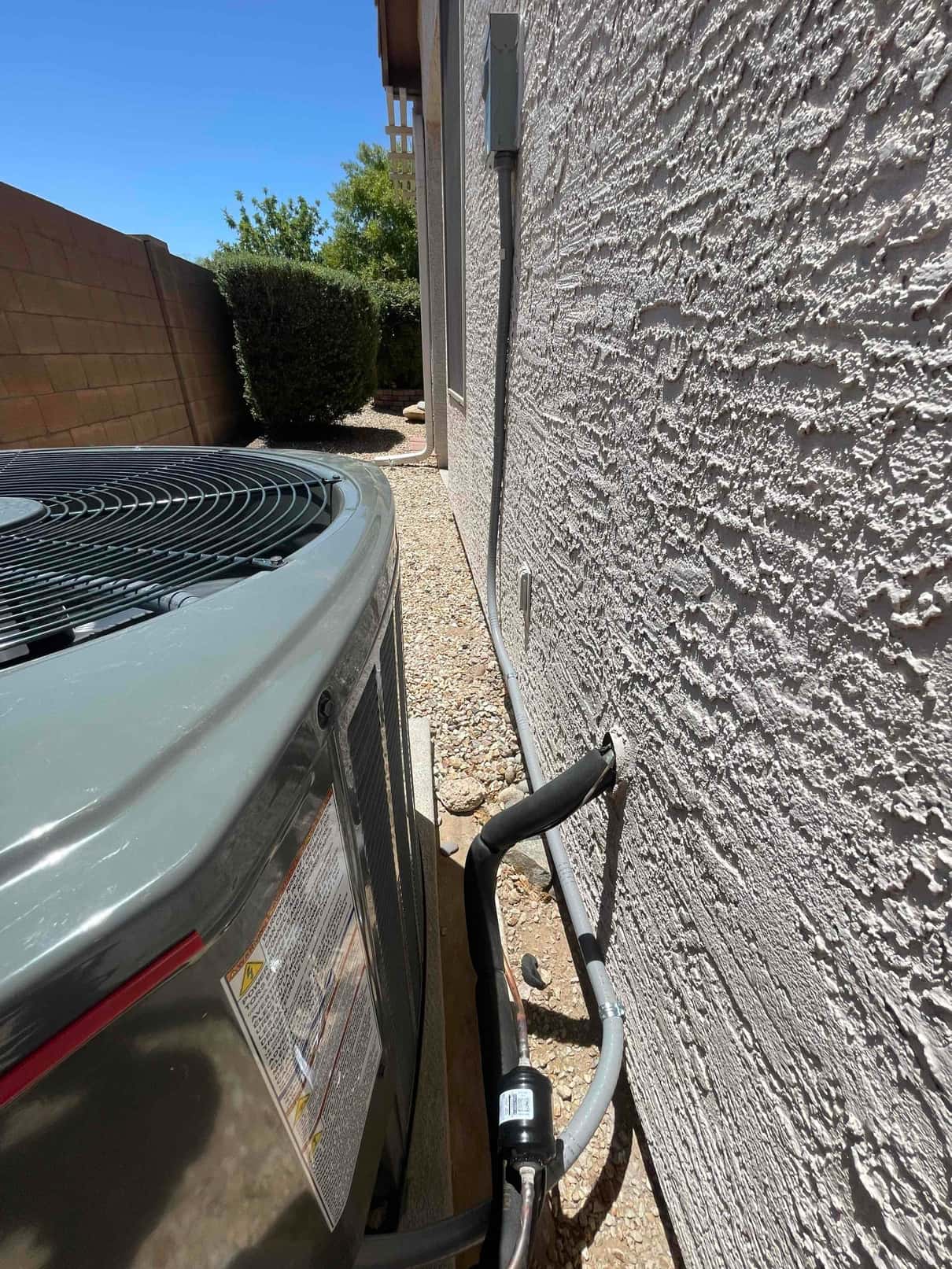

New outdoor condenser set on a level pad with insulated refrigerant line set and electrical whip routed to the wall disconnect.
New outdoor condenser set on a level pad with insulated refrigerant line set and electrical whip routed to the wall disconnect.

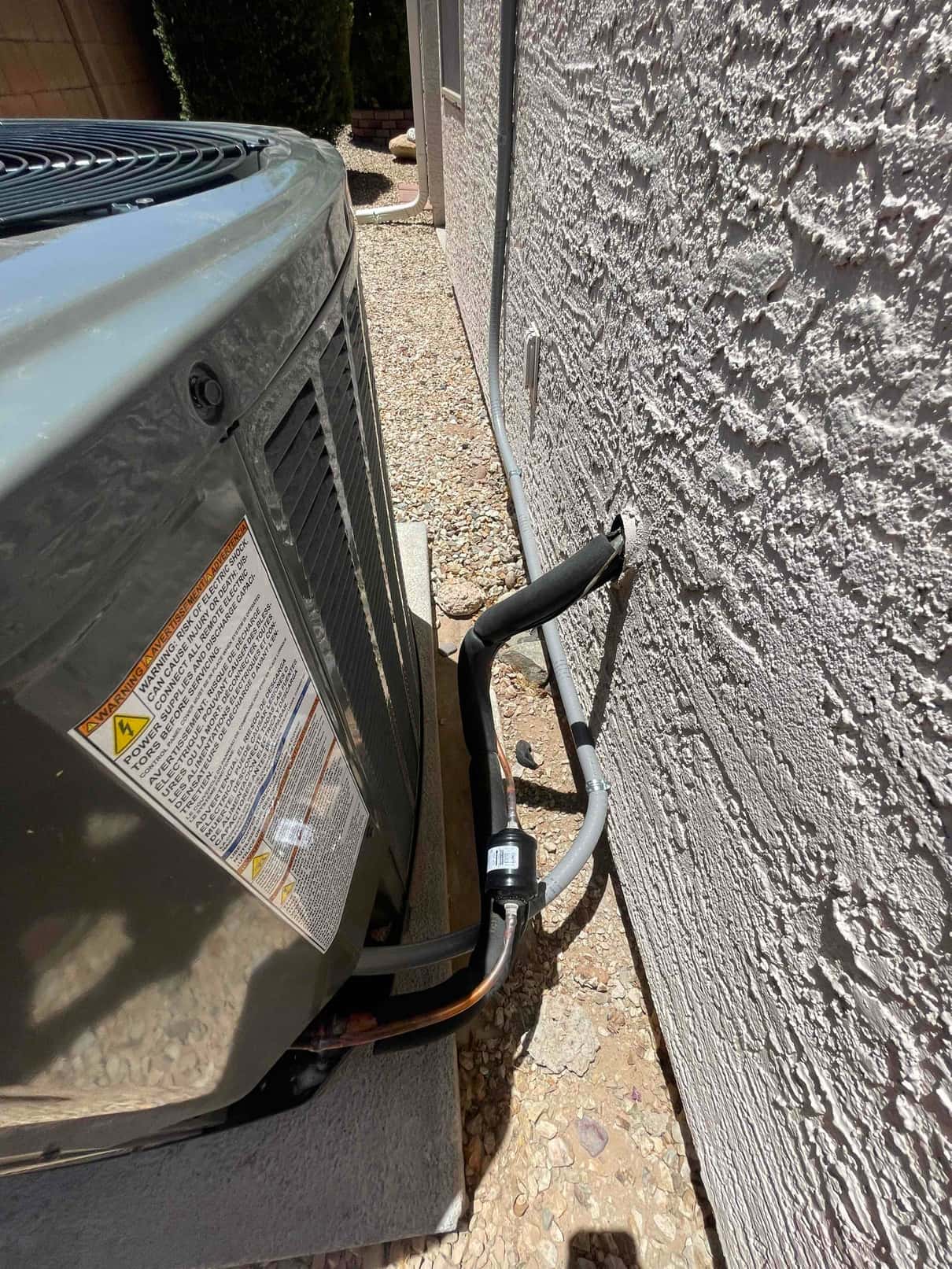

Outdoor condenser set on a level pad with insulated refrigerant lines and electrical conduit routed along the exterior wall.
Outdoor condenser set on a level pad with insulated refrigerant lines and electrical conduit routed along the exterior wall.

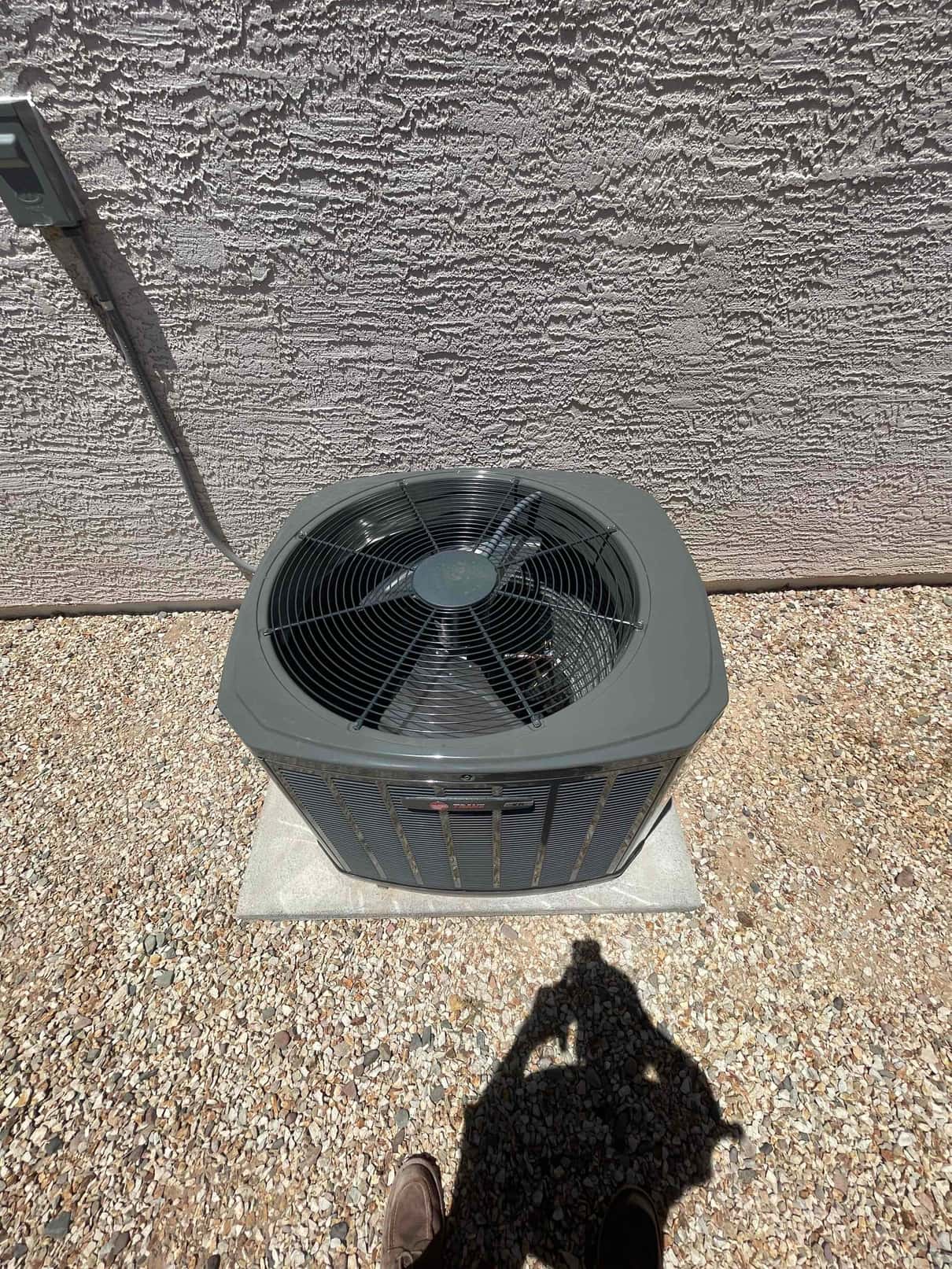

New outdoor condenser set on a level pad with nearby electrical disconnect, placed on a gravel area beside the house.
New outdoor condenser set on a level pad with nearby electrical disconnect, placed on a gravel area beside the house.

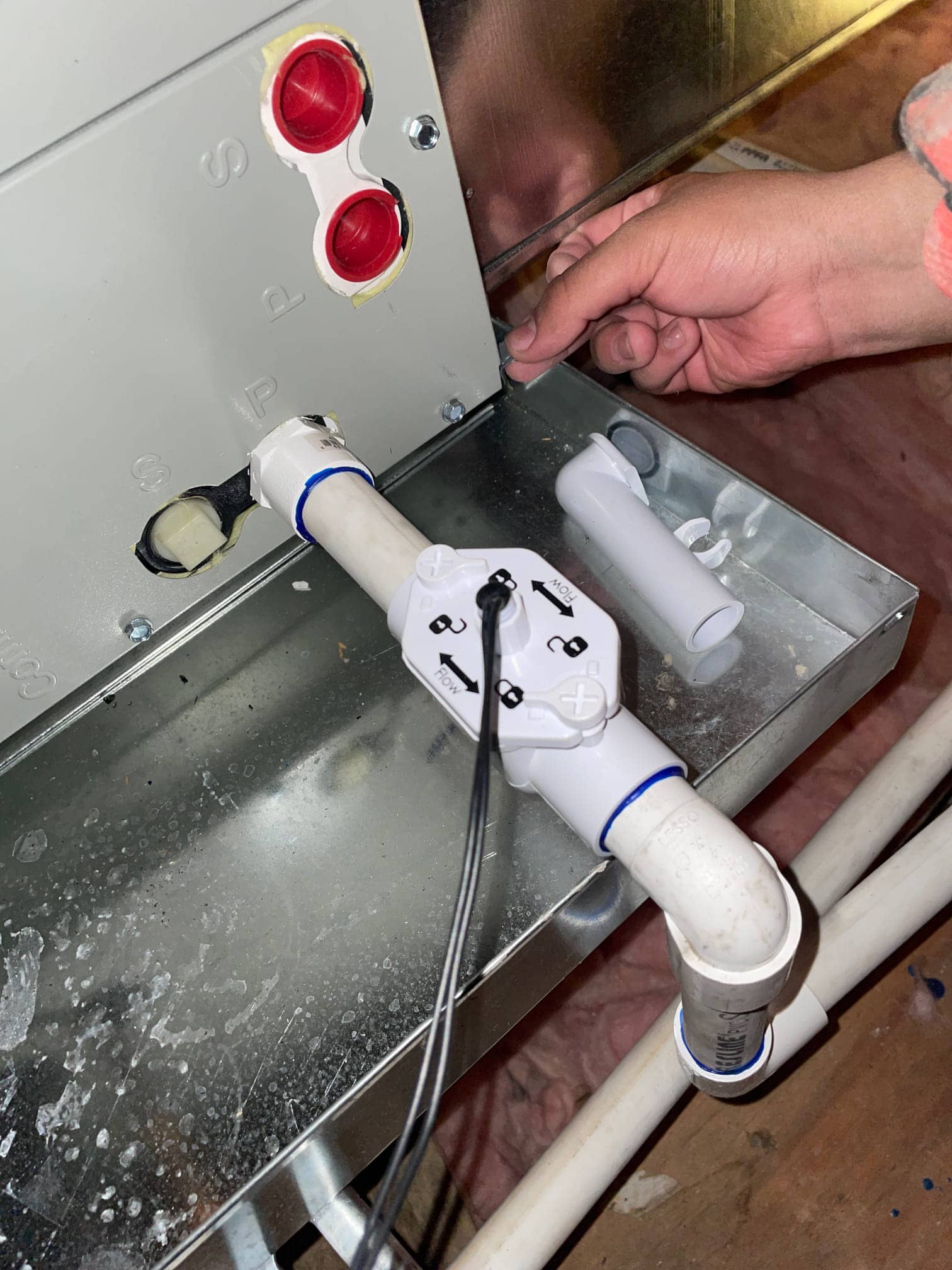

Condensate drain assembly with float safety switch installed at the air handler, PVC piping connected and sealed at the drain port.
Condensate drain assembly with float safety switch installed at the air handler, PVC piping connected and sealed at the drain port.

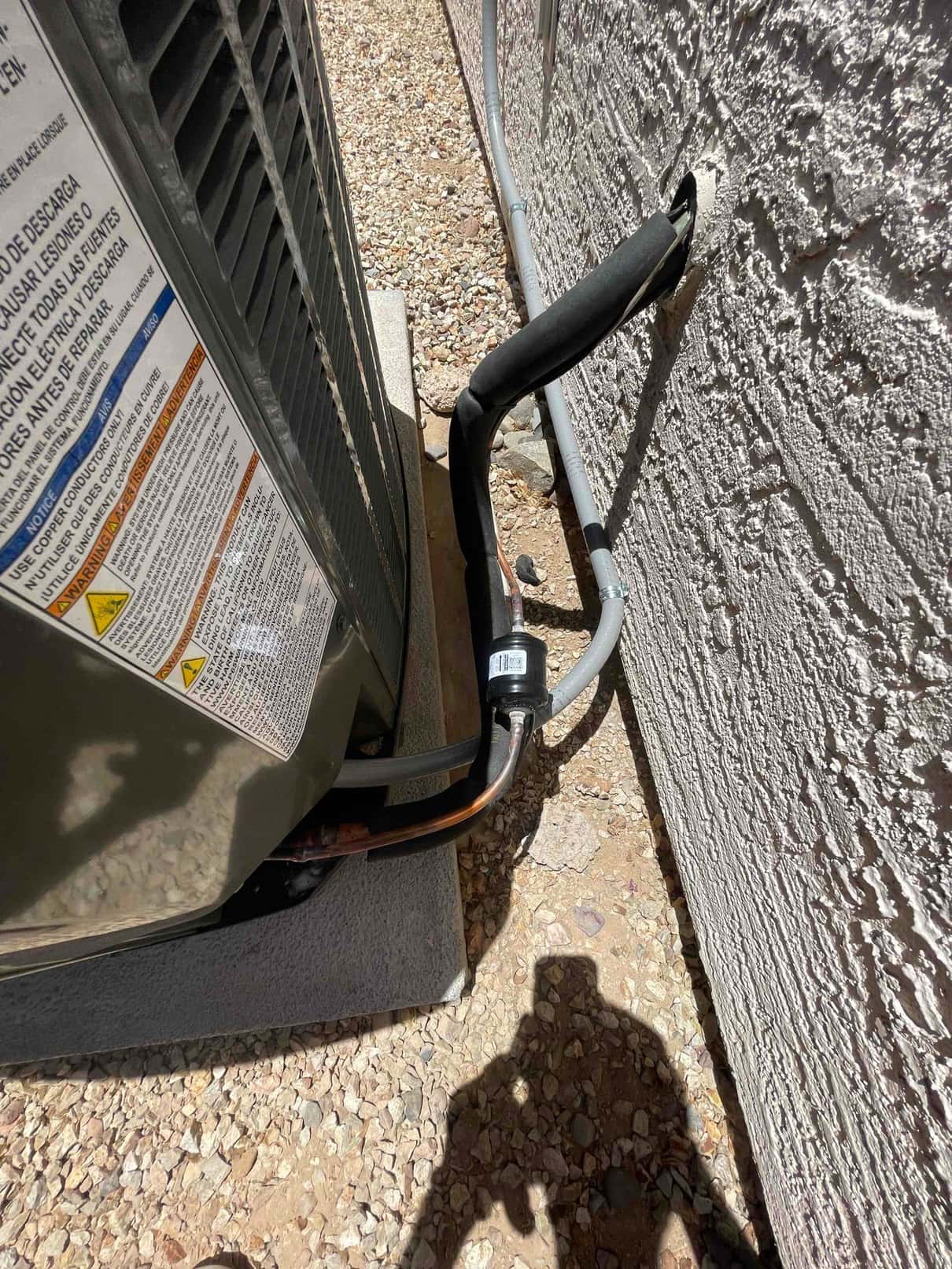

Outdoor condenser set on a level pad with insulated refrigerant line set and electrical conduit entering the wall penetration.
Outdoor condenser set on a level pad with insulated refrigerant line set and electrical conduit entering the wall penetration.

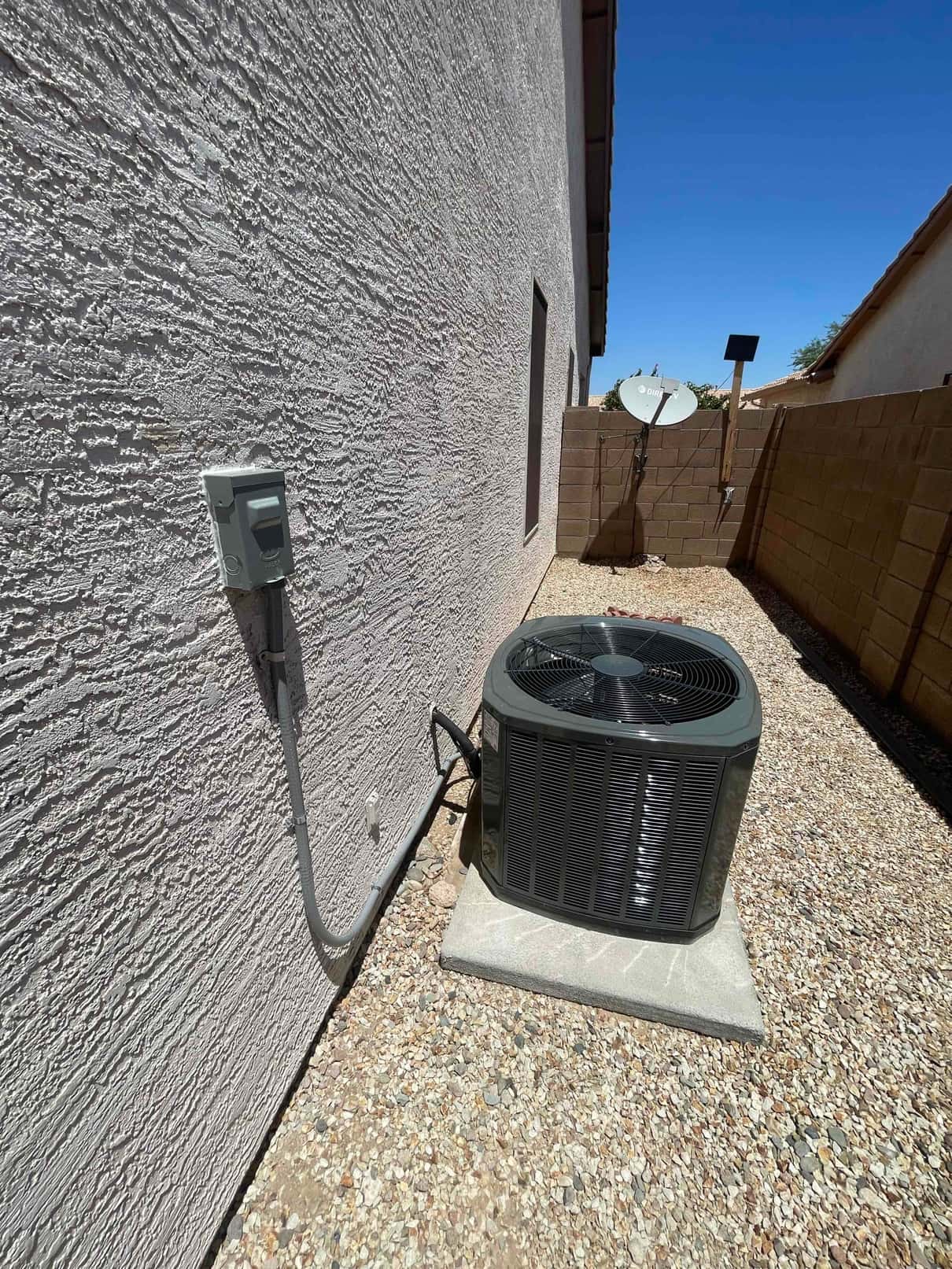

New outdoor condenser set on a level pad with insulated line set and mounted electrical disconnect along the exterior wall.
New outdoor condenser set on a level pad with insulated line set and mounted electrical disconnect along the exterior wall.

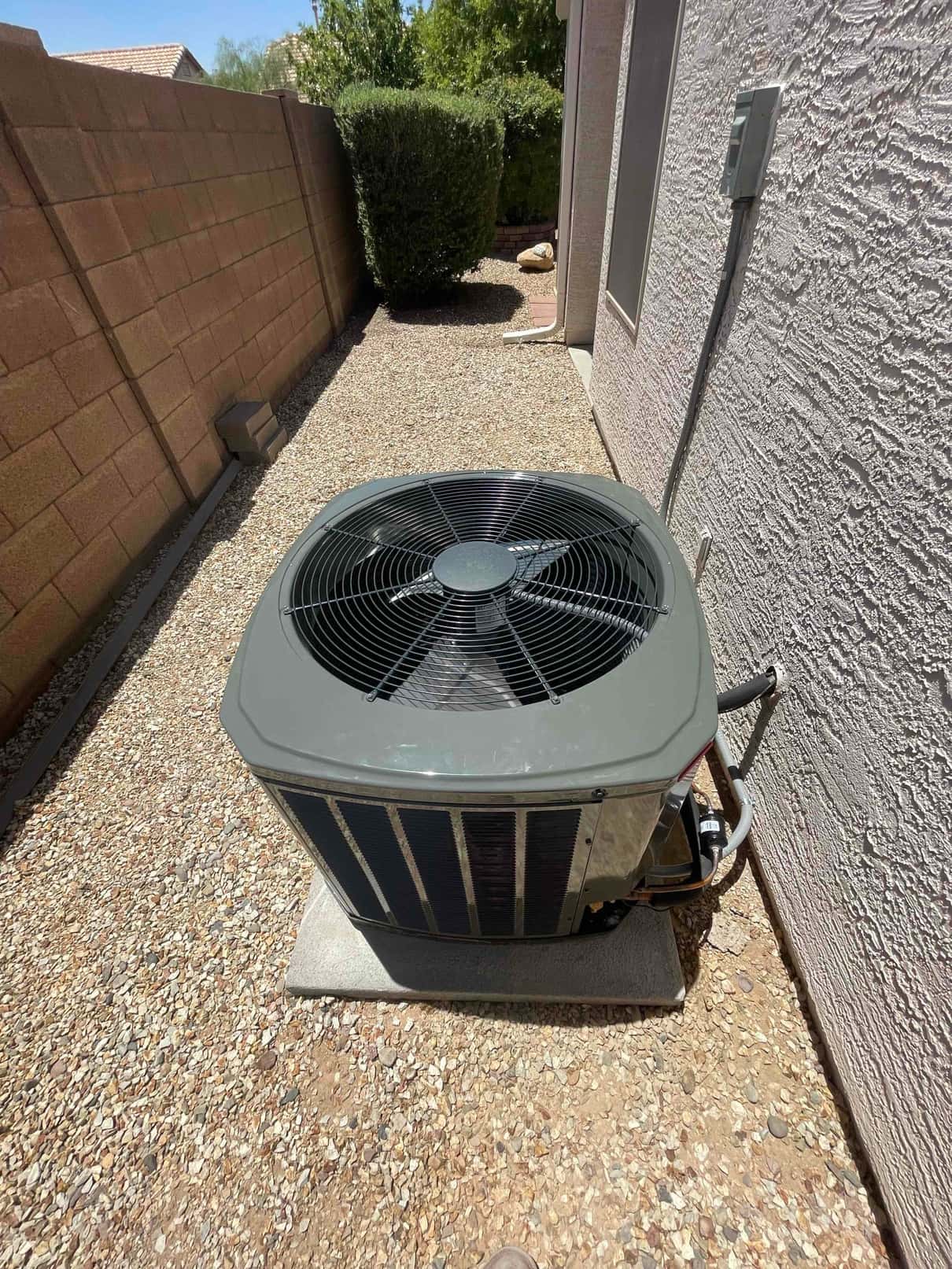

New outdoor condenser set on a level pad with insulated refrigerant lines and exterior disconnect mounted on the wall.
New outdoor condenser set on a level pad with insulated refrigerant lines and exterior disconnect mounted on the wall.

Vacuum / Evacuation

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

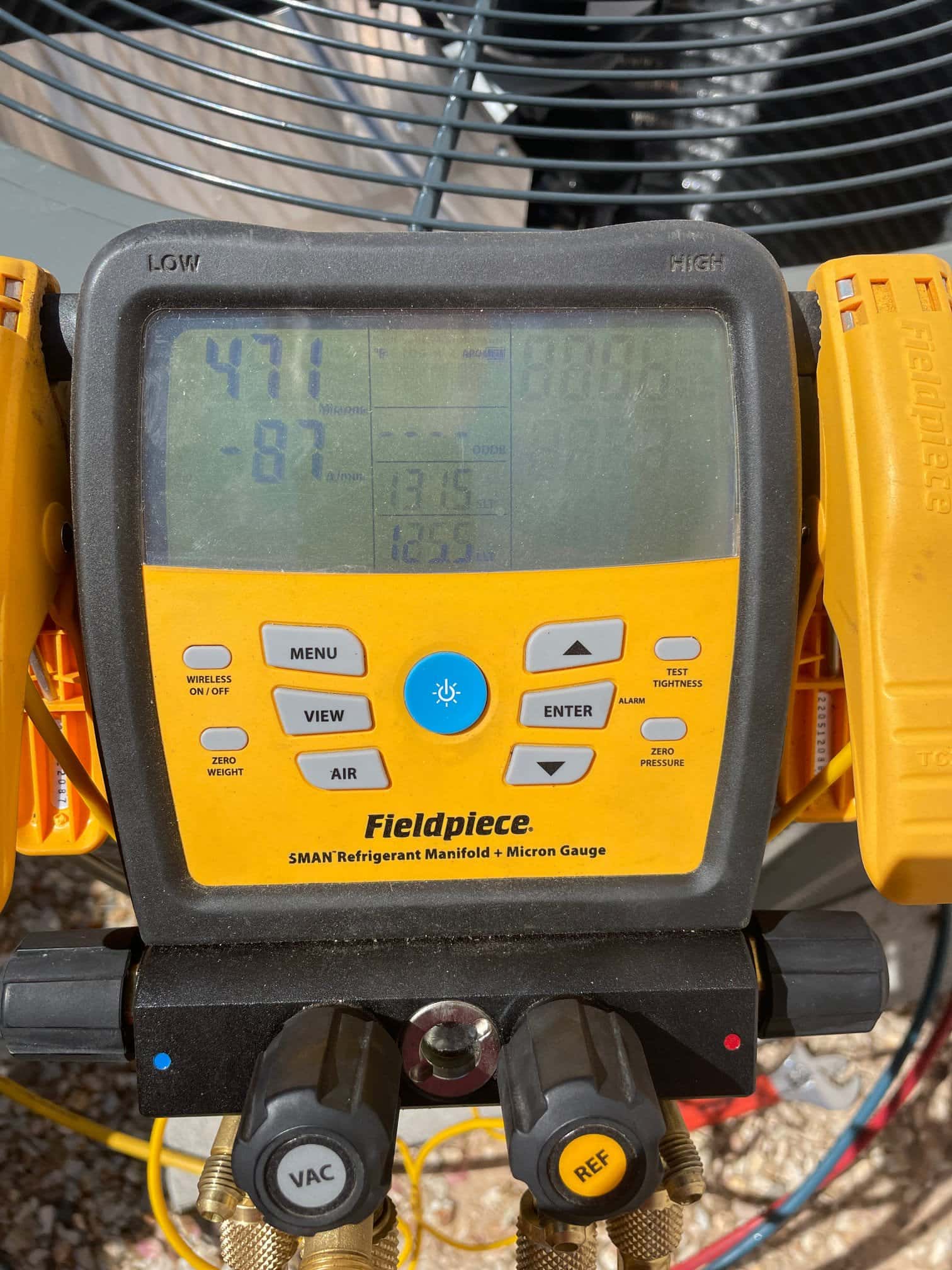

Digital micron gauge on the manifold shows 471 microns during evacuation of the new air conditioning system.
Digital micron gauge on the manifold shows 471 microns during evacuation of the new air conditioning system.

Refrigerant Commissioning

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

Digital manifold shows system operating with approximately 106 PSI on the low side and 410 PSI on the high side.
Digital manifold shows system operating with approximately 106 PSI on the low side and 410 PSI on the high side.

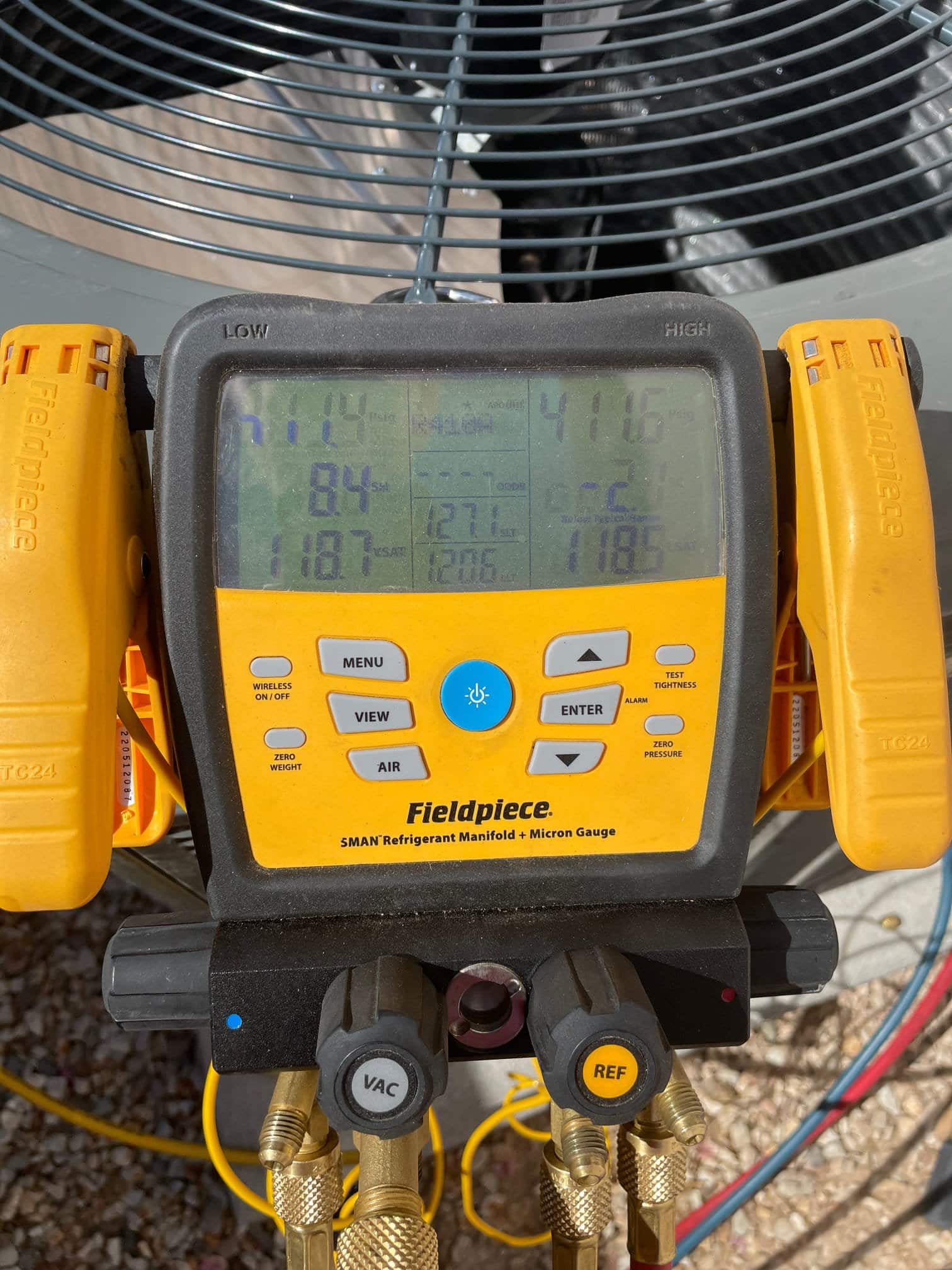

Digital manifold connected to the condenser shows operating pressures with the system running, documenting low and high side values during commissioning.
Digital manifold connected to the condenser shows operating pressures with the system running, documenting low and high side values during commissioning.

Air-Side Commissioning

Return and supply air temperatures measured to verify the temperature split falls in the target window.

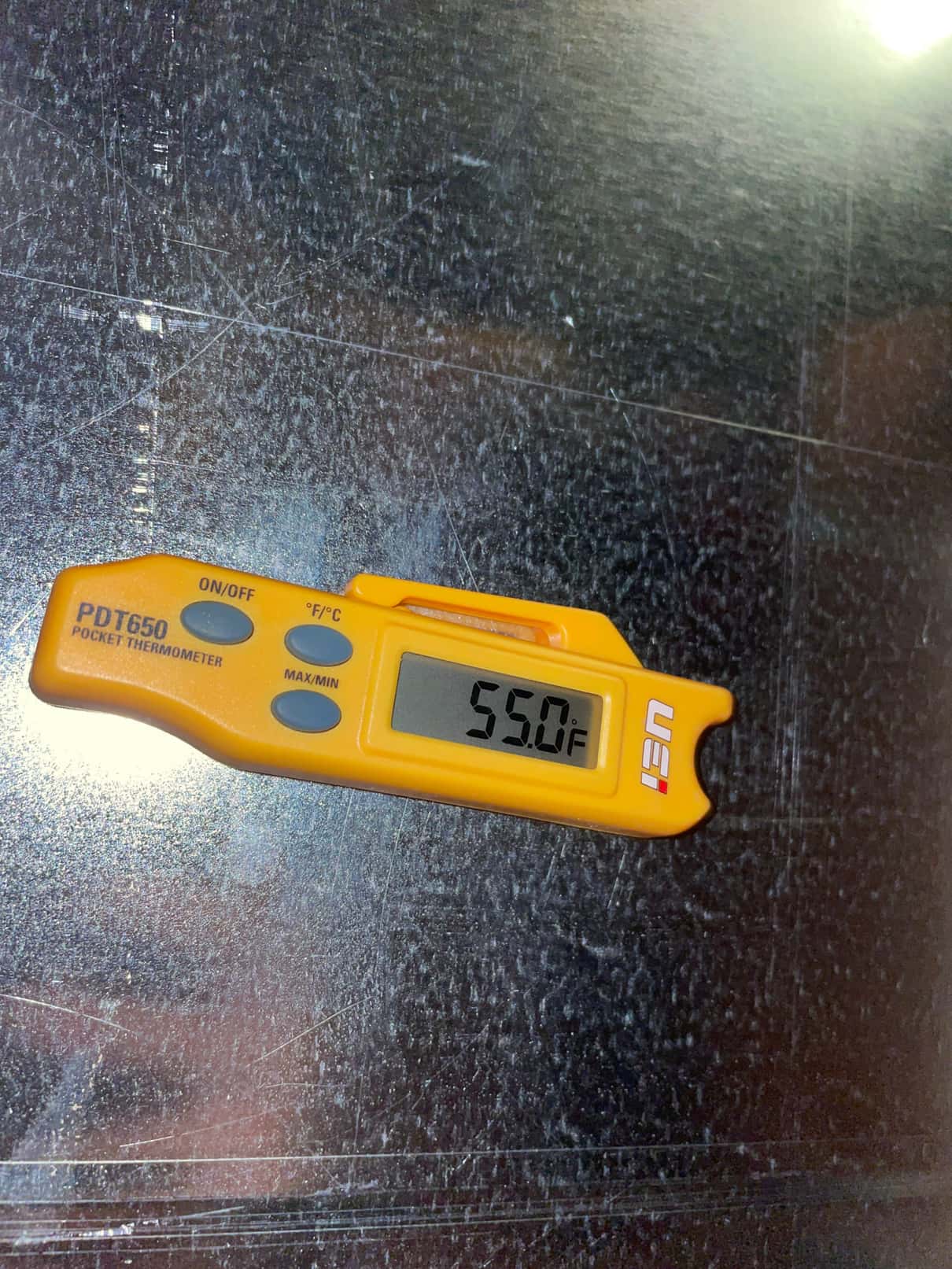

Digital pocket thermometer shows 55.0°F on the duct surface, documenting cool supply air during system commissioning.
Digital pocket thermometer shows 55.0°F on the duct surface, documenting cool supply air during system commissioning.

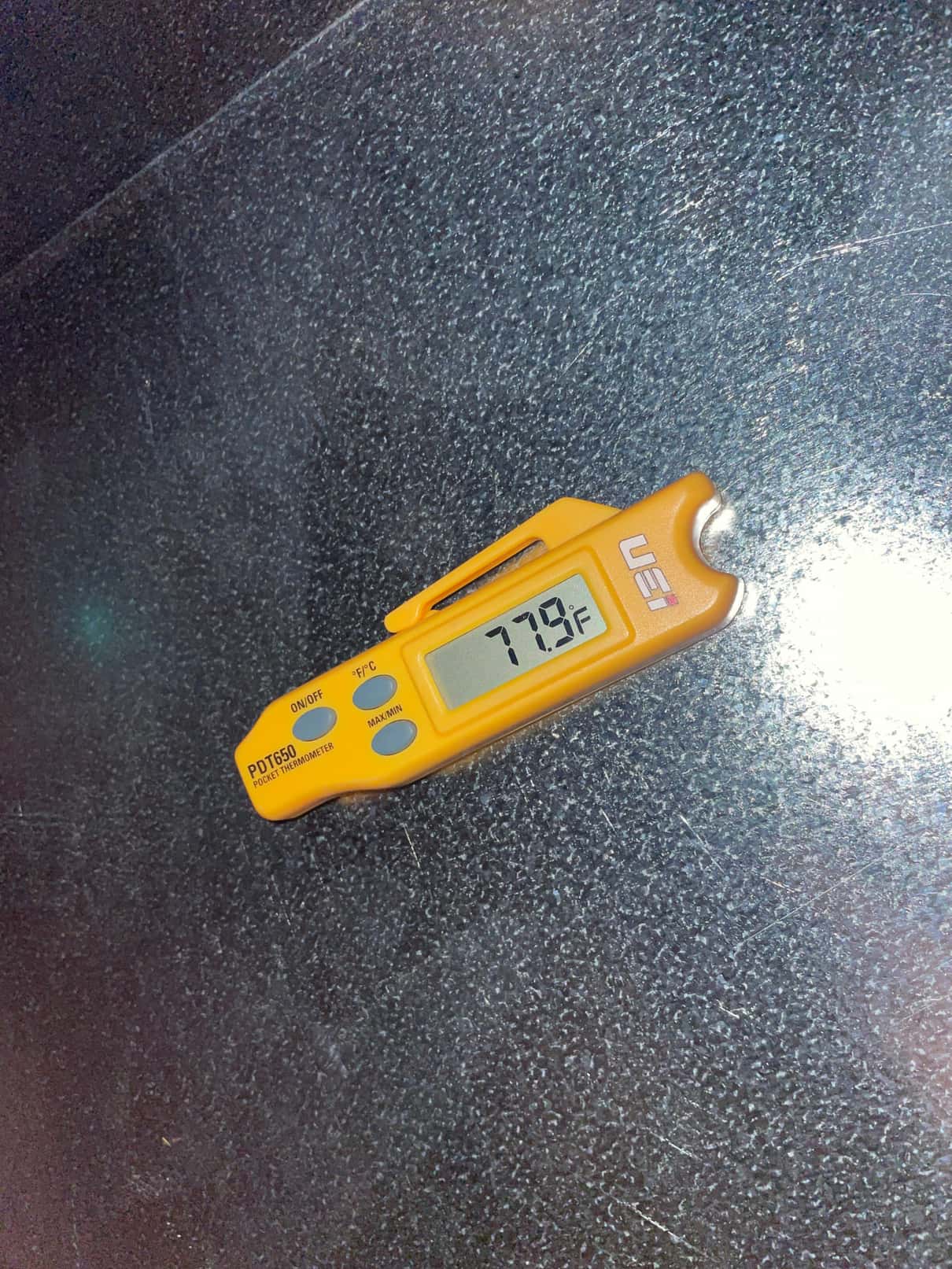

Digital pocket thermometer displays 77.9°F while measuring air temperature on a metal HVAC surface during commissioning.
Digital pocket thermometer displays 77.9°F while measuring air temperature on a metal HVAC surface during commissioning.

Electrical Verification

Voltage and amperage checked at the disconnect to confirm the equipment is drawing within nameplate spec.

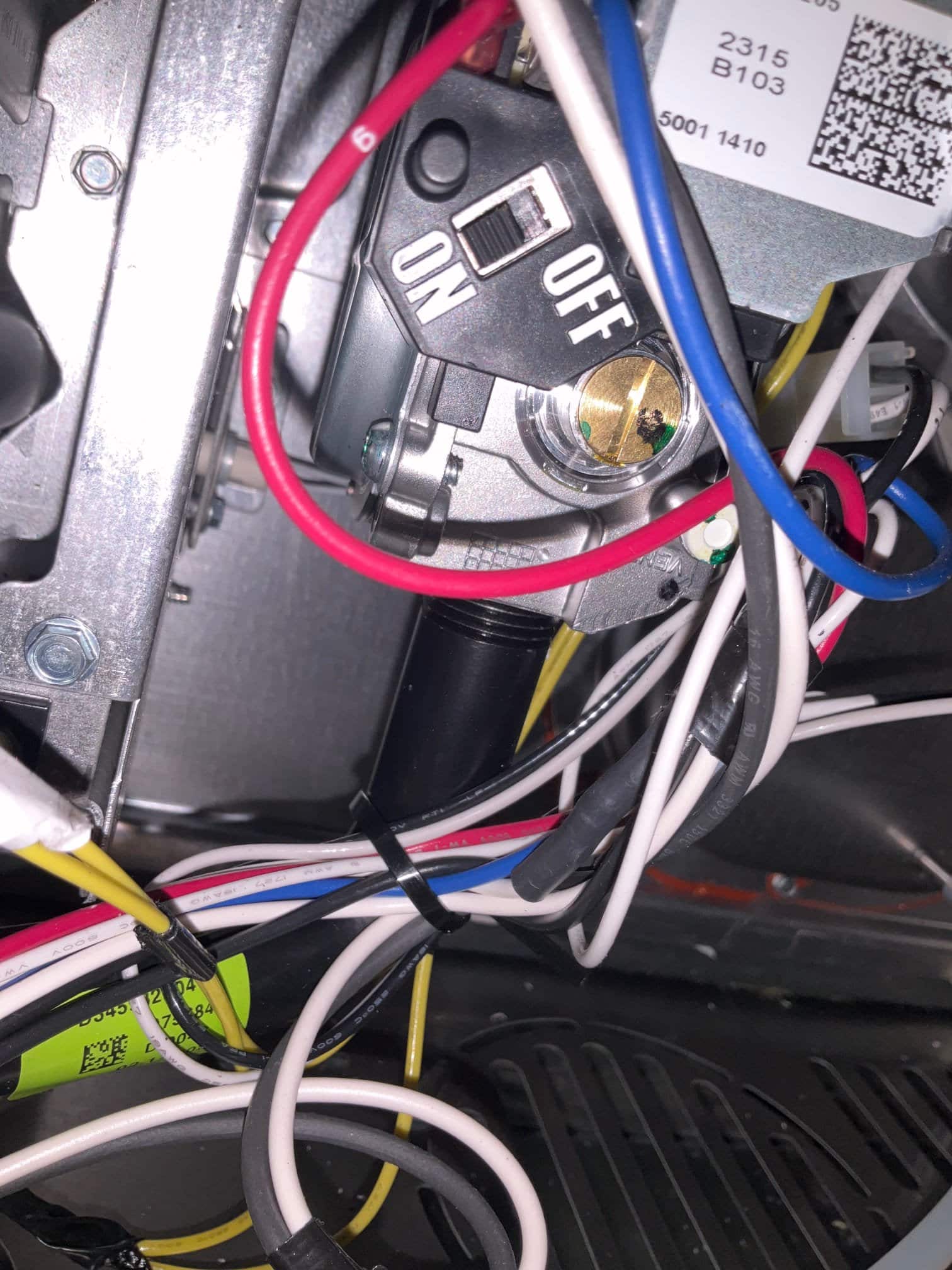

Internal furnace compartment showing control wiring harness and service switch with ON and OFF positions secured inside the cabinet.
Internal furnace compartment showing control wiring harness and service switch with ON and OFF positions secured inside the cabinet.
Technician applies leak-detection solution to a threaded gas connection inside a furnace cabinet near wiring and controls.
Technician applies leak-detection solution to a threaded gas connection inside a furnace cabinet near wiring and controls.

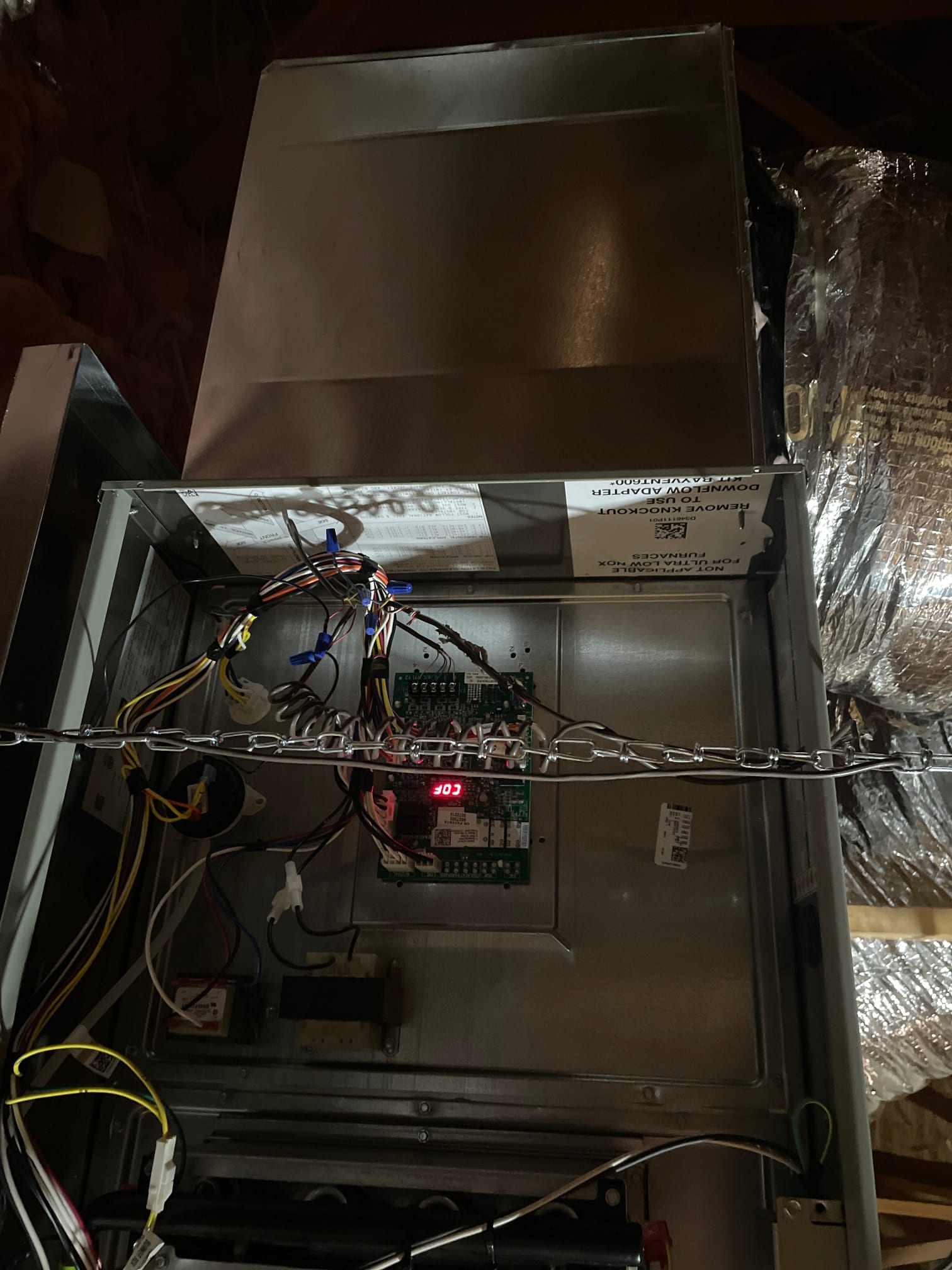

Furnace control compartment open showing control board with illuminated diagnostic display and connected wiring harnesses during installation.
Furnace control compartment open showing control board with illuminated diagnostic display and connected wiring harnesses during installation.
— Frequently Asked

Questions about this installation

What kind of system was installed in this Peoria job?

AZ Perfect Comfort installed a 4-Ton Air Conditioning System at this Peoria property. The install was completed by Dan, Andrew & Angel and includes AZ Perfect Comfort's workmanship warranty.

How much does a new air conditioning system cost in Phoenix?

Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.

Does AZ Perfect Comfort offer financing for HVAC installations?

Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.

Does AZ Perfect Comfort install in Peoria?

Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Peoria and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.

Is the new equipment covered by a warranty?

Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
