4-Ton AC and Furnace Split System Installation in Carefree — August 2024
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of two 4-ton and one 5-ton split gas systems.
Carefree · installed August 7, 2024
— At a Glance
Location
Carefree
Completed
August 7, 2024
System Type
AC + Furnace Split System
Capacity
4-Ton
Brand
Trane
Efficiency
17 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$37,222
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Furnace
- Brand
- Trane
- Model
- S8V2C100M5PCA
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTV7X60A1000
- Capacity
- 4-Ton
- Efficiency
- 17 SEER2
New — installed 2026
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCC007DS3HC
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- S8V2C080M5PCA
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- S8V2C080M5PCA
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTV7X48A1000
- Capacity
- 4-Ton
- Efficiency
- 17 SEER2
New — installed 2026
Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTV7X48A1000
- Capacity
- 4-Ton
- Efficiency
- 17 SEER2
New — installed 2026
Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTV7X60A1000AA
- Capacity
- 4-Ton
- Efficiency
- 17 SEER2
New — installed 2026
Newly Installed
Thermostat
- Brand
- Trane
- Model
- TLINK360A2VVUA
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Carefree, AZ. You can browse more real 4-Ton AC and Furnace Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Fred, Ben, Kyle & Jesse from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A

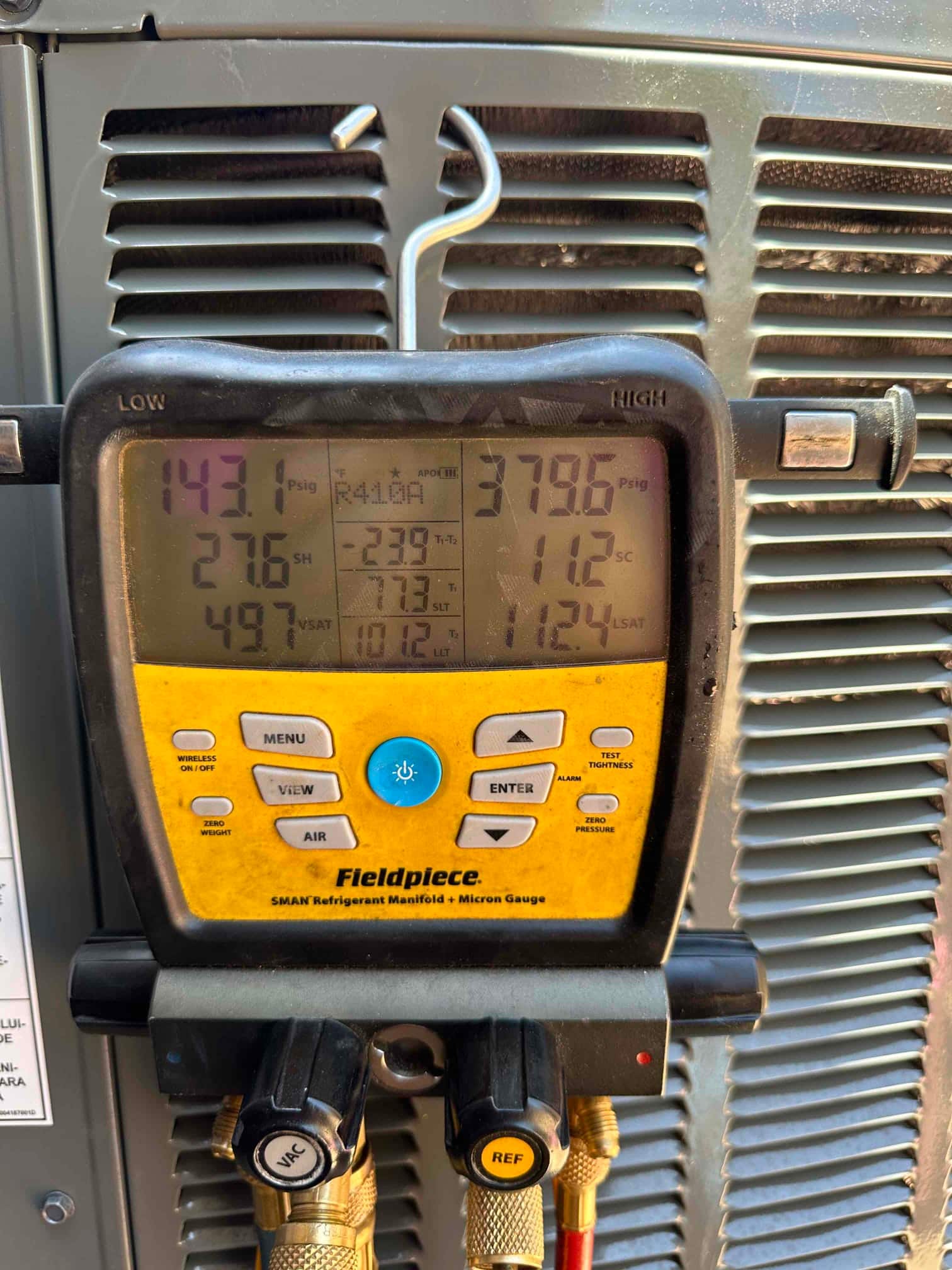

- Suction pressure
- 143 PSIG
- Liquid pressure
- 379 PSIG
- Evaporator saturation
- 49.5°F
- Condensing saturation
- 115.7°F
- Superheat
- 27°F
- Subcooling
- 11°F
Air-Side Performance
- Return-air temperature
- 78°F
- Supply-air temperature
- 55.4°F
- Temperature split
- 22.6°F

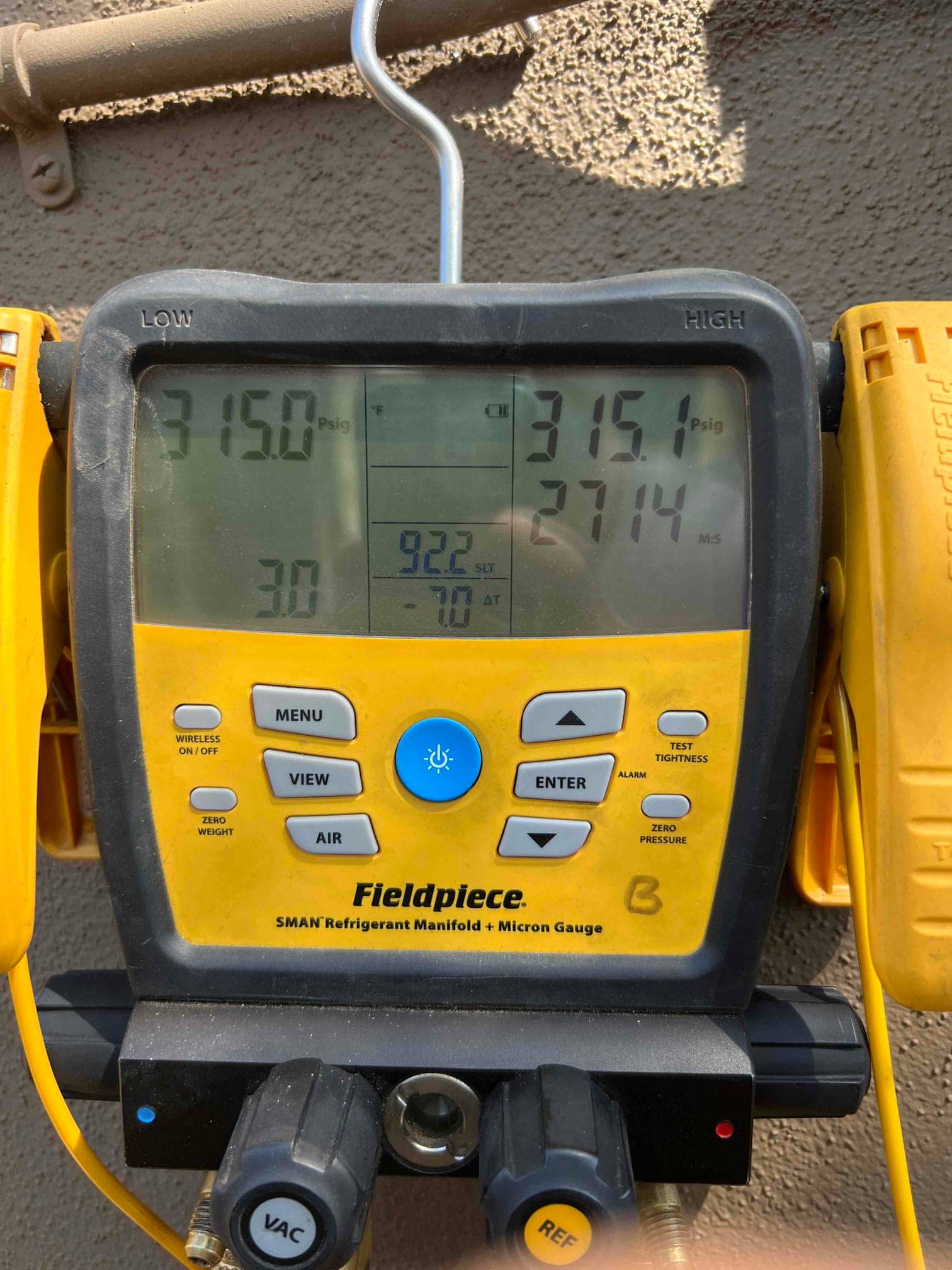

Nitrogen Pressure Test
- Test pressure held
- 315 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 585 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 517V-4TTV7X60-S8V2 | 5 Ton- Vertical 17 SEER2 XV17 Variable Speed Air Conditioner (Comes with Surge Protector installed on indoor and outdoor units.). Installation of the equipment is subject to the terms and conditions o | 1 |
| 417V-4TTV7X48-S8V2 | 4 Ton- Vertical 17 SEER2 XV17 Variable Speed Air Conditioner (Comes with Surge Protector installed on indoor and outdoor units.). Installation of the equipment is subject to the terms and conditions o | 2 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort.AZ Perfect Comfort remains the contractor to perform all work.The War | 3 |
| INSTALL-MEM-3-SYSTEM | Sold At Time of Install: 3 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
31 photos from this installation
Every step of this installation was documented on-site by Fred, Ben, Kyle & Jesse.

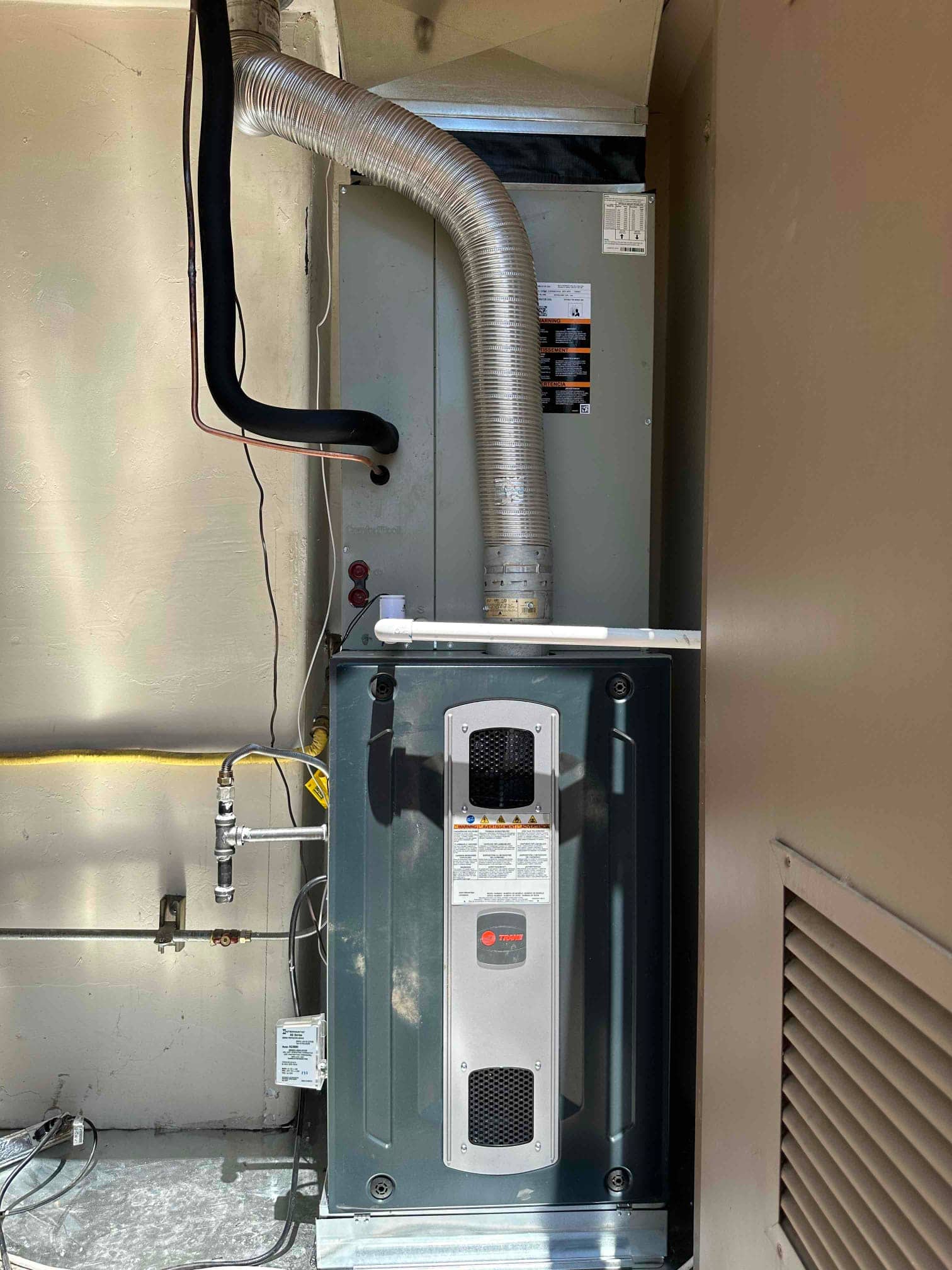

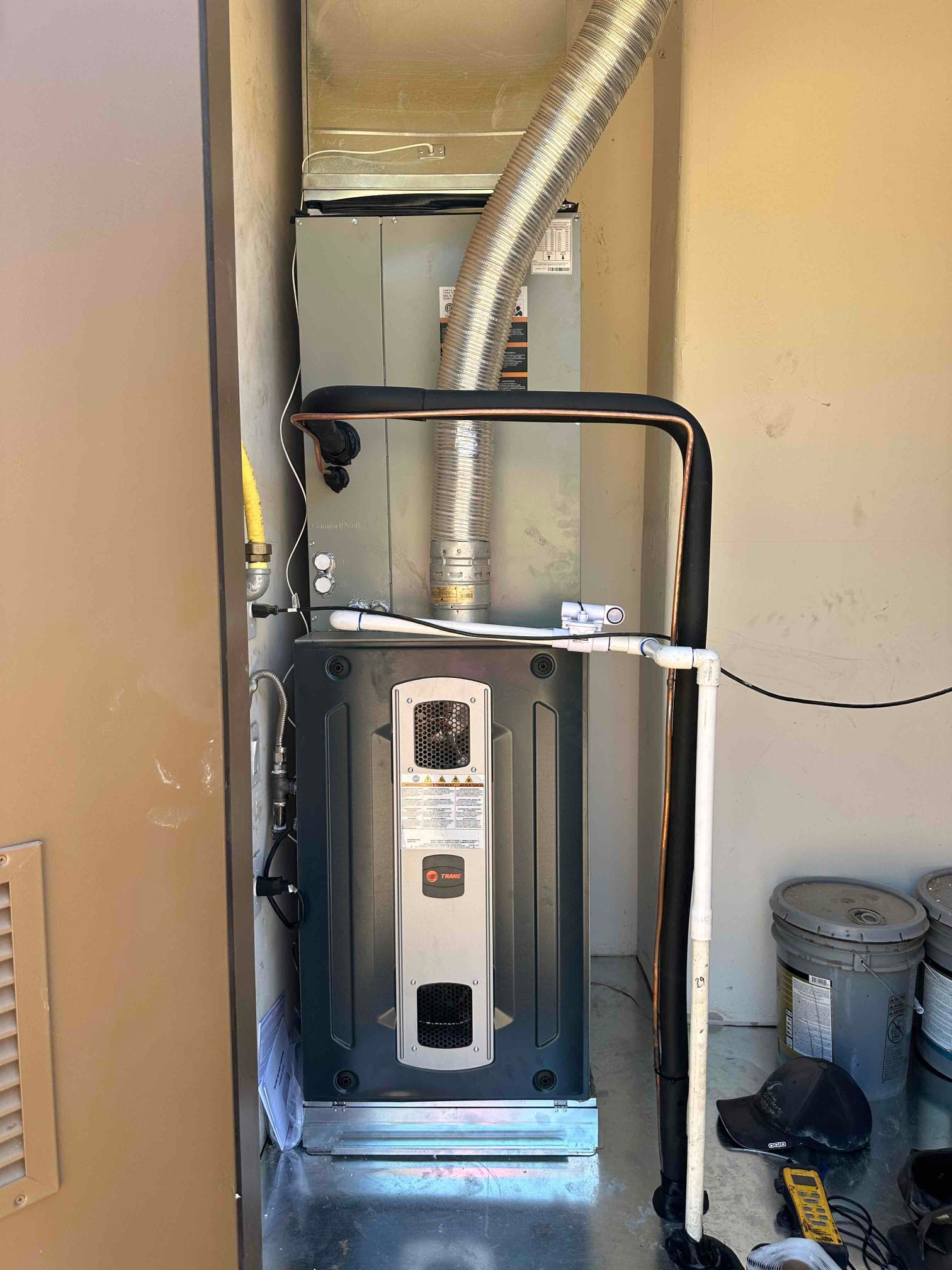

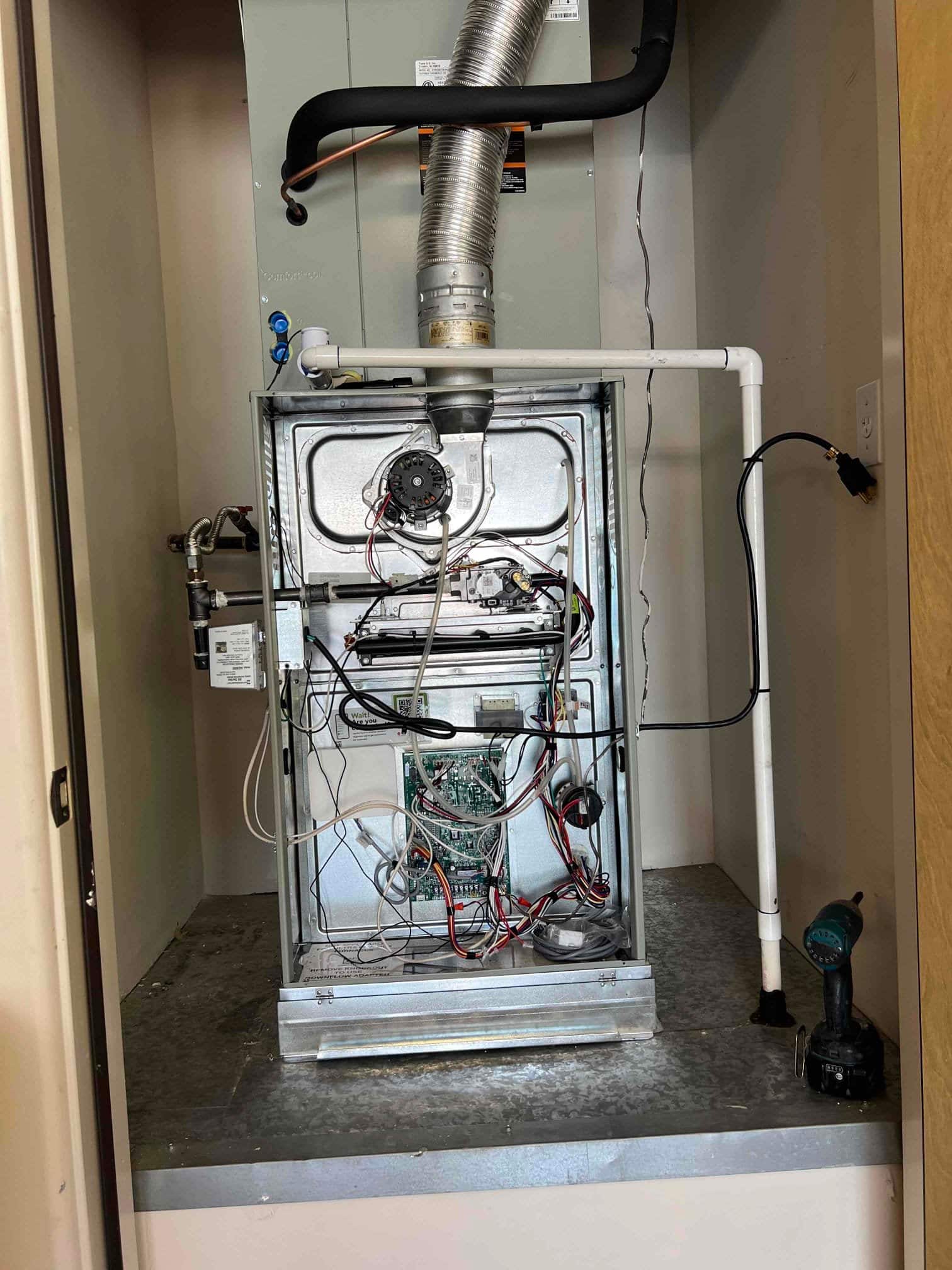

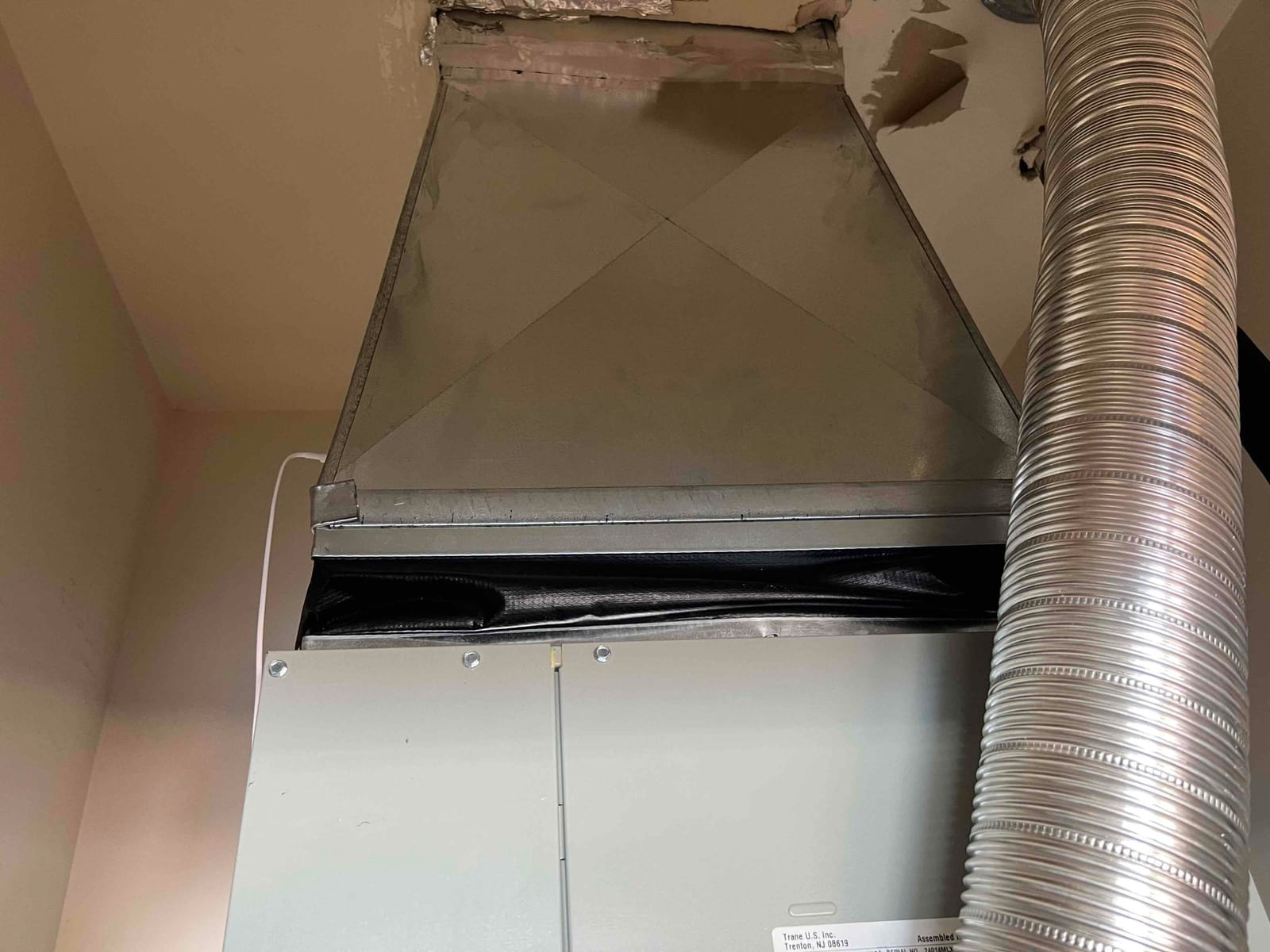

Installation Progress

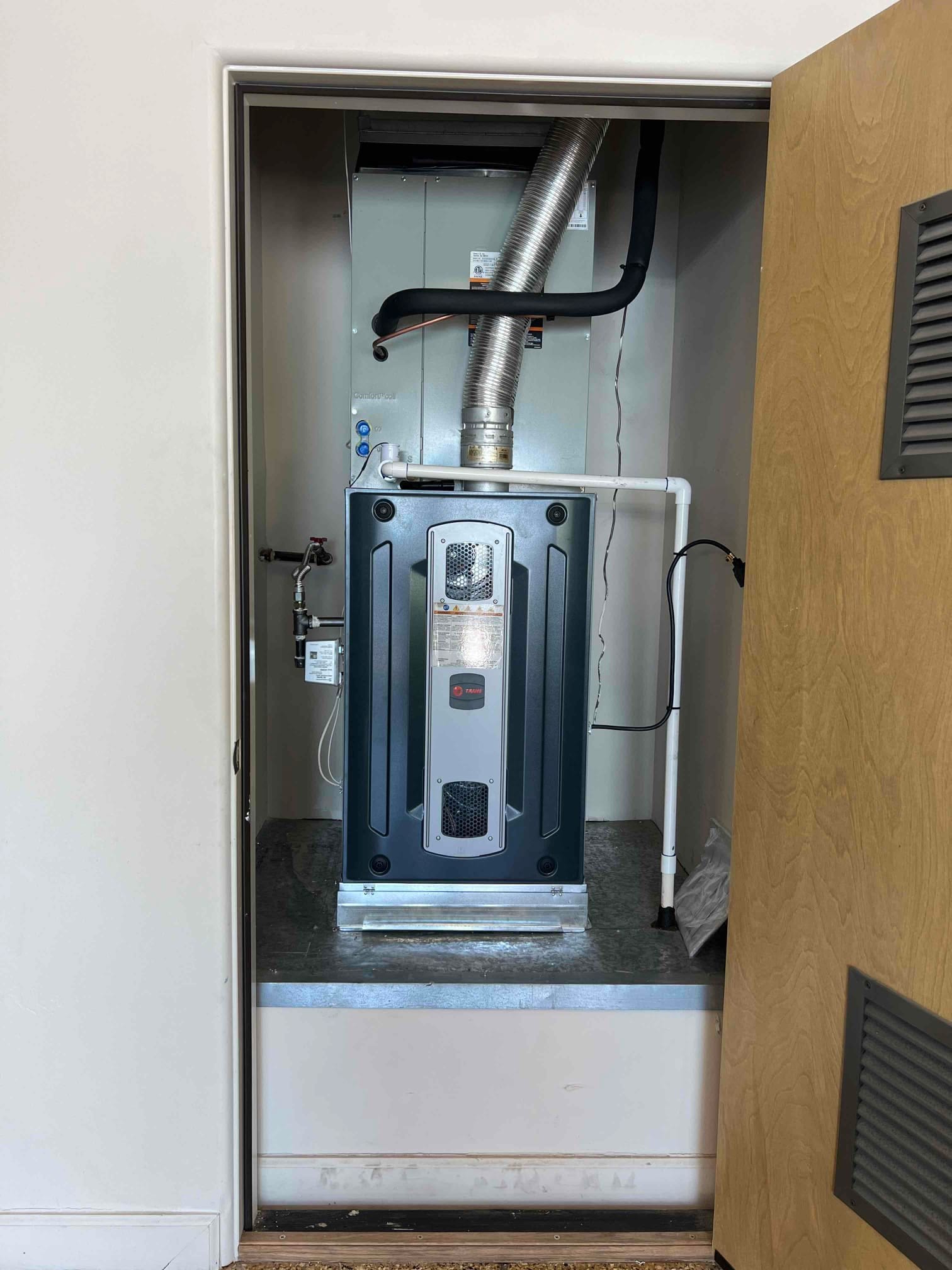

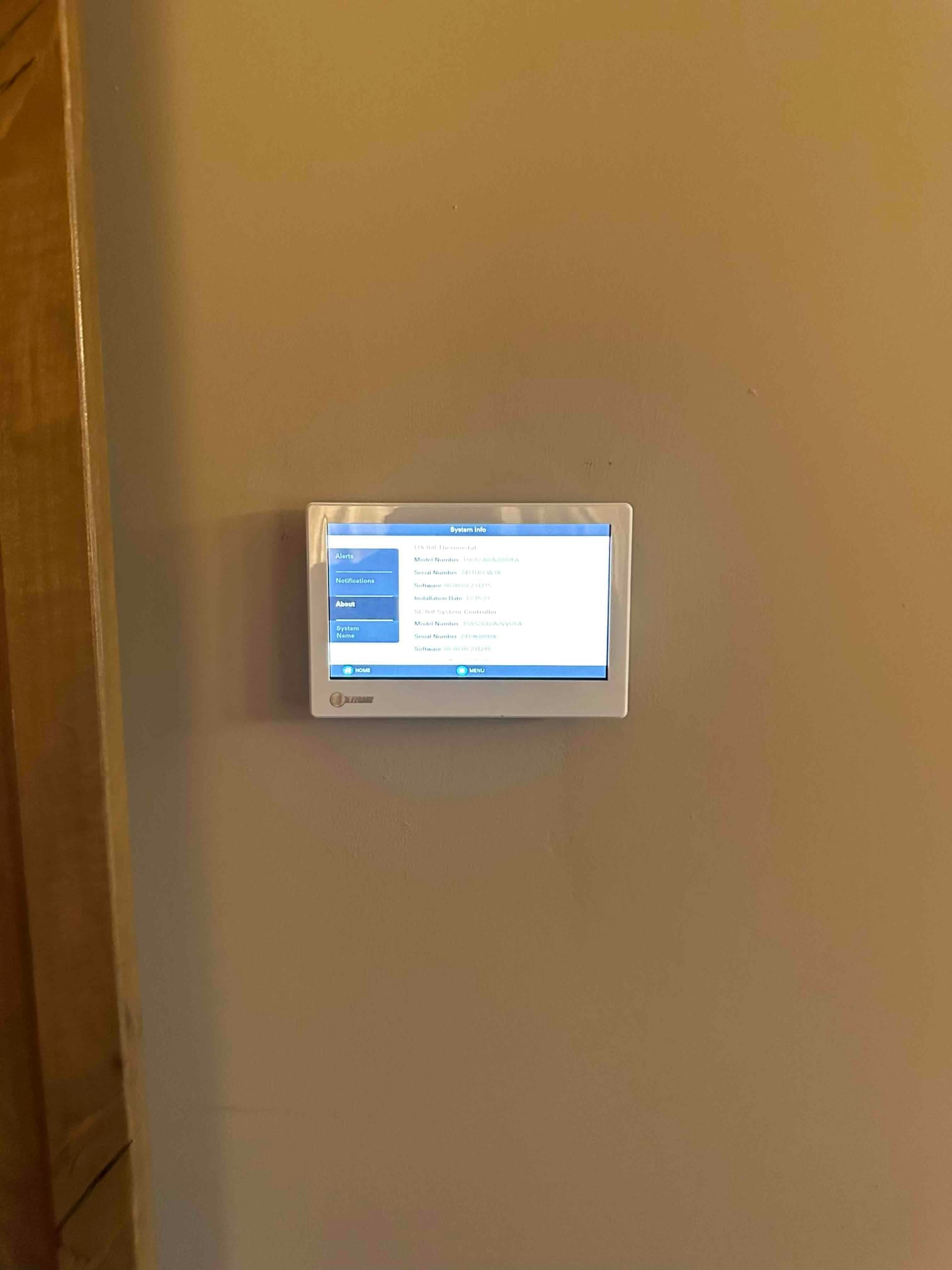

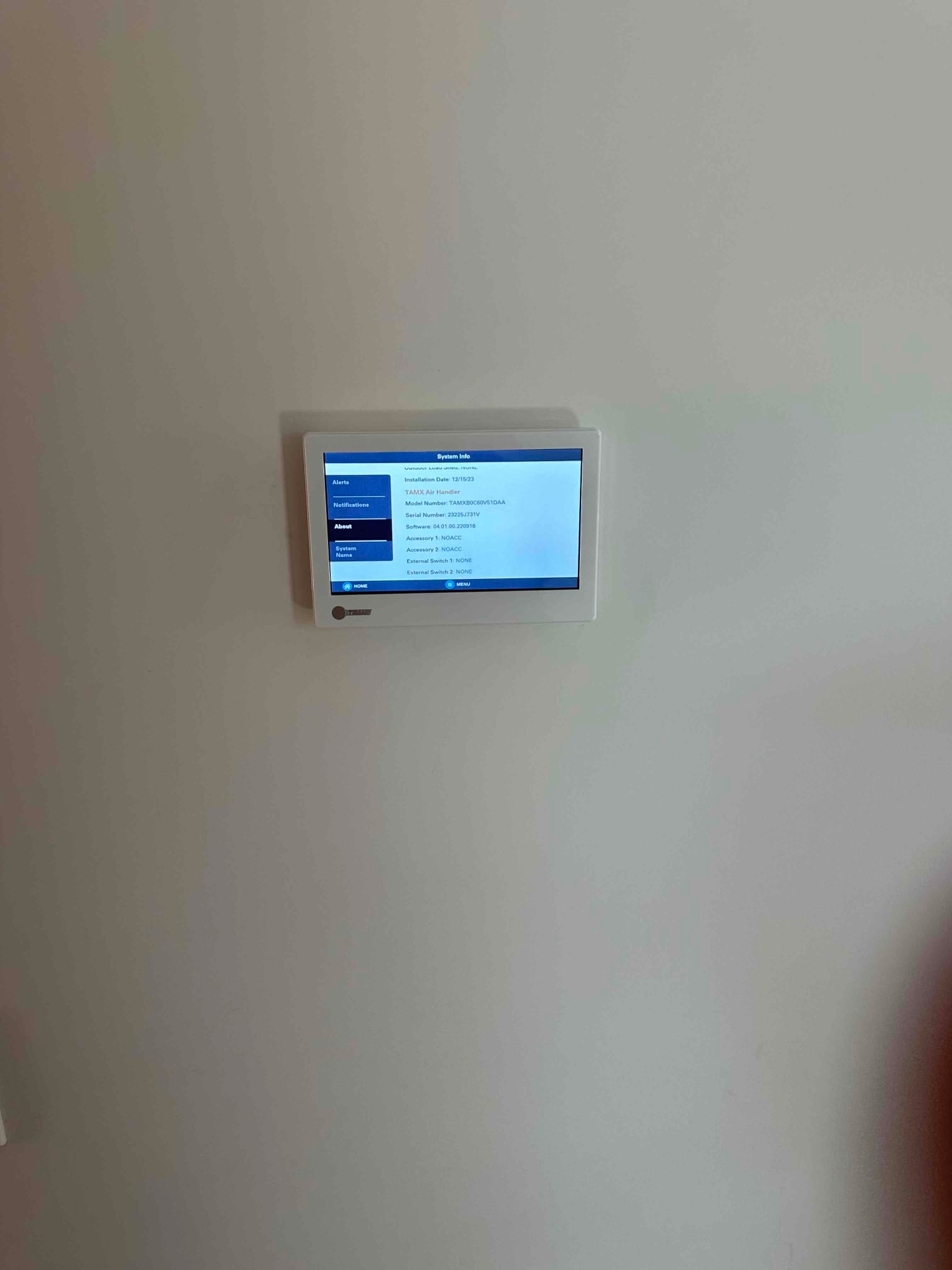

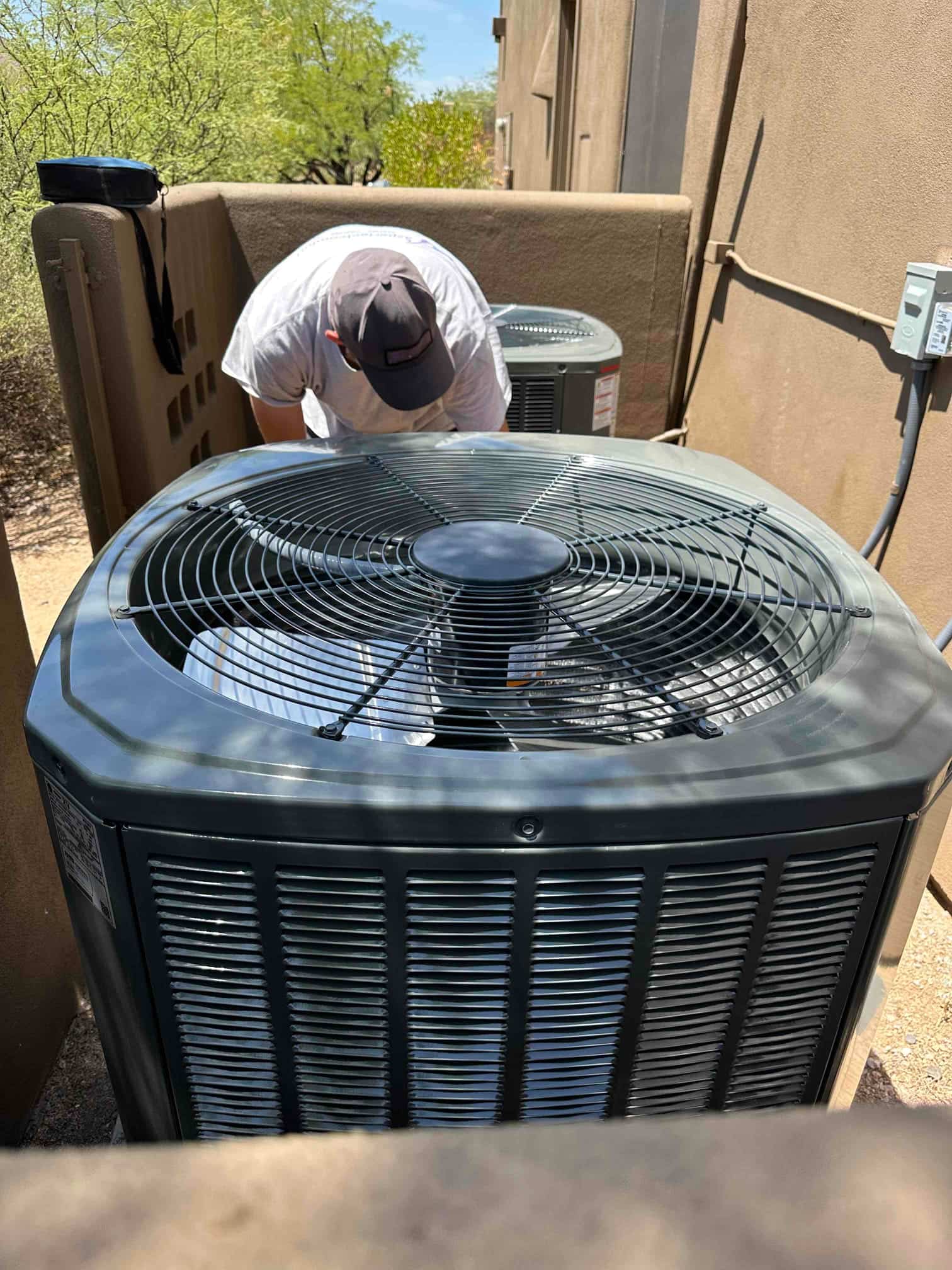

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

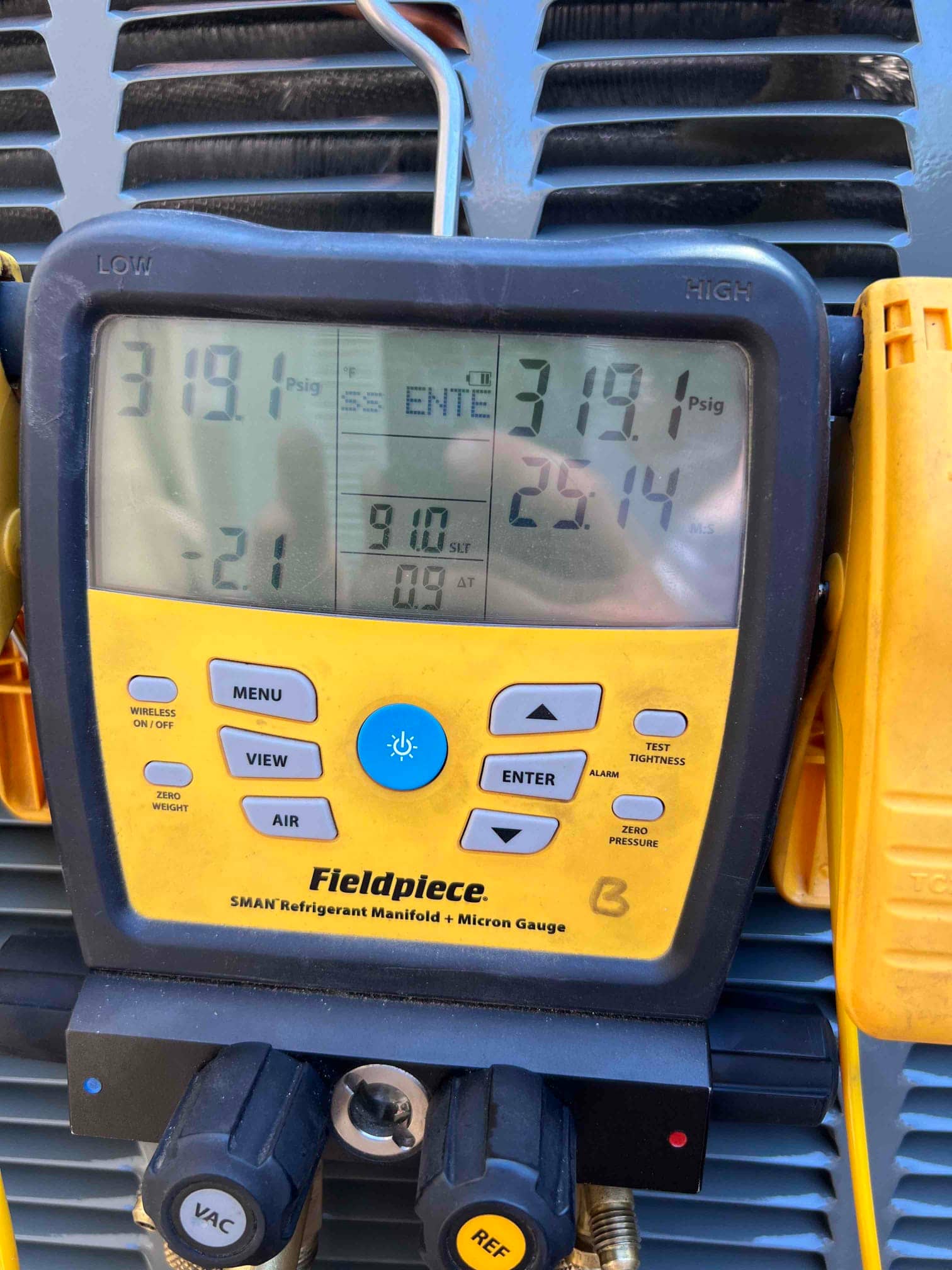

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

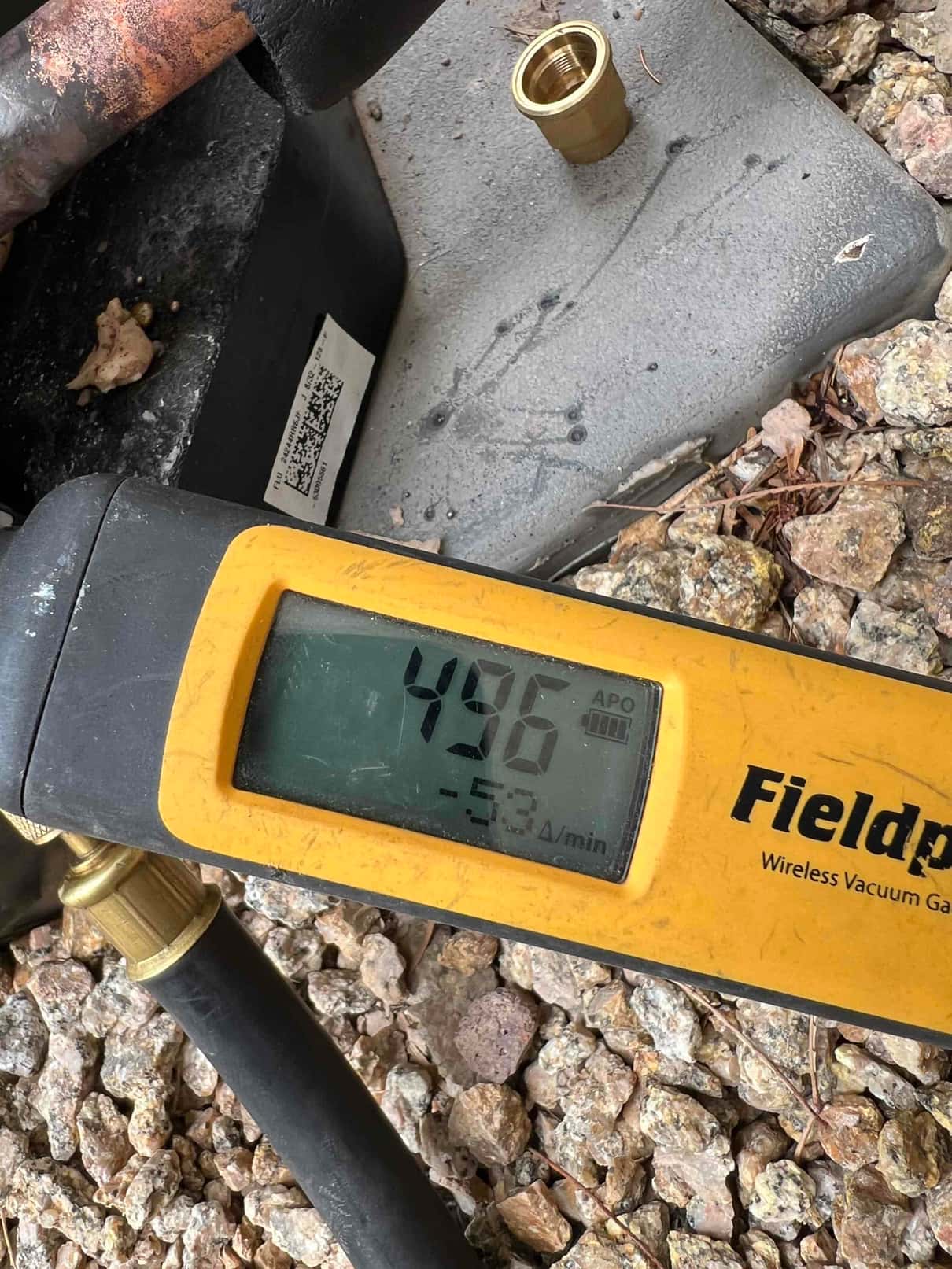

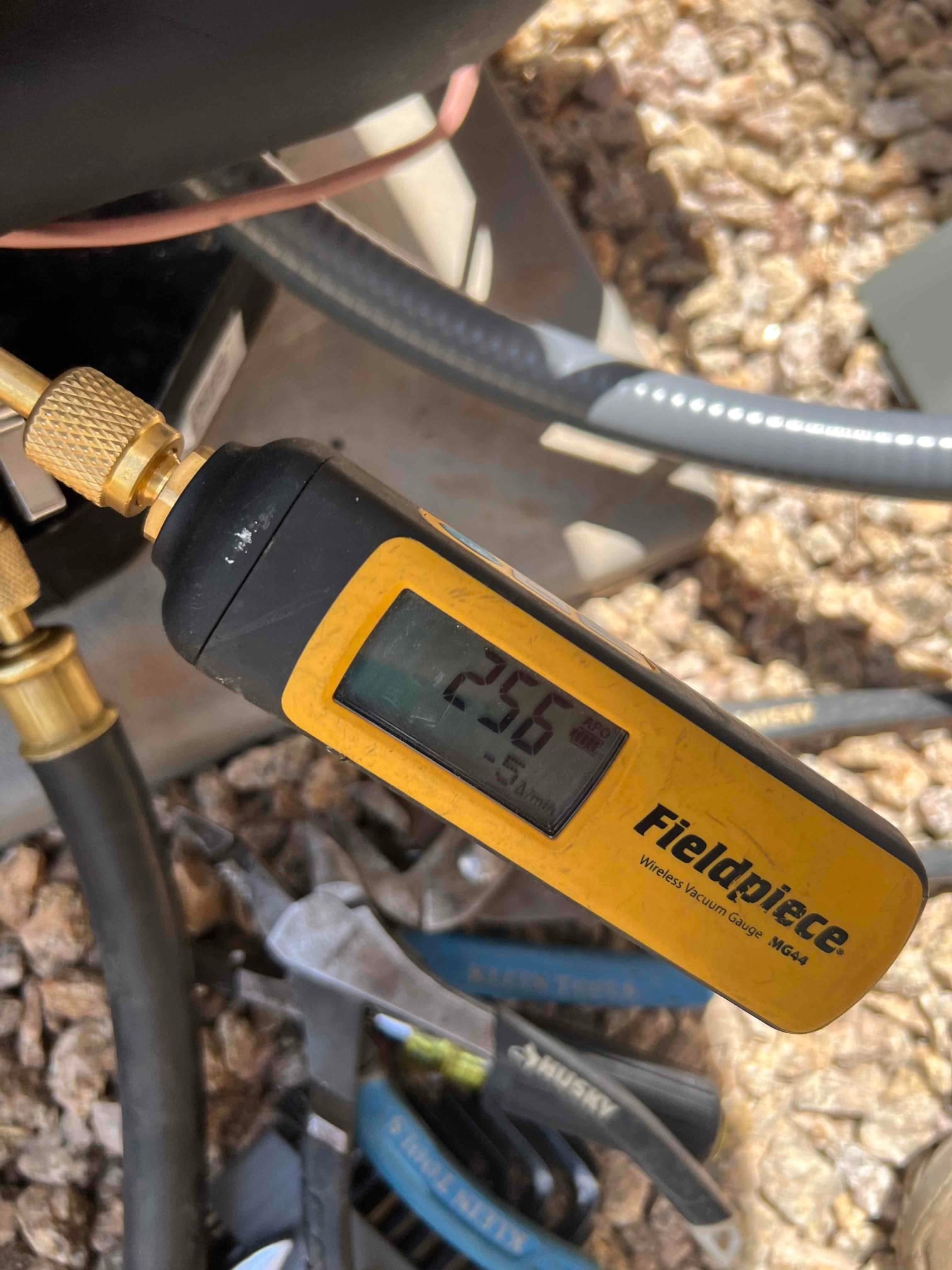

Vacuum / Evacuation

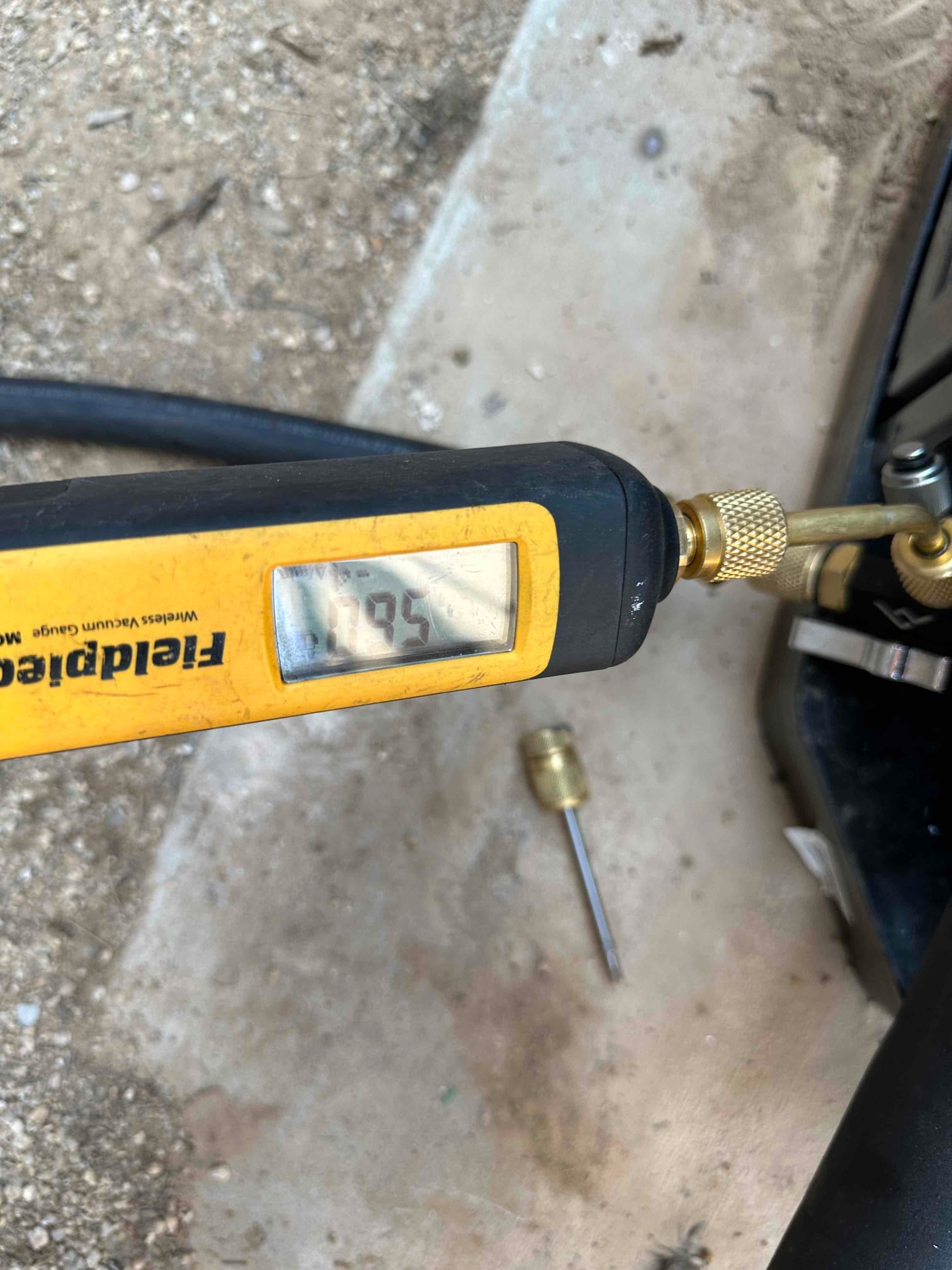

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

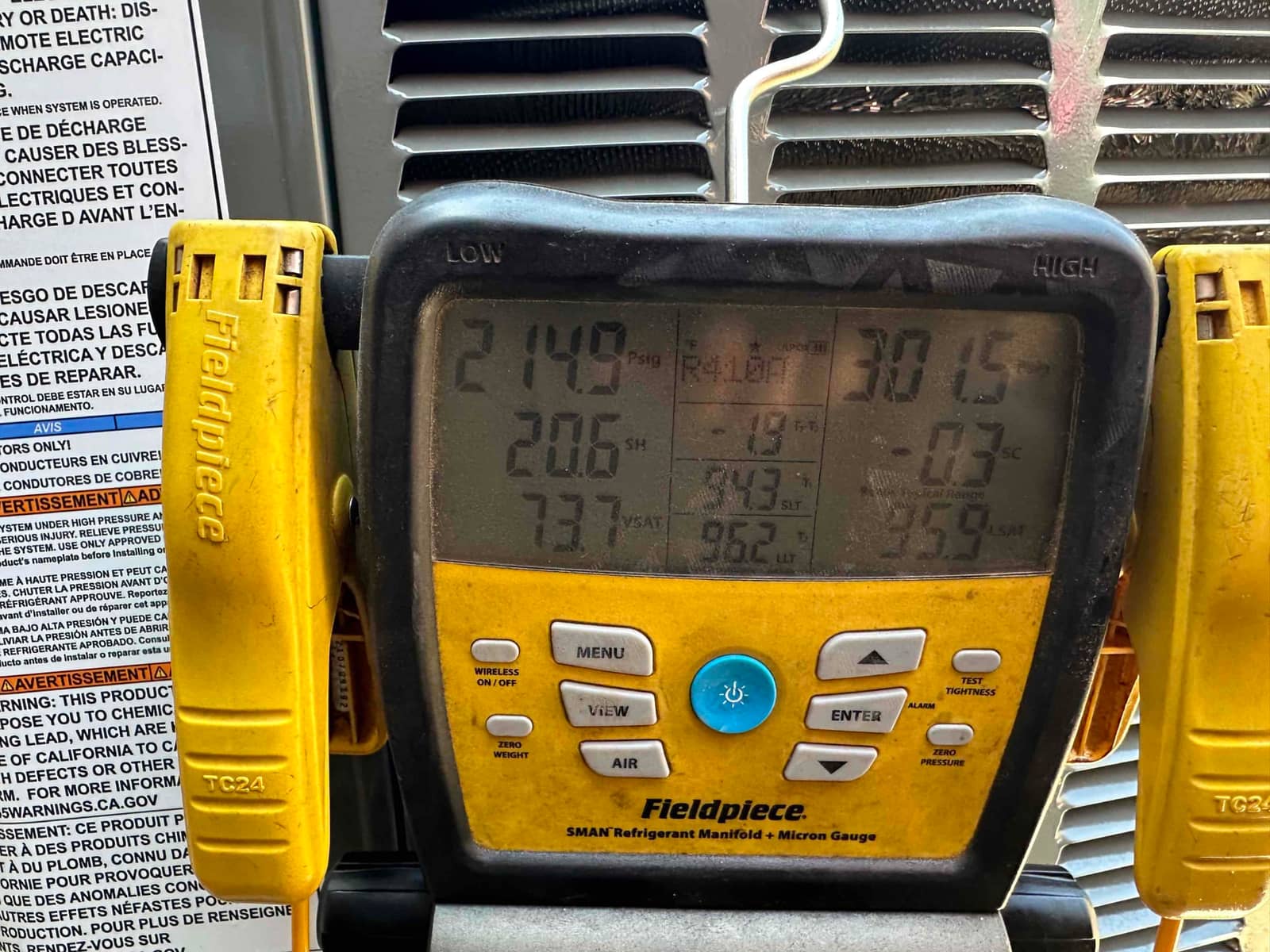

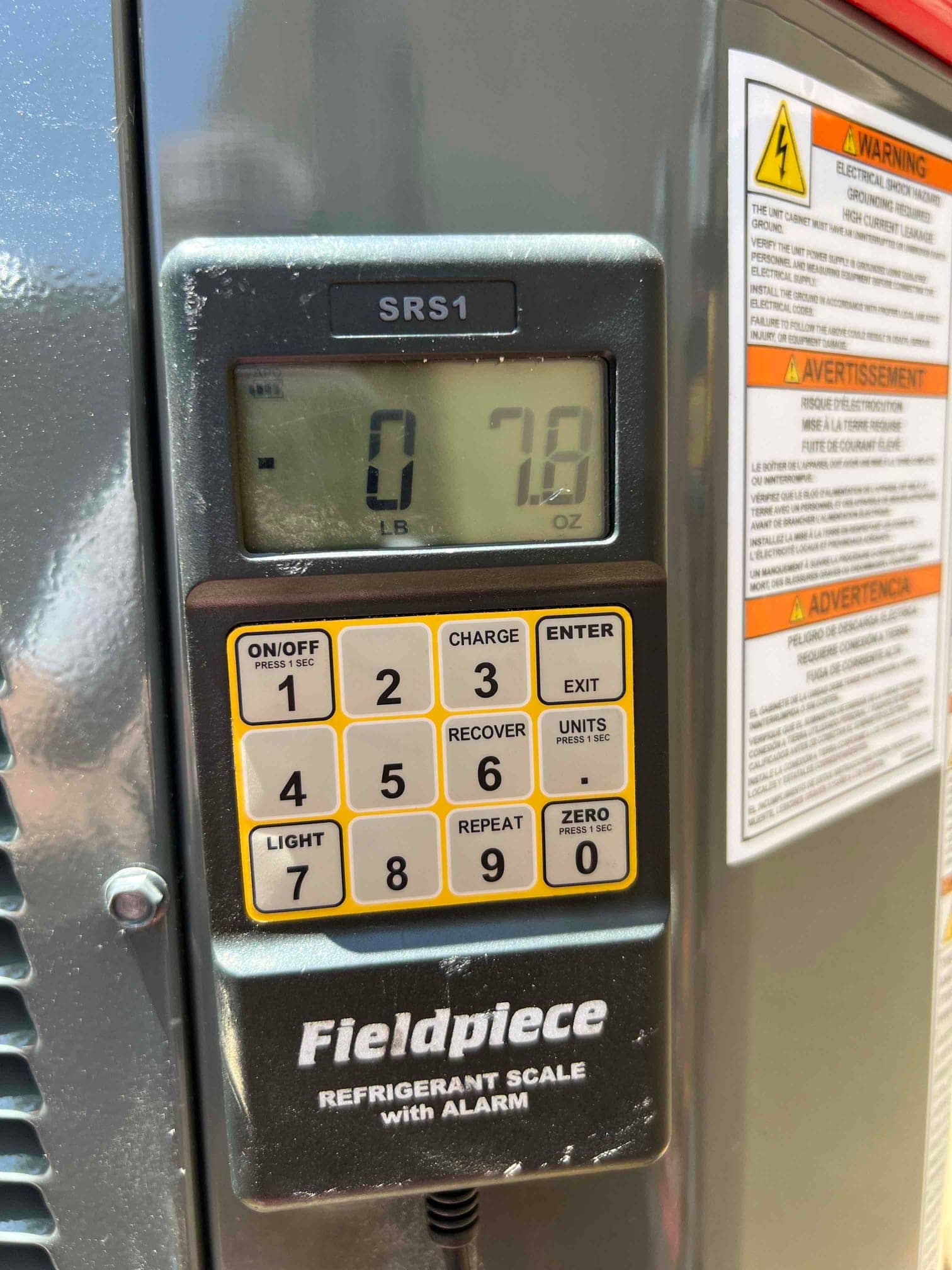

Refrigerant Commissioning

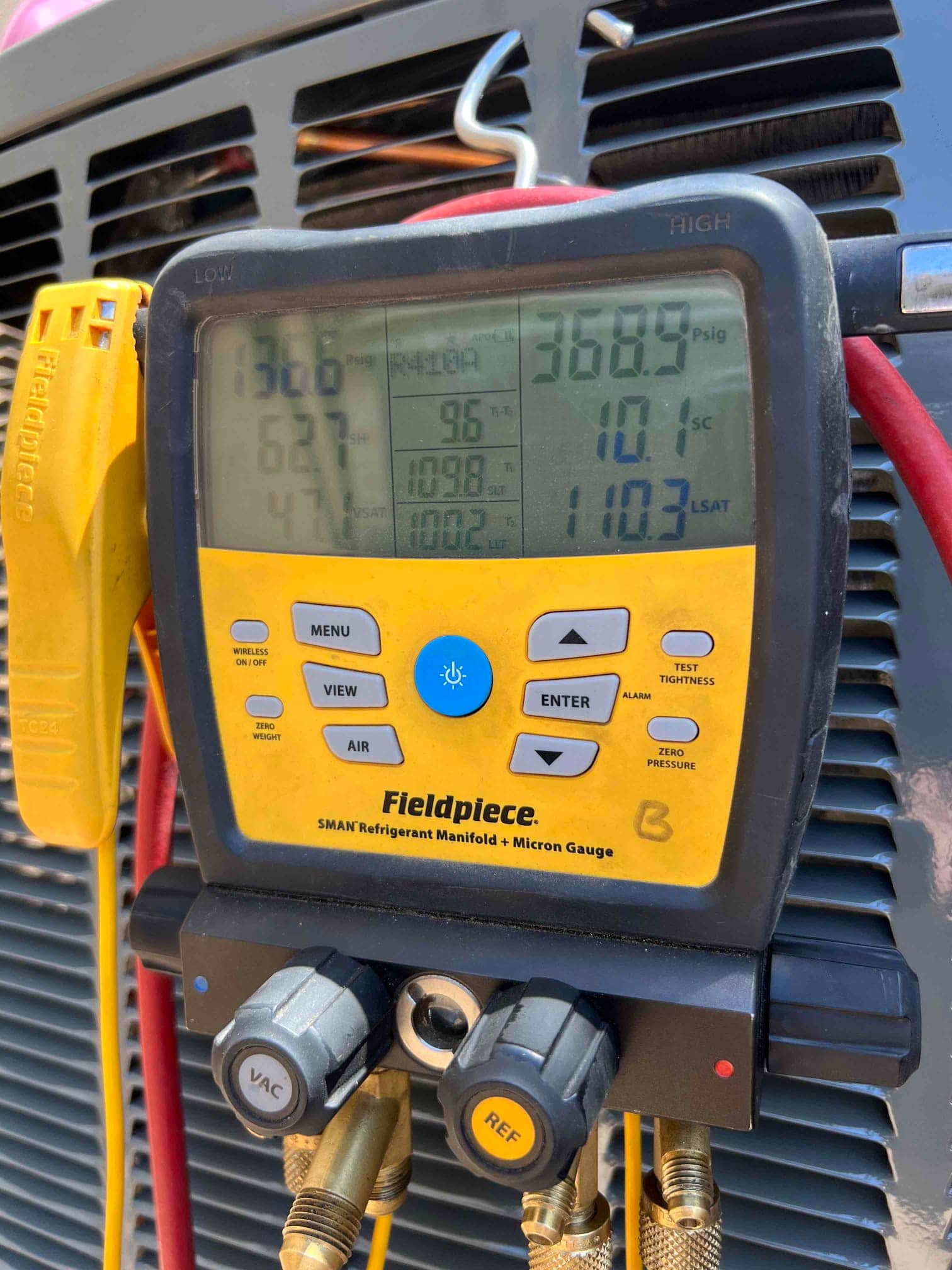

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

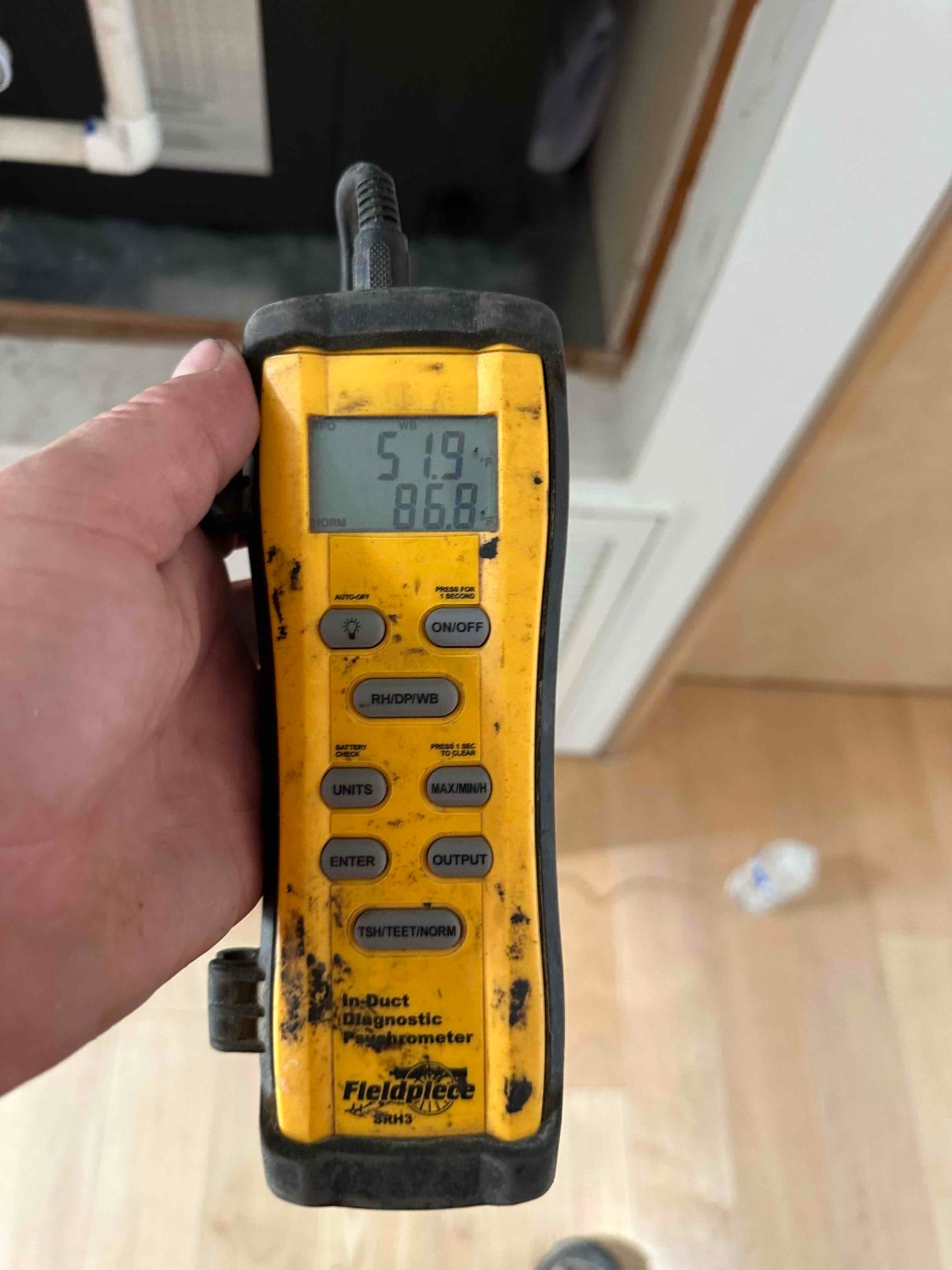

Air-Side Commissioning

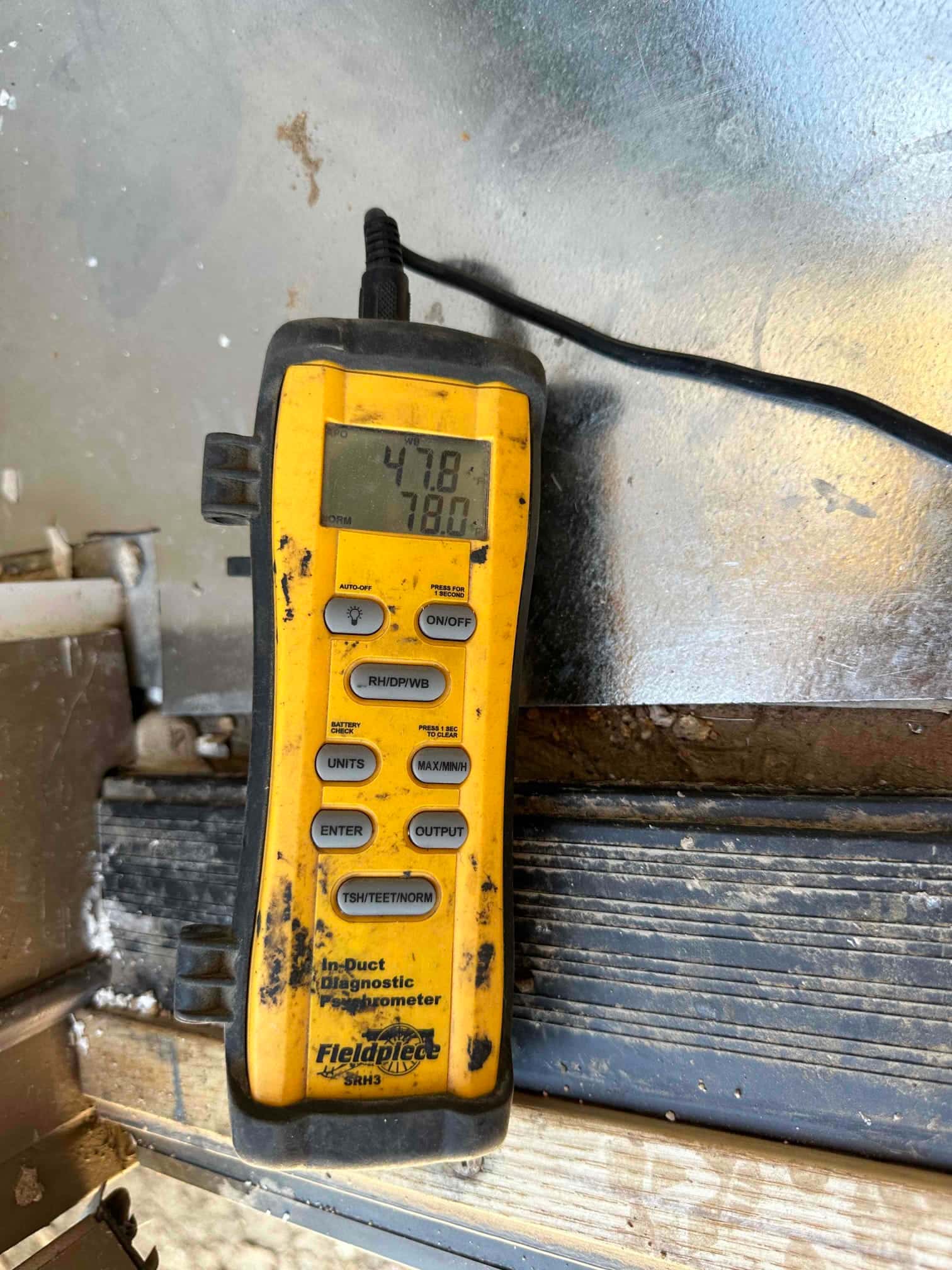

Return and supply air temperatures measured to verify the temperature split falls in the target window.

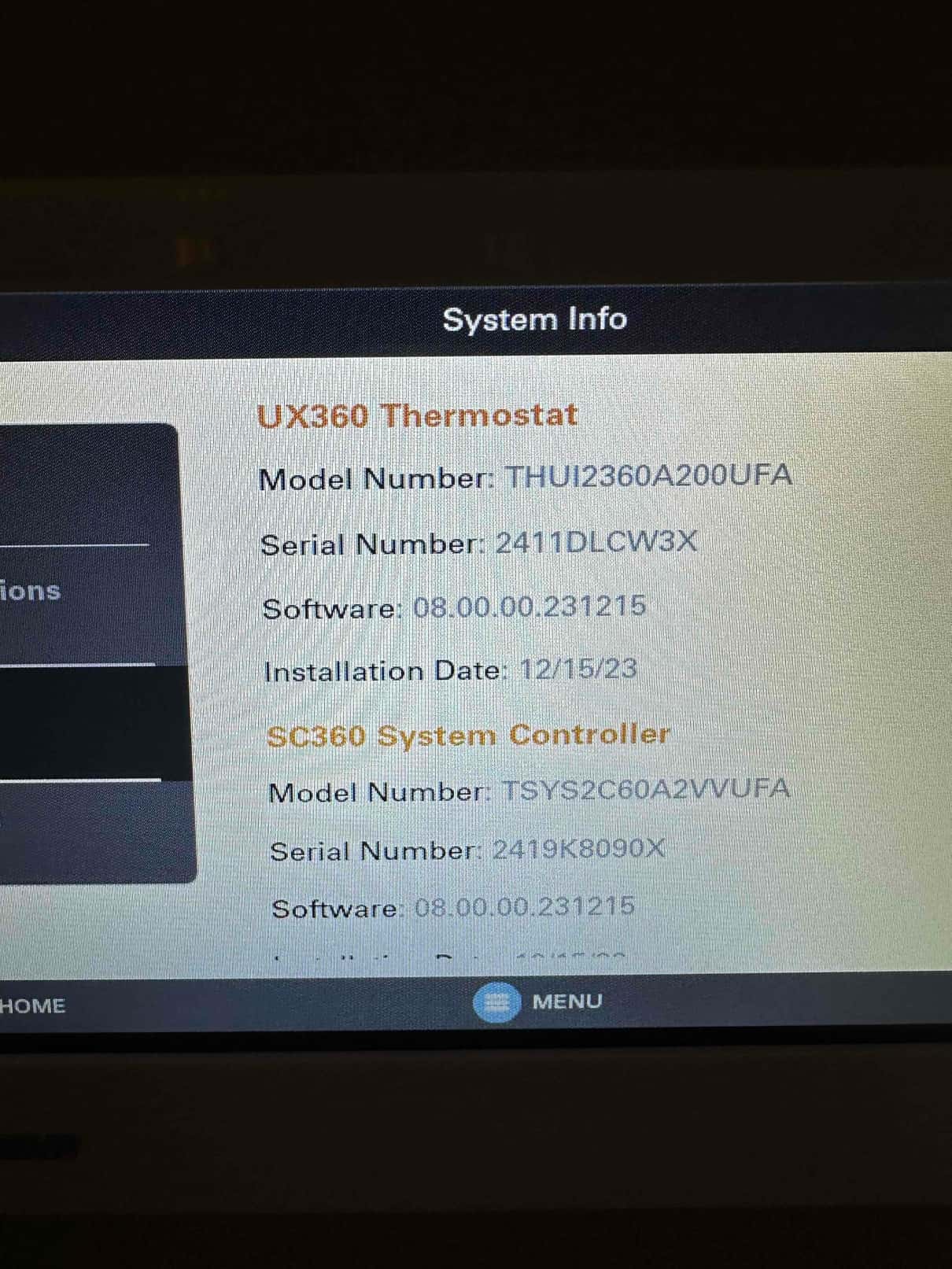

Electrical Verification
Voltage and amperage checked at the disconnect to confirm the equipment is drawing within nameplate spec.

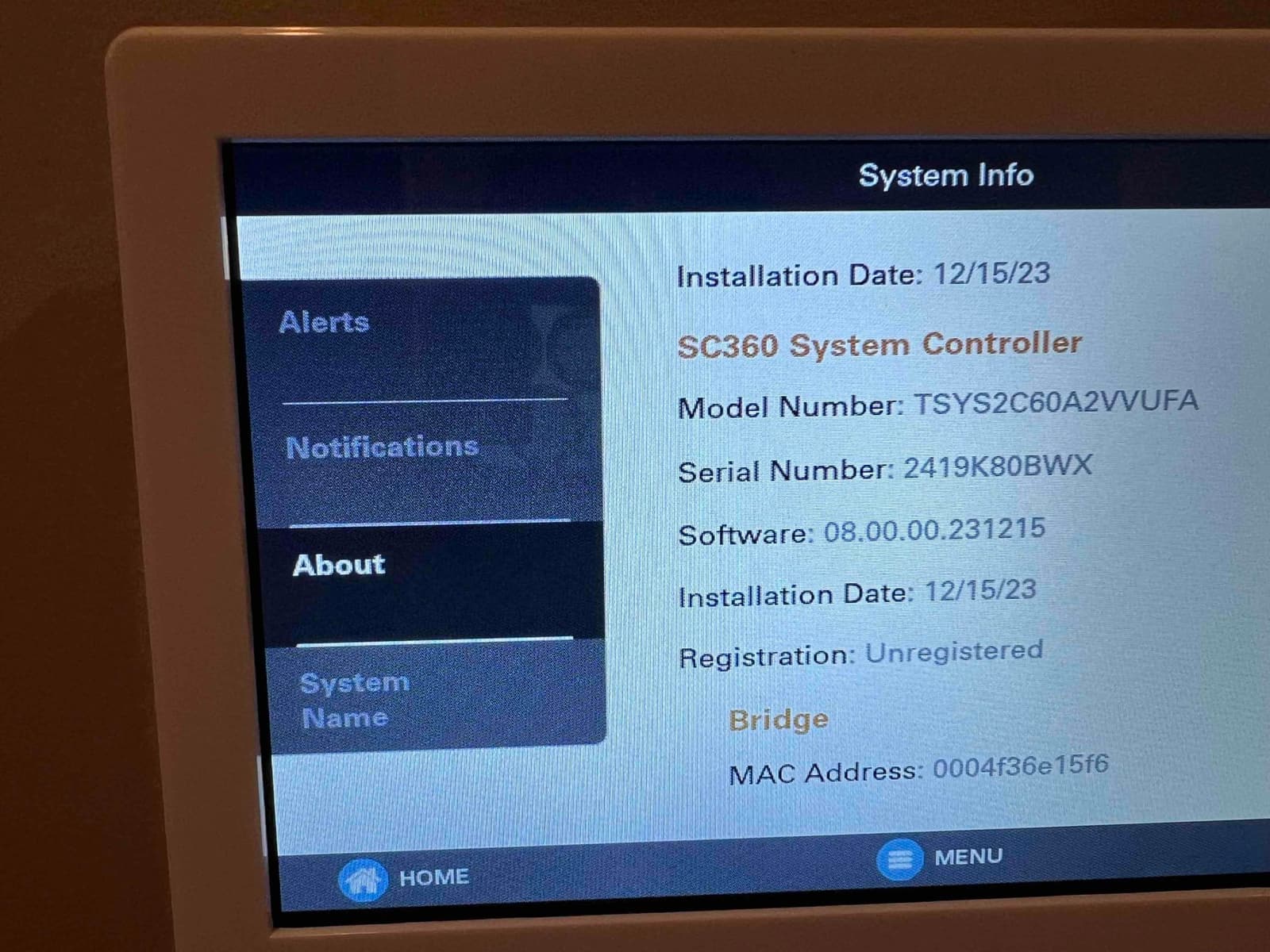

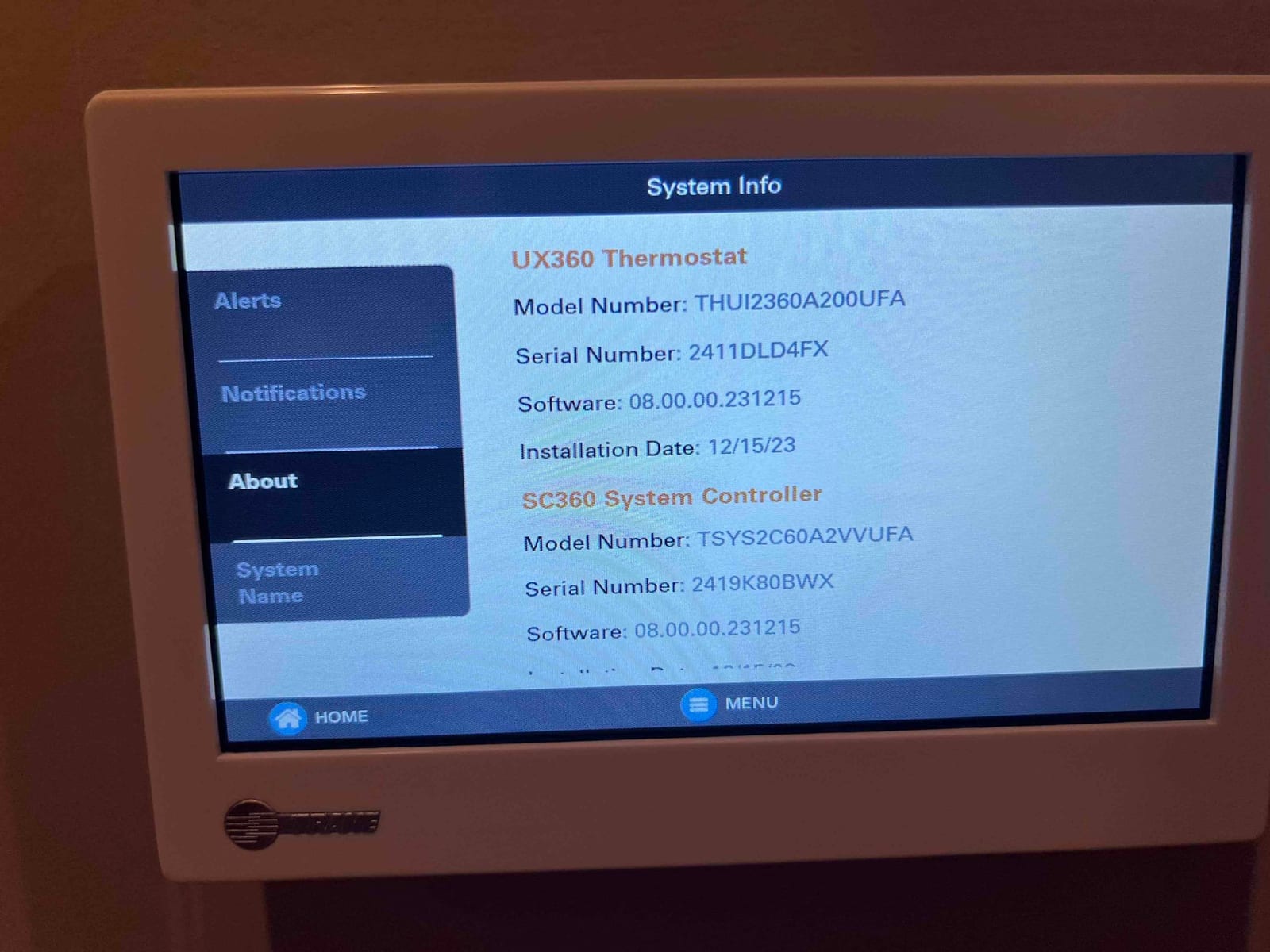

Equipment Detail Shots

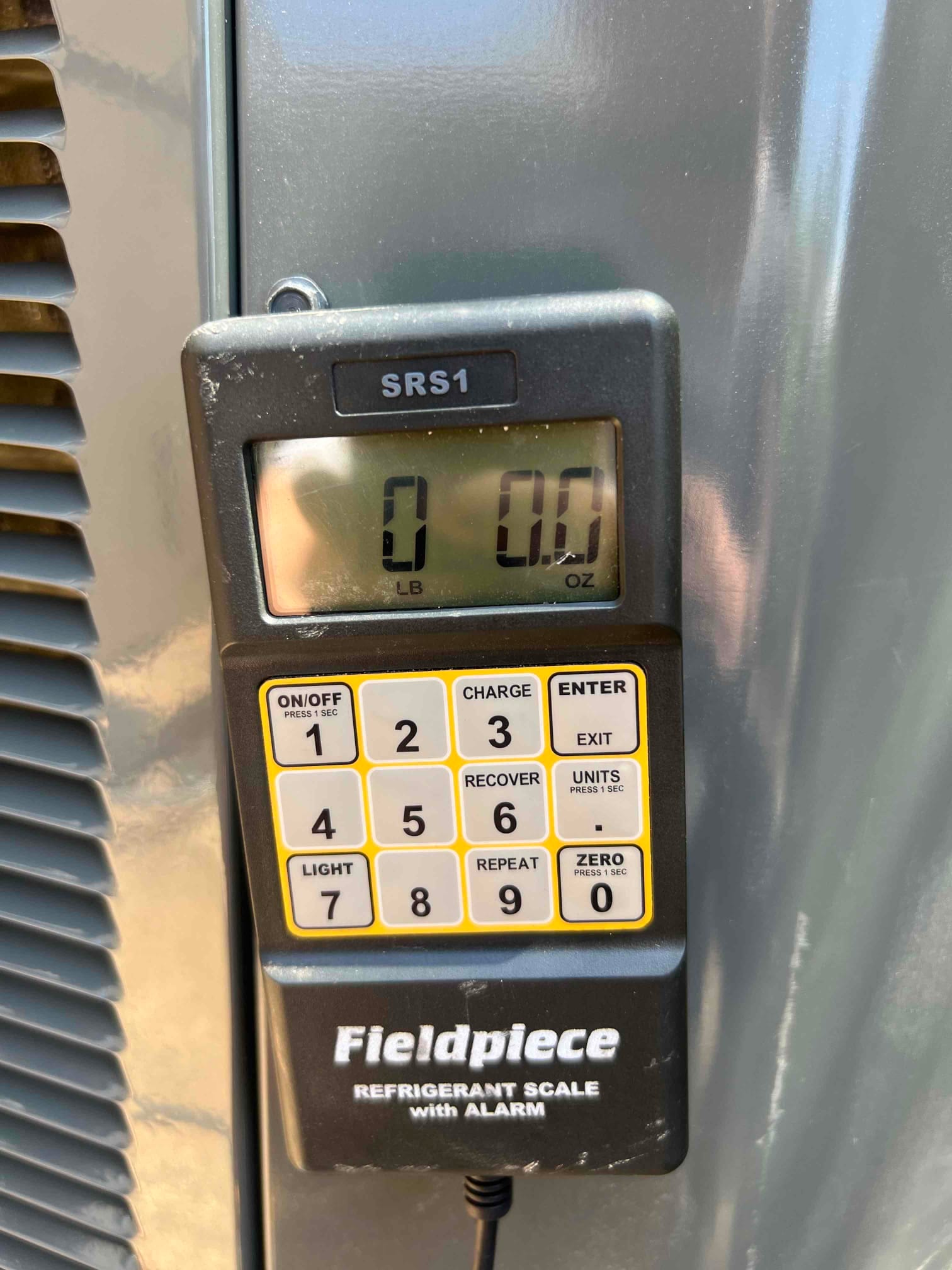

Close-ups of the components that make up the system.
