Newly Installed
Air handler
- Brand
- American Standard
- Model
- TAMXB0C48V41DAA
- Matched
- 4-Ton airflow
New — installed 2026
Real Installation · Waddell
4-Ton Trane Heat Pump System Installation in Waddell — February 2026
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a split system.
Waddell · installed February 18, 2026
— At a Glance
Location
Waddell
Completed
February 18, 2026
System Type
Heat Pump System
Capacity
4-Ton
Brand
Trane
Efficiency
18 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$14,800
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Heat pump
- Brand
- American Standard
- Model
- 4A6V8X48A1000AB
- Capacity
- 4-Ton
- Efficiency
- 18 SEER2
New — installed 2026
Newly Installed
Thermostat
- Brand
- American Standard
- Model
- TLINK360A2VVUG
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the Heating work AZ Perfect Comfort performs across Service Areas. You can browse more real 4-Ton Trane Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Will from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-32
- Suction pressure
- 85 PSIG
- Liquid pressure
- 214 PSIG
- Superheat
- 24°F
- Subcooling
- 14°F
Air-Side Performance
- Supply-air temperature
- 57.9°F
Nitrogen Pressure Test
- Test pressure held
- 374 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 300 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 418H-5A6V8X48-5TEMCD06AV | 4 Ton- Horizontal Variable Speed-18 SEER2 American Standard - Trane Technologies Heat Pump Condenser with . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfor | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A | 1 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
9 photos from this installation
Every step of this installation was documented on-site by Kyle & Will.

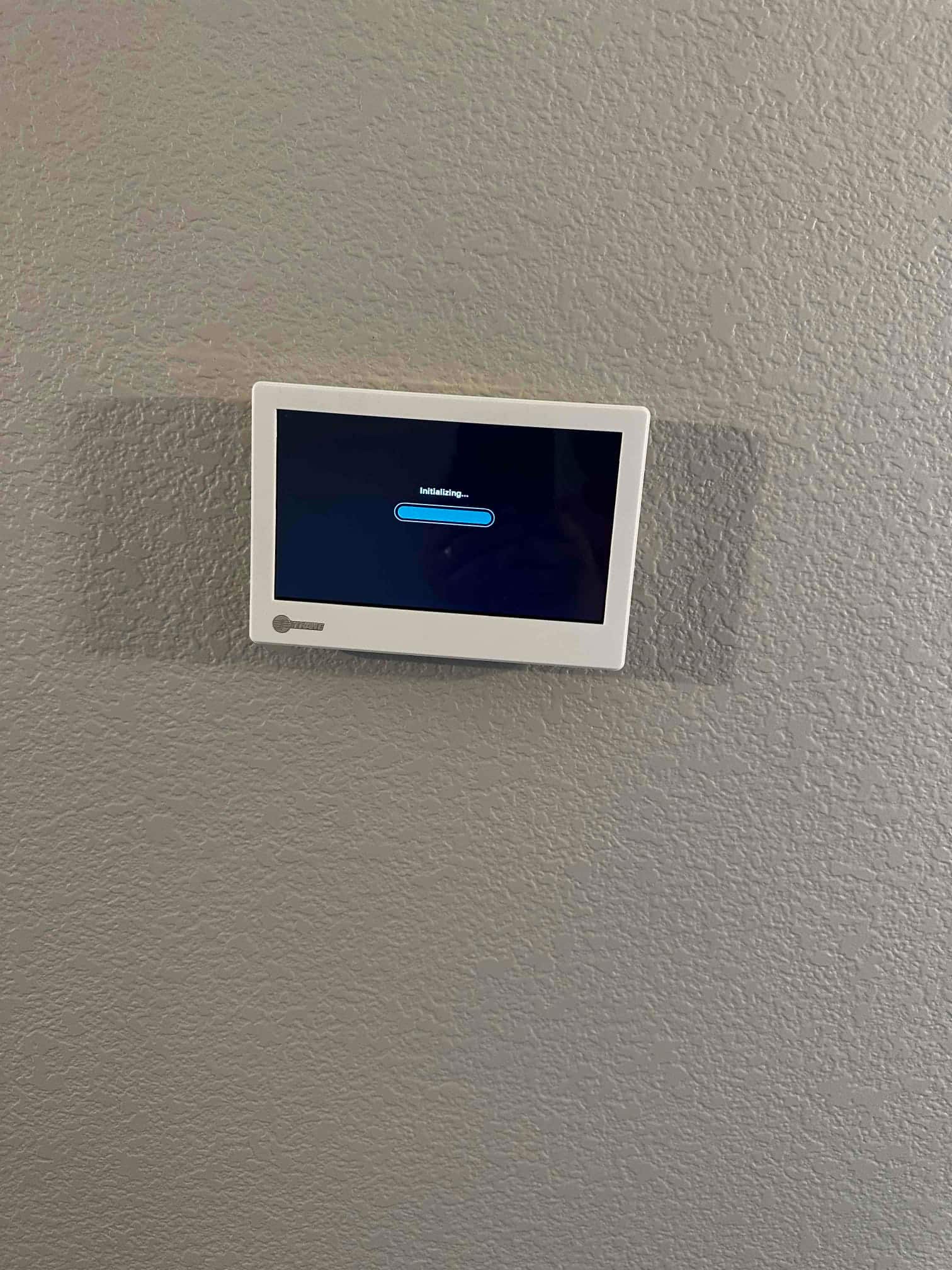

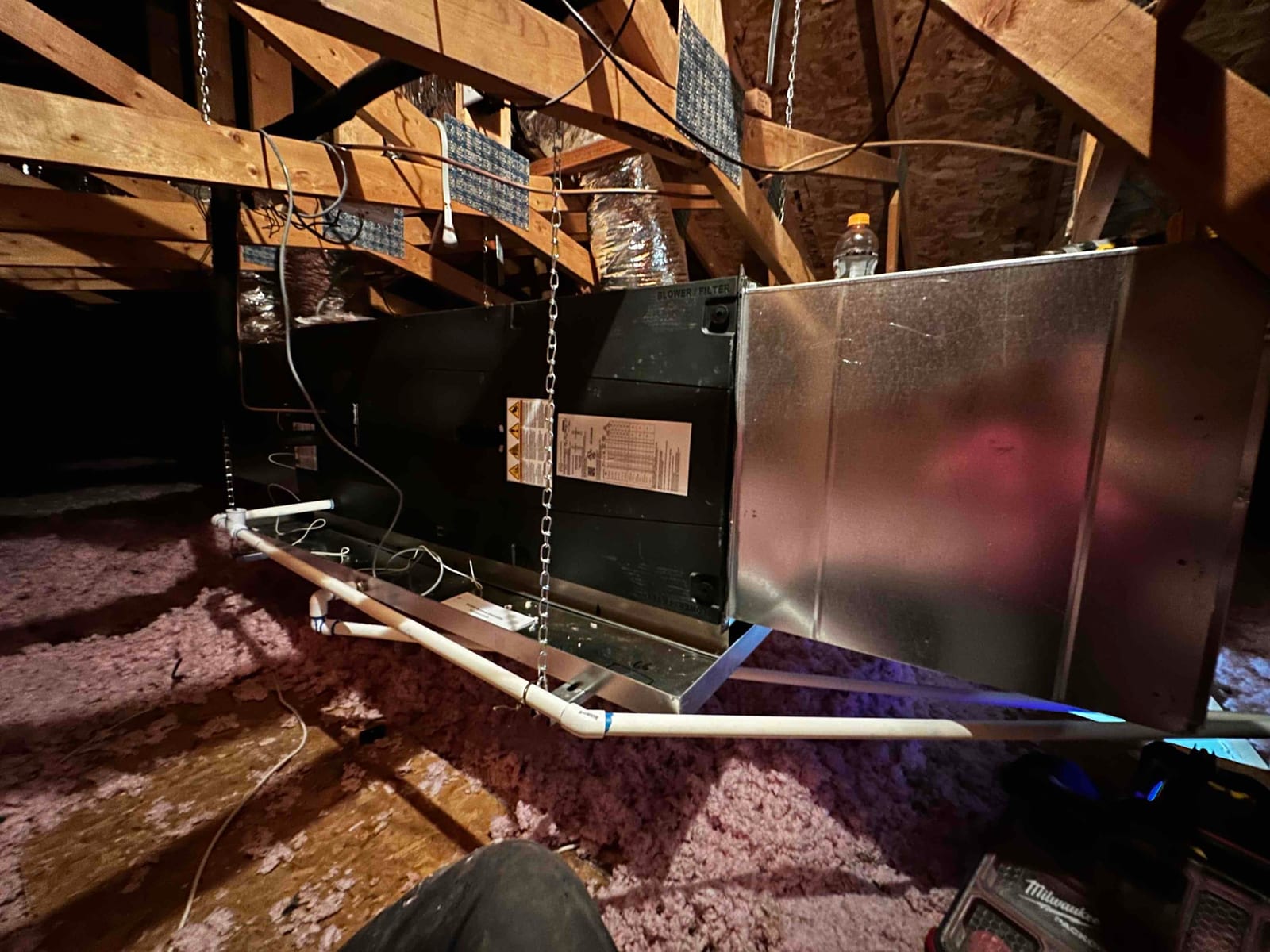

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

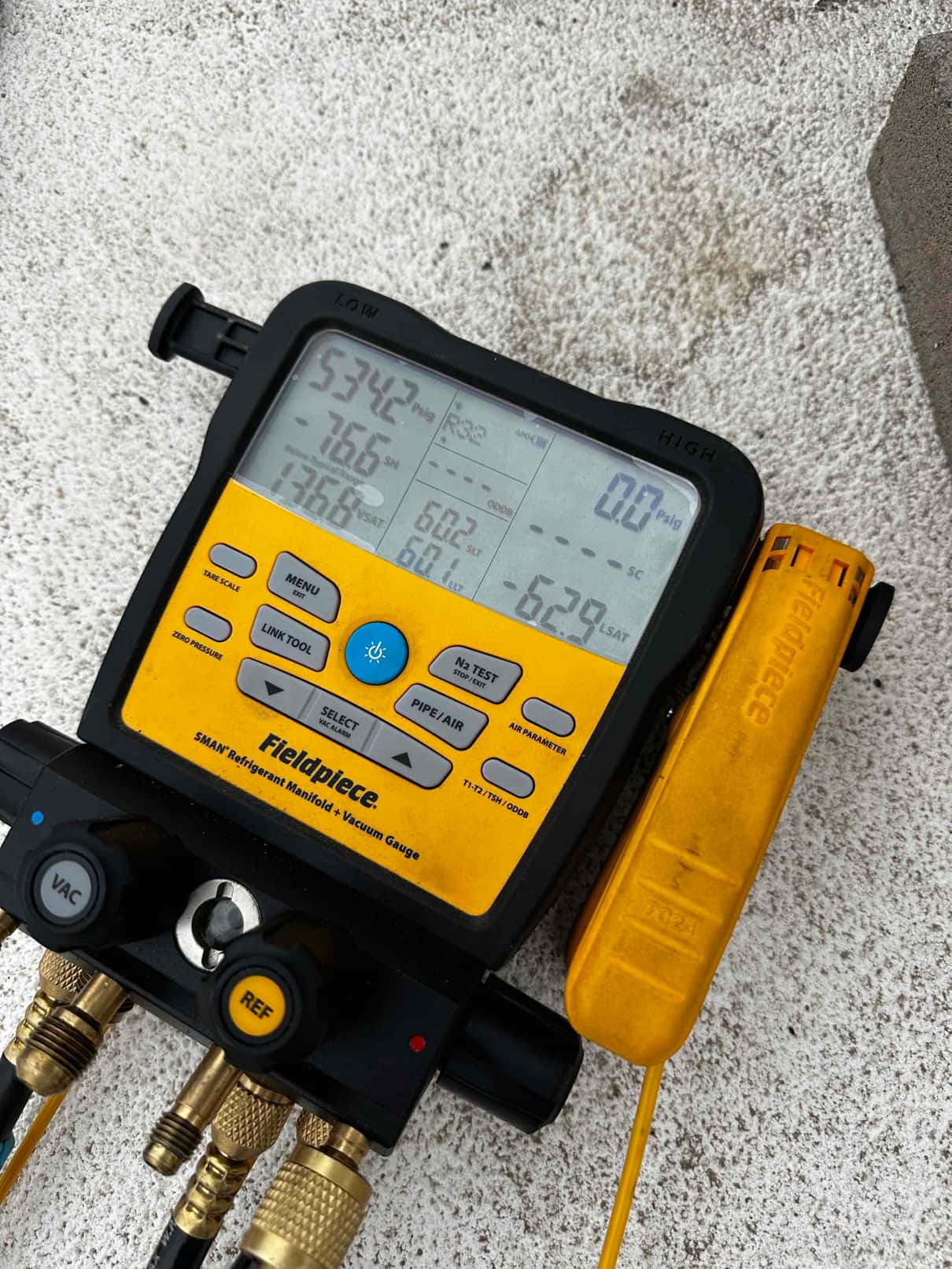

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

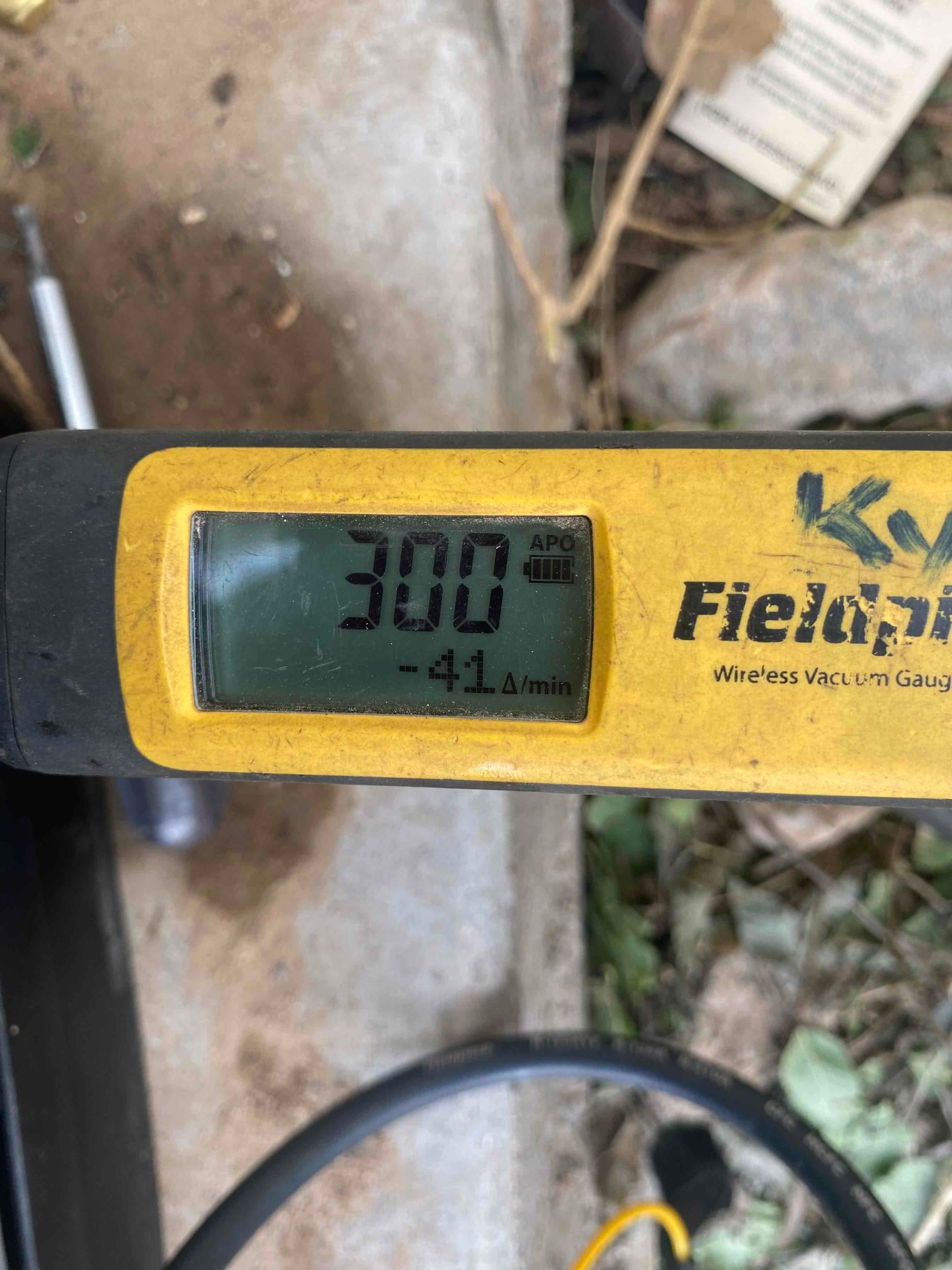

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

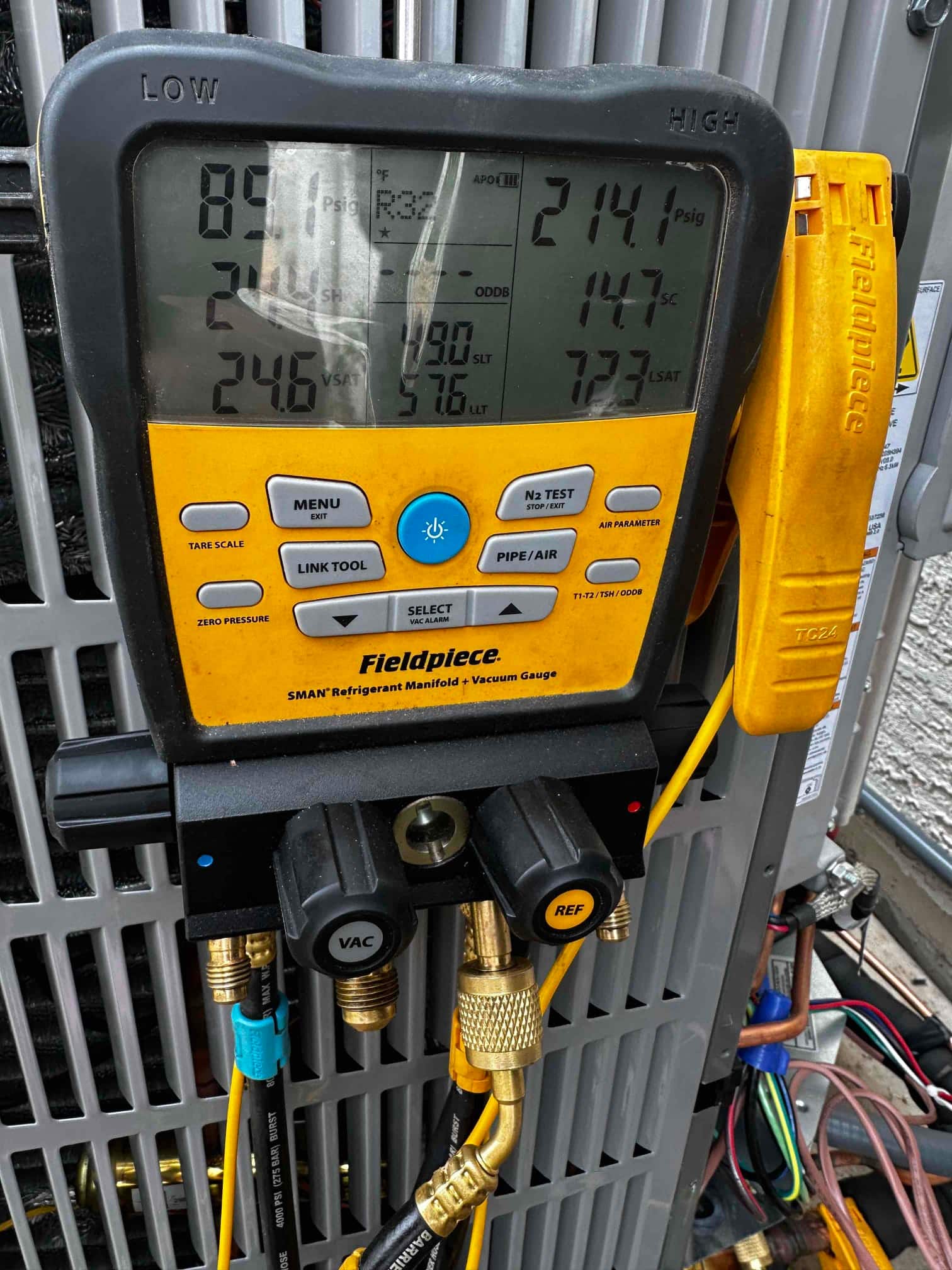

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

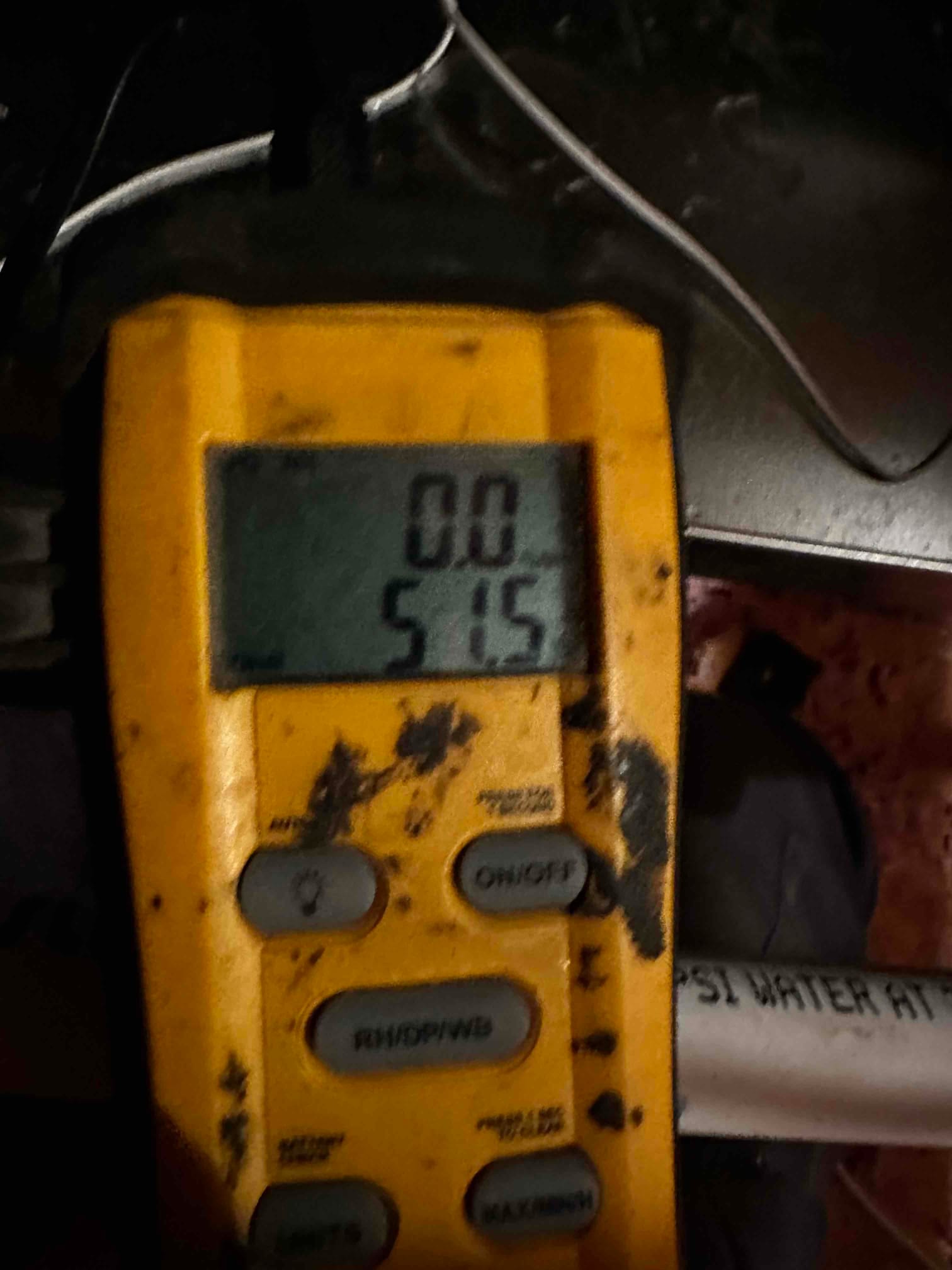

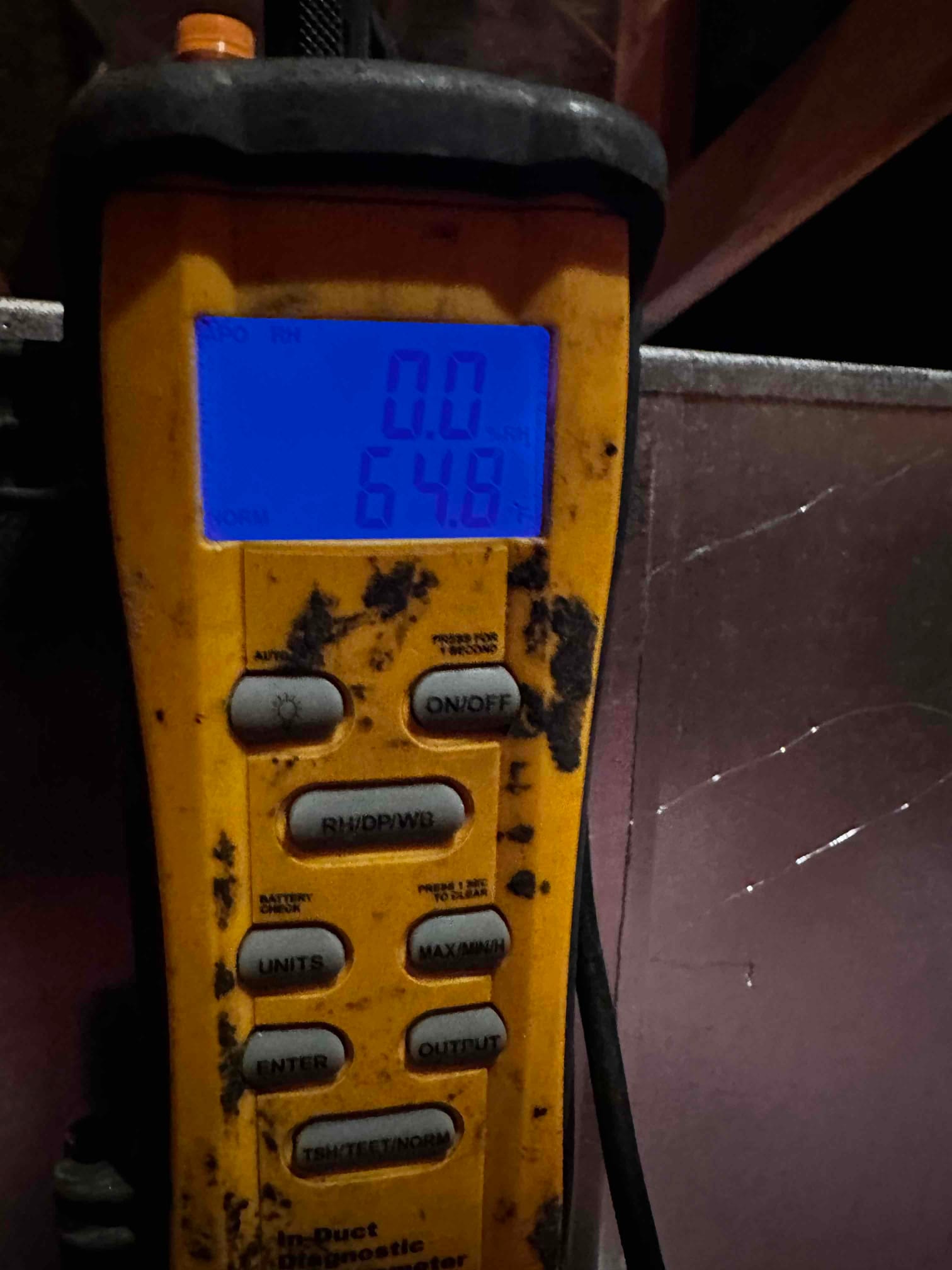

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
