Newly Installed
Heat pump
- Brand
- Trane
- Model
- 4TWV7X60A1000
- Capacity
- 5-Ton
- Efficiency
- 17 SEER2
New — installed 2026
Real Installation · Sun City
5-Ton Heat Pump System Installation in Sun City — April 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Customer needed HVAC equipment installed or replaced.
Sun City · installed April 18, 2025
— At a Glance
Location
Sun City
Completed
April 18, 2025
System Type
Heat Pump System
Capacity
5-Ton
Brand
Trane
Efficiency
17 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$13,278
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed

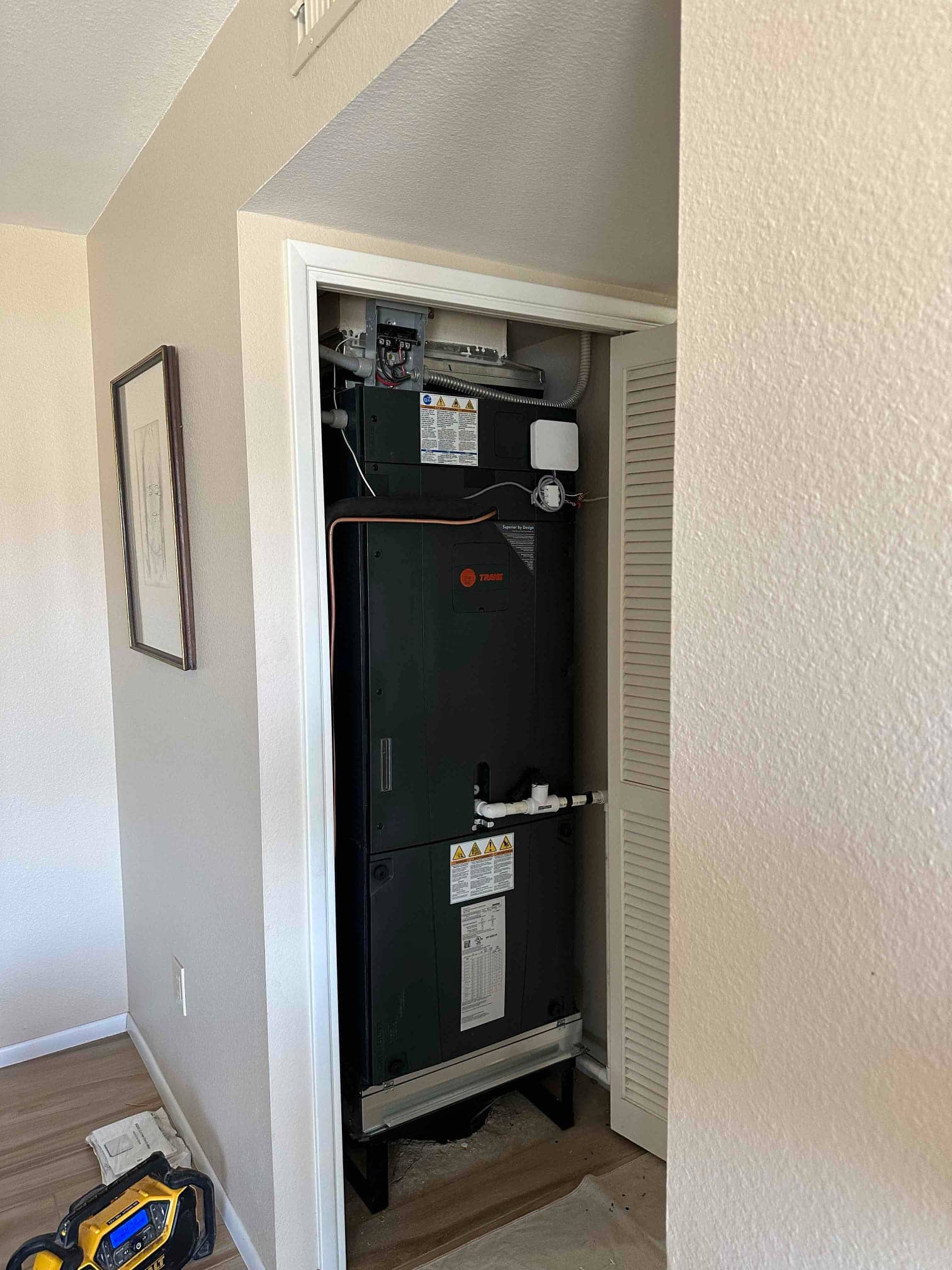

Air handler
- Brand
- Trane
- Model
- TAMXB0C60V51D
- Matched
- 5-Ton airflow
New — installed 2026
Newly Installed

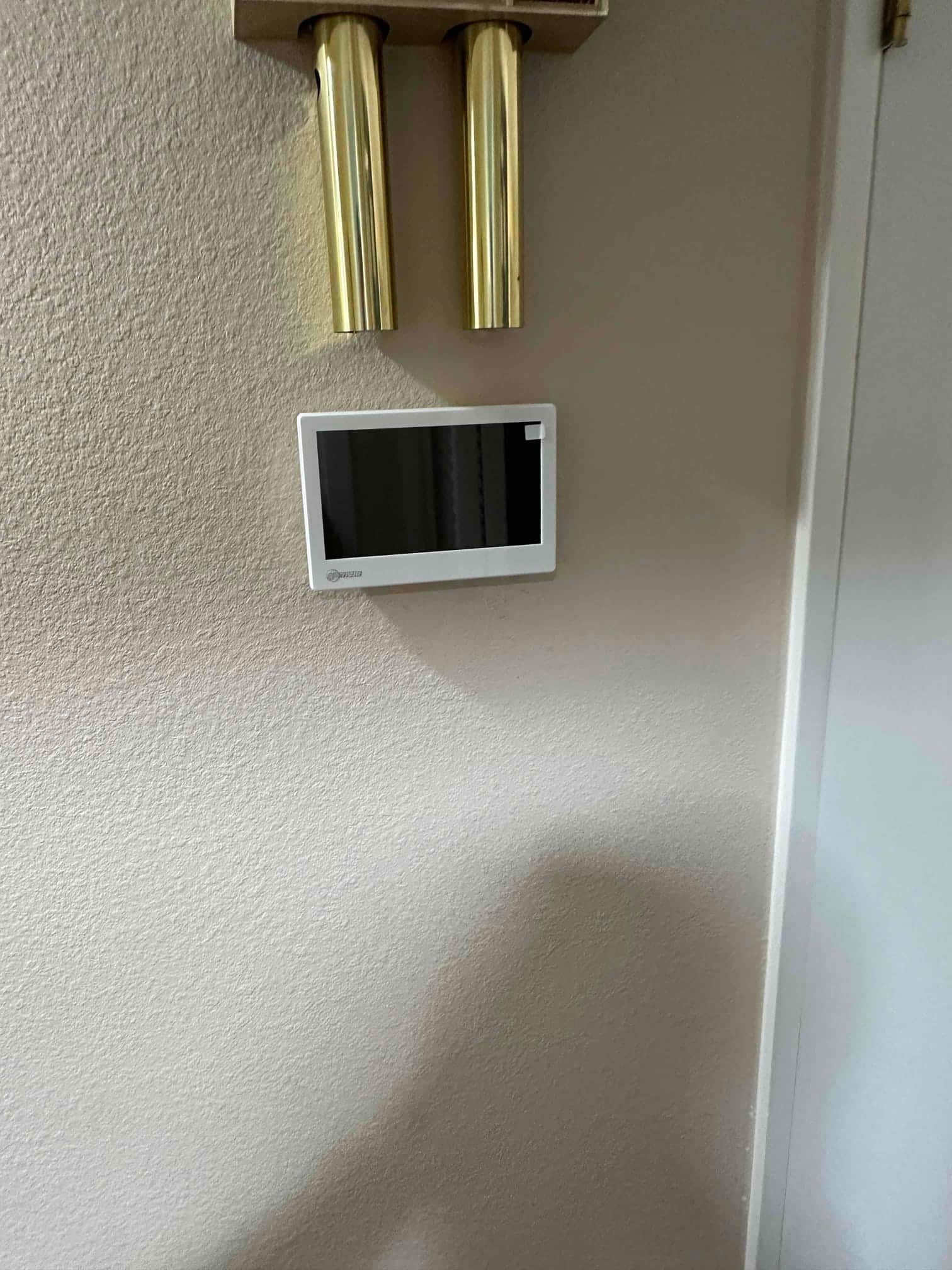

Thermostat
- Brand
- Trane
- Model
- TLINK360A2VVUA
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Sun City, AZ. You can browse more real 5-Ton Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle, Michael & Andrew from the manifold gauges, micron gauge, and digital thermometers.

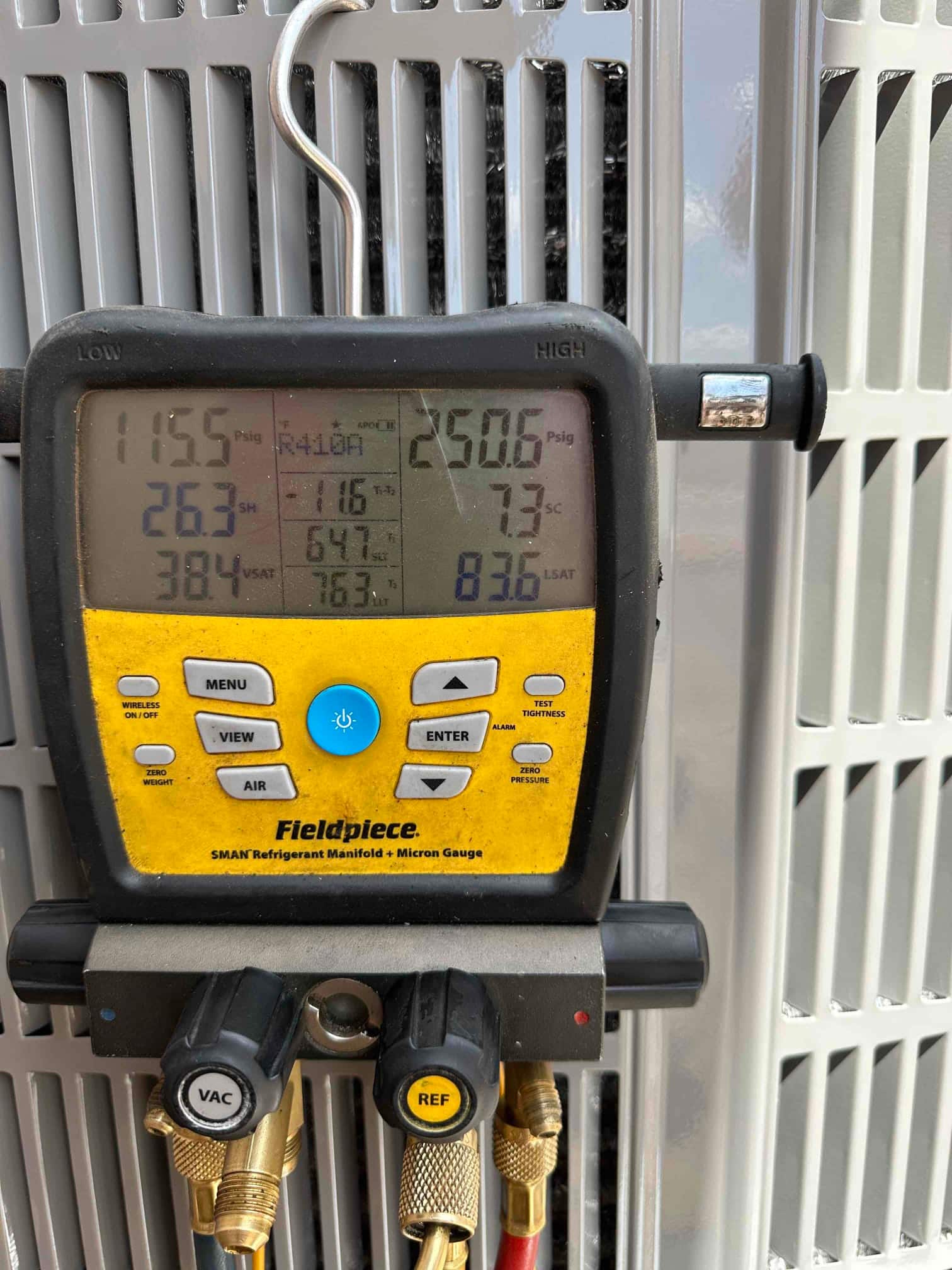

Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 115 PSIG
- Liquid pressure
- 250 PSIG
- Evaporator saturation
- 33.5°F
- Condensing saturation
- 96.2°F
- Superheat
- 26°F
- Subcooling
- 7°F
Air-Side Performance
- Return-air temperature
- 72.9°F
- Supply-air temperature
- 50.5°F
- Temperature split
- 22.4°F
Vacuum / Evacuation
- Final vacuum reading
- 166 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 517V-4TWV7X60-TAMXB0C60V | 5 Ton- Vertical 17 SEER2 XV17 Variable Speed Heat Pumps (Comes with Surge Protector installed on indoor and outdoor units.) with AirHandler. Installation of the equipment is subject to the terms and c | 1 |

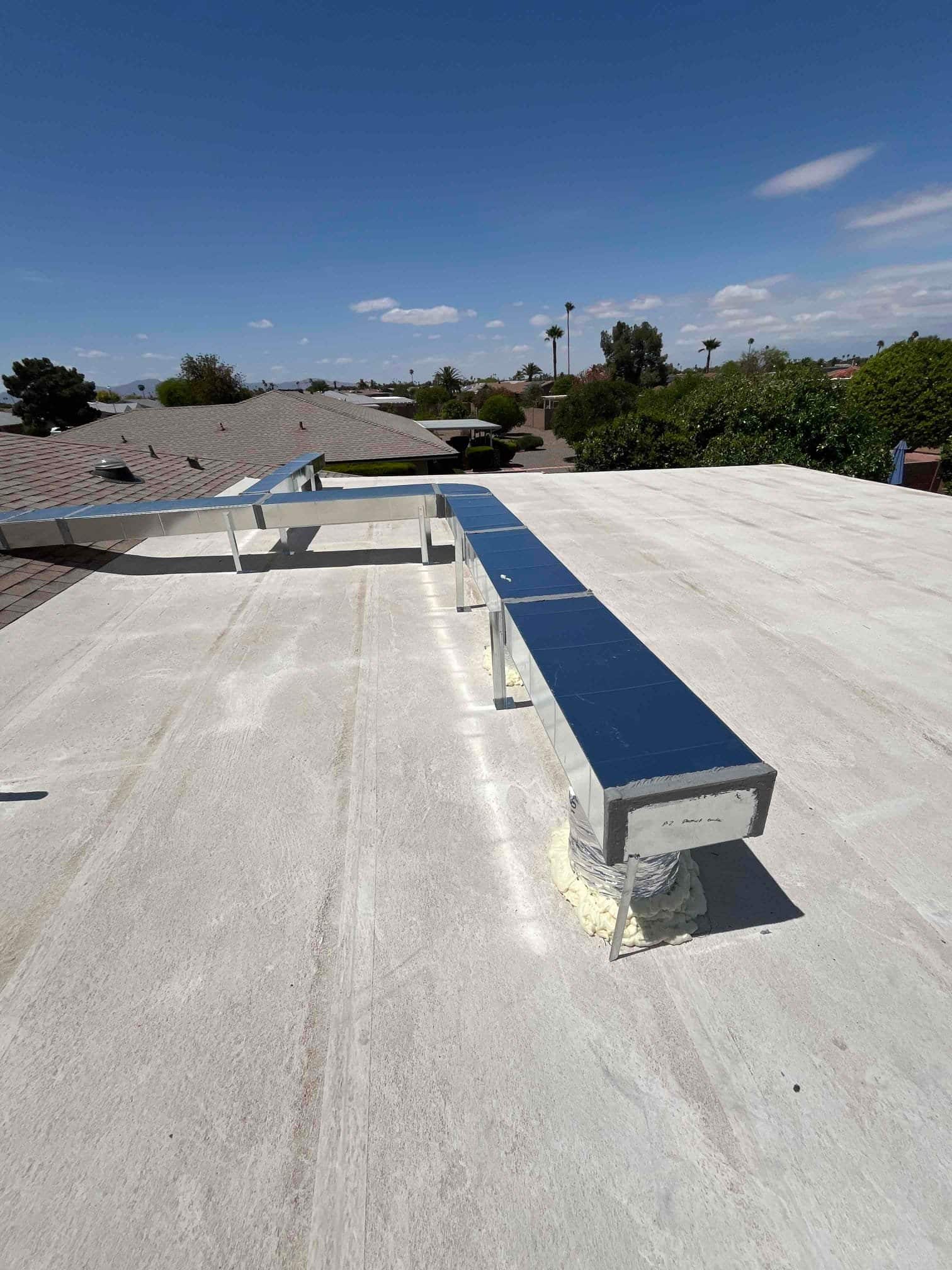

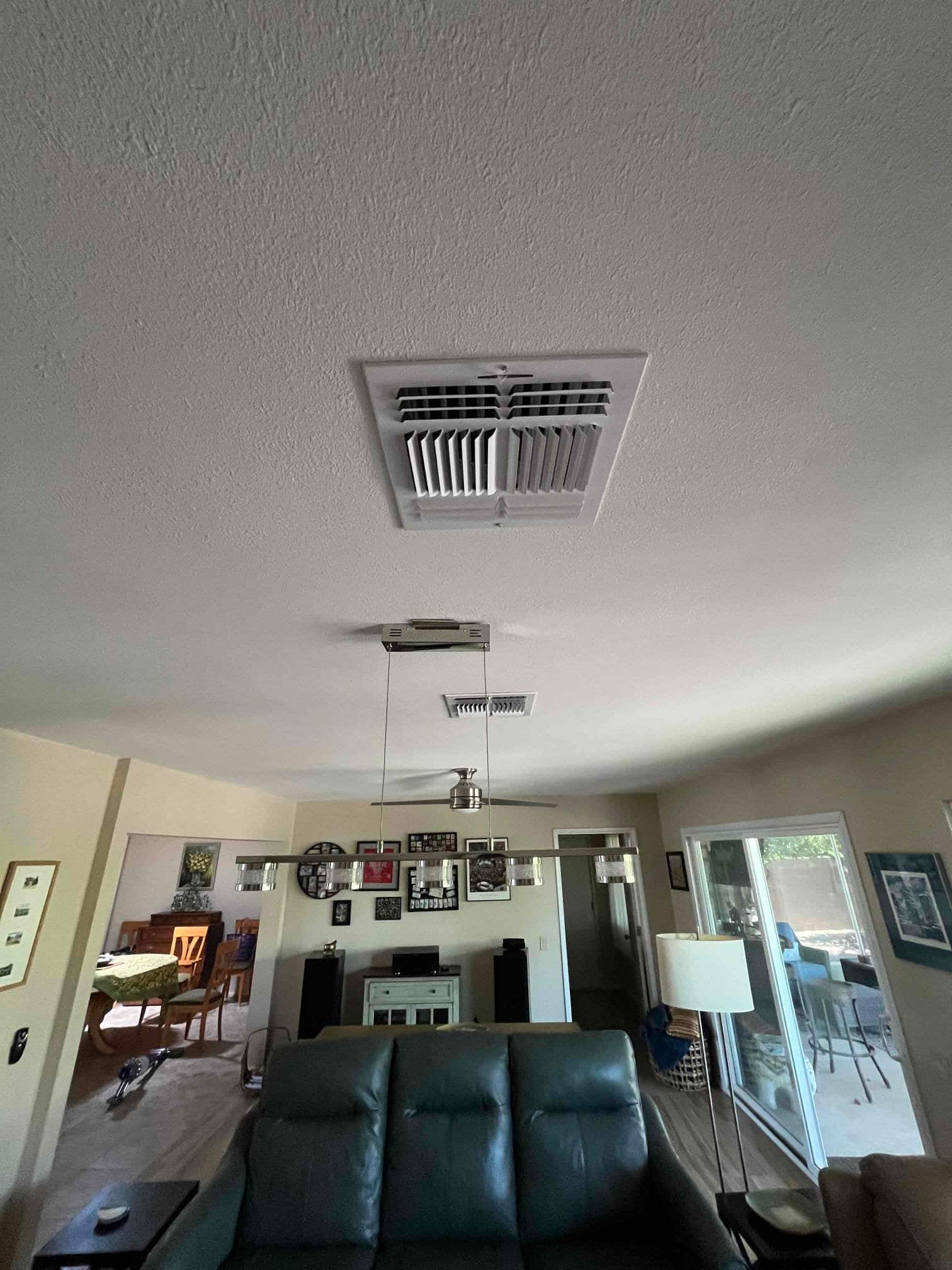

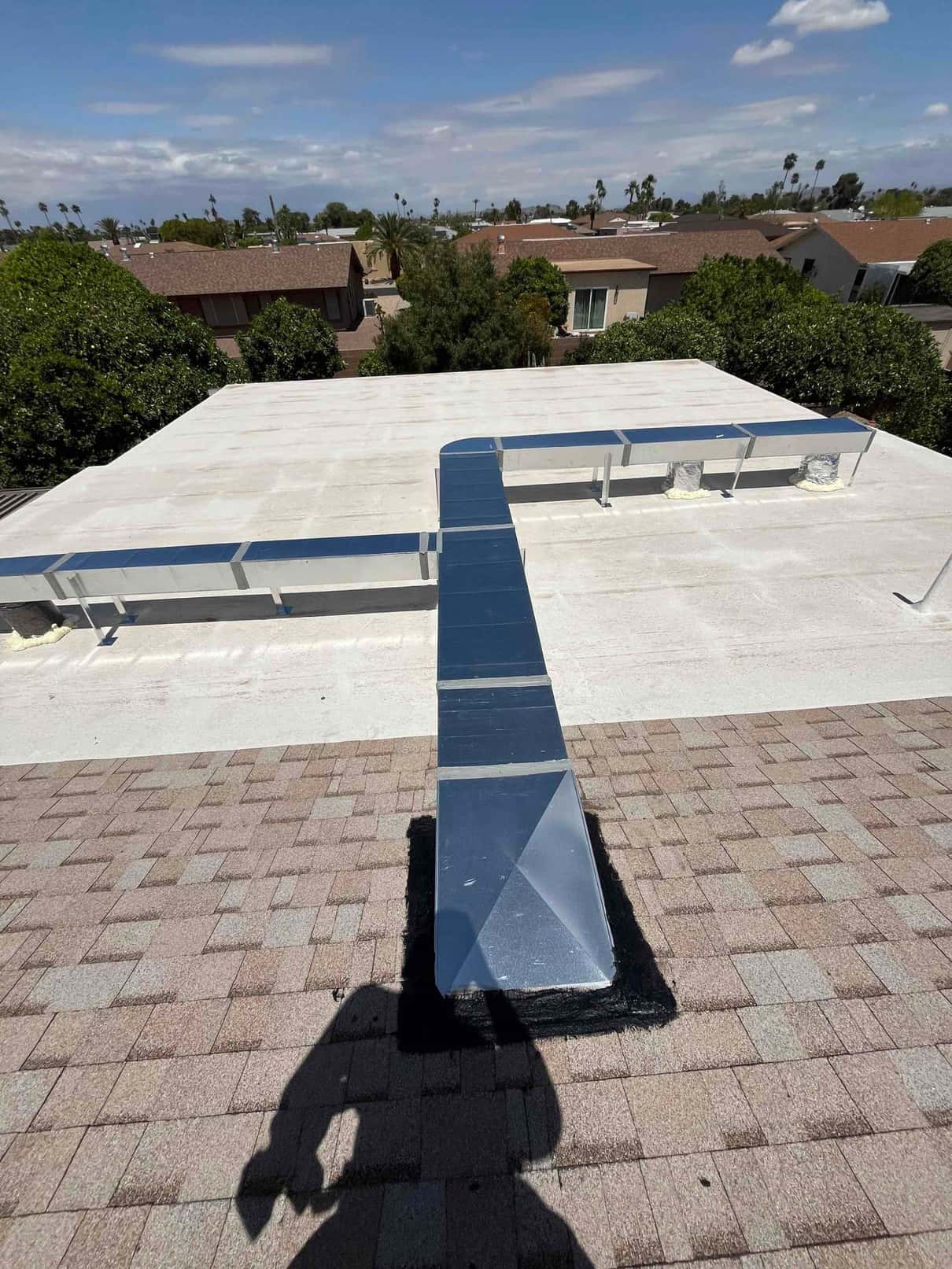

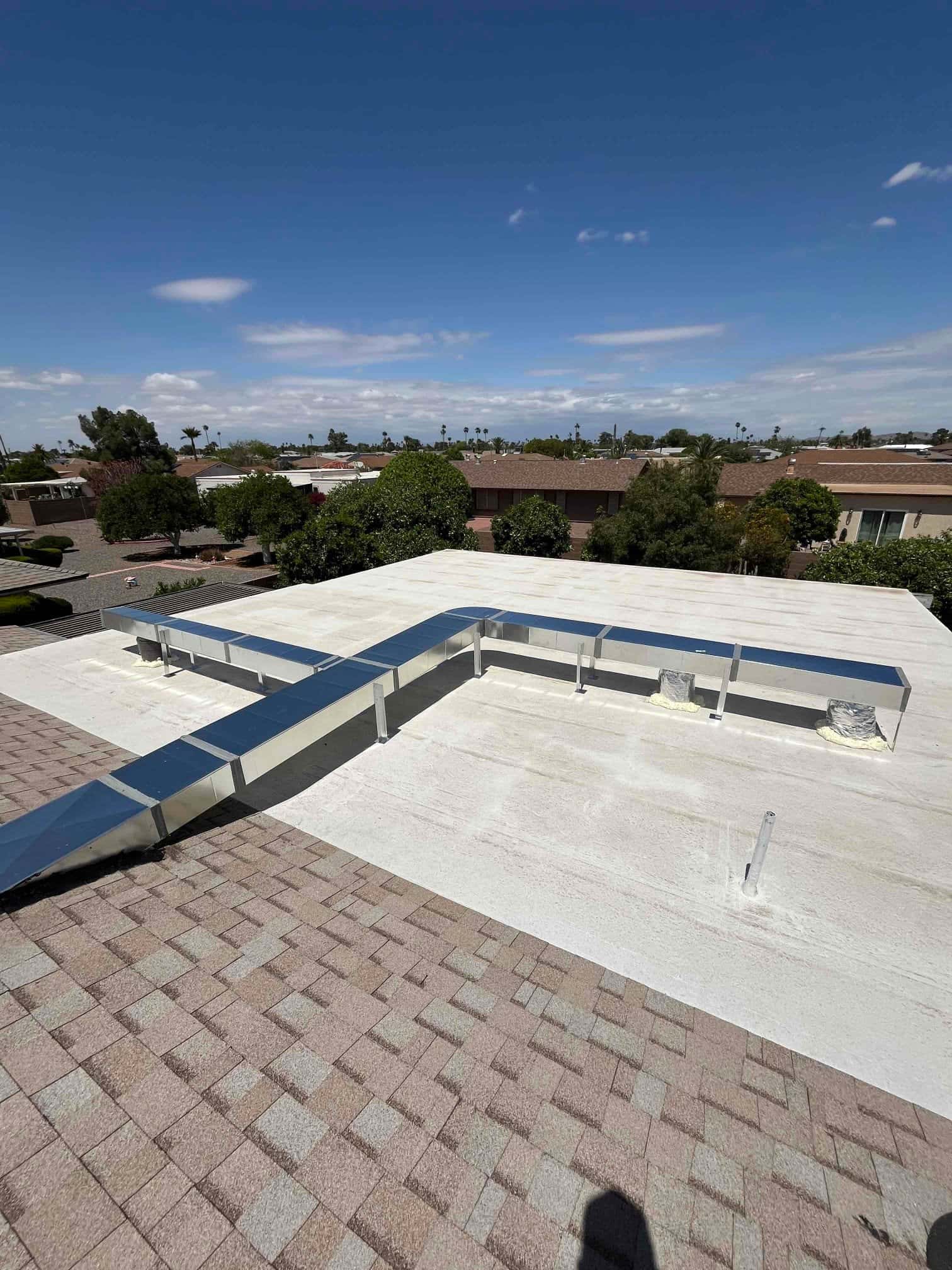

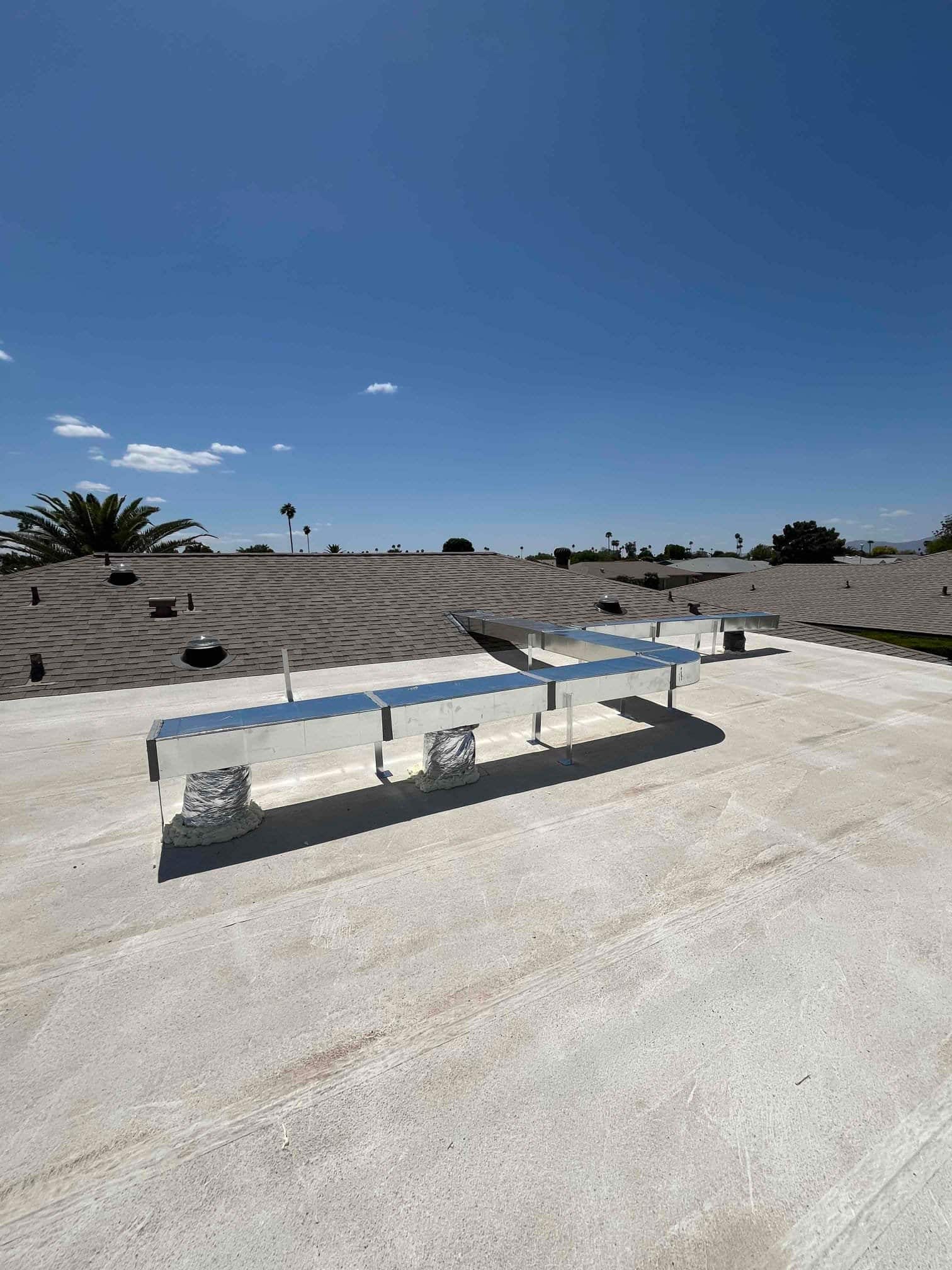

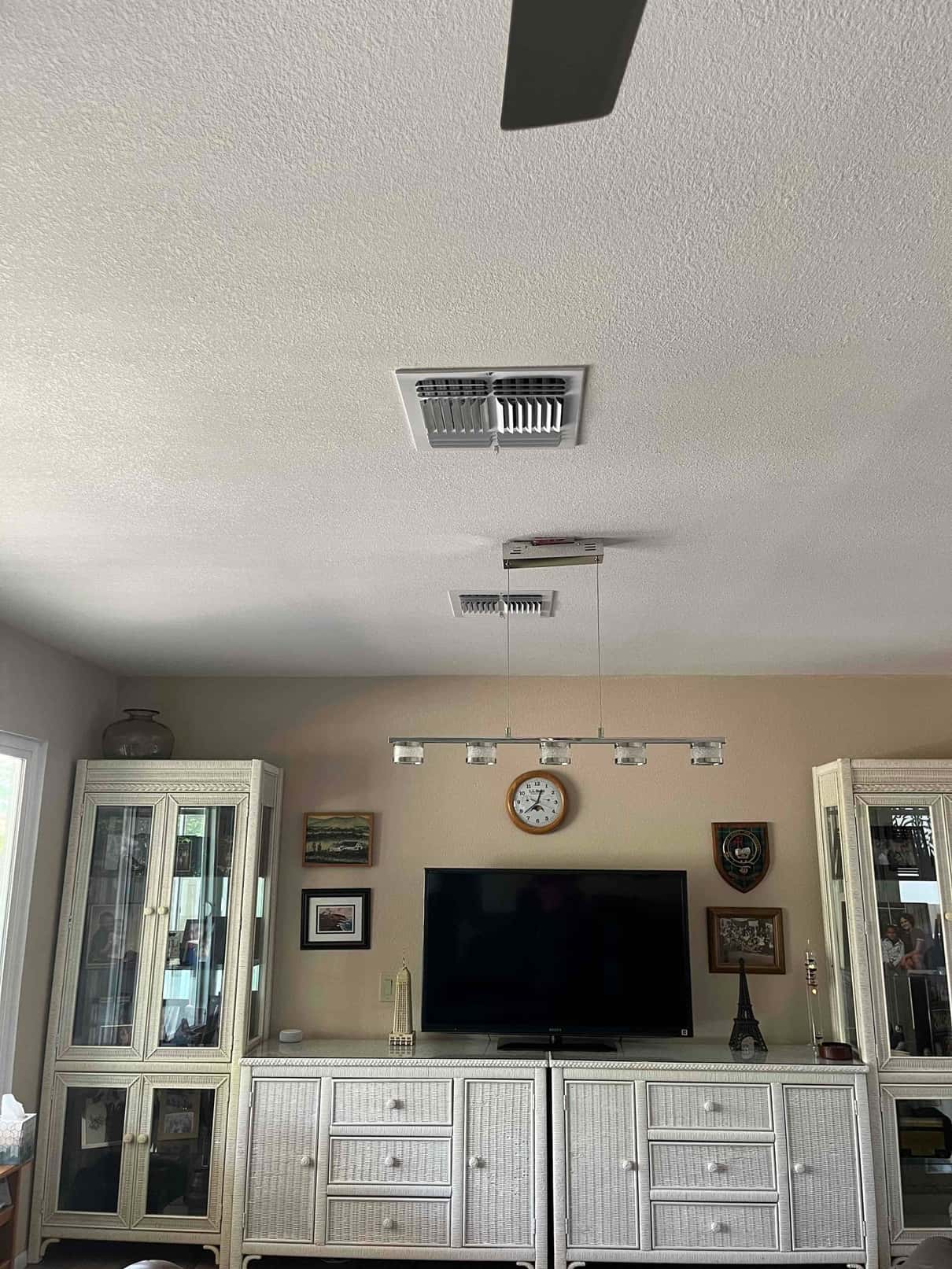

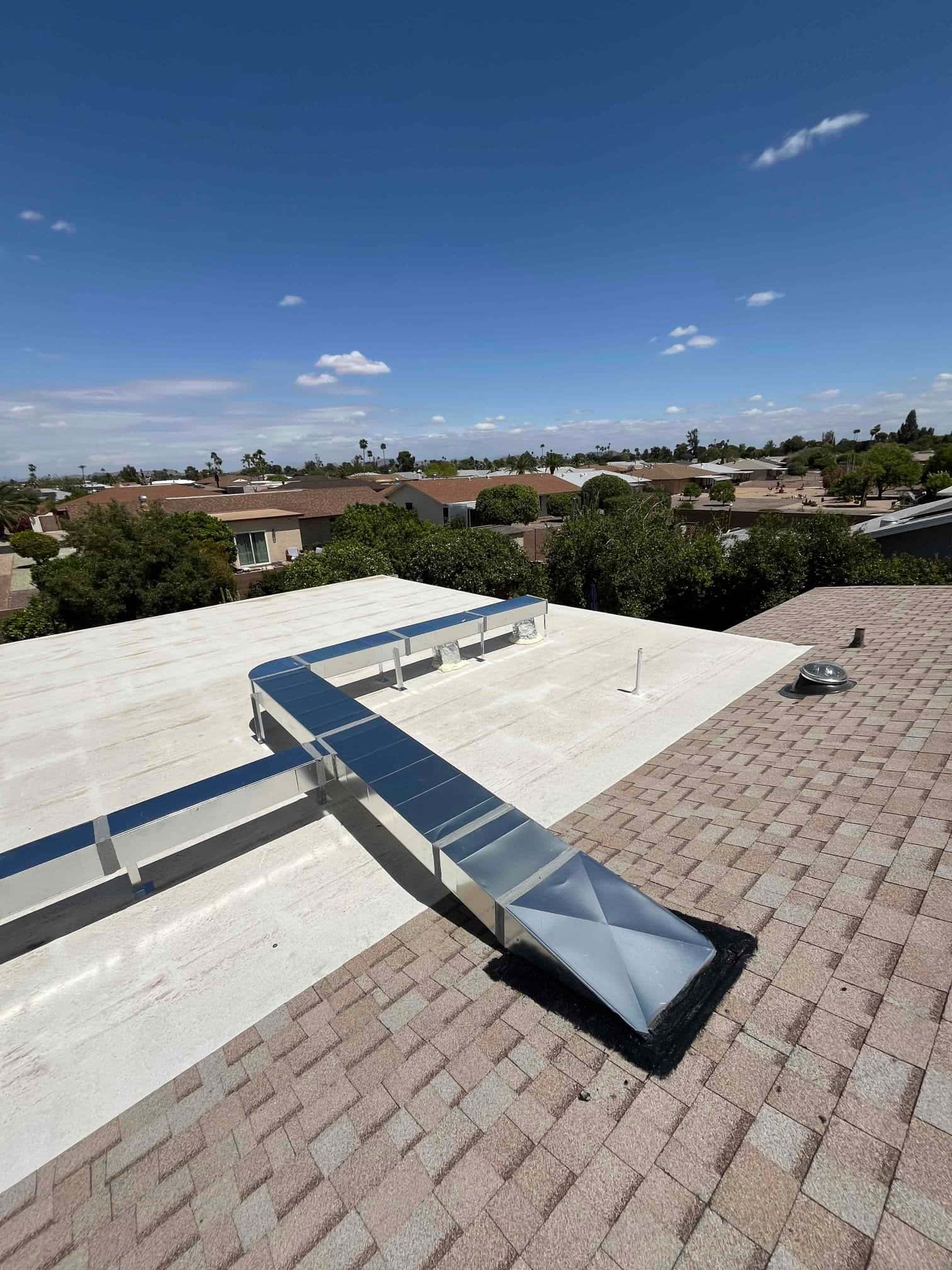

| AFB-175 | Tap into existing soffit with 16 inch duct run. Penetrate exterior of roof and run three supply registers to the living room and one to the den area. Den area supply runs will be 12 x 12 x 10 and the | 1 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
25 photos from this installation
Every step of this installation was documented on-site by Kyle, Michael & Andrew.

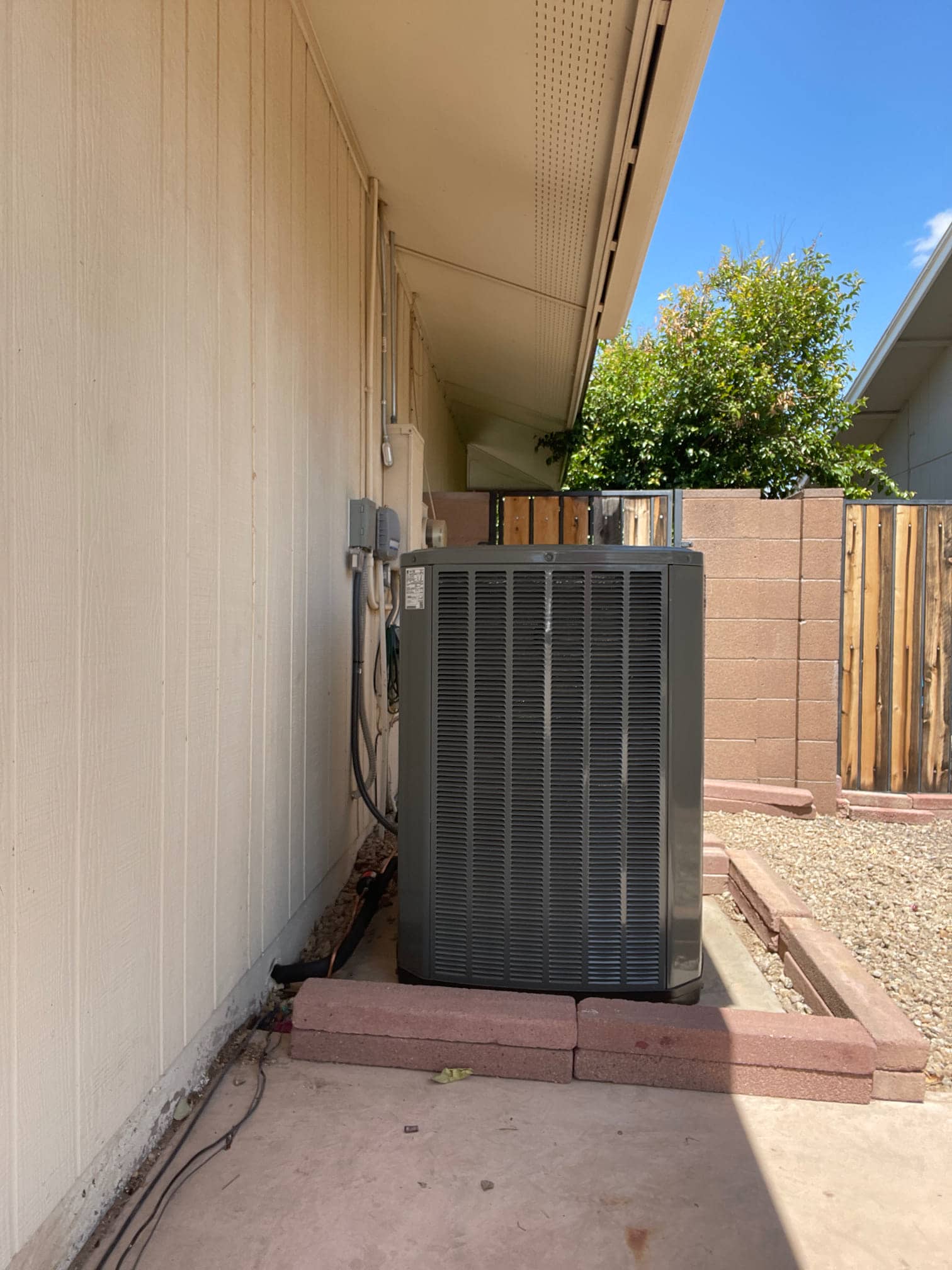

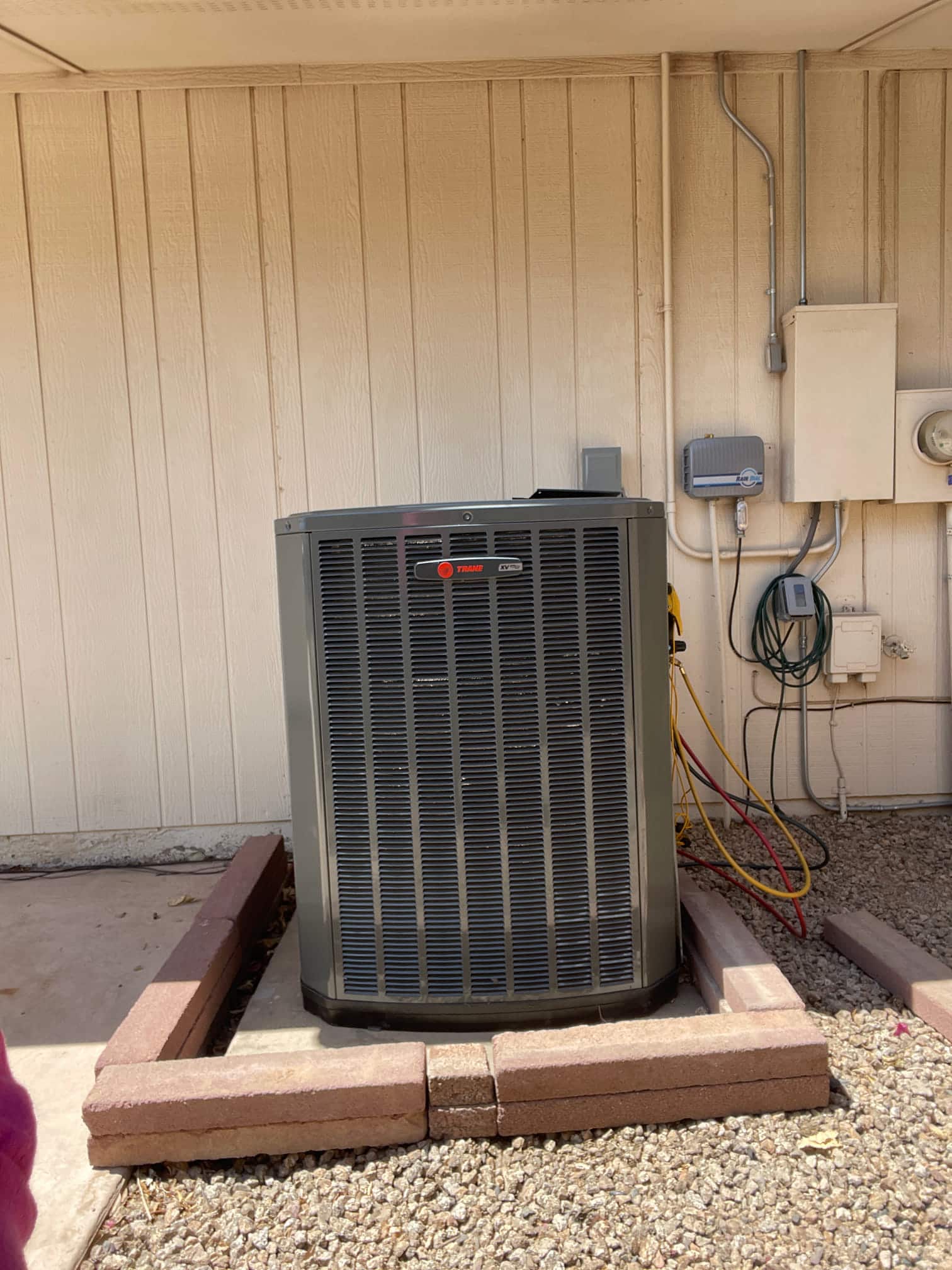

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

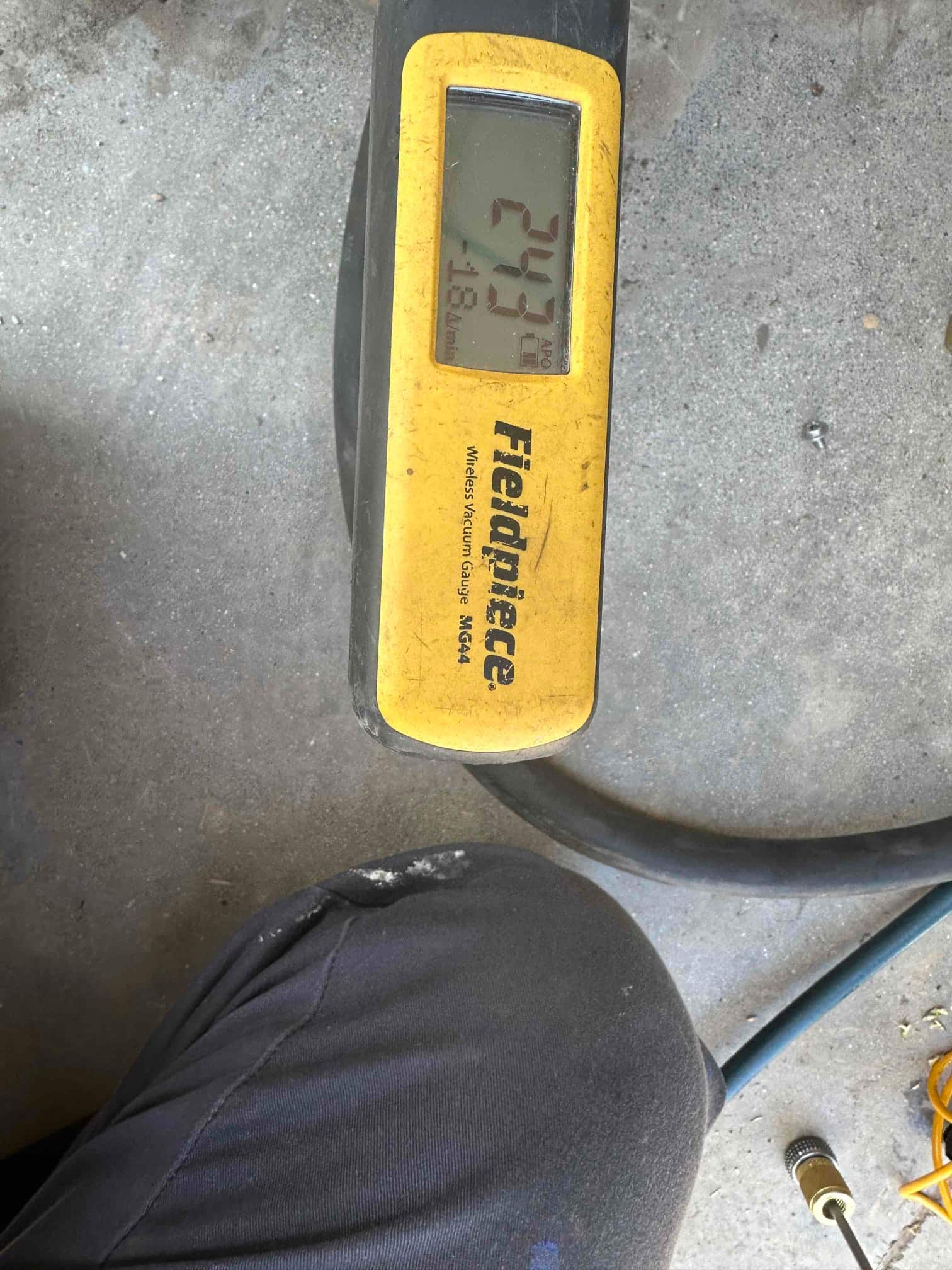

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

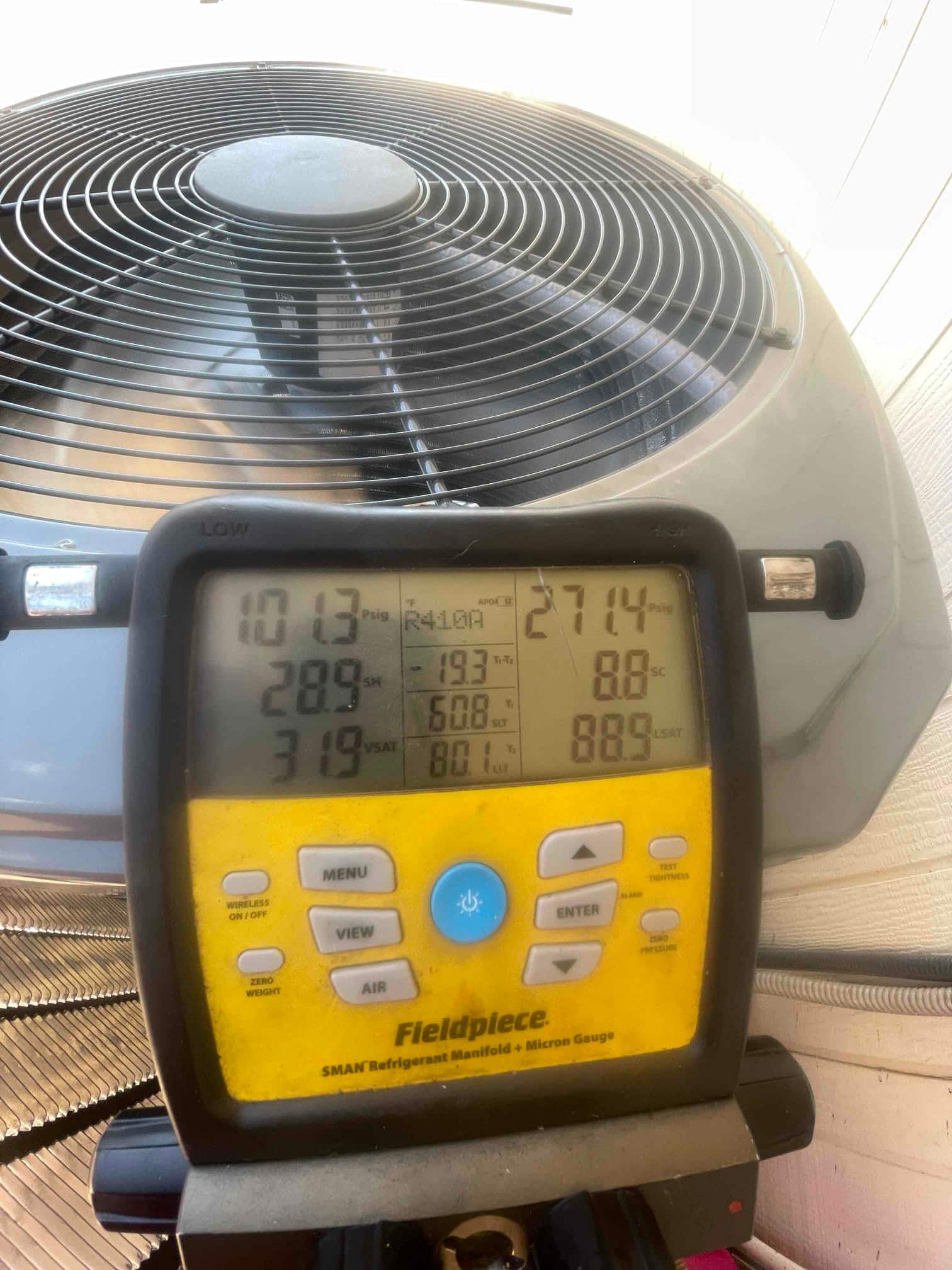

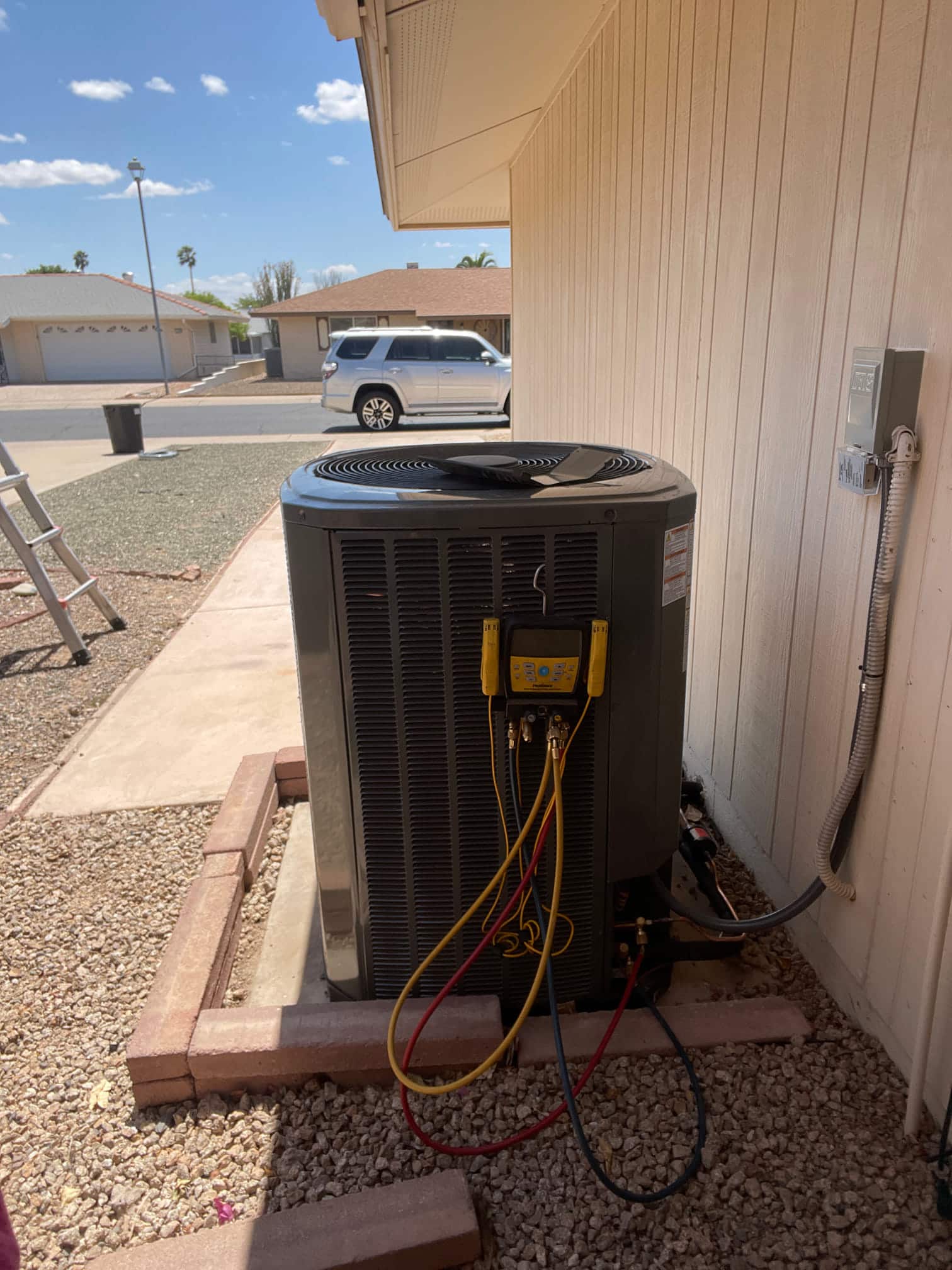

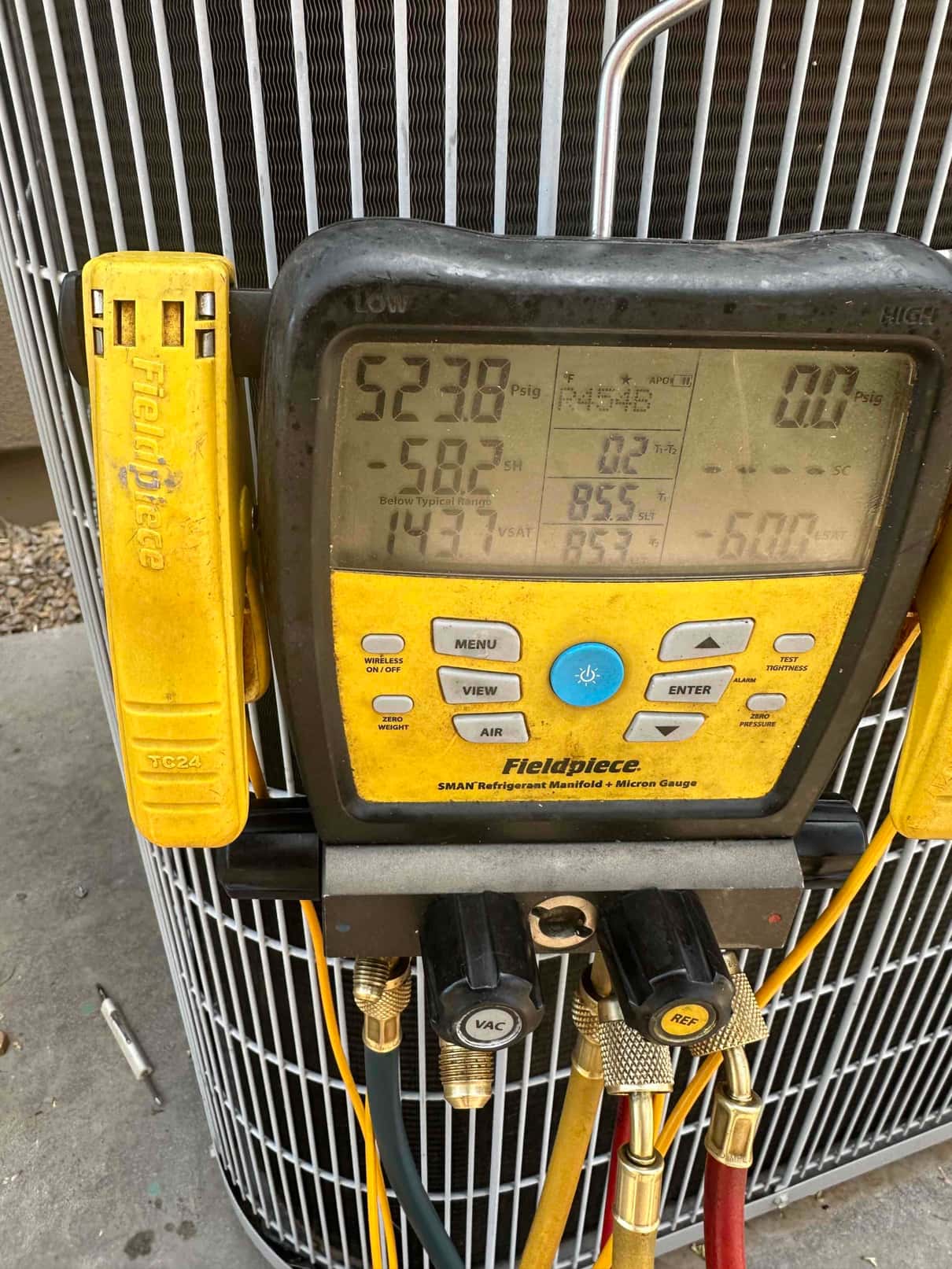

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

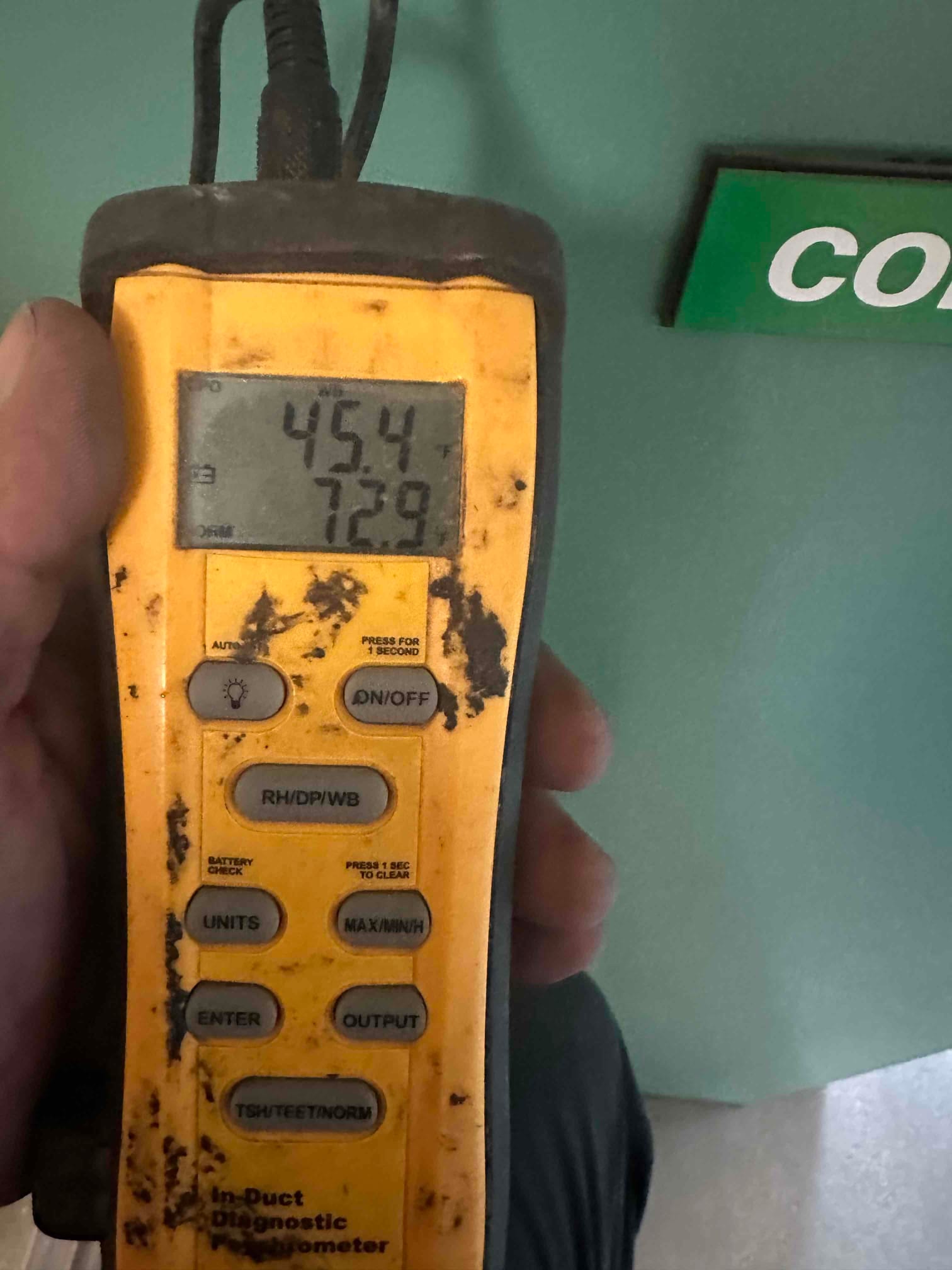

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Sun City job?
AZ Perfect Comfort installed a 5-Ton Heat Pump System at this Sun City property. The install was completed by Kyle, Michael & Andrew and includes AZ Perfect Comfort's workmanship warranty.
How much does a new heat pump system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Sun City?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Sun City and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
