Newly Installed
Heat pump
- Brand
- RUUD
- Model
- RP14AZ60AJ2NA
- Capacity
- 5-Ton
New — installed 2026
Real Installation · Sun City
5-Ton Heat Pump System Installation in Sun City — March 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work

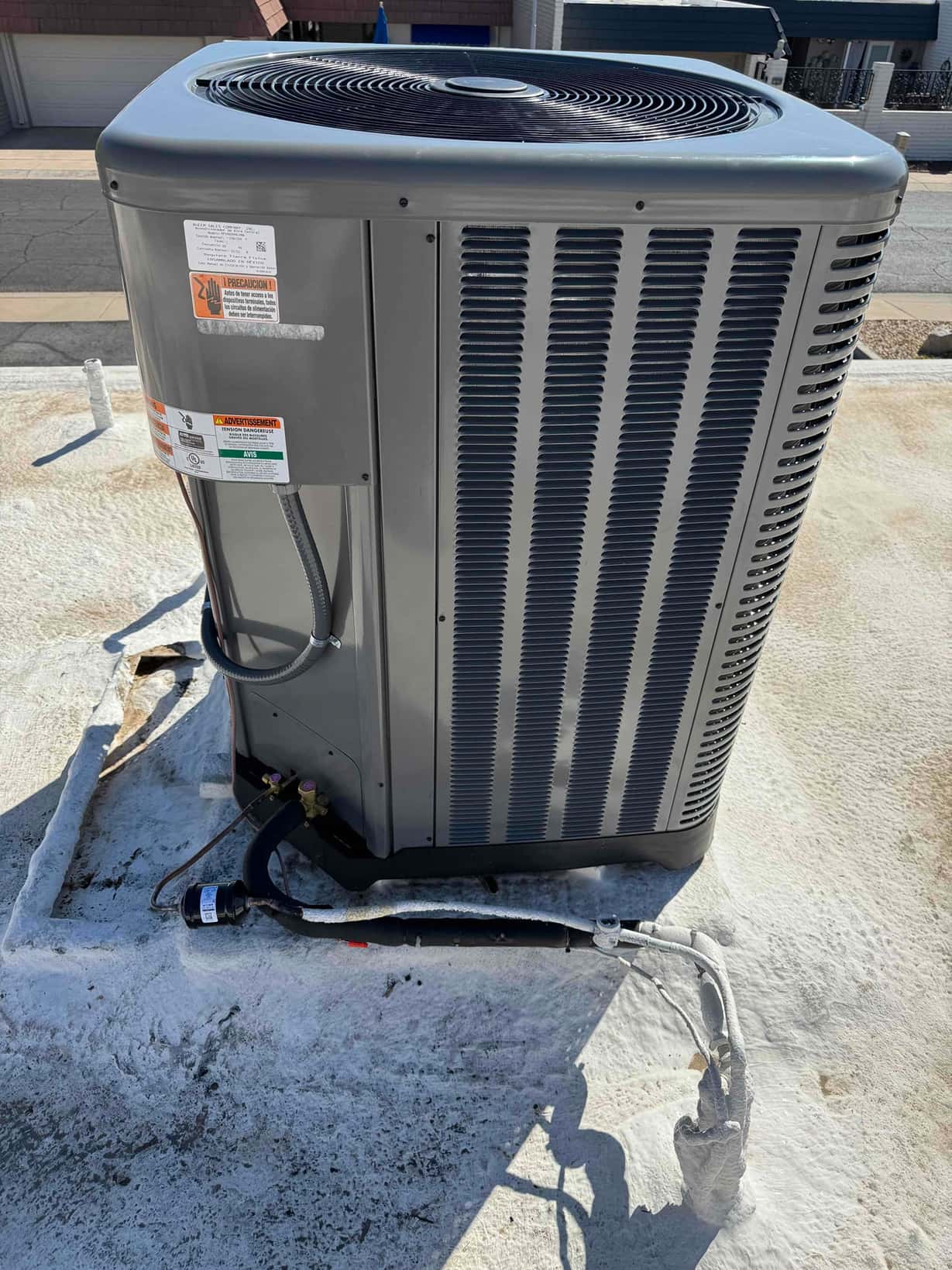

Installation of a vertical split system with the condenser on the roof.
Sun City · installed March 21, 2025
— At a Glance
Location
Sun City
Completed
March 21, 2025
System Type
Heat Pump System
Capacity
5-Ton
Brand
RUUD
Labor Warranty
1-Year Labor Warranty
Total Investment
$9,400
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Air handler
- Brand
- RUUD
- Model
- RH2TZ6024STANNJ
- Matched
- 5-Ton airflow
New — installed 2026
Newly Installed
Thermostat
- Brand
- RUUD
- Model
- ECOBEE-3
New — installed 2026
Your Coverage on This Install
Labor Warranty
1-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Sun City, AZ. You can browse more real 5-Ton Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Jesse from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 101 PSIG
- Liquid pressure
- 262 PSIG
- Evaporator saturation
- 33.9°F
- Condensing saturation
- 98.1°F
- Superheat
- 26°F
- Subcooling
- 6°F
Nitrogen Pressure Test
- Test pressure held
- 413 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 449 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 514.3V-RP14AZ60-RH2TZ6024S | 5 Ton- Vertical 5T Heat Pump Condenser with AirHandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimate/invoice. Any sig | 1 |
| AFB-162 | Install Perfect Fit Filter Base | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
10 photos from this installation
Every step of this installation was documented on-site by Kyle & Jesse.
Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

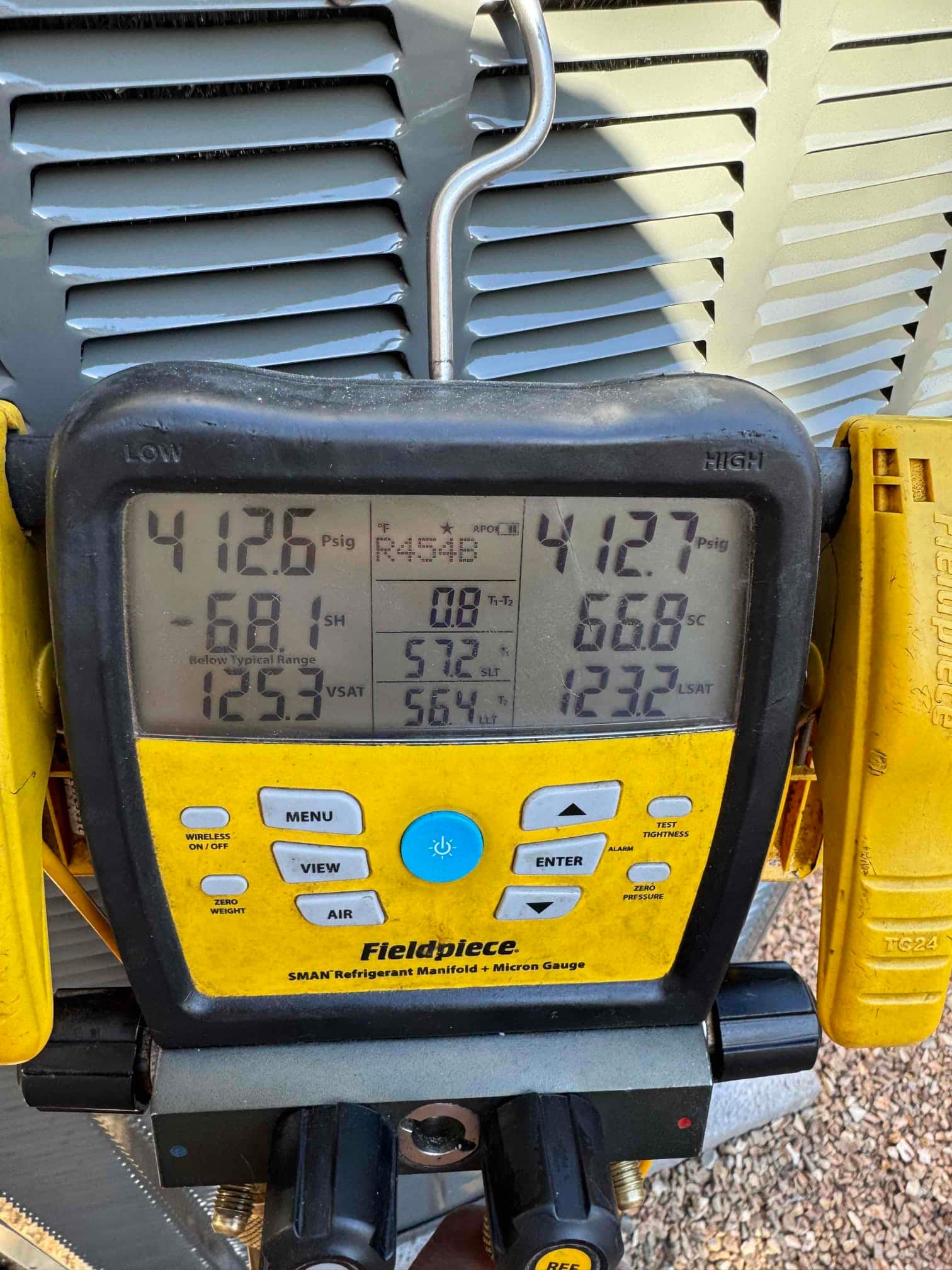

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

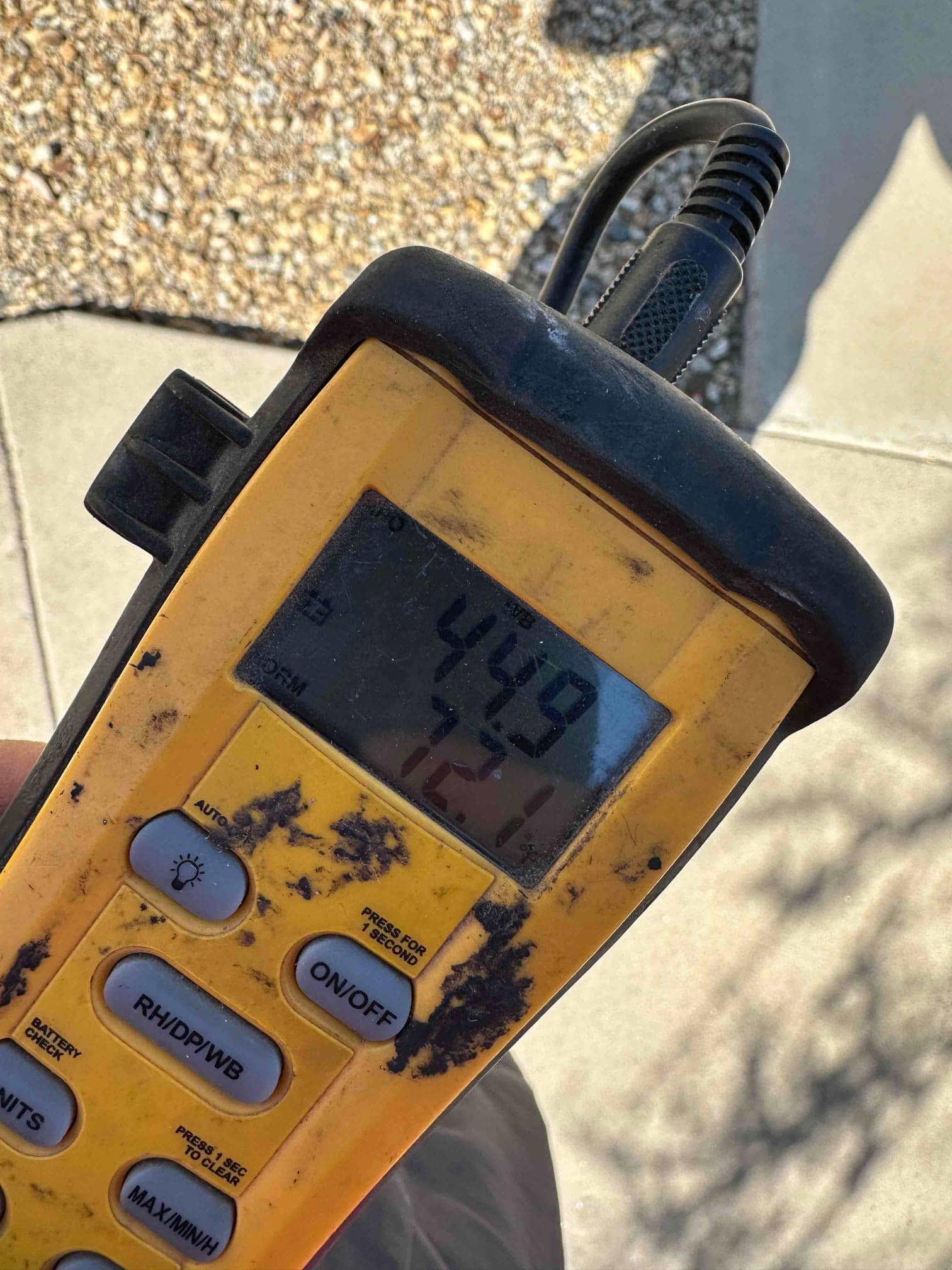

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

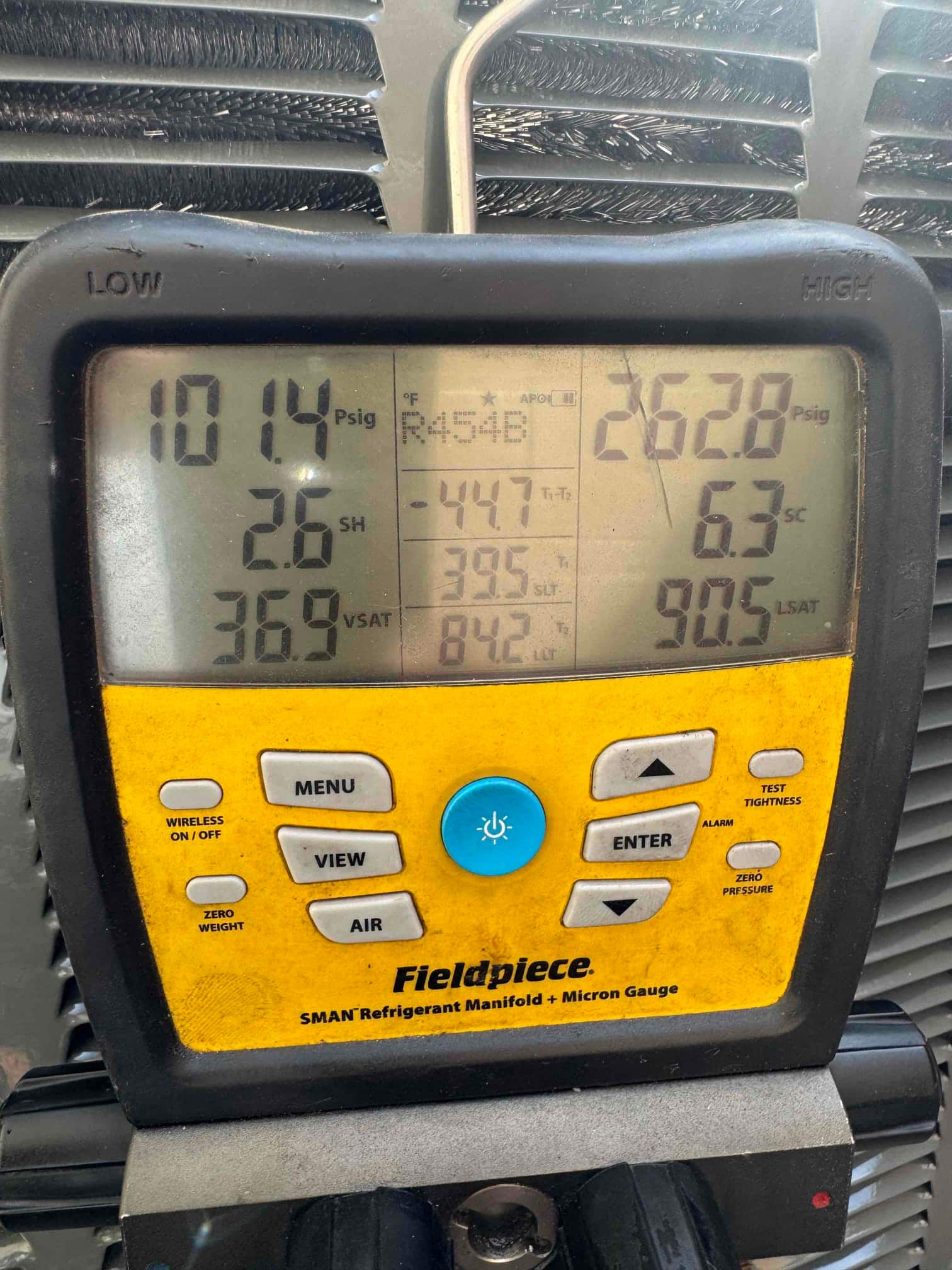

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

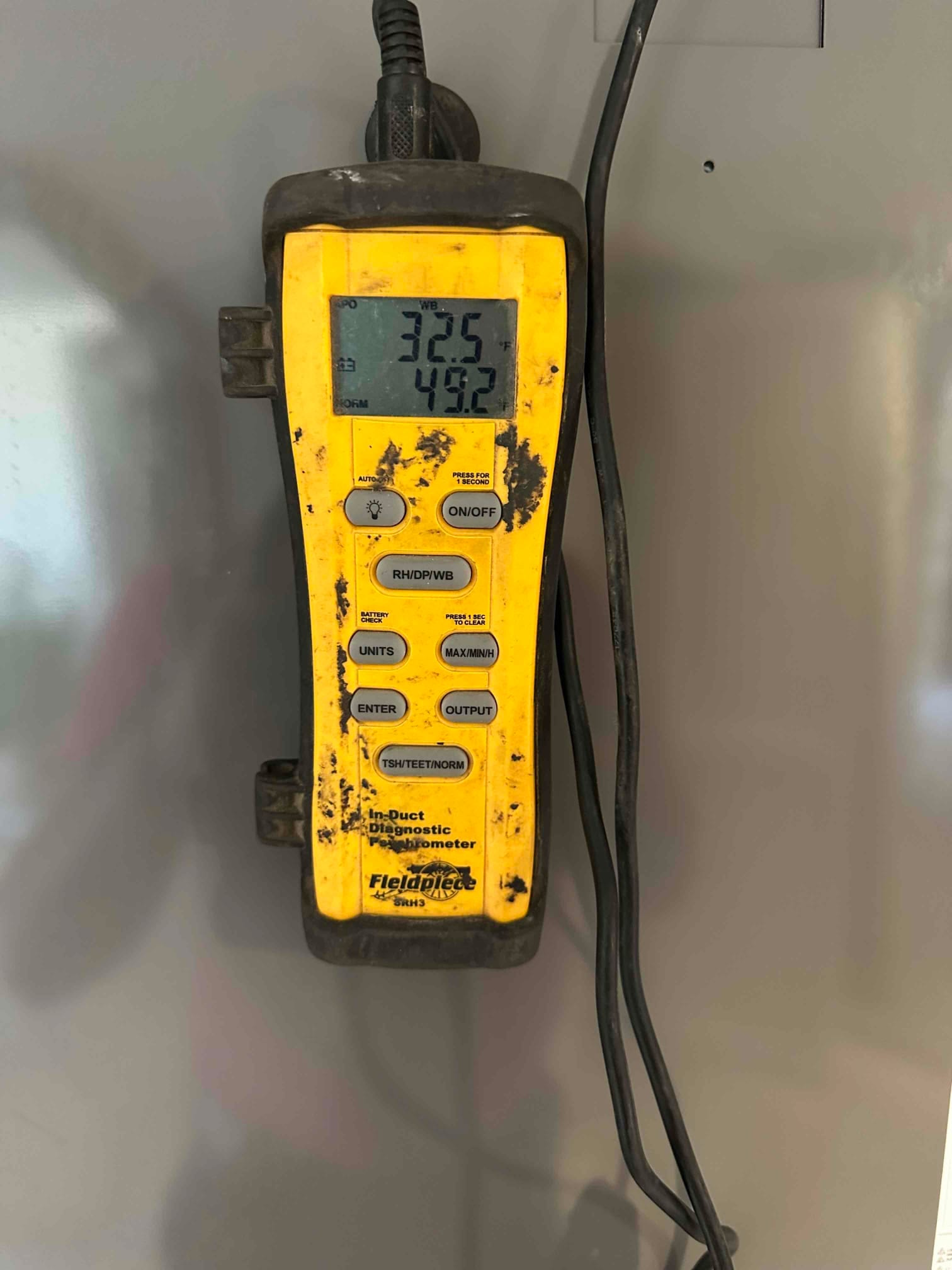

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
