Real Installation · Scottsdale

Mini-Split System Installation in Scottsdale — February 2024

CompletedFebruary 20, 2024
Install CrewFred, Ben & Andrew
Service AreaScottsdale
SystemMini-Split System
WarrantyMfg + Workmanship
Instant Price Estimate Call (602) 613-3489
4.9806 Google Reviews
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
AZ Perfect Comfort — Our Work
Scope of Work
The installation was necessary due to the absence of a functional HVAC system, which prompted the need for a new unit to ensure proper climate control.
Scottsdale · installed February 20, 2024
— At a Glance
Location
Scottsdale
Completed
February 20, 2024
System Type
Mini-Split System
Total Investment
$3,425
— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the Air Conditioning work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real Mini-Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Fred, Ben & Andrew from the manifold gauges, micron gauge, and digital thermometers.

Refrigerant Circuit

Suction pressure
195 PSIG
Liquid pressure
481 PSIG
Superheat
31°F
Subcooling
15°F

Air-Side Performance

Return-air temperature
70.8°F
Supply-air temperature
54.7°F
Temperature split
16.1°F

Electrical Readings

Supply voltage
240V

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

ItemDescriptionQty
CUI-Mini-Split Installation of customer provided equipment and necessary materials to complete the installation process. Does not include refrigerant if needed. Includes electrical disconnect and whip from installed 1
7750126073 3/4" Shark Bite Copper Ball Valve 1
5749012523 R58-798 87019 UNION QUICK CONNECT3/8 1
6033845247 R58-797 87018 UNION QUICK CONNECT1/4 1

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

15 photos from this installation

Every step of this installation was documented on-site by Fred, Ben & Andrew.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

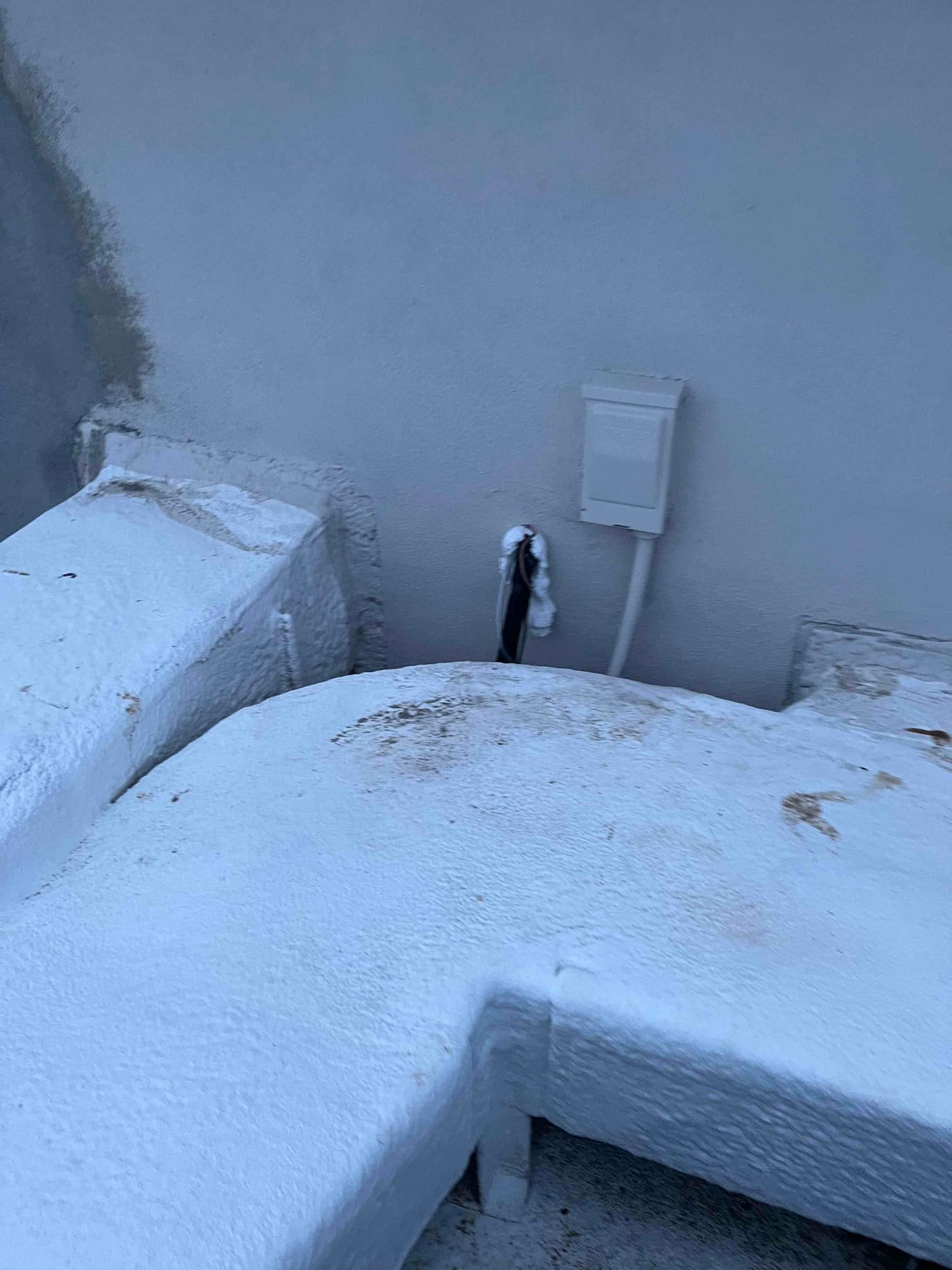

Outdoor wall penetration with sealed line set and mounted weatherproof electrical disconnect near newly installed mini-split location.
Outdoor wall penetration with sealed line set and mounted weatherproof electrical disconnect near newly installed mini-split location.

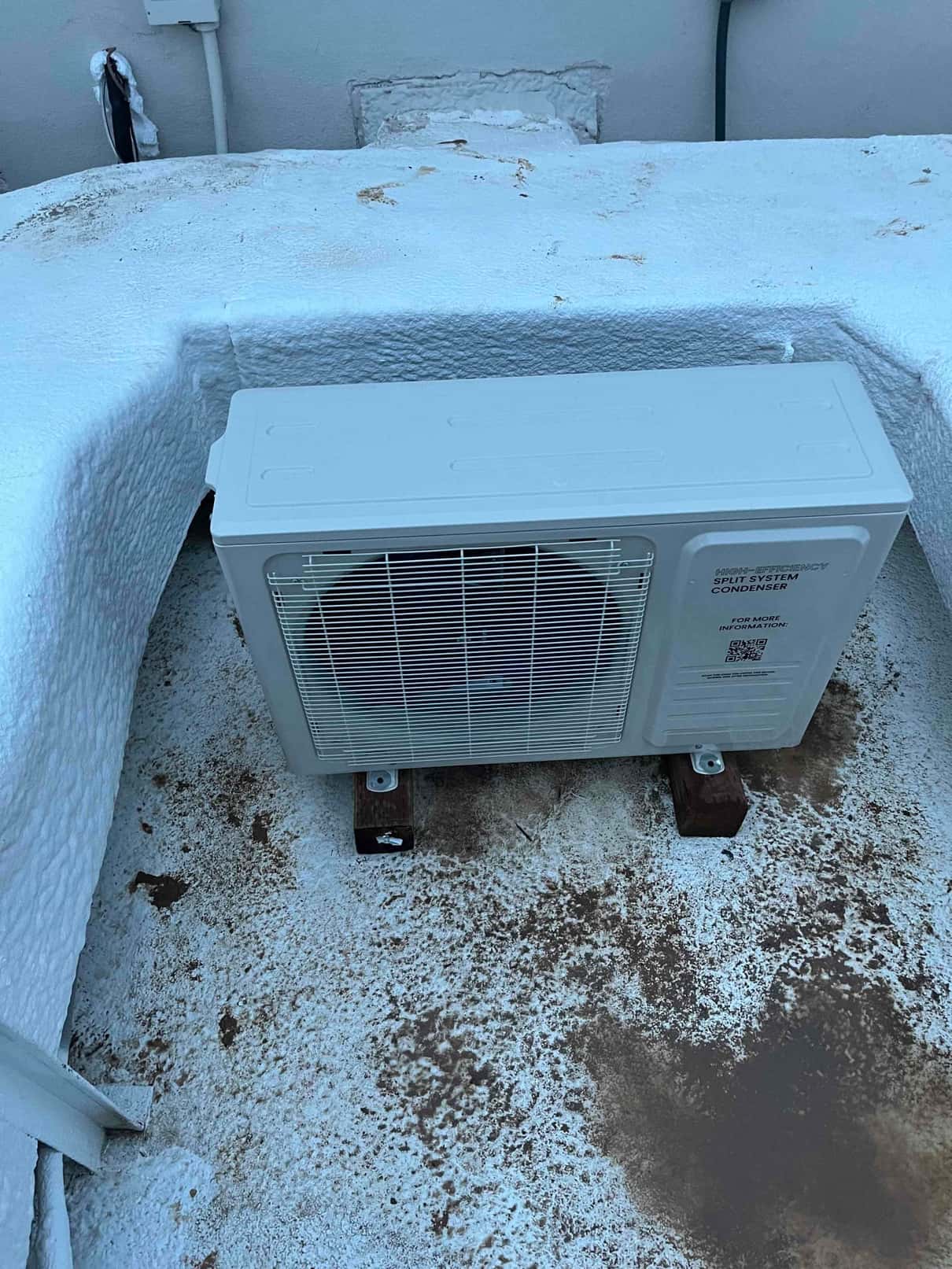

New mini-split outdoor condenser set on riser blocks on a coated rooftop with sealed wall penetration and electrical whip.
New mini-split outdoor condenser set on riser blocks on a coated rooftop with sealed wall penetration and electrical whip.

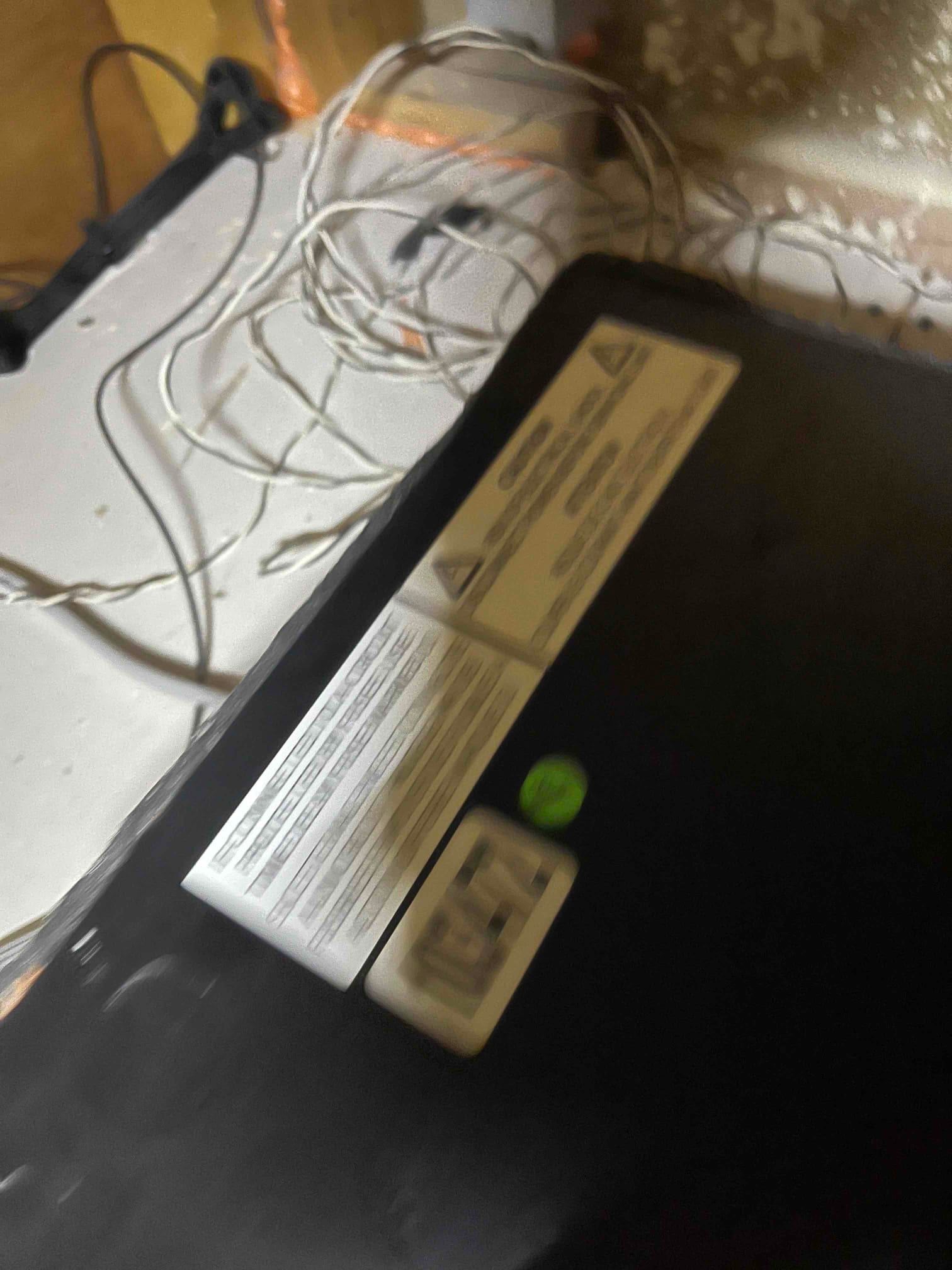

Air handler cabinet with wiring visible nearby during installation, showing safety and information labels on the unit exterior.
Air handler cabinet with wiring visible nearby during installation, showing safety and information labels on the unit exterior.
Indoor area with thermostat or control wiring staged near HVAC equipment panel during mini-split installation.
Indoor area with thermostat or control wiring staged near HVAC equipment panel during mini-split installation.

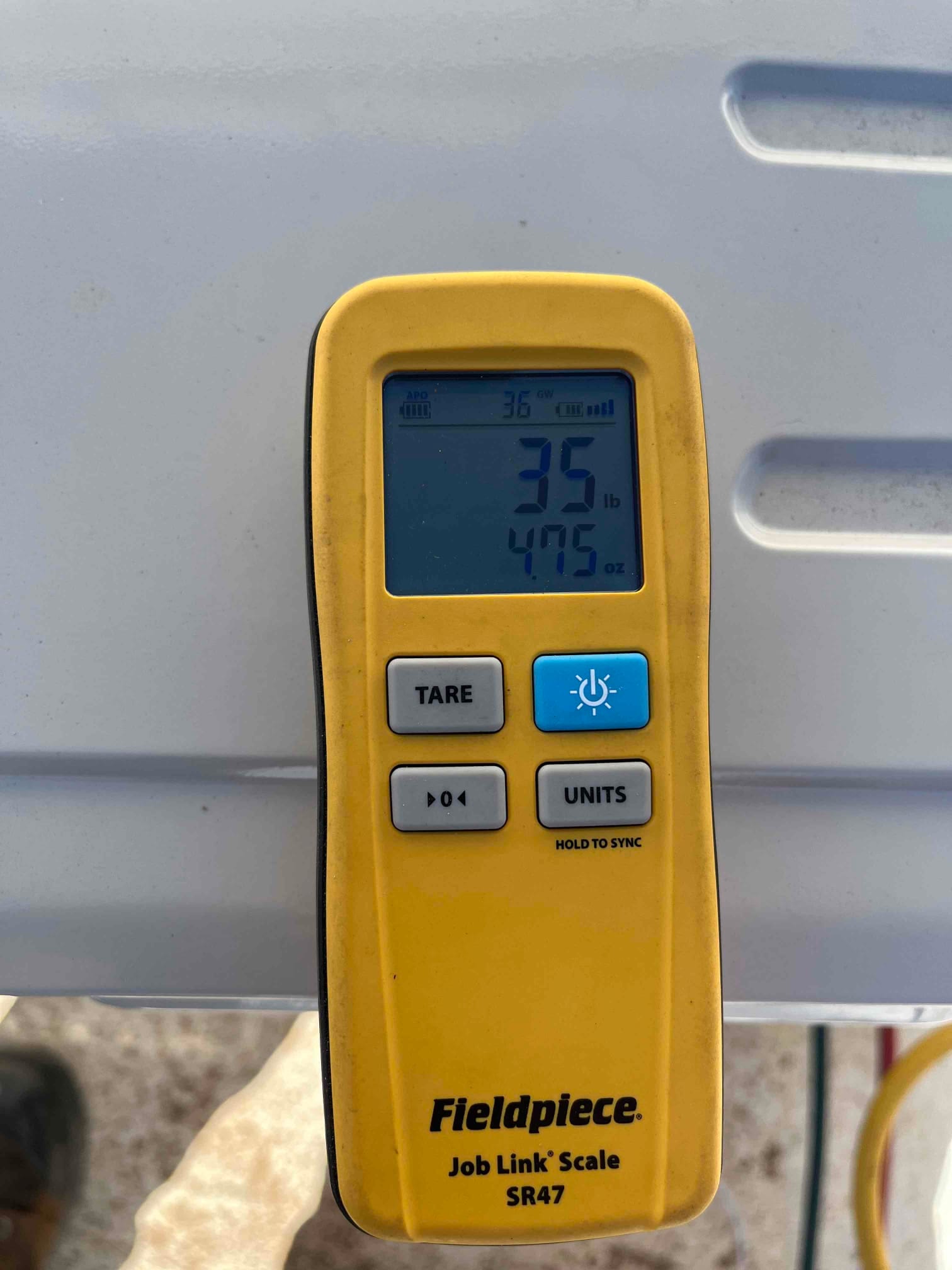

Digital refrigerant scale handheld display shows a reading of 35 pounds 4.75 ounces during charging setup.
Digital refrigerant scale handheld display shows a reading of 35 pounds 4.75 ounces during charging setup.

Refrigerant Commissioning

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

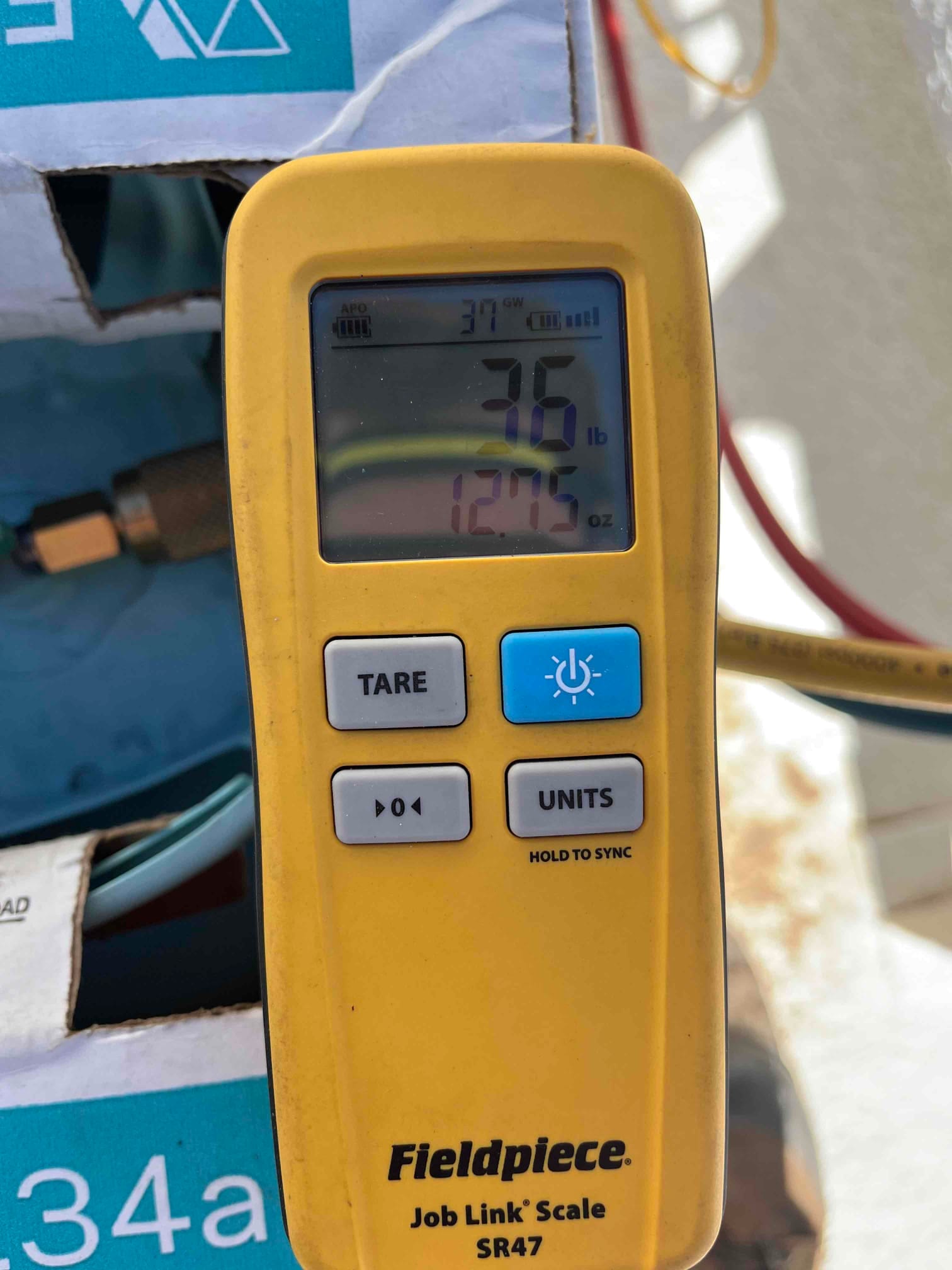

Refrigerant charging scale display shows 3.6 pounds and 12.75 ounces during system charging at the outdoor unit.
Refrigerant charging scale display shows 3.6 pounds and 12.75 ounces during system charging at the outdoor unit.

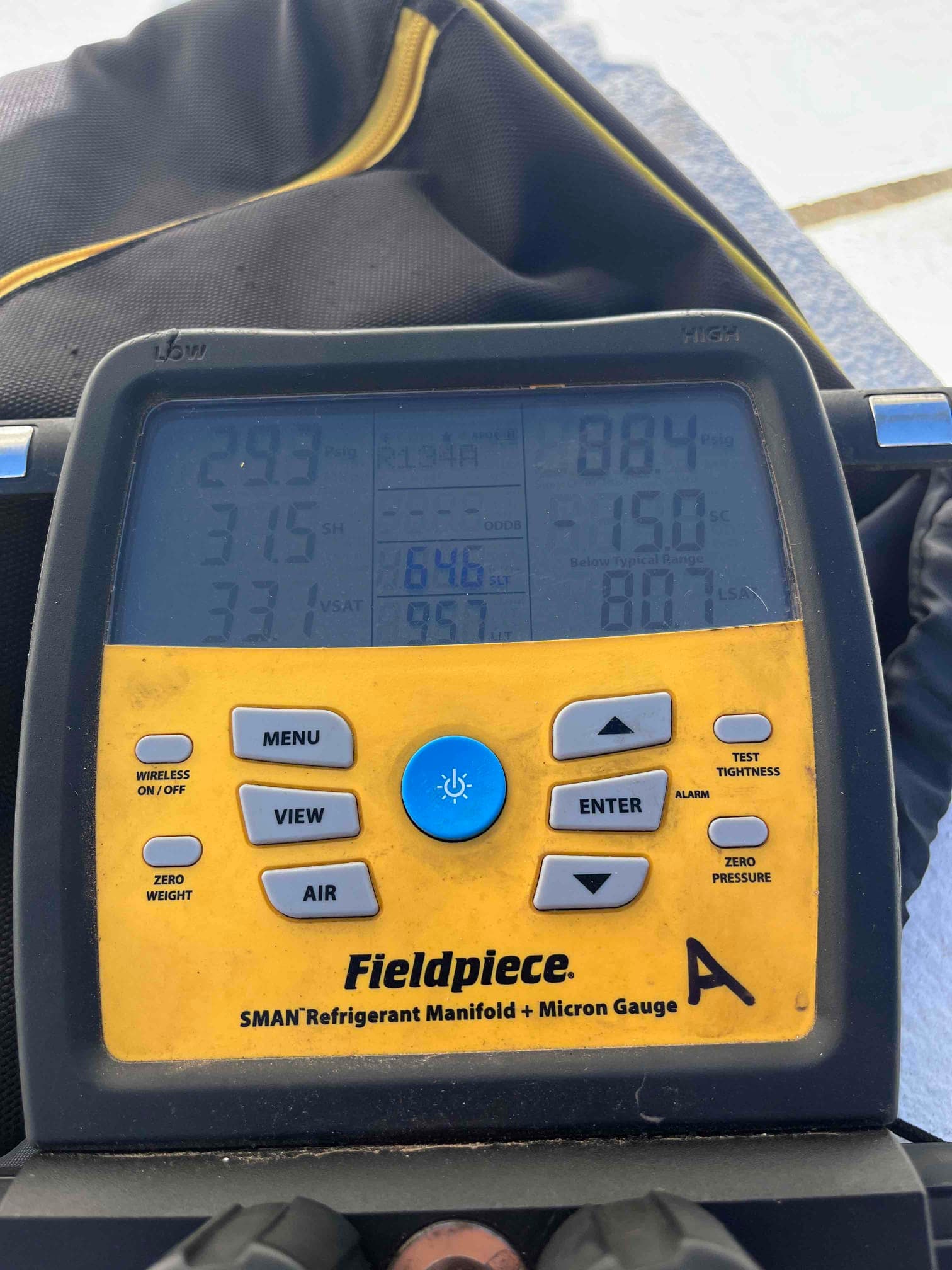

Digital manifold shows system operating with approximately 293 PSI on the low side and 884 PSI on the high side.
Digital manifold shows system operating with approximately 293 PSI on the low side and 884 PSI on the high side.
Digital manifold gauge set connects to the system, displaying different high and low pressures during refrigerant commissioning.
Digital manifold gauge set connects to the system, displaying different high and low pressures during refrigerant commissioning.

Air-Side Commissioning

Return and supply air temperatures measured to verify the temperature split falls in the target window.

Digital thermometer with probe shows 57.2 degrees Fahrenheit, documenting supply air temperature leaving the evaporator.
Digital thermometer with probe shows 57.2 degrees Fahrenheit, documenting supply air temperature leaving the evaporator.

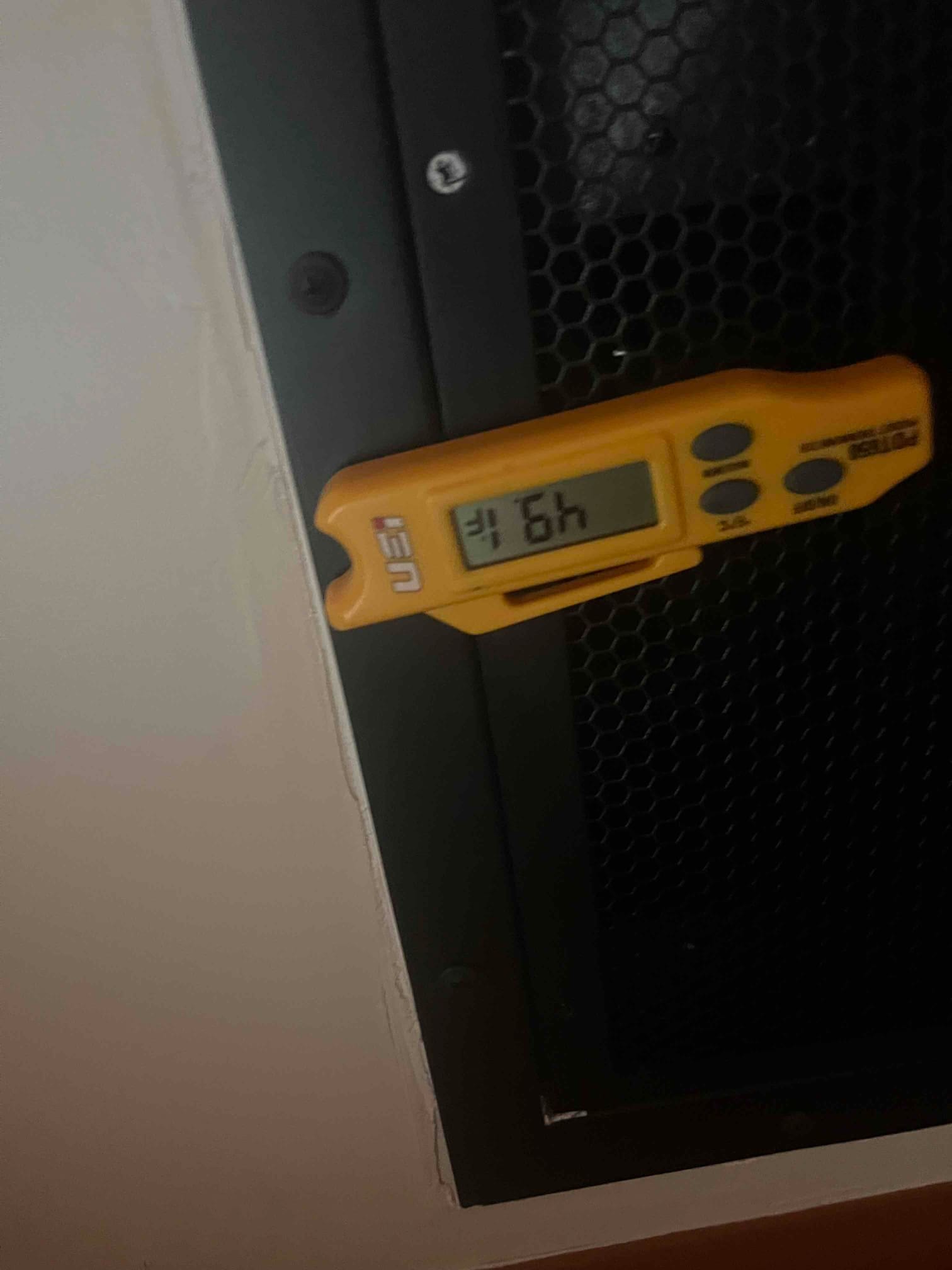

Digital thermometer at a return grille shows 79°F, documenting warm return air during system commissioning.
Digital thermometer at a return grille shows 79°F, documenting warm return air during system commissioning.
Digital thermometer with type K probe displays 68.2°F, documenting a return air temperature reading during commissioning.
Digital thermometer with type K probe displays 68.2°F, documenting a return air temperature reading during commissioning.

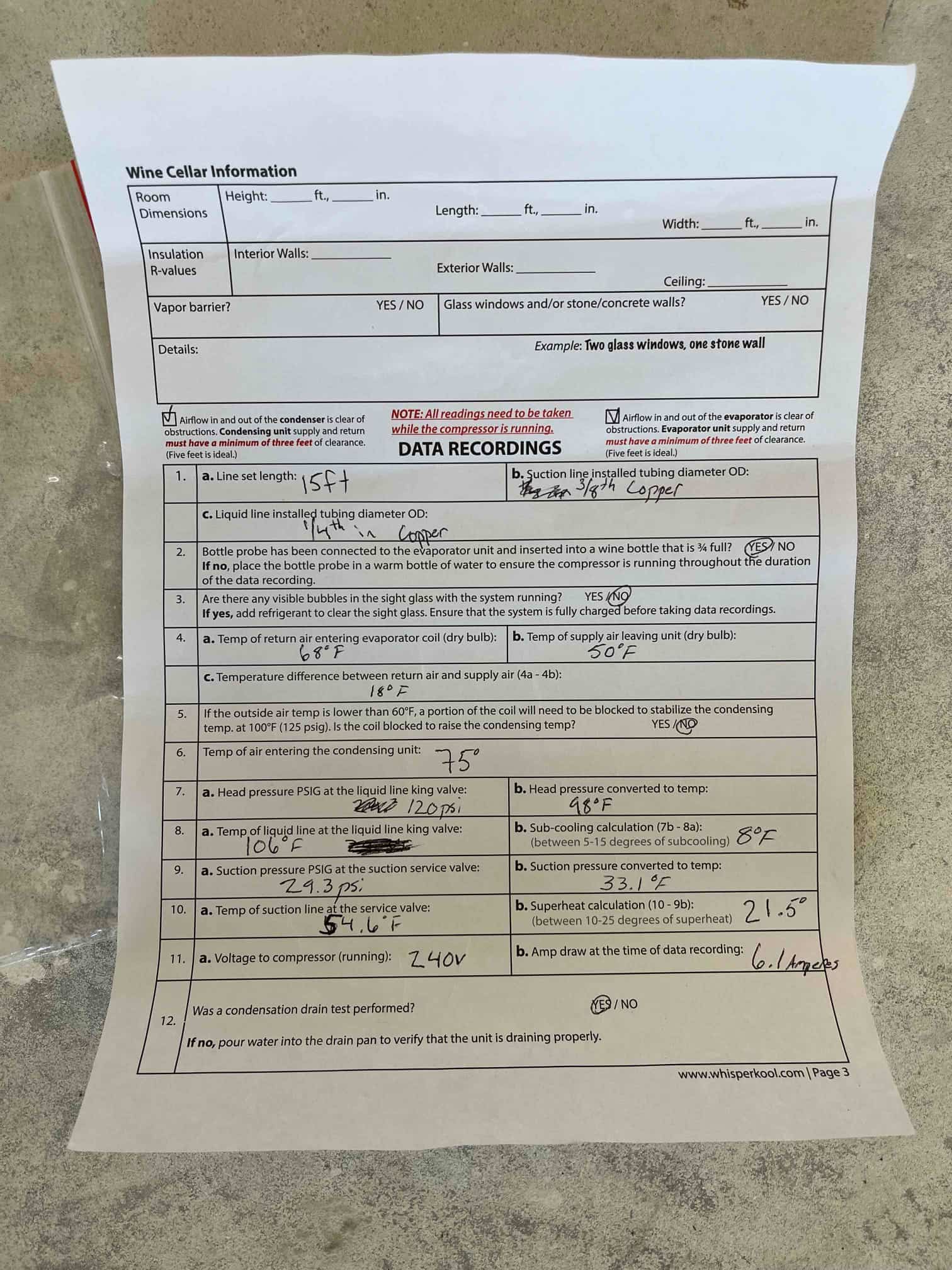

Completed startup checklist shows recorded HVAC commissioning data including return and supply air temperatures, pressures, superheat, subcooling, voltage, and amperage.
Completed startup checklist shows recorded HVAC commissioning data including return and supply air temperatures, pressures, superheat, subcooling, voltage, and amperage.

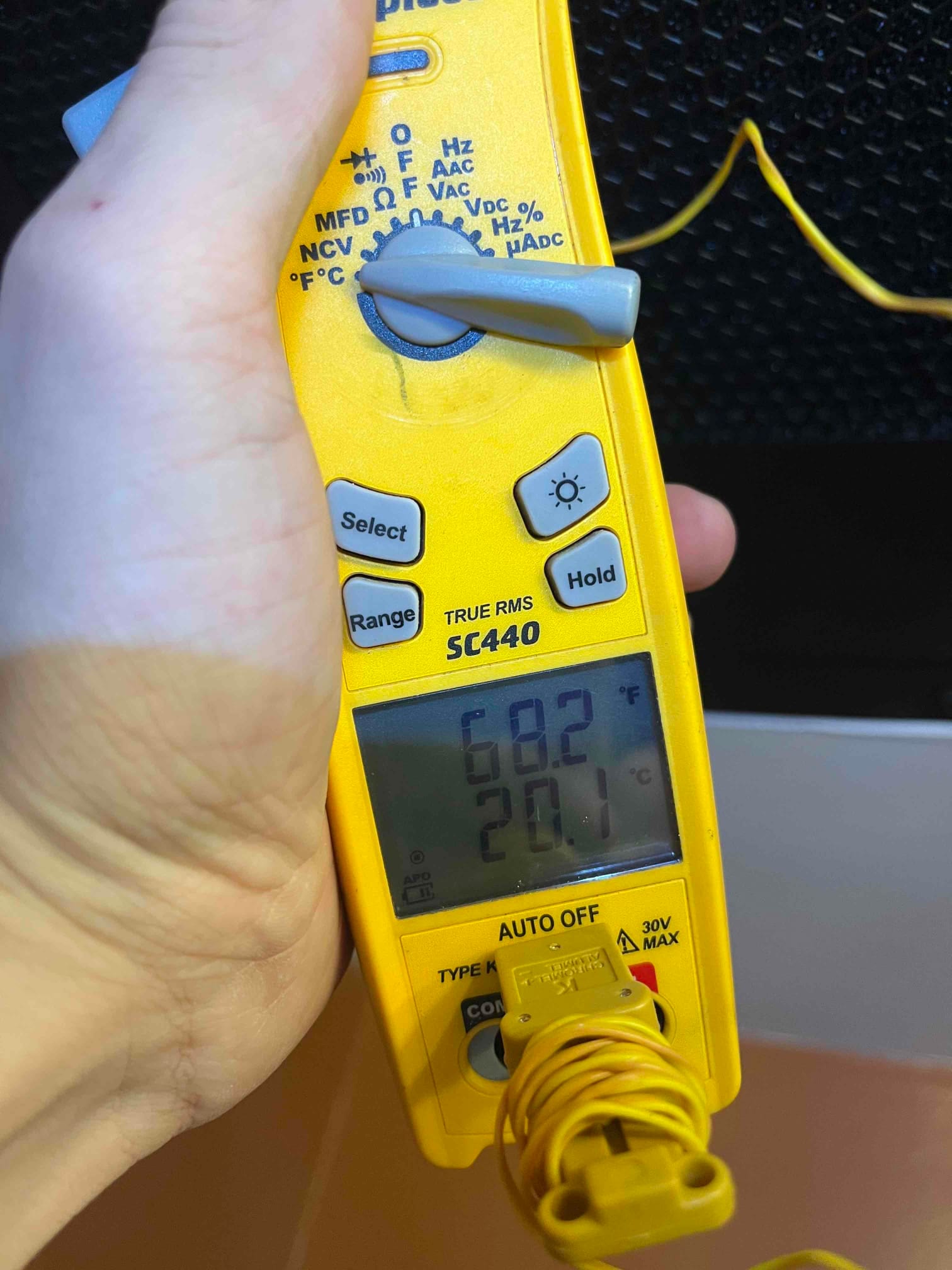

Digital thermometer with type K probe shows 68.2 degrees Fahrenheit, documenting an air temperature reading during commissioning.
Digital thermometer with type K probe shows 68.2 degrees Fahrenheit, documenting an air temperature reading during commissioning.

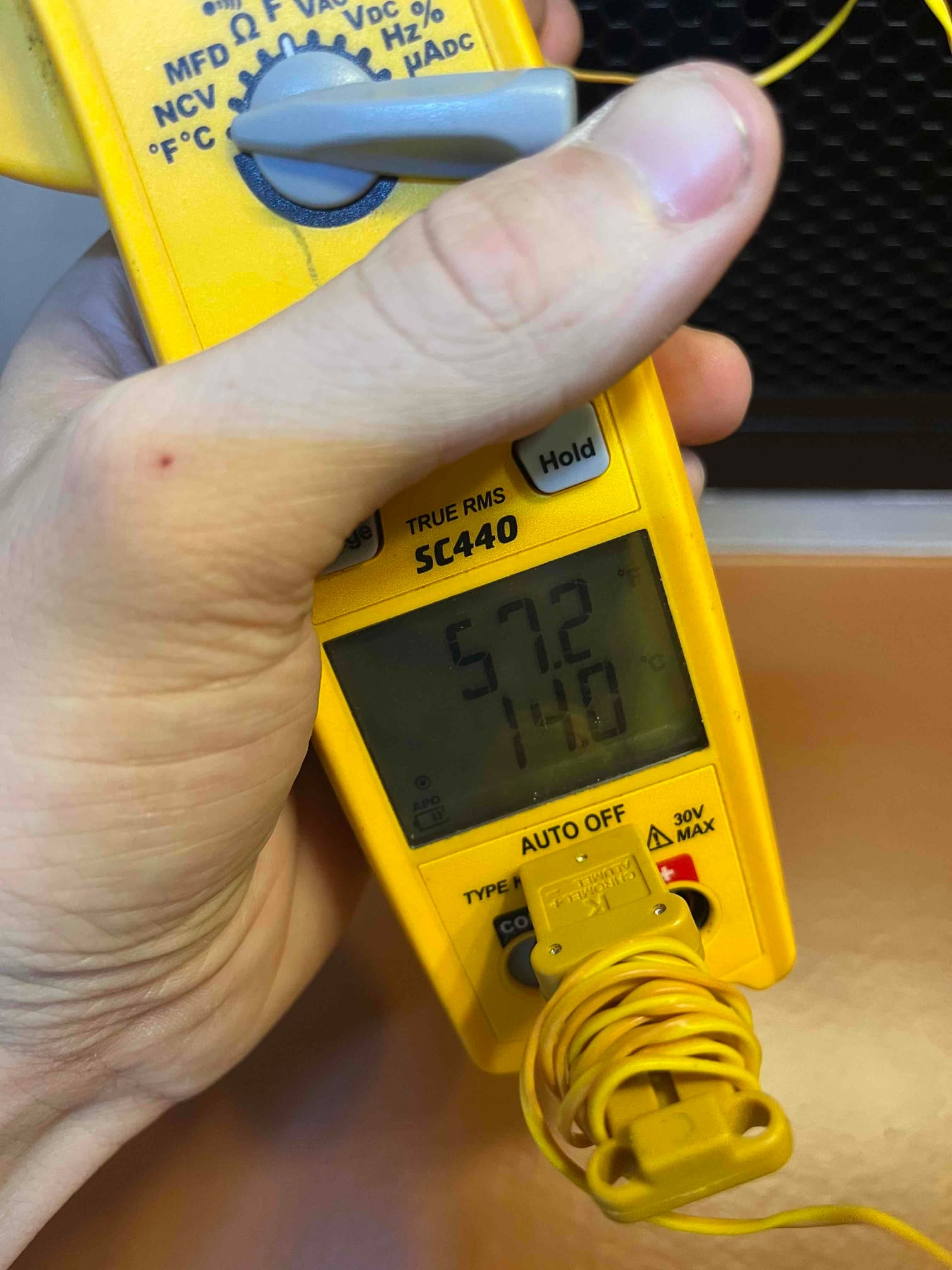

Digital thermometer probe shows 57.2 degrees Fahrenheit while measuring air temperature during system startup checks.
Digital thermometer probe shows 57.2 degrees Fahrenheit while measuring air temperature during system startup checks.

Equipment Detail Shots

Close-ups of the components that make up the system.

Refrigerant cylinder in its shipping box with the valve and handle visible through the cardboard opening.
Refrigerant cylinder in its shipping box with the valve and handle visible through the cardboard opening.
— Frequently Asked

Questions about this installation

What kind of system was installed in this Scottsdale job?

The installer completed the installation and charging of a mini-split system in Scottsdale, ensuring that the unit was operating properly at the time of completion. There was no warranty on the unit.

How much does a new mini-split system cost in Phoenix?

Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.

Does AZ Perfect Comfort offer financing for HVAC installations?

Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.

Does AZ Perfect Comfort install in Scottsdale?

Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.

Is the new equipment covered by a warranty?

Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
