Newly Installed
Air handler
- Brand
- American Standard
- Model
- TEM6B0C60H51SAA
- Matched
- 5-Ton airflow
New — installed 2026
Real Installation · Scottsdale Border
5-Ton American Standard Heat Pump System Installation in Scottsdale Border — May 2026
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Customer needed HVAC equipment installed or replaced.
Scottsdale Border · installed May 19, 2026
— At a Glance
Location
Scottsdale Border
Completed
May 19, 2026
System Type
Heat Pump System
Capacity
5-Ton
Brand
American Standard
Efficiency
14 SEER2
Total Investment
$9,542
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed

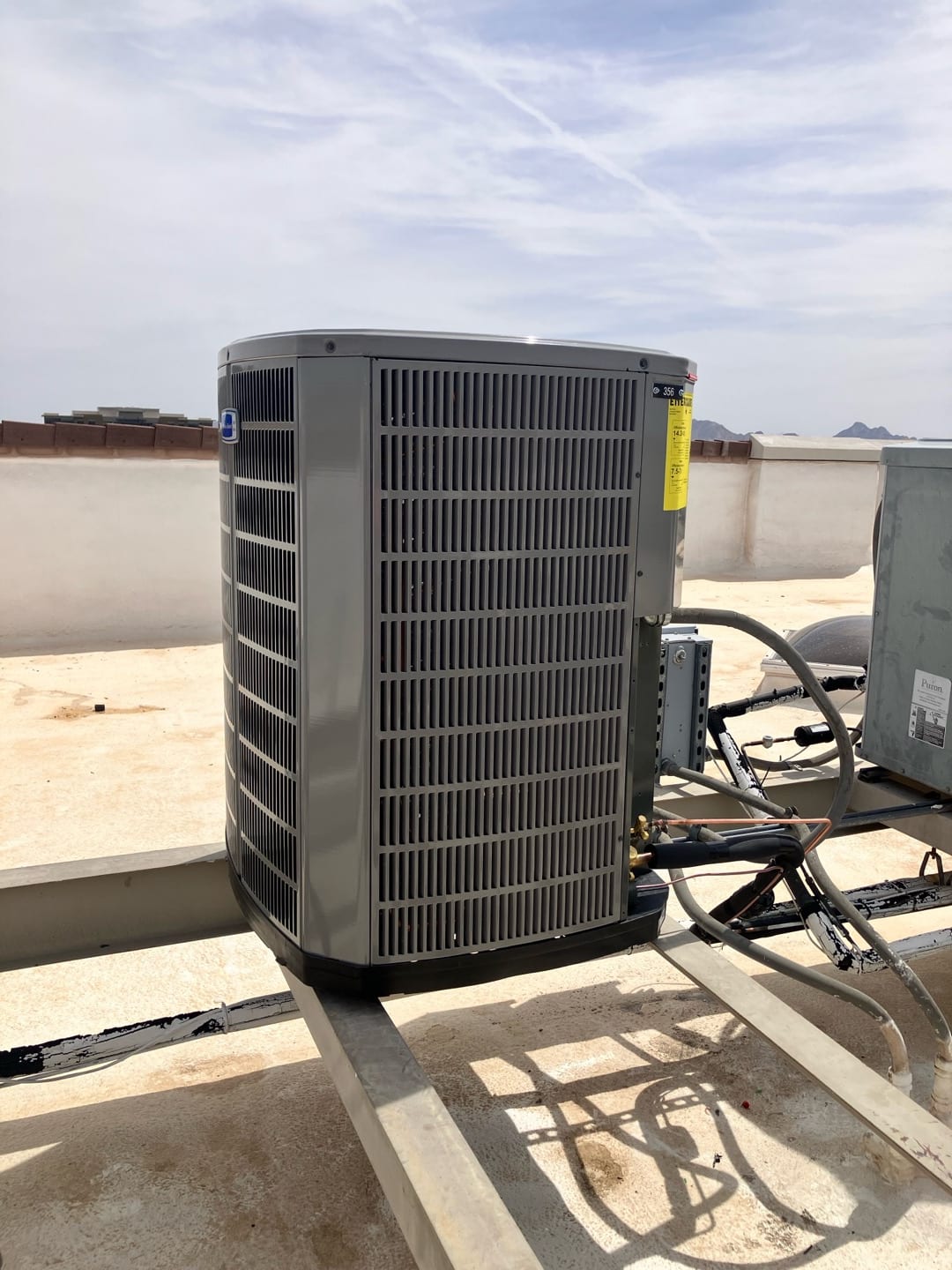

Heat pump
- Brand
- American Standard
- Model
- 4A6H4060N1000AA
- Capacity
- 5-Ton
- Efficiency
- 14 SEER2
New — installed 2026
Newly Installed

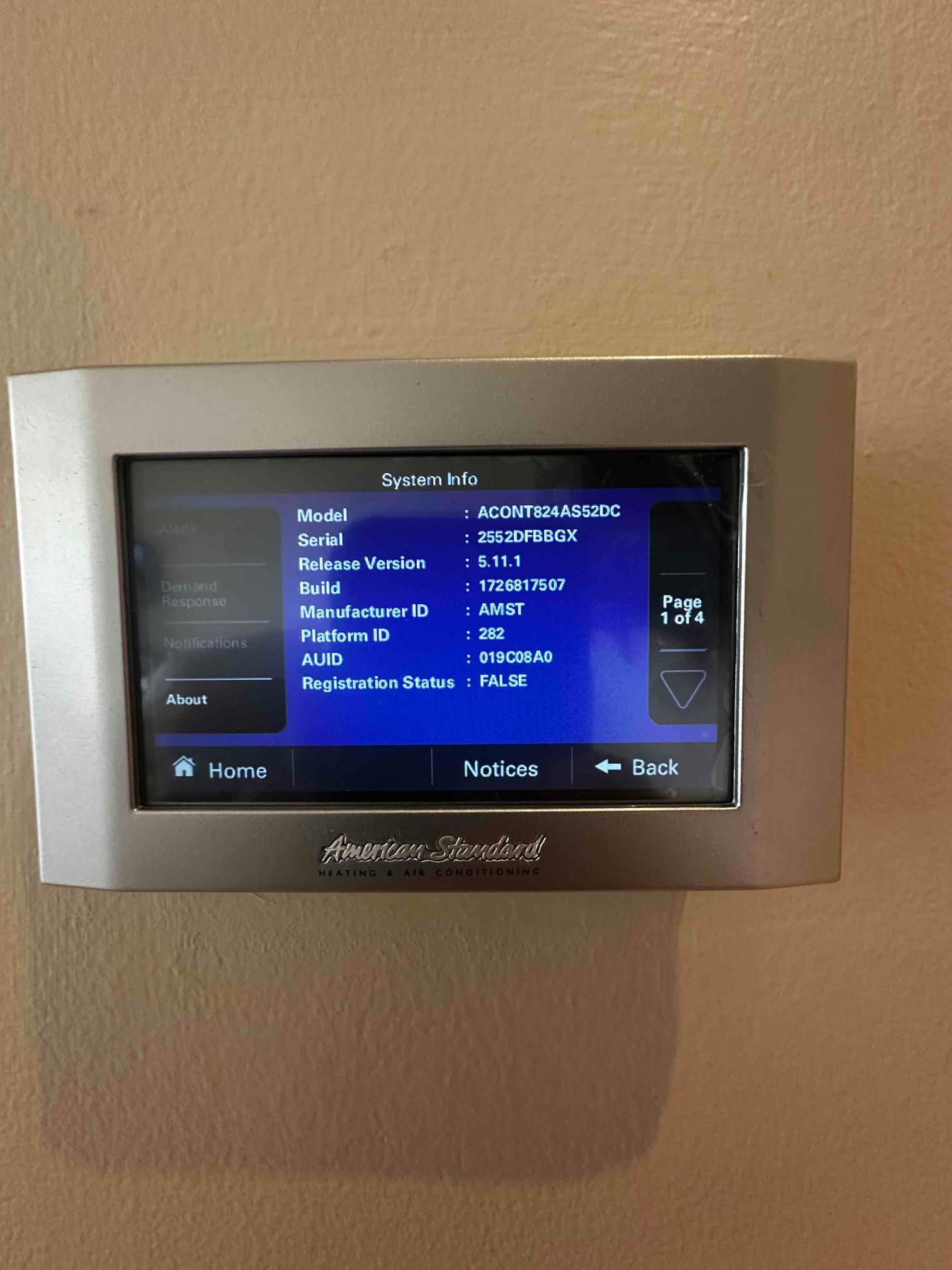

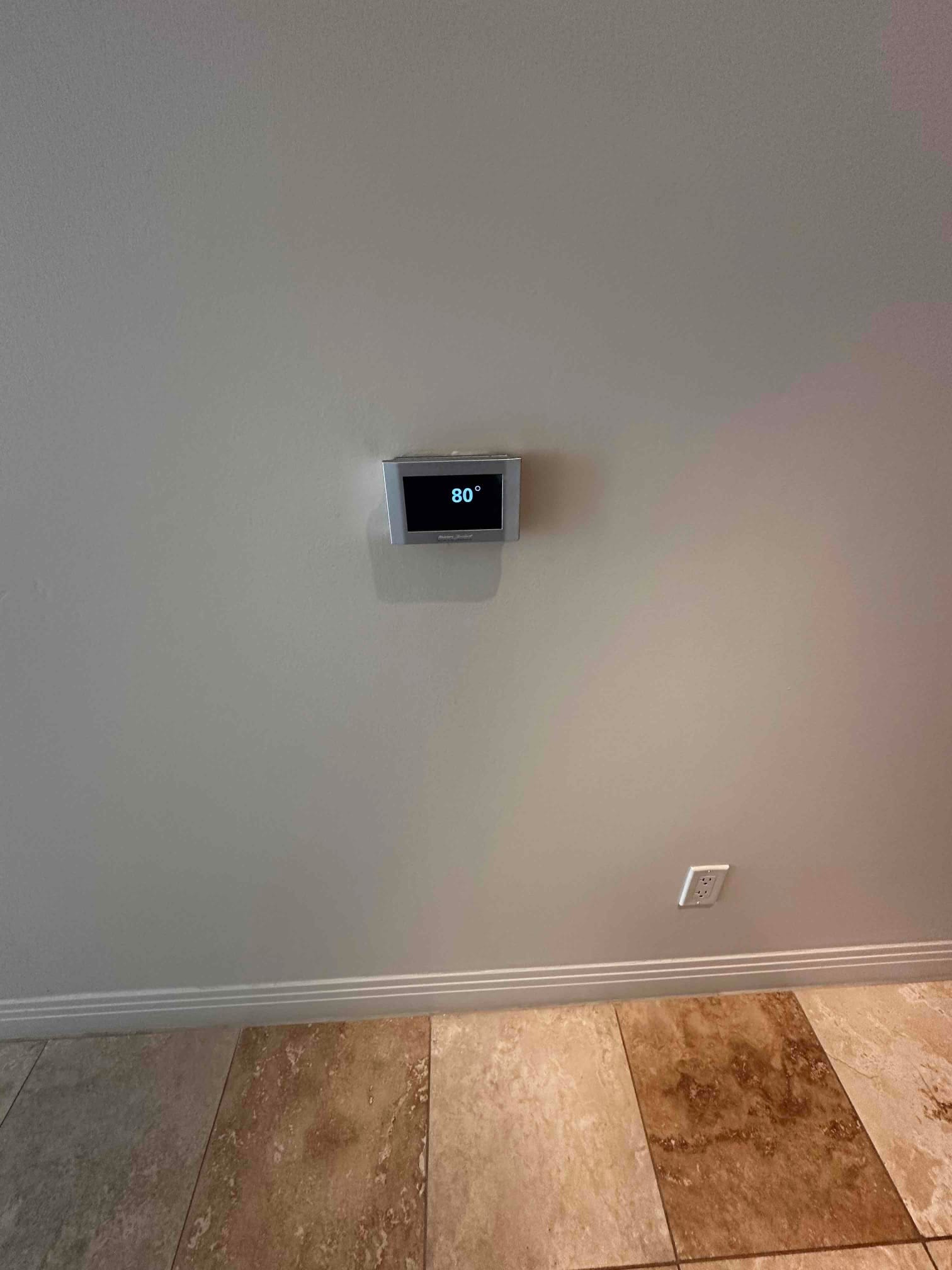

Thermostat
- Brand
- American Standard
- Model
- ACONT824AS52DB
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 5-Ton Trane Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle, Thomas, Edwin & Andrew from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 105 PSIG
- Liquid pressure
- 347 PSIG
- Evaporator saturation
- 27.8°F
- Condensing saturation
- 110.9°F
- Superheat
- 15°F
- Subcooling
- 16°F
Air-Side Performance
- Return-air temperature
- 65.2°F
- Supply-air temperature
- 40.9°F
- Temperature split
- 24.3°F
Nitrogen Pressure Test
- Test pressure held
- 341 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 499 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 514V-5A6H4060-5TEM4D06AC | 5 Ton- 14 SEER2 Vertical American Standard - Trane Technologies Single Stage Heat Pump with Airhandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
23 photos from this installation
Every step of this installation was documented on-site by Kyle, Thomas, Edwin & Andrew.

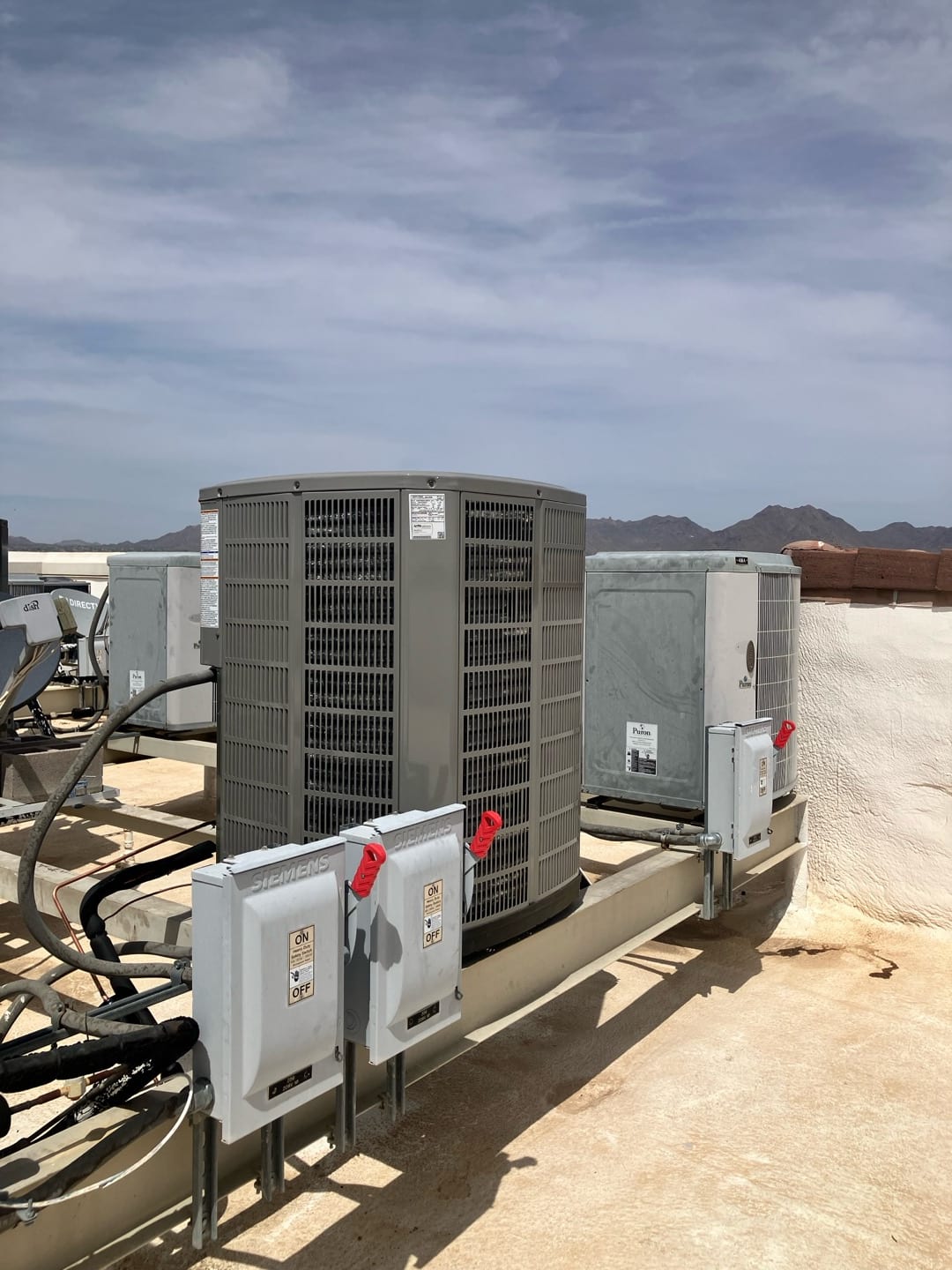

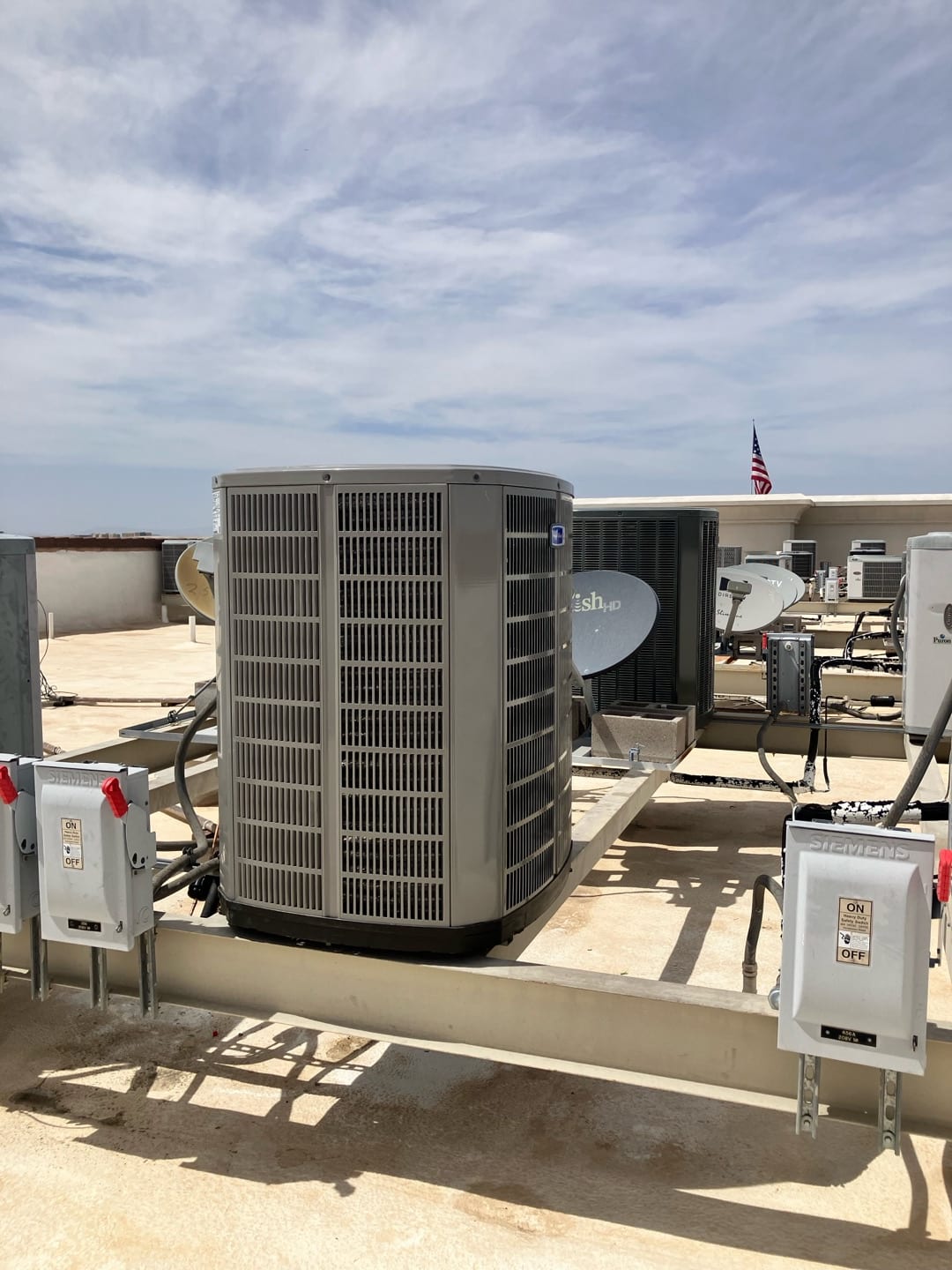

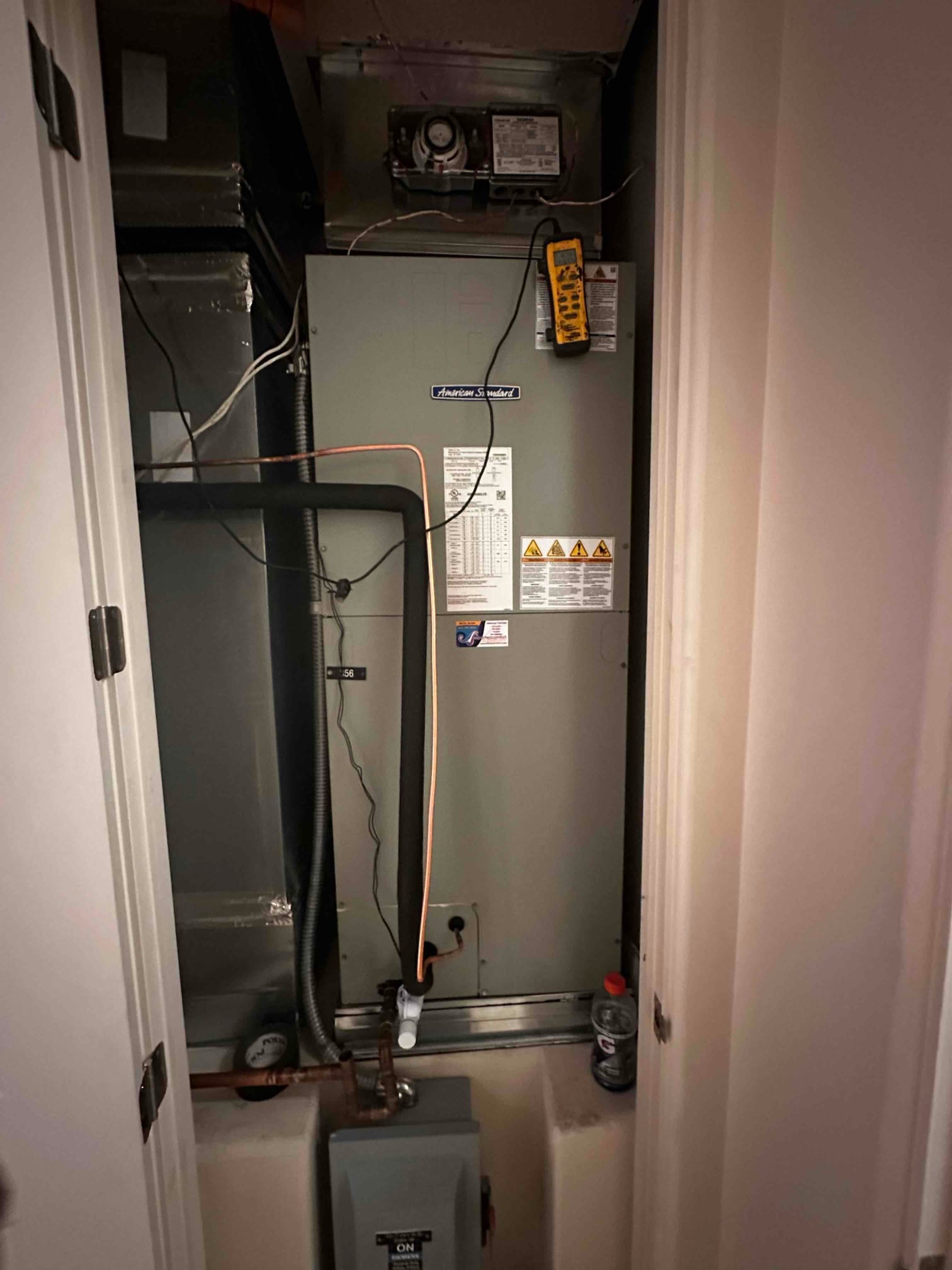

Installation Progress

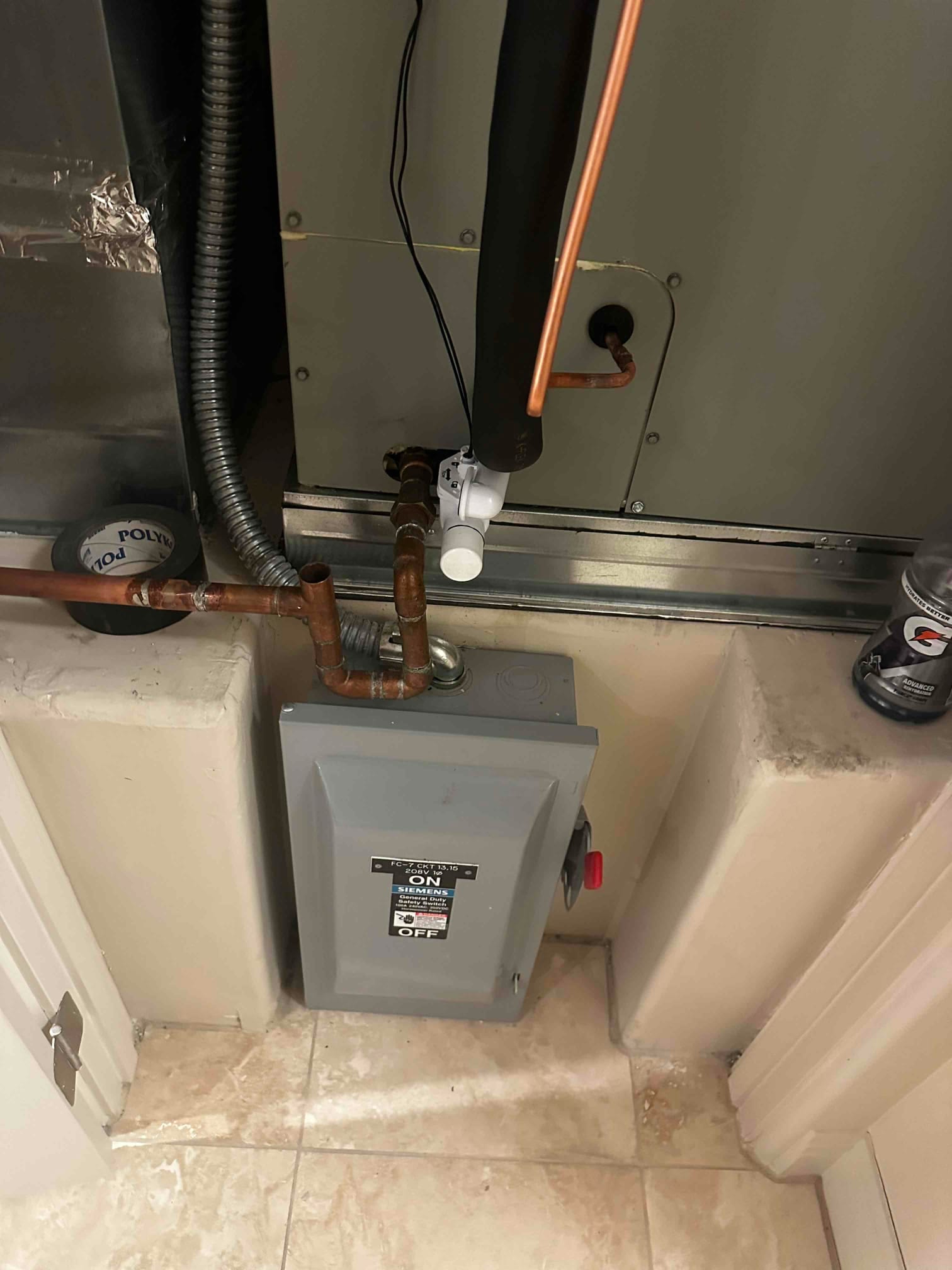

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

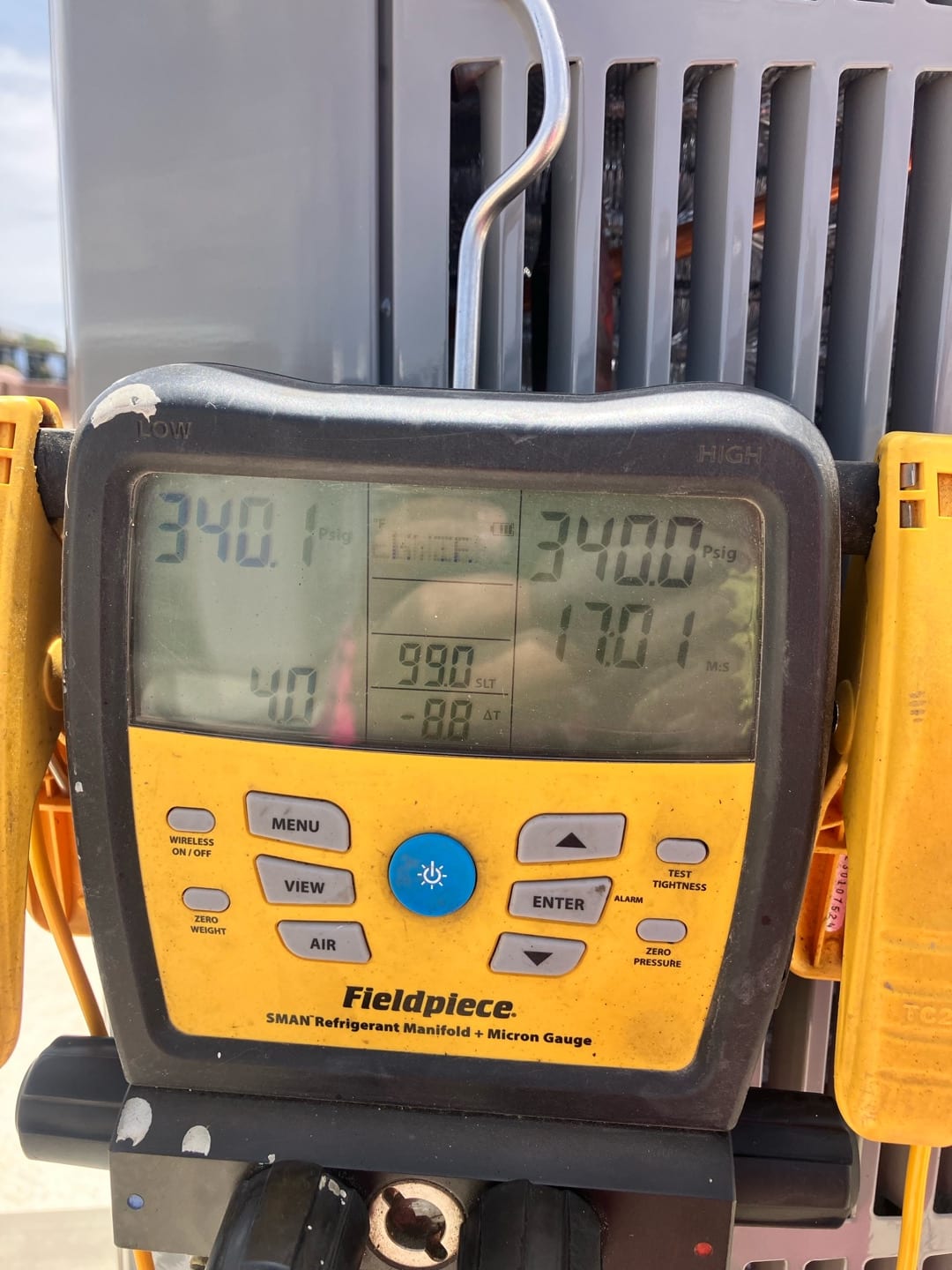

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

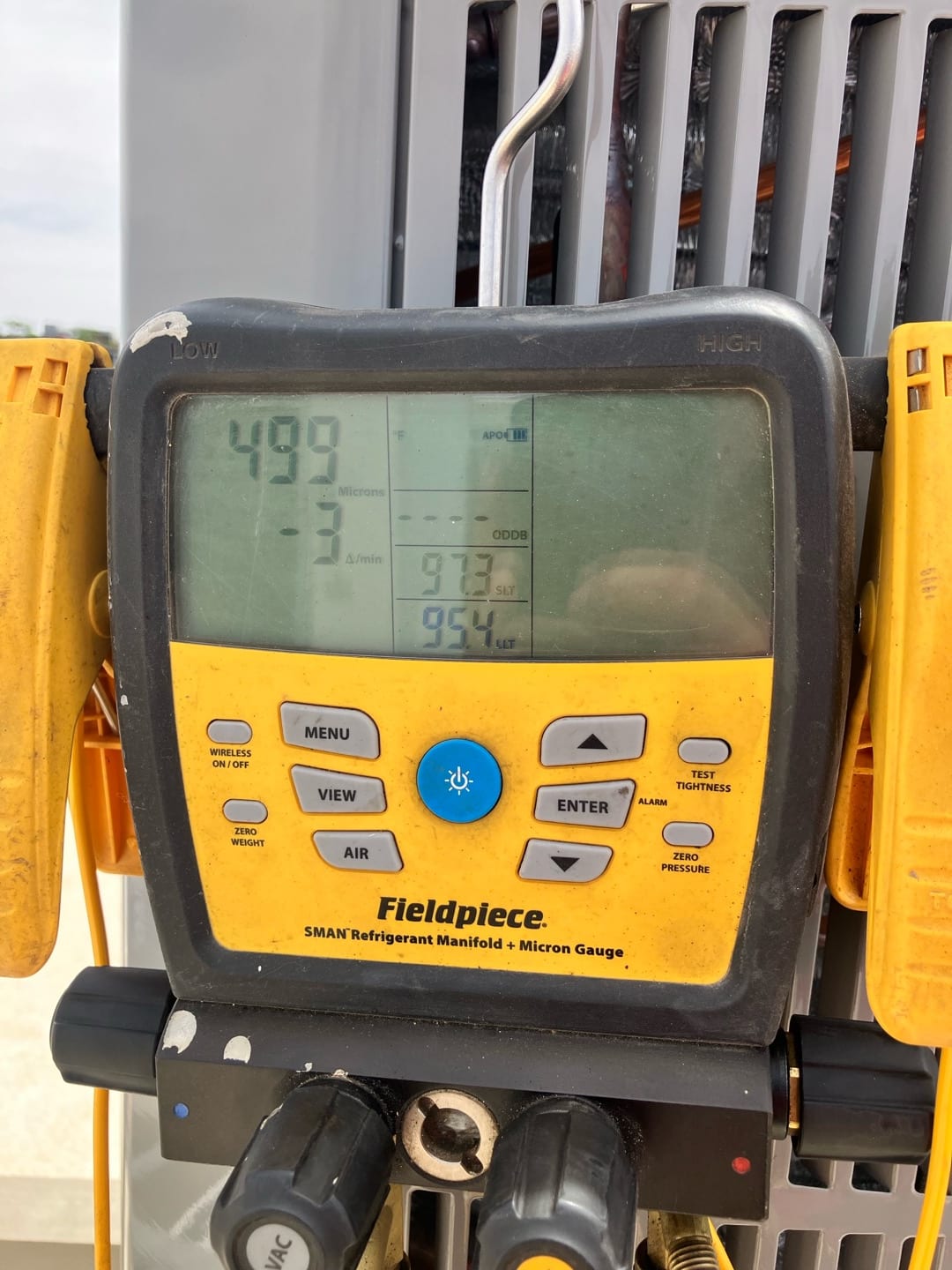

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

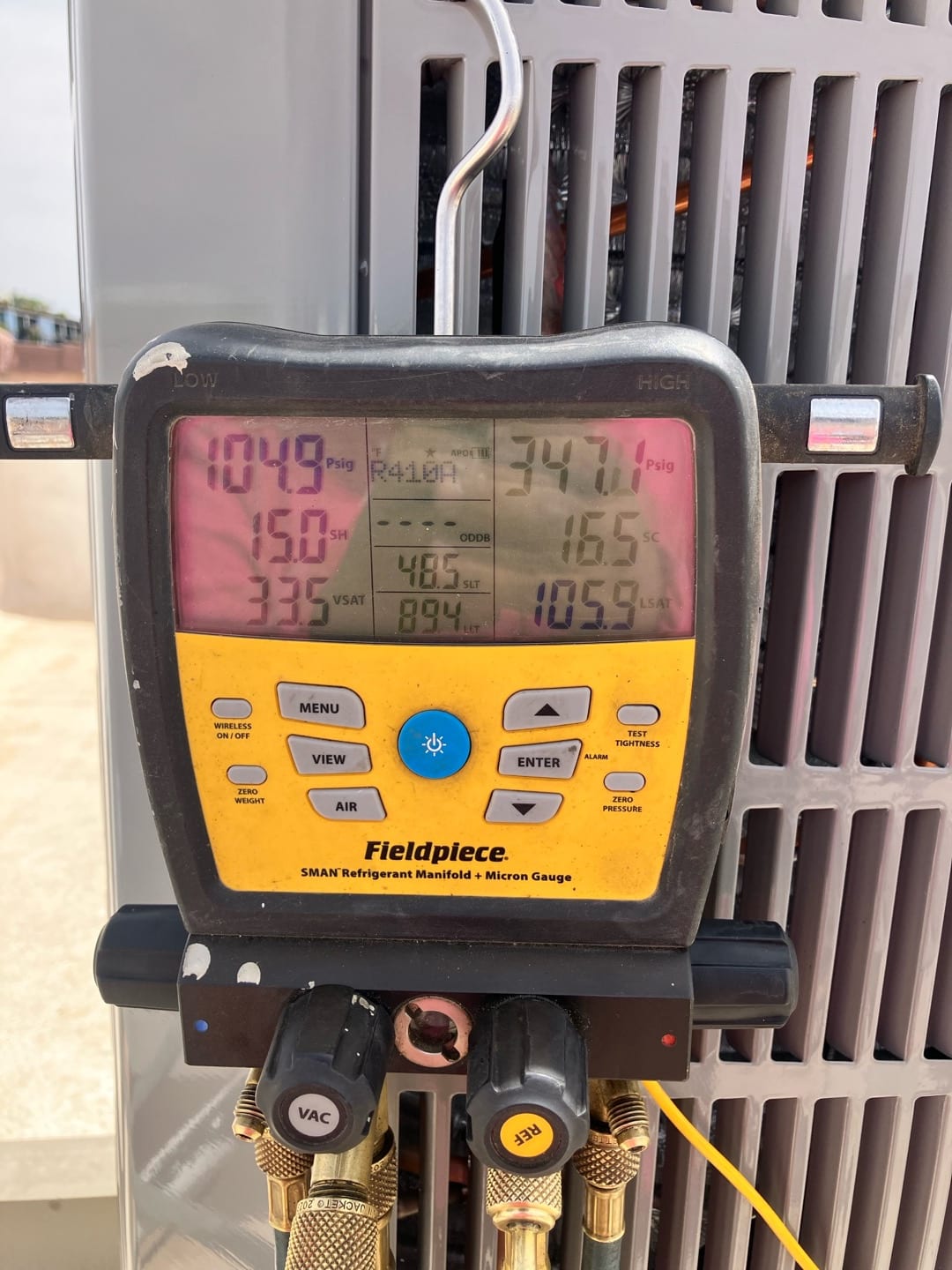

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

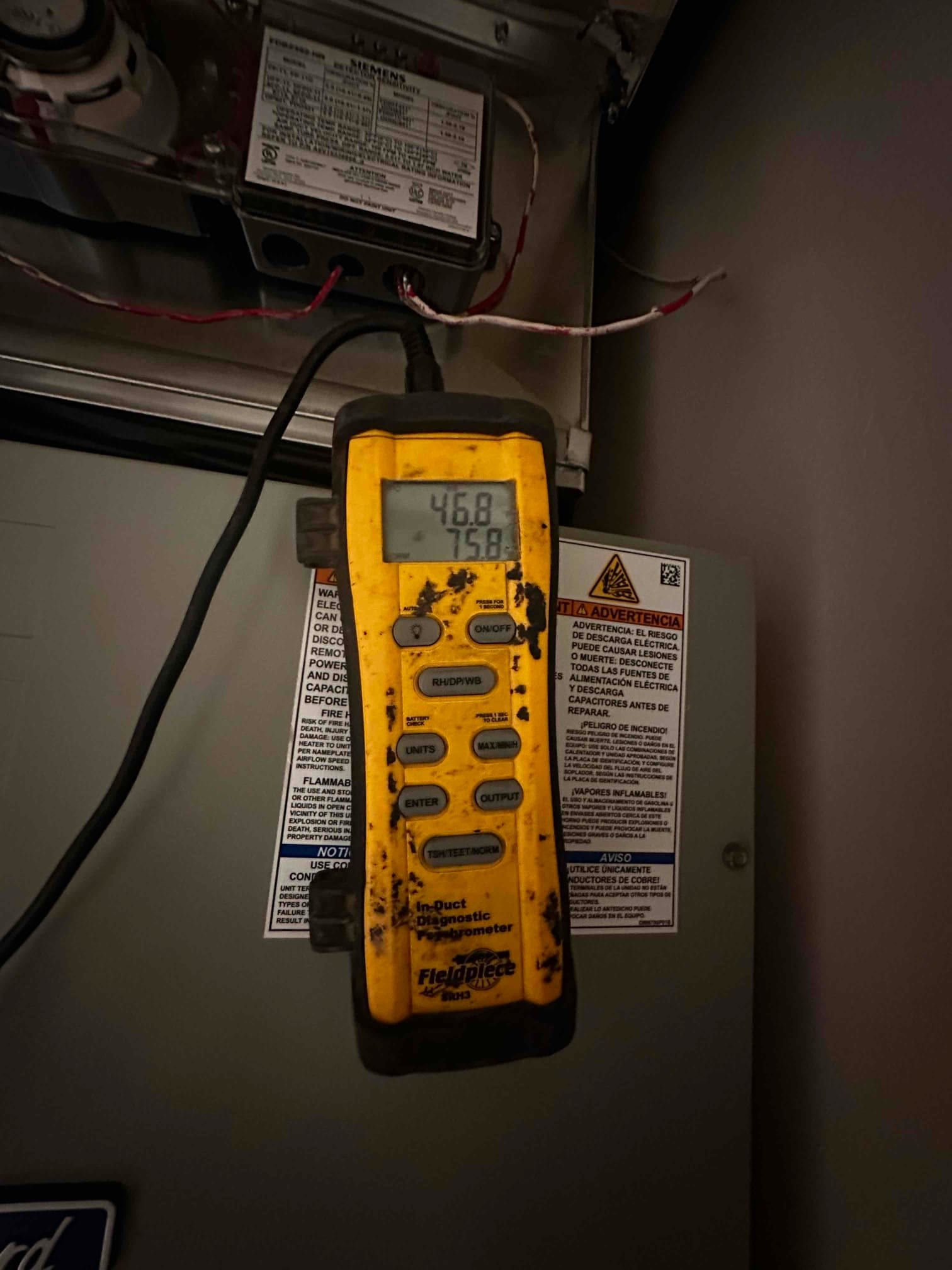

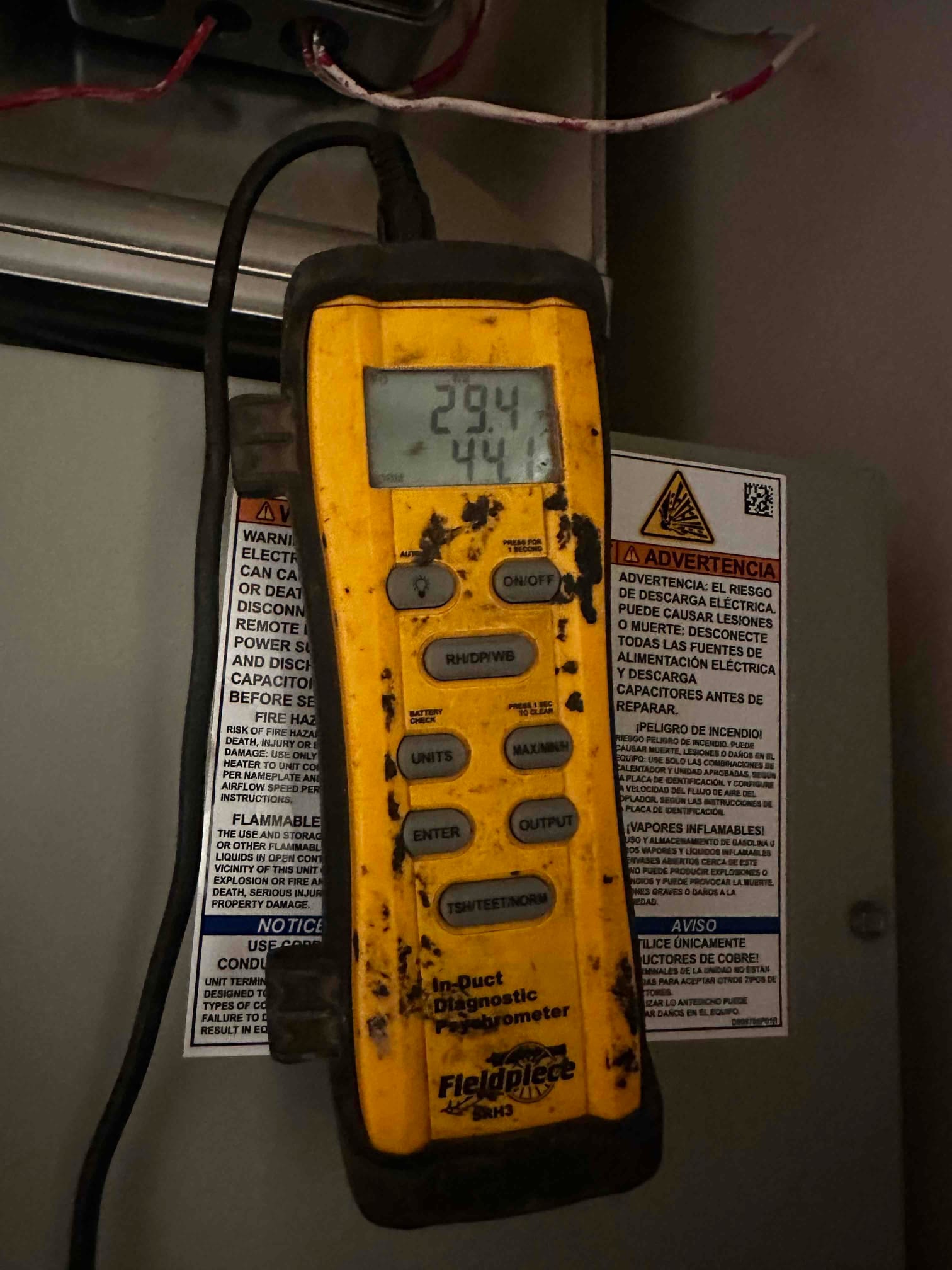

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
Equipment Detail Shots
Close-ups of the components that make up the system.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Scottsdale Border job?
AZ Perfect Comfort installed a 5-Ton American Standard Heat Pump System at this Scottsdale Border property. The install was completed by Kyle, Thomas, Edwin & Andrew and includes AZ Perfect Comfort's workmanship warranty.
How much does a new heat pump system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Scottsdale Border?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Scottsdale Border and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
