Newly Installed
Furnace
- Brand
- American Standard
- Model
- S8X1C080M5PSCCA
- Matched
- 5-Ton airflow
New — installed 2026
Real Installation · Scottsdale
5-Ton Trane Mini-Split System Installation in Scottsdale — July 2026
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a 5-ton multi-stage inverter vertical furnace and coil with AC condenser and a 36K mini split in the garage. The condenser was relocated.
Scottsdale · installed July 14, 2026
— At a Glance
Location
Scottsdale
Completed
July 14, 2026
System Type
Mini-Split System
Capacity
5-Ton
Brand
Trane
Efficiency
16.5 SEER2
Refrigerant
R-410A
Labor Warranty
10-Year Labor Warranty
Total Investment
$24,710
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
AC condenser
- Brand
- American Standard
- Model
- 5A7A7060A1000AA
- Capacity
- 5-Ton
- Efficiency
- 16.5 SEER2
- Refrigerant
- R-410A
New — installed 2026
Newly Installed
Evaporator Coil
- Brand
- American Standard
- Model
- 5TXCC009AS3HCAA
- Matched
- 5-Ton airflow
New — installed 2026
Newly Installed
Mini-split
- Brand
- Friedrich
- Model
- FSHSR36A3A
New — installed 2026
Newly Installed
Mini-Split Head
- Brand
- Friedrich
- Model
- FAHSW36A3D
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the Air Conditioning work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 5-Ton Trane Mini-Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Ben, Andrew, Edwin & Ryan from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 124 PSIG
- Liquid pressure
- 406 PSIG
- Evaporator saturation
- 48.5°F
- Condensing saturation
- 121.6°F
- Superheat
- 19°F
- Subcooling
- 9°F
Nitrogen Pressure Test
- Test pressure held
- 352 PSIG
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 516.5V-5A7A7060-S8X1 | Vertical 5 Ton- Premium Variable Speed -16.5 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the b | 1 |
| 36000BTU-Friedrich-MiniSplit | 3 Ton- MiniSplit. Variable Speed Ductless Mini-Split Systems 36K, Up to 18 SEER, Outdoor Heat Pump, Single-Zone, 208/230V, R410A and AirHandlerInstallation of the equipment is subject to the terms and | 1 |
| LSV-136 | Install or Extend new copper lineset. Does not include the cost of refrigerant if needed. - Bi-Flow Filter Drier | 1 |
| CIR-100 | Install new electrical circuit from breaker box. Includes circuit breaker, running electrical wire, disconnect box, and electrical whip up to 15 feet. | 2 |
| BFG R30 | Fiberglass insulation spray in. 11"-12" necessary to bring up to code requirements. Qty is total square footage of the space. $850 Minimum | 700 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. One Maintenance Visit Per Year.26 Point A- | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
11 photos from this installation
Every step of this installation was documented on-site by Ben, Andrew, Edwin & Ryan.

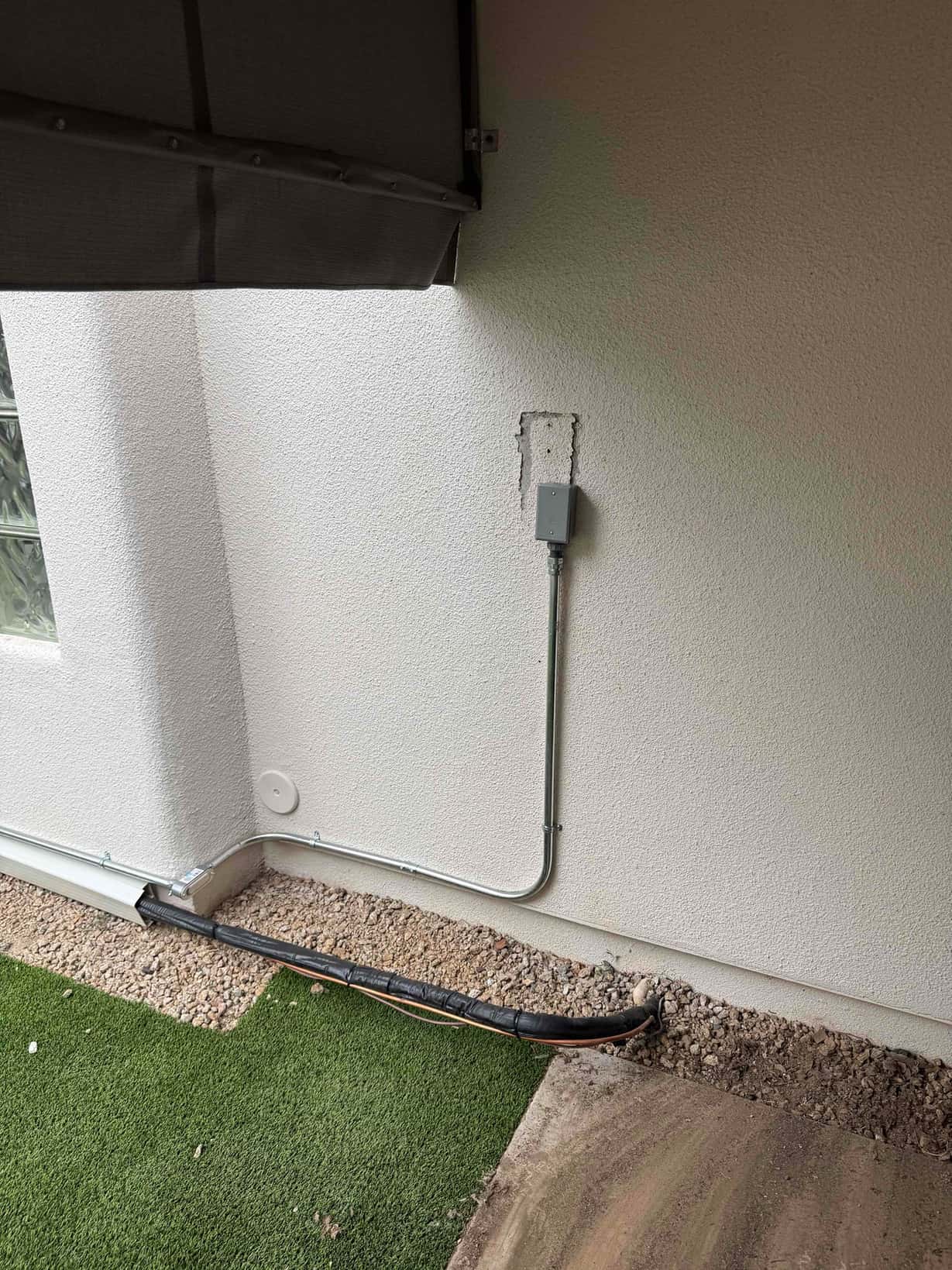

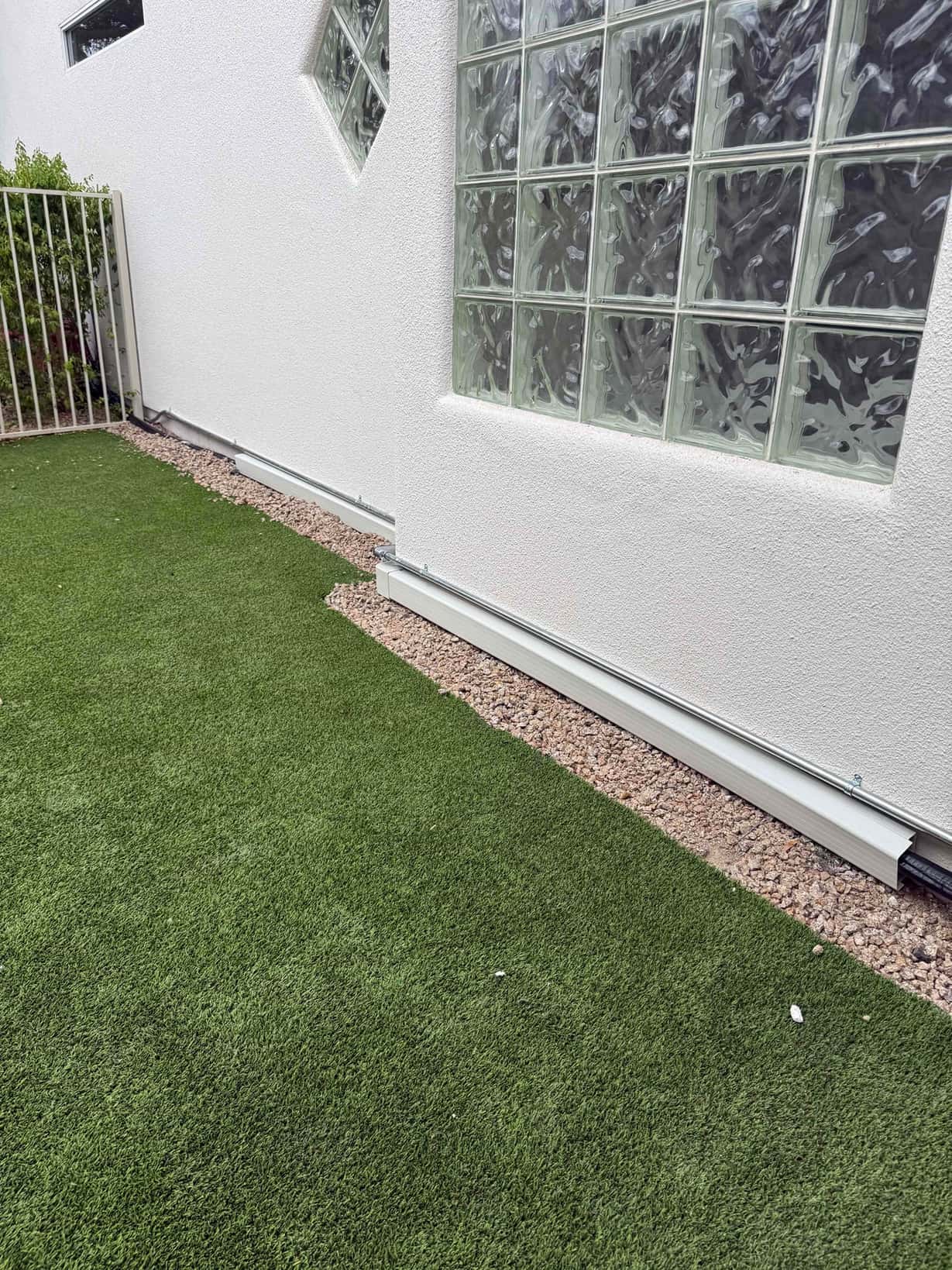

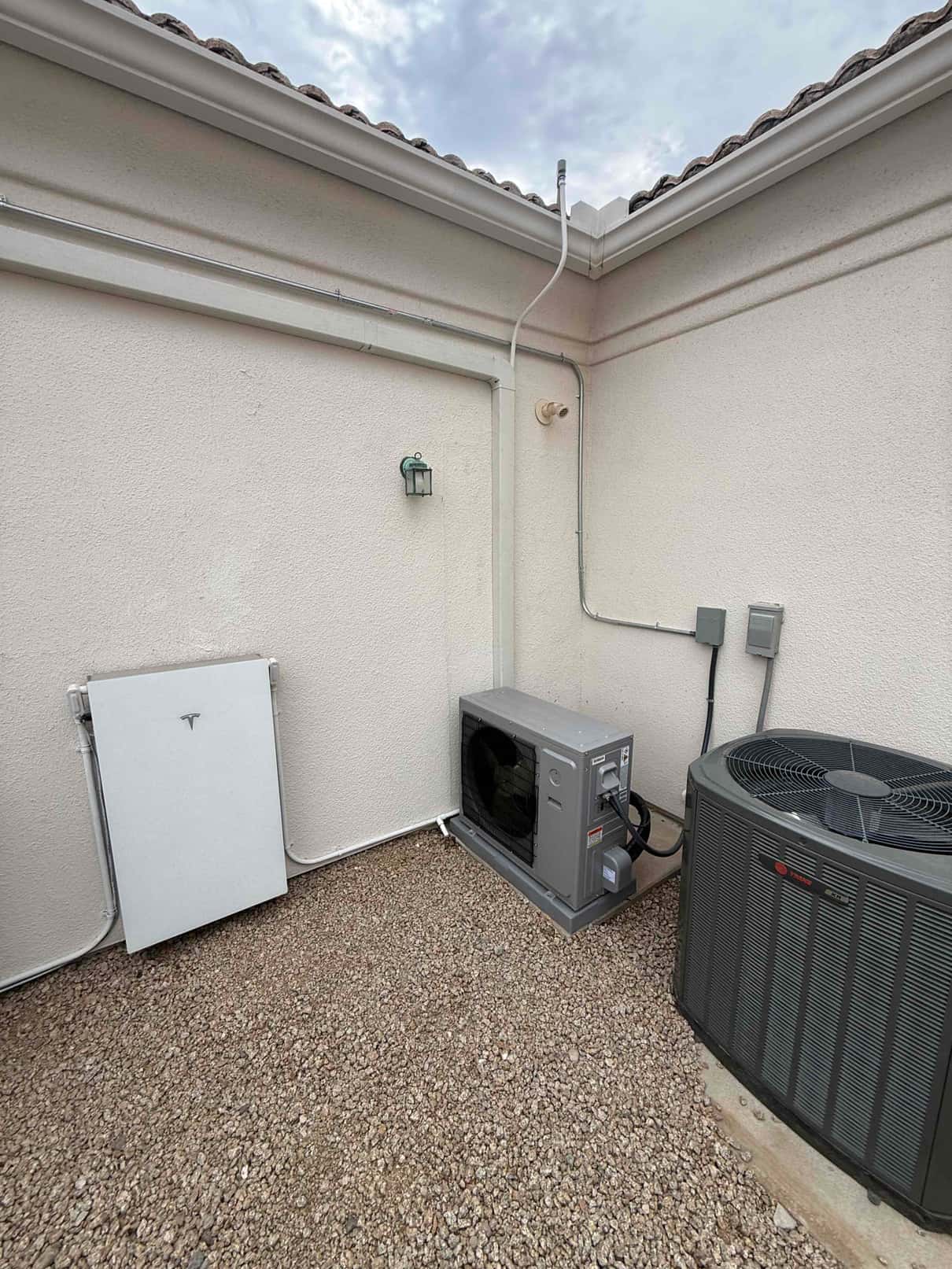

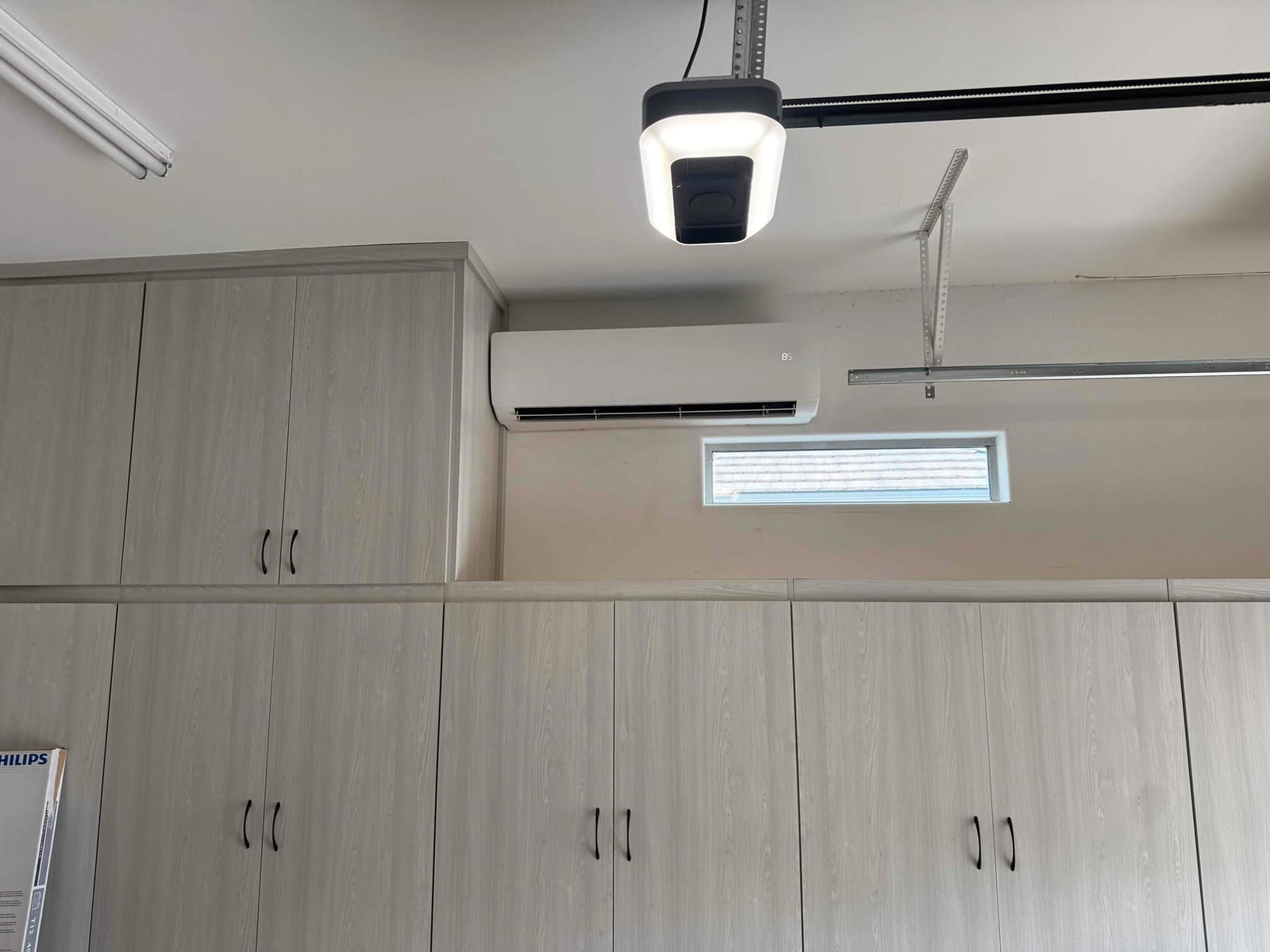

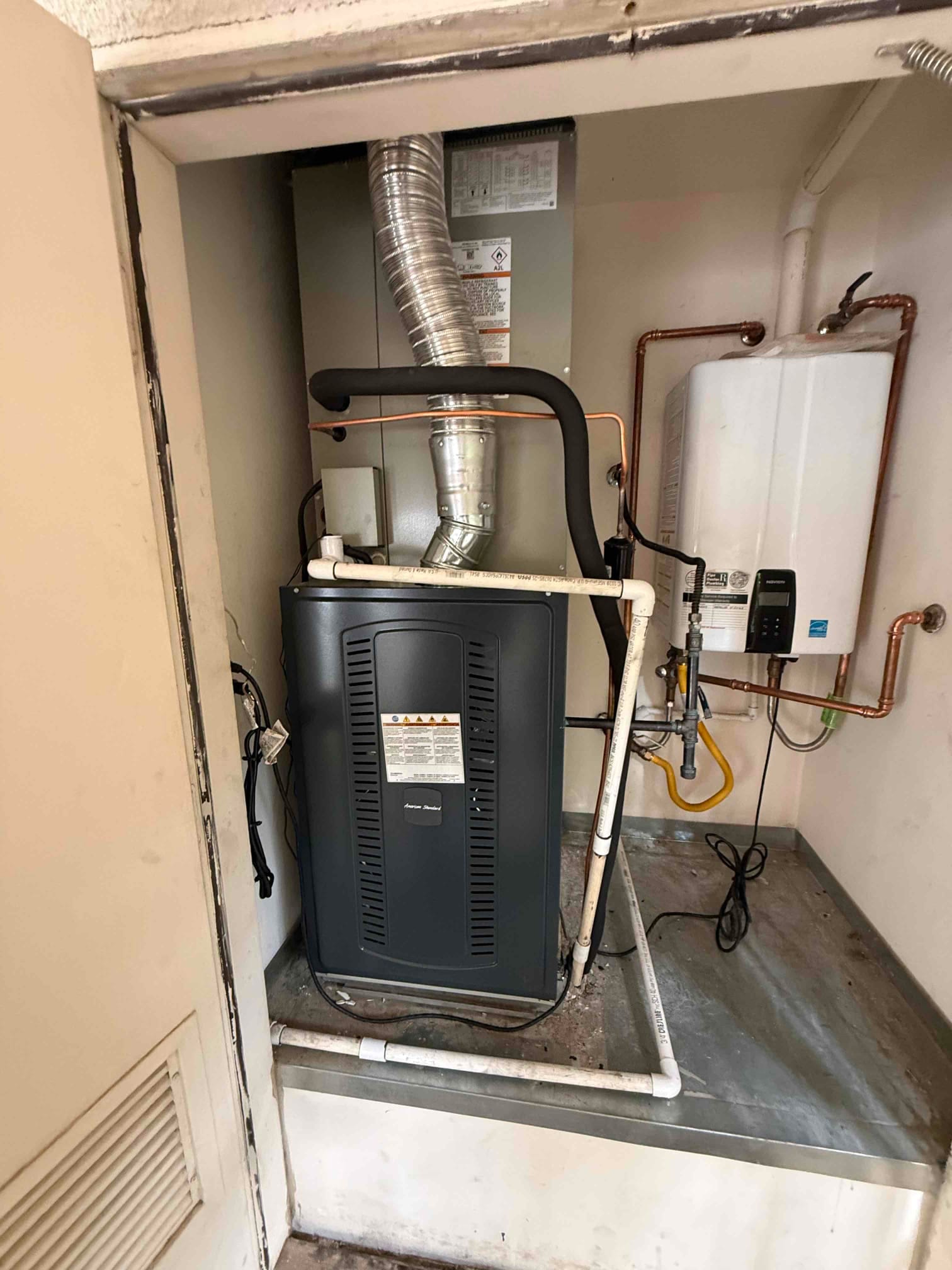

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

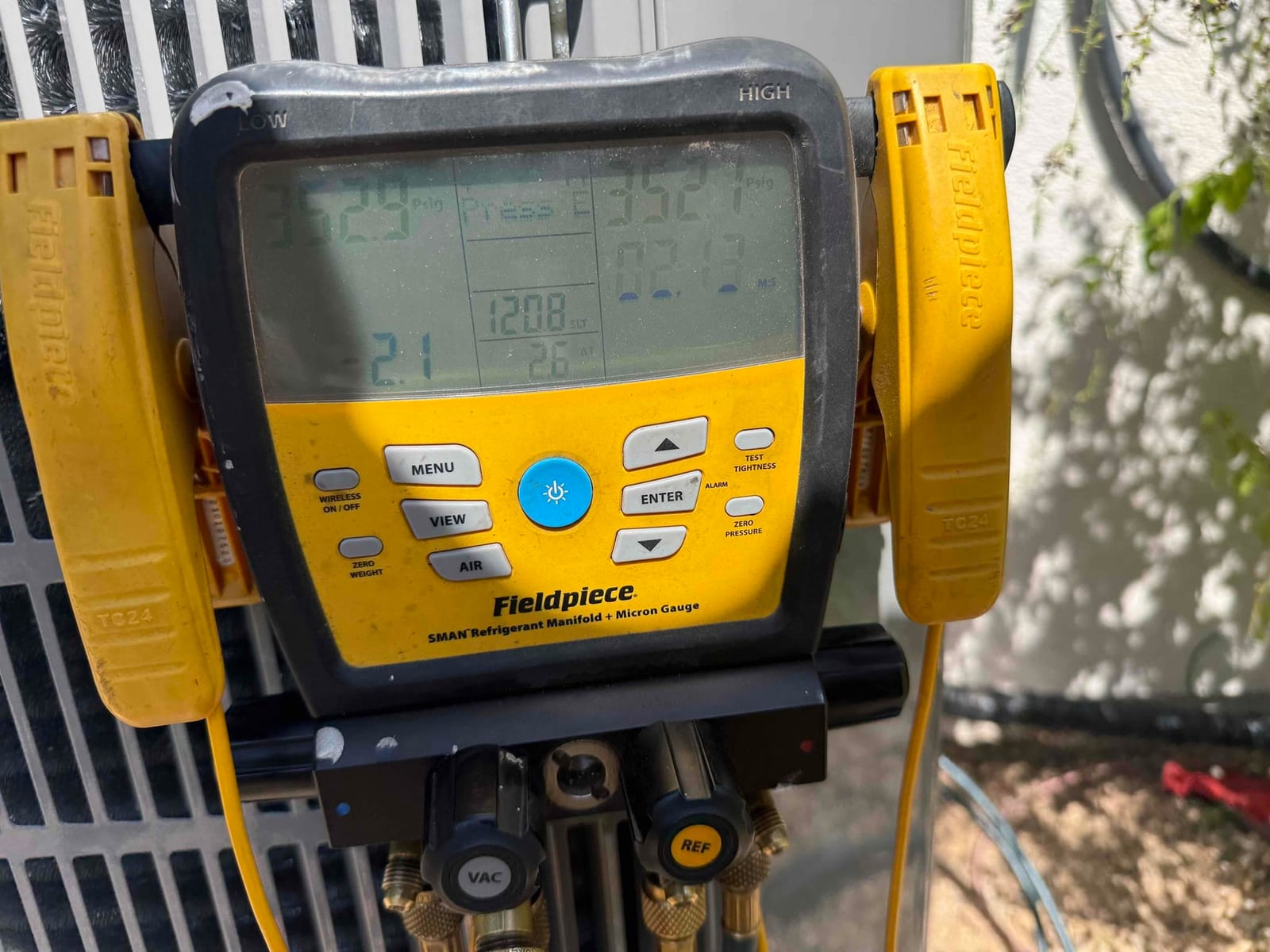

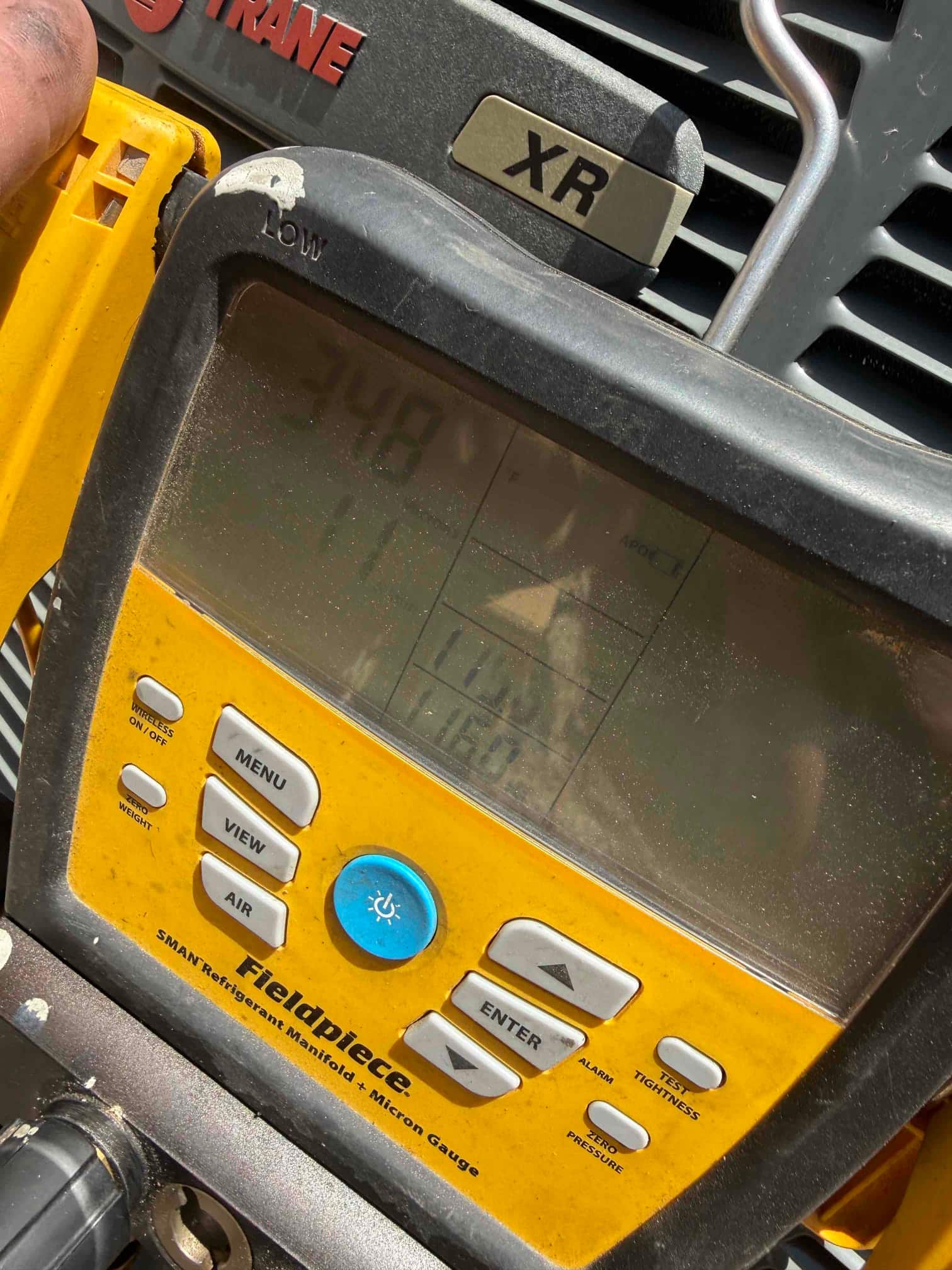

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

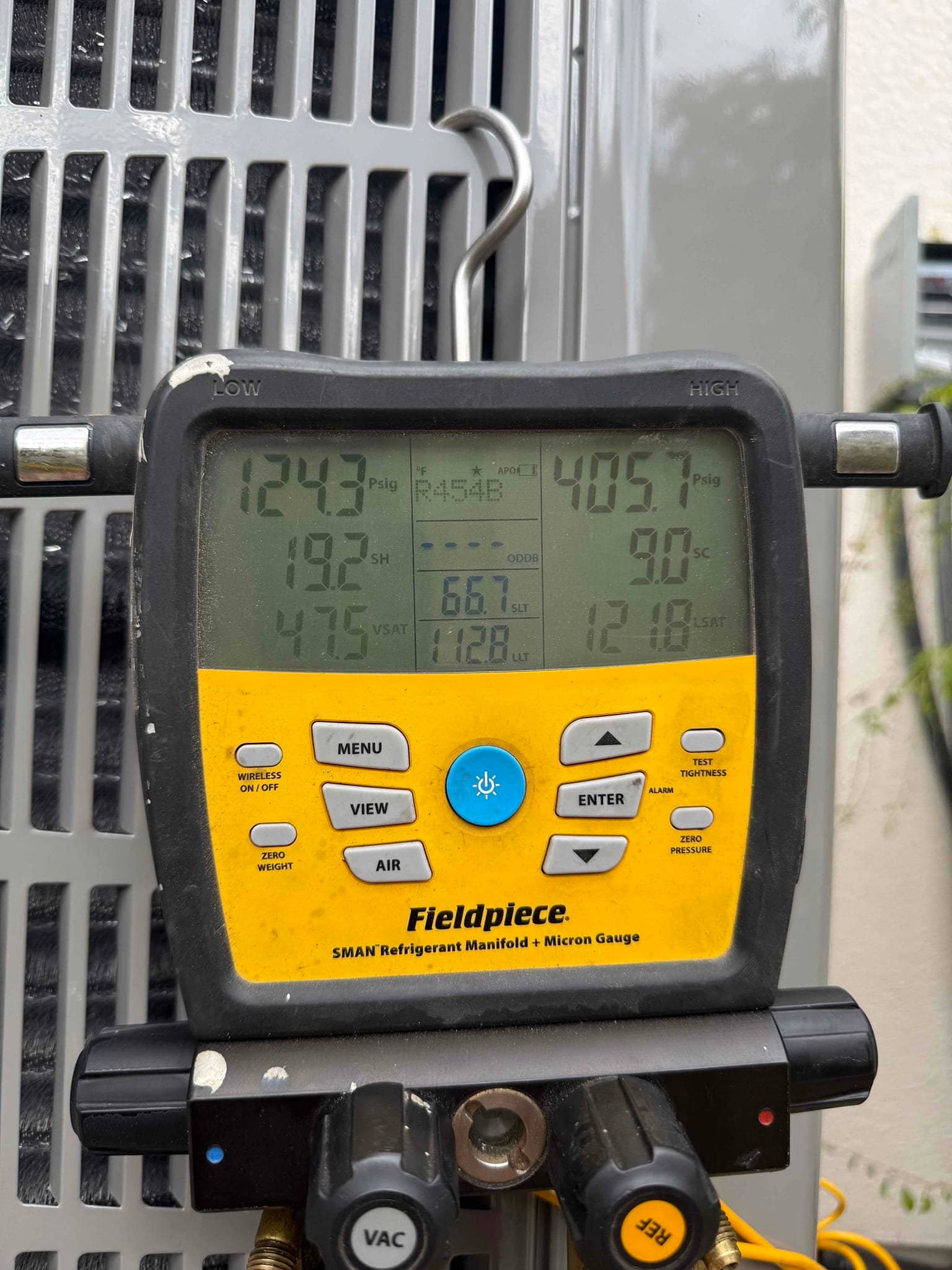

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Scottsdale job?
AZ Perfect Comfort installed a 5-Ton Trane Mini-Split System at this Scottsdale property. The install was completed by Ben, Andrew, Edwin & Ryan and includes AZ Perfect Comfort's workmanship warranty.
How much does a new mini-split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Scottsdale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
