3.5-Ton AC and Furnace Split System Installation in Peoria — June 2024
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a 3.5-ton split gas vertical system.
Peoria · installed June 4, 2024
— At a Glance
Location
Peoria
Completed
June 4, 2024
System Type
AC + Furnace Split System
Capacity
3.5-Ton
Brand
Trane
Efficiency
14.3 SEER2
Total Investment
$7,850
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
AC condenser
- Brand
- Trane
- Model
- A4AC4036D1000
- Capacity
- 3.5-Ton
- Efficiency
- 14.3 SEER2
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- A801X060BM4SC
- Matched
- 3.5-Ton airflow
New — installed 2026
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCB006DS3HC
- Matched
- 3.5-Ton airflow
New — installed 2026
Newly Installed
AC condenser
- Brand
- A4AC4042D1000
- Model
- A4AC4042D1000
- Capacity
- 3.5-Ton
- Efficiency
- 14.3 SEER2
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- A801X080BM4SC
- Matched
- 3.5-Ton airflow
New — installed 2026
Newly Installed

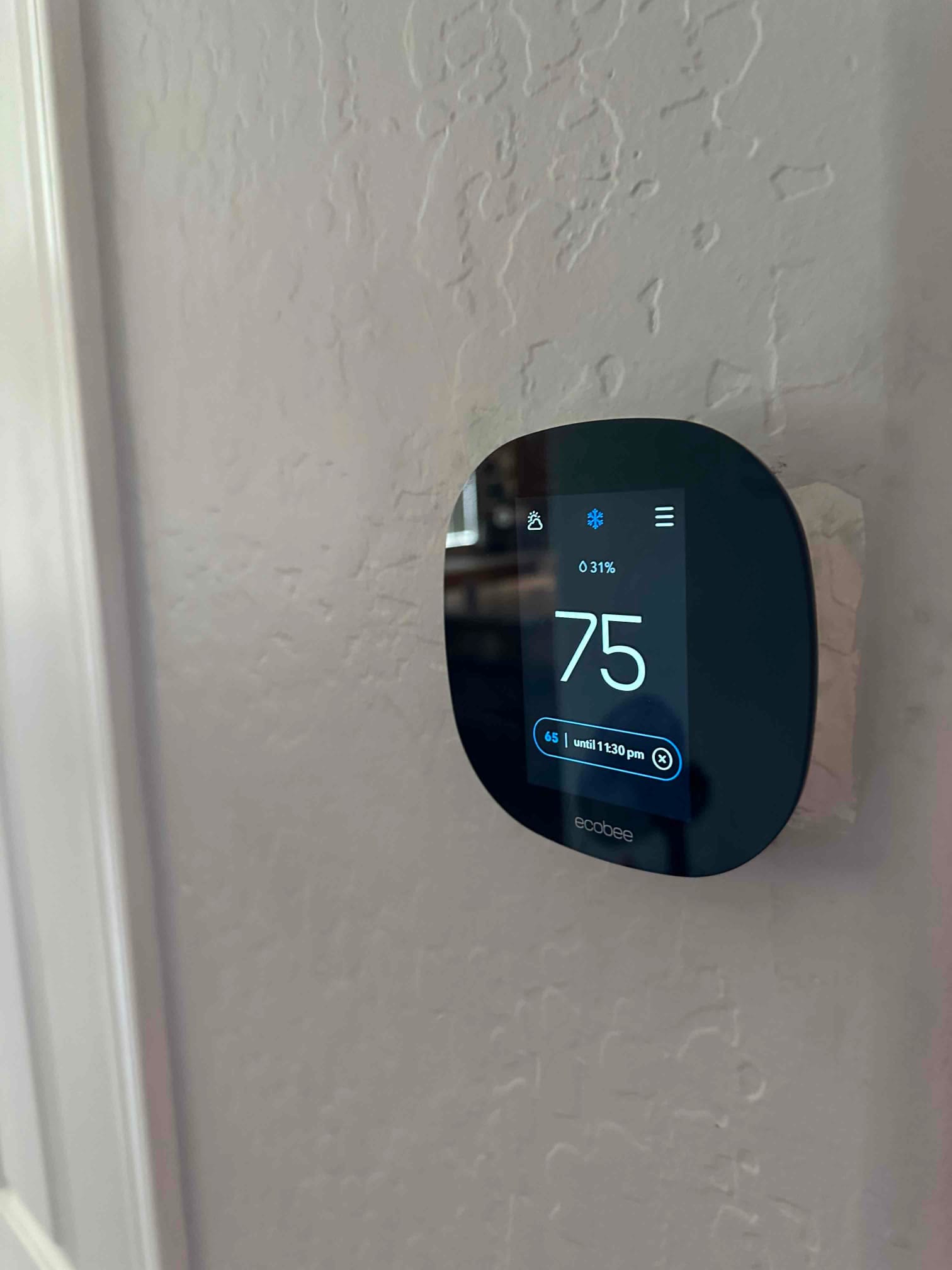

Thermostat
- Brand
- Trane
- Model
- ECOBEE-3
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Peoria, AZ. You can browse more real 3.5-Ton AC and Furnace Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Jesse from the manifold gauges, micron gauge, and digital thermometers.

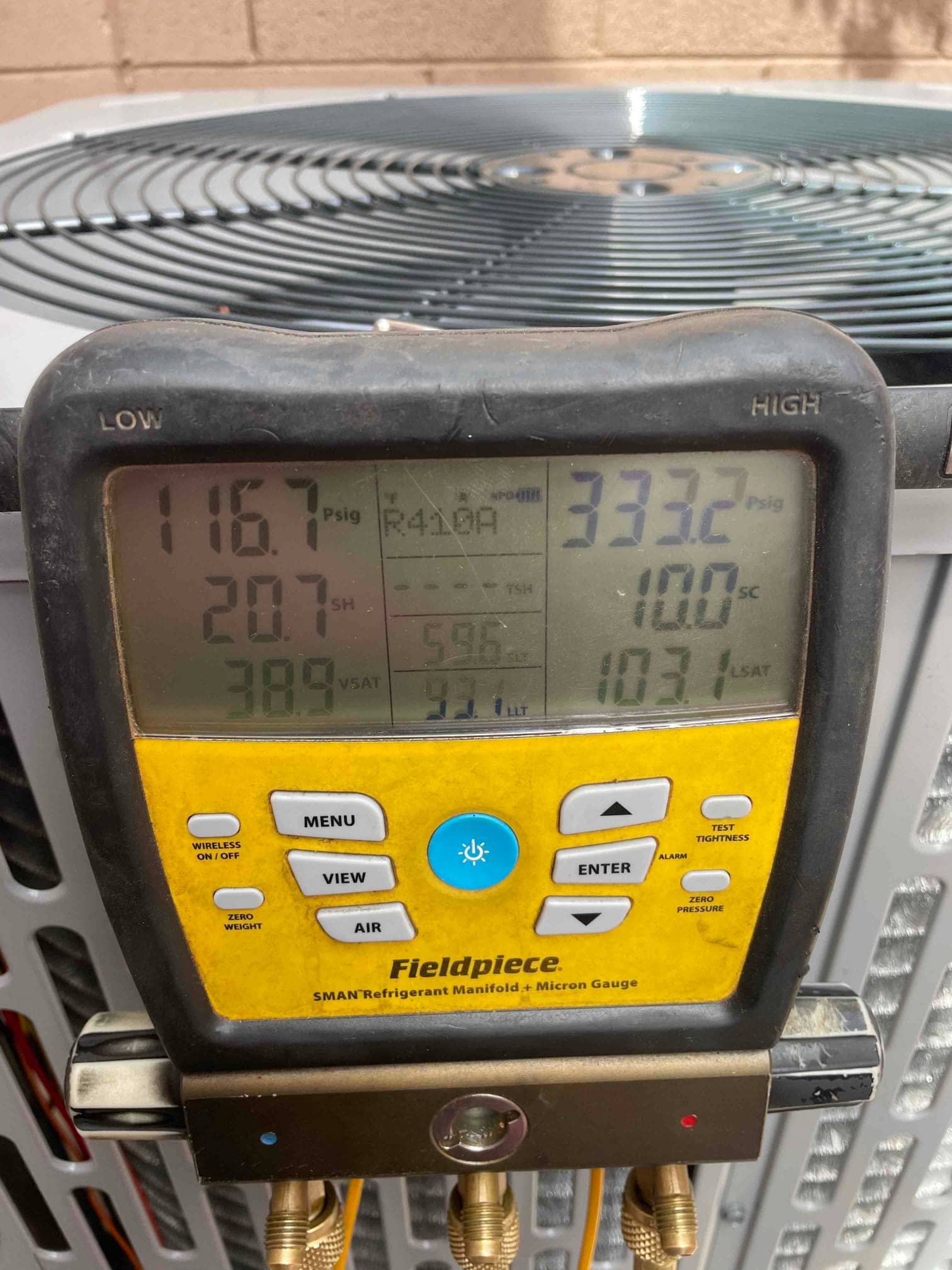

Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 117 PSIG
- Liquid pressure
- 333 PSIG
- Evaporator saturation
- 34.7°F
- Condensing saturation
- 108.7°F
- Superheat
- 21°F
- Subcooling
- 10°F

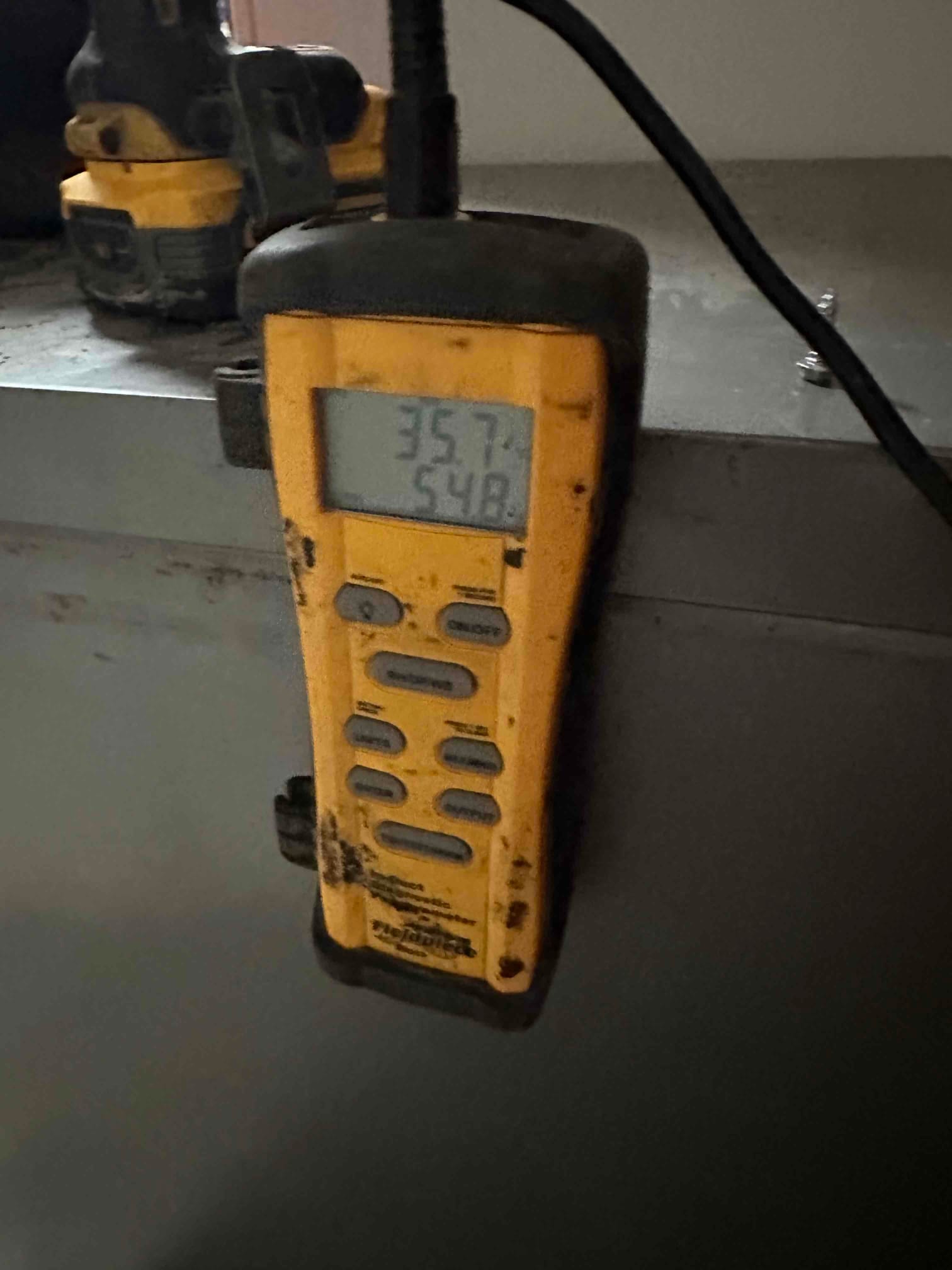

Air-Side Performance
- Supply-air temperature
- 52.4°F
Nitrogen Pressure Test
- Test pressure held
- 399 PSIG

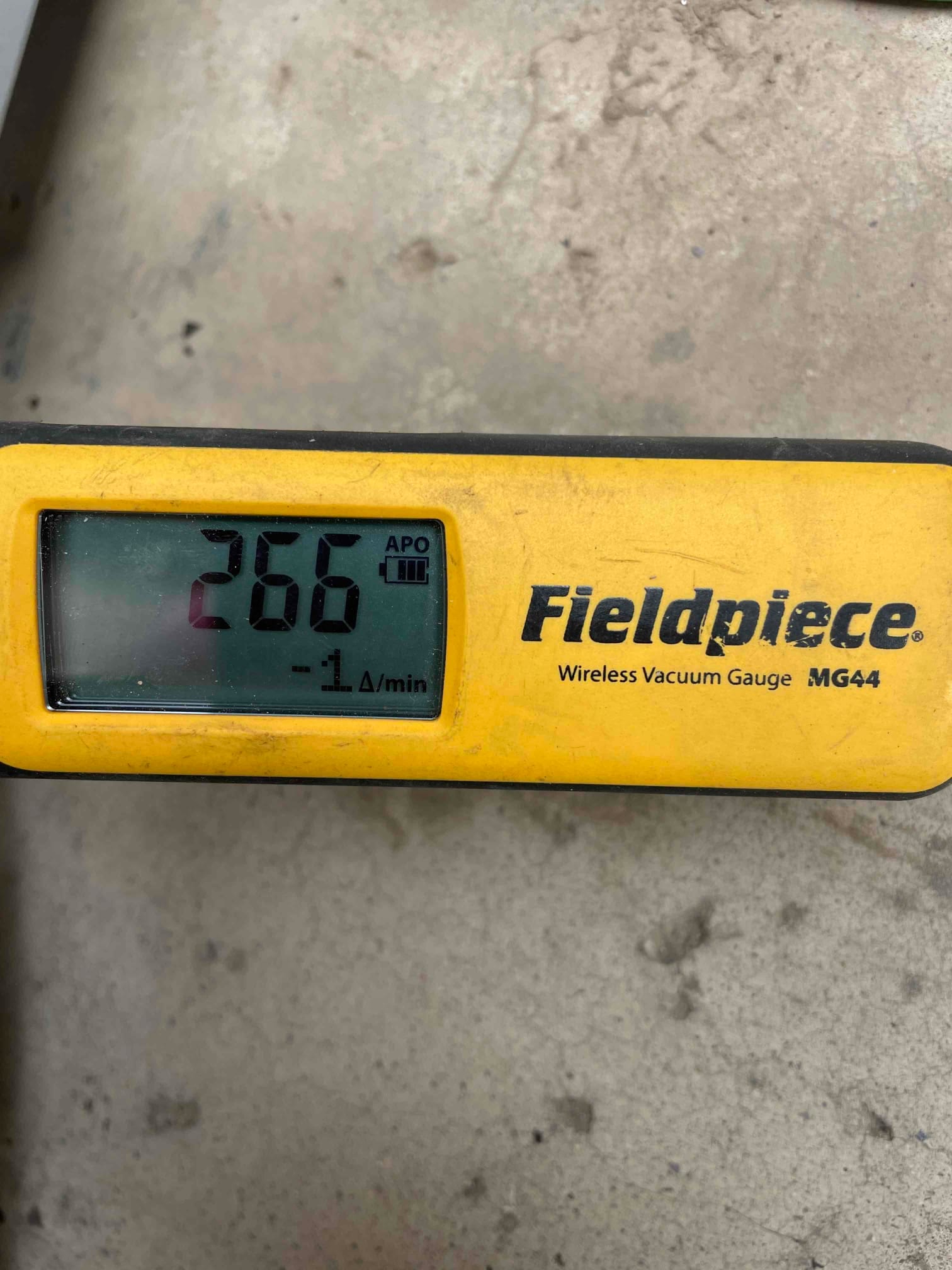

Vacuum / Evacuation
- Final vacuum reading
- 266 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 3.514.3V-A4AC4042-A801 | 3.5 Ton- Vertical 14.3 SEER2 Single Stage A4AC4-D Air Conditioner. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimate/invoi | 1 |
| TS-122 | Remove existing thermostat and install a new Ecobee 3 Smart Wi-Fi enabled programmable thermostat with phone app capabilities. Test all system operations and ensure connectivity to phone app. | 2 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
21 photos from this installation
Every step of this installation was documented on-site by Kyle & Jesse.

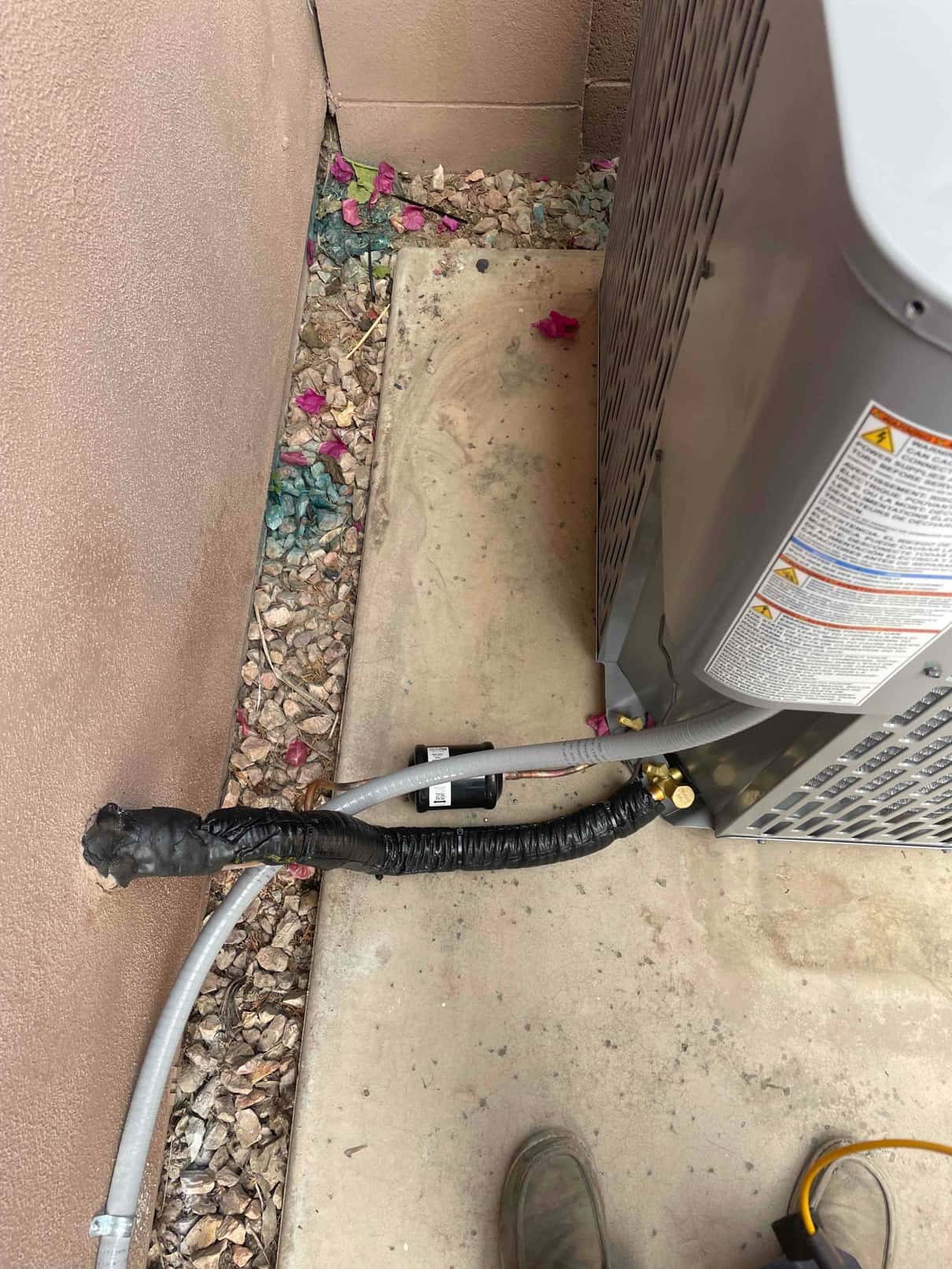

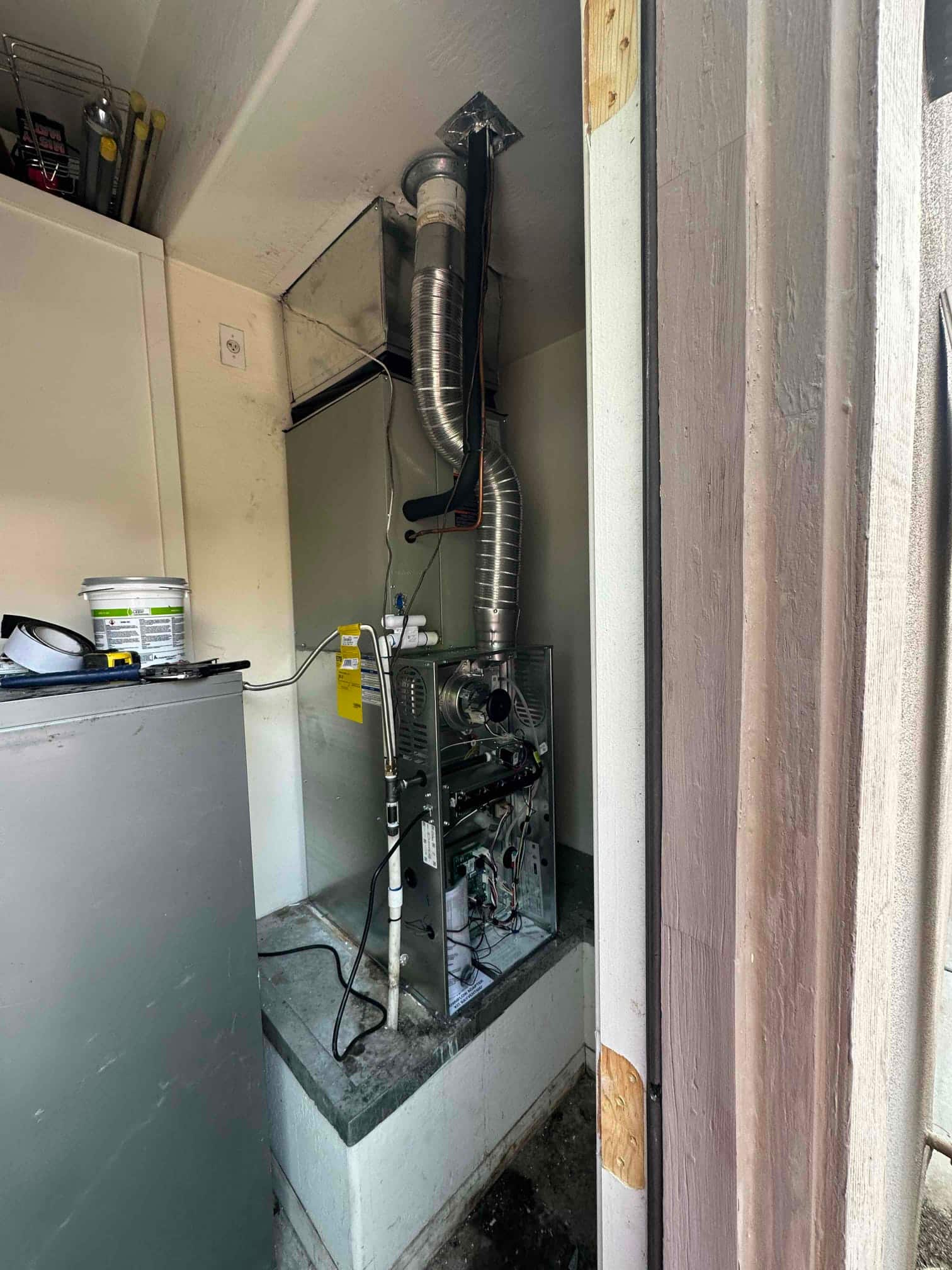

Installation Progress

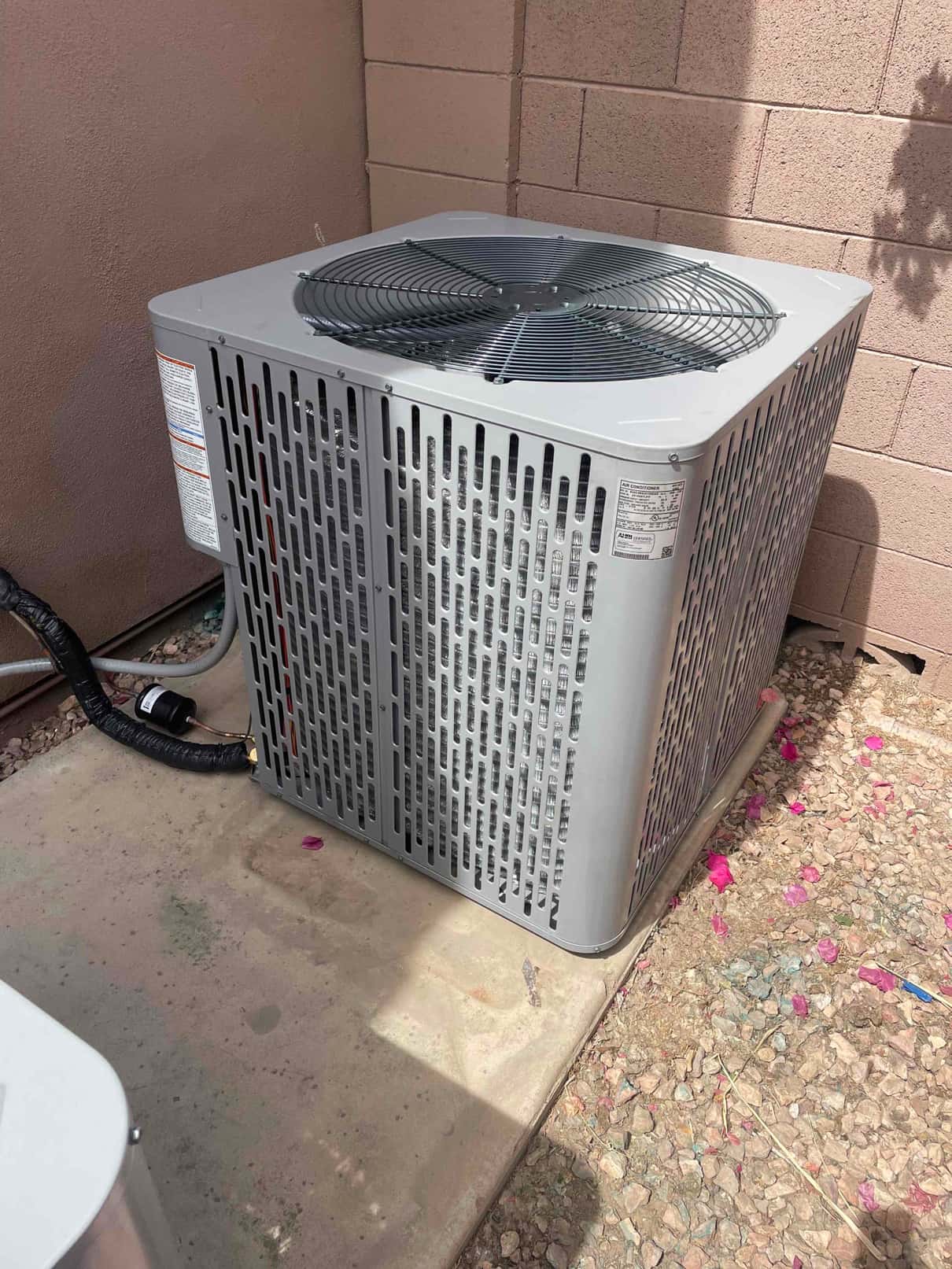

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.
Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.
Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

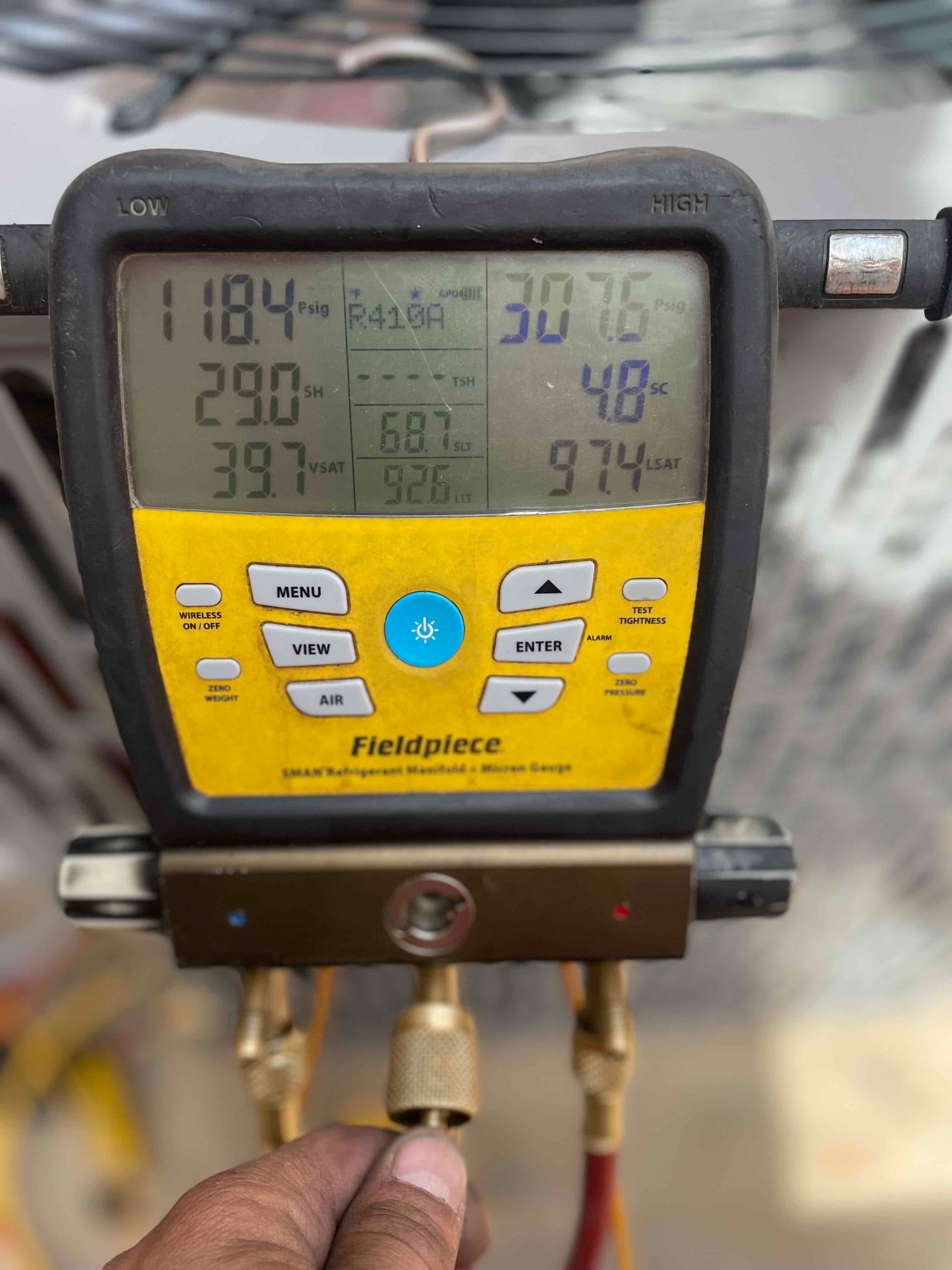

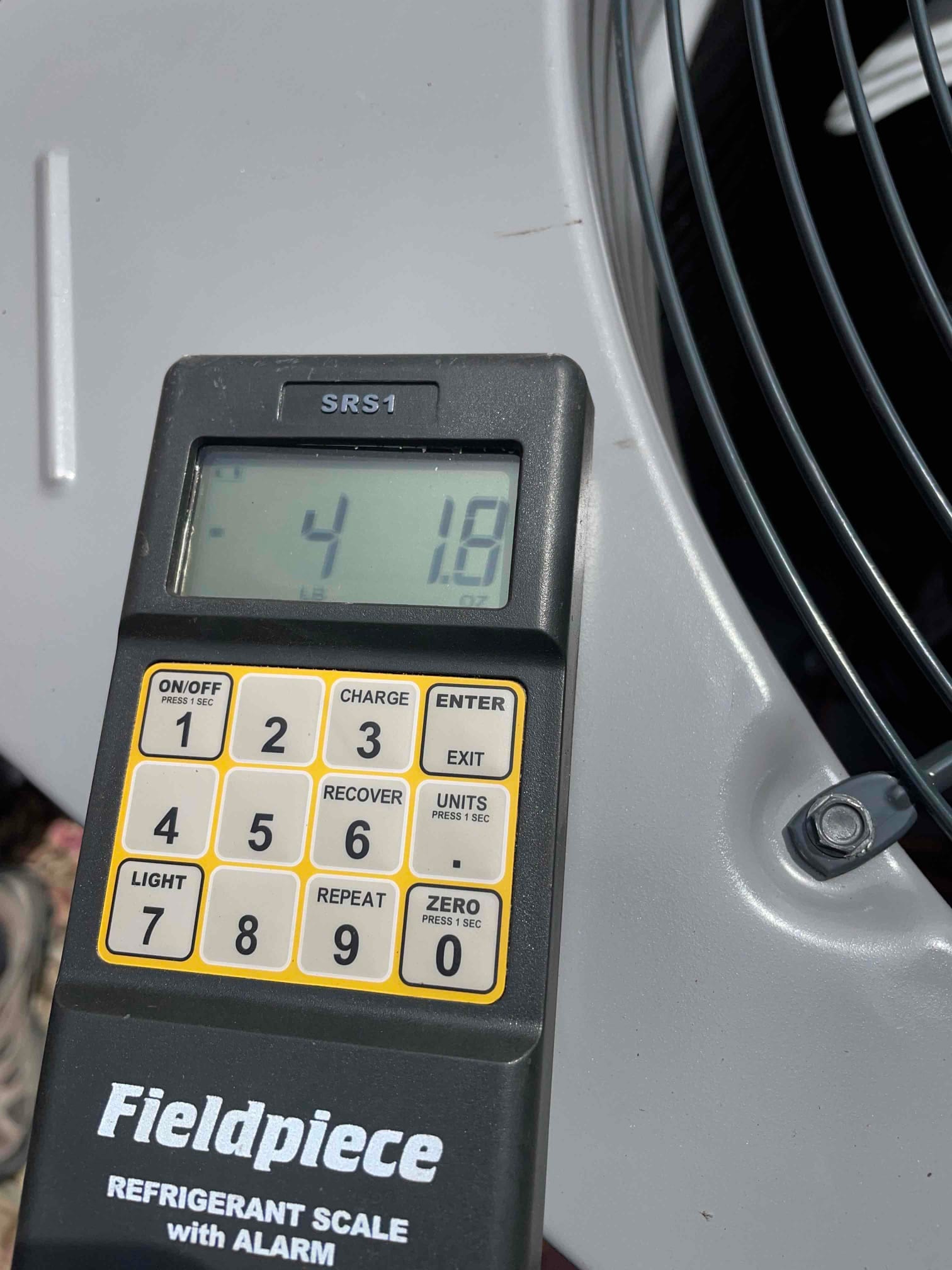

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

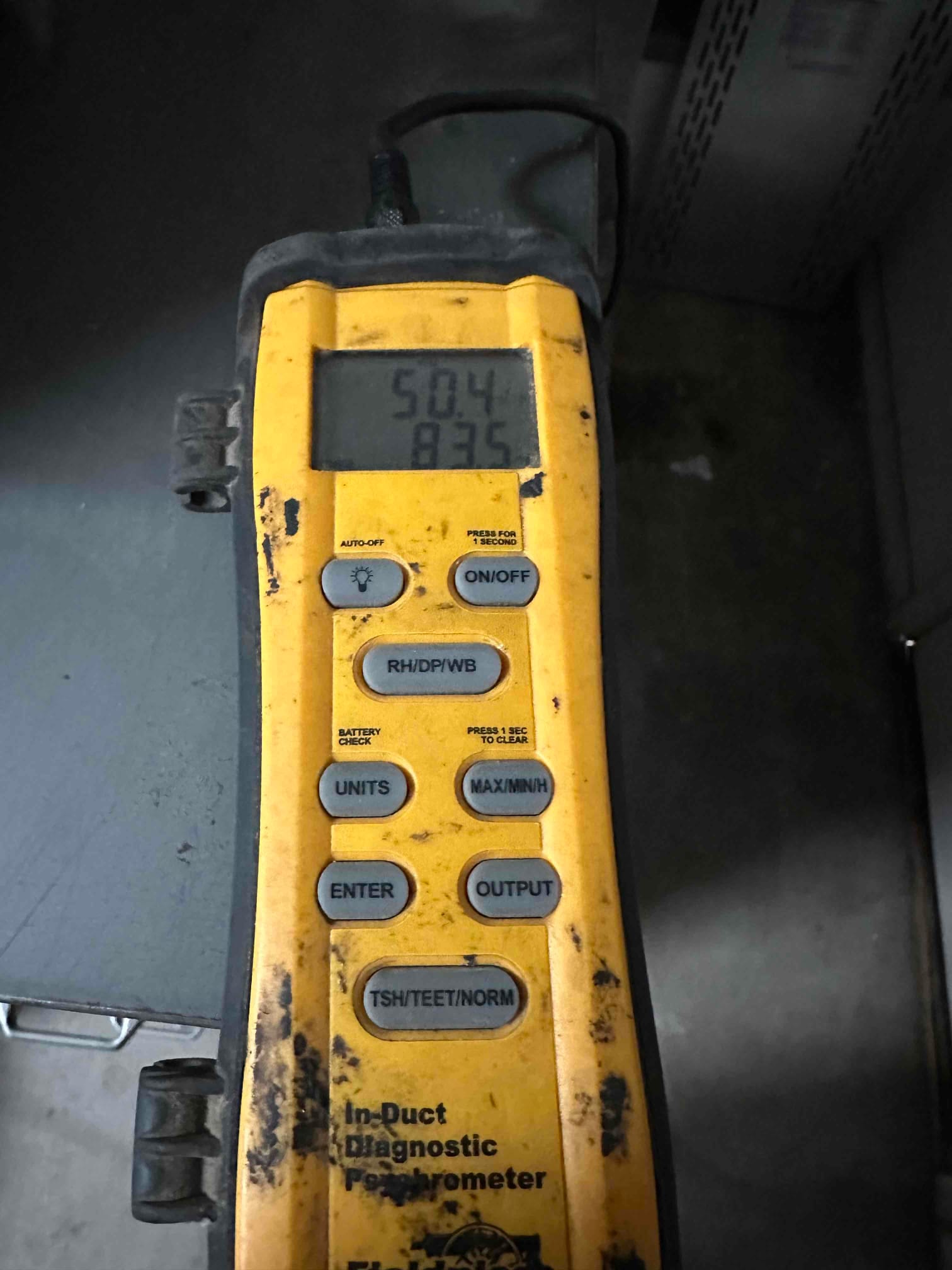

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
