Newly Installed
Furnace
- Brand
- AM STD
- Model
- S8X1C080M5PSC
- Matched
- 4-Ton airflow
New — installed 2026
Real Installation · North Scottsdale
4-Ton Trane Air Conditioning System Installation in North Scottsdale — July 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a Gold 17 4-ton Horizontal Attic Split System.
North Scottsdale · installed July 15, 2025
— At a Glance
Location
North Scottsdale
Completed
July 15, 2025
System Type
Air Conditioning System
Capacity
4-Ton
Brand
Trane
Efficiency
17.1 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$14,768
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
AC condenser
- Brand
- AM STD
- Model
- 5A7A7048A1000A
- Capacity
- 4-Ton
- Efficiency
- 17.1 SEER2
New — installed 2026
Newly Installed
5TXCC007AS3HCA
- Brand
- AM STD
New — installed 2026
Newly Installed

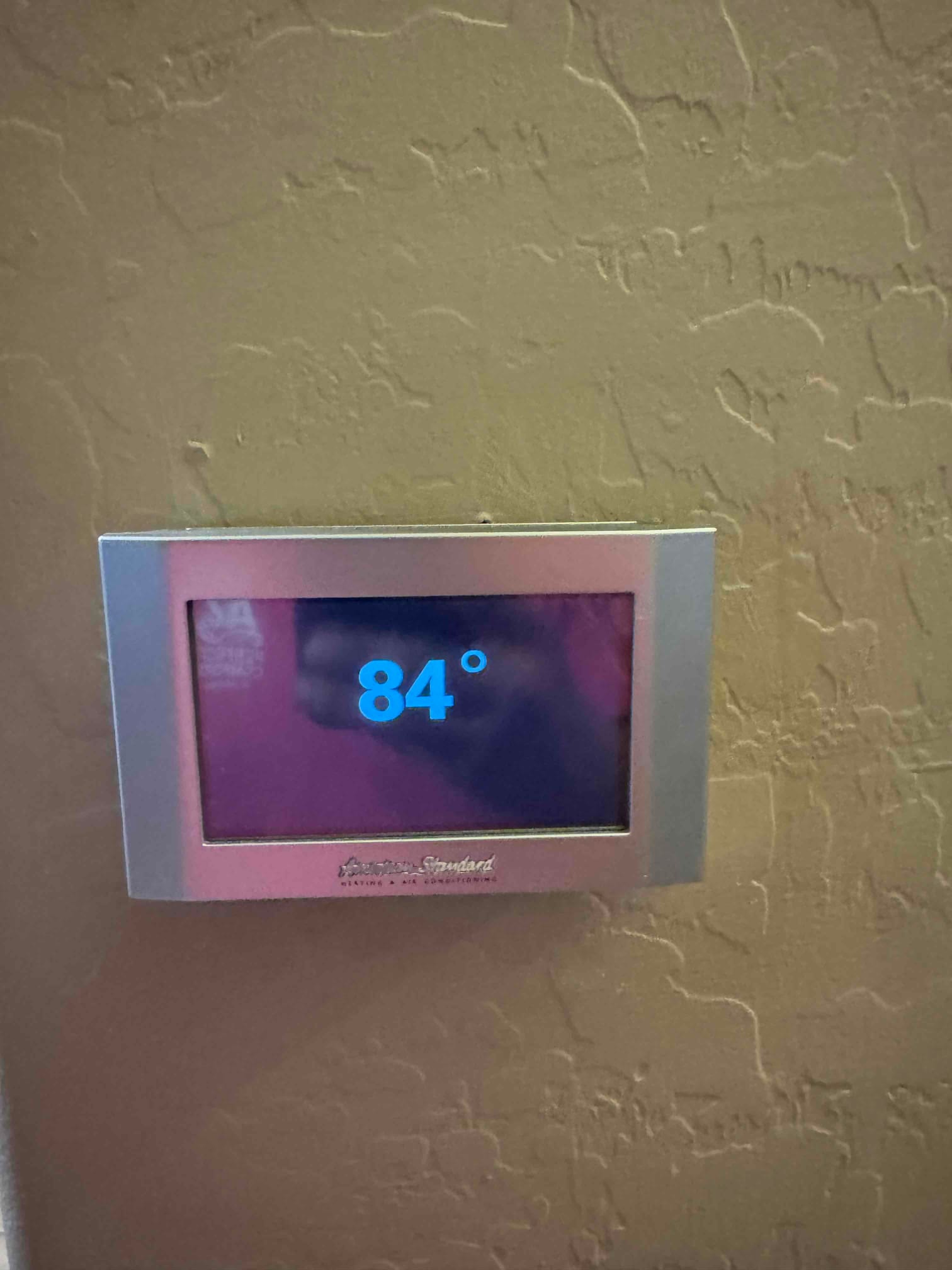

Thermostat
- Brand
- AM STD
- Model
- ACONT824AS52DB
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 4-Ton Trane Air Conditioning System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Michael & Jesse from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 130 PSIG
- Liquid pressure
- 339 PSIG
- Evaporator saturation
- 42.1°F
- Condensing saturation
- 109.7°F
- Superheat
- 5°F
- Subcooling
- 10°F
Air-Side Performance
- Return-air temperature
- 84°F
- Supply-air temperature
- 64.5°F
- Temperature split
- 19.5°F
Nitrogen Pressure Test
- Test pressure held
- 366 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 297 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 417.1H-5A7A7048-S8X1 | 4 Ton- Horizontal Variable Speed-17.1 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom o | 1 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
17 photos from this installation
Every step of this installation was documented on-site by Michael & Jesse.

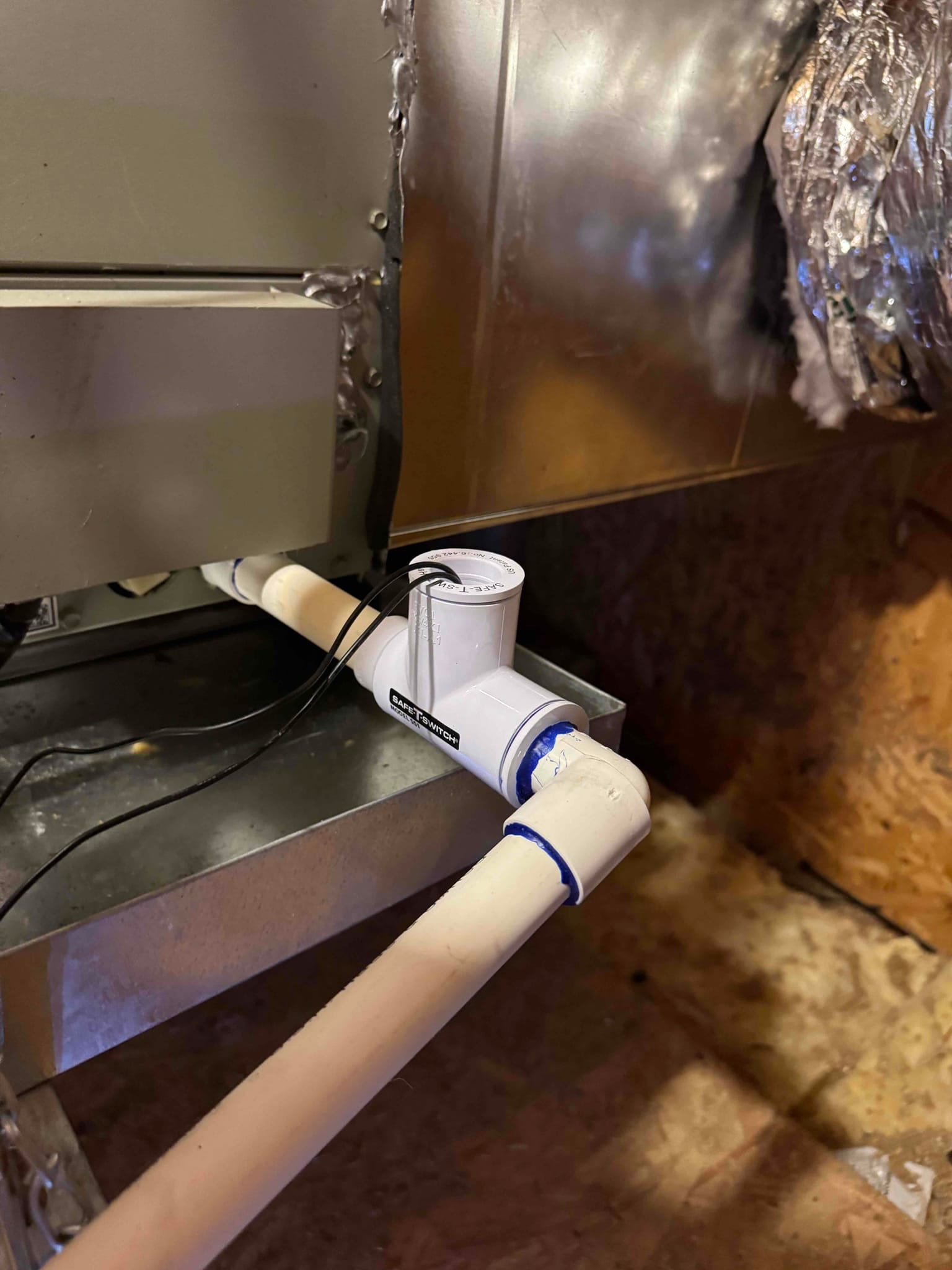

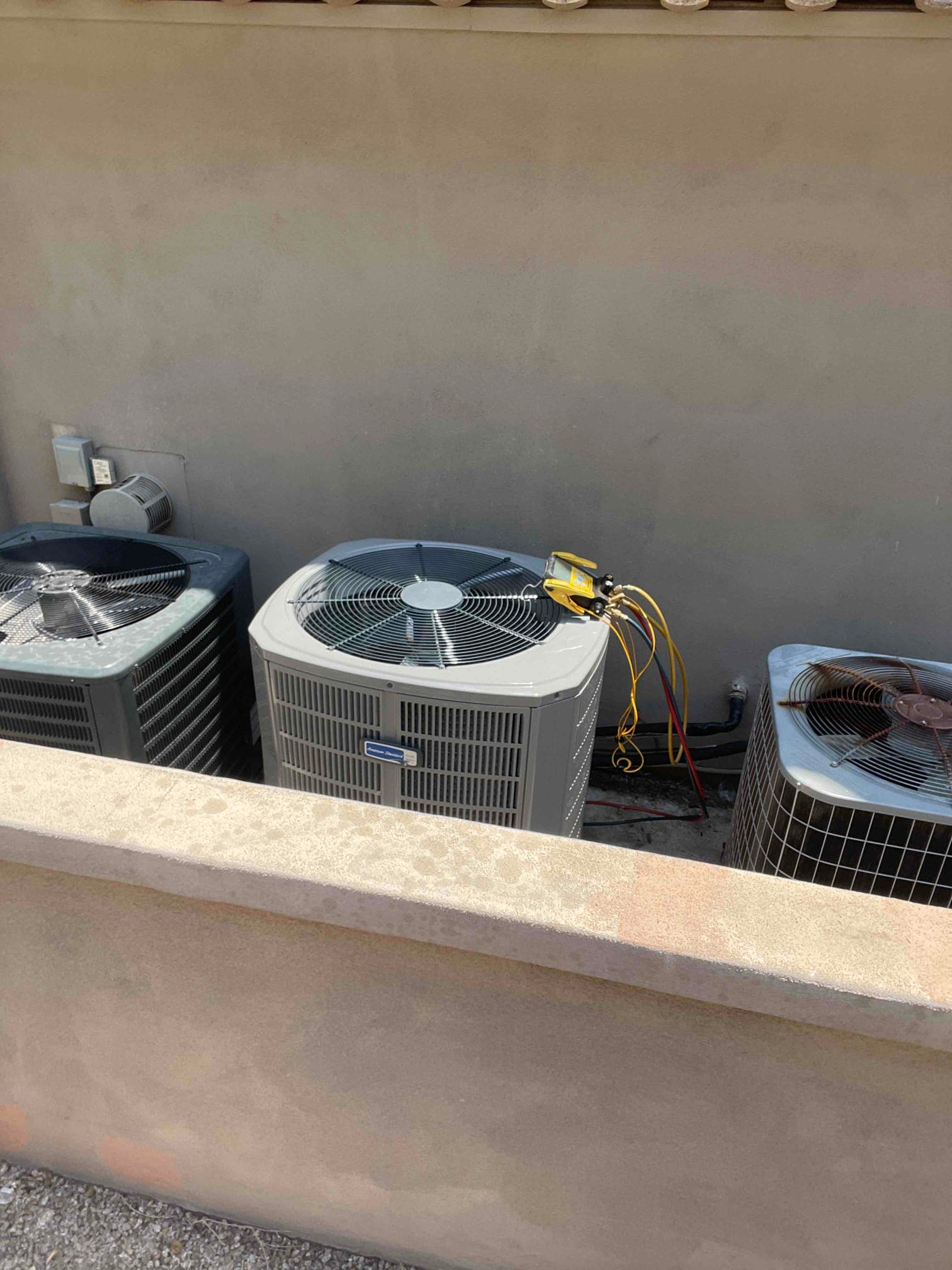

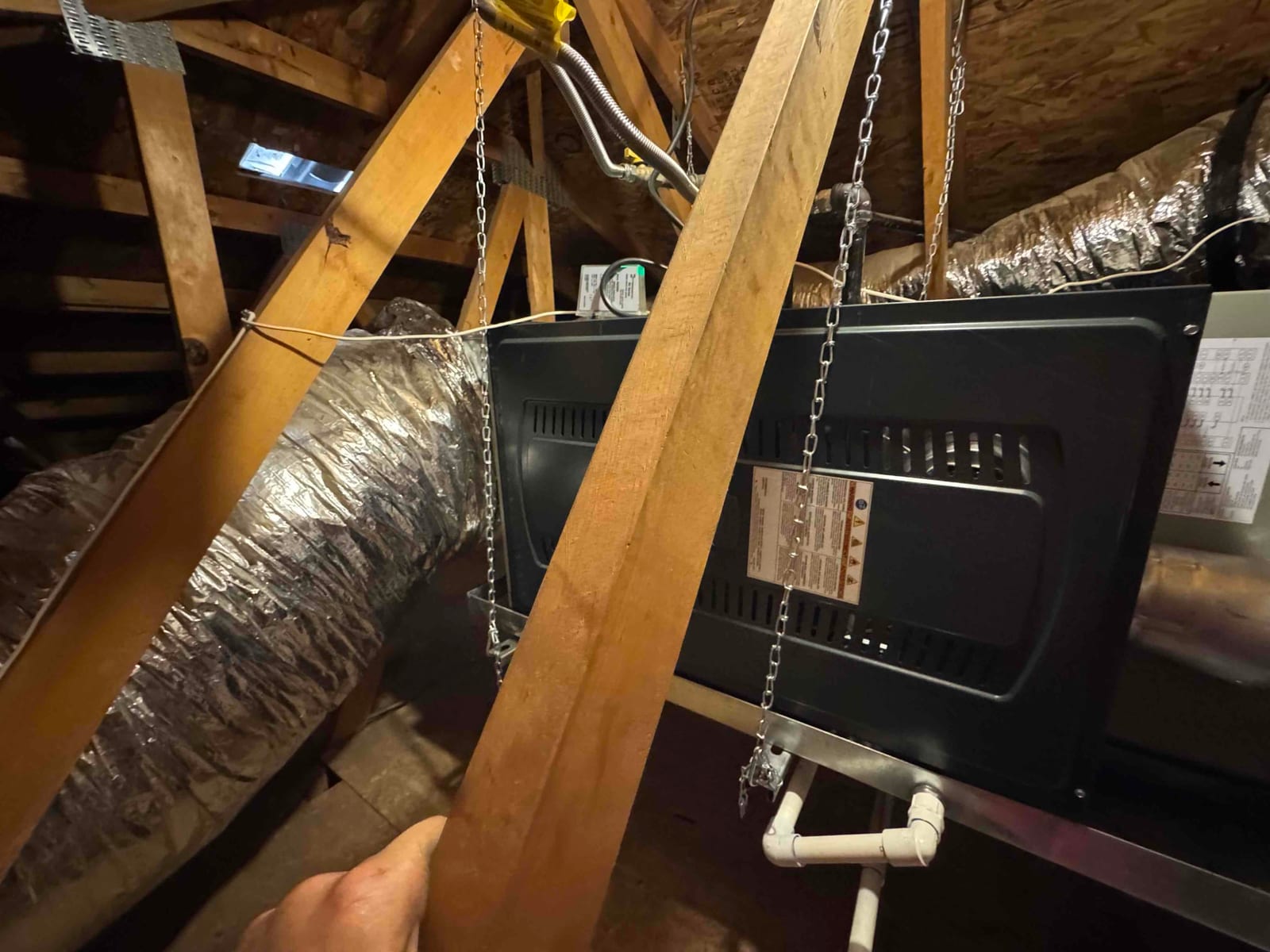

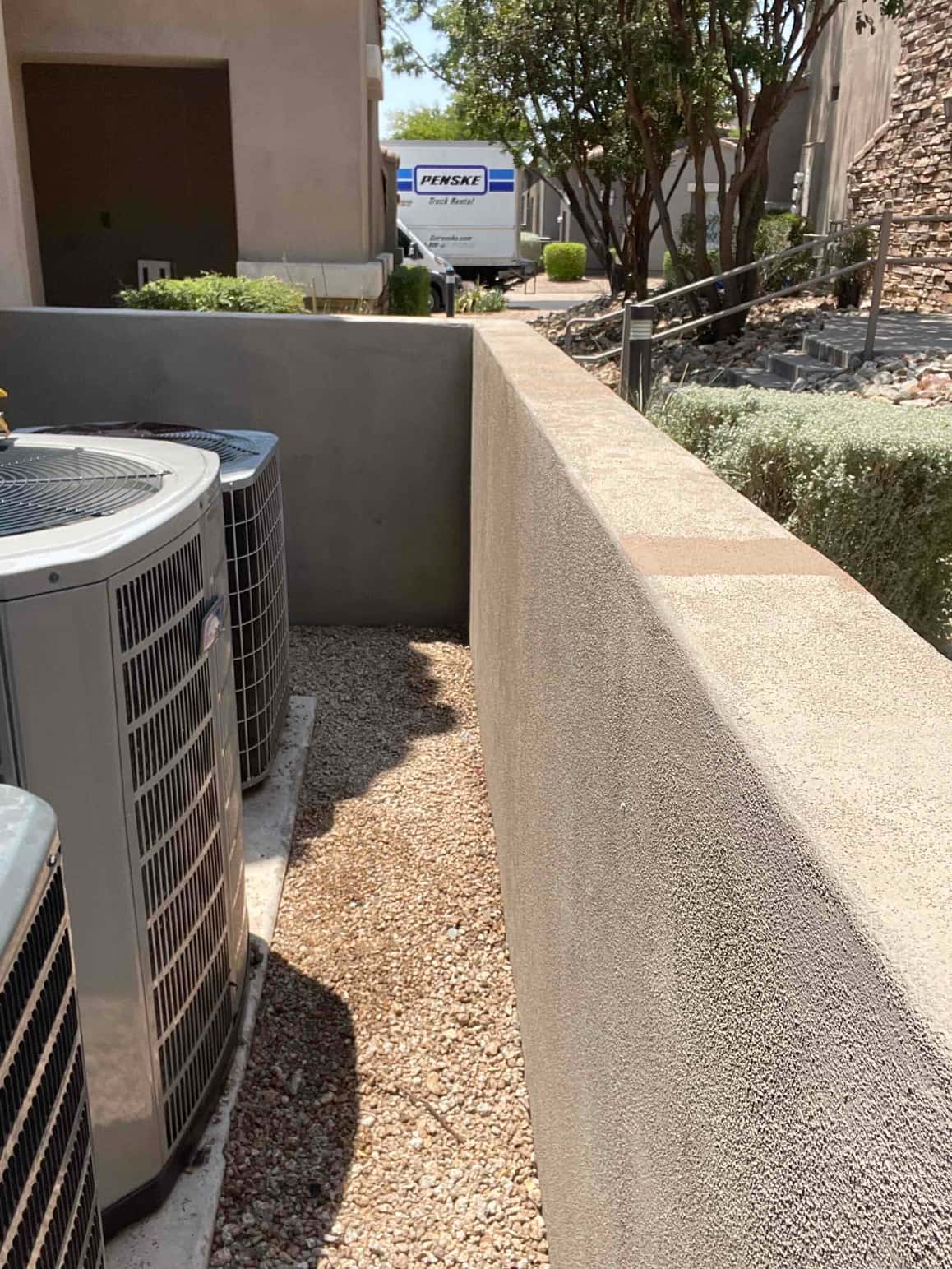

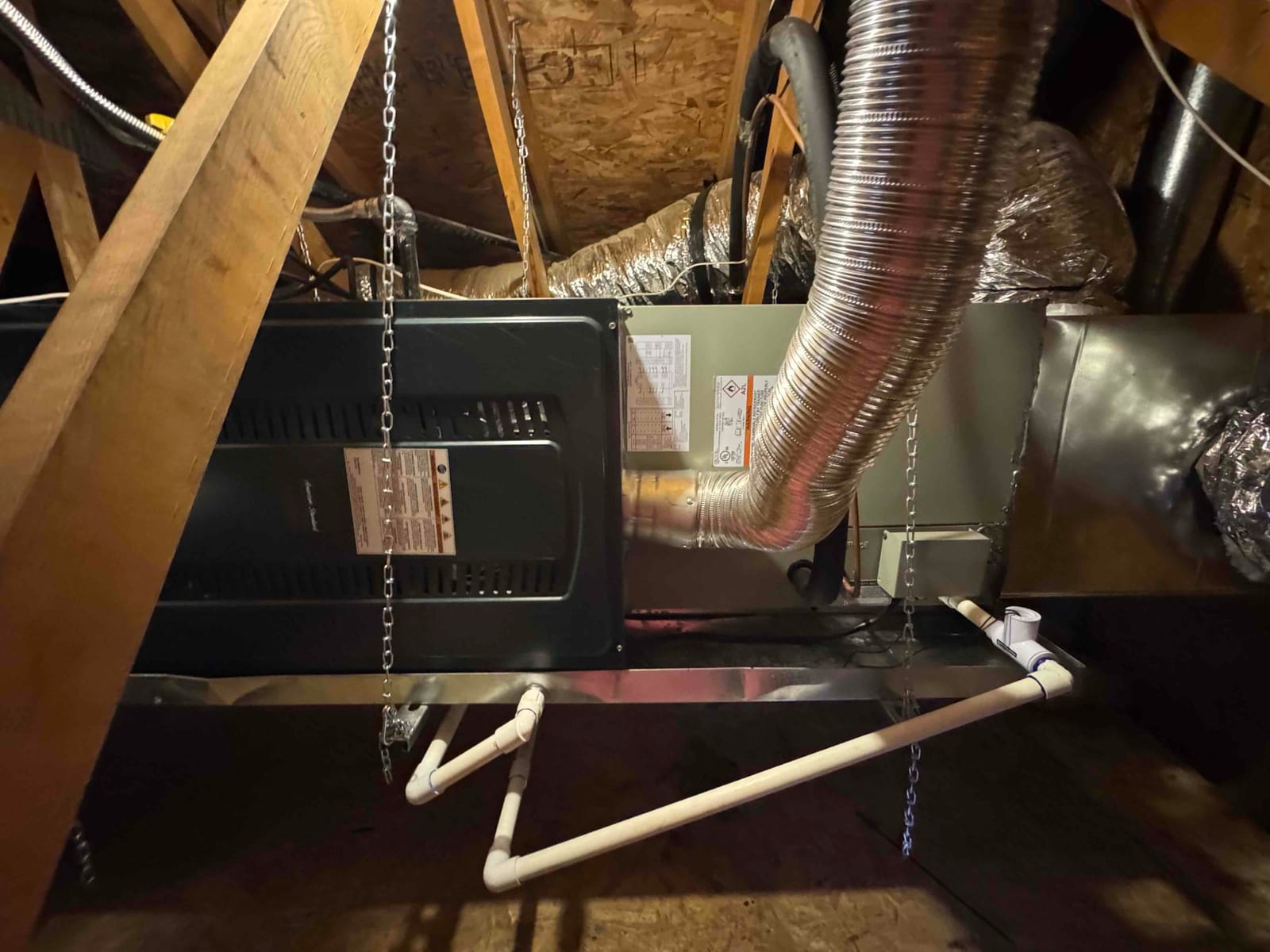

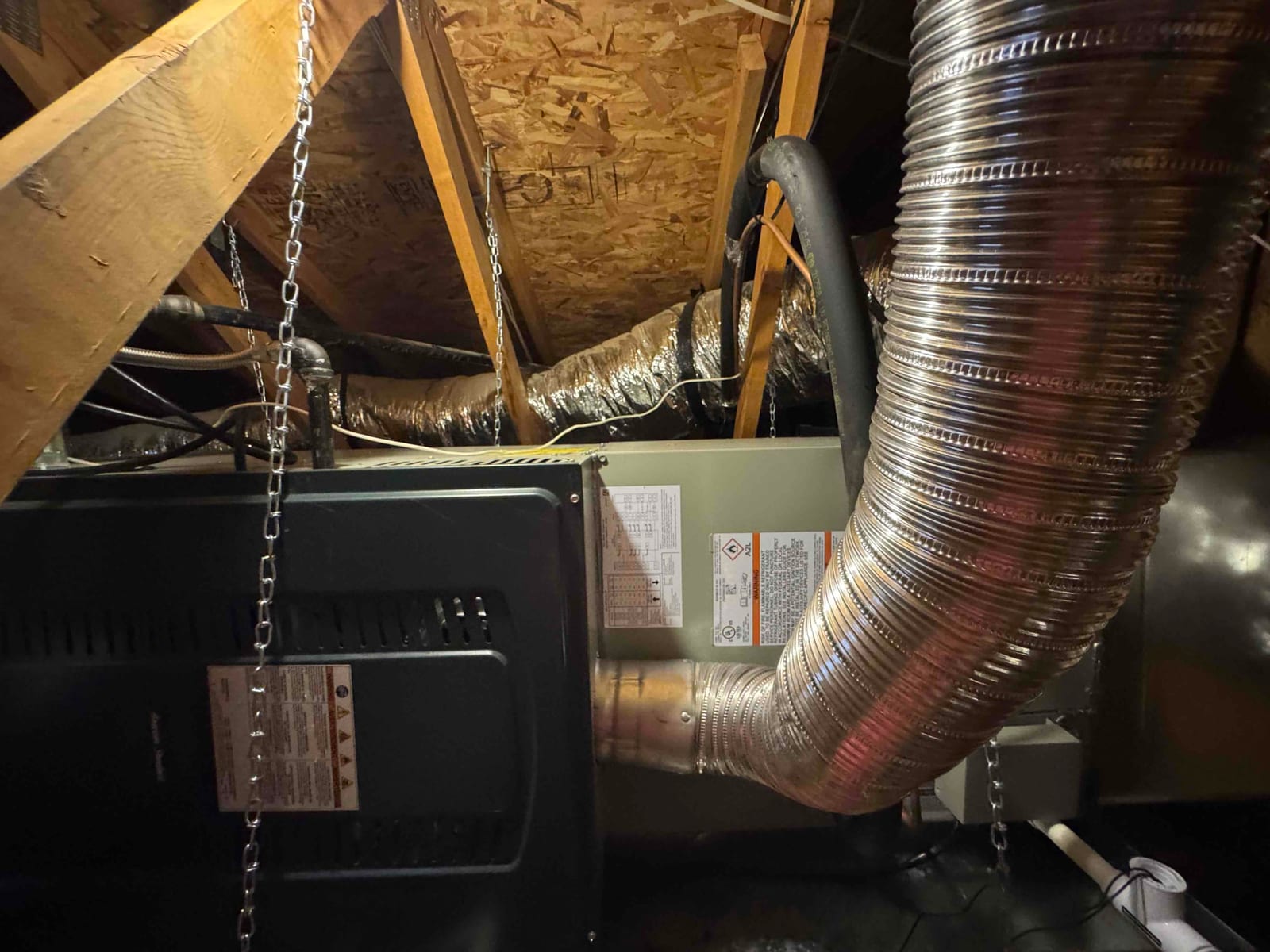

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

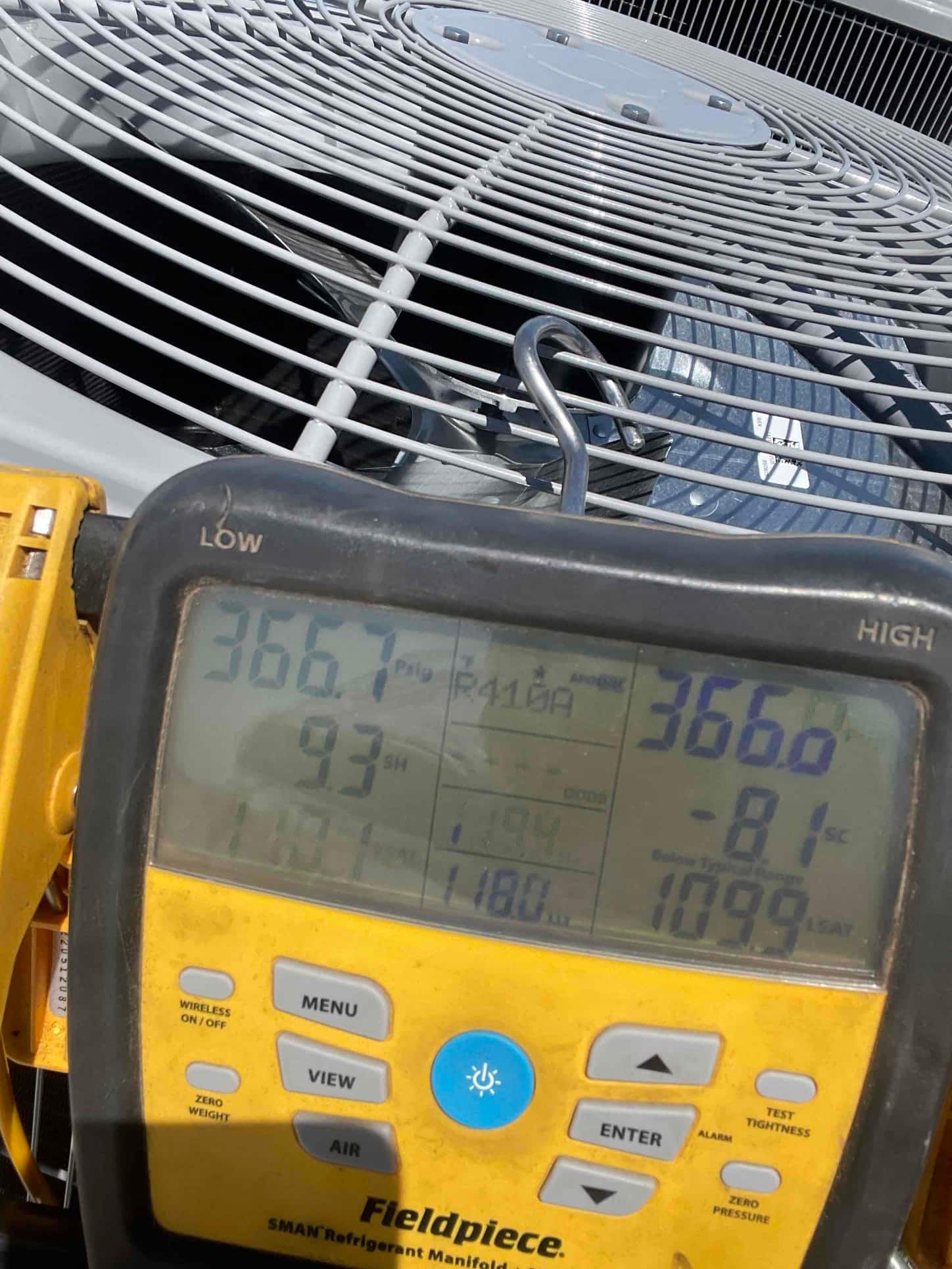

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

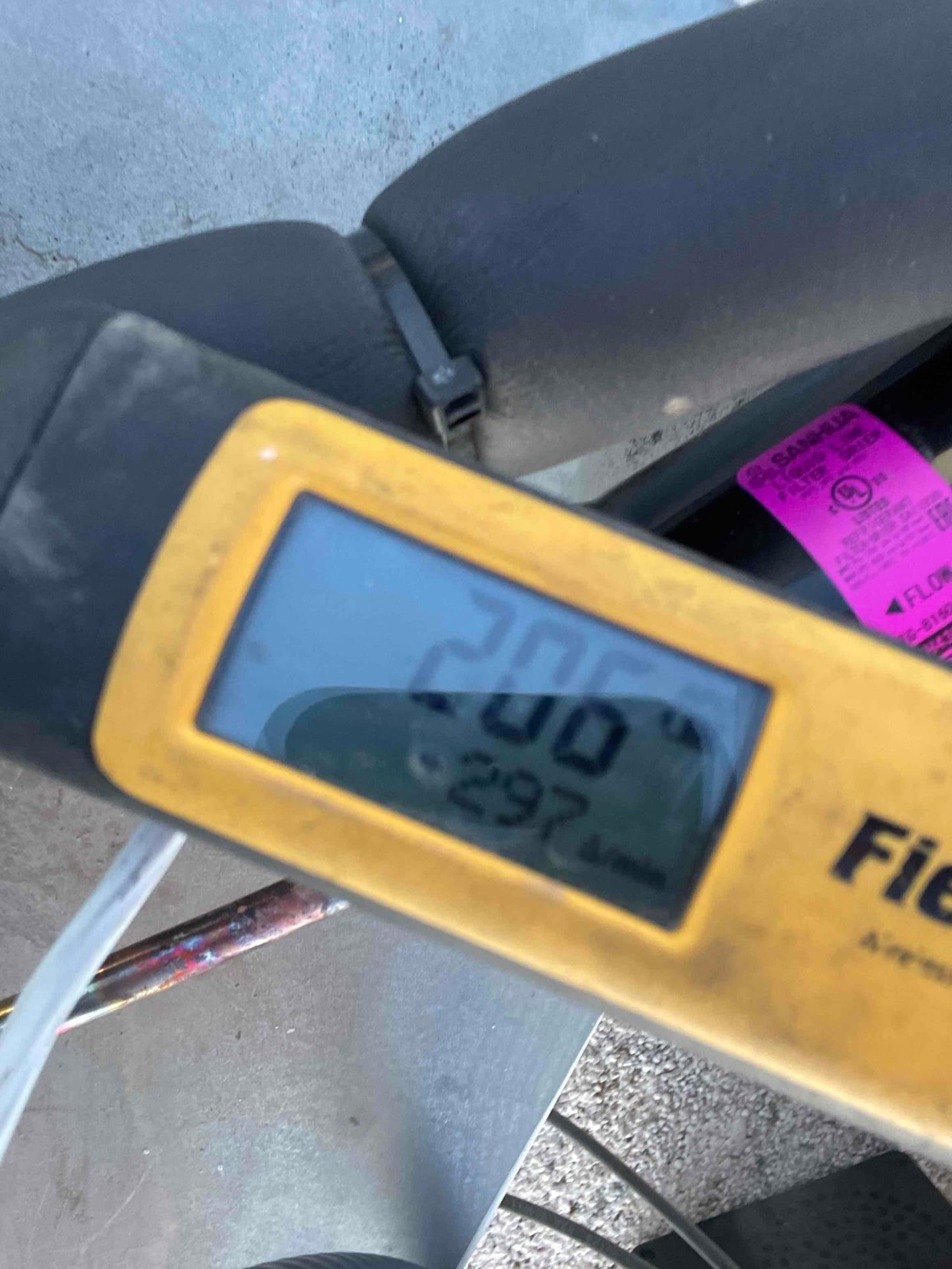

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

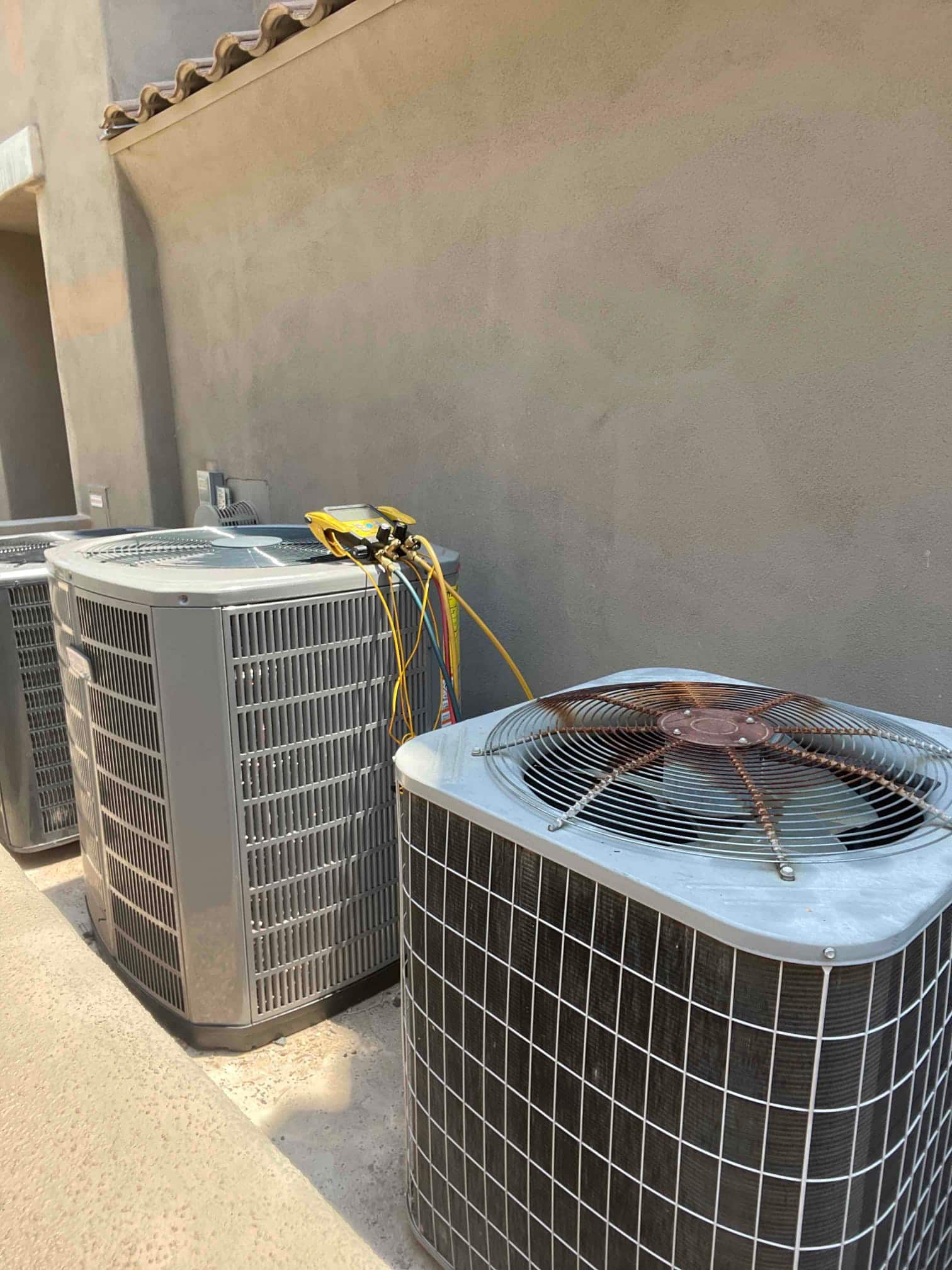

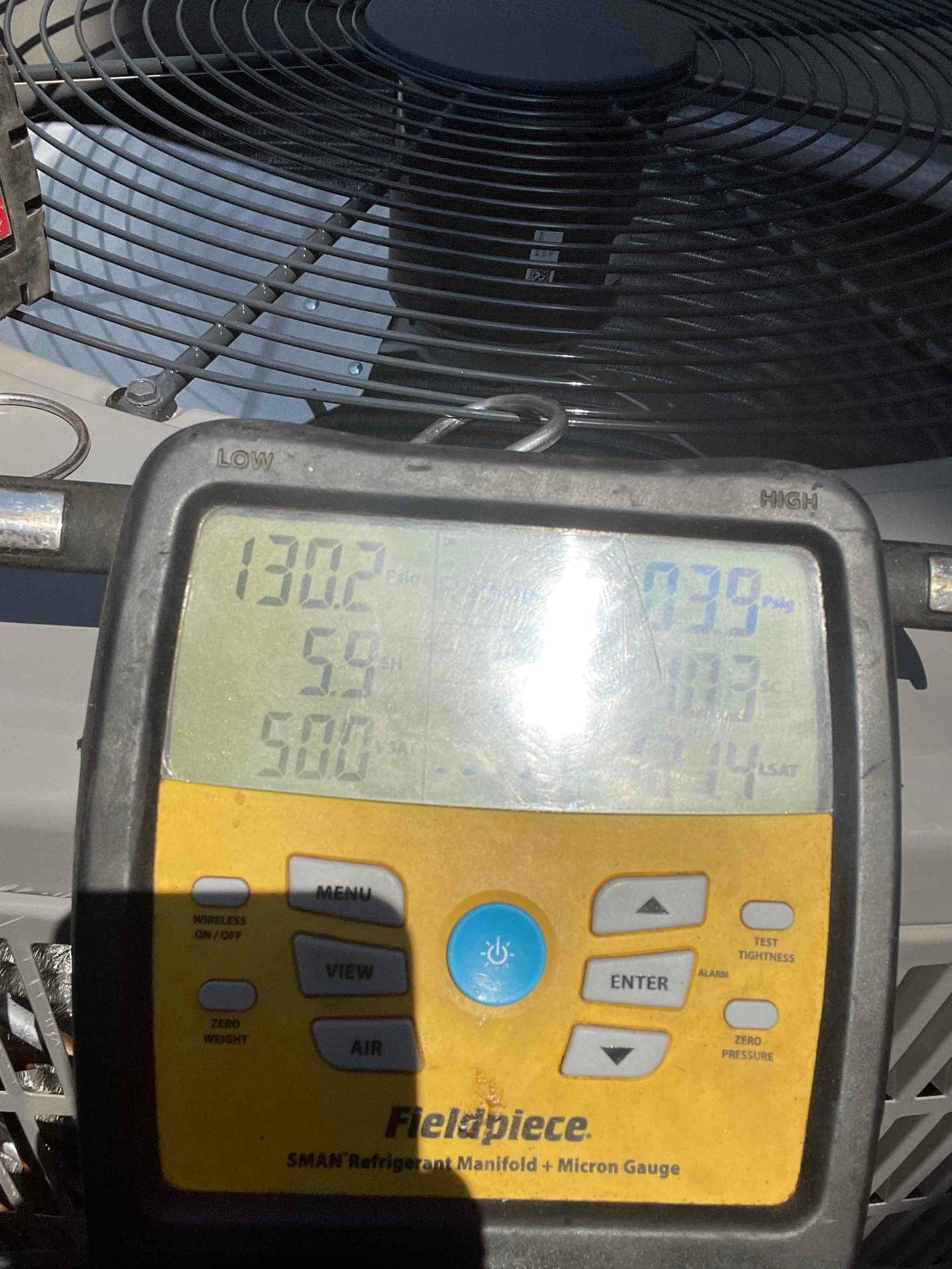

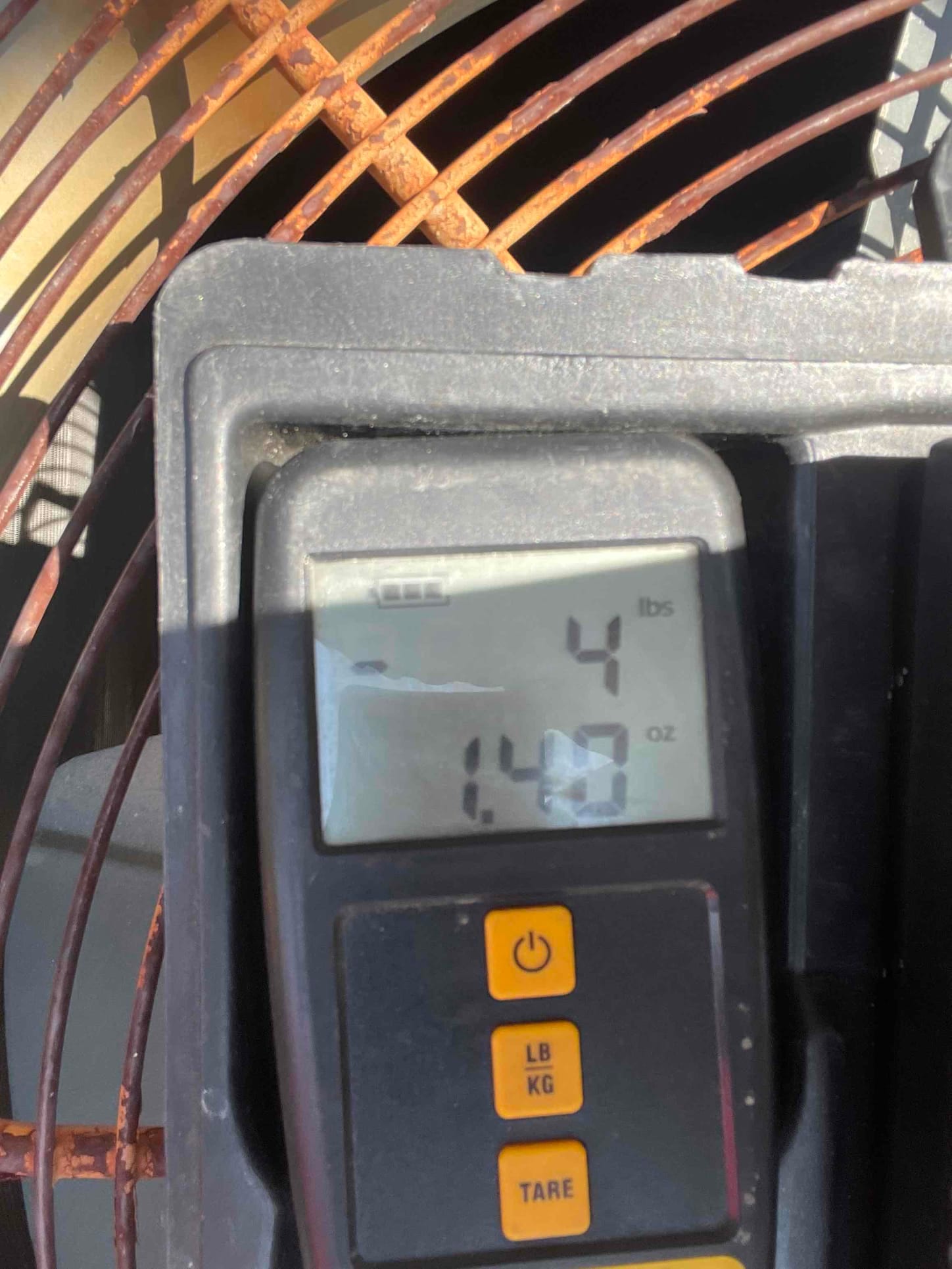

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

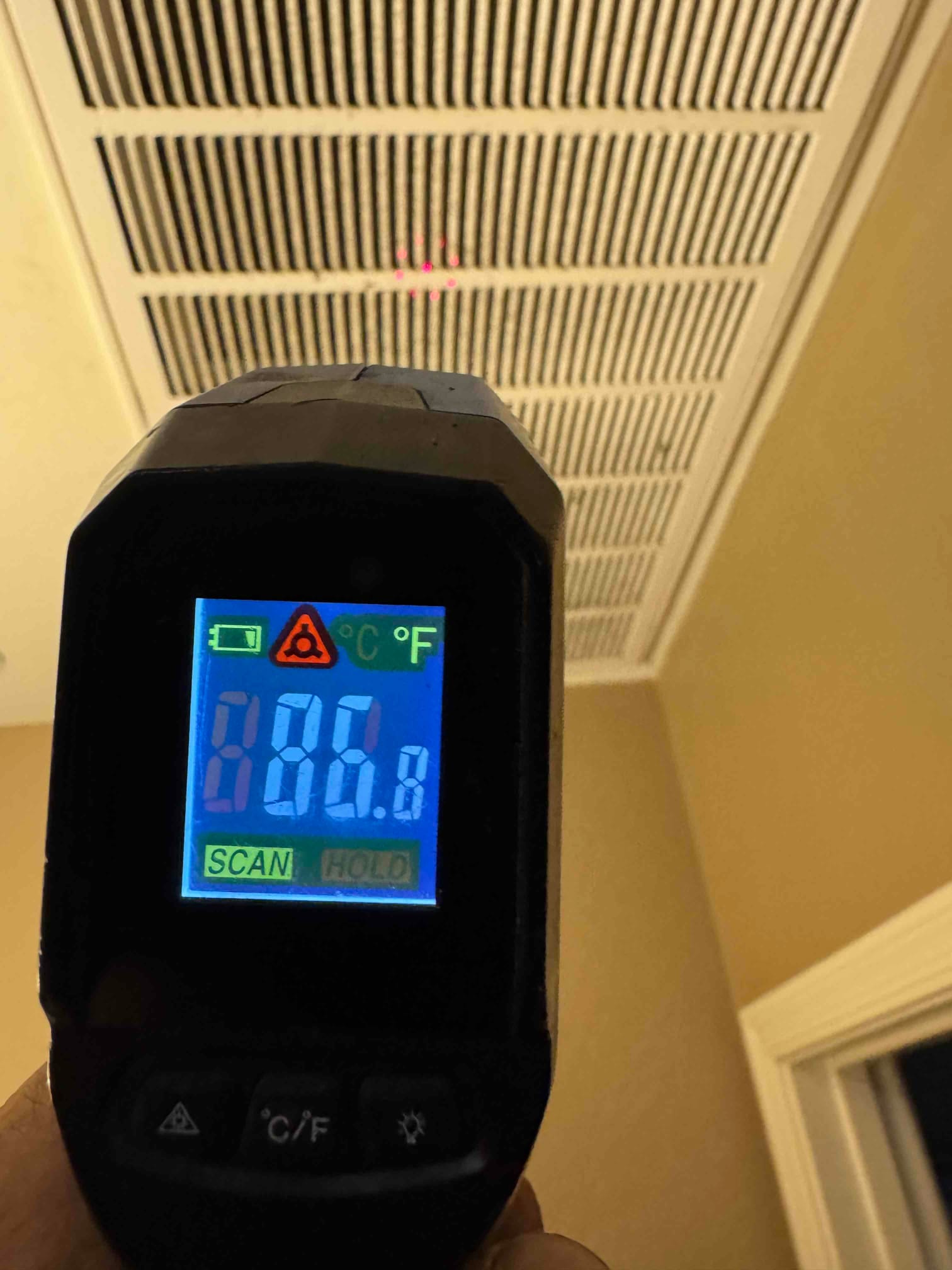

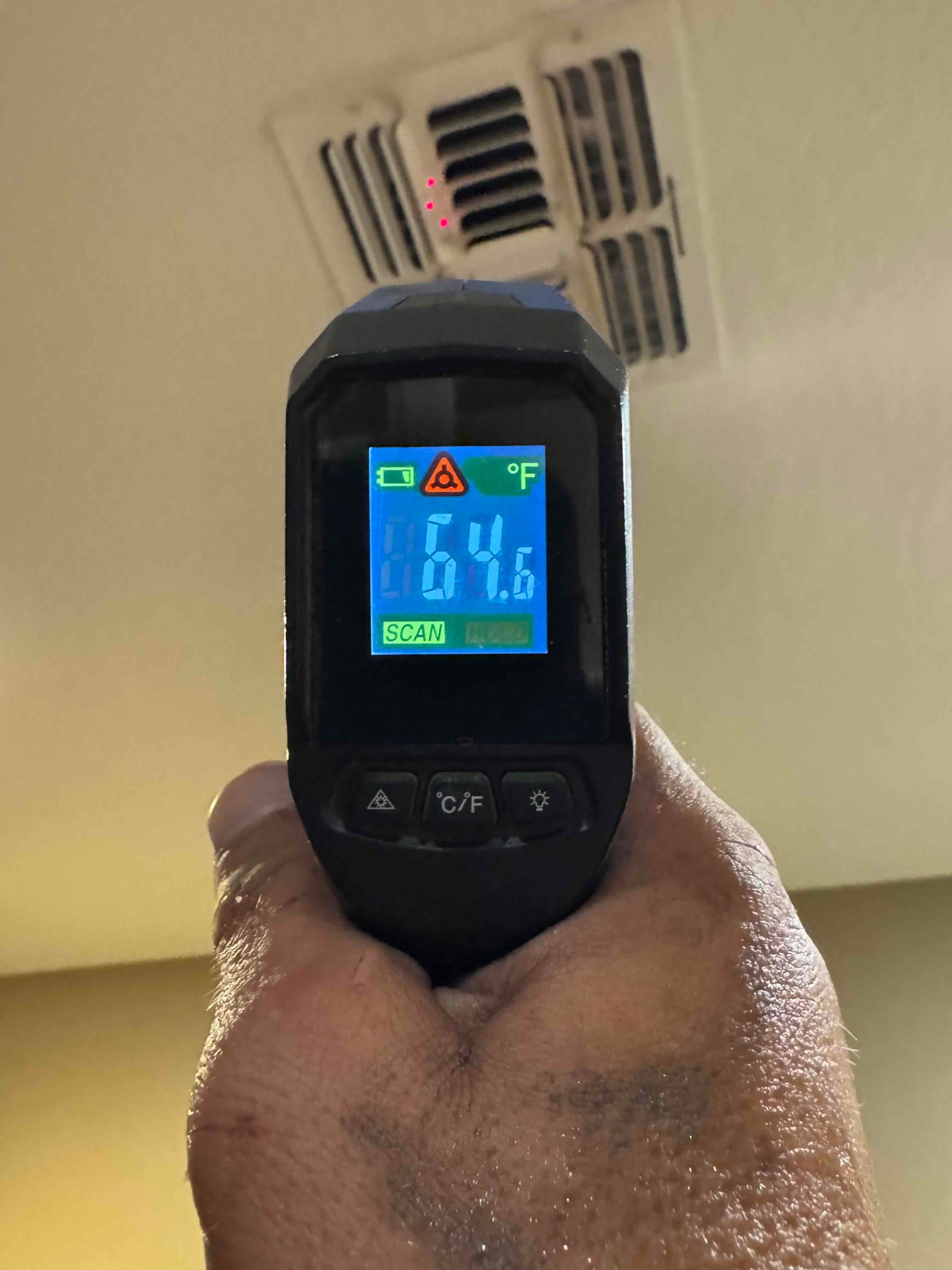

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this North Scottsdale job?
AZ Perfect Comfort installed a 4-Ton Trane Air Conditioning System at this North Scottsdale property. The install was completed by Michael & Jesse and includes AZ Perfect Comfort's workmanship warranty.
How much does a new air conditioning system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in North Scottsdale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout North Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
