Newly Installed
Air handler
- Brand
- American Standard
- Model
- 5TAMXD04AV31DAA
- Matched
- 4-Ton airflow
New — installed 2026
Real Installation · North Scottsdale
4-Ton Trane AC and Air Handler Installation in North Scottsdale — April 2026
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of three vertical XV18 systems with heat pump conversions.
North Scottsdale · installed April 4, 2026
— At a Glance
Location
North Scottsdale
Completed
April 4, 2026
System Type
AC + Air Handler Split System
Capacity
4-Ton
Brand
Trane
Efficiency
18 SEER2
Labor Warranty
1-Year Labor Warranty
Total Investment
$42,073
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Air handler
- Brand
- American Standard
- Model
- 5TAMXD06AV41DAA
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
Heat pump
- Brand
- American Standard
- Model
- 5A6V8X48A1000AA
- Capacity
- 4-Ton
- Efficiency
- 18 SEER2
New — installed 2026
Newly Installed
Heat pump
- Brand
- American Standard
- Model
- 5A6V8X36A1000AA
- Capacity
- 4-Ton
- Efficiency
- 18 SEER2
New — installed 2026
Newly Installed
Heat pump
- Brand
- American Standard
- Model
- 5A6V8X48A1000AA
- Capacity
- 4-Ton
- Efficiency
- 18 SEER2
New — installed 2026
Newly Installed
Air handler
- Brand
- American Standard
- Model
- 5TAMXD06AV41DAA
- Matched
- 4-Ton airflow
New — installed 2026

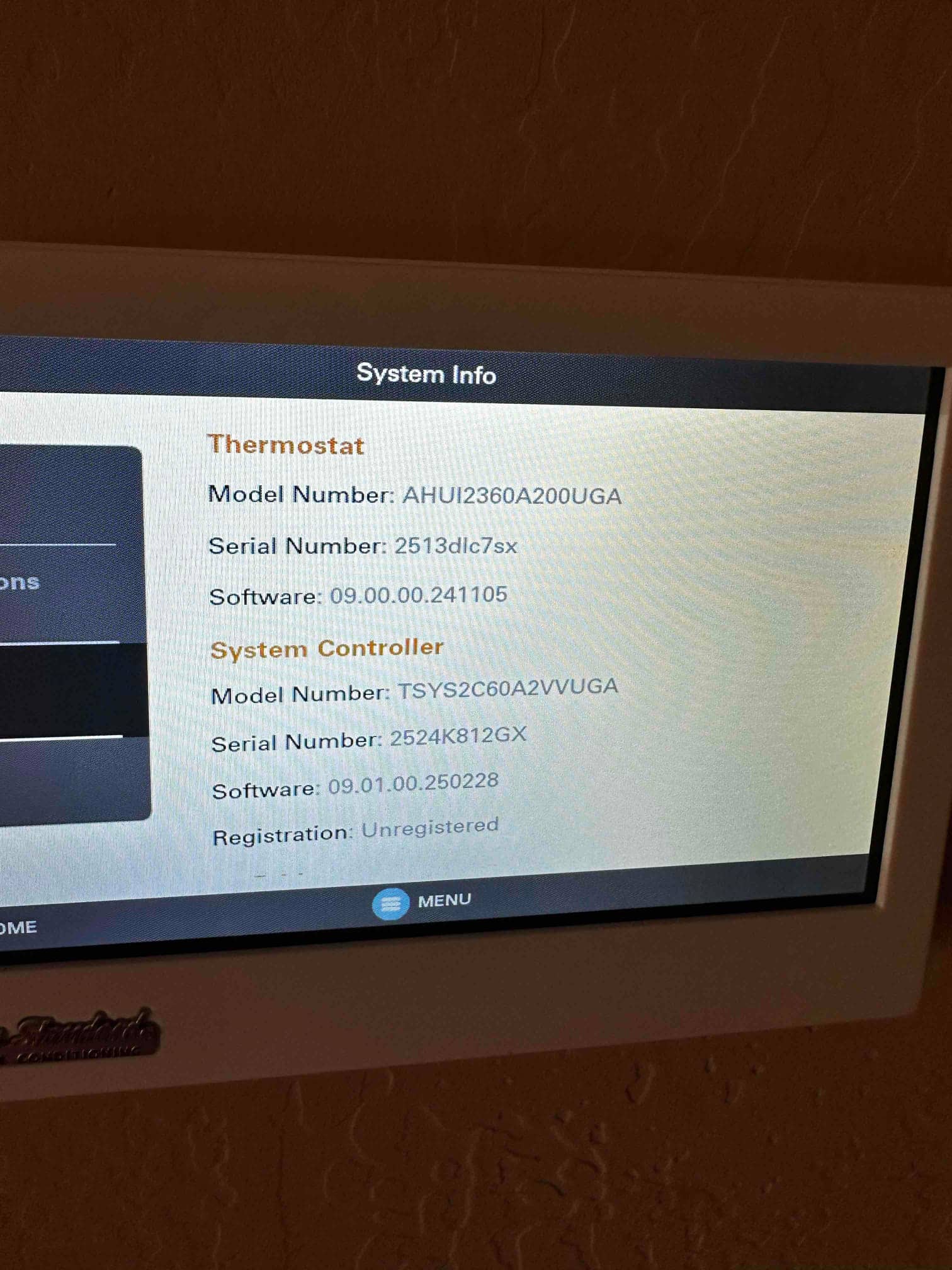

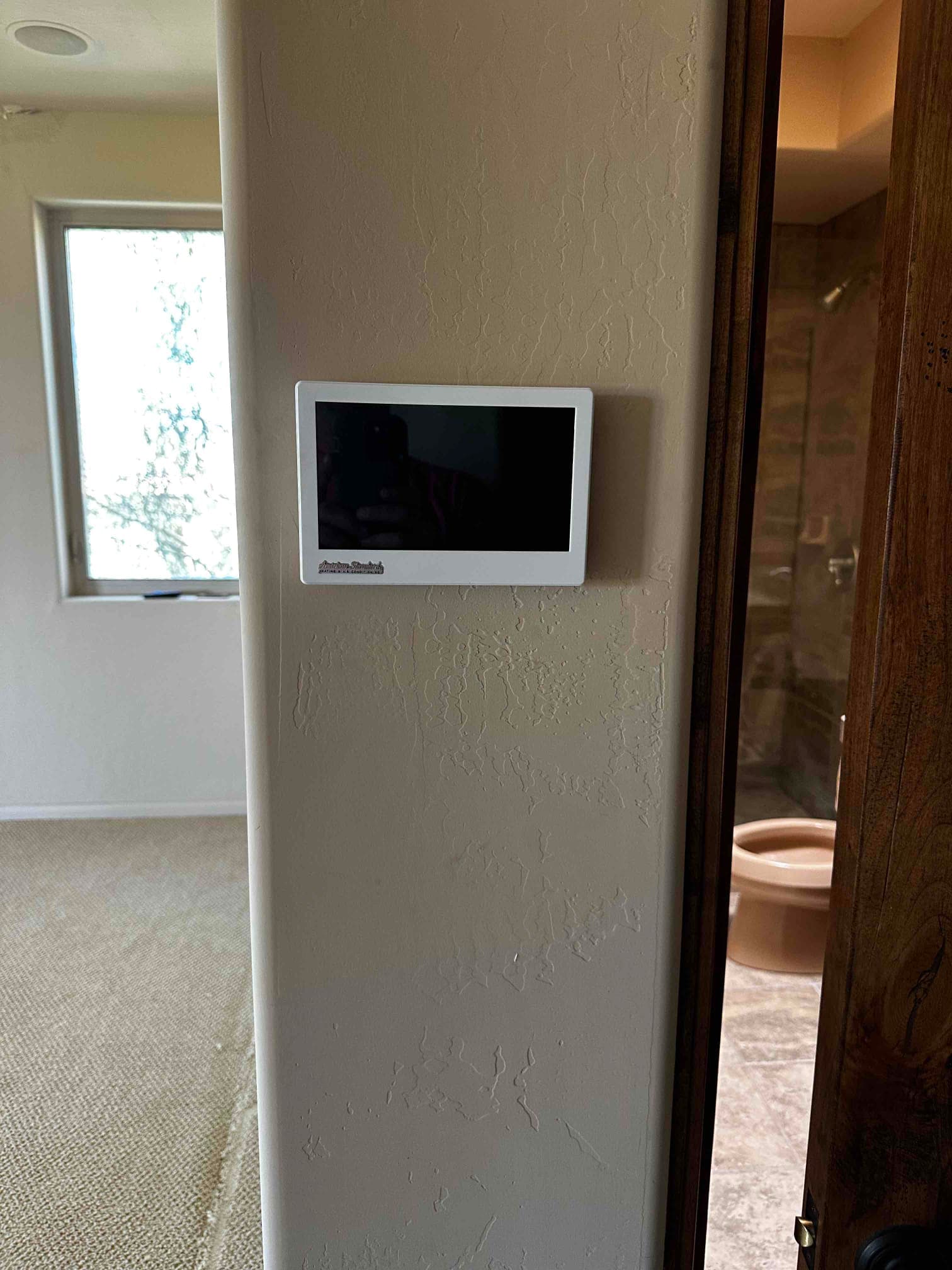

Newly Installed
Thermostat
- Brand
- American Standard
- Model
- ALINK360A2VVUG
New — installed 2026
Newly Installed
Thermostat
- Brand
- American Standard
- Model
- ALINK360A2VVUG
New — installed 2026
Newly Installed
Thermostat
- Brand
- American Standard
- Model
- ALINK360A2VVUG
New — installed 2026
Your Coverage on This Install
Labor Warranty
1-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 4-Ton Trane AC and Air Handler Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Ben, Andrew, Kyle, Will & Thomas from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 76 PSIG
- Liquid pressure
- 315 PSIG
- Evaporator saturation
- 11.2°F
- Condensing saturation
- 106°F
- Superheat
- 29°F
- Subcooling
- 27°F
Air-Side Performance
- Return-air temperature
- 72.3°F
- Supply-air temperature
- 50°F
- Temperature split
- 22.3°F
Nitrogen Pressure Test
- Test pressure held
- 312 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 512 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 418V-5A6V8X48-5TEMCD06AV | 4 Ton- 18 SEER2 Vertical American Standard - Trane Technologies Variable Speed Heat Pumps with Airhandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort | 2 |
| 318V-5A6V8X36-5TEMCD04AV | 3 Ton- 18 SEER2 Vertical American Standard - Trane Technologies Variable Speed Heat Pumps with Airhandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort | 1 |
| CRANE | Crane Service needed for work to be performed. AZ Perfect Comfort will be responsible for scheduling. Customers cannot schedule their own crane service. | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
21 photos from this installation
Every step of this installation was documented on-site by Ben, Andrew, Kyle, Will & Thomas.

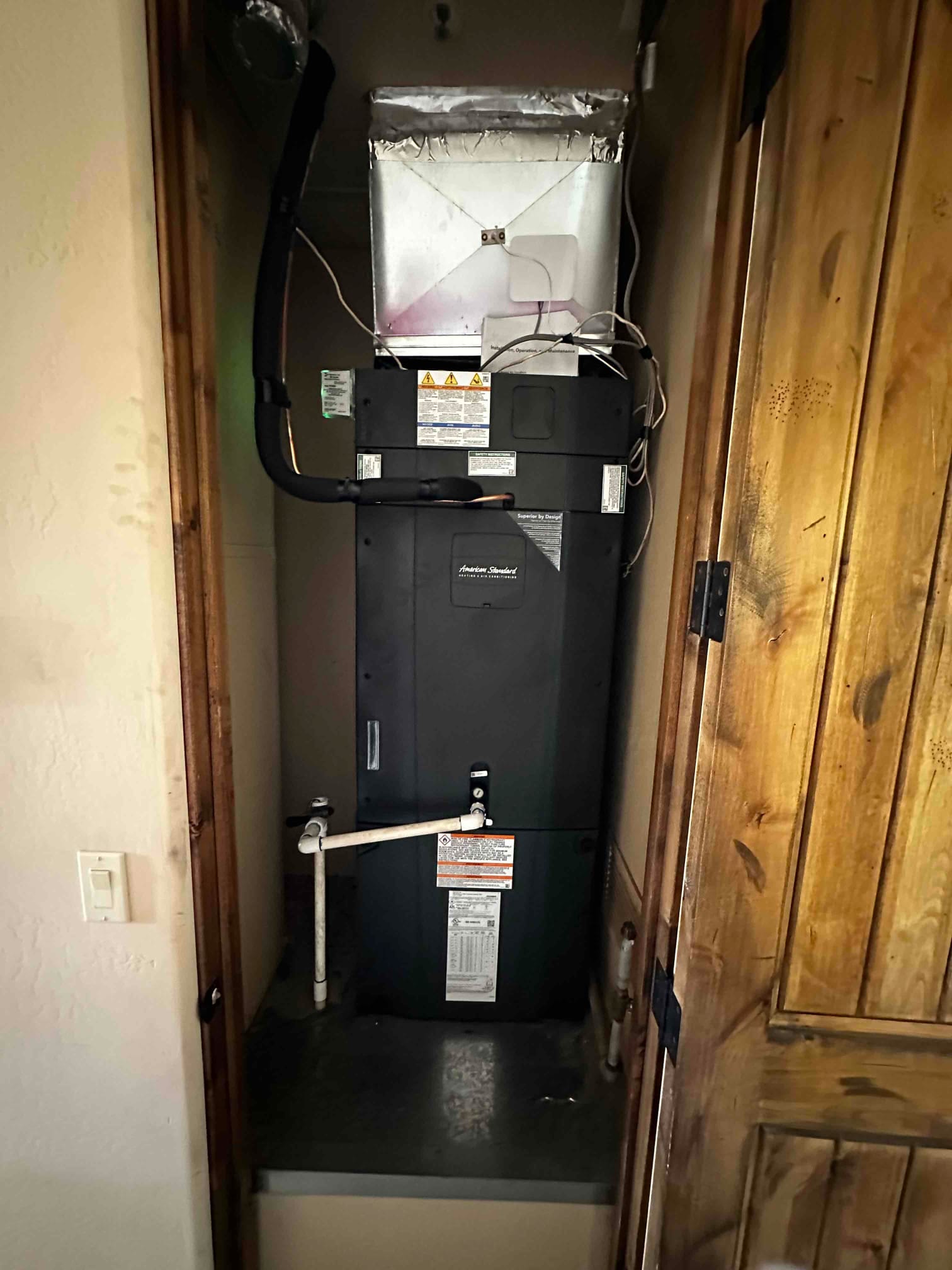

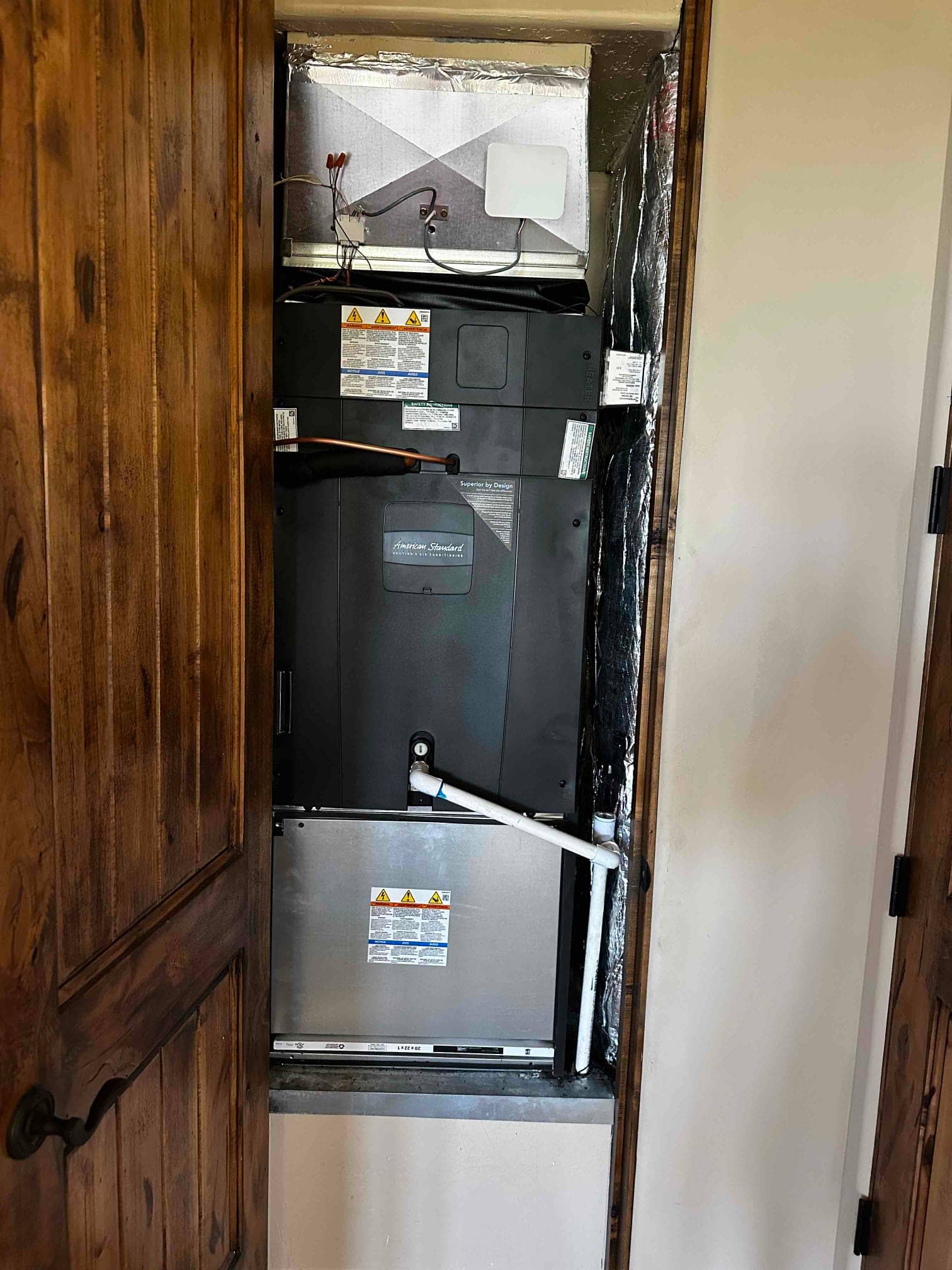

Installation Progress

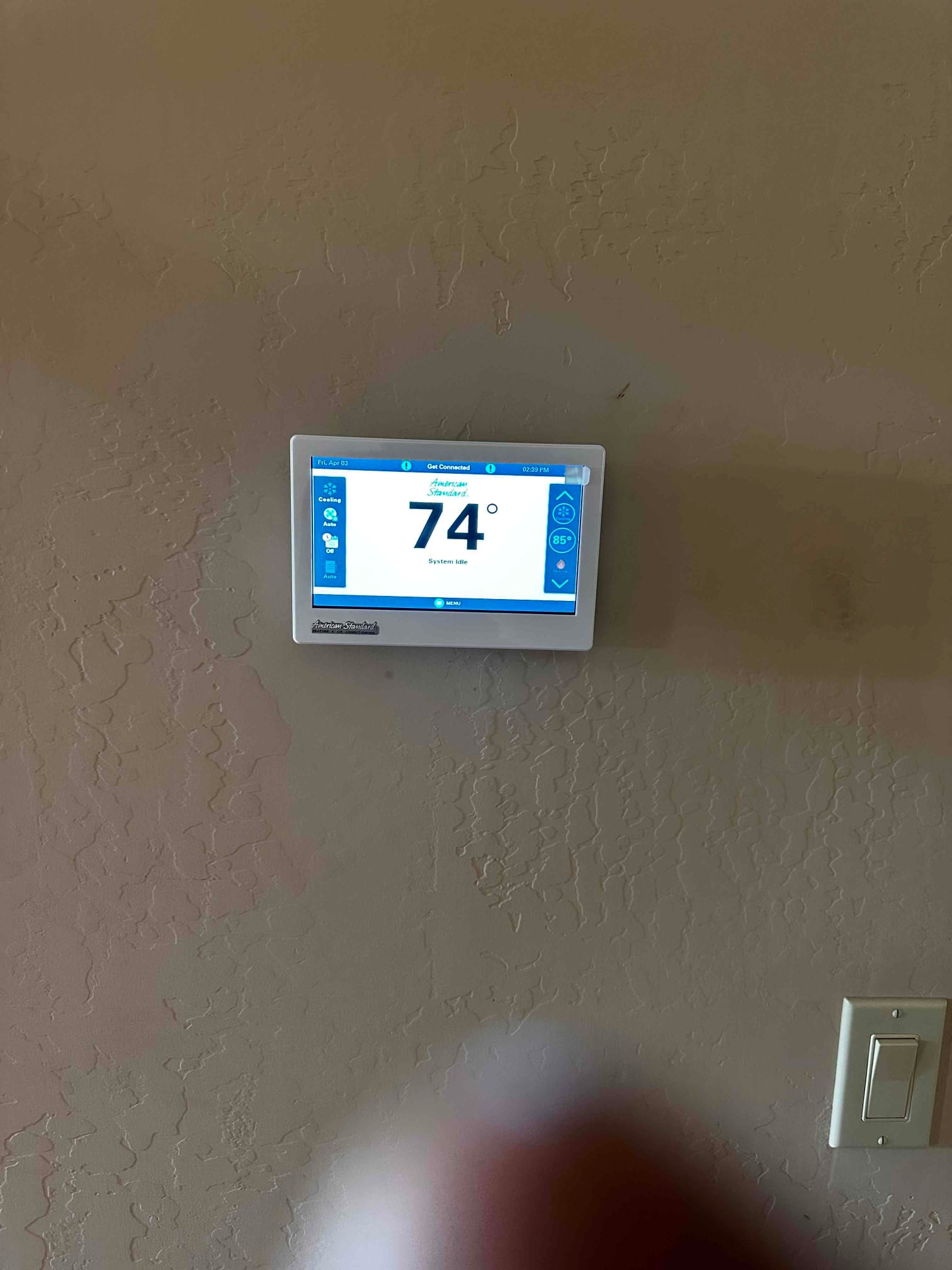

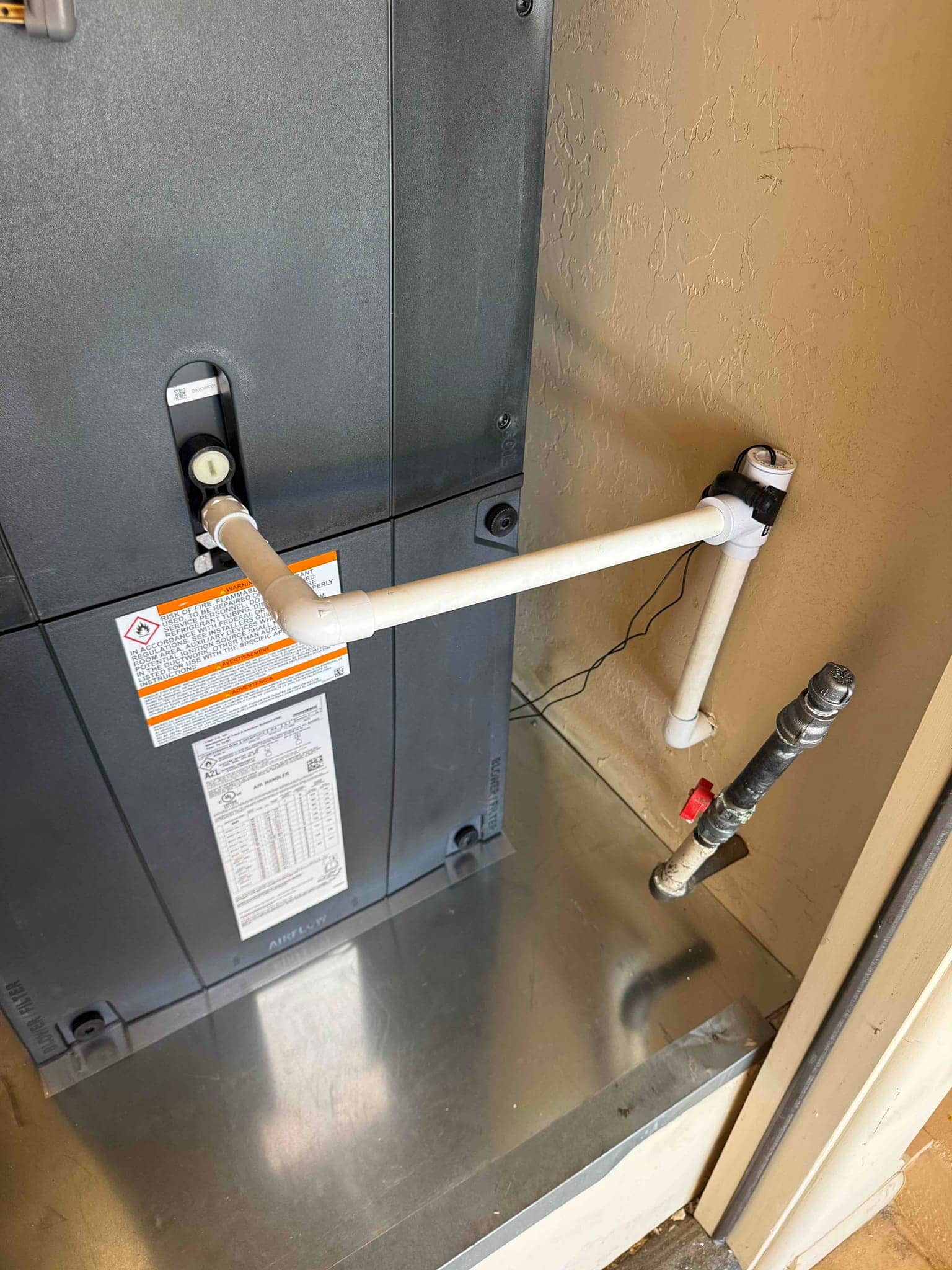

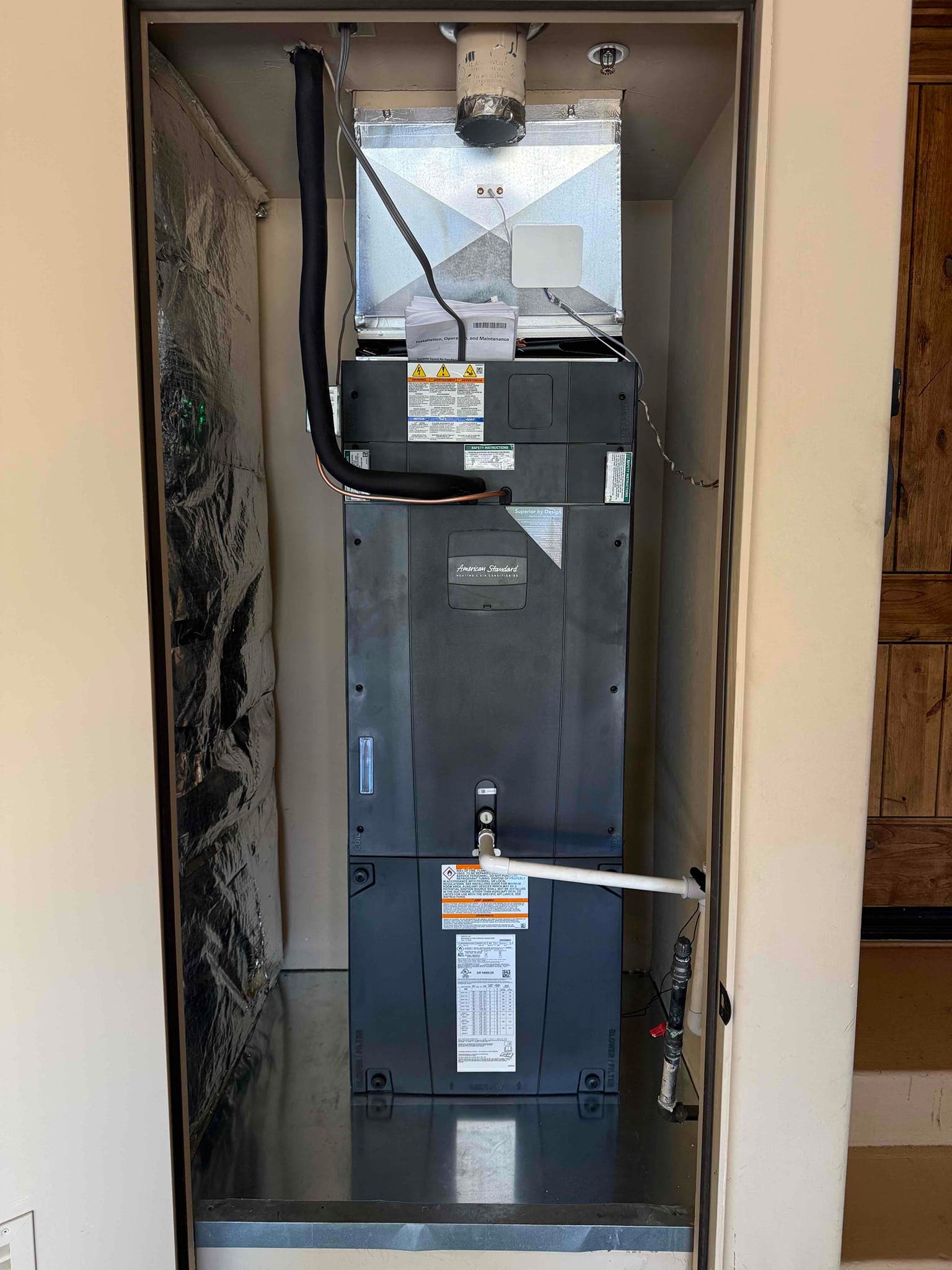

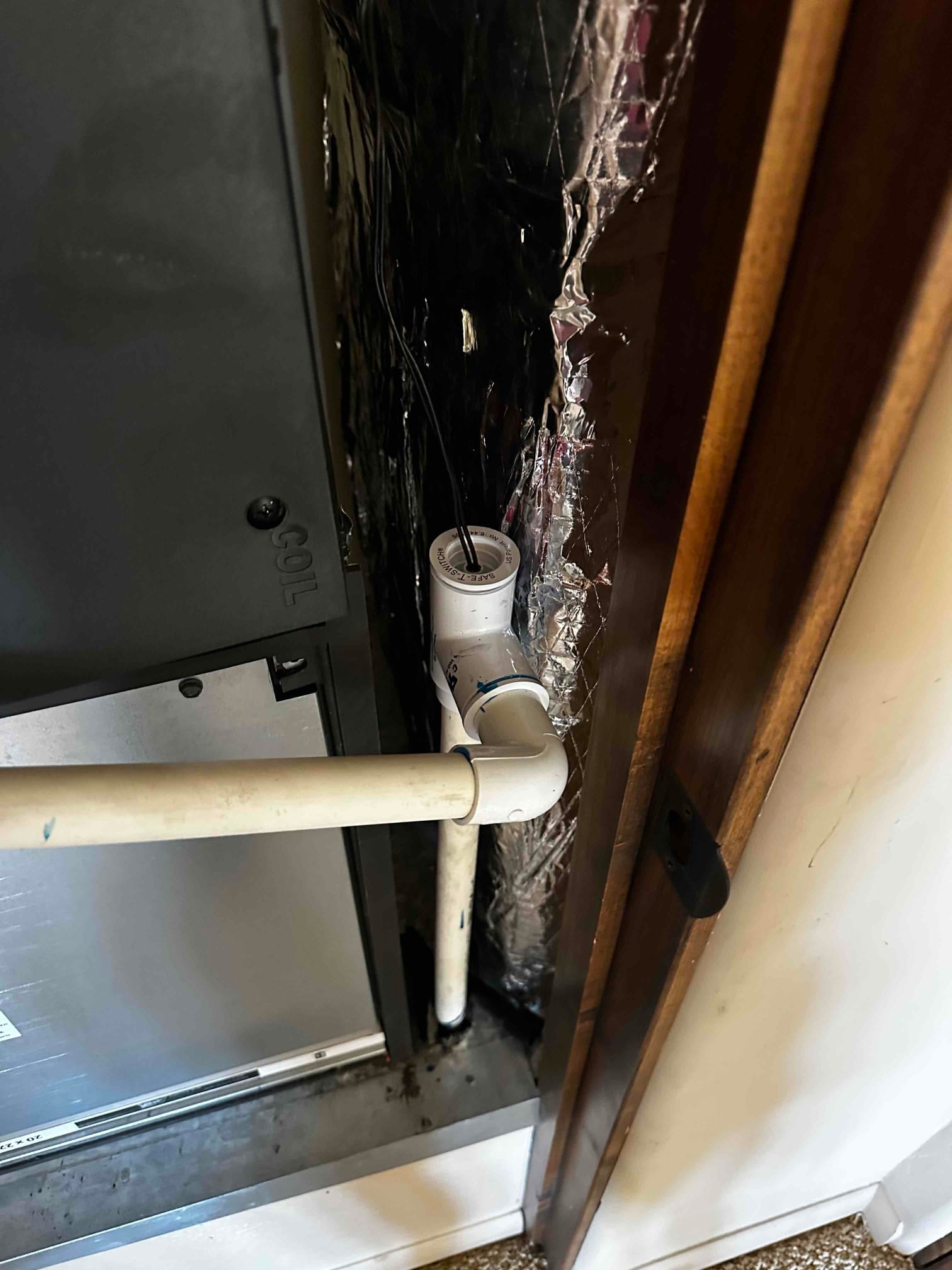

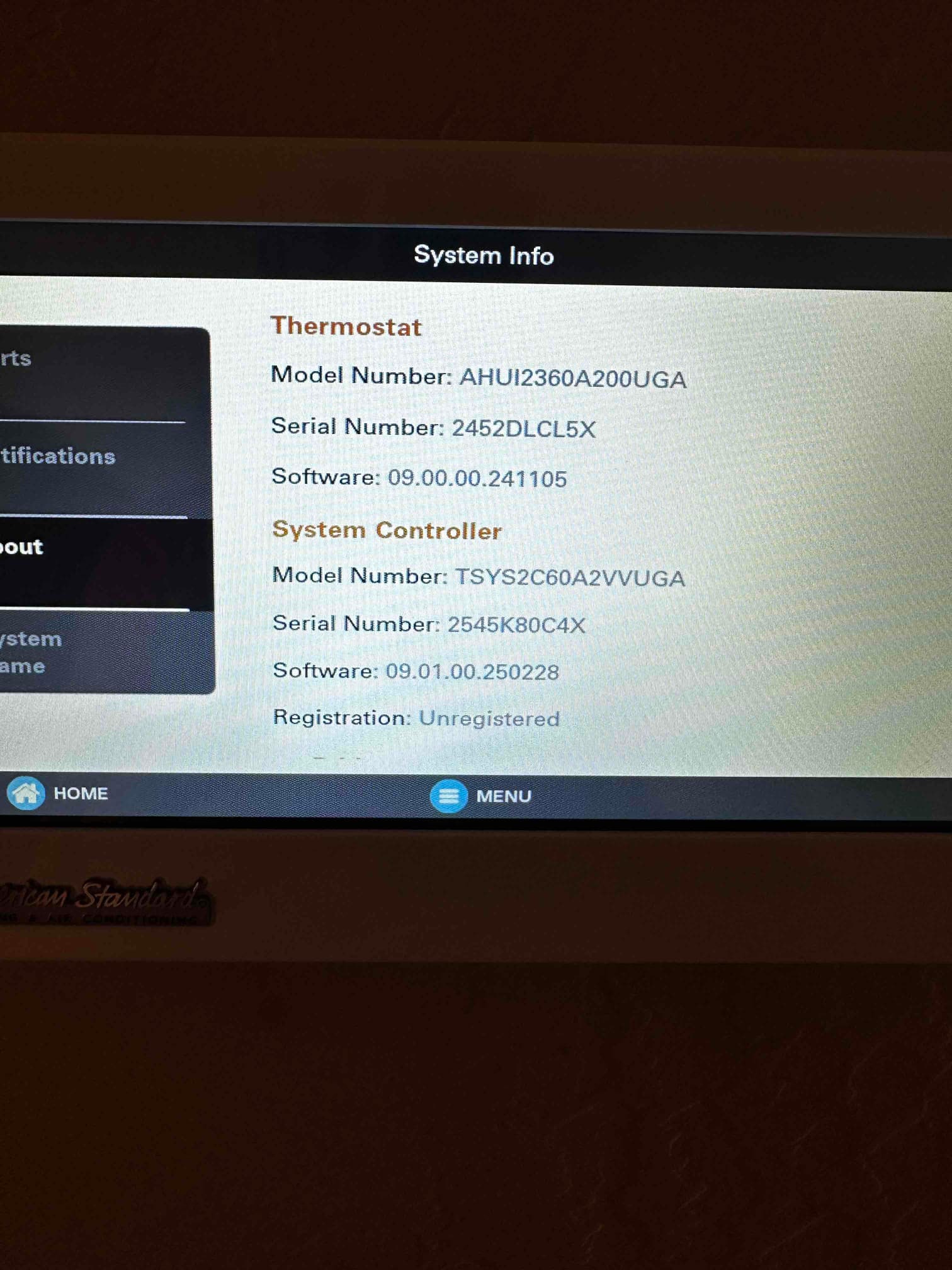

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

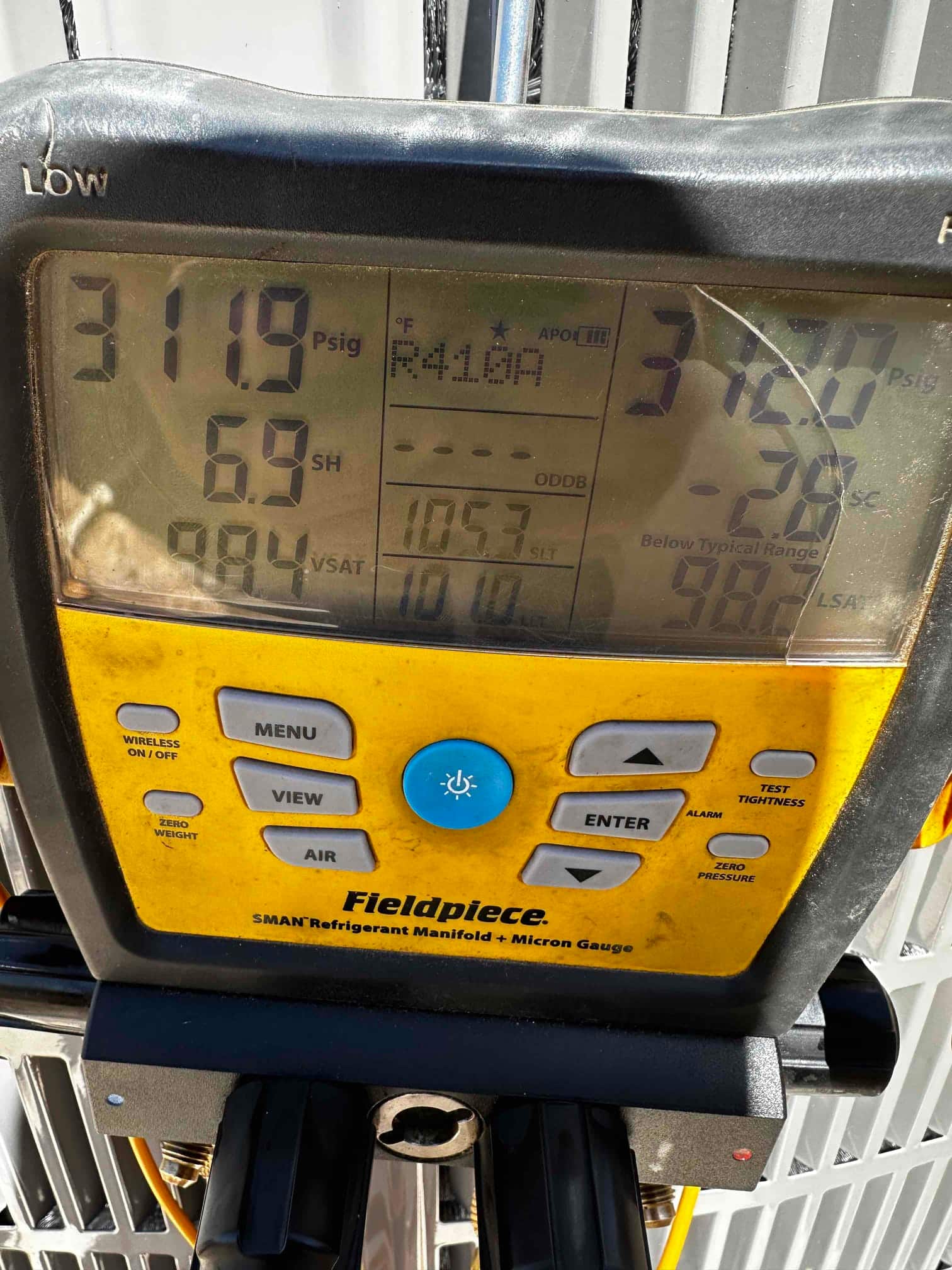

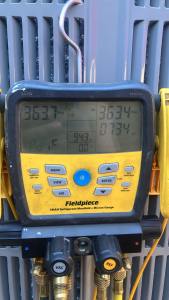

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

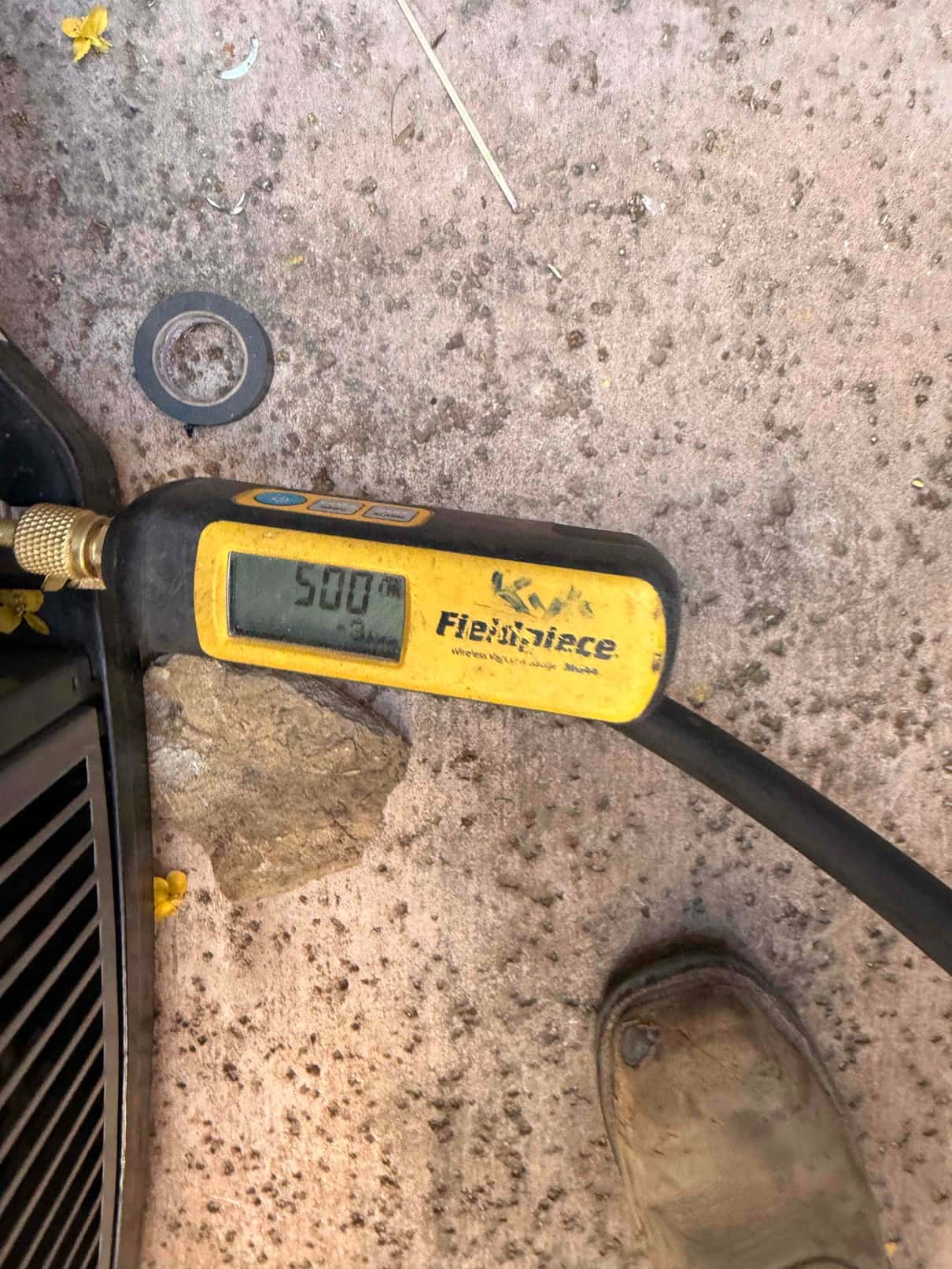

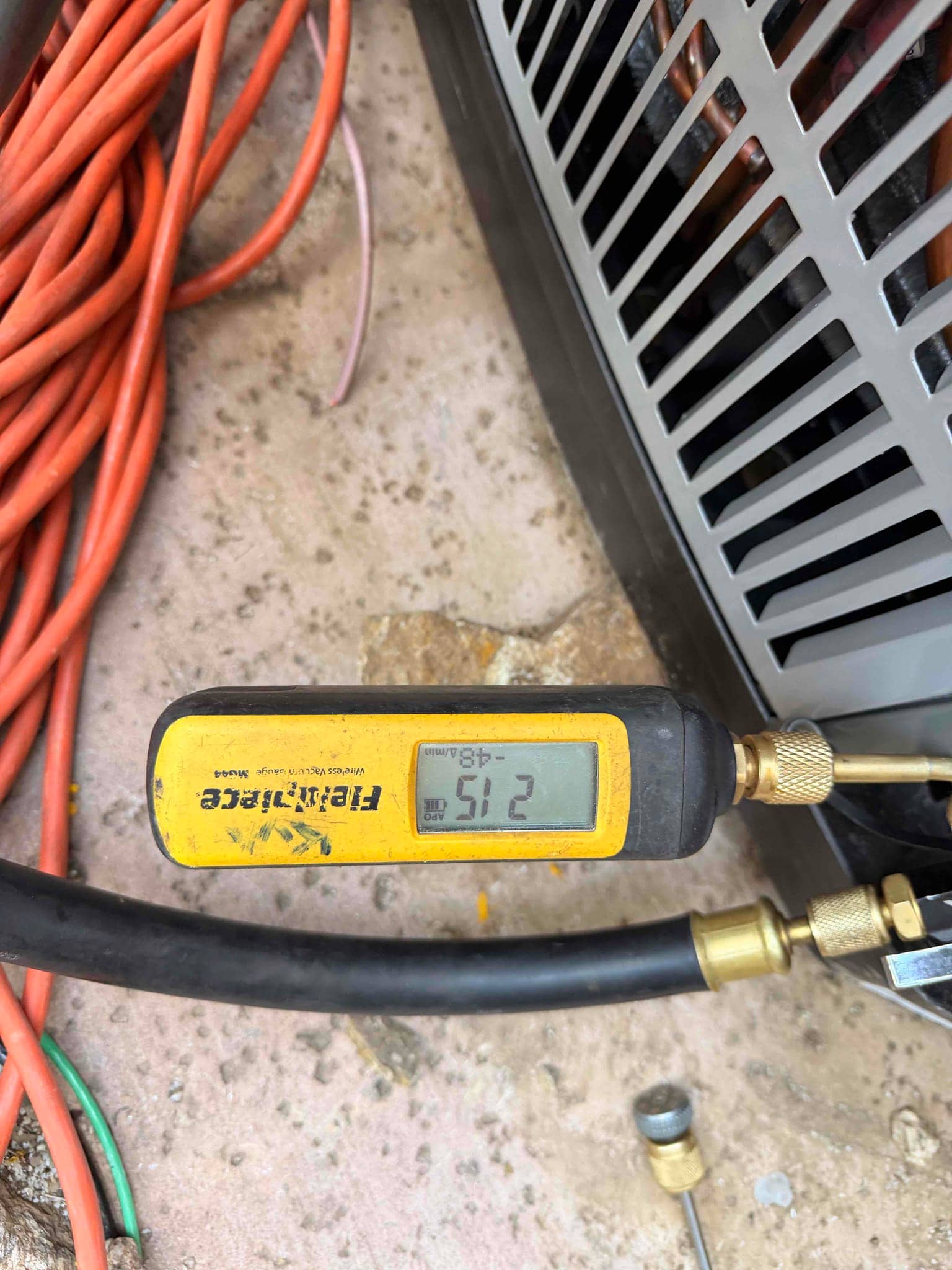

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

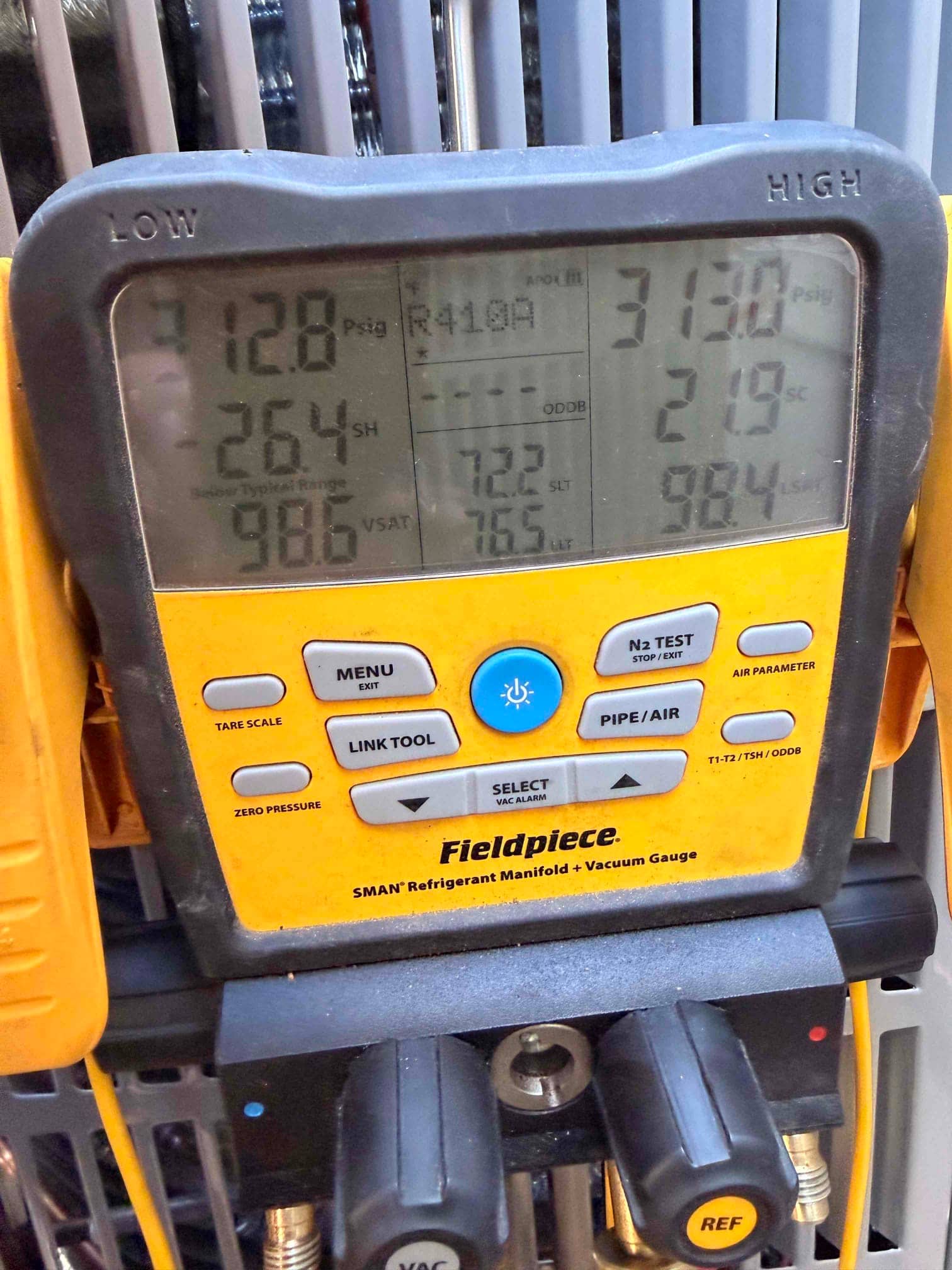

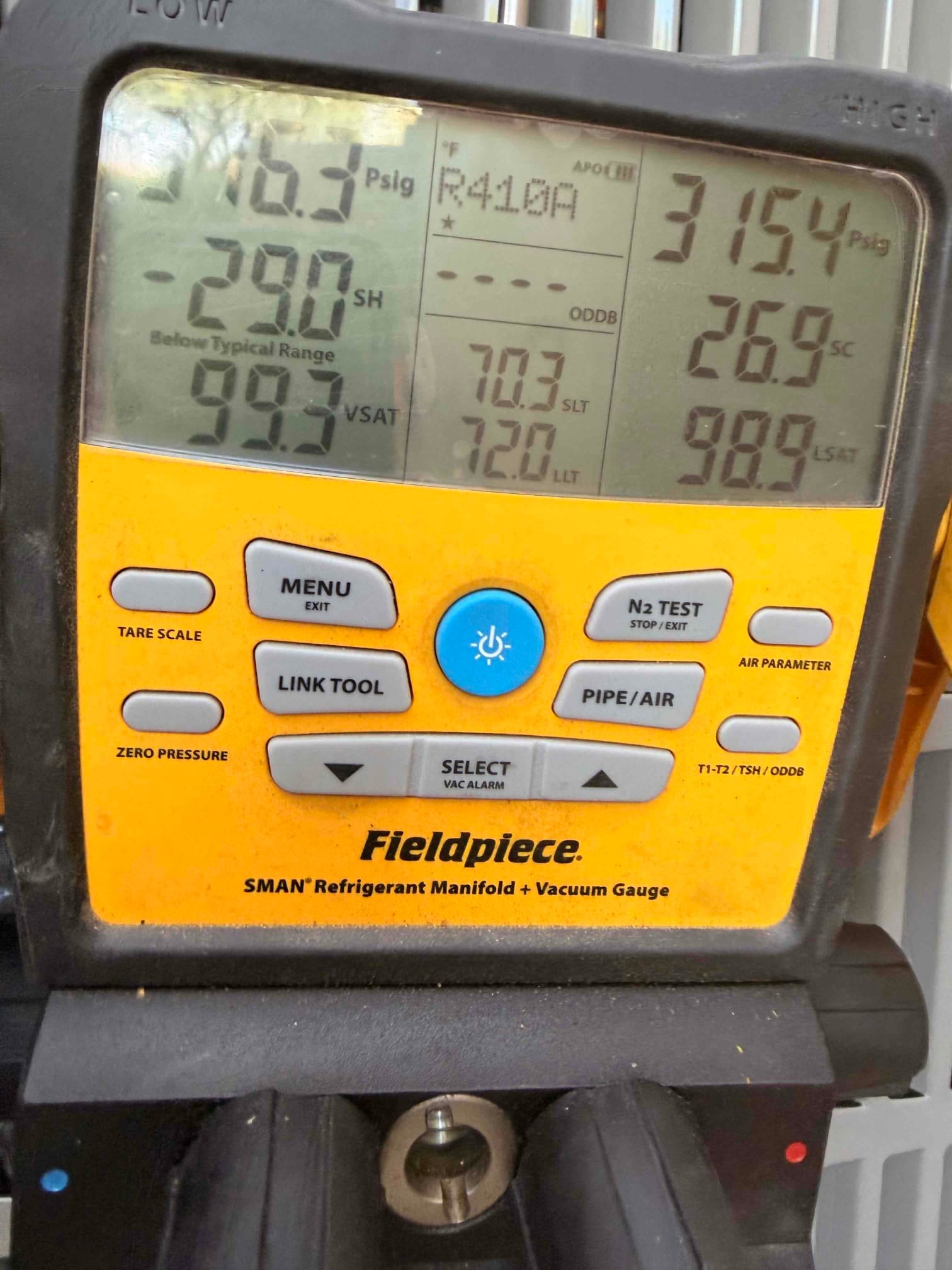

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

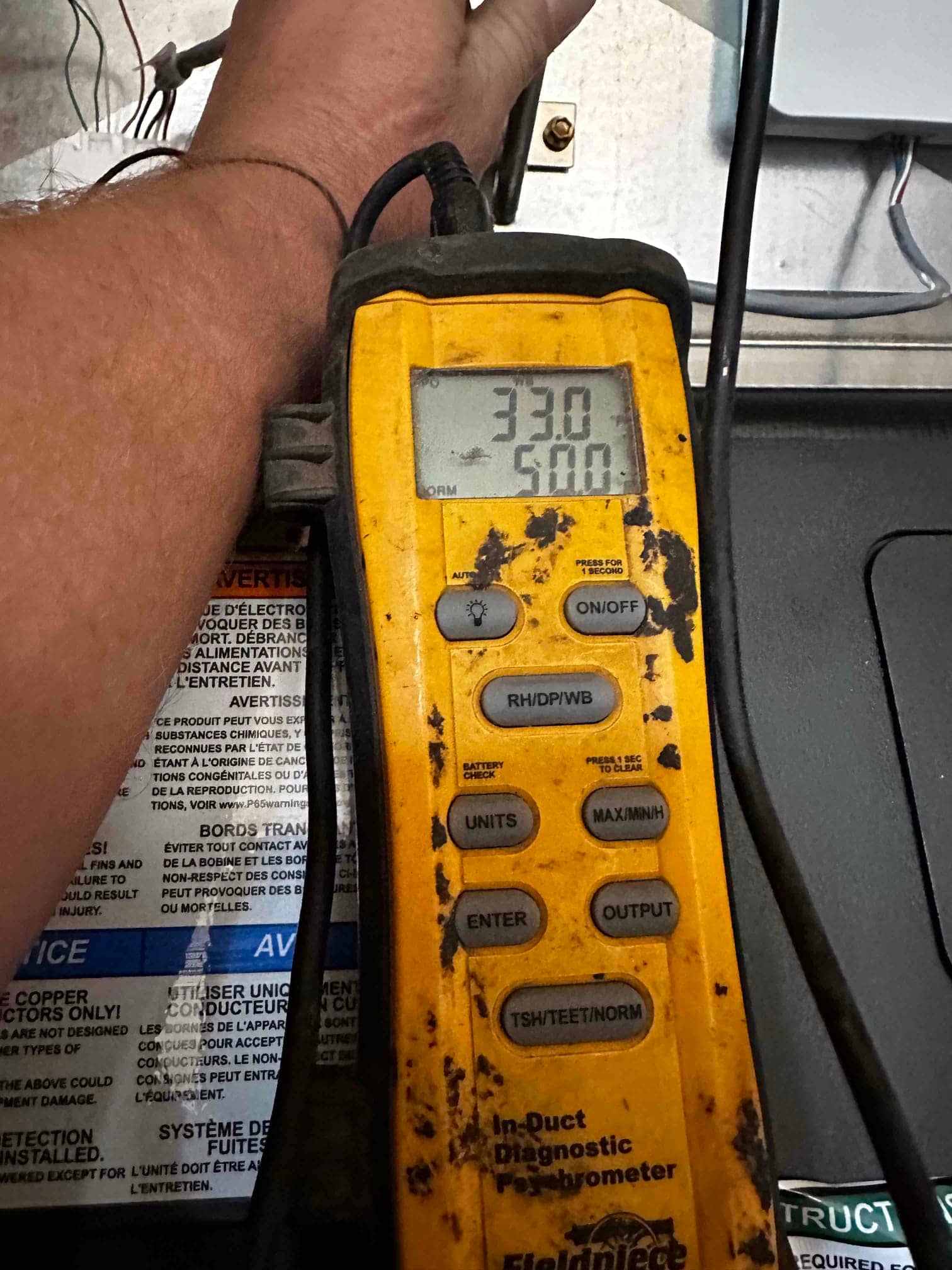

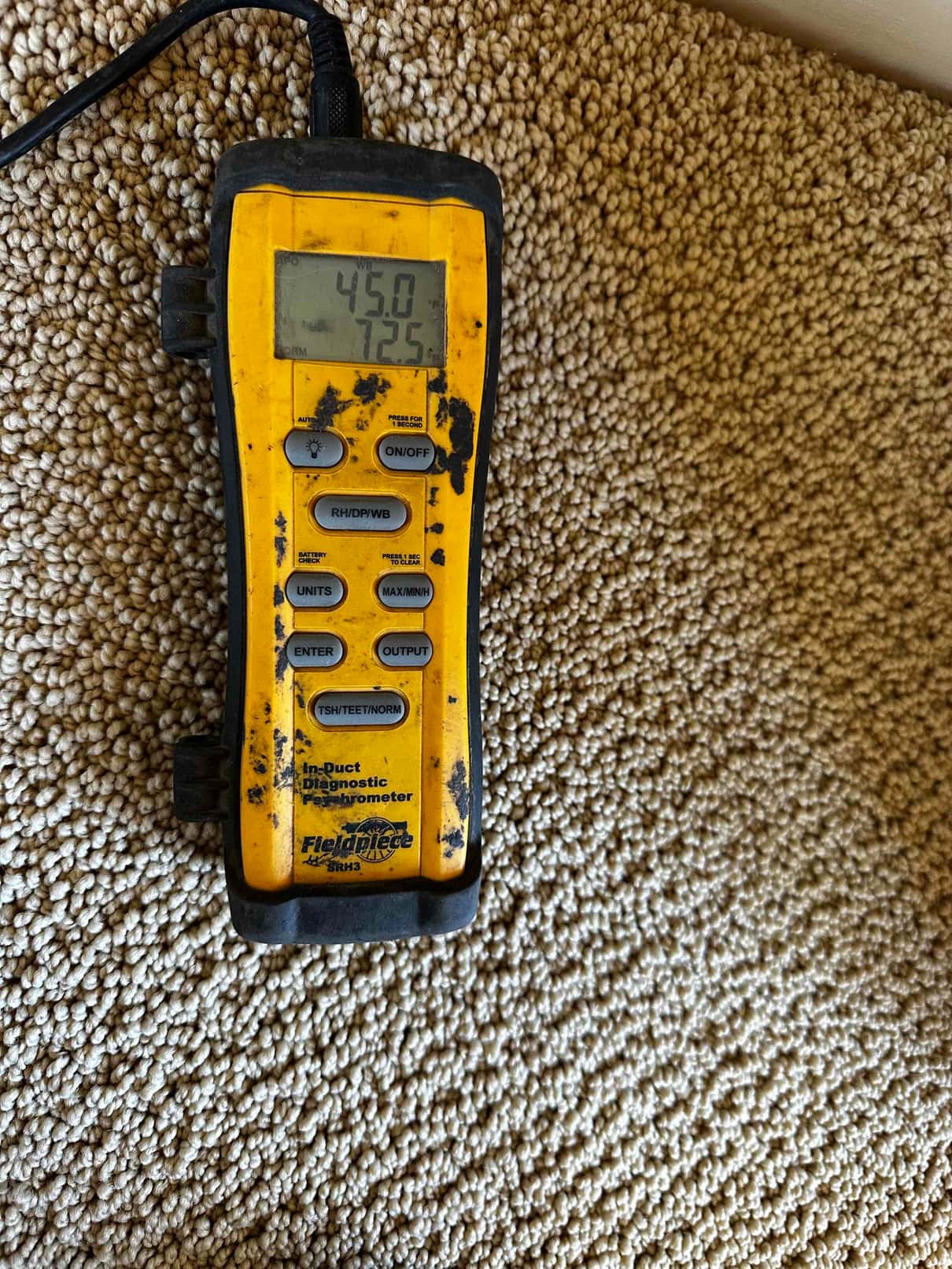

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this North Scottsdale job?
AZ Perfect Comfort installed a 4-Ton Trane AC + Air Handler Split System at this North Scottsdale property. The install was completed by Ben, Andrew, Kyle, Will & Thomas and includes AZ Perfect Comfort's workmanship warranty.
How much does a new ac + air handler split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in North Scottsdale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout North Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
