Newly Installed
Air handler
- Brand
- trane
- Model
- A5AHC005A1D30A
- Matched
- 3-Ton airflow
New — installed 2026
Real Installation · North Scottsdale
3-Ton Heat Pump System Installation in North Scottsdale — June 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a 3-ton vertical heat pump, converting from a water-sourced heat pump to an air-to-air heat pump. A breaker was changed out and the water line was capped.
North Scottsdale · installed June 11, 2025
— At a Glance
Location
North Scottsdale
Completed
June 11, 2025
System Type
Heat Pump System
Capacity
3-Ton
Brand
trane
Efficiency
14 SEER2
Labor Warranty
1-Year Labor Warranty
Total Investment
$9,694
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Heat pump
- Brand
- trane
- Model
- A5HP4036A1000AA
- Capacity
- 3-Ton
- Efficiency
- 14 SEER2
New — installed 2026
Newly Installed
Thermostat
- Brand
- trane
- Model
- TSTAT-HW-T4
New — installed 2026
Your Coverage on This Install
Labor Warranty
1-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 3-Ton Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Jesse & Michael from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 119 PSIG
- Liquid pressure
- 389 PSIG
- Evaporator saturation
- 45.3°F
- Condensing saturation
- 118.8°F
- Superheat
- 32°F
- Subcooling
- 8°F
Nitrogen Pressure Test
- Test pressure held
- 311 PSIG
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 314V-A5HP4036-A5AHC005A1 | 3 Ton- 14 SEER2 Vertical Ameristar-RunTru Single Stage Heat Pump with Airhandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this | 1 |
| CRANE | Crane Service needed for work to be performed. AZ Perfect Comfort will be responsible for scheduling. Customers cannot schedule their own crane service. | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
7 photos from this installation
Every step of this installation was documented on-site by Jesse & Michael.

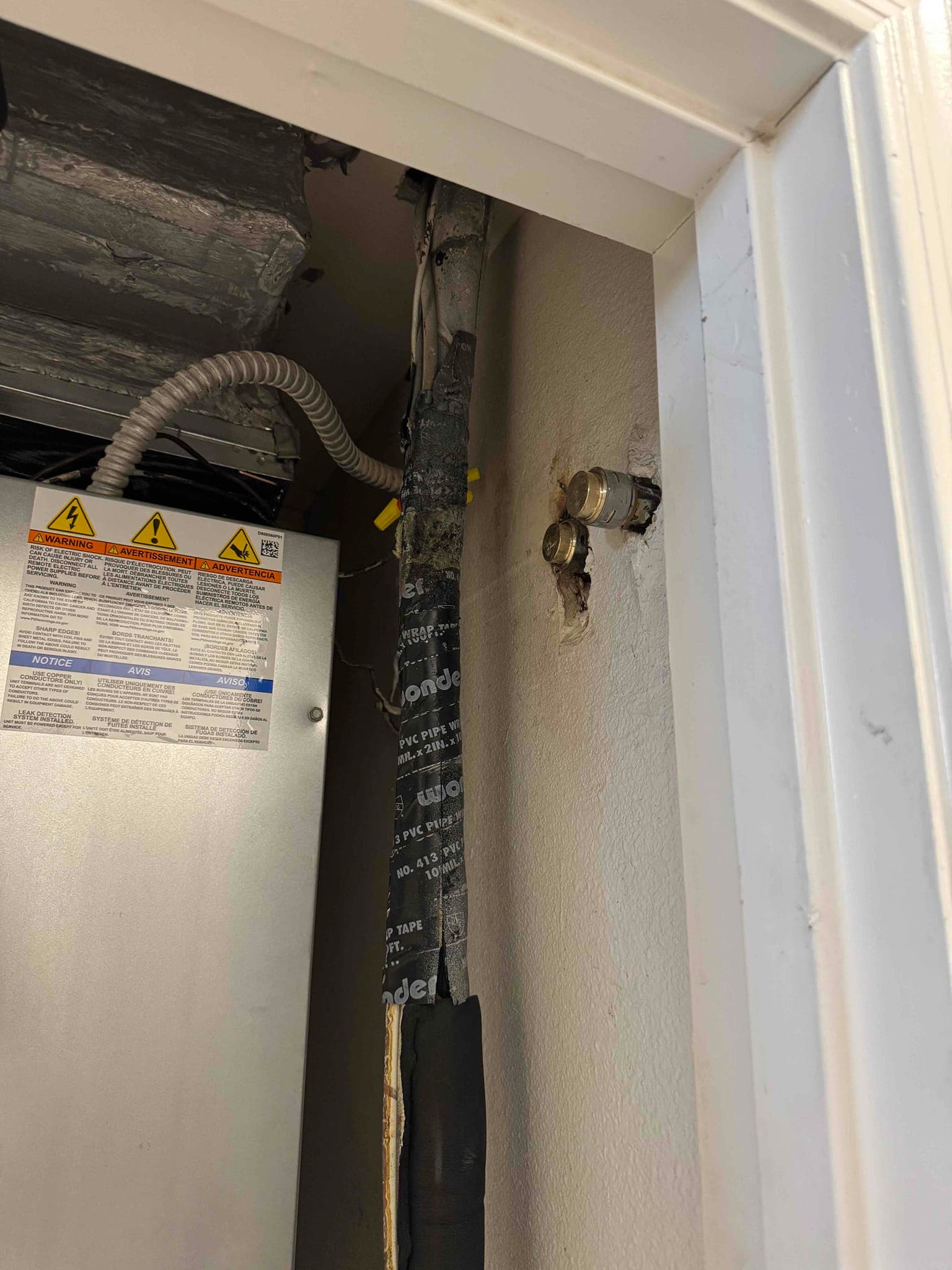

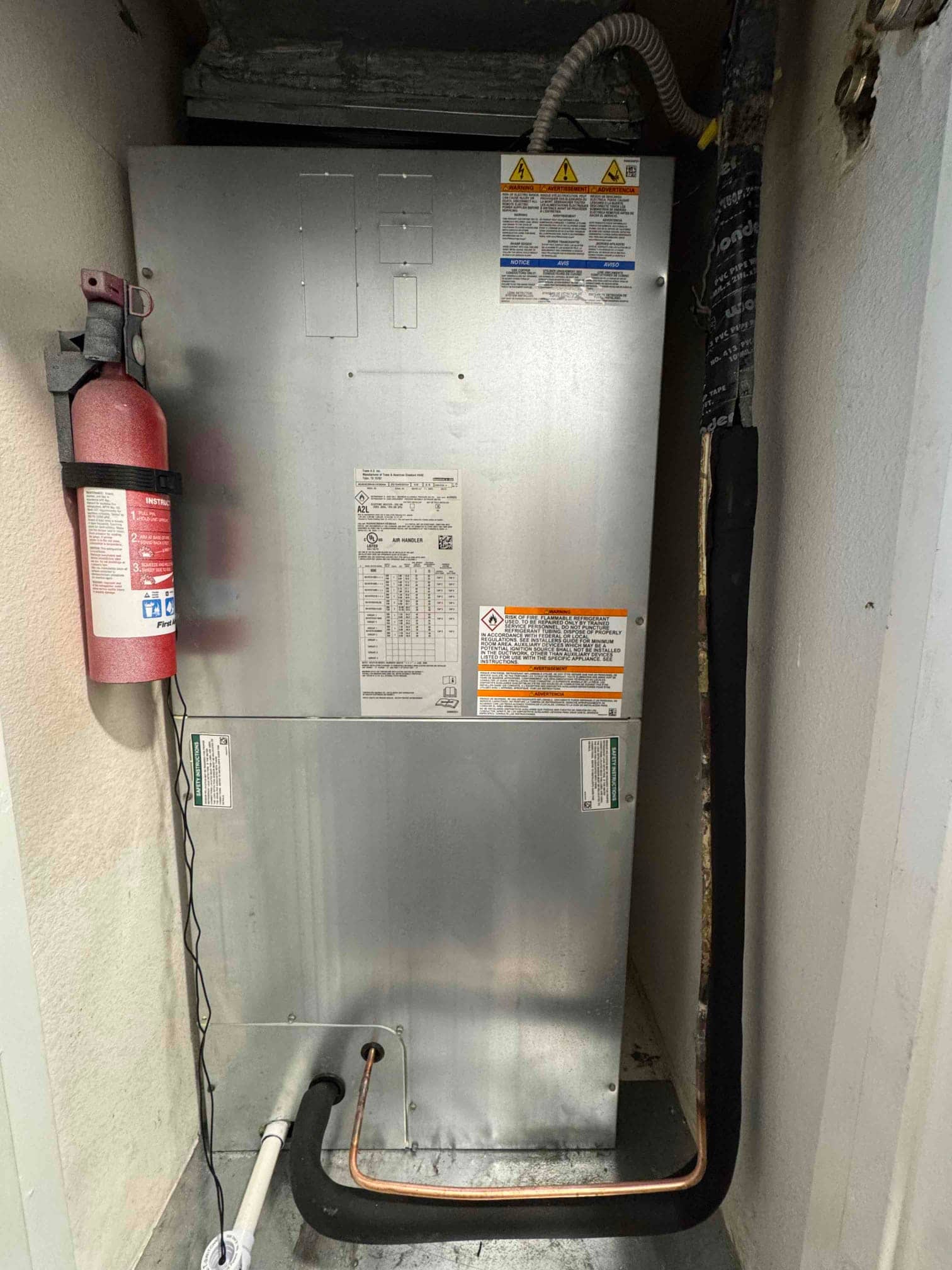

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.
Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.
Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

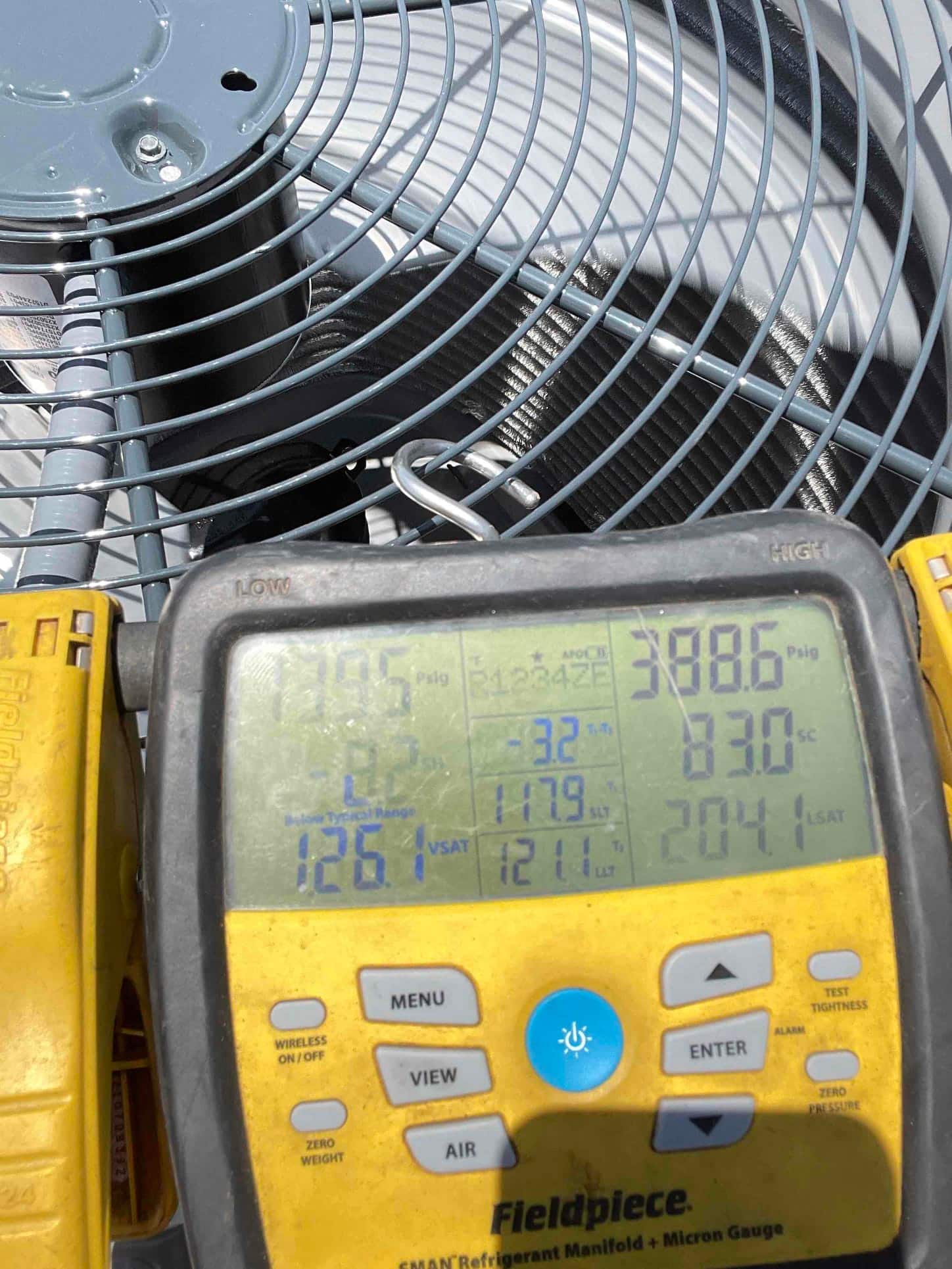

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.
