Newly Installed
4A6H4042N1000A
- Brand
- American Standard
- Model
- 4A6H4042N1000A
New — installed 2026
Real Installation · North Scottsdale
3.5-Ton Trane Heat Pump System Installation in North Scottsdale — June 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of one split air handler.
North Scottsdale · installed June 24, 2025
— At a Glance
Location
North Scottsdale
Completed
June 24, 2025
System Type
Heat Pump System
Capacity
3.5-Ton
Brand
Trane
Efficiency
14 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$12,481
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Air handler
- Brand
- American Standard
- Model
- GAM5B0C42M31EA
- Matched
- 3.5-Ton airflow
New — installed 2026
Newly Installed
Thermostat
- Brand
- ECOBEE
- Model
- ECOBEE-3
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Scottsdale, AZ. You can browse more real 3.5-Ton Trane Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Michael from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 128 PSIG
- Liquid pressure
- 345 PSIG
- Evaporator saturation
- 51°F
- Condensing saturation
- 111.7°F
- Superheat
- 20°F
- Subcooling
- 12°F
Air-Side Performance
- Return-air temperature
- 79°F
- Supply-air temperature
- 41.9°F
- Temperature split
- 37.1°F
Nitrogen Pressure Test
- Test pressure held
- 513 PSIG
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 3.514V-5A6H4042-5TEM4D06AC | 3.5 Ton- 14 SEER2 Vertical American Standard - Trane Technologies Single Stage Heat Pump with Airhandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort fou | 1 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
10 photos from this installation
Every step of this installation was documented on-site by Kyle & Michael.

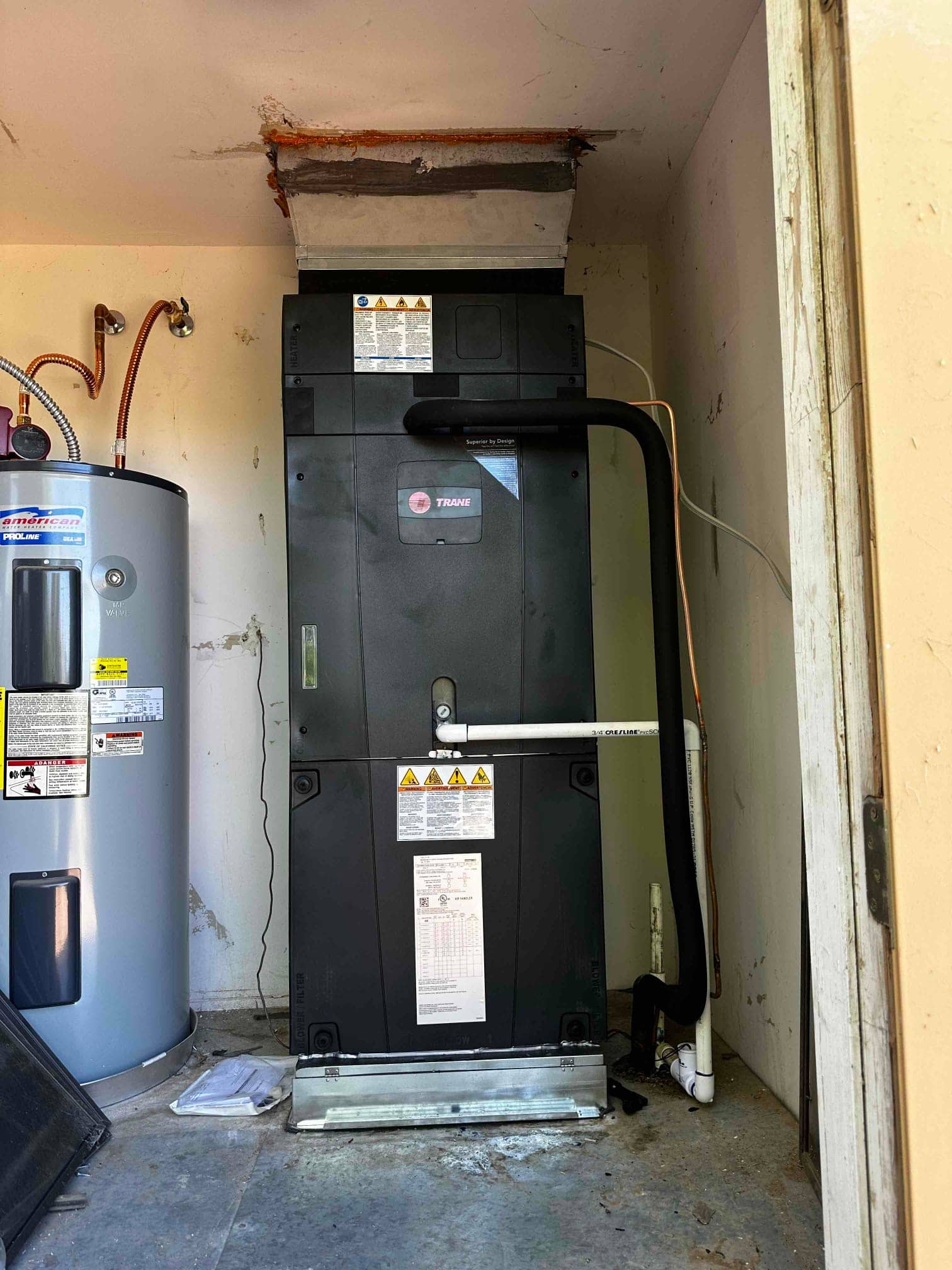

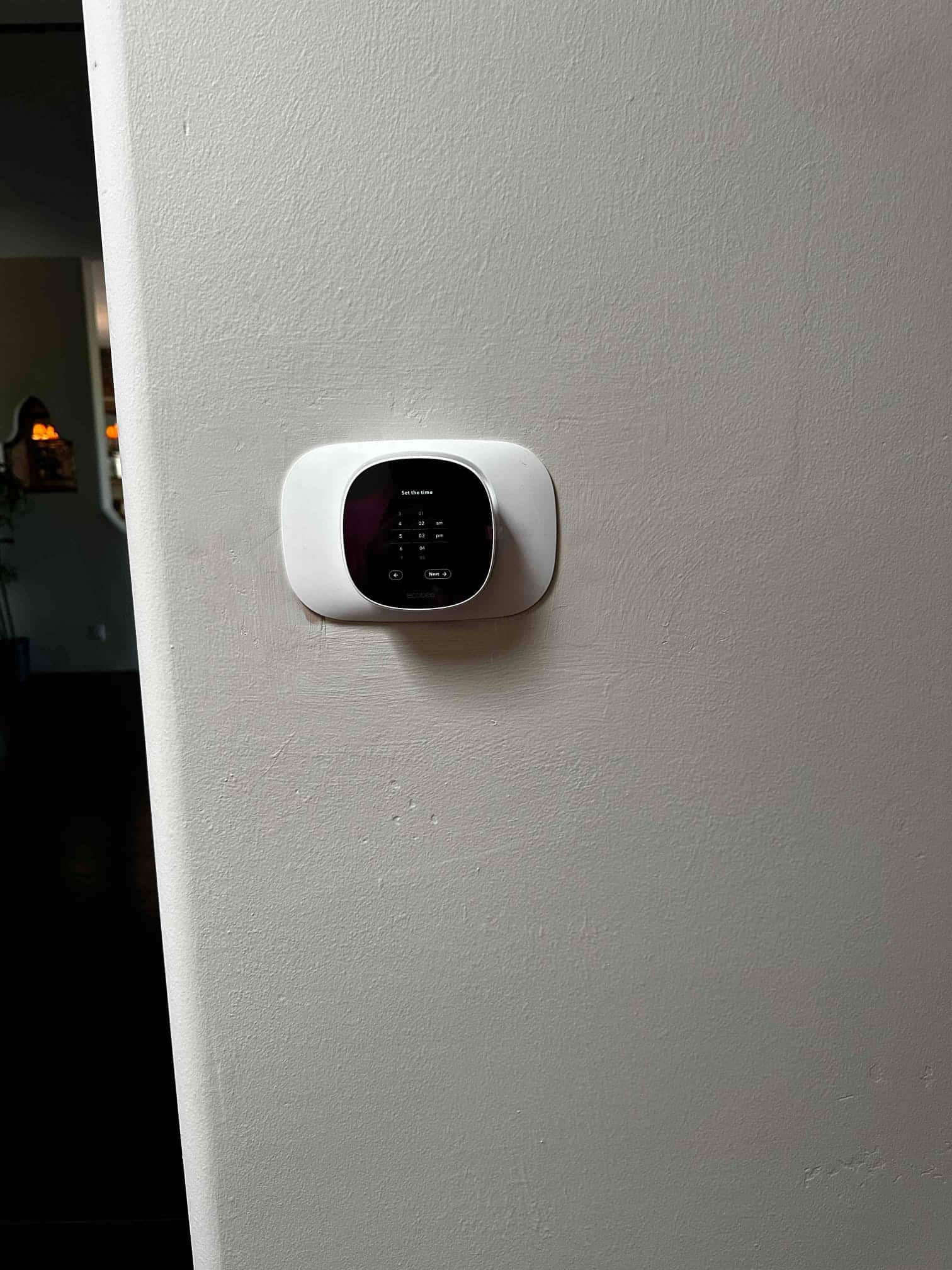

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

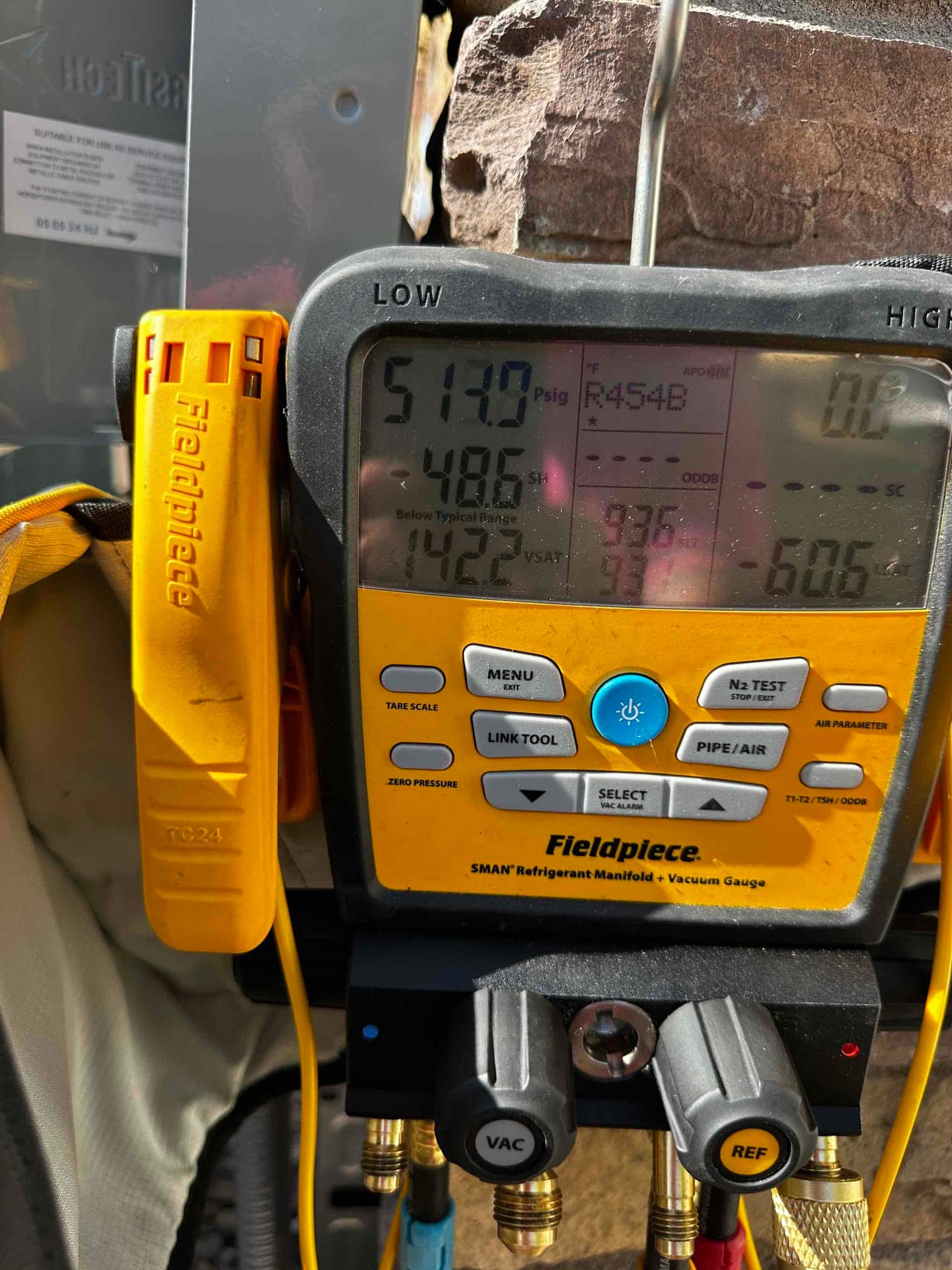

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

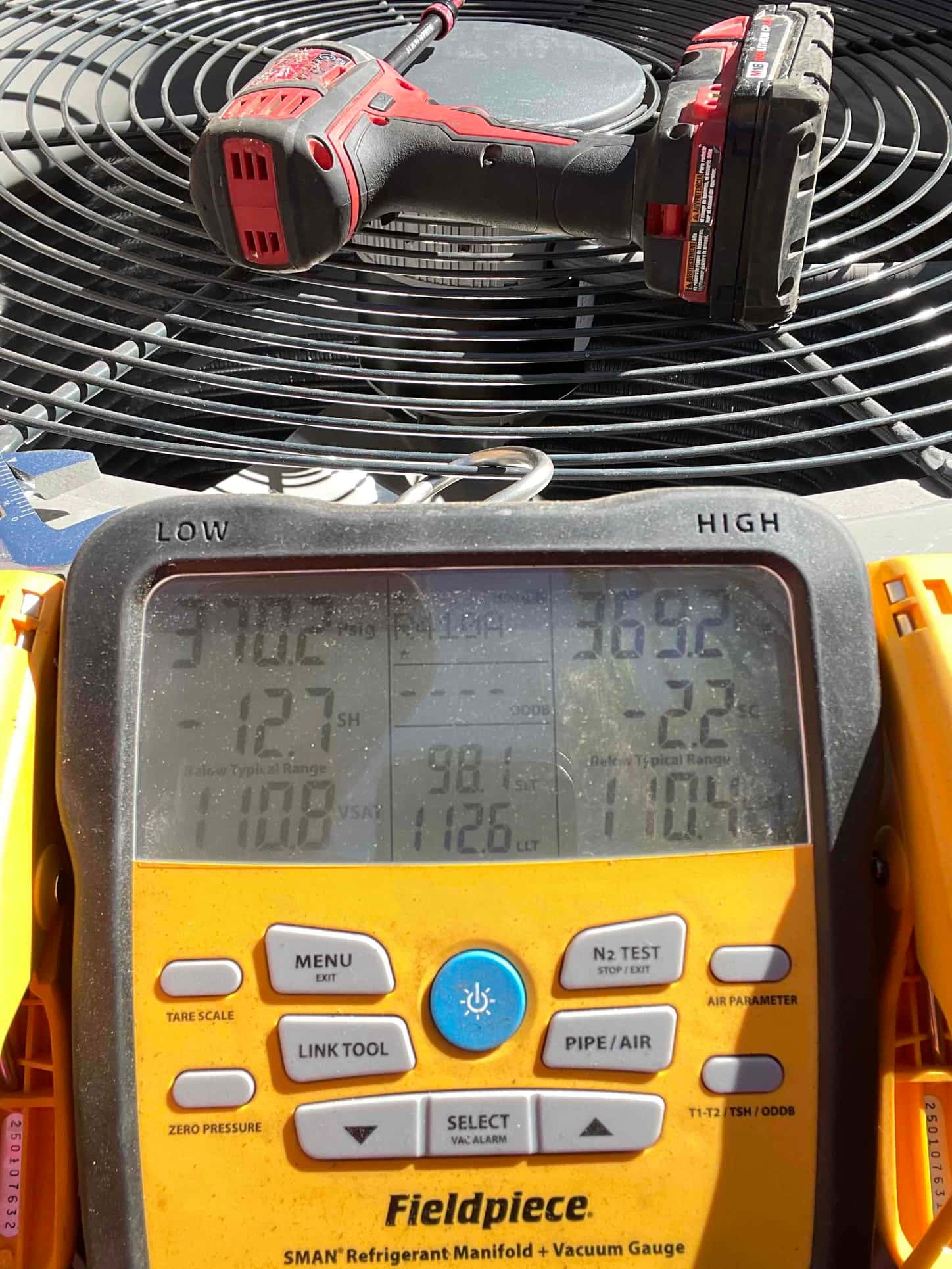

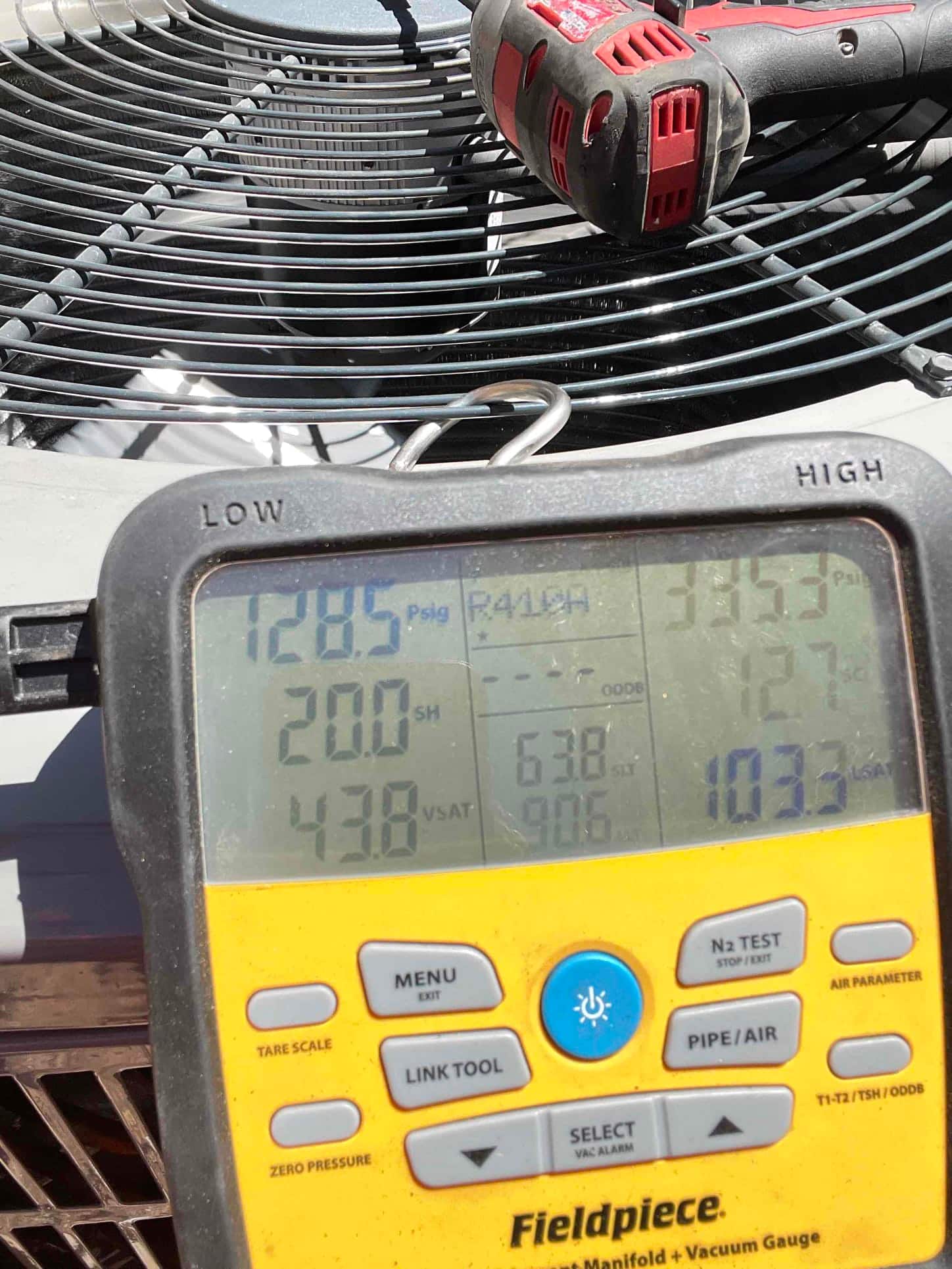

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

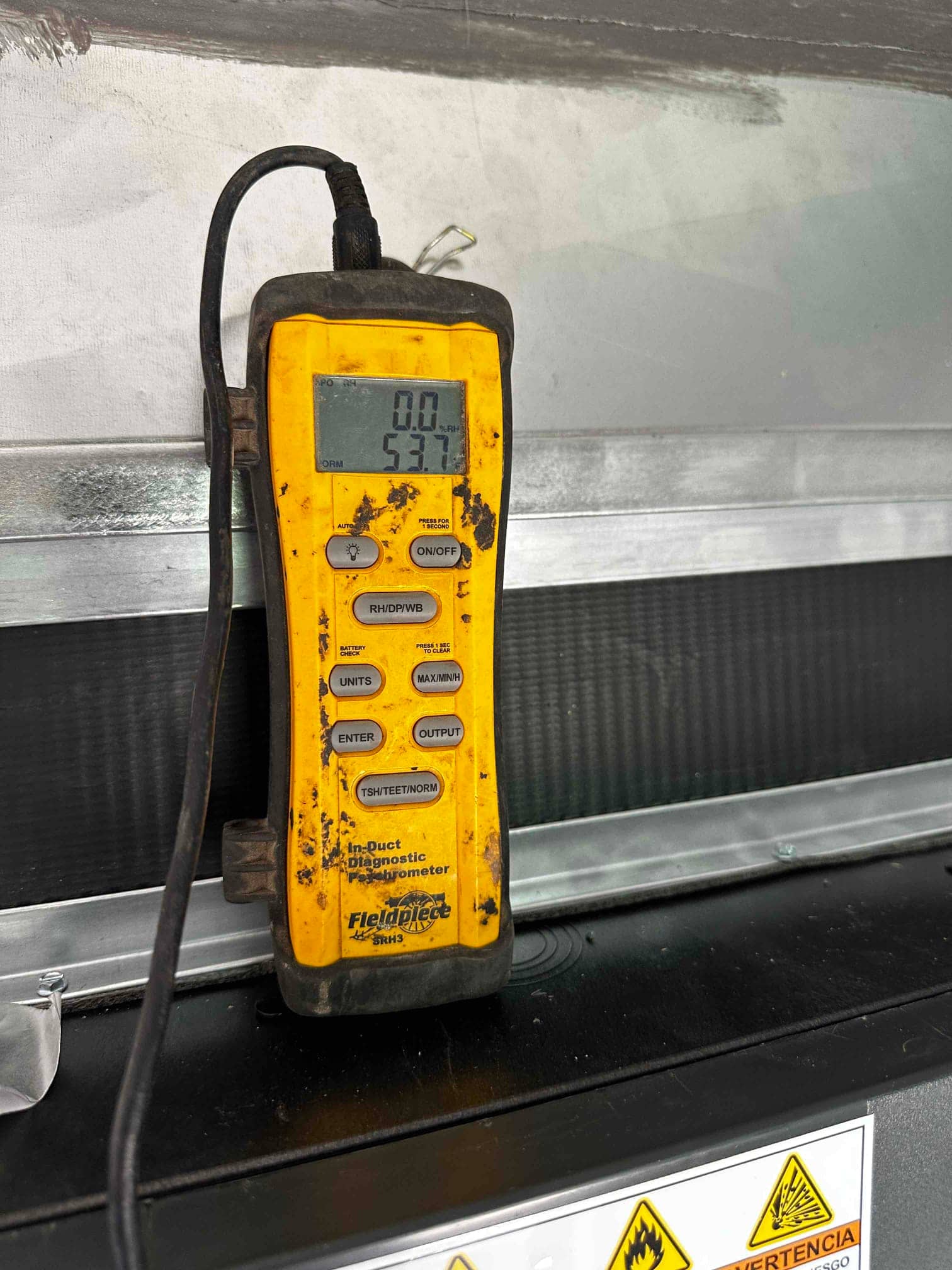

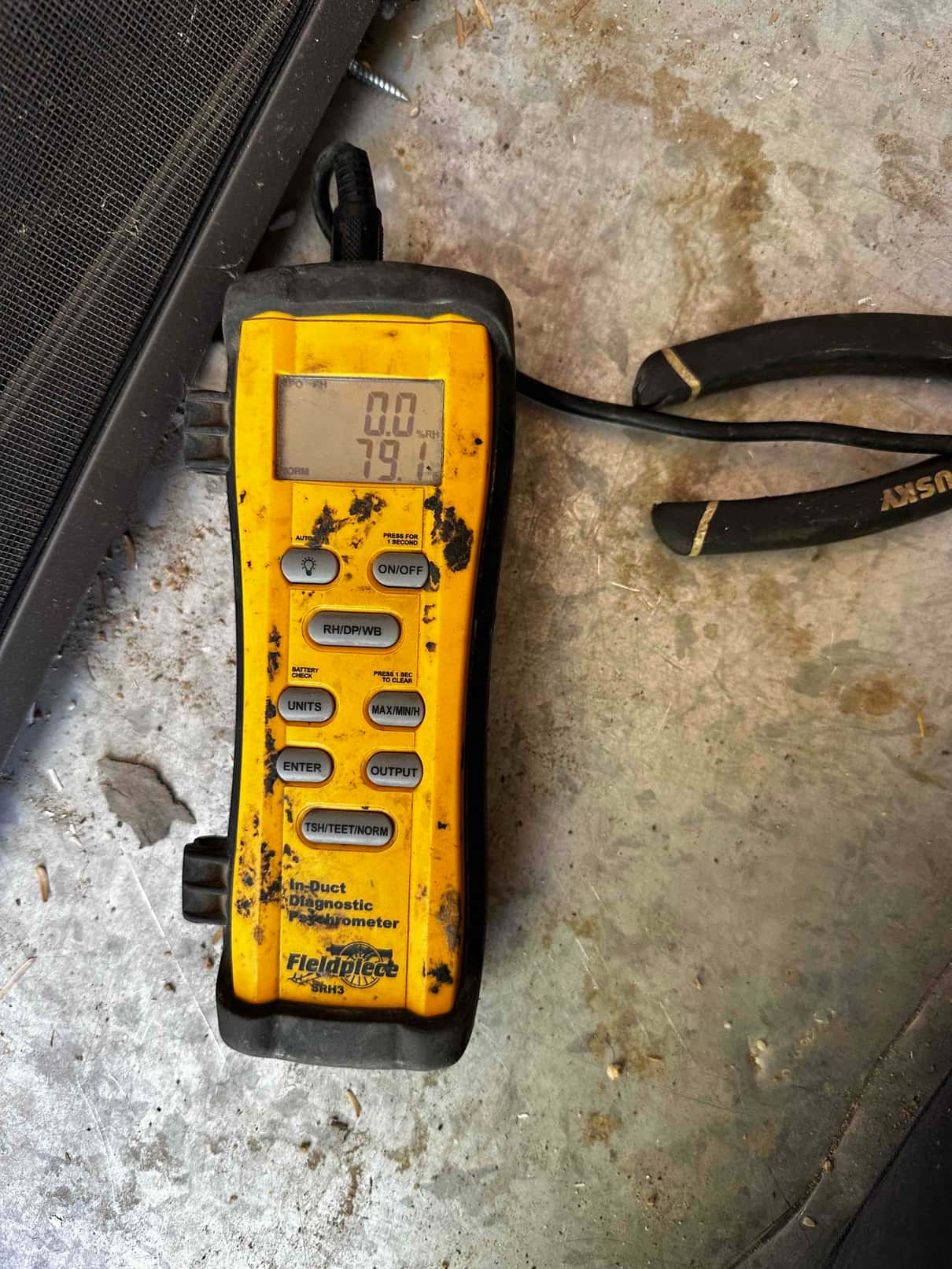

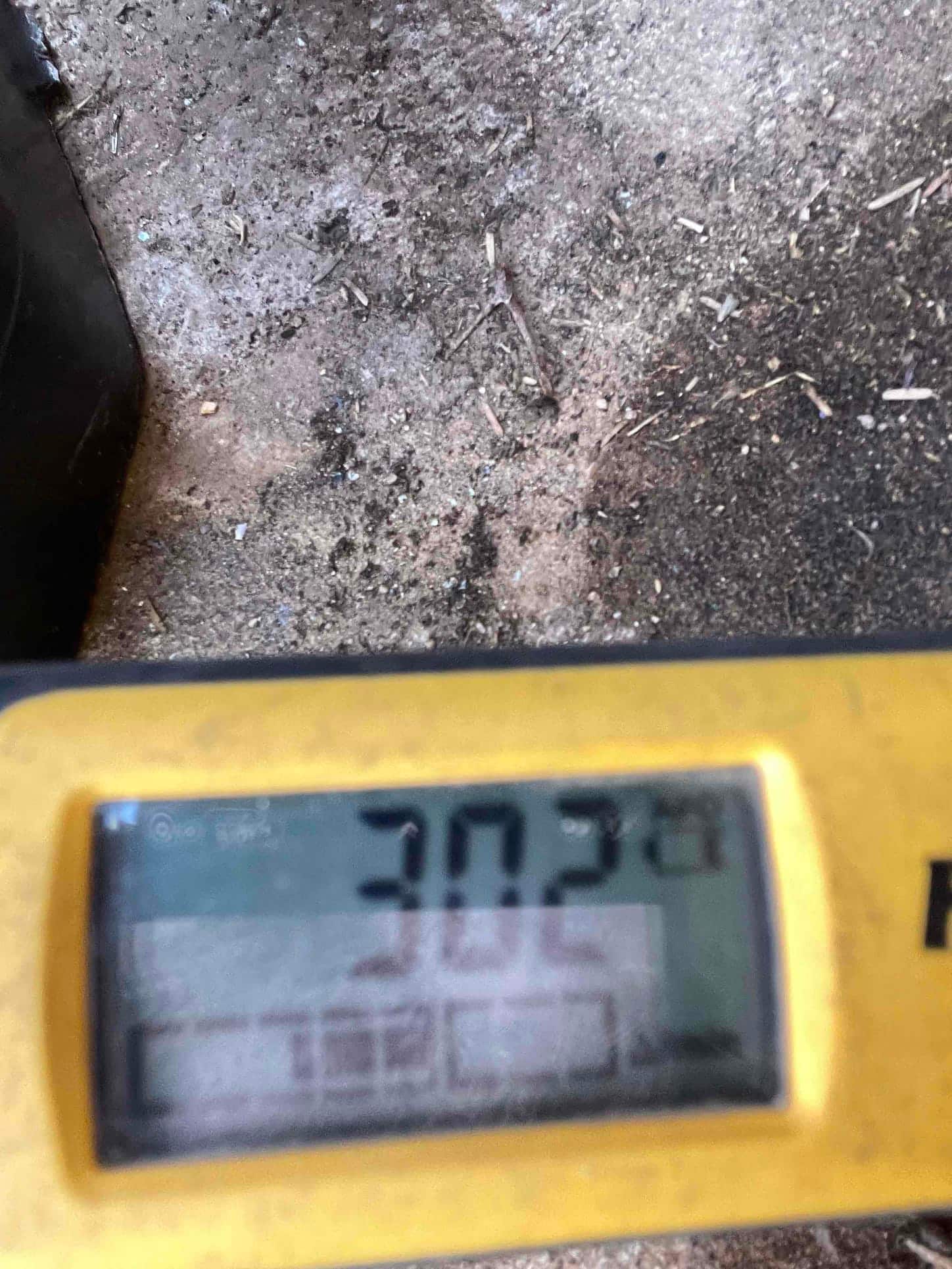

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this North Scottsdale job?
AZ Perfect Comfort installed a 3.5-Ton Trane Heat Pump System at this North Scottsdale property. The install was completed by Kyle & Michael and includes AZ Perfect Comfort's workmanship warranty.
How much does a new heat pump system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in North Scottsdale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout North Scottsdale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
