Newly Installed
A5AHC007A1D30A
- Brand
- AMERISTAR
- Model
- A5AHC007A1D30A
New — installed 2026
Real Installation · North Phoenix
3.5-Ton Heat Pump System Installation in North Phoenix — April 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Customer needed HVAC equipment installed or replaced.
North Phoenix · installed April 18, 2025
— At a Glance
Location
North Phoenix
Completed
April 18, 2025
System Type
Heat Pump System
Capacity
3.5-Ton
Brand
AMERISTAR
Efficiency
14 SEER2
Labor Warranty
2-Year Labor Warranty
Total Investment
$8,437
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
A5HP4042A1000A
- Brand
- AMERISTAR
- Model
- A5HP4042A1000A
New — installed 2026
Newly Installed
Thermostat
- Brand
- AMERISTAR
- Model
- TSTAT-HW-T4
New — installed 2026
Your Coverage on This Install
Labor Warranty
2-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Phoenix, AZ. You can browse more real 3.5-Ton Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Ben & Jesse from the manifold gauges, micron gauge, and digital thermometers.

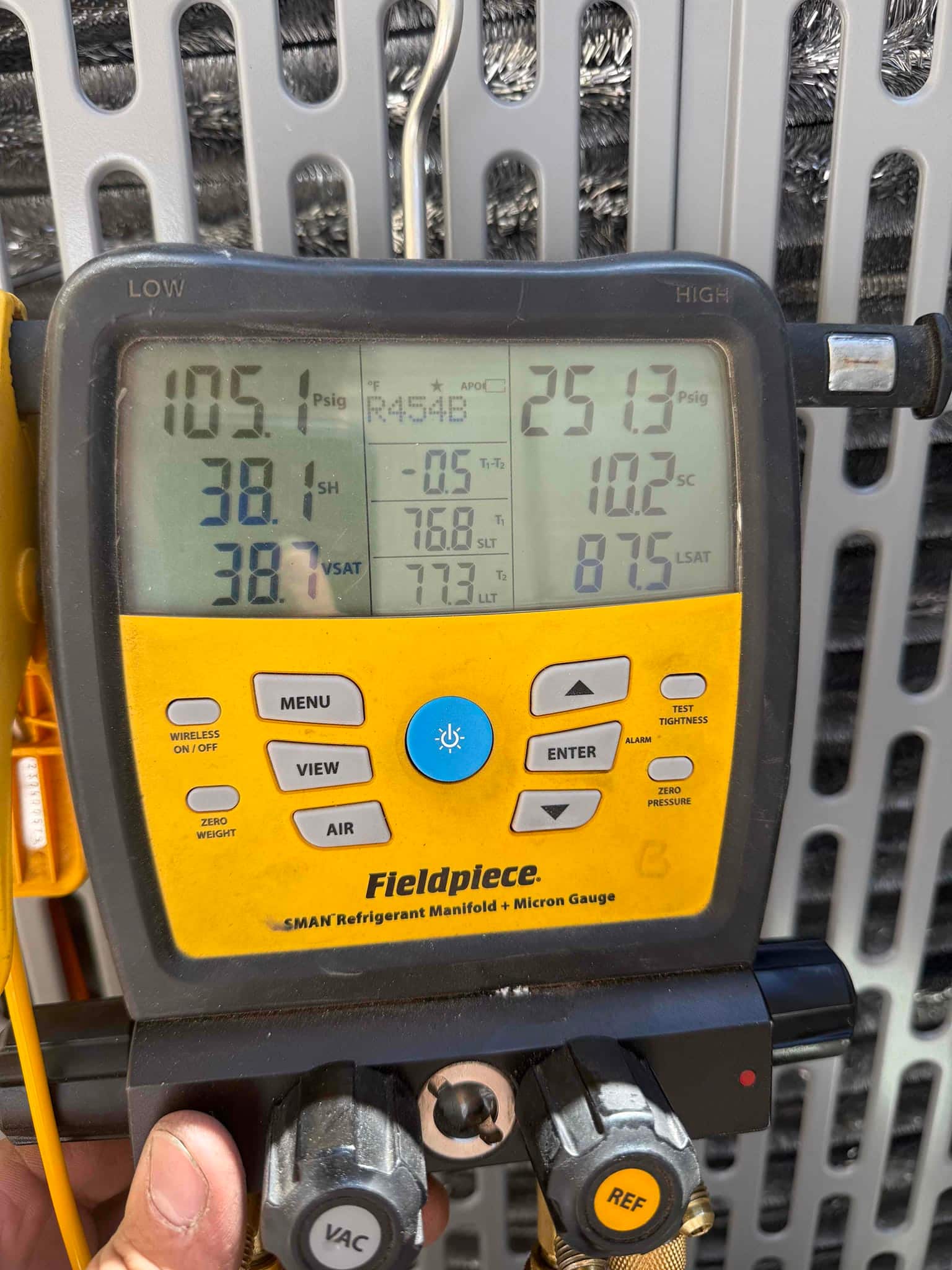

Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 105 PSIG
- Liquid pressure
- 251 PSIG
- Evaporator saturation
- 36.4°F
- Condensing saturation
- 96.3°F
- Superheat
- 38°F
- Subcooling
- 10°F
Air-Side Performance

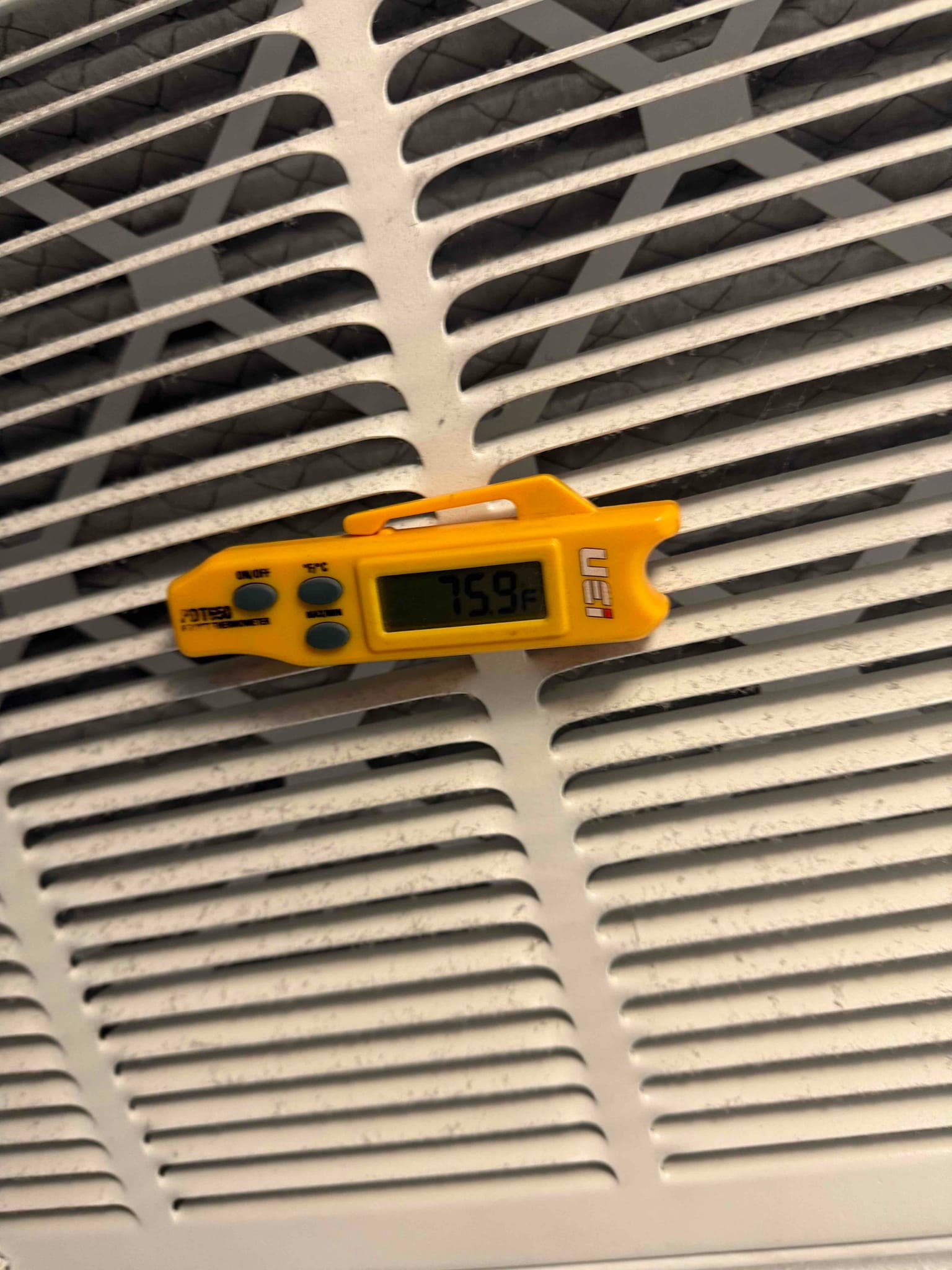

- Return-air temperature
- 75.9°F
- Supply-air temperature
- 54°F
- Temperature split
- 21.9°F

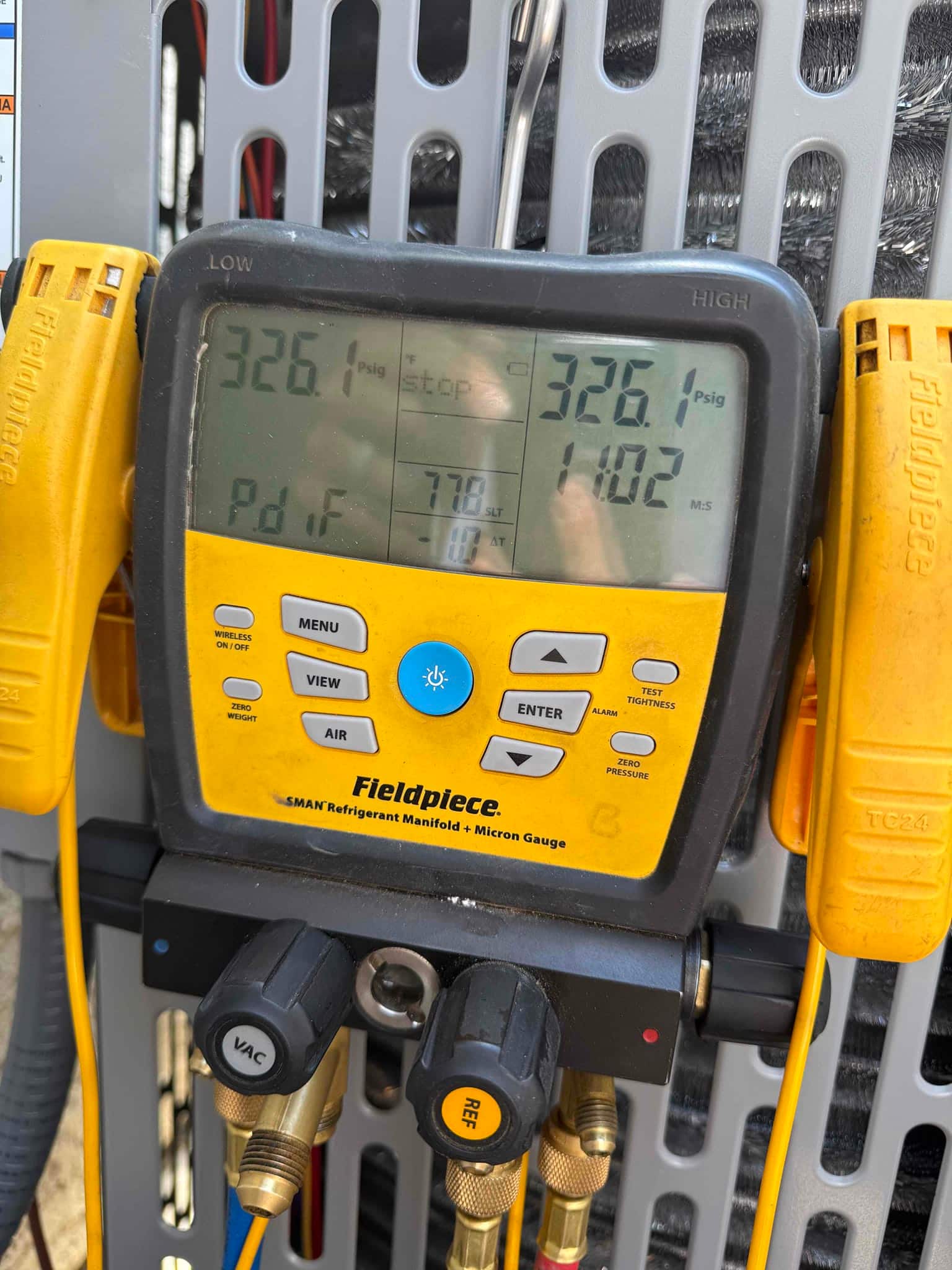

Nitrogen Pressure Test
- Test pressure held
- 326 PSIG

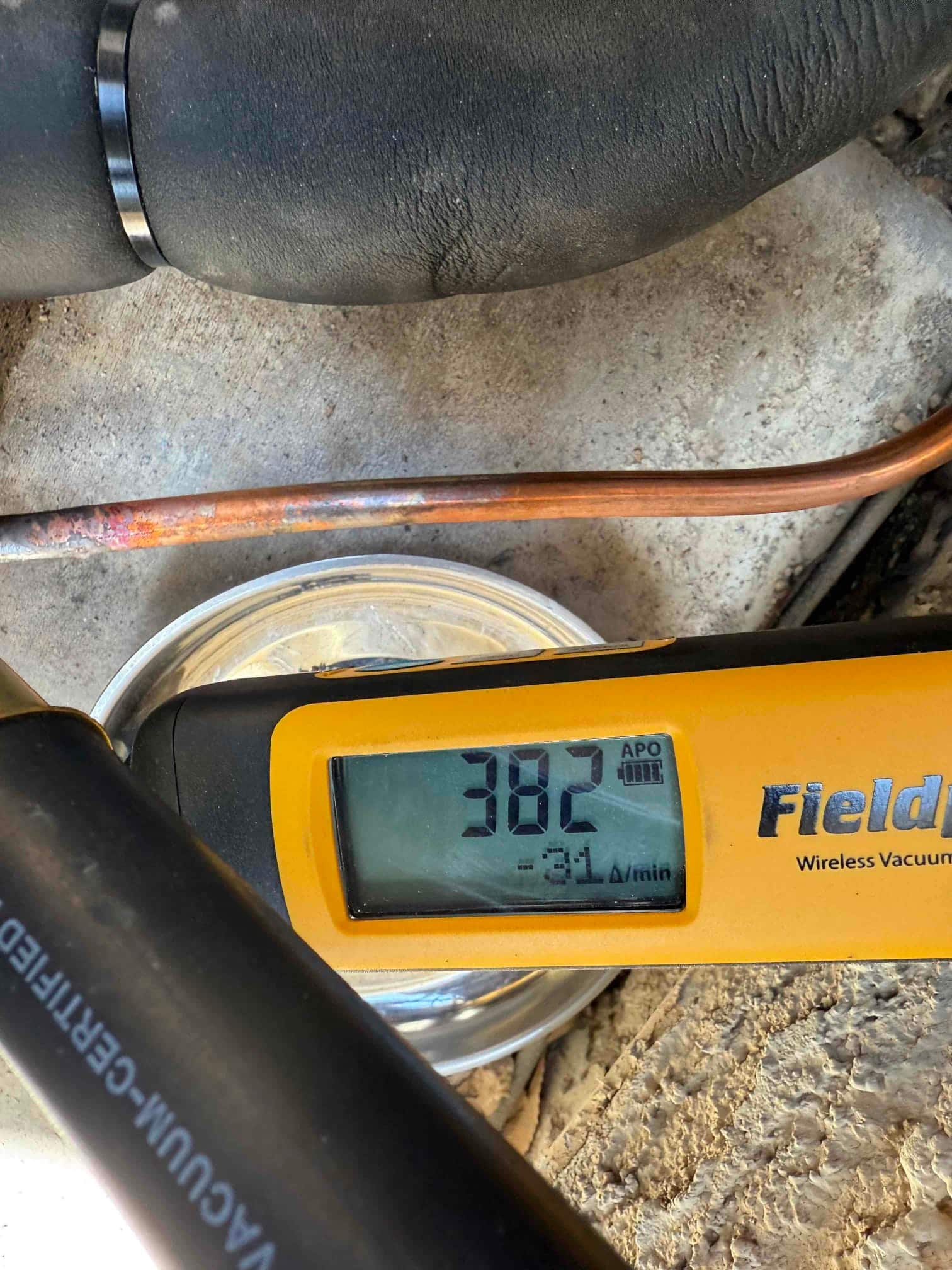

Vacuum / Evacuation
- Final vacuum reading
- 382 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 3.514H-A5HP4042-A5AHC007A1 | 3.5 Ton- Horizontal Single Stage-14 SEER2 Ameristar-RunTru Heat Pump Condenser with AirHandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the | 1 |
| AZPC-2YR | 2 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort.AZ Perfect Comfort remains the contractor to perform all work.The Warr | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid.2 Year Duration Two Maintenance Visits Per | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
15 photos from this installation
Every step of this installation was documented on-site by Ben & Jesse.

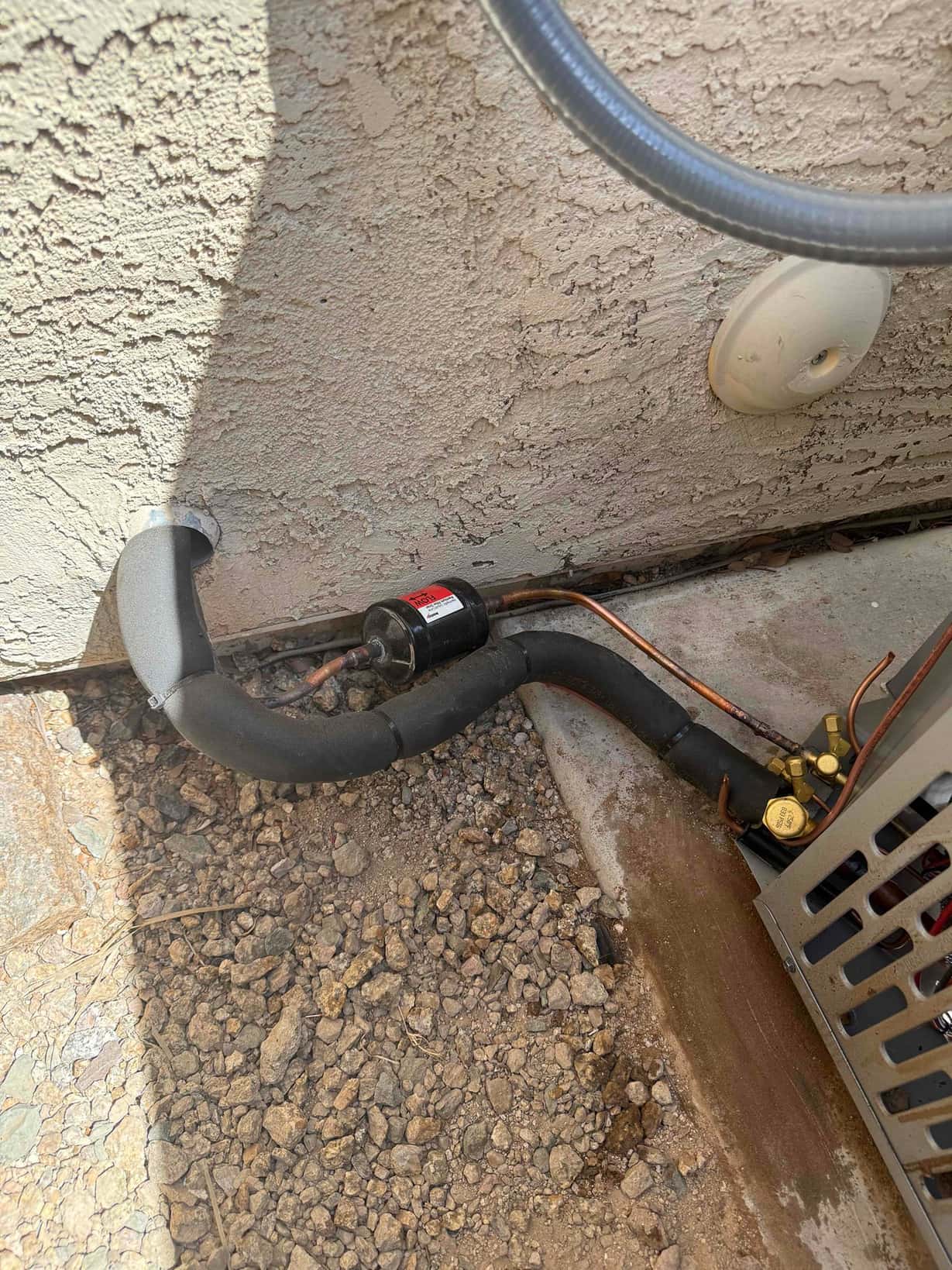

Installation Progress

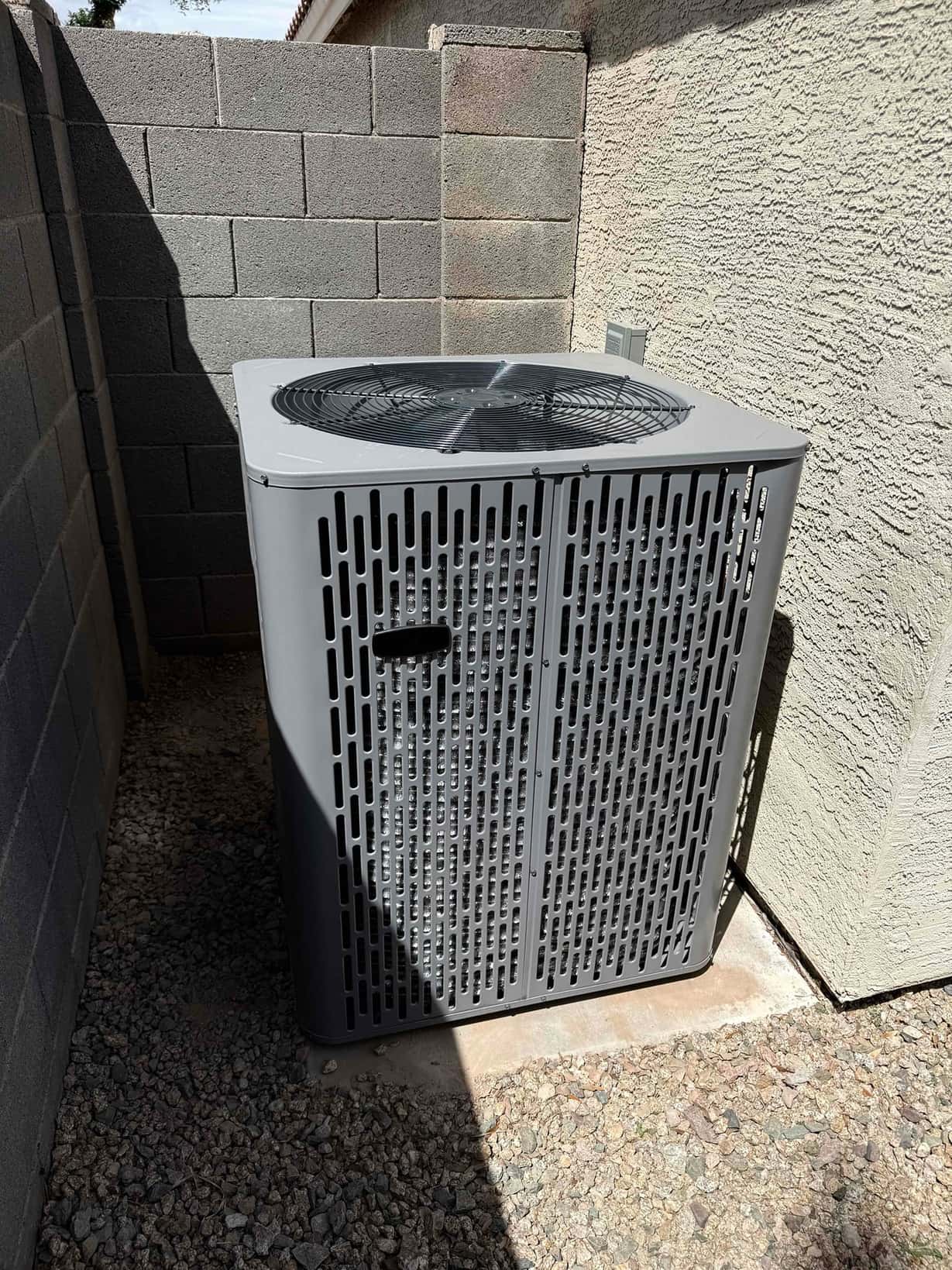

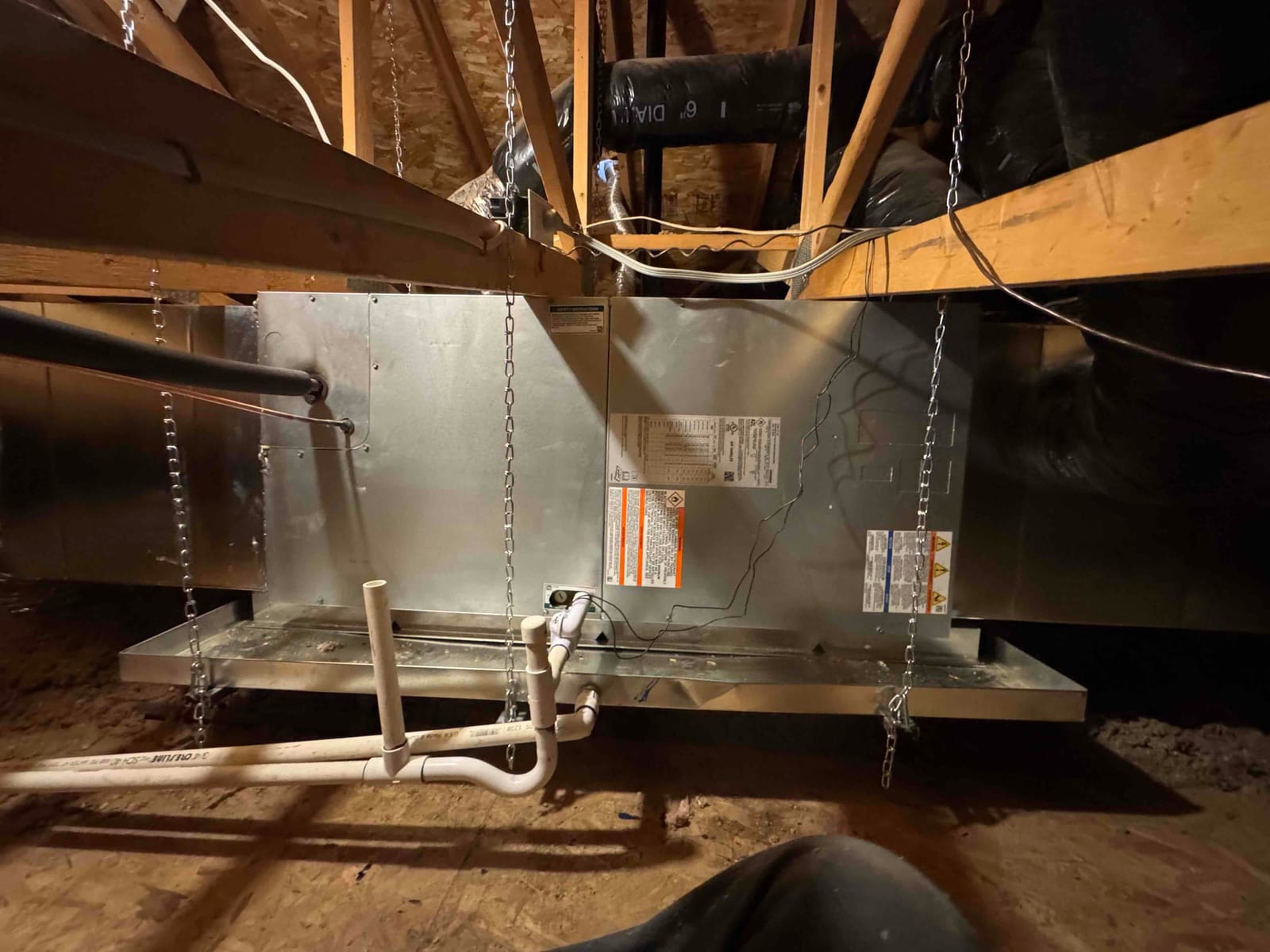

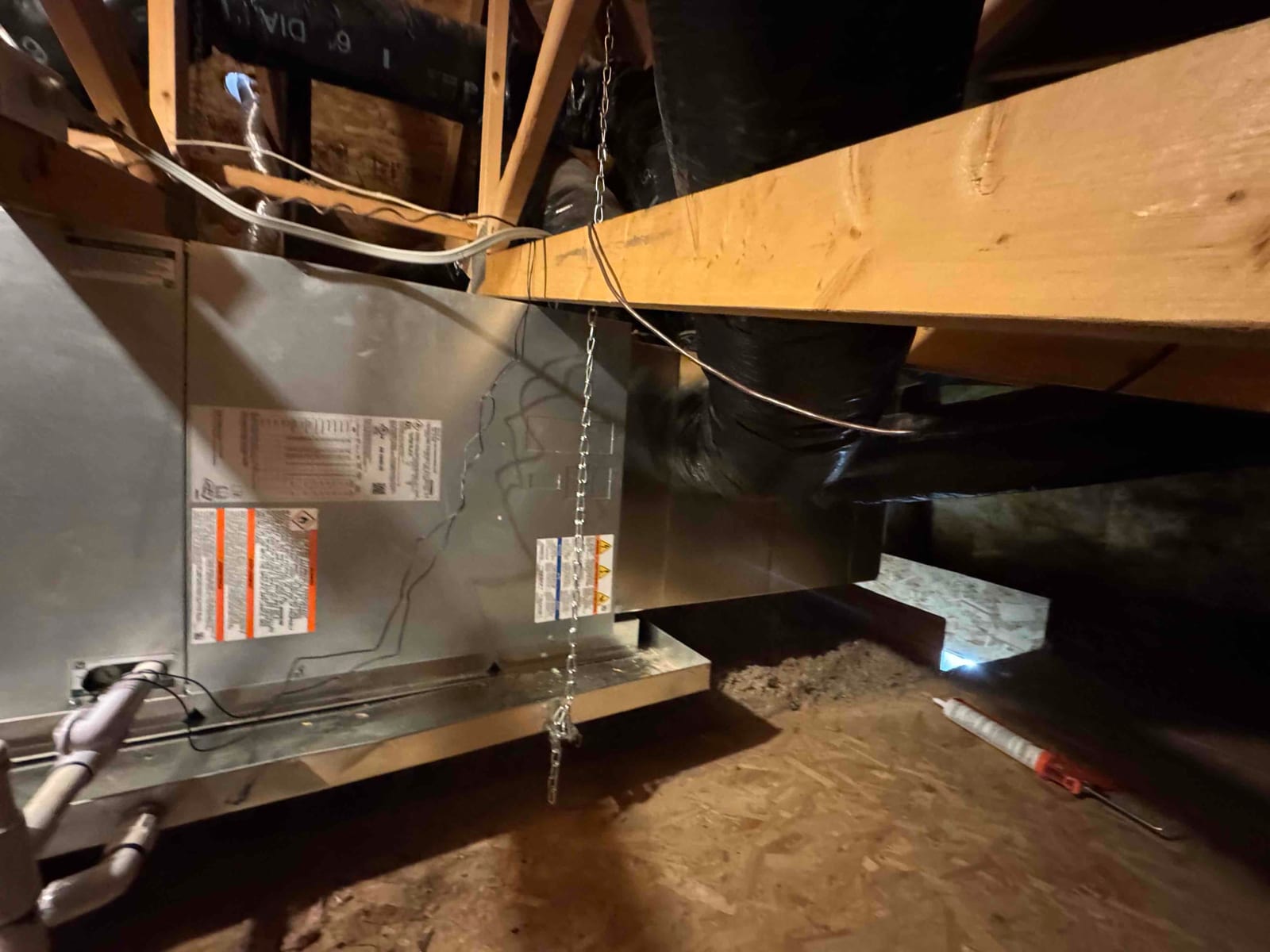

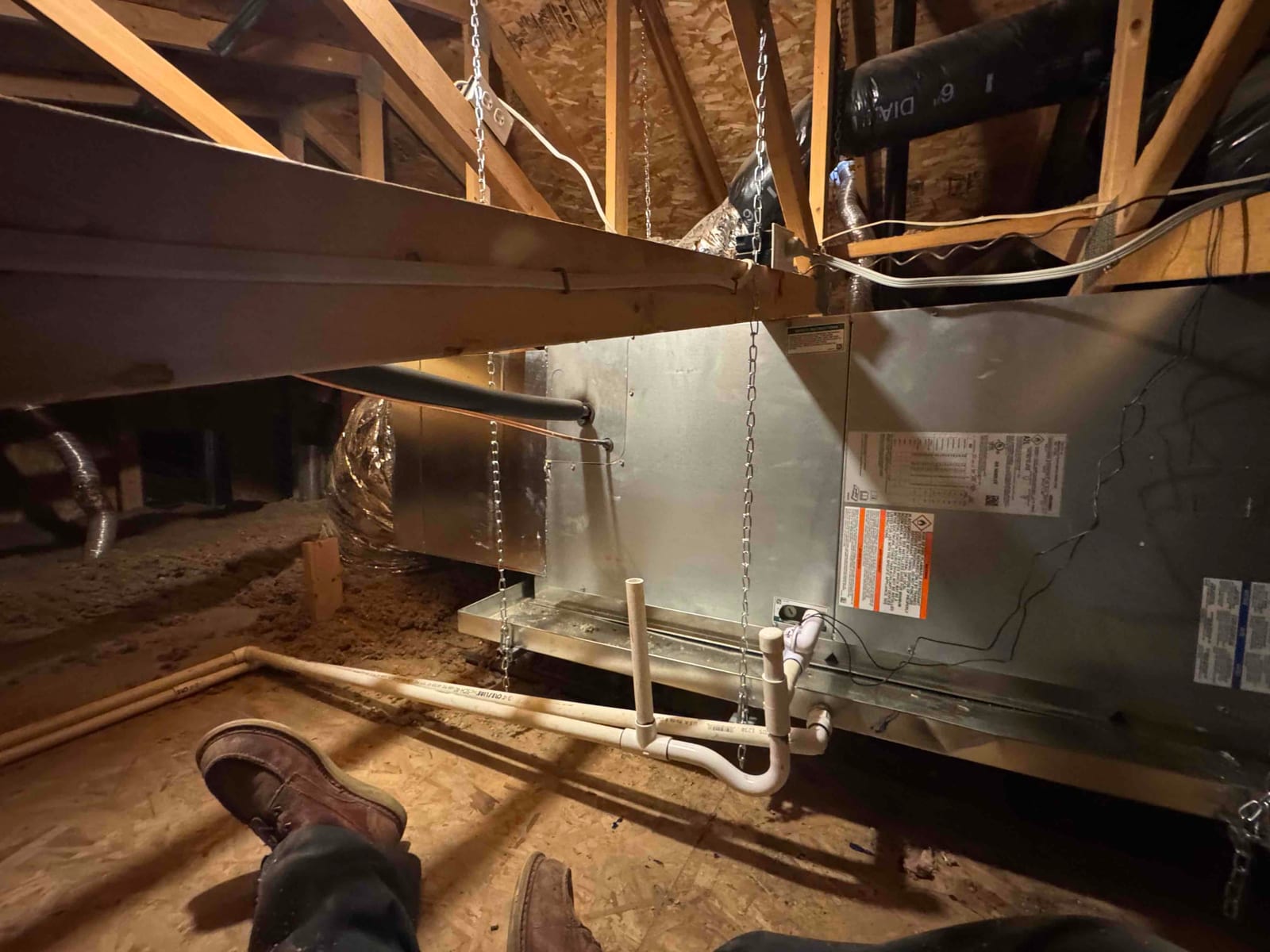

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.
Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.
Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

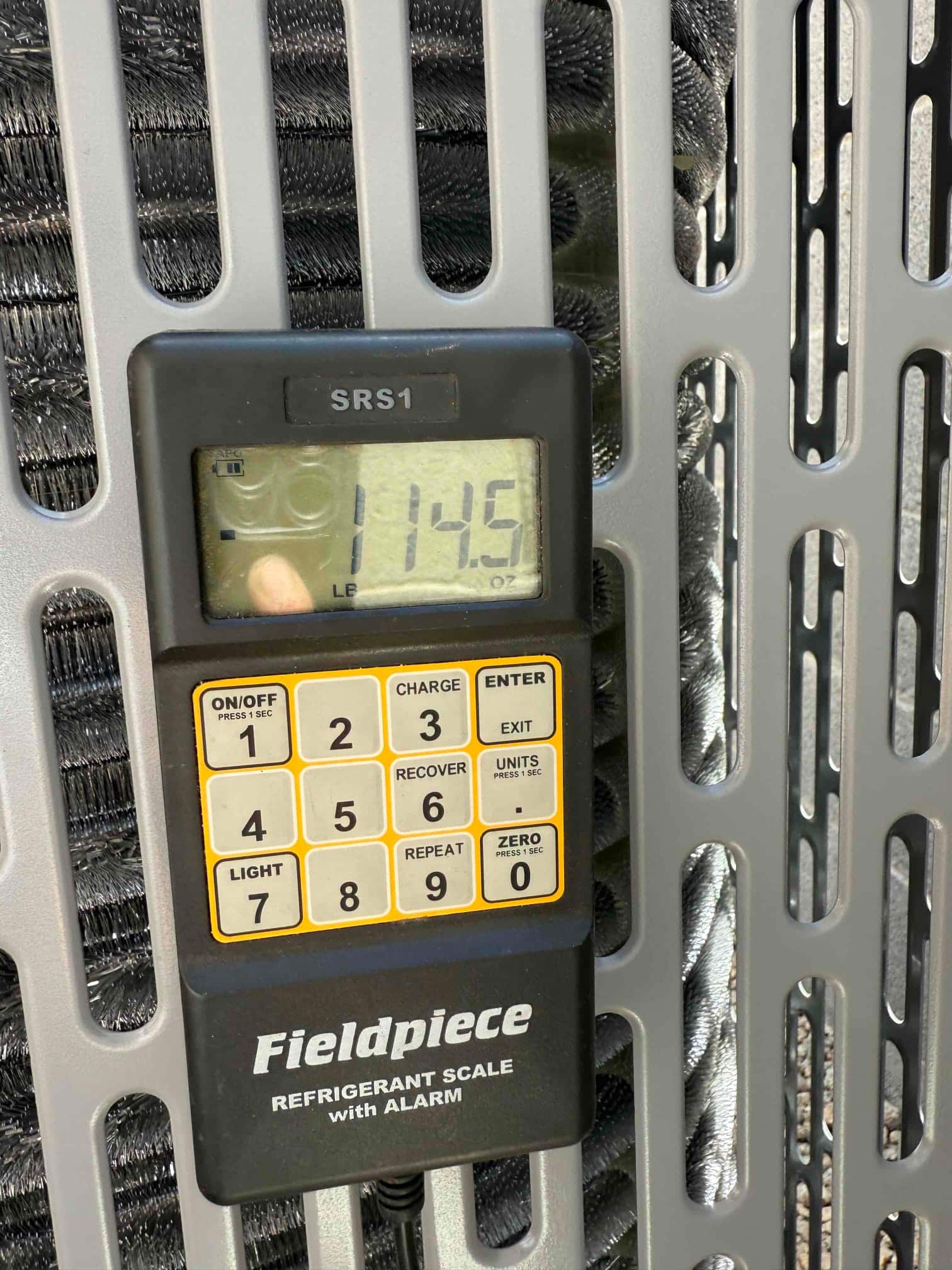

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

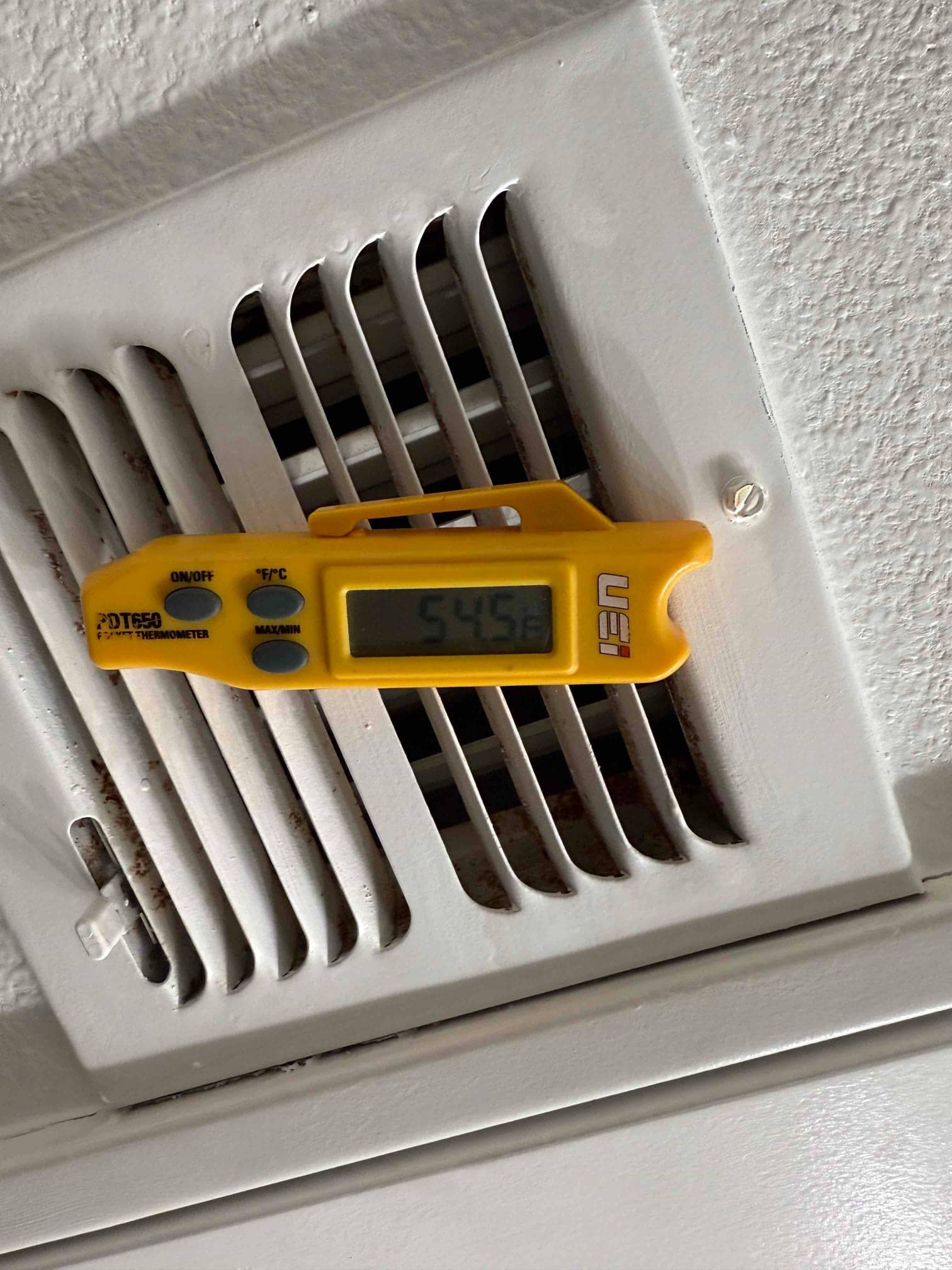

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
