Newly Installed

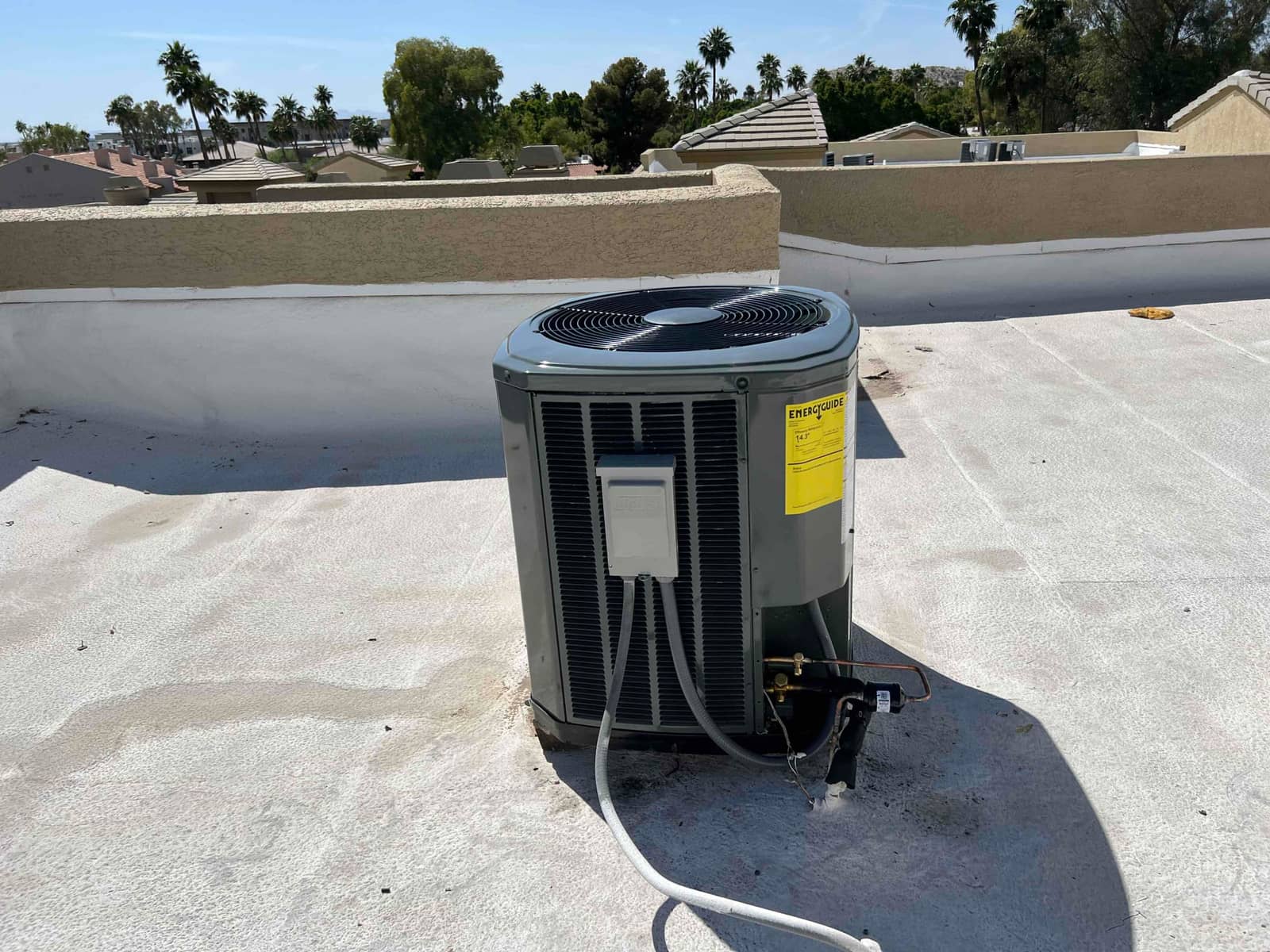

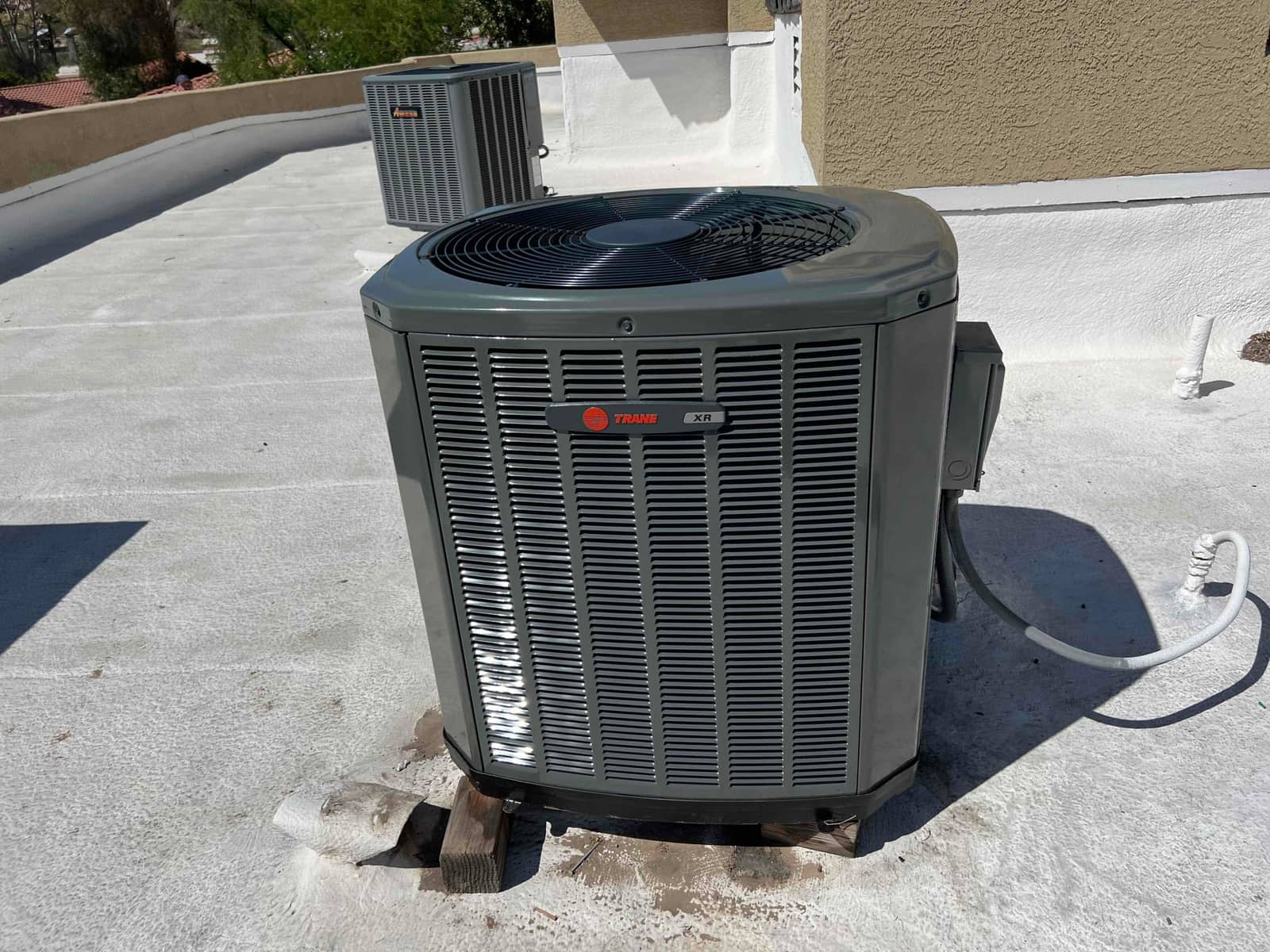

AC condenser
- Brand
- Trane
- Model
- 4TWR4030N1000*
- Capacity
- 2.5-ton
New — installed 2026
Real Installation · North Central Phoenix
2.5 Ton AC and Air Handler Installation in North Central Phoenix — May 2023
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a 2.5-ton condenser.
North Central Phoenix · installed May 9, 2023
— At a Glance
Location
North Central Phoenix
Completed
May 9, 2023
System Type
AC + Air Handler Split System
Capacity
2.5-ton
Brand
Trane
Total Investment
$8,947
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed

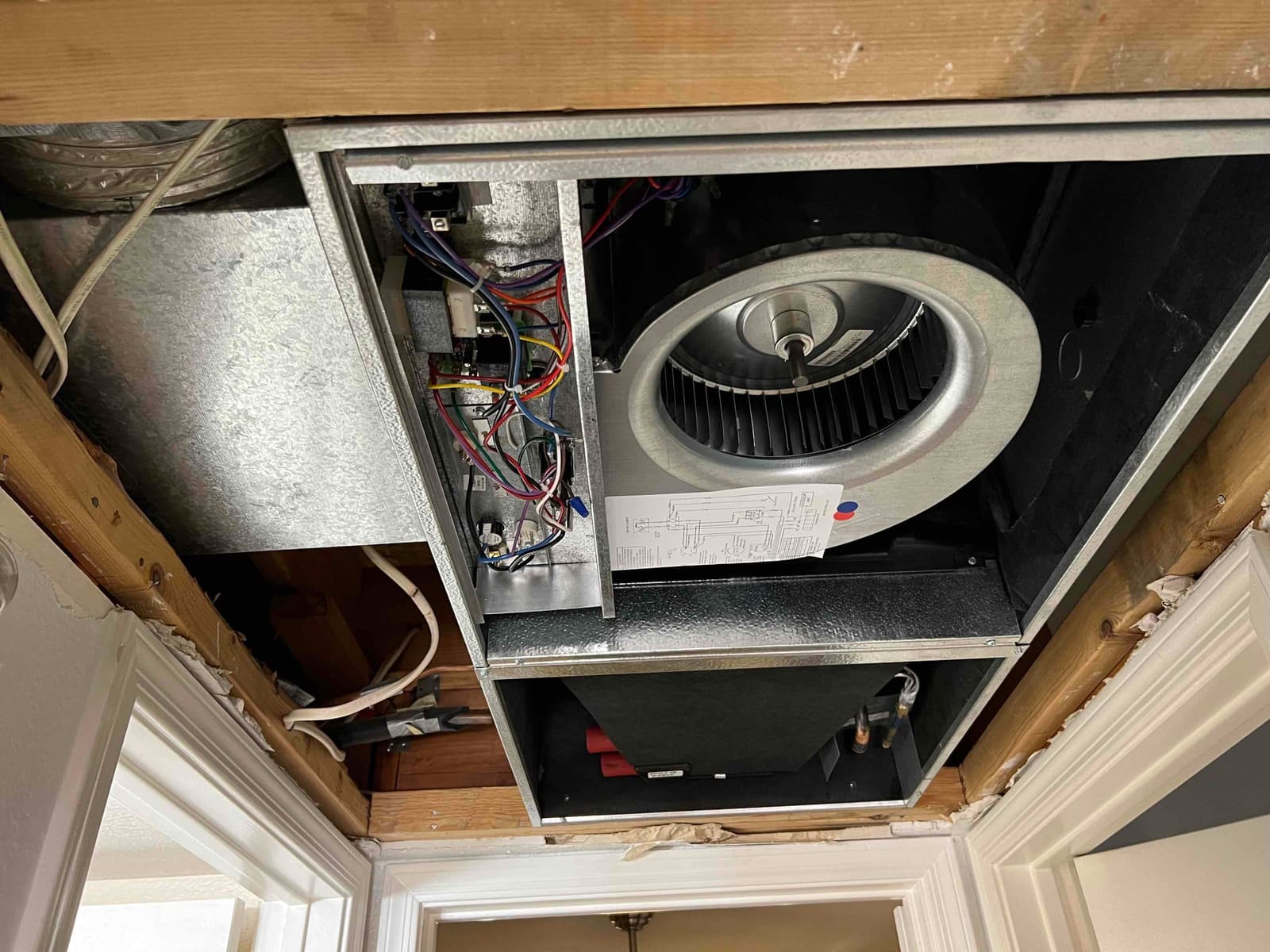

Air handler
- Brand
- AllStyle
- Model
- ABFT30-400G+D-5
- Matched
- 2.5-ton airflow
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Phoenix, AZ. You can browse more real 2.5-Ton AC and Air Handler Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Fred, Tim & Angel from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 97 PSIG
- Liquid pressure
- 341 PSIG
- Evaporator saturation
- 23.2°F
- Condensing saturation
- 110°F
Air-Side Performance
- Return-air temperature
- 70°F
- Supply-air temperature
- 53°F
- Temperature split
- 17°F
Nitrogen Pressure Test
- Test pressure held
- 390 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 480 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 2.5-14-Ce-H | Standard Efficiency14 SeriesSingle Stage CompressorPSC multi-speed adjustable blower motor10yr manufacturer Parts warranty on condenser1 yr parts manufacturer warranty on Air Handler2 yr labor warrant | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
13 photos from this installation
Every step of this installation was documented on-site by Fred, Tim & Angel.

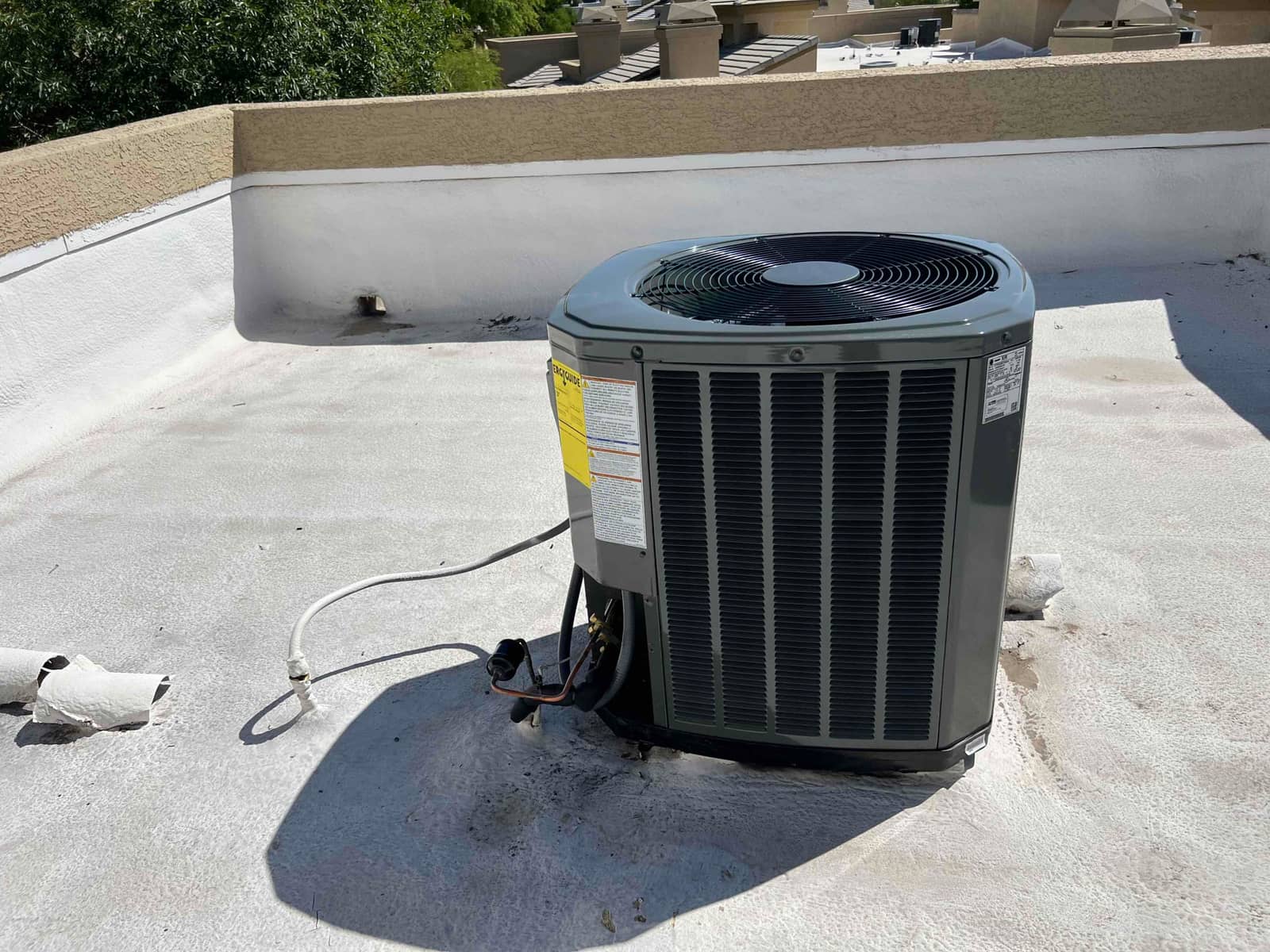

Installation Progress

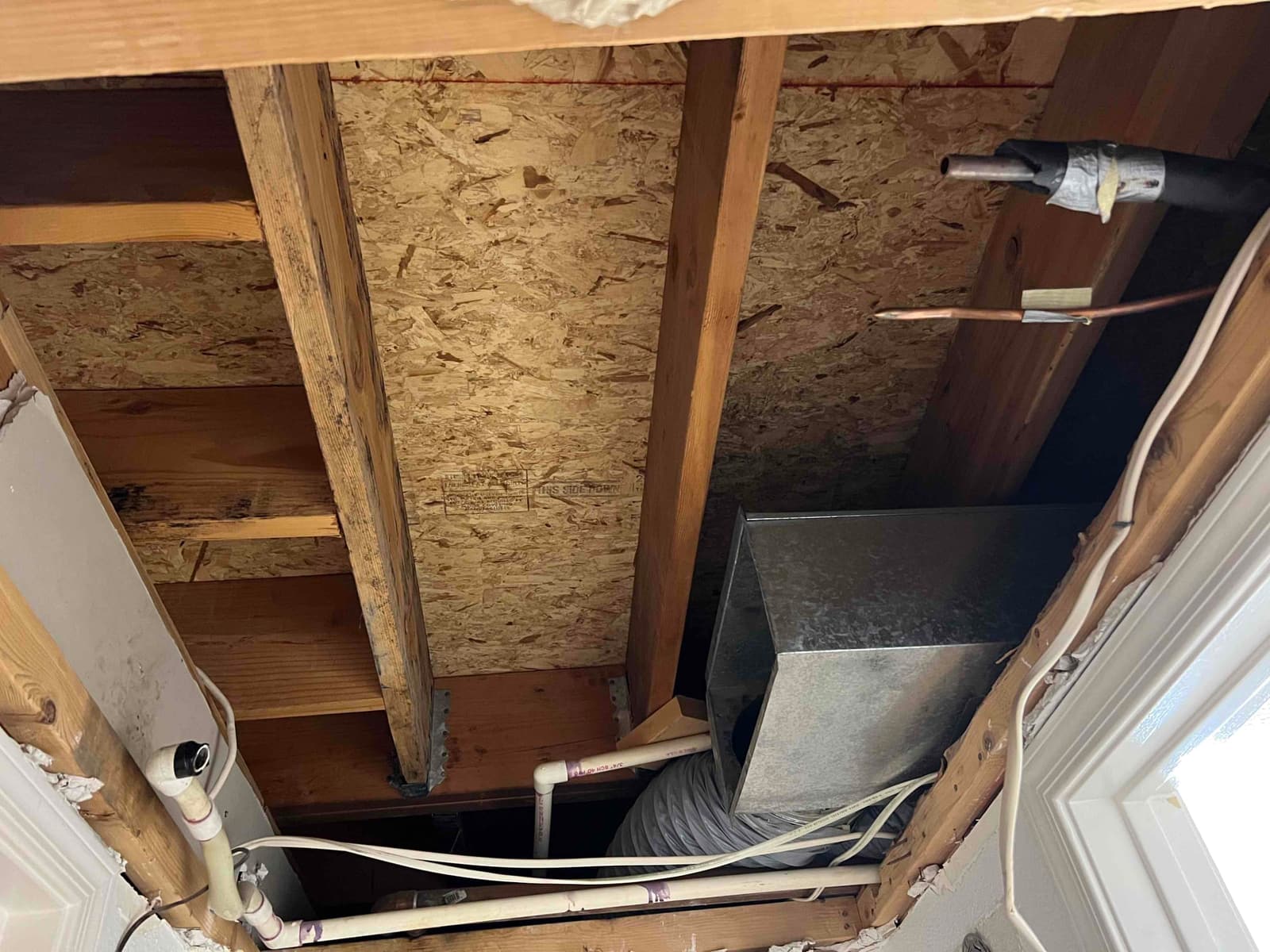

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

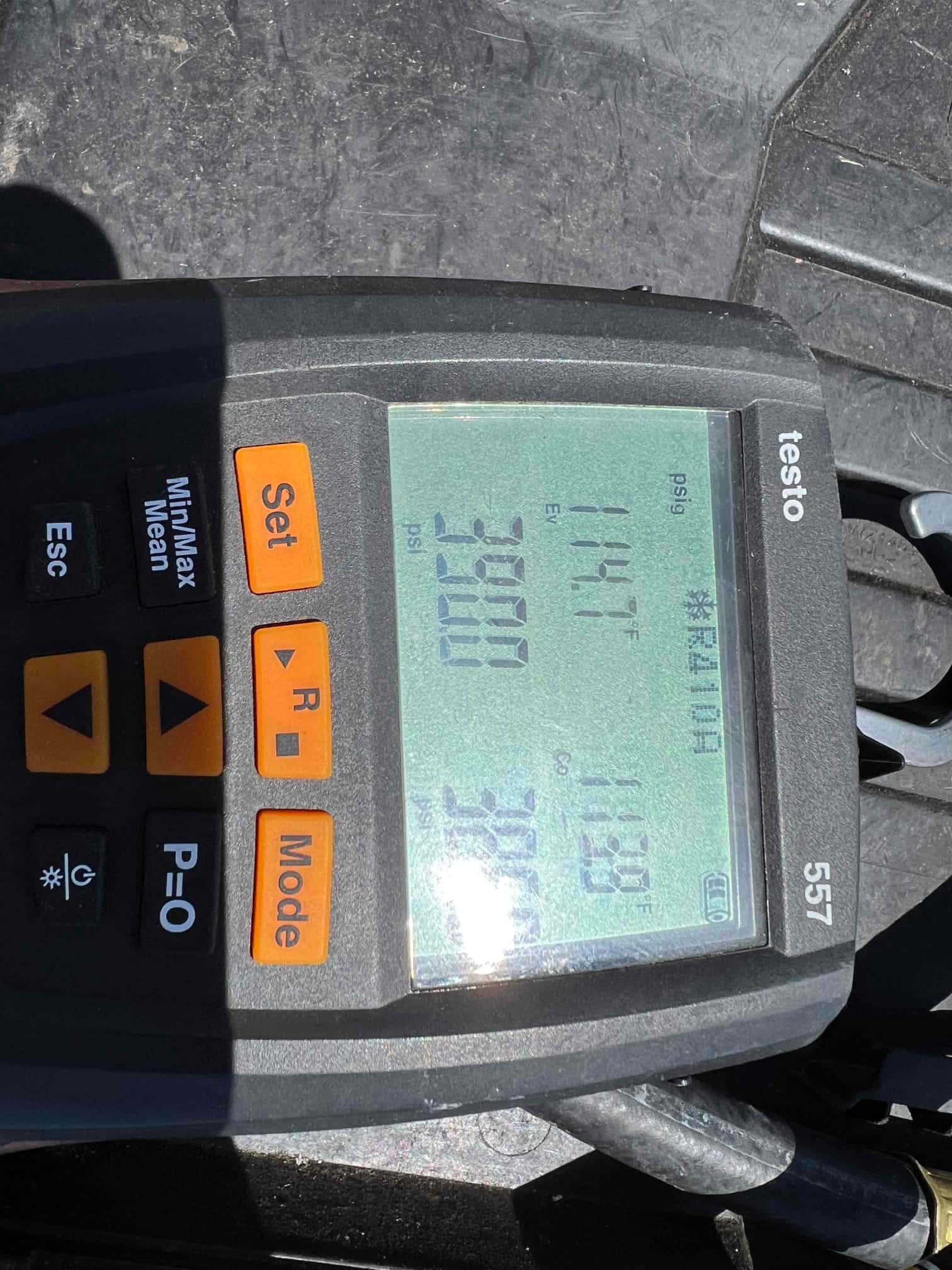

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

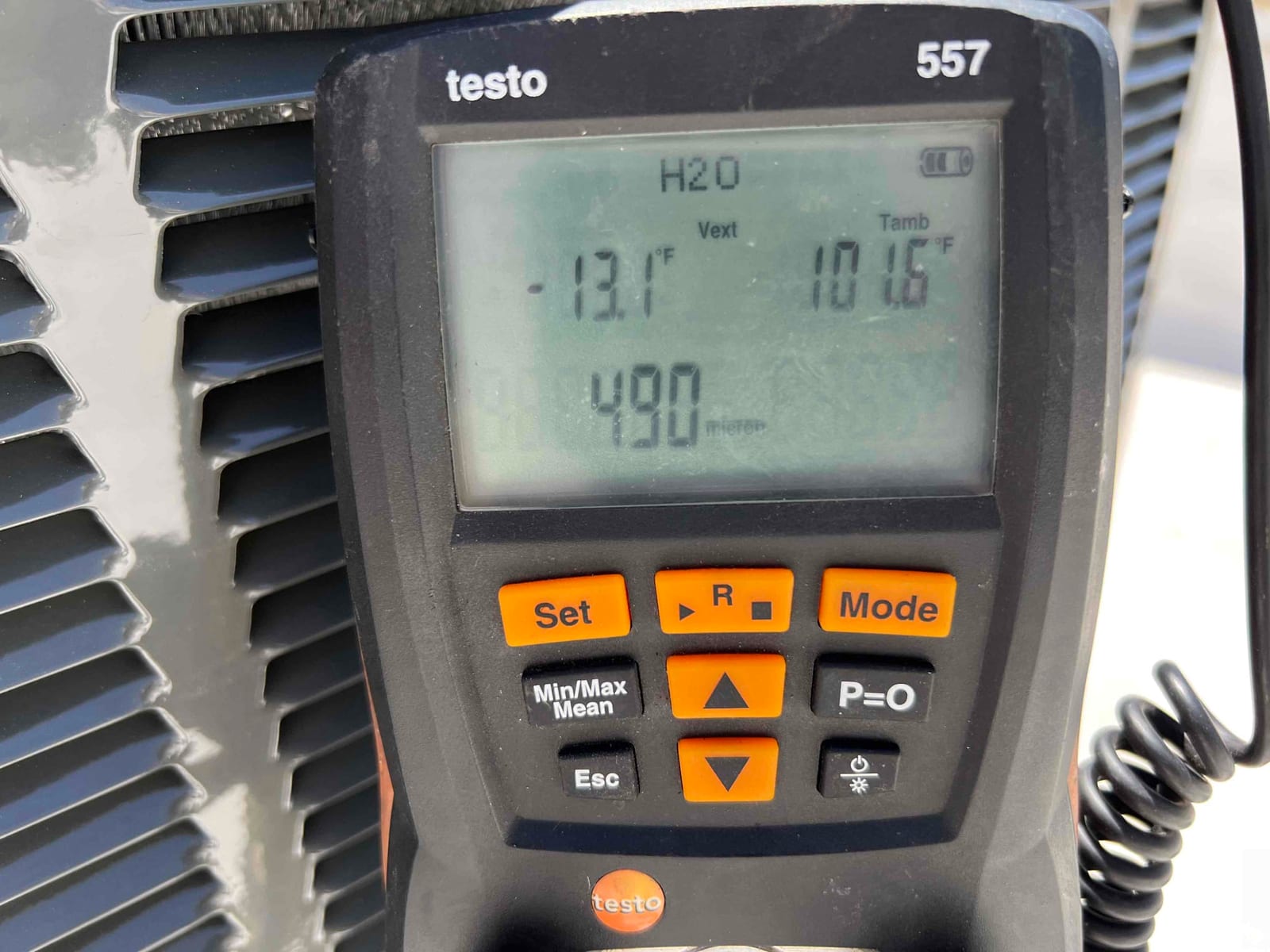

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

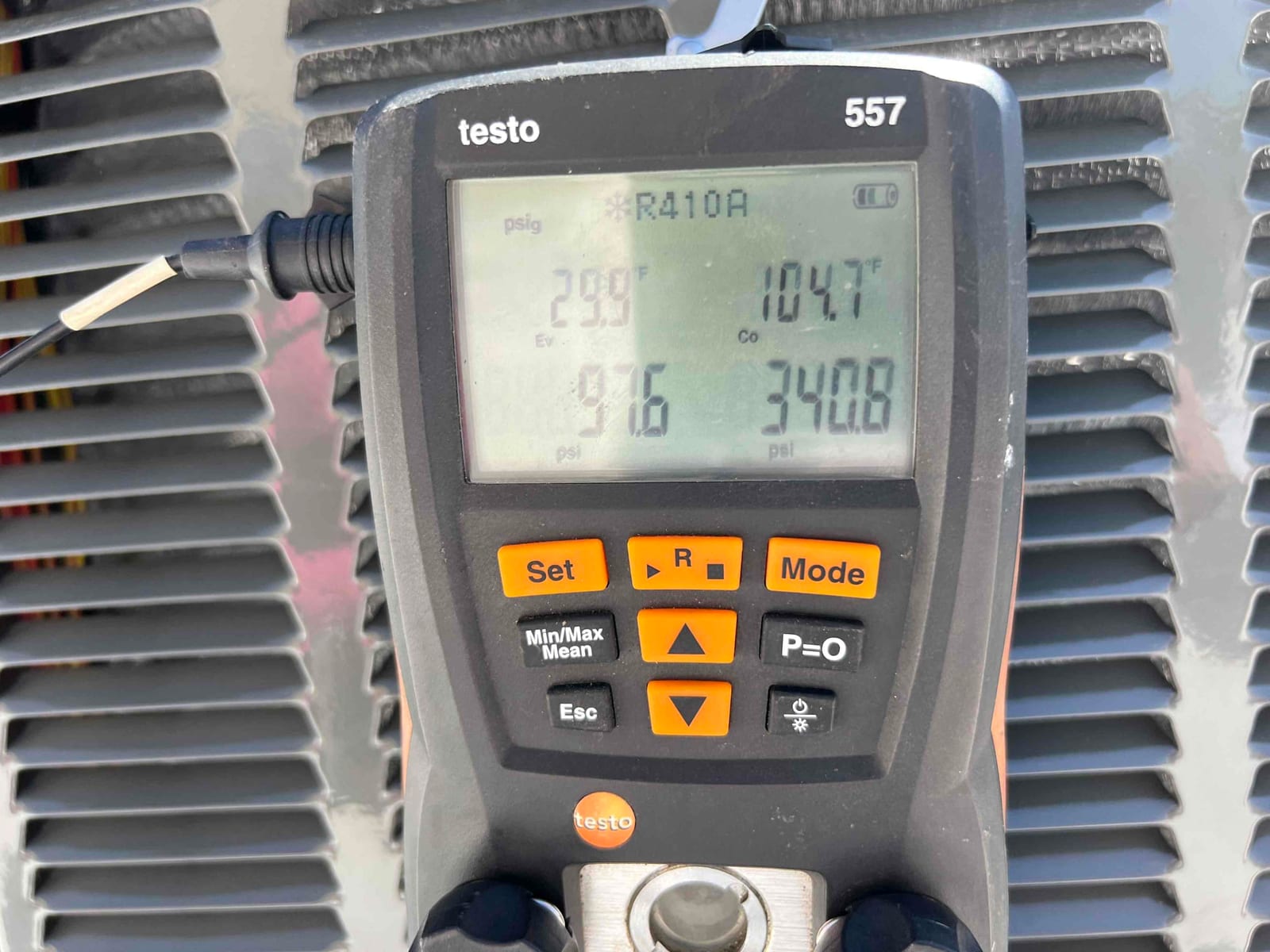

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

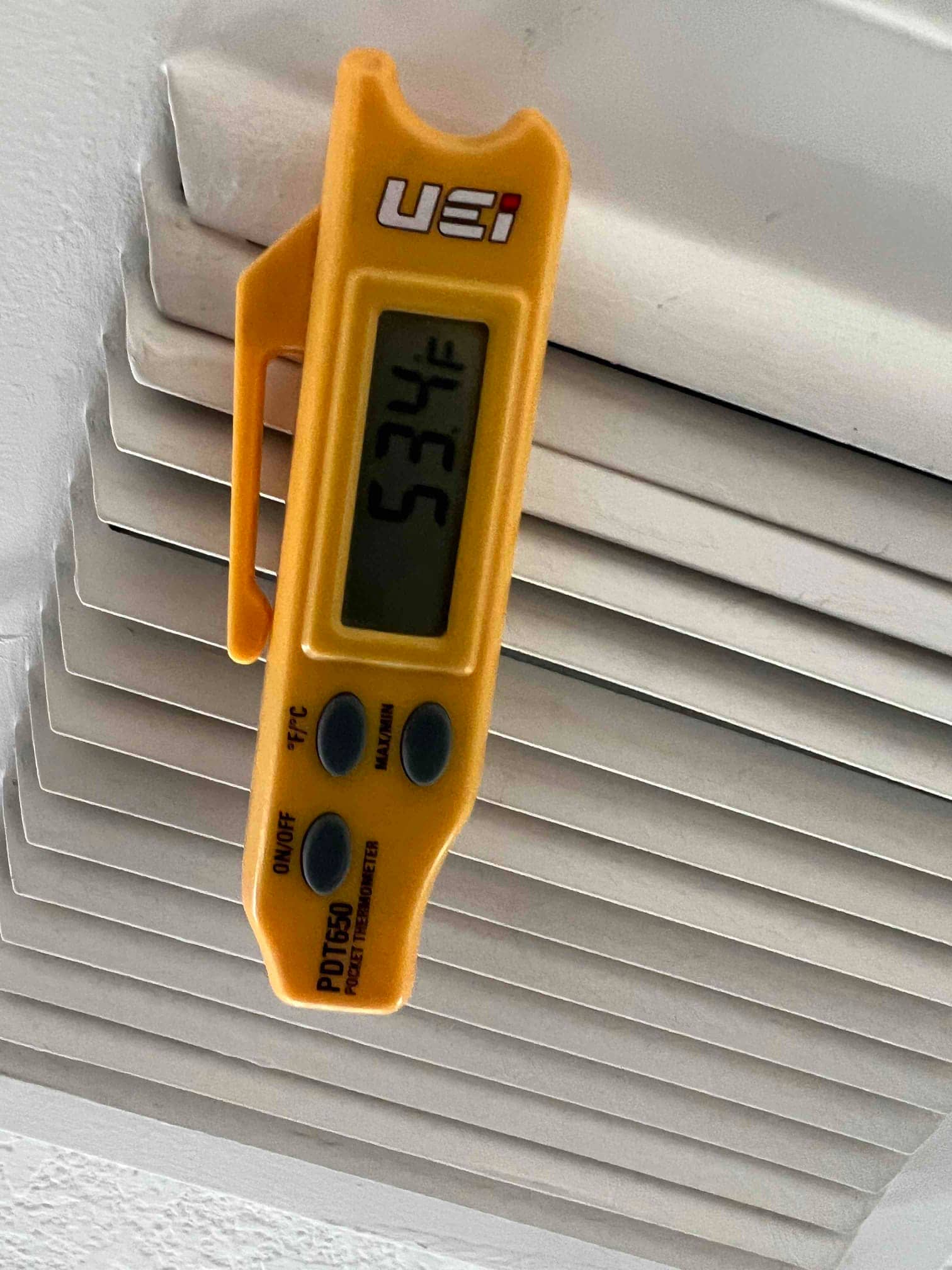

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this North Central Phoenix job?
The installer completed a 2.5 Ton air conditioning system installation, which included a condenser and an indoor coil. This upgrade was necessary to improve the home's cooling efficiency and comfort.
How much does a new ac + air handler split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in North Central Phoenix?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout North Central Phoenix and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
