Real Installation · Litchfield Park

5-Ton American Standard Air Conditioning System Installation in Litchfield Park — July 2026

CompletedJuly 28, 2026
Install CrewKyle & Edwin
Service AreaLitchfield Park
System5-Ton Air Conditioning System
BrandAmerican Standard
WarrantyMfg + Workmanship
Instant Price Estimate Call (602) 613-3489
4.9806 Google Reviews
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
AZ Perfect Comfort — Our Work
Scope of Work
Installation of a Platinum 18X 5-ton variable speed horizontal furnace and coil with AC condenser. Duct cleaning was performed, and a new duct run and filter frames were added.
Litchfield Park · installed July 28, 2026
— At a Glance
Location
Litchfield Park
Completed
July 28, 2026
System Type
Air Conditioning System
Capacity
5-Ton
Brand
American Standard
Efficiency
18 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$18,681
— What We Installed

Every component in this system

Each piece of equipment set at this home, its condition, and its place in the system.

Newly Installed

Furnace

Brand
American Standard
Model
S8V2C080M5PCBAA
Matched
5-Ton airflow
New — installed 2026
Newly Installed

AC condenser

Brand
American Standard
Model
5A7V8X60A1000AA
Capacity
5-Ton
Efficiency
18 SEER2
New — installed 2026
Newly Installed

Evaporator Coil

Brand
American Standard
Model
5TXCC009AS3HCAA
Matched
5-Ton airflow
New — installed 2026
Newly Installed

Thermostat

Brand
American Standard
Model
ALINK360A2VVUG
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty

Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.

— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Service Areas. You can browse more real 5-Ton Trane Air Conditioning System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Edwin from the manifold gauges, micron gauge, and digital thermometers.

Refrigerant Circuit

Refrigerant type
R-454B
Suction pressure
128 PSIG
Liquid pressure
409 PSIG
Evaporator saturation
51°F
Condensing saturation
122.1°F
Superheat
25°F
Subcooling
12°F

Air-Side Performance

Return-air temperature
84°F

Nitrogen Pressure Test

Test pressure held
367 PSIG

Vacuum / Evacuation

Final vacuum reading
281 microns

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

ItemDescriptionQty
518H-5A7V8X60-S8V2 5 Ton- Horizontal Variable Speed-18 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of 1
AFB-170 Add new Duct run.Install duct fittings and flexible piping for supply air duct run. Install new boot and register. Properly seal all connections and check for air leaks. - Mastic Duct Sealant 1
AFB-Bar Type Remove existing return air filter grille and replace with new. Properly seal new grill and check for air leaks. - HoneyWell T-4 thermostat 2
AZPC-10YR 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa 1
INSTALL-MEM-1-SYSTEM Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. One Maintenance Visit Per Year.26 Point A- 1

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

21 photos from this installation

Every step of this installation was documented on-site by Kyle & Edwin.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

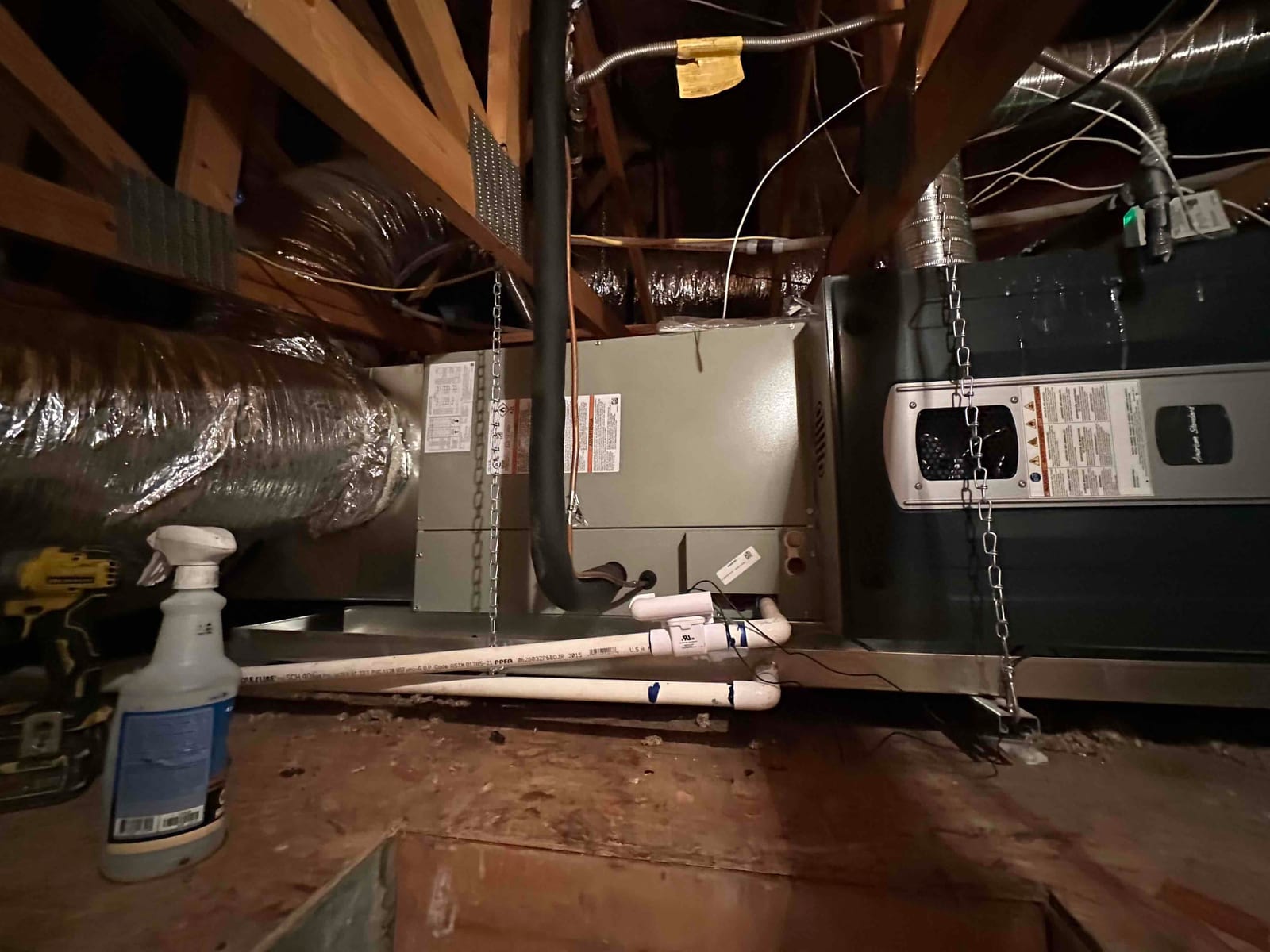

Air handler and furnace installed on a platform in the attic with insulated ductwork and PVC condensate drain piping.
Air handler and furnace installed on a platform in the attic with insulated ductwork and PVC condensate drain piping.

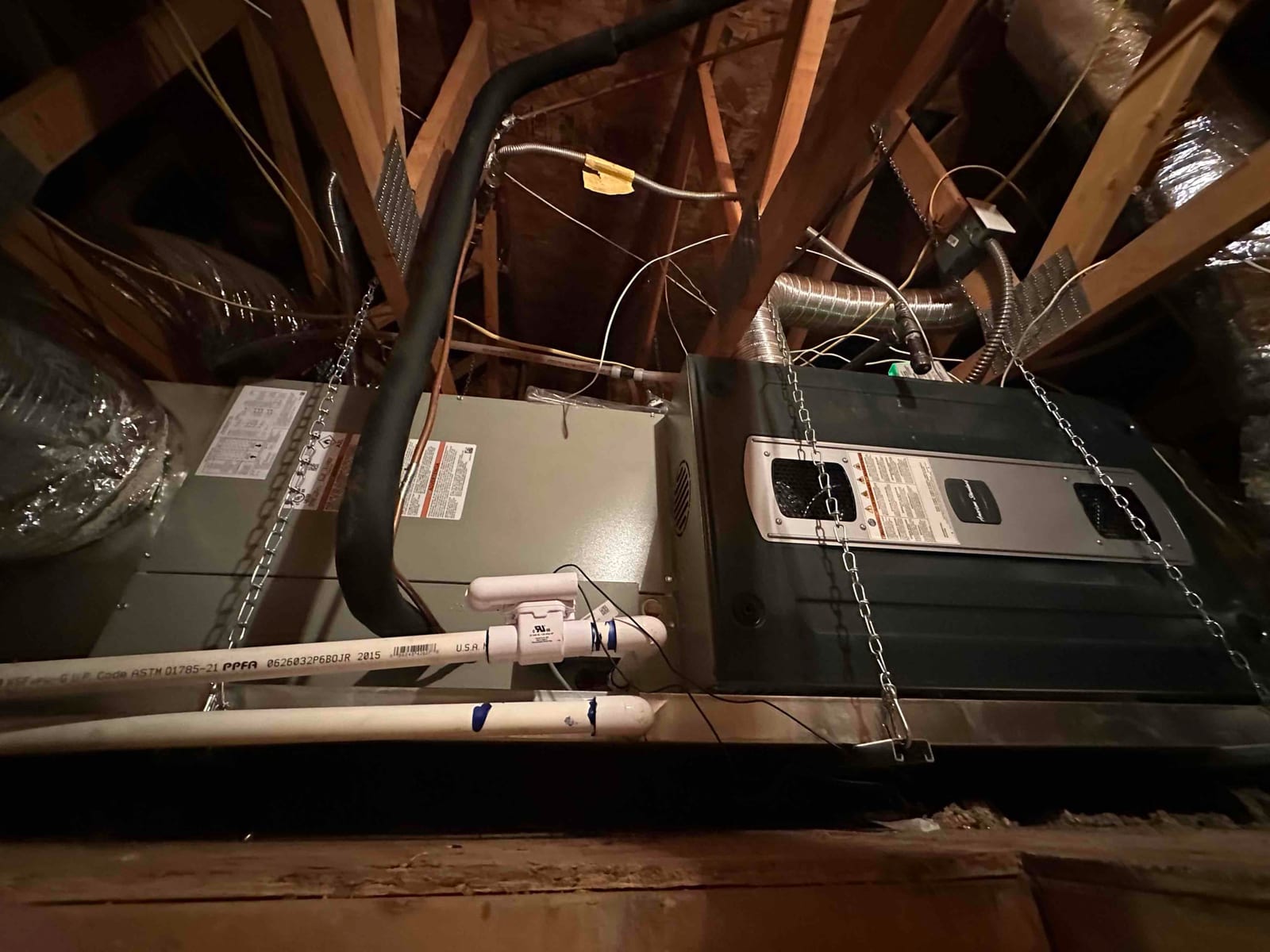

New attic air handler and furnace assembly suspended on chains with insulated refrigerant line and PVC condensate drain installed.
New attic air handler and furnace assembly suspended on chains with insulated refrigerant line and PVC condensate drain installed.

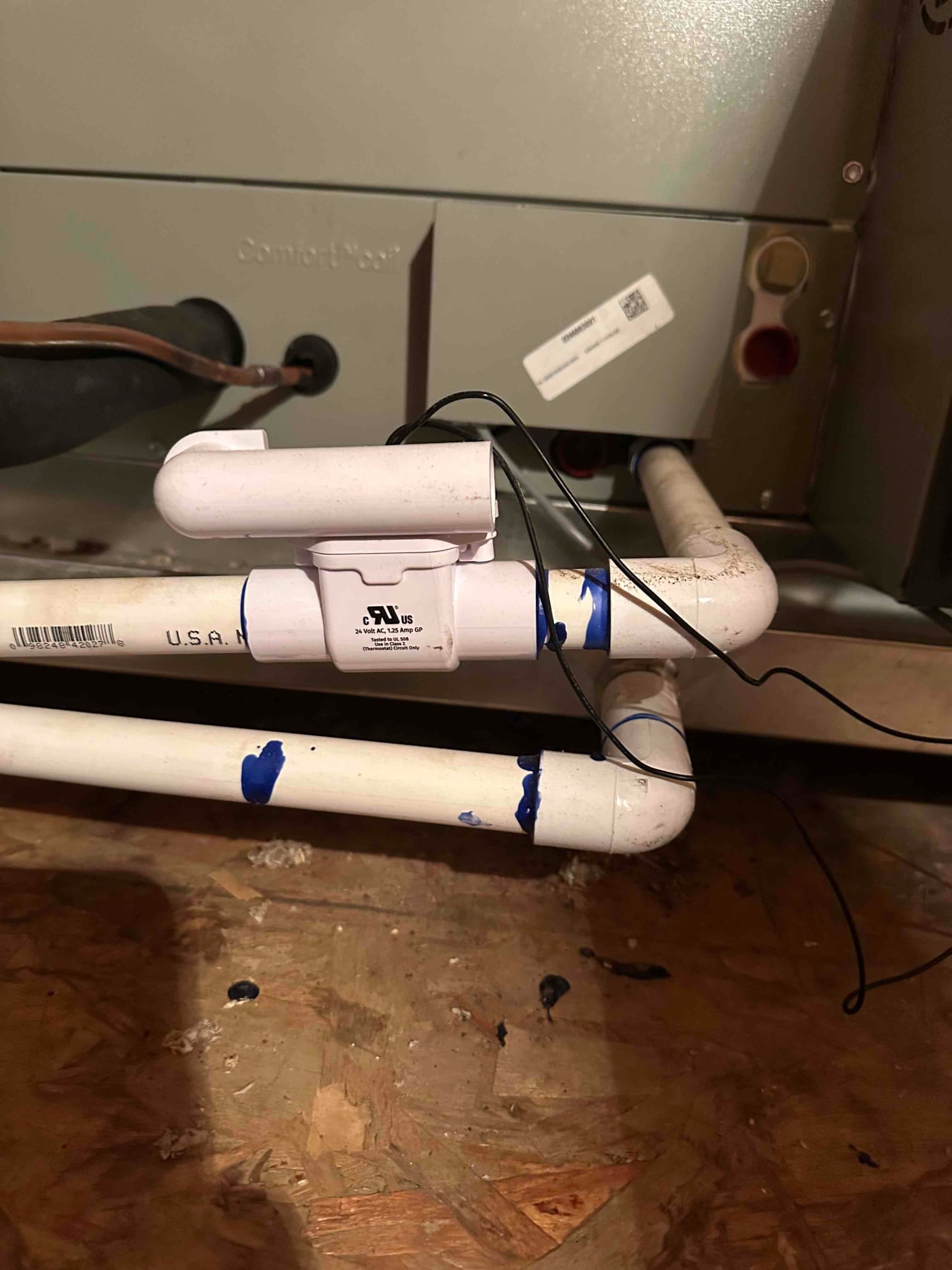

Condensate drain assembly with cleanout and trap installed at the air handler, with wiring routed alongside the PVC lines.
Condensate drain assembly with cleanout and trap installed at the air handler, with wiring routed alongside the PVC lines.

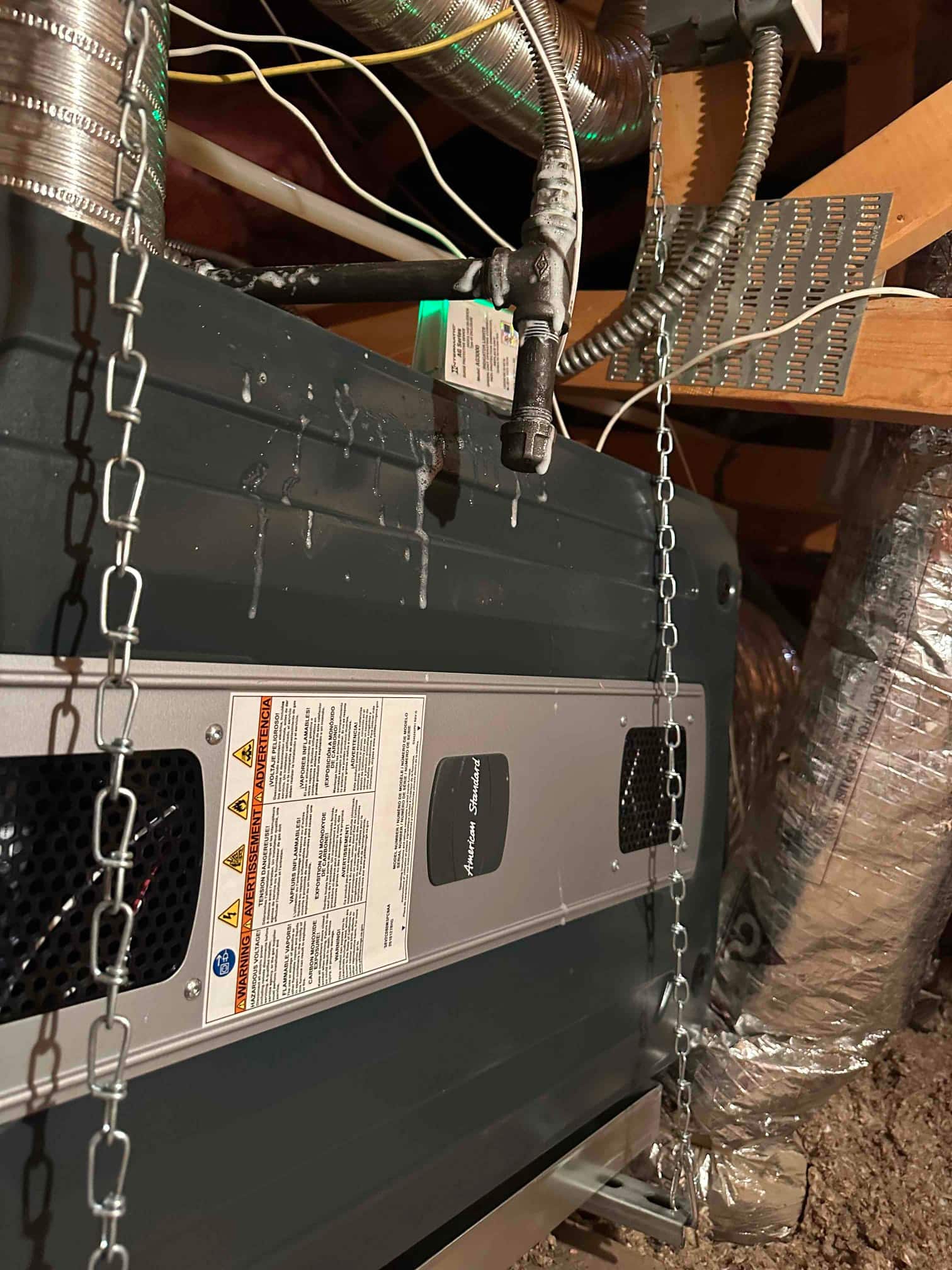

Horizontal air handler suspended from joists with chains, connected to flex duct and electrical whip, with condensate piping and trap visible.
Horizontal air handler suspended from joists with chains, connected to flex duct and electrical whip, with condensate piping and trap visible.

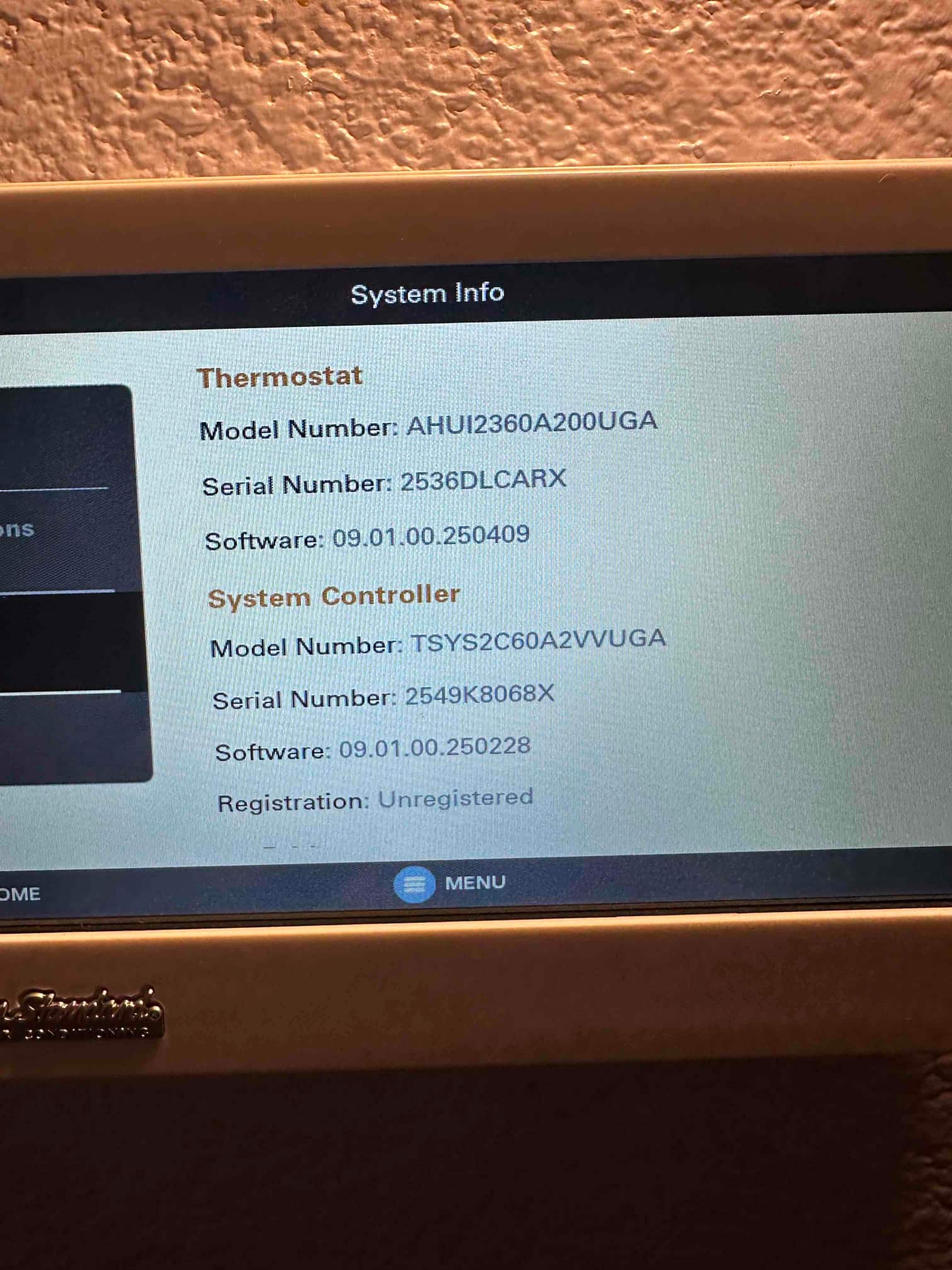

Thermostat touchscreen displays system information for thermostat and system controller during setup after installation.
Thermostat touchscreen displays system information for thermostat and system controller during setup after installation.

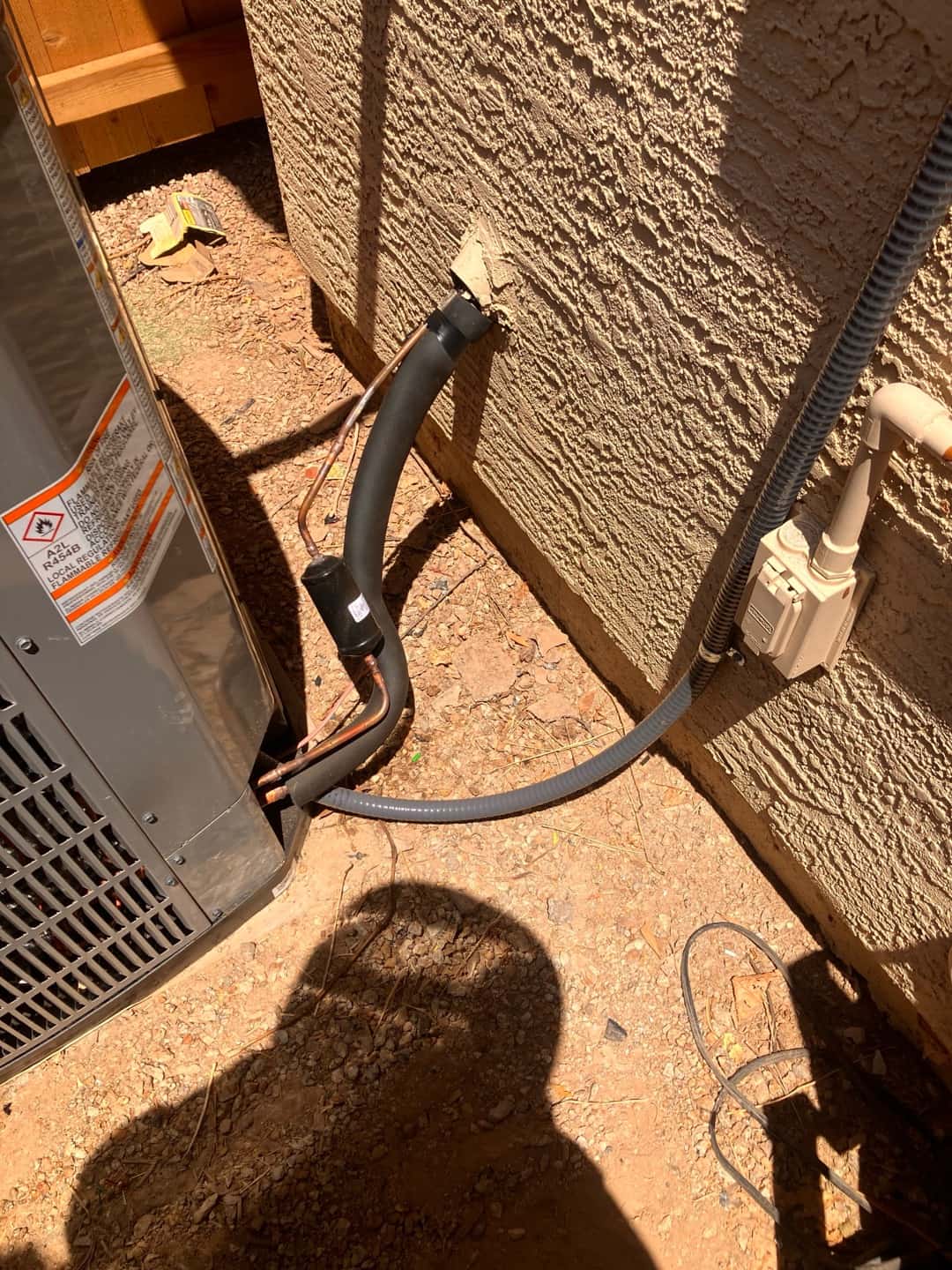

Outdoor condenser set with insulated suction line, liquid line, sealed wall penetration, and electrical whip to the disconnect.
Outdoor condenser set with insulated suction line, liquid line, sealed wall penetration, and electrical whip to the disconnect.

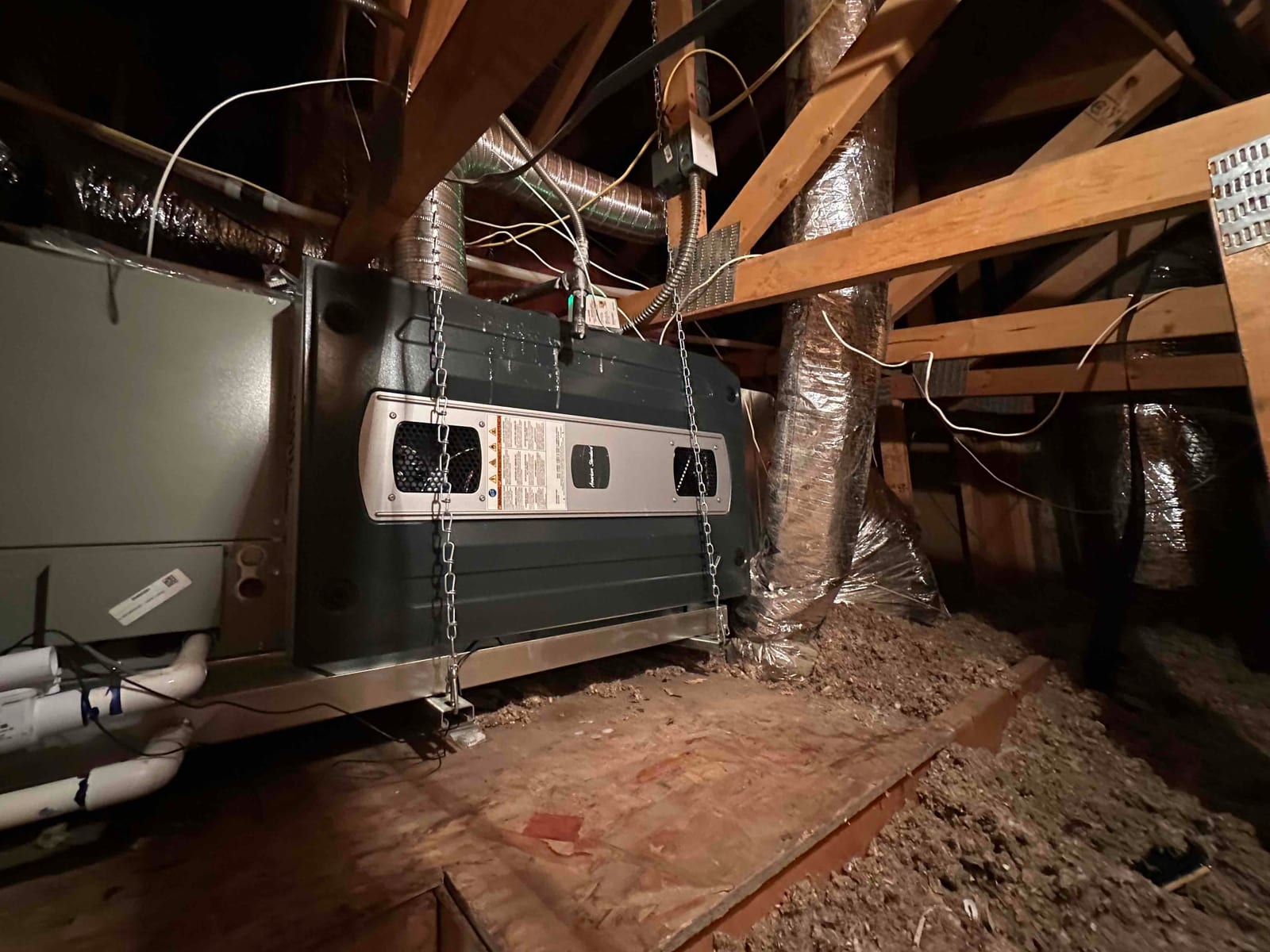

New attic air handler suspended with chains, connected to insulated ductwork and condensate drain, with electrical whip and support platform.
New attic air handler suspended with chains, connected to insulated ductwork and condensate drain, with electrical whip and support platform.

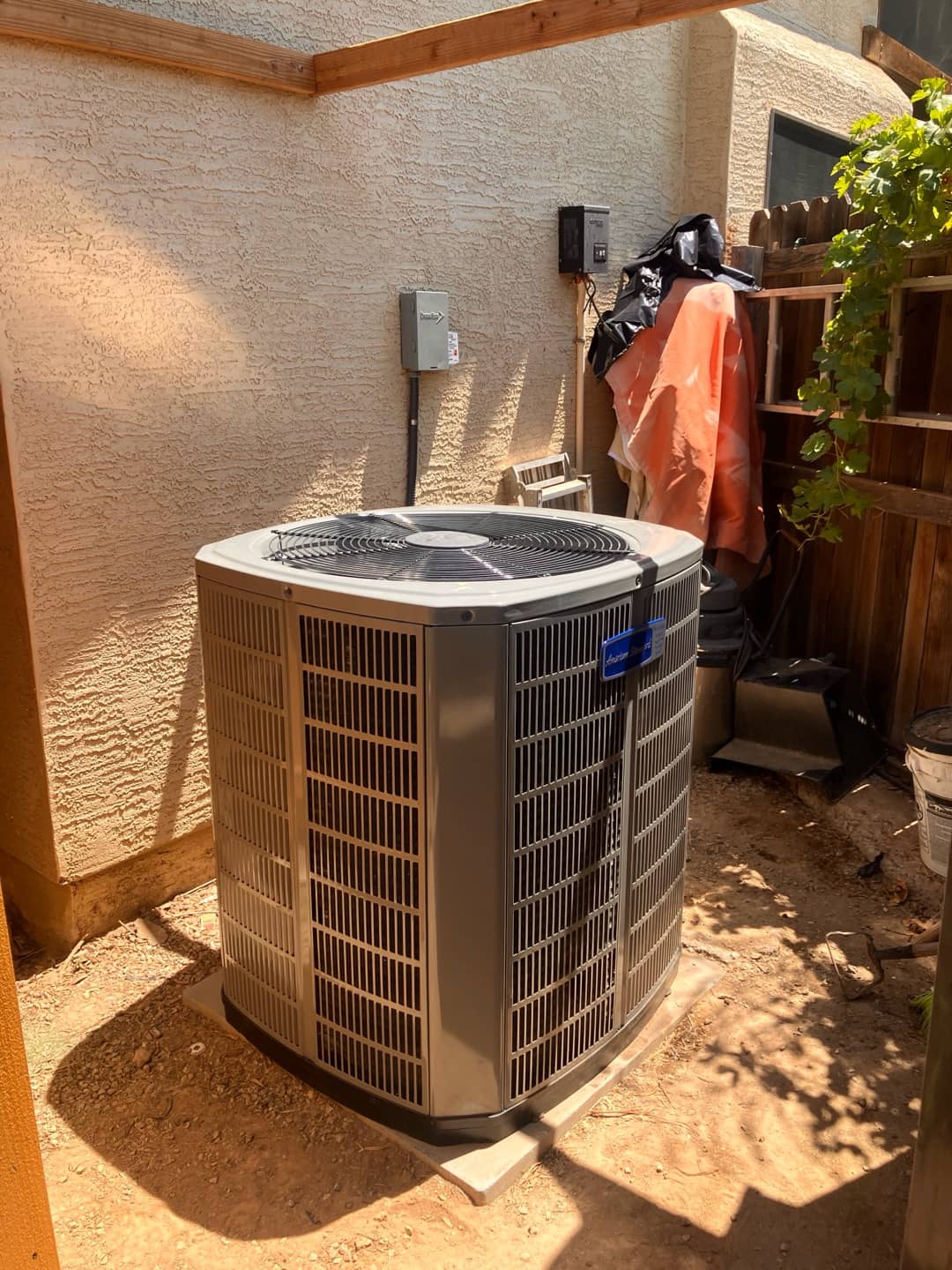

New outdoor condenser set on a level pad beside the house with disconnect mounted and line set penetration sealed.
New outdoor condenser set on a level pad beside the house with disconnect mounted and line set penetration sealed.
Thermostat touchscreen displays system information for the thermostat and system controller during setup on a newly installed HVAC system.
Thermostat touchscreen displays system information for the thermostat and system controller during setup on a newly installed HVAC system.

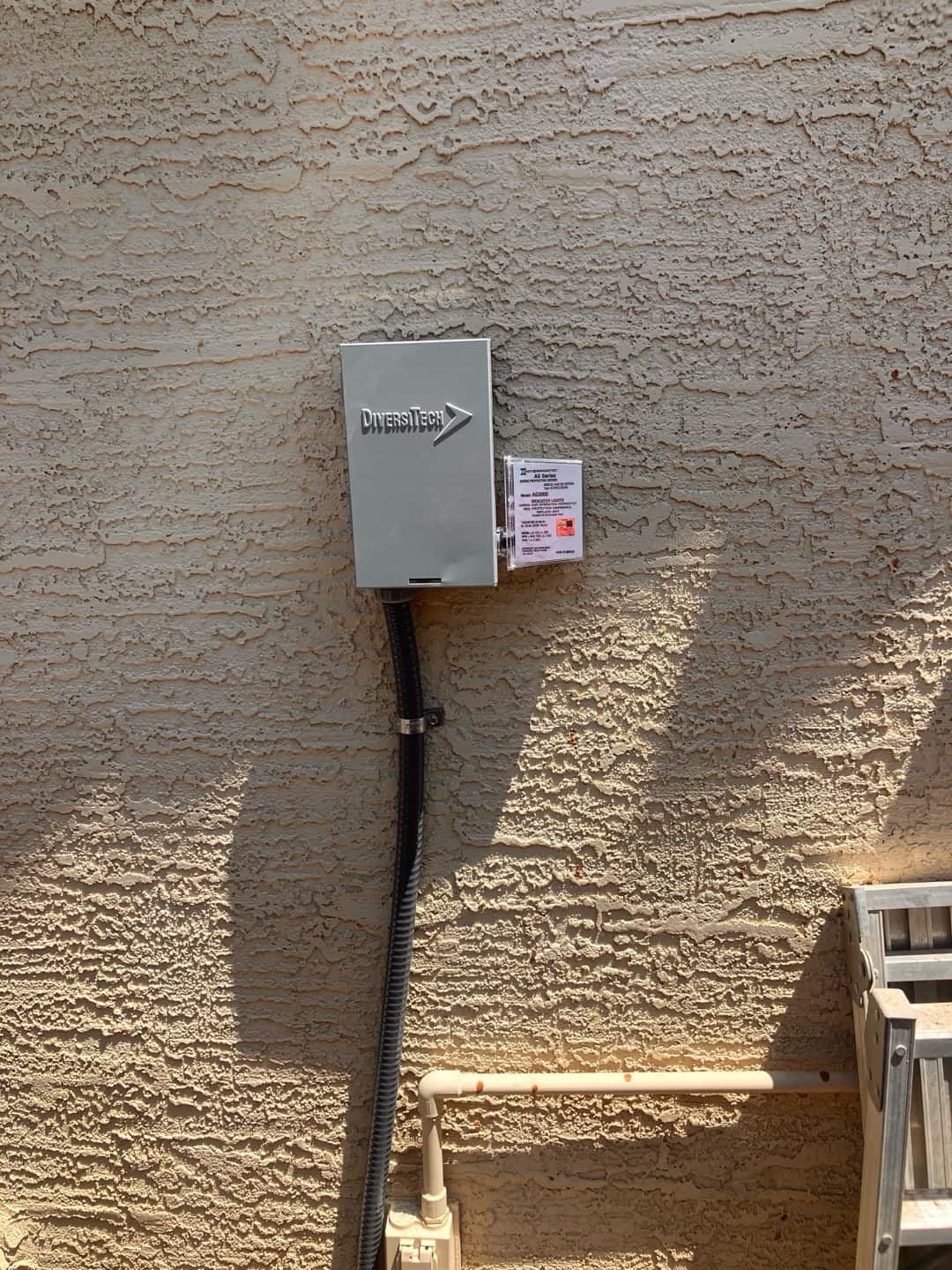

Outdoor HVAC disconnect box mounted on stucco wall with flexible conduit routed down to the service entry.
Outdoor HVAC disconnect box mounted on stucco wall with flexible conduit routed down to the service entry.

Nitrogen Pressure Test

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

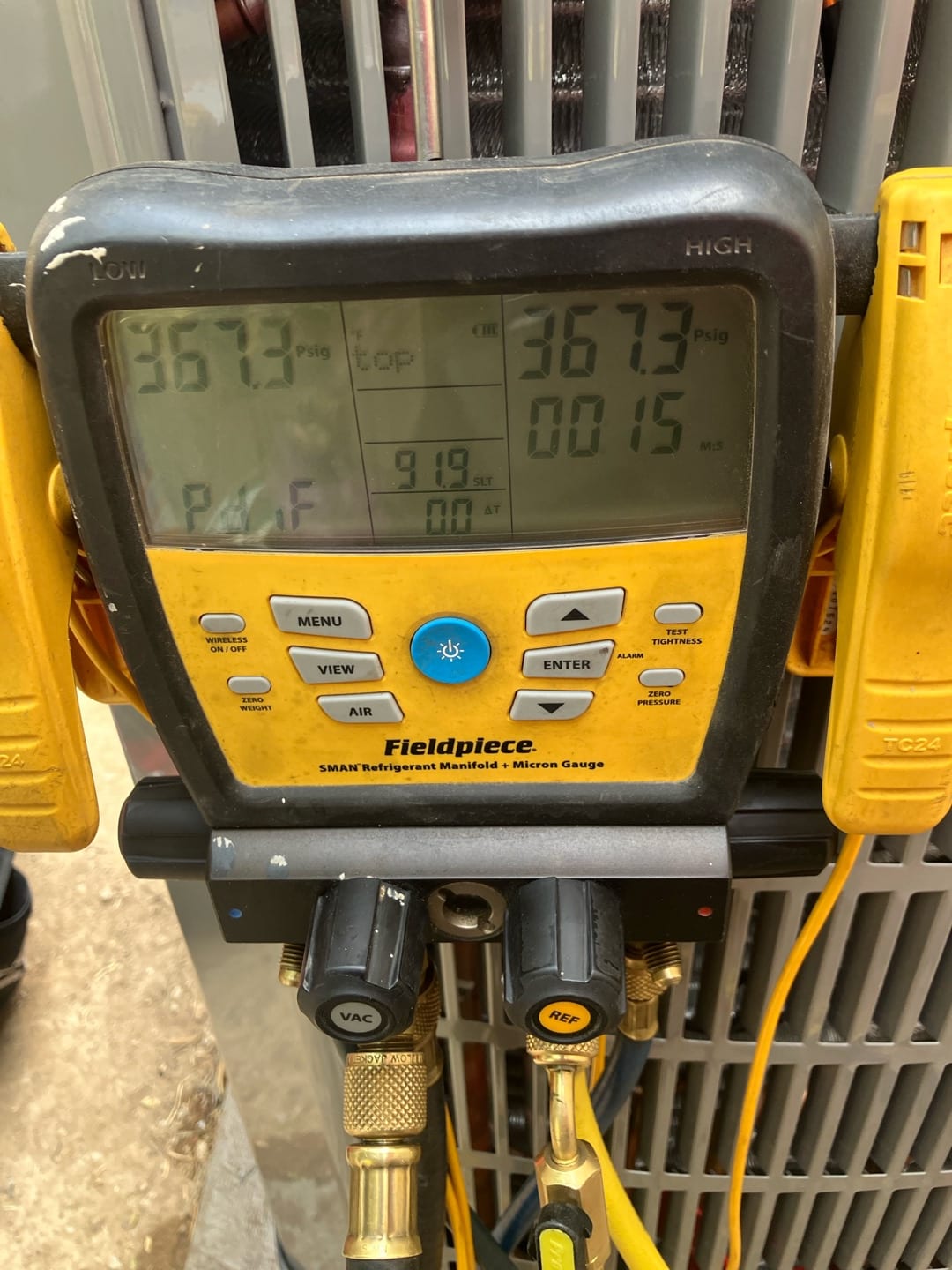

Digital manifold shows both high and low sides at 367 PSI during a nitrogen pressure test on the newly installed system.
Digital manifold shows both high and low sides at 367 PSI during a nitrogen pressure test on the newly installed system.

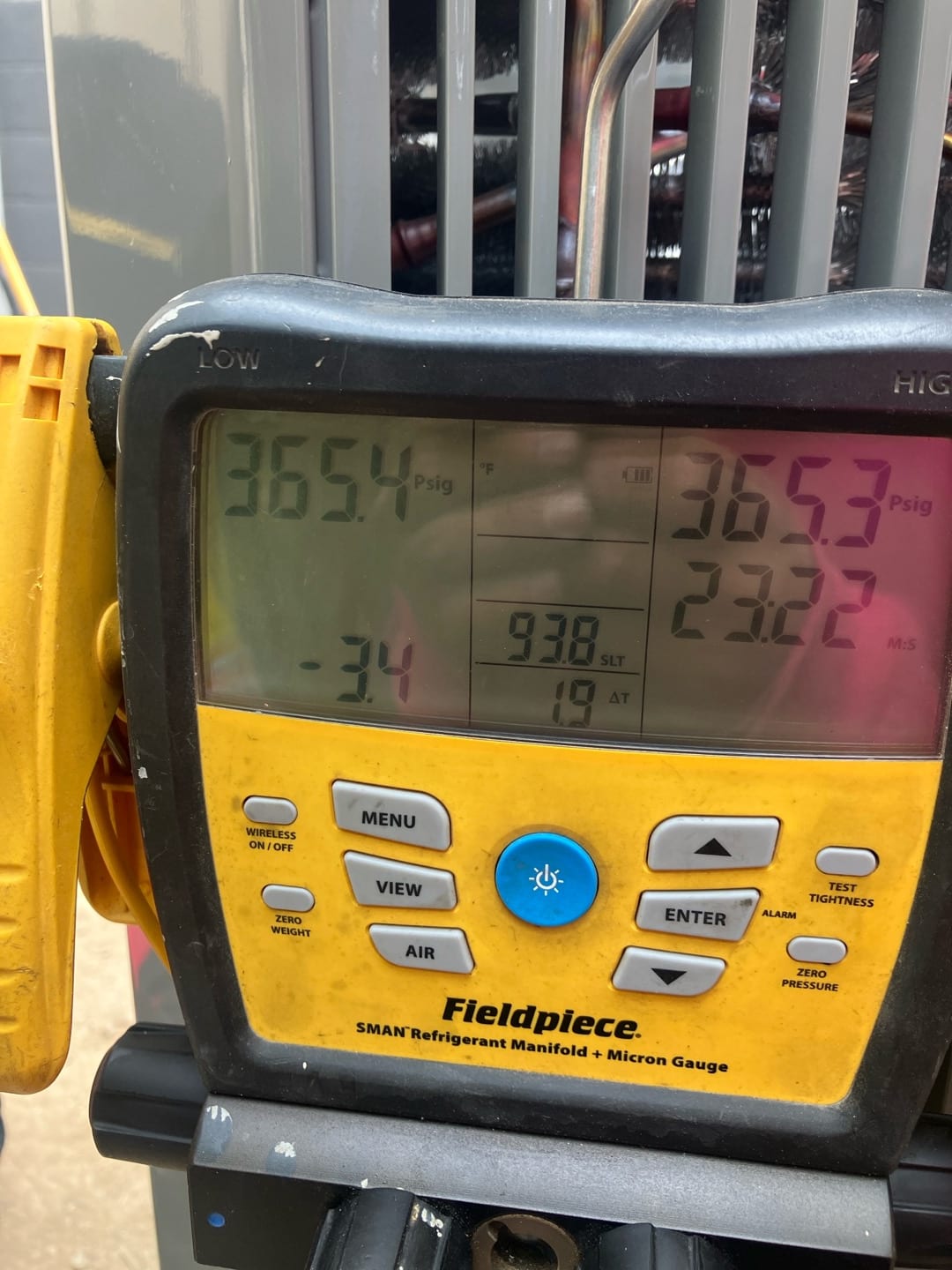

Digital manifold shows equal high-side and low-side pressures around 365 PSI, documenting a nitrogen pressure test on the new system.
Digital manifold shows equal high-side and low-side pressures around 365 PSI, documenting a nitrogen pressure test on the new system.

Vacuum / Evacuation

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

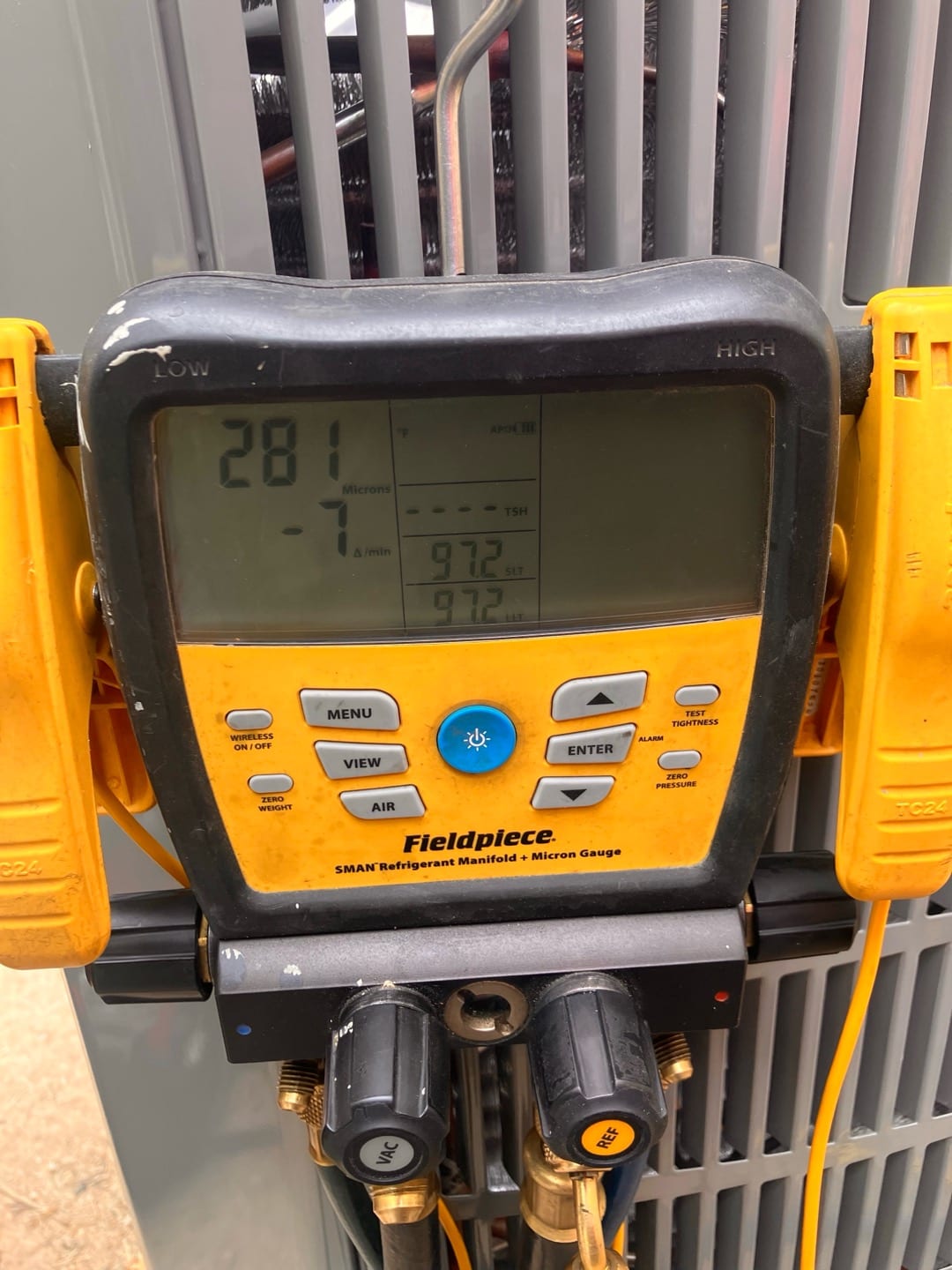

Digital micron gauge on the condenser shows 281 microns during evacuation, confirming a deep vacuum before refrigerant charging.
Digital micron gauge on the condenser shows 281 microns during evacuation, confirming a deep vacuum before refrigerant charging.

Refrigerant Commissioning

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

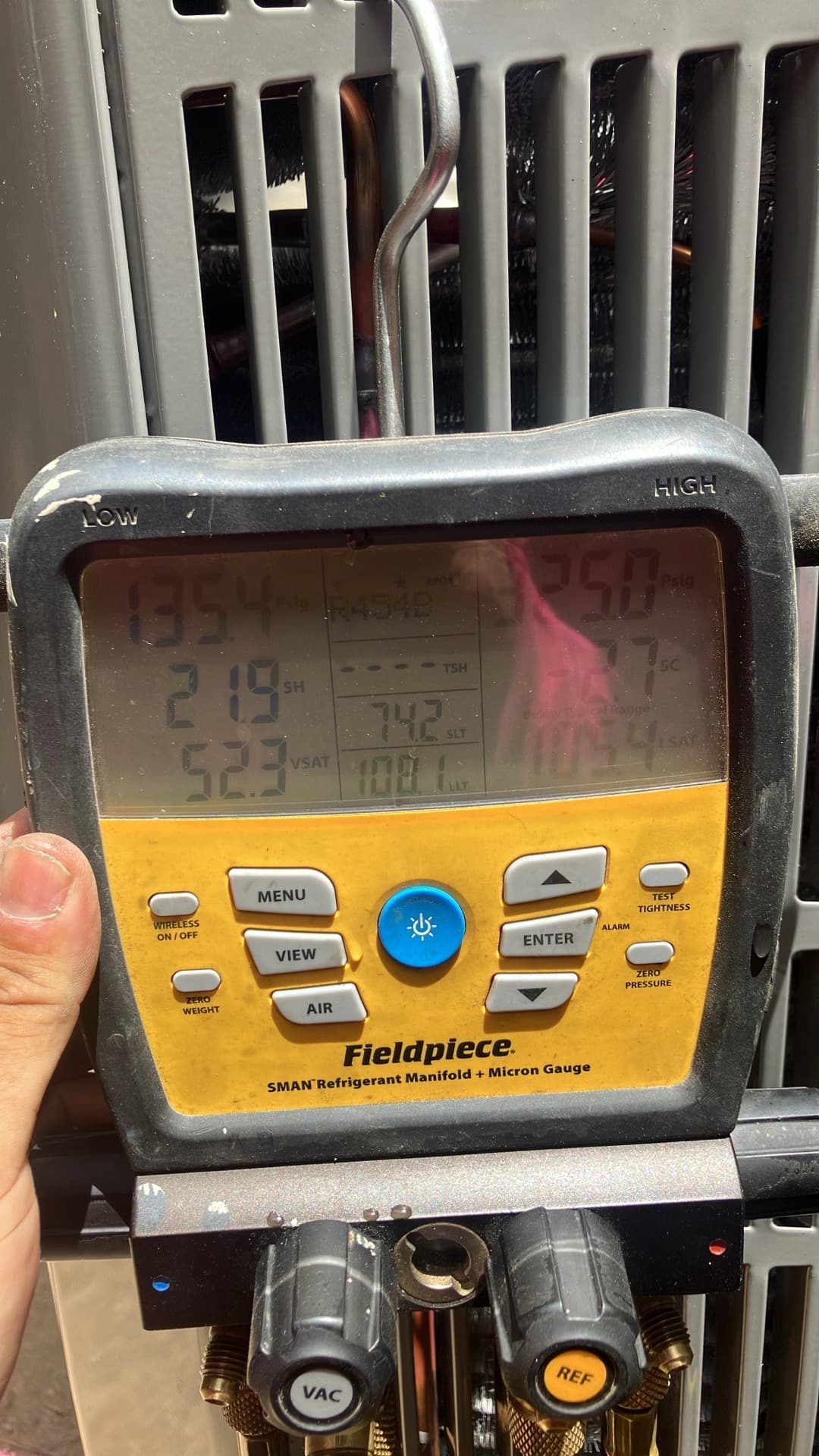

Digital manifold attached to the outdoor unit displays operating pressures and temperatures during system commissioning.
Digital manifold attached to the outdoor unit displays operating pressures and temperatures during system commissioning.
Wireless refrigerant scale display shows charge amount of -1 lb 0.5 oz during system charging at the outdoor unit.
Wireless refrigerant scale display shows charge amount of -1 lb 0.5 oz during system charging at the outdoor unit.
Digital manifold shows system operating pressures with distinct low and high sides during commissioning at the outdoor unit.
Digital manifold shows system operating pressures with distinct low and high sides during commissioning at the outdoor unit.
Digital manifold on the condenser shows operating pressures with distinct low and high sides during system commissioning.
Digital manifold on the condenser shows operating pressures with distinct low and high sides during system commissioning.

Air-Side Commissioning

Return and supply air temperatures measured to verify the temperature split falls in the target window.

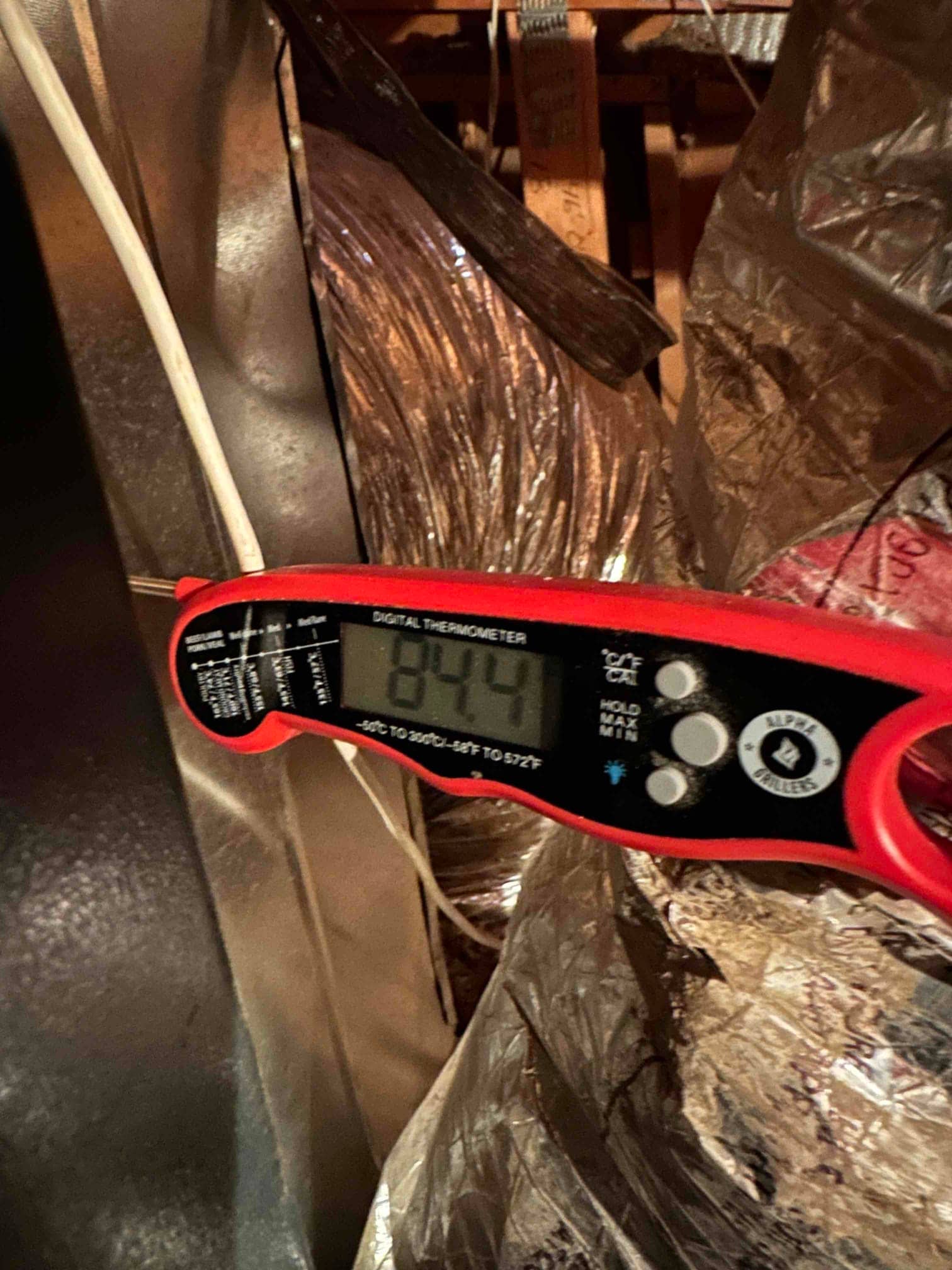

Digital thermometer probe measures return air temperature at 84°F near insulated ducting during system commissioning.
Digital thermometer probe measures return air temperature at 84°F near insulated ducting during system commissioning.

Equipment Detail Shots

Close-ups of the components that make up the system.

Thermostat touchscreen shows an equipment summary list for the installed HVAC system components inside the home.
Thermostat touchscreen shows an equipment summary list for the installed HVAC system components inside the home.
Thermostat display shows an equipment summary screen listing connected HVAC components and their identifiers.
Thermostat display shows an equipment summary screen listing connected HVAC components and their identifiers.

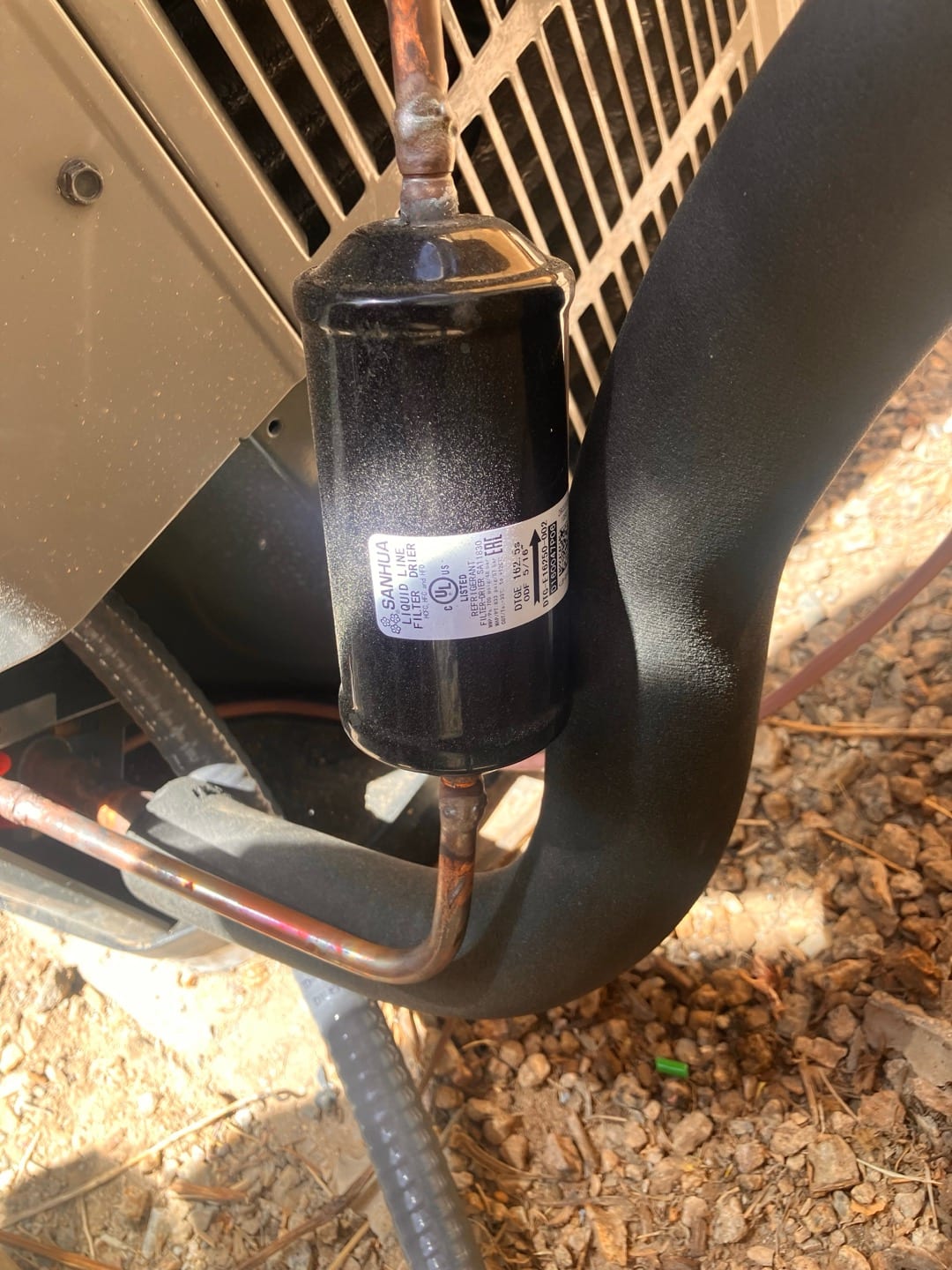

Liquid-line filter drier brazed into the refrigerant circuit beside the outdoor condenser, with insulated suction line routed nearby.
Liquid-line filter drier brazed into the refrigerant circuit beside the outdoor condenser, with insulated suction line routed nearby.
— Frequently Asked

Questions about this installation

What kind of system was installed in this Litchfield Park job?

The installer supplied and installed a new 5-ton variable speed American Standard air conditioning system, along with a new return and supply plenum, a dedicated duct run to the front bedroom, and T-Bar return grills. The installation also included duct cleaning services and a 10-year labor warranty, which requires one maintenance visit per year.

How much does a new air conditioning system cost in Phoenix?

Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.

Does AZ Perfect Comfort offer financing for HVAC installations?

Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.

Does AZ Perfect Comfort install in Litchfield Park?

Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Litchfield Park and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.

Is the new equipment covered by a warranty?

Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
