Real Installation · East Phoenix
Mitsubishi Mini-Split System Installation in East Phoenix — February 2026
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Swap the 9k BTU unit from the bedroom with the 12k BTU unit from the bathroom.
East Phoenix · installed February 6, 2026
— At a Glance
Location
East Phoenix
Completed
February 6, 2026
System Type
Mini-Split System
Brand
Mitsubishi
Labor Warranty
1-Year Labor Warranty
Total Investment
$7,423
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Mini-Split Head
- Brand
- Mitzubishi
- Model
- MSZ-GX09NL
New — installed 2026
Newly Installed
Mini-Split Head
- Brand
- Mitsubishi
- Model
- MSZ-GX12NL
New — installed 2026
Your Coverage on This Install
Labor Warranty
1-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the Air Conditioning work AZ Perfect Comfort performs across Phoenix, AZ. You can browse more real Mitsubishi Mini-Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle, Will & Andrew from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A
- Suction pressure
- 108 PSIG
- Liquid pressure
- 0 PSIG
- Evaporator saturation
- 29.5°F
- Condensing saturation
- 58.4°F
- Superheat
- 445°F
- Subcooling
- 0°F
Air-Side Performance
- Return-air temperature
- 74°F
- Supply-air temperature
- 53.3°F
- Temperature split
- 20.7°F
Vacuum / Evacuation
- Final vacuum reading
- 88 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 24000BTU-2P-MS | 24000 BTU 2 Port Minisplit condenserMitsubishi | 1 |
| 9000BTU-AH | 9,000 BTU Mini-Split AirhandlerMitsubishi | 1 |
| 12000BTU-AH | Mitsubishi12,000 BTU Mini-Split Airhandler | 1 |
| 2Port-MS | 2 Port Ductless Mini Split Condenser and 2 Indoor unitsInstallation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimate/invoice. Any sign | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
13 photos from this installation
Every step of this installation was documented on-site by Kyle, Will & Andrew.

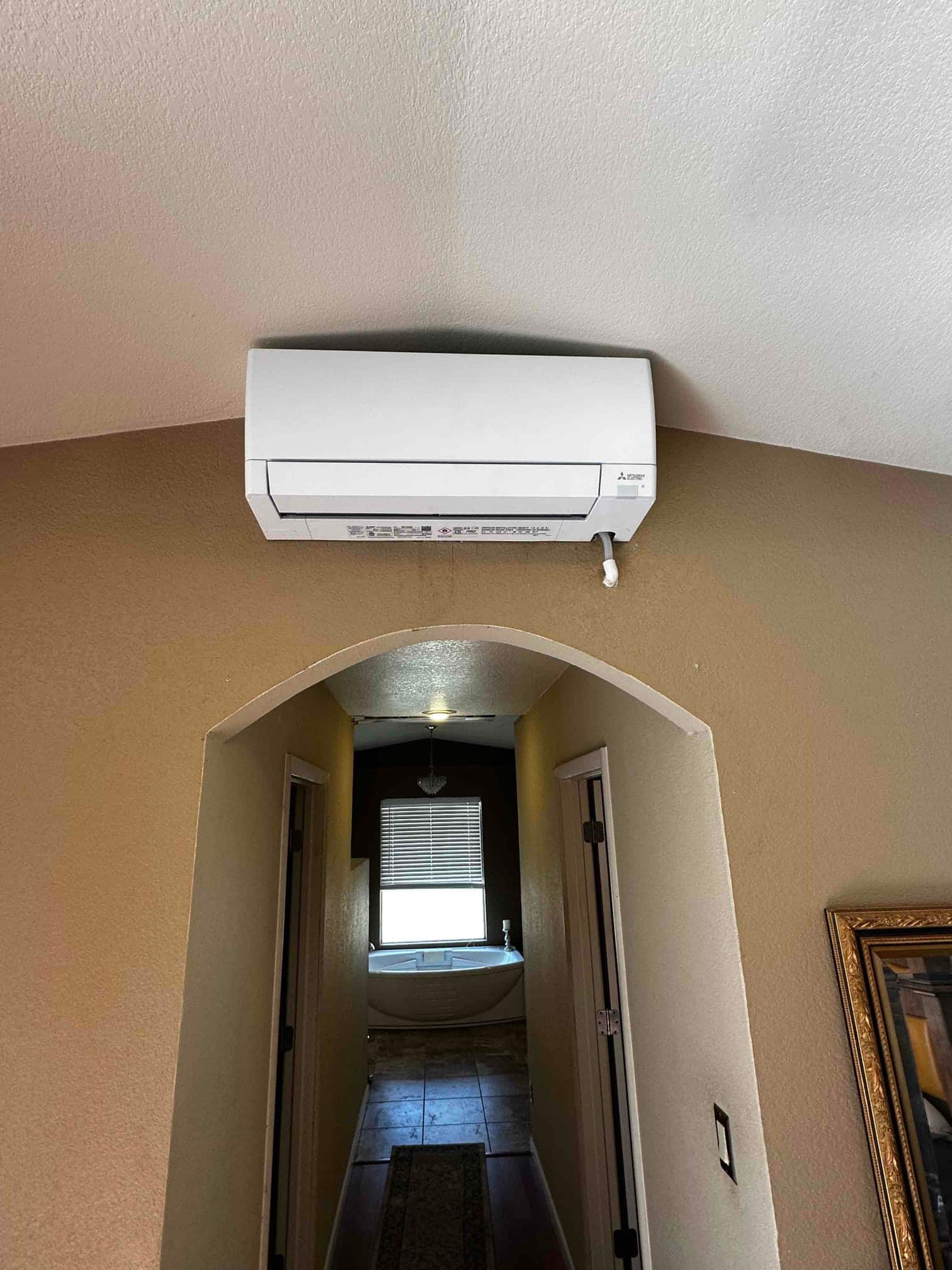

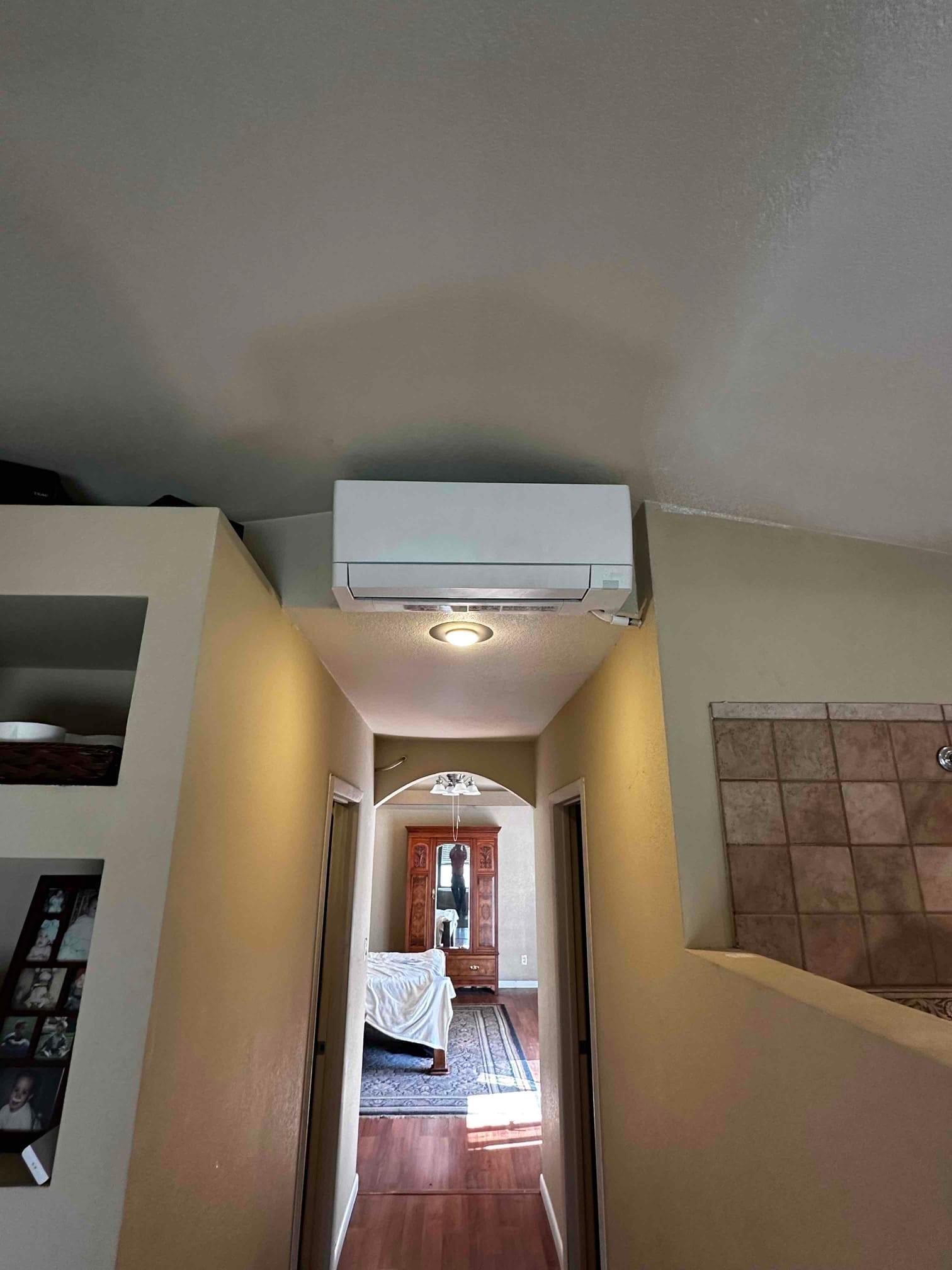

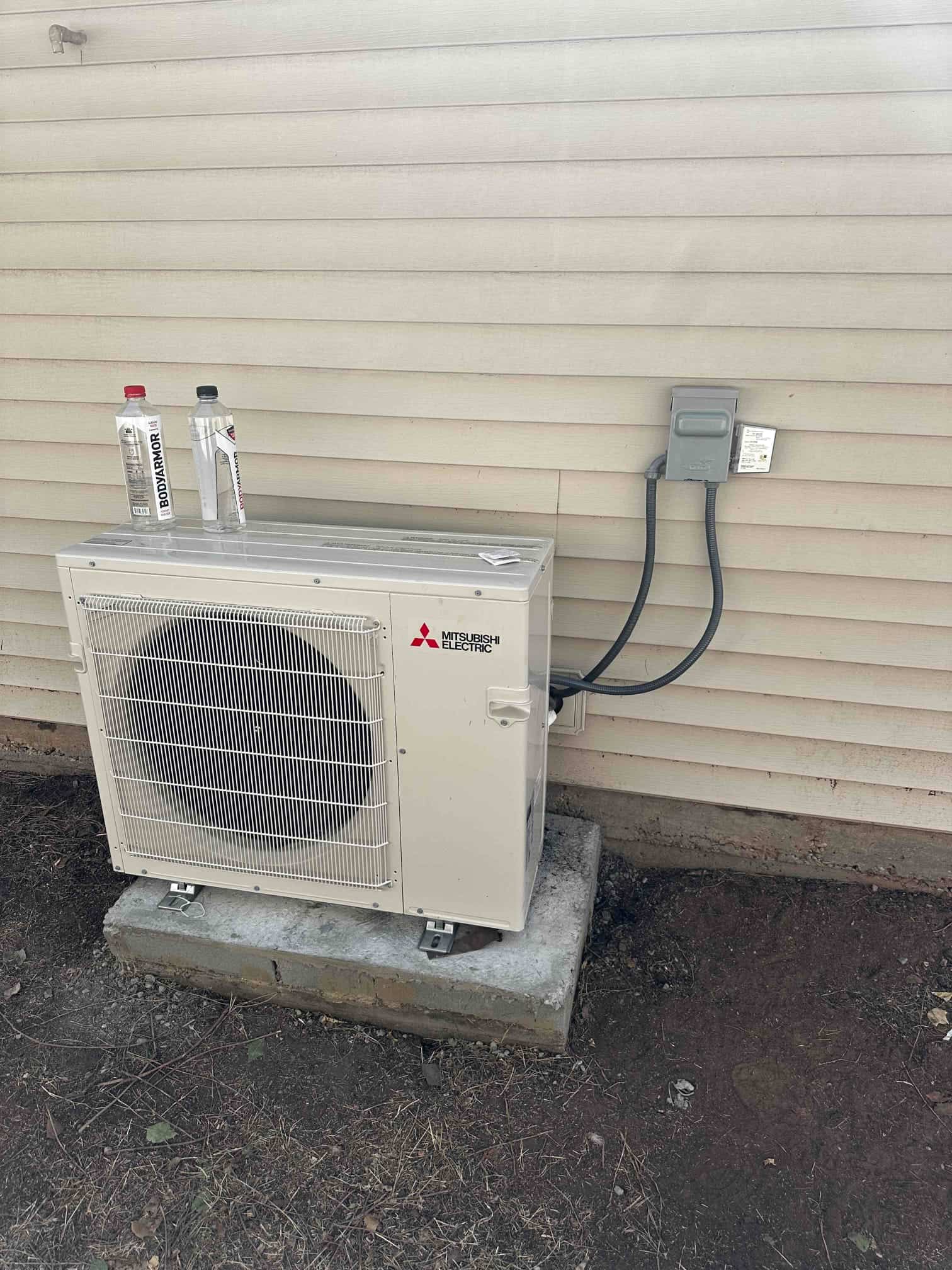

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

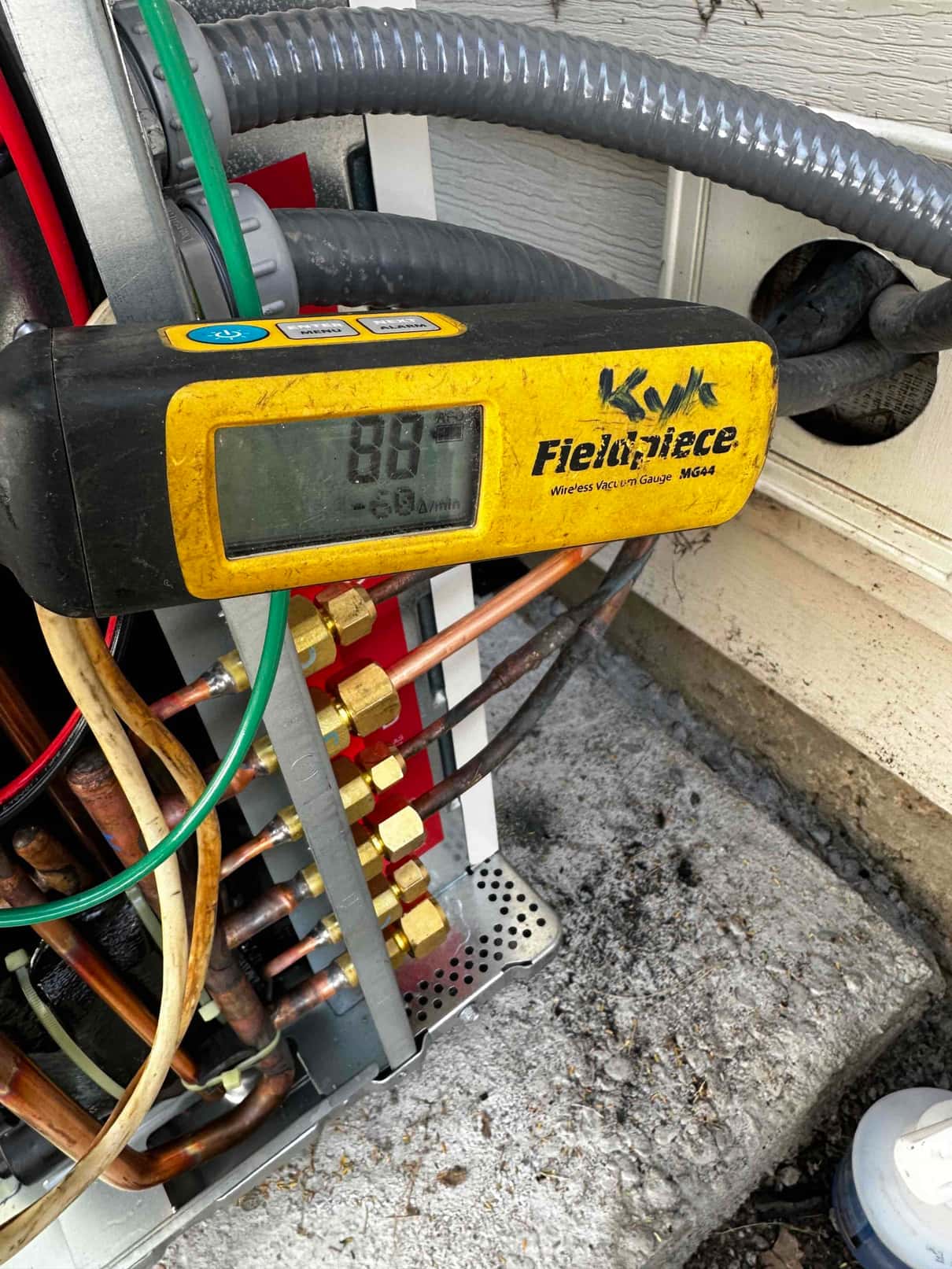

Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

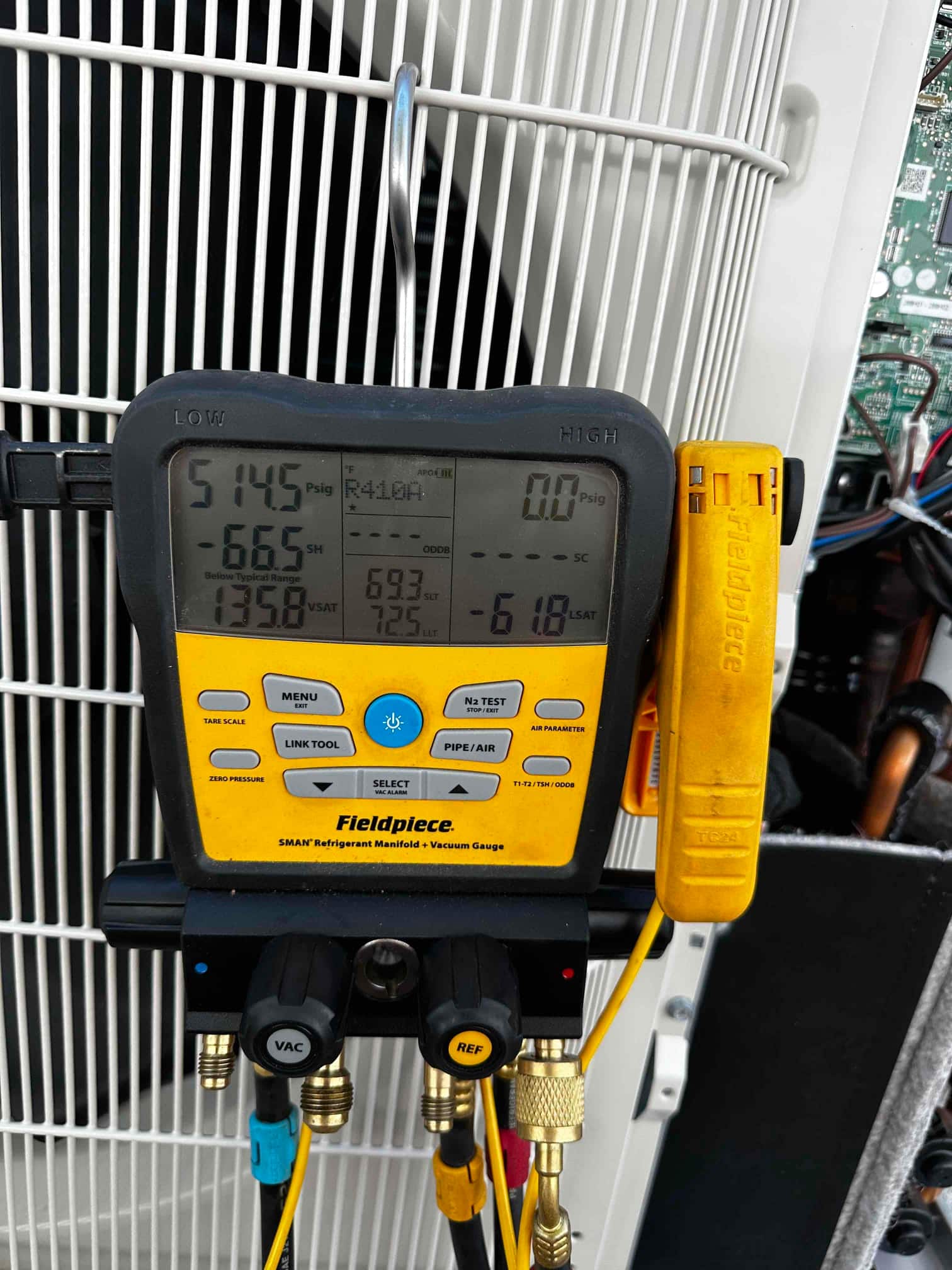

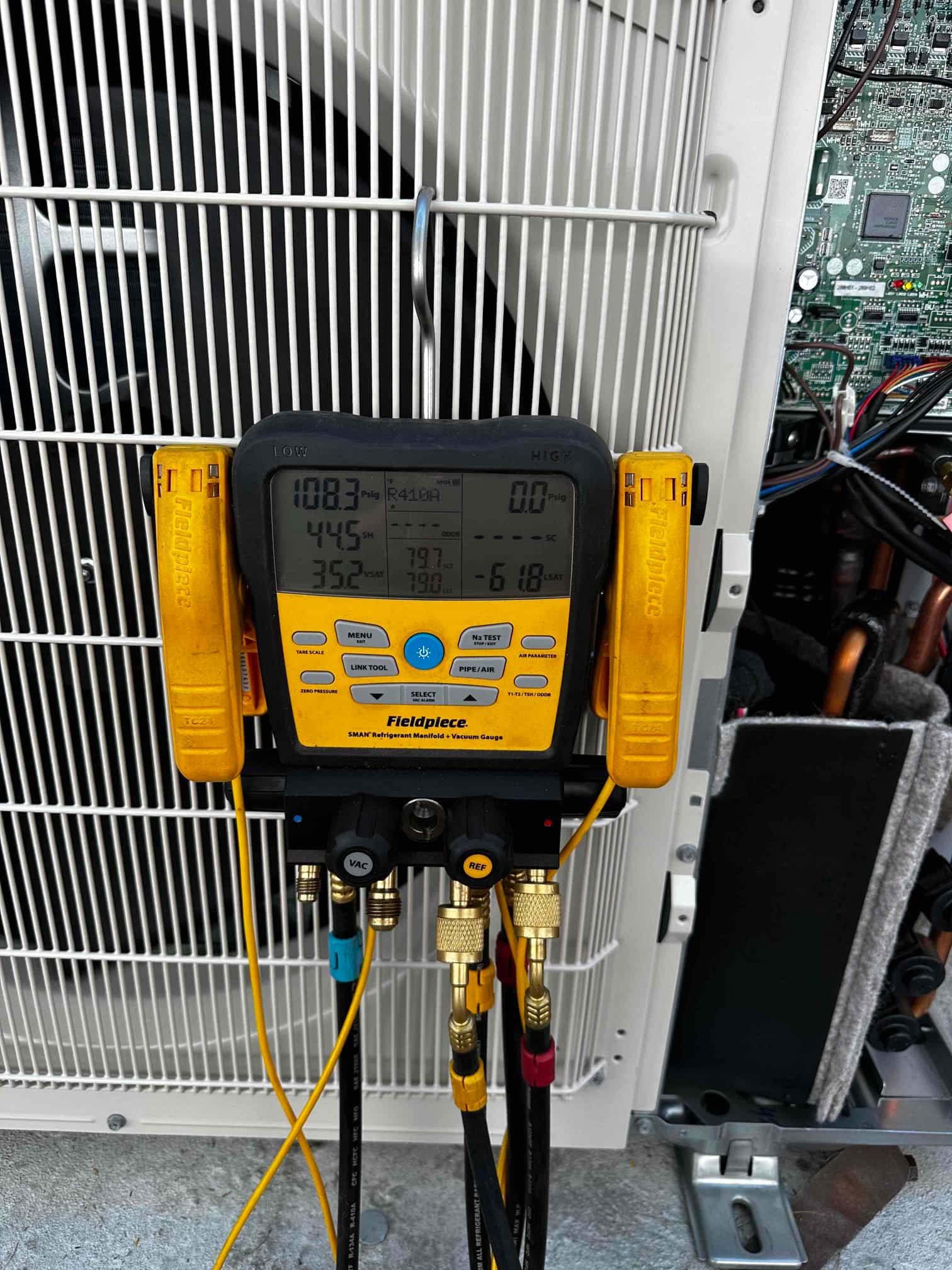

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

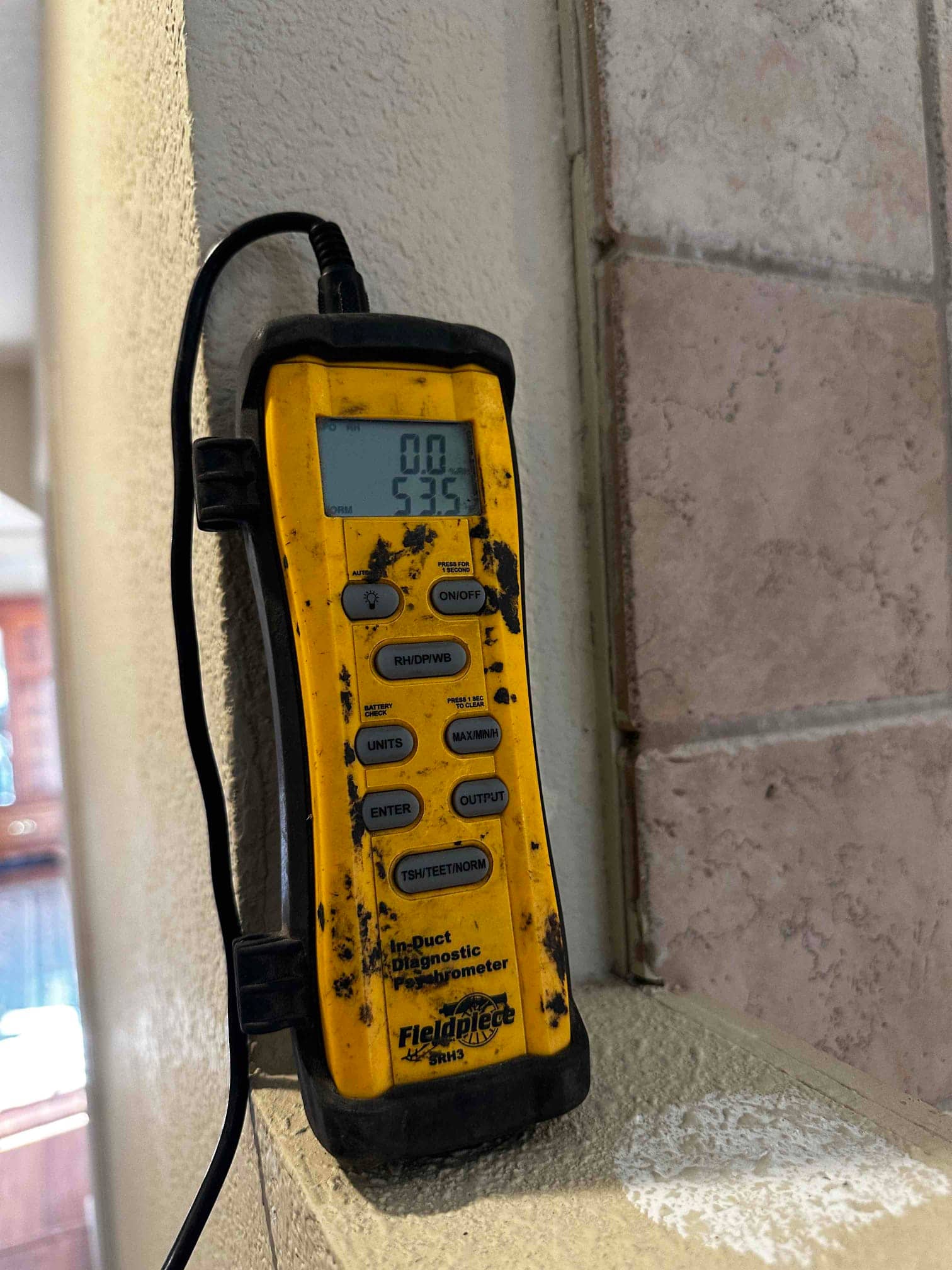

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this East Phoenix job?
The installer completed the installation of a Mitsubishi Multizone Ductless system, which included a 24,000 BTU outdoor unit along with 12,000 BTU and 9,000 BTU indoor head units. This system was chosen to provide efficient heating and cooling for multiple zones in the home.
How much does a new mini-split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in East Phoenix?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout East Phoenix and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
