Newly Installed
Ductless Indoor-Outdoor Bundle
- Brand
- NG
- Model
- IBMH241A-OBMH241A
New — installed 2026
Real Installation · Central Glendale
24,000 BTU Mini-Split System Installation in Central Glendale — June 2025
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of two 24K NG mini splits with pumps.
Central Glendale · installed June 5, 2025
— At a Glance
Location
Central Glendale
Completed
June 5, 2025
System Type
Mini-Split System
Brand
NG
Efficiency
18.5 SEER
Total Investment
$9,720
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the Air Conditioning work AZ Perfect Comfort performs across Glendale, AZ. You can browse more real 24000 BTU Mini-Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
Air-Side Performance
- Return-air temperature
- 79°F
- Supply-air temperature
- 54°F
- Temperature split
- 25°F
Nitrogen Pressure Test
- Test pressure held
- 101 PSIG
Vacuum / Evacuation
- Final vacuum reading
- 161 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 24000BTU-NG-MiniSplit | 24000 BTU- Mini-Split. Variable Speed 18.5 SEER Single Zone Mini-Split Heat Pump and AirHandlerInstallation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at | 2 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
14 photos from this installation
Every step of this installation was documented on-site by Kyle.
Installation Progress

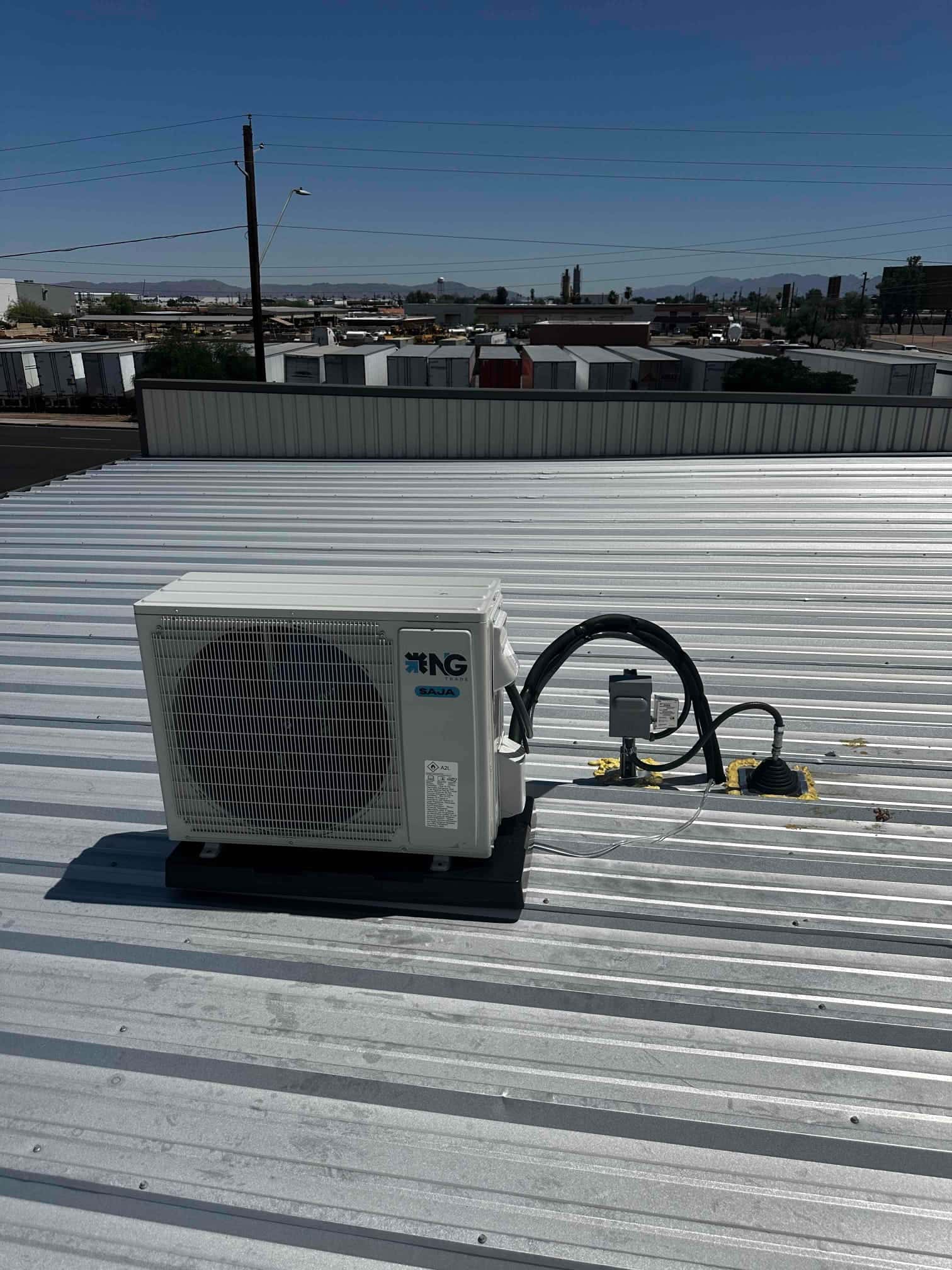

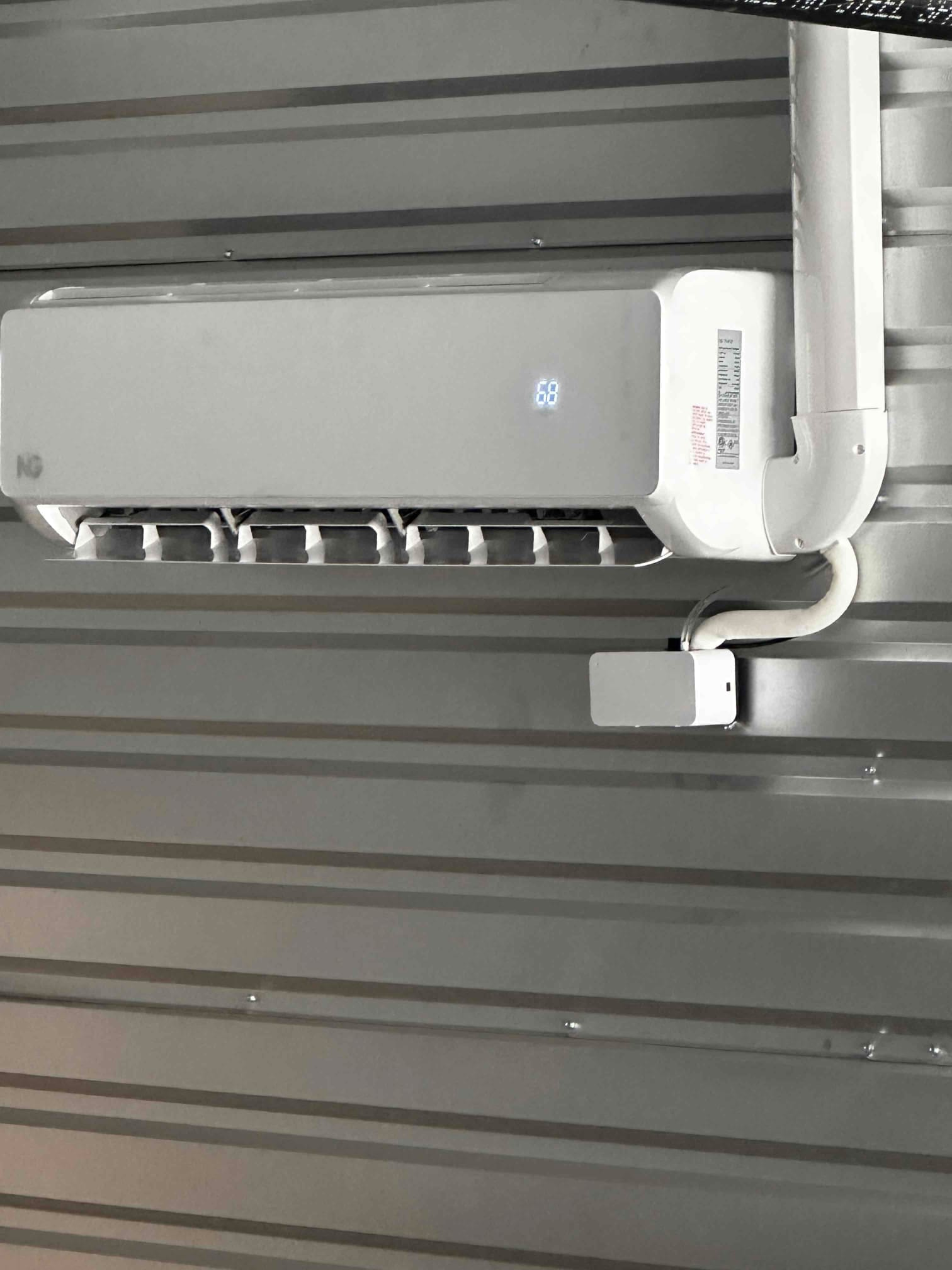

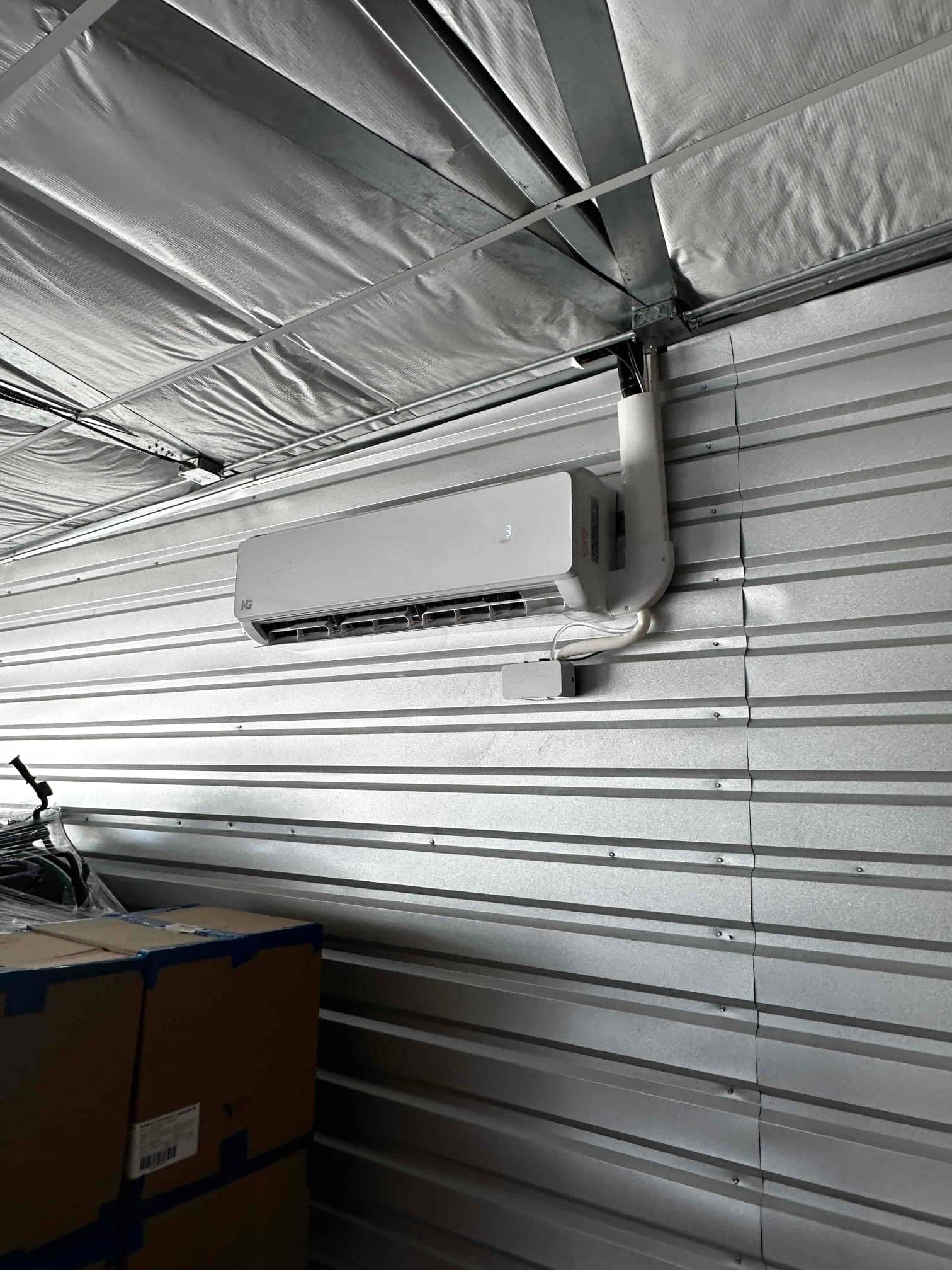

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.
Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.
Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

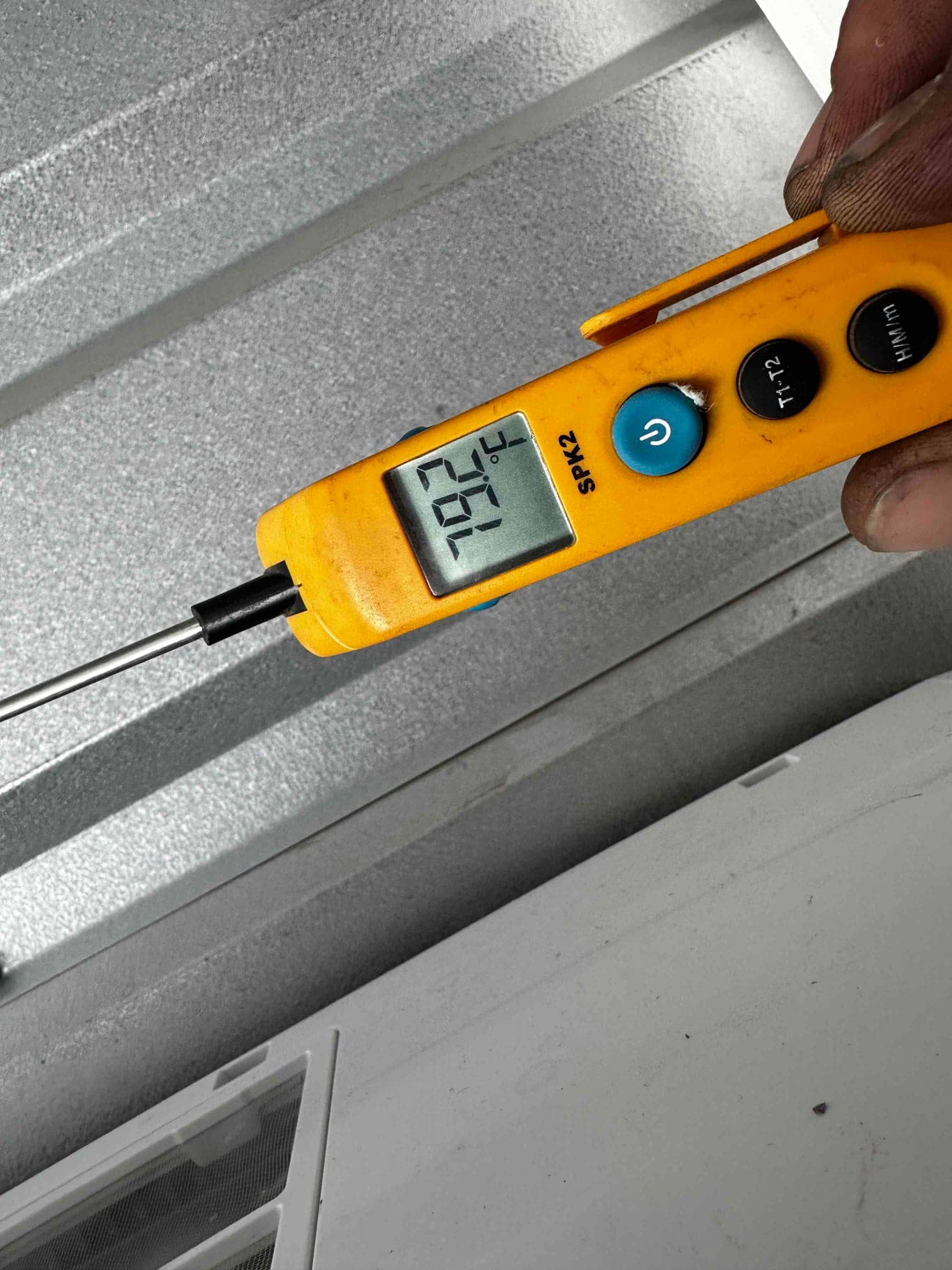

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Central Glendale job?
The installer installed two 24,000 BTU mini-split systems in the shop to provide efficient heating and cooling. This solution was chosen to enhance the climate control in the space.
How much does a new mini-split system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Central Glendale?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Central Glendale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
