Newly Installed
Furnace
- Brand
- American Standard
- Model
- S8V2C080M5PCBAA
- Matched
- 4-Ton airflow
New — installed 2026
Real Installation · Cave Creek
4-Ton Trane AC and Furnace Split System Installation in Cave Creek — August 2026
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of a Platinum 20X 4-ton variable speed vertical furnace and coil with AC condenser.
Cave Creek · installed August 3, 2026
— At a Glance
Location
Cave Creek
Completed
August 3, 2026
System Type
AC + Furnace Split System
Capacity
4-Ton
Brand
Trane
Efficiency
20 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$16,807
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
AC condenser
- Brand
- American Standard
- Model
- 5A7V0X48A1000BA
- Capacity
- 4-Ton
- Efficiency
- 20 SEER2
New — installed 2026
Newly Installed
Evaporator Coil
- Brand
- American Standard
- Model
- 5TXCC009AS3HCAA
- Matched
- 4-Ton airflow
New — installed 2026
Newly Installed
Thermostat
- Brand
- American Standard
- Model
- ALINK360A2VVUG
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty
Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Cave Creek, AZ. You can browse more real 4-Ton Trane AC and Furnace Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle & Edwin from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-454B
- Suction pressure
- 131 PSIG
- Liquid pressure
- 382 PSIG
- Evaporator saturation
- 52.9°F
- Condensing saturation
- 117.7°F
- Superheat
- 20°F
- Subcooling
- 14°F
Air-Side Performance
- Return-air temperature
- 68.9°F
- Supply-air temperature
- 61°F
- Temperature split
- 7.9°F
Nitrogen Pressure Test
- Test pressure held
- 480 PSIG
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 420V-5A7V0X48-S8V2 | Vertical 4 Ton- Premium Variable Speed -20 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bot | 1 |
| CRANE | Crane Service needed for work to be performed. AZ Perfect Comfort will be responsible for scheduling. Customers cannot schedule their own crane service. | 1 |
| AZPC-10YR | 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa | 1 |
| INSTALL-MEM-1-SYSTEM | Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. One Maintenance Visit Per Year.26 Point A- | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
18 photos from this installation
Every step of this installation was documented on-site by Kyle & Edwin.

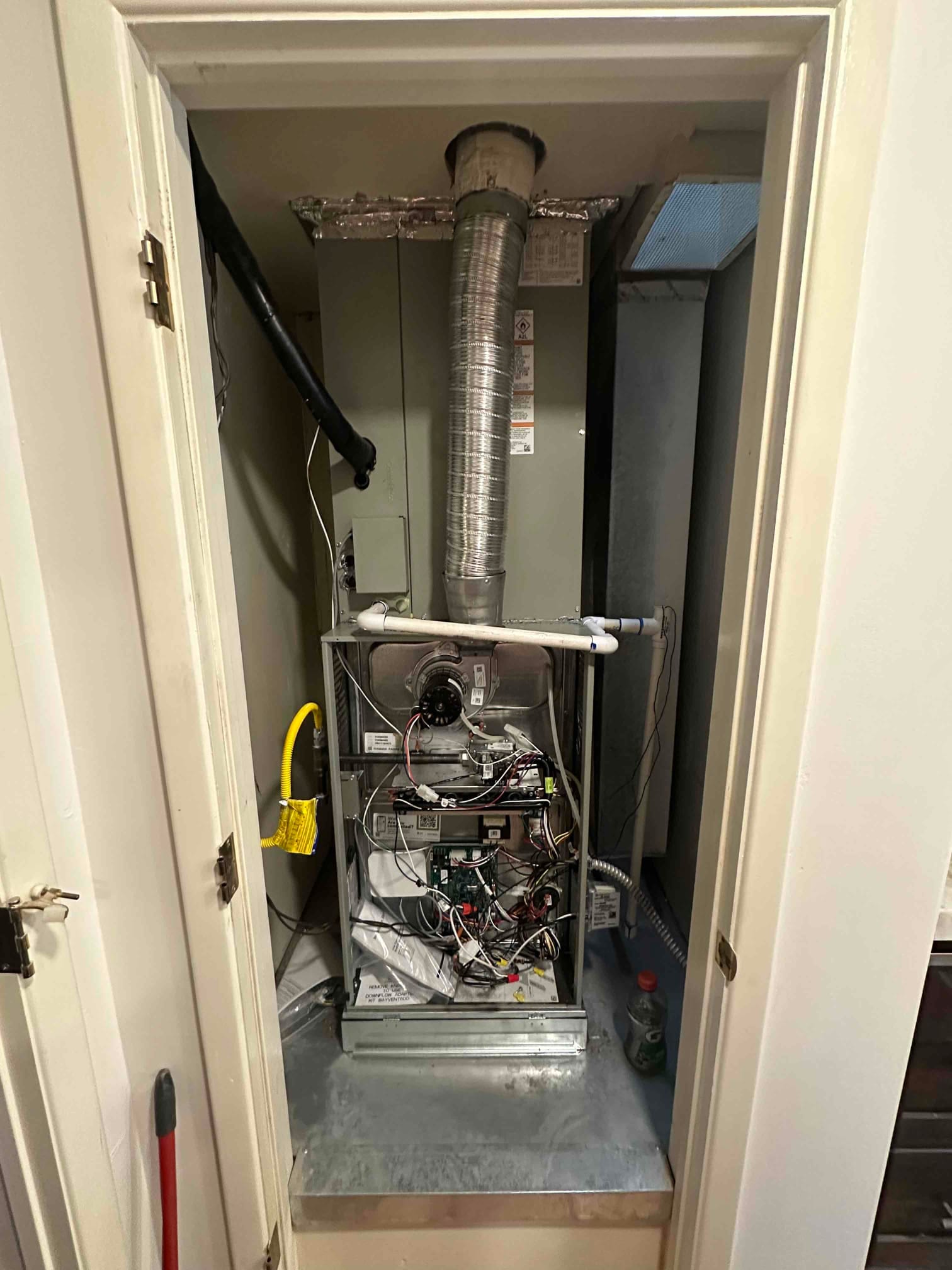

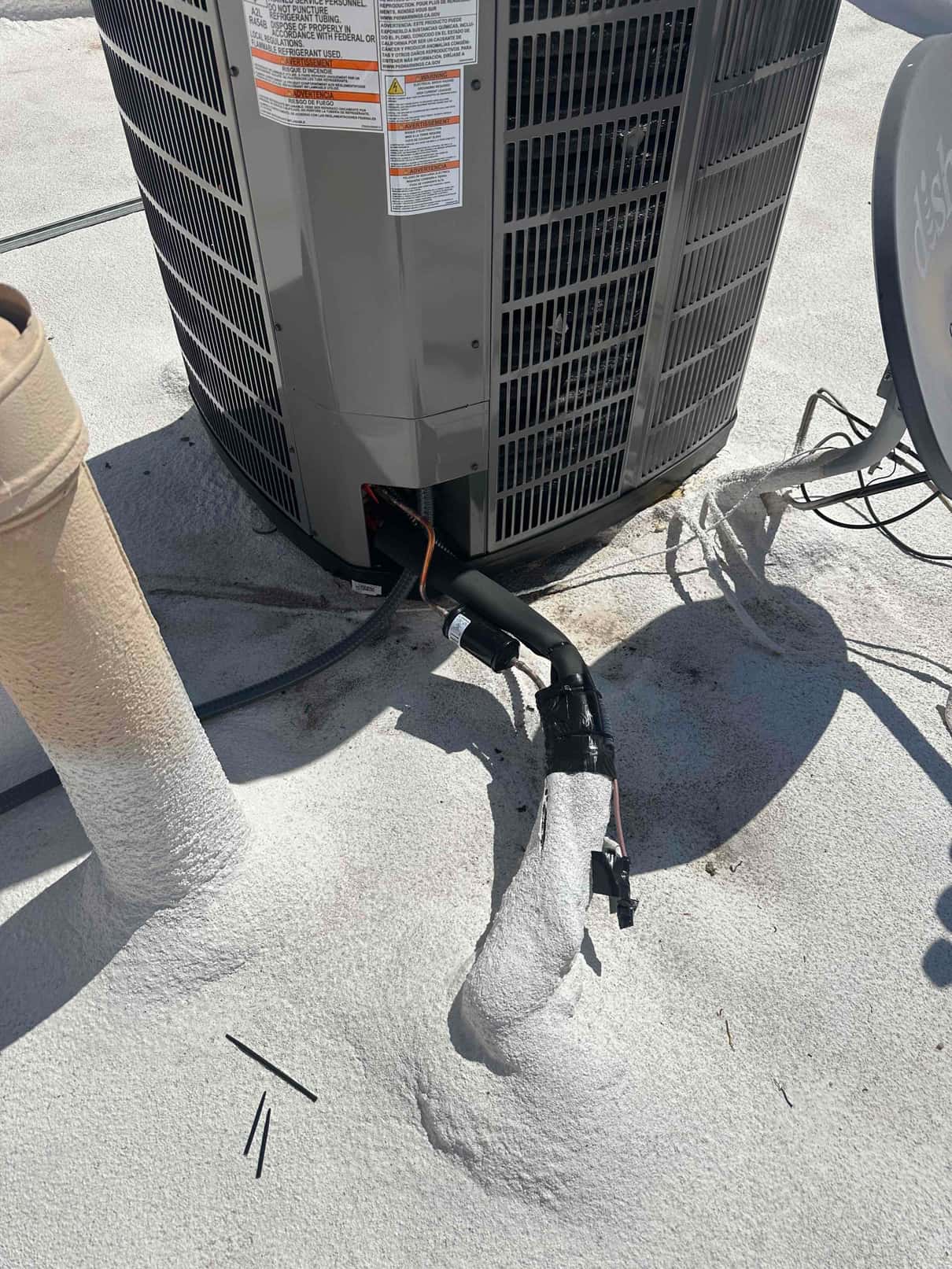

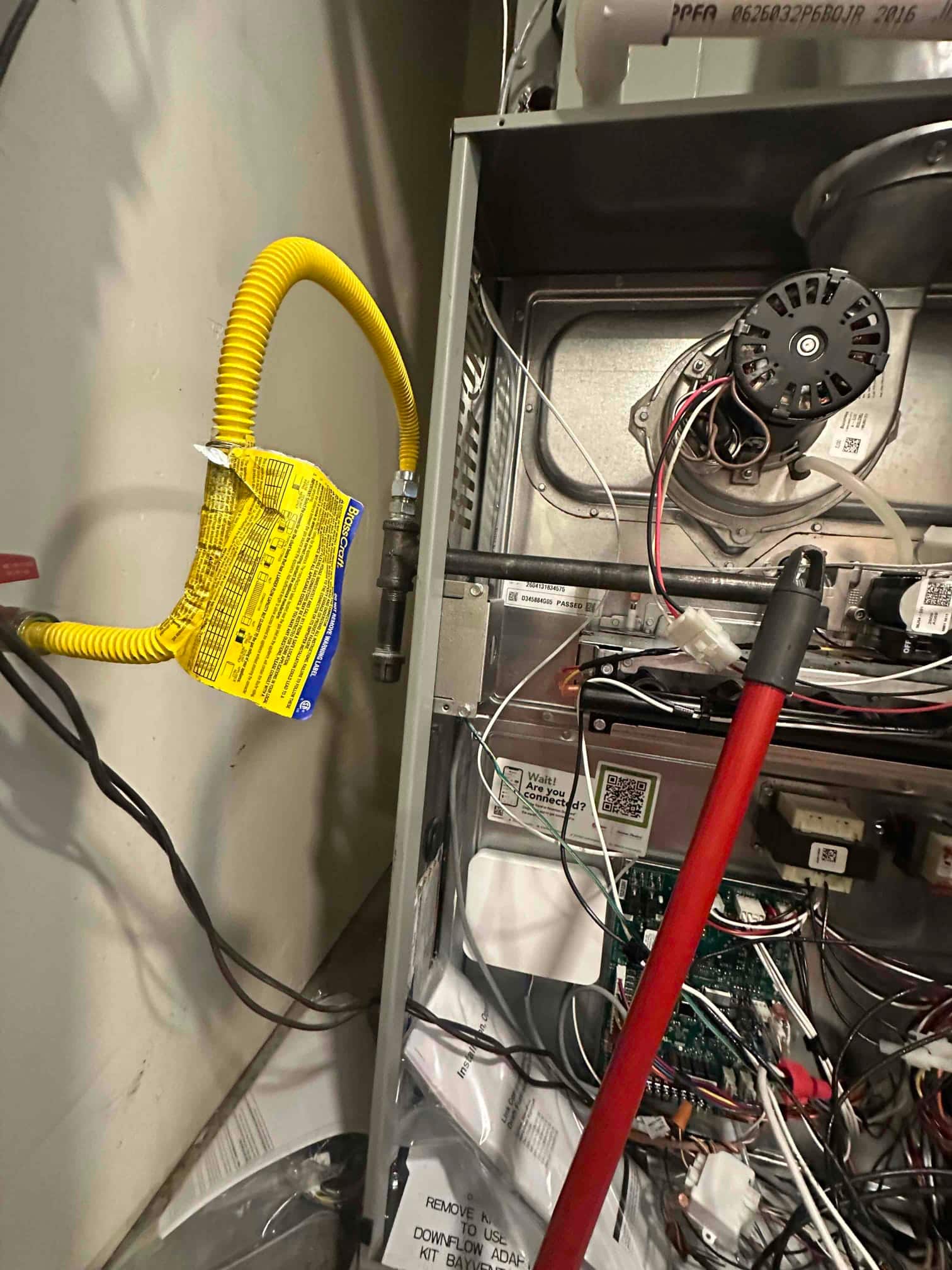

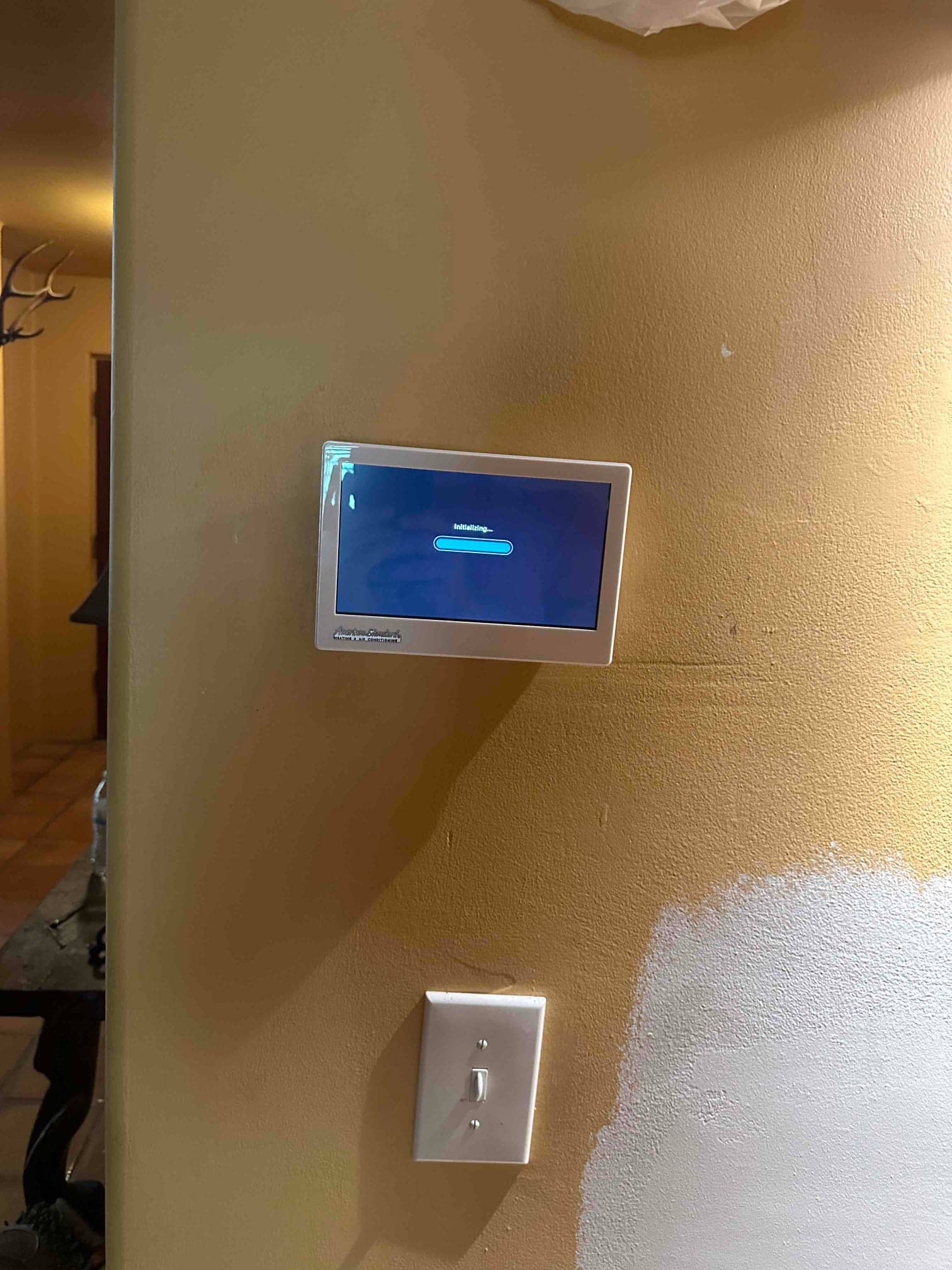

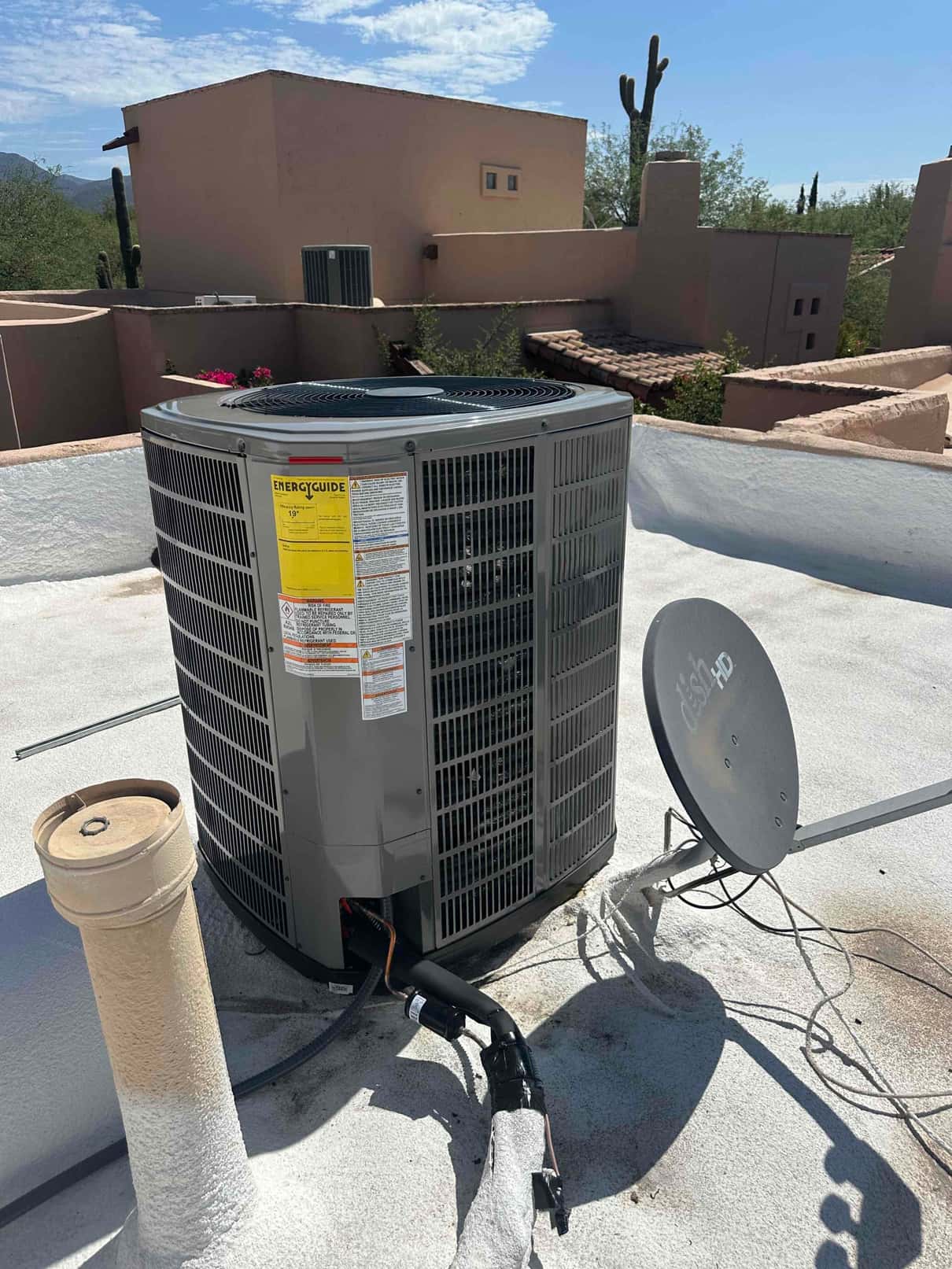

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

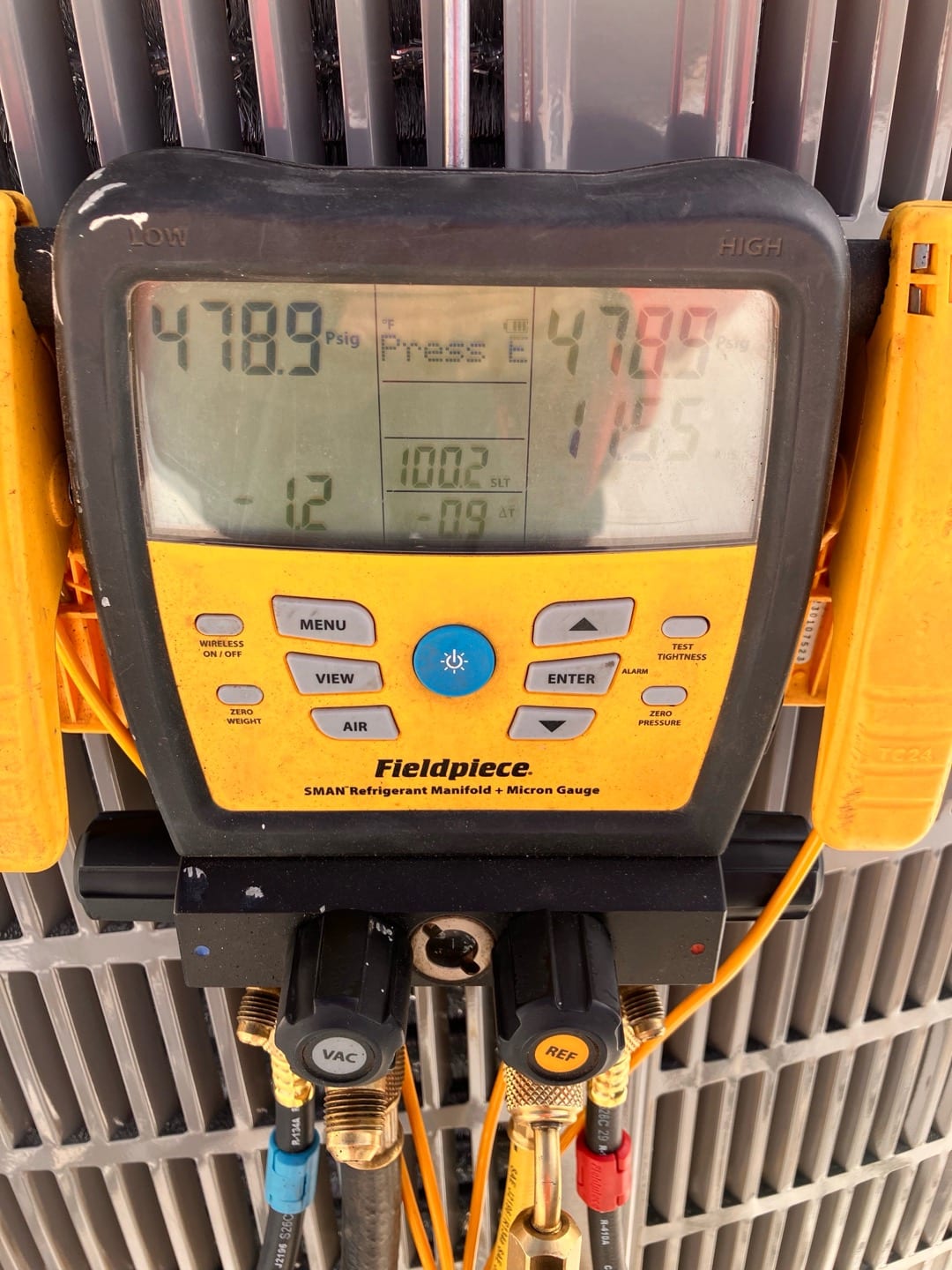

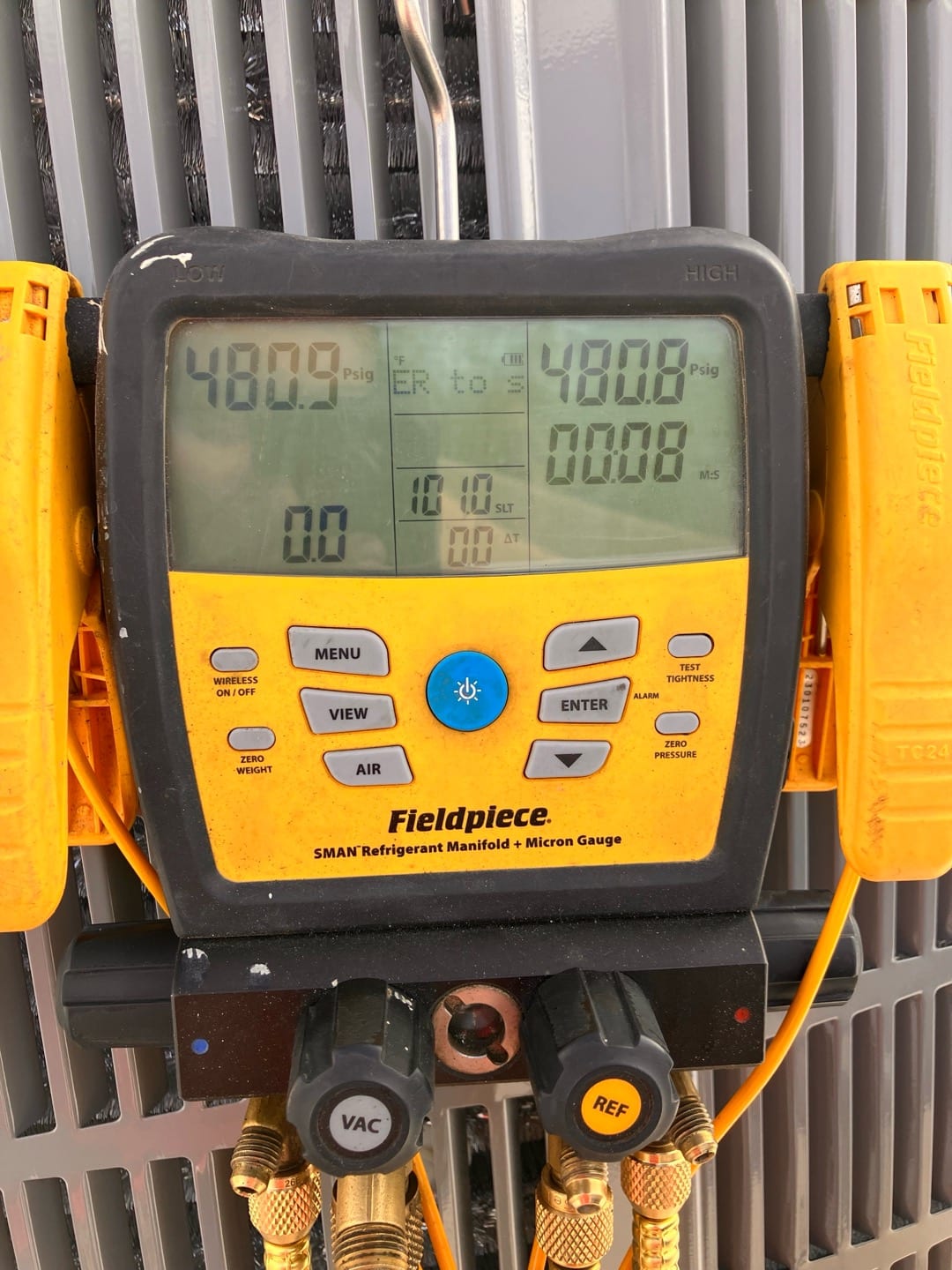

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

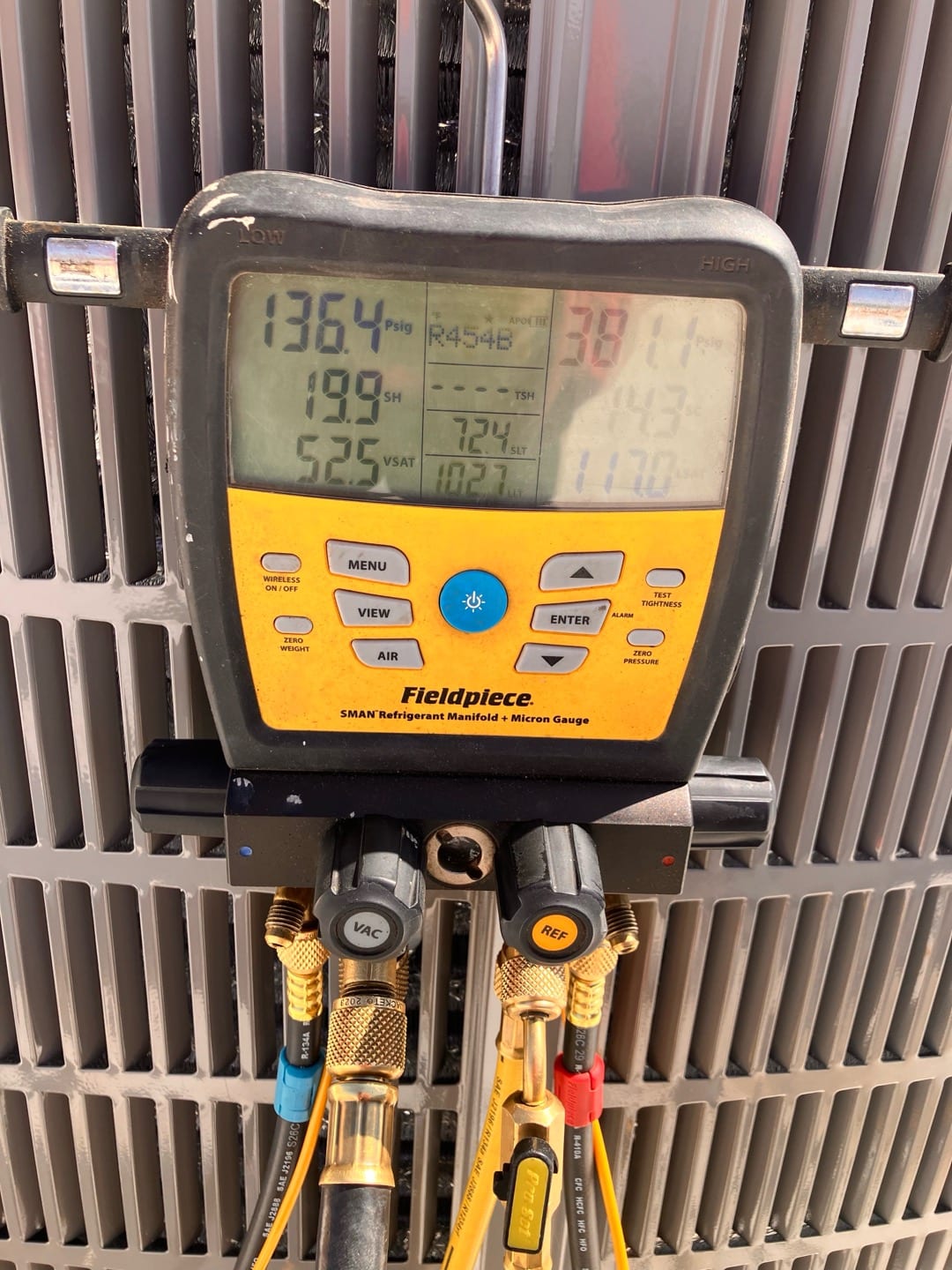

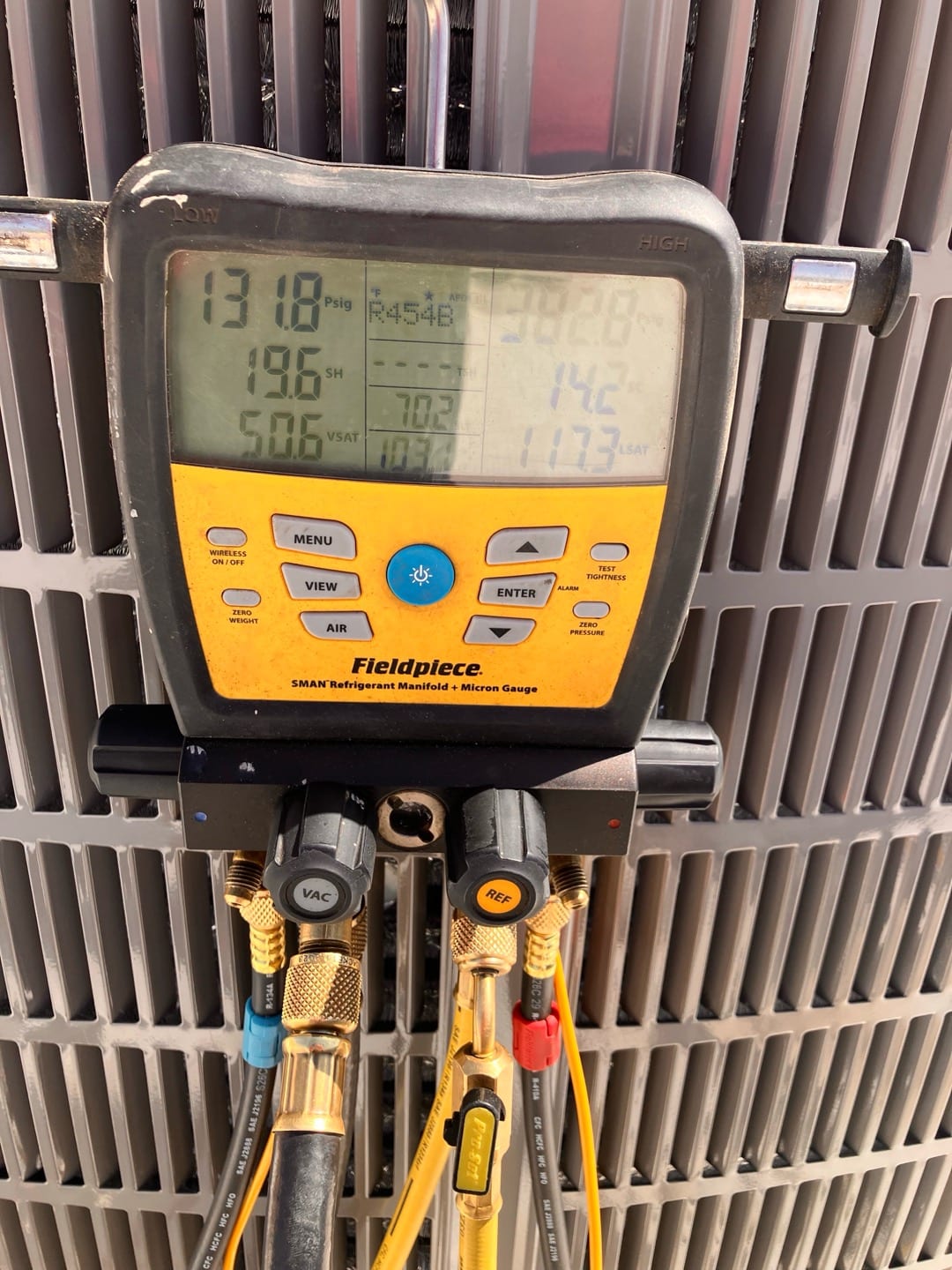

Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

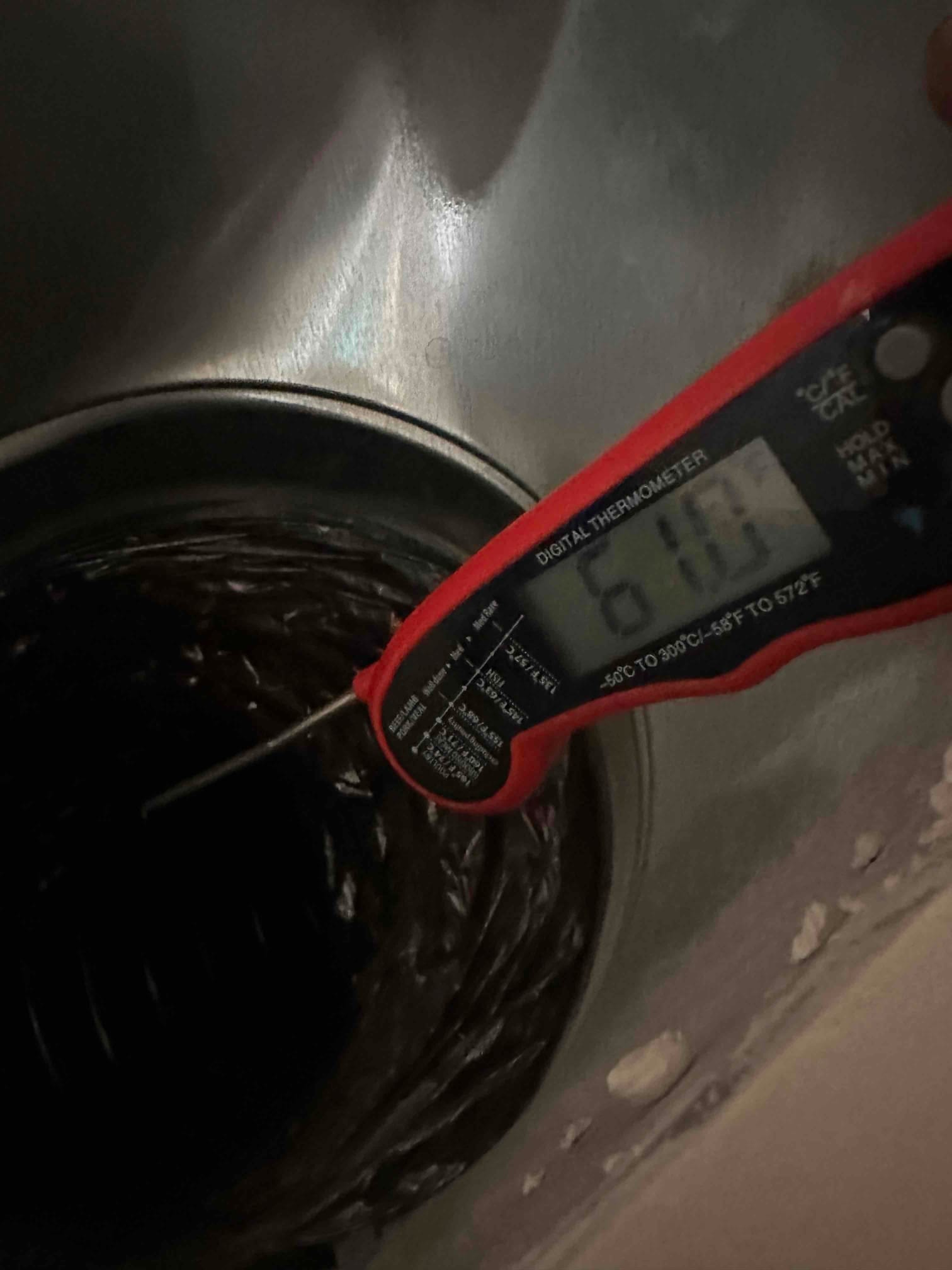

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
