3.5-Ton Heat Pump System Installation in Cave Creek — December 2024

CompletedDecember 17, 2024
Install CrewKyle, Jesse, Andrew & Fred
Service AreaCave Creek
System3.5-Ton Heat Pump System
BrandTrane
WarrantyMfg + Workmanship
Instant Price Estimate Call (602) 613-3489
4.9806 Google Reviews
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
AZ Perfect Comfort — Our Work
Scope of Work
Installation of a 3.5-ton split heat pump model 4TWR5042N1000A, an air handler model TEM4A0C49M41SB, and a smart thermostat model TCONT824AS52DC. The old equipment was removed and disposed.
Cave Creek · installed December 17, 2024
— At a Glance
Location
Cave Creek
Completed
December 17, 2024
System Type
Heat Pump System
Capacity
3.5-Ton
Brand
Trane
Efficiency
15 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$13,626
— What We Installed

Every component in this system

Each piece of equipment set at this home, its condition, and its place in the system.

Newly Installed

Heat pump

Brand
Trane
Model
4TWR5042N1000
Capacity
3.5-Ton
Efficiency
15 SEER2
New — installed 2026
Newly Installed

Air handler

Brand
Trane
Model
TEM4A0C43M41S
Matched
3.5-Ton airflow
New — installed 2026
Newly Installed

Ductless Indoor-Outdoor Bundle

Brand
Mirage
Model
IVKH121B-OVKH121B
New — installed 2026
Newly Installed

Thermostat

Brand
Trane
Model
TCONT824AS52DB
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty

Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.

— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the Air Conditioning work AZ Perfect Comfort performs across Cave Creek, AZ. You can browse more real 3.5-Ton Heat Pump System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Kyle, Jesse, Andrew & Fred from the manifold gauges, micron gauge, and digital thermometers.

Refrigerant Circuit

Refrigerant type
R-410A
Suction pressure
103 PSIG
Liquid pressure
327 PSIG
Evaporator saturation
26.7°F
Condensing saturation
107.8°F
Superheat
89°F
Subcooling
7°F

Air-Side Performance

Return-air temperature
72.3°F
Supply-air temperature
45.1°F
Temperature split
27.2°F

Nitrogen Pressure Test

Test pressure held
418 PSIG

Vacuum / Evacuation

Final vacuum reading
109 microns

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

ItemDescriptionQty
3.515H-4TWR5042-TEM4A0C43M 3.5 Ton- Horizontal 15 SEER2 Single Stage XR15 Heat Pump with AirHandler. Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom of this estimat 1
INSTALL-MEM-1-SYSTEM Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A 1
AZPC-10YR 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort.AZ Perfect Comfort remains the contractor to perform all work.The War 1
CIR-100 Install new electrical circuit from breaker box. Includes circuit breaker, running electrical wire, disconnect box, and electrical whip up to 15 feet. 1

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

17 photos from this installation

Every step of this installation was documented on-site by Kyle, Jesse, Andrew & Fred.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

Wall-mounted thermostat displays system information screen during setup, showing model details and menu options after installation.
Wall-mounted thermostat displays system information screen during setup, showing model details and menu options after installation.

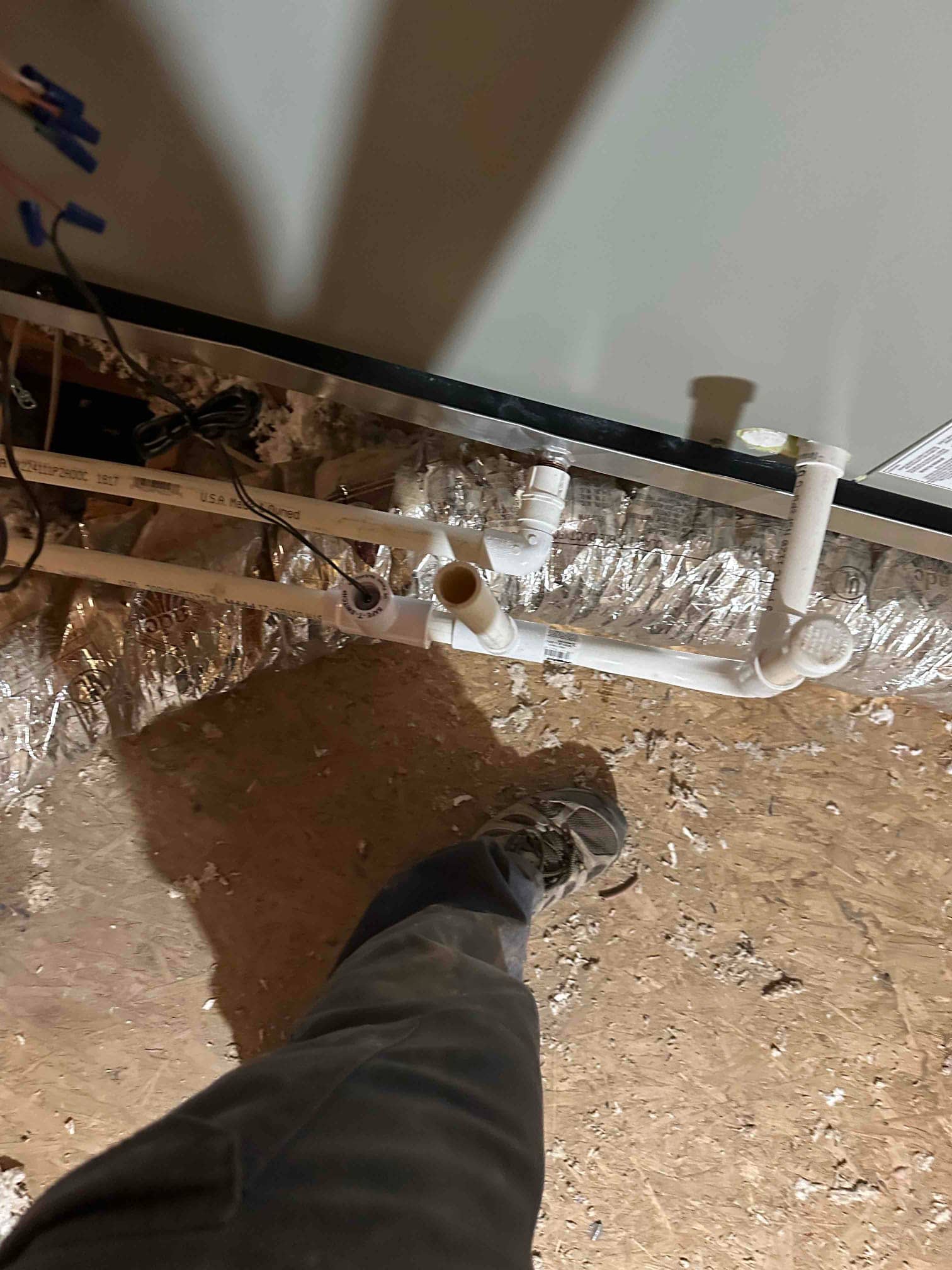

Condensate drain piping with cleanout and trap installed beneath the indoor unit, routed across the attic floor with insulation visible.
Condensate drain piping with cleanout and trap installed beneath the indoor unit, routed across the attic floor with insulation visible.

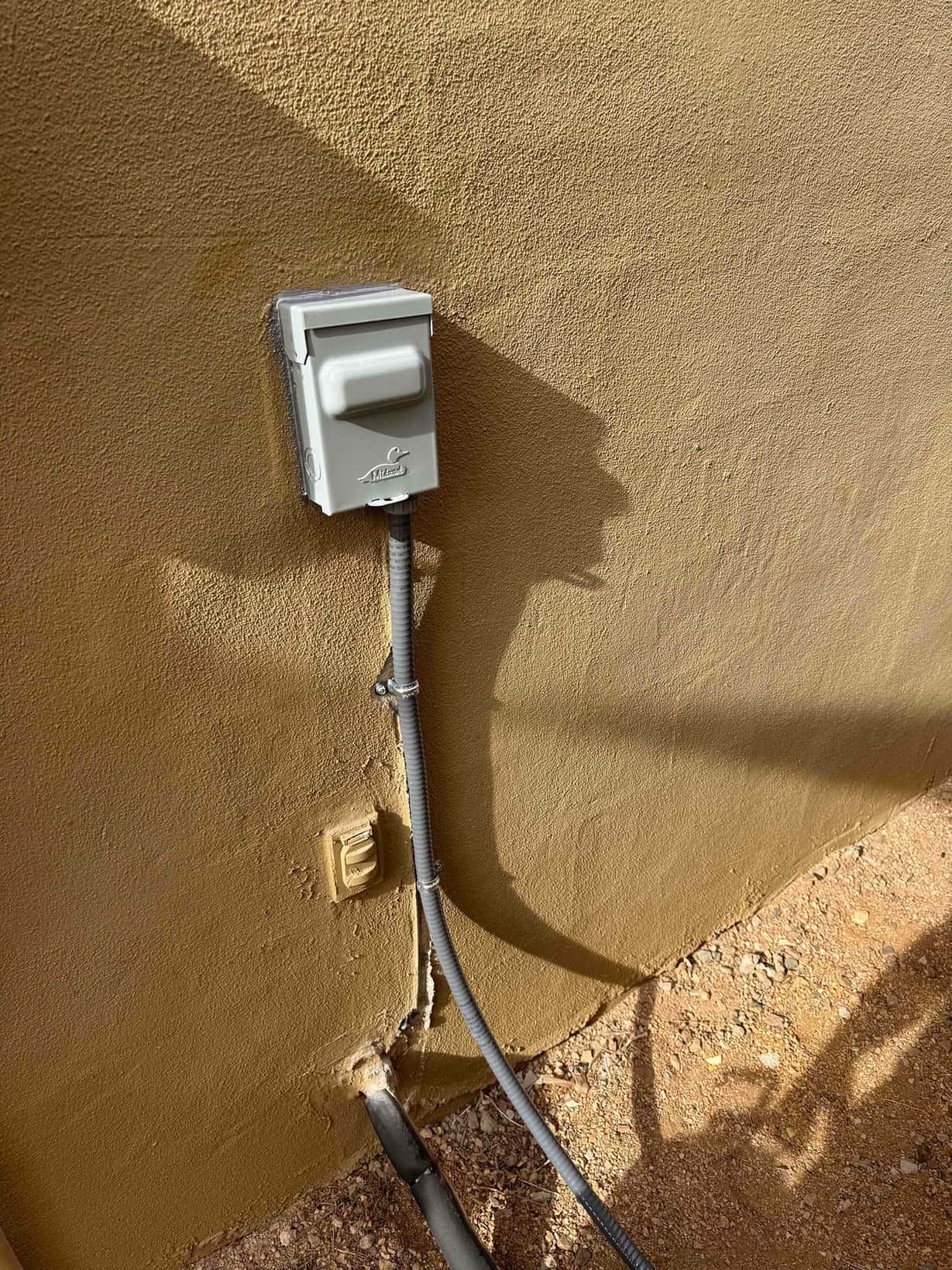

Outdoor HVAC disconnect and flexible conduit mounted on exterior wall with sealed penetrations and drain line exiting to grade.
Outdoor HVAC disconnect and flexible conduit mounted on exterior wall with sealed penetrations and drain line exiting to grade.

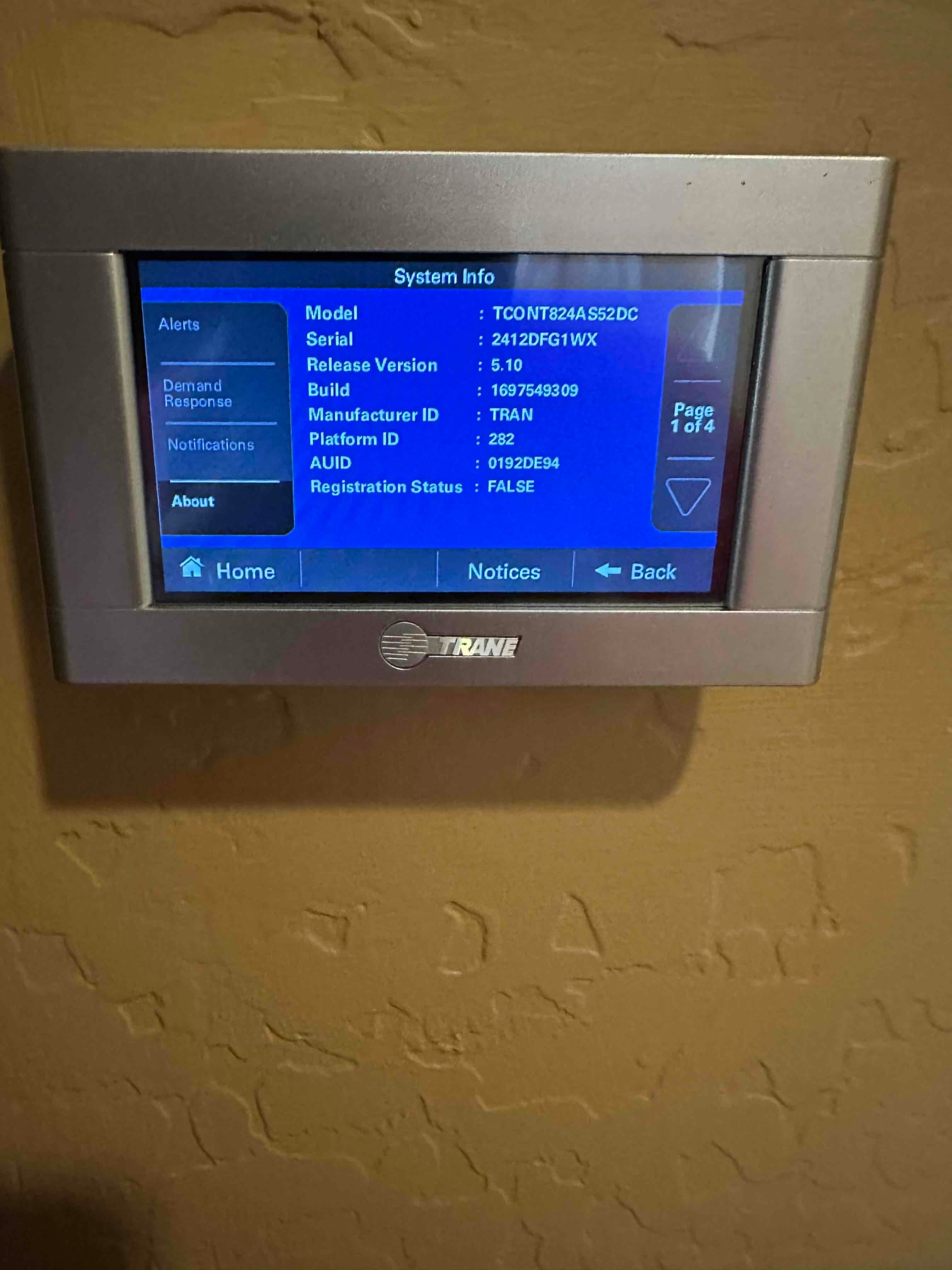

Wall-mounted thermostat displays system information screen during setup after installation, showing model and software details on the interface.
Wall-mounted thermostat displays system information screen during setup after installation, showing model and software details on the interface.

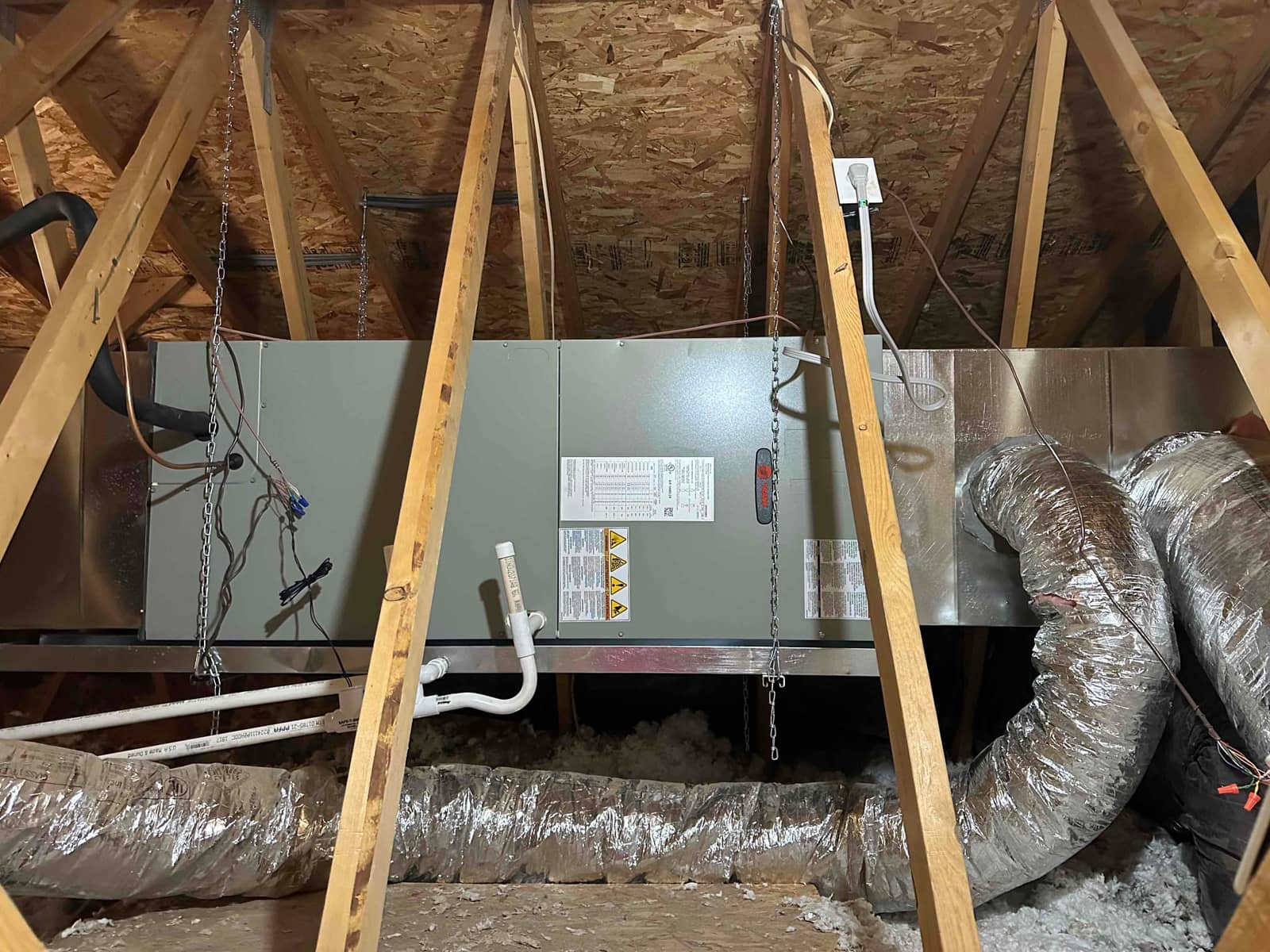

New air handler suspended in attic with insulated flex ducts connected, condensate drain piped, and electrical whip secured to a junction box.
New air handler suspended in attic with insulated flex ducts connected, condensate drain piped, and electrical whip secured to a junction box.

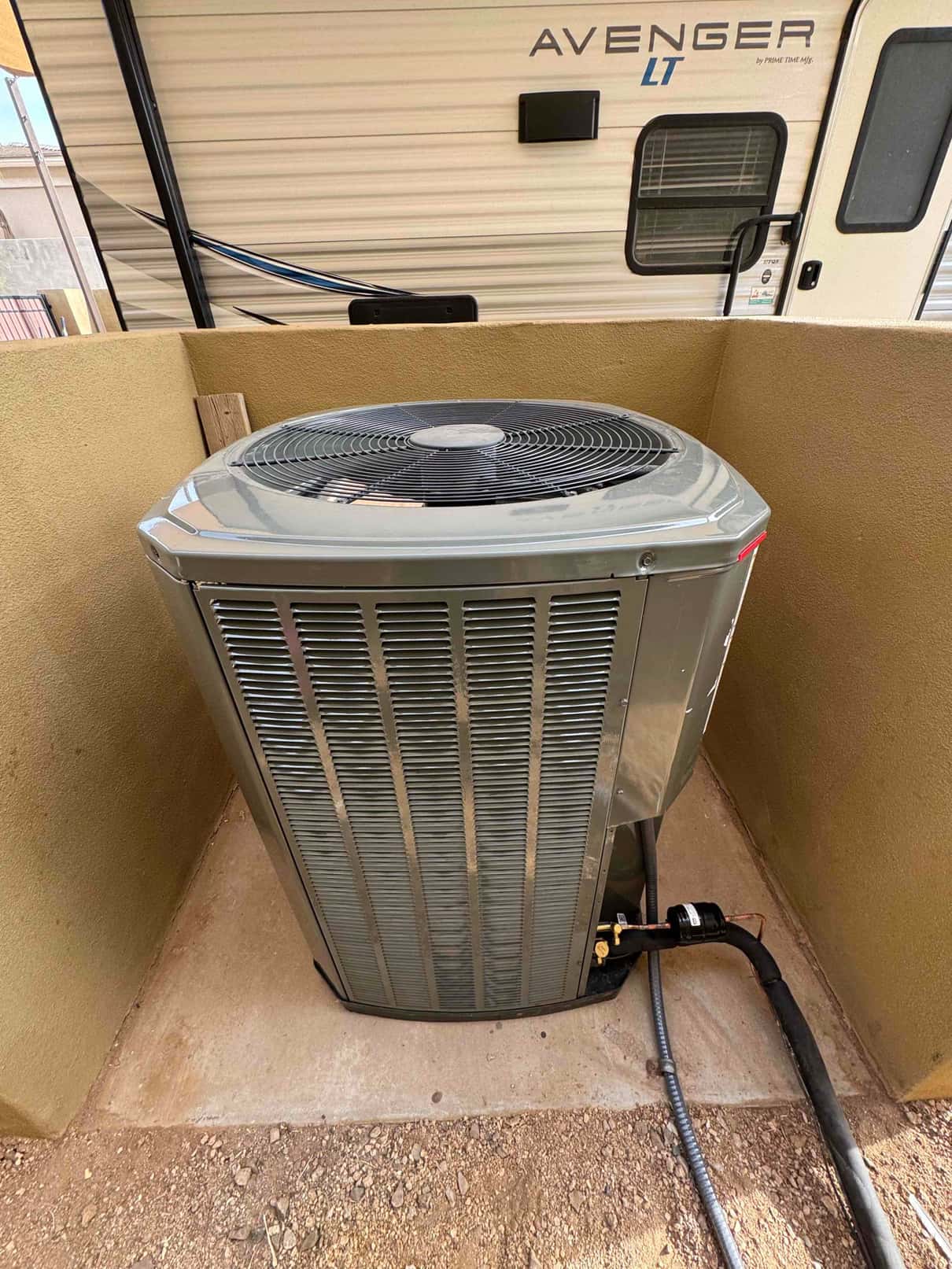

New outdoor heat pump condenser set on a level pad with insulated line set, filter-drier, and electrical whip connected.
New outdoor heat pump condenser set on a level pad with insulated line set, filter-drier, and electrical whip connected.

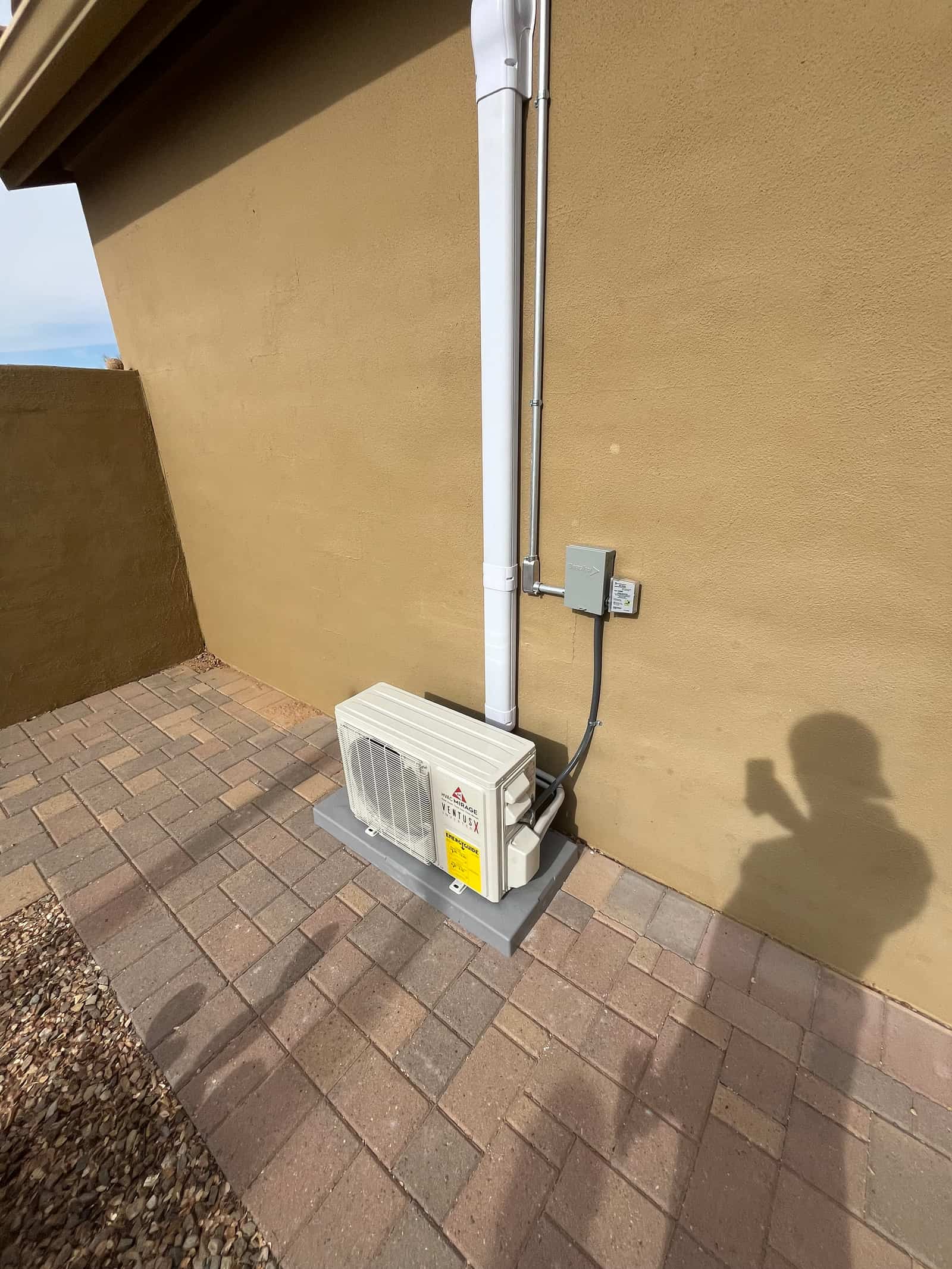

New mini-split outdoor unit set on a level pad with line-set cover, electrical conduit, and disconnect installed on exterior wall.
New mini-split outdoor unit set on a level pad with line-set cover, electrical conduit, and disconnect installed on exterior wall.

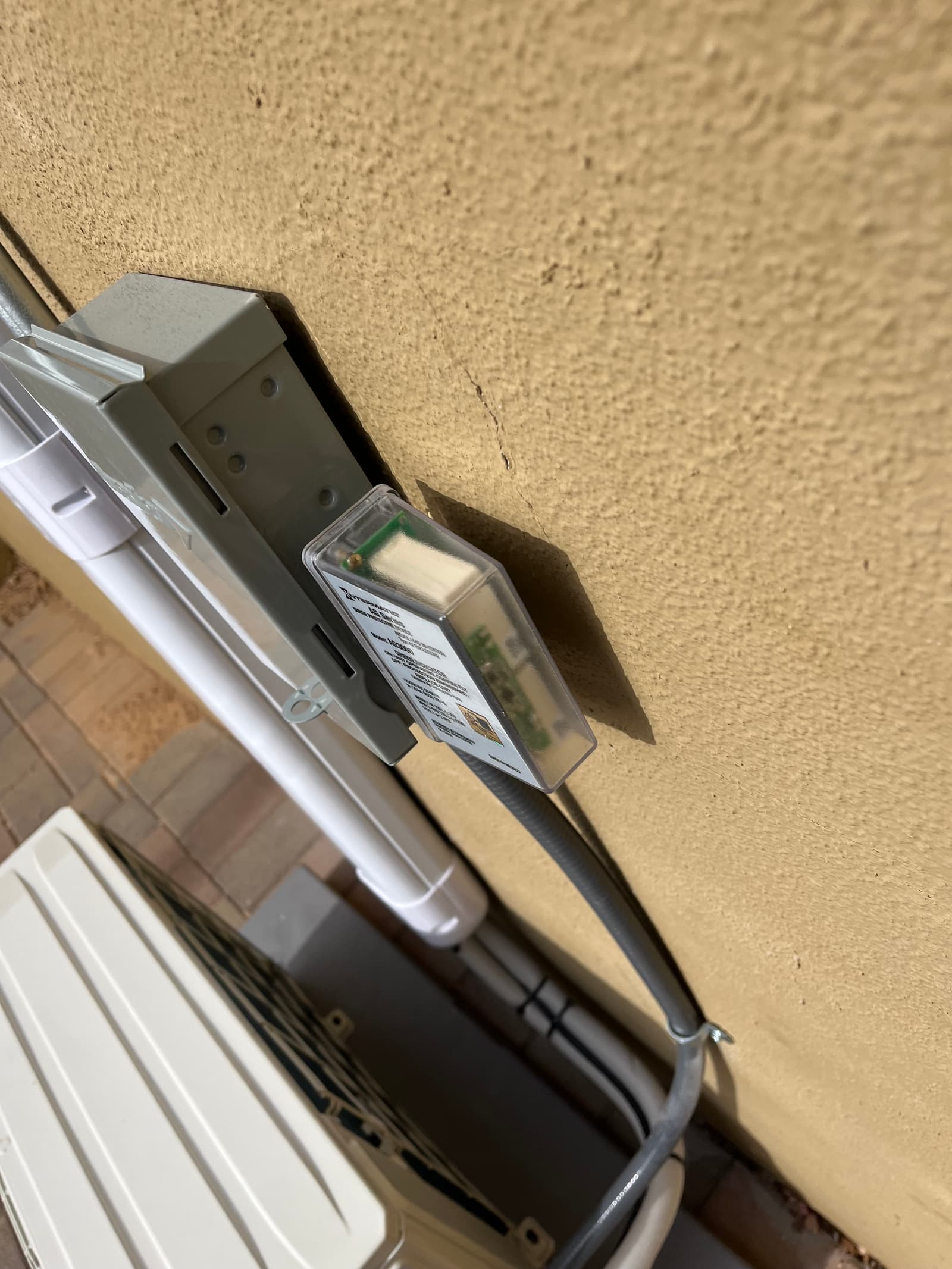

Outdoor disconnect and flexible conduit mounted beside line-set cover above the new heat pump condenser on a level pad.
Outdoor disconnect and flexible conduit mounted beside line-set cover above the new heat pump condenser on a level pad.

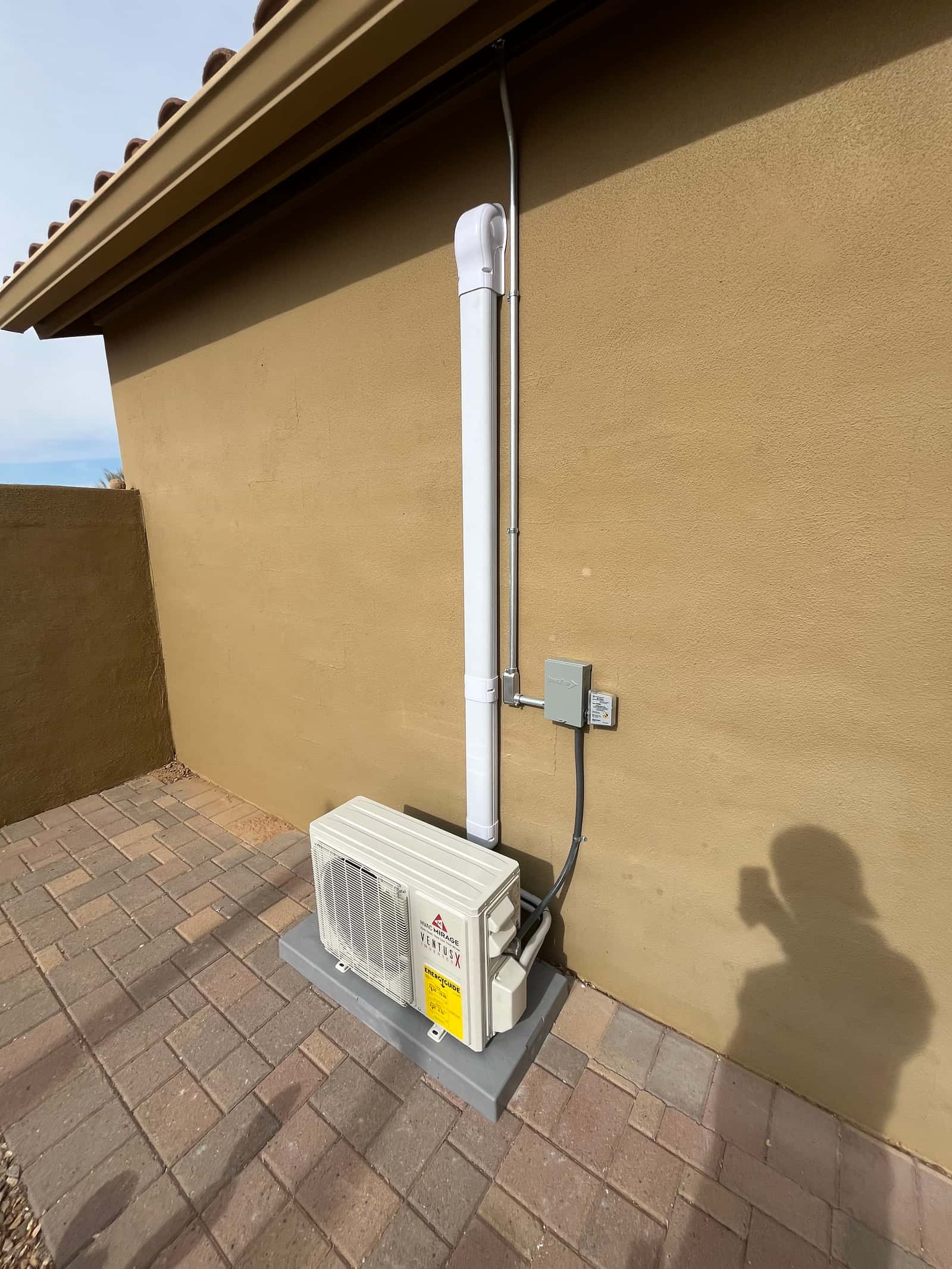

Outdoor mini-split condenser set on a level pad with line set cover, electrical conduit, and weatherproof disconnect mounted.
Outdoor mini-split condenser set on a level pad with line set cover, electrical conduit, and weatherproof disconnect mounted.
New mini-split condenser set on a level pad with line-set cover, sealed wall penetration, and outdoor disconnect installed.
New mini-split condenser set on a level pad with line-set cover, sealed wall penetration, and outdoor disconnect installed.

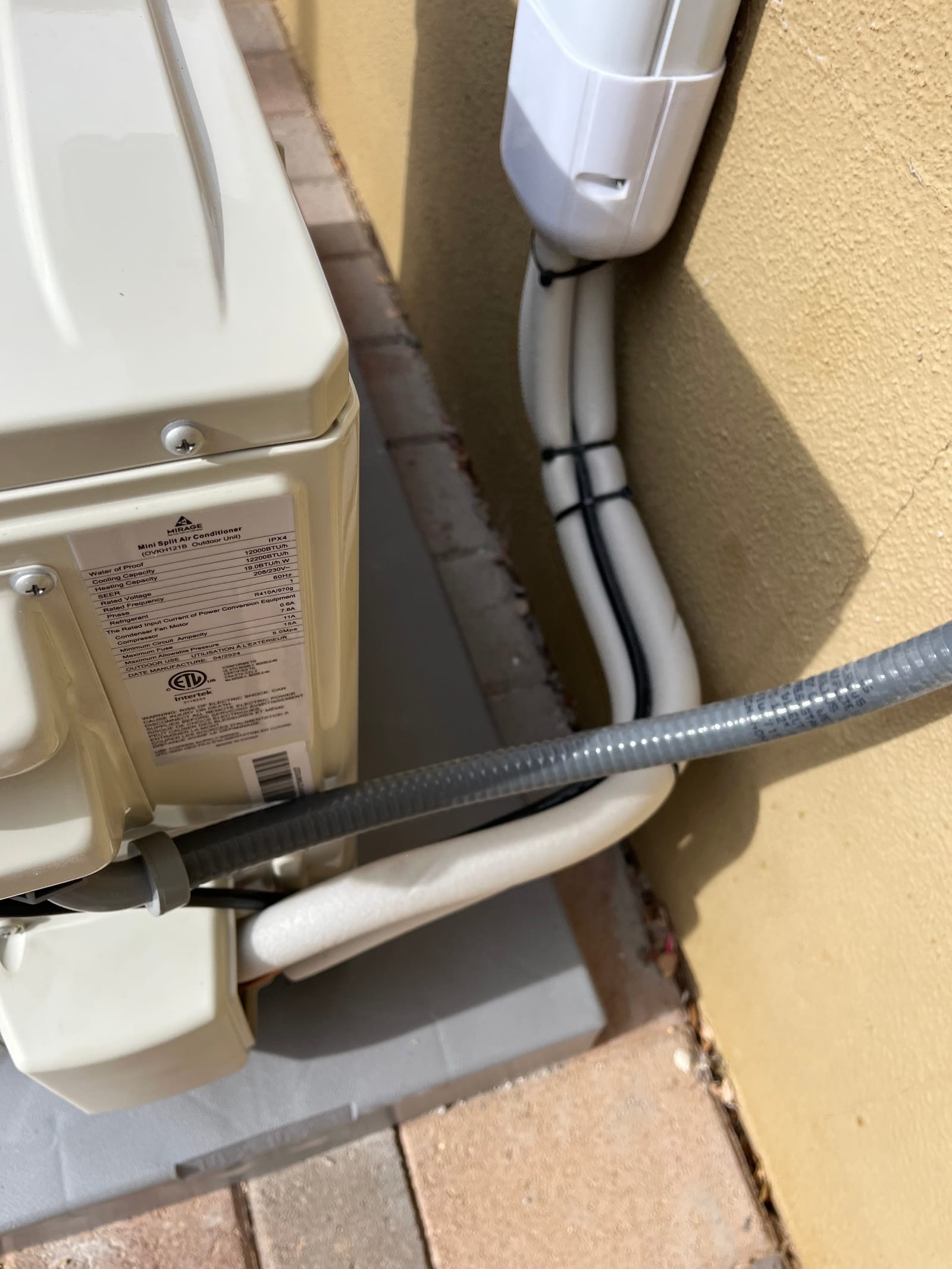

Outdoor mini-split condenser set on a pad with insulated line set in a cover and flexible electrical conduit routed to the unit.
Outdoor mini-split condenser set on a pad with insulated line set in a cover and flexible electrical conduit routed to the unit.

Nitrogen Pressure Test

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

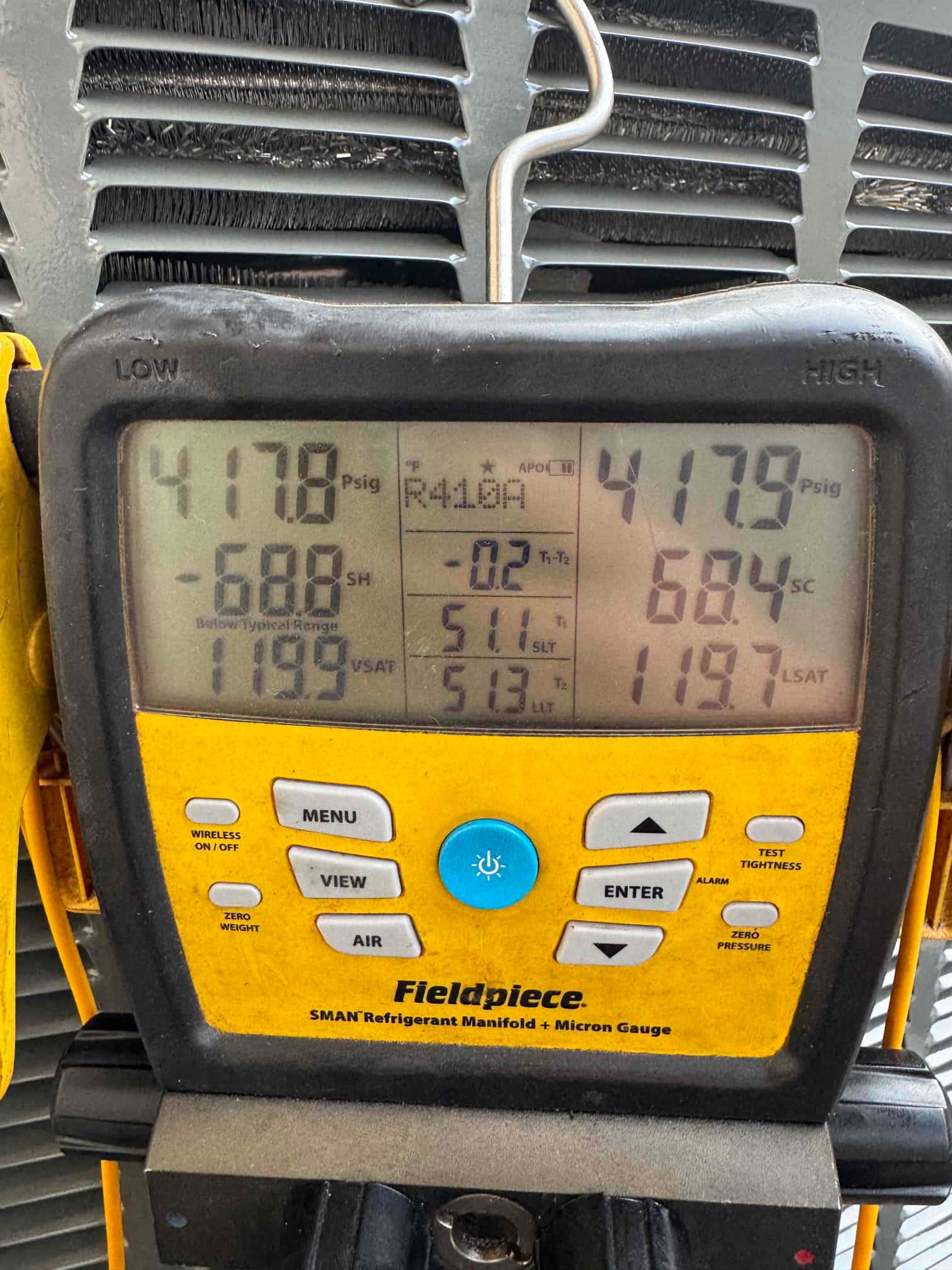

Digital manifold gauges show equal pressure near 418 PSI on both sides during a nitrogen pressure test of the system.
Digital manifold gauges show equal pressure near 418 PSI on both sides during a nitrogen pressure test of the system.

Vacuum / Evacuation

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

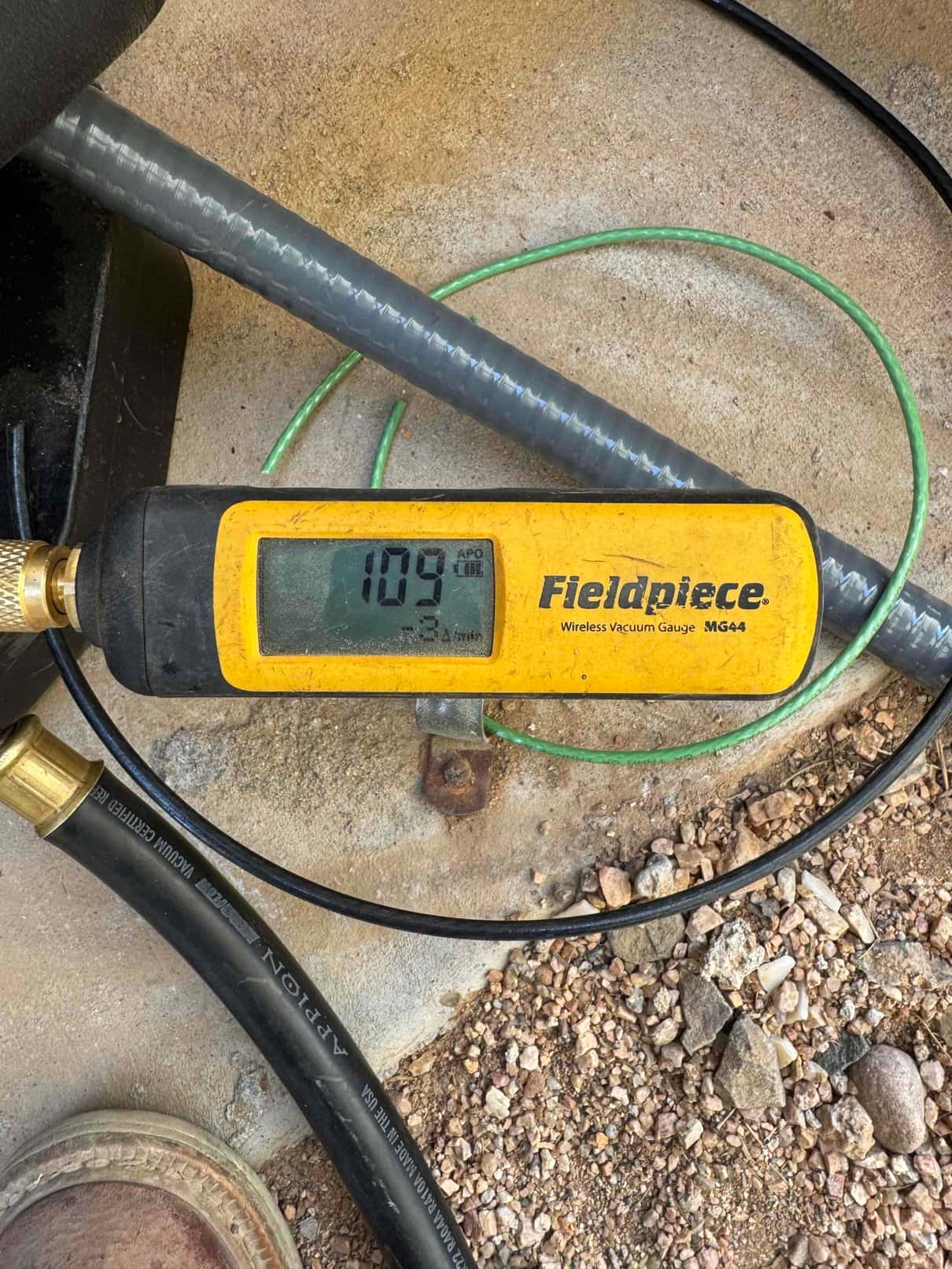

Digital micron gauge connected during evacuation shows 109 microns, confirming a deep vacuum before charging the new system.
Digital micron gauge connected during evacuation shows 109 microns, confirming a deep vacuum before charging the new system.

Refrigerant Commissioning

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

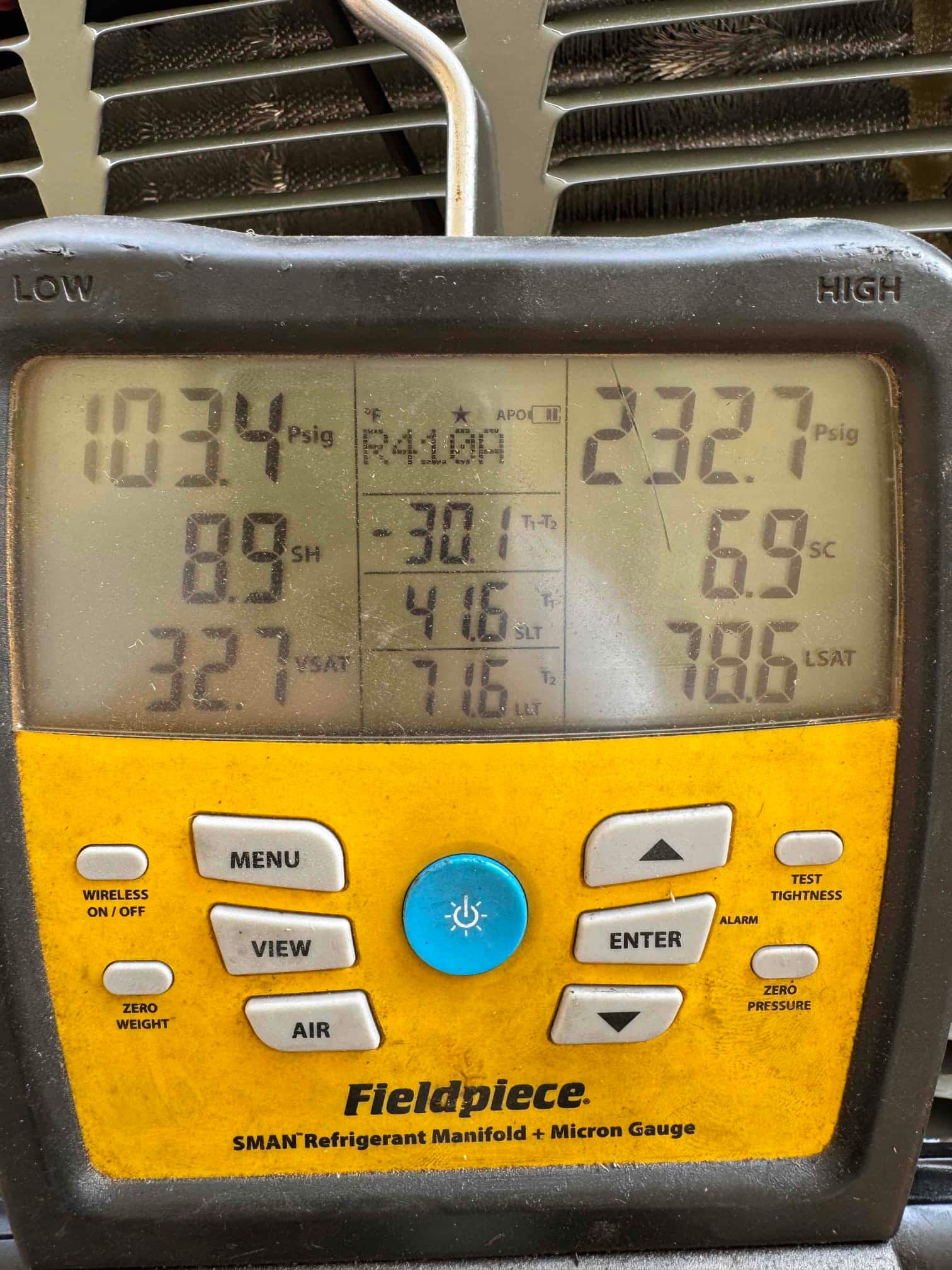

Digital manifold shows operating pressures on an outdoor unit during commissioning, with refrigerant type indicated on the display.
Digital manifold shows operating pressures on an outdoor unit during commissioning, with refrigerant type indicated on the display.

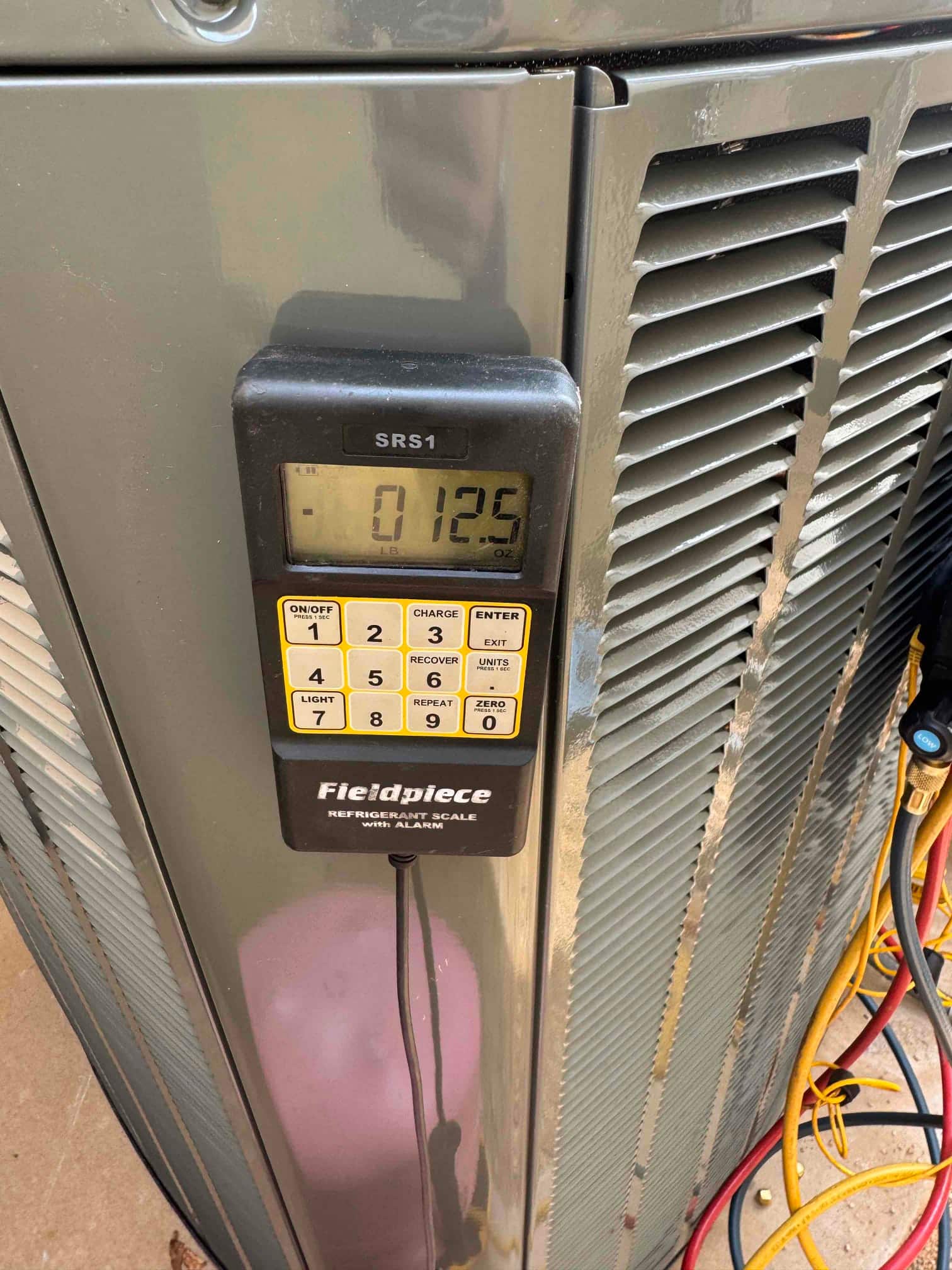

Digital refrigerant scale displays 12.5 ounces during charging beside the outdoor condensing unit with hoses connected.
Digital refrigerant scale displays 12.5 ounces during charging beside the outdoor condensing unit with hoses connected.

Air-Side Commissioning

Return and supply air temperatures measured to verify the temperature split falls in the target window.

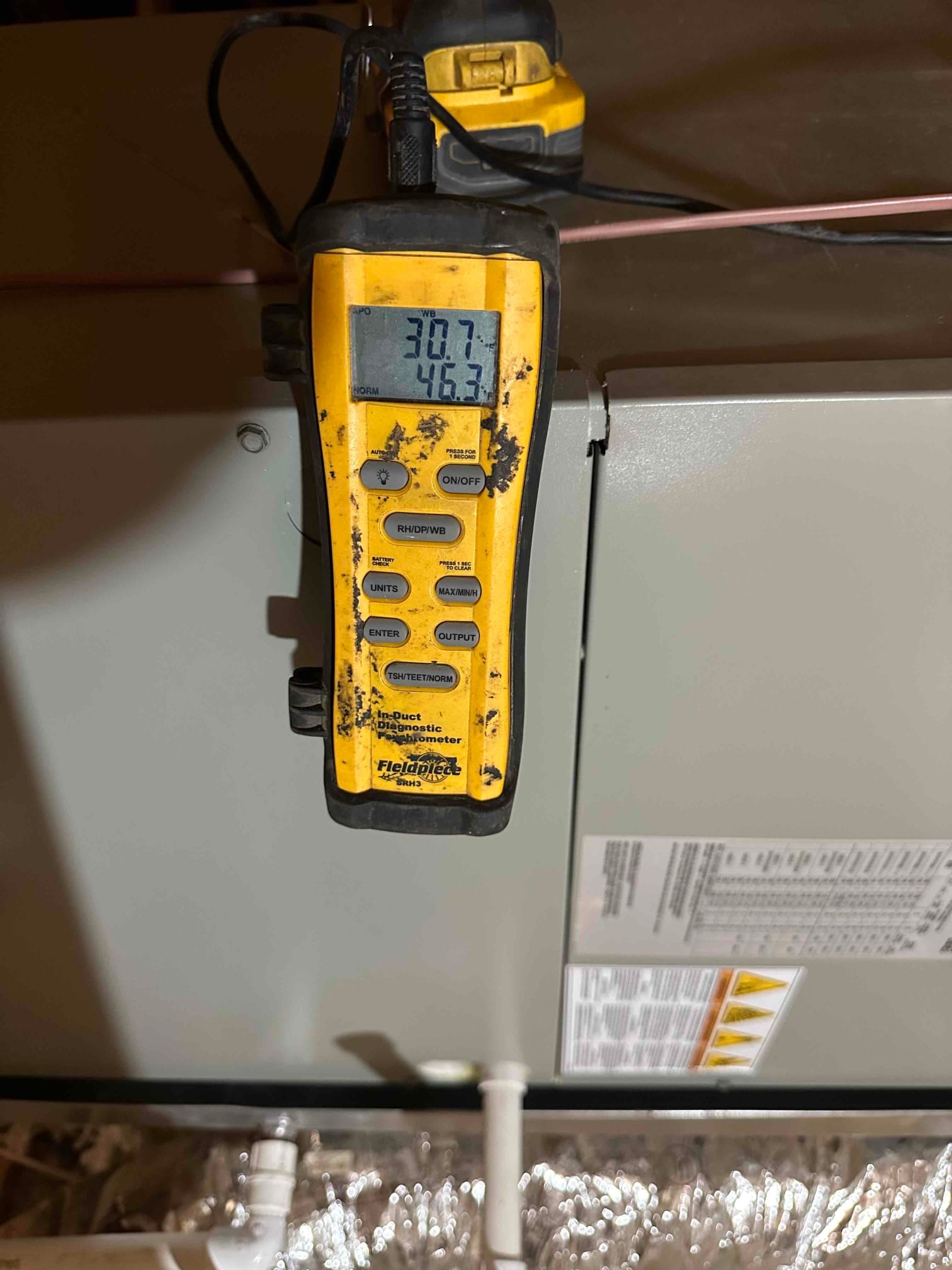

Digital thermometer attached near the air handler displays two temperature readings during airflow measurement for system commissioning.
Digital thermometer attached near the air handler displays two temperature readings during airflow measurement for system commissioning.

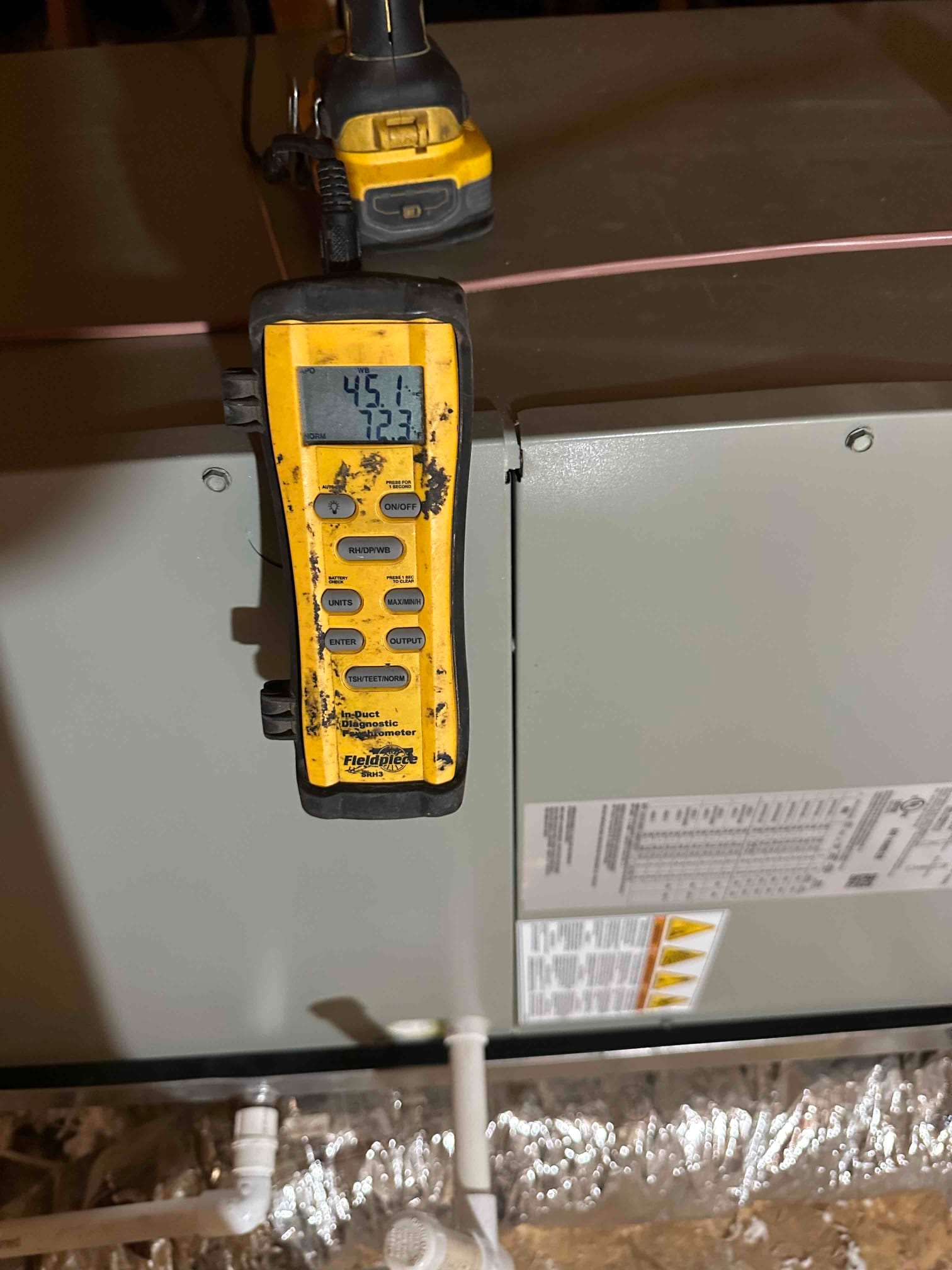

Digital thermometer on the air handler shows supply air at 45.1°F and return air at 72.3°F during cooling verification.
