Real Installation · Arrowhead / Glendale

4-Ton Trane Air Conditioning System Installation in Arrowhead / Glendale — July 2025

CompletedJuly 18, 2025
Install CrewBen, Jesse & Michael
Service AreaArrowhead / Glendale
System4-Ton Air Conditioning System
BrandTrane
WarrantyMfg + Workmanship
Instant Price Estimate Call (602) 613-3489
4.9806 Google Reviews
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
AZ Perfect Comfort — Our Work
Scope of Work
Installation of two Gold 17 split systems.
Arrowhead / Glendale · installed July 18, 2025
— At a Glance
Location
Arrowhead / Glendale
Completed
July 18, 2025
System Type
Air Conditioning System
Capacity
4-Ton
Brand
Trane
Efficiency
17.1 SEER2
Labor Warranty
10-Year Labor Warranty
Total Investment
$27,059
— What We Installed

Every component in this system

Each piece of equipment set at this home, its condition, and its place in the system.

Newly Installed

AC condenser

Brand
American Standard
Model
5A7A7048A1000AA
Capacity
4-Ton
Efficiency
17.1 SEER2
New — installed 2026
Newly Installed

Furnace

Brand
American Standard
Model
S8X1C080M5PSCCA
Matched
4-Ton airflow
New — installed 2026
Newly Installed

Evaporator Coil

Brand
American Standard
Model
5TXCC007AS3HCAA
Matched
4-Ton airflow
New — installed 2026
Newly Installed

AC condenser

Brand
American Standard
Model
5A7A7048A1000AA
Capacity
4-Ton
Efficiency
17.1 SEER2
New — installed 2026
Newly Installed

Furnace

Brand
American Standard
Model
S8X1C080M5PSCCA
Matched
4-Ton airflow
New — installed 2026
Newly Installed

Evaporator Coil

Brand
American Standard
Model
5TXCC007AS3HCAA
Matched
4-Ton airflow
New — installed 2026
Newly Installed

Thermostat

Brand
American Standard
Model
ACONT824AS52DC
New — installed 2026
Newly Installed

Thermostat

Brand
American Standard
Model
ACONT824AS52DC
New — installed 2026
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty

Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.

— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Glendale, AZ. You can browse more real 4-Ton Trane Air Conditioning System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Ben, Jesse & Michael from the manifold gauges, micron gauge, and digital thermometers.

Refrigerant Circuit

Refrigerant type
R-454B
Suction pressure
131 PSIG
Liquid pressure
404 PSIG
Evaporator saturation
52.9°F
Condensing saturation
121.3°F
Superheat
7°F
Subcooling
10°F

Air-Side Performance

Return-air temperature
80.2°F
Supply-air temperature
55.2°F
Temperature split
25°F

Nitrogen Pressure Test

Test pressure held
360 PSIG

Vacuum / Evacuation

Final vacuum reading
445 microns

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

ItemDescriptionQty
417.1H-5A7A7048-S8X1 4 Ton- Horizontal Variable Speed-17.1 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bottom o 2
AZPC-10YR 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa 2
INSTALL-MEM-1-SYSTEM Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. Two Maintenance Visits Per Year.26 Point A 2

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

28 photos from this installation

Every step of this installation was documented on-site by Ben, Jesse & Michael.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

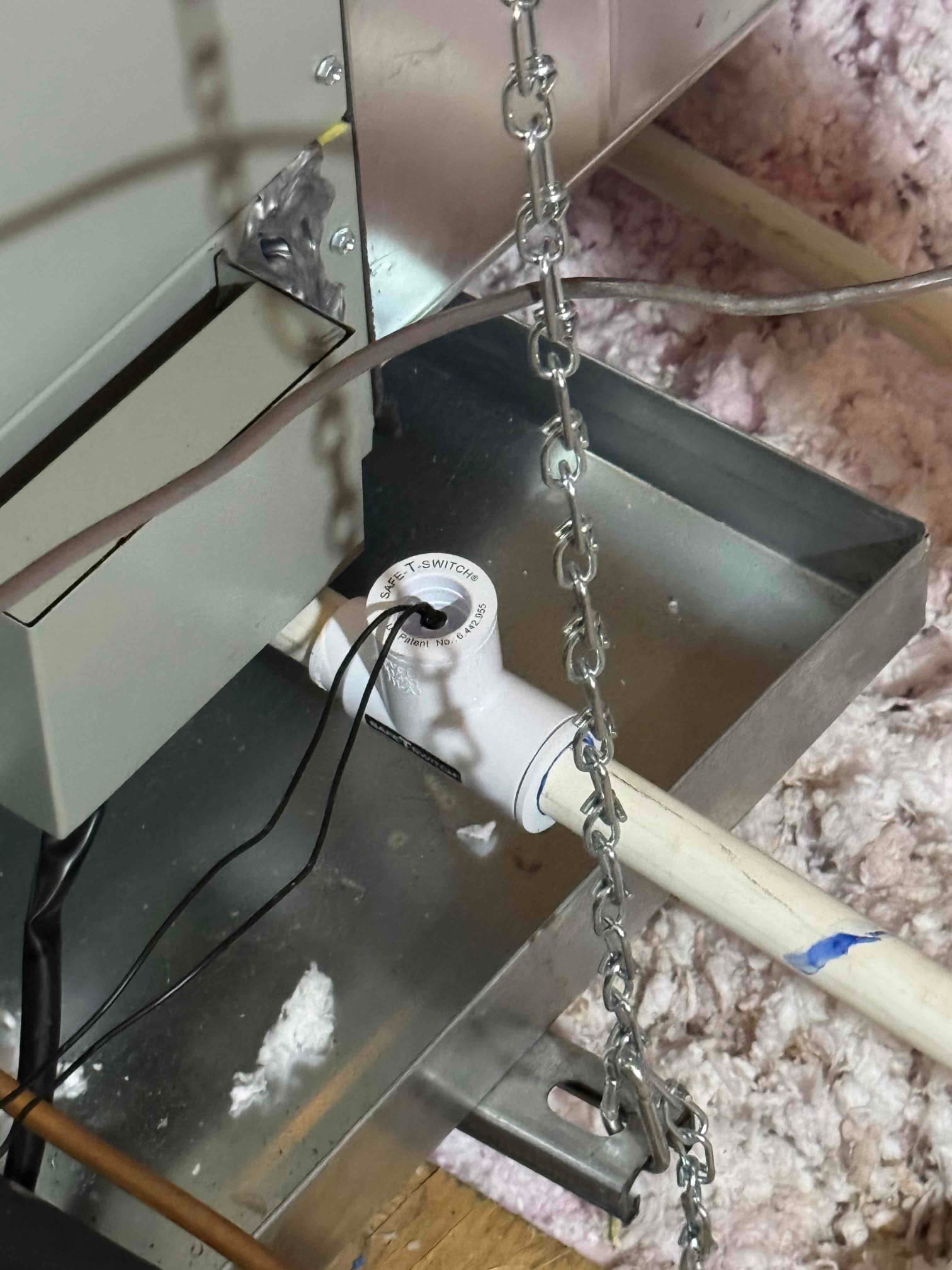

Primary drain line with in-line float safety switch installed over a metal secondary drain pan beneath a suspended air handler.
Primary drain line with in-line float safety switch installed over a metal secondary drain pan beneath a suspended air handler.

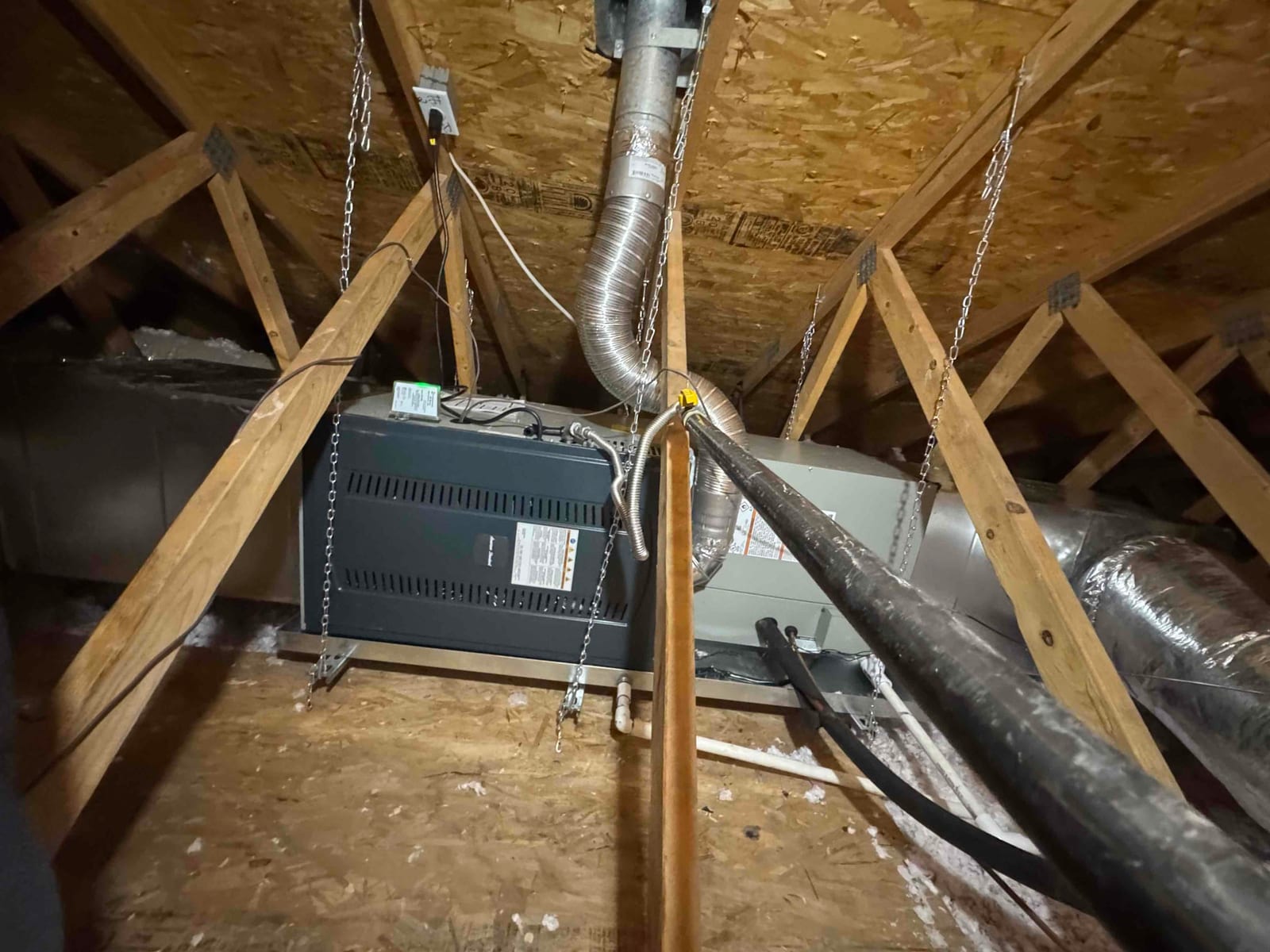

Suspended attic air handler installation with insulated ducts, drain lines, and electrical whip secured between roof trusses.
Suspended attic air handler installation with insulated ducts, drain lines, and electrical whip secured between roof trusses.

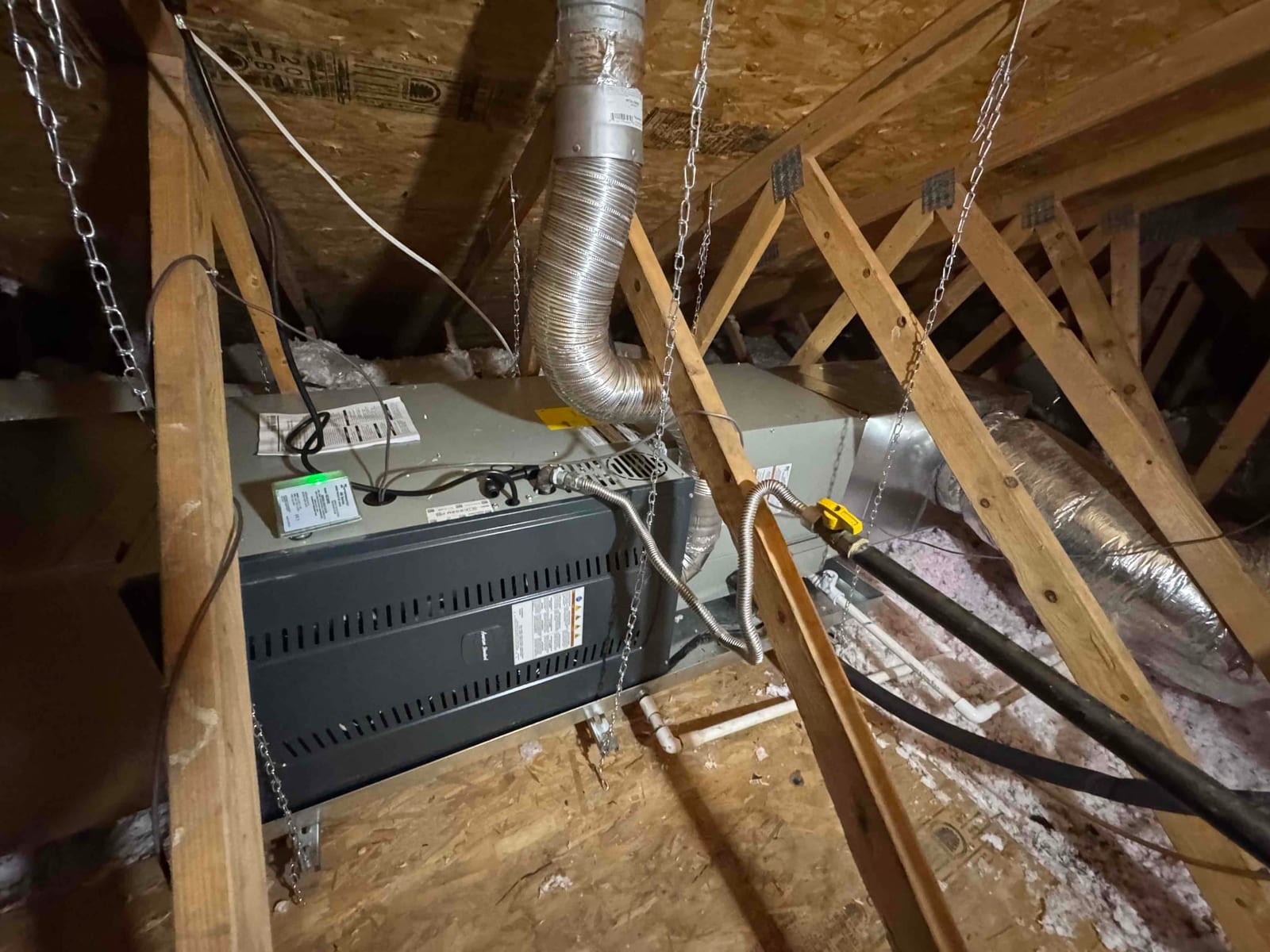

New attic air handler hung with support chains, connected to flexible ductwork, drain piping, and insulated refrigerant lines.
New attic air handler hung with support chains, connected to flexible ductwork, drain piping, and insulated refrigerant lines.

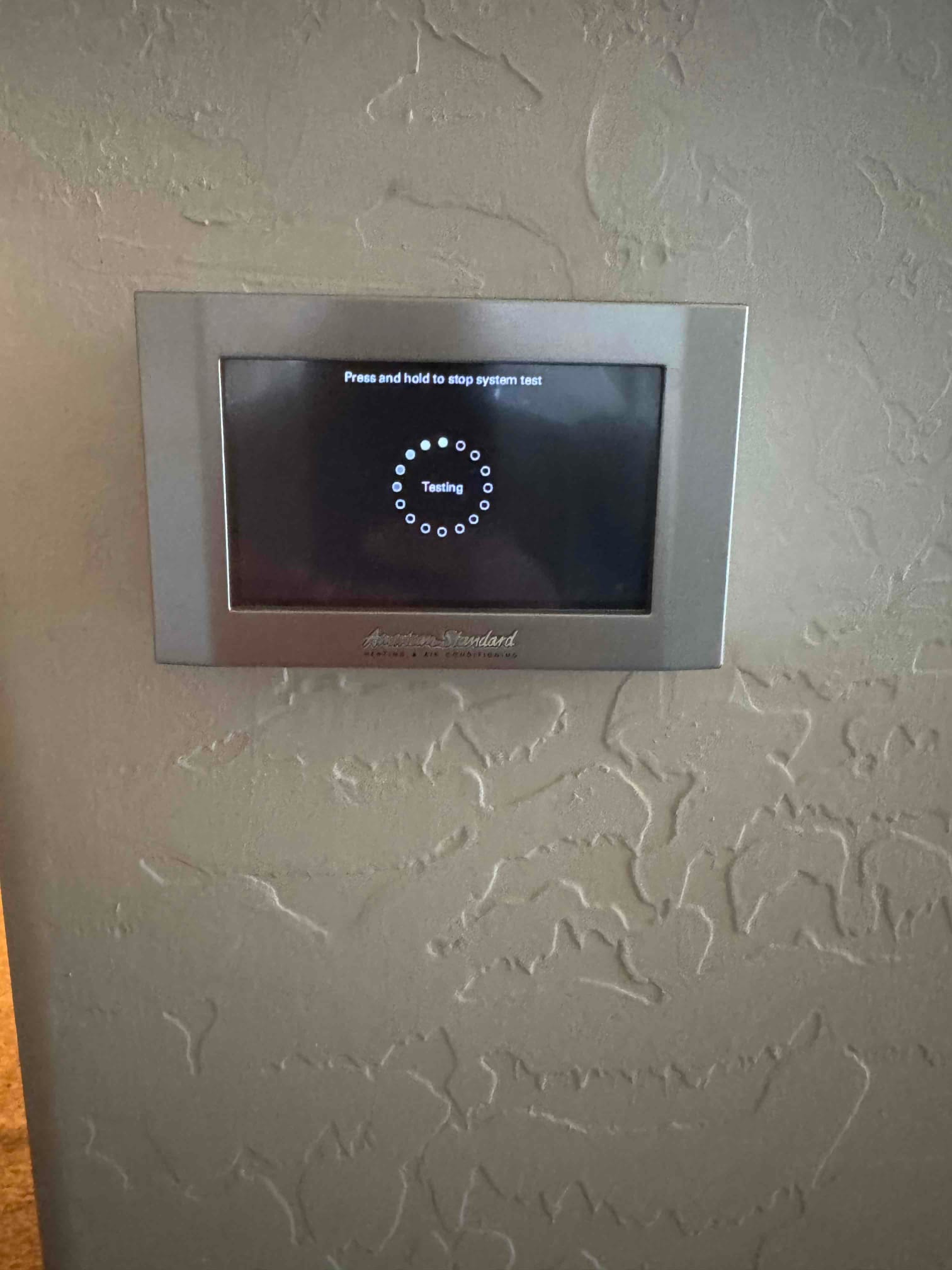

Wall-mounted touchscreen thermostat displays a system test screen during post-installation checkout of the HVAC controls.
Wall-mounted touchscreen thermostat displays a system test screen during post-installation checkout of the HVAC controls.

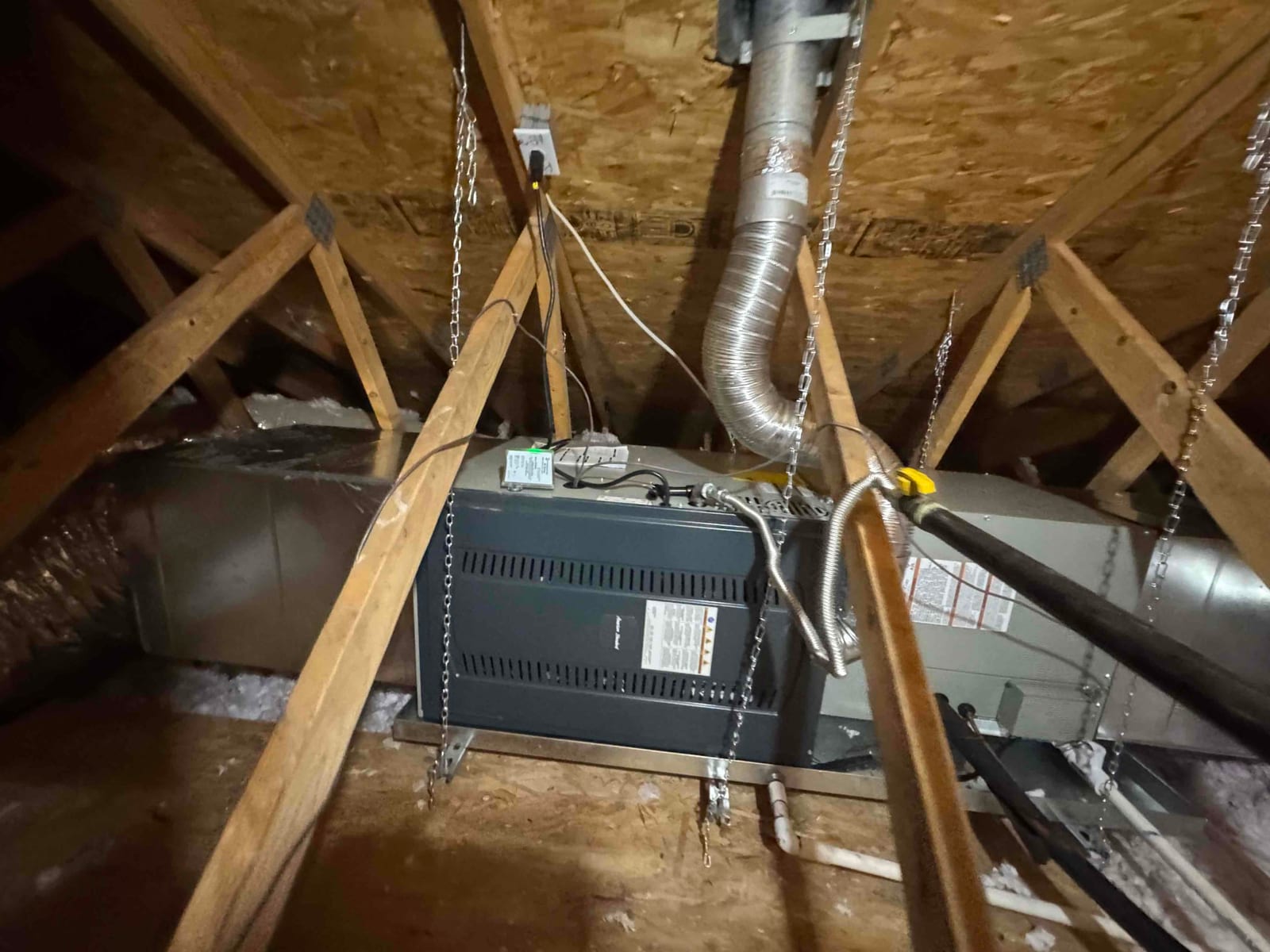

Suspended attic air handler and ductwork installed with hanging chains, insulated flex duct, drain piping, and electrical whip connected.
Suspended attic air handler and ductwork installed with hanging chains, insulated flex duct, drain piping, and electrical whip connected.
Condensate drain with inline float safety switch installed above a metal secondary drain pan beneath a suspended air handler.
Condensate drain with inline float safety switch installed above a metal secondary drain pan beneath a suspended air handler.

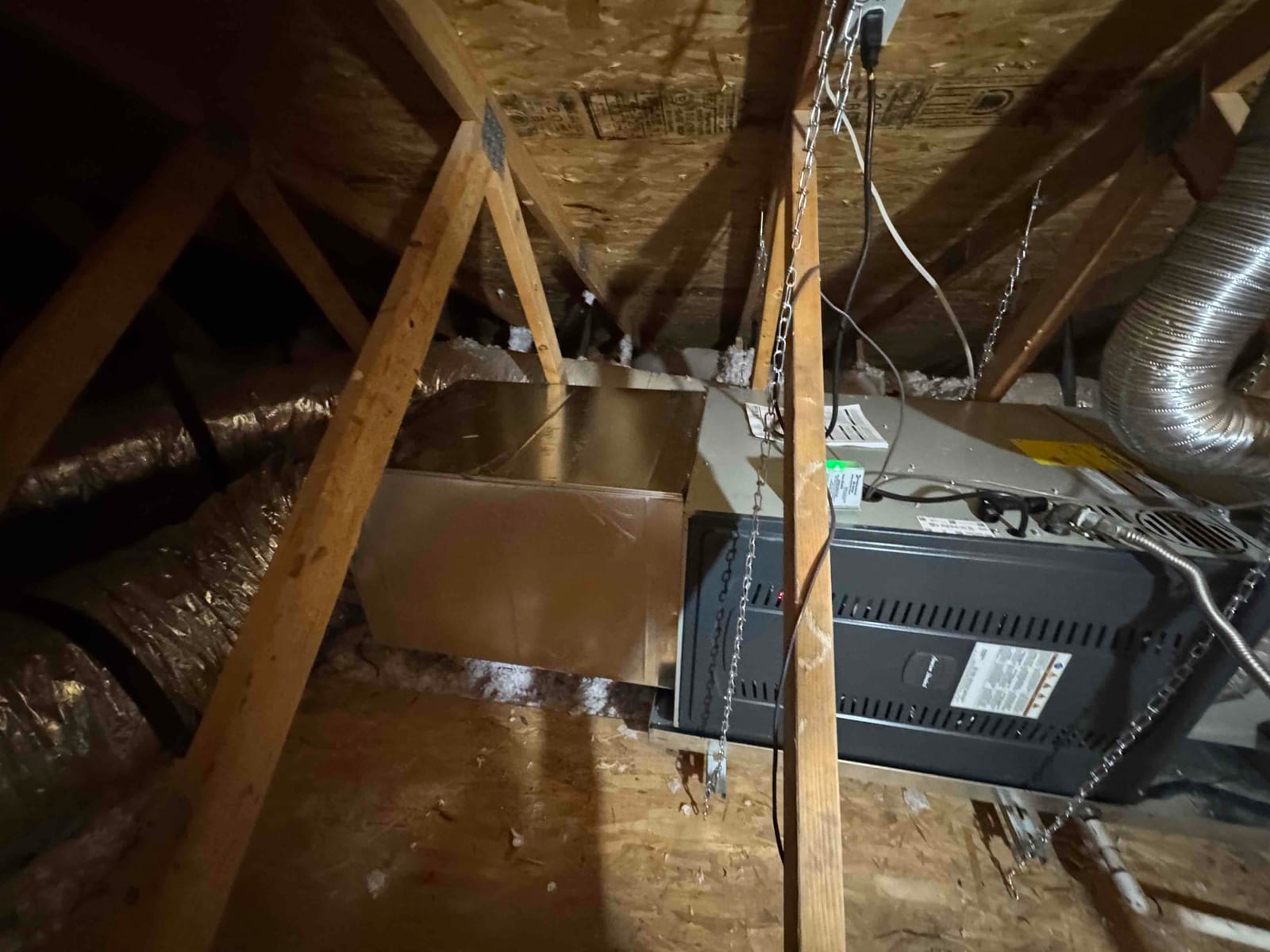

Attic air handler installed on a suspended platform with connected supply plenum and insulated flexible ductwork routed through the trusses.
Attic air handler installed on a suspended platform with connected supply plenum and insulated flexible ductwork routed through the trusses.
Air handler and furnace suspended in attic with flexible ducts connected, drain lines routed, and electrical whip secured.
Air handler and furnace suspended in attic with flexible ducts connected, drain lines routed, and electrical whip secured.
Suspended attic air handler installed with flexible gas vent, insulated duct connections, condensate piping, and secured support chains.
Suspended attic air handler installed with flexible gas vent, insulated duct connections, condensate piping, and secured support chains.

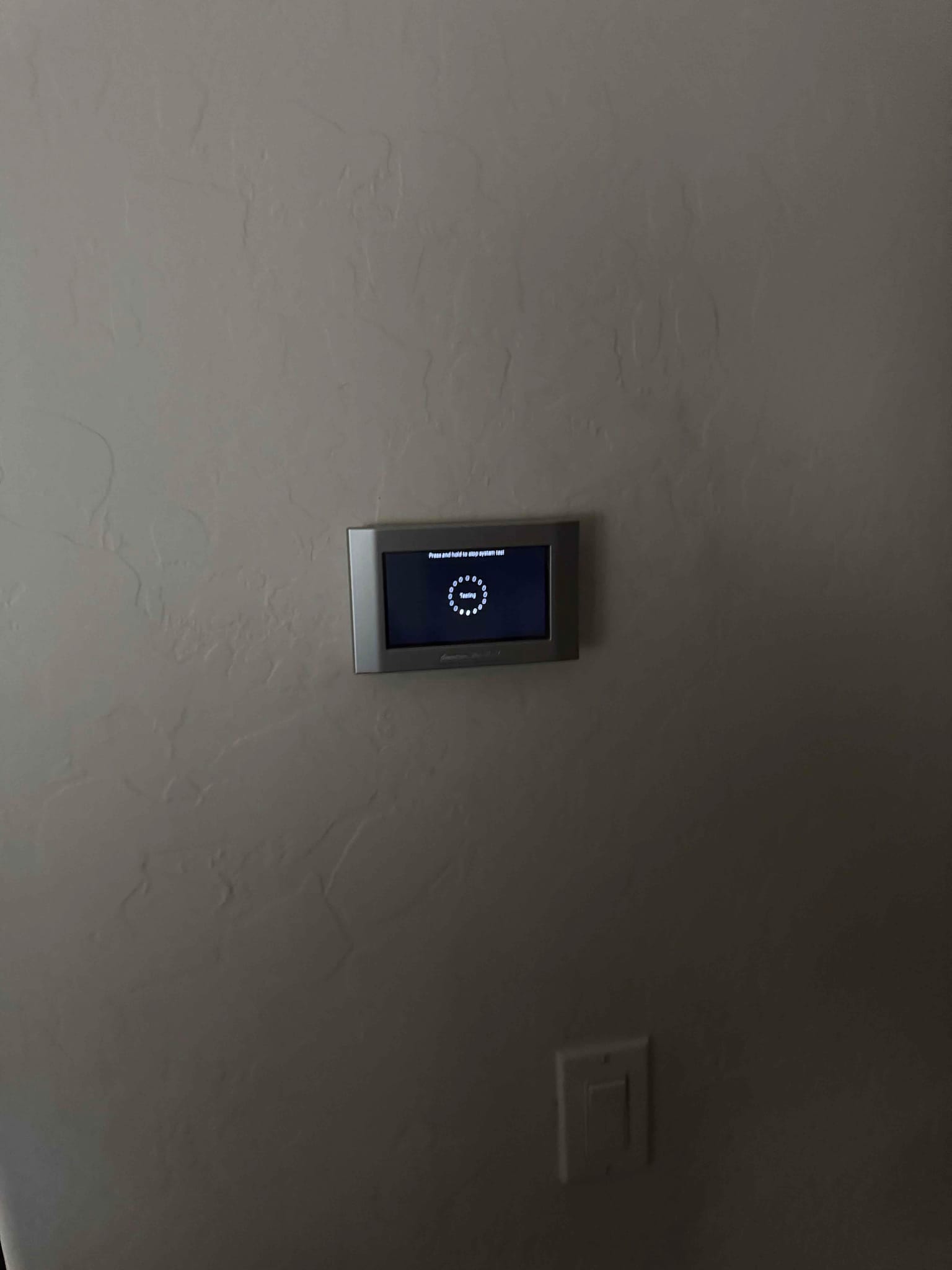

Wall-mounted touchscreen thermostat powering up on a newly installed HVAC system inside the home.
Wall-mounted touchscreen thermostat powering up on a newly installed HVAC system inside the home.
Digital refrigerant scale display shows 7.20 ounces on the screen inside its carrying case.
Digital refrigerant scale display shows 7.20 ounces on the screen inside its carrying case.

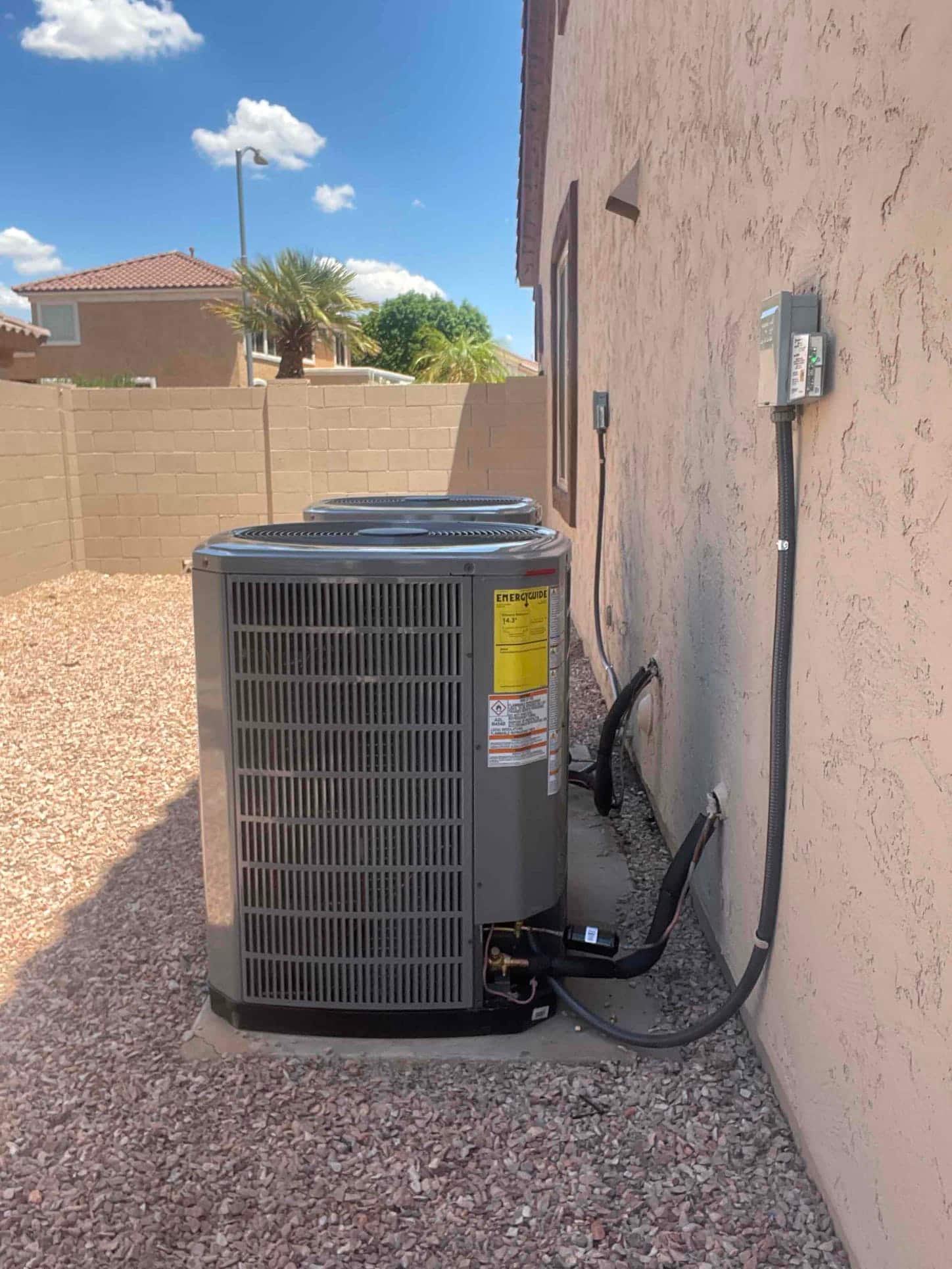

Two outdoor condensers set on level pads with insulated refrigerant lines and weatherproof disconnects mounted on the exterior wall.
Two outdoor condensers set on level pads with insulated refrigerant lines and weatherproof disconnects mounted on the exterior wall.
New attic air handler suspended with chains, connected to insulated ductwork and sealed metal plenum on a plywood platform.
New attic air handler suspended with chains, connected to insulated ductwork and sealed metal plenum on a plywood platform.

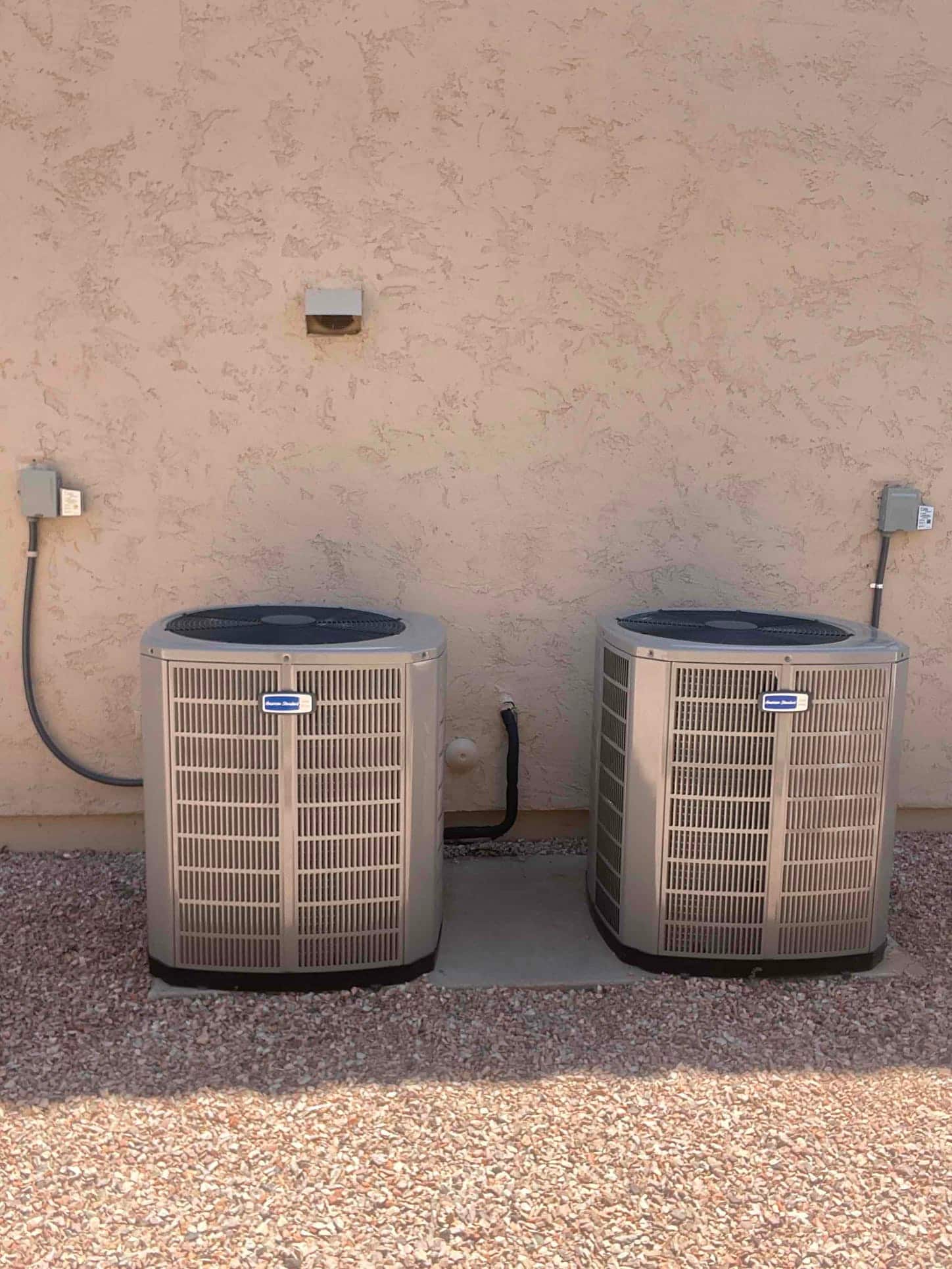

Two new outdoor condensers set on a level pad with insulated line set and electrical disconnects mounted nearby.
Two new outdoor condensers set on a level pad with insulated line set and electrical disconnects mounted nearby.

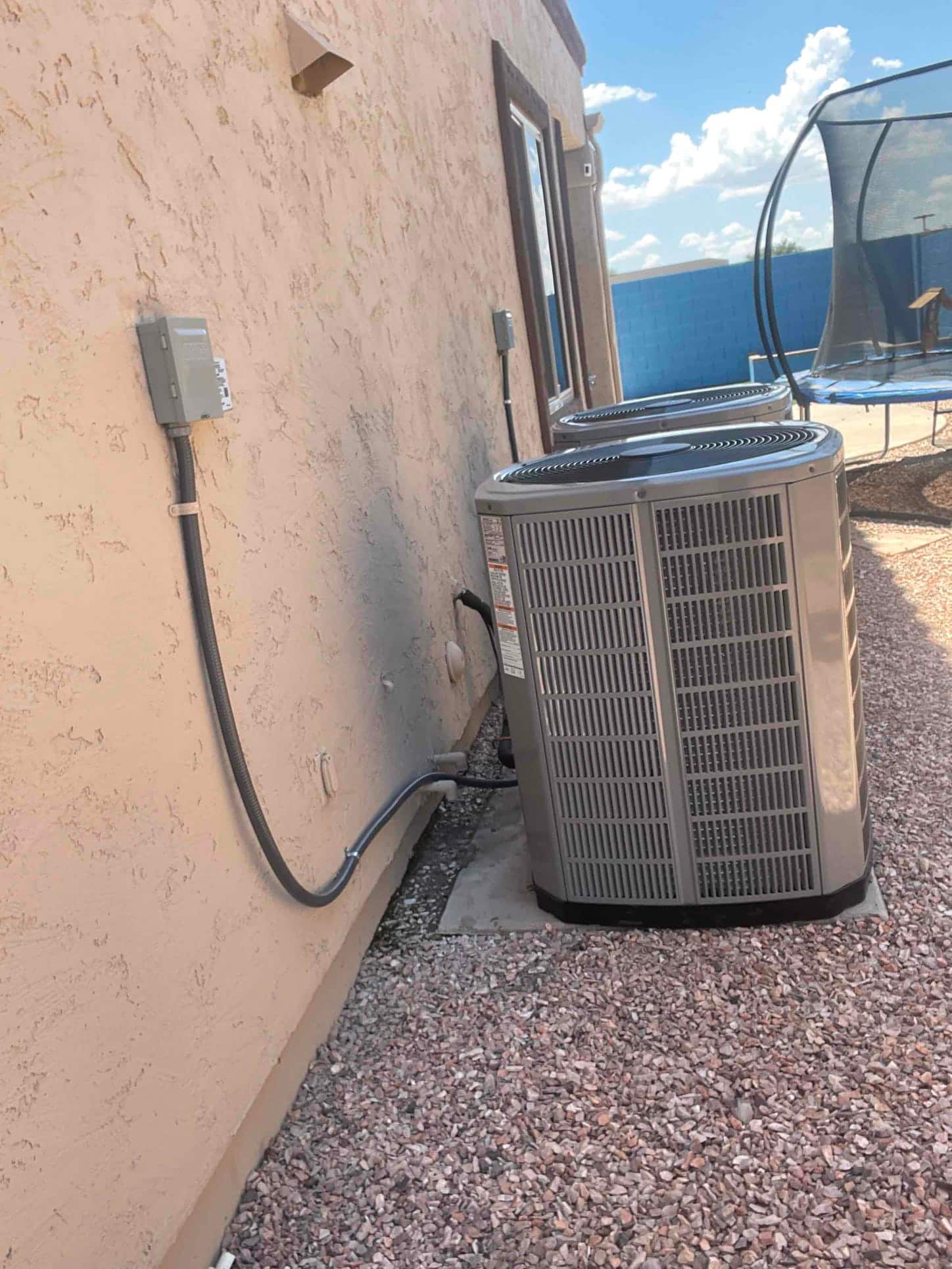

Two outdoor condensers set on level pads with secured electrical disconnects and insulated line sets along the exterior wall.
Two outdoor condensers set on level pads with secured electrical disconnects and insulated line sets along the exterior wall.
New air handler suspended in the attic with connected ductwork, insulated refrigerant lines, drain piping, and flexible gas line routing.
New air handler suspended in the attic with connected ductwork, insulated refrigerant lines, drain piping, and flexible gas line routing.
Wall-mounted touchscreen thermostat powers on after installation, confirming control interface is operational for the new HVAC system.
Wall-mounted touchscreen thermostat powers on after installation, confirming control interface is operational for the new HVAC system.

Nitrogen Pressure Test

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

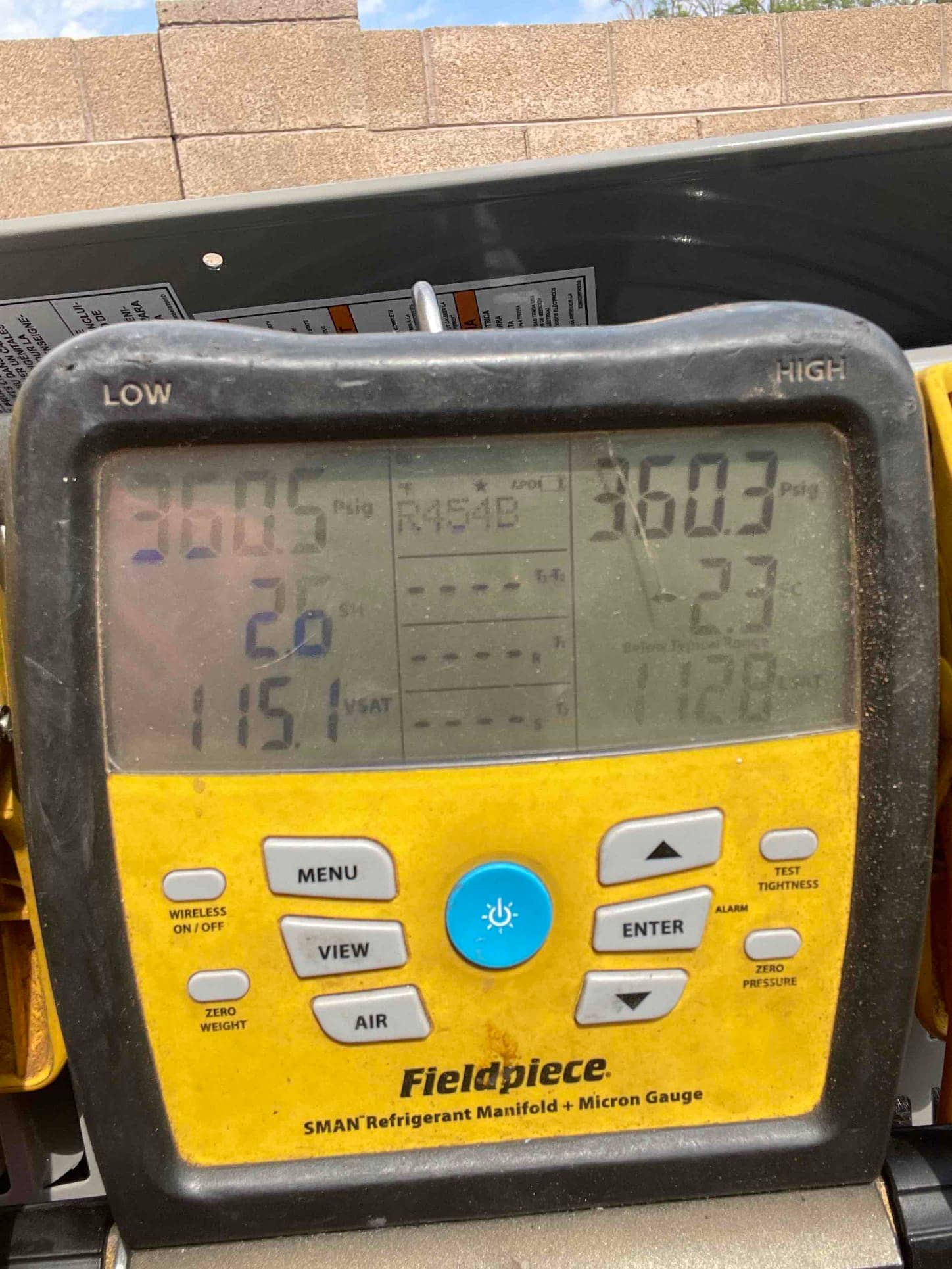

Digital manifold shows equal pressures around 360 PSI on both sides during a nitrogen pressure test. Refrigerant selection indicates R-454B.
Digital manifold shows equal pressures around 360 PSI on both sides during a nitrogen pressure test. Refrigerant selection indicates R-454B.

Vacuum / Evacuation

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

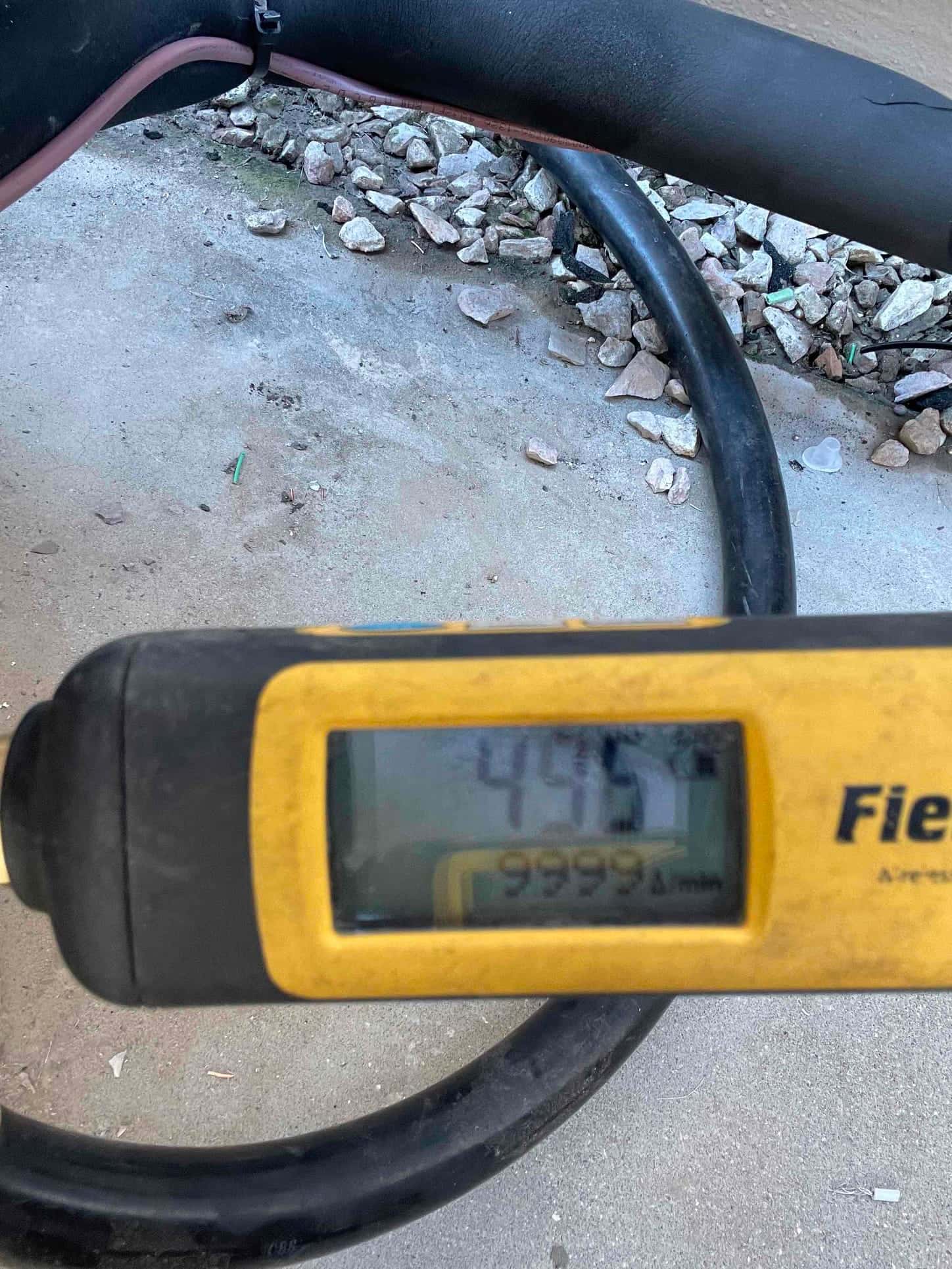

Micron gauge displays 445 microns during system evacuation, confirming a deep vacuum before releasing refrigerant into the lines.
Micron gauge displays 445 microns during system evacuation, confirming a deep vacuum before releasing refrigerant into the lines.

Refrigerant Commissioning

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

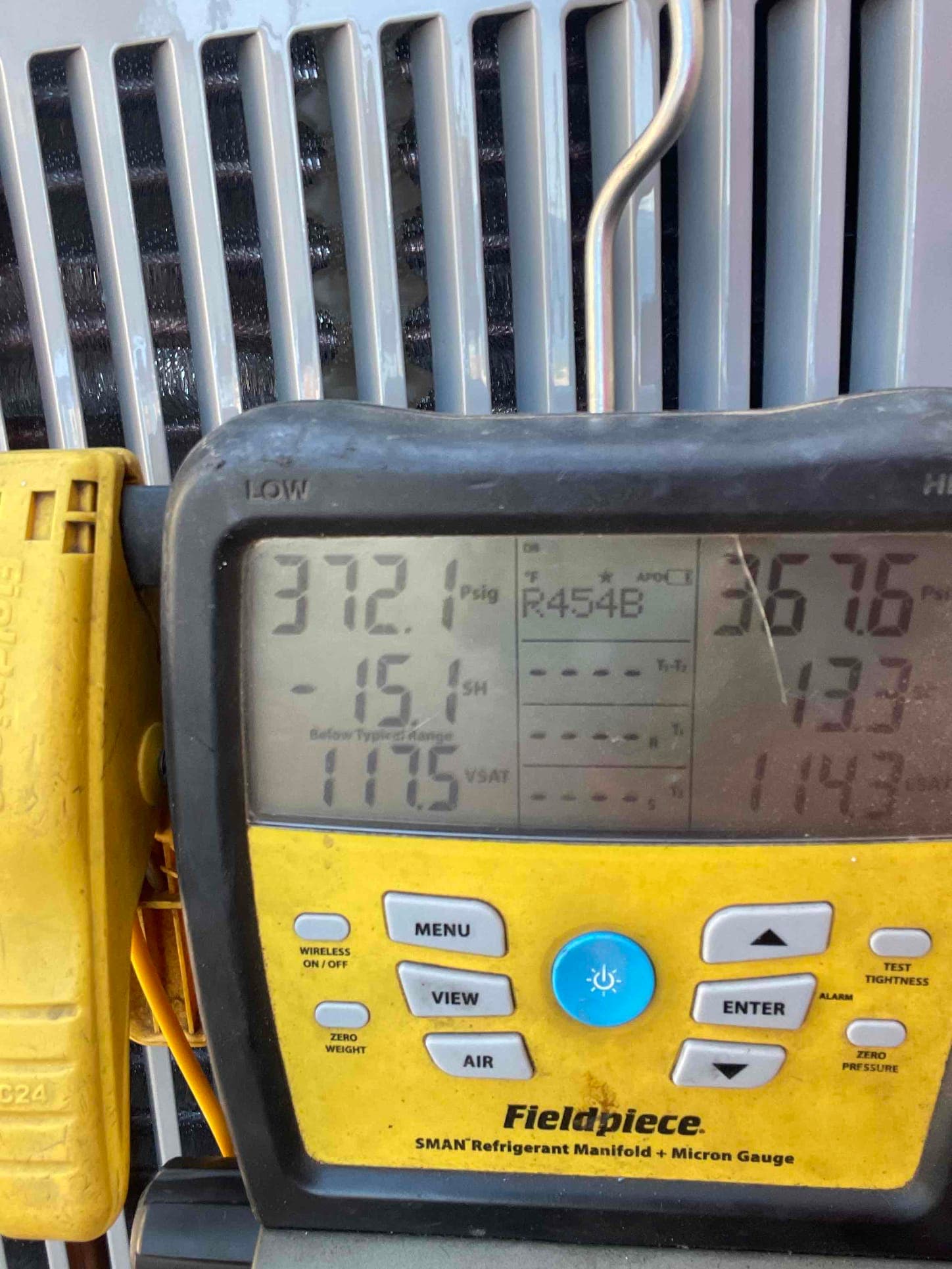

Digital manifold gauge on the condenser shows operating pressures while charging and commissioning a new air conditioning system.
Digital manifold gauge on the condenser shows operating pressures while charging and commissioning a new air conditioning system.

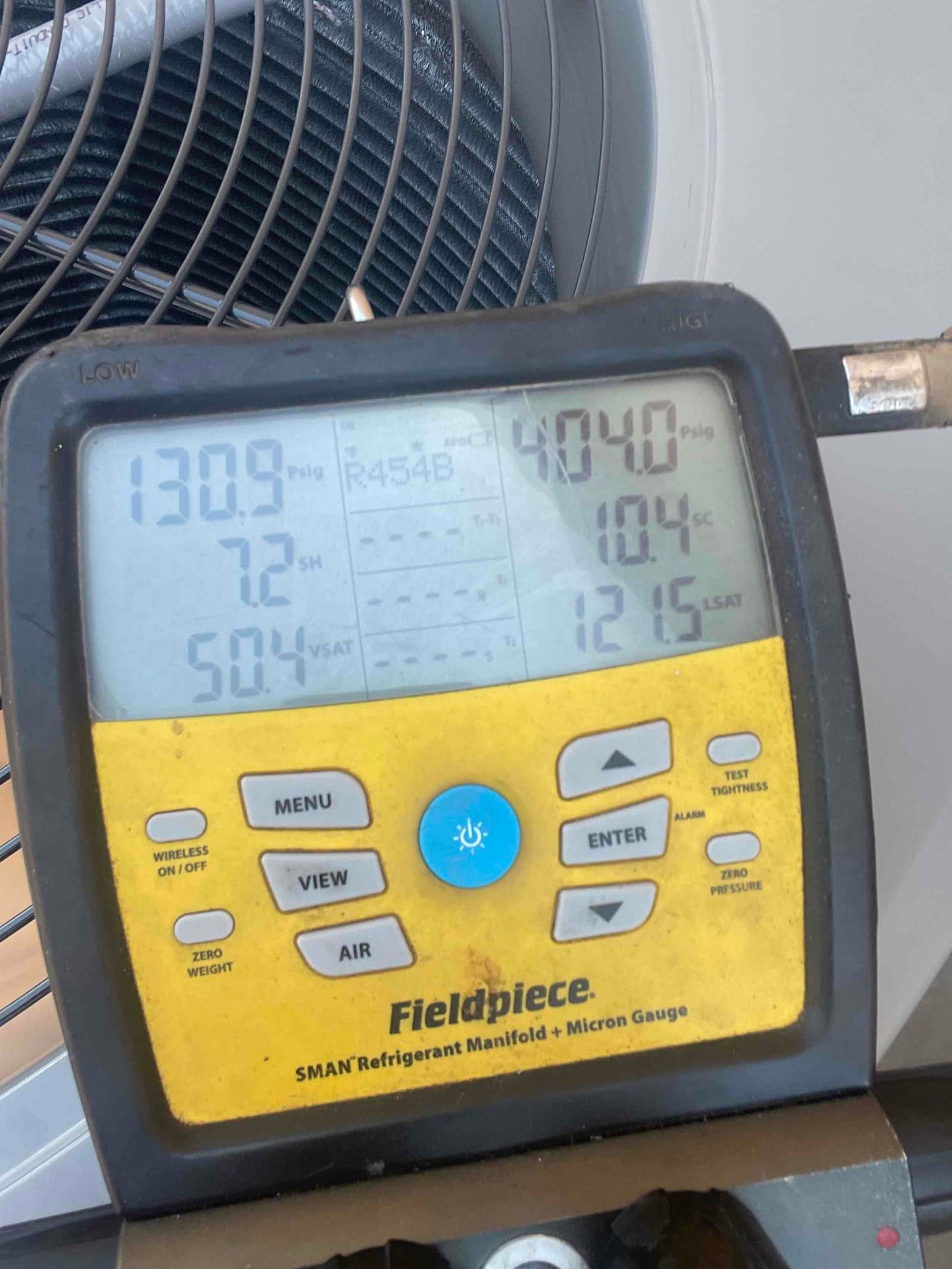

Digital manifold on the outdoor unit shows operating pressures and readings during system commissioning with refrigerant flowing.
Digital manifold on the outdoor unit shows operating pressures and readings during system commissioning with refrigerant flowing.

Air-Side Commissioning

Return and supply air temperatures measured to verify the temperature split falls in the target window.

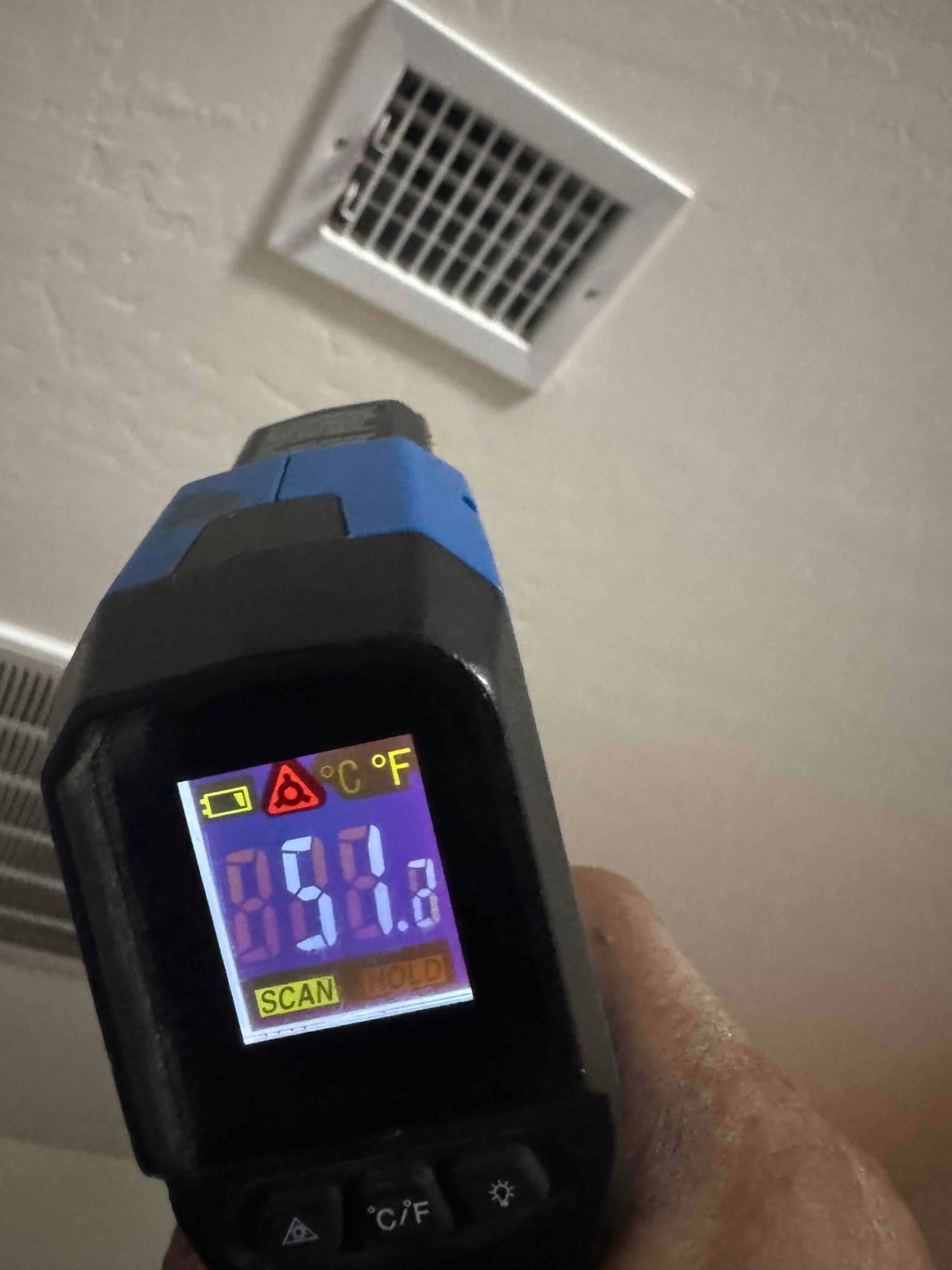

Infrared thermometer aimed at a ceiling supply register shows 58.8 degrees Fahrenheit during cooling airflow verification.
Infrared thermometer aimed at a ceiling supply register shows 58.8 degrees Fahrenheit during cooling airflow verification.
Infrared thermometer aimed at a ceiling supply register shows 55.8 degrees Fahrenheit during cooling airflow verification.
Infrared thermometer aimed at a ceiling supply register shows 55.8 degrees Fahrenheit during cooling airflow verification.

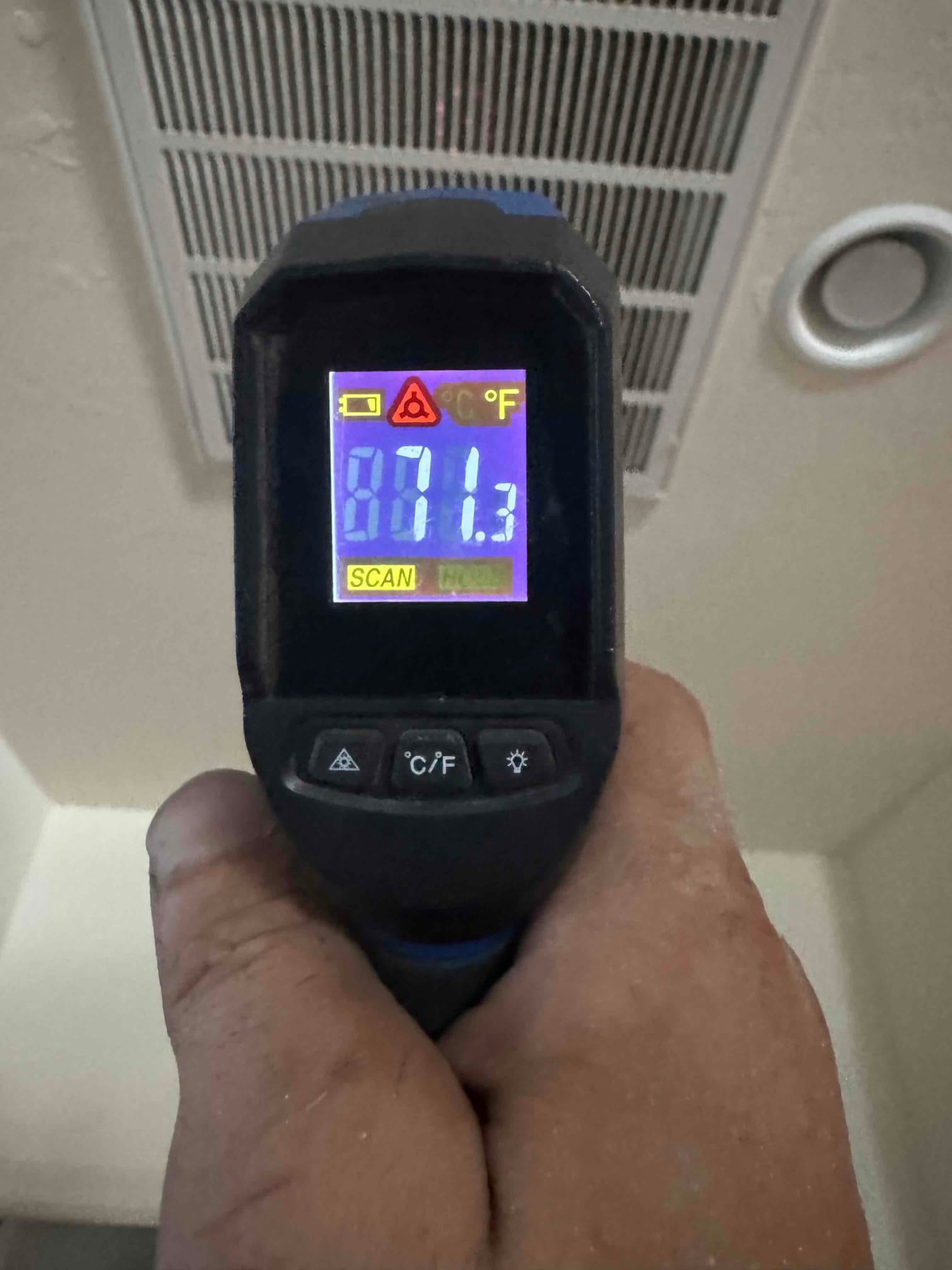

Infrared thermometer reads 81.3°F while aimed at a return air grille during air temperature check.
Infrared thermometer reads 81.3°F while aimed at a return air grille during air temperature check.

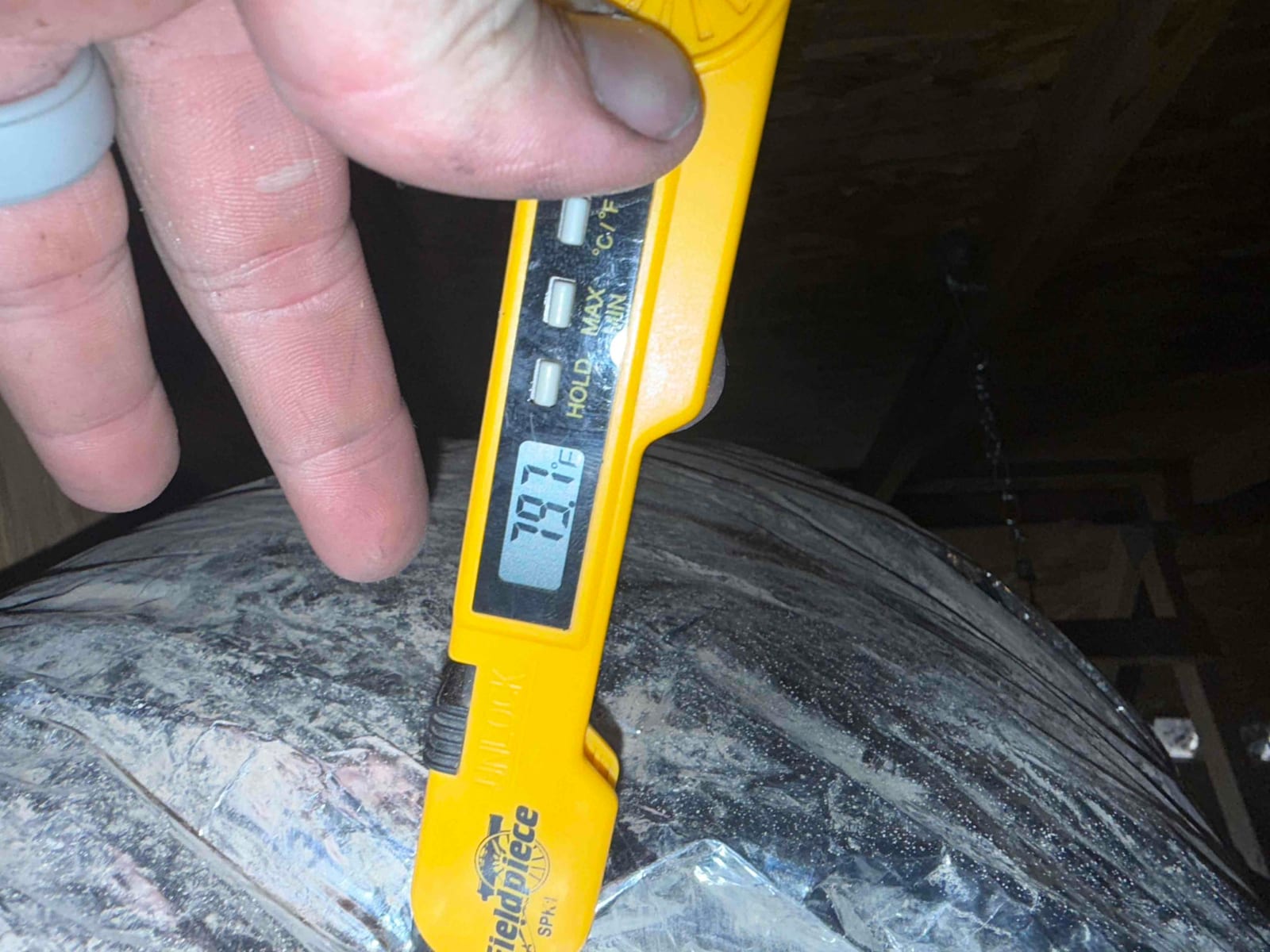

Digital thermometer pressed against insulated duct shows 78.7°F, documenting return air temperature during air-side commissioning.
Digital thermometer pressed against insulated duct shows 78.7°F, documenting return air temperature during air-side commissioning.

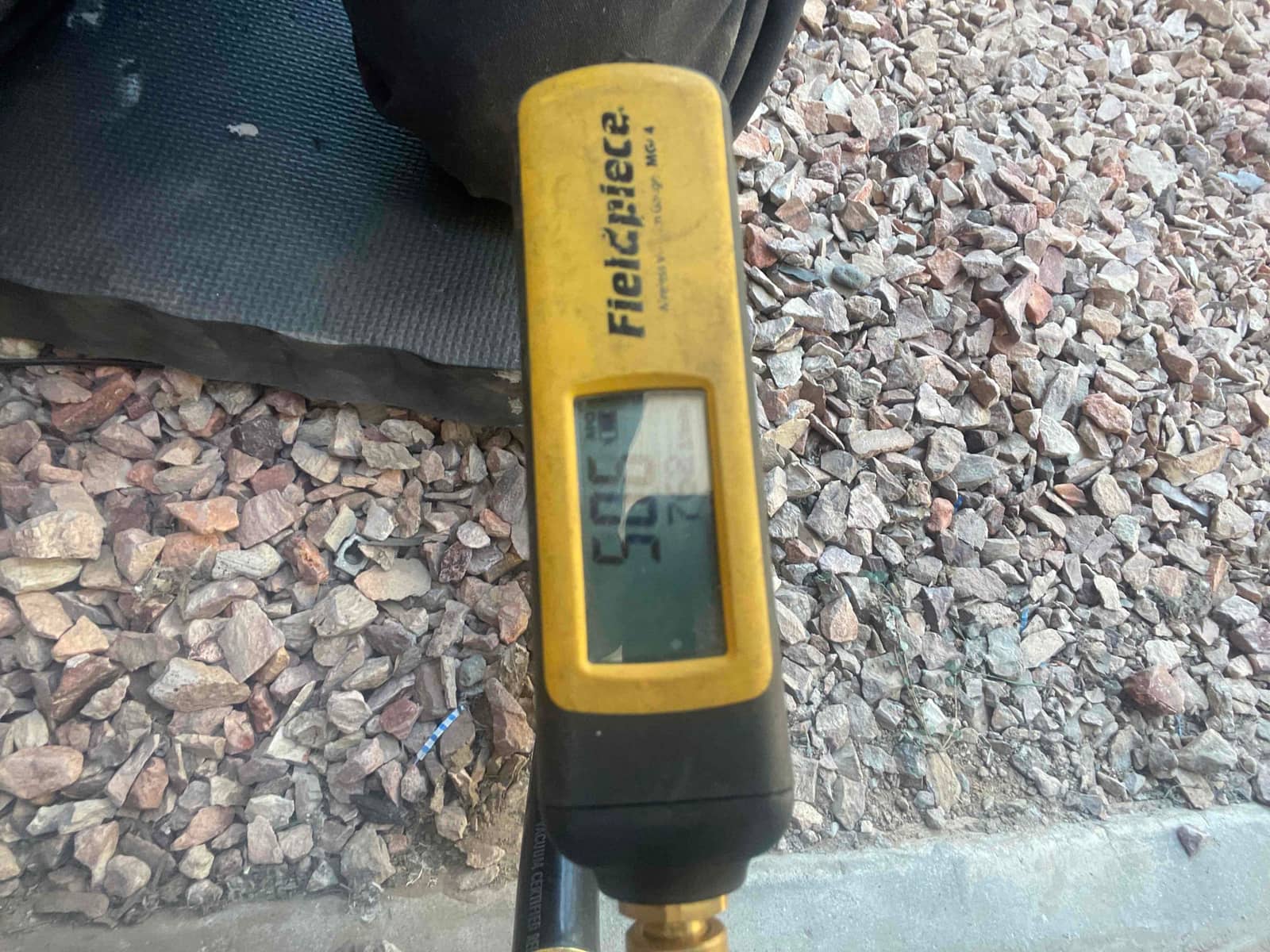

Digital thermometer probe displays 50°F while measuring air temperature during system checkout at the outdoor installation area.
Digital thermometer probe displays 50°F while measuring air temperature during system checkout at the outdoor installation area.
Infrared thermometer aimed at a return grille displays 81.3 degrees Fahrenheit during air temperature check.
Infrared thermometer aimed at a return grille displays 81.3 degrees Fahrenheit during air temperature check.

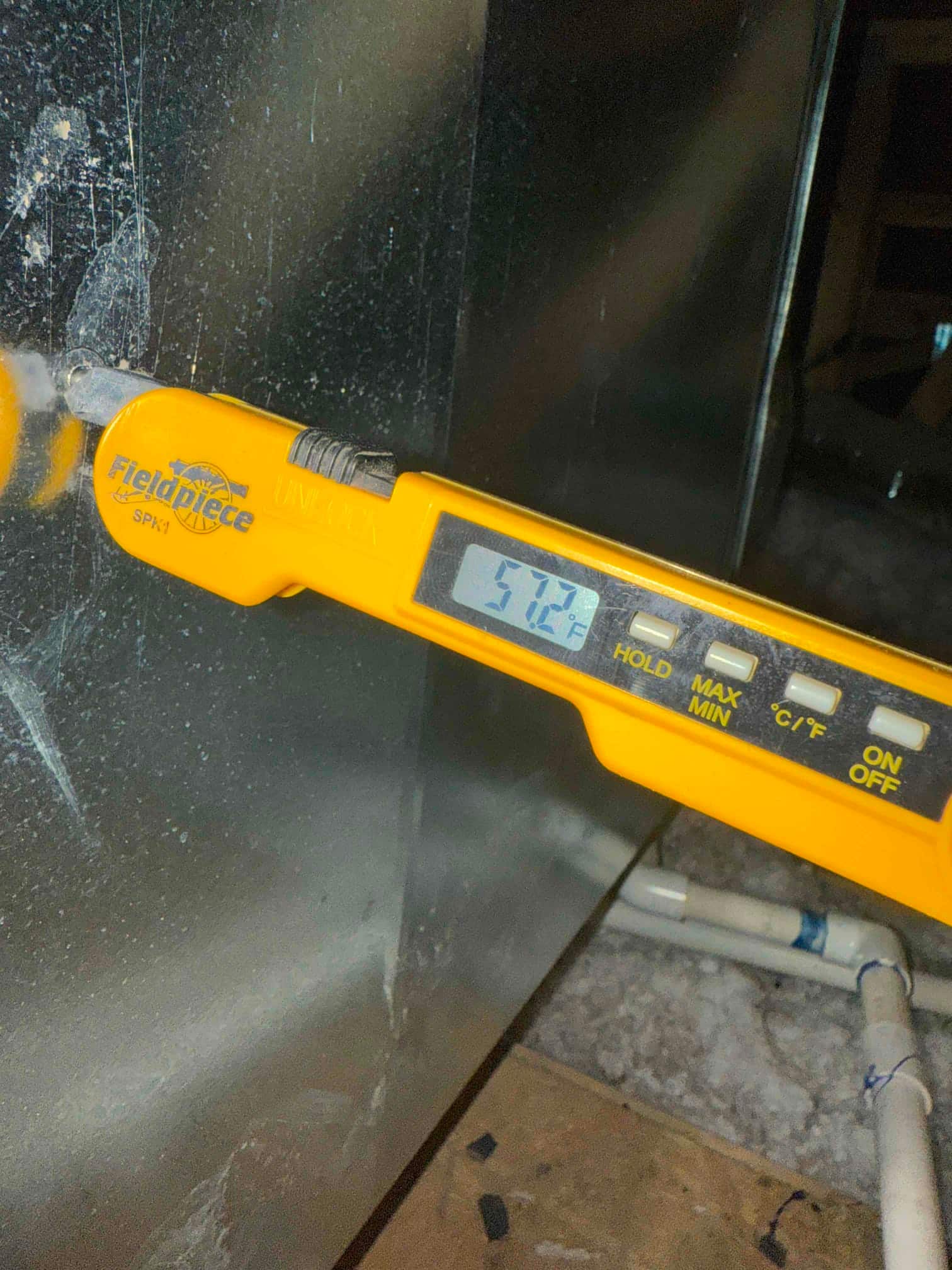

Digital thermometer probe inserted into metal duct shows 57.2°F, documenting cold supply air temperature after the evaporator.
Digital thermometer probe inserted into metal duct shows 57.2°F, documenting cold supply air temperature after the evaporator.
— Frequently Asked

Questions about this installation

What kind of system was installed in this Arrowhead / Glendale job?

AZ Perfect Comfort installed a 4-Ton Trane Air Conditioning System at this Arrowhead / Glendale property. The install was completed by Ben, Jesse & Michael and includes AZ Perfect Comfort's workmanship warranty.

How much does a new air conditioning system cost in Phoenix?

Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.

Does AZ Perfect Comfort offer financing for HVAC installations?

Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.

Does AZ Perfect Comfort install in Arrowhead / Glendale?

Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Arrowhead / Glendale and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.

Is the new equipment covered by a warranty?

Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
