Real Installation · Arcadia

Multi-System American Standard Installation in Arcadia — September 2026

CompletedSeptember 4, 2026
Install CrewBen, Andrew, Kyle & Edwin
Service AreaArcadia
SystemMulti-System HVAC Installation — 2 × 5-Ton, 2 × 3-Ton
BrandAmerican Standard
WarrantyMfg + Workmanship
Instant Price Estimate Call (602) 613-3489
4.9806 Google Reviews
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
AZ Perfect Comfort — Our Work
Scope of Work
Installation of a vertical split system, 4-Platinum 20 with condensing furnace.
Arcadia · installed September 4, 2026
— At a Glance
Location
Arcadia
Completed
September 4, 2026
Project Type
Multi-System HVAC Installation
Systems Installed
4
System Sizes
2 × 5-Ton, 2 × 3-Ton
Brand
American Standard
AHRI Certified References
2 Certified Equipment Combinations
Labor Warranty
10-Year Labor Warranty
Total Project Investment
$67,068
— What We Installed

Every component in this system

Each piece of equipment set at this home, its condition, and its place in the system.

Newly Installed

Furnace

Brand
American Standard
Model
S9V2C100U5VSBBA
New — installed 2026
Newly Installed

Furnace

Brand
American Standard
Model
S9V2B080U4VSBBA
New — installed 2026
Newly Installed

Furnace

Brand
American Standard
Model
S9V2C100U5VSBBA
New — installed 2026
Newly Installed

Furnace

Brand
American Standard
Model
S9V2B080U4VSBBA
New — installed 2026
Newly Installed

SE Wing Relay Panel

Brand
American Standard
Model
BAY24VRPAC52DC
New — installed 2026
Newly Installed

Upstairs Relay Panel

Brand
American Standard
Model
BAY24VRPAC52DC
New — installed 2026
Newly Installed

Kitchen Relay Panel

Brand
American Standard
Model
BAY24VRPAC52DC
New — installed 2026
Newly Installed

Primary Bedroom Relay Panel

Brand
American Standard
Model
BAY24VRPAC52DC
New — installed 2026
Newly Installed

AC condenser

Brand
American Standard
Model
5A7V0X60A1000AA
Efficiency
20 SEER2
New — installed 2026
Newly Installed

AC condenser

Brand
American Standard
Model
5A7V0X60A1000AA
Efficiency
20 SEER2
New — installed 2026
Newly Installed

Evaporator Coil

Brand
American Standard
Model
5TXCC009AS3HCAA
New — installed 2026
Newly Installed

AC condenser

Brand
American Standard
Model
5A7V0X36A1000AA
Efficiency
20 SEER2
New — installed 2026
Newly Installed

AC condenser

Brand
American Standard
Model
5A7V0X36A1000AA
Efficiency
20 SEER2
New — installed 2026
Newly Installed

Evaporator Coil

Brand
American Standard
Model
5TXCB004AS3HCAV
New — installed 2026
Newly Installed

Evaporator Coil

Brand
American Standard
Model
5TXCB004AS3HCAV
New — installed 2026
Newly Installed

Thermostat

Brand
American Standard
Model
ALINK360A2VVUG
New — installed 2026
Newly Installed

Thermostat

Brand
American Standard
Model
ALINK360A2VVUG
New — installed 2026
Newly Installed

Thermostat

Brand
American Standard
Model
ALINK360A2VVUG
New — installed 2026
Newly Installed

Thermostat

Brand
American Standard
Model
ALINK360A2VVUG
New — installed 2026
— Systems Installed

4 physical HVAC systems on this project

Each entry below is one complete, independently controlled HVAC system installed on this project. AHRI-certified matched pairs are noted with their certificate reference number.

Upstairs
AC + Furnace Split System · 3-Ton
Brand
American Standard
Outdoor Unit
5A7V0X36A1000AA
Furnace
S9V2B080U4VSBBA
Coil
5TXCB004AS3HCAV
AHRI Reference
218036726
Kitchen
AC + Furnace Split System · 5-Ton
Brand
American Standard
Outdoor Unit
5A7V0X60A1000AA
Furnace
S9V2C100U5VSBBA
AHRI Reference
218036868
SE Wing
AC + Furnace Split System · 5-Ton
Brand
American Standard
Outdoor Unit
5A7V0X60A1000AA
Furnace
S9V2C100U5VSBBA
Coil
5TXCC009AS3HCAA
AHRI Reference
218036868
Primary Bedroom
AC + Furnace Split System · 3-Ton
Brand
American Standard
Outdoor Unit
5A7V0X36A1000AA
Furnace
S9V2B080U4VSBBA
Coil
5TXCB004AS3HCAV
AHRI Reference
218036726
— AHRI Certified

Matched-system efficiency, verified by AHRI

AHRI certification verifies the rated performance of matched indoor and outdoor HVAC equipment combinations. Every certificate reference number below links to the AHRI Directory, the industry's public record.

Certified by the Air-Conditioning, Heating, and Refrigeration Institute
Your Coverage on This Install
Labor Warranty
10-Year Labor Warranty

Full terms and coverage details reviewed with the homeowner at time of estimate. Contact us for details.

— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Service Areas. You can browse more real Multi-System American Standard Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Ben, Andrew, Kyle & Edwin from the manifold gauges, micron gauge, and digital thermometers.

Refrigerant Circuit

Refrigerant type
R-454B
Suction pressure
129 PSIG
Liquid pressure
391 PSIG
Evaporator saturation
51.7°F
Condensing saturation
119.2°F
Superheat
30°F
Subcooling
11°F

Air-Side Performance

Return-air temperature
80.8°F
Supply-air temperature
63.6°F
Temperature split
17.2°F

Nitrogen Pressure Test

Test pressure held
352 PSIG

Vacuum / Evacuation

Final vacuum reading
55 microns

Electrical Readings

Supply voltage
236V

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

ItemDescriptionQty
520V-5A7V0X60-S8V2 Vertical 5 Ton- Premium Variable Speed -20 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bot 2
AZPC-10YR 10 year Labor Warranty through AZ Perfect Comfort. Subject to Terms and Conditions of the agreement provided by AZ Perfect Comfort. AZ Perfect Comfort remains the contractor to perform all work.The Wa 1
INSTALL-MEM-1-SYSTEM Sold At Time of Install: 1 System Perfect Comfort Club MembershipRegular maintenance must be performed by AZ Perfect Comfort for labor warranty to be valid. One Maintenance Visit Per Year.26 Point A- 1
320V-5A7V0X36-S8V2 Vertical 3 Ton- Premium Variable Speed -20 SEER2 American Standard - Trane Technologies AC . Installation of the equipment is subject to the terms and conditions of AZ Perfect Comfort found at the bot 2

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

37 photos from this installation

Every step of this installation was documented on-site by Ben, Andrew, Kyle & Edwin.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

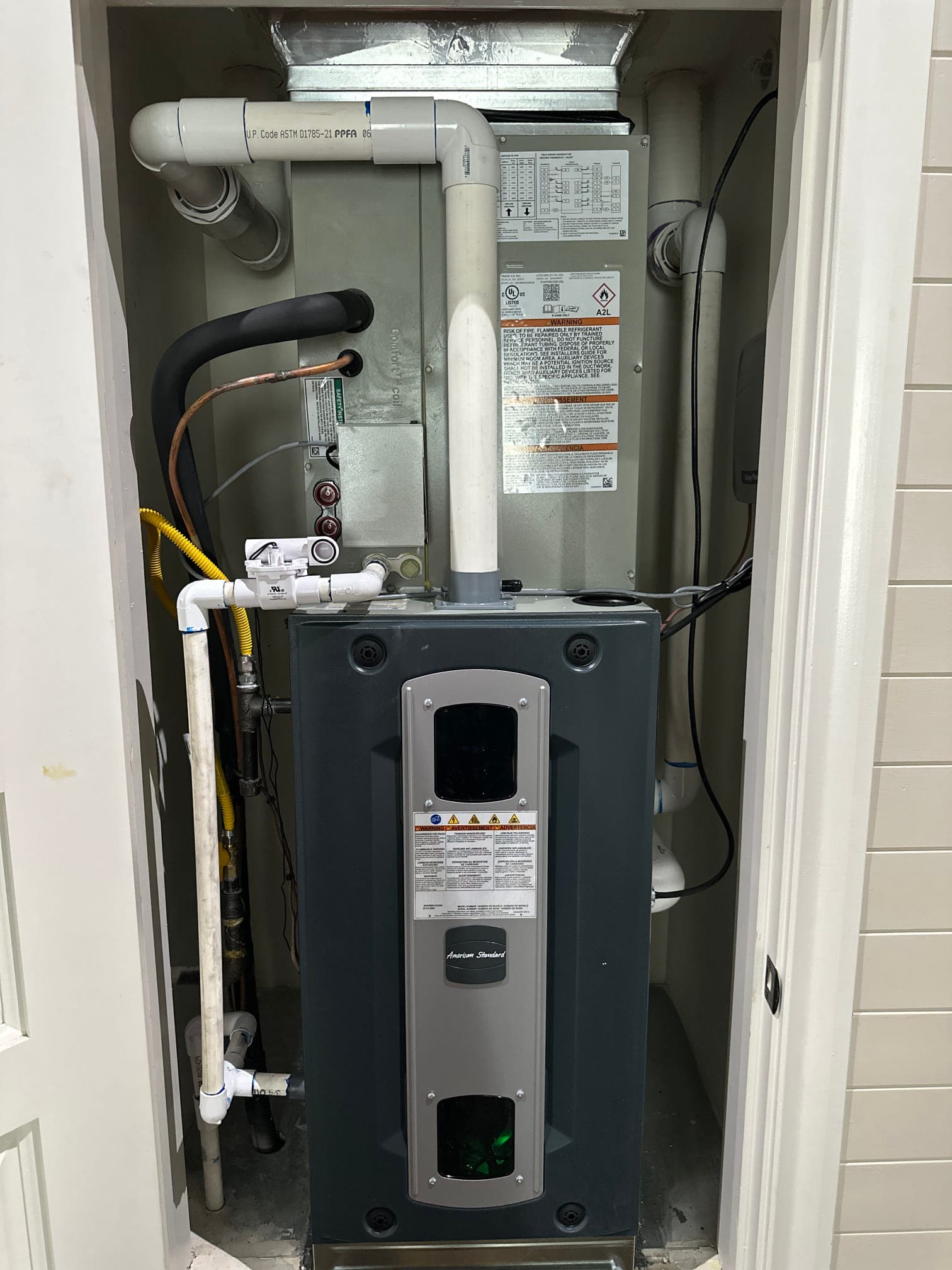

New indoor furnace and coil installed in a closet, with PVC condensate and vent piping, insulated refrigerant lines, and gas connection routed cleanly.
New indoor furnace and coil installed in a closet, with PVC condensate and vent piping, insulated refrigerant lines, and gas connection routed cleanly.

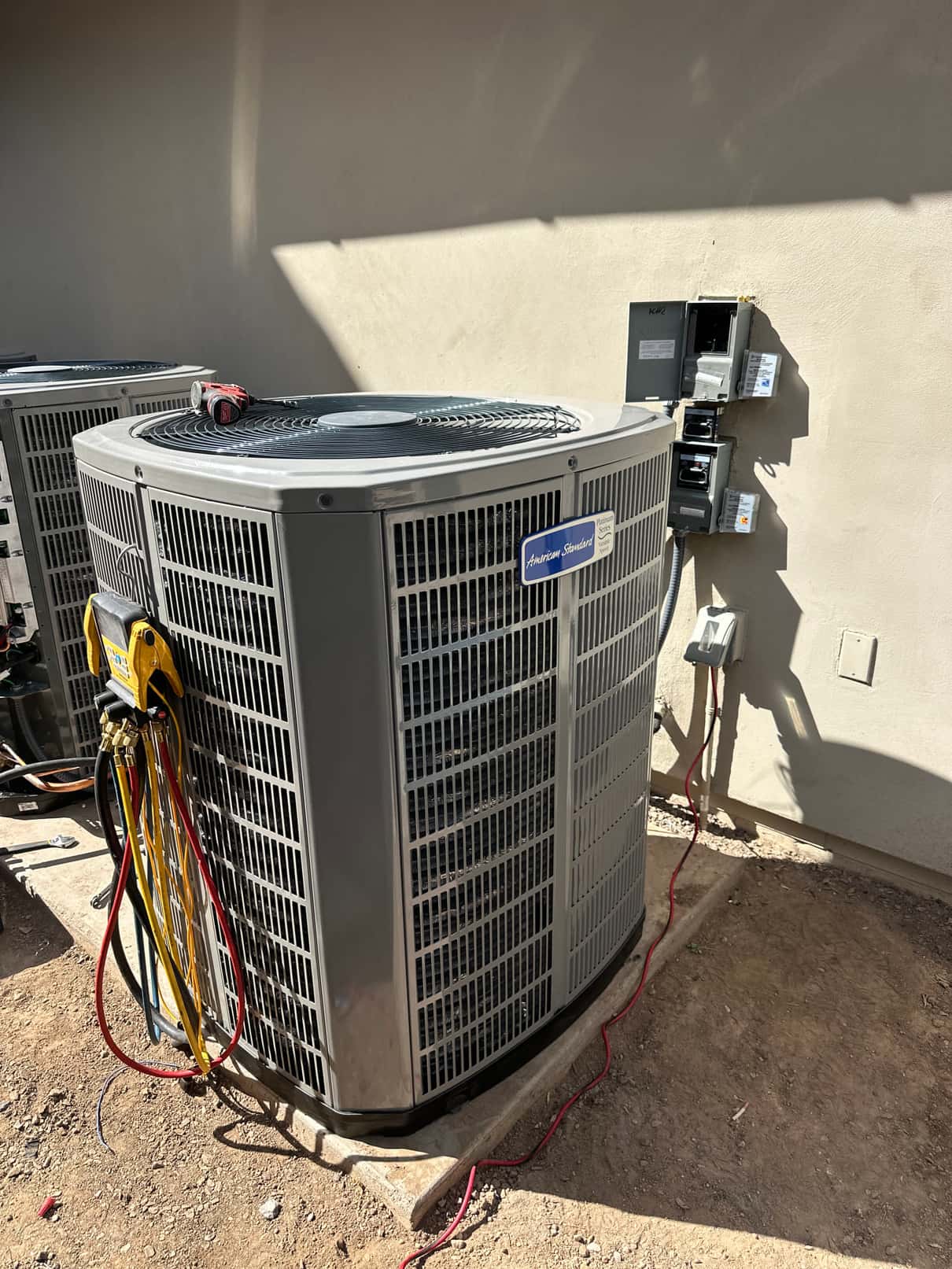

New outdoor condensers set on pads with disconnects mounted nearby and manifold hoses attached for commissioning.
New outdoor condensers set on pads with disconnects mounted nearby and manifold hoses attached for commissioning.
New furnace and condensate drain assembly installed with clean PVC trap, secondary drain switch, gas flex, and venting connections.
New furnace and condensate drain assembly installed with clean PVC trap, secondary drain switch, gas flex, and venting connections.

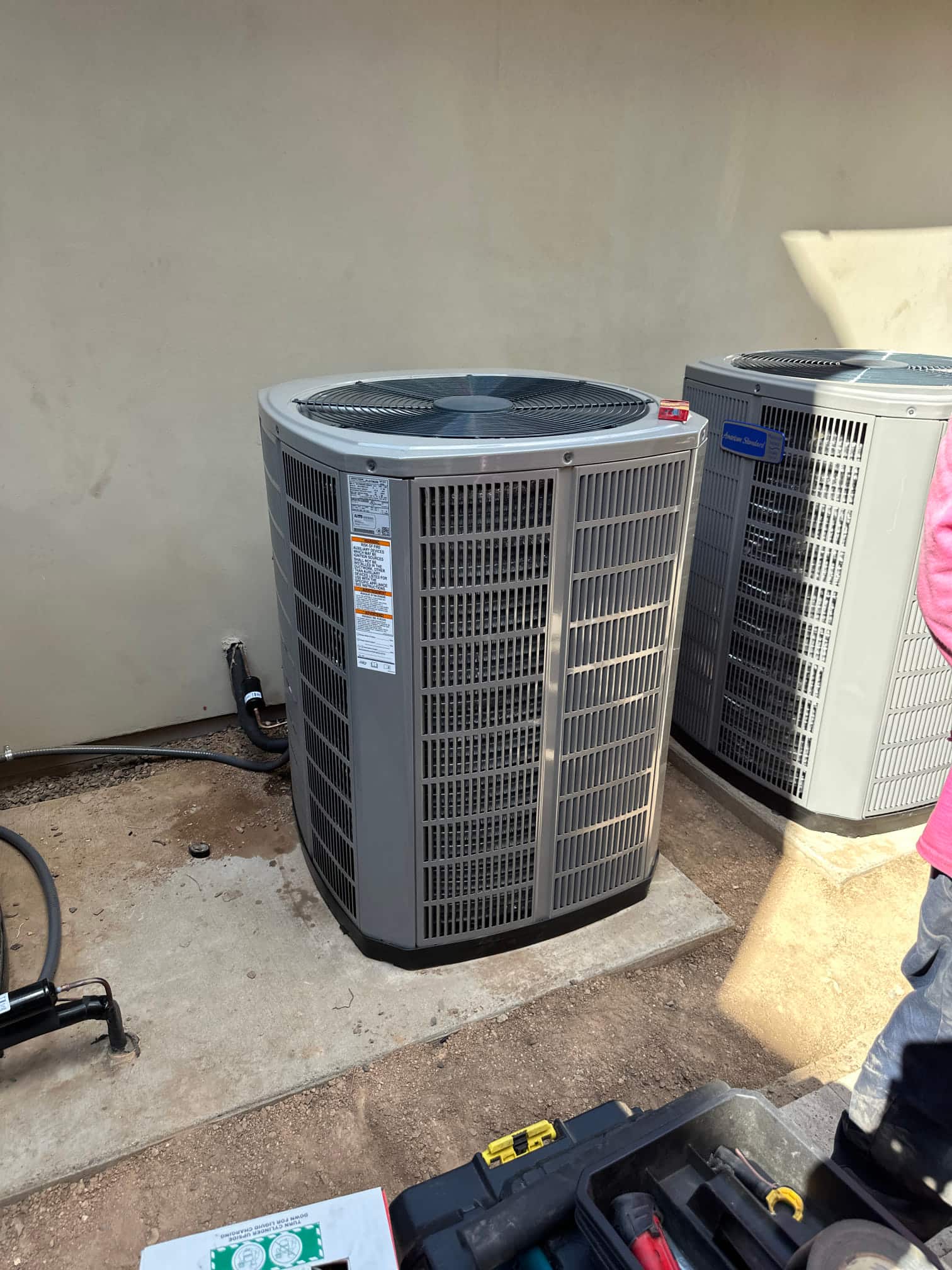

Two outdoor condensers installed on level pads with insulated line sets and sealed wall penetrations at the installation site.
Two outdoor condensers installed on level pads with insulated line sets and sealed wall penetrations at the installation site.

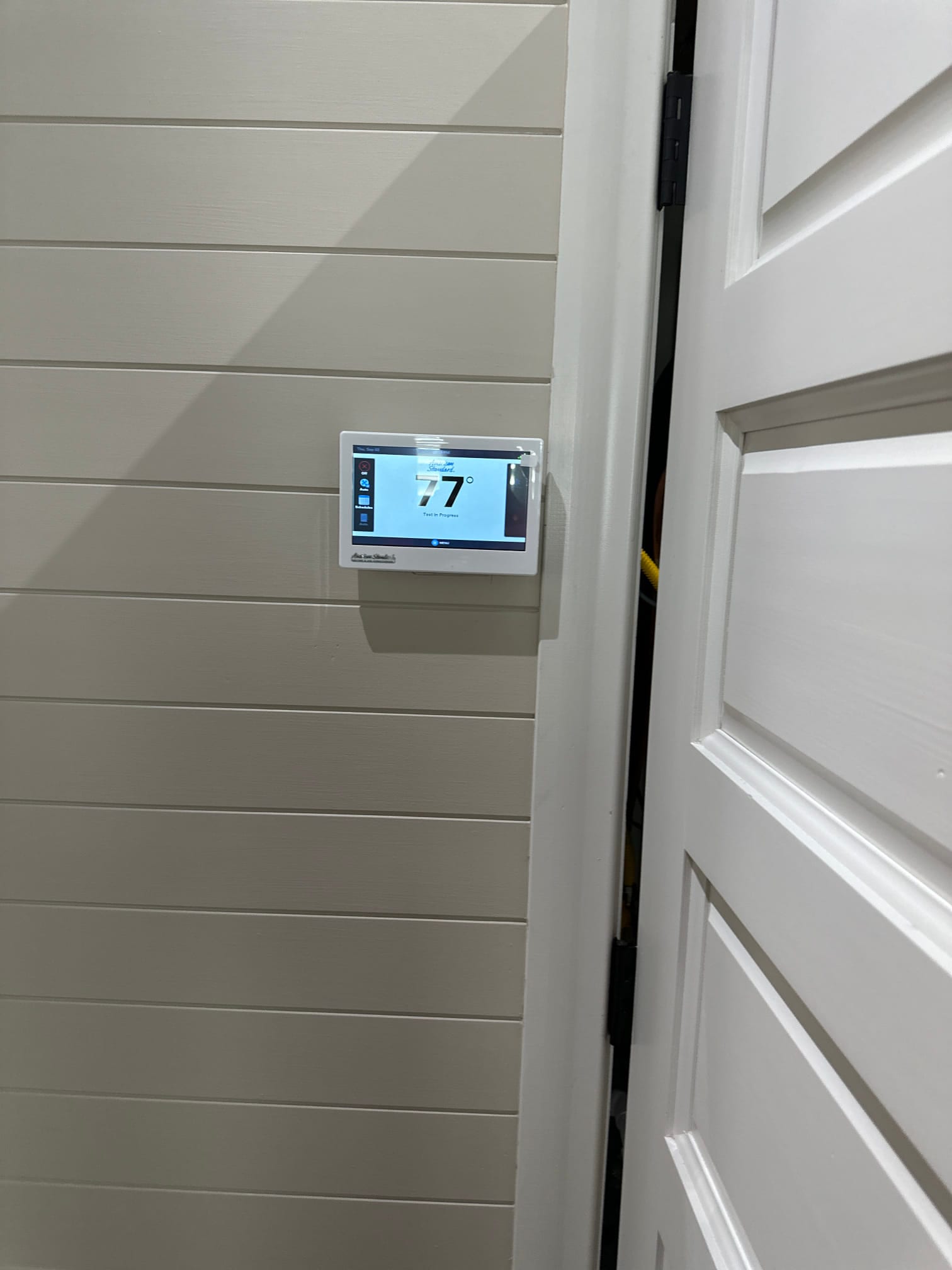

Wall-mounted touchscreen thermostat installed and powered on, displaying an indoor temperature reading of 77 degrees.
Wall-mounted touchscreen thermostat installed and powered on, displaying an indoor temperature reading of 77 degrees.
Digital refrigerant manifold with temperature clamps attached on an outdoor condenser during commissioning setup. Display is not showing readable measurements.
Digital refrigerant manifold with temperature clamps attached on an outdoor condenser during commissioning setup. Display is not showing readable measurements.
Installed furnace with condensate drain piping, gas flex connector, shutoff valve, and vent connections neatly routed in the mechanical closet.
Installed furnace with condensate drain piping, gas flex connector, shutoff valve, and vent connections neatly routed in the mechanical closet.

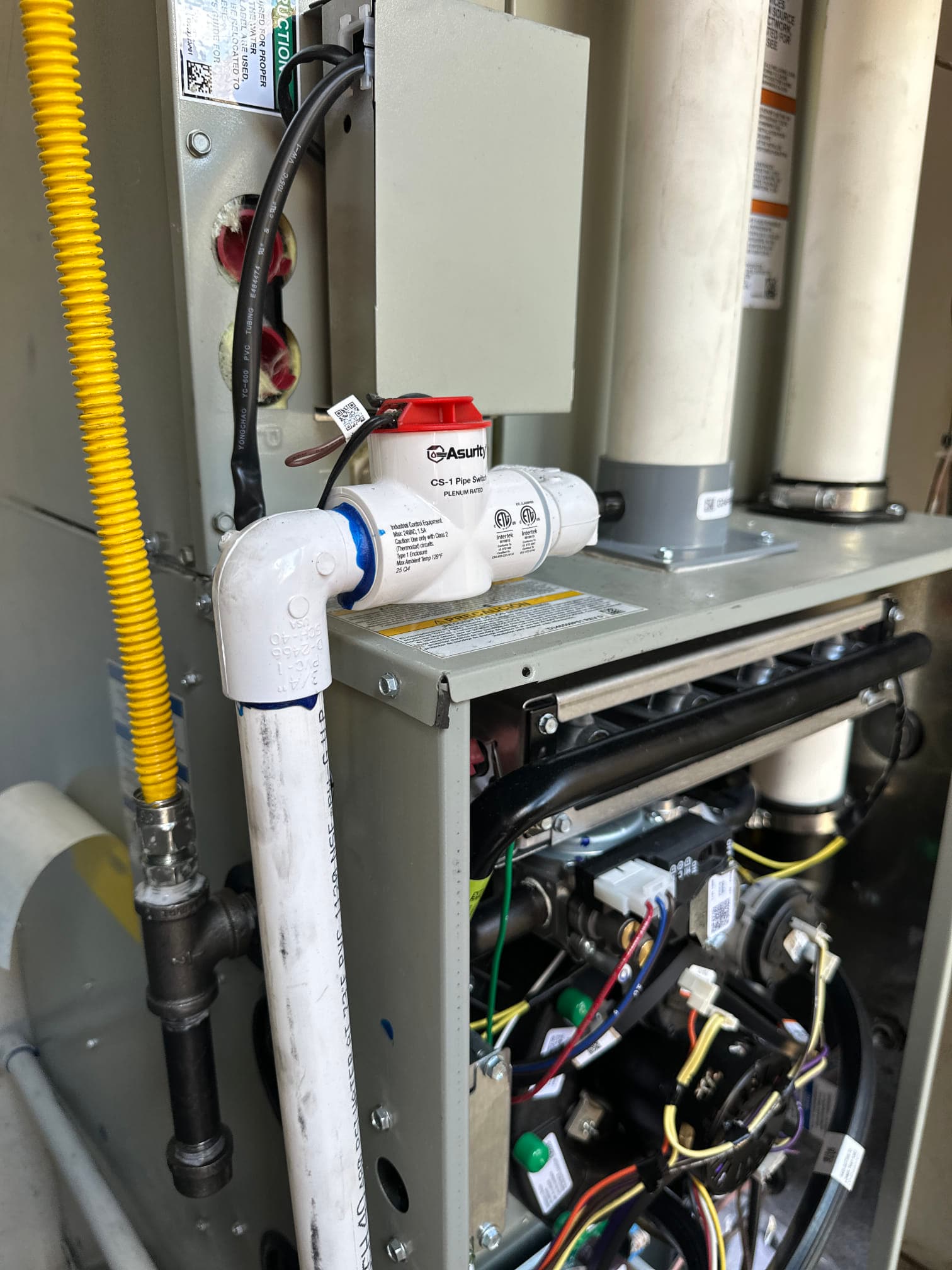

Condensate drain with in-line float safety switch installed at a gas furnace, showing wiring, gas flex, and vent pipes.
Condensate drain with in-line float safety switch installed at a gas furnace, showing wiring, gas flex, and vent pipes.

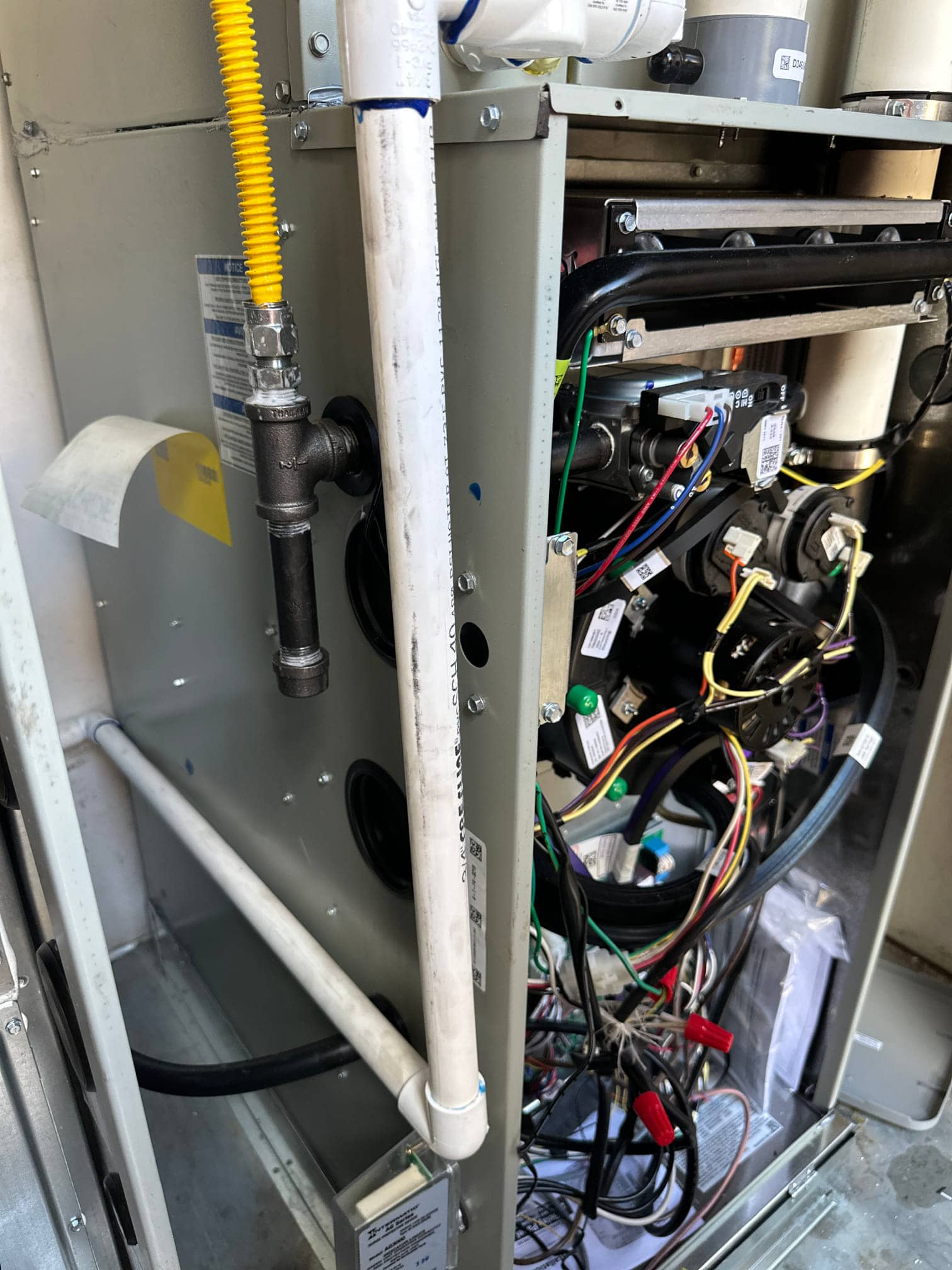

New furnace and coil cabinet with gas flex connector, condensate drain piping, and wiring routed inside the open service panel.
New furnace and coil cabinet with gas flex connector, condensate drain piping, and wiring routed inside the open service panel.

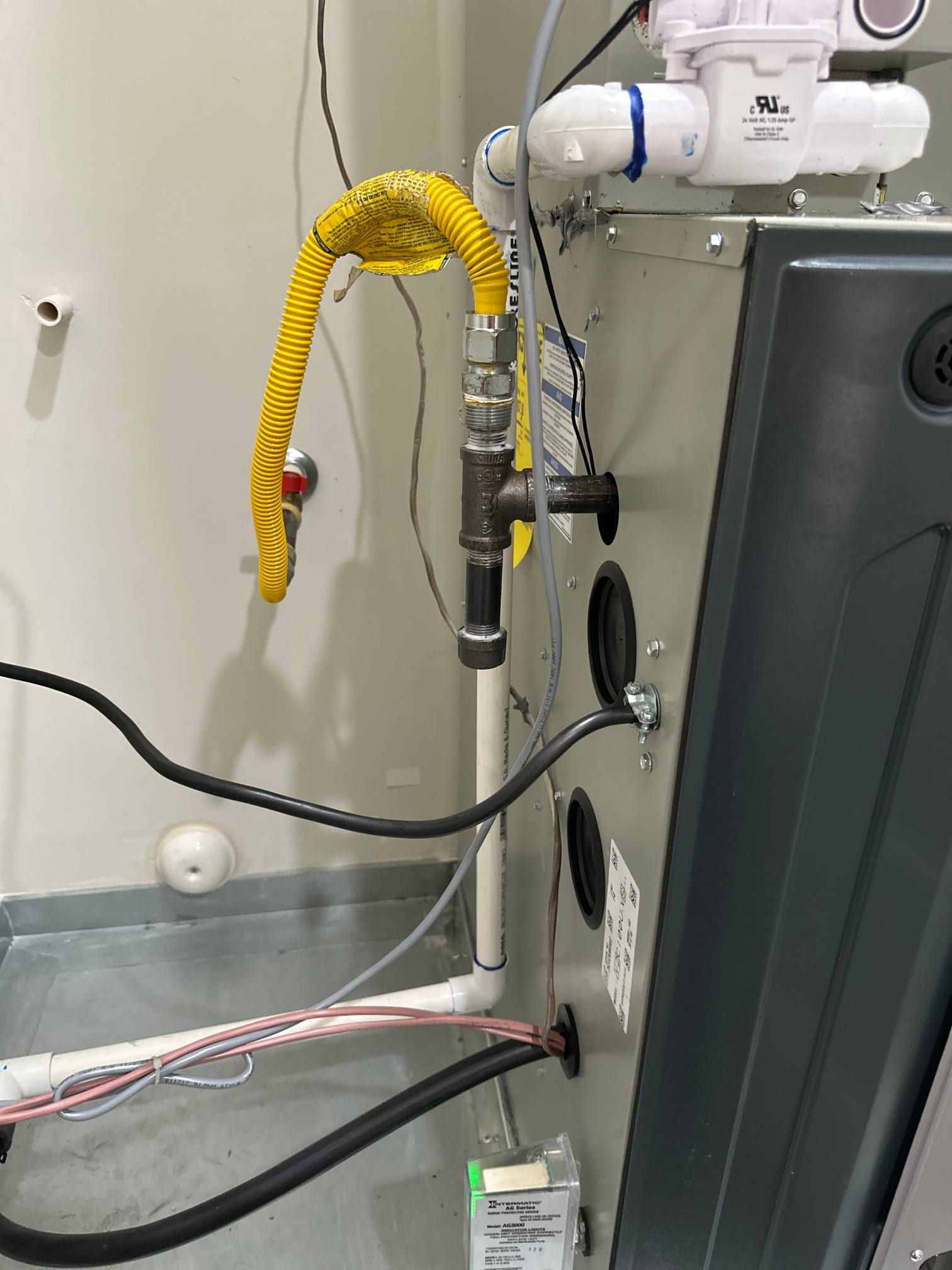

Indoor furnace installation with gas flex connector, condensate drain piping, wiring penetrations, and LED indicator on the control module.
Indoor furnace installation with gas flex connector, condensate drain piping, wiring penetrations, and LED indicator on the control module.

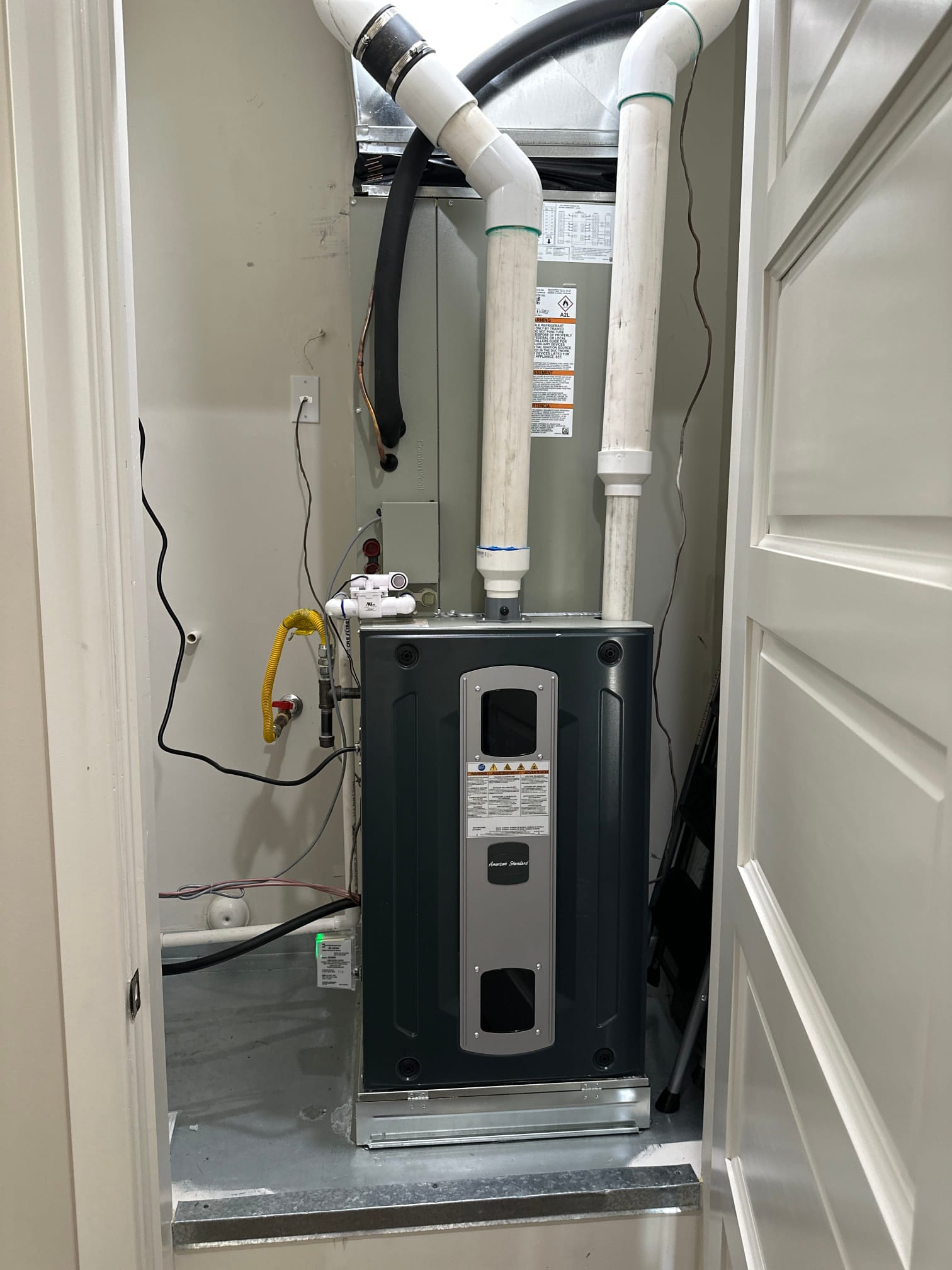

New gas furnace and coil set on a metal platform with PVC venting, condensate drain, gas flex, and electrical connections routed.
New gas furnace and coil set on a metal platform with PVC venting, condensate drain, gas flex, and electrical connections routed.

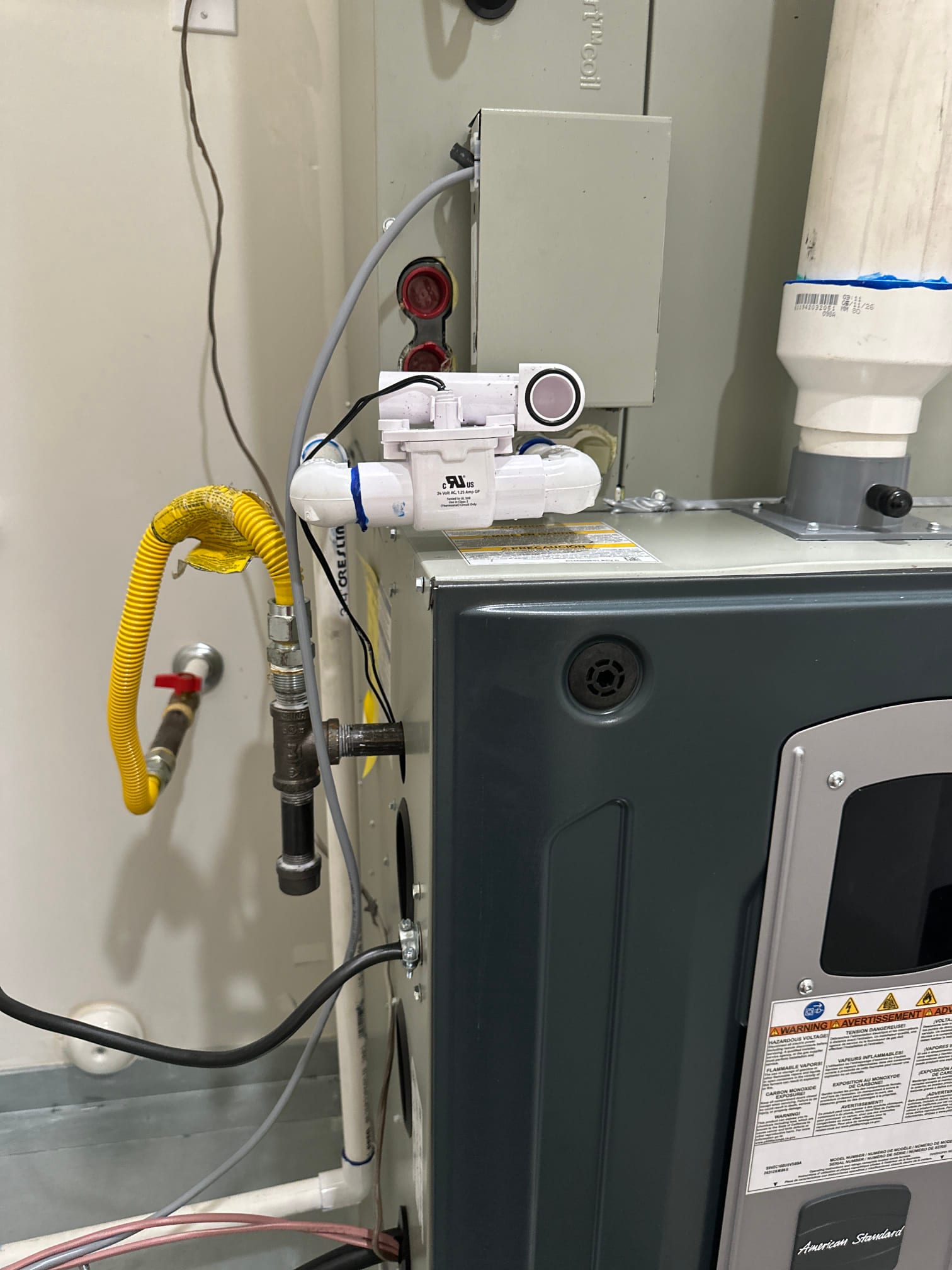

New furnace and air handler installation showing condensate safety switch on PVC drain, gas flex line, venting, and electrical connections.
New furnace and air handler installation showing condensate safety switch on PVC drain, gas flex line, venting, and electrical connections.

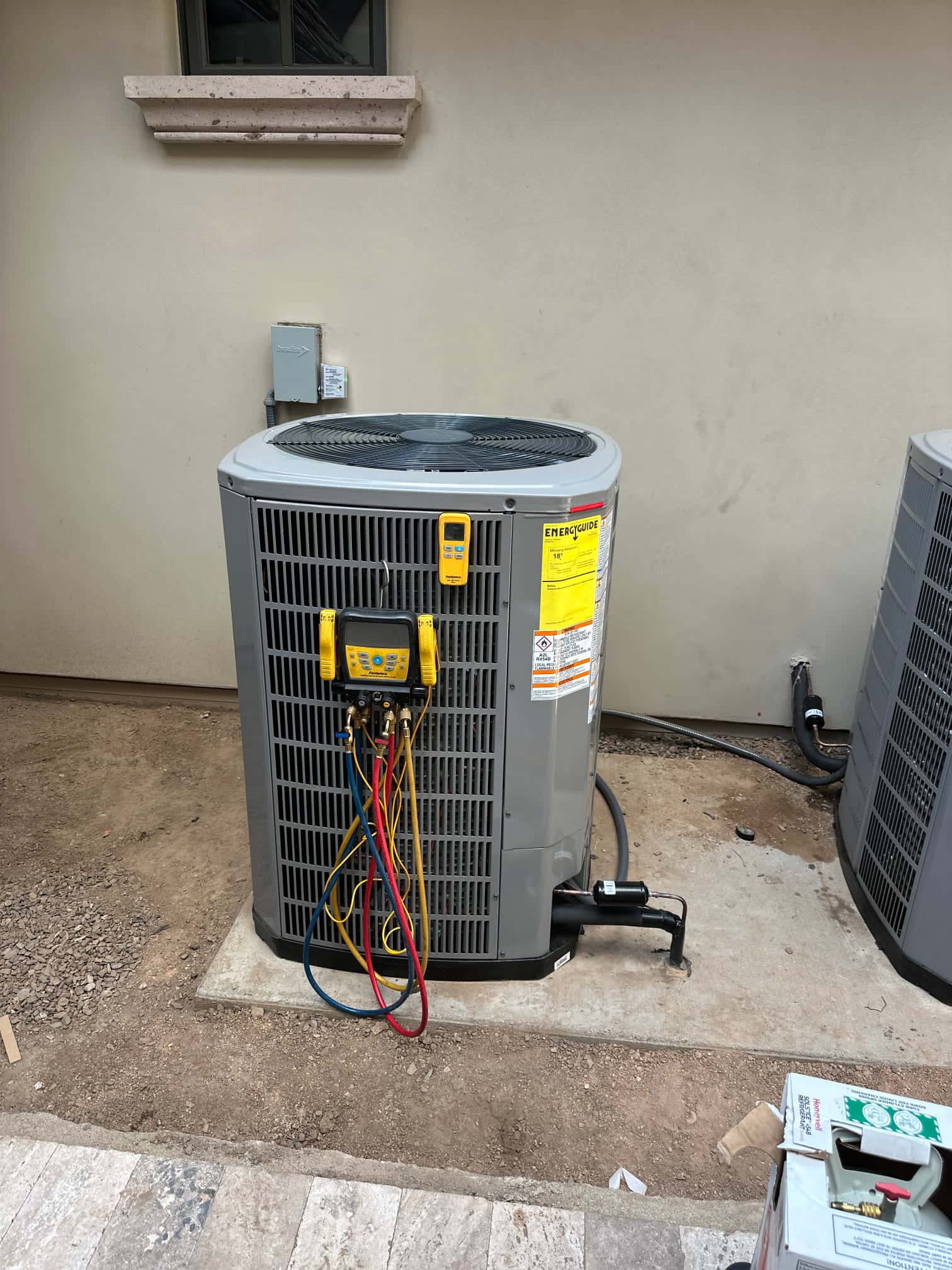

New outdoor condensers set on pads with manifold hoses attached and disconnect mounted on the wall.
New outdoor condensers set on pads with manifold hoses attached and disconnect mounted on the wall.
Wall-mounted touchscreen thermostat displays system information screen with menu and navigation icons during setup after installation.
Wall-mounted touchscreen thermostat displays system information screen with menu and navigation icons during setup after installation.
Mobile app dashboard displays connected HVAC system components, including controller, outdoor unit, thermostat, control board, and relay panel.
Mobile app dashboard displays connected HVAC system components, including controller, outdoor unit, thermostat, control board, and relay panel.

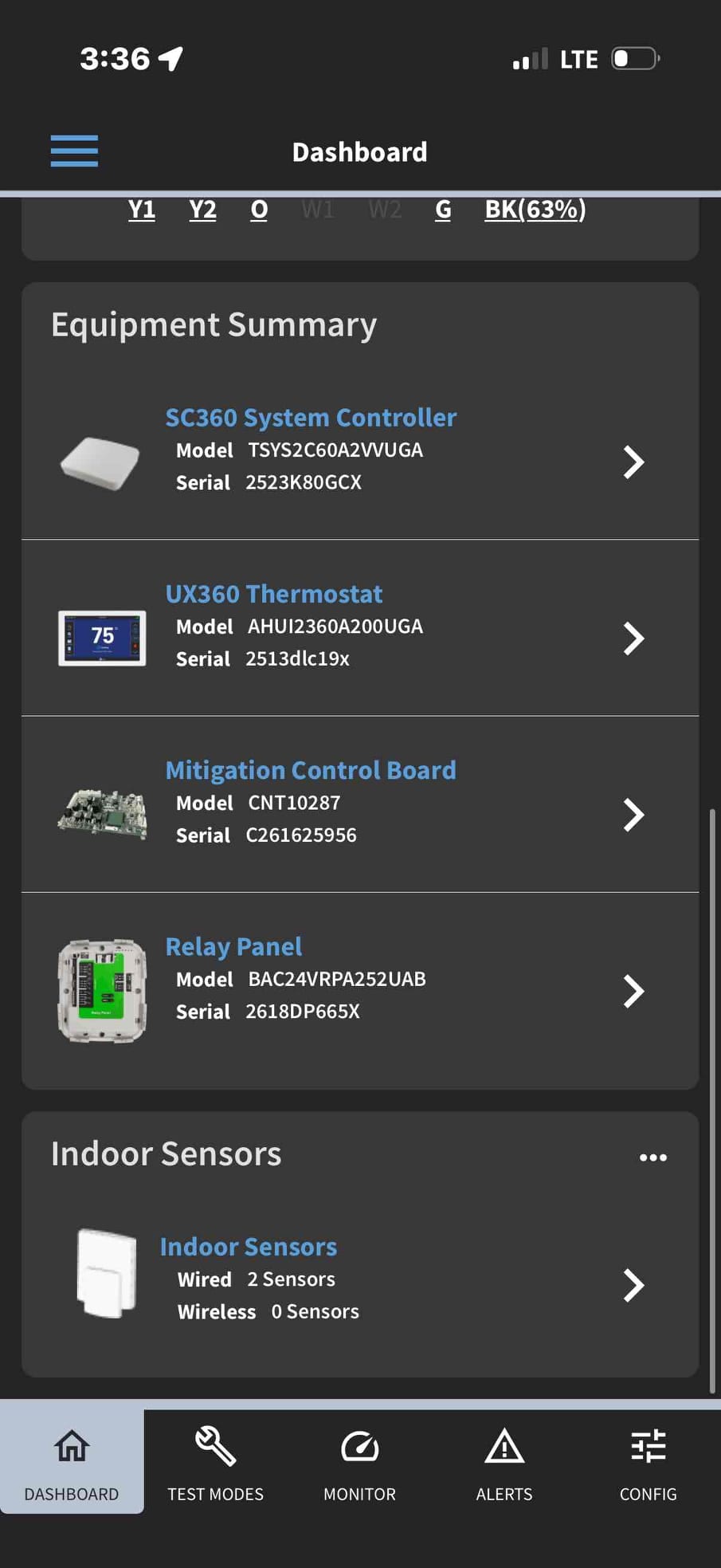

Smart control app dashboard displaying connected HVAC components and two wired indoor sensors after system setup.
Smart control app dashboard displaying connected HVAC components and two wired indoor sensors after system setup.
Mobile app dashboard listing HVAC system components with model and serial information for controller, condenser, thermostat, control board, and relay panel.
Mobile app dashboard listing HVAC system components with model and serial information for controller, condenser, thermostat, control board, and relay panel.
Mobile app dashboard shows connected HVAC components including system controller, outdoor unit, thermostat, control board, and relay panel after installation.
Mobile app dashboard shows connected HVAC components including system controller, outdoor unit, thermostat, control board, and relay panel after installation.
Thermostat monitoring screen shows 81 degrees with 54% relative humidity and compressor test in progress.
Thermostat monitoring screen shows 81 degrees with 54% relative humidity and compressor test in progress.

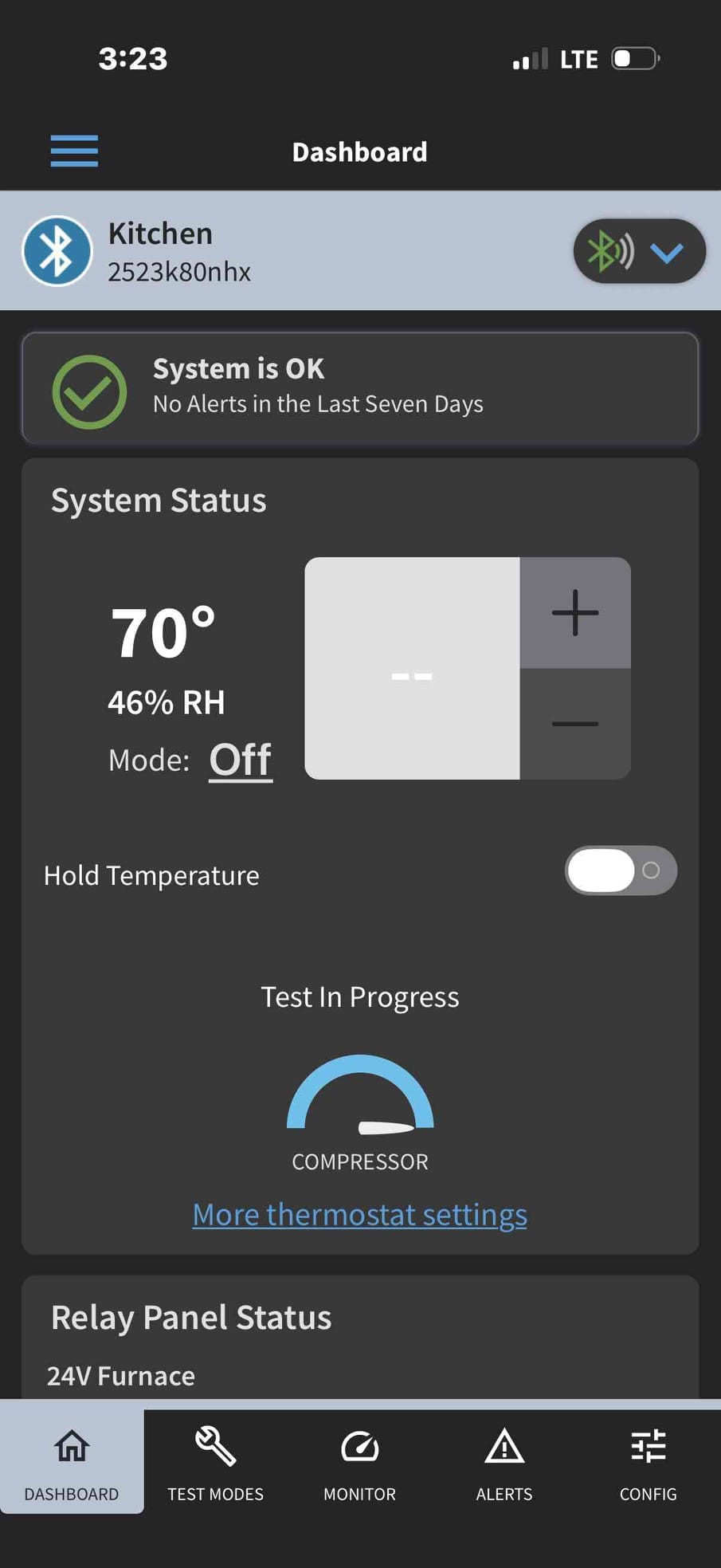

Thermostat app dashboard shows indoor temperature 70°F with 46% RH and system mode off during commissioning.
Thermostat app dashboard shows indoor temperature 70°F with 46% RH and system mode off during commissioning.

Nitrogen Pressure Test

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

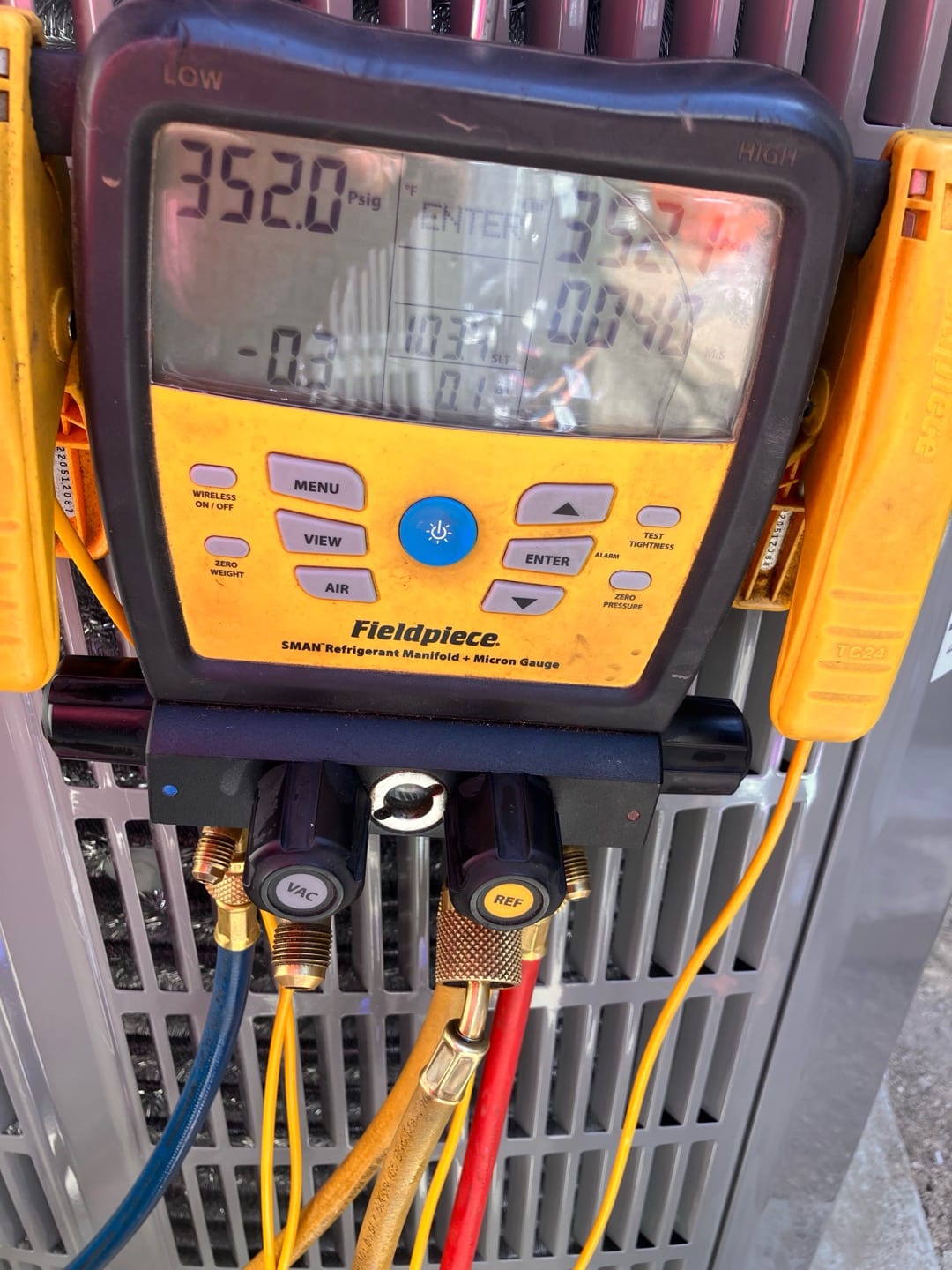

Digital manifold shows equal pressures around 352 PSI on both sides during a nitrogen pressure test of the new system.
Digital manifold shows equal pressures around 352 PSI on both sides during a nitrogen pressure test of the new system.
Digital manifold shows equal high-side and low-side pressures during a nitrogen pressure test on the newly installed system.
Digital manifold shows equal high-side and low-side pressures during a nitrogen pressure test on the newly installed system.

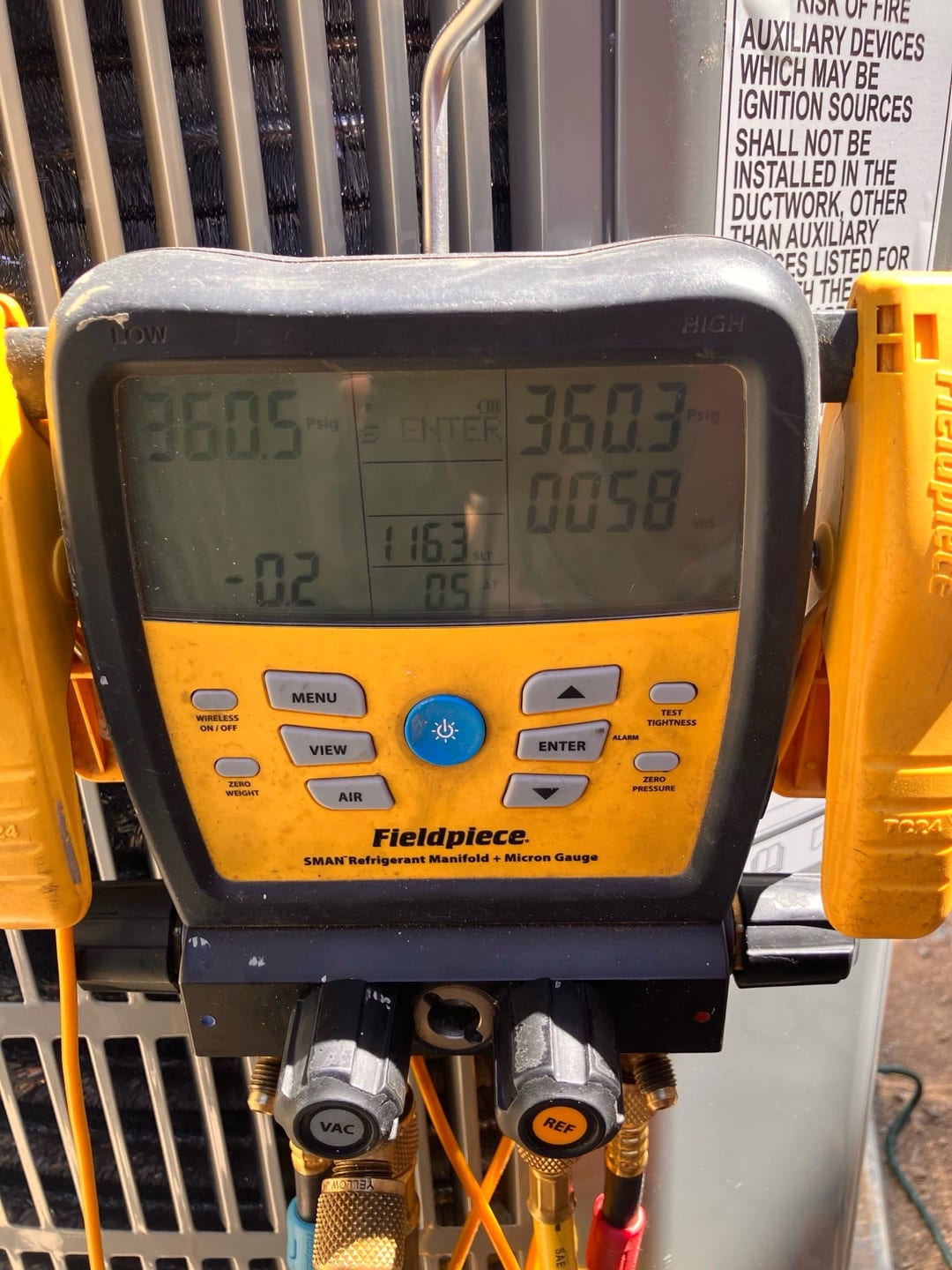

Digital manifold shows both high and low sides holding around 360 PSI, documenting a nitrogen pressure test on the new system.
Digital manifold shows both high and low sides holding around 360 PSI, documenting a nitrogen pressure test on the new system.

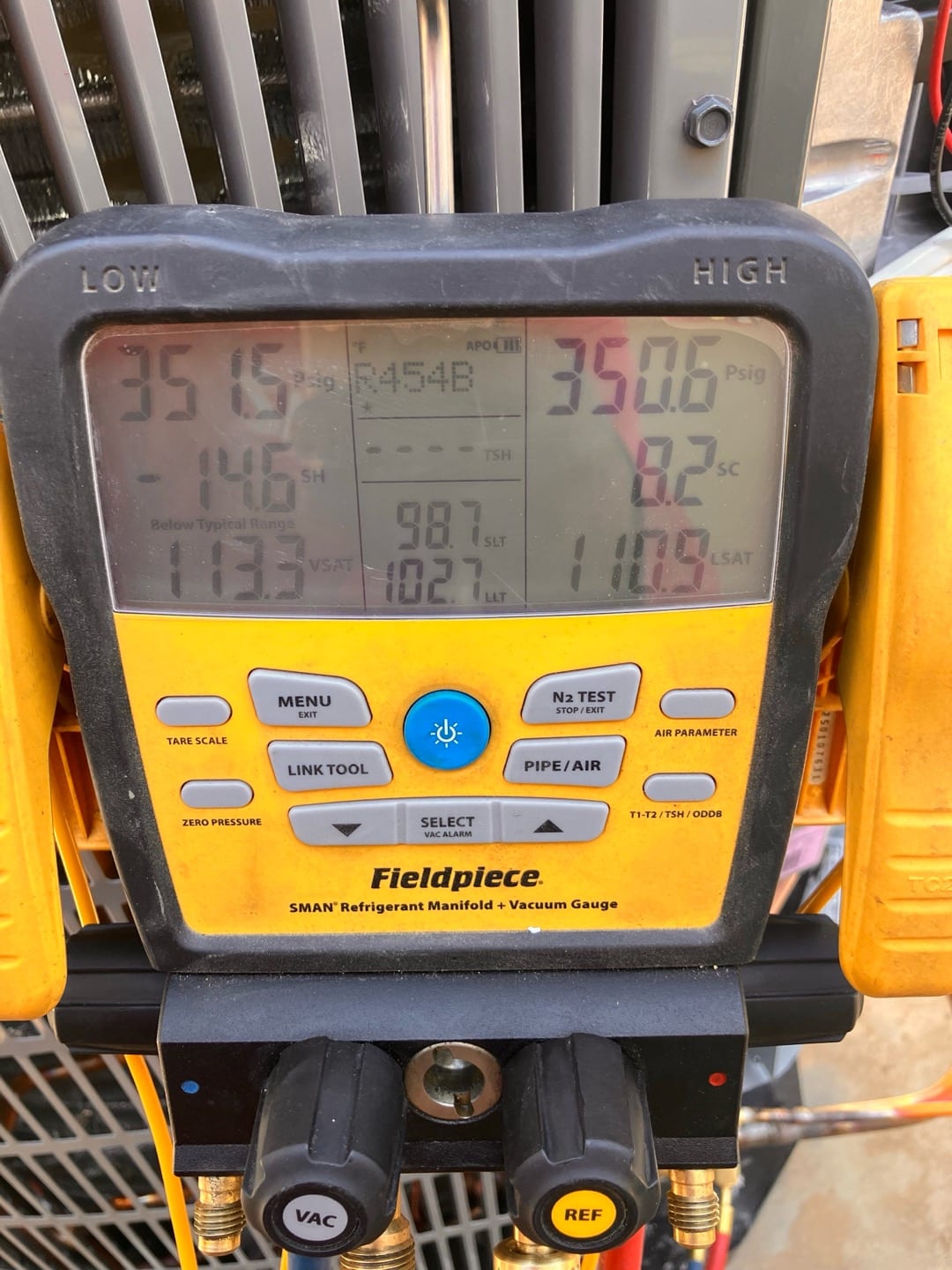

Digital manifold shows equal pressures on both sides during a nitrogen pressure test of the newly installed system.
Digital manifold shows equal pressures on both sides during a nitrogen pressure test of the newly installed system.

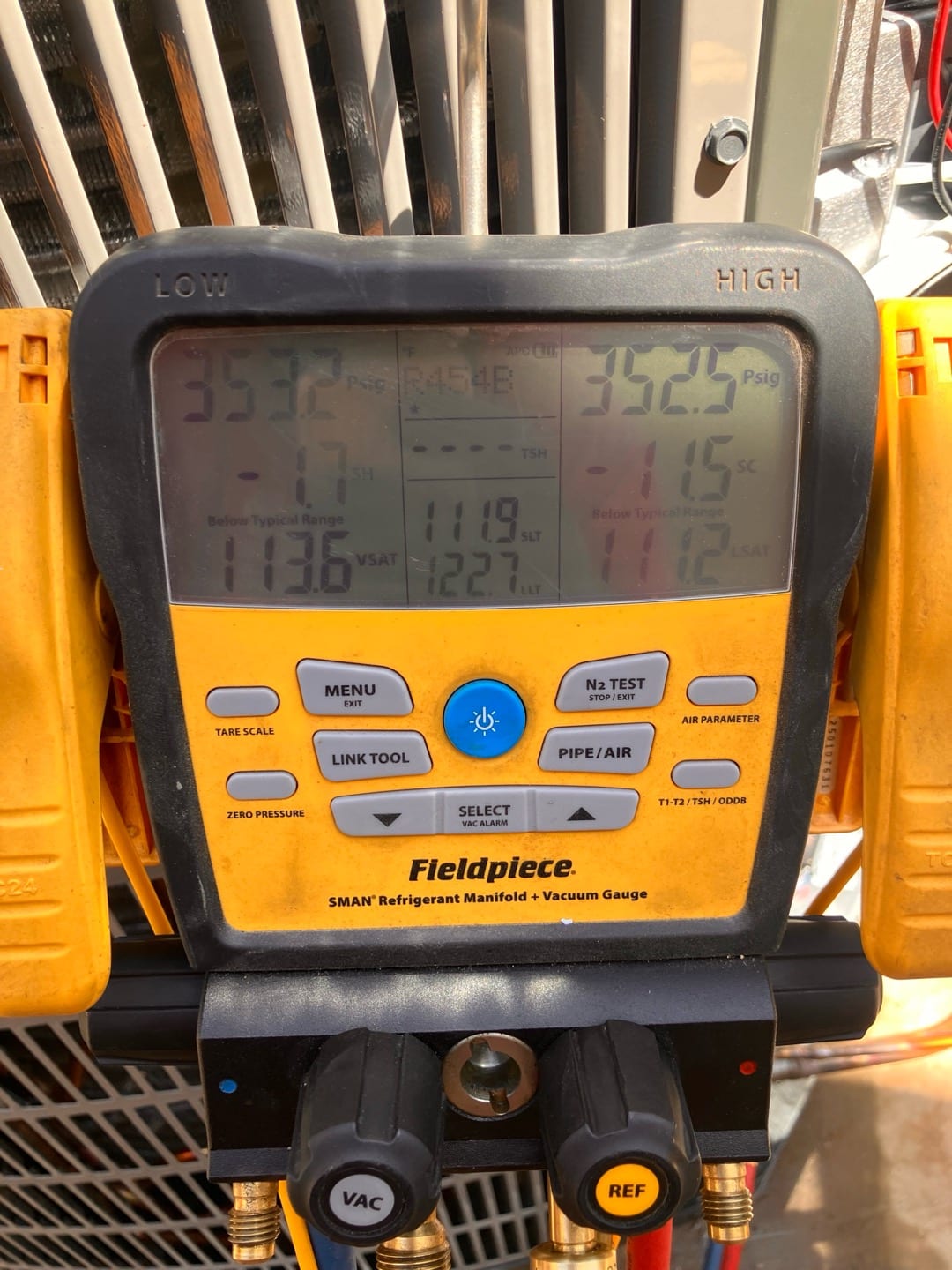

Digital manifold shows equal pressures around 352–353 PSI on both sides during a nitrogen pressure test on the new system.
Digital manifold shows equal pressures around 352–353 PSI on both sides during a nitrogen pressure test on the new system.
Digital manifold shows equal pressures at approximately 359 PSI on both sides, documenting a nitrogen pressure test of the new system.
Digital manifold shows equal pressures at approximately 359 PSI on both sides, documenting a nitrogen pressure test of the new system.

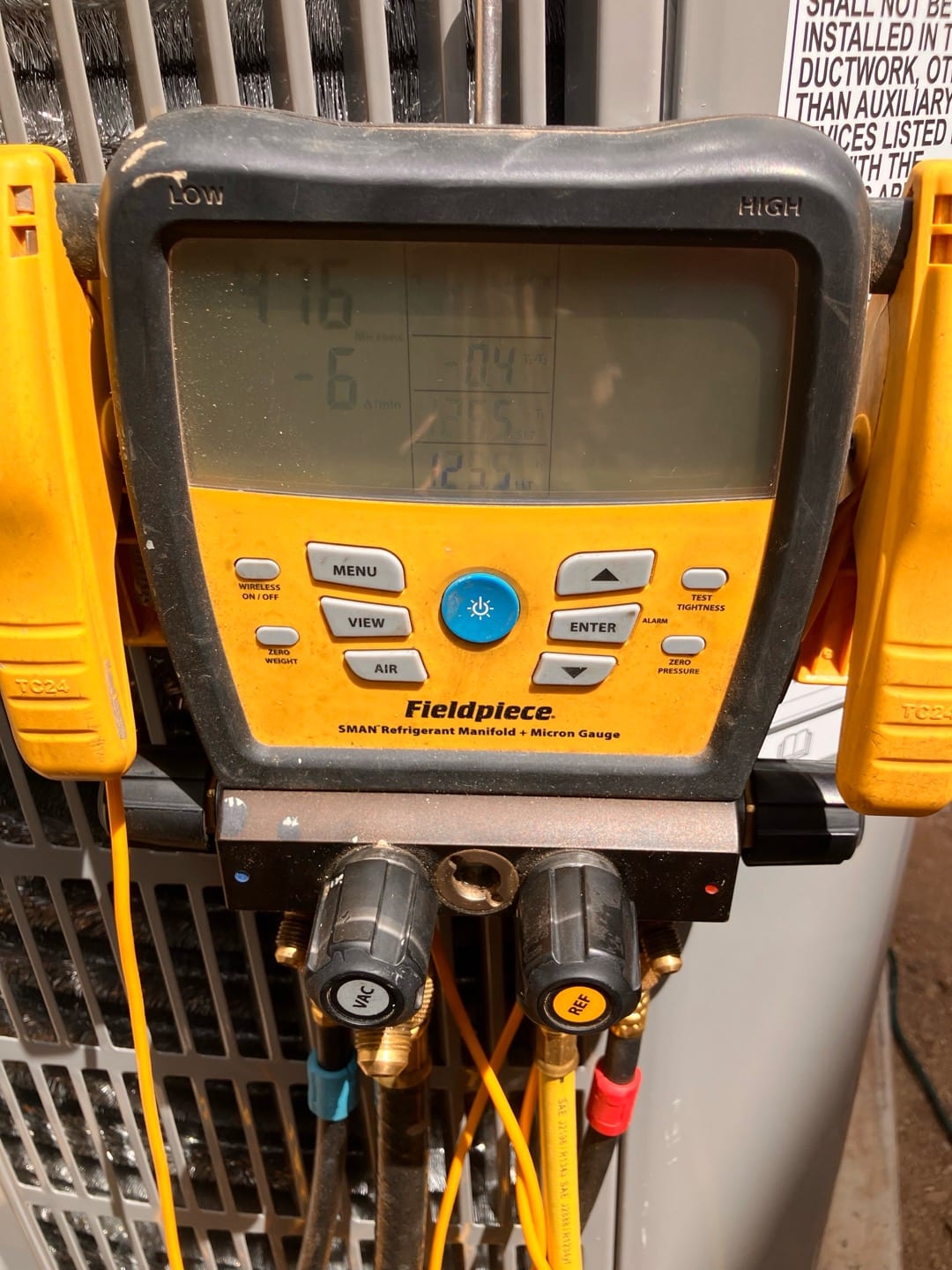

Digital manifold shows both high and low sides holding equal pressure during a nitrogen pressure test on the new system.
Digital manifold shows both high and low sides holding equal pressure during a nitrogen pressure test on the new system.

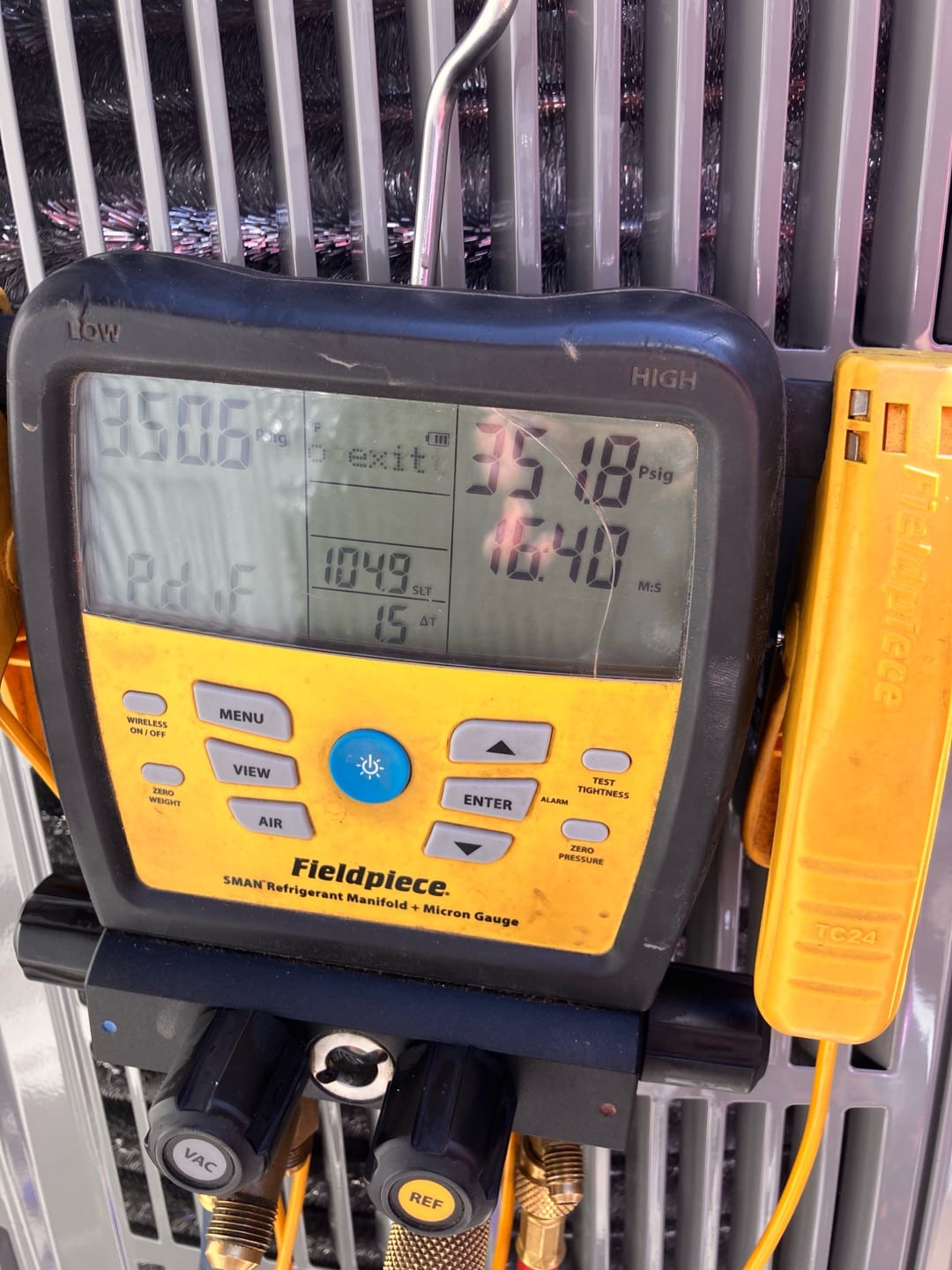

Digital manifold shows equalized pressures near 351 PSI on both sides during a nitrogen pressure test of the new system.
Digital manifold shows equalized pressures near 351 PSI on both sides during a nitrogen pressure test of the new system.
Digital manifold gauges show equal pressures around 356 PSI on both sides during a nitrogen pressure test of the system.
Digital manifold gauges show equal pressures around 356 PSI on both sides during a nitrogen pressure test of the system.

Vacuum / Evacuation

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

Digital vacuum gauge connected during evacuation shows a deep vacuum achieved prior to refrigerant charging.
Digital vacuum gauge connected during evacuation shows a deep vacuum achieved prior to refrigerant charging.

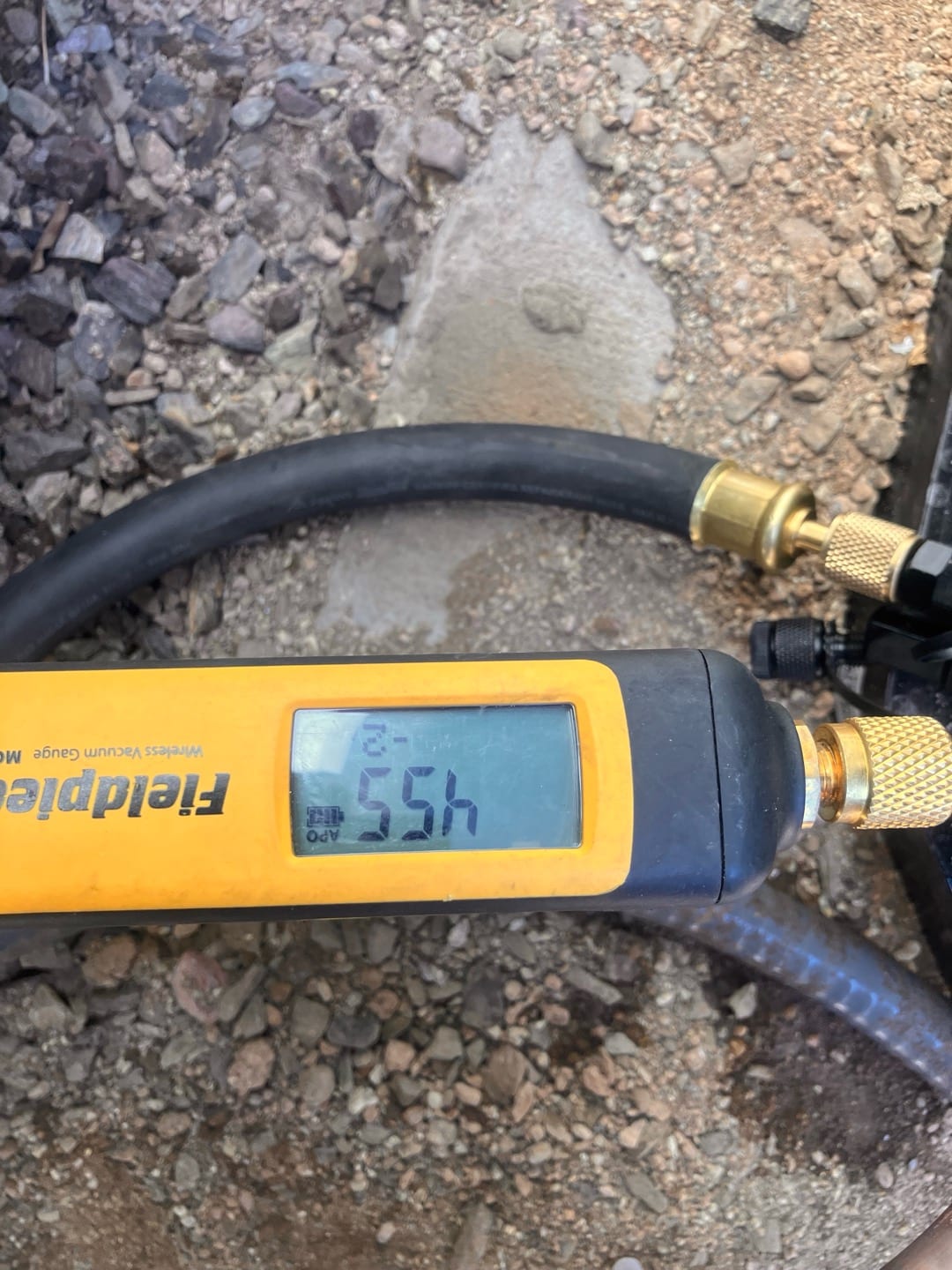

Digital micron gauge connected to the system shows a deep vacuum during the evacuation phase before refrigerant charging.
Digital micron gauge connected to the system shows a deep vacuum during the evacuation phase before refrigerant charging.

Refrigerant Commissioning

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

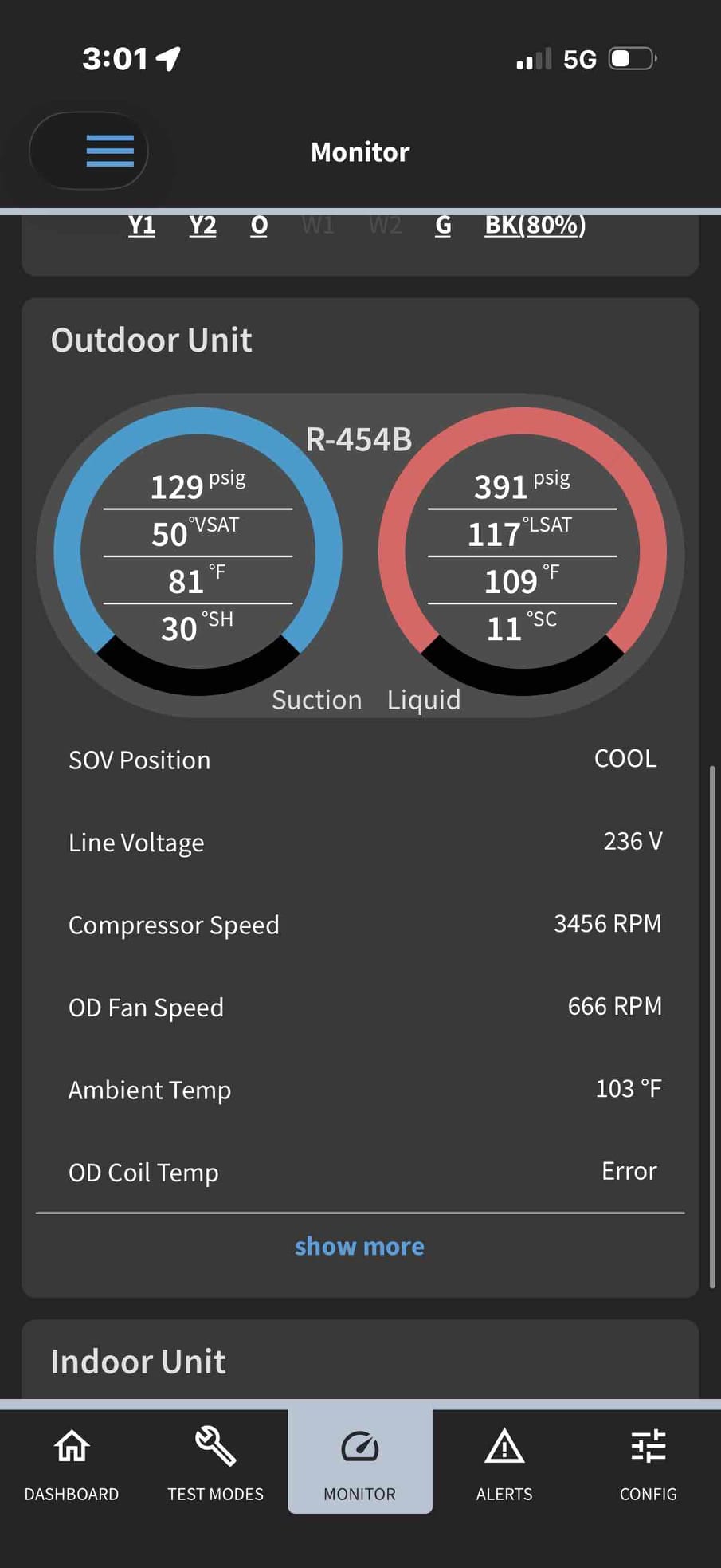

Service app screen shows R‑454B system operating with 132 psig suction and 385 psig liquid while monitoring outdoor unit parameters.
Service app screen shows R‑454B system operating with 132 psig suction and 385 psig liquid while monitoring outdoor unit parameters.
Mobile monitoring screen shows system operating pressures and temperatures for the outdoor unit during cooling, including suction and liquid readings.
Mobile monitoring screen shows system operating pressures and temperatures for the outdoor unit during cooling, including suction and liquid readings.

Air-Side Commissioning

Return and supply air temperatures measured to verify the temperature split falls in the target window.

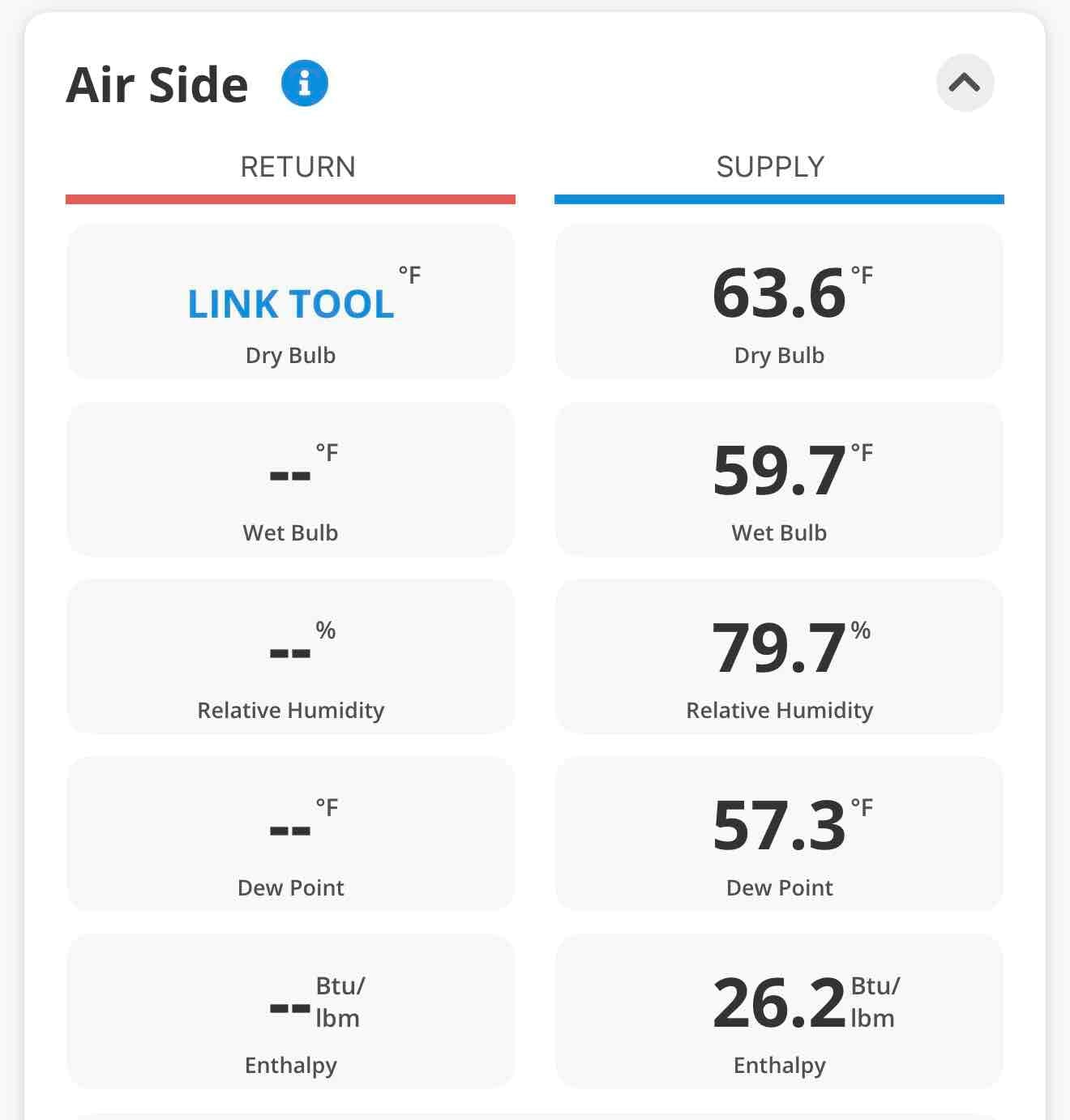

App screen shows supply air measurements: 63.6°F dry bulb, 59.7°F wet bulb, 79.7% relative humidity, and 57.3°F dew point.
App screen shows supply air measurements: 63.6°F dry bulb, 59.7°F wet bulb, 79.7% relative humidity, and 57.3°F dew point.
Mobile app screen shows return air measurements: 83.5°F dry bulb, 72.2°F wet bulb, 57.9% relative humidity, and 67.1°F dew point.
Mobile app screen shows return air measurements: 83.5°F dry bulb, 72.2°F wet bulb, 57.9% relative humidity, and 67.1°F dew point.
Thermostat app dashboard shows indoor temperature 79°F at 40% relative humidity with system mode off during testing.
Thermostat app dashboard shows indoor temperature 79°F at 40% relative humidity with system mode off during testing.
Thermostat app monitor screen shows indoor status at 80 degrees with 38% relative humidity while a compressor test is in progress.
Thermostat app monitor screen shows indoor status at 80 degrees with 38% relative humidity while a compressor test is in progress.
— Frequently Asked

Questions about this installation

What kind of system was installed in this Arcadia job?

AZ Perfect Comfort installed four American Standard HVAC systems at this Arcadia property. System sizes: 2 × 5-Ton, 2 × 3-Ton. The install was completed by Ben, Andrew, Kyle & Edwin and includes AZ Perfect Comfort's workmanship warranty.

How much does a new multi-system hvac installation cost in Phoenix?

Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.

Does AZ Perfect Comfort offer financing for HVAC installations?

Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.

Does AZ Perfect Comfort install in Arcadia?

Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Arcadia and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.

Is the new equipment covered by a warranty?

Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.

AC Installation & ReplacementLearn about this HVAC serviceHVAC service in Service AreasWhat we offer in your neighborhoodAll AZ Perfect Comfort installsBrowse every published case studyAll installs in ArcadiaReal case studies in your areaAll installation case studiesEvery published install we’ve documentedComfort Club membershipPriority service and scheduled maintenanceLifetime Repair GuaranteeEvery eligible repair backed for lifeHVAC financing optionsPayment plans for larger projectsAbout AZ Perfect ComfortFamily-run Phoenix HVAC since day one
— Related Installs

More real installation case studies from AZ Perfect Comfort

— Thinking About a New System?

Get an instant estimate — or talk to a real installer today.

AZ Perfect Comfort has installed HVAC systems across Arcadia and greater Phoenix since 2015. Every install is backed by manufacturer + workmanship warranties, and financing is available.

Instant Price Estimate Call (602) 613-3489
← Browse all installation case studies
Call Text
