Real Installation · Anthem

5-Ton AC and Furnace Split System Installation in Anthem — April 2024

CompletedApril 3, 2024
Install CrewFred, Ben, Andrew, Jesse & Kyle
Service AreaAnthem
System5-Ton AC + Furnace Split System
BrandTrane
WarrantyMfg + Workmanship
Instant Price Estimate Call (602) 613-3489
4.9806 Google Reviews
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
AZ Perfect Comfort — Our Work
Scope of Work
Installation of three XV 17 systems.
Anthem · installed April 3, 2024
— At a Glance
Location
Anthem
Completed
April 3, 2024
System Type
AC + Furnace Split System
Capacity
5-Ton
Brand
Trane
Efficiency
17 SEER2
Total Investment
$42,316
— What We Installed

Every component in this system

Each piece of equipment set at this home, its condition, and its place in the system.

Newly Installed

Evaporator Coil

Brand
Trane
Model
4TXCC007DS3HC
Matched
5-Ton airflow
New — installed 2026
Newly Installed

Furnace

Brand
Trane
Model
S8V2C100M5PCA
Matched
5-Ton airflow
New — installed 2026
Newly Installed

AC condenser

Brand
TRANE
Model
4TTV7X60A1000
Capacity
5-Ton
Efficiency
17 SEER2
New — installed 2026
Newly Installed

AC condenser

Brand
Trane
Model
4TTV7X48A1000
Capacity
5-Ton
Efficiency
17 SEER2
New — installed 2026
Newly Installed

Furnace

Brand
Trane
Model
S8V2C080M5PCA
Matched
5-Ton airflow
New — installed 2026
Newly Installed

Evaporator Coil

Brand
Trane
Model
4TXCC009DS3HC
Matched
5-Ton airflow
New — installed 2026
Newly Installed

Evaporator Coil

Brand
Trane
Model
4TXCB006DS3HC
Matched
5-Ton airflow
New — installed 2026
Newly Installed

Furnace

Brand
Trane
Model
S8V2B060M4PCA
Matched
5-Ton airflow
New — installed 2026
Newly Installed

AC condenser

Brand
Trane
Model
4TTV7X36A1000
Capacity
5-Ton
Efficiency
17 SEER2
New — installed 2026
Newly Installed

Thermostat

Brand
TRANE
Model
TLINK360A2VVUA
New — installed 2026
Newly Installed

Thermostat

Brand
TRANE
Model
TLINK360A2VVUA
New — installed 2026
Newly Installed

Thermostat

Brand
TRANE
Model
TLINK360A2VVUA
New — installed 2026
— Related Services

How this install fits into our Phoenix HVAC service

This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Anthem, AZ. You can browse more real 5-Ton AC and Furnace Split System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.

— Final Commissioning Results

The real numbers from startup

Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Fred, Ben, Andrew, Jesse & Kyle from the manifold gauges, micron gauge, and digital thermometers.

Refrigerant Circuit

Refrigerant type
R-410A
Suction pressure
301 PSIG
Liquid pressure
301 PSIG
Evaporator saturation
139.8°F
Condensing saturation
103.9°F
Superheat
36°F
Subcooling
35°F

Nitrogen Pressure Test

Test pressure held
254 PSIG

Vacuum / Evacuation

Final vacuum reading
364 microns

Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.

— Line Items

The full equipment and materials list

ItemDescriptionQty
517H-4TTV7X60-S8V2 5 Ton- Horizontal 17 SEER2 XV17 Variable Speed Air Conditioner (Comes with Surge Protector installed on indoor and outdoor units.) with Furnace. Installation of the equipment is subject to the terms a 1
417H-4TTV7X48-S8V2 4 Ton- Horizontal 17 SEER2 XV17 Variable Speed Air Conditioner (Comes with Surge Protector installed on indoor and outdoor units.) with Furnace. Installation of the equipment is subject to the terms a 1
317H-4TTV7X36-S8V2 3 Ton- Horizontal 17 SEER2 XV17 Variable Speed Air Conditioner (Comes with Surge Protector installed on indoor and outdoor units.) with Furnace. Installation of the equipment is subject to the terms a 1

Want an instant estimate for your home? Try our online pricing tool.

— Photo Documentation

42 photos from this installation

Every step of this installation was documented on-site by Fred, Ben, Andrew, Jesse & Kyle.

Installation Progress

Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

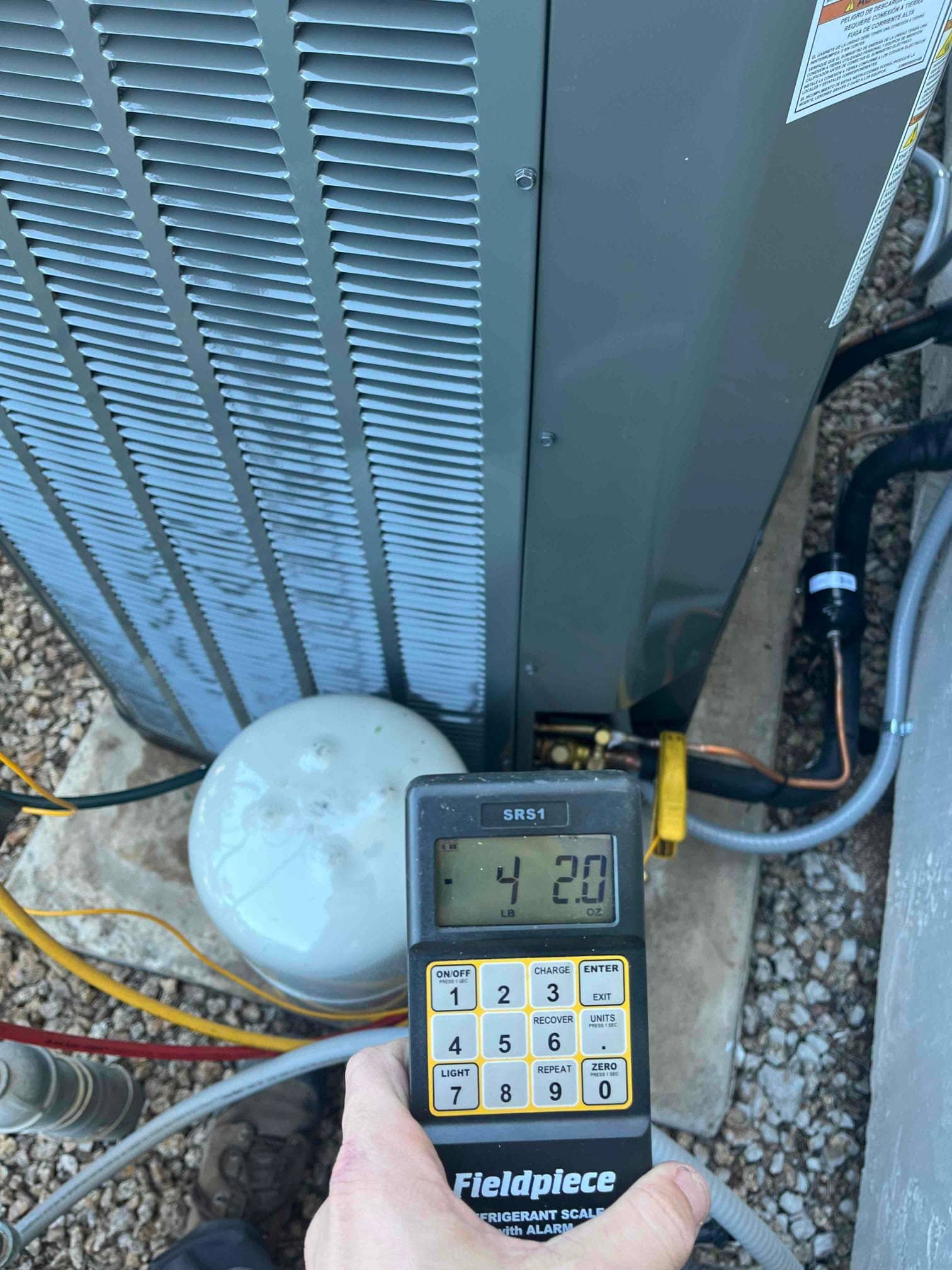

Handheld refrigerant scale displays 4 lb 20 oz near the outdoor condenser during system charging at the installation site.
Handheld refrigerant scale displays 4 lb 20 oz near the outdoor condenser during system charging at the installation site.
Attic installation showing air handler with metal plenum, insulated refrigerant lines, condensate drain piping, and suspended ductwork.
Attic installation showing air handler with metal plenum, insulated refrigerant lines, condensate drain piping, and suspended ductwork.

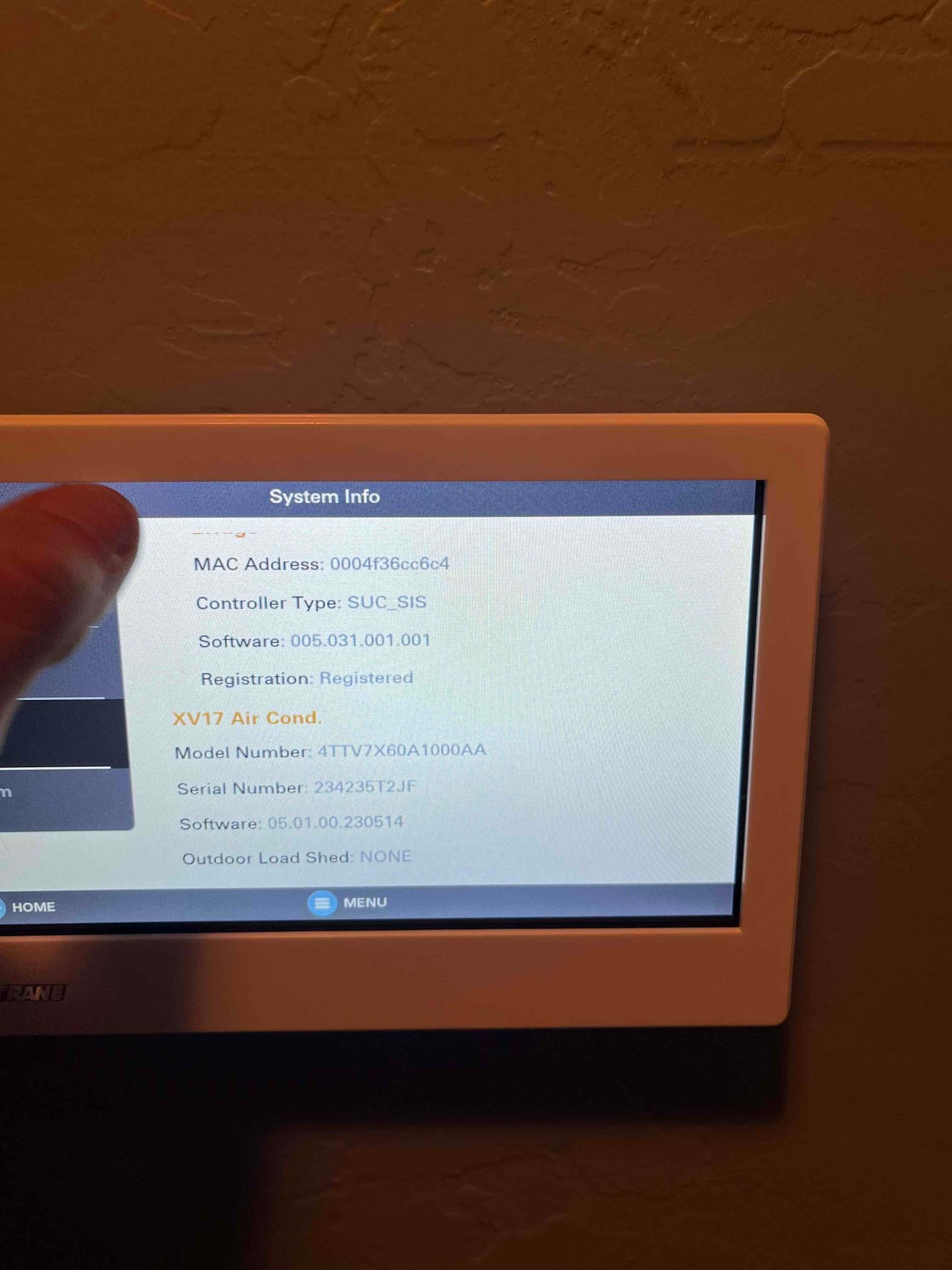

Thermostat system info screen displays controller details and connected air conditioner model and serial information after installation.
Thermostat system info screen displays controller details and connected air conditioner model and serial information after installation.

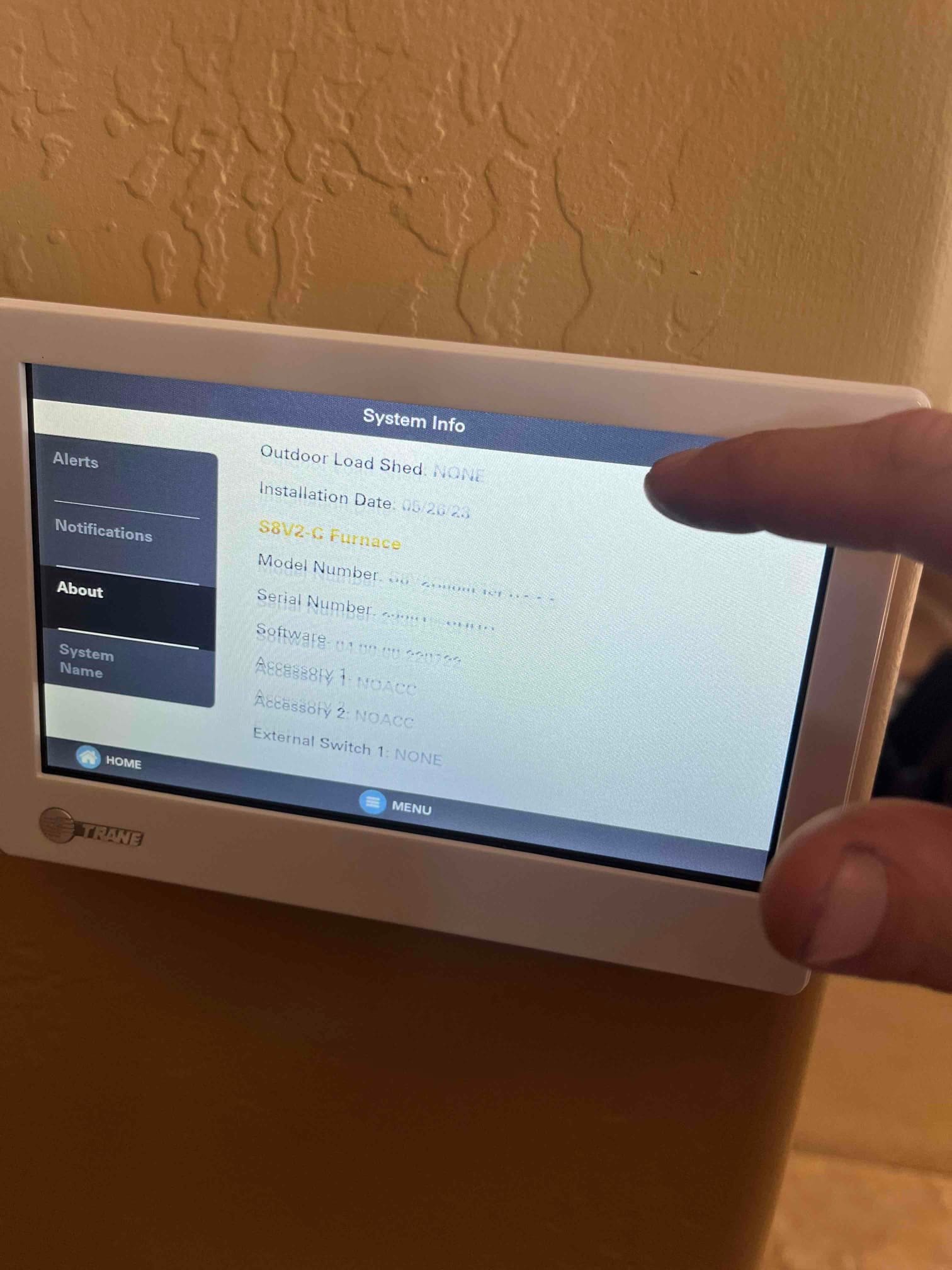

Touchscreen thermostat displays system info menu while a technician interacts with the interface during commissioning setup.
Touchscreen thermostat displays system info menu while a technician interacts with the interface during commissioning setup.

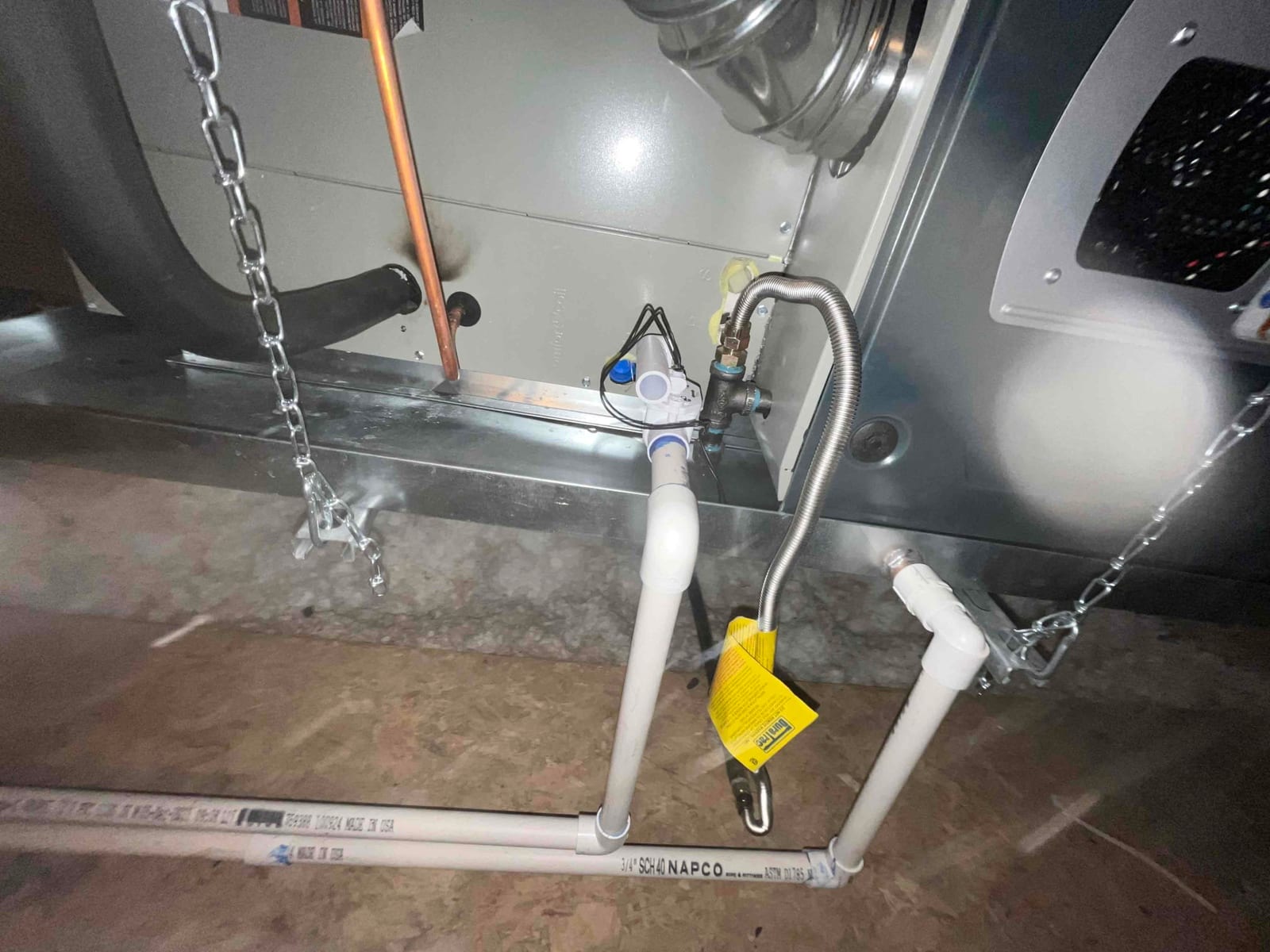

Condensate drain assembly, gas flex connector with shutoff, and suspended furnace bottom panel shown during installation.
Condensate drain assembly, gas flex connector with shutoff, and suspended furnace bottom panel shown during installation.

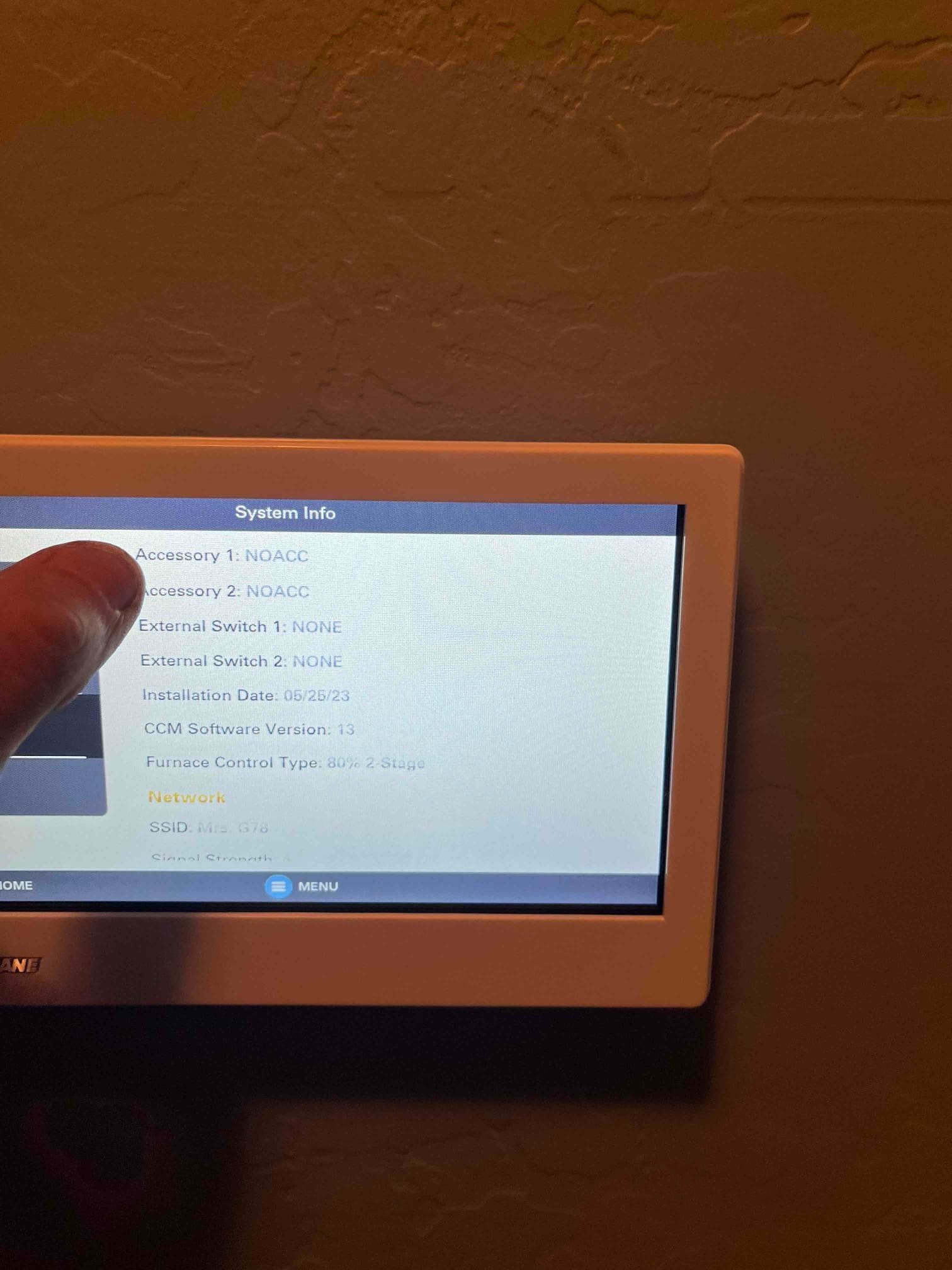

Wall-mounted thermostat displays system information and network settings during setup after installation.
Wall-mounted thermostat displays system information and network settings during setup after installation.

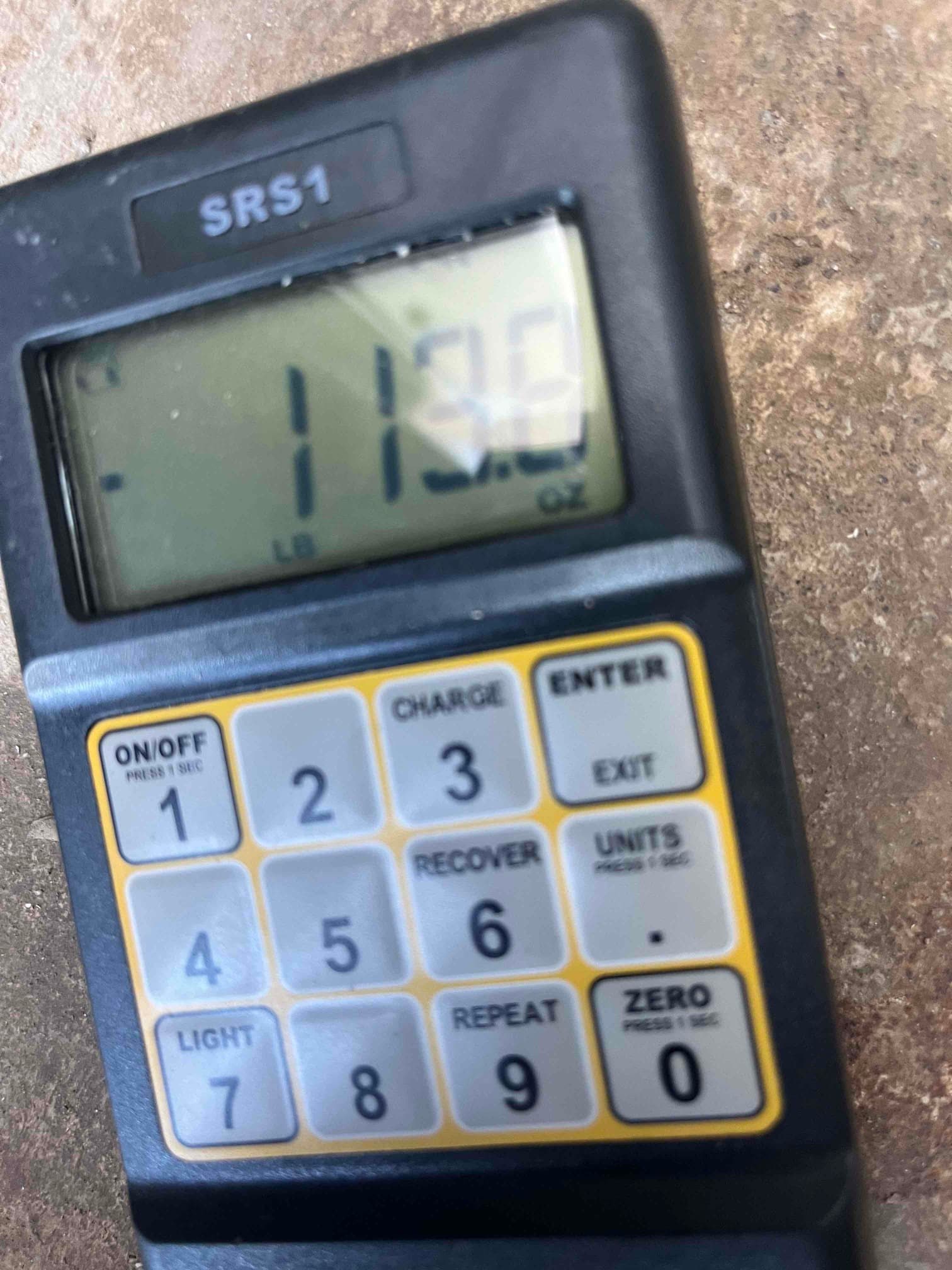

Digital refrigerant scale controller displays 11.30 on the screen with control keypad visible on a jobsite surface.
Digital refrigerant scale controller displays 11.30 on the screen with control keypad visible on a jobsite surface.

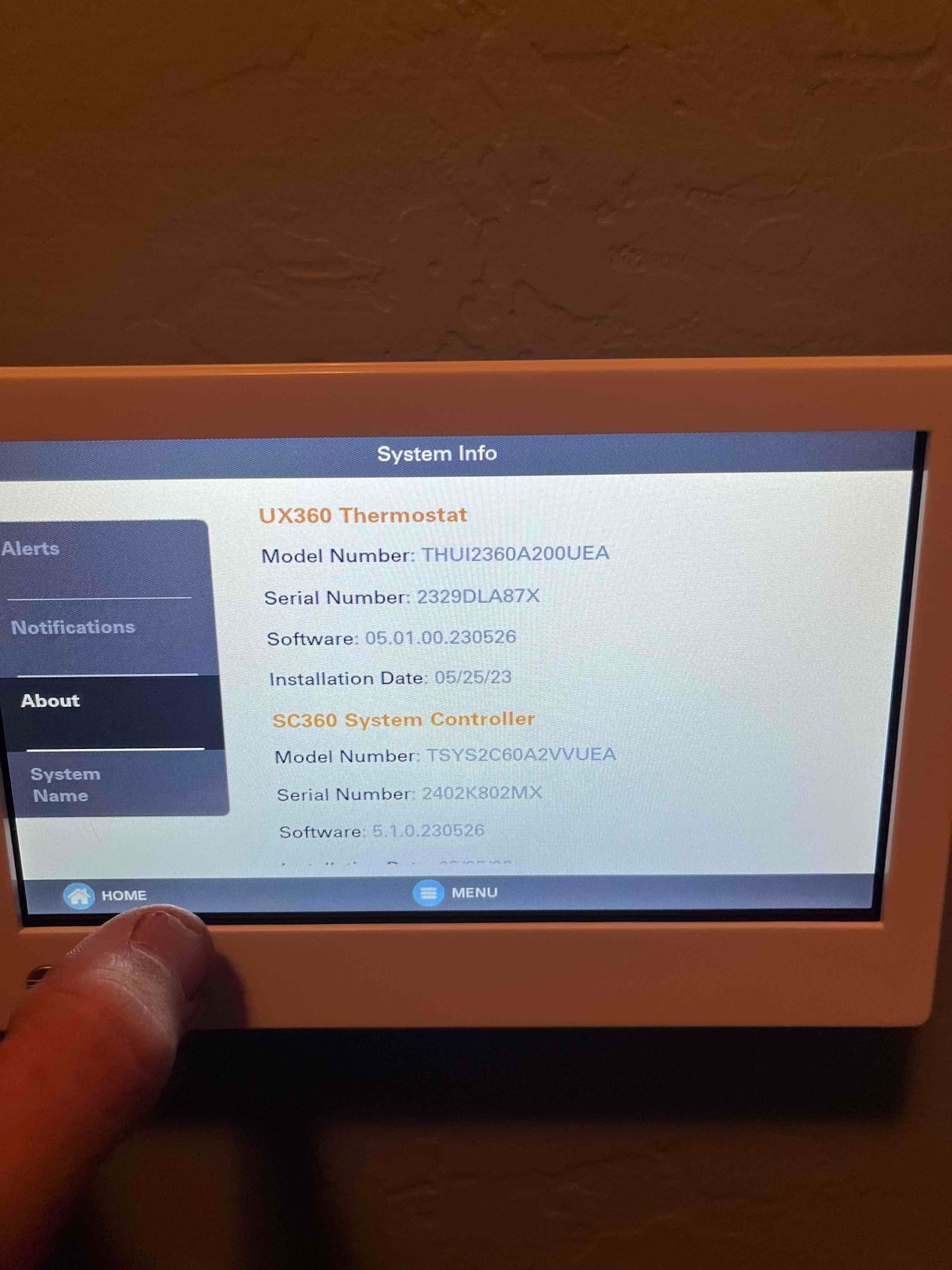

Touchscreen thermostat displays system information and software versions during setup, with on-screen navigation buttons visible at the bottom.
Touchscreen thermostat displays system information and software versions during setup, with on-screen navigation buttons visible at the bottom.

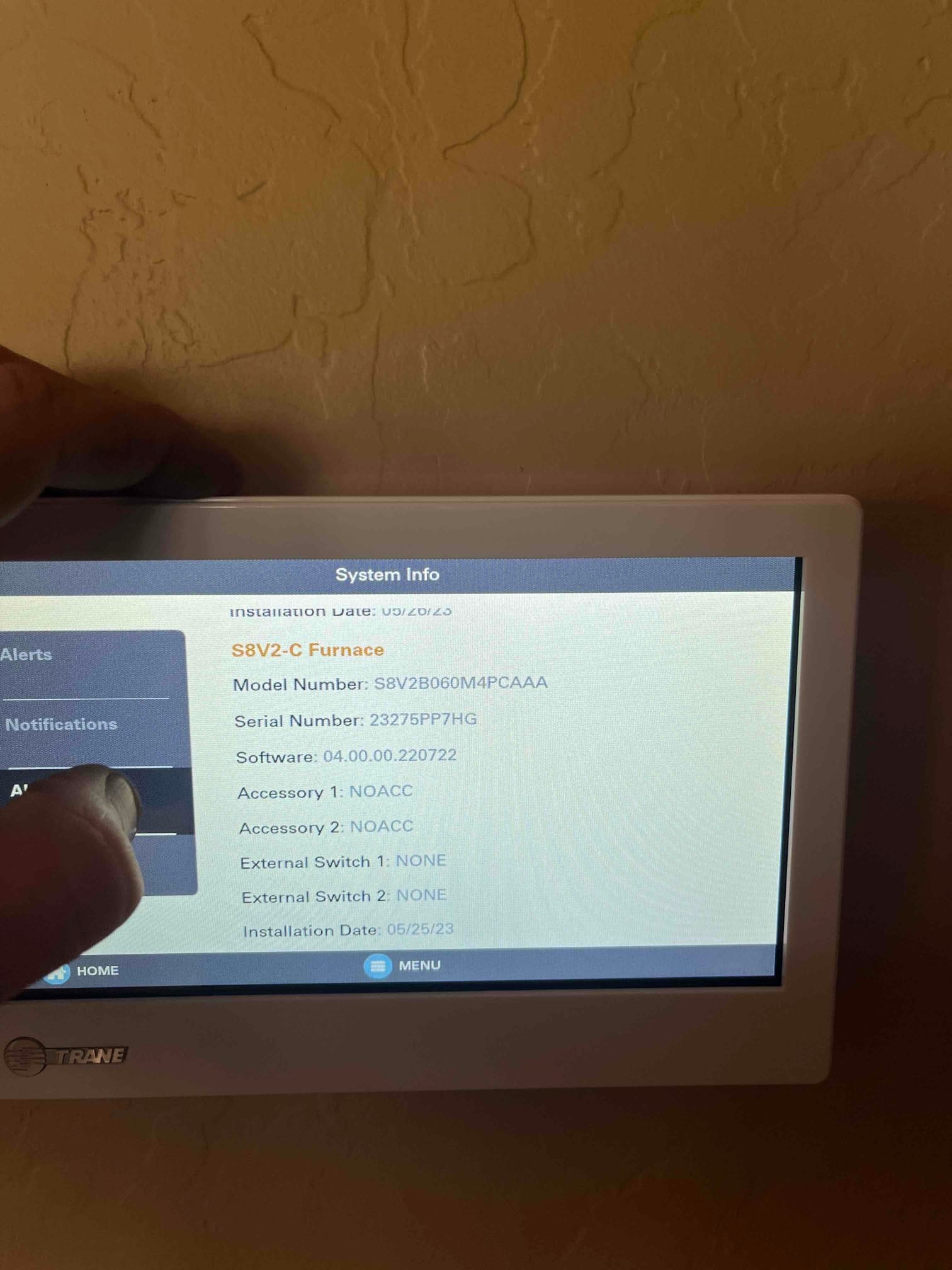

Thermostat touchscreen displays system information for the installed furnace, with a technician’s hand interacting with the menu.
Thermostat touchscreen displays system information for the installed furnace, with a technician’s hand interacting with the menu.

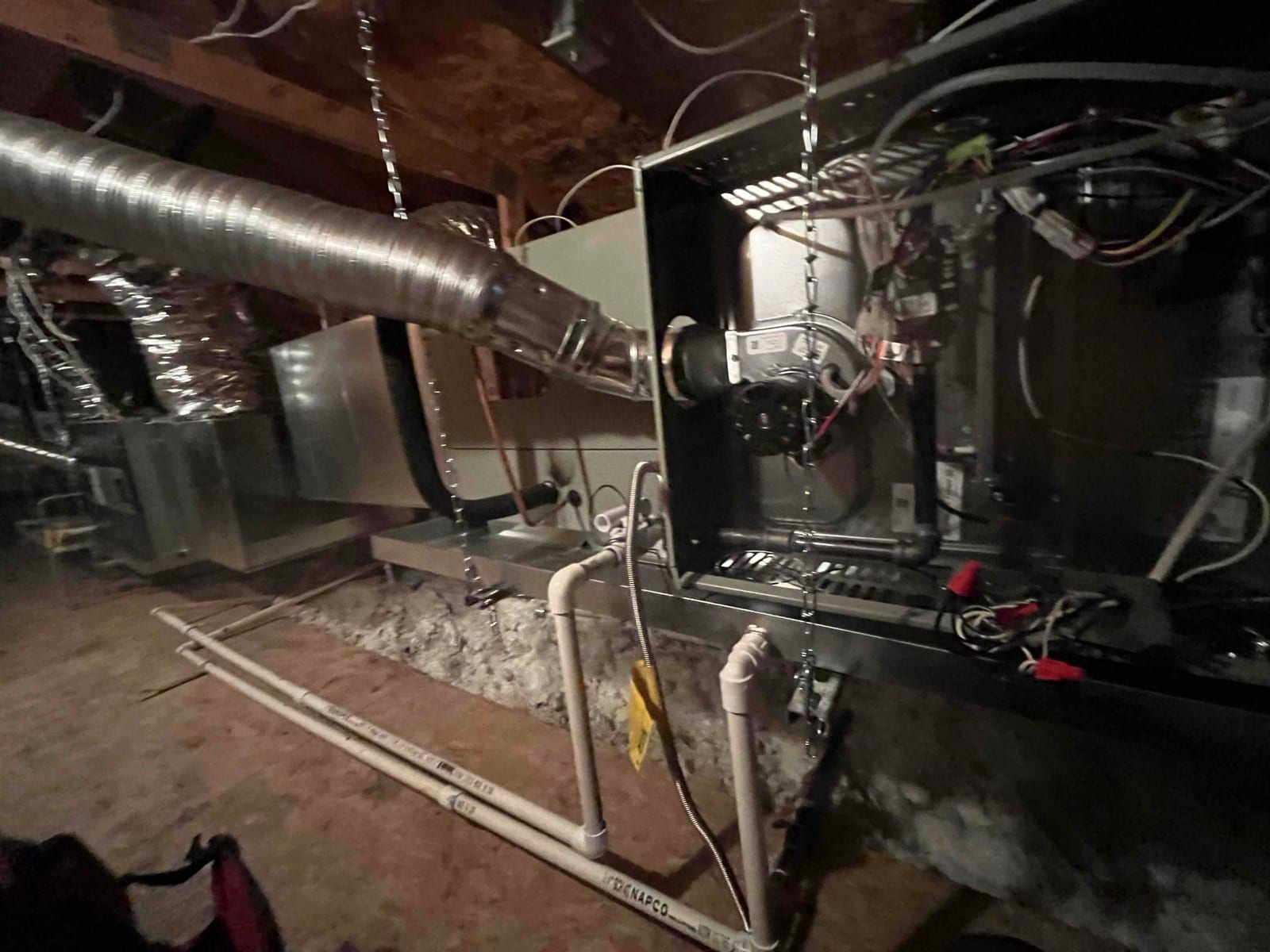

Suspended attic furnace and coil assembly with connected ductwork, condensate drains, and wiring visible during installation.
Suspended attic furnace and coil assembly with connected ductwork, condensate drains, and wiring visible during installation.

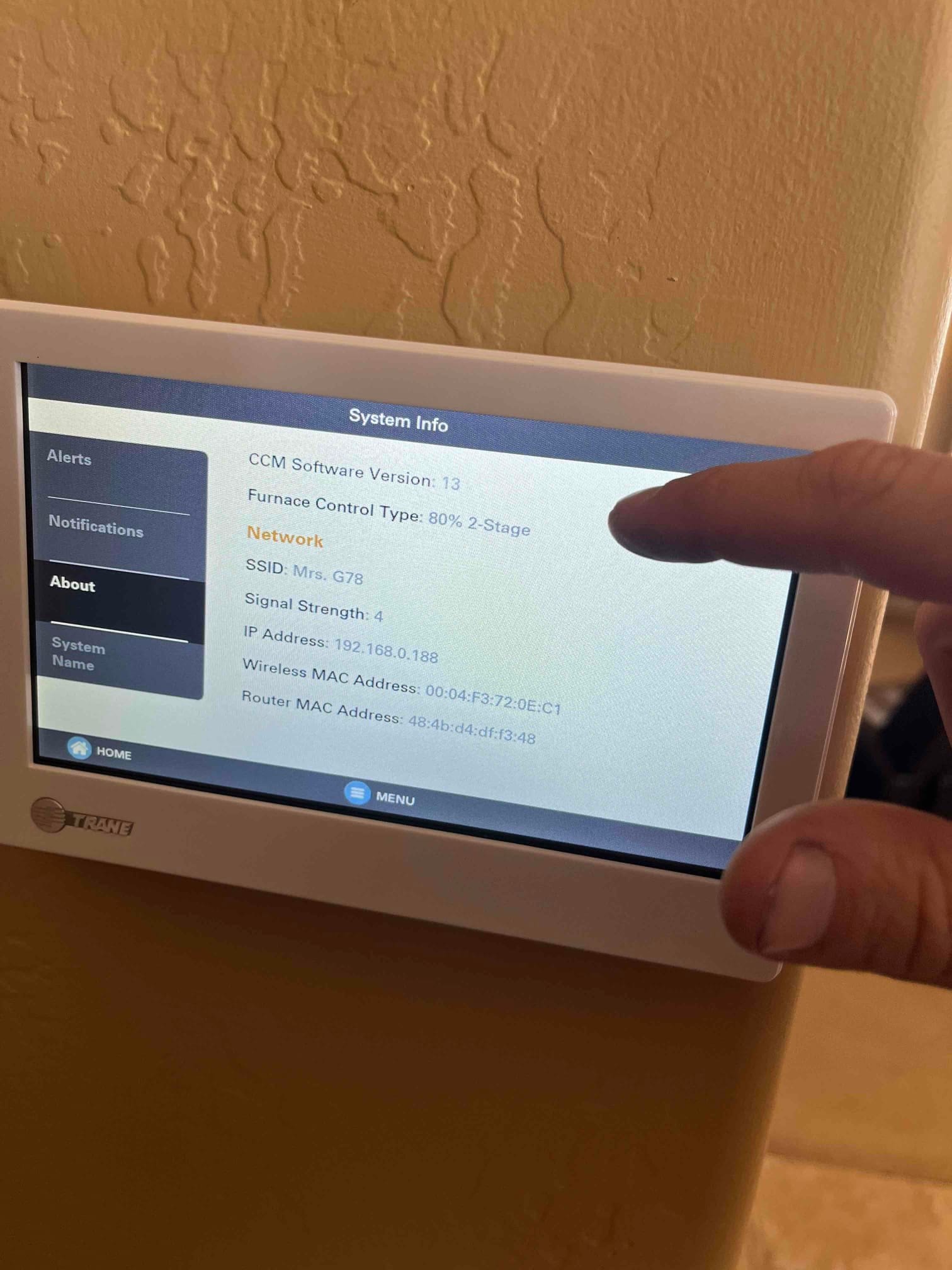

Wall-mounted touchscreen thermostat displays system information and network details during setup, with a technician’s hand interacting with the menu.
Wall-mounted touchscreen thermostat displays system information and network details during setup, with a technician’s hand interacting with the menu.

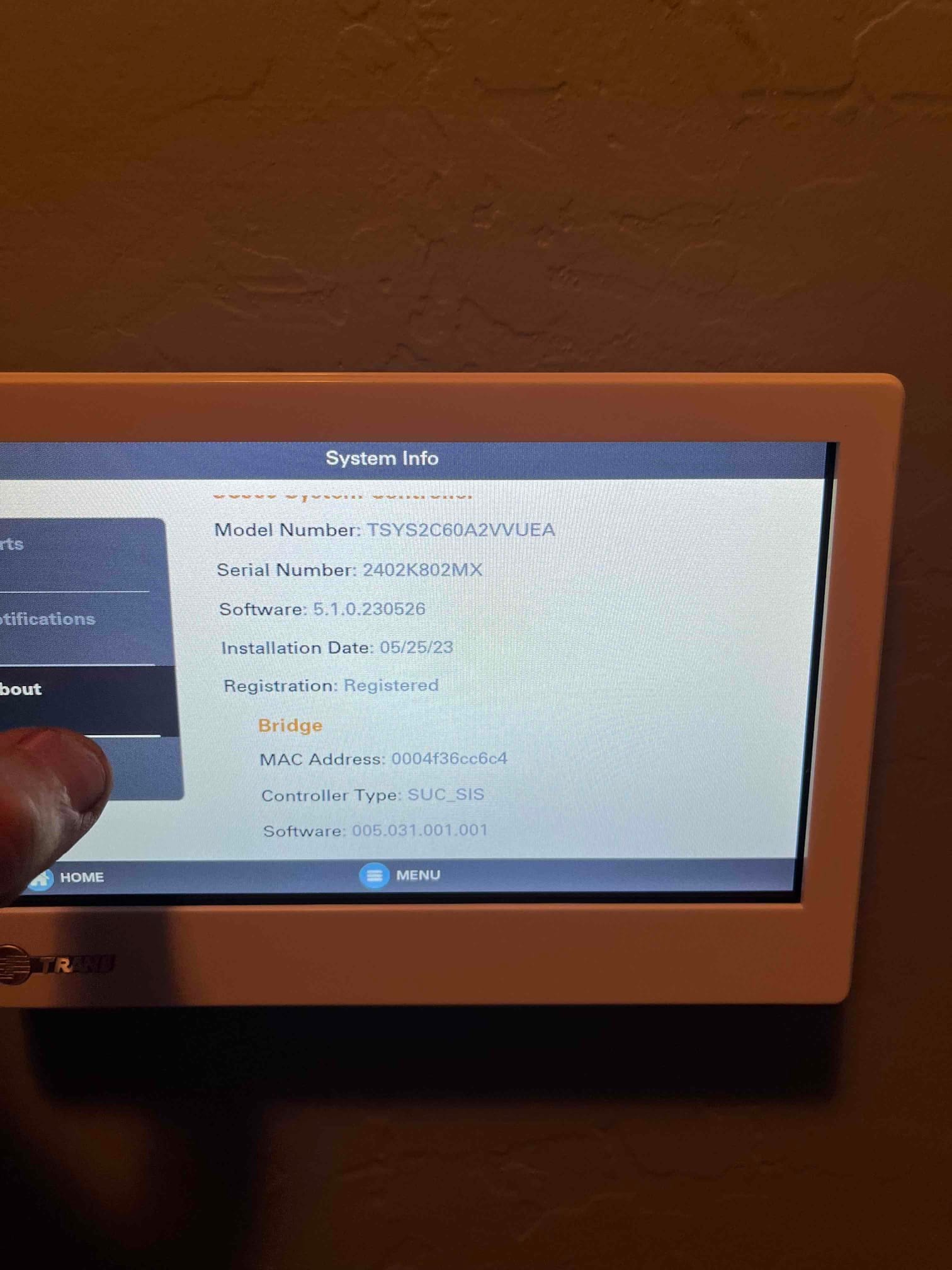

Touchscreen thermostat displays system information and registration status after installation, with a technician’s finger selecting the menu.
Touchscreen thermostat displays system information and registration status after installation, with a technician’s finger selecting the menu.

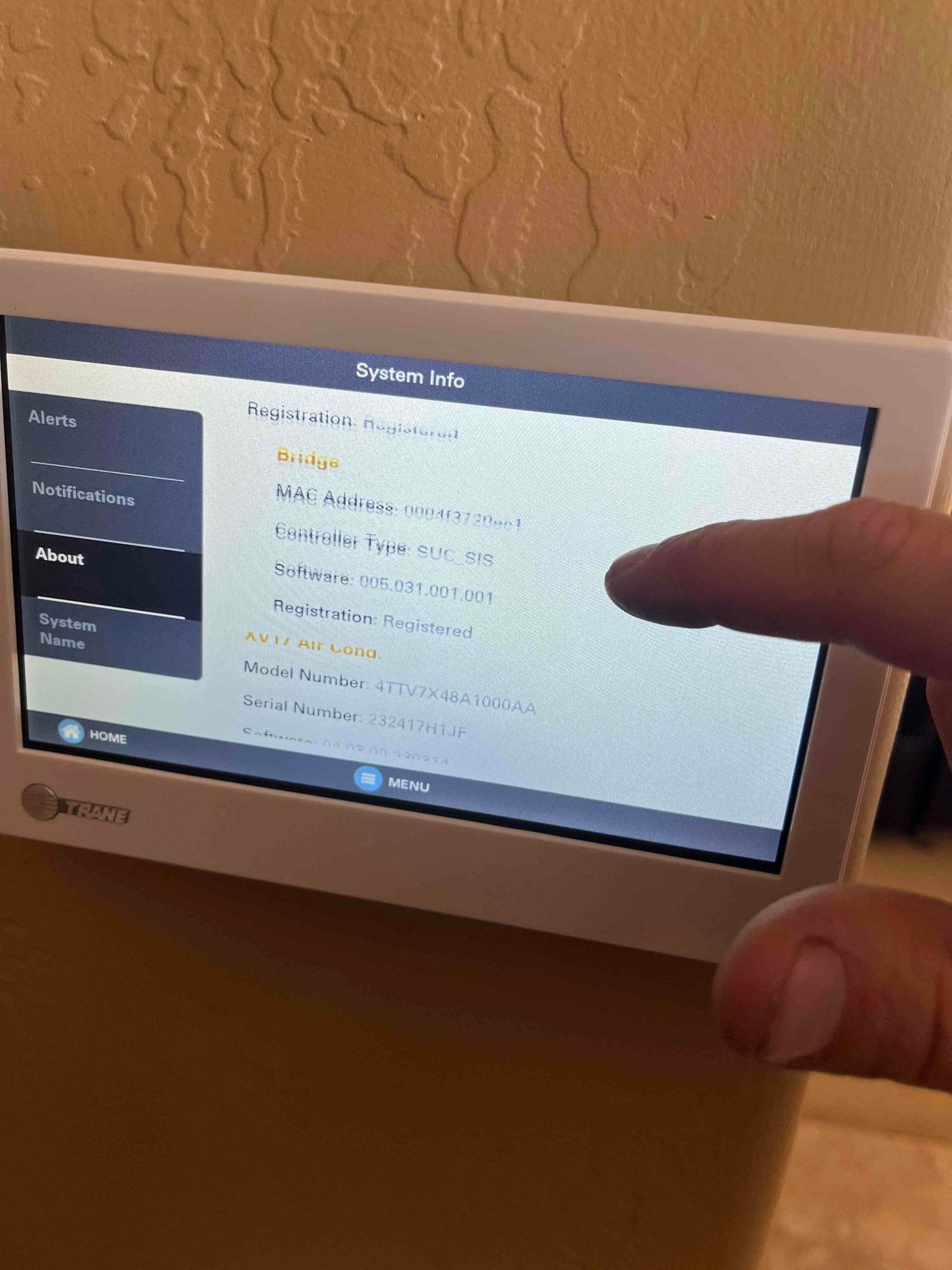

Wall-mounted touchscreen thermostat displays system information while being operated during setup and commissioning.
Wall-mounted touchscreen thermostat displays system information while being operated during setup and commissioning.

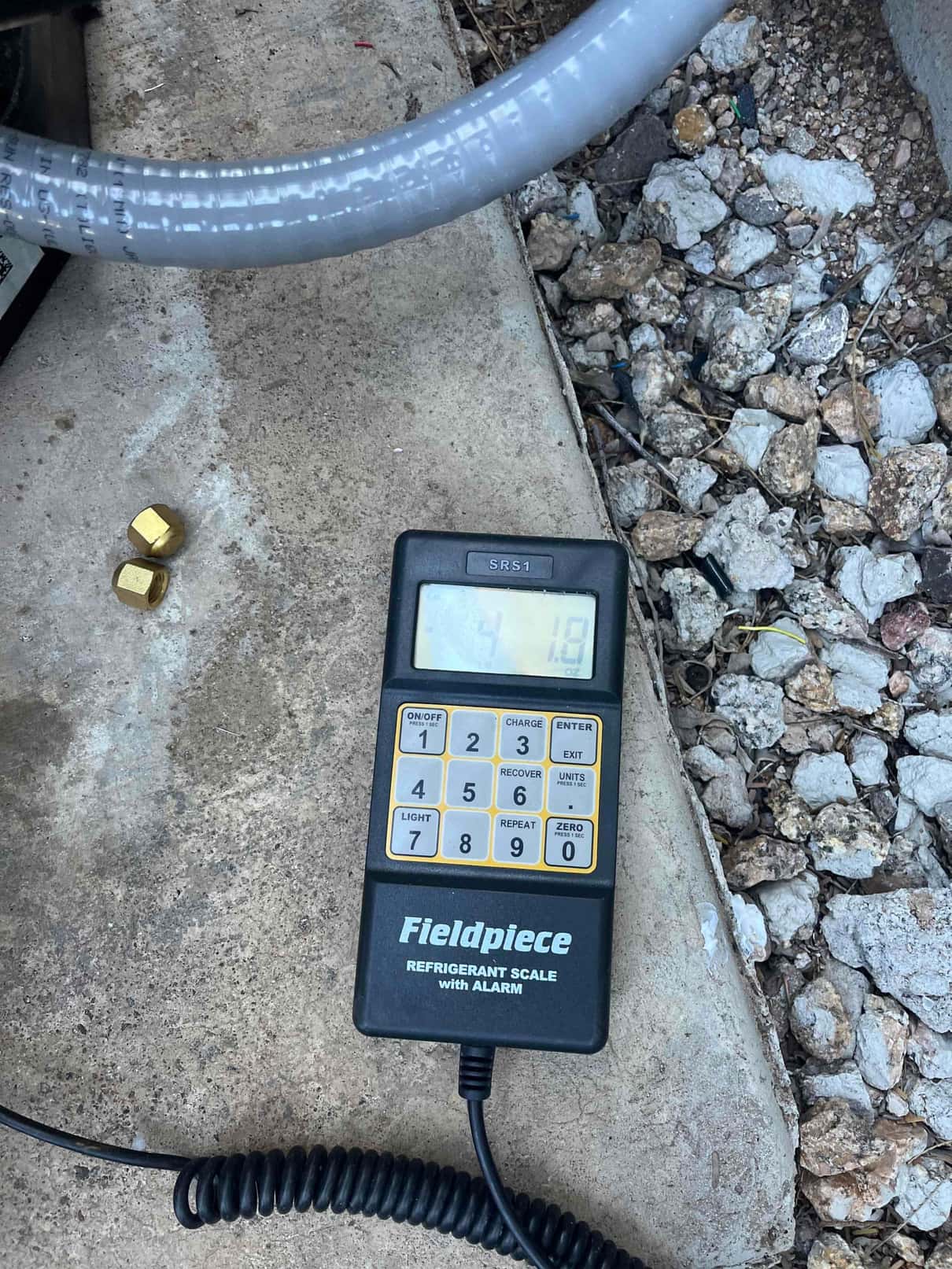

Digital refrigerant scale controller on the jobsite concrete pad, used to meter charge during system commissioning.
Digital refrigerant scale controller on the jobsite concrete pad, used to meter charge during system commissioning.

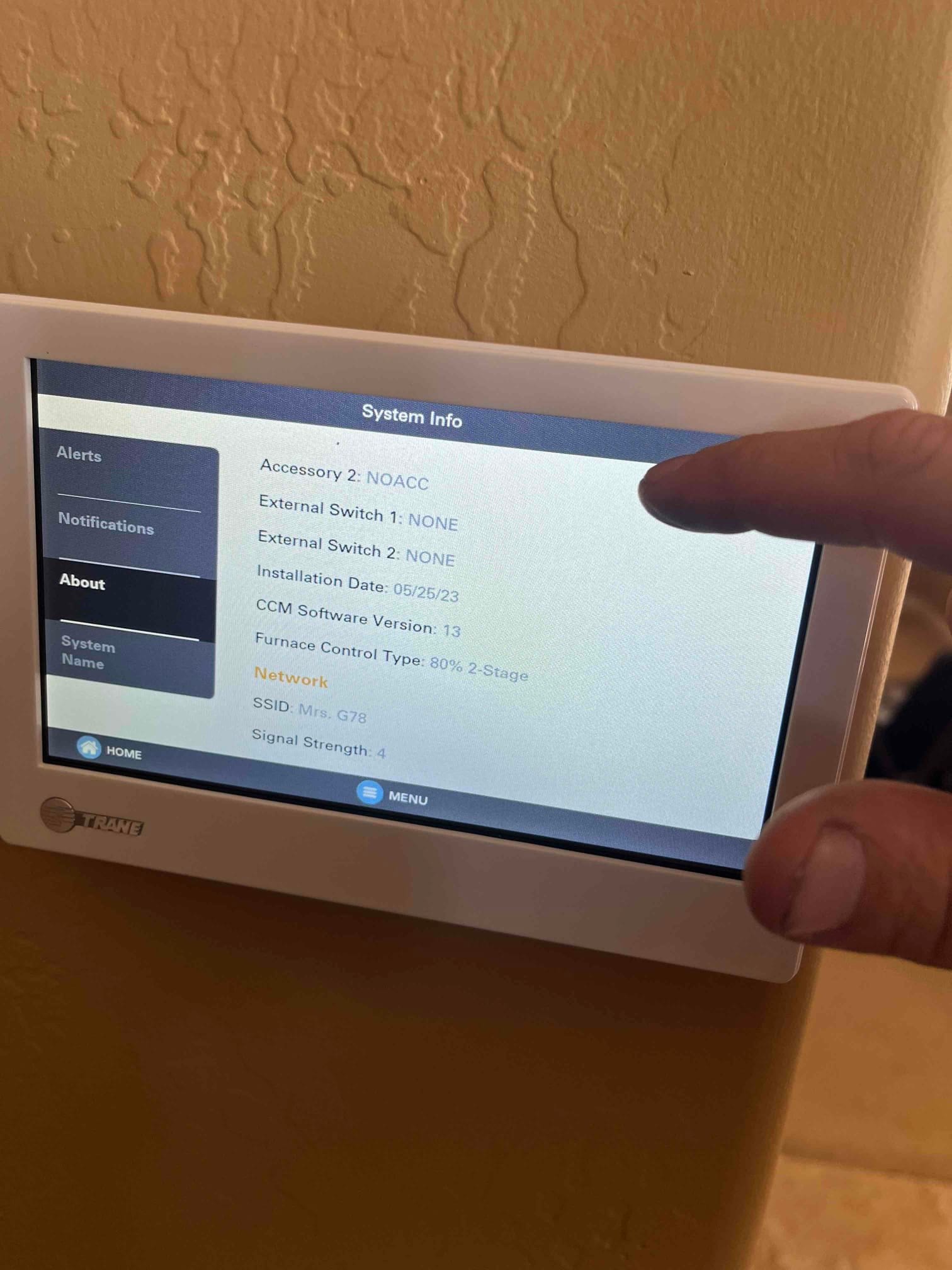

Wall-mounted touchscreen thermostat displays system information during setup, with a technician’s hand interacting with the interface.
Wall-mounted touchscreen thermostat displays system information during setup, with a technician’s hand interacting with the interface.

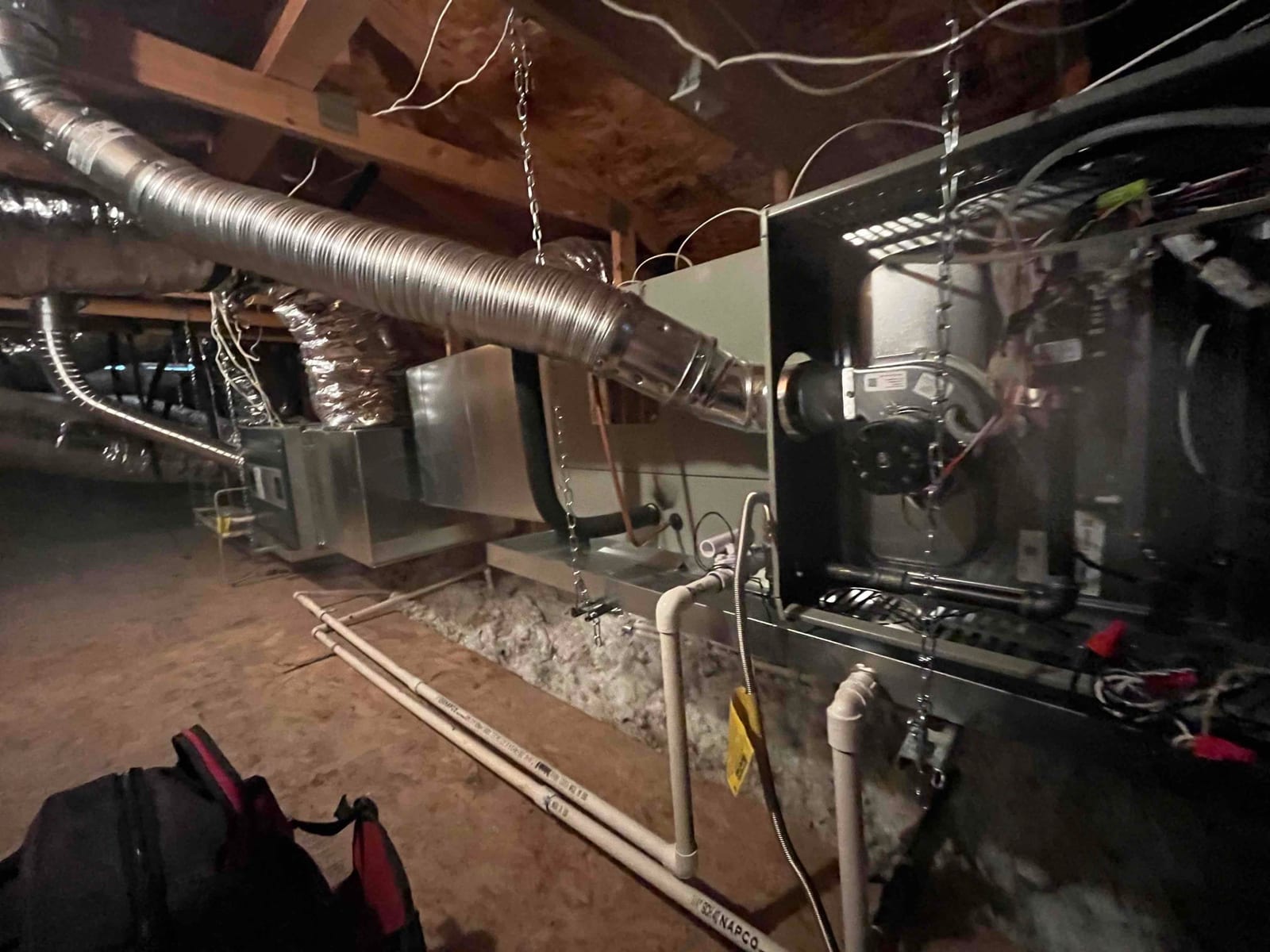

New suspended furnace and ductwork installed in attic with condensate drain piping, flexible gas vent, and electrical connections visible.
New suspended furnace and ductwork installed in attic with condensate drain piping, flexible gas vent, and electrical connections visible.
Digital refrigerant scale controller on the job site shows a reading on its display during charging work.
Digital refrigerant scale controller on the job site shows a reading on its display during charging work.

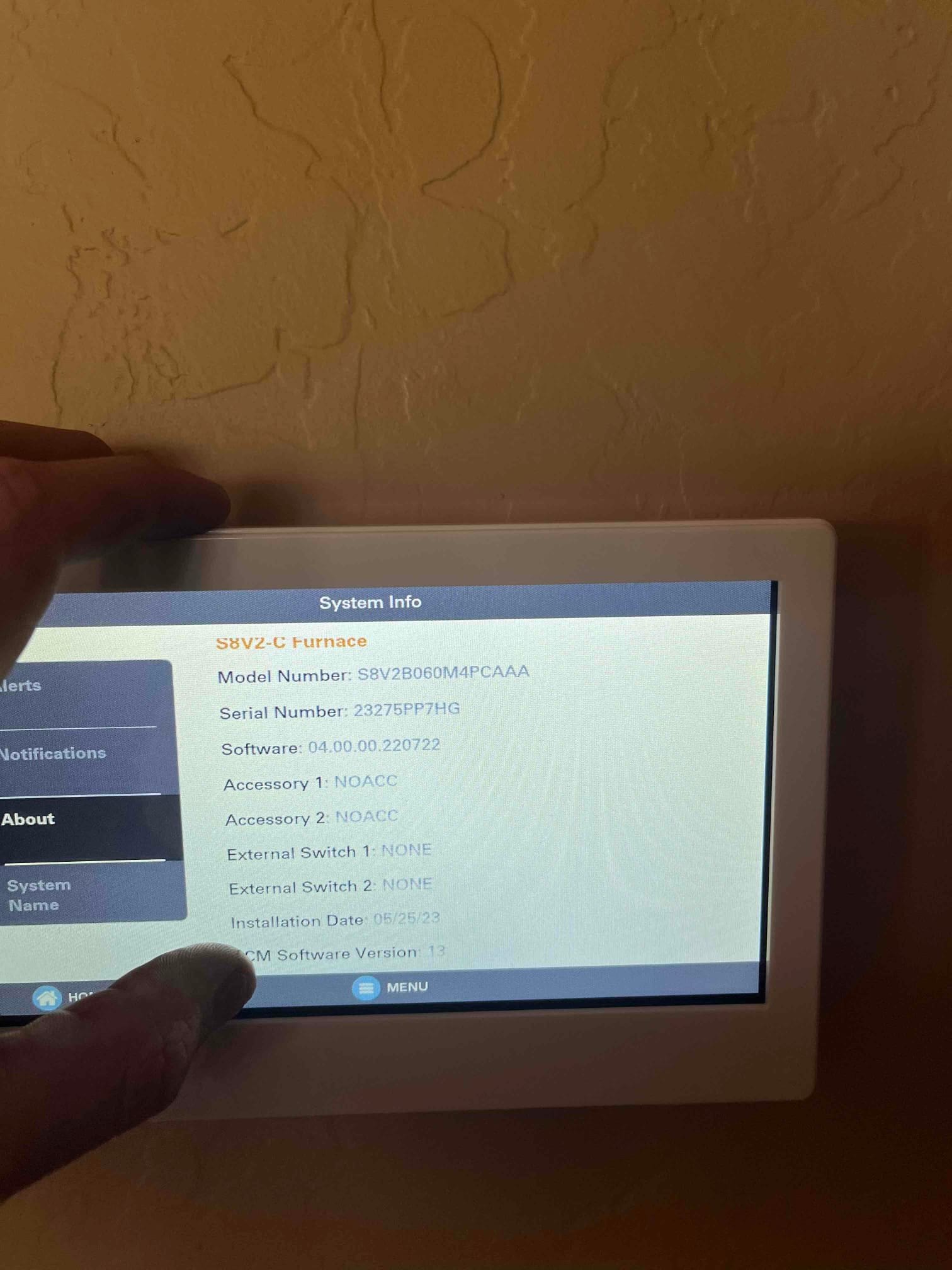

Thermostat touchscreen displays system information for the furnace while a technician holds the frame during setup.
Thermostat touchscreen displays system information for the furnace while a technician holds the frame during setup.
Furnace installation showing gas flex connector with shutoff valve, condensate drain piping, and metal flue vent in the attic.
Furnace installation showing gas flex connector with shutoff valve, condensate drain piping, and metal flue vent in the attic.

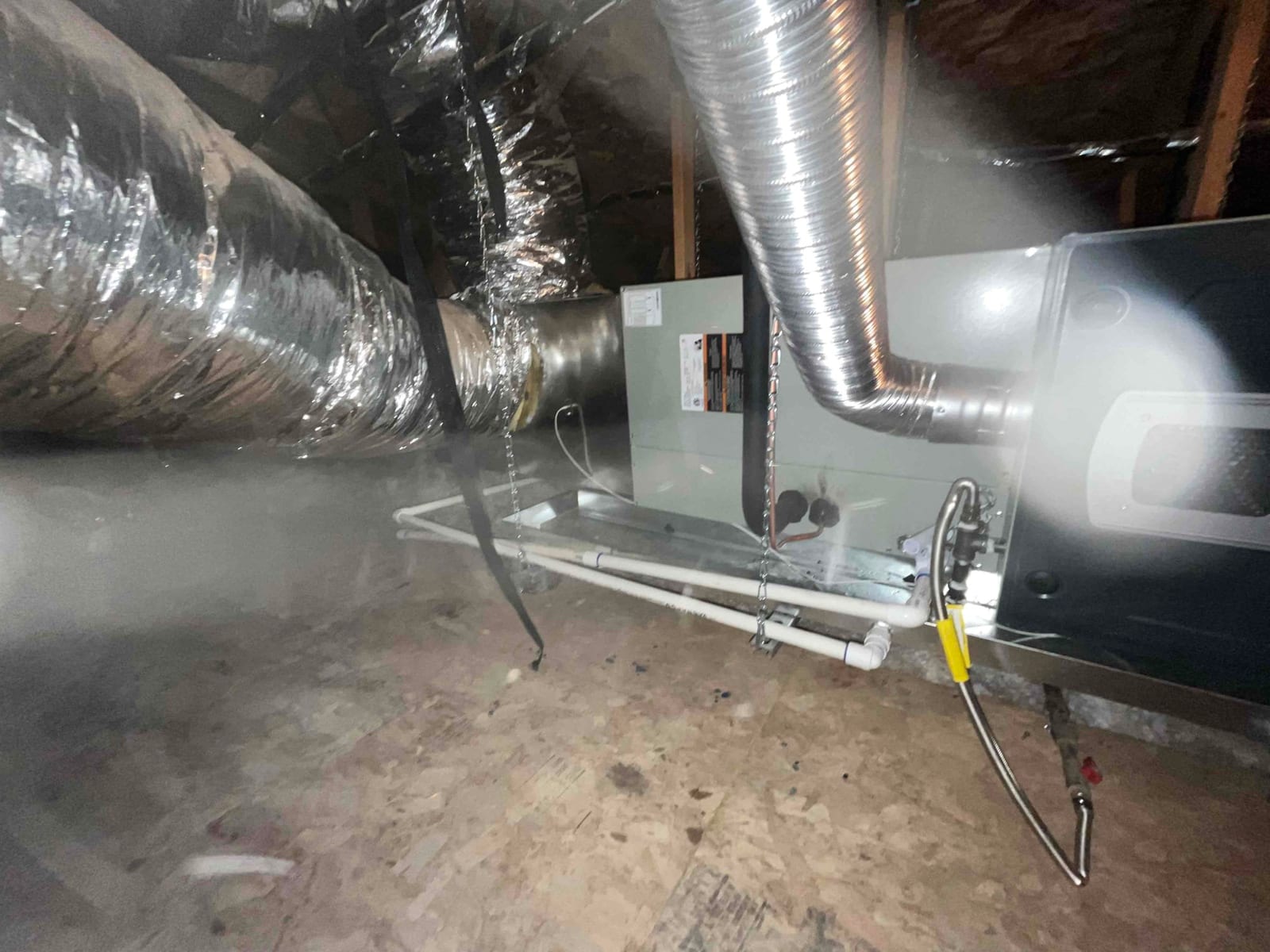

New attic air handler and furnace set with insulated duct connections, condensate drain piping, and gas line hookup on a supported platform.
New attic air handler and furnace set with insulated duct connections, condensate drain piping, and gas line hookup on a supported platform.

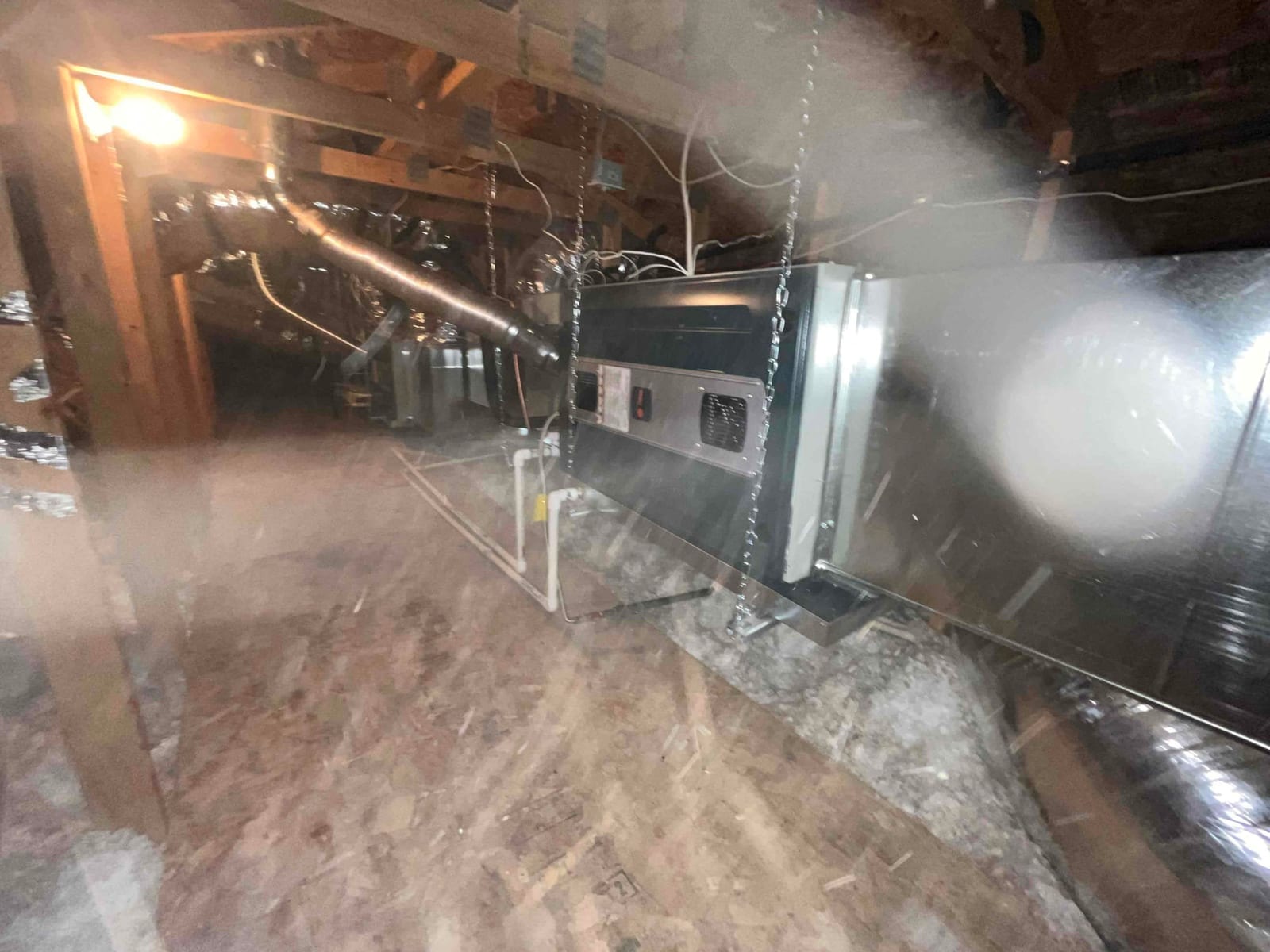

Air handler suspended in attic with new metal plenum, insulated flex ducts, and PVC condensate drain routed to trap.
Air handler suspended in attic with new metal plenum, insulated flex ducts, and PVC condensate drain routed to trap.
Attic-mounted furnace and evaporator with insulated ductwork, suspended by chains, and newly routed PVC condensate drain lines.
Attic-mounted furnace and evaporator with insulated ductwork, suspended by chains, and newly routed PVC condensate drain lines.

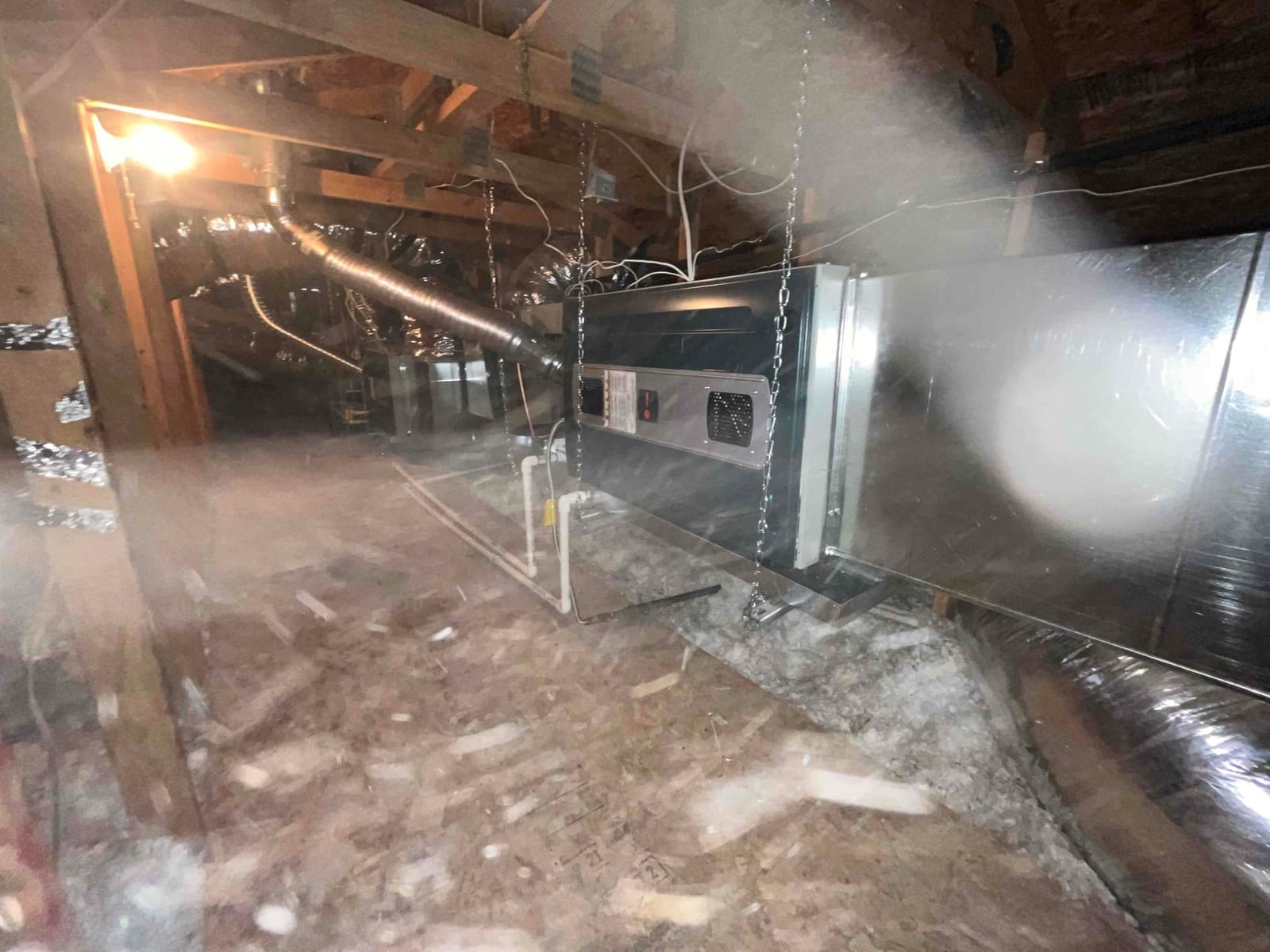

Air handler suspended from ceiling chains in attic with new duct connections, drain line, and metal plenum installed.
Air handler suspended from ceiling chains in attic with new duct connections, drain line, and metal plenum installed.

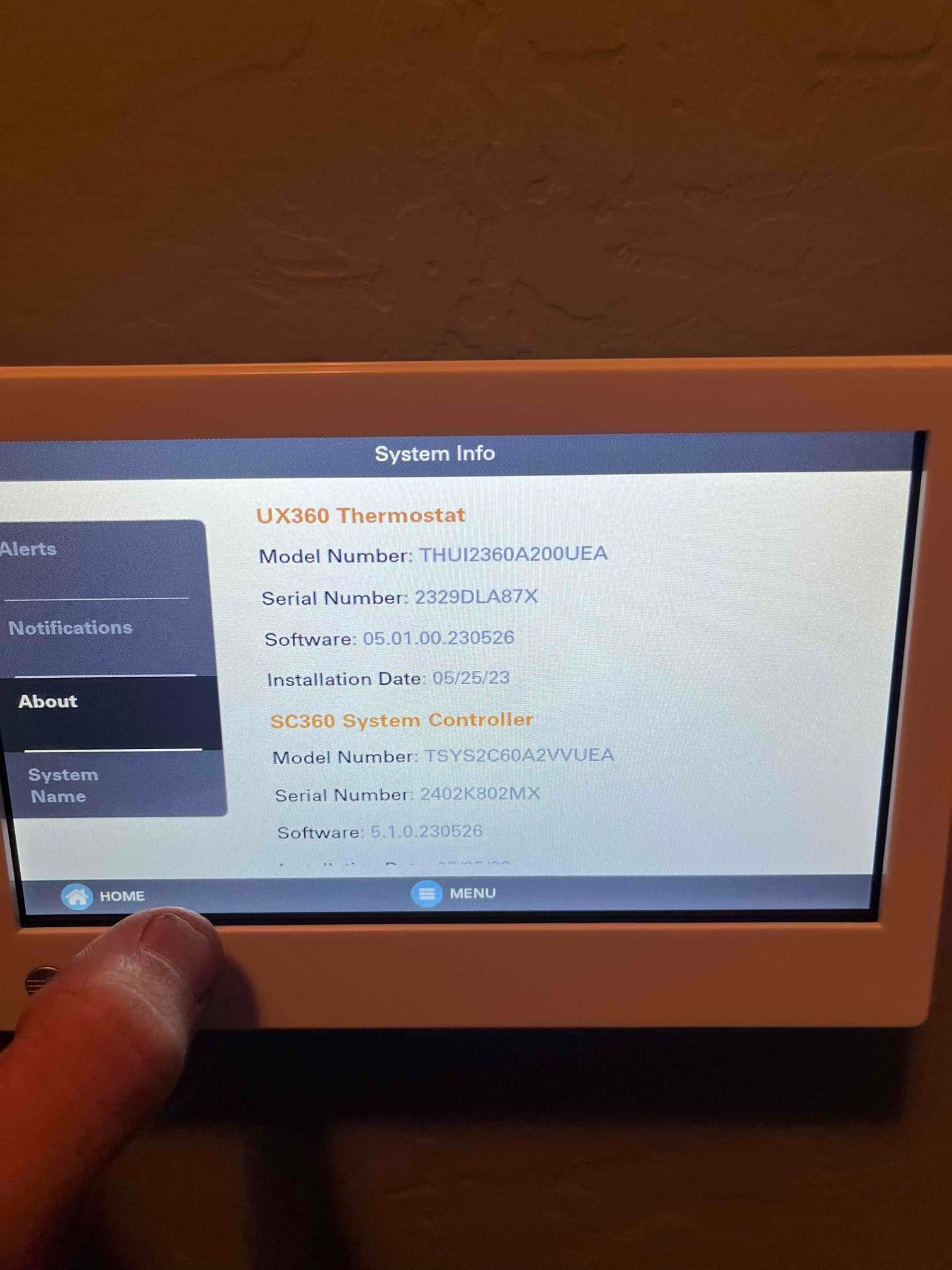

Wall-mounted touchscreen thermostat displays system information menu, showing model, serial, and software details for the controller.
Wall-mounted touchscreen thermostat displays system information menu, showing model, serial, and software details for the controller.
Outdoor condenser set on a pad with neatly routed insulated refrigerant line set along the wall in a narrow side yard.
Outdoor condenser set on a pad with neatly routed insulated refrigerant line set along the wall in a narrow side yard.

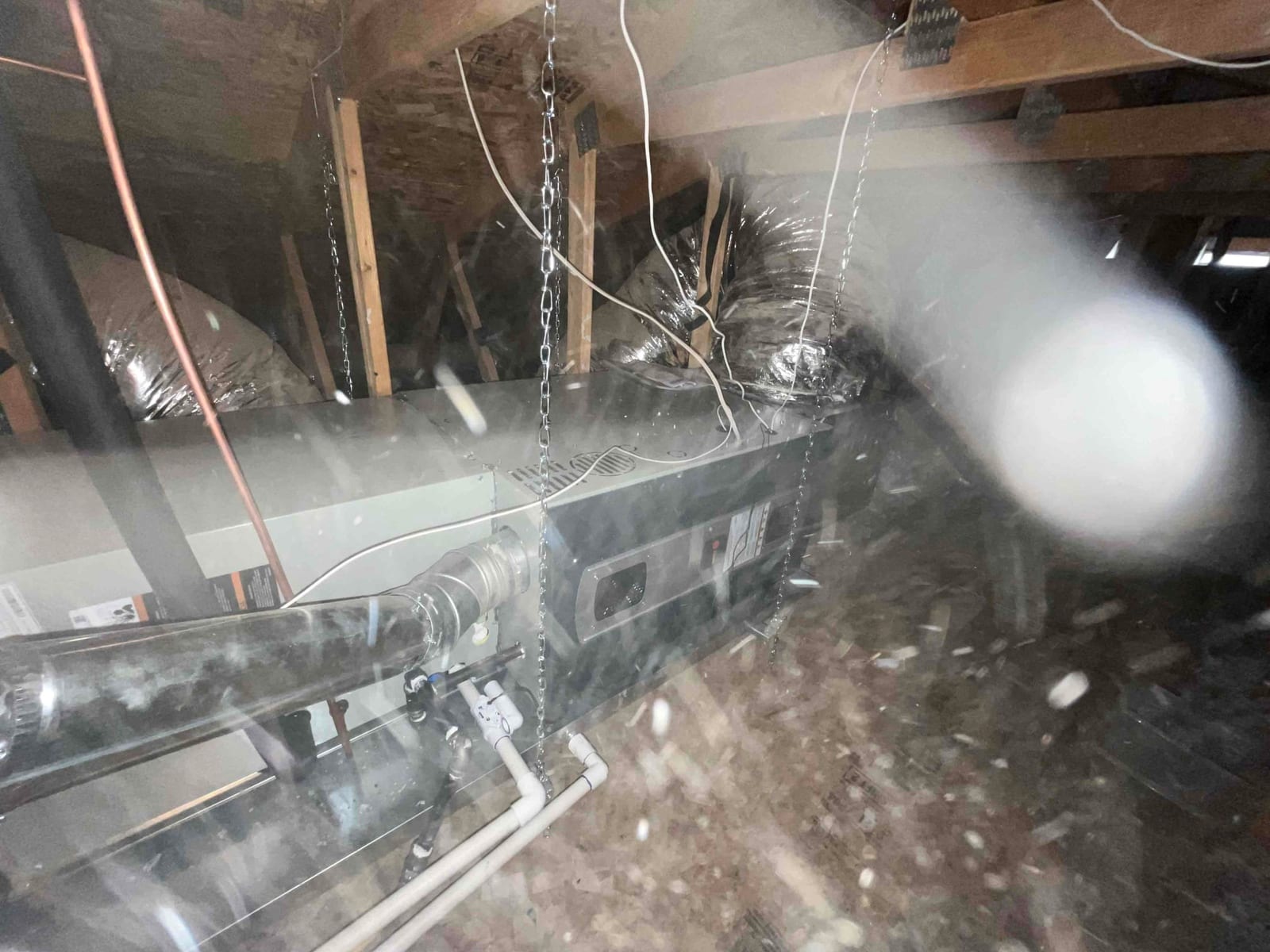

Suspended attic air handler with insulated duct connections, condensate drain piping, and venting installed and supported by hanging chains.
Suspended attic air handler with insulated duct connections, condensate drain piping, and venting installed and supported by hanging chains.

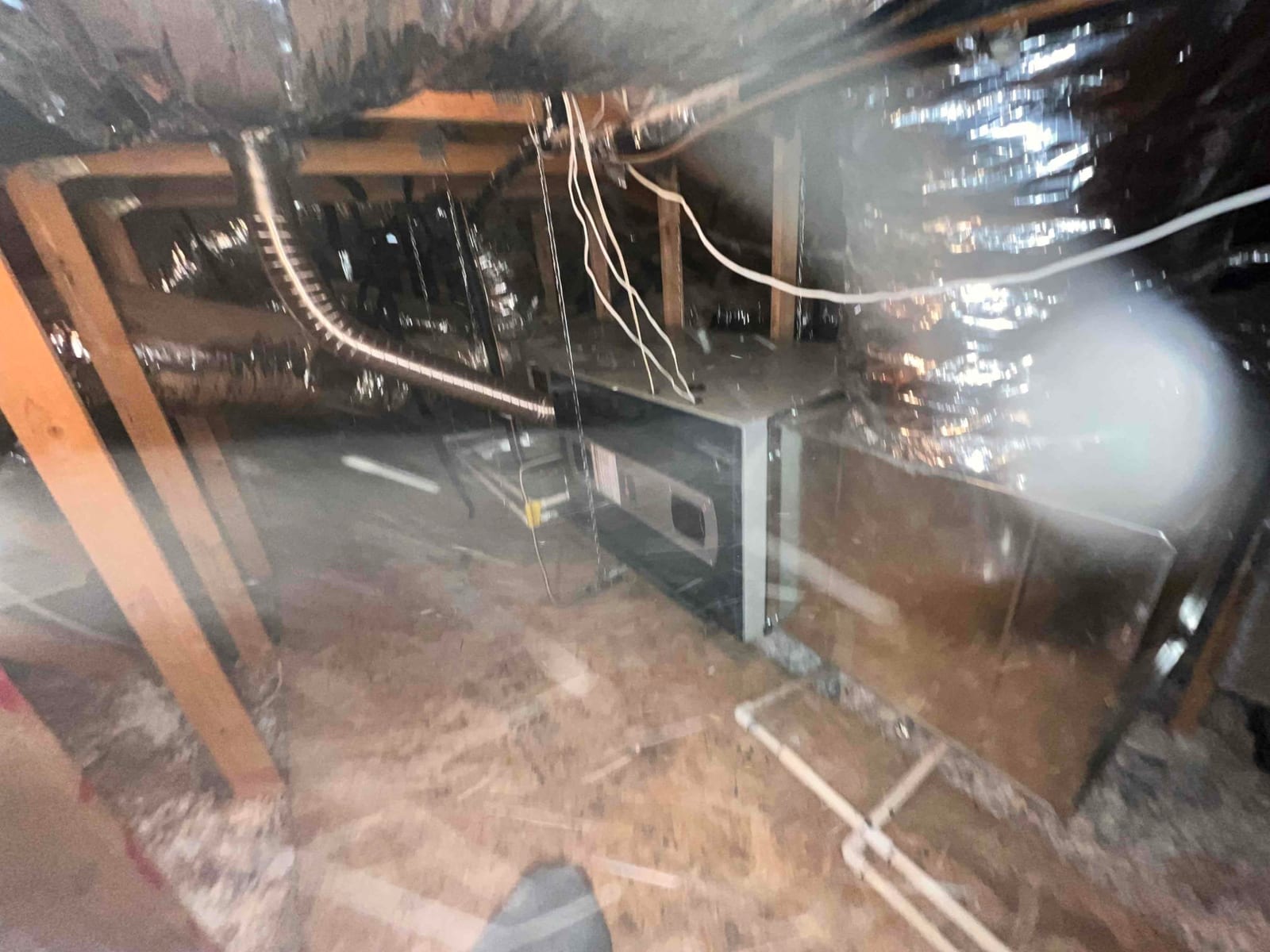

New air handler and duct transitions installed in the attic with insulated flex ducts and PVC condensate drain piping visible.
New air handler and duct transitions installed in the attic with insulated flex ducts and PVC condensate drain piping visible.

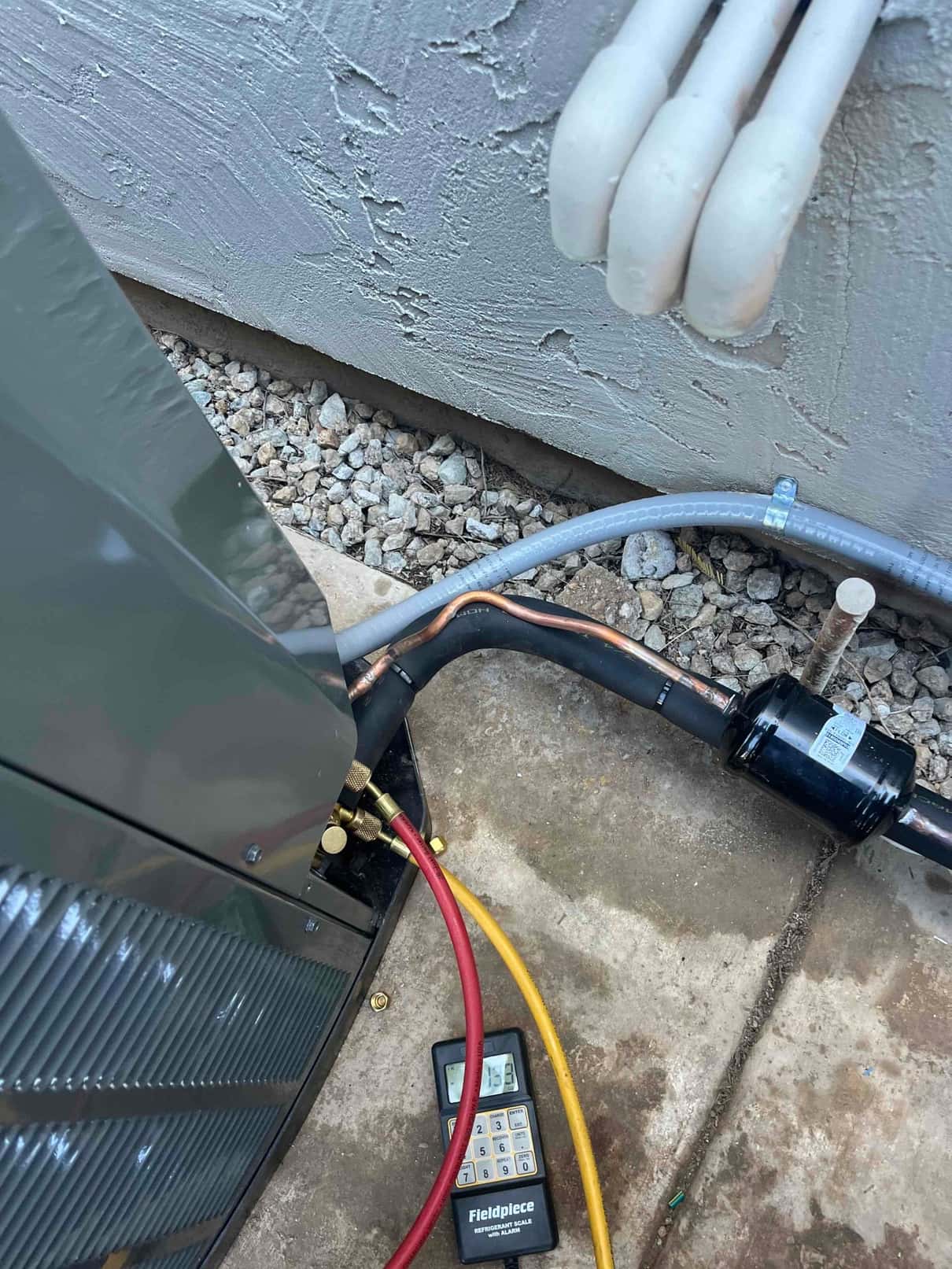

Outdoor condenser connections with brazed copper lines, insulated suction line, liquid-line filter-drier, and hoses attached near the service valves.
Outdoor condenser connections with brazed copper lines, insulated suction line, liquid-line filter-drier, and hoses attached near the service valves.

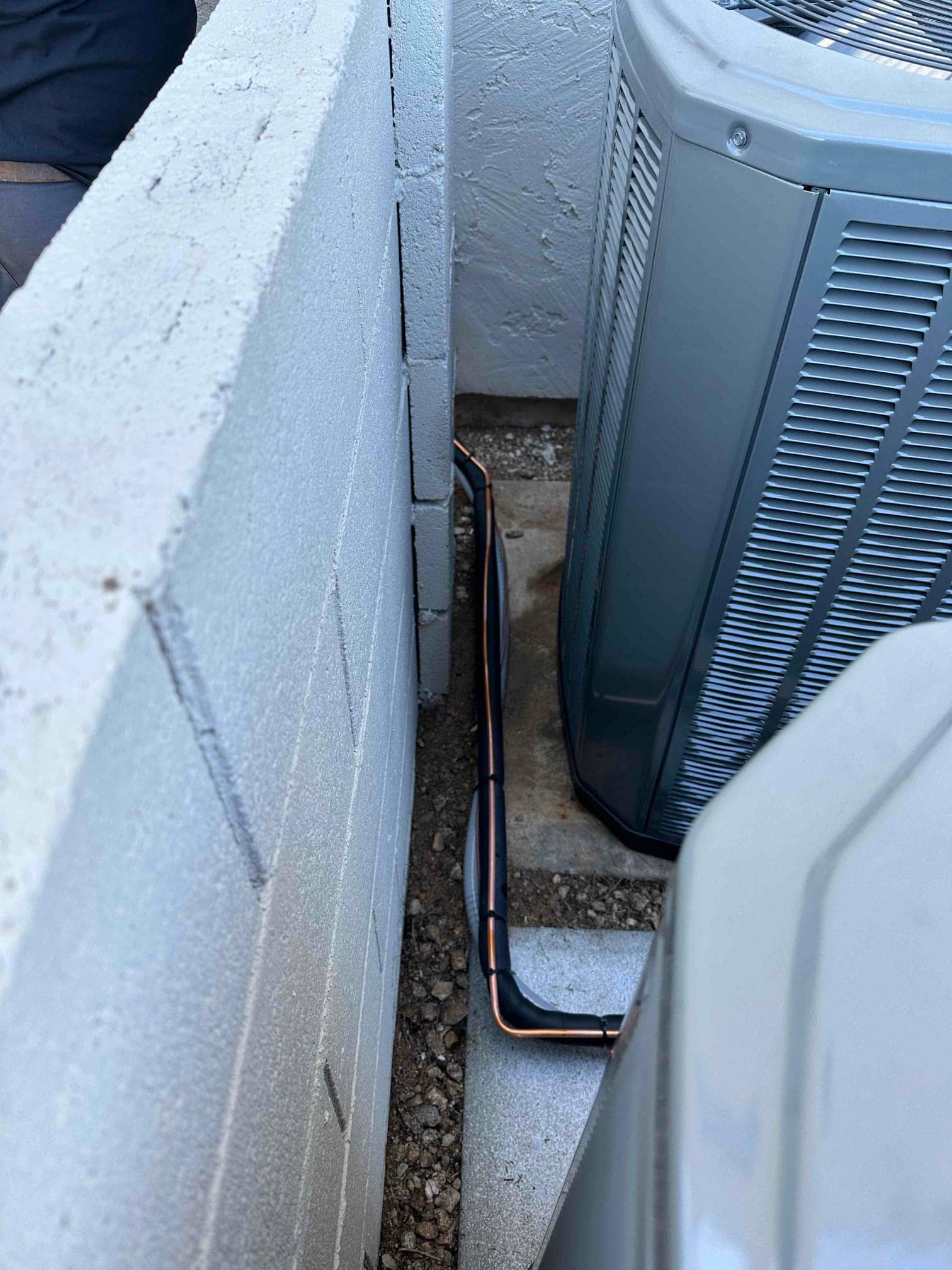

New outdoor condenser set on a pad with neatly routed insulated refrigerant line set along the wall clearance.
New outdoor condenser set on a pad with neatly routed insulated refrigerant line set along the wall clearance.
Outdoor install showing insulated refrigerant lines with filter-driers, sealed wall penetrations, condensate drain, and electrical whip beside the new condenser.
Outdoor install showing insulated refrigerant lines with filter-driers, sealed wall penetrations, condensate drain, and electrical whip beside the new condenser.

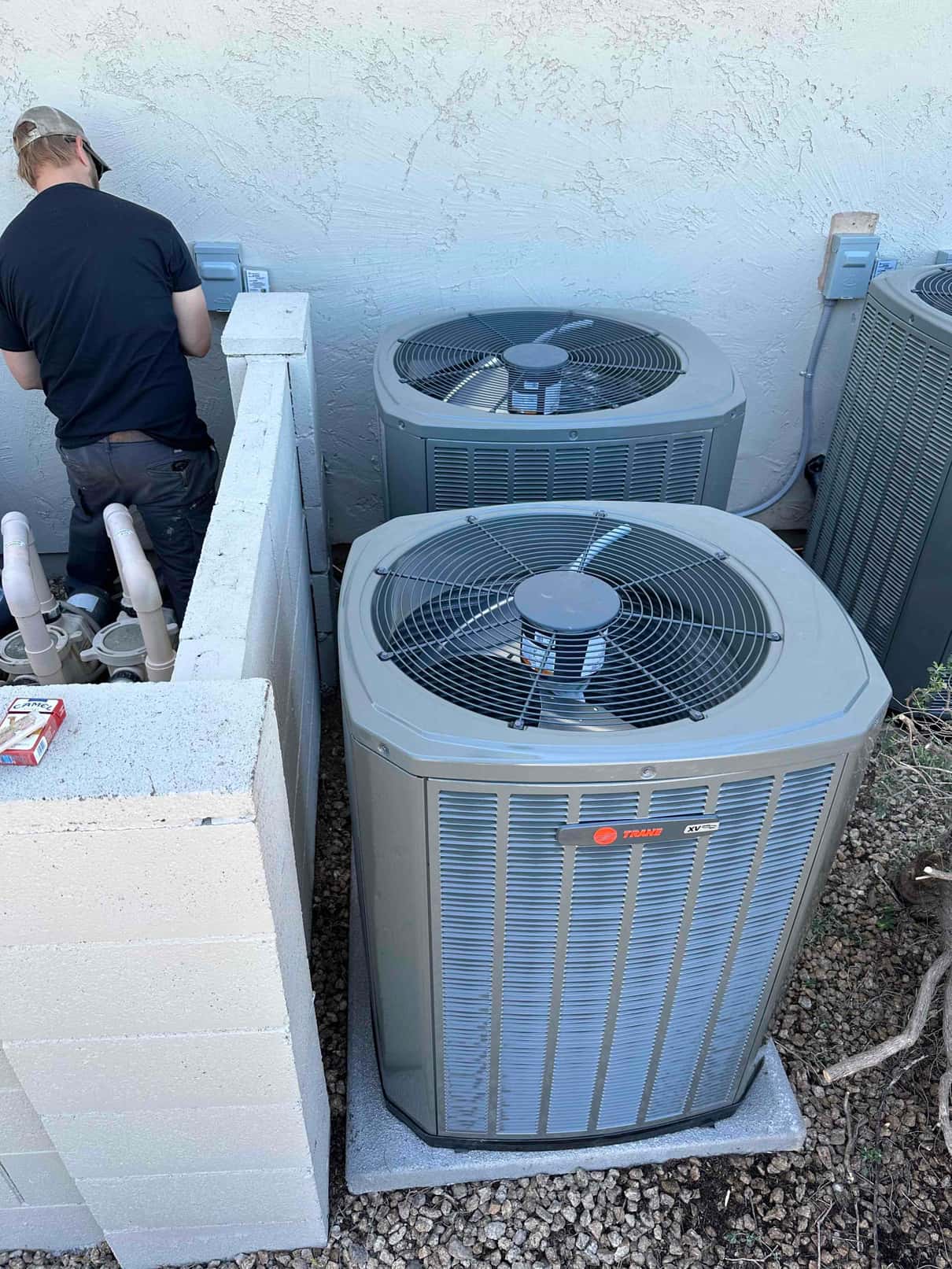

Two outdoor condensers set on level pads with electrical disconnects mounted on the wall as a technician works nearby.
Two outdoor condensers set on level pads with electrical disconnects mounted on the wall as a technician works nearby.

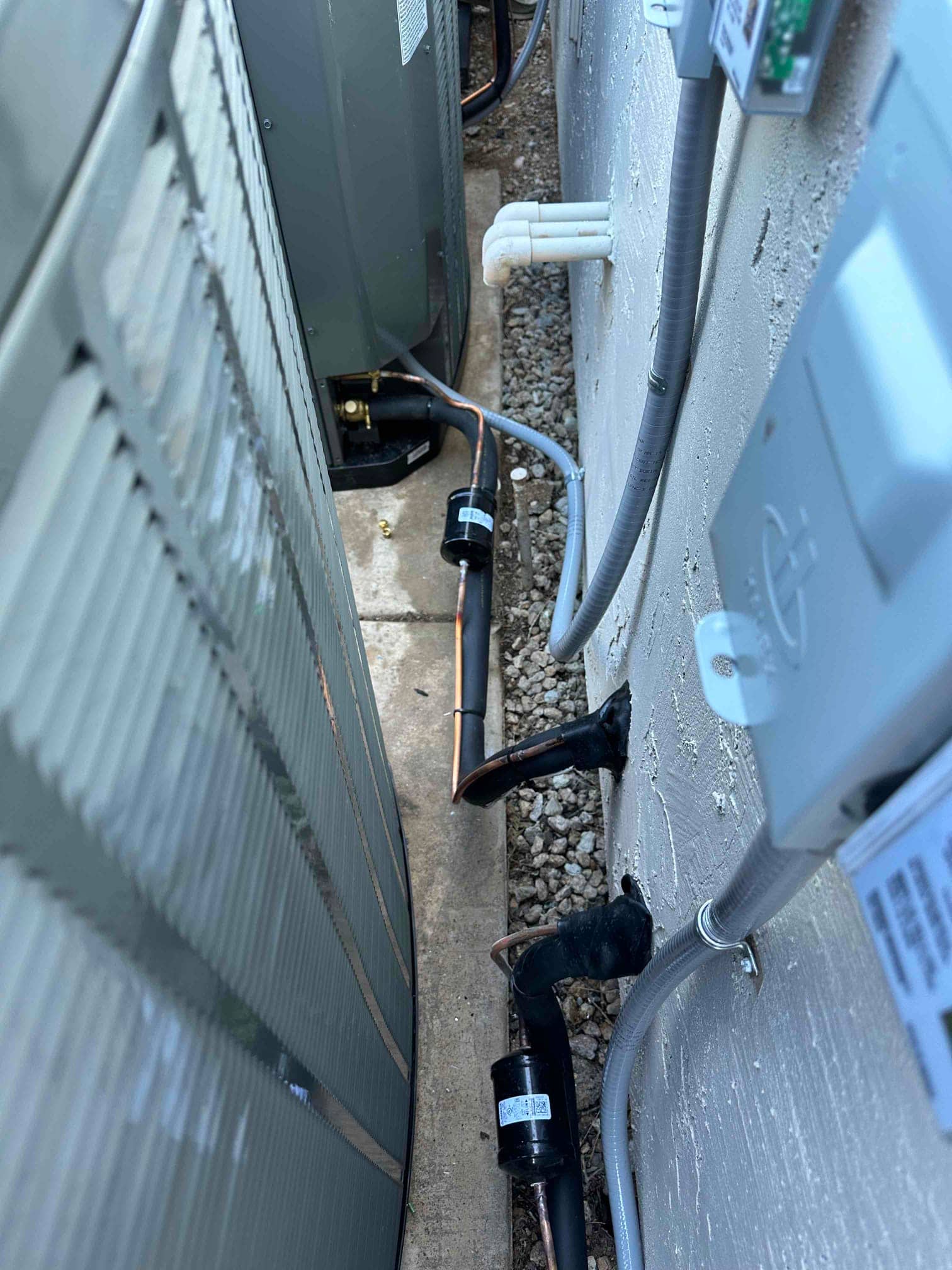

New outdoor condenser set on a pad with insulated refrigerant lines, filter-driers, sealed wall penetrations, and electrical whip to the disconnect.
New outdoor condenser set on a pad with insulated refrigerant lines, filter-driers, sealed wall penetrations, and electrical whip to the disconnect.

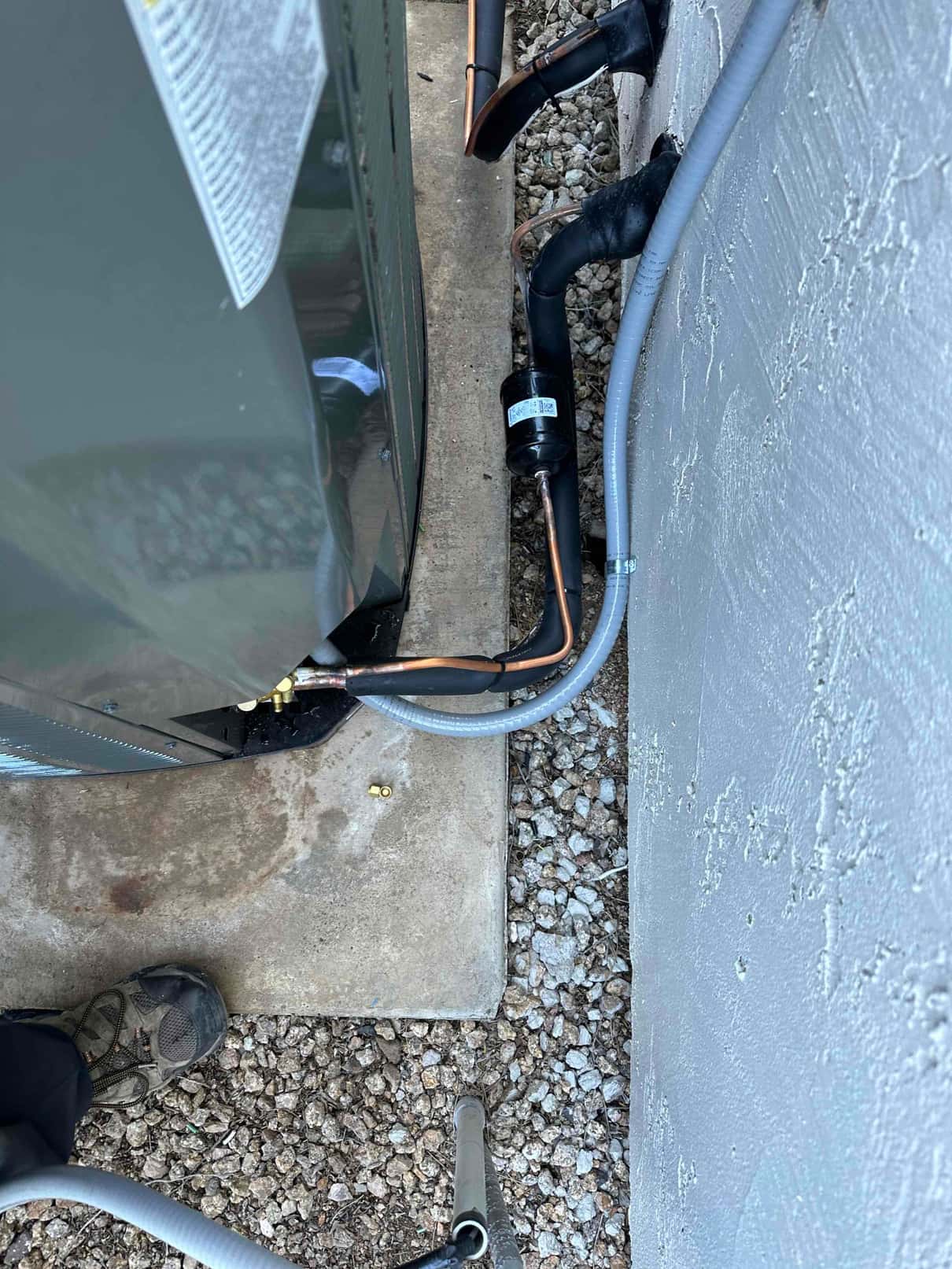

Outdoor condenser set on a concrete pad with insulated refrigerant lines, filter-drier, and electrical conduit entering the wall.
Outdoor condenser set on a concrete pad with insulated refrigerant lines, filter-drier, and electrical conduit entering the wall.
Thermostat system information screen displayed during setup, showing software version, installation date, and bridge details.
Thermostat system information screen displayed during setup, showing software version, installation date, and bridge details.

Nitrogen Pressure Test

Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.

Digital manifold shows both low and high sides holding around 254 PSI during a nitrogen pressure test on the outdoor unit.
Digital manifold shows both low and high sides holding around 254 PSI during a nitrogen pressure test on the outdoor unit.

Vacuum / Evacuation

A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.

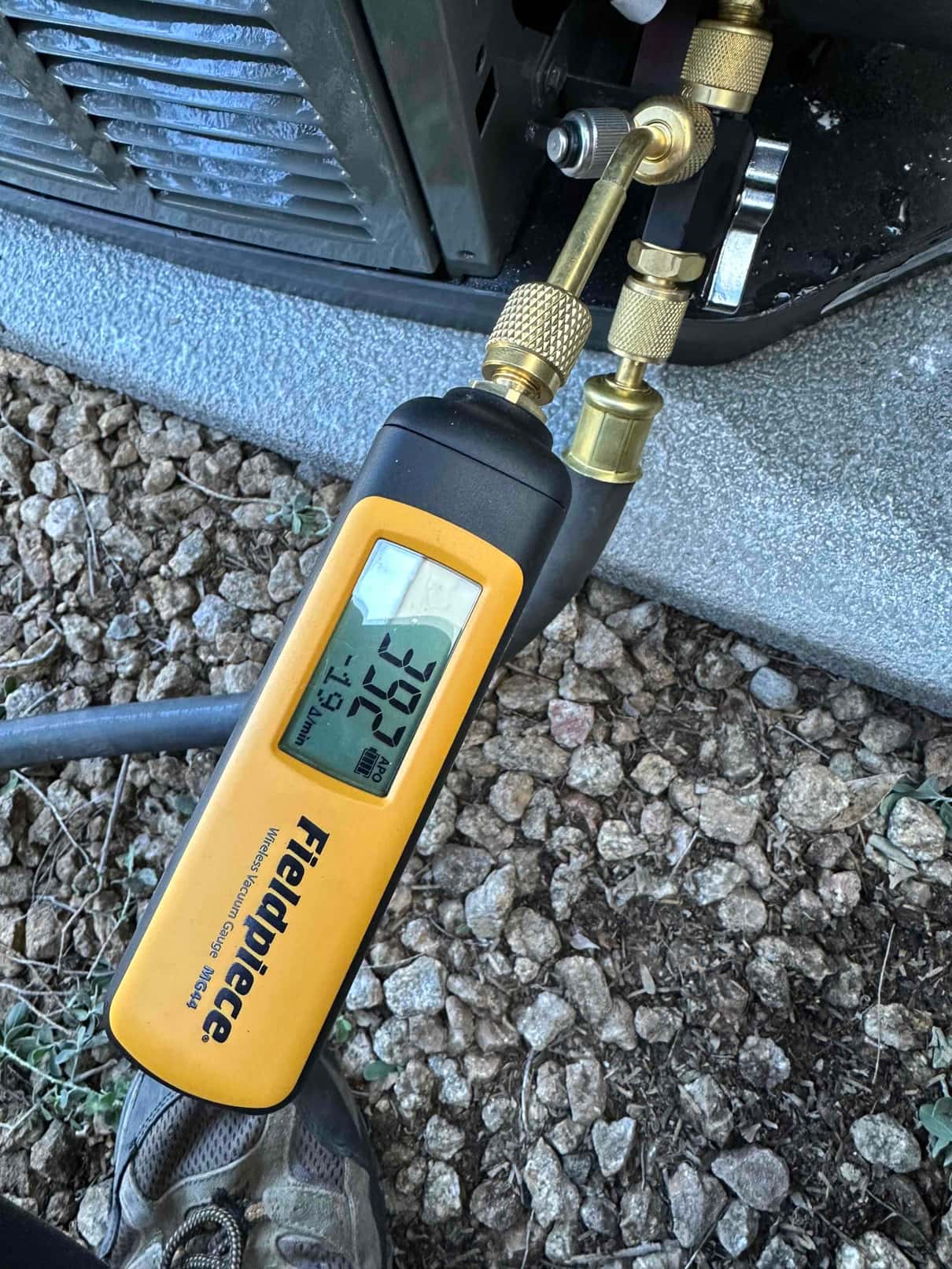

Digital micron gauge connected at the outdoor unit shows a deep vacuum reached during system evacuation.
Digital micron gauge connected at the outdoor unit shows a deep vacuum reached during system evacuation.

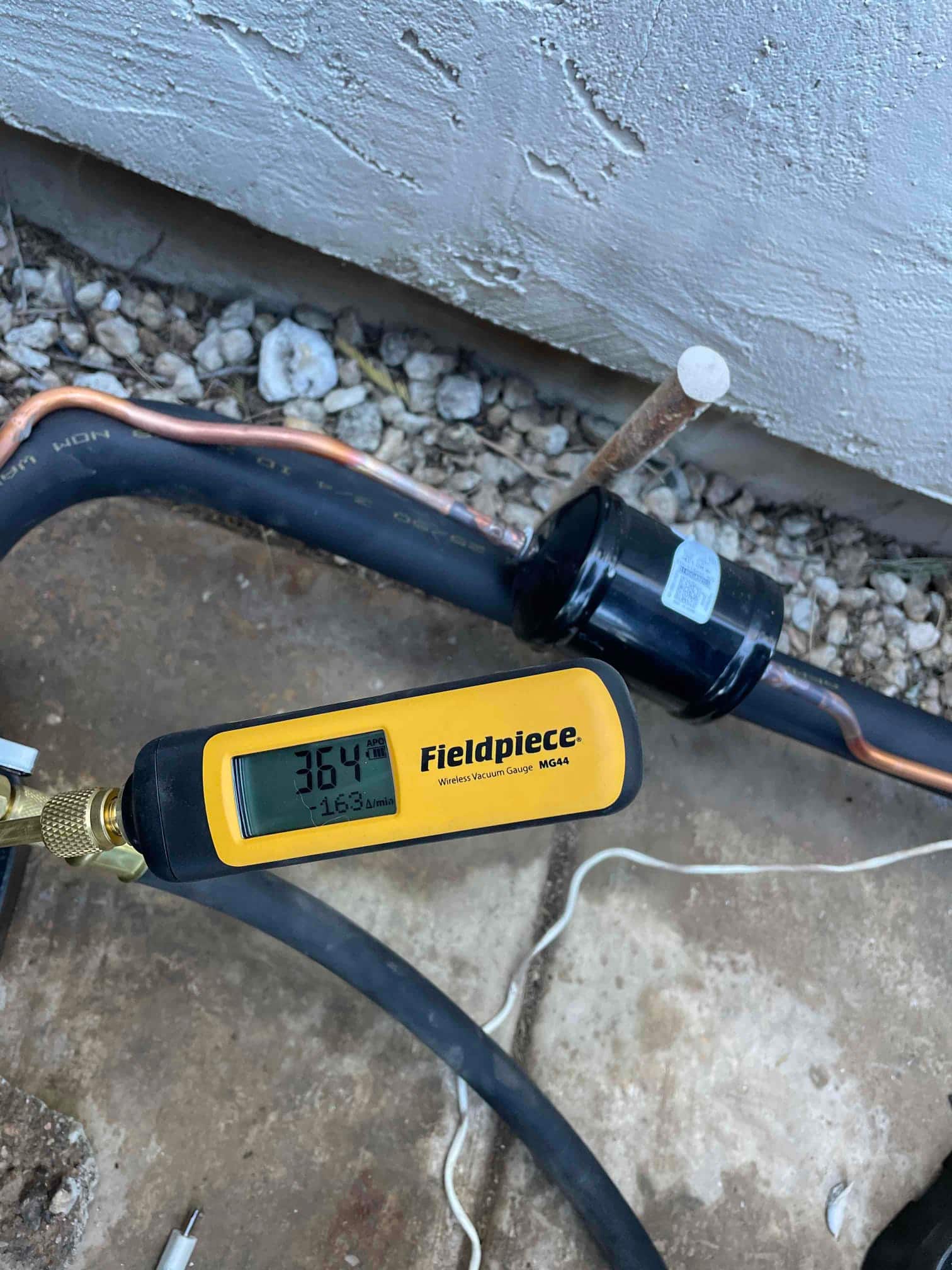

Wireless vacuum gauge connected to the line set shows 364 microns during system evacuation before refrigerant charging.
Wireless vacuum gauge connected to the line set shows 364 microns during system evacuation before refrigerant charging.

Refrigerant Commissioning

Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

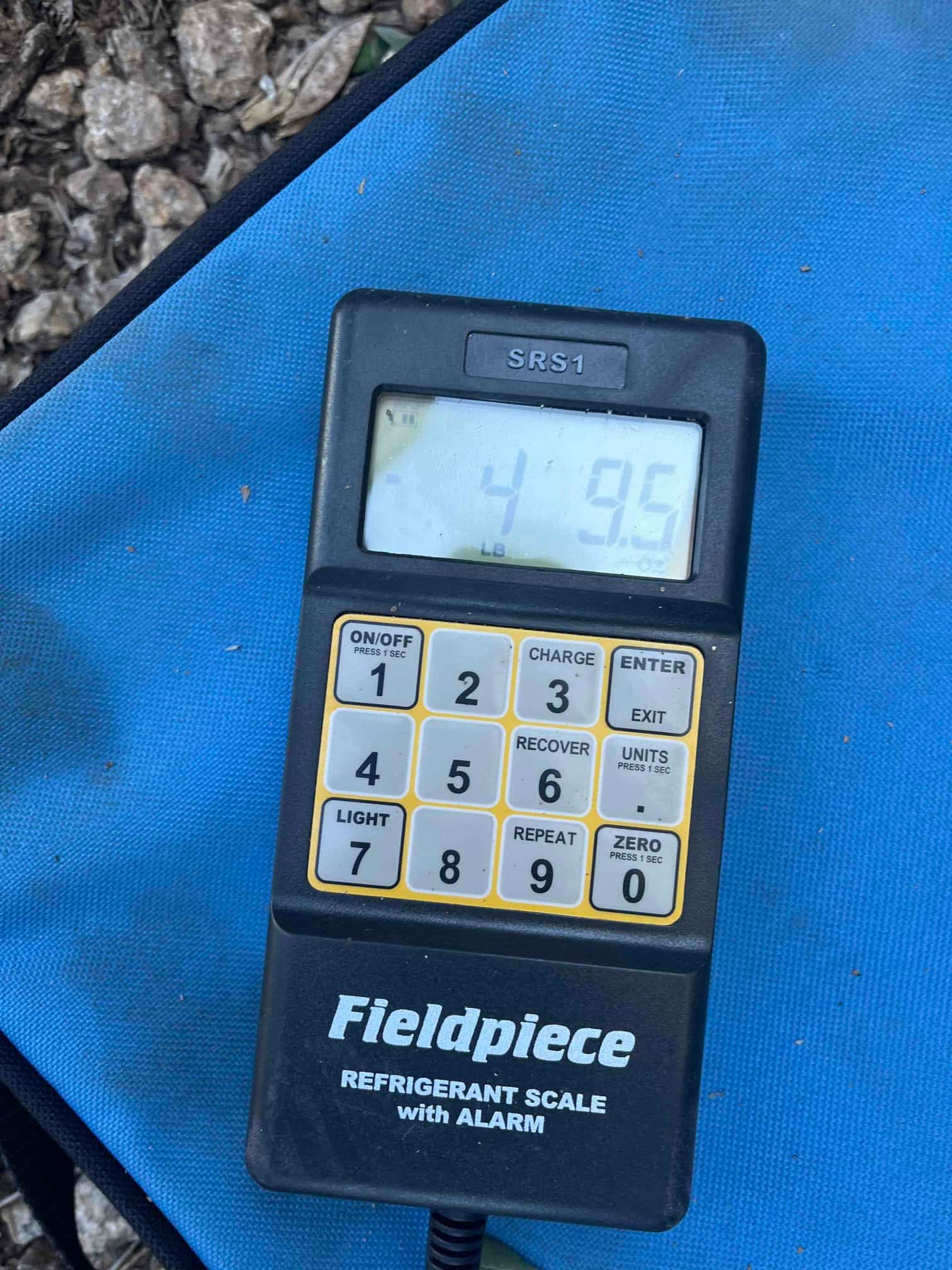

Digital refrigerant scale controller on a jobsite mat displaying 49.5 pounds during system charging process.
Digital refrigerant scale controller on a jobsite mat displaying 49.5 pounds during system charging process.

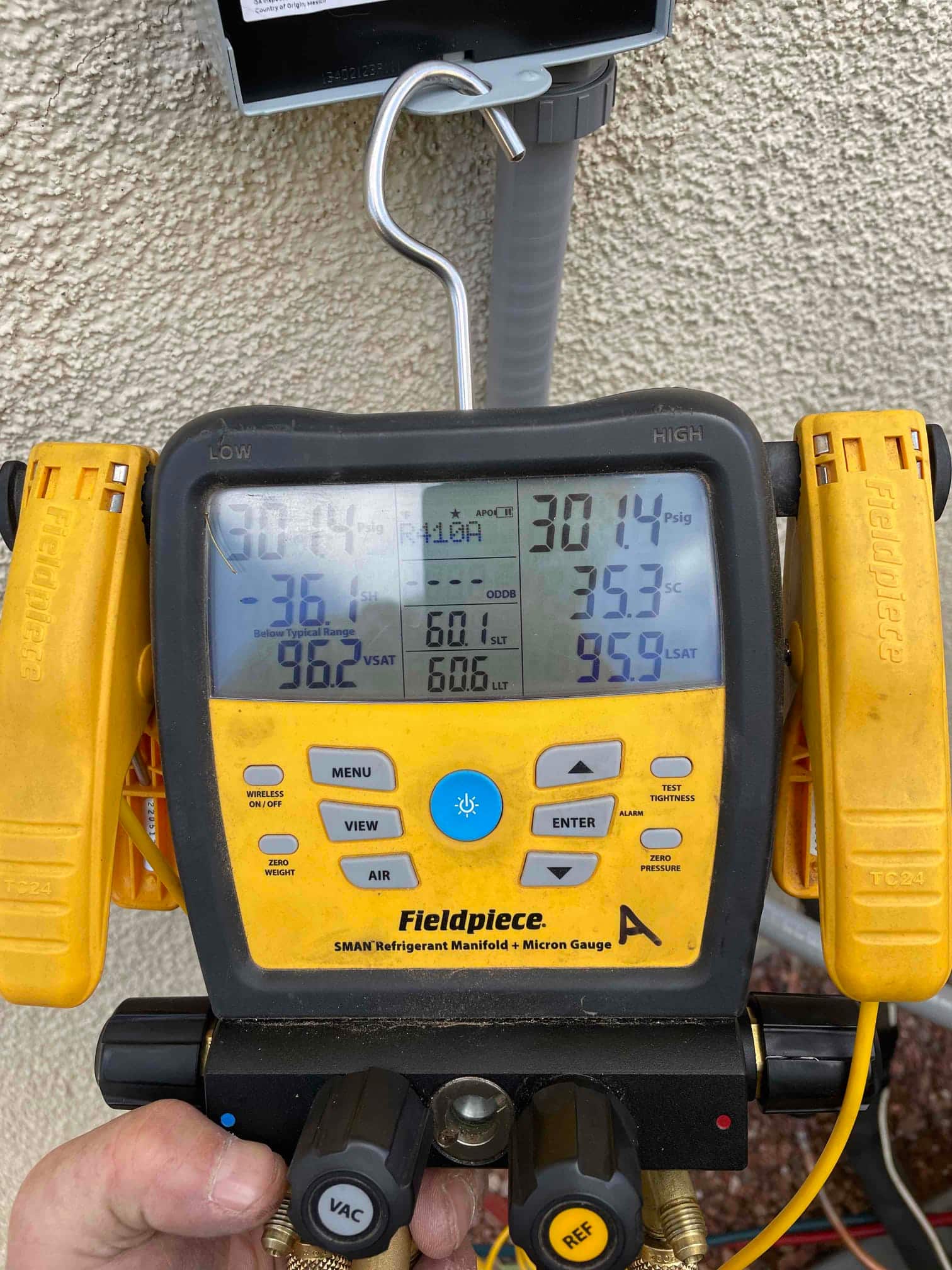

Digital manifold gauges display operating pressures while commissioning the outdoor unit during a new HVAC installation.
Digital manifold gauges display operating pressures while commissioning the outdoor unit during a new HVAC installation.

Electrical Verification

Voltage and amperage checked at the disconnect to confirm the equipment is drawing within nameplate spec.

Low-voltage and line-voltage connections inside the furnace cabinet with multiple conductors joined using red wire connectors.
Low-voltage and line-voltage connections inside the furnace cabinet with multiple conductors joined using red wire connectors.

Equipment Detail Shots

Close-ups of the components that make up the system.

Wall-mounted HVAC control screen displays system information while a technician points at the interface.
Wall-mounted HVAC control screen displays system information while a technician points at the interface.

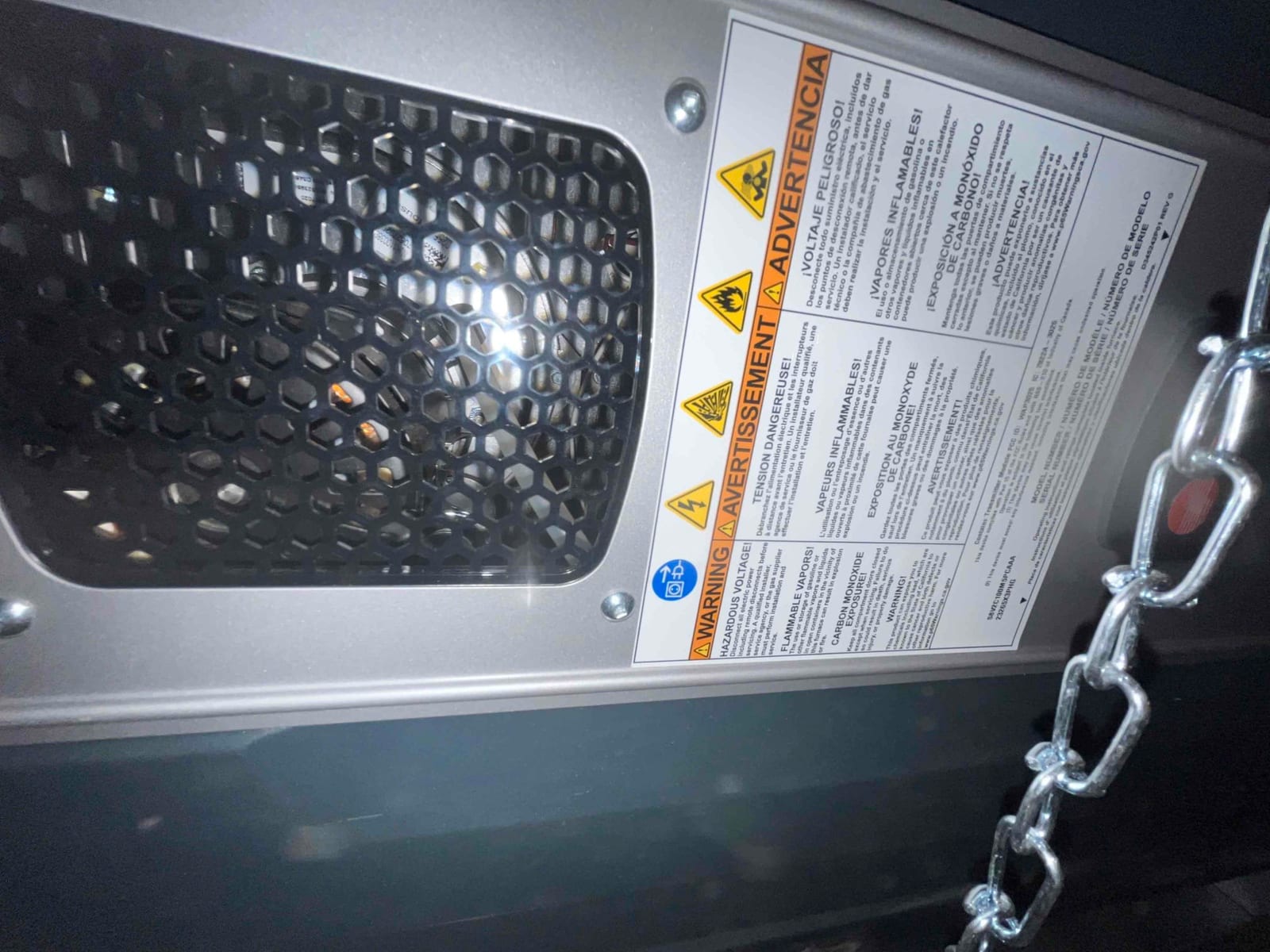

Close-up of an HVAC unit’s access panel with ventilation grille and multilingual safety warning label beside a hanging chain.
Close-up of an HVAC unit’s access panel with ventilation grille and multilingual safety warning label beside a hanging chain.
— Frequently Asked

Questions about this installation

What kind of system was installed in this Anthem job?

The installer completed the installation of three variable speed split systems to enhance the home's heating and cooling efficiency. This setup allows for better temperature control and energy savings compared to traditional systems.

How much does a new ac + furnace split system cost in Phoenix?

Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.

Does AZ Perfect Comfort offer financing for HVAC installations?

Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.

Does AZ Perfect Comfort install in Anthem?

Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Anthem and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.

Is the new equipment covered by a warranty?

Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.

AC Installation & ReplacementLearn about this HVAC serviceHVAC service in Anthem, AZWhat we offer in your neighborhoodAll AZ Perfect Comfort installsBrowse every published case studyAll installs in AnthemReal case studies in your areaAll installation case studiesEvery published install we’ve documentedComfort Club membershipPriority service and scheduled maintenanceLifetime Repair GuaranteeEvery eligible repair backed for lifeHVAC financing optionsPayment plans for larger projectsAbout AZ Perfect ComfortFamily-run Phoenix HVAC since day one
— Related Installs

More real installation case studies from AZ Perfect Comfort

— Thinking About a New System?

Get an instant estimate — or talk to a real installer today.

AZ Perfect Comfort has installed HVAC systems across Anthem and greater Phoenix since 2015. Every install is backed by manufacturer + workmanship warranties, and financing is available.

Instant Price Estimate Call (602) 613-3489
← Browse all installation case studies
Call Text
