Newly Installed
AC condenser
- Brand
- Trane
- Model
- 4TTV8X36A1000*
- Capacity
- 3-Ton
- Efficiency
- 18 SEER
New — installed 2026
Real Installation · Anthem
3-Ton Air Conditioning System Installation in Anthem — April 2023
✓
Licensed & Bonded InstallersCertified HVAC installation crew
💳
Financing AvailableFit a new system to your budget
🛡️
Manufacturer + Workmanship WarrantyEvery install backed in writing
Scope of Work
Installation of an XV 18 SEER 3-ton split gas attic unit.
Anthem · installed April 18, 2023
— At a Glance
Location
Anthem
Completed
April 18, 2023
System Type
Air Conditioning System
Capacity
3-Ton
Brand
Trane
Efficiency
18 SEER
Total Investment
$14,203
— What We Installed
Every component in this system
Each piece of equipment set at this home, its condition, and its place in the system.
Newly Installed
Evaporator Coil
- Brand
- Trane
- Model
- 4TXCB006DS3HC*
- Matched
- 3-Ton airflow
New — installed 2026
Newly Installed
Furnace
- Brand
- Trane
- Model
- TUD2B060ACV32*
- Matched
- 3-Ton airflow
New — installed 2026
Newly Installed
Thermostat
- Brand
- Trane
- Model
- TCONT850AC52UB
New — installed 2026
— Related Services
How this install fits into our Phoenix HVAC service
This install is one example of the AC Installation & Replacement work AZ Perfect Comfort performs across Anthem, AZ. You can browse more real 3-Ton Air Conditioning System Installation case studies in the AZ Perfect Comfort install log. New installs from AZ Perfect Comfort include first-year enrollment in our Comfort Club maintenance membership and are backed by our Lifetime Repair Guarantee on repairs. For qualifying installations, HVAC financing options let homeowners spread the investment over time.
— Final Commissioning Results
The real numbers from startup
Every install gets fully commissioned before we leave. These are the actual readings taken on-site by Fred, Ari, Andrew & Dan from the manifold gauges, micron gauge, and digital thermometers.
Refrigerant Circuit
- Refrigerant type
- R-410A

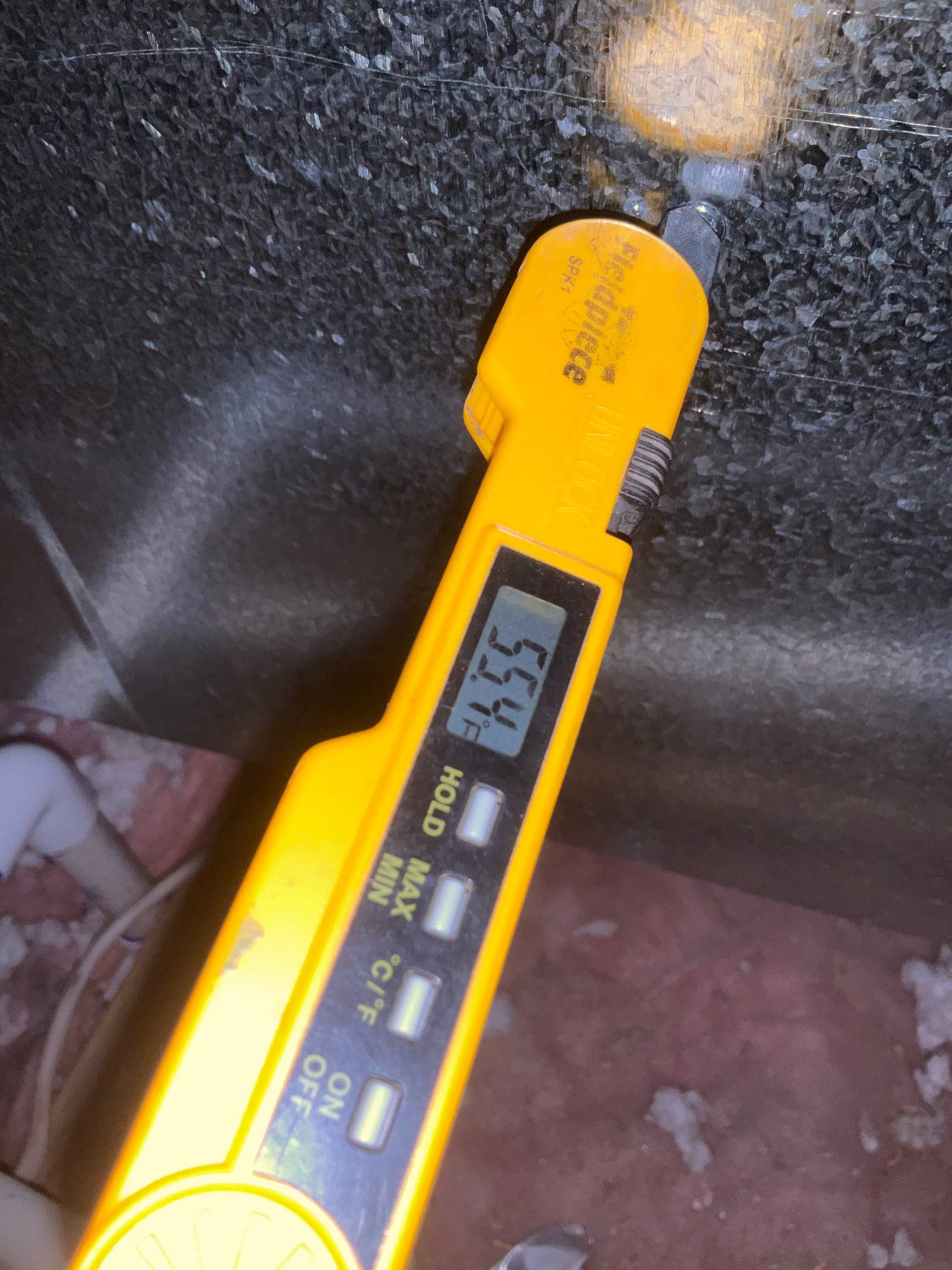

Air-Side Performance
- Supply-air temperature
- 55.4°F

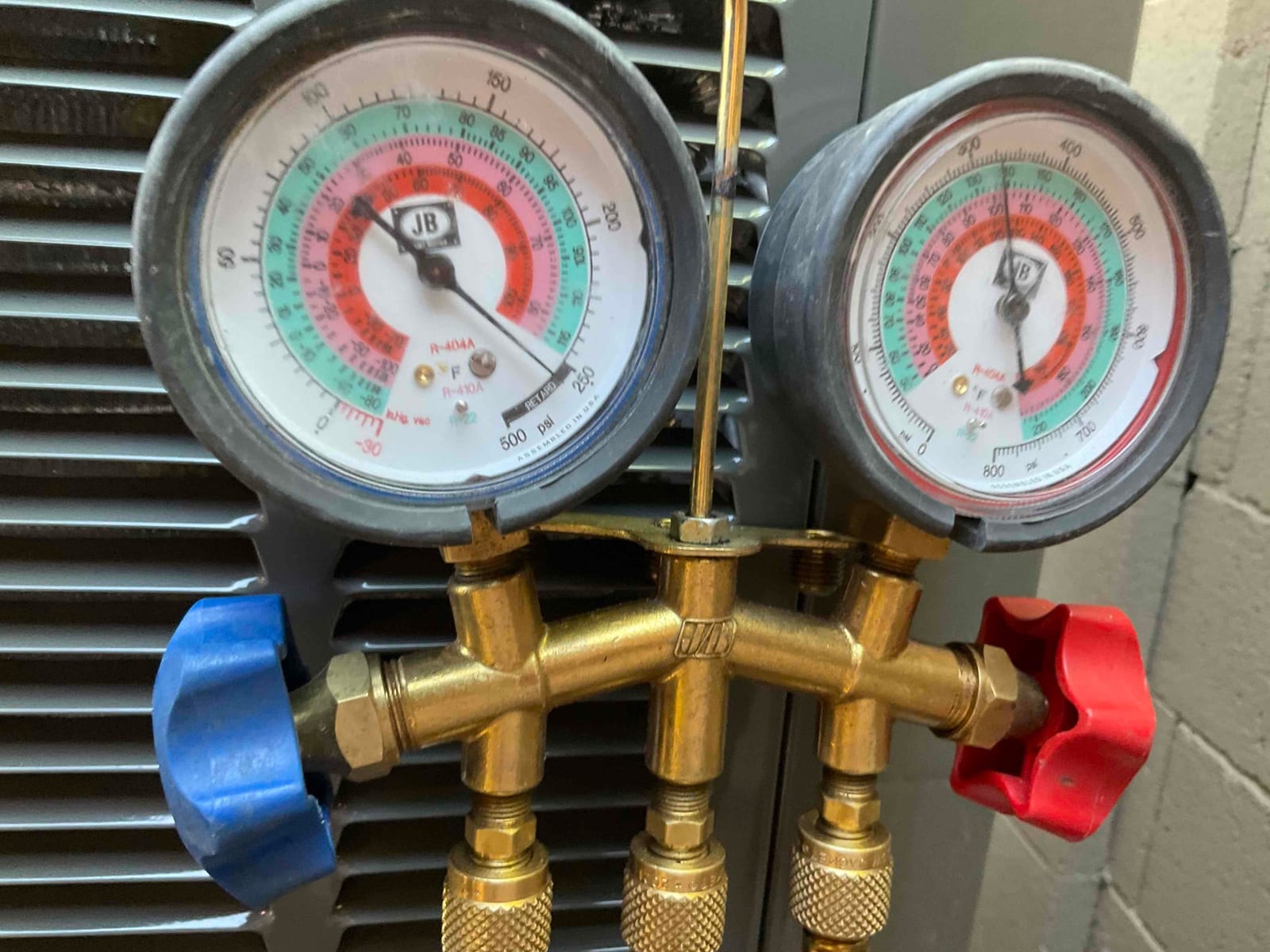

Nitrogen Pressure Test
- Test pressure held
- 400 PSIG

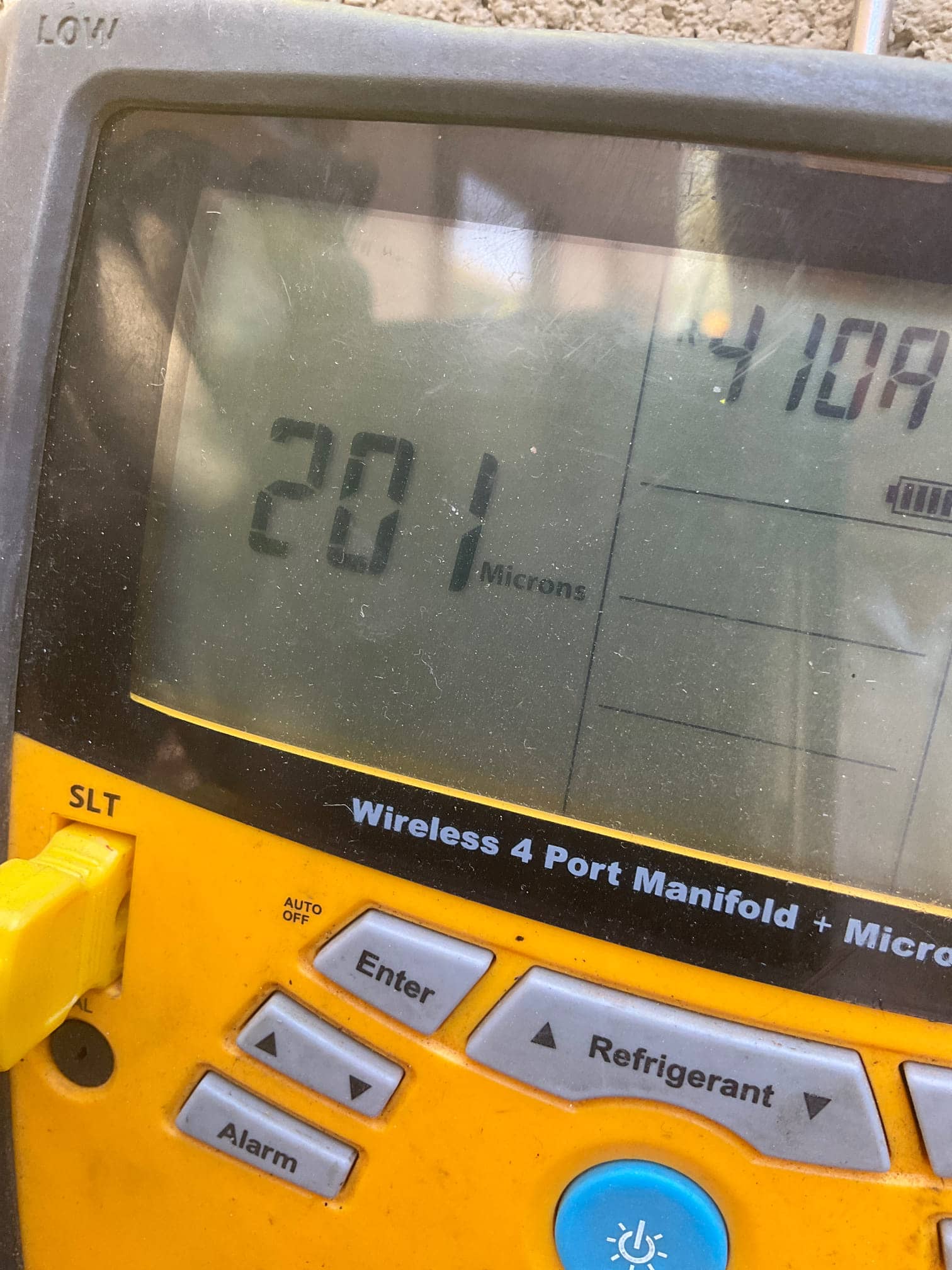

Vacuum / Evacuation
- Final vacuum reading
- 201 microns
Startup readings captured on the day of install. Manufacturer targets vary by ambient and load; every reading above met the system’s commissioning window.
— Line Items
The full equipment and materials list
| Item | Description | Qty |
|---|---|---|
| 318H-4TTV8X36A1-S8V2B060M4PCA* | 3 Ton - 18 Series - Premium Efficiency Variable Speed Residential HVAC System. Installed in a Horizonal configuration. Installation of the equipment includes all of the following:• Manual J heat | 1 |

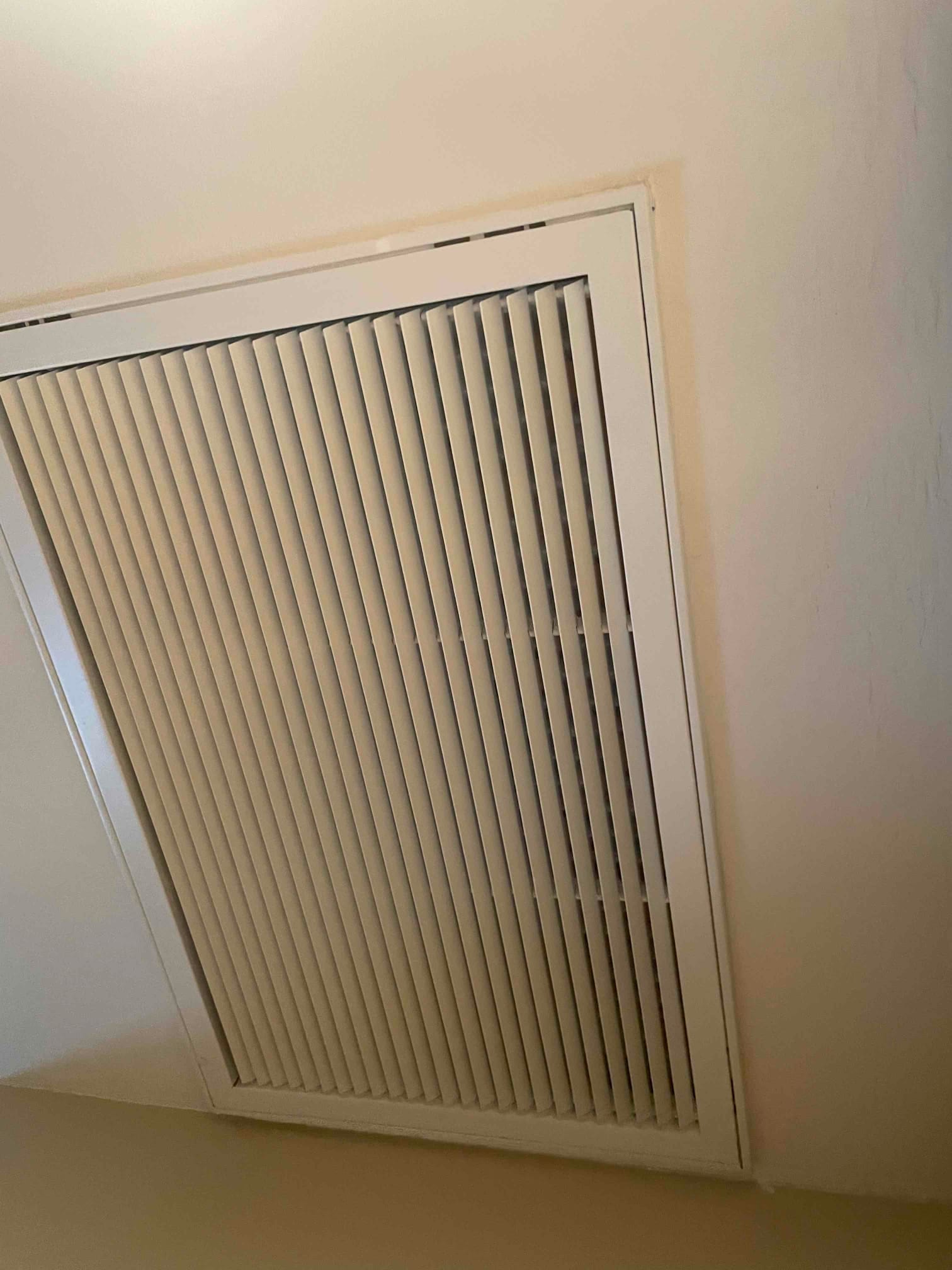

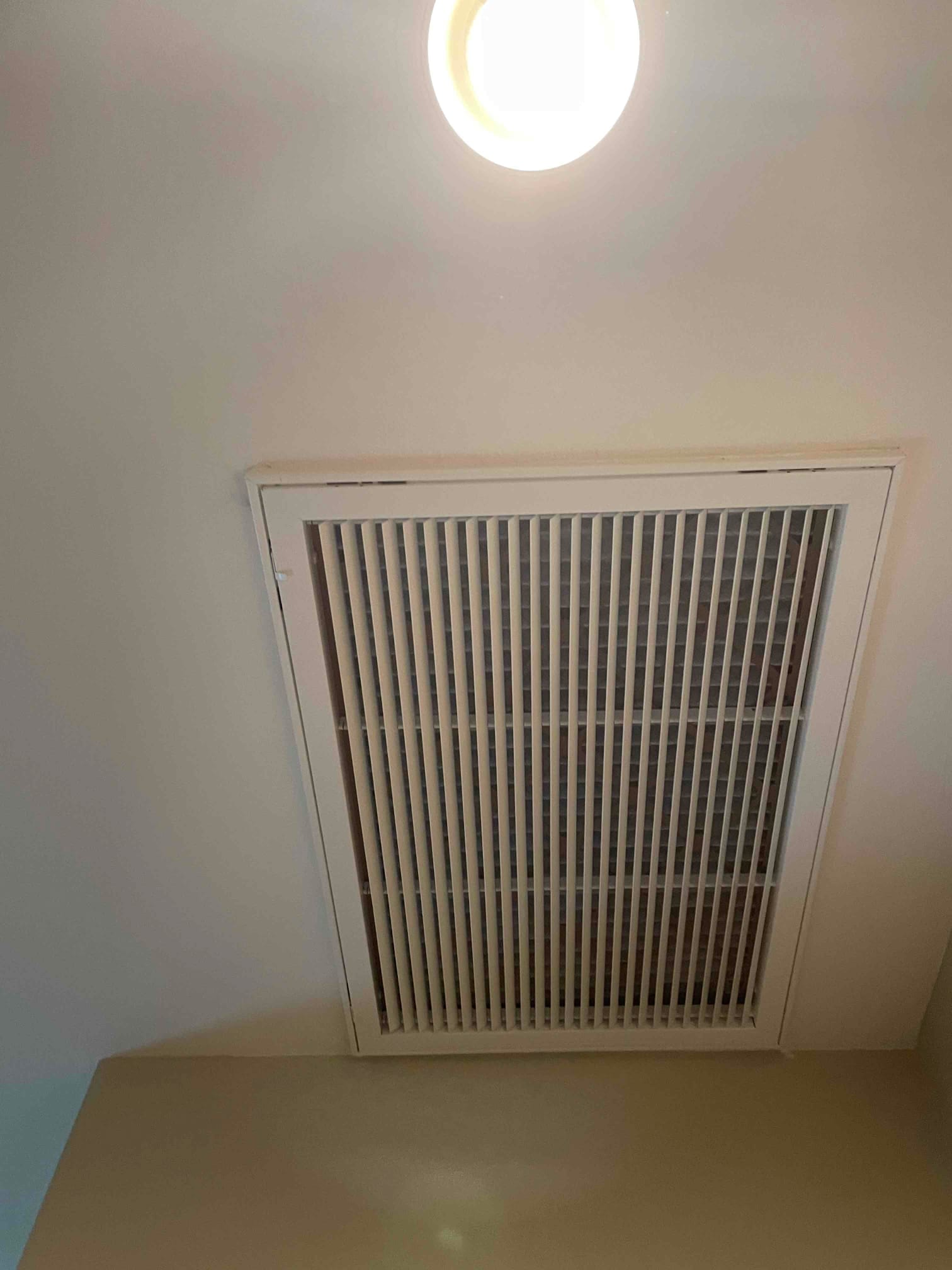

| AFB-160 | Remove existing return air filter grille and replace with new. Properly seal new grill and check for air leaks. | 1 |
Want an instant estimate for your home? Try our online pricing tool.
— Photo Documentation
20 photos from this installation
Every step of this installation was documented on-site by Fred, Ari, Andrew & Dan.

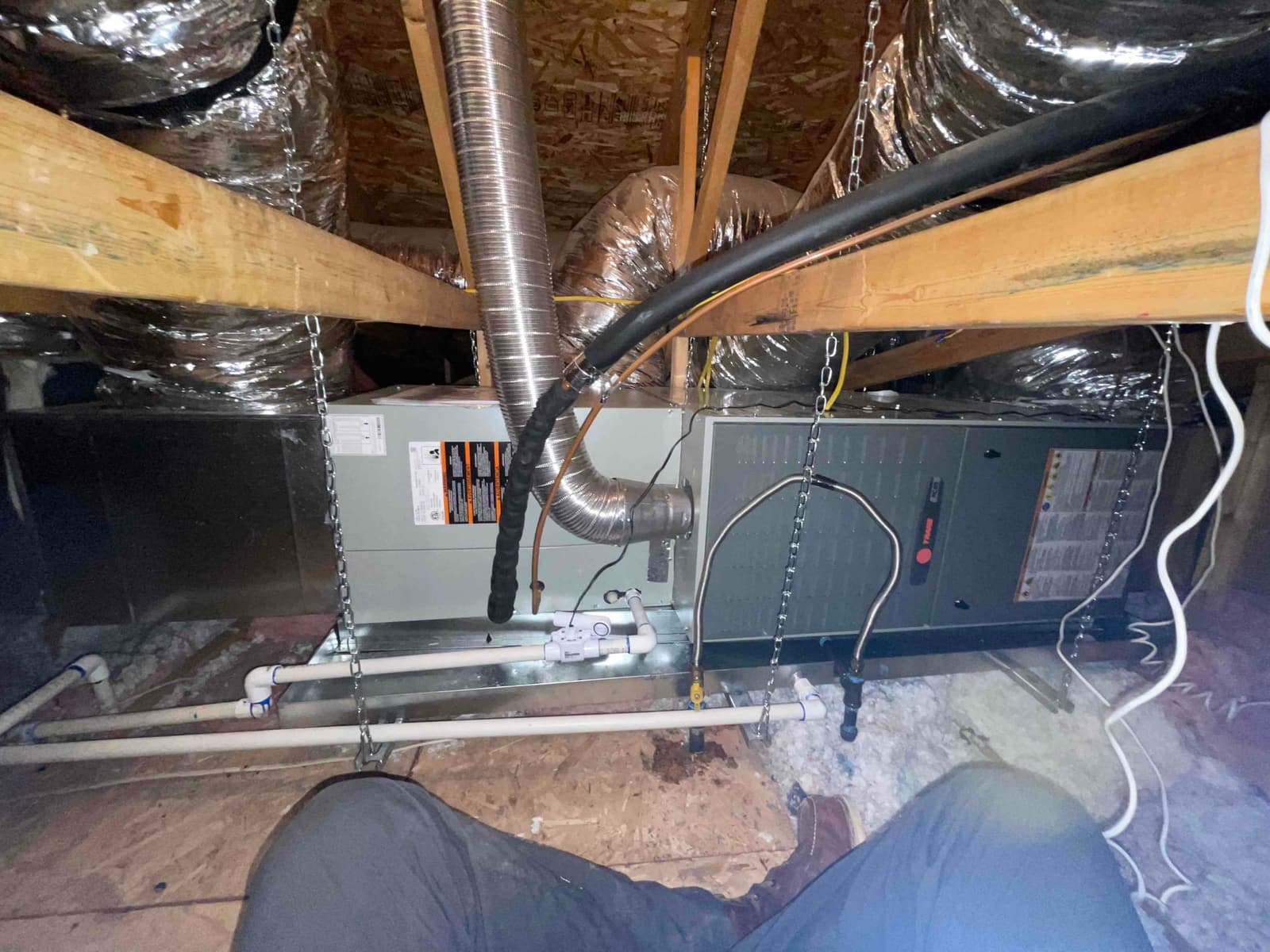

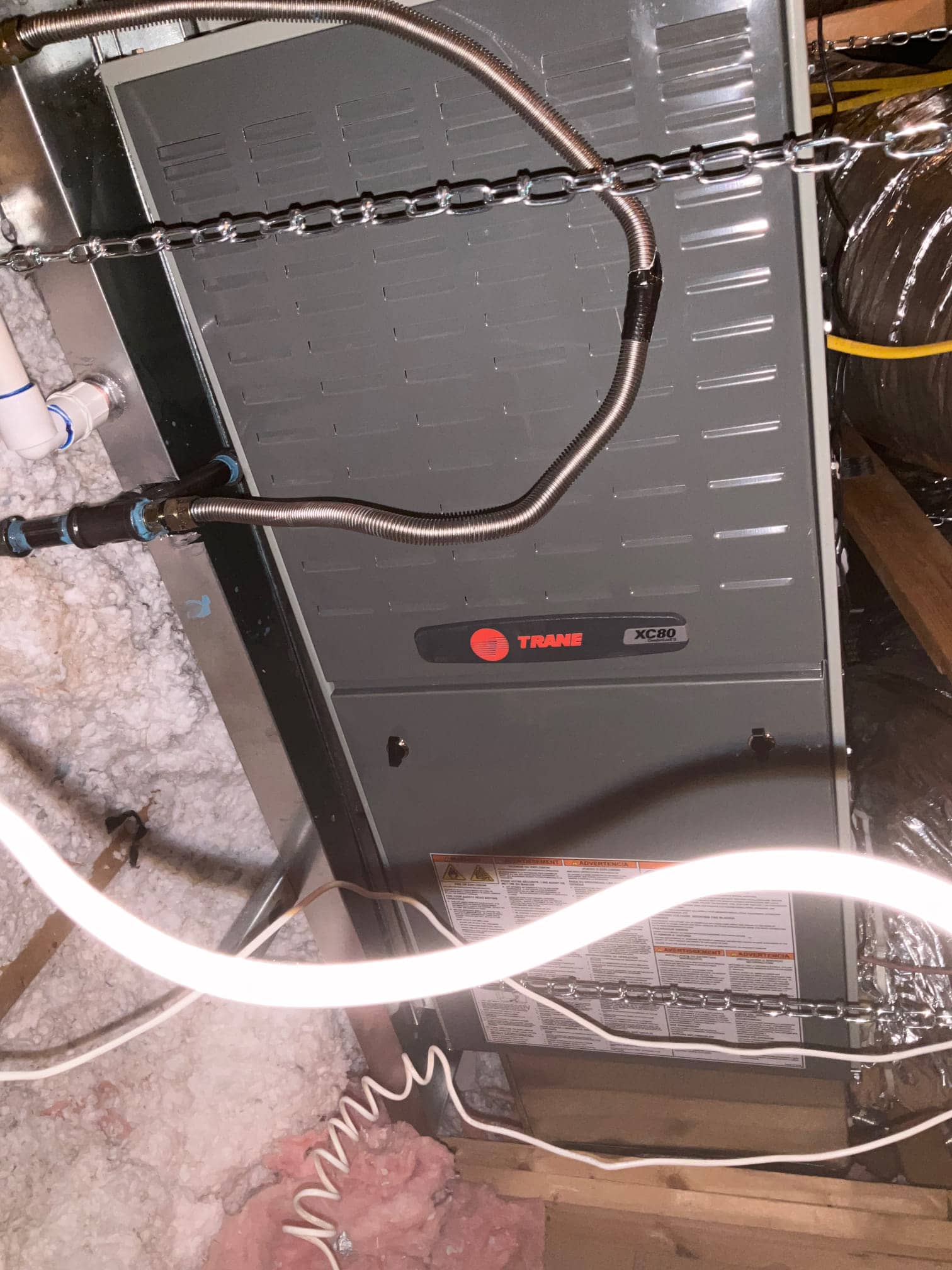

Installation Progress
Documentation of the physical install — new equipment set, line sets routed, disconnects wired, thermostat mounted.

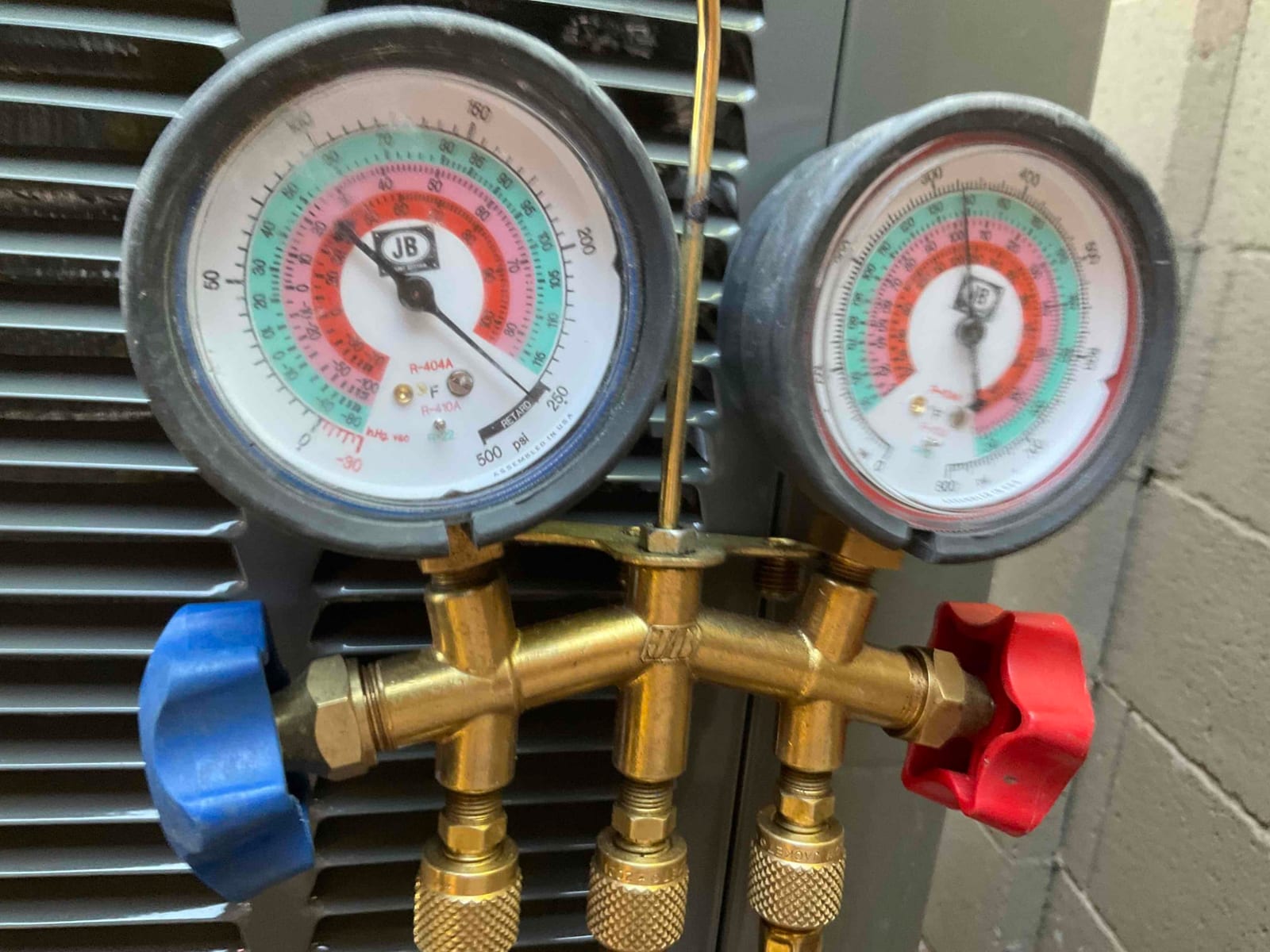

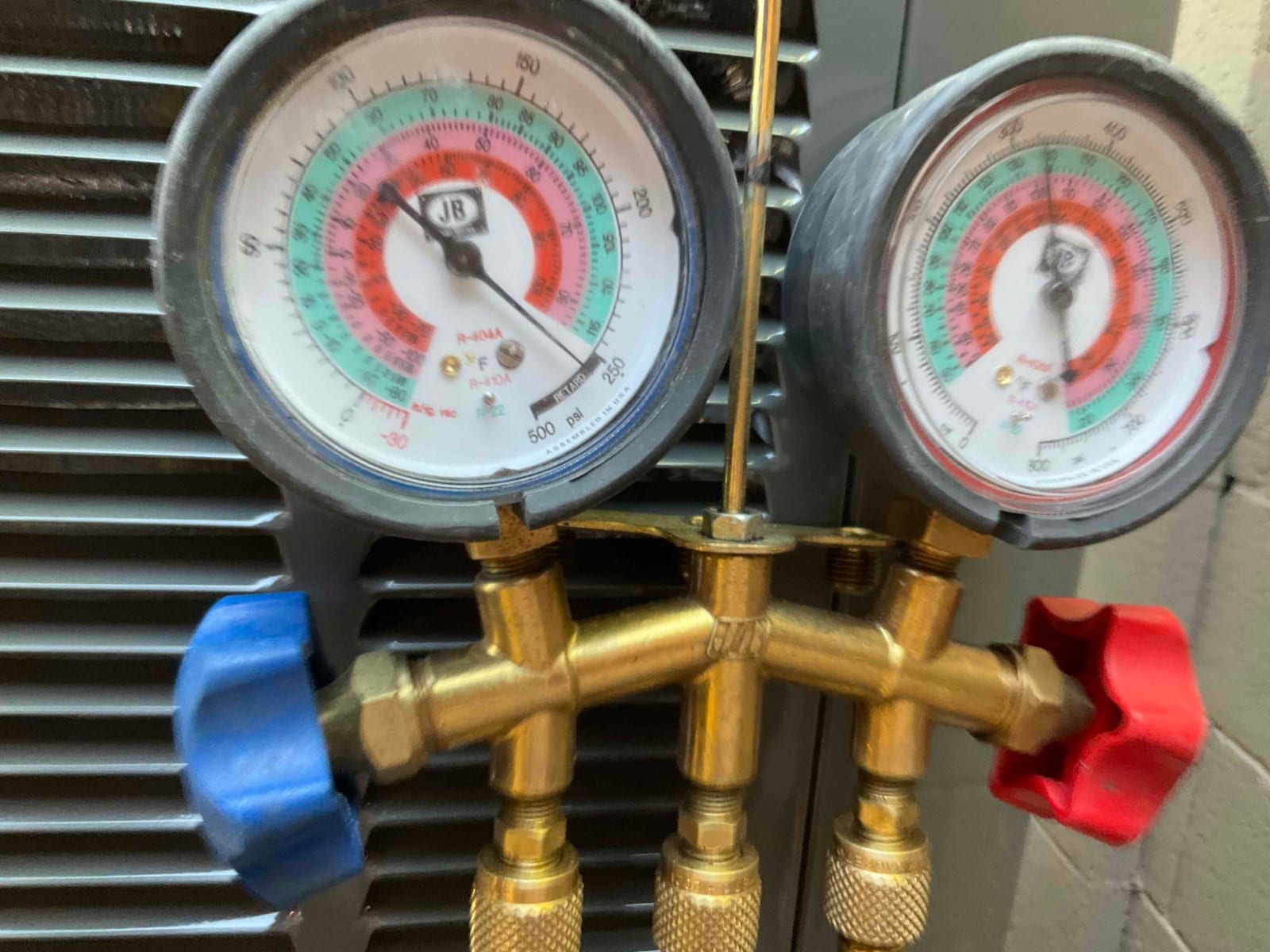

Nitrogen Pressure Test
Both manifold gauges holding equal pressure verifies a leak-free system before we ever bring in refrigerant.
Vacuum / Evacuation
A deep vacuum below 500 microns pulls all moisture and non-condensables out of the line set before charging.
Refrigerant Commissioning
Operating pressures, superheat, and subcooling confirmed to manufacturer spec after charge.

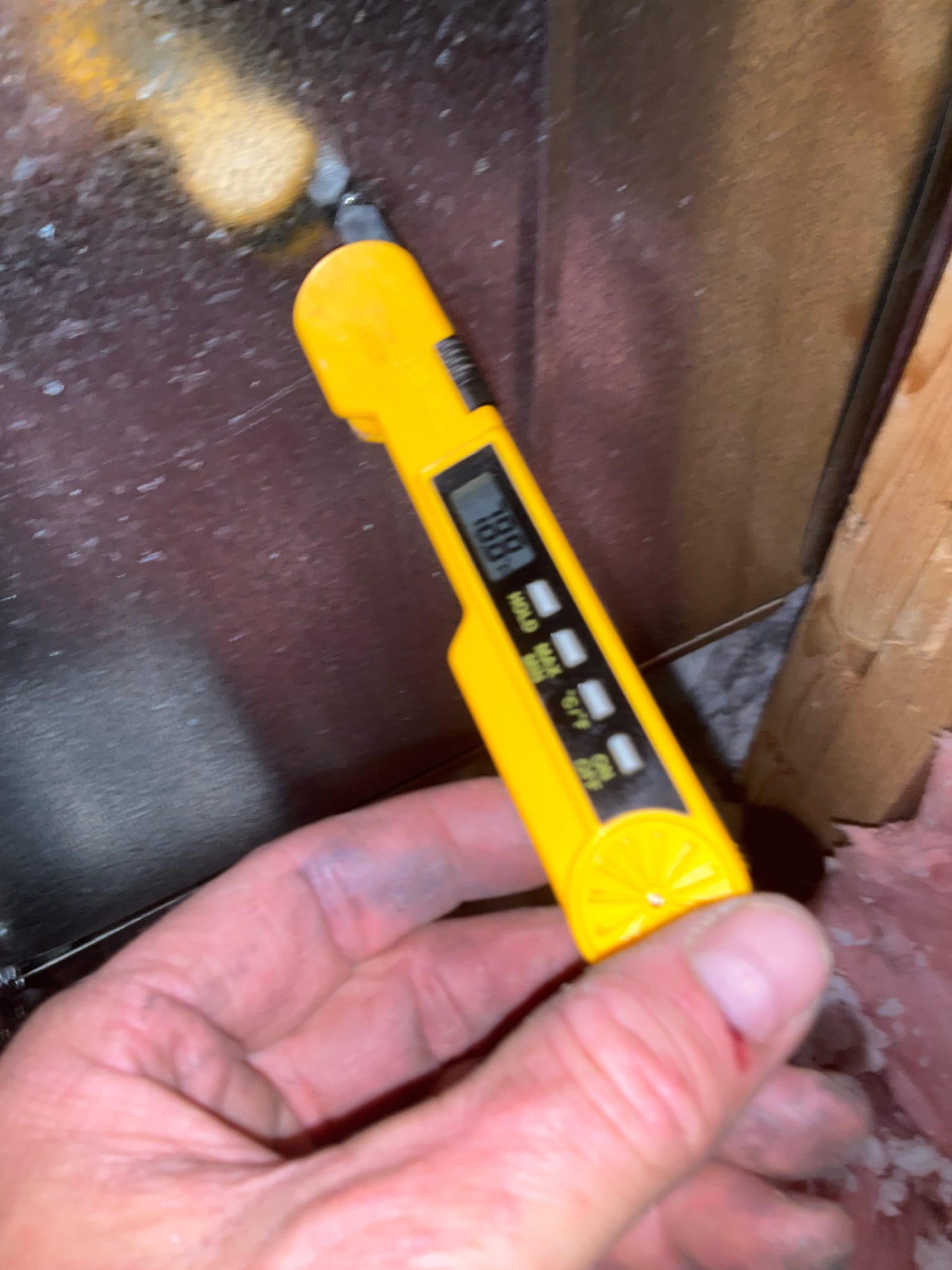

Air-Side Commissioning
Return and supply air temperatures measured to verify the temperature split falls in the target window.
Electrical Verification
Voltage and amperage checked at the disconnect to confirm the equipment is drawing within nameplate spec.
— Frequently Asked
Questions about this installation
What kind of system was installed in this Anthem job?
The installer completed the installation of a 3-Ton XV 18 split air conditioning system according to manufacturer specifications and the project proposal. This installation was performed to enhance the home's cooling efficiency and comfort.
How much does a new air conditioning system cost in Phoenix?
Pricing depends on tonnage, efficiency (SEER2 rating), brand, and installation complexity. Use our online pricing tool at https://azperfectcomfort.com/get-a-quote/ for an instant estimate on your home, or call (602) 613-3489 to schedule a free in-home consultation.
Does AZ Perfect Comfort offer financing for HVAC installations?
Yes. AZ Perfect Comfort offers financing options to qualified homeowners so a new system fits your monthly budget. Financing details are provided during your in-home consultation — call (602) 613-3489 to schedule.
Does AZ Perfect Comfort install in Anthem?
Yes. AZ Perfect Comfort installs residential and commercial HVAC systems throughout Anthem and the greater Phoenix Metro area. Call (602) 613-3489 to schedule your consultation.
Is the new equipment covered by a warranty?
Yes. New equipment installed by AZ Perfect Comfort is covered by the manufacturer's warranty (typically 10 years on parts when registered) plus our workmanship warranty on the installation itself. Diamond Members receive our Lifetime Repair Guarantee on covered repairs — ask about our maintenance plans.
